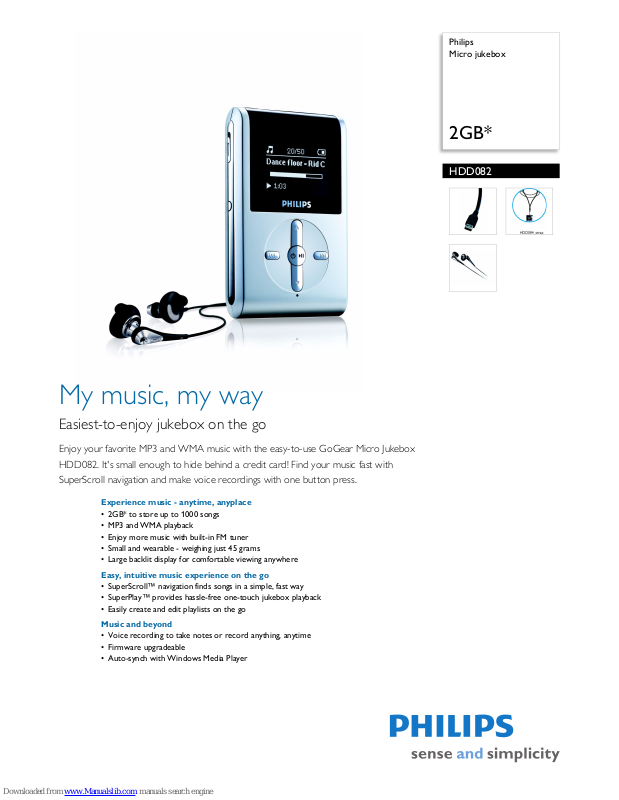

Philips HDD082 - Micro Jukebox 2 GB Digital Player User Manual

Philips
Micro jukebox

2GB*

HDD082

My music, my way

Easiest-to-enjoy jukebox on the go

Enjoy your favorite MP3 and WMA music with the easy-to-use GoGear Micro Jukebox
HDD082. It's small enough to hide behind a credit card! Find your music fast with
SuperScroll navigation and make voice recordings with one button press.

Experience music - anytime, anyplace

• 2GB* to store up to 1000 songs

• MP3 and WMA playback

• Enjoy more music with built-in FM tuner

• Small and wearable - weighing just 45 grams

• Large backlit display for comfortable viewing anywhere

Easy, intuitive music experience on the go

• SuperScroll™ navigation finds songs in a simple, fast way

• SuperPlay™ provides hassle-free one-touch jukebox playback

• Easily create and edit playlists on the go

Music and beyond

• Voice recording to take notes or record anything, anytime

• Firmware upgradeable

• Auto-synch with Windows Media Player

Specifications

HDD082/17

Micro jukebox

2GB*

Highlights

2GB*

2GB* to store up to 1000 songs

SuperScroll™ navigation

Double action search keys allow easy speed control
when scrolling through large libraries. You can
choose to move through your playlist one song at a
time or just press and hold down a little harder to
SuperScroll™ swiftly to your desired track.

SuperPlay™

SuperPlay™ lets you start enjoying your music
quickly without the hassle of first selecting playlists
or individual tracks. You can listen to all the music
under top-level music library categories, such as
Artists or Albums, by simply highlighting the
category and pressing the Play button. The jukebox
plays all the music according to the category sort
order. You can also combine SuperPlay™ with
Shuffle and Repeat to further enhance your music
enjoyment.

Picture/Display

•Backlight

• Backlight color: White

• Indications: Battery status, DBB

•Lines of text: 4

• Resolution: 96 x 64 pixels

•Type: LCD

Sound

• Bass enhancement: Digital Bass Boost

• Equalizer: 5-bands

• Equalizer customizable

• Equalizer settings: Classic

, Jazz, Funk, Techno, Hip

Hop

• Frequency response: 20 - 20 000 Hz

• Sensitivity: < 100dB

• THD: 0.01-0.1%

• Output Power: 2x5mW (16 Ohm)

Audio Playback

• Buffer memory: 16 MB

• Compression format: MP3, Windows Media™
Audio

, WAV

• ID3 Tag support: Album indication, Album title and
artis

t name, Genre title, Track title and artist name

• ID3-tag support

• MP3 bit rates: 8-320 kbps and VBR

• WMA bit rates: 32-192 kbps

• WMA sample rates: 8,11.025

,16,22.050,32,44.1,48

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording

Storage Media

• Built-in memory type: Hard disk

• Hard Disk Capacity: 2* GB

• Mass storage class compliant

• Music memory capacity: Up to 1000 songs*

Connectivity

• Computer support: PC

• Connector: 3.5 mm stereo

• DC in: 5V

• Front / Side connections: DC-in, Headphone out,
U

SB type B port

• Headphone: 3.5 mm

• Internet connection options: Upgradeable

• USB: USB 2.0

Convenience

• Battery charging indication

• Battery full indication

• Battery low indication

• Function: Keypad lock

• Language support:
Eng,F

r,Spa,NL,Ge,Port,Swe+more

•Superscroll

Accessories

• AC/DC Adaptor/Charger: Multi-voltage (AY4108)

• CD-ROM: with installer, PC SW, manuals

• Headphones: SHE775

• Neck strap: AY4215

• Pouch: AY4232

• USB cable: AY3911

• User Guide on CD-ROM:
Eng,F

r,Spa,NL,Ge,Port,Swe

•Warranty Card

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Hard disk space: 100 MB

• PC OS: Windows 2000 (SP4 or above), XP (SP1 or
above

)

• Processor: Pentium II or better

•RAM memory: 64 MB

•Sound card

•Video card

Dimensions

•Box dimensions (W x H x D): 252 x 93 x 153 mm

• Master carton dimensions: 198 x 168 x 266 mm

• Master carton quantity: 2

• Product dimensions (W x H x D): 53 mm x 86
mm x 16.7 mm mm

• Product weight: 0.078 kg

• Packaging type: D-box

Power

• Adaptor type: 100 - 240 V

• Battery capacity: 610 mAh

•Battery Type: Li-ion

• Charging time: 4 hrs full charge hr

• Rechargeable

• Removable/ replaceable

Software

• Windows Media Player 10

• Device manager

Tuner/Reception/Transmission

• Frequency range: 87.5 - 108 MHz

• Station presets: 10

•Tuner Bands: FM

•

Issue date 2009-05-22

Version: 3.0.4

12 NC: 9073 101 02251

© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.

www.philips.com

* 1GB = 1 billion bytes; available storage capacity will be less.
* Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United States
and/or other countries.

* Actual transfer speed may vary based on your operating system and

software configuration.
