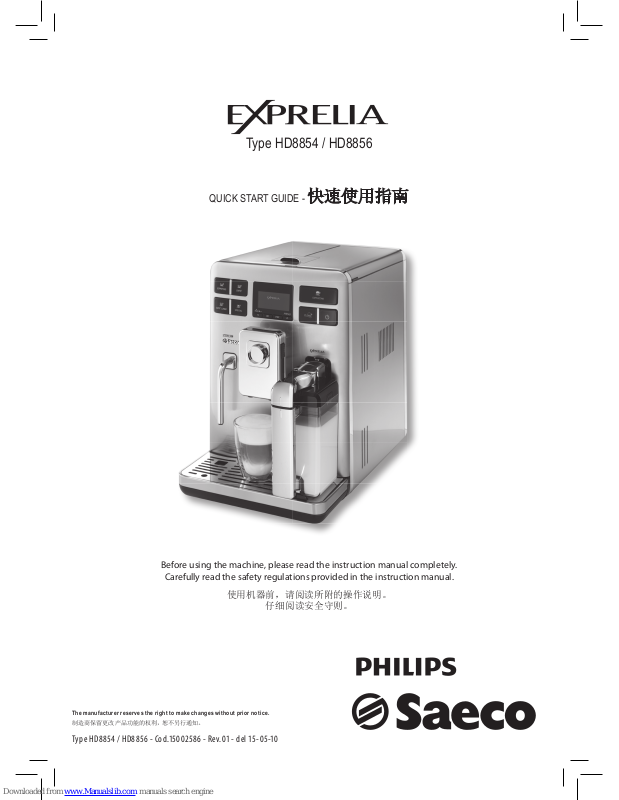

Philips HD8856/05, HD8854/15, Exprelia HD8856, Exprelia HD8854 Quick Start Manual
QUICK START GUIDE - 快速使用指南
Before using the machine, please read the instruction manual completely.
Carefully read the safety regulations provided in the instruction manual.
使用机器前，请阅读所附的操作说明。
仔细阅读安全守则。
The man ufacturer reser ves the r ight to make cha nges w ithou t prio r notic e.
制造商保留更改 产品功能的 权利，恕不另行通知。
Type HD8854 / HD8856 - Cod.15002586 - Rev.01 - del 15-05-10
Type HD8854 / HD8856
ACCESSORIES 附件
Intenza water lter
Intenza水过滤器
Cleaning brush
清洁刷
Descaling solution
除垢液
Brew group lubricant
冲煮头组件润滑油
Power cord
电源线
Water hardness tester
水硬度测试条
Brew group cleaning tablets
冲煮头组件清洁剂
Pre-ground co ee measuring scoop
预磨咖啡粉量勺
Milk carafe
牛奶玻璃瓶
Door opening button
开门按钮
Power cord connector
电源线连接器
Power button
电源按钮
Water tank
水罐
Co ee bean hopper with lid
咖啡豆加料斗（盖）
Grinder adjustment
磨具调节装置
Control panel
控制面板
Milk carafe connector
牛奶玻璃瓶连接器
Dispensing spout
分配头
Drip tray + grill
废水盘 + 格栅
Pre-ground bypass doser
粉末填充槽
Service door
服务门
SBS dial
SBS旋钮
Hot water/steam wand
热水/蒸汽棒
Full drip tray indicator
废水盘满指示灯
Brew group
冲煮头组件
Used grounds drawer
咖啡渣废物盘
Liquid recovery tray
液体回收盘
Remove the covers. Fill the hopper with
co ee beans, then close the covers.
取下盖子，向咖啡豆加料斗中
添加咖啡豆，然后盖上盖子。
Insert the plug into the socket located on the
back of the machine and insert the other end
into a power outlet with suitable current.
把电源线一端插入机器背部电
源插孔，另一端插入可用的电
源接口。
Adjust the dispensing spout and place a cup
beneath it.
调节分配头，然后在其下放置
一个咖啡杯。
Set the power button to the “I” position. Press
the stand-by button to start the machine.
将电源按钮调整到“I”位置。
按待机按钮打开机器。
(Only for beverages with milk) Rotate the
handle clockwise and press on the disengage buttons to allow the lid removal.
（仅适合冲泡牛奶类饮料）。
顺时针旋转控制手柄，按下释
放锁按钮，取下盖子。
Fill the carafe with cold milk. Fill milk to above
the “min” line, but do not exceed the “max”
level indicated on the carafe. Replace the lid.
向玻璃瓶中注入冷牛奶。使牛
奶超过玻璃瓶上指示的MIN最
低刻度线，但不应超过MAX最大
刻度线。
STARTING THE MACHINE 启动机器
Before turning on the machine, make sure that the power button is set to “0”.
开机前，确保电源按钮被设置在“0”位置
Remove the covers. Remove the water tank.
取下盖子，把水罐取下。
Fill the tank with fresh drinking water. Do not exceed the “max” level indicated on the water tank.
Place the water tank back into the machine.
向水罐中注入新鲜的饮用水。请
勿超过水罐上的MAX最大刻度。
然后将水罐放回机器上。
当牛奶玻璃瓶不打算使用或使用
后，应存放到冰箱中。
When the carafe with milk is not going to
be used, or after using it, store it in the
refrigerator.
E
Insert the carafe inclined towards the front. The
carafe base should be positioned on the hole
(E) located on the drip tray. Insert the carafe
by turning it towards the base through a round
movement (as shown in the gure), until it is
hooked to the hole (E) located in the drip tray.
The carafe will be naturally back in place.
将玻璃瓶倾斜向前插入。
玻璃瓶底座应置入废水盘的孔（E）
中。
通过向基座方向旋转将玻璃瓶（如图
所示），直到完全卡入到废水盘的孔
（E）中。
玻璃瓶将自动回到原来位置。
1 2 3
4
5 6
7 8 9
