Philips HD8852 User Manual
Register your product and get support at
www.philips.com/welcome
02
English
Type HD8852
USER MANUAL
EN
02
PLEASE READ THIS USER MANUAL CAREFULLY BEFORE USING THE MACHINE.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use only. Any servicing, other than cleaning
and user maintenance, should be performed by an authorized service center.
Do not immerse machine in water. To reduce the risk of fire or electric shock,
do not disassemble the machine. There are no parts inside the machine
serviceable by the user. Repair should be done by authorized service personnel
only.
1. Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during
operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or tripped
over.
2
ENGLISH
Congratulations on your purchase of a Saeco Energica Focus
full automatic espresso machine!
To fully bene t from the support that Saeco o ers, please
register your product at www.philips.com/welcome.
This user manual applies to HD8852.
The machine is suitable for preparing espresso co ees using
whole co ee beans. It is supplied with a milk carafe so you
can prepare perfect cappuccino or latte macchiato in a
quick and easy way. In this user manual you will nd all the
information you need to install, use, clean and descale your
machine.
CONTENTS
IMPORTANT..................................................................................................... 4
Safety instructions ....................................................................................................................................4
Warning ....................................................................................................................................................4
Caution .....................................................................................................................................................5
Compliance with standards ......................................................................................................................5
INSTALLATION ................................................................................................. 6
Product overview ......................................................................................................................................6
General description ................................................................................................................................... 7
PREPARING FOR USE ........................................................................................ 8
Machine packaging ...................................................................................................................................8
Machine installation ................................................................................................................................. 8
USING THE MACHINE FOR THE FIRST TIME ........................................................11
Automatic rinse/self-cleaning cycle ........................................................................................................11
Manual rinse cycle...................................................................................................................................11
Measuring and programming water hardness ........................................................................................13
“INTENZA+” water lter installation .......................................................................................................15
Replacing the “INTENZA+” water lter .................................................................................................... 17
ADJUSTMENTS ................................................................................................18
Saeco Adapting System ........................................................................................................................... 18
Adjusting the ceramic co ee grinder....................................................................................................... 18
Adjusting the aroma (co ee strength) ....................................................................................................19
Adjusting the dispensing spout ............................................................................................................... 20
Adjusting the co ee length ....................................................................................................................21
ESPRESSO, COFFEE AND LONG COFFEE BREWING ...............................................22
Espresso, co ee and long co ee brewing using co ee beans ................................................................22
Espresso, co ee and long co ee brewing using pre-ground co ee .........................................................23
MILK CARAFE..................................................................................................25
Filling the milk carafe .............................................................................................................................. 25
Inserting the milk carafe .........................................................................................................................26
Removing the milk carafe .......................................................................................................................28
Emptying the milk carafe ........................................................................................................................28
ENGLISH
WATER DISPENSER..........................................................................................29
Inserting the water dispenser .................................................................................................................29
Removing the water dispenser ................................................................................................................ 29
CAPPUCCINO BREWING ...................................................................................30
Adjusting the cappuccino length ............................................................................................................. 32
SPECIAL BEVERAGES .......................................................................................33
Latte Macchiato.......................................................................................................................................34
Hot milk .................................................................................................................................................34
Hot water dispensing ..............................................................................................................................35
BEVERAGE PROGRAMMING .............................................................................36
Cappuccino programming ....................................................................................................................... 37
Hot water programming .........................................................................................................................38
MACHINE PROGRAMMING ...............................................................................39
General menu .........................................................................................................................................40
Display menu ..........................................................................................................................................40
Water menu ............................................................................................................................................41
Maintenance menu .................................................................................................................................42
Factory Setting ........................................................................................................................................42
CLEANING AND MAINTENANCE ........................................................................43
Daily cleaning of the machine ................................................................................................................. 43
Daily cleaning of water tank .................................................................................................................... 44
Daily cleaning of the milk carafe: AUTO CLEAN cycle (after each use) ......................................................45
Weekly cleaning of the machine ............................................................................................................ 45
Weekly cleaning of the milk carafe ......................................................................................................... 47
Weekly cleaning of the brew group ......................................................................................................... 49
Monthly cleaning of the milk carafe ........................................................................................................51
Monthly lubrication of the brew group...................................................................................................54
Monthly cleaning of the brew group with “Co ee Oil Remover” .............................................................. 55
Monthly cleaning of the co ee bean hopper ...........................................................................................57
DESCALING .....................................................................................................58
MEANING OF THE DISPLAY ...............................................................................62
TROUBLESHOOTING ........................................................................................64
ENERGY SAVING ..............................................................................................67
Stand-by .................................................................................................................................................67
Disposal .................................................................................................................................................. 68
TECHNICAL SPECIFICATION ..............................................................................69
GUARANTEE AND SERVICE ...............................................................................69
Guarantee ...............................................................................................................................................69
Service .................................................................................................................................................... 69
ORDERING MAINTENANCE PRODUCTS .............................................................70
3
4
ENGLISH
IMPORTANT
Safety instructions
This machine is equipped with safety features. Nevertheless read the safety
instructions carefully and only use the machine as described in these
instructions to avoid accidental injury or damage.
Keep this user manual for future reference.
The term WARNING and this sign warn against possible severe injuries,
danger to life and/or damage to the machine.
The term CAUTION and this sign warn against slight injuries and/or dama-
ge to the machine.
Warning
• Connect the machine to a wall socket which is properly wired. Its main
voltage should comply with the technical data of the appliance.
• Do not let the mains cord hang over the edge of a table or counter, or
touch hot surfaces.
• Never immerse the machine, mains plug or mains cord in water (danger of electrical shock).
• Never direct the hot water jet towards body parts (danger of burning).
• Do not touch hot surfaces. Use handles and knobs.
• Remove the mains plug from the wall socket:
- If a disturbance occurs.
- If the machine will not be used for a long time.
- Before cleaning the machine.
Pull on the plug, not on the mains cord. Do not touch the mains plug
with wet hands.
• Do not use the machine if the mains plug, the mains cord or the machine itself is damaged.
• Do not make any modi cations to the machine or its mains cord. Only
have repairs carried out by a service centre authorized by Philips to
avoid a hazard.
• This machine is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the machine by a person responsible for
their safety.
ENGLISH
• Children should be supervised to ensure that they do not play with the
machine.
• Never insert ngers or other objects into the co ee grinder.
Caution
• The machine is for household use only. It is not intended for use in environments such as sta kitchens of shops, o ces, farms or other work
environments.
• Always put the machine on a at and stable surface.
• Do not place the machine on a hot plate, directly next to a hot oven,
heater or similar source of heat.
• Only put co ee beans into the co ee bean hopper. If ground co ee,
instant co ee or any other substance is put in, it may damage the
machine.
• Allow the machine to cool before putting on or taking o .
• Never use warm or hot water to ll the water tank. Use cold water only.
• Never clean with scrubbing powders or harsh cleaners. Simply use a
soft cloth dampened with water.
• Descale your machine regularly. The machine indicates when descaling is needed. Not doing this will make your appliance stop working
properly. In this case repair is not covered under your warranty!
• Do not keep the machine at temperature below 0 degree Celsius.
Residue water in the heating system may freeze and cause damage.
• Do not leave water in the water tank when the machine is not used
over a longer period of time. The water can become contaminated. Use
fresh water every time you use the machine.
5
5
Compliance with standards
The machine complies with art.13 of the Italian Legislative Decree dated 25
July 2005, no. 151 “Implementation of the directives 2005/95/EC, 2002/96/EC
and 2003/108/EC on the restriction of the use of certain hazardous substances in electrical and electronic equipment, as well as waste disposal”.
This machine complies with EU directive 2002/96/EC.
6
INSTALLATION
Product overview
11
12 13 14
15
16
18
21
22
25
1
2
6
7
8
3
9
4
10
5
17
19
20
23
26 27 28
24
3635343332313029
General description
1. Water tank
2. Pre-ground co ee compartment
3. Service door
4. Dispensing spout
5. Full drip tray indicator
6. Co ee bean hopper with lid
7. Grinder adjustment
8. Control panel
9. Hot water dispenser
10. Drip tray (external)
11. Brew group
12. Co ee grounds drawer
13. Drip tray (internal)
14. Service door button
15. Power cord socket
16. Power button
17. Milk carafe

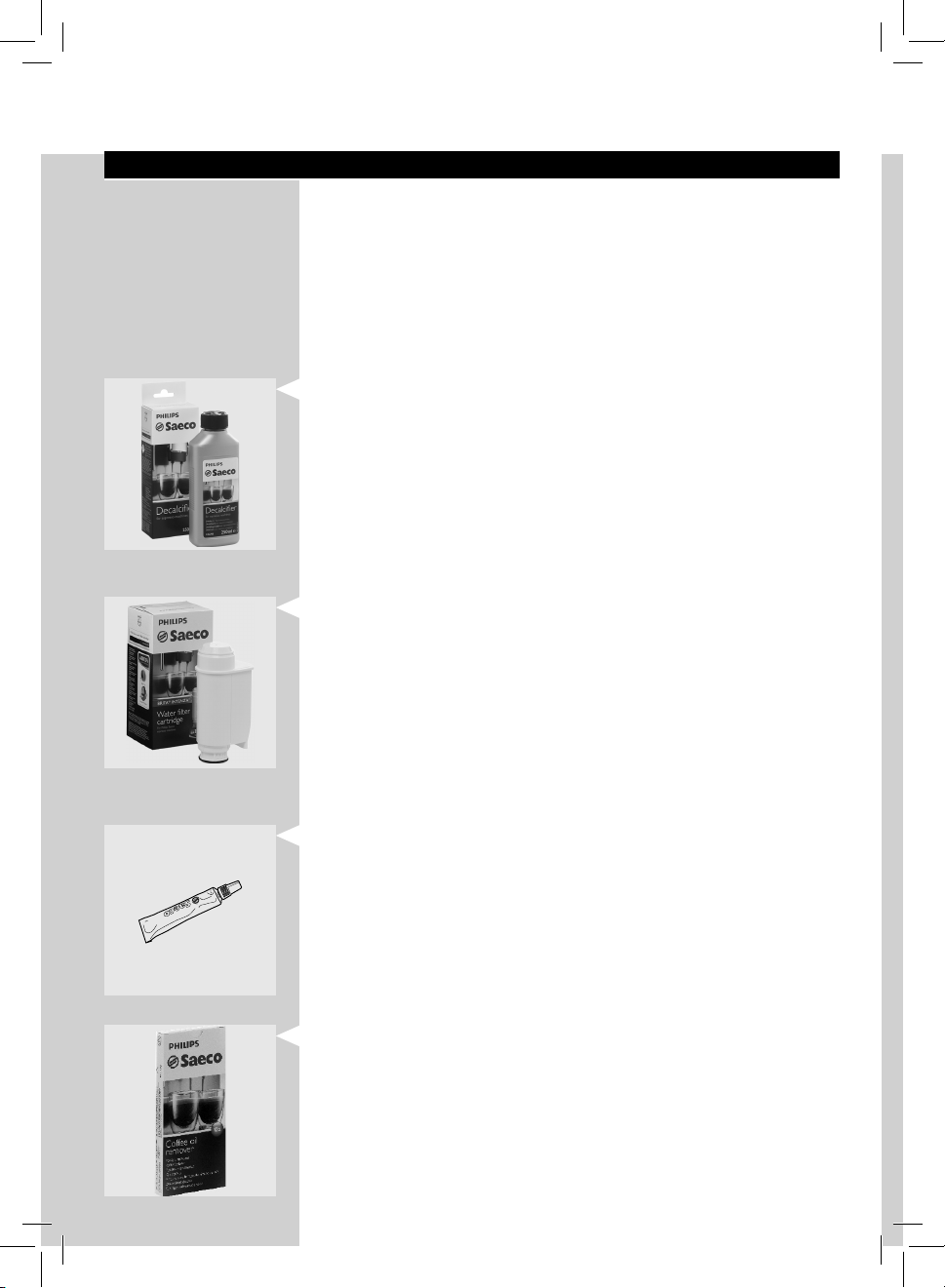

18. Co ee oil remover – to be purchased separately
19. Descaling solution – to be purchased separately
20. INTENZA+ water lter – to be purchased separately
21. Pre-ground co ee scoop
22. Grease for brew group
23. Water hardness test
24. Cleaning brush
25. Power cord
26. Espresso button
27. Co ee button
28. Cappuccino button
29. Long Co ee button
30. “Special beverage” button
31. “Aroma” - Pre-ground co ee button
32. Function button
33. Function button
34. “MENU” button
35. Carafe cleaning cycle activation button (Clean)
36. Stand-by button
ENGLISH
7
7
8
ENGLISH
PREPARING FOR USE
Machine packaging
The original packaging has been designed and constructed to protect the
machine during transport. We recommend keeping the packaging material
for possible future transport.
Machine installation
Remove the drip tray with grill from the packaging.
1
Remove the machine from the packaging.
2
For best use, it is recommended to:
3
• Choose a safe, level surface, where there will be no danger of overturning it or being injured.
• Choose a location that is su ciently well-lit, clean and near an
easily reachable socket.
• Allow for a minimum distance from the sides of the machine as
shown in the illustration.
Attach the drip tray (external) with grill to the machine. Make sure it is
4
placed correctly.
Note:
The drip tray collects the water that comes out of the dispensing spout
during each rinse/self-cleaning cycle as well as co ee that might be spilled
during beverage preparation. Empty and clean the drip tray daily and each
time the full drip tray indicator is raised.
Caution:
NEVER remove the drip tray when the machine has just been turned
on. Wait a couple of minutes, since the machine will carry out a rinse/
self-cleaning cycle.
ENGLISH
Open the lid and remove the water tank by the handle.
5
Rinse the water tank under fresh water.
6
Fill the tank with fresh water up to the MAX level and re-insert it into
7
the machine. Make sure it is fully inserted.
Caution:
Never ll the water tank with warm, hot, sparkling water or any other
liquid, as this may cause damage to the water tank and the machine.
Open the lid of the co ee bean hopper and take out the inner lid.
8
9
9
Slowly pour co ee beans into the hopper. Put the inner lid back and
9
close the lid.
Note:
Do not pour too many co ee beans into the co ee bean hopper as this will
reduce the grinding performance of the machine.
Caution:
Only co ee beans must be put into the co ee bean hopper. Ground
co ee, instant co ee, caramelized co ee or any other object may
damage the machine.
10
ENGLISH
LINGUA
ITALIANO
ENGLISH
DEUTSCH
Insert the plug into the socket located on the back of the machine.
10
Insert the plug on the other end of the power cord into a wall socket
11
with suitable power voltage.
Switch the power button to “I” to turn on the machine.
12
This page will be displayed. Select the desired language by pressing
14
the scrolling buttons “
” or “ ” .
LANGUAGE
ITALIANO
ENGLISH
DEUTSCH
HEATING UP…
Press the “ ” button to con rm.
15
Note:
If no language is selected, you will be requested to select it the next time
the machine is started.
The machine is heating-up.
16
RINSING
ENGLISH
USING THE MACHINE FOR THE FIRST TIME
Automatic rinse/self-cleaning cycle
When warm-up is completed, the machine automatically performs a rinse/
self-cleaning cycle of the internal circuit with fresh water. This takes less
than a minute.
Place a container under the dispensing spout to catch the small
17
amount of water which will be dispensed.
This page will be displayed. Wait for the cycle to nish automatically.
18
11
11
STOP
Note:
You can stop dispensing by pressing the “
When the above steps are complete, the machine shows this display.
19
” button.
Manual rinse cycle
You need to initiate this, when using the machine for the rst time.
During this process you activate the co ee brewing cycle and fresh water
ows through the dispensing spout. This takes a few minutes.
Place a container under the dispensing spout.
1
12
ENGLISH
GROUND COFFEE
INSERT
AND PRESS OK
OK ESC
Select the pre-ground co ee brewing function by pressing the “ ”
2
button. The machine shows this icon.
Press the “ ” button.
3
Press the “ ” button. The machine starts dispensing water.
4
Note:
Do not add pre-ground co ee into the compartment.
When the dispensing has nished, empty the container and place it
5
under the water dispenser.
SPECIAL BEVERAGES
HOT MILK
HOT WATER
Press the “ ” button.
6
Press the “ ” button to scroll the pages. Press “ ” to select HOT WA-
7
TER.
ENGLISH
Once the water has been dispensed, remove and empty the container.
8
Repeat the process from step 5 to step 8 until the water tank is empty.
9
Then, continue with step 10.
At the end, ll the water tank again up to the MAX level. Now the ma-
10
chine is ready for brewing co ee.
Note:
When you haven’t used the machine for 2 or more weeks, the machine
will automatically perform an automatic rinse/self-cleaning cycle after
you switch it on. Thereafter you need to initiate the manual rinse cycle as
described above.
The automatic rinse/self-cleaning cycle is also initiated automatically when
starting up the machine (with a cold boiler), when the machine is preparing to go into stand-by mode or after you have pressed the “
turn o the machine (after a co ee has been brewed).
” button to
13
13
Measuring and programming water hardness
Measuring water hardness is very important for de ning the frequency in
which the machine has to be descaled and to install the “INTENZA+” water
lter (for more detail on the water lter see next chapter).
To measure the water hardness follow the steps below:
Immerse the water hardness test strip provided with the machine in
1
water for 1 second.
Note:
The test strip can only be used for one measurement.
Wait for one minute.
2
14
Intenza Aroma System
ENGLISH
C
B
A
23 4
Machine water hardness setting
1
Check how many squares have changed the colour to red and then
3
consult the table.
Note:
The numbers on the water hardness test strip correspond to the water
hardness adjustment settings.
More precisely:
1 = 1 (very soft water)
2 = 2 (soft water)
3 = 3 (hard water)
4 = 4 (very hard water)
The letters correspond to the references that are located at the base of the
“INTENZA+” water lter (see next chapter for this).
Now you can program the water hardness setting. Press “ ” but-
4
ton to access the machine main menu.
Note:
The machine is supplied with standard water hardness setting, suitable for
most of the type of water.
1
1
MENU
BEVERAGE MENU
MACHINE MENU
2
MACHINE MENU
DISPLAY MENU
WATER MENU
MAINTENANCE
2
WATER MENU
HARDNESS
ENABLE FILTER
ACTIVATE FILTER
Press the “ ” button to scroll down the pages. Press “ ” to select
5
MACHINE MENU.
Press the “ ” button to select WATER MENU. Press “ ” to con rm.
6
Select HARDNESS option by pressing the “ ” button and set the water
7
hardness value.
ENGLISH
15
15
“INTENZA+” water lter installation
We recommend you to install the “INTENZA+” water lter as this prevents
lime scale to build up in your machine and preserves a more intense aroma
to your espresso co ee.
You can purchase separately the INTENZA+ water lter. Please refer to the
ordering maintenance products chapter in this user manual for further
details.
Water is a crucial part of every espresso, so it’s most important to always
have it professionally ltered. Using the “INTENZA+” water lter will prevent
mineral deposits from building up and improve your water quality.
Remove the small white lter from the water tank and store it in a dry
1
place.
Remove the “INTENZA+” water lter from its packaging, immerse it ver-
2
tically (with the opening positioned upwards) in cold water and gently
press the sides so as to let the air bubbles out.
Set the lter according to the measurements performed (see previous
3
chapter) and indicated on the base of the lter:
A = Soft water – equals 1 or 2 on the test strip
B = Hard water (standard) – equals 3 on the test strip
C = Very hard water – equals 4 on the test strip
Put the lter into the empty water tank. Press it until it cannot move
4
further down.
16
1
ENGLISH
MENU
BEVERAGE MENU
MACHINE MENU
2
Fill the water tank with fresh water and reinsert it into the machine.
5
Place a large container (1,5 lt) under the water dispenser.
6
Press the “ ” button to access the machine main menu.
7
Press the “ ” button to scroll down the pages. Press “ ” to select
8
MACHINE MENU.
1
1
ACTIVATE FILTER?
MACHINE MENU
DISPLAY MENU
WATER MENU
MAINTENANCE
2
WATER MENU
ENABLE FILTER
ACTIVATE FILTER
2
OK ESC
Press the “ ” button to select WATER MENU. Press “ ” to con rm.
9
Select ACTIVATE FILTER, and then press “ ”.
10
Press the“ ” button to con rm that you want to start the lter activa-
11
tion procedure.
INSERT FILTER.
FILL THE TANK
OK
INSERT WATER SPOUT
OK
PLACE A CONTAINER
UNDER THE
WATER SPOUT
OK
ACTIVATE FILTER
ENGLISH
Press the“ ” button to con rm that you have inserted the water lter
12
and lled the water tank.
The machine reminds you to install the water dispenser. Check that it is
13
correctly installed. Press“
Press the“ ” button to con rm that a container is placed under the
14
water spout.
The machine starts dispensing water. This page will be displayed. Once
15
the machines stop dispensing, remove the container.
” to con rm.
17
17
Replacing the “INTENZA+” water lter
When the “INTENZA+” water lter needs to be replaced with a new one,
this icon is displayed
Replace the lter as described in the previous chapter.
1
The machine is now programmed to manage a new lter.
2
.
Note:
If the lter is already installed and you want to remove - but not replace it,
select the “ENABLE FILTER” option and set it to OFF.
If there is no “INTENZA+” water lter installed, insert the small white lter
previously removed into the water tank.
18
ENGLISH
ADJUSTMENTS
The machine allows for certain adjustments so that you can brew the best
tasting co ee possible.
Saeco Adapting System
Co ee is a natural product and its characteristics may change according to
its origin, blend and roast. The machine is equipped with a self-adjusting
system that allows the use of all types of co ee beans available on the
market (not for caramelized beans).
The machine automatically adjusts itself after brewing several cups of
co ee to optimize the extraction of the co ee to the compactness of the
ground co ee.
Adjusting the ceramic co ee grinder
Ceramic co ee grinders always guarantee accurate grinding for every
co ee blend and prevent the beans from overheating.
This provides for full aroma preservation, delivering the truly Italian taste in
every cup.
Warning:
The ceramic co ee grinder contains moving parts that may be dangerous. Therefore, do not insert ngers and/or other objects. Turn o the
machine by pressing the ON/OFF button and remove the plug from
the socket before carrying out any type of operation inside the co ee
bean hopper.
You can adjust the ceramic grinders to set the co ee grinding to your
personal taste.
Warning:
The grinder adjustment knob, inside the co ee bean hopper, must be
turned only when the ceramic co ee grinder is working.
This adjustment can be carried out by pressing and turning the grinder
adjustment knob inside the co ee bean hopper.
Open the lid of the co ee bean hopper.
1
ENGLISH
Press and turn the grinder adjustment knob one notch at a time. You
2
will taste the di erence after brewing 2-3 cups of espresso.
The reference marks on the co ee bean hopper lid indicate the grind
3
setting. There are 8 di erent grind settings to choose from:
19
19
- Very coarse grind (
) : lighter taste, for dark roasted co ee blends
To
- Very ne grind (
) : bolder taste, for light roasted co ee blends
When you adjust the ceramic co ee grinder to a ner setting, your co ee
will taste stronger. For a milder co ee taste, adjust the ceramic co ee
grinder to a coarser setting.
Adjusting the aroma (co ee strength)
Choose your favorite co ee blend and adjust the amount of co ee to be
grounded until they meet your personal taste. You can also select the preground co ee function.
Note:
Selection must be made prior to selecting co ee.
CAPPUCCINO
COFFEE QUANTITY
PREBREWING
COFFEE TEMPERATURE
The machine allows you to adjust the right quantity of ground co ee for
each product. The standard adjustment for each product can be set in the
“BEVERAGE MENU” (see the Beverage Programming chapter, Co ee Quantity option).
20
ENGLISH
To temporarily change the amount of co ee ground, press the “ ”
1
button on the control panel.
The aroma changes by one degree, according to the selected amount:
2
= mild dose
= medium dose
= strong dose
= The beverage is brewed by using the pre-ground co ee
Adjusting the dispensing spout
The height of the dispensing spout can be adjusted to better t the
dimensions of the cups that you wish to use.
Move the dispensing spout up or down with your ngers to adjust its
height as shown in the image.
The recommended positions are:
For the use of small cups;
For the use of large cups;
ENGLISH
For the use of latte macchiato cups.
Note:
The dispensing spout can also be removed to allow the use of very large
containers.
Two cups can be placed under the dispensing spout to brew two cups of
co ee at the same time.
Adjusting the co ee length
The machine allows you to adjust the amount of brewed co ee or milk
according to your taste and the size of your cups.
Each time one of the buttons “
the machine brews a pre-set amount of product. Each button may be
individually programmed for a speci c brew setting.
” “ ” “ ” “ ” is pressed,
21
21
ESPRESSO
MEMO
The following procedure describes the programming of the “
button.
Place a cup under the dispensing spout.
1
Press and hold the“ ” button until the “MEMO” icon is displayed.
2
Then release the button. The machine is now programming.
The machine starts brewing co ee.
”
Loading...
