Philips HD8844/01 user manual

Super automatic espresso co ee machine 4000 series
USER MANUAL
Read carefully before using the machine.
HD8844
English
EN
02
Register your product and get support at
www.philips.com/welcome
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service center. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only.
1. Check voltage to be sure that the voltage indicated on the nameplate corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during
operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or tripped over.
2
ENGLISH
Congratulations on your purchase of a Philips super auto­matic espresso co ee machine with Co eeSwitch technology and Automatic Milk Frother! To fully bene t from the support that Philips o ers, register your product at www.philips.com/welcome. The machine is made for preparing espresso co ee and clas­sic co ee using whole co ee beans, as well as for dispensing steam and hot water. In this user manual you will  nd all the information you need to install, use, clean and descale your machine.
CONTENTS
IMPORTANT..................................................................................................... 4
Safety Instructions ...............................................................................................................................4
Warnings .............................................................................................................................................4
Cautions ..............................................................................................................................................6
Electromagnetic Fields.........................................................................................................................7
Disposal ...............................................................................................................................................7
INSTALLATION ................................................................................................. 8
Product Overview ................................................................................................................................8
General Description .............................................................................................................................9
PREPARING FOR USE .......................................................................................10
Machine Packaging............................................................................................................................10
Machine Installation ..........................................................................................................................10
Demo mode function ......................................................................................................................... 12
USING THE MACHINE FOR THE FIRST TIME ........................................................13
Circuit Priming ...................................................................................................................................13
Automatic Rinse/Self-Cleaning Cycle .................................................................................................14
Manual Rinse Cycle ............................................................................................................................ 14
MEASURING AND PROGRAMMING WATER HARDNESS........................................17
"INTENZA+" WATER FILTER .............................................................................19
“INTENZA+” Water Filter Installation ................................................................................................. 19
Replacing the “INTENZA+” Water Filter..............................................................................................21
ADJUSTMENTS ................................................................................................22
Co eeSwitch - “ESPRESSO” or “COFFEE” Selection Lever .....................................................................22
Saeco Adapting System .....................................................................................................................24
Adjusting the Ceramic Co ee Grinder ................................................................................................24
Adjusting the Aroma (Co ee Strength) .............................................................................................. 26
ENGLISH
Adjusting the Co ee Dispensing Spout ..............................................................................................27
Adjusting the Co ee Length .............................................................................................................28
BREWING ESPRESSO AND LONG ESPRESSO .......................................................29
Brewing Espresso and Long Espresso Using Co ee Beans ..................................................................29
Brewing Espresso and Long Espresso Using Pre-Ground Co ee .........................................................30
BREWING CLASSIC COFFEE...............................................................................31
Brewing Classic Co ee Using Co ee Beans ........................................................................................31
Brewing Classic Co ee Using Pre-Ground Co ee ................................................................................32
FROTHING MILK AND PREPARING A CAPPUCCINO .............................................34
Frothing milk .....................................................................................................................................34
Preparing a Cappuccino .....................................................................................................................37
DISPENSING HOT WATER .................................................................................37
CLEANING AND MAINTENANCE ........................................................................39
Daily Cleaning of the Machine ...........................................................................................................39
Weekly Cleaning of the Machine ........................................................................................................ 41
Cleaning of the Water Tank ................................................................................................................ 41
Daily Cleaning of the Automatic Milk Frother ....................................................................................42
Monthly Cleaning of the Automatic Milk Frother ...............................................................................43
Weekly Cleaning of the Brew Group ...................................................................................................49
Monthly Lubrication of the Brew Group ............................................................................................. 52
Monthly Cleaning of the Brew Group with “Co ee Oil Remover” ........................................................ 54
Monthly Cleaning of the Co ee Bean Hopper ....................................................................................56
DESCALING .....................................................................................................57
Preparation Phase .............................................................................................................................57
Descaling Phase .................................................................................................................................59
Rinse Phase .......................................................................................................................................60
Interruption of the Descaling Cycle .................................................................................................... 63
3
PROGRAMMING ..............................................................................................64
The following settings can be adjusted .............................................................................................. 64
How to Program the Machine ............................................................................................................ 65
MEANING OF THE DISPLAY ICONS .....................................................................67
TROUBLESHOOTING ........................................................................................71
ENERGY SAVING ..............................................................................................75
Stand-by ............................................................................................................................................75
TECHNICAL SPECIFICATIONS ............................................................................75
FACTORY SETTINGS .........................................................................................76
WARRANTY AND SERVICE ................................................................................76
Warranty ...........................................................................................................................................76
Service ............................................................................................................................................... 76
ORDERING MAINTENANCE PRODUCTS ..............................................................77
4
ENGLISH
IMPORTANT
Safety Instructions
This machine is equipped with safety devices. Nevertheless, read and follow the safety instructions carefully and only use the machine properly as described in these instructions to avoid accidental injury or damage due to improper use of the machine. Keep this user manual for future reference.
The term WARNING and this icon warn against possible severe injuries, danger to life and/or damage to the machine.
The term CAUTION and this icon warn against slight injuries and/or damage to the machine.
Warnings
• Connect the machine to a wall socket with a voltage match­ing the technical speci cations of the machine.
• Connect the machine to an earthed wall socket.
• Do not let the power cord hang over the edge of a table or counter, or touch hot surfaces.
• Never immerse the machine, the mains plug or power cord in water: Danger of electrical shock!
• Do not pour liquids on the power cord connector.
• Never direct the hot water jet towards body parts: Danger of burning!
• Do not touch hot surfaces. Use handles and knobs.
• After switching o the machine by pressing the power but­ton on the back of the machine, remove the mains plug from the wall socket:
- if a malfunction occurs;
- If the machine will not be used for a long time;
ENGLISH
5
5
- before cleaning the machine.
• Pull on the mains plug, not on the power cord.
• Do not touch the mains plug with wet hands.
• Do not use the machine if the mains plug, the power cord or the machine itself is damaged.
• Do not make any modi cations to the machine or its power cord. Only have repairs carried out by a service centre au­thorised by Philips to avoid any hazard.
• The machine should not be used by children younger than 8 years old.
• The machine can be used by children of 8 years and upwards if they have previously been instructed on the correct use of the machine and made aware of the associated dangers or if they are supervised by an adult.
• Cleaning and maintenance should not be carried out by children unless they are more than 8 years old and super­vised by an adult.
• Keep the machine and its power cord out of reach of chil­dren under 8 years old.
• The machine may be used by persons with reduced physical, sensory or mental capabilities or lacking su cient experi­ence and/or skills if they have previously been instructed on the correct use of the machine and made aware of the associated dangers or if they are supervised by an adult.
• Children should be supervised to ensure that they do not play with the machine.
• Never insert  ngers or other objects into the co ee grinder.
6
ENGLISH
Cautions
• The machine is for household use only. It is not intended for use in environments such as canteens, sta kitchens of shops, o ces, factories or other work environments.
• Always put the machine on a  at and stable surface.
• Do not place the machine on hot surfaces, directly next to a hot oven, heater units or similar sources of heat.
• Only put roasted co ee beans into the co ee bean hopper. If ground co ee, instant co ee, raw co ee or any other substance is put in the co ee bean hopper, it may damage the machine.
• Let the machine cool down before inserting or removing any parts. The heating surfaces may retain residual heat after use.
• Never use warm or hot water to  ll the water tank. Use only cold non-sparkling drinking water.
• Never clean with scrubbing powders or harsh cleaners. Simply use a soft cloth dampened with water.
• Descale your machine regularly. Not doing this will make your appliance stop working properly. In this case, repair is not covered under your warranty!
• Do not keep the machine at temperature below 0 °C. Resi­due water in the heating system may freeze and cause damage.
• Do not leave water in the water tank if the machine is not used over a long period of time. The water can get contami­nated. Use fresh water every time you use the machine.
ENGLISH
7
7
Electromagnetic Fields
This appliance complies with all the applicable standards and regulations relating to the exposure to electromagnetic  elds.
Disposal
This symbol on a product indicates that the product is covered by EU Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Follow local regulations and do not dispose of the product as household waste. Appropriate disposal of old products helps prevent negative consequences for the environment and human health.
8
INSTALLATION
Product Overview
123
21
14
15
10
34 31
5
6
7
8 9
4
11 12 13
32
18
35
16
17
19
20
24 27 25 28 26 29
30
23
22
ENGLISH
General Description
1. Grinder adjustment knob
2. Co ee bean hopper
3. Pre-ground co ee compartment
4. Water tank + Lid
5. Co ee bean hopper lid
6. Control panel
7. Co ee dispensing spout
8. Full drip tray indicator
9. Cup holder grill
10. Drip tray
11. Co ee grounds drawer
12. Brew group
13. Service door
14. Grease for brew group
15. Power cord
16. Automatic Milk Frother
17. Suction tube for Automatic Milk Frother
18. Co ee grinder adjustment key + Pre-ground co ee measuring scoop
19. Power cord socket
20. Power button
21. Water hardness test strip
22. Cleaning brush
23. ON/OFF button
24. Espresso brew button
25. Long espresso brew button
26. Frothed milk button
27. Classic co ee brew button
28. "Aroma" - Pre-ground co ee button
29. Menu button
30. Descaling solution - to be purchased separately
31. Rubber  tting
32. Co ee residues drawer
34. Chrome-plated cover
35. Espresso/Co ee selection lever
(optional)
(optional)
9
9
10
ENGLISH
PREPARING FOR USE
Machine Packaging
The original packaging has been designed and constructed to protect the machine during transport. We recommend keeping the packaging material for possible future transport.
Machine Installation
Remove the machine from the packaging.
1
For best use, it is recommended to:
2
• Choose a safe, level surface where there will be no danger of over­turning the machine or being injured.
• Choose a location that is su ciently well-lit, clean and near an eas­ily reachable socket.
• Allow for a minimum distance from the sides of the machine as shown in the  gure.
Open the water tank lid.
3
Remove the water tank by using the handle.
4
ENGLISH
Rinse the water tank with fresh water.
5
Fill the water tank with fresh water up to the MAX level and reinsert it
6
into the machine. Make sure it is fully inserted.
Caution: Never  ll the water tank with warm, hot, sparkling water or any other liquid, as this may cause damage to the water tank and the machine.
Lift the co ee bean hopper lid.
7
Slowly pour the co ee beans into the co ee bean hopper.
8
11
11
Note: Do not pour too many co ee beans into the co ee bean hopper as this will reduce the grinding performance of the machine.
Caution: Only co ee beans must be put into the co ee bean hopper. If ground co ee, instant co ee, caramelized co ee, raw co ee beans or any other substance is put in the co ee bean hopper, it may damage the machine.
Put the lid back on the co ee bean hopper.
9
Insert the plug into the socket located on the back of the machine.
10
1
Insert the plug at the other end of the power cord into a wall socket
11
with suitable power voltage.
2
12
ENGLISH
Switch the power button to "I". The " " button  ashes.
12
Press the “ ” button to turn on the machine.
13
The control panel indicates that the circuit must be primed.
14
Yellow
Demo mode function
The machine is provided with a demo program. By keeping the “ enters the demo program. Turn the machine o and on again using the power button to exit the function.
” button pressed for more than 8 seconds, the machine
ENGLISH
USING THE MACHINE FOR THE FIRST TIME
When using the machine for the  rst time, the following activities need to happen:
1) You need to prime the circuit.
2) The machine will perform an automatic rinse/ self-cleaning cycle.
3) You need to perform a manual rinse cycle.
Circuit Priming
During this process, fresh water  ows through the internal circuit of the machine and the machine warms up. This takes a few minutes.
Place a container under the steam wand.
1
13
13
Yellow
Yellow
Yellow
Press the “ ” button to start the circuit priming.
2
The bar under the icon shows the operation progress. When the pro-
3
cess has been completed, the machine stops dispensing automatically.
The control panel now shows the machine warm-up icon.
4
14
ENGLISH
Automatic Rinse/Self-Cleaning Cycle
When warm-up has been completed, the machine automatically performs a rinse/self-cleaning cycle of the internal circuits with fresh water. This takes less than a minute.
Place a container under the co ee dispensing spout to catch the small
5
amount of water which will be dispensed.
The machine shows this display. Wait for the cycle to  nish automati-
6
cally.
Yellow
Note: If necessary, the cycle can be stopped by pressing the “
” button.
Green
When the operations described above have been completed, the ma-
7
chine shows this display. You can now perform the manual rinse cycle.
Green
Manual Rinse Cycle
During this process, the co ee brewing cycle is activated and fresh water  ows through the water circuit. This takes a few minutes.
Place a container under the co ee dispensing spout.
1
ESPRESSO
Green
Check that the machine shows this display.
2
Green
Select the pre-ground co ee brewing function by pressing the “
3
button. The machine shows this display.
Green
Note: Do not add any pre-ground co ee into the compartment.
Check that the lever is set to “ESPRESSO”. Press the “ ” button. The
4
machine will start dispensing water from the co ee dispensing spout.
When dispensing has  nished, empty the container. Repeat the opera-
5
tions from step 1 to step 4 twice, then continue with step 6.
ENGLISH
15
15
Green
Place a container under the steam wand.
6
Press the “ ” button until this icon is shown.
7
16
ENGLISH
Green
Press the “ ” button. The machine shows this display.
8
Press the “ ” button to start dispensing hot water.
9
Dispense water until the no water icon appears.
10
Red
Note:
If necessary, the cycle can be stopped by pressing the “
At the end of this operation,  ll the water tank again up to the MAX
11
level. Now the machine is ready to brew co ee.
Note: The automatic rinse/self-cleaning cycle starts when the machine has been in stand-by mode, or turned o , for more than 15 minutes. When you have not used the machine for 2 or more weeks, you will also need to perform a manual rinse cycle. At the end of the cycle, you can brew a co ee.
” button.
ENGLISH
17
17
MEASURING AND PROGRAMMING WATER HARDNESS
Water hardness measuring is very important in order to de ne the descal­ing frequency and to install the “INTENZA+” water  lter (for more details on the water  lter, see next chapter).
To measure water hardness, follow the steps below:
Immerse the water hardness test strip (supplied with the machine) in
1
water for 1 second.
Note:
The test strip can only be used for one single measurement.
Wait for one minute.
2
Check how many squares have changed colour to red and then refer to
3
C
B
the table.
Note: The numbers on the water hardness test strip correspond to the water hardness adjustment settings.
More precisely: 1 = 1 (very soft water) 2 = 2 (soft water) 3 = 3 (hard water) 4 = 4 (very hard water)
Intenza Aroma System
A
23 4
Machine Water Hardness Setting
1
The letters correspond to the references that are located at the base of the “INTENZA+” water  lter (see next chapter).
Press the “ ” button and scroll through the options by pressing the “
4
Yellow
” button until this icon is displayed.
Press the
Note: The machine is supplied with a standard water hardness setting, suitable for most types of water.
” button to access the function.
18
ENGLISH
YellowYellow
Green
Green
Press the ““ ” button to increase the value and the “ ” button to
5
decrease the value.
Press the “ ” button to con rm the setting.
6
Press the ““ ” button to exit the programming MENU.
7
The machine shows this display and is ready to brew.
8
ENGLISH
19
19
"INTENZA+" WATER FILTER
We recommend you to install the “INTENZA+” water  lter as this prevents limescale build-up in your machine and preserves a more intense aroma of your co ee.
The “INTENZA+” water  lter can be purchased separately. For further de­tails, please refer to the maintenance products page in this user manual. Water is a crucial part of every co ee, so it is very important to always have it professionally  ltered. Using the “INTENZA+” water  lter will prevent mineral deposits from building up and improve your water quality.
“INTENZA+” Water Filter Installation
Remove the small white  lter from the water tank and store it in a dry
1
place.
Remove the “INTENZA+” water  lter from its packaging, immerse it ver-
2
tically (with the opening positioned upwards) in cold water and gently press the sides so as to let the air bubbles out.
Set the “INTENZA+” water  lter according to the measurements per-
3
formed (see previous chapter) and indicated on the base of the  lter:
A = soft water – equals 1 or 2 on the test strip B = hard water (standard) – equals 3 on the test strip C = very hard water – equals 4 on the test strip
20
ENGLISH
YellowYellow YellowYellowGreenGreen
Put the “INTENZA+” water  lter into the empty water tank. Press it
4
down until it cannot move any further.
Fill the water tank with fresh water and put it into the machine.
5
Dispense all the water in the water tank by using the hot water func-
6
tion (see the “Hot Water Dispensing” chapter).
Fill the water tank again.
7
Press the “ ” button and scroll the options by pressing the “ ” button
8
until this display is shown.
Press the “ ” button to access the function.
9
Press the “ ” button to select “ON” and press the “ ” button to con rm.
10
To exit, press the “ ” button.
11
The machine shows this display and is ready to brew.
12
The machine is now programmed to inform the user of the need to replace the "INTENZA+" water  lter.
Replacing the “INTENZA+” Water Filter
When the “INTENZA+” water  lter needs to be replaced with a new one, this icon is displayed.
Replace the “INTENZA+” water  lter as described in the previous chap-
1
ter.
Press the “ ” button and scroll through the options by pressing the “
2
” button until this icon is displayed.
YellowYellow Yellow YellowYellowYellow
Press the “ ” button to access the function.
3
ENGLISH
21
21
Select the “RESET” option by pressing the “ ” button.
4
Press the "
To exit, press the “ ” button.
5
Green
Green
The machine shows this display and is ready to brew.
6
The machine is now programmed to manage a new “INTENZA+” water  lter.
" button to con rm.
22
ENGLISH
Note: If the “INTENZA+” water  lter is already installed and you want to remove,
Yellow
but not replace it, select the “OFF” option instead.
If there is no “INTENZA+” water  lter installed, insert the small white  lter previously removed into the water tank.
ADJUSTMENTS
The machine allows for certain adjustments so that you can brew the best tasting co ee possible.
Co eeSwitch - “ESPRESSO” or “COFFEE” Selection Lever
Thanks to the innovative Co eeSwitch technology, the machine allows you to brew two types of co ee, changing the brewing pressure at the  ip of a lever. You can increase the pressure for a perfect espresso or decrease it for a delicate classic co ee.
Before brewing beverages as described below, the lever must be rotated to the correct position.
ESPRESSO
ENGLISH
Push the lever downwards to select the “ESPRESSO” function.
1
In this position, you can brew an espresso by pressing the “
or a long espresso by pressing the “
” button.
” button
23
23
COFFEE
RedRed RedRed
Note: If an espresso or a long espresso is selected with the lever in the wrong position these icons will be displayed, reminding you to set the lever to the correct position within 30 seconds to complete brewing. If the level is not rotated to the correct position within the speci ed time, the machine will not brew the selected co ee.
Push the lever upwards to select the “COFFEE” function.
2
In this position, you can brew a classic co ee by pressing the “ ” but-
ton.
Note: If a classic co ee is selected with the lever in the wrong position these icons will be displayed, reminding you to set the lever to the correct posi­tion within 30 seconds to complete brewing. If the level is not rotated to the correct position within the speci ed time, the machine will not brew the selected co ee.
24
ENGLISH
Saeco Adapting System
Co ee is a natural product and its characteristics may change according to its origin, blend and roast. The machine is equipped with a self-adjusting system that allows the use of all types of co ee beans available on the market, except for raw, caramelized and  avoured co ee beans. The machine automatically adjusts itself after brewing several cups of cof­fee to optimize co ee extraction.
Adjusting the Ceramic Co ee Grinder
Ceramic co ee grinders always guarantee accurate and perfect grinding and coarseness for every co ee speciality. This technology provides full aroma preservation, delivering a truly tasty co ee in every cup.
ESPRESSO
Warning: The ceramic co ee grinder contains moving parts that may be danger­ous. Do not insert  ngers or other objects. Only adjust the ceramic co ee grinder using the grinder adjustment key.
You can adjust the ceramic grinders to set co ee grinding to your personal taste.
Warning: You can only adjust the co ee grinder settings when the machine is grinding co ee beans.
Check that the lever is set to “ESPRESSO”.
1
ENGLISH
Place a cup under the co ee dispensing spout.
2
Press the
While the machine grinds co ee, press and turn the grinder adjust-
3
ment knob placed inside the co ee bean hopper one notch at a time. Use the special co ee grinder adjustment key supplied. You will taste the di erence after brewing 2-3 cups of co ee.
The reference marks inside the co ee bean hopper indicate the grind
4
setting. There are 5 di erent grind settings to choose from, from posi­tion 1 stronger taste. If co ee is watery or is brewed slowly, change the co ee grinder settings.
” button to brew an espresso.
( )
for coarse grind - lighter taste to position 2
( )
for  ne grind -
25
25
1
2
26
ENGLISH
Adjusting the Aroma (Co ee Strength)
Choose your favourite co ee blend and adjust the amount of co ee to be ground according to your personal taste. You can also select the pre­ground co ee function.
Note: Selection must be made prior to selecting co ee.

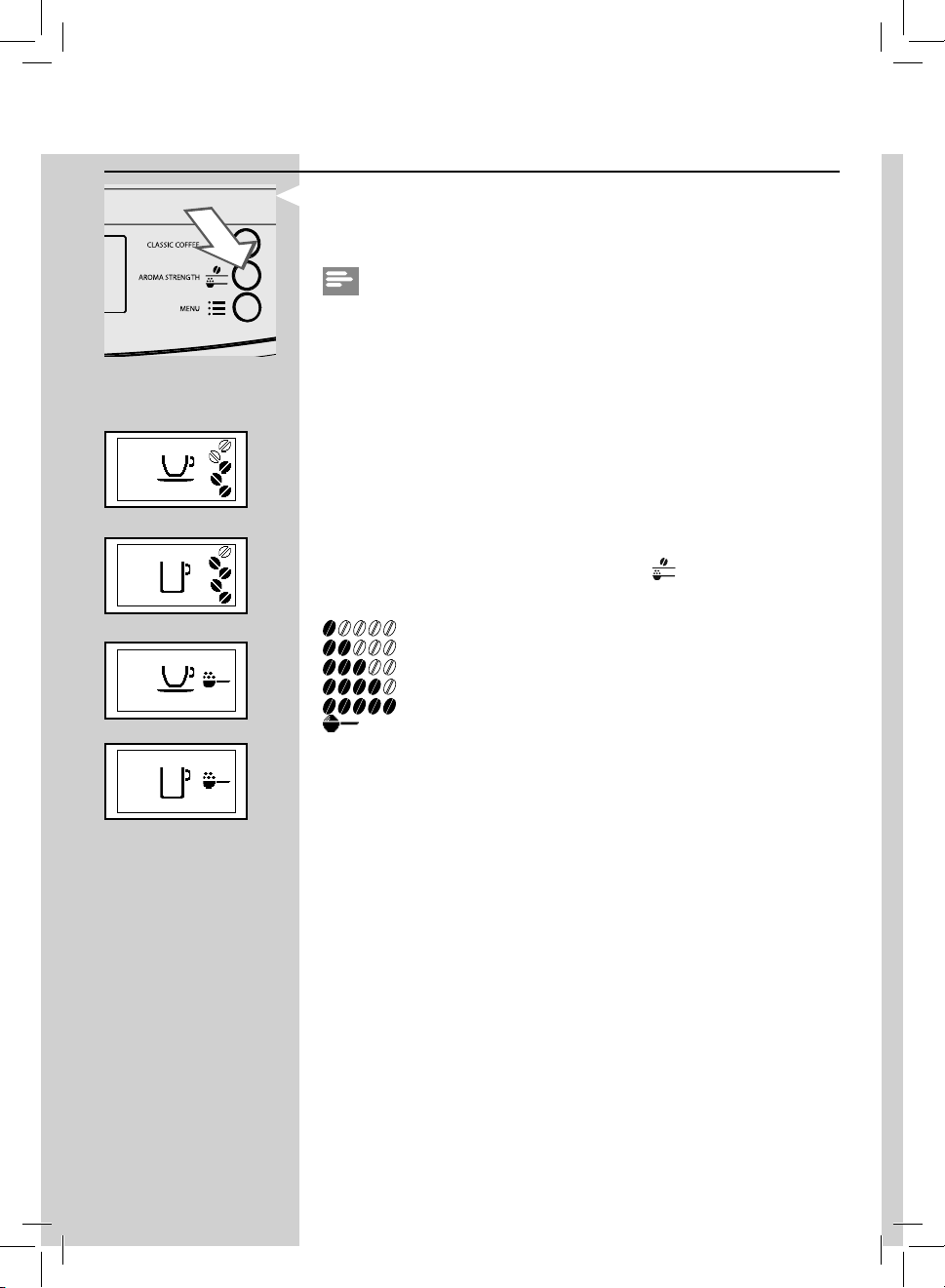

GreenGreenGreenGreen
You can choose from 5 options by pressing the “ ” button. Each time the button is pressed, the aroma changes by one degree, according to the selected amount:
= extra mild aroma = mild aroma = medium aroma = strong aroma = extra strong aroma = pre-ground co ee
ENGLISH
Adjusting the Co ee Dispensing Spout
The height of the co ee dispensing spout can be adjusted to better  t the size of the cups that you wish to use.
Move the co ee dispensing spout up or down with your  ngers to adjust its height as shown in the  gure.
The recommended positions are: For the use of small cups;
27
27
For the use of large cups.
Two cups can also be placed under the co ee dispensing spout to brew two cups of espresso or long espresso at the same time.
28
ENGLISH
Adjusting the Co ee Length
The machine allows you to adjust the quantity of co ee according to your taste and the beverage setting ranges described in the "Factory Settings" chapter. You can reduce it for a stronger taste or increase it for a lighter one. Each button may be individually programmed for a speci c brew setting.
Place a cup under the co ee dispensing spout.
1
Press and hold the “ ”, “ ” or “ ” button until the “MEMO” icon is
2
displayed. Then release the button. The machine is in programming mode and starts brewing the selected product.
Note: To exit programming press the “ this case, the product quantity will not be saved.
” button once the “ ” is displayed. In
The product quantity can be saved when the icon “ ” on the left bot-
3
tom corner of the display is shown.
GreenGreen Green
Press the “ ” button as soon as the desired co ee quantity is reached.
4
The icon on the left is displayed.
Note: This icon is also displayed in case the maximum set level is reached.
The previously selected “ ”, “ ” or “ ” button is now programmed; each time it is pressed, the machine will brew the same product length that was just programmed.
Note:
The  gures relate to the
button programming.
ESPRESSO
ENGLISH
29
29
BREWING ESPRESSO AND LONG ESPRESSO
Before brewing co ee, make sure that there are no warnings shown on the control panel and that the water tank and co ee bean hopper are  lled.
Brewing Espresso and Long Espresso Using Co ee Beans
Place 1 or 2 cups under the co ee dispensing spout.
1
Push the lever downwards to select the “ESPRESSO” function.
2
To brew an espresso or a long espresso, press the “ ” button to select
3
the desired aroma.
Press the “ ” button for an espresso or the “ ” button for a long
4
espresso.
GreenGreen
To brew two cups of espresso or long espresso, press the desired but-
5
ton twice consecutively. This icon will be displayed.
Note: In this operating mode, the machine automatically grinds and doses the correct amount of co ee. Brewing two cups of espresso or long espresso requires two grinding and brewing cycles, automatically carried out by the machine.
30
ENGLISH
ESPRESSO
After the prebrewing cycle, co ee begins to pour out of the co ee
6
dispensing spout.
Co ee brewing stops automatically when the set level is reached.
7
However, it is possible to stop co ee brewing earlier by pressing the “ ” button.
Brewing Espresso and Long Espresso Using Pre-Ground Co ee
This function allows you to use pre-ground co ee.
With the pre-ground co ee function you can only brew one co ee at a time.
Push the lever downwards to select the “ESPRESSO” function.
1
Press the “ ” button to select the pre-ground co ee function.
2
Green
Lift the pre-ground co ee compartment lid and add one level measur-
3
ing scoop of pre-ground co ee.
Use only the measuring scoop supplied with the machine. Then close
the pre-ground co ee compartment lid.
Warning: Add only pre-ground co ee to the pre-ground co ee compartment. Other substances and objects may cause severe damage to the ma­chine. Such damage will not be covered by warranty.
ENGLISH
Press the “ ” button for an espresso or the “ ” button for a long
4
espresso. The brewing cycle starts.
After the prebrewing cycle, co ee begins to pour out of the co ee
5
dispensing spout.
Co ee brewing stops automatically when the set level is reached.
6
However, it is possible to stop co ee brewing earlier by pressing the “ ” button.
After brewing, the machine returns to the main menu.
Repeat the steps described above to brew more cups of co ee using pre­ground co ee.
Note: If no pre-ground co ee is poured into the pre-ground co ee compart­ment, only water will be dispensed. If the dose is excessive or 2 or more scoops of pre-ground co ee are added, the machine will not brew the product and any ground co ee will be discharged into the co ee grounds drawer.
31
31
BREWING CLASSIC COFFEE
Before brewing co ee, make sure that there are no warnings shown on the control panel, and that the water tank and co ee bean hopper are  lled.
Brewing Classic Co ee Using Co ee Beans
Place a large cup under the co ee dispensing spout.
1
32
COFFEE
ENGLISH
Push the lever upwards to select the “COFFEE” function.
2
To brew the beverage, press the “ ” button to select the desired
3
aroma.
To brew a classic co ee, press the “ ” button once. This icon will be
4
displayed.
Green
Note: In this operating mode, the machine automatically grinds and doses the correct amount of co ee.
Beverage brewing automatically stops when the pre-set level is
5
reached; press the “
” button to stop it earlier.
COFFEE
Brewing Classic Co ee Using Pre-Ground Co ee
This function allows you to use pre-ground co ee.
With the pre-ground co ee function you can only brew one beverage at a time.
Push the lever upwards to select the “COFFEE” function.
1
Press the “ ” button to select the pre-ground co ee function.
2
Green
Lift the pre-ground co ee compartment lid and add one level measur-
3
ing scoop of pre-ground co ee. Use only the measuring scoop sup­plied with the machine. Then close the pre-ground co ee compart­ment lid.
Warning: Add only pre-ground co ee to the pre-ground co ee compartment. Other substances and objects may cause severe damage to the ma­chine. Such damage will not be covered by warranty.
ENGLISH
33
33
Press the “ ” button for a classic co ee. The brewing cycle starts.
4
Co ee brewing automatically stops when the pre-set level is reached;
5
press the “
After brewing, the machine returns to the main menu.
Repeat the steps described above to brew more cups of co ee using pre­ground co ee.
Note: If no pre-ground co ee is poured into the pre-ground co ee compart­ment, only water will be dispensed. If more measuring scoops have been added, the machine will not brew the product and the ground co ee in the compartment will be discharged into the co ee grounds drawer.
” button to stop it earlier.
34
ENGLISH
FROTHING MILK AND PREPARING A CAPPUCCINO
Frothing milk
Warning: Danger of burning! Dispensing may be preceded by small jets of hot water. When steam is used, the steam wand and the chrome-plated cover may reach high temperatures. Never touch them with bare hands. The Automatic Milk Frother must be handled only as described in the picture.
Fill 1/3 of a container with cold milk.
1
Note: When preparing your cappuccino, use cold (~5°C / 41°F) milk with a protein content of at least 3% to ensure optimum results. Whole milk, skimmed milk, soy milk or lactose-free milk may be used depending on individual taste.
Note: When you plan to froth milk right after turning on the machine or after brewing a co ee, any water still in the circuit may need to be dispensed  rst. To do this, press the “ press the “
Green
2
Green
” button to stop dispensing and go to step 2.
Before frothing milk, make sure that the machine is ready for use and
that the water tank is  lled.
” button to dispense steam for a few seconds. Then
Insert the suction tube into the Automatic Milk Frother.
3
Insert the Automatic Milk Frother into the steam wand seat.
4
ENGLISH
35
35
Make sure that it is positioned correctly. If you cannot insert it, rotate
5
the chrome-plated cover. The Automatic Milk Frother is assembled cor­rectly when the tooth  ts into the slot.
Insert the suction tube into the milk container.
6
Caution: For hygienic reasons, make sure that the outer surface of the suction tube is clean.
36
ENGLISH
Green
Green
Place a cup under the Automatic Milk Frother.
7
Press the “ ” button to start frothing milk.
8
This icon is displayed during the preheating time required by the
9
machine.
When this icon is displayed, the machine starts dispensing frothed milk
10
directly into the cup.
Press the “ ” button to stop dispensing.
11
Note: It will take a few seconds before the machine stops dispensing frothed milk completely.
Note: Frothed milk dispensing stops after 3 minutes. Press the “
After use, store the suction tube as shown in the  gure.
12
” button to start dispensing again.
ENGLISH
Caution: After frothing milk, a small quantity of hot water must be dispensed into a container. See the "Daily cleaning of the Automatic Milk Frother" chapter for detailed cleaning instructions.
Note: It is possible to brew an espresso or dispense hot water straight after froth­ing milk.
Preparing a Cappuccino
To prepare a cappuccino, place a cup of frothed milk under the co ee dispensing spout and brew an espresso.
DISPENSING HOT WATER
37
37
Warning: Danger of burning! Dispensing may be preceded by small jets of hot water. The steam wand and the chrome-plated cover may reach high temperatures.
GreenGreen
Before dispensing hot water, make sure that the machine is ready to use and the water tank is  lled.
Remove the Automatic Milk Frother from the steam wand.
1
38
ENGLISH
Green
Place a container under the steam wand.
2
Press the “ ” button until this icon is shown.
3
Green
Green Green
Press the “ ” button until this icon is shown.
4
Press the “ ” button to start dispensing hot water.
5
This icon is displayed during the preheating time required by the
6
machine.
Pour the desired amount of hot water. To stop dispensing hot water,
7
press the “
” button.
ENGLISH
CLEANING AND MAINTENANCE
Daily Cleaning of the Machine
Caution: Timely cleaning and maintenance of your machine is very important as it prolongs the life of your machine. Your machine is continuously exposed to moisture, co ee and limescale! The activities you need to perform and their frequency are described in detail in this chapter. Not doing this will ultimately make your machine stop working properly. This repair is NOT covered by your warranty.
Note:
- Use a soft, dampened cloth to clean the machine.
- Only the cup holder grill can be washed in the dishwasher. Any other components must be washed with lukewarm water.
- Do not immerse the machine in water.
- Do not use alcohol, solvents, and/or abrasive objects to clean the machine.
- Do not dry the machine and/or its components using a microwave and/or standard oven.
39
39
Empty and clean the co ee grounds drawer and the drip tray daily
1
1
with the machine turned on.
2
3
Remove the co ee grounds drawer and empty it.
2
Empty and clean the drip tray.
3
40
ENGLISH
1
3
Note:
Empty and wash the drip tray also when the full drip tray indicator is raised.
Insert the co ee grounds drawer back into the drip tray and place the
4
drip tray back into the machine.
2
Red
Note: f these operations are carried out when the machine is o , the machine will not reset the alarm when restarted.
Note: Other maintenance operations may only be carried out when the machine is turned o and unplugged.
ENGLISH
Weekly Cleaning of the Machine
Clean the seat of the drip tray.
1
Cleaning of the Water Tank
Remove the small white  lter or the “INTENZA+” water  lter (if in-
1
stalled) from the water tank and wash it with fresh water.
Put the small white  lter or the “INTENZA+” water  lter (if installed)
2
back in its housing by gently pressing and turning it at the same time.
41
41
Fill the water tank with fresh water.
3
42
ENGLISH
Daily Cleaning of the Automatic Milk Frother
For hygienic reasons and to ensure a perfect milk froth consistency, it is important that the Automatic Milk Frother be cleaned after each use.
Warning: Danger of burning! Dispensing may be preceded by small jets of hot water.
After frothing milk, you always need to:
Insert the suction tube into a container  lled with fresh water.
1
Green
Green
Place an empty container under the Automatic Milk Frother.
2
Press the " " button to select steam.
3
This icon is displayed during the preheating time required by the
4
machine.
This icon will be displayed during the dispensing phase. Dispense
5
water from the Automatic Milk Frother until clear water  ows out. Press
” button to stop dispensing.
the “
Clean the suction tube with a damp cloth.
6
ENGLISH
Monthly Cleaning of the Automatic Milk Frother
Every month you need to perform a more thorough cleaning of the Auto­matic Milk Frother using the “Saeco Milk Circuit Cleaner”. The “Saeco Milk Circuit Cleaner” can be purchased separately. For further details, please refer to the maintenance products page in this user manual.
Warning: Danger of burning! Dispensing may be preceded by small jets of hot water.
Make sure that the Automatic Milk Frother is correctly installed.
1
Pour the milk circuit cleaner into a container. Add ½ litre of lukewarm
2
water and wait for the product to dissolve completely.
43
43
Green
Insert the suction tube into the container.
3
Place a large container (1.5 l) under the Automatic Milk Frother.
4
Press the “ ” button to dispense steam.
5
This icon is displayed during the preheating time required by the
6
machine.
44
ENGLISH
This icon will be displayed during dispensing. When the solution has
7
been completely dispensed, press the “
Green
Warning: Never drink the solution dispensed during this step.
Rinse the container thoroughly and  ll it with ½ litre of fresh water to
8
be used for the rinse cycle.
Insert the suction tube into the container.
9
” button to stop dispensing.
Green
Empty the container and place it back under the Automatic Milk
10
Frother.
Press the “ ” button to dispense steam.
11
This icon is displayed during the preheating time required by the
12
machine.
This icon will be displayed during dispensing. When the water has
13
been completely dispensed, press the “
Green
Empty the container.
14
Caution: Wait for a few seconds to allow the steam wand to cool.
Remove the Automatic Milk Frother from the steam wand.
15
ENGLISH
” button to stop dispensing.
45
45
Remove the chrome-plated cover with the rubber  tting from the
16
steam wand.
Remove the rubber  tting from the chrome-plated cover.
17
46
ENGLISH
Remove the suction tube.
18
To detach the Automatic Milk Frother, press the sides and remove it by
19
applying light lateral movements as shown in the  gure.
Remove the rubber lid as shown in the  gure.
20
Wash all the components with lukewarm water.
21
Attach the lid by pressing in the middle and ensure that it is  rmly in
22
place.
ENGLISH
Attach the Automatic Milk Frother to the  tting and ensure that it is
23
locked into place in the highlighted seats.
Install the suction tube.
24
Insert the rubber  tting on the chrome-plated cover.
25
47
47
Put the components back onto the steam wand.
26
Caution: The tube could be hot if the machine has recently been used. Be care­ful! Do not insert the rubber  tting beyond the position shown. In this case, the Automatic Milk Frother would not work correctly as it would not be able to draw up milk.
48
ENGLISH
Insert the Automatic Milk Frother in the rubber  tting.
27
Make sure that it is positioned correctly. If you cannot insert it, rotate
28
the chrome-plated cover. The Automatic Milk Frother is assembled cor­rectly when the tooth  ts into the slot.
ENGLISH
Weekly Cleaning of the Brew Group
The brew group should be cleaned every time the co ee bean hopper is  lled or at least once a week.
Turn o the machine by pressing the “ ” button and unplug the
1
power cord.
Remove the drip tray and co ee grounds drawer.
1
2
49
49
2
3
Open the service door.
3
To remove the brew group, press the «PUSH» button and pull it by the
4
handle. Pull it out horizontally without turning it.
50
ENGLISH
Thoroughly clean the co ee duct outlet with the special cleaning tool
5
supplied with the machine or with a spoon handle. Make sure that the cleaning tool is inserted as shown in the  gure.
Remove the co ee residues drawer and wash it thoroughly.
6
Thoroughly wash the brew group with lukewarm water and carefully
7
clean the upper  lter.
Caution: Do not use detergent or soap to clean the brew group.
Let the brew group air-dry thoroughly.
8
Thoroughly clean the inside of the machine using a soft, dampened
9
cloth.
ENGLISH
Make sure that the brew group is in the o position; the two reference
10
marks must match. If they do not match, proceed as described in step
11.
Gently pull down the lever until it is in contact with the brew group
11
base and the two reference marks on the side of the brew group match.
Press the “PUSH” button  rmly.
12
51
51
Make sure that the hook which locks the brew group is in the correct
13
position. If it is still in the downward position, push it upward until it locks correctly into place.
52
ENGLISH
Insert the co ee residues drawer in its seat and ensure that it is cor-
14
rectly in place.
Note: If the co ee residues drawer is not correctly positioned, the brew group may not  t into the machine.
Insert the brew group back into its seat until it locks into place without
15
pressing the “PUSH” button.
Insert the co ee grounds drawer with the drip tray back into the ma-
16
chine and close the service door.
Monthly Lubrication of the Brew Group
Lubricate the brew group after approximately 500 cups of co ee or once a month. The grease to lubricate the brew group can be purchased separately. For further details, please refer to the maintenance products page in this user manual.
Caution: Before lubricating the brew group, clean it with lukewarm water and let it dry, as described in the “Weekly Cleaning of the Brew Group” chapter.
Apply the grease evenly on both side guides.
1
ENGLISH
53
53
Also lubricate the shaft.
2
Insert the brew group into its seat until it locks into place (see the
3
“Weekly Cleaning of the Brew Group” chapter).
Close the service door and insert the drip tray and co ee grounds
4
drawer.
54
ENGLISH
Monthly Cleaning of the Brew Group with “Co ee Oil Remover”
Besides weekly cleaning, we recommend performing a cleaning cycle with “Co ee Oil Remover” after approximately 500 cups of co ee or once a month. This operation completes the maintenance process for the brew group. You can purchase the “Co ee Oil Remover” separately. For further details, please refer to the maintenance products page in this user manual.
Caution: The “Co ee Oil Remover” tablets are to be used for cleaning only and do not have a descaling function. For descaling, use the Saeco descal­ing solution and follow the procedure described in the “Descaling” chapter.
Place a container under the co ee dispensing spout.
1
Make sure the water tank is  lled with fresh water up to the “MAX”
2
level.
Put a “Co ee Oil Remover” tablet in the pre-ground co ee compart-
3
ment.
ESPRESSO
Green
ENGLISH
Push the lever downwards to select the “ESPRESSO” function.
4
Press the “ ” button one or more times to select the pre-ground cof-
5
fee function without adding pre-ground co ee to the compartment.
Press the “ ” button to start the co ee brewing cycle.
6
Wait until the machine has dispensed half a cup of water.
7
Switch the power button on the back of the machine to “0”.
8
55
55
Let the solution take e ect for about 15 minutes. Make sure you dis-
9
card the dispensed water.
Switch the power button on the back of the machine to “I”. To turn on
10
the machine, press the “
Wait until the end of the automatic rinse cycle.
Remove the drip tray and the co ee grounds drawer and open the
11
service door. Remove the brew group.
” button.
56
ENGLISH
Green
Wash the brew group thoroughly with fresh water.
12
After rinsing the brew group, insert it back into its seat until it locks
13
into place (see the “Weekly Cleaning of the Brew Group” chapter). Insert the drip tray and the co ee grounds drawer. Close the service door.
Press the “ ” button to select the pre-ground co ee function without
14
adding any pre-ground co ee into the compartment.
Press the “ ” button to start the co ee brewing cycle.
15
Repeat steps 14 to 15 twice. Make sure you discard the dispensed
16
water.
To clean the drip tray, place a “Co ee Oil Remover” tablet inside and
1
17
 ll it 2/3rds full with hot water. Let the cleaning solution take e ect for about 30 minutes, then rinse thoroughly.
2
3
Monthly Cleaning of the Co ee Bean Hopper
Clean the co ee bean hopper once a month when it is empty with a damp cloth to remove co ee oil. Then re ll it with co ee beans.
ENGLISH
DESCALING
When the “START CALC CLEAN” icon is displayed, you need to descale the machine.
The descaling cycle takes approx. 30 minutes.
Yellow
Caution: Not doing this will ultimately make your machine stop working prop­erly. In this case, repair is NOT covered by warranty.
Warning: Use the Saeco descaling solution only. Its formula has been designed to ensure better machine performance. The use of other products may damage the machine and leave residues in the water.
The Saeco descaling solution can be purchased separately. You can purchase it at the Philips online shop (if available in your country) at www.shop.philips.com/service, from your local dealer or at authorised service centres.
Warning: Never drink the descaling solution or any products dispensed until the cycle has been carried out to the end. Never use vinegar as a descaling solution.
57
57
Note: Do not remove the brew group during the descaling process.
Preparation Phase
To perform the descaling cycle, follow the steps below. Before descaling:
Empty the drip tray and the co ee grounds drawer.
1
1
2
3
58
ENGLISH
Remove the Automatic Milk Frother from the steam/hot water wand.
2
Press the “ ” button until this display is shown.
3
CALC
CLEAN
Yellow
Yellow
Press the “ ” button to select the descaling function.
4
Note: If you press the “
Remove the “INTENZA+” water  lter (if installed) from the water tank
4
and replace it with the small white original one. Pour all the descaling solution into the water tank.
Fill the water tank with fresh water up to the CALC CLEAN level and put
5
it back into the machine.
” button by mistake, press the “ ” button to quit.
Place a large container (1.5l) under both the steam/hot water wand
6
and the co ee dispensing spout.
Descaling Phase
YellowYellowYellowRed
ENGLISH
Press the “ ” button to start the descaling cycle.
7
The machine will start dispensing the descaling solution at regular
8
intervals for about 20 minutes. The bar on the control panel shows the cycle progress.
59
59
Note: The descaling cycle may be paused by pressing the “ ” button. To resume the cycle, press the “ container or to leave the machine unattended for a short time.
When this icon is displayed, the water tank is empty.
9
Remove the water tank, rinse it and  ll it with fresh water up to the
10
CALC CLEAN level. Put it back into the machine.
” button. This allows you to empty the
60
ENGLISH
1
3
Empty the drip tray and the co ee grounds drawer and place them
11
back.
2
Empty the container and place it back under both the steam/hot water
12
wand and the co ee dispensing spout.
Rinse Phase
YellowYellow
Press the “ ” button to start the rinse cycle.
13
Note: The rinse cycle may be paused by pressing the “ ” button. To resume the cycle, press the “ leave the machine unattended for a short time.
” button. This allows you to empty the container or to
ENGLISH
When the amount of water needed for the rinse cycle has been com-
14
Red
1
pletely dispensed, this icon is displayed.
Press the
Note: If the water tank has not been  lled up to the CALC CLEAN level, the machine might require one more rinse cycle. Fill the water tank and put it back into the machine. Repeat from step 13.
The machine warms up and performs the automatic rinse cycle.
15
Remove and empty the container. Empty the drip tray and the co ee grounds drawer and place them back.
” button to quit the descaling cycle.
61
61
2
3
Remove the small white  lter and replace the INTENZA+ water  lter (if
16
installed) in the water tank. Rinse it and  ll it with fresh water up to the MAX level. Put it back into the machine.
Reinsert the Automatic Milk Frother.
17
62
ENGLISH
Make sure that it is positioned correctly. If you cannot insert it, rotate
18
the chrome-plated cover. The Automatic Milk Frother is assembled cor­rectly when the tooth  ts into the slot.
At the end of the descaling cycle, wash the brew group as described in
19
the “Weekly Cleaning of the Brew Group” chapter.
GreenGreen
The machine is ready to brew co ee.
20
ENGLISH
63
63
Interruption of the Descaling Cycle
Once the descaling cycle has started, you must complete it till the very end without turning o the machine.
In case you get stuck during the cycle you can exit by pressing the on/o button.
If this occurs, empty and rinse carefully the water tank, then  ll it up to the CALC CLEAN level.
Follow the instructions provided in the "Manual Rinse Cycle" chapter before brewing any beverage.
If the cycle was not completed, the machine will require another descaling cycle to be performed at your earliest convenience.
64
ENGLISH
PROGRAMMING
You can customise the machine functions via the programming menu.
The following settings can be adjusted
Co ee Temperature
This function allows you to adjust the co ee brewing temperature.
YellowYellowYellowYellowYellowYellow
Timer (stand-by)
This function allows you to adjust the time taken for the machine to go into stand-by mode after the last brewing.
Contrast
This function allows you to adjust the contrast of the display to better view the messages.
Water Hardness
This function allows you to adjust the water hardness settings according to the area where you live. 1 = very soft water 2 = soft water 3 = hard water 4 = very hard water For more details, please see the “Measuring and Programming Water Hard­ness” chapter.
"INTENZA+" Water Filter
This function allows you to manage the “INTENZA+” water  lter. For more details, see the chapter related to  lter handling.
Descaling Cycle
This function allows you to run the descaling cycle.
ENGLISH
Factory Settings
This function allows you to reset all factory values.
YellowYellowYellow
How to Program the Machine
This example shows how to program the display contrast. Proceed in the same way to program the other functions.
The programming menu can only be accessed when the machine is on and
Green
shows this display.
Green
Press the “ ” button to access programming.
1
65
65
The main screen will be displayed.
2
Press the “ ” button to scroll the options until the display contrast
3
function is shown.
66
ENGLISH
Yellow
Press the “ ” button to access the function.
4
Press the “ ” and “ ” buttons to increase or decrease the value of the
5
function.
Once the value has been changed, press the “ ” button to con rm the
Yellow
6
change.
Press the “ ” button to exit programming.
7
Note: The machine automatically exits programming mode if no button is pressed for 3 minutes. The values that have been changed but not con rmed will not be saved.
Ready Signals (Green Colour)
The machine is ready to brew products.
The machine is warming up to dispense beverages.
The machine is ready to brew pre-ground co ee.
ENGLISH
MEANING OF THE DISPLAY ICONS
This machine is equipped with a colour-coded system to make the user’s understanding of the display signals easier. The icons are colour-coded according to the tra c light principle.
67
67
The machine is brewing one cup of espresso.
The machine is brewing one cup of long espresso.
The machine is brewing one cup of classic co ee.
The machine is brewing two cups of espresso.
68
ENGLISH
Ready Signals (Green Colour)
The machine is brewing two cups of long espresso.
The machine is programming the amount of espresso to be brewed.
The machine is programming the amount of long espresso to be brewed.
The machine is programming the amount of classic co ee to be brewed.
Espresso brewing using pre-ground co ee in progress.
Long espresso brewing using pre-ground co ee in progress.
Classic co ee brewing using pre-ground co ee in progress.
Water dispensing.
Frothed milk dispensing.
Warning Signals (Yellow Colour)
The machine is warming up.
The machine is performing the rinse cycle. Wait until the machine has com­pleted the cycle.
The machine needs the "INTENZA+" water  lter to be replaced.
The brew group is being reset due to machine reset.
Re ll the co ee bean hopper with co ee beans.
ENGLISH
69
69
Prime the circuit.
You need to descale the machine. Press the “ ” button to start the descaling process. Follow the steps described in the “Descaling” chapter of this manual. If you want to descale the machine later, press the “ using the machine. Please note that not descaling your machine will ultimately make it stop working properly. In this case, repair is NOT covered under your warranty.
” button to continue
70
ENGLISH
Warning Signals (Red Colour)
Completely insert the drip tray with the co ee grounds drawer into the ma­chine and close the service door.
Fill the co ee bean hopper.
The brew group must be inserted into the machine.
Empty the co ee grounds drawer. Wait 5 seconds before reinserting it.
Fill the water tank.
Set the “ESPRESSO” or “COFFEE” selection lever to “COFFEE” within 30 seconds to complete brewing.
Set the “ESPRESSO” or “COFFEE” selection lever to “ESPRESSO” within 30 seconds to complete brewing.
Warning Signals (Red Colour)
The machine is out of order. The error code is displayed in the right bottom corner. For error codes 1 -3 - 4 - 5, please refer to the "Troubleshooting" chap­ter. For any other error codes, follow the instructions below: Turn o the machine. Turn it back on after 30 seconds. Try this 2 or 3 times.
Exx
If the machine does not start, contact the Philips hotline in your country and quote the error code shown on the display. Contact details can be found in the warranty booklet packed separately or at www.philips.com/support.
TROUBLESHOOTING
This chapter summarizes the most common problems you could encoun­ter with your machine. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Philips hotline in your country. Contact details can be found in the warranty booklet packed separately or at www.philips.com/support.
Machine actions Causes Solutions
Error Code 1 Co ee grinder blocked.
Co ee outlet duct clogged. Thoroughly clean the co ee
outlet duct as described in the “Weekly Cleaning of the Brew Group” chapter.
Error Code 3-4 Brew group blocked, cannot be pulled out.
The brew group is out of place. Close the service door. Turn
o and back on the machine. The brew group automatically returns to the initial position.
Error Code 5 Water circuit error.
Air in the water circuit. Remove and put back the water
tank a few times, making sure it is properly reinserted. Check that the water tank compart­ment is clean.
If the Intenza+  lter is installed, remove it. Turn o and back on the machine. Put the  lter back when the machine is ready for use.
ENGLISH
71
71
72
ENGLISH
Machine actions Causes Solutions
The machine does not turn on.
The machine is in demo mode.
The drip tray gets  lled al­though no water is drained.
The red displayed on the machine.
The brew group cannot be removed.
The brew group cannot be inserted.
icon is always
The machine is not connected to the electric network, or the power button is in the “O” position.
” button was pressed and
The “ held for more than 8 seconds.
Water is sometimes drained auto­matically by the machine into the drip tray to manage the rinsing of the circuits and ensure optimum machine performance.
The co ee grounds drawer has been emptied with the machine o .
The co ee grounds drawer has been emptied with the machine on without waiting at least 5 sec­onds before reinserting it.
The brew group is out of place. Turn on the machine. Close the ser-
The co ee grounds drawer is inserted.
The brew group is not in the o position.
Connect the machine to the electric network and turn the power button to the “I” position.
Turn the machine o and back on using the power button.
This is a normal behaviour of the machine.
The co ee grounds drawer must always be emptied with the machine on. Wait until the played before re tting the drawer.
Wait until the before re tting the drawer.
vice door. The brew group automati­cally returns to the initial position.
Remove the co ee grounds drawer before removing the brew group.
Make sure that the brew group in the o position, as described in the “Weekly Cleaning of the Brew Group” chapter.
icon is dis-
icon is displayed
The gearmotor is not in the correct position.
Co ee is not hot enough. The cups are cold. Preheat the cups with hot water.
The temperature is not correctly set.
Insert the drip tray and the co ee grounds drawer. Close the service door. Turn on the machine with­out inserting the brew group. The gearmotor moves back to the correct position. Turn o the machine and reinsert the brew group as described in the “Weekly Cleaning of the Brew Group” chapter.
Set the temperature as described in the "Programming" chapter.
Machine actions Causes Solutions
ENGLISH
73
73
Co ee is too weak (see note).
Co ee does not have enough
(see note).
crema
No co ee is brewed, co ee is brewed slowly or drop by drop (see note).
This might occur when the ma­chine is automatically adjusting the dose.
Co ee is too coarse. Change co ee blend or adjust
The blend is unsuitable, co ee is not freshly roasted or the grind is too coarse.
The co ee grind is too  ne. Change co ee blend or adjust
The circuit is not primed. Prime the circuit (see the "Using the
The brew group is dirty. Clean the brew group (see the
The dispensing spout is dirty. Clean the dispensing spout and its
The machine circuit is clogged by limescale.
Brew a few cups of co ee as described in the “Saeco Adapting System” chapter.
grinding as explained in the “Adjust­ing the Ceramic Co ee Grinder” chapter.
Change co ee blend or adjust the grind setting as explained in the “Adjusting the Ceramic Co ee Grinder” chapter.
grinding as explained in the “Adjust­ing the Ceramic Co ee Grinder” chapter.
Machine for the First Time" chapter).
"Weekly Cleaning of the Brew Group" chapter).
holes.
Descale the machine.
Co ee leaks out of the co ee dispensing spout.
No hot water or steam is dispensed.
Milk does not froth. The Automatic Milk Frother is in-
The co ee dispensing spout is clogged.
The hole of the steam/hot water wand is clogged.
The circuit is not primed. Prime the circuit (see the “Using the
The machine circuit is clogged by limescale.
serted too deep. No milk is being suctioned.
Clean the co ee dispensing spout and its holes.
Clean the hole of the steam wand using a pin.
Make sure that the machine is o and has cooled down before performing this operation.
Machine for the First Time” chapter).
Descale the machine.
Leave the Automatic Milk Frother to cool down. Move it slightly down­wards. Reposition it in its correct seat.
74
ENGLISH
Machine actions Causes Solutions
Frothed milk is too cold. The cups are cold. Preheat the cups with hot water.
The descaling cycle cannot be completed.
The selected product was not saved.
The water dispensed for the rinse cycle is not enough.
You exited the setting of the prod­uct via the “
Note: These problems can be considered normal if the co ee blend has been changed or if the machine has just been installed. In this case, wait until the machine performs a self-adjusting operation as described in the "Saeco Adapting System" chapter.
” icon.
Press the on/o button and follow the instructions described in the “Interruption of the Descaling Cycle” section.
You need to con rm and save the de­sired product quantity via the “
” icon.
ENGLISH
75
75
ENERGY SAVING
Stand-by
The Philips super automatic espresso co ee machine is designed for energy saving, as proven by the Class A energy label.
After 15 minutes of inactivity, the machine turns o automatically (unless a di erent stand-by time has been programmed). If a product has been brewed, the machine performs a rinse cycle.
In stand-by mode, the energy consumption is below 1Wh. To turn on the machine, press the back of the machine is set to “I”). If the boiler is cold, the machine performs a rinse cycle.
button (if the power button on the
TECHNICAL SPECIFICATIONS
The manufacturer reserves the right to make changes to the technical speci cations of the product.
Nominal Voltage - Power Rating ­Power Supply
Housing material Thermoplastic material
Size (w x h x d) 215 x 330 x 429 mm
Weight 6.7 kg
Power cord length 800 - 1200 mm
Control panel Front panel
Automatic Milk Frother Special for cappuccino
Cup size Up to 152 mm
Water tank 1.8 litres - Removable type
Co ee bean hopper capacity 250 g
Co ee grounds drawer capacity 15
Pump pressure 15 bar
Boiler Stainless steel type
Safety devices Thermal fuse
See data plate on the inside of the service door
76
ENGLISH
FACTORY SETTINGS
Beverage settings
Beverage Preset quantities Aroma Strength Adjustable:
Espresso 40 ml 3 20ml -140 ml
Espresso lungo 120 ml 3 20ml -140 ml
Classic Co ee 170 ml 4 140ml - 200ml
Note: the indicated values can  uctuate
WARRANTY AND SERVICE
Warranty
For detailed information on your warranty and related conditions, please read the warranty booklet supplied separately.
Service
We want to ensure that you remain satis ed with your machine. If you have not already done so, please register your purchase at www.philips.com/welcome. This will enable us to stay in contact with you and send you cleaning and descaling reminders.
If you need service or support, please visit the Philips website at www. philips.com/support or contact the Philips hotline in your country. The contact details can be found in the warranty booklet supplied separately or at www.philips.com/support.
ENGLISH
ORDERING MAINTENANCE PRODUCTS
For cleaning and descaling, use Saeco maintenance products only. purchase the products at the Philips online shop at www.shop.philips.com/ service, from your local dealer or at authorised service centres. If you have any di culties obtaining maintenance products for your ma­chine, please contact the Philips hotline in your country.
Contact details can be found in the warranty booklet packed separately or at www.philips.com/support.
Overview of maintenance products:
- Descaling solution CA6700
You can
77
77
- INTENZA+ Water  lter cartridge CA6702
- Grease HD5061
78
ENGLISH
- Co ee Oil Remover CA6704
- Milk Circuit Cleaner: CA6705
- Maintenance Kit CA6706
Rev.01 del 15-02-15
The manufacturer reserves the right to make changes without prior notice.
www.philips.com/welcome
EN
02
Loading...
