USER MANUAL
Type HD8662, HD8665
Read carefully before using the machine.
02
English
EN
02
Register your product and get support at
www.saeco.com/welcome
Page 2
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not immerse
cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts, and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination, repair
or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Always attach plug to appliance first, then plug cord into wall outlet. To
disconnect, turn any control to “off”, then remove plug from wall outlet.
12. Do not use appliance for other than intended use.
13. Save these instructions.
SAVE THESE INSTRUCTIONS
Page 3
CAUTION
This appliance is for household use only. Any servicing, other than cleaning
and user maintenance, should be performed by an authorized service center.
Do not immerse machine in water. To reduce the risk of fire or electric shock,
do not disassemble the machine. There are no parts inside the machine
serviceable by the user. Repair should be done by authorized service personnel
only.
1. Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2. Never use warm or hot water to fill the water tank. Use cold water only.
3. Keep your hands and the cord away from hot parts of the appliance during
operation.
4. Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5. For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6. Do not use caramelized or flavored coffee beans.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A. A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
B. Longer detachable power-supply cords or extension cords are available
and may used if care is exercised in their use.
C. If a long detachable power-supply cord or extension cord is used,
1. The marked electrical rating of the detachable power-supply cord or
extension cord should be at least as great as the electrical rating of the
appliance
2. If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3. The longer cord should be arranged so that it will not drape over the
counter top or table top where it can be pulled on by children or tripped
over.
Page 4
2
ENGLISH
Congratulations on your purchase of a Saeco Minuto Automatic Milk Frother fully automatic co ee machine!
To fully bene t from the support that Saeco o ers, please
register your product at www.saeco.com/welcome.
The machine is suitable for preparing espresso co ee using
whole co ee beans.
In this user manual you will nd all the information you need
to install, use, clean and descale your machine.
Page 5
ENGLISH
CONTENTS
IMPORTANT..................................................................................................... 4
Safety Instructions .......................................................................................................................... 4
Warnings ......................................................................................................................................... 4
Cautions .......................................................................................................................................... 6
Compliance with Standards ............................................................................................................ 7
INSTALLATION ................................................................................................. 8
Product Overview ............................................................................................................................ 8
General Description ......................................................................................................................... 9
PREPARING FOR USE .......................................................................................10
Machine Packaging ....................................................................................................................... 10
Machine Installation ..................................................................................................................... 10
USING THE MACHINE FOR THE FIRST TIME ........................................................12
Circuit Priming .............................................................................................................................. 12
Automatic Rinse/Self-Cleaning Cycle.............................................................................................13
Manual Rinse Cycle........................................................................................................................ 14
Measuring and Programming Water Hardness .............................................................................. 16
“INTENZA+” Water Filter Installation ............................................................................................ 17
ADJUSTMENTS ................................................................................................19
Saeco Adapting System ................................................................................................................. 19
Adjusting the Ceramic Co ee Grinder ............................................................................................ 19
Adjusting the Dispensing Spout .................................................................................................... 20
Adjusting the Co ee Length ......................................................................................................... 22
BREWING ESPRESSO AND COFFEE ....................................................................23
FROTHING MILK / BREWING CAPPUCCINO ........................................................24
Frothing milk ................................................................................................................................ 24
Brewing a Cappuccino ................................................................................................................... 27
HOT WATER DISPENSING .................................................................................27
CLEANING AND MAINTENANCE ........................................................................29
Daily Cleaning of the Machine ....................................................................................................... 29
Daily Cleaning of the Water Tank ................................................................................................... 30
Daily Cleaning of the Automatic Milk Frother ................................................................................ 31
Weekly Cleaning of the Machine ................................................................................................... 32
Weekly Cleaning of the Brew Group ..............................................................................................32
Monthly Cleaning of the Automatic Milk Frother .......................................................................... 36
Monthly Lubrication of the Brew Group ........................................................................................ 42
Monthly Cleaning of the Co ee Bean Hopper ................................................................................ 43
DESCALING .....................................................................................................44
INTERRUPTION OF THE DESCALING CYCLE ........................................................50
CONTROL PANEL WARNINGS ............................................................................53
TROUBLESHOOTING ........................................................................................57
ENERGY SAVING ..............................................................................................59
Stand-by ....................................................................................................................................... 59
TECHNICAL SPECIFICATIONS ............................................................................60
WARRANTY AND SERVICE ................................................................................60
Warranty ....................................................................................................................................... 60
Service .......................................................................................................................................... 60
ORDERING MAINTENANCE PRODUCTS ..............................................................61
3
Page 6
4
ENGLISH
IMPORTANT
Safety Instructions
This machine is equipped with safety devices. Nevertheless,
read and follow the safety instructions carefully and only use
the machine properly as described in these instructions to
avoid accidental injury or damage due to improper use of the
machine. Keep this user manual for future reference.
The term WARNING and this icon warn against possible
severe injuries, danger to life and/or damage to the machine.
The term CAUTION and this icon warn against slight
injuries and/or damage to the machine.
Warnings
• Connect the machine to a wall socket with a voltage
matching the technical speci cations of the machine.
• Connect the machine to a earthed wall socket.
• Do not let the power cord hang over the edge of a table or
counter, or touch hot surfaces.
• Never immerse the machine, the mains plug or power cord
in water: Danger of electrical shock!
• Do not pour liquids on the power cord connector.
• Never direct the hot water jet towards body parts: Danger
of burning!
• Do not touch hot surfaces. Use handles and knobs.
• Remove the mains plug from the wall socket:
- if a malfunction occurs;
- If the machine will not be used for a long time;
Page 7
ENGLISH
- before cleaning the machine.
Pull on the mains plug, not on the power cord. Do not
touch the mains plug with wet hands.
• Do not use the machine if the mains plug, the power cord
or the machine itself is damaged.
• Do not make any modi cations to the machine or its
power cord. Only have repairs carried out by a service
centre authorised by Philips to avoid any hazard.
• The machine should not be used by children younger than
8 years old.
• The machine can be used by children of 8 years and upwards
if they have previously been instructed on the correct use of
the machine and made aware of the associated dangers or if
they are supervised by an adult.
• Cleaning and maintenance should not be carried out by
children unless they are more than 8 years old and supervised by an adult.
5
5
• Keep the machine and its power cord out of reach of children under 8 years old.
• The machine may be used by persons with reduced physical, sensory or mental capabilities or lacking su cient
experience and/or skills if they have previously been
instructed on the correct use of the machine and made
aware of the associated dangers or if they are supervised
by an adult.
• Children should be supervised to ensure that they do not
play with the machine.
• Never insert ngers or other objects into the co ee
grinder.
Page 8
6
ENGLISH
Cautions
• The machine is for household use only. It is not intended
for use in environments such as canteens, sta kitchens of
shops, o ces, factories or other work environments.
• Always put the machine on a at and stable surface.
• Do not place the machine on hot surfaces, directly next to
a hot oven, heater units or similar sources of heat.
• Only put roasted co ee beans into the co ee bean hopper.
If ground co ee, instant co ee, raw co ee or any other
substance is put in the co ee bean hopper, it may damage
the machine.
• Let the machine cool down before inserting or removing
any parts.
• Never use warm or hot water to ll the water tank. Use
only cold non-sparkling drinking water.
• Never clean with scrubbing powders or harsh cleaners.
Simply use a soft cloth dampened with water.
• Descale your machine regularly. The machine indicates
when descaling is needed. Not doing this will make your
appliance stop working properly. In this case repair is not
covered under your warranty!
• Do not keep the machine at temperature below 0 °C.
Residue water in the heating system may freeze and cause
damage.
• Do not leave water in the water tank if the machine is
not used over a long period of time. The water can get
contaminated. Use fresh water every time you use the
machine.
Page 9
ENGLISH
Compliance with Standards
The machine complies with art.13 of the Italian Legislative
Decree dated 25 July 2005, no. 151 “Implementation of the
Directives 2005/95/EC, 2002/96/EC and 2003/108/EC on the
restriction of the use of certain hazardous substances in electrical and electronic equipment, as well as waste disposal”.
This machine complies with EU Directive 2002/96/EC.
This Philips appliance complies with all the applicable standards and regulations relating to the exposure to electromagnetic elds.
7
7
Page 10
8
INSTALLATION

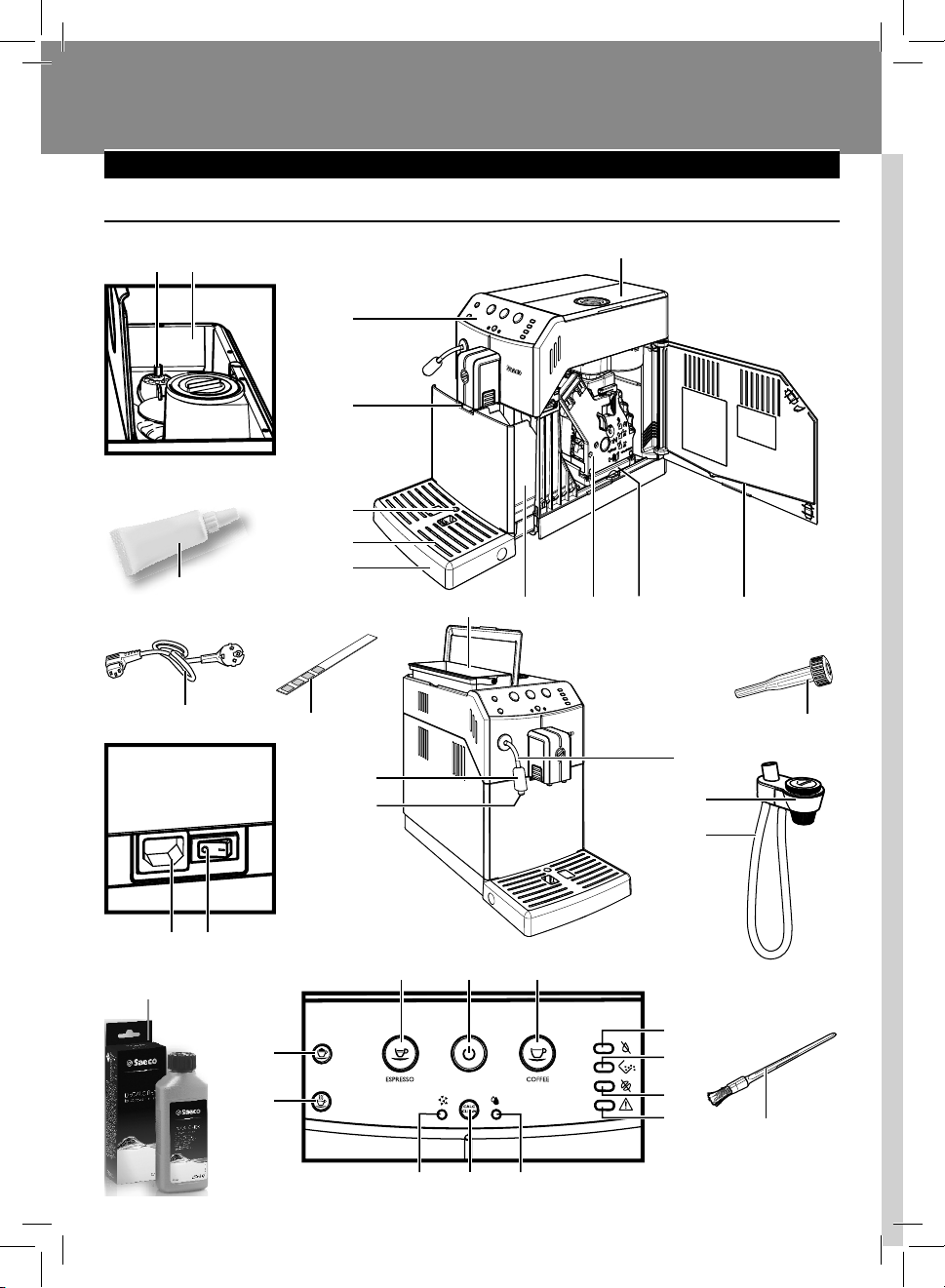

Product Overview
12
14
15
38
3
4
5
6
7
8
10 11 13
9
12
16
18
17
19
20
21
24
22
23
29
30
26 27 28
3136 37
32
33
34
35
25
Page 11
General Description
1. Grinder adjustment knob
2. Co ee bean hopper
3. Co ee bean hopper lid
4. Control panel
5. Co ee dispensing spout
6. Full drip tray indicator
7. Cup holder grill
8. Drip tray
9. Water tank + Lid
10. Co ee grounds drawer
11. Brew group
12. Co ee residues drawer
13. Service door
14. Grease for brew group - (optional)
15. Power cord
16. Co ee grinder adjustment key
17. Chrome-plated grip
18. Steam wand
19. Milk Frother tting
20. Automatic Milk Frother
21. Suction tube for Automatic Milk Frother
22. Power cord socket
23. Power button

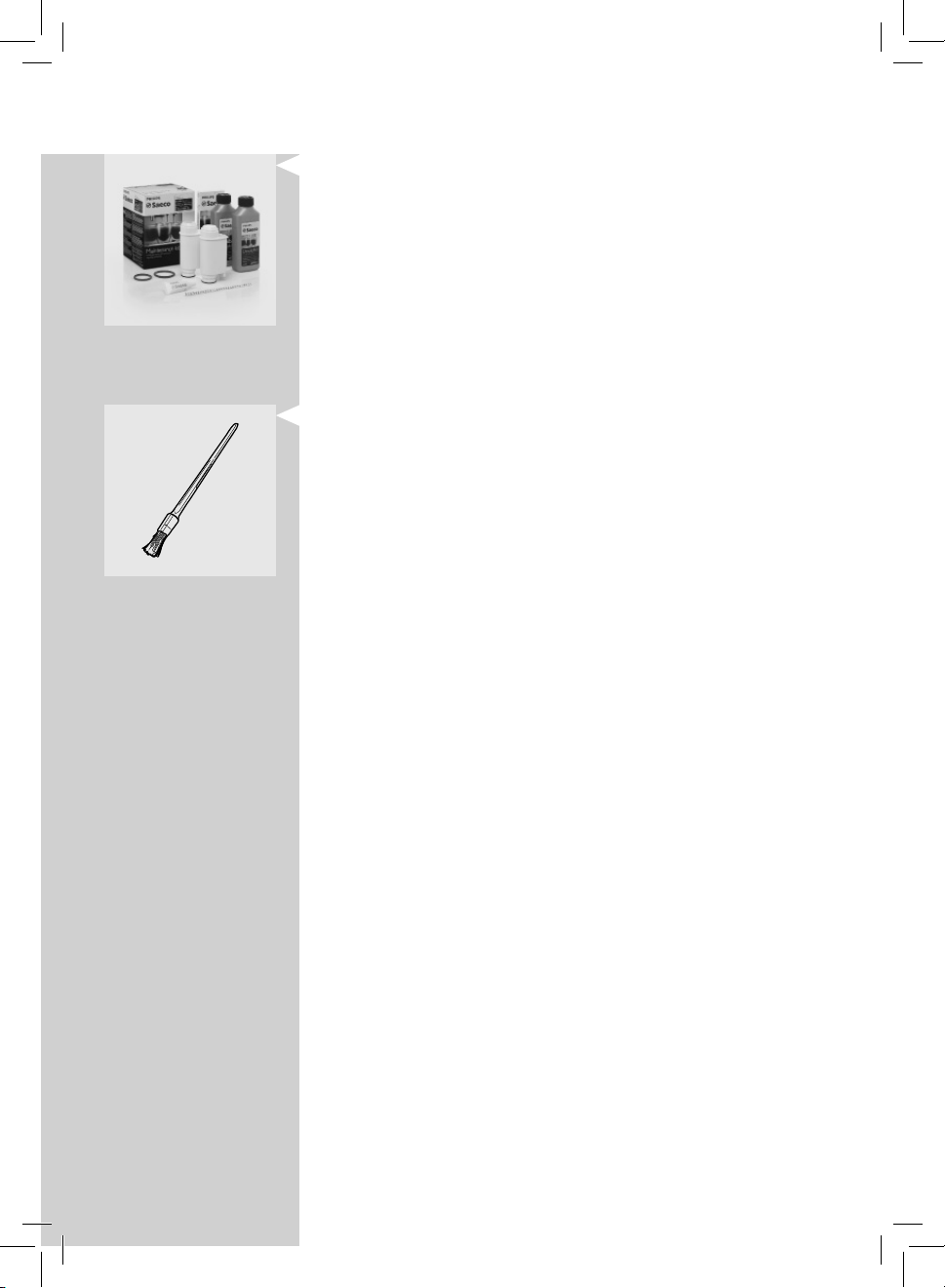

24. Descaling solution - to be purchased separately
25. Cleaning brush - (optional)
26. Espresso brew button
27. ON/OFF button
28. Long co ee brew button
29. Cappuccino button
30. Hot water button
31. Descaling button
32. No water light
33. Empty co ee grounds drawer light
34. No co ee light
35. General warning light
36. Descaling cycle light
37. Rinse cycle light
38. Water hardness test strip
ENGLISH
9
9
Page 12
10
ENGLISH
PREPARING FOR USE
Machine Packaging
The original packaging has been designed and constructed to protect the
machine during transport. We recommend keeping the packaging material
for possible future transport.
Machine Installation
Remove the machine from the packaging.
1

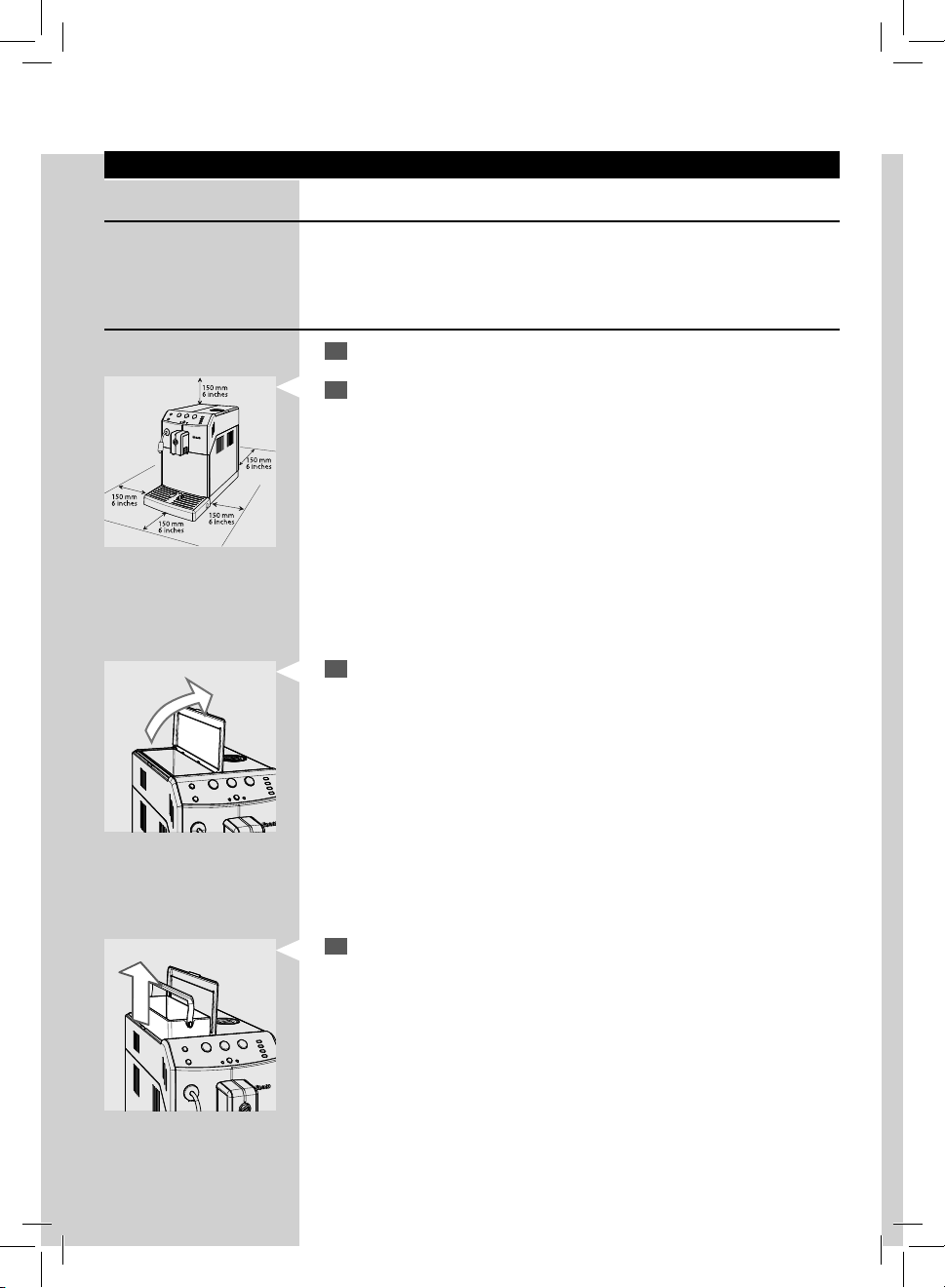

For best use, it is recommended to:
2
• Choose a safe, level surface where there will be no danger of overturning the machine or being injured.
• Choose a location that is su ciently well-lit, clean and near an easily reachable socket.
• Allow for a minimum distance from the sides of the machine as
shown in the gure.
Open the water tank lid.
3
Lift the water tank using the handle.
4
Page 13
ENGLISH

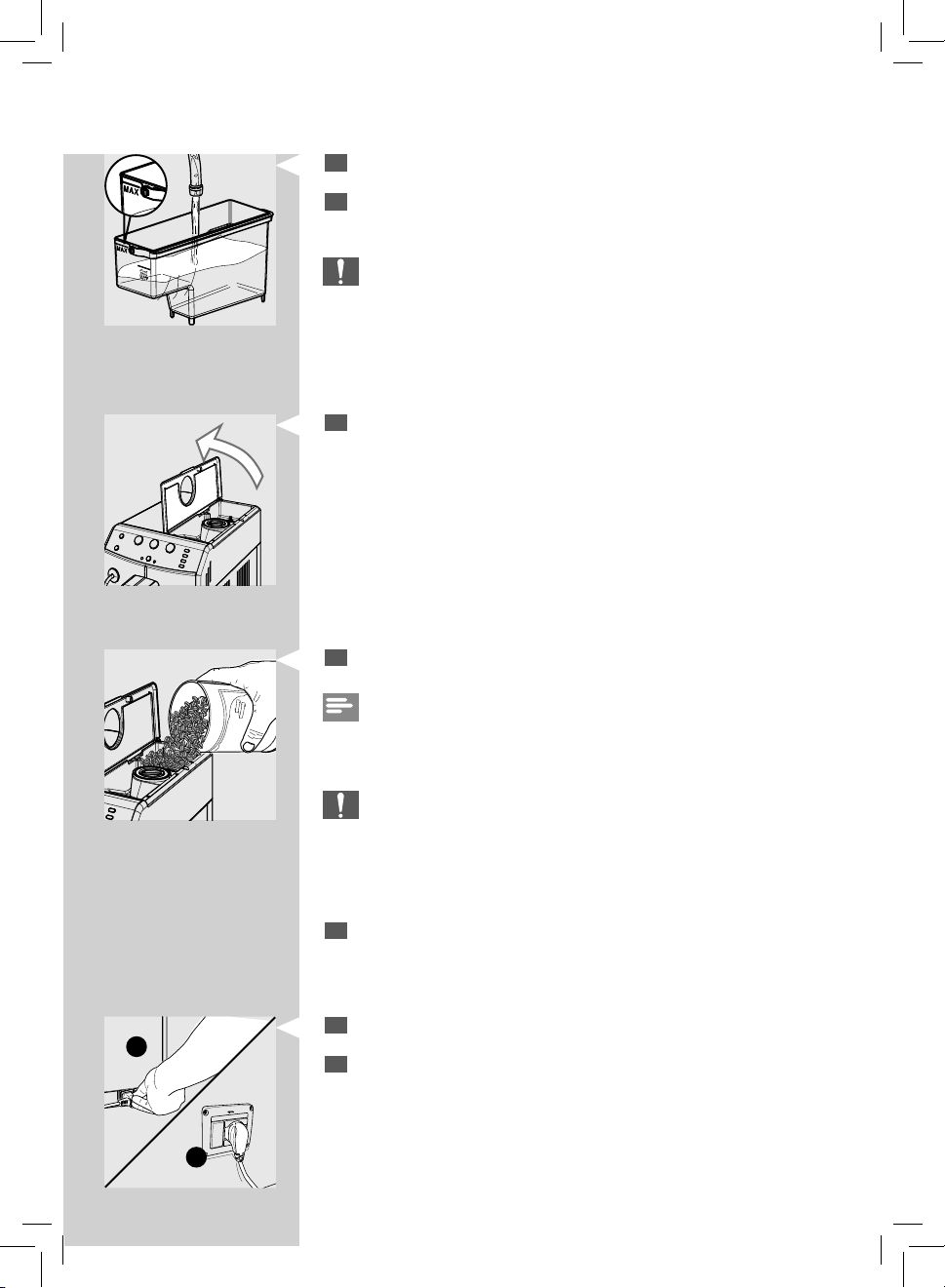

Rinse the water tank with fresh water.
5
Fill the water tank with fresh water up to the MAX level and reinsert it
6
into the machine. Make sure it is fully inserted.
Caution:
Never ll the water tank with warm, hot, sparkling water or any other
liquid, as this may cause damage to the water tank and the machine.
Lift the co ee bean hopper lid.
7
Slowly pour the co ee beans into the co ee bean hopper.
8
11
11
Note:
Do not pour too many co ee beans into the co ee bean hopper as this will
reduce the grinding performance of the machine.
Caution:
Only co ee beans must be put into the co ee bean hopper. If ground
co ee, instant co ee, caramelized co ee, raw co ee beans or any
other substance is put in the co ee bean hopper, it may damage the
machine.
Put the lid back on the co ee bean hopper.
9
Insert the plug into the socket located on the back of the machine.
10
1
Insert the plug on the other end of the power cord into a wall socket
11
with suitable power voltage.
2
Page 14
12
ENGLISH

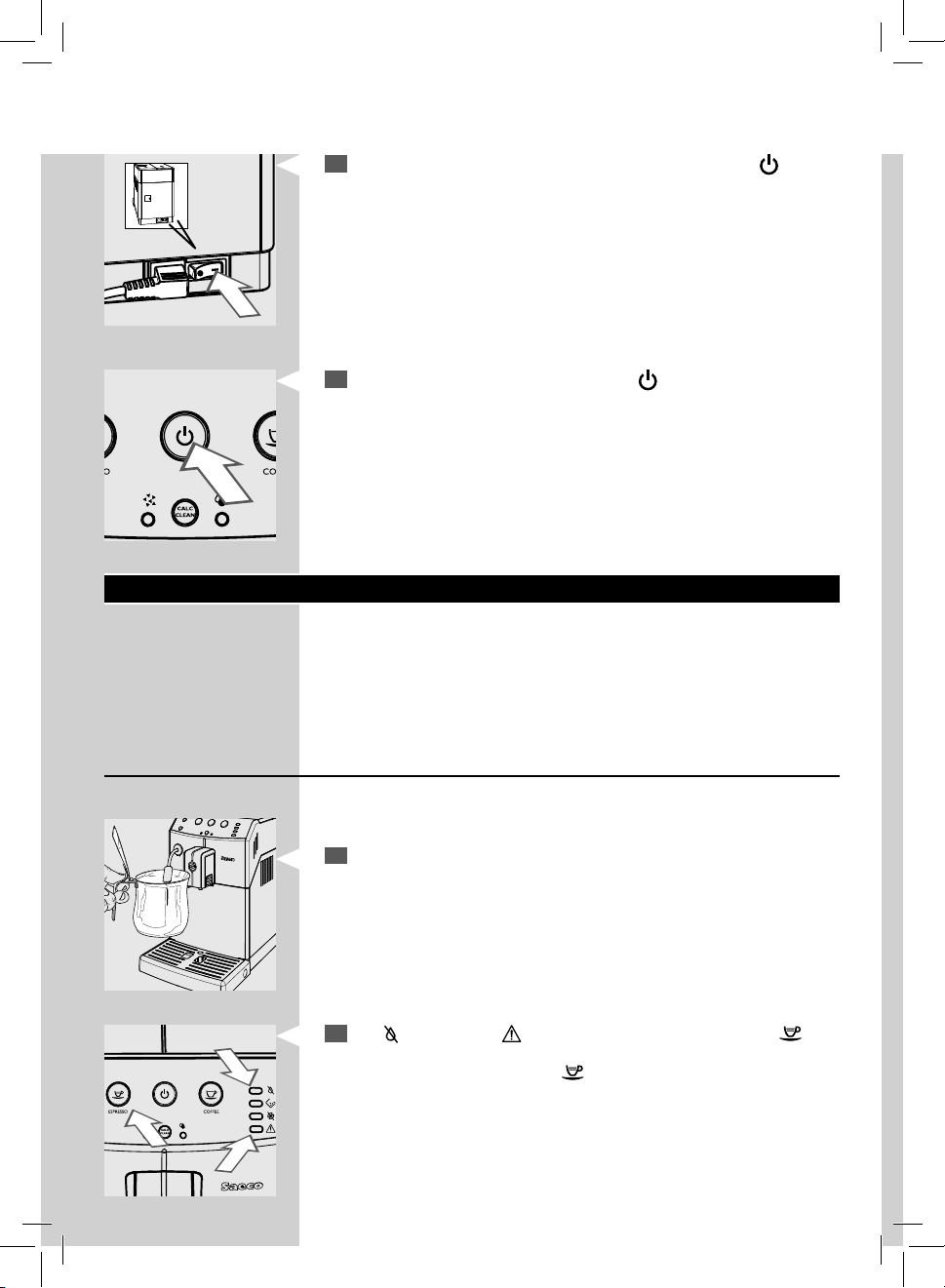

Switch the power button to “I” to turn on the machine. The " " button
12
ashes.
To turn on the machine, simply press the " " button.
13
USING THE MACHINE FOR THE FIRST TIME
When using the machine for the rst time, the following activities need to
happen:
1) you need to prime the circuit;
2) the machine will perform an automatic rinse/self-cleaning cycle;
3) you need to perform a manual rinse cycle.

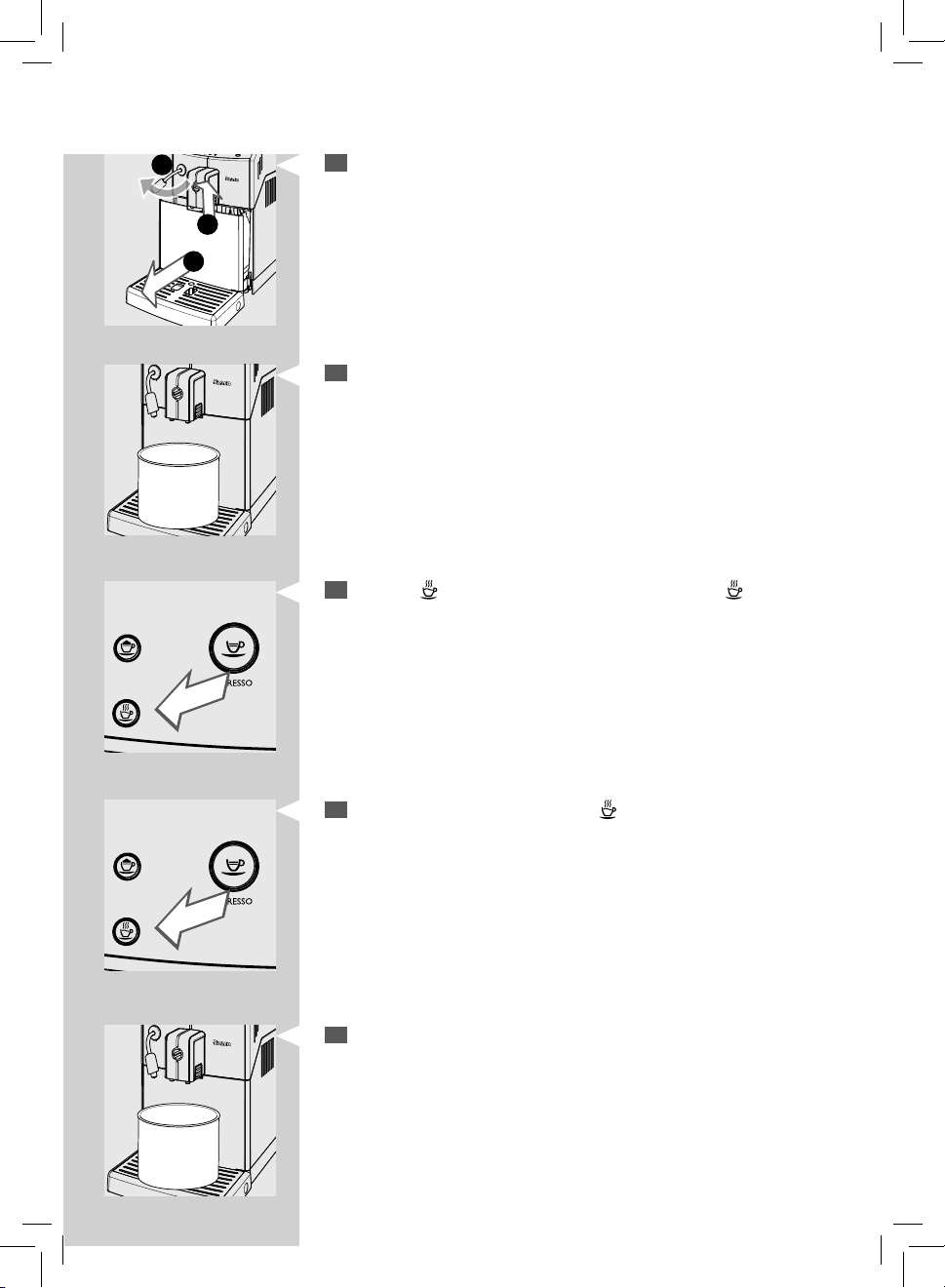

Circuit Priming
During this process, fresh water ows through the internal circuit of the
machine and the machine warms up. This takes a few minutes.
Place a container under the steam wand.
1
The “ ” light and the “ ” light ash simultaneously; then the “ ” but-
2
ton lights up.
To prime the circuit, press the “
” button.
Page 15
ENGLISH
Thereafter, the machine warms up; the “ ” and “ ” buttons ash
3
simultaneously.
13
13
Automatic Rinse/Self-Cleaning Cycle
When the warm-up phase has been completed, the machine automatically
performs a rinse/self-cleaning cycle of the internal circuits with fresh water.
This takes less than a minute.
Place a container under the co ee dispensing spout to catch the water
1
which will be dispensed.
The " " and " " buttons ash simultaneously. Wait for the cycle to
2
nish automatically.
When the operations described above have been completed, the "
3
", " ", " " and " " buttons shine steadily. You can now perform the
manual rinse cycle.
Page 16
14
ENGLISH

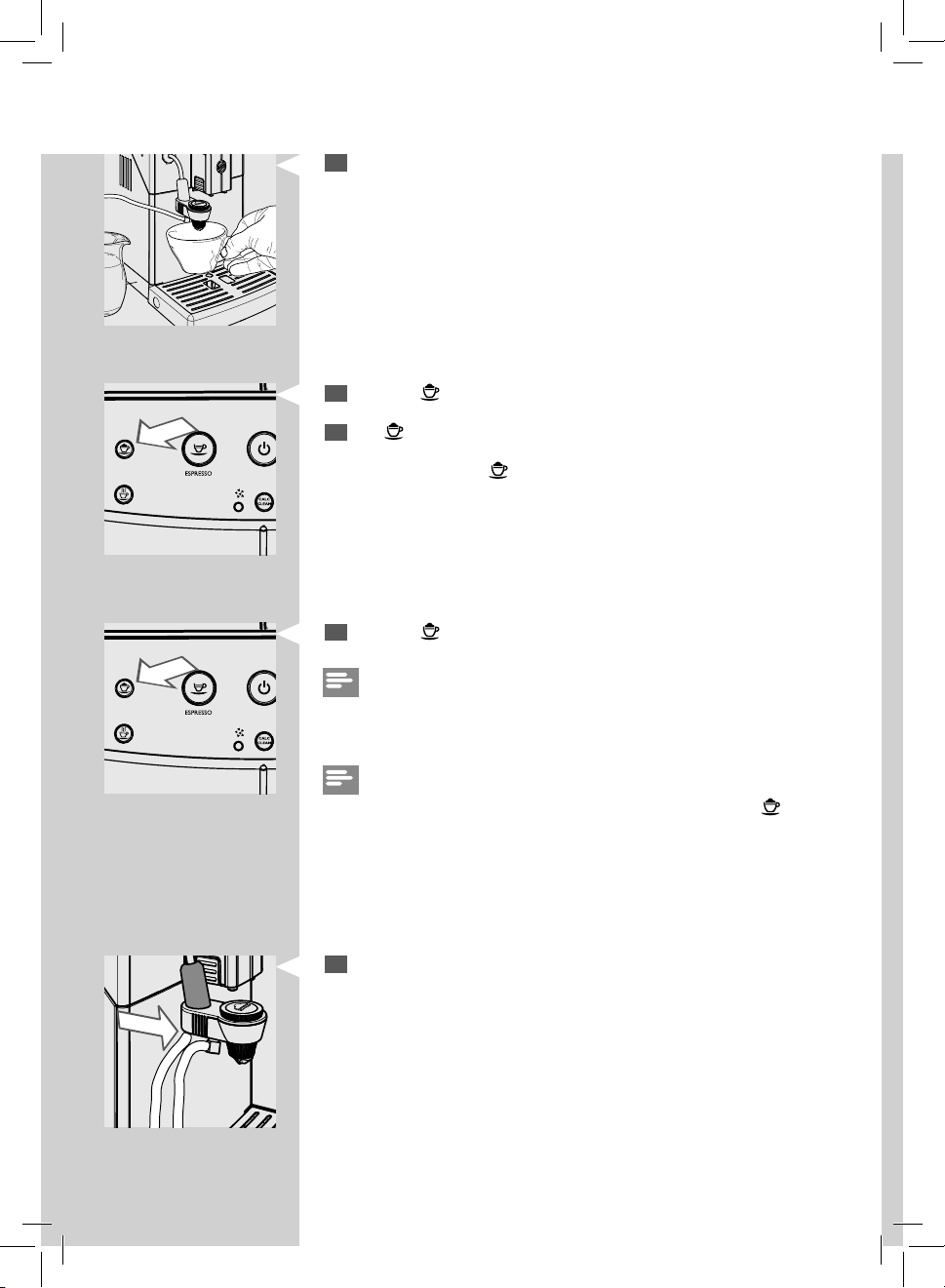

Manual Rinse Cycle
During this process, the co ee brewing cycle is activated and fresh water
ows through the water circuit. This takes a few minutes.
Place a container under the co ee dispensing spout.
1
Check that the " ", " ", " " and " " buttons are shining steadily.
2
Press the
3
brewing has been completed and empty the container.
Place a container under the steam wand.
4
" "
button. The machine starts brewing co ee. Wait until
Page 17
ENGLISH

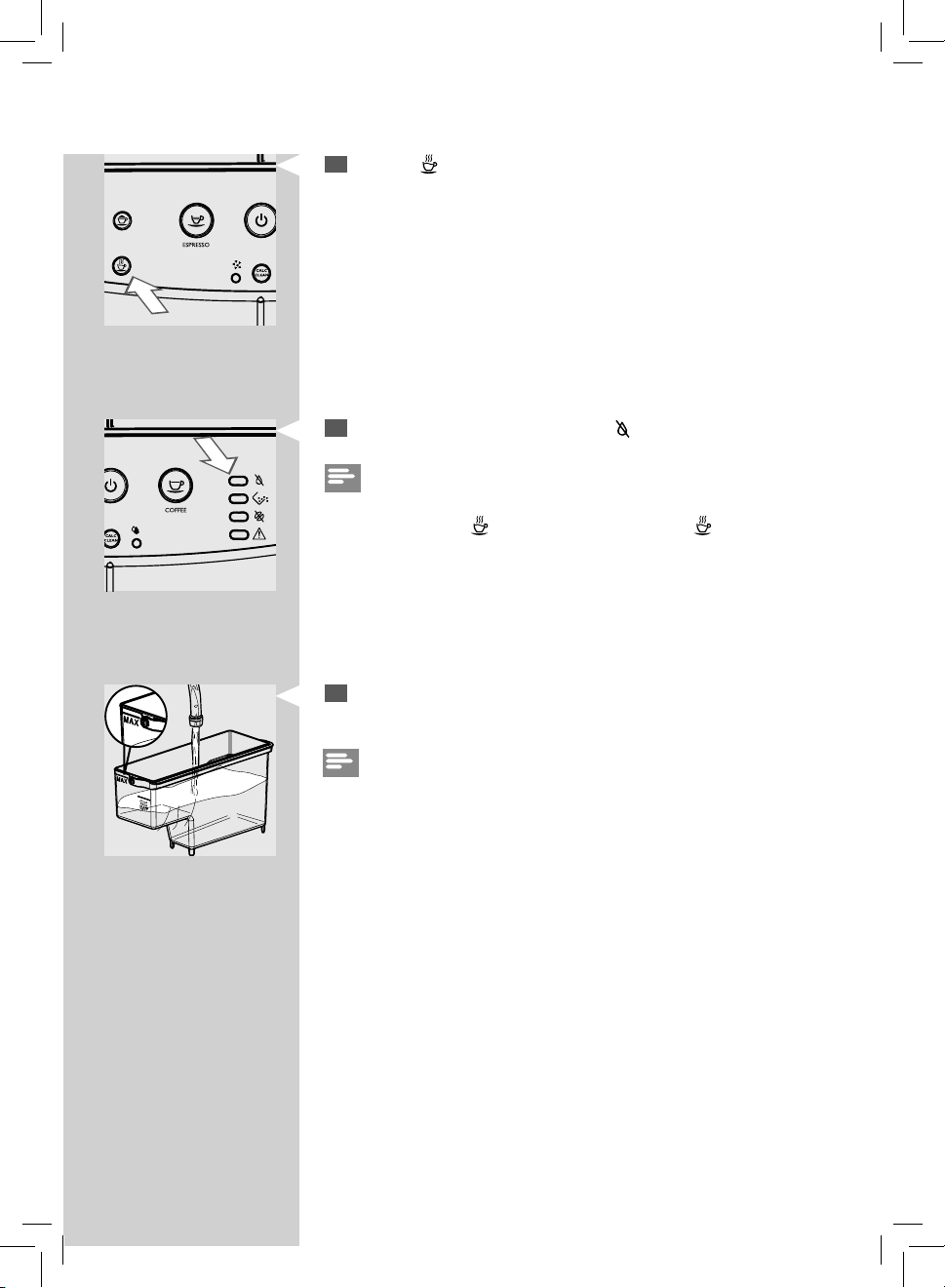

Press the “ ” button to start dispensing hot water. The button ashes
5
during dispensing.
Dispense all the remaining water. The “ ” light shines steadily.
6
Note:
If you want to interrupt the manual rinse cycle (for example to empty the
container), press the “
” button; to resume press the “ ” button again.
15
15
Fill the water tank again up to the MAX level. Now the machine is ready
7
to brew co ee.
Note:
The automatic rinse/self-cleaning cycle starts when the machine has been
in stand-by mode, or turned o , for more than 15 minutes.
When you have not used the machine for 2 or more weeks, you will need to
perform a manual rinse cycle.
At the end of the cycle, you can brew a co ee.
Page 18
16
ENGLISH
Measuring and Programming Water Hardness
Water hardness measuring is very important in order to de ne the descaling frequency and to install the “INTENZA+” water lter (for more details on
the water lter, see next chapter).

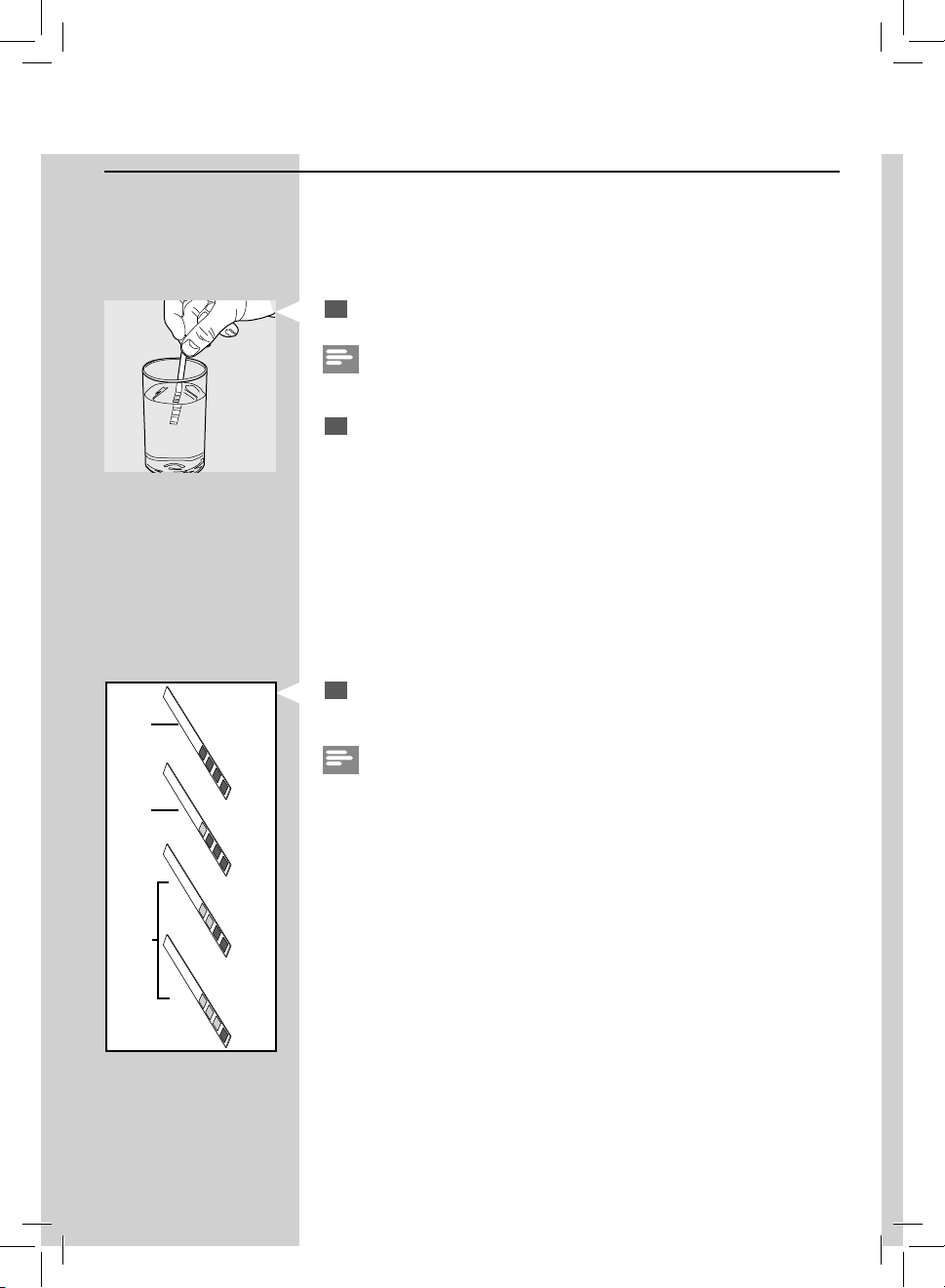

To measure the water hardness follow the steps below:
Immerse the water hardness test strip (supplied with the machine) in
1
water for 1 second.
Note:
The test strip can only be used for one single measurement.
Wait for one minute.
2
Intenza Aroma System
Check how many squares have changed colour to red and then refer to
3
C
B
A
23 4
Machine Water Hardness Setting
1
the table.
Note:
The numbers on the water hardness test strip correspond to the water
hardness.
More precisely:
1 = 1 (very soft water)
2 = 2 (soft water)
3 = 3 (hard water)
4 = 4 (very hard water)
The letters correspond to the references that are located at the base of the
“INTENZA+” water lter (see next chapter).
Page 19
ENGLISH
17
17

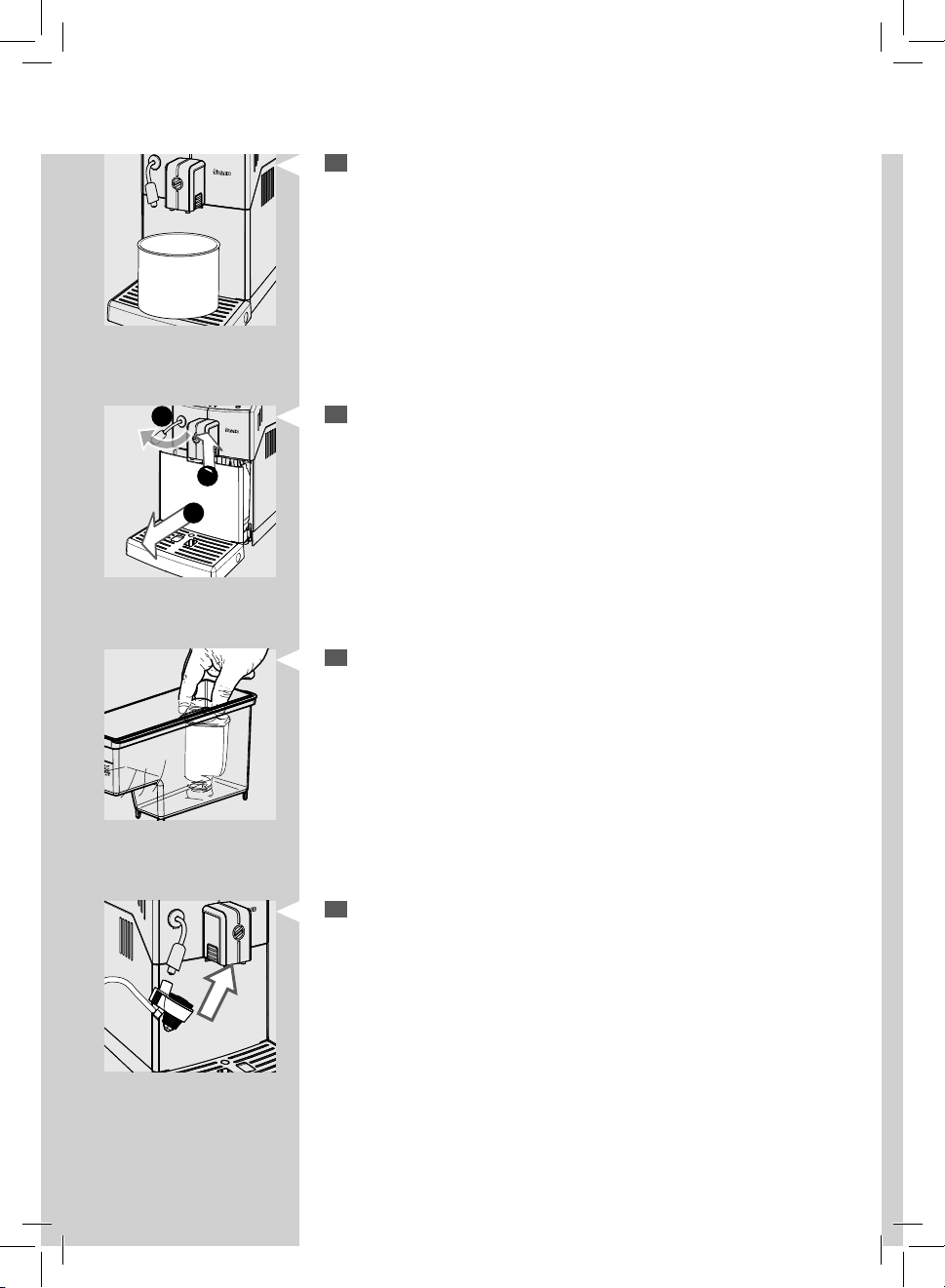

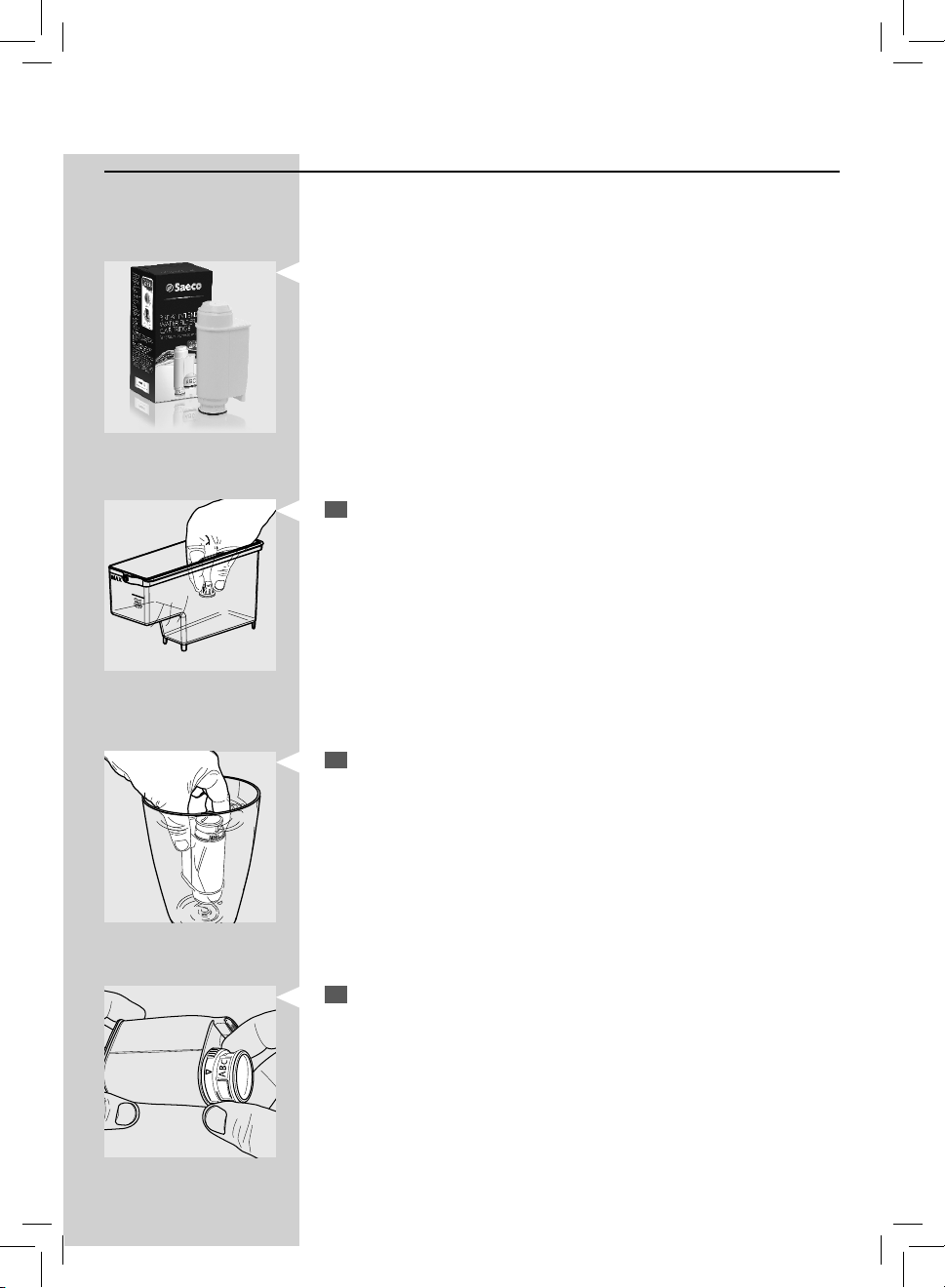

“INTENZA+” Water Filter Installation
We recommend you to install the “INTENZA+” water lter as this prevents
limescale build-up in your machine and preserves a more intense aroma of
your co ee.
The “INTENZA+” water lter can be purchased separately. For further details, please refer to the maintenance products page in this user manual.
Water is a crucial part of every co ee, so it is very important to always have
it professionally ltered. Using the “INTENZA+” water lter will prevent
mineral deposits from building up and improve your water quality.
Remove the small white lter from the water tank and store it in a dry
1
place.
Remove the “INTENZA+” water lter from its packaging, immerse it ver-
2
tically (with the opening positioned upwards) in cold water and gently
press the sides so as to let the air bubbles out.
Set the “INTENZA+” water lter according to the measurements per-
3
formed (see previous chapter) and indicated on the base of the lter:
A = soft water – equals 1 or 2 on the test strip
B = hard water (standard) – equals 3 on the test strip
C = very hard water – equals 4 on the test strip
Page 20
18
ENGLISH

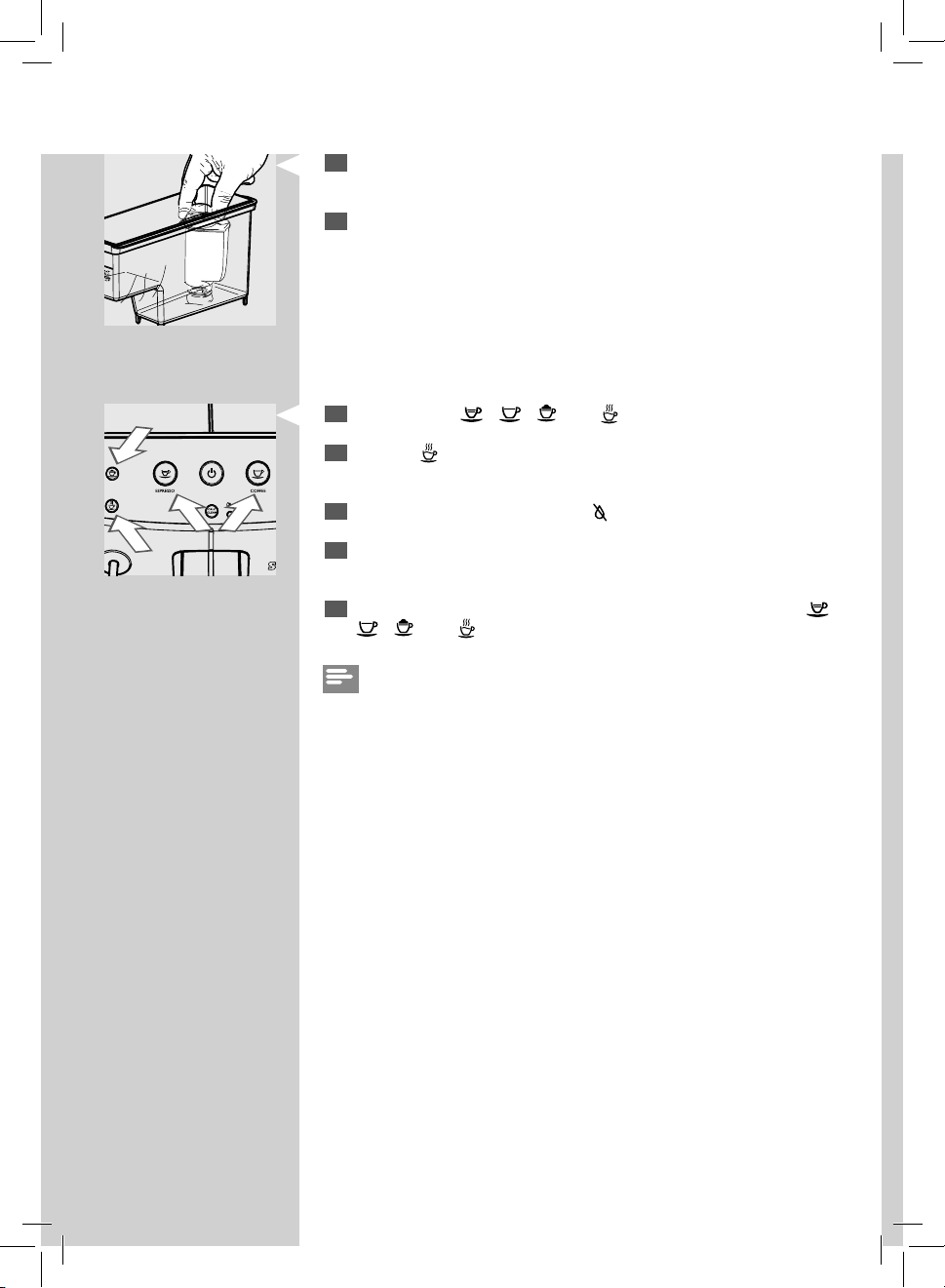

Put the “INTENZA+” water lter into the empty water tank. Press it
4
down until it cannot move any further.
Fill the water tank with fresh water and put it into the machine.
5
Check that the " ", " ", " " and " " buttons are shining steadily.
6
Press the “ ” button to start dispensing hot water. The button ashes
7
during dispensing.
Dispense all water in the tank. The “ ” light shines steadily.
8
Fill the water tank again with fresh water and reinsert it into the ma-
9
chine.
When the operations described above have been completed, the " ",
10
", " " and " " buttons shine steadily.
"
Note:
The “INTENZA+” water lter must be replaced after two months of use.
Page 21
ENGLISH

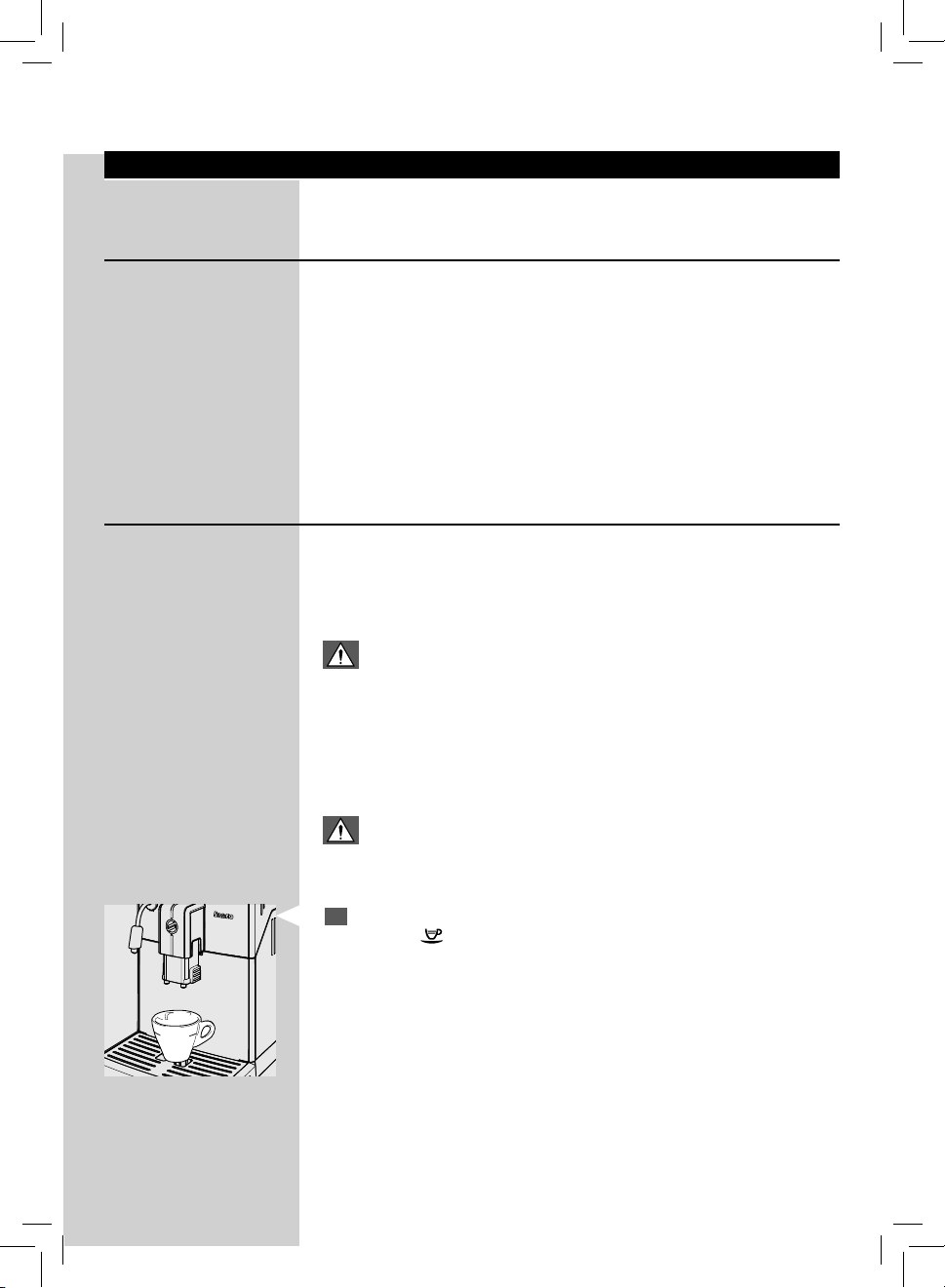

ADJUSTMENTS
The machine allows for certain adjustments so that you can brew the best
tasting co ee possible.
Saeco Adapting System
Co ee is a natural product and its characteristics may change according to
its origin, blend and roast. The machine is equipped with a self-adjusting
system that allows the use of all types of co ee beans available on the
market, except for raw, caramelized and avoured co ee beans.
The machine automatically adjusts itself after brewing several cups of coffee to optimize co ee extraction.
Adjusting the Ceramic Co ee Grinder
Ceramic co ee grinders always guarantee accurate and perfect grinding
and coarseness for every co ee speciality.
This technology provides full aroma preservation, delivering a truly Italian
taste in every cup.
Warning:
The ceramic co ee grinder contains moving parts that may be dangerous. Do not insert ngers or other objects. Only adjust the ceramic
co ee grinder using the grinder adjustment key.
19
19
You can adjust the ceramic grinders to set the co ee grinding to your
personal taste.
Warning:
You can only adjust the co ee grinder settings when the machine is
grinding co ee beans.
Place a cup under the dispensing spout.
1
Press the “
” button to brew an espresso.
Page 22
20
ENGLISH
1
2
While the machine grinds co ee, press and turn the grinder adjust-
2
ment knob placed inside the co ee bean hopper one notch at a time.
Use the special co ee grinder adjustment key supplied. You will taste
the di erence after brewing 2-3 cups of co ee.
The reference marks inside the co ee bean hopper indicate the grind
3
setting. There are 5 di erent grind settings to choose from, from posi-
( )
tion 1
stronger taste. If co ee is watery or is brewed slowly, change the co ee
grinder settings.
for coarse grind - lighter taste to position 2
( )
for ne grind -
Adjusting the Dispensing Spout

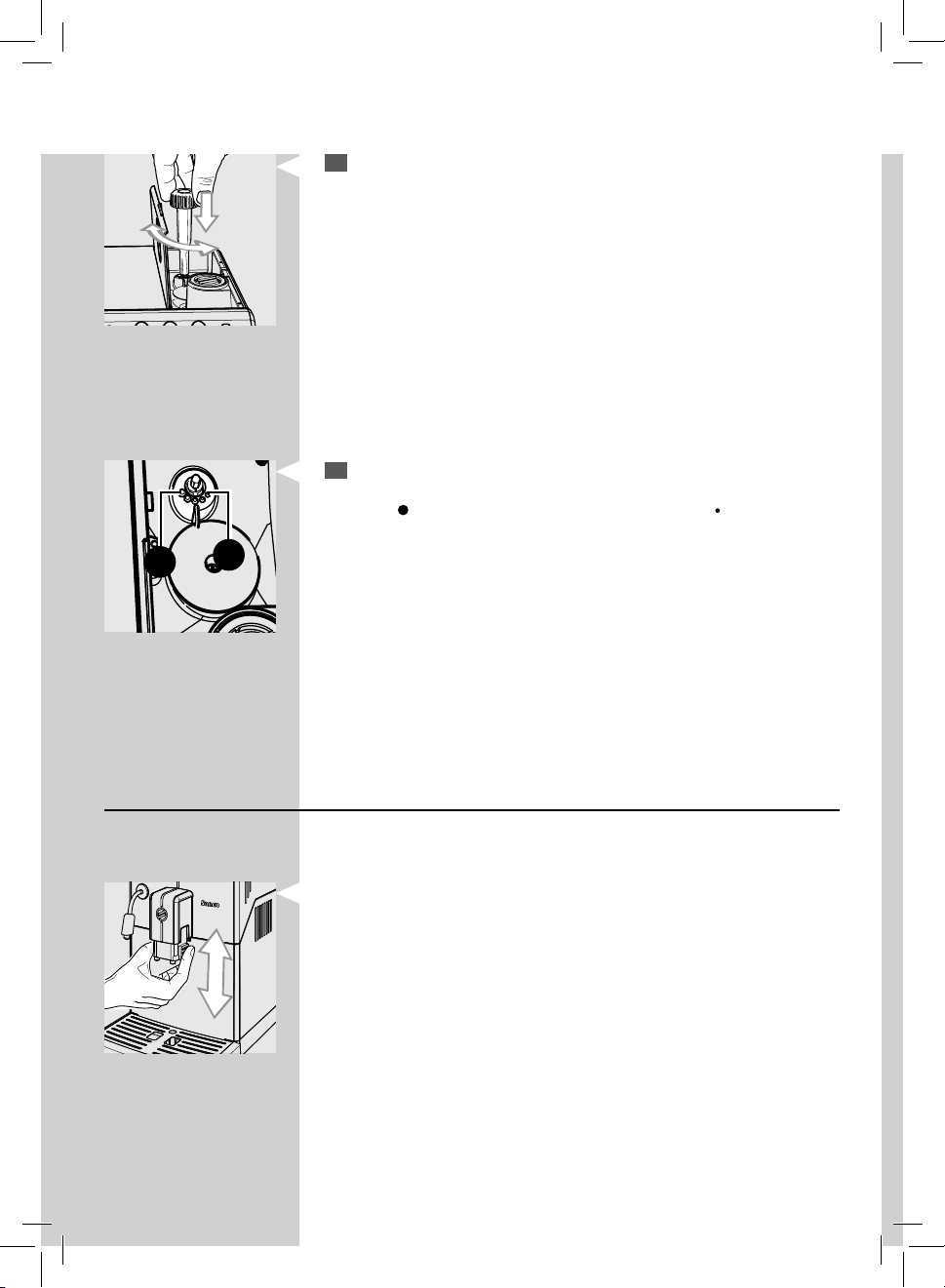

The height of the dispensing spout can be adjusted to better t the dimensions of the cups that you wish to use.
Move the dispensing spout up or down with your ngers to adjust its
height as shown in the gure.
Page 23
ENGLISH

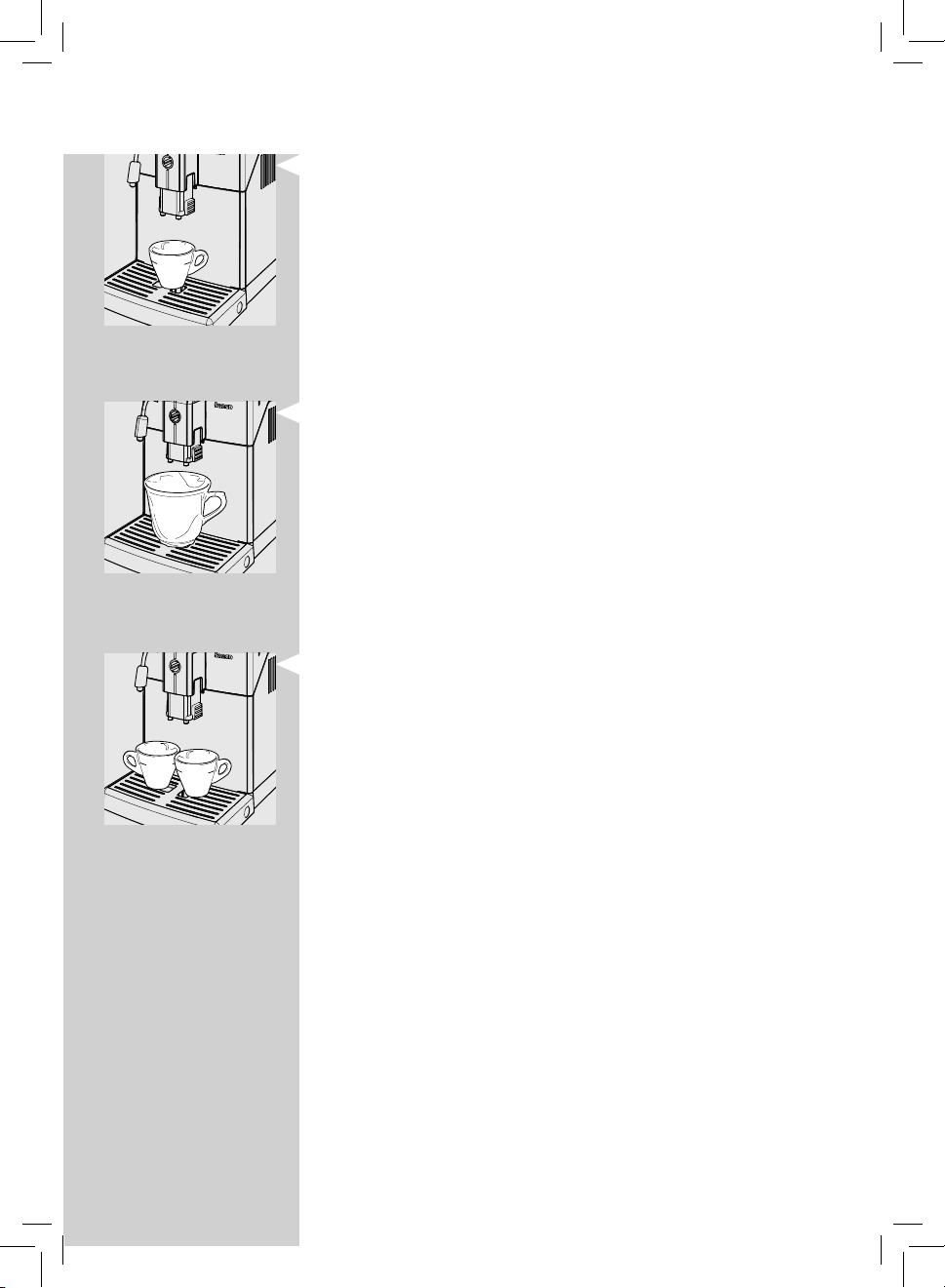

The recommended positions are:
For the use of small cups;
For the use of large cups.
Two cups can also be placed under the dispensing spout to brew two cups
of espresso or two cups of long co ee at the same time.
21
21
Page 24
22
ENGLISH
Adjusting the Co ee Length
The machine allows you to adjust the amount of brewed co ee according
to your taste and the size of your cups.
Each time the “
amount of co ee. Each button may be individually programmed for a
speci c brew setting.
” or
“ ”
button is pressed, the machine brews a pre-set
The following procedure describes how to program the “
Place a cup under the dispensing spout.
1
Press and hold the “ ” button until it starts to ash quickly. Then
2
release the button. The machine is now in programming mode. The “
” button ashes throughout the programming cycle.
The machine starts brewing co ee.
Press the “ ” button as soon as the desired amount of co ee is
3
reached.
Now the button “
will brew the same amount of espresso that was just programmed.
” is programmed; each time it is pressed, the machine
” button.
Note:
Follow the same procedure to program the
Press the
is reached.
“ ”
button to stop brewing when the desired amount of co ee
“ ”
button.
Page 25
ENGLISH
23
23

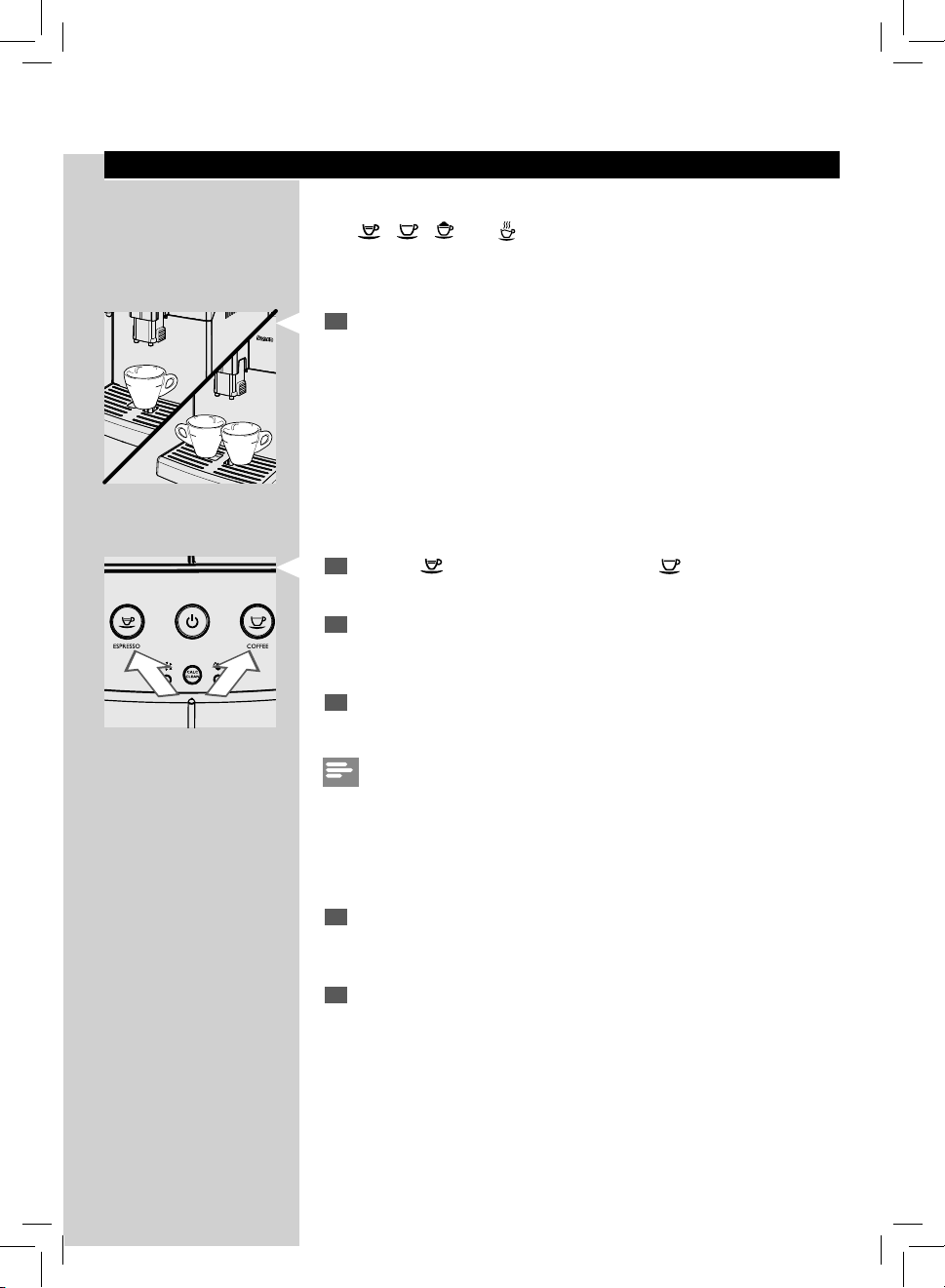

BREWING ESPRESSO AND COFFEE
Before brewing co ee, make sure that there are no warnings shown on the
control panel, and that the water tank and co ee bean hopper are lled.
", " ", " " and " " buttons are shining steadily.
The "

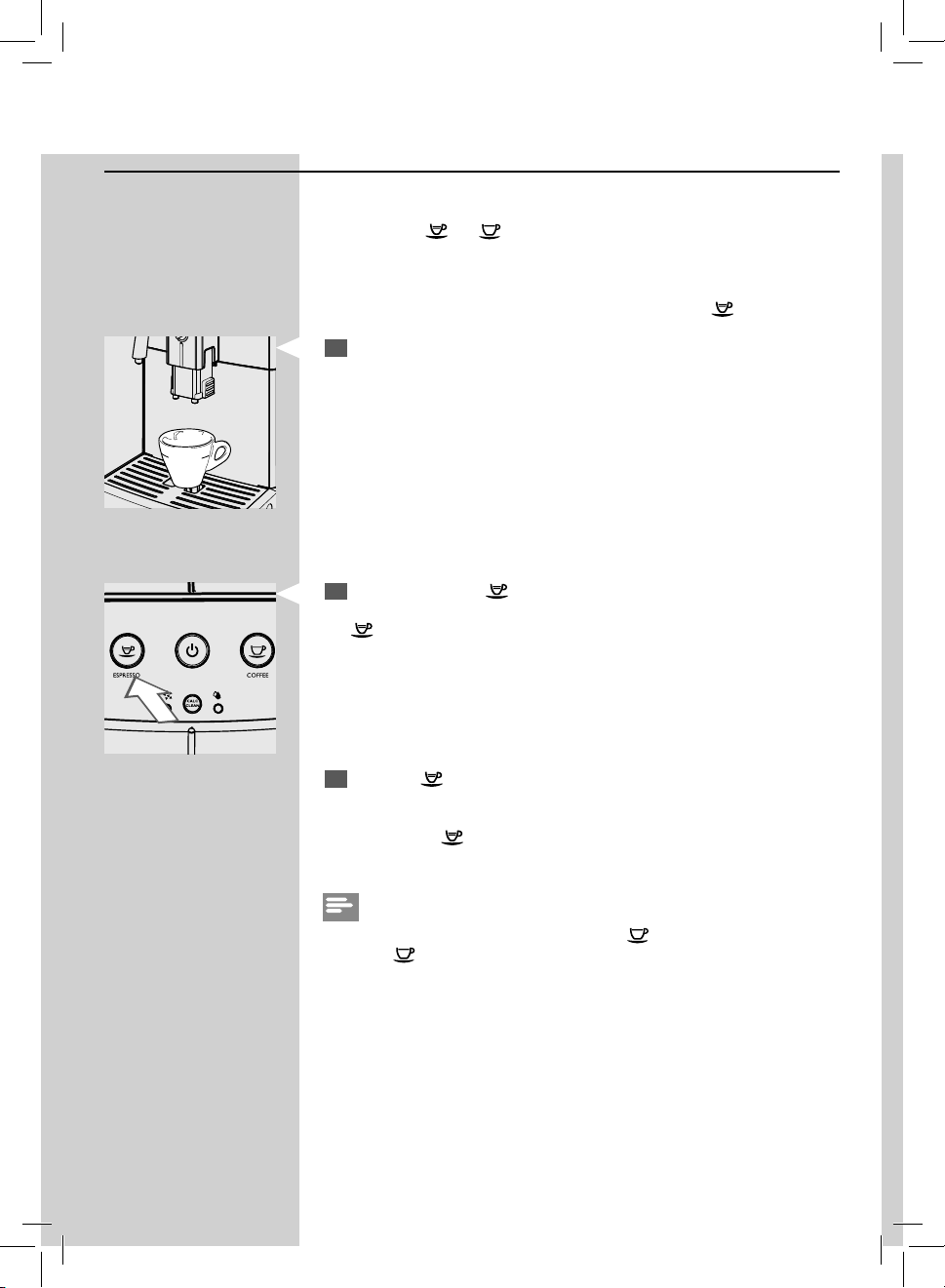

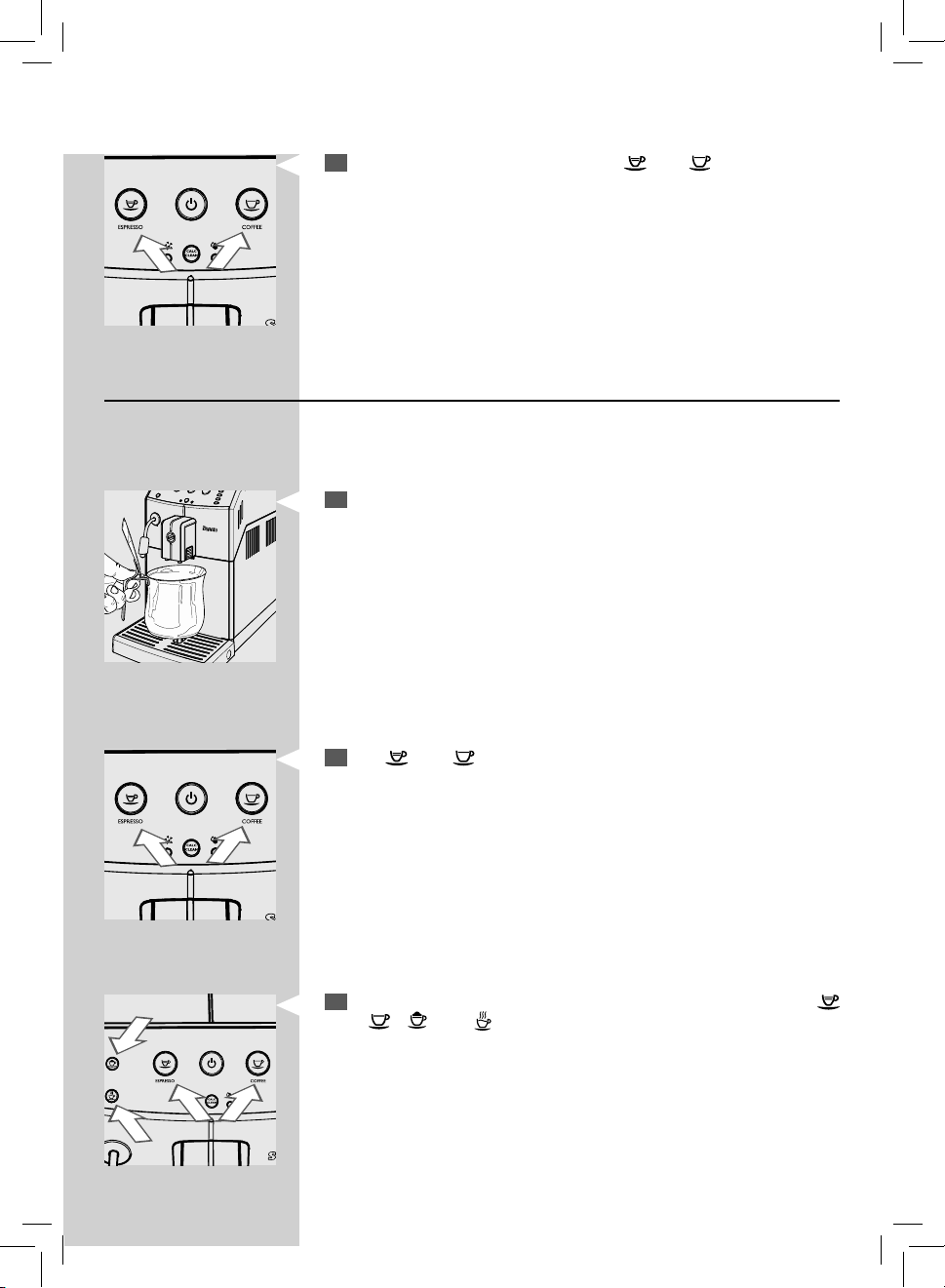

Place 1 or 2 cups under the dispensing spout.
1
Press the “ ” button for an espresso or the
2
To brew 1 cup of espresso or co ee, press the desired button once. The
3
pressed button ashes slowly.
To brew 2 cups of espresso or co ee, press the desired button twice
4
consecutively. The pressed button ashes quickly twice.
Note:
In this operating mode, the machine automatically grinds and doses the
correct amount of co ee. Brewing two cups of espresso or long co ee
requires two grinding and brewing cycles, automatically carried out by the
machine.
After the prebrewing cycle, co ee begins to pour out of the dispensing
5
spout.
Co ee brewing automatically stops when the preset level is reached;
6
press the same button pressed previously to stop it earlier.
“ ”
button for a co ee.
Page 26
24
ENGLISH

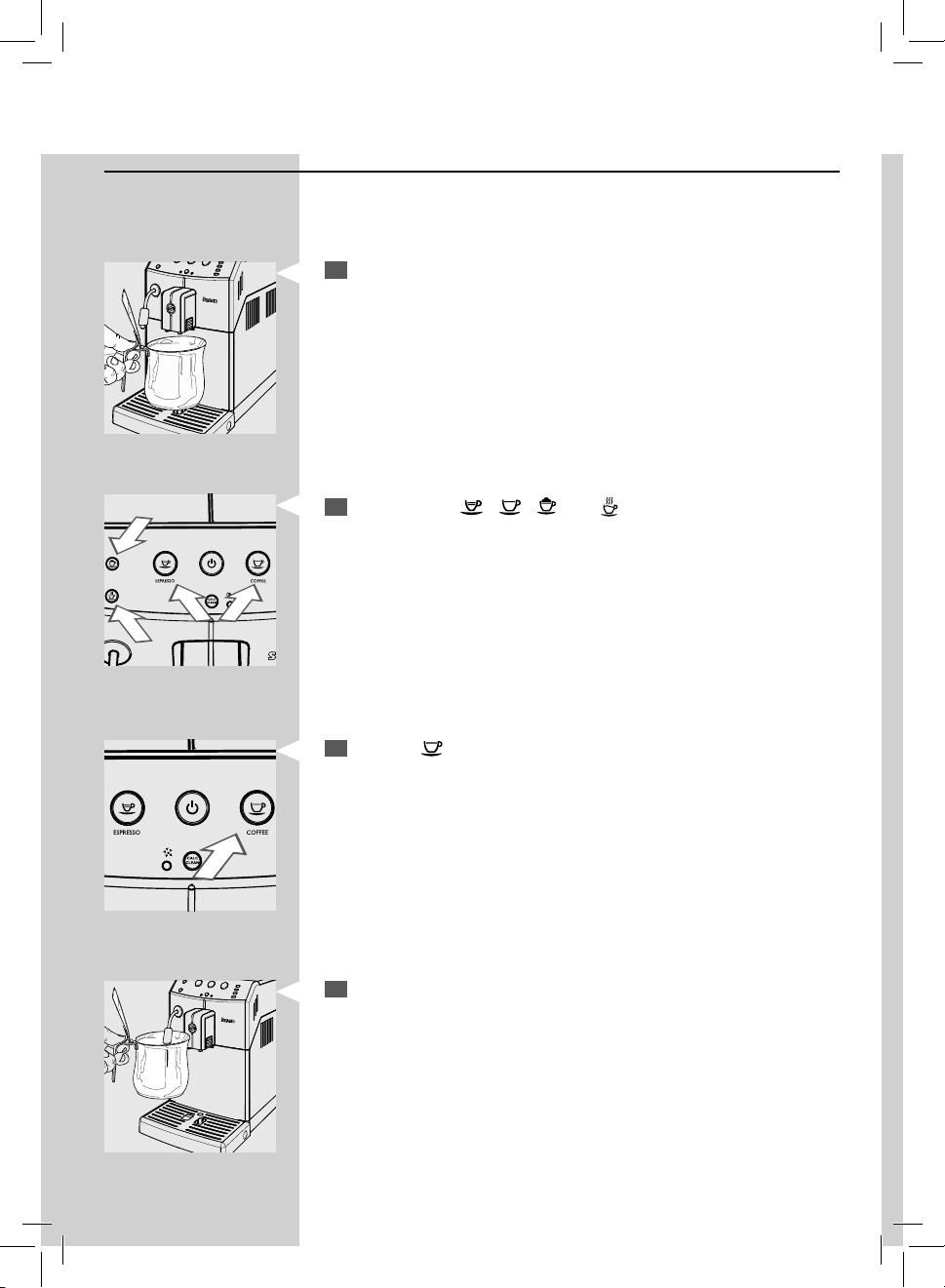

FROTHING MILK / BREWING CAPPUCCINO
Frothing milk

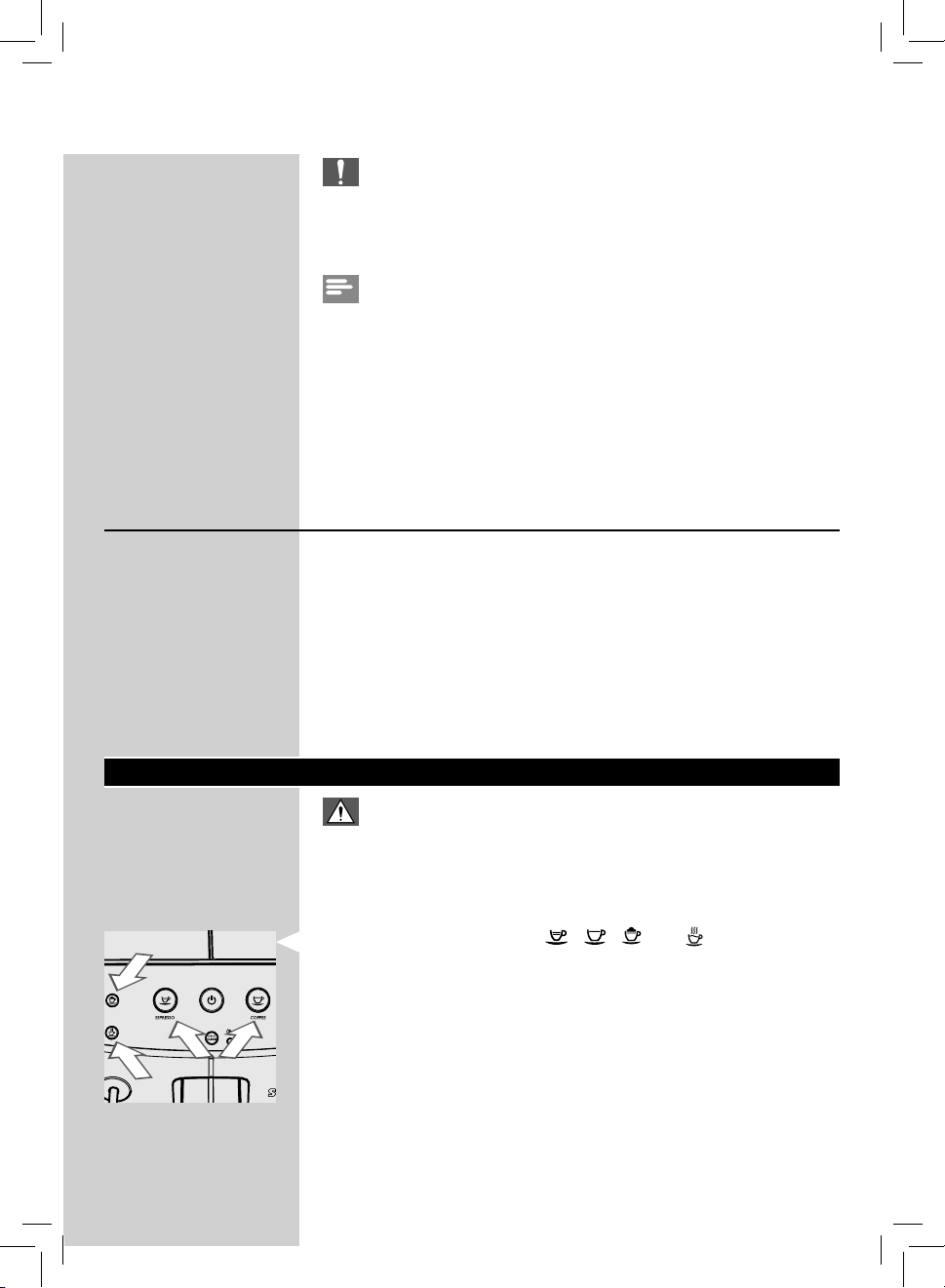

Warning:
Danger of scalding! Dispensing may be preceded by small jets of hot
water. When steam is used, the steam wand and the chrome cover may
reach high temperatures. Never touch it with bare hands. The Automatic Milk Frother must be handled only as indicated
in the image.

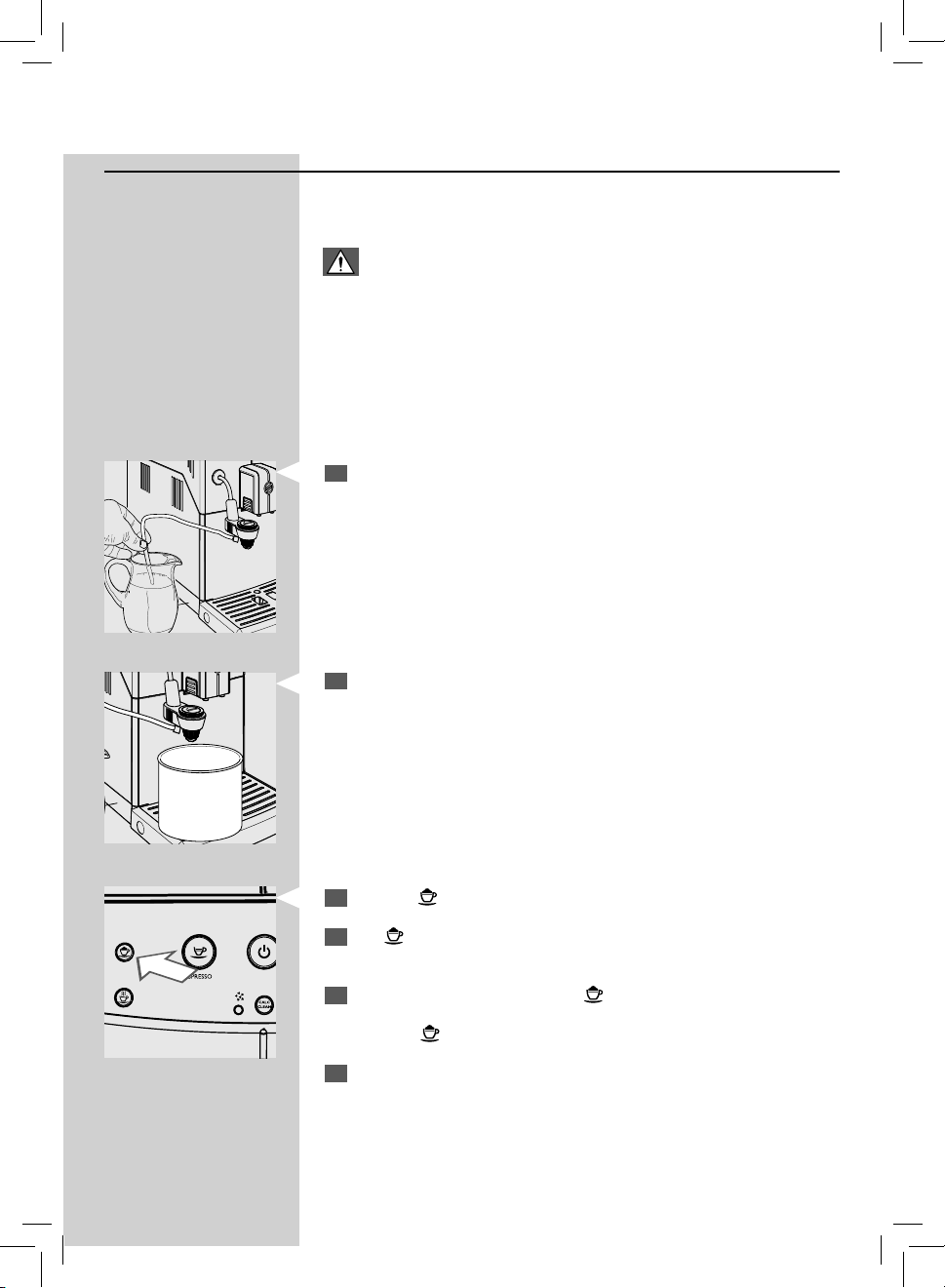

Fill 1/3 of a container with cold milk.
1
Note:
When preparing your cappuccino, use cold (~5°C / 41°F) milk with a protein
content of at least 3% to ensure optimum results. Whole milk or low-fat
milk can be used depending on your personal taste.
Note:
When you plan to dispense steam right after switching on the machine or
after brewing a co ee, some water still present in the circuit may need to
be dispensed rst.
To do this, press the “
Thereafter press the “
step 2.
Before dispensing steam, make sure that the machine is ready to use
2
and the water tank is lled. The "
shining steadily.
” button to dispense steam for a few seconds.
” button to stop dispensing. Then proceed with
", " ", " " and " " buttons are
Page 27

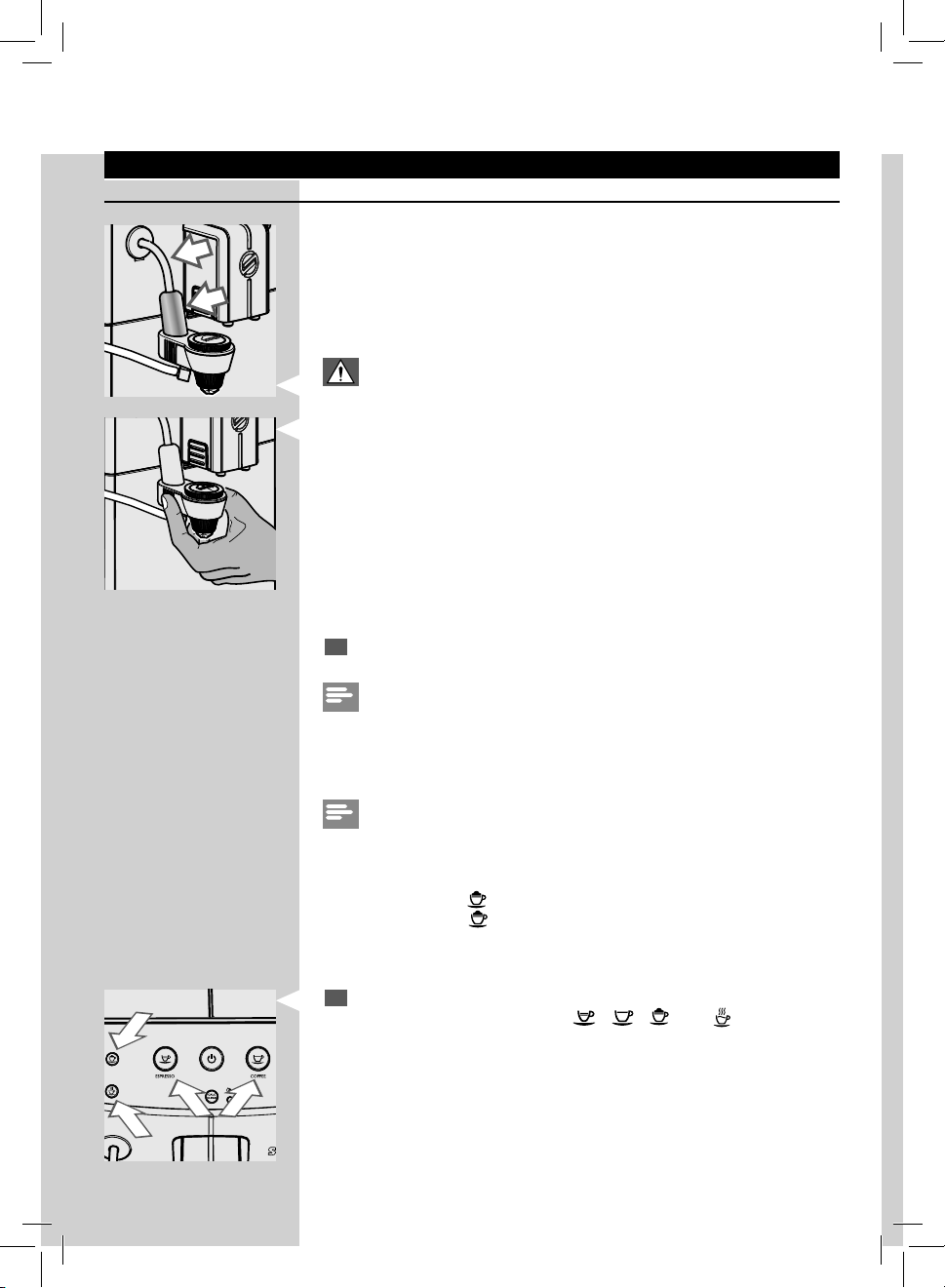

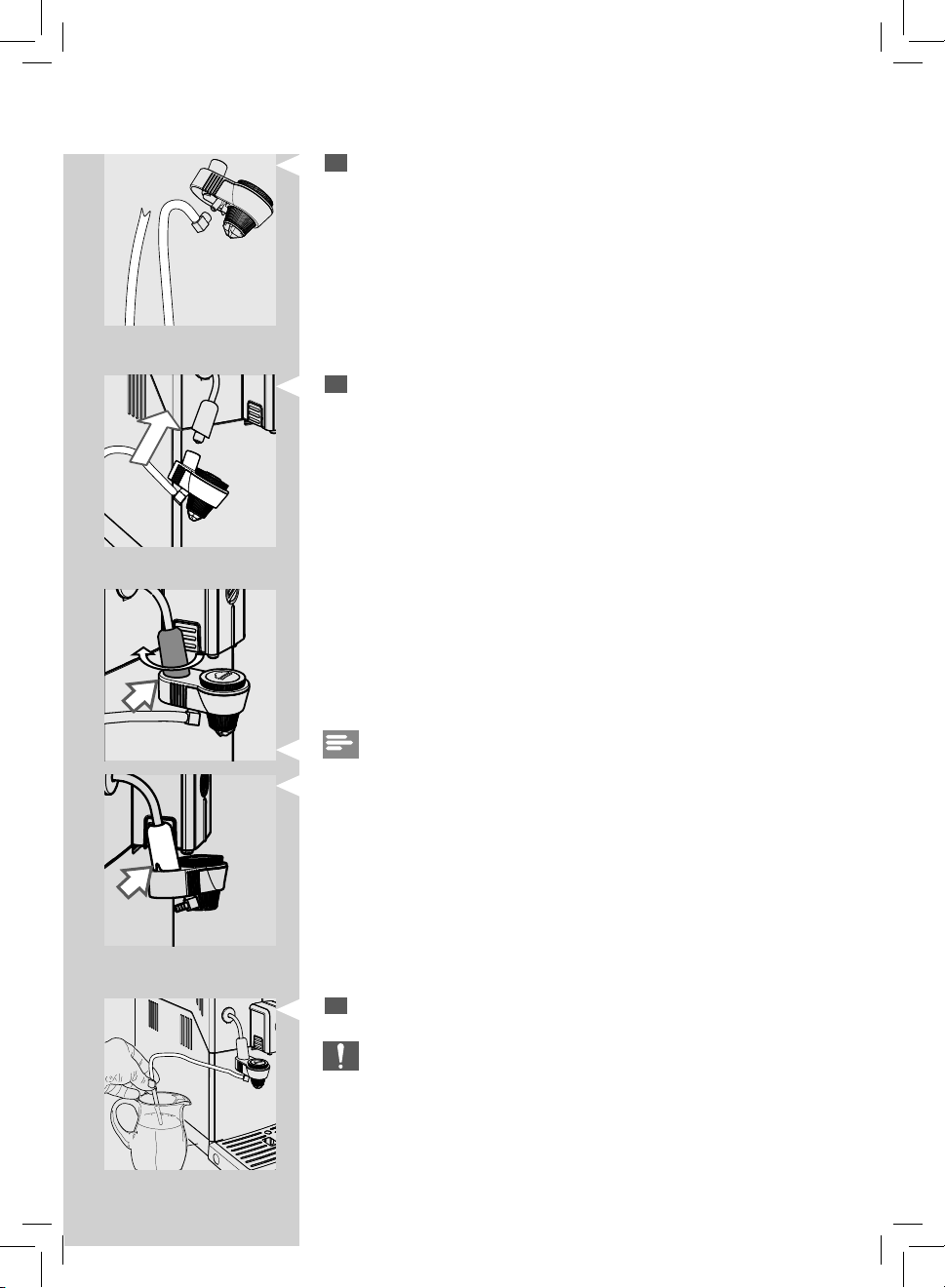

Insert the suction tube into the Automatic Milk Frother.
3
Insert the Automatic Milk Frother into the steam wand seat.
4
ENGLISH
25
25
Note:
Make sure that it is positioned correctly. If you cannot insert it, rotate the
chrome cover. The Automatic Milk Frother is assembled correctly when the
tooth ts into the slot.
Insert the suction tube into the milk container.
5
Caution:
Make sure that the outer surface of the suction tube is clean for hygienic reasons.
Page 28
26
ENGLISH

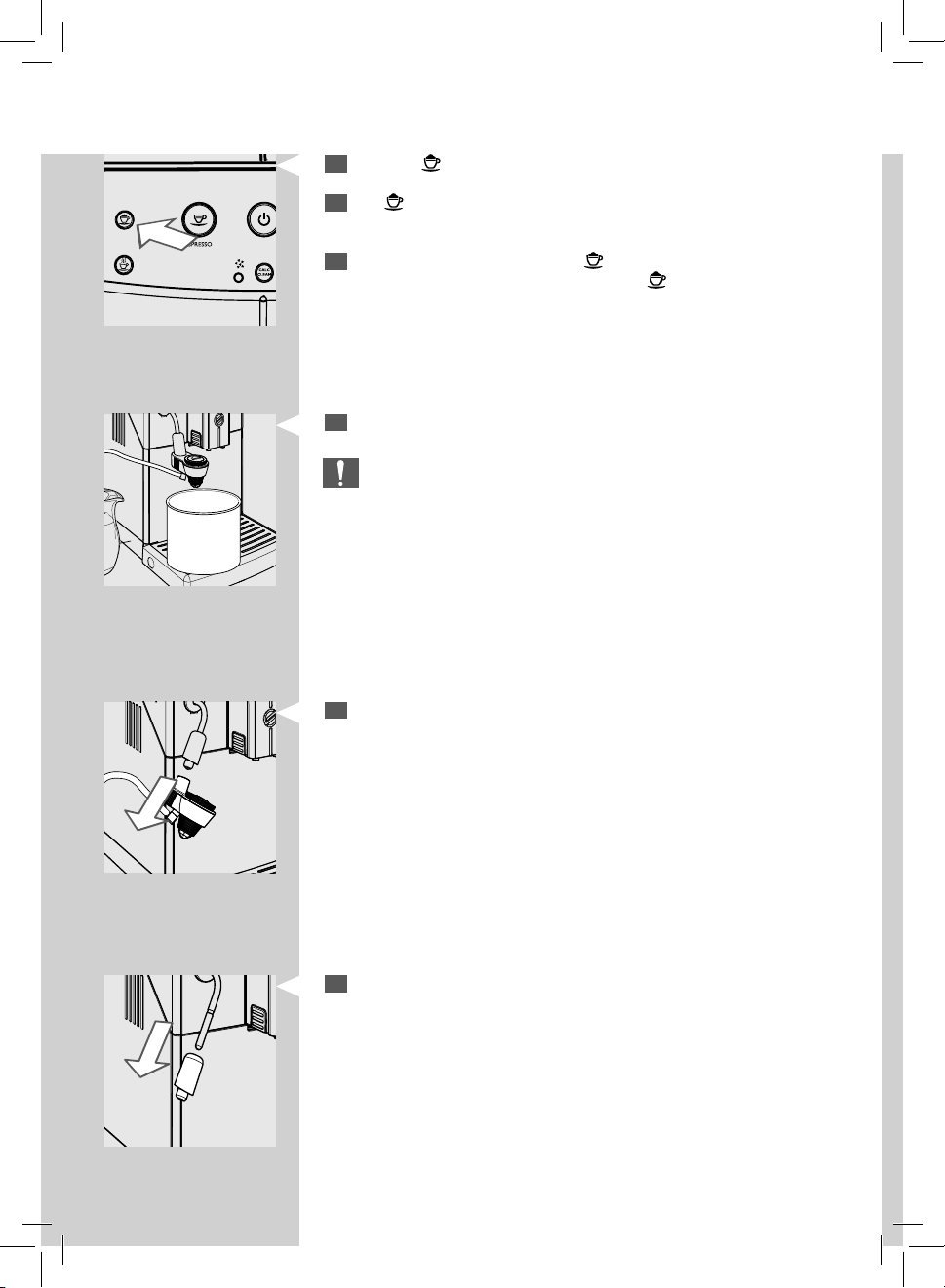

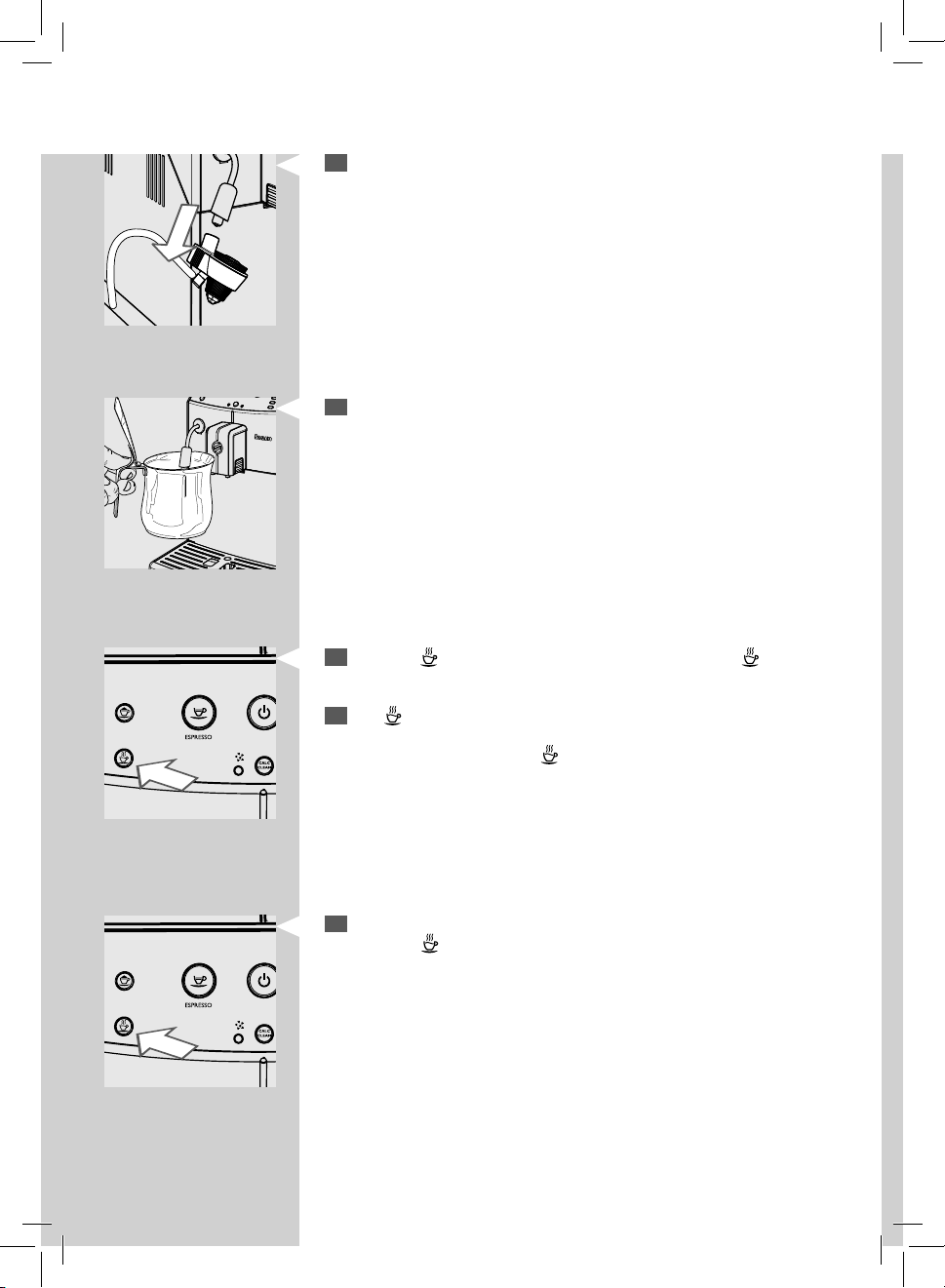

Place a cup under the Automatic Milk Frother.
6
Press the “ ” button to froth milk. The button ashes.
7
The “ ” button ashes during the preheating time required by the
8
machine. Once the warm-up phase has been completed, milk dispensing begins and the "
Press the “ ” button to stop dispensing frothed milk.
9
" button ashes.
Note:
It will take a few seconds before the machine stops dispensing steam
completely.
Note:
Milk frothing stops after 3 minutes. If you need more, press the “
again.

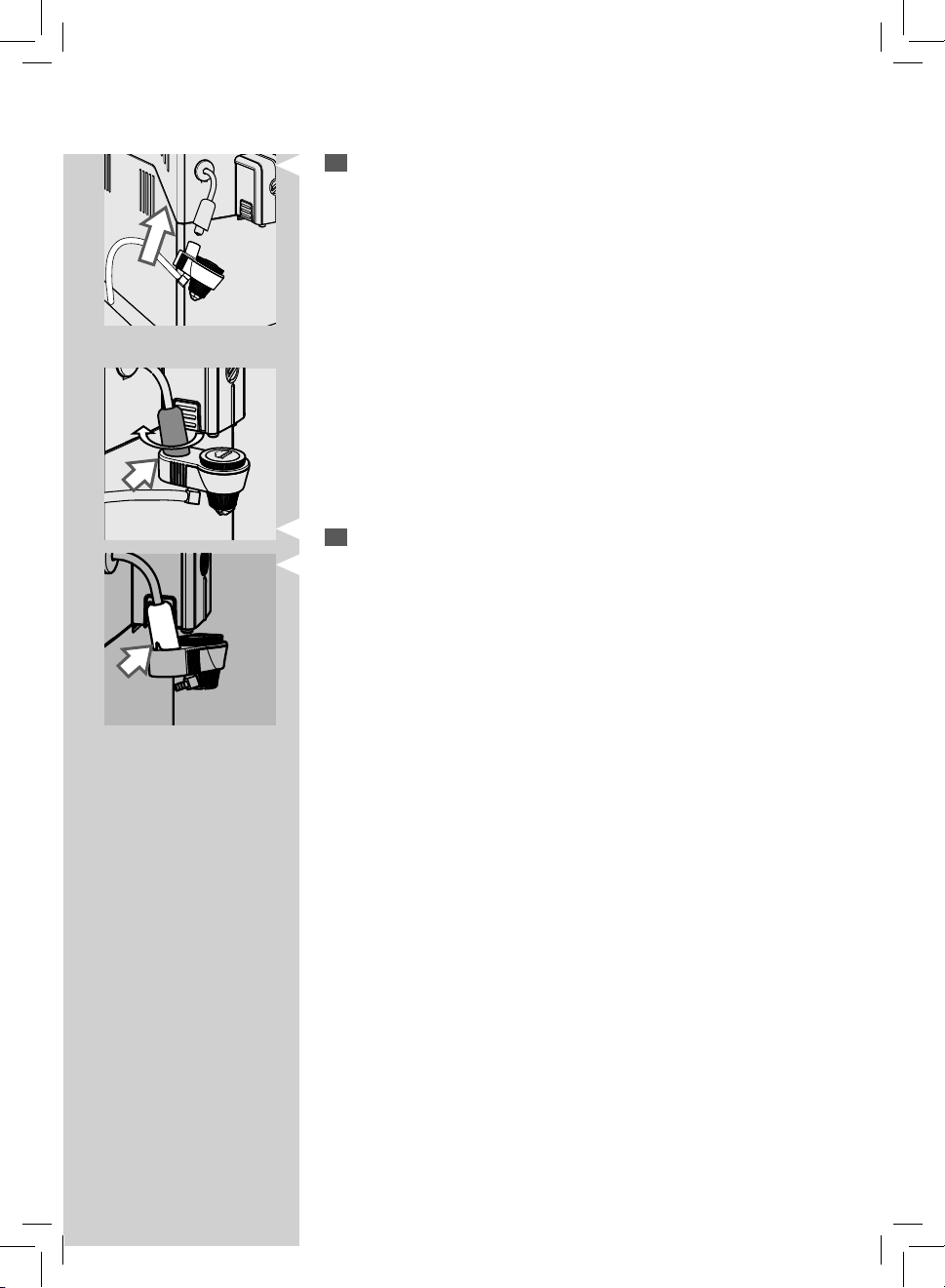

After use, store the suction tube as shown in the gure.
10
” button
Page 29
ENGLISH
Caution:
After frothing milk, a small quantity of hot water must be dispensed
into a container. See the “Daily Cleaning of the Automatic Milk
Frother” chapter for detailed cleaning instructions.
Note:
It is possible to brew an espresso or dispense hot water straight after frothing milk.
Brewing a Cappuccino
To prepare a cappuccino, place a cup of frothed milk under the co ee
dispensing spout and brew an espresso.
27
27
HOT WATER DISPENSING
Warning:
Danger of scalding! Dispensing may be preceded by small jets of hot
water.
Before dispensing hot water, make sure that the machine is ready to use
and the water tank is lled. The "
ing steadily.
", " ", " " and " " buttons are shin-
Page 30
28
ENGLISH
Remove the Automatic Milk Frother from the steam wand.
1
Place a container under the steam wand.
2
Press the “ ” button to begin dispensing hot water; the “ ” button
3
ashes throughout the preparation and dispensing phase.
The “ ” button ashes during the preheating time required by the
4
machine. Once the warm-up phase has been completed, hot water
dispensing begins and the “
Pour the desired amount of hot water. To stop dispensing hot water,
5
press the “
” button.
” button ashes.
Page 31
ENGLISH
29
29
CLEANING AND MAINTENANCE
Daily Cleaning of the Machine
Caution:
Timely cleaning and maintenance of your machine is very important
as it prolongs the life of your machine. Your machine is continuously
exposed to moisture, co ee and limescale!
The activities you need to perform and their frequency are described
in detail in this chapter. Not doing this will ultimately make your
machine stop working properly. This repair is NOT covered by your
warranty.
Note:
- Use a soft, dampened cloth to clean the machine.
- Only the cup holder grill can be washed in the dishwasher. Any other
components must be washed with lukewarm water.
- Do not immerse the machine in water.
- Do not use alcohol, solvents, and/or abrasive objects to clean the
machine.
- Do not dry the machine and/or its components using a microwave
and/or standard oven.

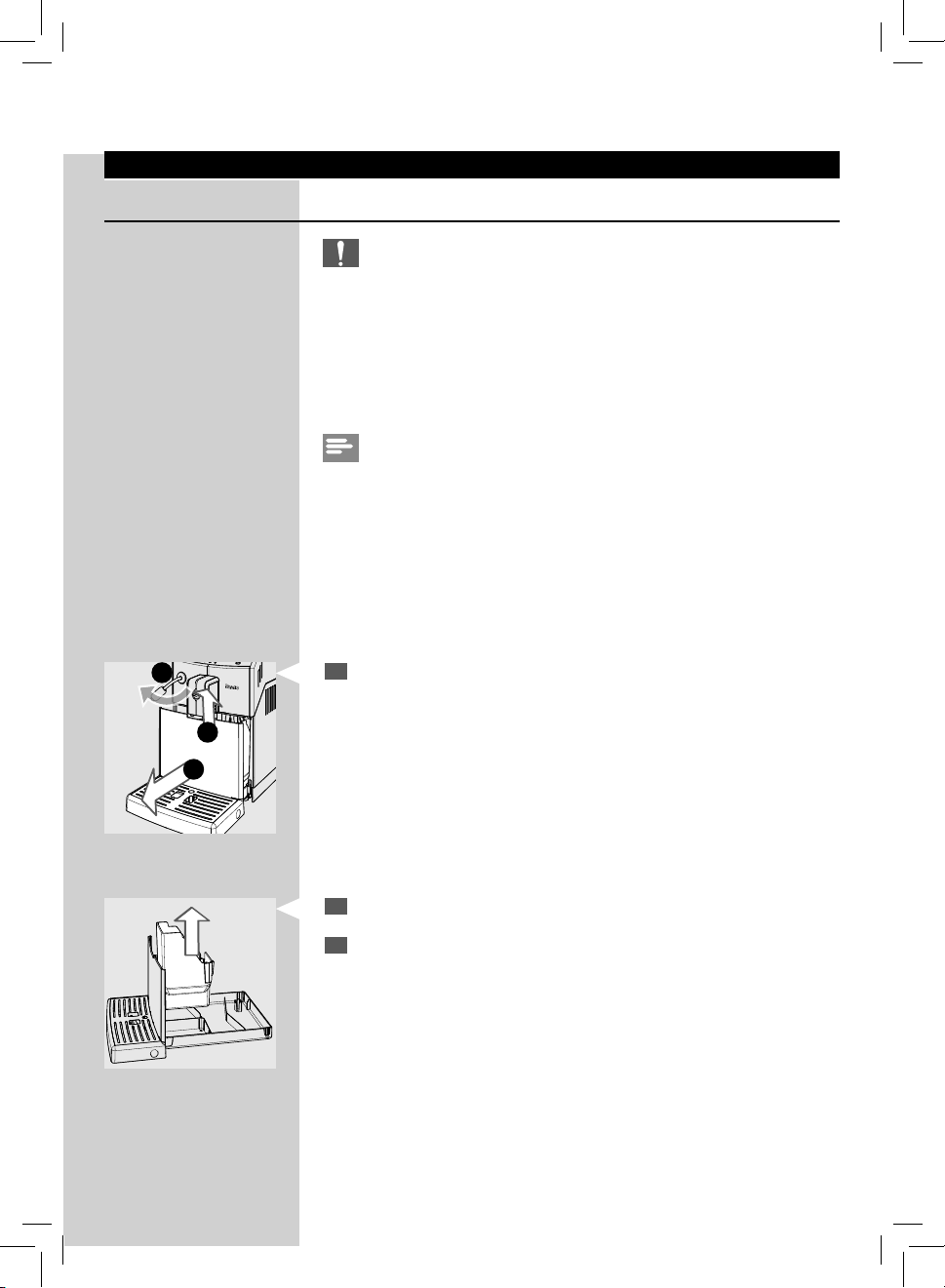

Empty and clean the co ee grounds drawer and the drip tray daily
1
1
with the machine turned on.
2
Other maintenance operations can only be carried out when the machine
is turned o and unplugged.
3
Remove the co ee grounds drawer and empty it.
2
Empty and clean the drip tray.
3
Page 32
30
ENGLISH
1
3
Insert the co ee grounds drawer back into the drip tray and place the
4
drip tray back into the machine.
2
Note:
Empty the drip tray and co ee grounds drawer also when the full drip tray
indicator is raised.
Daily Cleaning of the Water Tank
Remove the small white lter or the “INTENZA+” water lter (if in-
1
stalled) from the water tank and wash it with fresh water.
Put the small white lter or the “INTENZA+” water lter (if installed)
2
back in its housing by gently pressing and turning it at the same time.
Fill the water tank with fresh water up to the MAX level.
3
Page 33
ENGLISH
Daily Cleaning of the Automatic Milk Frother
For hygienic reasons and to ensure a perfect milk froth consistency, it is
important that you clean the Automatic Milk Frother after each use.
Warning:
Danger of scalding! Dispensing may be preceded by small jets of hot
water.
After each milk frothing, you always need to:

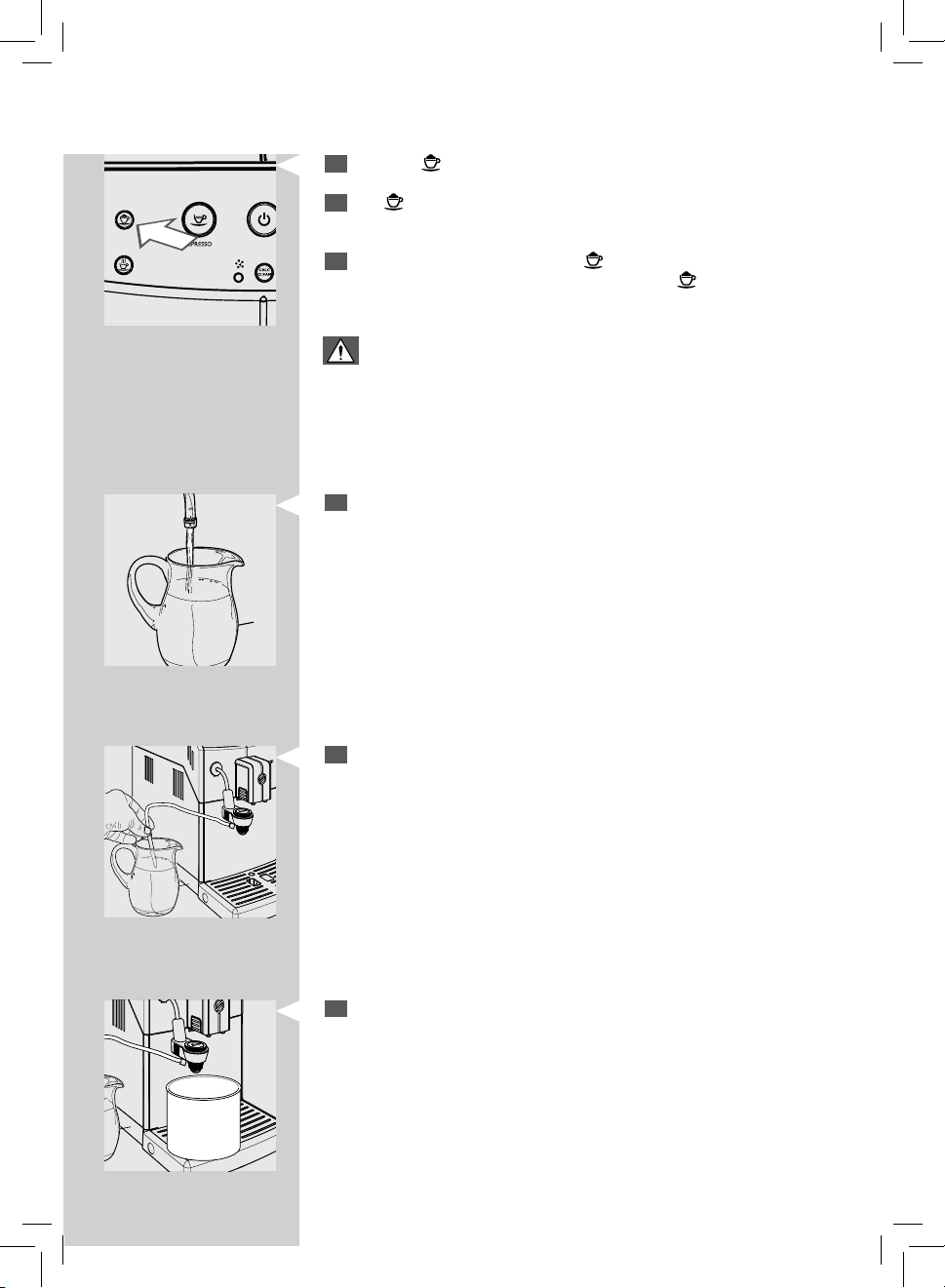

Insert the suction tube into a container lled with fresh water.
1
31
31
Place an empty container under the Automatic Milk Frother.
2
Press the " " button to select steam. The button ashes.
3
The “ ” button ashes during the preheating time required by the
4
machine.
During the dispensing phase the “ ” button ashes. Dispense water
5
from the Automatic Milk Frother until clear water ows out.
Press the “
Clean the suction tube with a damp cloth.
6
” button to stop dispensing.
Page 34
32
ENGLISH

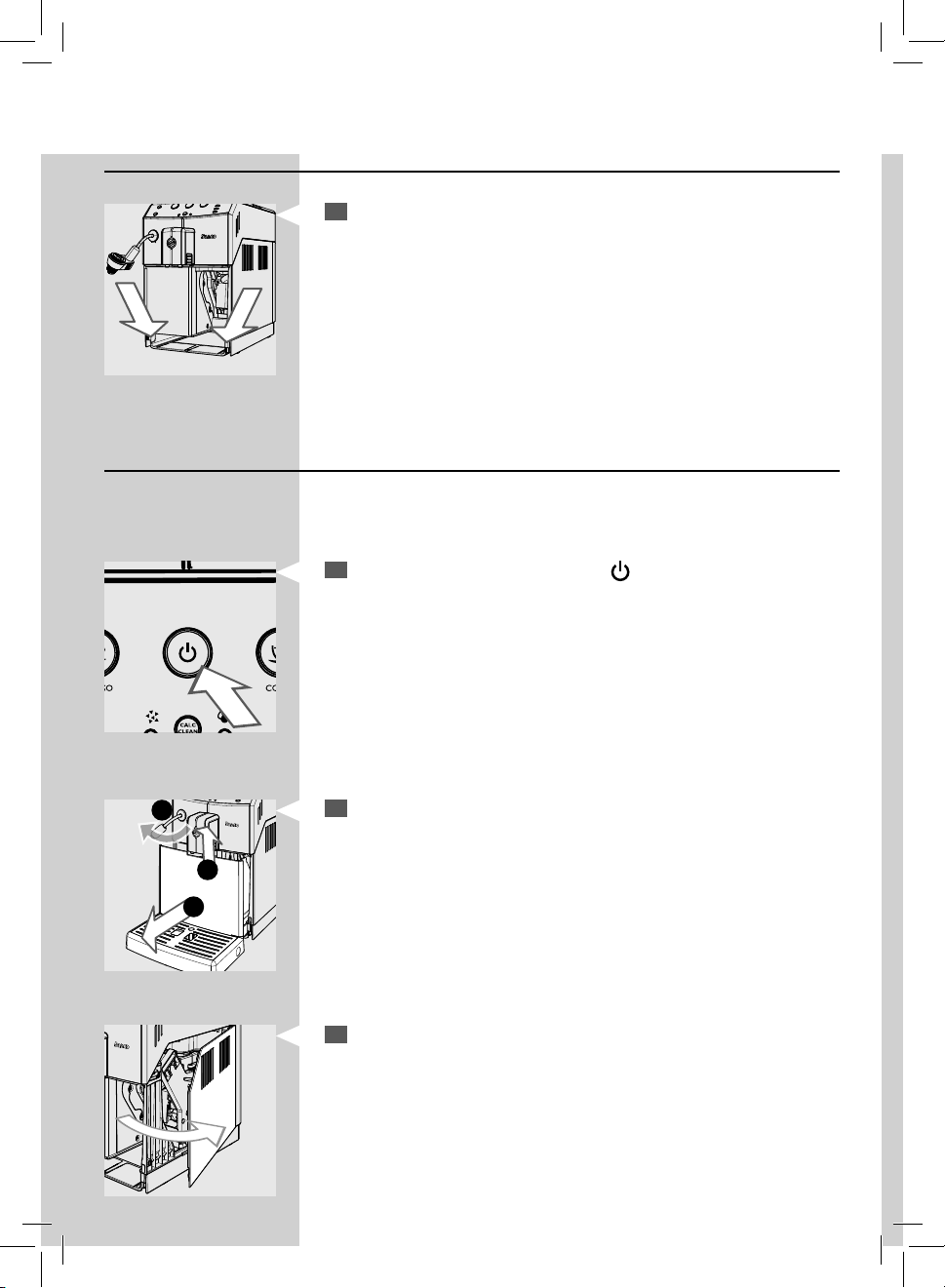

Weekly Cleaning of the Machine
Clean the seat of the drip tray.
1
Weekly Cleaning of the Brew Group
The brew group should be cleaned every time the co ee bean hopper is
lled or at least once a week.
Turn o the machine by pressing the “ ” button and unplug the
1
power cord.
Remove the drip tray and co ee grounds drawer.
1
2
2
3
Open the service door.
3
Page 35
ENGLISH

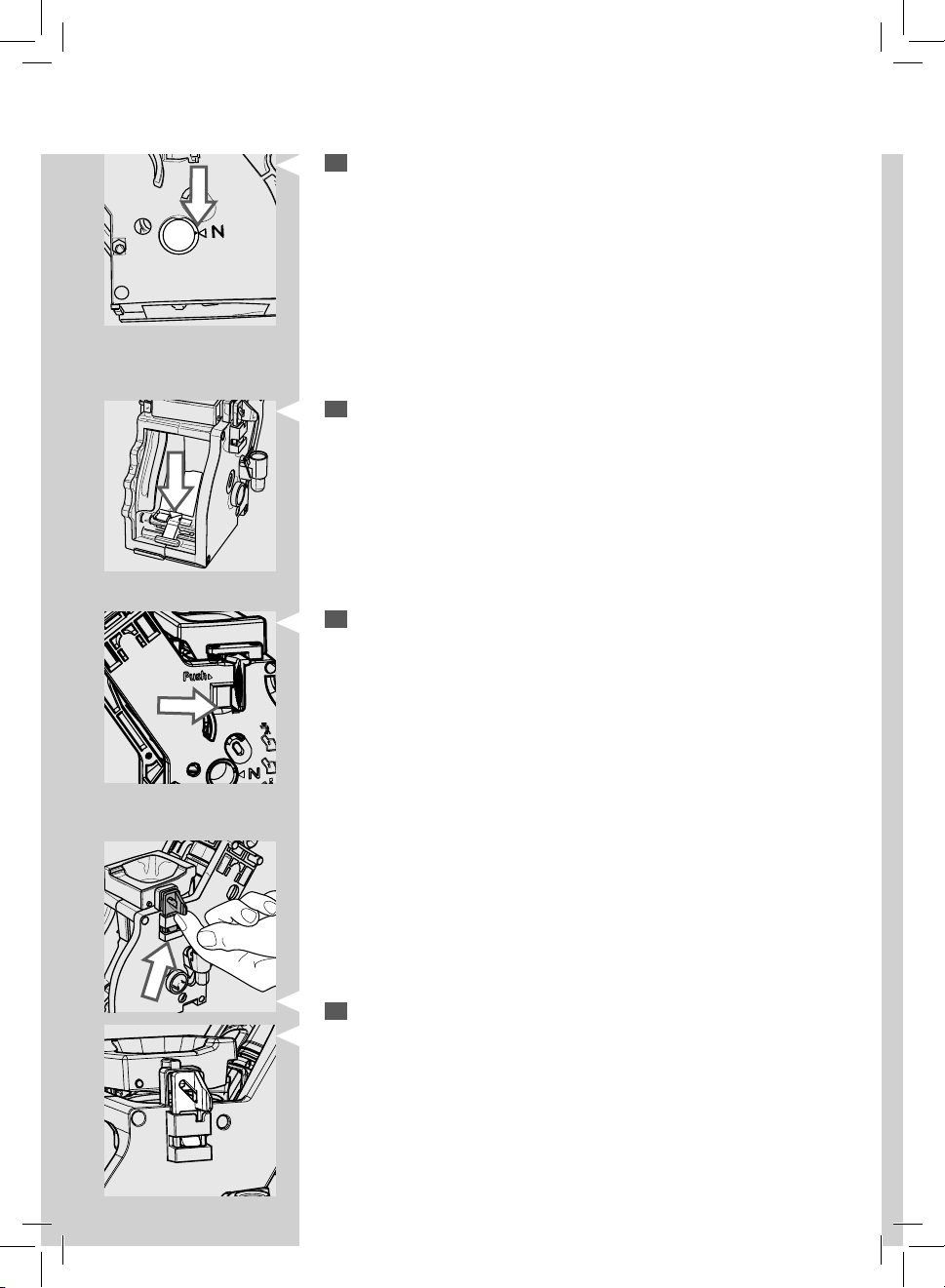

To remove the brew group, press the «PUSH» button and pull it by the
4
handle. Pull it out horizontally without turning it.

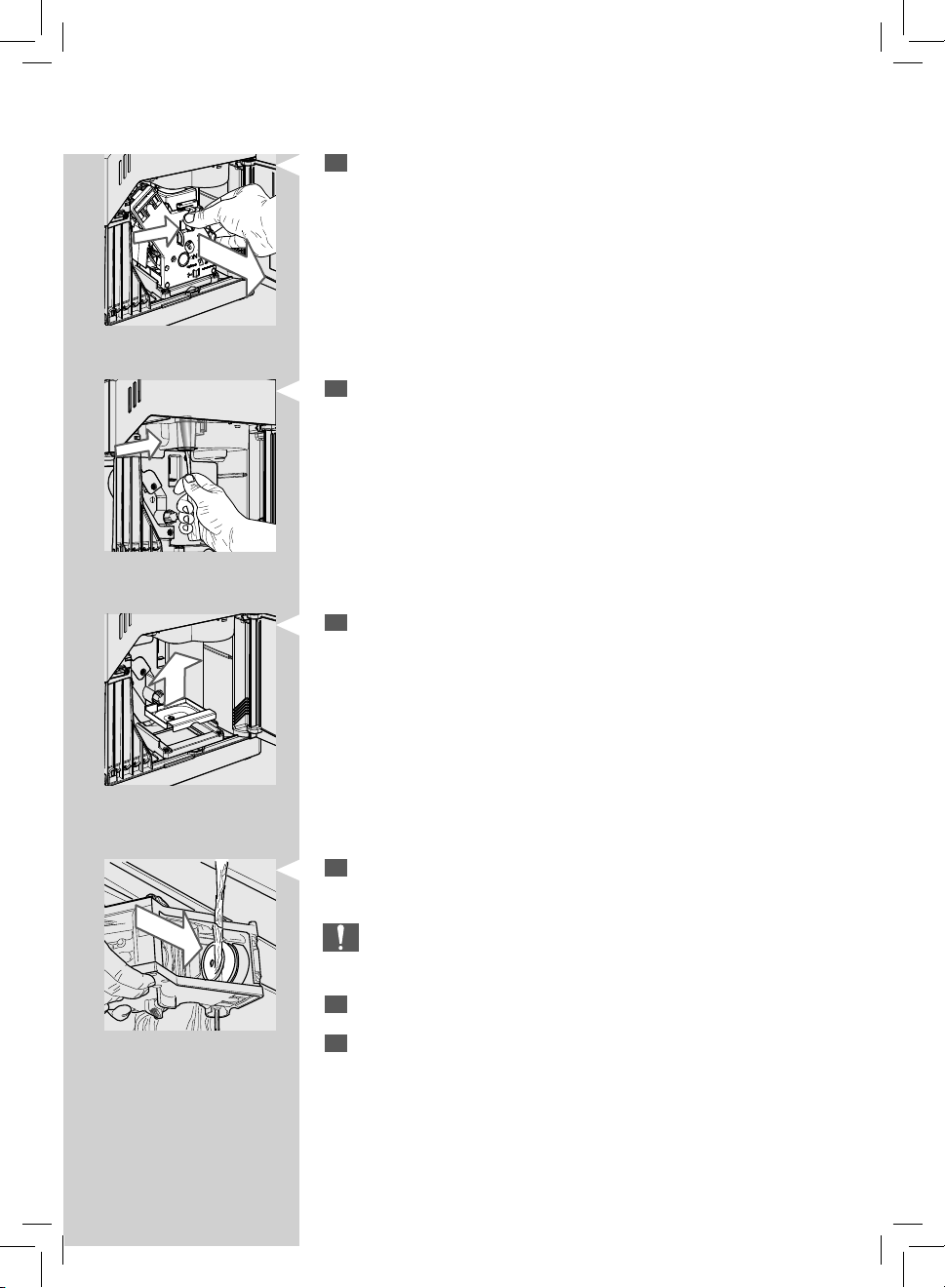

Clean the co ee outlet duct thoroughly with a spoon handle or with
5
another round-tipped kitchen utensil.
Remove the co ee residues drawer and wash it thoroughly.
6
33
33
Thoroughly wash the brew group with fresh, lukewarm water and care-
7
fully clean the upper lter.
Caution:
Do not use detergent or soap to clean the brew group.
Let the brew group air-dry thoroughly.
8
Thoroughly clean the inside of the machine using a soft, dampened
9
cloth.
Page 36
34
ENGLISH
Make sure that the brew group is in the o position; the two reference
10
marks must match. If they do no match, proceed as described in step
(11).
Gently pull down the lever until it is in contact with the brew group
11
base and the two reference marks on the side of the brew group
match.
Press the “PUSH” button rmly.
12
Make sure that the hook which locks the brew group is in the correct
13
position. If it is still in the downward position push it upward until it
locks correctly into place.
Page 37
ENGLISH

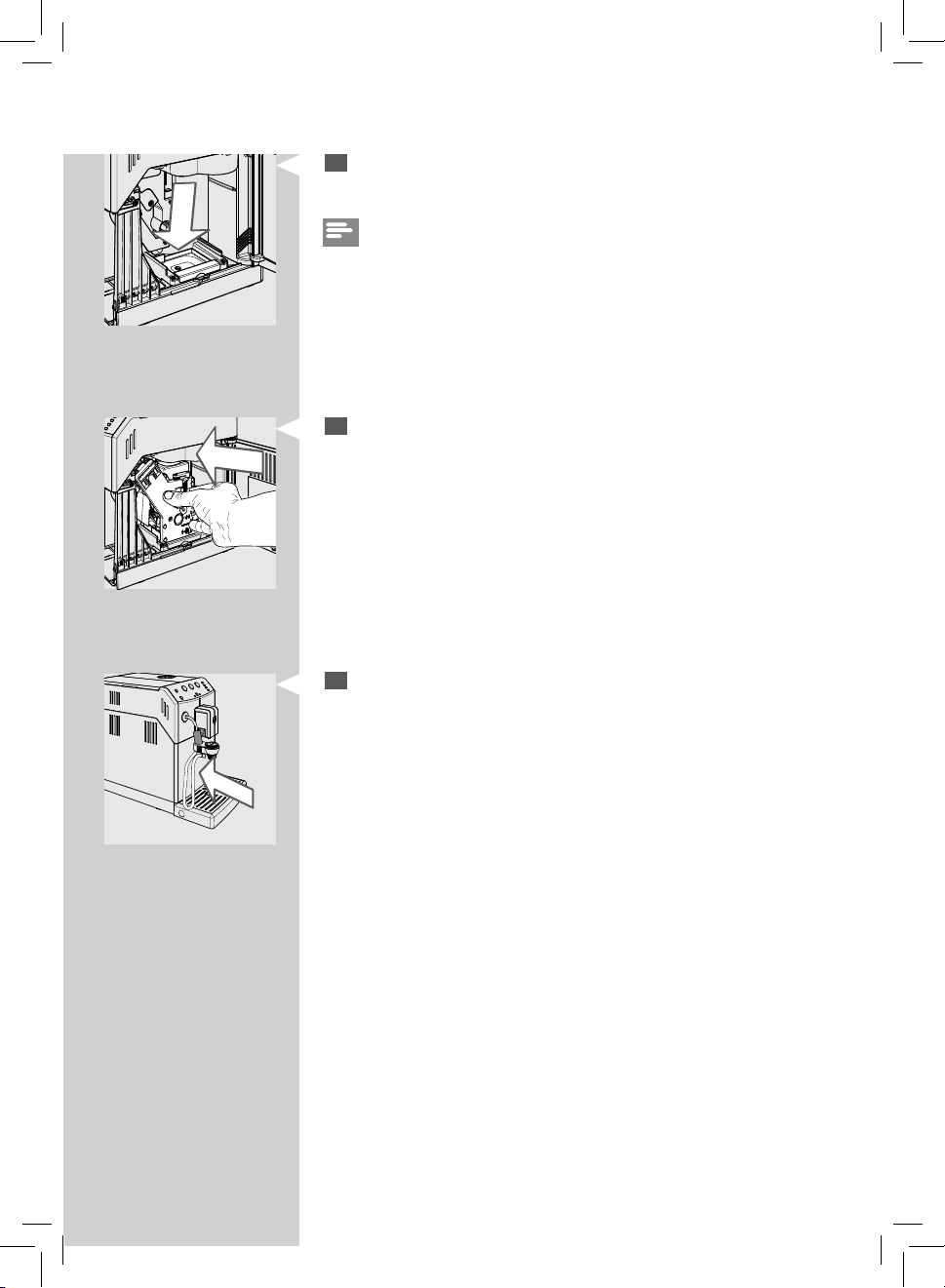

Insert the co ee residues drawer in its seat and ensure that it is cor-
14
rectly in place.
Note:
If the co ee residues drawer is not correctly positioned, the brew group
may not t into the machine.
Insert the brew group back into its seat until it locks into place without
13
pressing the “PUSH” button.
Insert the co ee grounds drawer with the drip tray back into the ma-
14
chine and close the service door.
35
35
Page 38
36
ENGLISH
Monthly Cleaning of the Automatic Milk Frother

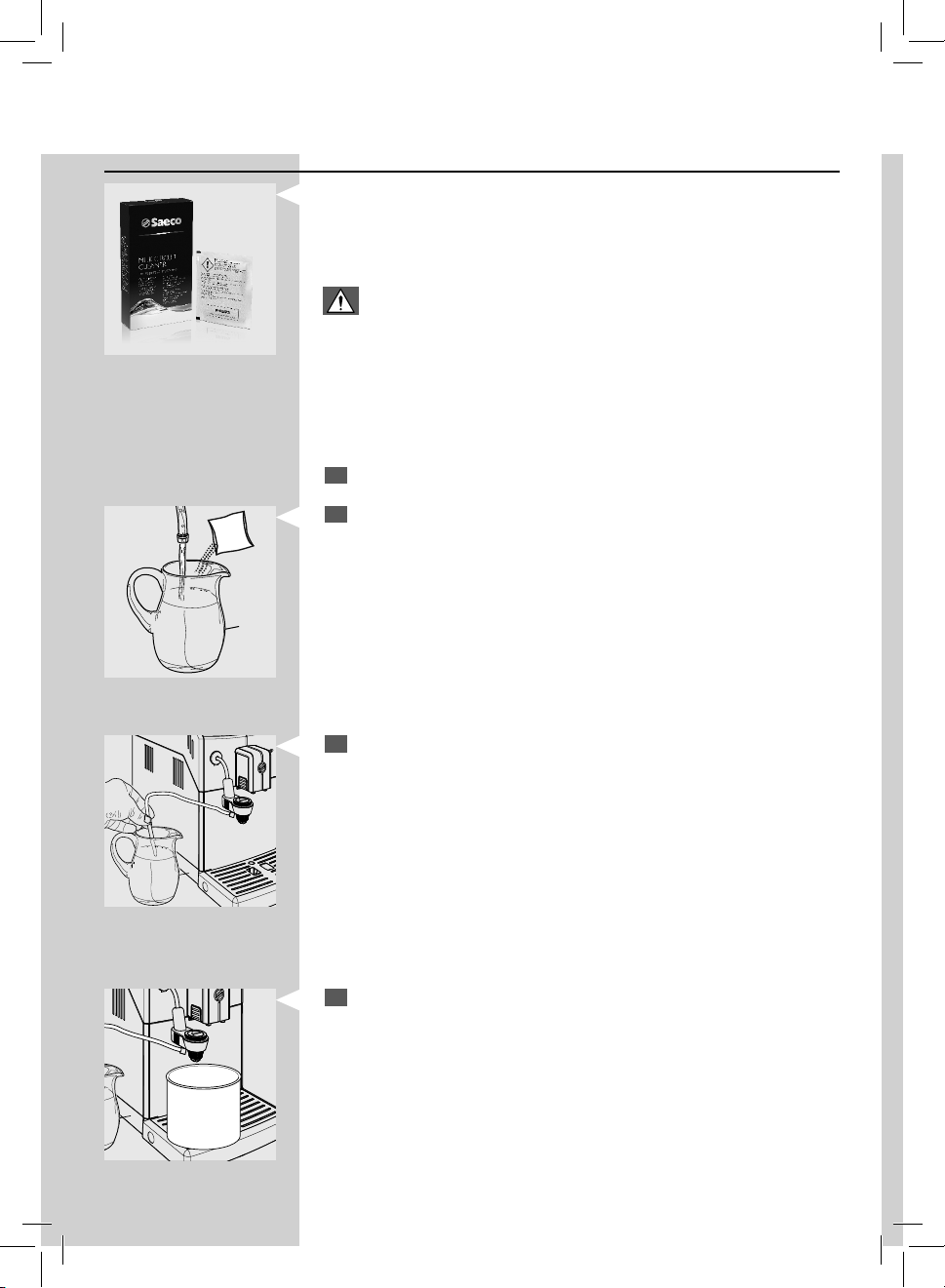

Every month you need to perform a more thorough cleaning of the Automatic Milk Frother using the “Saeco Milk Circuit Cleaner”. The “Saeco Milk
Circuit Cleaner” can be purchased separately. For further details, please
refer to the maintenance products page in this user manual.
Warning:
Danger of scalding! Dispensing may be preceded by small jets of hot
water.
Make sure that the Automatic Milk Frother is correctly installed.
1
Pour the milk circuit cleaner into a container. Add ½ litre of lukewarm
2
water and wait for the product to dissolve completely.
Insert the suction tube into the container.
3
Place a large container (1.5 l) under the Automatic Milk Frother.
4
Page 39
ENGLISH

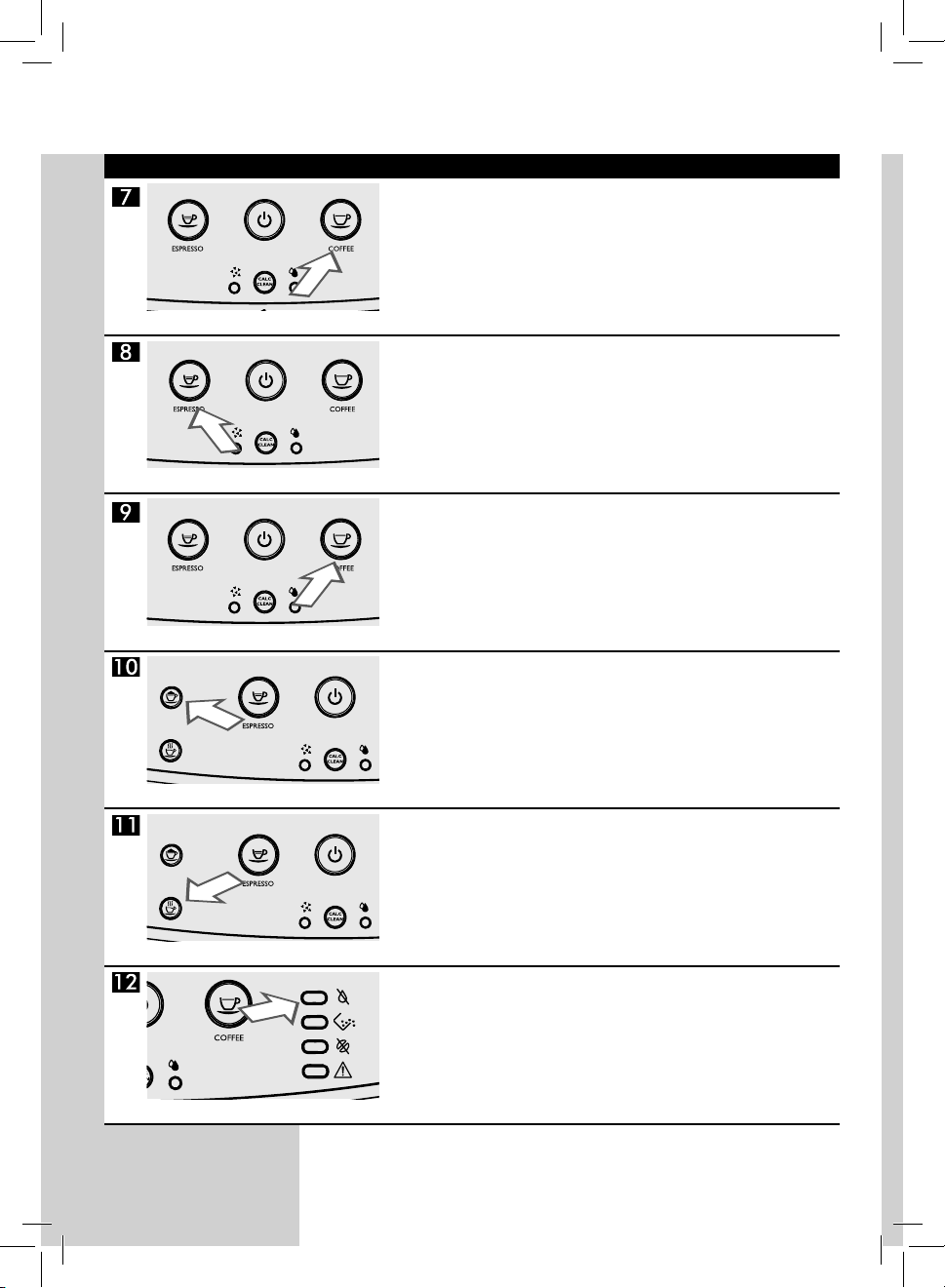

Press the " " button to dispense steam.
5
The “ ” button ashes during the preheating time required by the
6
machine.
During the dispensing phase the “ ” button ashes. When the solu-
7
tion has been completely dispensed, press the “
dispensing.
Warning:
Never drink the solution dispensed during this step.
Rinse the container thoroughly and ll it with ½ litre of fresh water to
8
be used for the rinse cycle.
” button to stop
37
37
Insert the suction tube into the container.
9
Empty the container and place it back under the Automatic Milk
10
Frother.
Page 40
38
ENGLISH
Press the " " button to dispense steam.
11
The “ ” button ashes during the preheating time required by the
12
machine.
During the dispensing phase the “ ” button ashes. When the water
13
has been completely dispensed, press the "
ing.
Empty the container.
14
Caution:
Let the steamwand cool down for a few minutes.
" button to stop dispens-
Remove the Automatic Milk Frother from the steam wand.
15
Remove the chrome cover with the rubber grip from the steam wand.
16
Page 41
ENGLISH
Remove the rubber grip from the chrome cover.
17
Remove the suction tube.
18

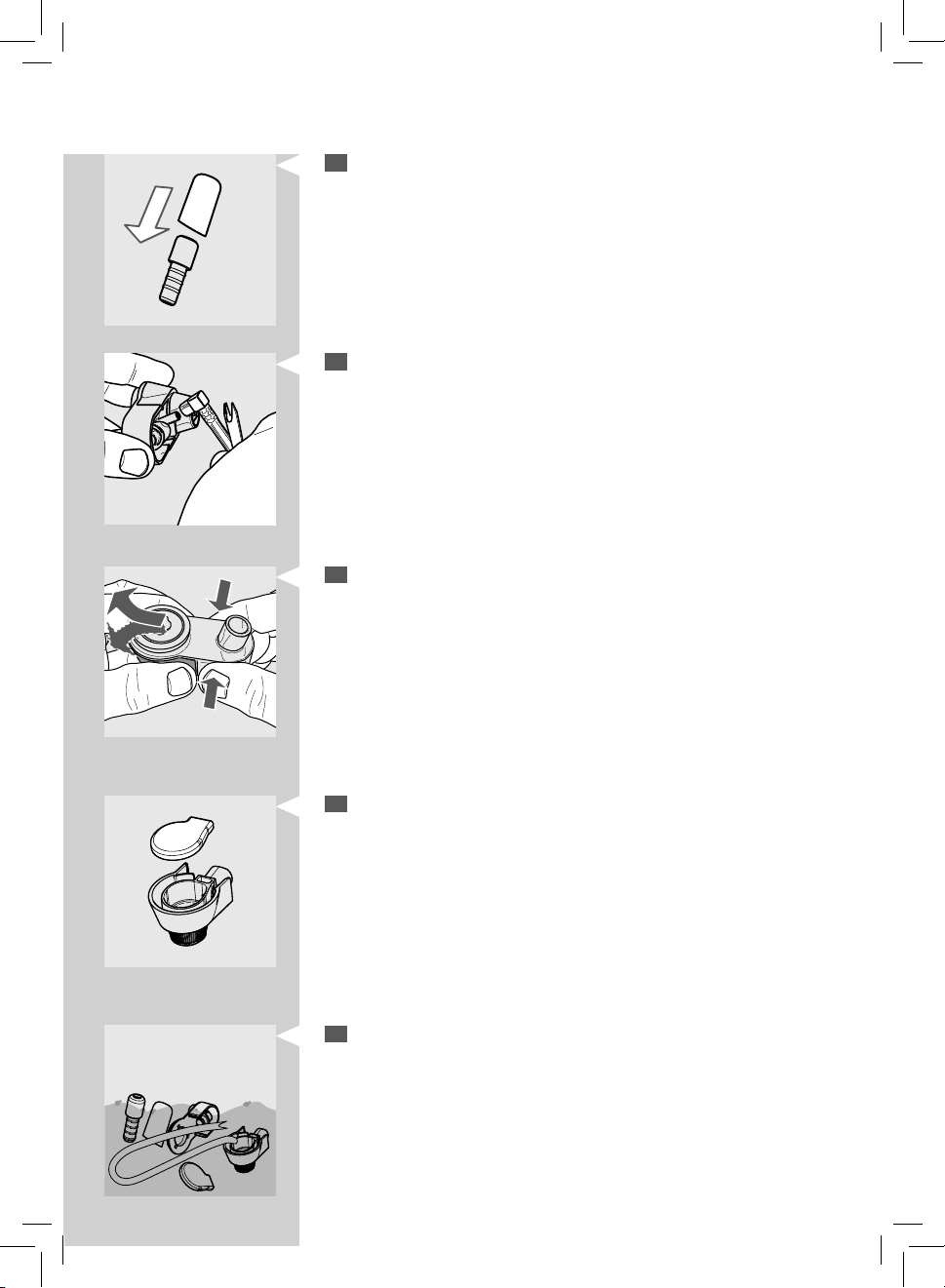

Press the sides and disassemblel the Automatic Milk Frother as shown
19
in the picture.
39
39
Remove the rubber lid as shown in the gure.
20
Wash all the components with lukewarm water.
21
Page 42
40
ENGLISH

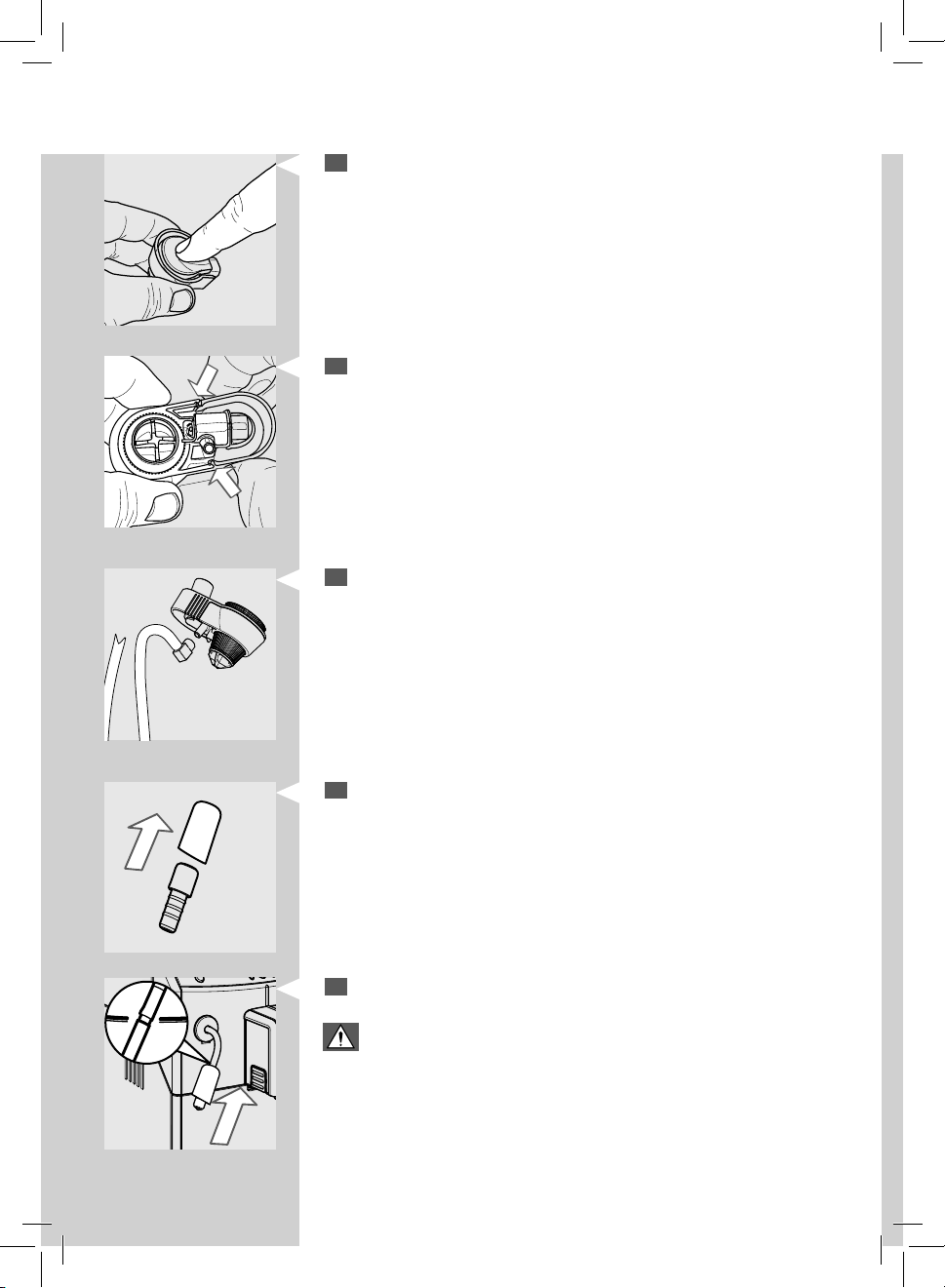

Reassemble the lid making sure that you press it in the middle to have
22
it correctly inserted.
Reassemble the Automatic Milk Frother making sure it is correctly
23
inserted.
Install the suction tube.
24
Insert the rubber grip on the chrome cover.
25
Reinsert them back onto the steam wand.
26
Warning:
The tube could be hot if the machine has recently been used.
Do not insert the rubber tting beyond the position shown. In this
case, the Automatic Milk Frother would not function correctly as it
would not be able to draw up milk.
Page 43
ENGLISH
Insert the Automatic Milk Frother in the rubber grip.
27
Make sure that it is positioned correctly. If you cannot insert it, rotate
28
the chrome cover.
The Automatic Milk Frother is assembled correctly when the tooth ts
into the slot.
41
41
Page 44
42
ENGLISH
Monthly Lubrication of the Brew Group
Lubricate the brew group after approximately 500 cups of co ee or once a
month.
The grease to lubricate the brew group can be purchased separately. For
further details, please refer to the maintenance products page in this user
manual.
Caution:
Before lubricating the brew group, clean it with fresh water and let it
dry, as described in the “Weekly Cleaning of the Brew Group” chapter.

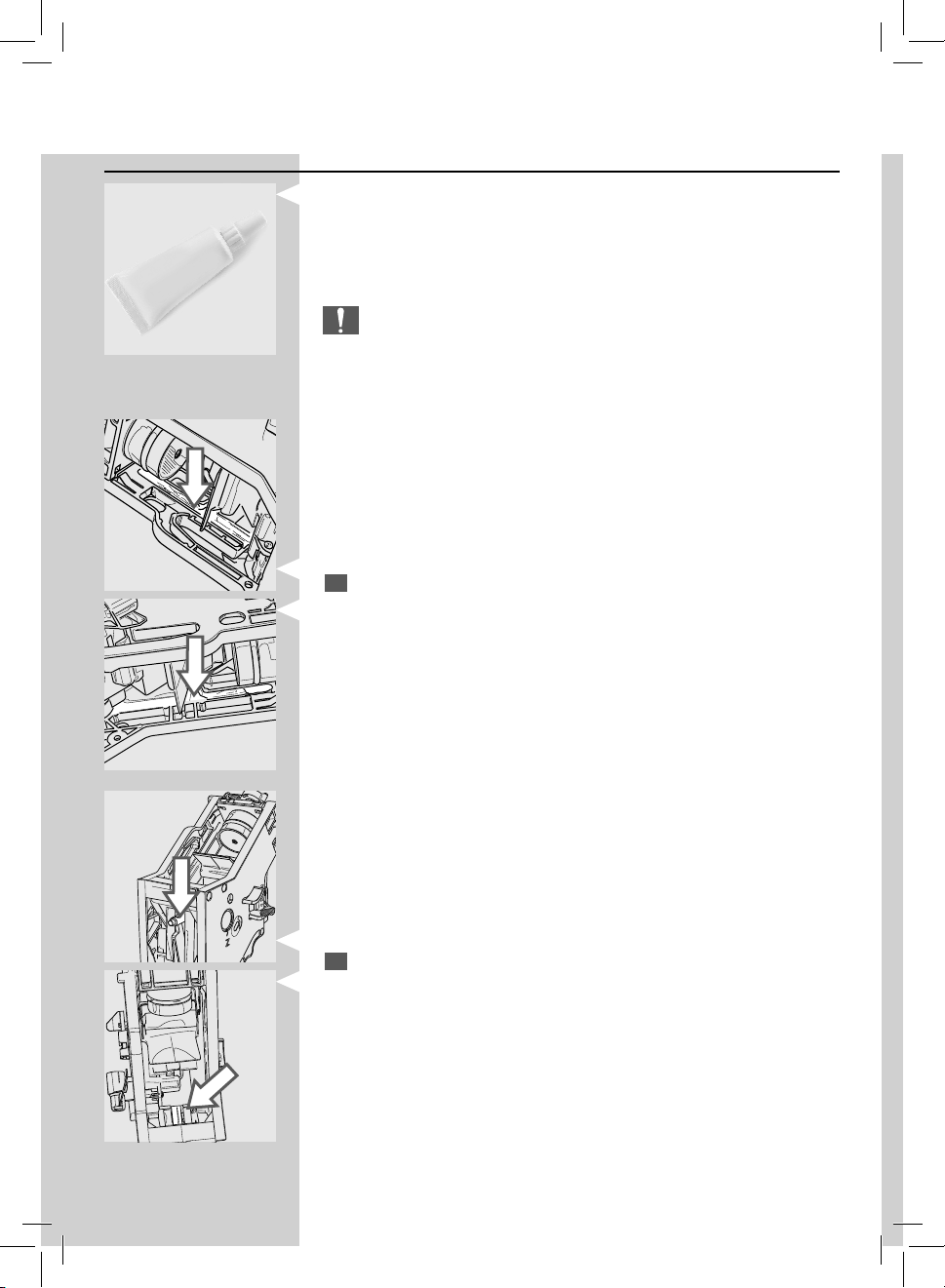

Apply the grease evenly on both side guides.
1
Also lubricate the shaft.
2
Page 45
ENGLISH

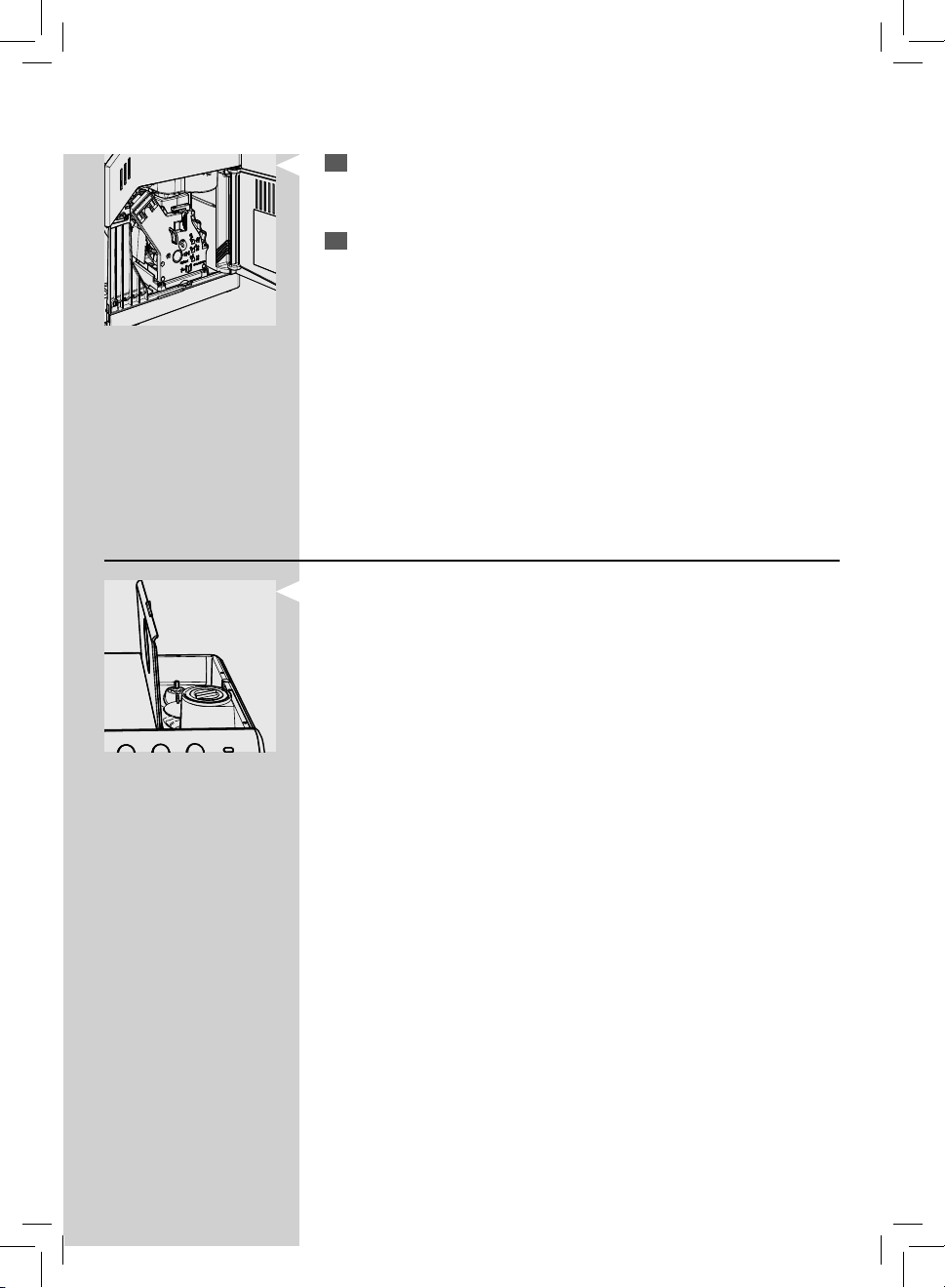

Insert the brew group into its seat until it locks into place (see the
3
“Weekly Cleaning of the Brew Group” chapter).
Insert the co ee grounds drawer into the drip tray, then insert both
4
back into the machine and close the service door.
Monthly Cleaning of the Co ee Bean Hopper
Clean the co ee bean hopper once a month when it is empty with a damp
cloth to remove co ee oil. Thereafter re ll it with co ee beans.
43
43
Page 46
44
ENGLISH
DESCALING

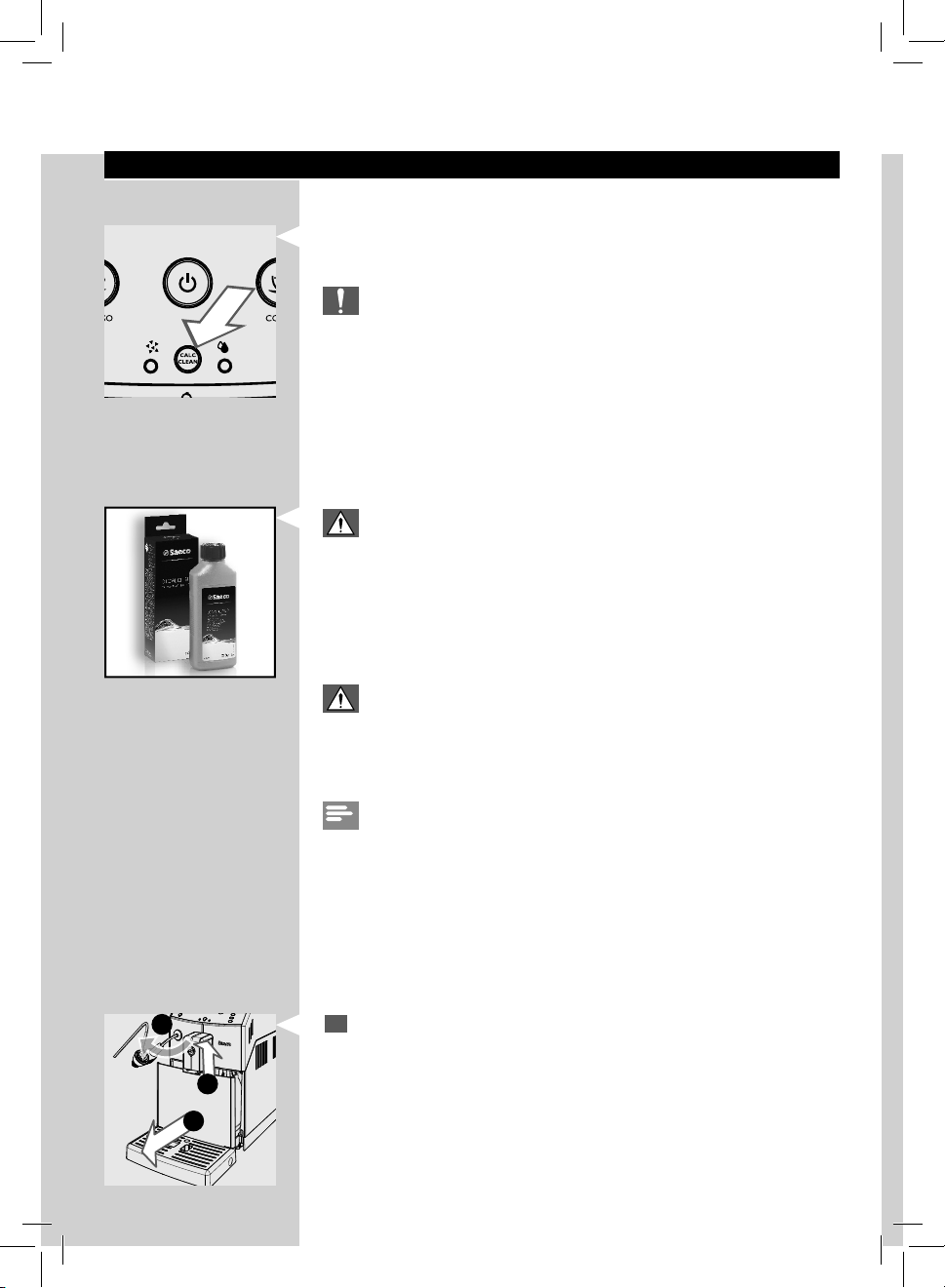

When the "CALC CLEAN" button lights up, you need to descale the
machine.
The descaling cycle takes approx. 30 minutes.
Caution:
Not doing this will ultimately make your machine stop working
properly. In this case, repair is NOT covered by warranty.
Warning:
Use the Saeco descaling solution only. Its formula has been designed
to ensure better machine performance. The use of other products may
damage the machine and leave residues in the water.
The Saeco descaling solution can be purchased separately. For further
details, please refer to the maintenance products page in this user manual.
Warning:
Never drink the descaling solution or any products dispensed until the
cycle has been carried out to the end. Never use vinegar as a descaling
solution.
Note:
Do not remove the brew group during the descaling process.
To perform the descaling cycle, follow the steps below:
Before descaling:
Empty the drip tray and the co ee grounds drawer.
1
1
2
3
Page 47
ENGLISH
Remove the Automatic Milk Frother from the steam/hot water wand.
2
Remove the water tank and the “INTENZA+” water lter from the water
3
tank (if it was installed), replacing it with the small white original one.

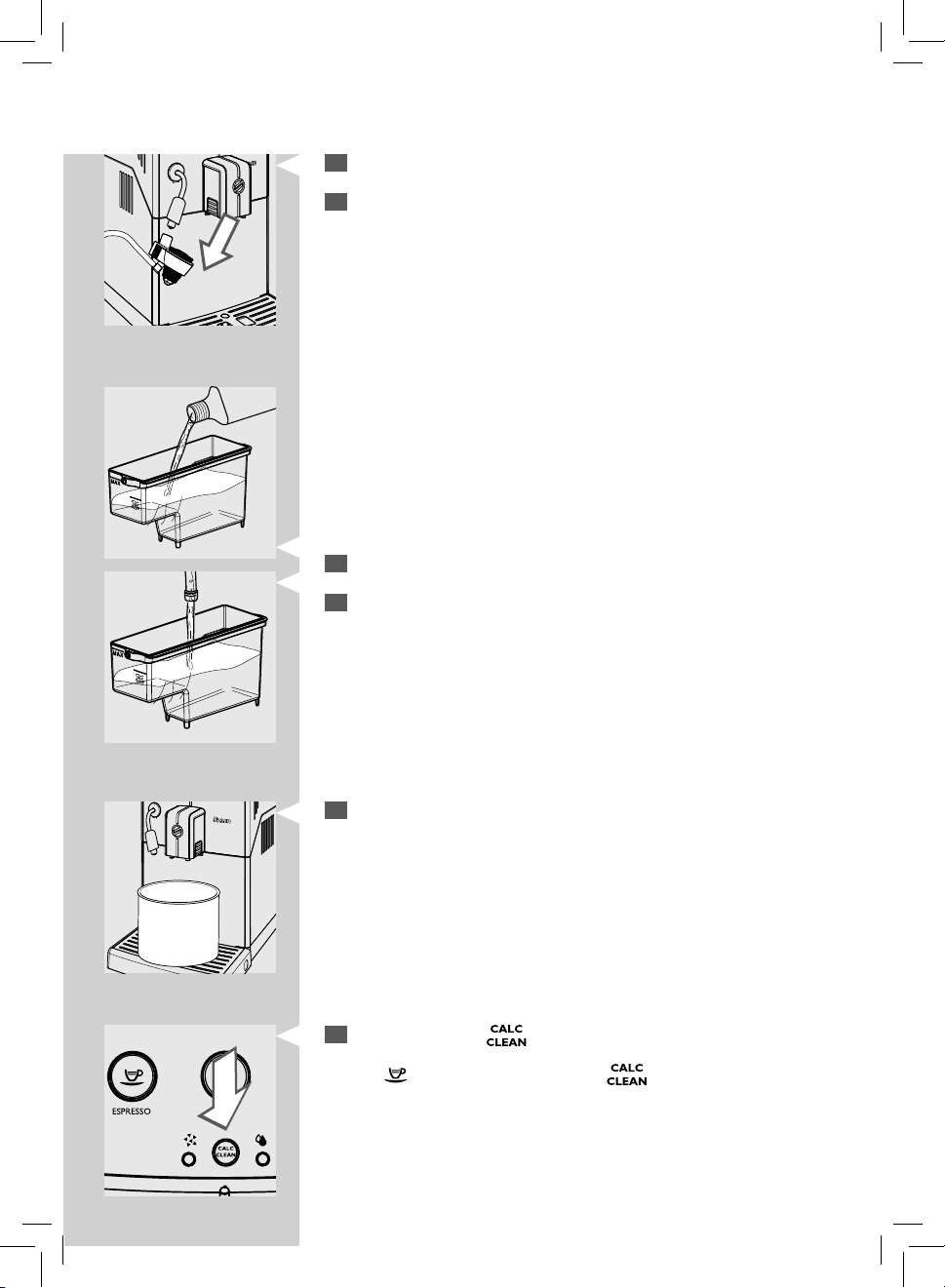

Pour all the descaling solution into the water tank.
4
Fill the water tank with fresh water up to the calc clean level and put it
5
back into the machine.
45
45

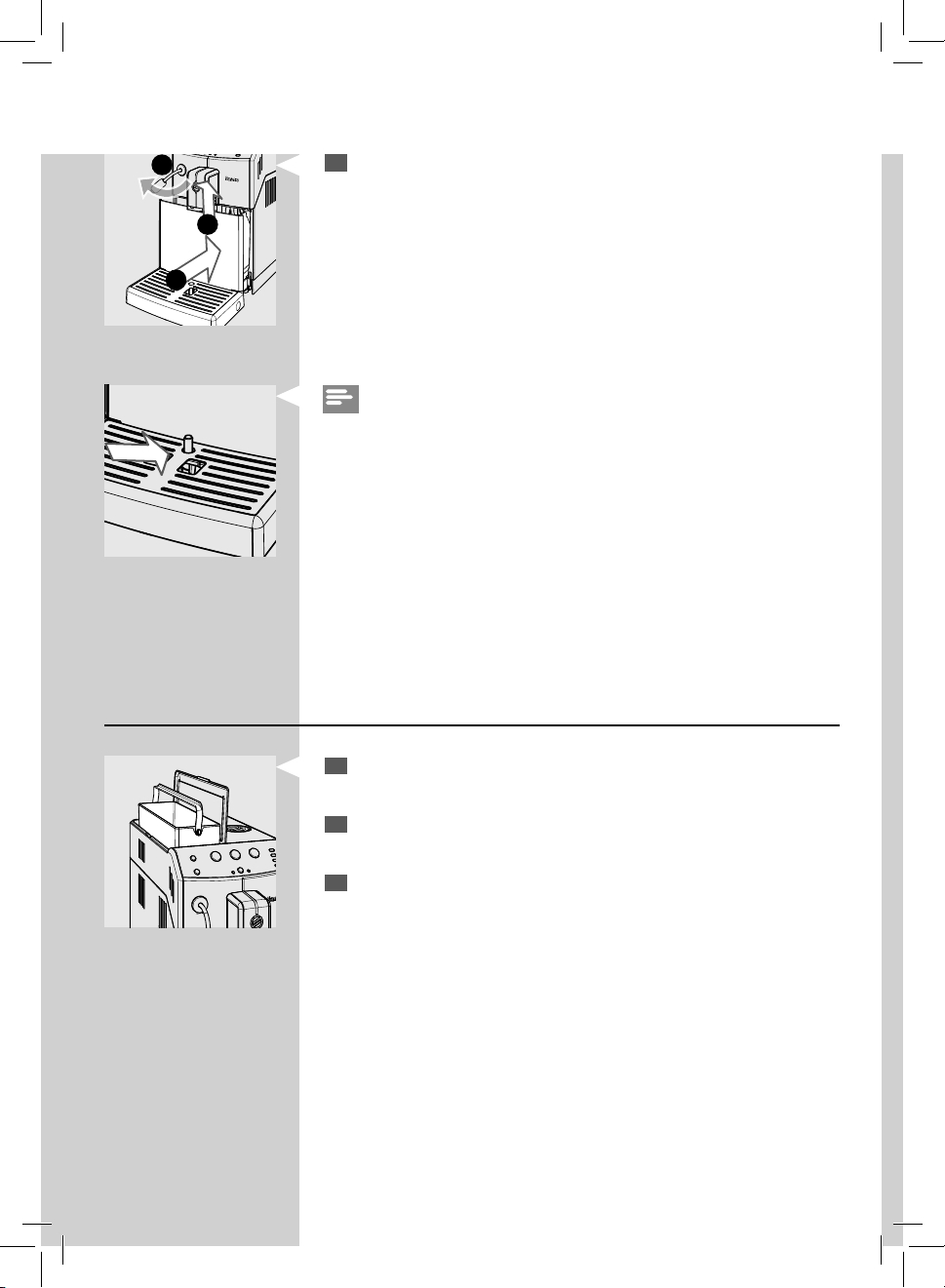

Place a large container (1.5 l) under both the steam/hot water wand
6
and the dispensing spout.

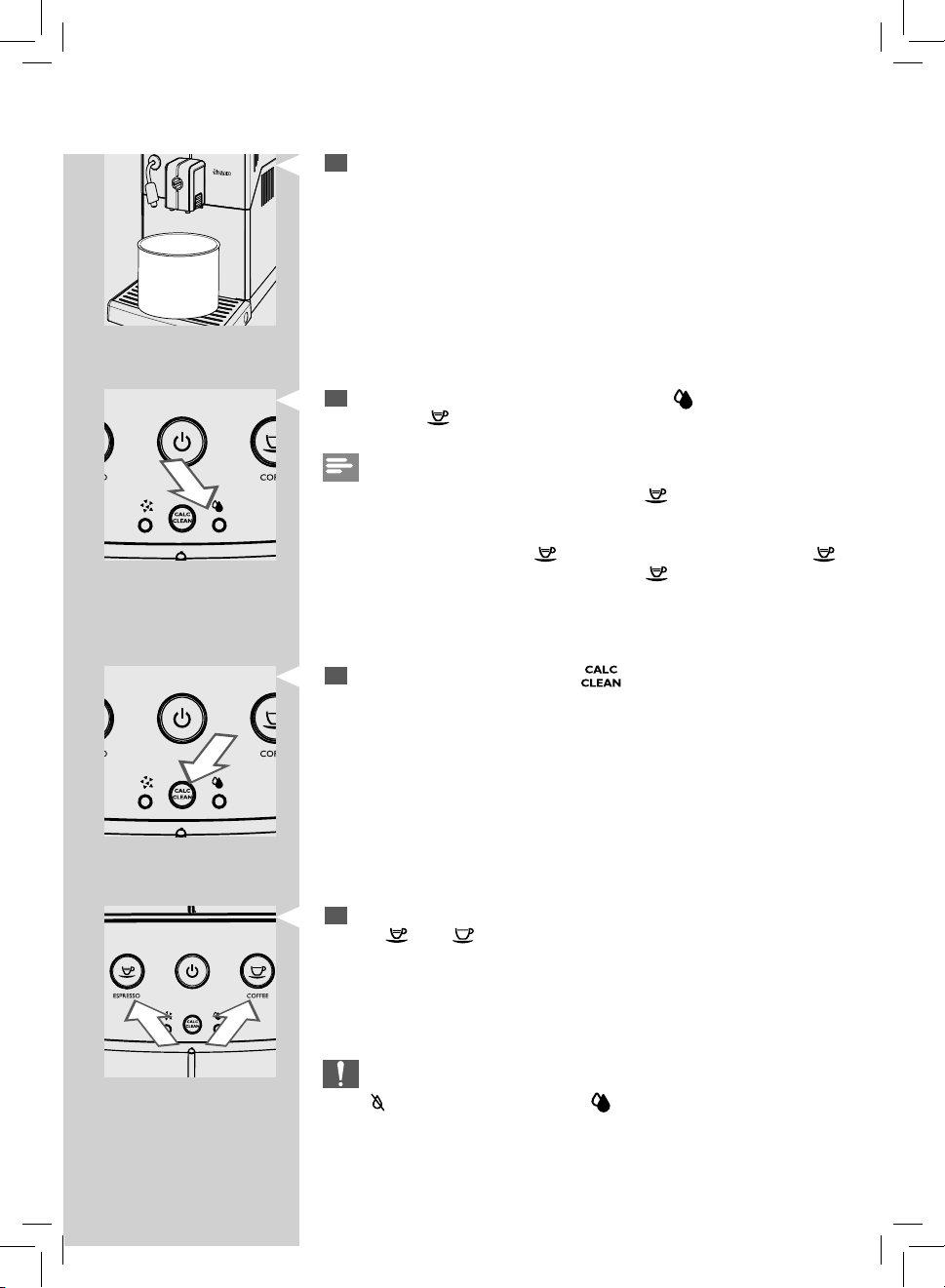

Press and hold the " " button for at least 3 seconds to start the
7
descaling cycle.
The “
” button shines steadily. The " " button ashes throughout
the cycle.
Page 48
46
ENGLISH

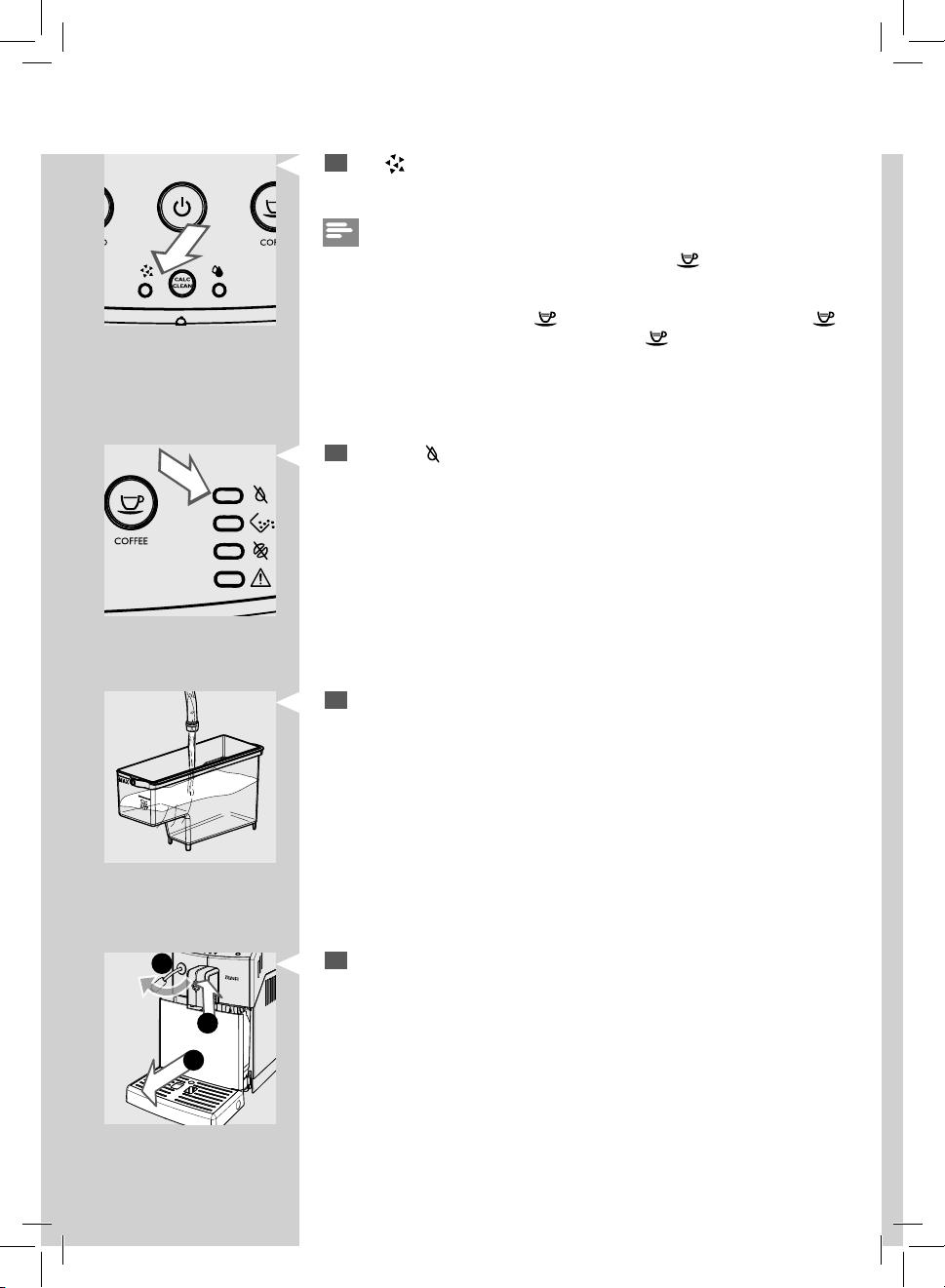

The " " light shines steadily. The machine will begin dispensing the
8
descaling solution at regular intervals for approximately 20 minutes.
Note:
The descaling cycle may be paused by pressing the
This allows you to empty the container or to leave the machine unattended
for a short time.
To resume the cycle, press the “ ” button again. During the pause the “ ”
button ashes. During the descaling cycle the “
“ ” button
” button is constantly on.
.
When the “ ”
9
Rinse the water tank and ll it with fresh water up to the MAX level. Put
10
it back into the machine.
Empty the drip tray and place it back.
1
11
light is shines steadily, the water tank is empty.
2
3
Page 49
ENGLISH
Empty the container and place it back.
12
Put the water tank back into the machine. The “ ” light shines steadily.
13
When the "
Note:
The rinse cycle may be paused by pressing the
This allows you to empty the container or to leave the machine unattended
for a short time.
To resume the cycle, press the “ ” button again. During the pause the “ ”
button ashes. During the descaling cycle the “
At the end of the rinse cycle, the " " button turns o .
14
" button ashes, press it to start the rinse cycle.
“ ”
button.
” button is constantly on.
47
47
The machine warms up and performs the automatic rinse cycle.
15
The "
The descaling cycle is now complete.
If the “
water tank has not been lled to the MAX level for the rinse cycle. Fill
the water tank with fresh water and repeat the process from step 13.
" and
" "
buttons ash simultaneously.
Caution:
” red light turns on and the “ ” light does not turn o , the
Page 50
48
ENGLISH
1
3
Empty the container used.
16
Empty the drip tray and place it back.
17
2
Remove the small white lter and place back the “INTENZA+” water
18
lter into the water tank. if it was installed.
Put back the Automatic Milk Frother.
19
Page 51
ENGLISH

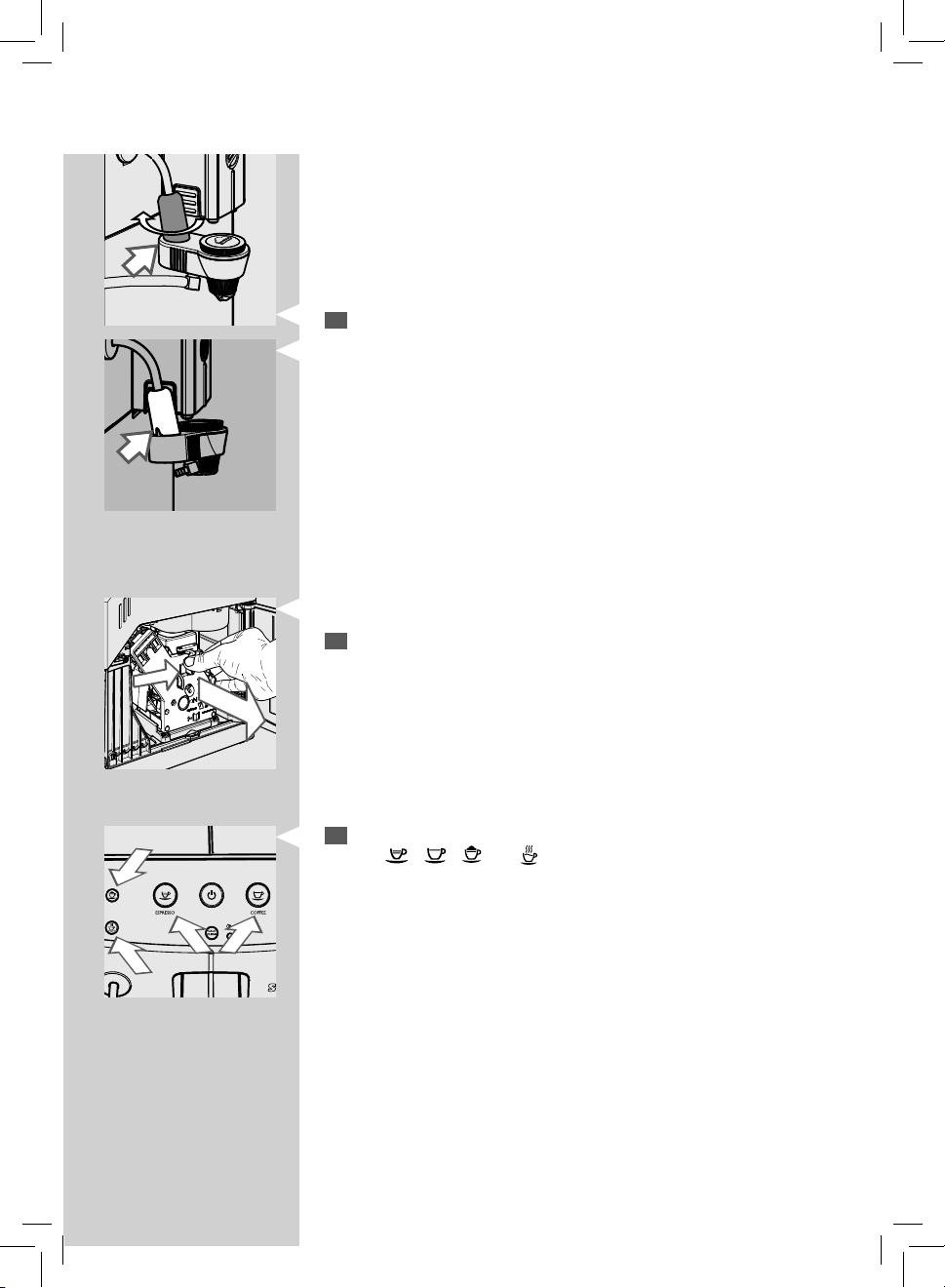

Make sure that it is positioned correctly. If you cannot insert it, rotate
20
the chrome cover.
The Automatic Milk Frother is assembled correctly when the tooth ts
into the slot.
Clean the brew group. For more details, please see the “Brew Group
21
Cleaning” chapter.
49
49
The machine is ready for use.
22
The "
", " ", " " and buttons are shining steadily.
Page 52
50
ENGLISH

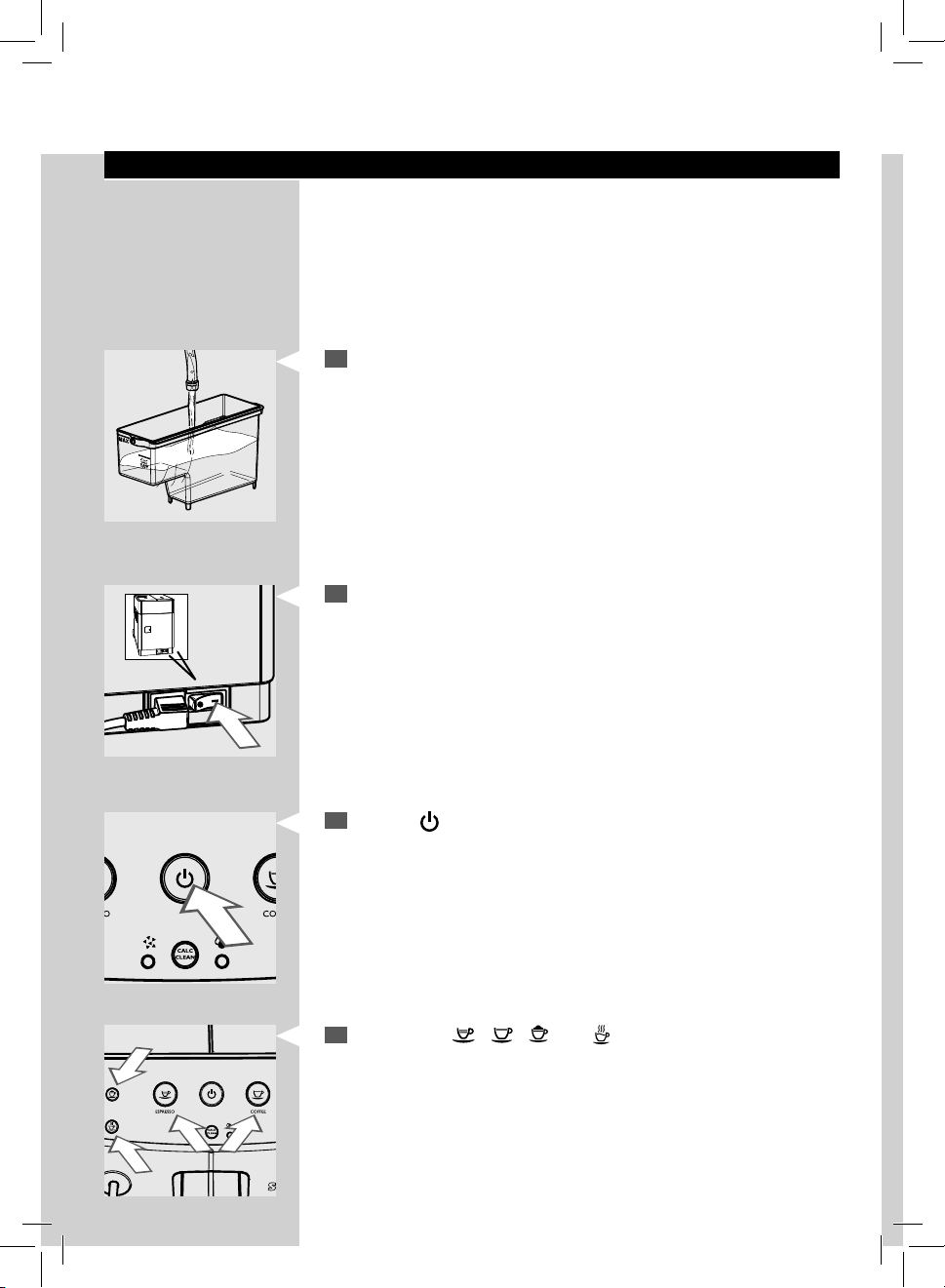

INTERRUPTION OF THE DESCALING CYCLE
Once you have started the descaling cycle, you must complete it till the
very end without turning o the machine.
In case you get stuck during the descaling procedure, you can exit by unplugging the power cord. If that happens follow the steps below.
Empty and carefully rinse the water tank, then ll it with fresh water up
1
to the MAX level.
Make sure that the power button is on "I".
2
Press the “ ” button to turn on the machine.
3
Wait until the " ", " ", " " and " " buttons are shining steadily.
4
Page 53
ENGLISH
Empty the drip tray and place it back.
1
5
51
51
2
3
Empty the container and place it back.
6
Press the “ ” button to dispense 500 ml of water. The “ ” button
7
ashes.
To stop dispensing water, press the “ ” button.
8
Empty the container.
Place the container under the co ee dispensing spout.
9
Page 54
52
ENGLISH

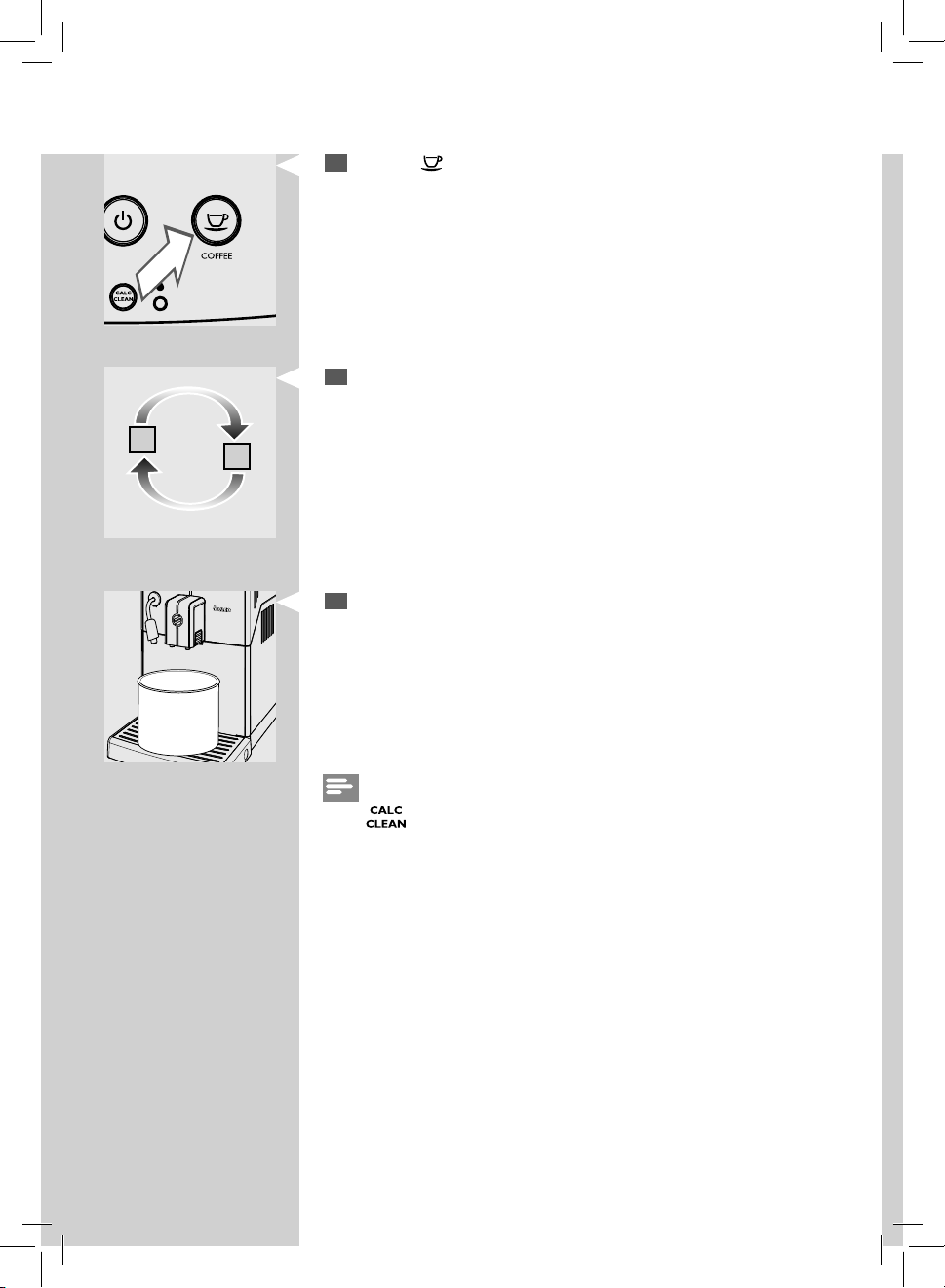

Press the “” button to brew a co ee.
10
Repeat steps 9 – 10; then continue with step 12.
11
9
10
Empty the container. The machine is ready for use.
12
Note:
if the “
machine at your earliest convenience.
” orange light does not turn o , you still have to descale your
Page 55

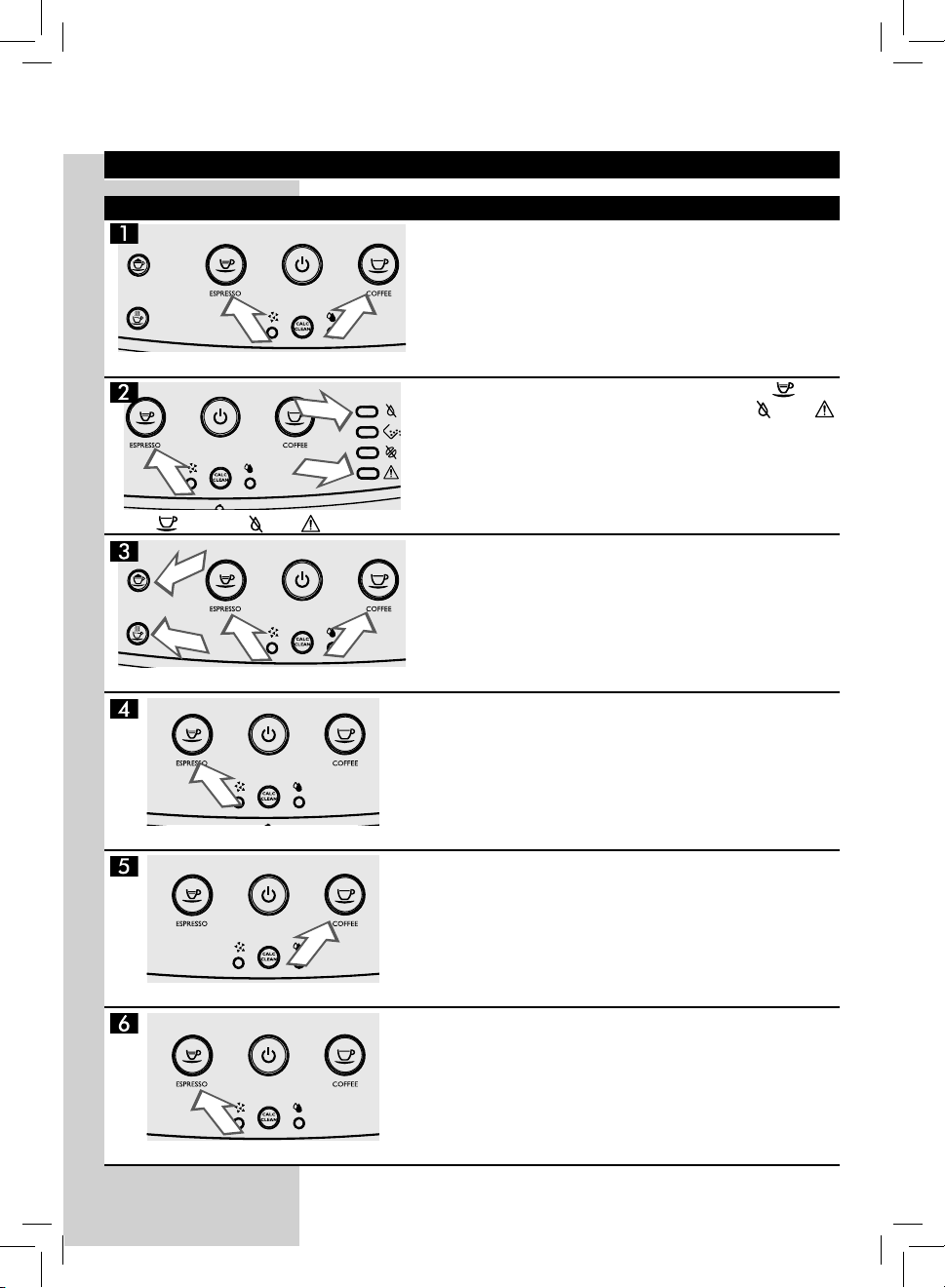

Warning signals
" "
steady on " " and " " ashing
Flashing
CONTROL PANEL WARNINGS
The machine is performing one of the following operations:
- Warm-up
- Automatic rinse.
The machine needs to prime the circuit. Press the "
button. Once pressed, the button turns o . The "
" lights ash while the circuit is being primed, and they turn
o once priming has been completed.
The machine is ready to brew co ee.
ENGLISH
" and "
53
53
"
Steady on
Flashing slowly
Flashing slowly
Quick double ashing
The machine is brewing one cup of espresso.
The machine is brewing one cup of long co ee.
The machine is brewing two cups of espresso.
Page 56
54
ENGLISH
Warning signals
The machine is brewing two cups of long co ee.
Quick double ashing
The machine is programming the amount of espresso to be
brewed.
Flashing quickly
The machine is programming the amount of long co ee to
be brewed.
Flashing quickly
The machine is in the steam dispensing phase
Flashing slowly
Flashing slowly
Steady on
The machine is in the hot water dispensing phase.
Fill the water tank.
Page 57
Warning signals
Steady on
Flashing quickly
Flashing slowly
ENGLISH
Completely insert the drip tray with the co ee grounds
drawer into the machine and close the service door.
The brew group is being reset due to machine reset.
Insert the brew group.
Empty the co ee grounds drawer.
55
55
Steady on
Flashing
Steady on
The co ee grounds drawer is not inserted into the machine. Wait a few seconds until the
and the "
grounds drawer and close the service door.
Fill the co ee bean hopper with co ee beans and restart
the brewing cycle. The light turns o when the brew button of the selected product is pressed.
It is possible to dispense steam and hot water when this
warning message appears.
" light shines steadily. Then insert the co ee
" "
light turns o
Page 58
56
ENGLISH

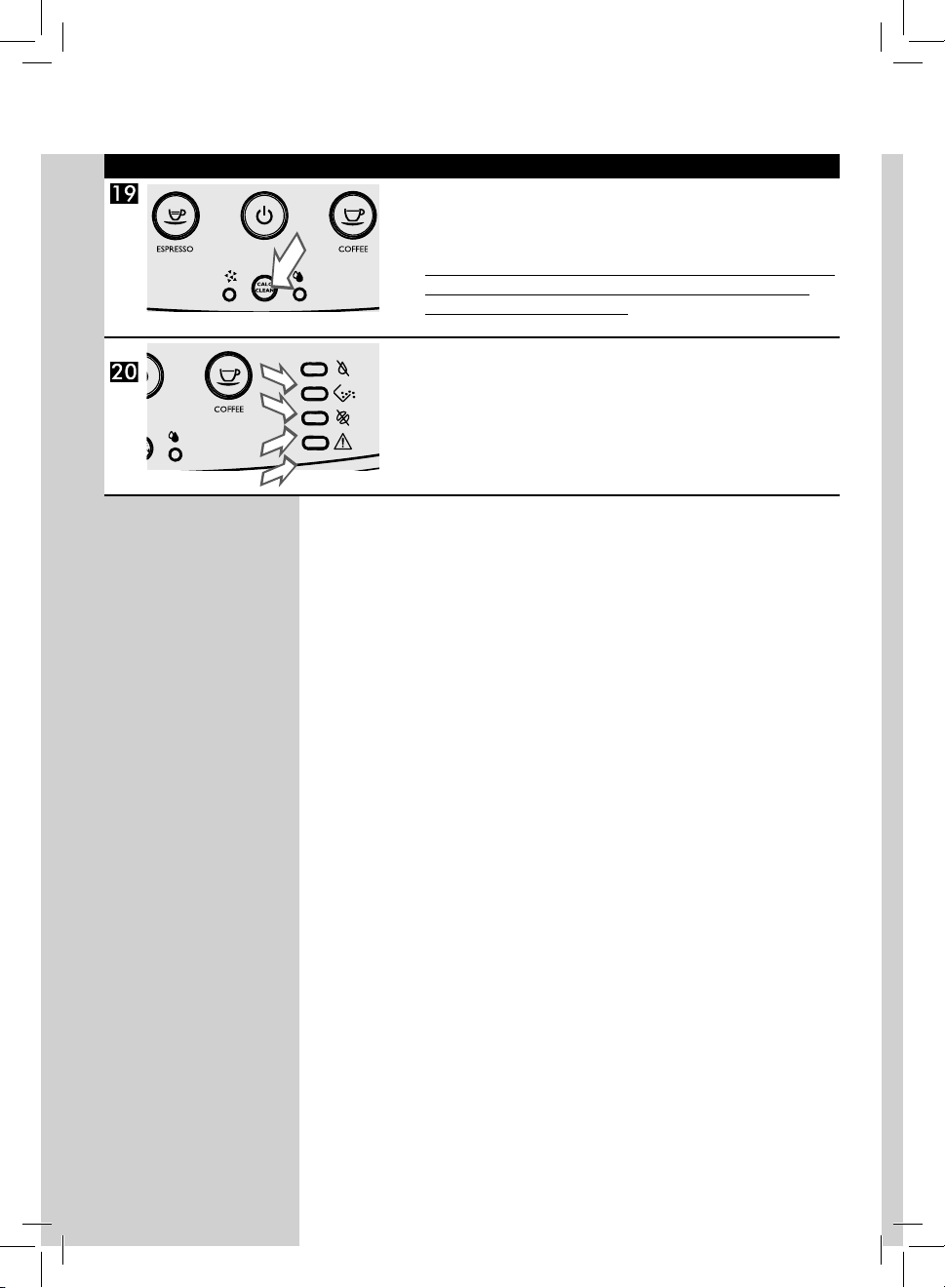

Warning signals
All lights ashing simultaneously
You need to descale the machine. Follow the steps described in the “Descaling” chapter of this manual.
Please note that not descaling your machine will ultimately
make it stop working properly. In this case repair is NOT
covered under your warranty.
Steady on
Your machine is out of order.
Turn o the machine. Turn it back on after 30 seconds.
Repeat the procedure 2 or 3 times.
If the machine does not start, contact the Philips SAECO
hotline in your country (contact details in the warranty
booklet)
Page 59
ENGLISH
TROUBLESHOOTING
This chapter summarizes the most common problems you could encounter with your machine.
If you are unable to solve the problem with the information below, visit
www.saeco.com/support for a list of frequently asked questions or contact the Philips Saeco hotline in your country.
Contact details can be found in the warranty booklet packed separately or
at www.saeco.com/support.
Machine actions Causes Solutions
The machine does not turn
on.
The drip tray gets lled although no water is drained.
“ ”
The
light is always dis-
played on the machine.
Co ee is not hot enough. The cups are cold. Preheat the cups with hot water.
Co ee does not have enough
(see note)*.
crema
The machine takes a long
time to warm up or the
amount of water dispensed
is too little.
The brew group cannot be
removed.
The brew group cannot be
inserted.
The machine is not connected to
the electric network, or the power
button is in the “O” position.
Water is sometimes drained automatically by the machine into the
Connect the machine to the electric
network and turn the power button
to the “I” position.
This is a normal behaviour of the
machine.
drip tray to manage the rinsing of
the circuits and ensure optimum
machine performance.
The co ee grounds drawer has
been emptied with the machine
o .
The blend is unsuitable, co ee is
not freshly roasted or the grind is
too coarse.
The co ee grounds drawer must
always be emptied with the machine
on.
Change co ee blend or adjust the
grind setting as explained in the
“Adjusting the Co ee Grinder”
chapter.
The machine circuit is clogged by
Descale the machine.
limescale.
The brew group is out of place. Turn on the machine. Close the ser-
vice door. The brew group automatically returns to the initial position.
The co ee grounds drawer is
inserted.
The brew group is not in the o
position.
The gearmotor is not in the correct
position.
Remove the co ee grounds drawer
before removing the brew group.
Make sure that the brew group in
the o position, as described in the
“Weekly Cleaning of the Brew Group”
chapter.
Insert the drip tray and the co ee
grounds drawer. Close the service door.
Turn on the machine without inserting
the brew group. The gearmotor moves
back to the correct position. Turn o
the machine and reinsert the brew
group as described in the “Weekly
Cleaning of the Brew Group” chapter.
57
57
Page 60
58
ENGLISH
Machine actions Causes Solutions
The machine grinds the
co ee beans but no co ee is
brewed (see note)*.
The co ee is too weak (see
note)*.
Co ee is brewed slowly (see
note)*.
Co ee leaks out of the dispensing spout.
No hot water or steam is
dispensed.
The descaling cycle cannot
be nished.
The brew group is dirty. Clean the brew group (see the
"Weekly Cleaning of the Brew
Group" chapter).
This might occur when the machine is automatically adjusting
the dose.
The dispensing spout is dirty. Clean the dispensing spout.
This might occur when the machine is automatically adjusting
the dose.
The ceramic co ee grinder is set
to a coarse grind.
The co ee grind is too ne. Change co ee blend or adjust the
The brew group is dirty. Clean the brew group (see the
The dispensing spout is clogged. Clean the dispensing spout and its
The hole of the steam/hot water
wand is clogged.
Most probably you have used not
enough water for rinsing.
Brew a few cups of co ee as
described in the “Saeco Adapting
System” chapter.
Brew a few cups of co ee as
described in the “Saeco Adapting
System” chapter.
Adjust the ceramic co ee grinder
to a ner setting (see the “Adjusting the Ceramic Co ee Grinder”
section).
grind as explained in the “Adjusting
the Co ee Grinder” chapter.
"Weekly Cleaning of the Brew
Group" chapter).
holes.
Clean the hole of the steam wand
using a pin.
Make sure that the machine is
o and has cooled down before
performing this operation.
Unplug the power cord and follow
the instructions described in the
sector “ Interruption of the descaling
cycle”.
Note:
(*) These problems can be considered normal if the co ee blend has been
changed or if the machine has just been installed. In this case, wait until
the machine performs a self-adjusting operation as described in the "Saeco
Adapting System" chapter.
Page 61
ENGLISH
ENERGY SAVING
Stand-by
The Saeco fully automatic espresso co ee machine is designed for energy
saving, as proven by the Class A energy label.
After 30 minutes of inactivity, the machine turns o automatically. If a
product has been brewed, the machine performs a rinse cycle.
In stand-by mode, the energy consumption is below 1Wh.
To turn on the machine, check that the power button on the back of the
machine is set to “I”.
Thereafter press the
If the boiler is cold, the machine performs a rinse cycle.
“ ” button.
59
59
Page 62
60
ENGLISH
TECHNICAL SPECIFICATIONS
The manufacturer reserves the right to make changes to the technical
speci cations of the product.
Nominal Voltage - Power
Rating - Power Supply
Housing material Thermoplastic material
Size (w x h x d) 215 x 330 x 429 mm / 8.5” x 13” x 16.9”
Weight 7 kg / 16 pounds
Power cord length 800 - 1200 mm / 32-47”
Control panel Front panel
Cup sizes Up to 152 mm / 6”
Water tank 1.8 litres / 60.8 oz - Removable type
Co ee bean hopper capacity 250 g / 1 cup
Co ee grounds drawer
capacity
Pump pressure 15 bar
Boiler Stainless steel type
Safety devices Thermal fuse
See data plate on the inside of the service
door
15
WARRANTY AND SERVICE
Warranty
For detailed information on your warranty and related conditions, please
read the warranty booklet supplied separately.
Service
We want to ensure that you remain satis ed with your machine.
If you have not already done so, please register your purchase at
www.saeco.com/welcome. This will enable us to stay in contact with you
and send you cleaning and descaling reminders.
If you need service or support, please visit the Philips website at www.
saeco.com/support or contact the Philips Saeco hotline in your country.
The contact details can be found in the warranty booklet supplied separately or at www.saeco.com/support.
Page 63
ENGLISH

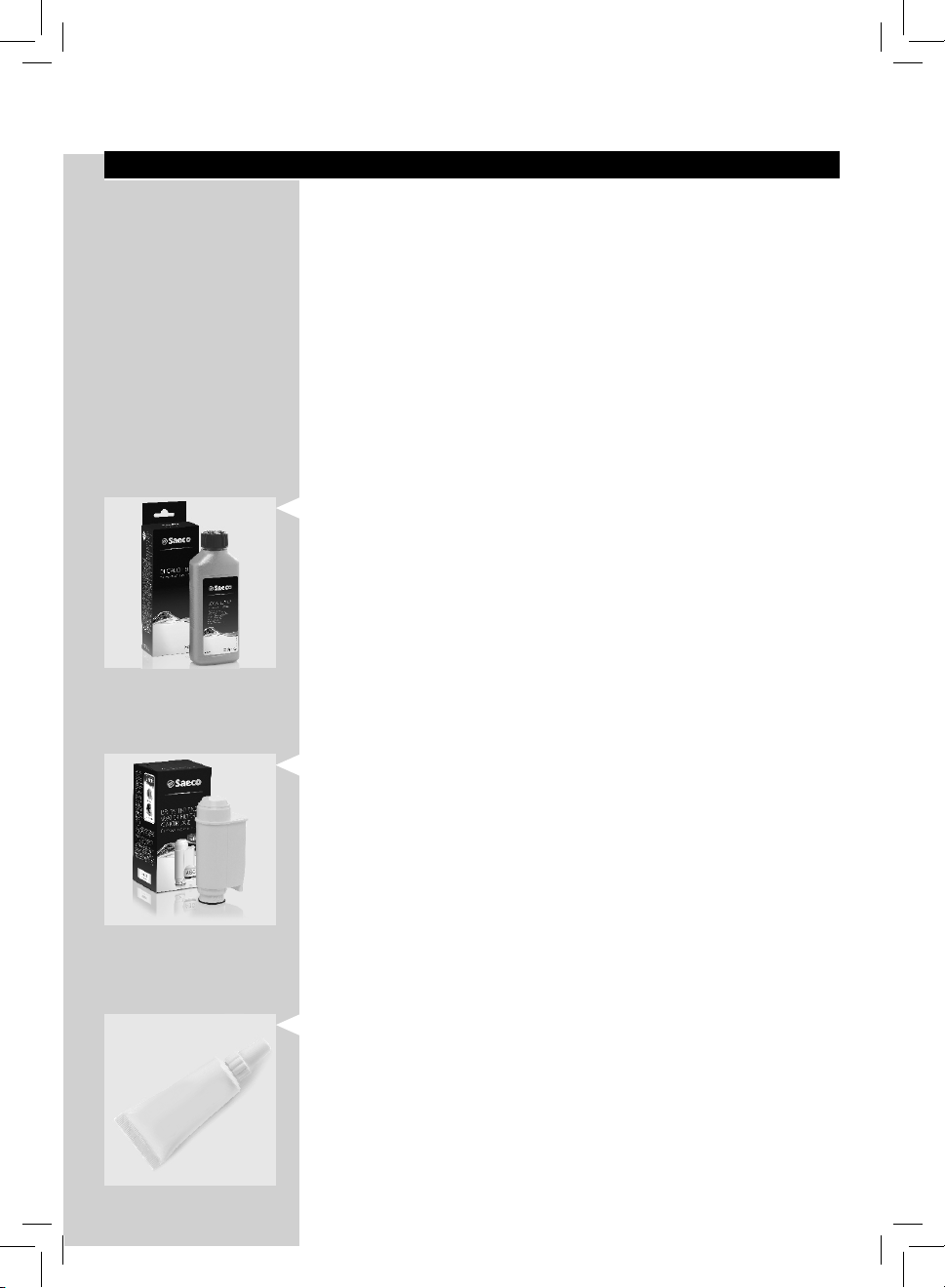

ORDERING MAINTENANCE PRODUCTS
For cleaning and descaling, use Saeco maintenance products only.
can purchase these products at the Philips online shop (if available in your
country) at www.shop.philips.com/service, from your local dealer or at
authorised service centres.
If you have any di culties obtaining maintenance products for your machine, please contact the Philips Saeco hotline in your country.
Contact details can be found in the warranty booklet packed separately or
at www.saeco.com/support.
Overview of maintenance products
- Descaling solution CA6700
You
61
61
- INTENZA+ Water lter cartridge CA6702
- Grease HD5061
Page 64
62
ENGLISH
- Maintenance Kit CA 6706
- Cleaning brush HD5084
Page 65
Page 66
Page 67
Page 68
02
The manufacturer reserves the right to make changes without prior notice.
www.saeco.com/welcome
Rev.00 del 15-10-14
EN
02
Loading...
