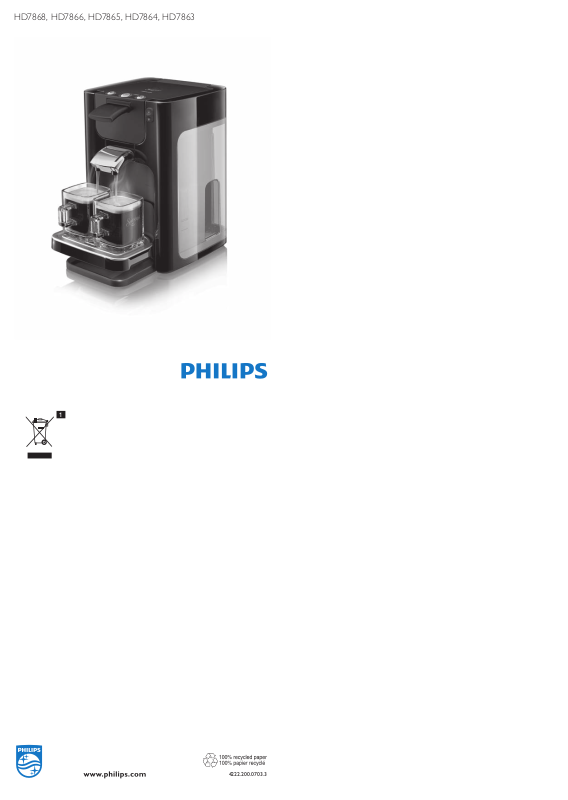

HD7868, HD7866, HD7865, HD7864, HD7863
1
4222.200.0703.3
ENGLISH
Introduction
Congratulations on your purchase and welcome to Philips!To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome.
SENSEO® coffee system
Make your coffee moments truly special with SENSEO®.This unique system combines the easy-to-use Philips SENSEO® coffee machine with the specially developed Douwe Egberts SENSEO® coffee pods, giving you a full, smooth coffee with a delicious foam layer.
To ensure a smooth and full coffee taste, you should keep the following things in mind:
Clean cold water
Use clean cold water every day. If you have not used the coffee machine for one day, you have to flush it with clean cold water before you use it again. To flush the machine, fill the water reservoir with clean cold water, place a bowl or 2 cups under the coffee spout and press the 2-cup button a few times to brew hot water until the water reservoir is empty.
Fresh coffee pods
Use the SENSEO® coffee pods that have been specially developed by Douwe Egberts for your SENSEO® coffee machine for a full, round taste.
Clean machine
Clean and descale the Philips SENSEO® coffee machine regularly. For more information on why it is important to descale, when to descale and how to descale or which descaler to use, visit our website at www.philips.com/ descale-senseo.
Important
Read this user manual carefully before you use the machine and save it for future reference.
Danger
-- Never immerse the machine in water or any other liquid.
Warning
-- Connect the machine to an earthed wall socket. -- Check if the voltage indicated on the bottom of
the machine corresponds to the local mains voltage before you connect the machine.
-- This machine can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in
a safe way and understand the hazards involved. Children shall not play with the machine. Cleaning and user maintenance shall not be made by children unless they are 8 years and above and supervised.
-- Keep the machine and its cord out of the reach of children aged less than 8 years.
-- Do not use the machine if the plug, the mains cord or the machine itself is damaged.
-- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
Caution
-- Always return the machine to a service centre authorised by Philips for examination or repair. Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid.
-- After unpacking the machine, never put your SENSEO® machine on its side. Always keep it in upright position, also during transport.
-- Never put normal ground coffee or use torn pods in the SENSEO® machine, as this causes it to become blocked.
-- Always make sure the spout, drip tray and coffee collector are in place when brewing coffee.
-- Always put the machine on a flat and stable surface.
-- Do not use the machine in combination with a transformer, as this could cause hazardous situations.
-- Do not place the appliance on a hotplate, directly next to a hot oven, heater or similar source of heat.
-- Never let the machine operate unattended. -- Descale the machine at least every 3 months.
Not doing so may cause the machine to stop working properly. In this case, repair is not covered under your warranty.
-- Do not use the machine at altitudes higher than 2200 metres above sea level.
-- Do not keep the appliance at temperatures below 0°C.Water left in the heating system may freeze and cause damage.
-- Never pour any other liquid than clean cold water into the water reservoir.
-- This machine is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.
Compliance with standards
-- This appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.
-- The energy consumption of this machine in off mode is less than 1 watt. This means that this machine complies with European Directive 2005/32/EC, which sets the ecological design requirements for energyusing products.
Ordering accessories
To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer.You can also contact the Philips Consumer Care
Centre in your country (see the worldwide guarantee leaflet for contact details).
Recycling
-- This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU) (Fig. 1).
-- Follow your country’s rules for the separate collection of electrical and electronic products. Correct disposal helps prevent negative consequences for the environment and human health.
Guarantee and support
If you need information or support, please visit www.philips.com/ support or read the separate worldwide guarantee leaflet.
The purchase of the Philips SENSEO® coffee machine does not exhaust any of the rights of D.E Masterblenders 1753 or Philips under any of their patents nor does it confer upon the purchaser a licence under these patents.
Frost-free storage
If you already used the coffee machine and have therefore already flushed it with water, you may only use and store it in a frost-free place to prevent it from becoming damaged.
Troubleshooting
This chapter summarises the most common problems you could encounter with the machine. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.
Problem |
Cause |
Solution |
I got no or |
You did not flush |
Flush the machine before first use. |
very little |
the machine |
When the machine has emptied a |
coffee when |
before first use. |
complete water reservoir, you can |
I used the |
|
start to make a new coffee. |
machine for |
|
|
the first time. |
|
|
The light |
The machine is |
If this takes longer than two minutes, |
in the on/ |
heating up. |
contact the Philips Consumer Care |
off button |
|
Centre in your country. |
flashes |
|
|
slowly. |
|
|
The light |
There is not |
Fill the water reservoir and make |
in the on/ |
enough water |
sure you place the water reservoir |
off button |
in the water |
properly into the machine. |
flashes |
reservoir. |
|
quickly. |
|
|
|
The float in the |
Empty the water reservoir and shake |
|
water reservoir |
it a few times to release the float. |
|
may be stuck. |
Clean the water reservoir with hot |
|
|
water and some washing-up liquid or |
|
|
in the dishwasher. |
|
|
If these solutions do not solve the |
|
|
problem, contact the Philips consumer |
|
|
Care Centre in your country. |
The coffee |
You have used |
Perform the descaling procedure as |
is not hot |
the machine for |
described in chapter CALC. |
enough. |
a longer period |
|
|
without descaling. |
|
The coffee |
Do not use cups |
Use thin-walled cups.Thin-walled cups |
temperature |
that are too large |
absorb less heat from the coffee than |
in the cup |
or have thick |
thick-walled cups. |
decreases |
walls. |
|
quickly. |
|
|
|
|
You can preheat the coffee machine |
|
|
and cup by brewing a cup of hot water |
|
|
first without placing a coffee pod in the |
|
|
pod holder. |
I cannot |
A temporary |
Switch off the coffee machine. Pull up |
open the lid. |
vacuum has |
the lever and wait 24 hours before |
|
developed under |
you open the lid.You may need to use |
|
the lid. |
some force.Always make sure the pod |
|
|
holders are clean and the sieve is not |
|
|
clogged to prevent vacuum. |
The coffee |
Perhaps the sieve |
If the sieve is clogged, use a washing- |
machine |
in the centre of |
up brush to unclog the sieve. If you |
produces |
the pod holder is |
cannot unclog it properly with the |
less coffee |
clogged. |
washing-up brush, put the pod holder |
than before. |
|
in the machine and descale the |
|
|
machine. Descale the machine |
|
|
(see chapter CALC). |
|
HD7868, HD7866, |
Set the switch to mild coffee to get a |
|
HD7864: Perhaps |
normal amount of coffee. |
|
the strength select |
|
|
switch is set to |
|
|
strong coffee. |
|
I cannot |
Perhaps a used |
If this is the case, remove the used pod. |
close the lid |
coffee pod is |
|
properly. |
sticking to the |
|
|
water distribution |
|
|
disc. |
|
The coffee |
You may not |
Use 1 pod in combination with the |
is not strong |
have used the |
1-cup pod holder and the 1-cup |
enough. |
right number |
button. Use 2 pods in combination |
|
of pods or may |
with the 2-cup pod holder and the |
|
have pressed the |
2-cup button. |
|
wrong button. |
|
Problem |
Cause |
Solution |
The pod(s) may not have been placed in the pod holder properly.
|
You may have |
|
used the same |
|
pod twice. |
|
Perhaps you need |
|
a different flavour. |
|
HD7868, HD7866, |
|
HD7864: Perhaps |
|
the strength |
|
select switch is |
|
set to mild coffee. |
The coffee is |
Perhaps you need |
too strong. |
a different flavour. |
|
HD7868, HD7866, |
|
HD7864: Perhaps |
|
the strength select |
|
switch is set to |
|
strong coffee. |
Water |
You have not |
leaks from |
closed the lid |
the coffee |
properly. |
machine. |
|
|
You overfilled the |
|
water reservoir. |
|
The sieve in the |
|
centre of the pod |
|
holder may be |
|
clogged. |
|
The sealing ring |
|
may be stuck |
|
under the edge |
|
of the distribution |
|
disc. |
|
The machine has |
|
been stored in a |
|
room that was |
|
not frost-free. |
|
Water drops |
|
on the worktop |
|
may be the result |
|
of placing the |
|
water reservoir |
|
or removing and |
|
removing used |
|
pod(s). |
Place the coffee pod(s) properly in the centre of the pod holder, to prevent water from escaping along the edge of the pod(s).When you use two coffee pods on top of each other, make sure that the convex sides of both pods point downwards and press the pods lightly into the pod holder. Make sure that the coffee in the pod is distributed evenly.
Place a new pod in the pod holder to brew a fresh cup of coffee.
If you prefer a more robust flavour,
Senseo® coffee pods with a stronger blend are available.
Set the strength select switch to strong coffee.
If you prefer a milder flavour, Senseo® coffee pods with a milder blend are available.
Set the strength select switch to mild coffee.
Close the lid properly and lock the lever.
Do not fill the water reservoir beyond
MAX level.
Check the pod holder. If the sieve is clogged, use a washing-up brush to unclog the sieve. If you cannot clean it properly with the washing-up brush, put the pod holder in the machine and descale the machine (see chapter‘Descaling’).
Check if the sealing ring is stuck under the edge of the distribution disc. If it is, pull it out from under the distribution disc carefully.
Contact the Philips Consumer Care Centre in your country
Check if the water drops on the worktop are not the result of placing or removing the water reservoir or removing used coffee pods. Make sure that you do not remove the water reservoir when the coffee machine
is heating up.This may cause water that normally ends up in the water reservoir to leak out of the machine.
In all other cases, contact the Philips Consumer Care Centre in your country.
Tips and instructions
Flushing Flush the machine before you brew the first cup of coffee or if you have not used it for three days.The machine switches off automatically. Height-adjustable drip trayYou can adjust the height of the drip tray to the height of your coffee cup.
Strength select (HD7868, HD7866, HD7864)You can choose between strong coffee and mild coffee.
Cleaning Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
CALC
Descaling Descale your SENSEO® coffee machine at least every 3 months.
Use Senseo descaler (HD7012, HD7011) only.The descaling procedure consists of 2 descaling and 2 flushing cycles. Press the 2-cup button to descale or flush and repeat this until the water reservoir is empty. Replace the used coffee pod for another used coffee pod after the first descaling cycle. Do not interrupt the descaling procedure. For more information on why it is important to descale, when to descale and how to descale or which descaler to use, visit our website at www.philips.com/descale-senseo.
DEUTSCH
Einführung
Herzlichen Glückwunsch zu Ihrem Kauf und willkommen bei Philips!
Um die Unterstützung von Philips optimal nutzen zu können, registrieren Sie Ihr Produkt bitte unter www.philips.com/welcome.
SENSEO® Kaffeesystem
Mit SENSEO® erleben Sie einen sensationellen Kaffeegenuss. Dieses einzigartige System kombiniert die einfach zu bedienende Philips SENSEO® Kaffeemaschine mit den speziell von Douwe Egberts SENSEO® entwickelten Kaffeepads: Das Ergebnis ist eine perfekte Tasse Kaffee mit einem weichen, vollen Aroma und einer köstlichen Crema.
Beachten Sie folgende Tipps, um stets den vollen und aromatischen Kaffeegeschmack zu erhalten:
Sauberes kaltes Wasser
Verwenden Sie immer sauberes kaltes Wasser.Wenn Sie die Kaffeemaschine drei Tage lang nicht verwendet haben, lassen Sie vor dem nächsten Aufbrühen sauberes kaltes Wasser durchlaufen. Um die Maschine durchzuspülen, füllen Sie den Wassertank mit sauberem kaltem Wasser, stellen Sie eine Schüssel oder zwei Tassen unter den Kaffeeauslauf, und drücken Sie mehrmals die 2-Tassen-Taste, damit heißes Wasser durchläuft, bis der Wassertank leer ist.
Frische Kaffeepads
Verwenden Sie die speziell von Douwe Egberts für Ihre SENSEO® Kaffeepadmaschine entwickelten SENSEO® Kaffeepads für ein weiches, volles Aroma.
Die Maschine reinigen
Reinigen und entkalken Sie Ihre Philips SENSEO® Kaffeemaschine regelmäßig. Für weitere Informationen, warum das Entkalken wichtig ist, wann und
wie Sie entkalken sollten, oder welchen Entkalker Sie verwenden können, besuchen Sie unsere Website unter www.philips.com/descale-senseo.
Wichtig
Lesen Sie diese Bedienungsanleitung vor dem Gebrauch der Maschine aufmerksam durch, und bewahren Sie sie für eine spätere Verwendung auf.
Gefahr
-- Tauchen Sie die Maschine niemals in Wasser oder andere Flüssigkeiten.
Warnung
-- Schließen Sie die Maschine an eine geerdete Steckdose an.
-- Prüfen sie, bevor Sie das Gerät anschließen, ob die Spannungsangabe am Boden des Geräts mit der örtlichen Netzspannung übereinstimmt.
-- Dieses Maschine kann von Kindern ab 8 Jahren und Personen mit verringerten physischen, sensorischen oder psychischen Fähigkeiten oder Mangel an Erfahrung und Kenntnis verwendet werden, wenn sie dabei beaufsichtigt werden oder Anweisung zum sicheren Gebrauch der Maschine erhalten und die Gefahren verstanden haben. Kinder dürfen nicht mit der Maschine spielen. Reinigung und Pflege der
Maschine darf nur von Kindern ab 8 Jahren und unter Aufsicht durchgeführt werden.
-- Bewahren Sie das Gerät und das Kabel außerhalb der Reichweite von Kindern unter 8 Jahren auf.
-- Verwenden Sie die Maschine nicht, wenn der Netzstecker, das Netzkabel oder die Maschine selbst defekt oder beschädigt ist.
-- Um Gefährdungen zu vermeiden, darf ein defektes Netzkabel nur von einem Philips Service-Center, einer von Philips autorisierten Werkstatt oder einer
ähnlich qualifizierten Person durch ein Original-
Ersatzkabel ersetzt werden.
