PHILIPS HD7860 User Manual [ms]

HD7862, HD7860

1000 ml

50 gr

Ontkalker

Entkalker

Détartrant

Descaler

1000 ml

2 3 4

7 8 9

10 11 12 13

14 15 16

18 19 20 21

22 23 24

27 28

30 31

Q R

ENGLISH

4222.200.0399.1

Introduction

Congratulations on your purchase and welcome to Philips! To fully benet from the

support that Philips offers, register your product at www.philips.com/welcome. Make your coffee moments truly special with SENSEO®. This unique system combines the easy-to-use Philips SENSEO® coffee machine with the specially developed Douwe Egberts SENSEO® coffee pods, giving you a full, smooth coffee with a delicious foam layer. The Douwe Egberts coffee in convenient SENSEO® coffee pods and Philips’ unique new SENSEO® brewing system are perfectly matched to ensure that the best taste and aroma are extracted from the coffee. To ensure a smooth and full coffee taste, you should keep the following things in mind:

Fresh water

Use fresh water every day.

Fresh coffee pods

Use the SENSEO® coffee pods that have been specially developed by Douwe Egberts for your SENSEO® coffee machine for a full, round taste. The Douwe Egberts SENSEO® coffee pods stay fresh longer if you store them in an airtight storage container.

A clean machine

Clean and descale your coffee machine regularly as described in the chapters ‘Cleaning’ and ‘Descaling’. Remove used coffee pods after brewing. If you have not

used the machine for some time, ush the machine before you use it again (see

section ‘Flushing the machine’ in chapter ‘Cleaning’). This machine is intended for household use only and not for professional use.

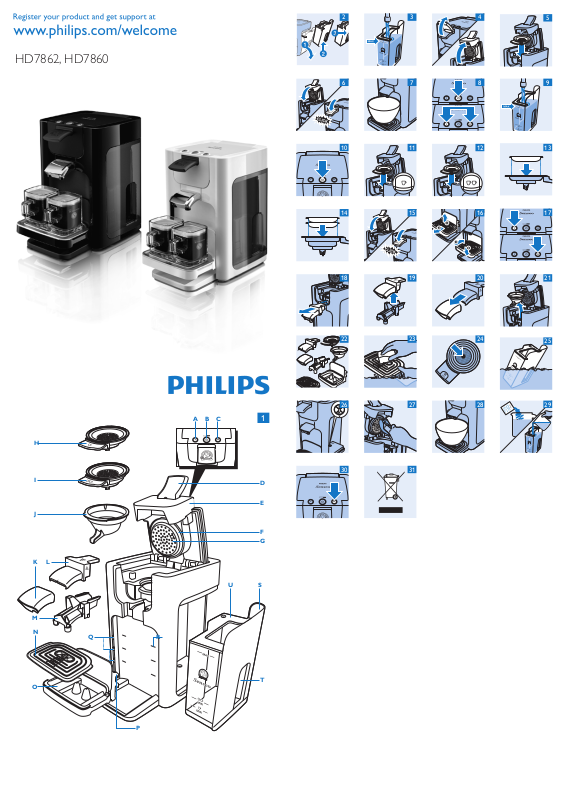

General description (Fig. 1)

A 1-cup button B On/off button with light C 2-cup button D Lid release lever E Lid F Sealing ring G Water distribution disc H 1-cup pod holder q I 2-cup pod holder qq J Coffee collector K Decorative spout cover L Coffee spout cover M Coffee spout N Cup tray O Drip tray P Height adjustment hooks of drip tray Q Height adjustment slots for drip tray R Guide lines for adjusting drip tray S Water reservoir T Water reservoir grip U Anti-splash rim

Important

Read this user manual carefully before you use the machine and save it for future reference.

Danger

- Never immerse the machine in water or any other liquid.

Warning

- Check if the voltage indicated on the bottom of the machine corresponds to the local mains voltage before you connect the machine.

- This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the machine.

- Do not use the machine if the plug, the mains cord or the machine itself is damaged.

- If the mains cord is damaged, you must have it replaced by Philips, a service

centre authorised by Philips or similarly qualied persons in order to avoid a

hazard.

Caution

- Always return the machine to a service centre authorised by Philips for examination or repair. Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid.

- Never put normal ground coffee or use torn pods in the SENSEO® machine, as this causes it to become blocked.

- Do not use the machine in combination with a transformer, as this could cause hazardous situations.

- Always put the machine on a at and stable surface.

- Never let the machine operate unattended.

- Do not use the machine at altitudes higher than 2200 metres above sea level.

- The machine does not work at temperatures below 10°C.

- Flush the coffee machine with fresh water before you use it for the rst time

(see chapter ‘Preparing the machine for use’). This causes the boiler to ll with

water, which is essential for the machine to work properly.

- Do not use the SENSEO® machine in combination with water softeners based on sodium exchange.

- Philips strongly advises you to descale this SENSEO® machine every 3 months. If the machine is not descaled in time and according to the procedure described in chapter ‘Descaling’, this may lead to technical failures.

- Never interrupt the descaling process.

- Never use a descaling agent based on mineral acids such as sulphuric acid,

hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar). These descaling

agents may damage your SENSEO® coffee machine.

Never turn your SENSEO® machine on its side. Always keep it in upright position, also during transport.

Electromagnetic elds (EMF)

This machine complies with all standards regarding electromagnetic elds (EMF). If

handled properly and according to the instructions in this user manual, the machine is

safe to use based on scientic evidence available today.

Preparing the machine for use

You cannot brew coffee if you have not ushed the SENSEO® coffee machine rst!

The ushing cycle causes the boiler to ll with water. After this, the coffee machine is

ready for use. Flush the machine in the following way:

1 Tilt the water reservoir outwards and lift it out of the machine (Fig. 2).

2 Fill the water reservoir with cold water up to the MAX indication. (Fig. 3)

3 To put the water reservoir back into the machine, tilt it slightly and insert the

bottom of the water reservoir rst (1). Then press home the top part of the water reservoir (2).

4 Move the lid release lever upwards and open the lid (Fig. 4).

5 Put the 1-cup pod holder q or the 2-cup pod holder qq in the machine

without pod or pods. (Fig. 5)

6 Close the lid and lock the lever (Fig. 6).

Note: To make sure the lever is locked properly, push it down until it snaps home with a

click. It is not possible to ush the machine when the lid is not properly closed.

7 Put the plug in an earthed wall socket.

8 Put a bowl (with a capacity of at least 1500ml) under the coffee spout to

collect the water. (Fig. 7)

Note: Make sure the bowl is placed stably on the drip tray or the foot of the machine to

prevent it from wobbling or toppling over during the ushing cycle. You can also use a

square or rectangular container.

9 Press the on/off button 3 (1) and then press the 1-cup button q and the

2-cup button qq briey at the same time (2). (Fig. 8)

, The boiler lls itself with water from the water reservoir. This takes some time

(approx. 90 to 150 seconds). During the ushing cycle, the machine produces more noise than during a regular brewing cycle.

Note: Before you use the machine for the rst time, clean the coffee spout, the cover

of the coffee spout, the coffee collector, the pod holders and the water reservoir in the dishwasher or with hot water and some washing-up liquid.

Now your Philips SENSEO® coffee machine is ready for use.

Using the machine

If you only get a small quantity of coffee or no coffee at all out of the machine, you have not ushed the machine properly before rst use. As a result, the boiler is not or only partly lled. Flush the machine properly (see chapter ‘Preparing the machine for use’) before you brew another cup of coffee.

1 Fill the water reservoir with cold water up to the MAX indication and put it

back into the machine. (Fig. 9)

Never pour milk, coffee, hot water or carbonated water into the water reservoir.

- q MIN: minimum amount of water required to brew 1 cup of SENSEO® coffee.

- qq MIN: minimum amount of water required to brew 2 cups of SENSEO® coffee.

- A full reservoir allows you to make SENSEO® coffee a number of times (up to 8

cups). This makes it unnecessary to ll the water reservoir each time you want to

make a cup of coffee.

2 Press the on/off button 3. (Fig. 10)

4222.200.0399.1

, The light in the on/off button ashes slowly while the water heats up. Heating

up takes approx. 75 seconds.

, The coffee machine is ready for use when the light in the on/off button lights

up continuously.

Note: If the water reservoir does not contain enough water to brew one cup of SENSEO® coffee, the light in the on/off button ashes rapidly and the 1-cup and 2-cup buttons cannot be operated.

3 Move the lid release lever upwards and open the lid (Fig. 4).

4 Place the appropriate pod holder in the machine.

Note: Make sure the pod holder is clean and the sieve in the centre is not clogged, e.g. with loose coffee grains.

- If you want to make one cup of SENSEO® coffee, use 1 coffee pod in combination with the 1-cup pod holder q and the 1-cup button q. (Fig. 11)

- If you want to make two cups of SENSEO® coffee, use 2 coffee pods in combination with the deeper 2-cup pod holder qq and press the 2-cup button

qq. (Fig. 12)

5 Place the SENSEO® coffee pod or pods properly in the centre of the pod

holder with the convex side pointing downwards.

Note: Use SENSEO® coffee pods from Douwe Egberts especially designed for your SENSEO® coffee machine for a full and round taste.

- Place 1 SENSEO® coffee pod in the 1-cup pod holder q. (Fig. 13)

- Place 2 SENSEO® coffee pods in the 2-cup pod holder qq. (Fig. 14)

Note: Make sure the coffee in the pod or pods is evenly distributed and press the pod or pods lightly into the pod holder.

Never put normal ground coffee or use torn pods in the machine, as this causes it to become blocked.

6 Close the lid and lock the lever (Fig. 15).

Make sure you push down the lid lever until it snaps home with a click.

Note: It is not possible to brew coffee when the lid is not properly closed and the lid lever is not locked.

7 To adjust the drip tray to the size of the cups you want to use, rst detach

the drip tray by sliding it slightly upwards (1) and then pulling it towards you (2) (Fig. 16).

8 To reattach the drip tray, push it against the front of the machine at the

required height (1). Make sure the top of the back plate of the drip tray is on one line with one set of guide lines. Then slide the drip tray slightly downwards (2) to make its hooks slip into the slots.

9 Place one or two cups on the cup tray.

Tip: The cups you use should have a capacity of at least 150ml. Do not use cups that are

too large, as they cause the coffee to get cold more quickly.

10 Press the 1-cup button q if you want to brew 1 cup. Press the 2-cup button

qq if you want to brew 2 cups. (Fig. 17)

, The SENSEO® coffee machine starts brewing. The machine automatically

supplies the optimal amount of water.

Note: You can interrupt the brewing process at any time by pressing the on/off button

3. If you switch the machine back on after having interrupted the brewing process, the machine does not complete the interrupted brewing cycle.

Do not remove the water reservoir during a brewing cycle, as this causes the machine to draw in air. When this happens, the machine only partly lls the next

cup.

11 Lift the pod holder out of the machine and remove the coffee pod or pods.

Note: Be careful when you do this, for there may still be some hot water or coffee on the coffee pod or pods.

Tips

- To make sure the coffee always tastes optimally, rinse the pod holders, the coffee collector and the coffee spout regularly.

- The SENSEO® coffee tastes best if you stir it before you drink it.

- If you intend to make another cup of SENSEO® coffee later, just leave the coffee machine switched on. The machine automatically switches itself off after 30 minutes.

Cleaning

Never immerse the SENSEO® coffee machine in water.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as

petrol or acetone to clean the machine.

Never clean the machine by ushing it with the lid open.

Note: All detachable parts are dishwasher-proof.

1 Unplug the machine.

2 Clean the outside of the machine with a soft moist cloth.

Remove stubborn coffee stains with vinegar diluted with hot water and then wipe away the vinegar residues with a soft cloth moistened with clean water.

3 Remove the coffee spout from the machine. (Fig. 18)

4 Remove the coffee spout cover from the coffee spout (Fig. 19).

5 Remove the decorative spout cover (Fig. 20).

6 Remove the coffee collector (Fig. 21).

7 Clean the coffee spout, the coffee spout cover, the decorative spout cover,

the coffee collector, the pod holders, the cup tray and the drip tray in the dishwasher or in hot water with some washing-up liquid (Fig. 22).

Note: If you clean the cup tray by hand, always remove it from the machine and hold it in your hand, as it might prove sharp when it is handled incorrectly. Always handle it carefully (Fig. 23). Note: After you have cleaned the pod holders, check if the sieve in the centre is clogged. If this is the case, unclog the sieve by rinsing the pod holders under a running tap. Use a washing-up brush to clean the sieve, if necessary (Fig. 24).

8 Clean the water reservoir in hot water, if necessary with some washing-up

liquid. You can also clean the water reservoir in the dishwasher. (Fig. 25)

Note: If you use a washing-up brush, be careful not to damage the valve in the bottom of the water tank.

Tip: You can remove the anti-splash rim of the water reservoir to clean the inside

thoroughly.

9 Do not use an object with sharp edges to clean the water inlet on the

machine (Fig. 26).

10 Rinse the parts with fresh water after cleaning and put them back into the

machine.

11 Clean the water distribution disc with a moist cloth (Fig. 27).

Be careful when you do this; make sure that the rubber sealing ring does not get stuck under the edge of the water distribution disc. If it does, the coffee machine starts leaking.

Flushing

If you have not used the coffee machine for three days, ush it with fresh water

before you use it again. Flush the machine in the following way:

1 Fill the water reservoir with cold water up to the MAX indication and put it

back into the machine. (Fig. 9)

2 Put the 1-cup pod holder q or the 2-cup pod holder qq in the machine

without pod or pods.

3 Put a bowl (with a capacity of at least 1500ml) under the coffee spout to

collect the water. (Fig. 28)

Note: Make sure the bowl is placed stably on the drip tray or the foot of the machine

to prevent it from wobbling or toppling over during the ushing cycle. You can also use

a square or rectangular container.

4 Press the on/off button 3 (1) and then press the 1-cup button q and the

2-cup button qq briey at the same time (2). (Fig. 8)

The machine lls itself quickly with water from the water reservoir. It starts to ush immediately and switches itself off after the ushing cycle.

Descaling When to descale

Descale the SENSEO® coffee machine frequently! Preferably descale 4 to 6 times a year, but at least once every 3 months. Descaling takes about 1 hour.

Why to descale

Scale builds up inside the appliance during use. It is essential to descale the SENSEO® coffee machine at least every 3 months. Your reasons to descale:

- It prolongs the life of your SENSEO® coffee machine

- It ensures maximum cup volume

- It ensures maximum coffee temperature

- The machine produces less sound during brewing

- It prevents malfunctioning If the descaling procedure is not performed correctly, scale residue remains behind in the machine. This causes scale to build up more quickly and may cause permanent and irreparable damage to the machine.

Use the correct descaling agent

Never use a descaling agent based on mineral acids such as sulphuric acid, hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar). These descaling agents may damage your SENSEO® coffee machine.

Only citric acid-based descalers are suitable for descaling the SENSEO® machine. This type of descaler descales the appliance without damaging it. For the correct amount, see under ‘Descaling procedure’ below. Each descaling mixture can be used only once. After use, the descaling mixture is no longer active.
