Register your product and get support at
www.philips.com/welcome
HD7854
1
English 6
Dansk 30

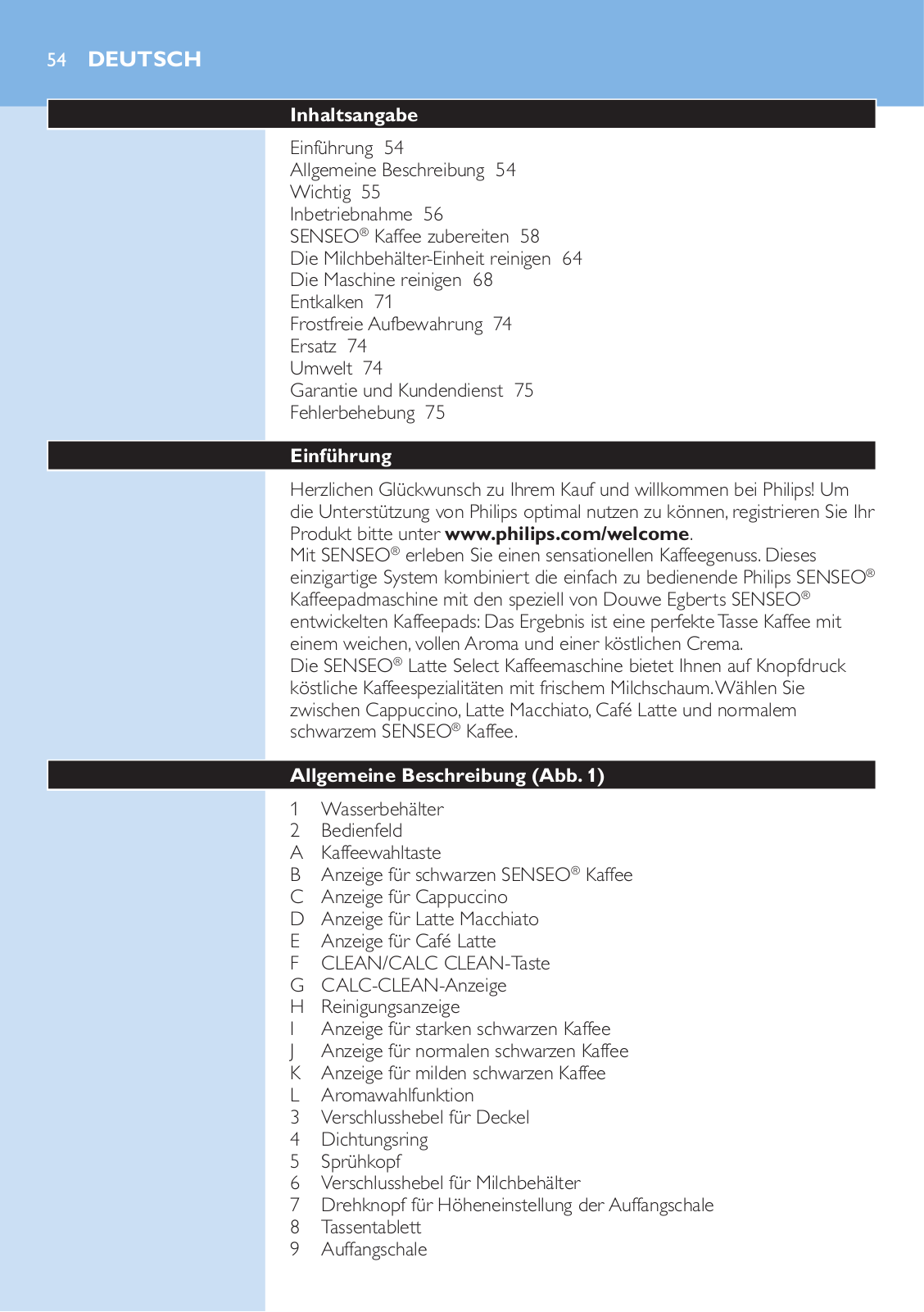

Deutsch 54

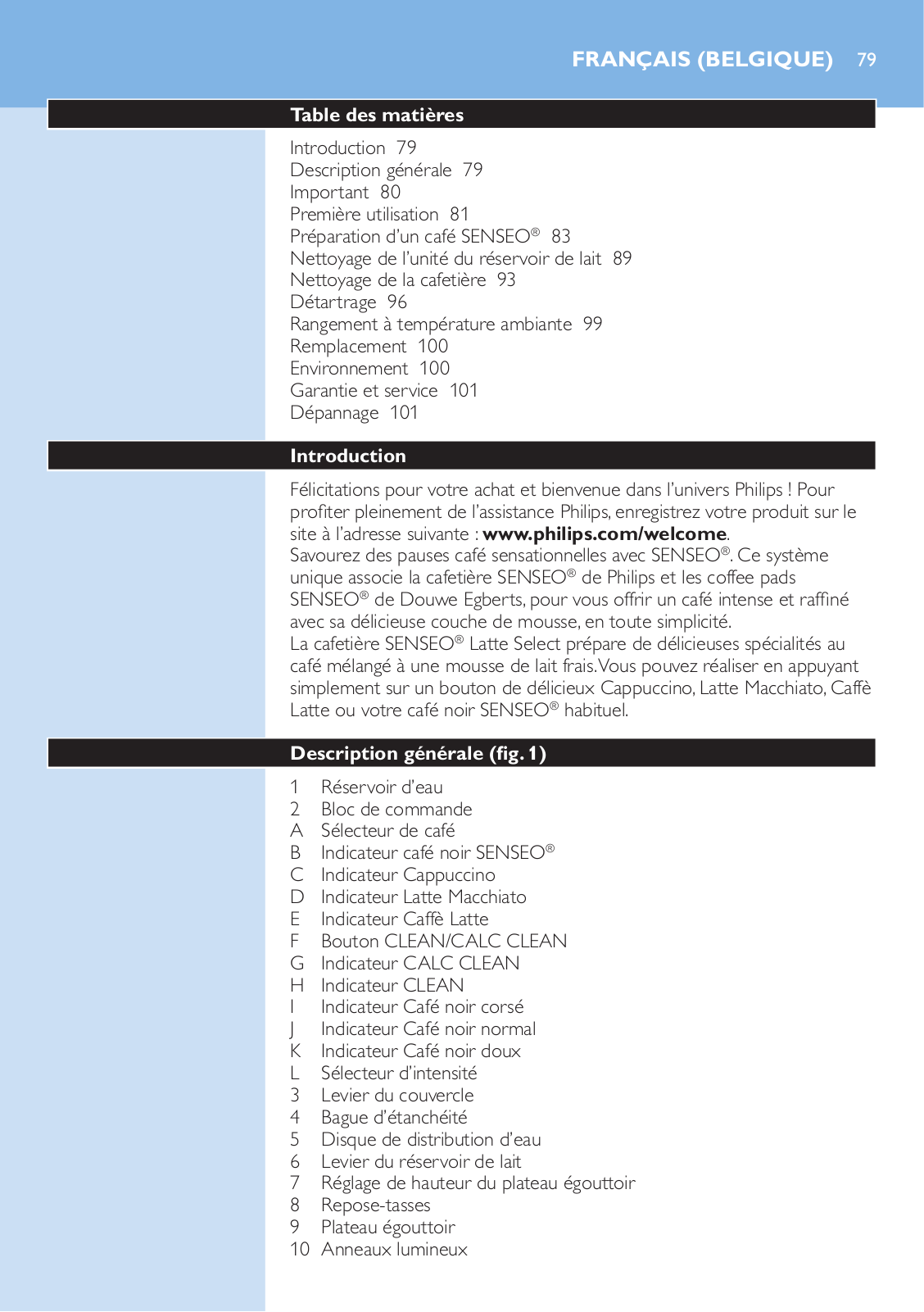

Français (Belgique) 79
Magyar 104
Nederlands 128
Norsk 153
Svenska 177
HD7854
Table of contents
Introduction 6
General description 6
Important 7
First use 8
Brewing SENSEO® coffee 10
Cleaning the milk container unit 16

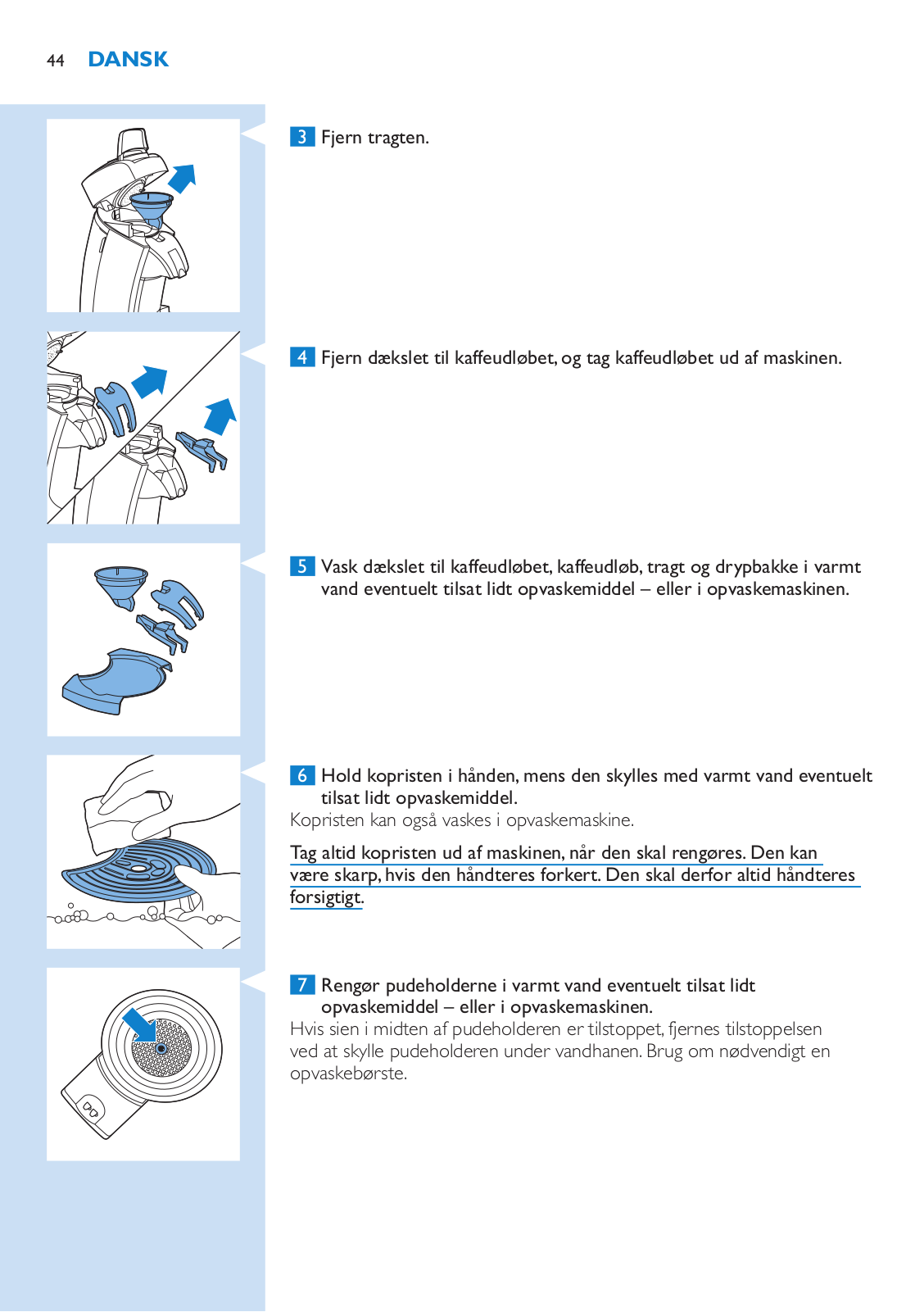

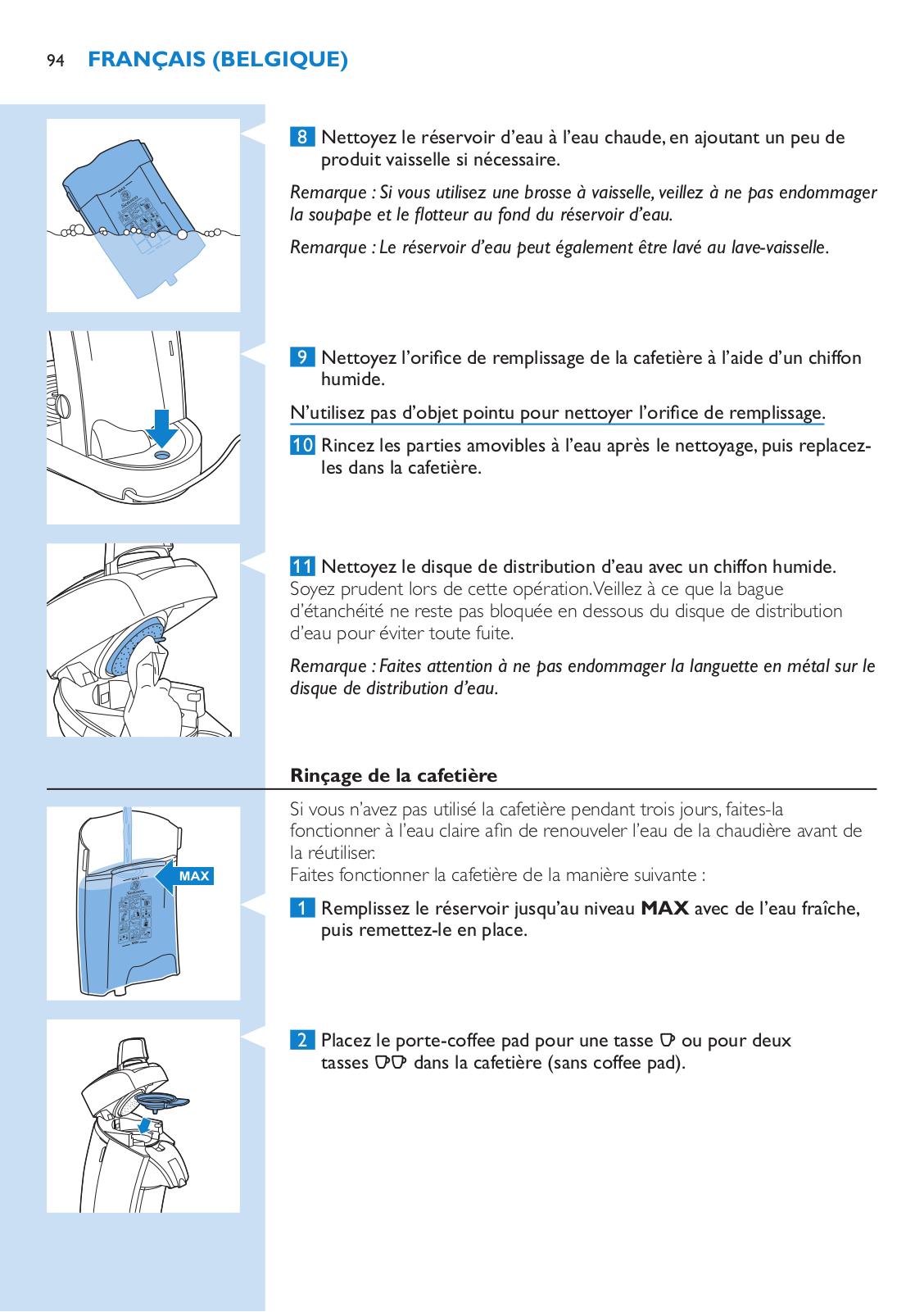

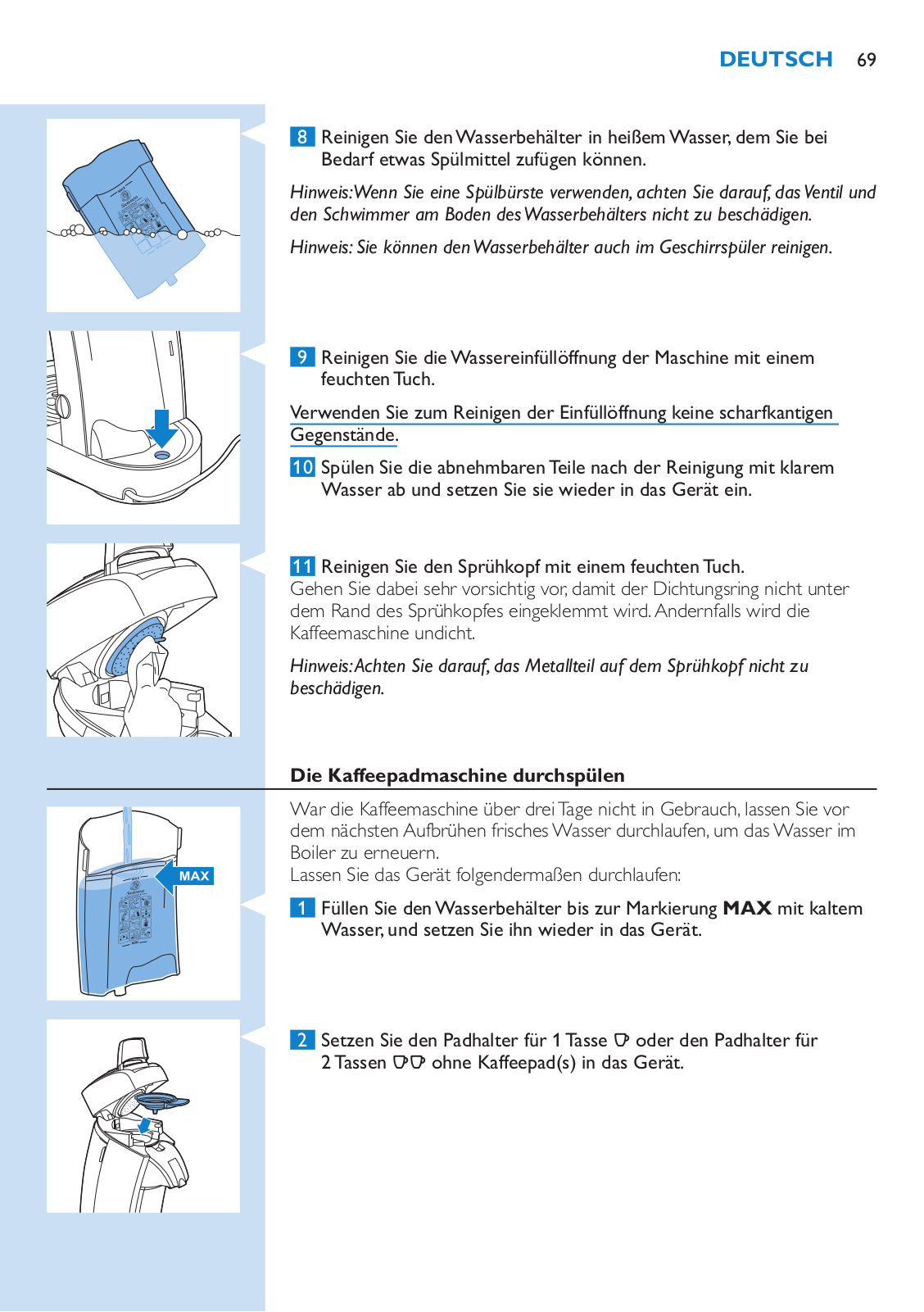

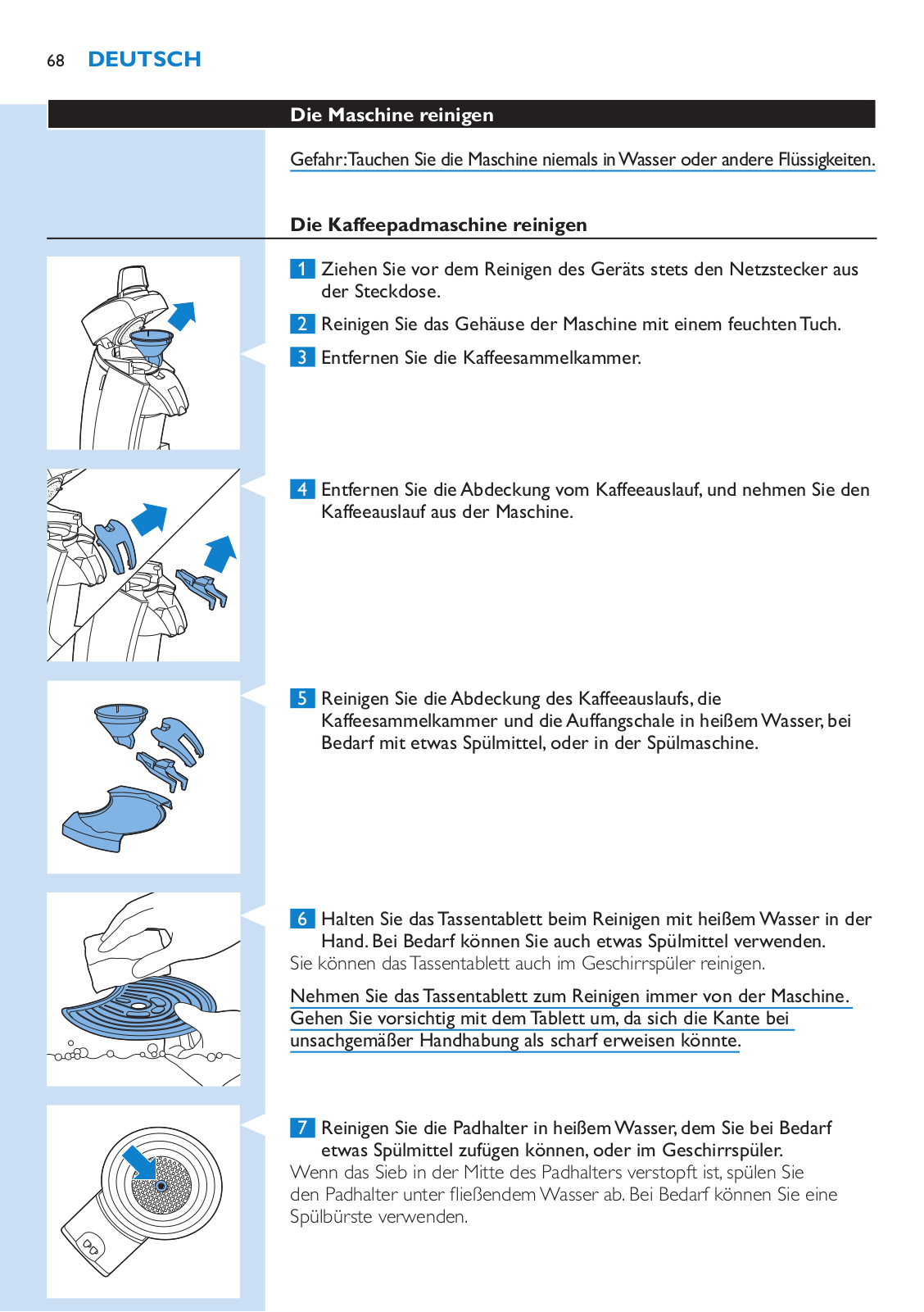

Cleaning the machine 19

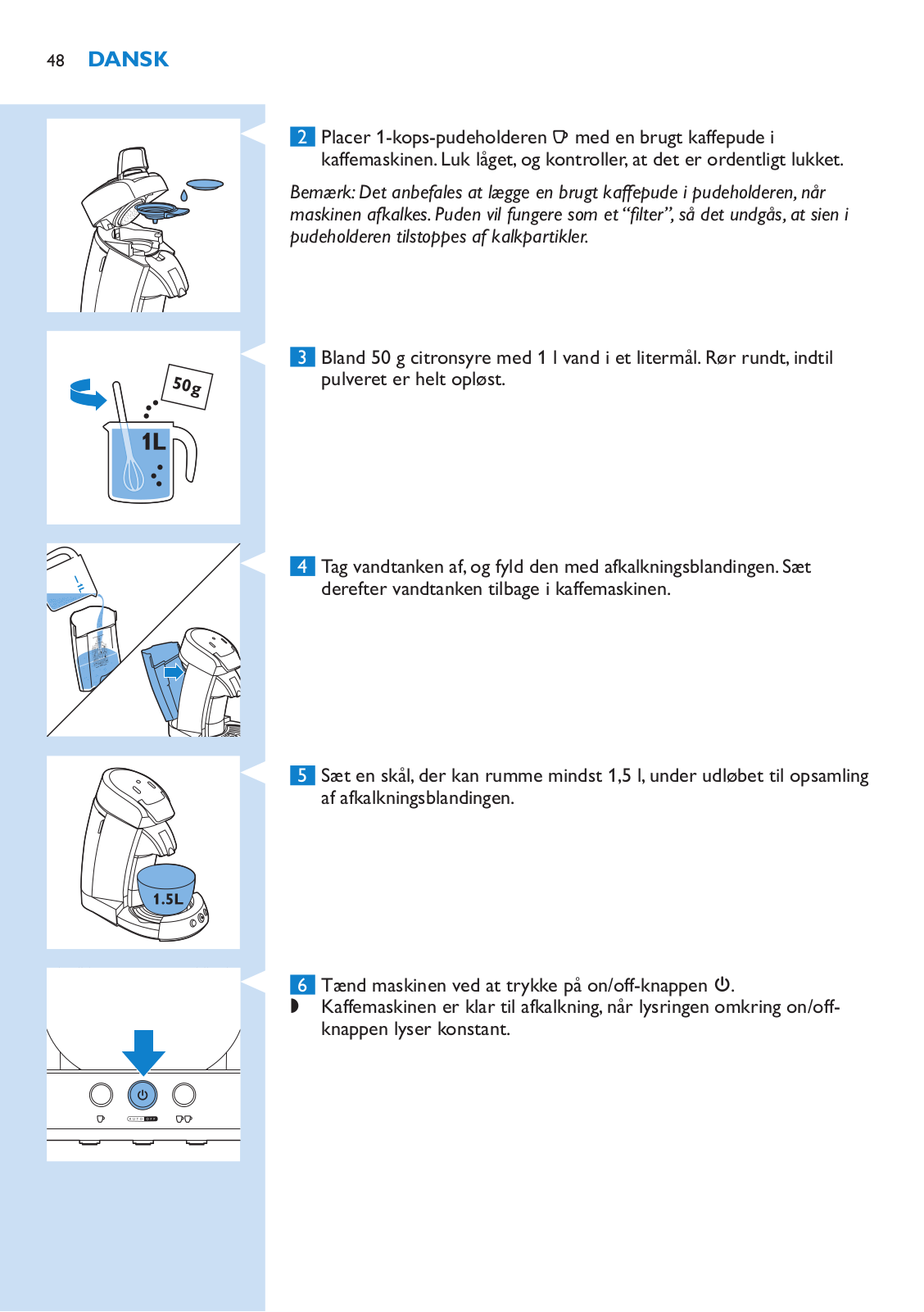

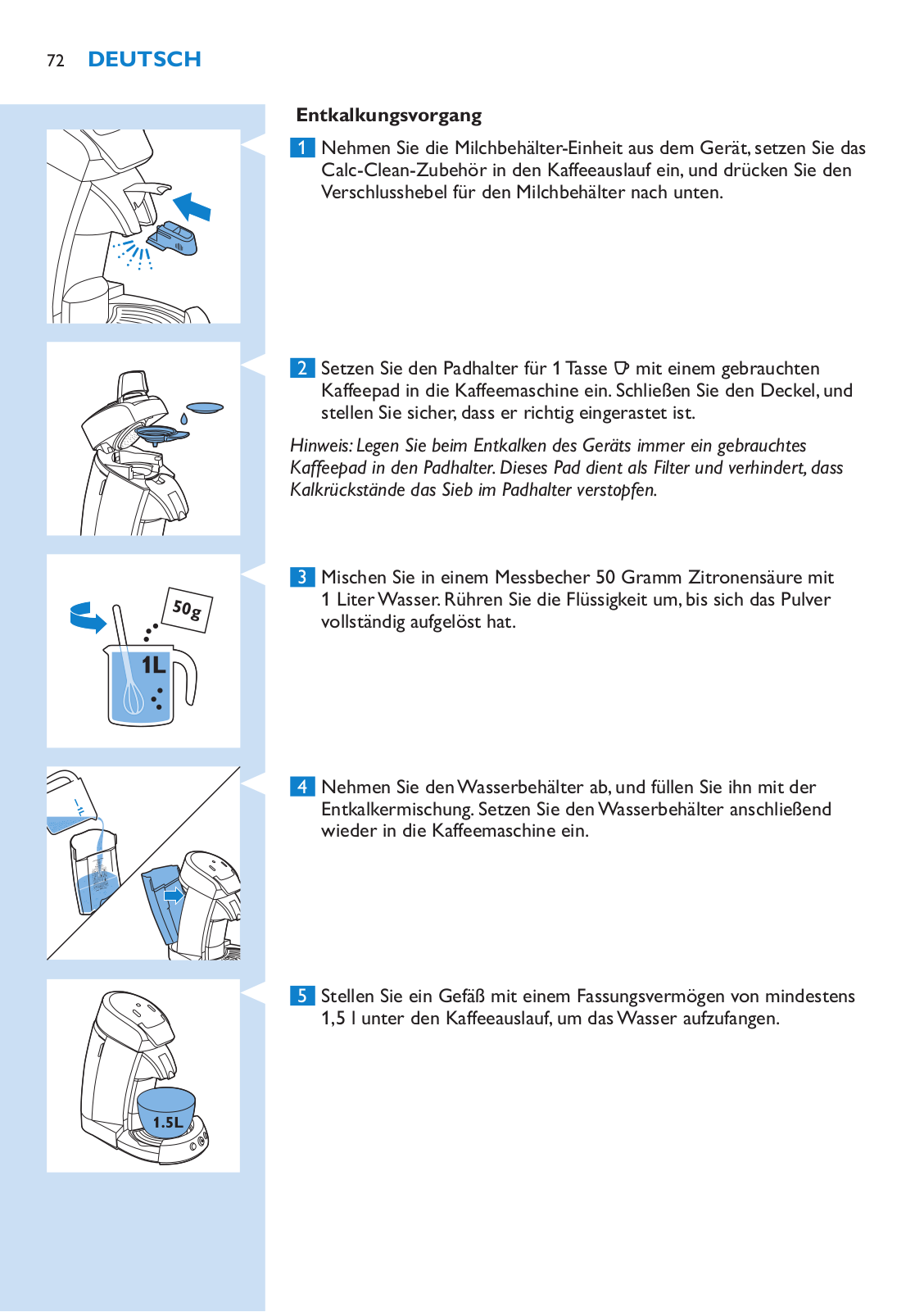

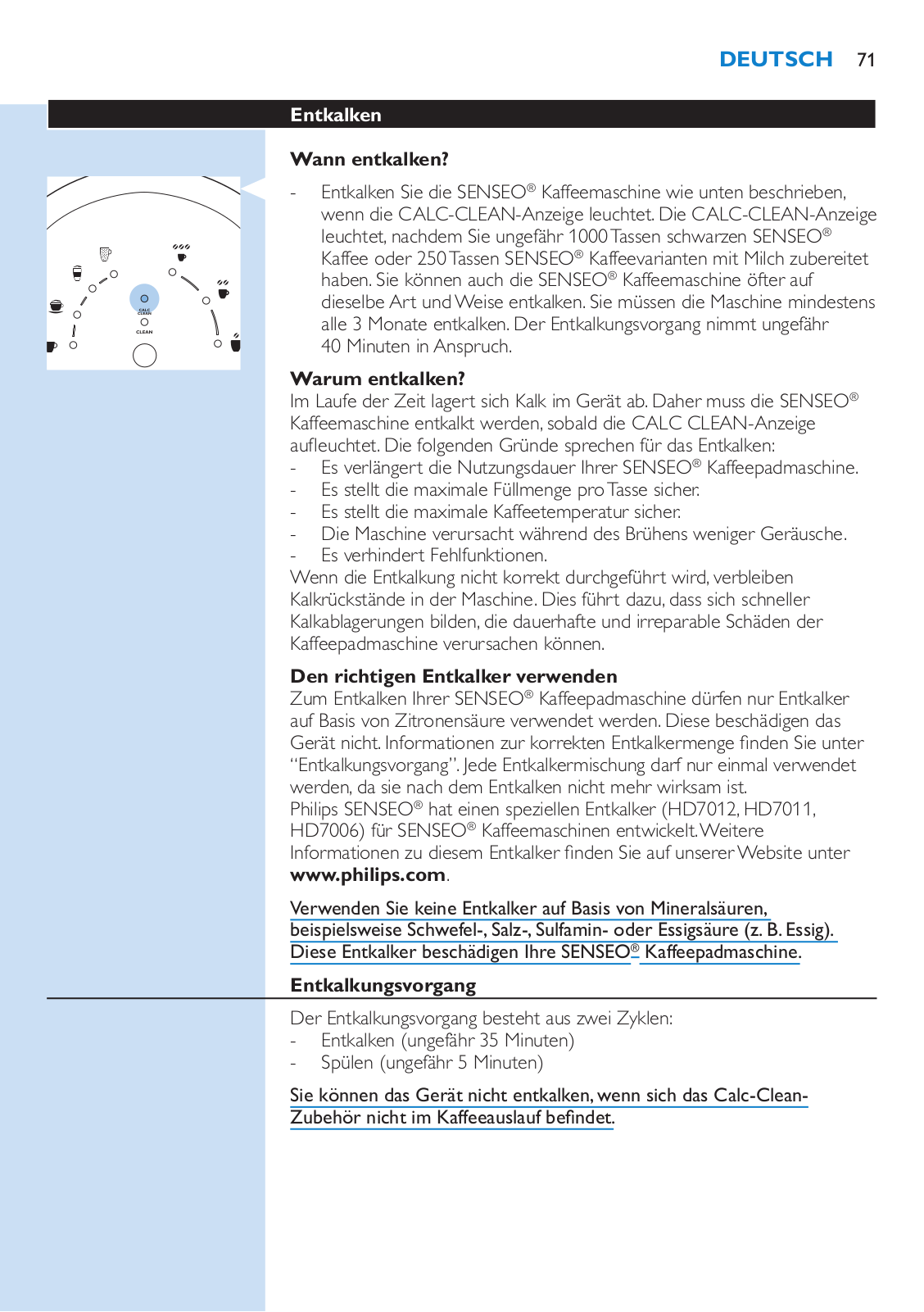

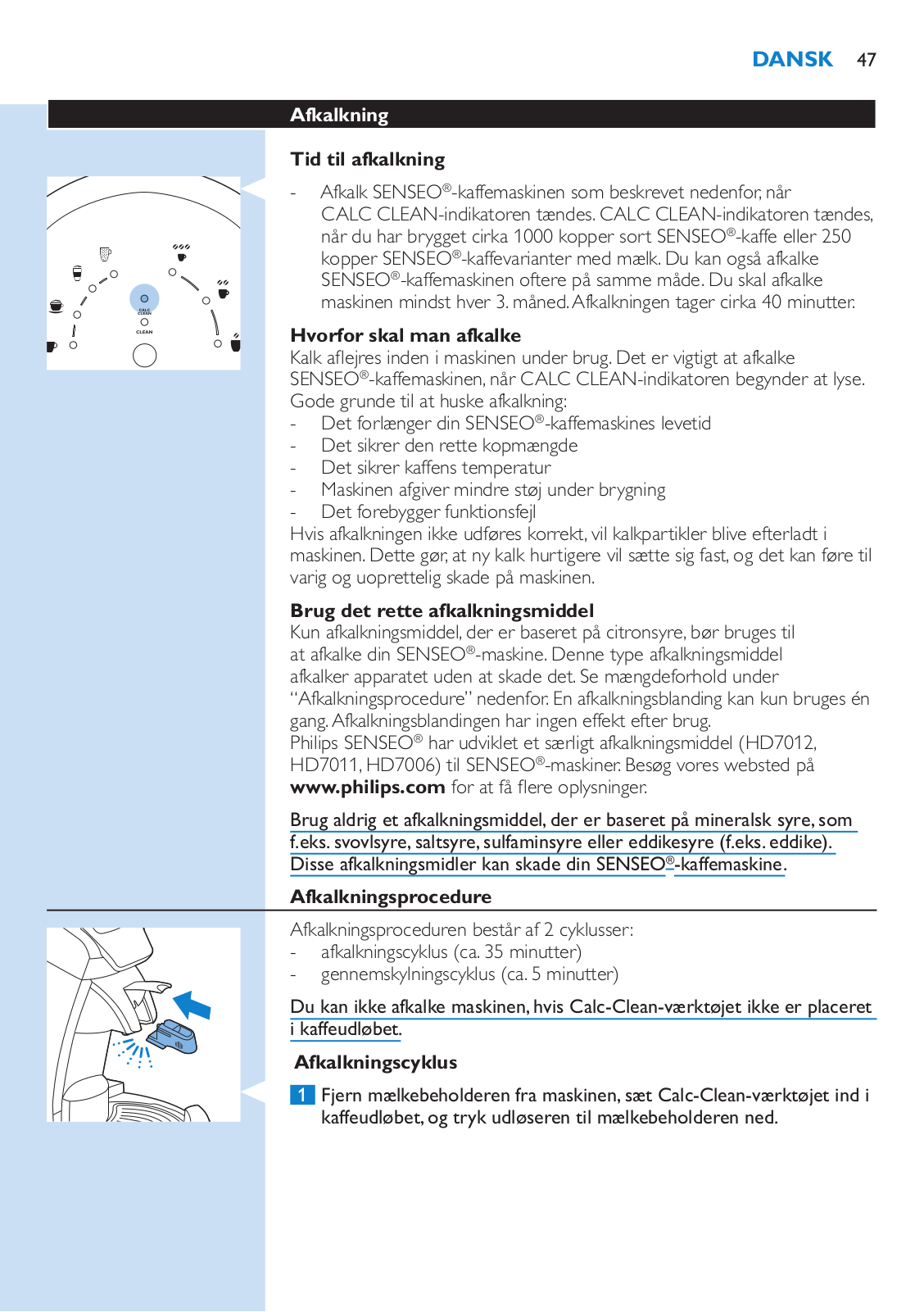

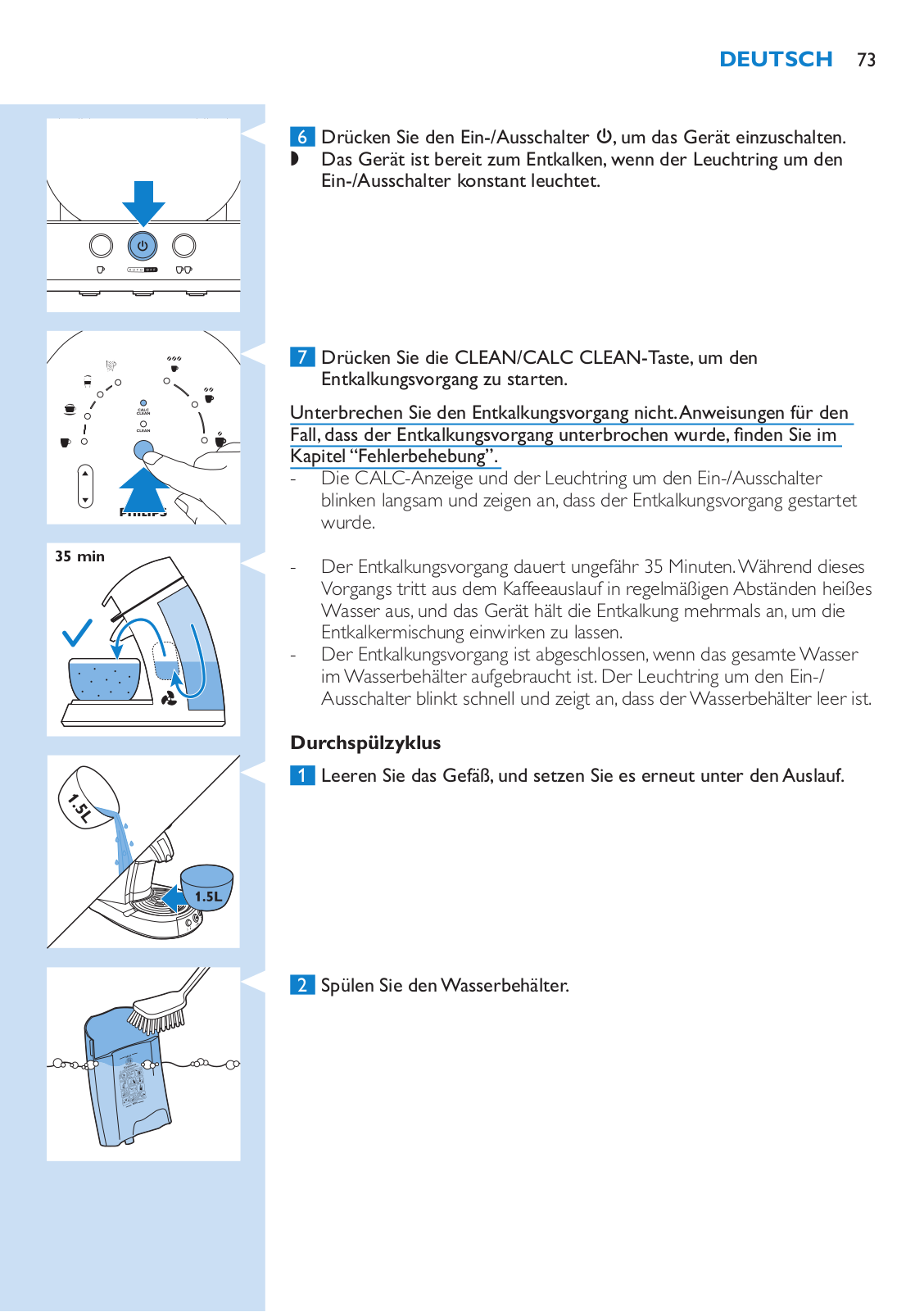

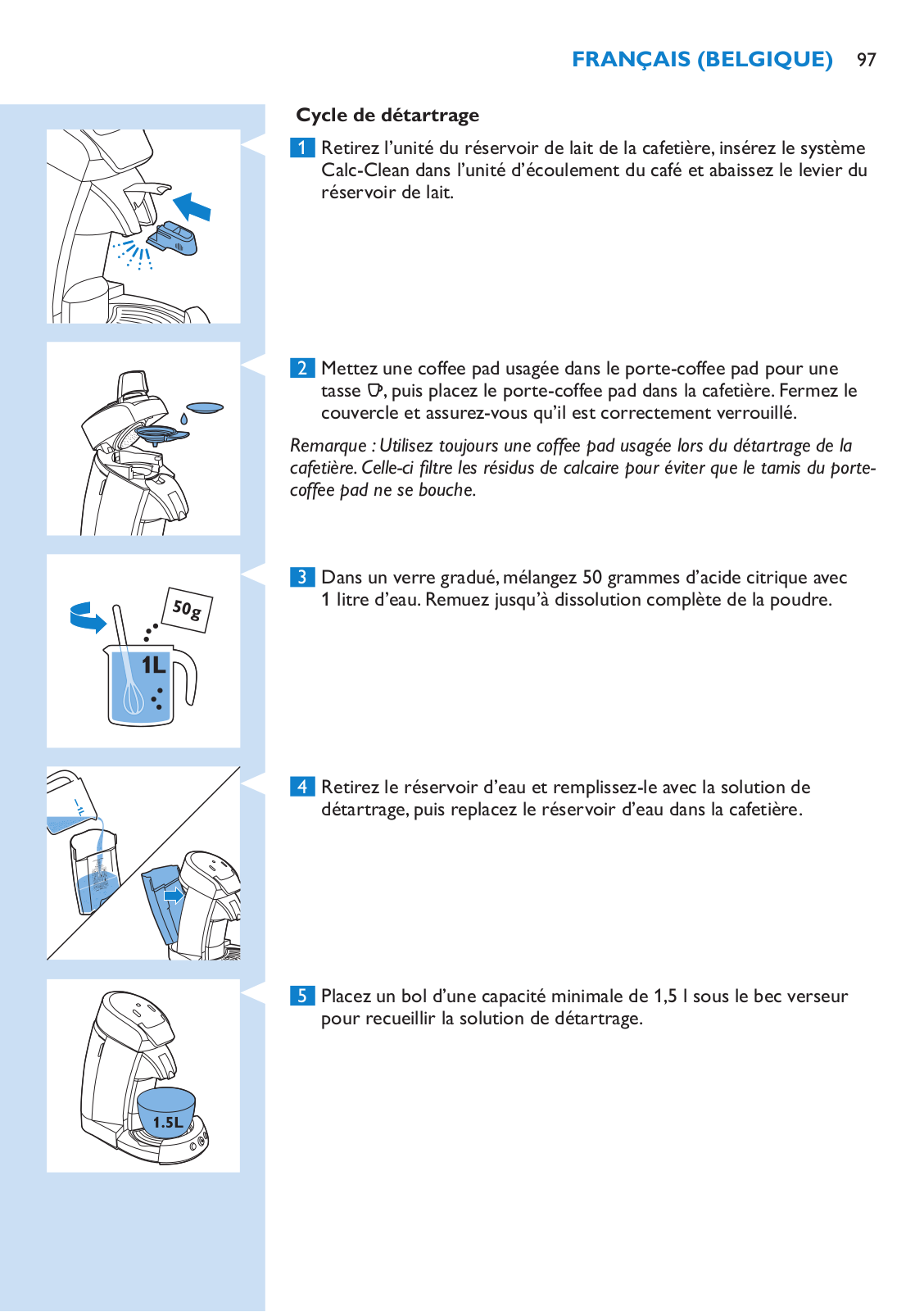

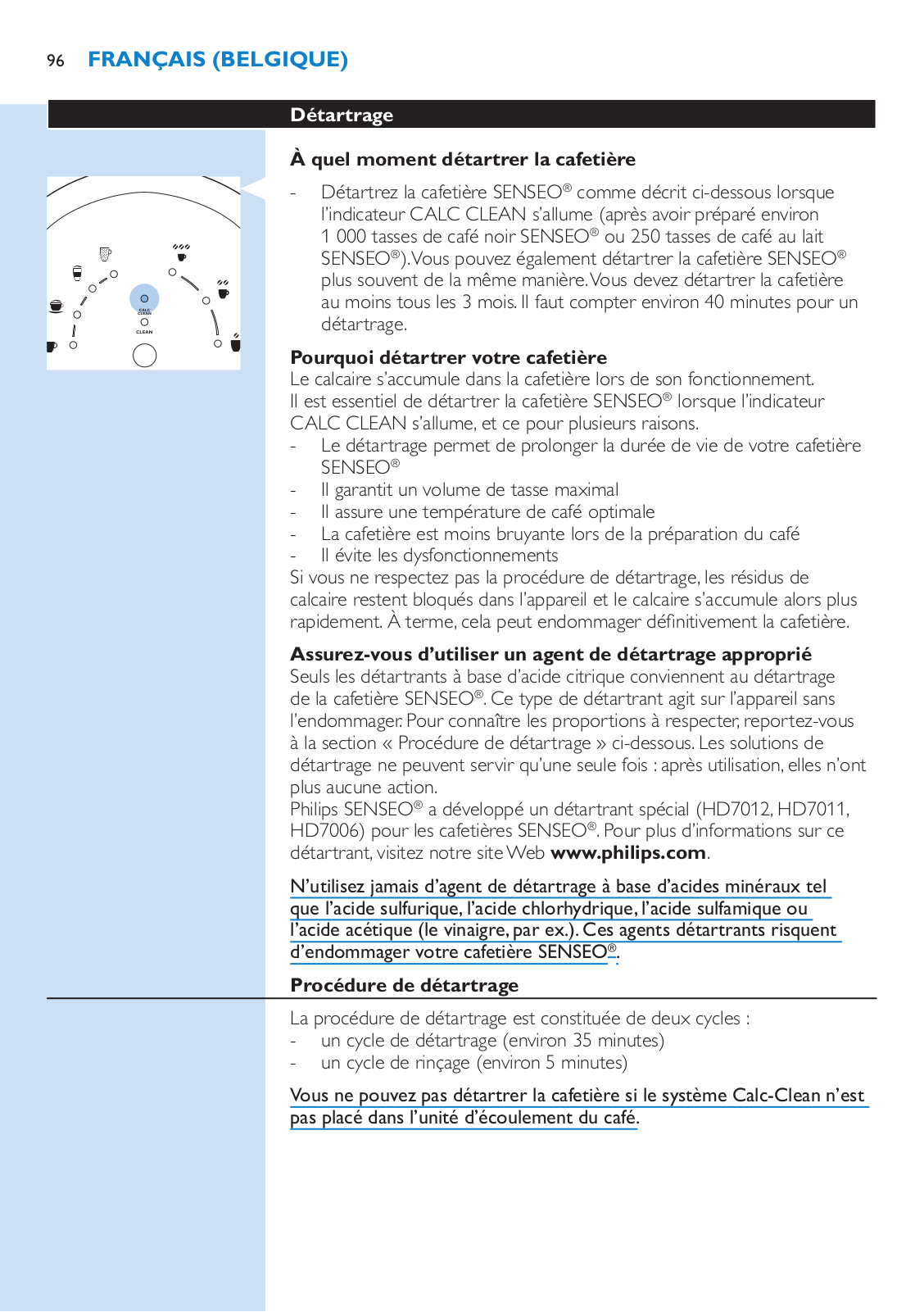

Descaling 23
Frost-free storage 26
Replacement 26
Environment 26

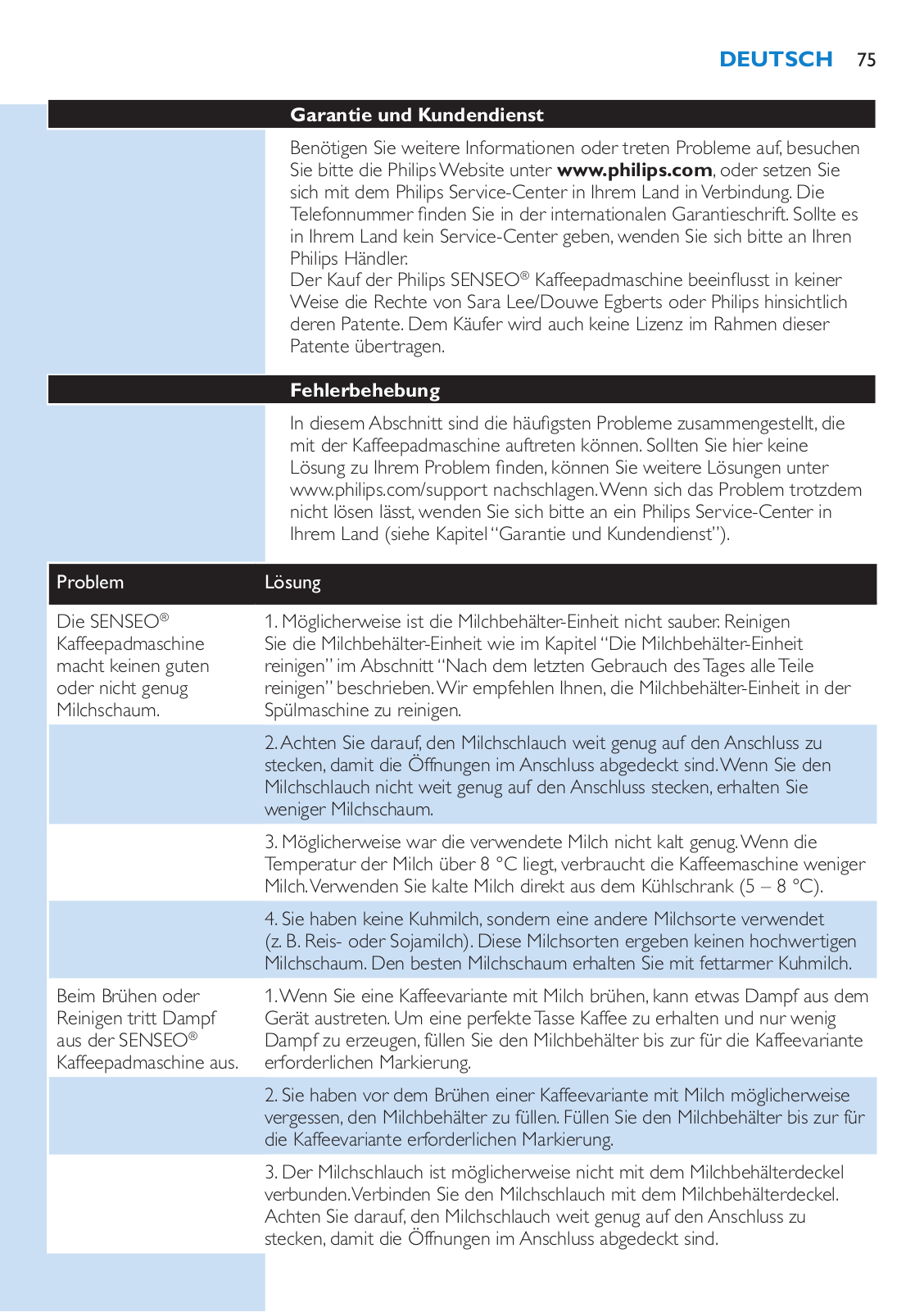

Guarantee and service 26

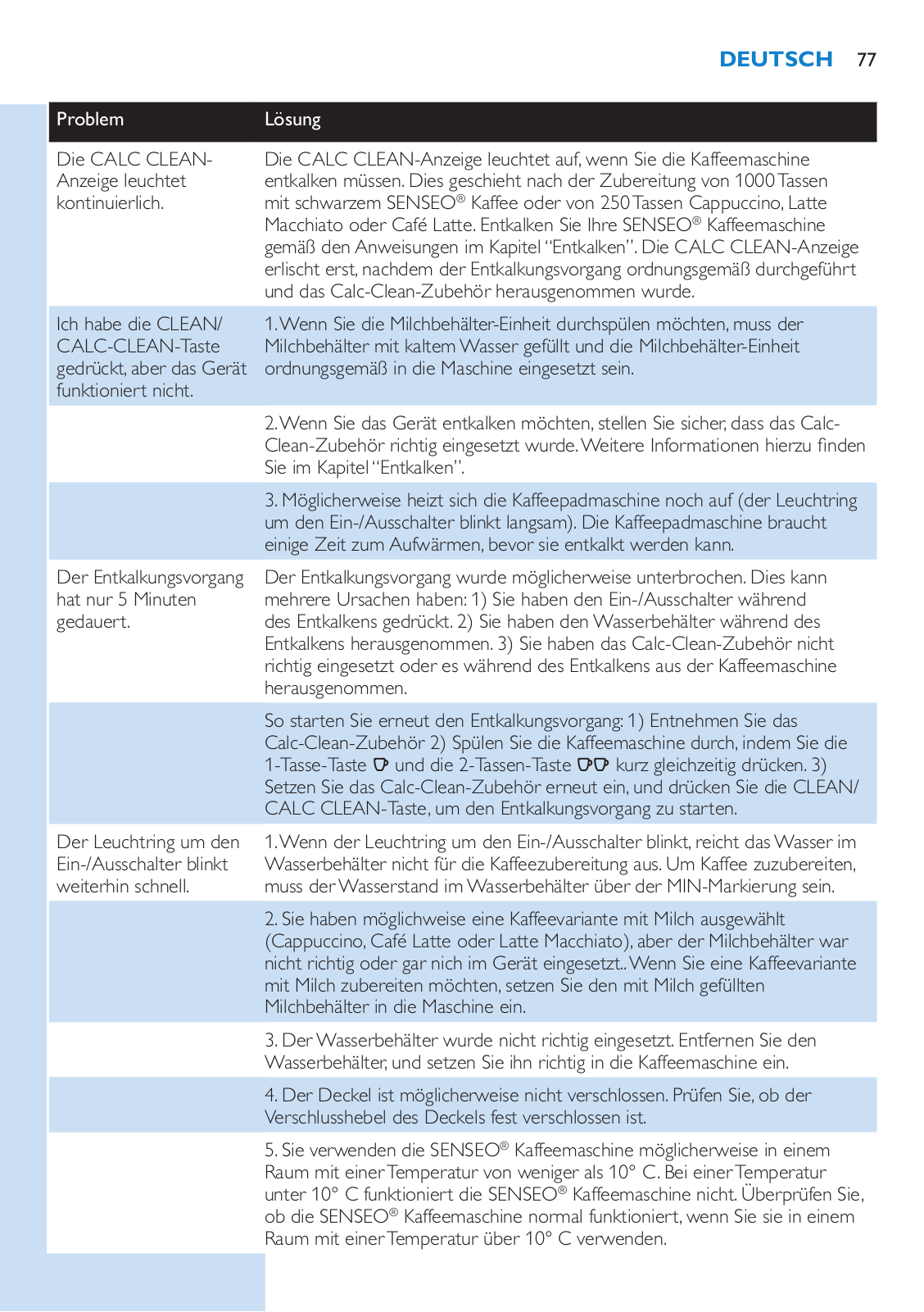

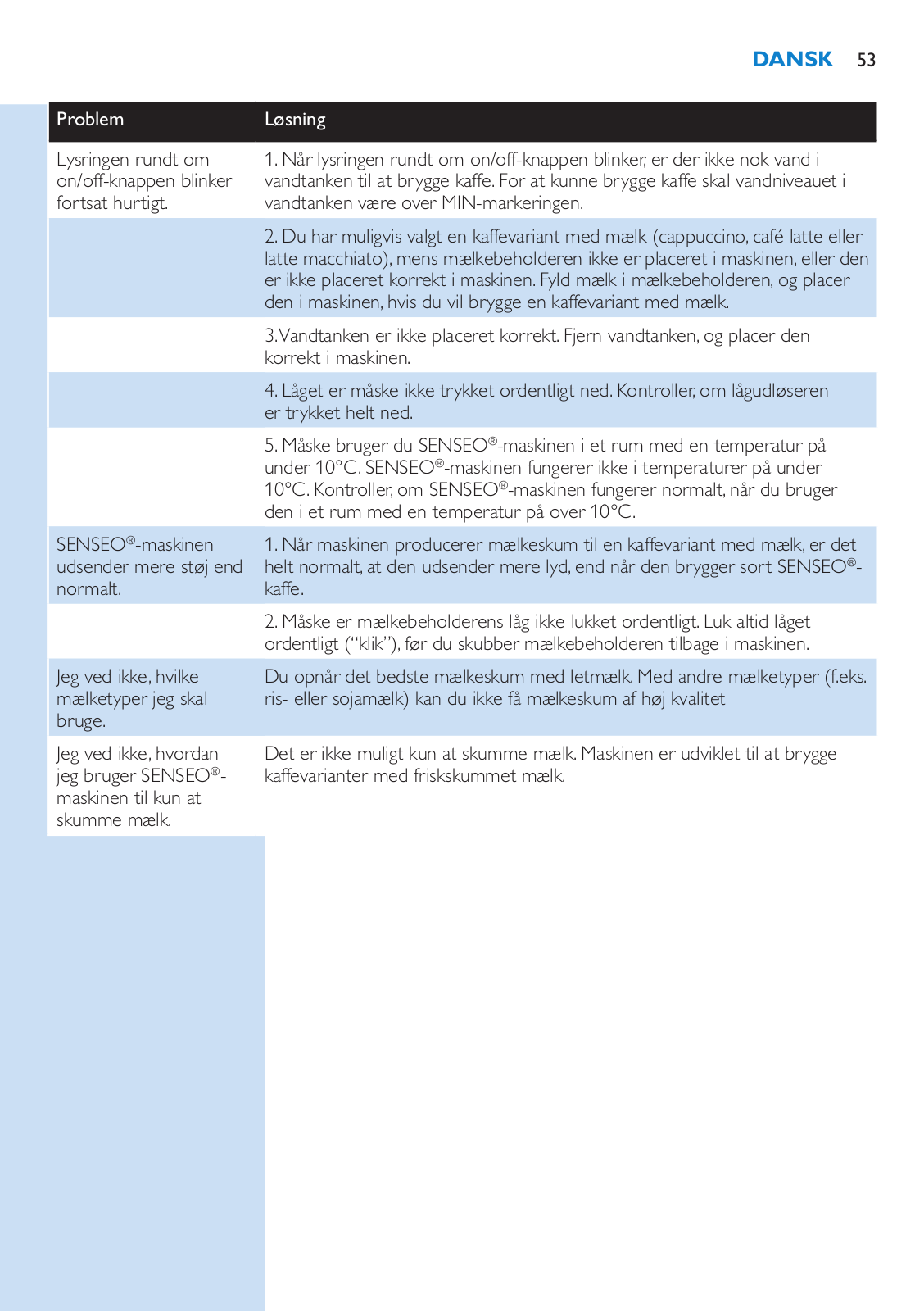

Troubleshooting 27
Introduction
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
Make your coffee moments truly special with SENSEO®.This unique system combines the easy-to-use Philips SENSEO® coffee machine with the specially developed Douwe Egberts SENSEO® coffee pods, giving you a full, smooth coffee with a delicious foam layer.
The SENSEO® Latte Select coffee machine offers you delicious coffee specialties made with fresh frothed milk. Choose from cappuccino, latte macchiato, caffè latte and regular SENSEO® black coffee - all at the touch of a button.
General description (Fig. 1)
1Water reservoir
2Control panel A Coffee selector
B SENSEO® black coffee indicator C Cappuccino indicator
D Latte macchiato indicator
E Caffè latte indicator
F CLEAN/CALC CLEAN button G CALC CLEAN indicator
H CLEAN indicator
I Strong black coffee indicator J Normal black coffee indicator K Mild black coffee indicator
L Strength selector
3Lid lever
4Sealing ring
5Water distribution disc
6Milk container lever
7Height adjustment knob for drip tray
8Cup tray
9Drip tray

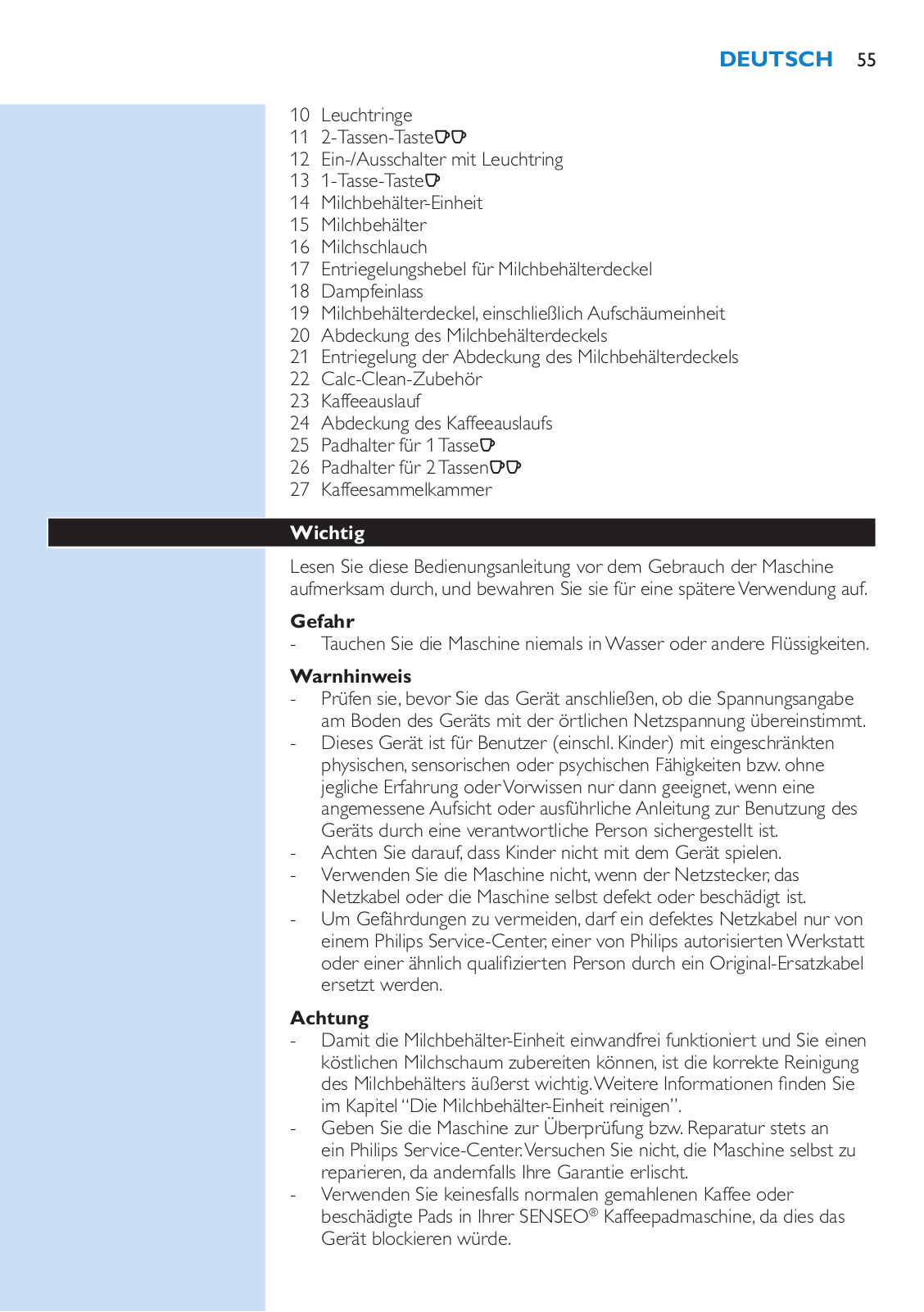

10Light rings
English 7

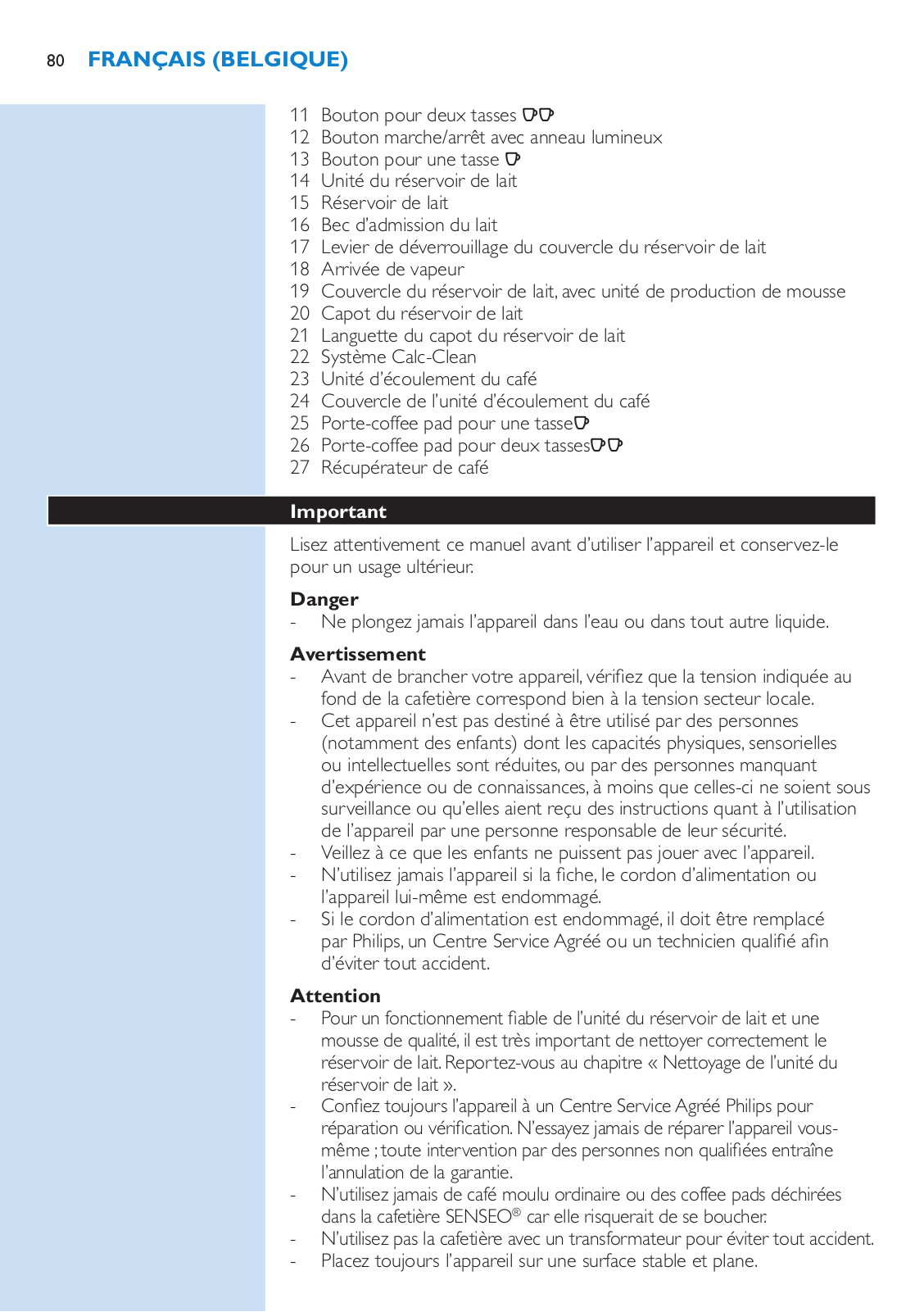

112-cup button qq
12On/off button with light ring
131-cup button q
14Milk container unit
15Milk container
16Milk tube
17Milk container lid release lever
18Steam inlet
19Milk container lid, including frothing unit
20Milk container lid cover
21Release tab of milk container lid cover
22Calc-Clean tool
23Coffee spout
24Coffee spout cover
251-cup pod holder q
262-cup pod holder qq
27Coffee collector

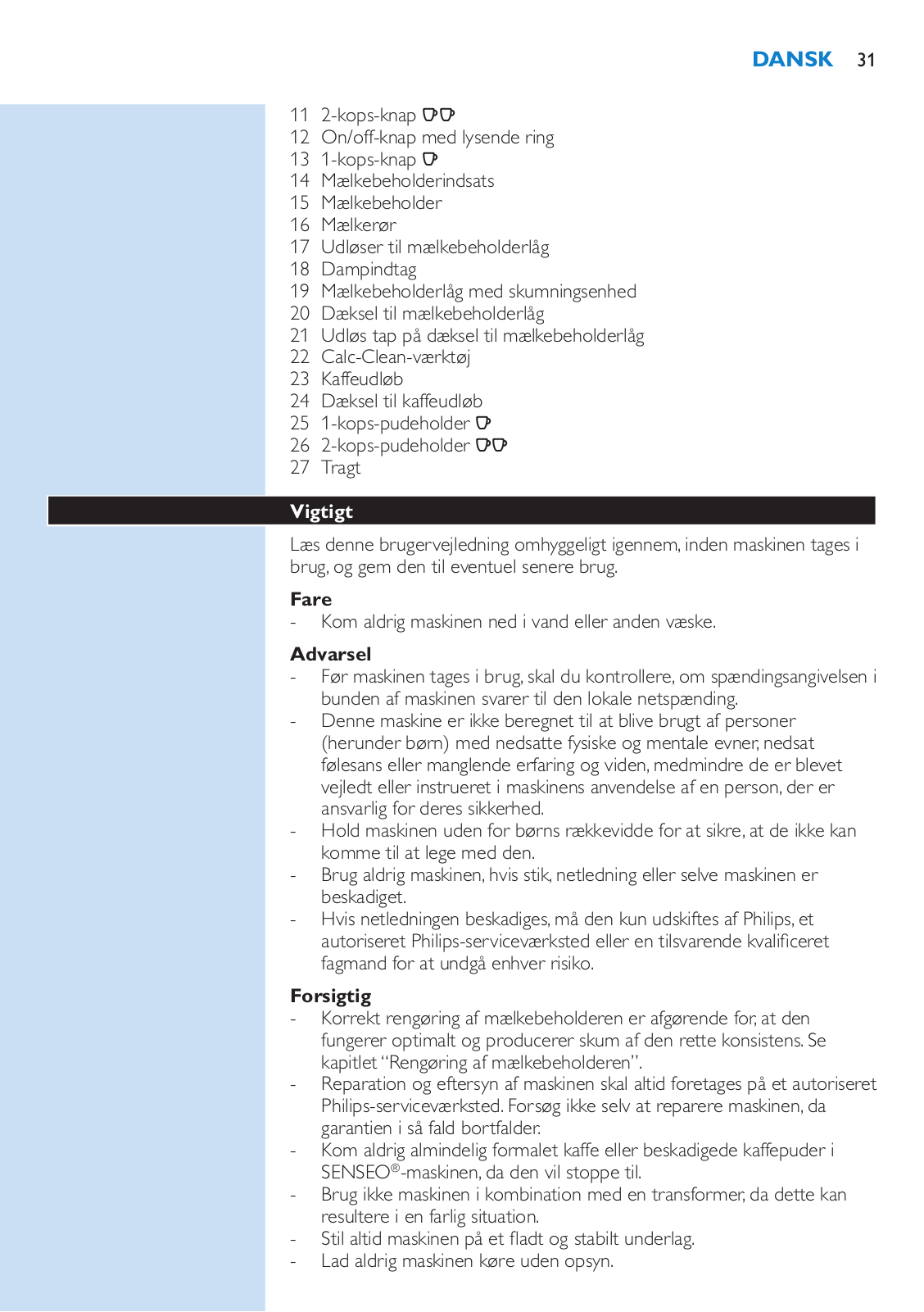

Important
Read this user manual carefully before you use the machine and save it for future reference.
Danger
-- Never immerse the machine in water or any other liquid.
Warning
-- Check if the voltage indicated on the bottom of the machine corresponds to the local mains voltage before you connect the machine.
-- This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety.
-- Children should be supervised to ensure that they do not play with the machine.
-- Do not use the machine if the plug, the mains cord or the machine itself is damaged.
-- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
Caution
-- Correct cleaning of the milk container is very important for reliable performance of the milk container unit and good frothing results. See chapter ‘Cleaning the milk container unit’.
-- Always return the machine to a service centre authorised by Philips for examination or repair. Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid.
-- Never put normal ground coffee or use torn pods in the SENSEO® machine, as this causes it to become blocked.
-- Do not use the machine in combination with a transformer, as this could cause hazardous situations.
-- Always put the machine on a flat and stable surface.
8 ENGLISH

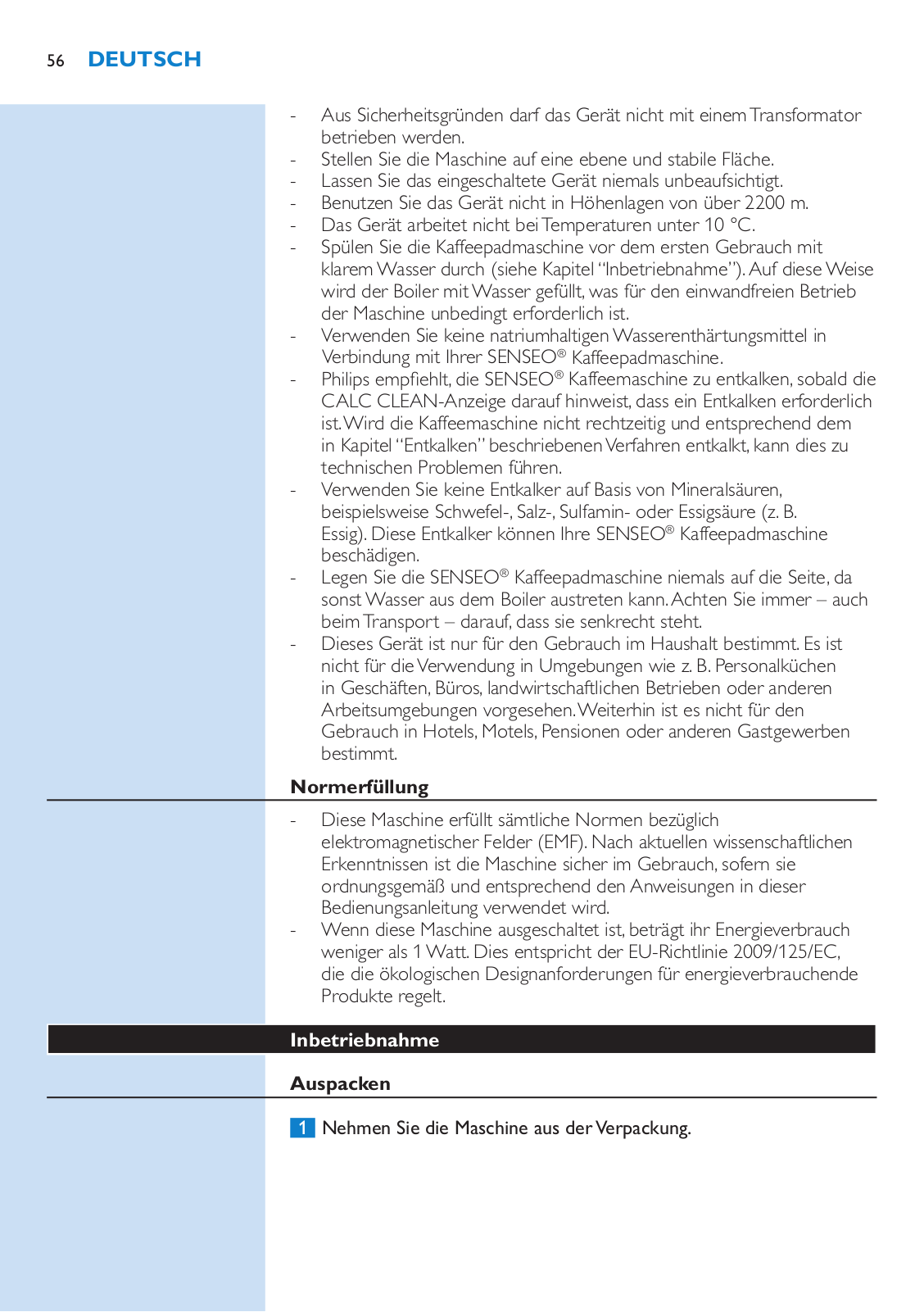

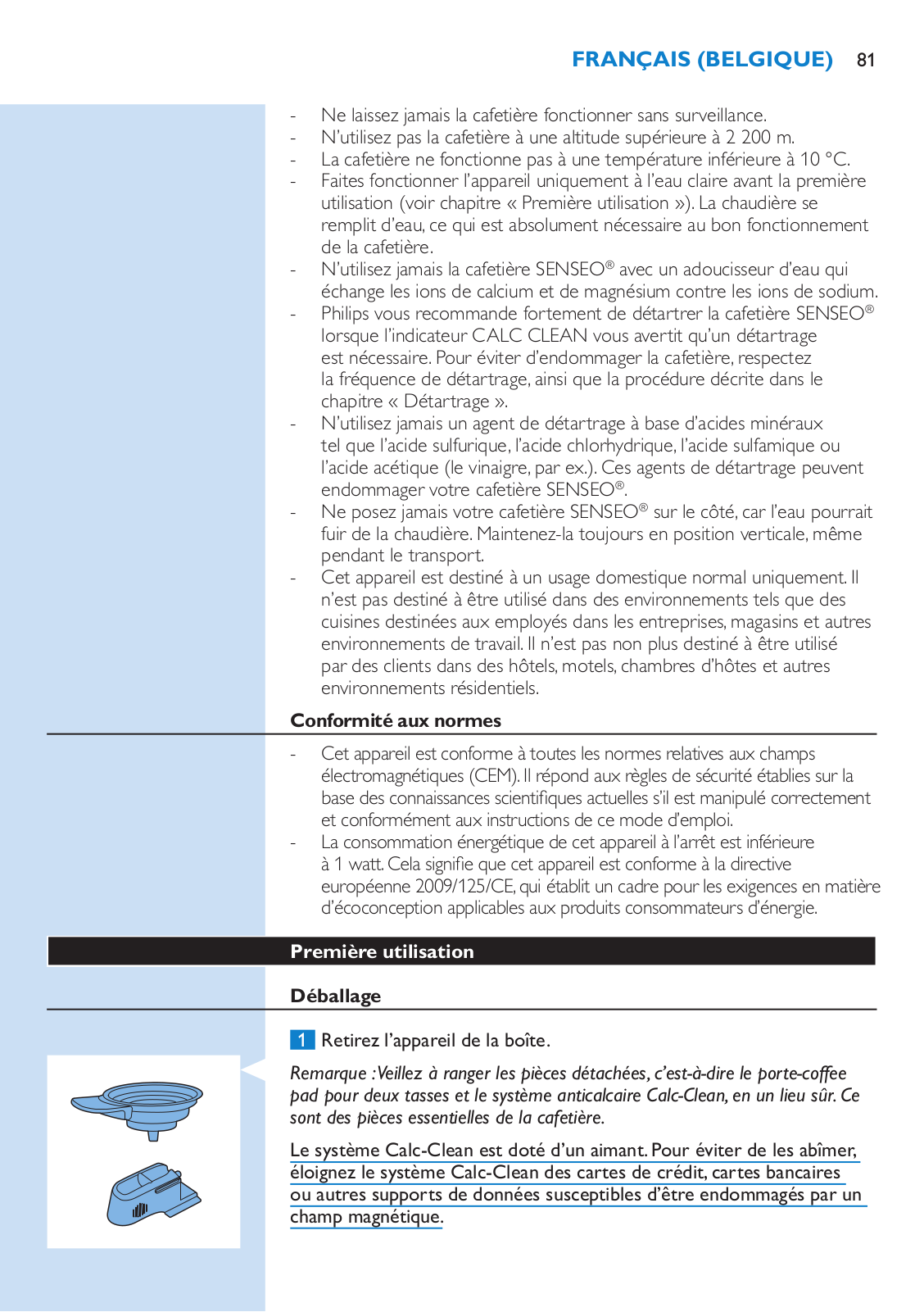

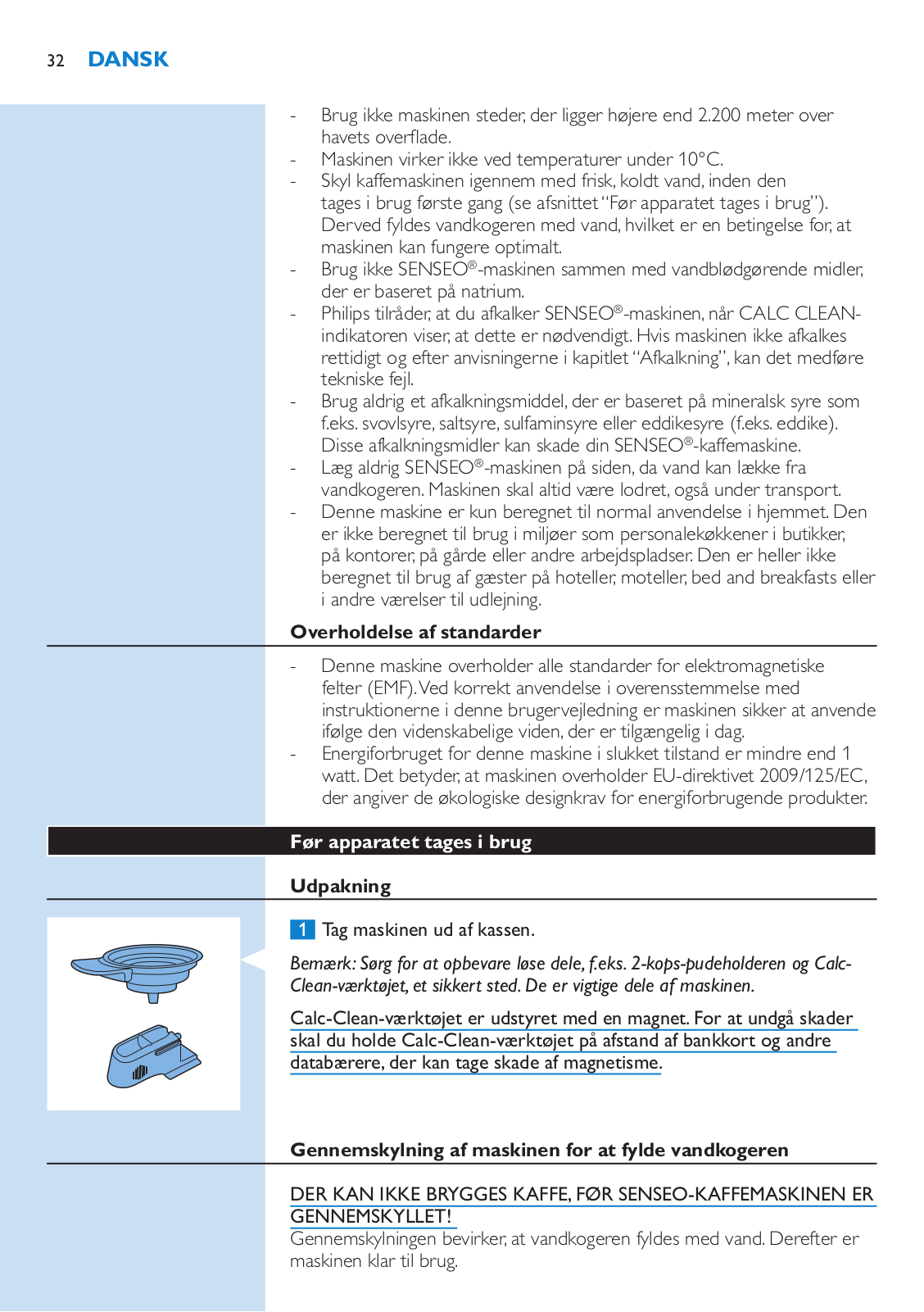

-Never let the machine operate unattended.
-Do not use the machine at altitudes higher than 2200 metres above sea level.
-The machine does not work at temperatures below 10°C.
-
time (see chapter ‘First use’).This
which is essential for the machine to work properly.
-Do not use the SENSEO® machine in combination with water softeners based on sodium exchange.
-Philips strongly advises you to descale this SENSEO® machine
when the CALC CLEAN indicator tells you that descaling is required.
If the machine is not descaled in time and according to the procedure described in chapter ‘Descaling’, this may lead to technical failures.
-Never use a descaling agent based on mineral acids such as sulphuric acid, hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar). These descaling agents may damage your SENSEO® coffee machine.
-Never turn your SENSEO® machine on its side, as water may leak from
the boiler. Always keep it in upright position, also during transport.
-This machine is intended for normal household use only. It is not
farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.
Compliance with standards
-This machine complies with all standards regarding electromagnetic available today.
-The energy consumption of this machine in off mode is less than 1 watt.This means that this machine complies with European Directive 2009/125/EC, which sets the ecological design requirements for energyusing products.
First use
Unpacking
1 Remove the machine from the box.

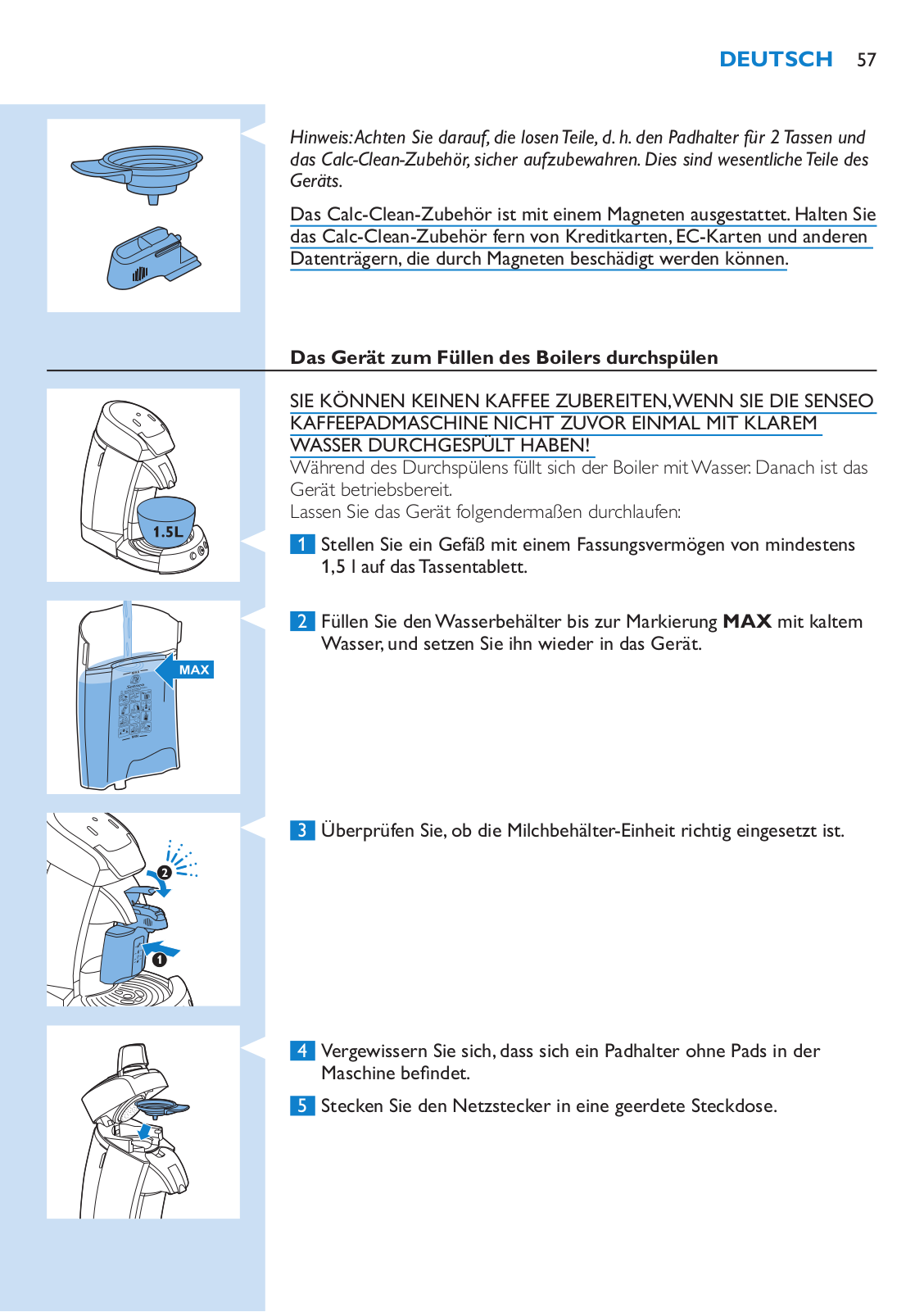

Note: Make sure that you store the loose parts, i.e. the 2-cup pod holder and the Calc-Clean tool, in a safe place.They are essential parts of the machine.
The Calc-Clean tool is equipped with a magnet.To avoid damage, keep the Calc-Clean tool away from credit cards, bank cards or other data carriers that can be damaged by magnetism.
YOU CANNOT BREW COFFEE IF YOU HAVE NOT FLUSHED THE SENSEO COFFEE MACHINE FIRST!
English 9

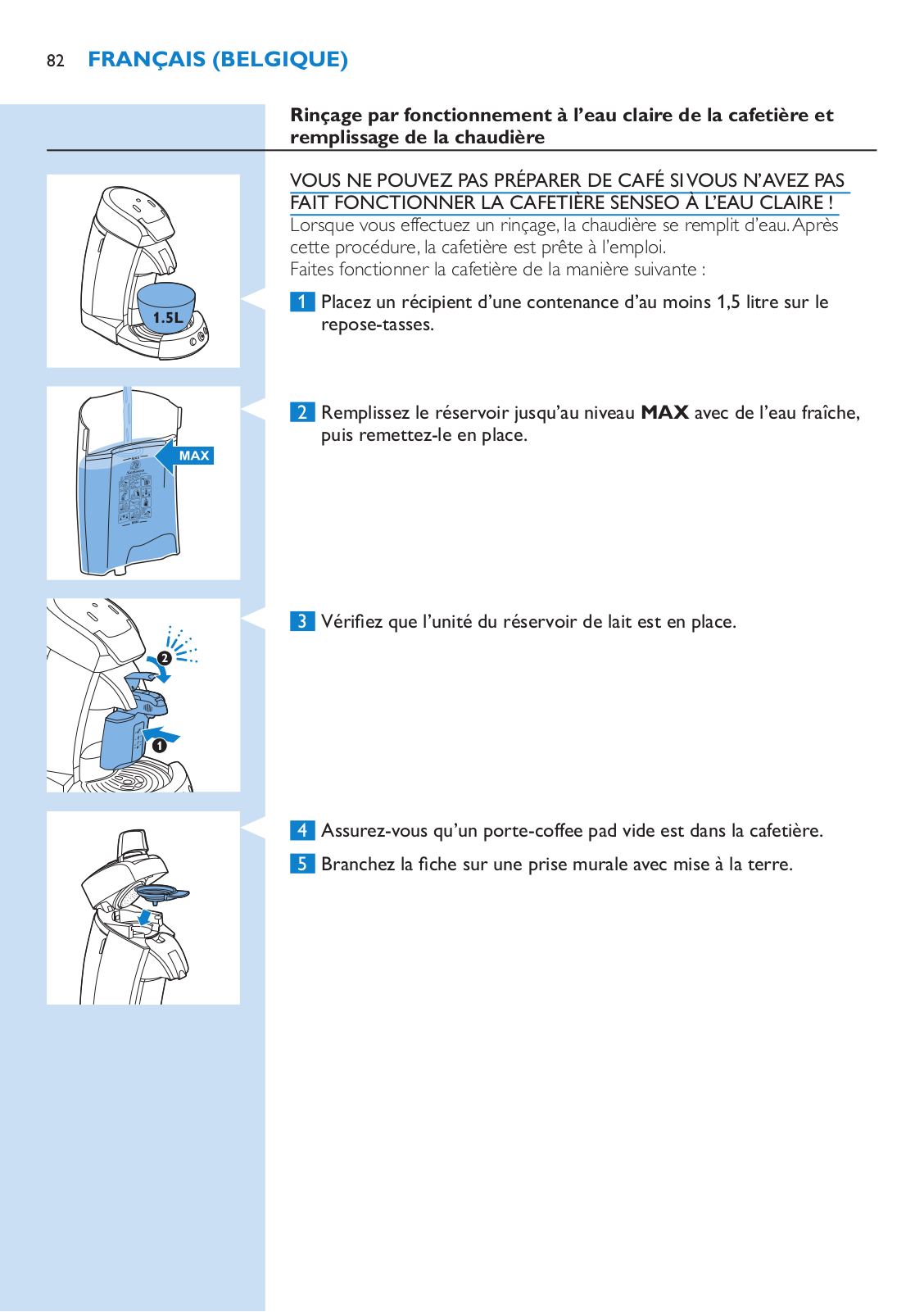

Flushing causes the boiler to be filled with water.After this, the machine is ready for use.

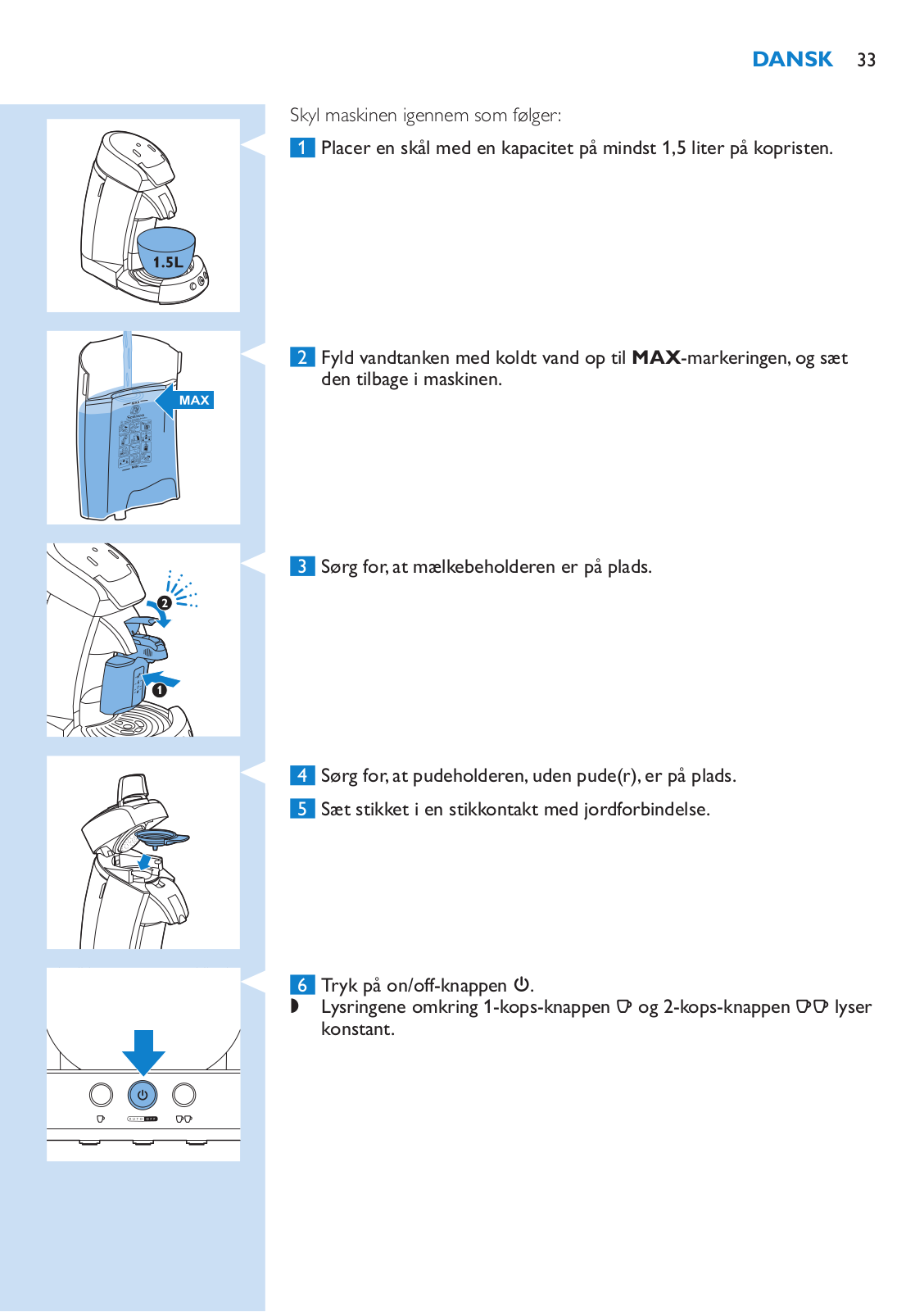

Flush the machine in the following way:
1Place a bowl with a capacity of at least 1.5 litres on the cup tray.
2Fill the water reservoir with cold water up to the MAX indication and put it back onto the machine.
3 Make sure that the milk container unit is in place.
2
1
4Make sure that a pod holder, without pod or pods, is in place.
5Put the plug in an earthed wall socket.

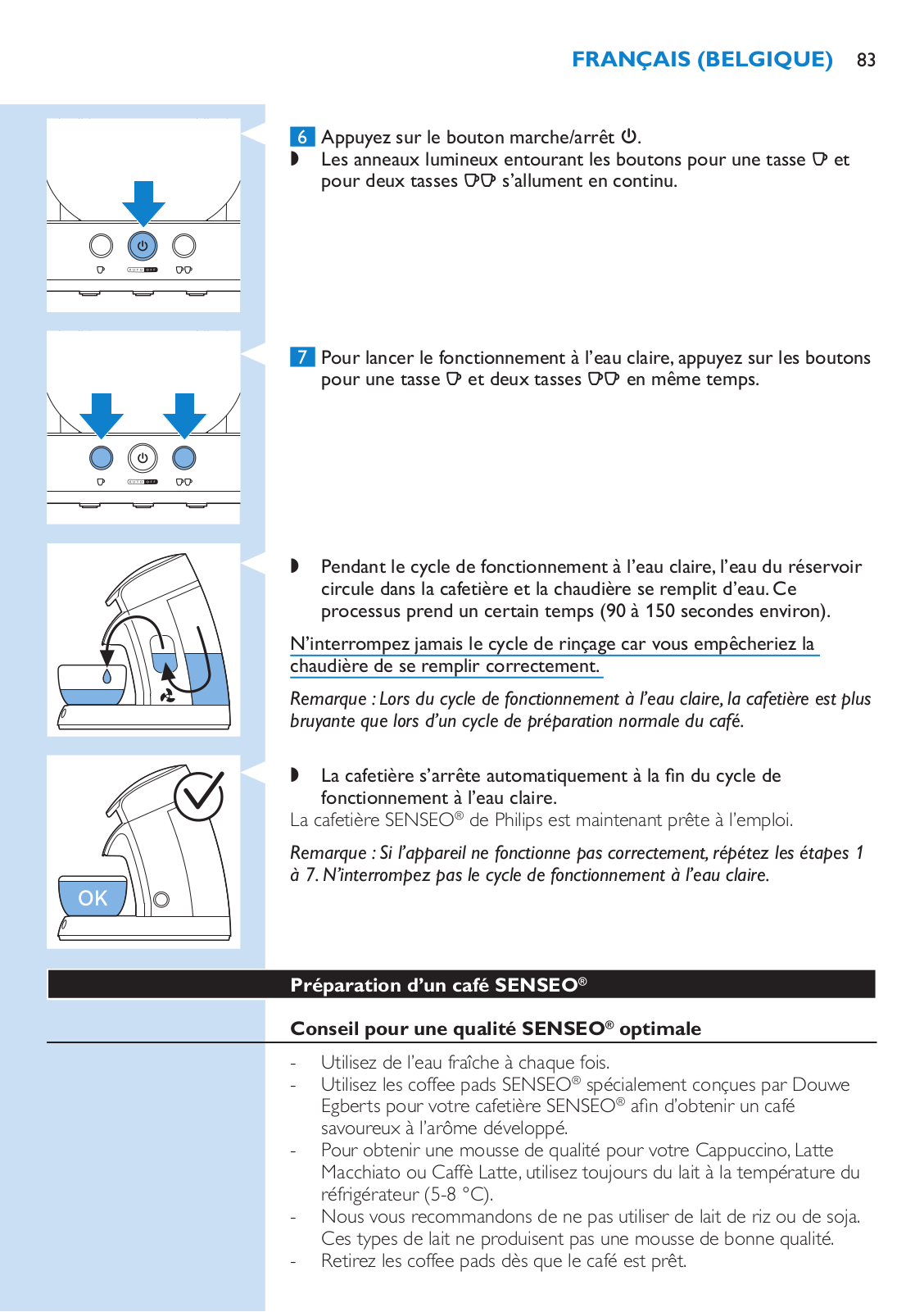

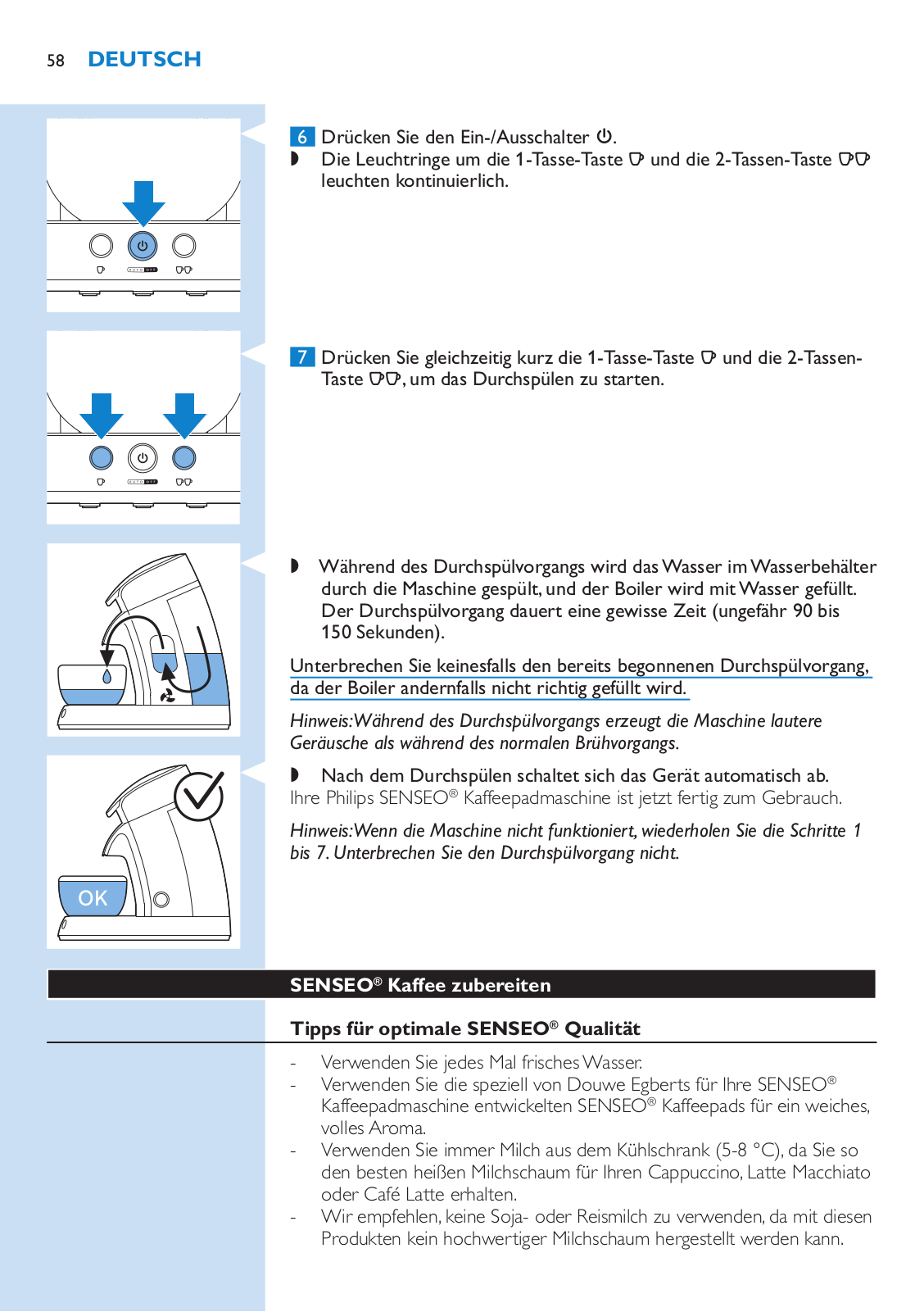

6Press the on/off button 3.
,, The light rings around the 1-cup button q and the 2-cup button qq light up continuously.
10 English
7To start flushing,press the 1-cup button q and the 2-cup button qq briefly at the same time.
,, During the flushing cycle,the water in the water reservoir is flushed through the machine and the boiler is filled with water.The flushing cycle takes some time (approx. 90 to 150 seconds).
Never interrupt the flushing cycle halfway.If you do,the boiler does not fill itself properly.
Note:During the flushing cycle,the machine produces more noise than during a regular brewing cycle.
,, The machine switches off automatically when the flushing cycle ends.
Now your Philips SENSEO® coffee machine is ready for use.
Note: If the machine does not work, repeat steps 1-7. Do not interrupt the flushing cycle.
Brewing SENSEO® coffee
Tips for the best SENSEO® quality
-- Use fresh water every time.
-- Use the SENSEO® coffee pods that have been specially developed by Douwe Egberts for your SENSEO® coffee machine for a full, round taste.
-- Always use milk at refrigerator temperature (5-8°C) to obtain hot frothed milk of high quality for your cappuccino, latte macchiato or caffè latte.
-- We advise you not to use rice or soy milk.These types of milk do not produce high-quality frothed milk.
-- Remove used coffee pods directly after brewing.
-- Rinse the milk container unit after you have brewed a cappuccino, latte macchiato or caffè latte with the CLEAN button (see section‘Rinsing after every use’ in chapter ‘Cleaning the milk container unit’).
-- Clean the milk container and the lid thoroughly if you are not going to use the milk container again that day (see section ‘Cleaning all parts after the last use of the day’ in chapter ‘Cleaning the milk container unit’).
-- If you have not used the coffee machine for some time, flush the machine before you use it again (see section ‘Flushing the coffee machine in chapter ‘Cleaning the machine’) with fresh water before you use it again.
English 11

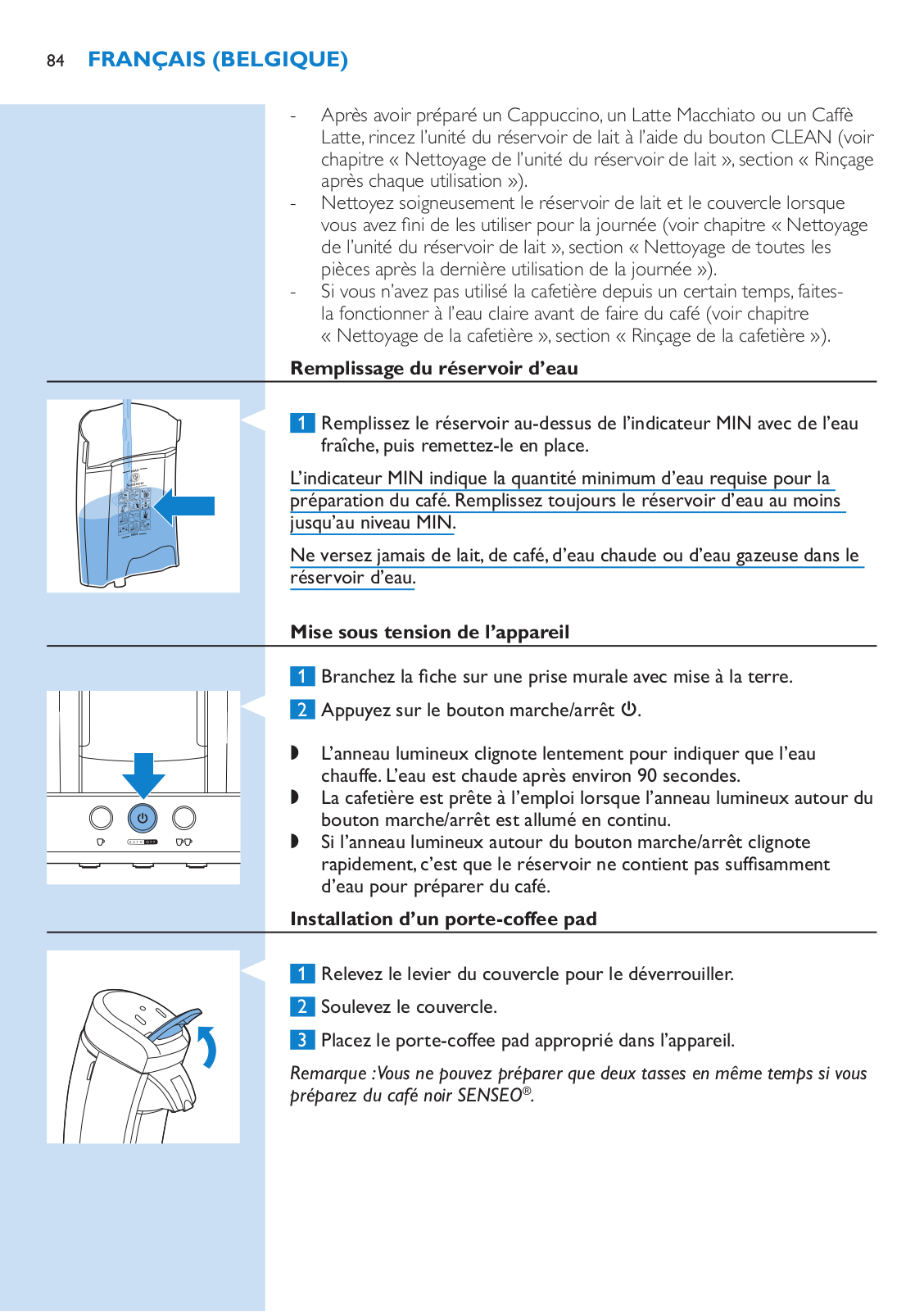

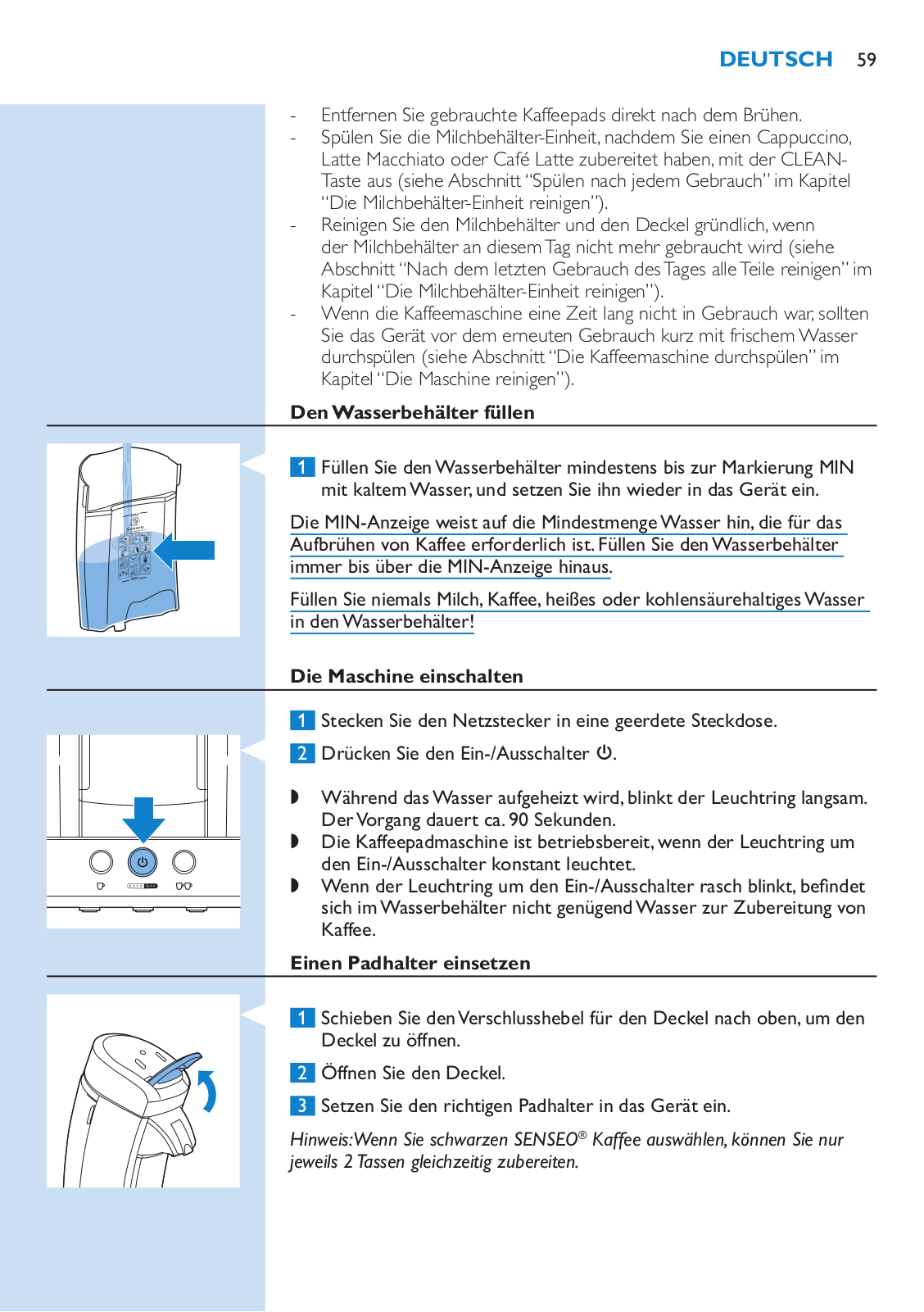

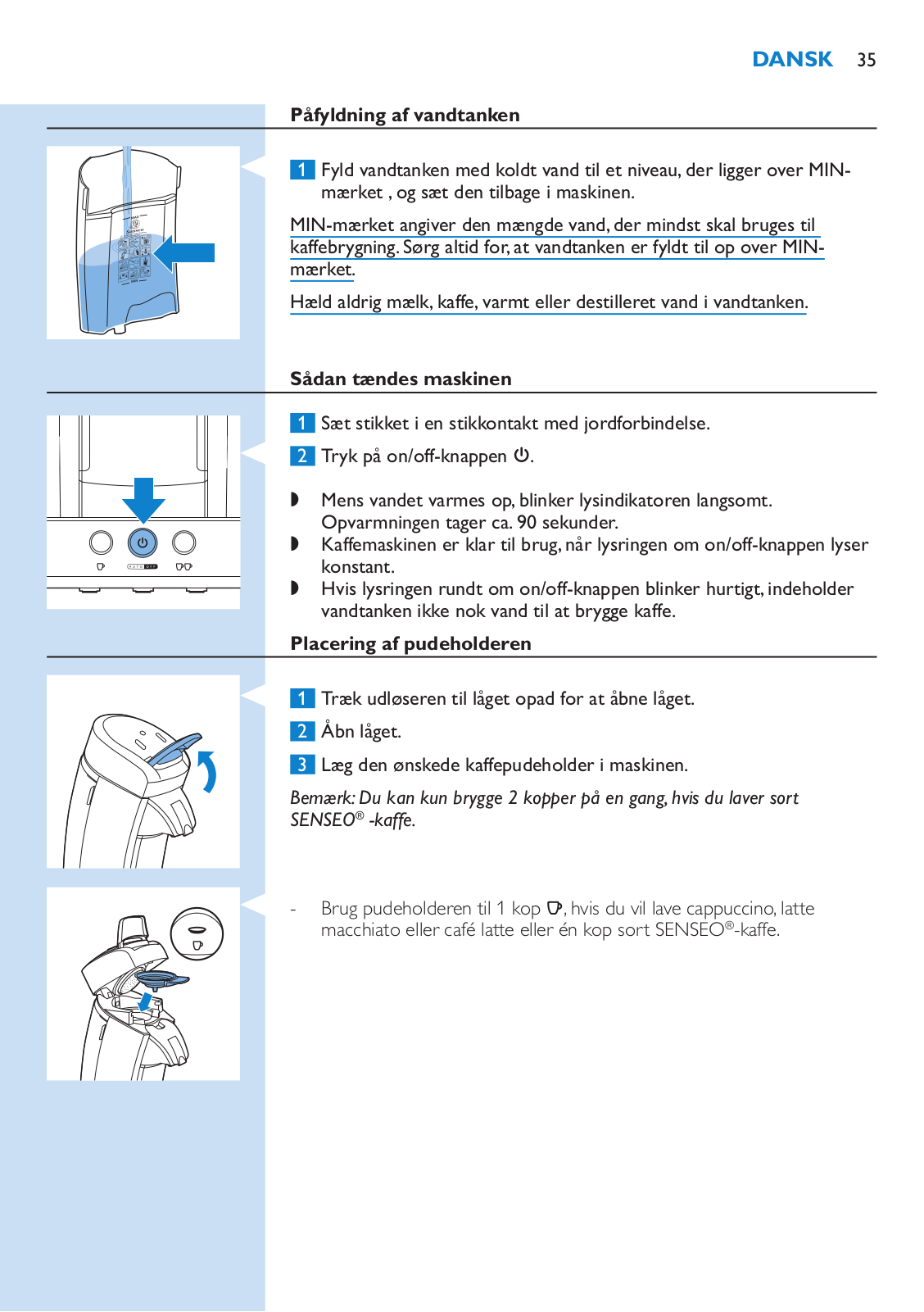

Filling the water reservoir
1Fill the water reservoir with cold water to a level above the MIN indication and place it back onto the machine.
The MIN indication indicates the minimum amount of water required for brewing coffee.Always fill the water reservoir beyond the MIN level.
Never pour milk, coffee, hot water or carbonated water into the water reservoir.
Switching on the machine
1Put the plug in an earthed wall socket.
2Press the on/off button 3.
,, The light ring light flashes slowly while the water is heating up.
Heating up takes approx. 90 seconds.
,, The coffee machine is ready for use when the light ring around the on/off button lights up continuously.
,, If the light ring around the on/off button flashes rapidly,the water reservoir does not contain enough water for brewing coffee.
Placing a pod holder
1Move the lid lever upwards to release the lid.
2Open the lid.
3Place the appropriate pod holder in the machine.
Note:You can only brew 2 cups at the same time if you brew SENSEO® black coffee.

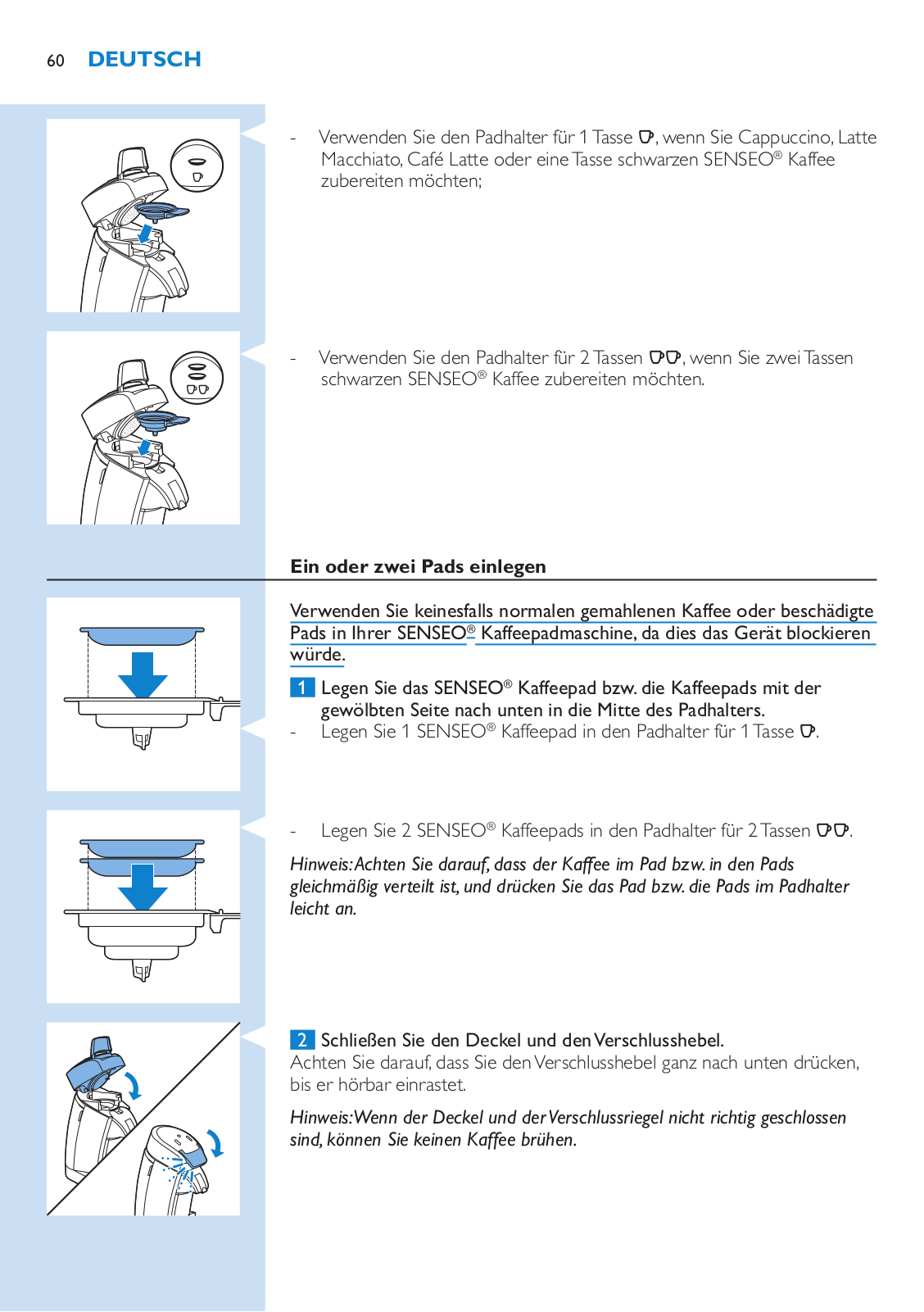

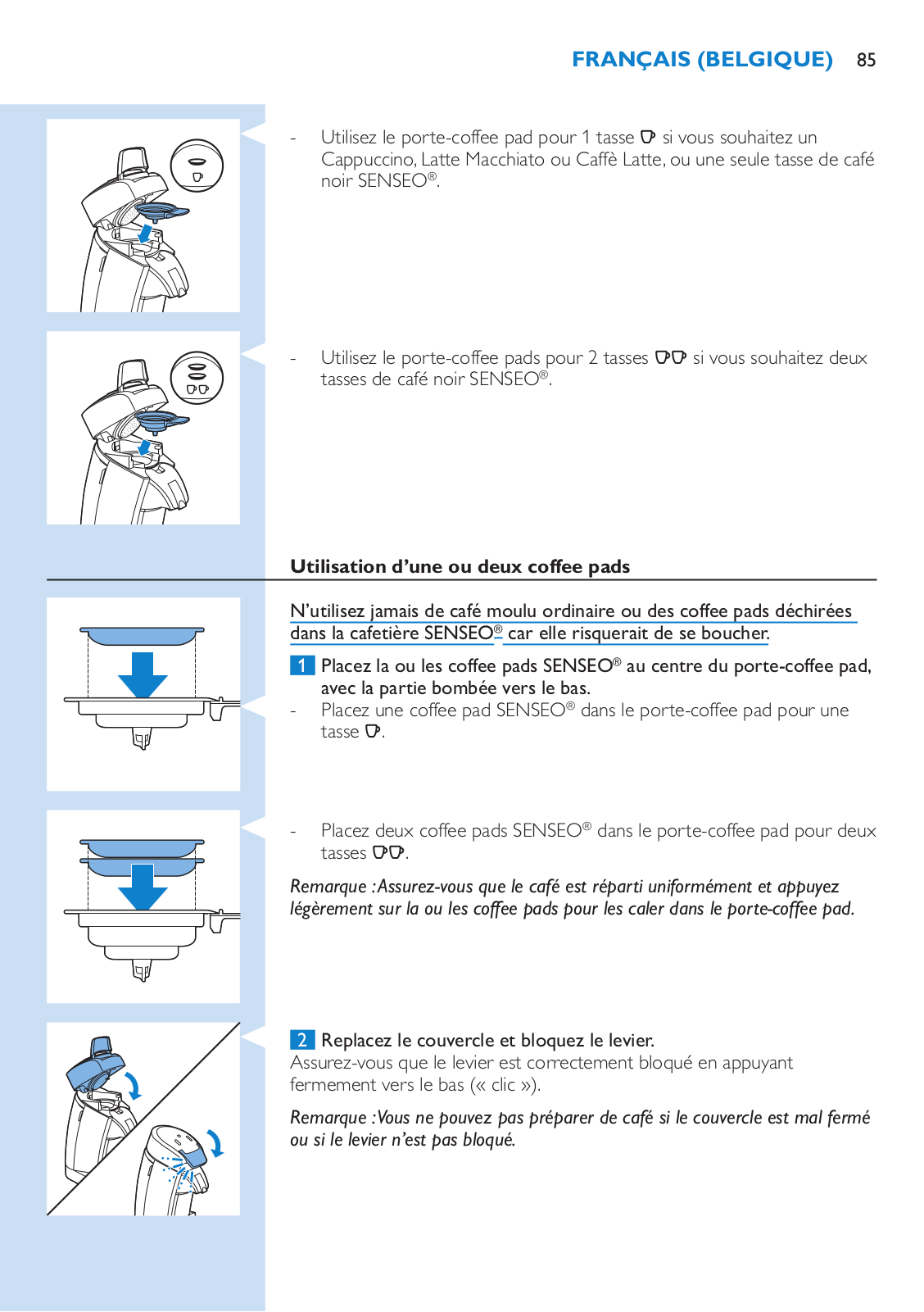

-- Use the 1-cup pod holder q if you want to make cappuccino, latte macchiato or caffè latte or one cup of SENSEO® black coffee,
12 English
-- Use the 2-cup pod holder qq if you want to make two cups of SENSEO® black coffee.

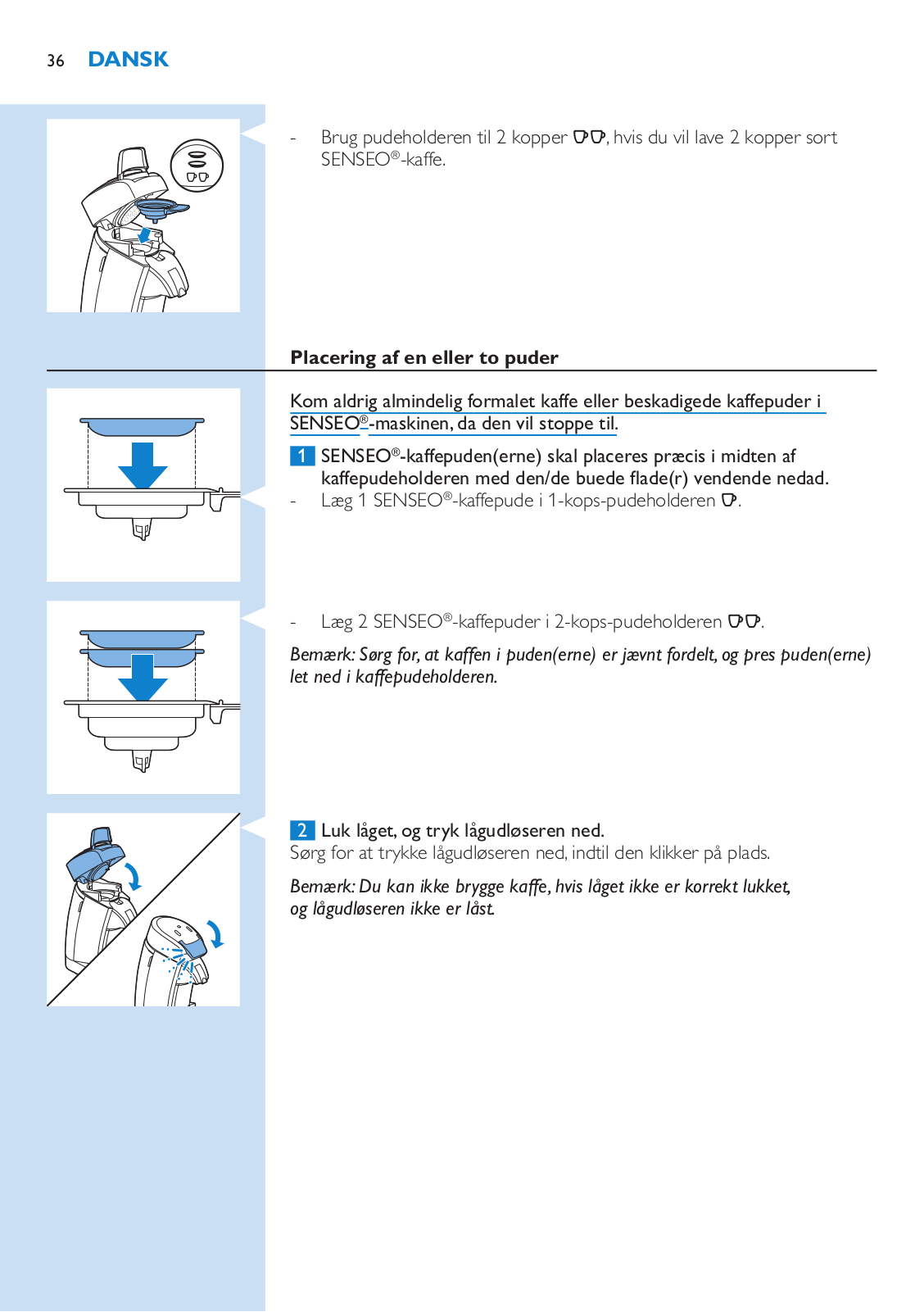

Placing one or two pods
Never put normal ground coffee or use torn pods in the SENSEO® machine, as this causes it to become blocked.
1Place the SENSEO® coffee pod or pods properly in the centre of the pod holder, with the convex side pointing downwards.
-- Place 1 SENSEO® coffee pod in the 1-cup pod holder q.
-- Place 2 SENSEO® coffee pods in the 2-cup pod holder qq.
Note: Make sure that the coffee in the pod or pods is evenly distributed and press the pod or pods lightly into the pod holder.
2 Close the lid and lock the lid lever.
Make sure that you push down the lid lever until it snaps home with a click.
Note: It is not possible to brew coffee when the lid is not properly closed and the lid lever is not locked.
English 13

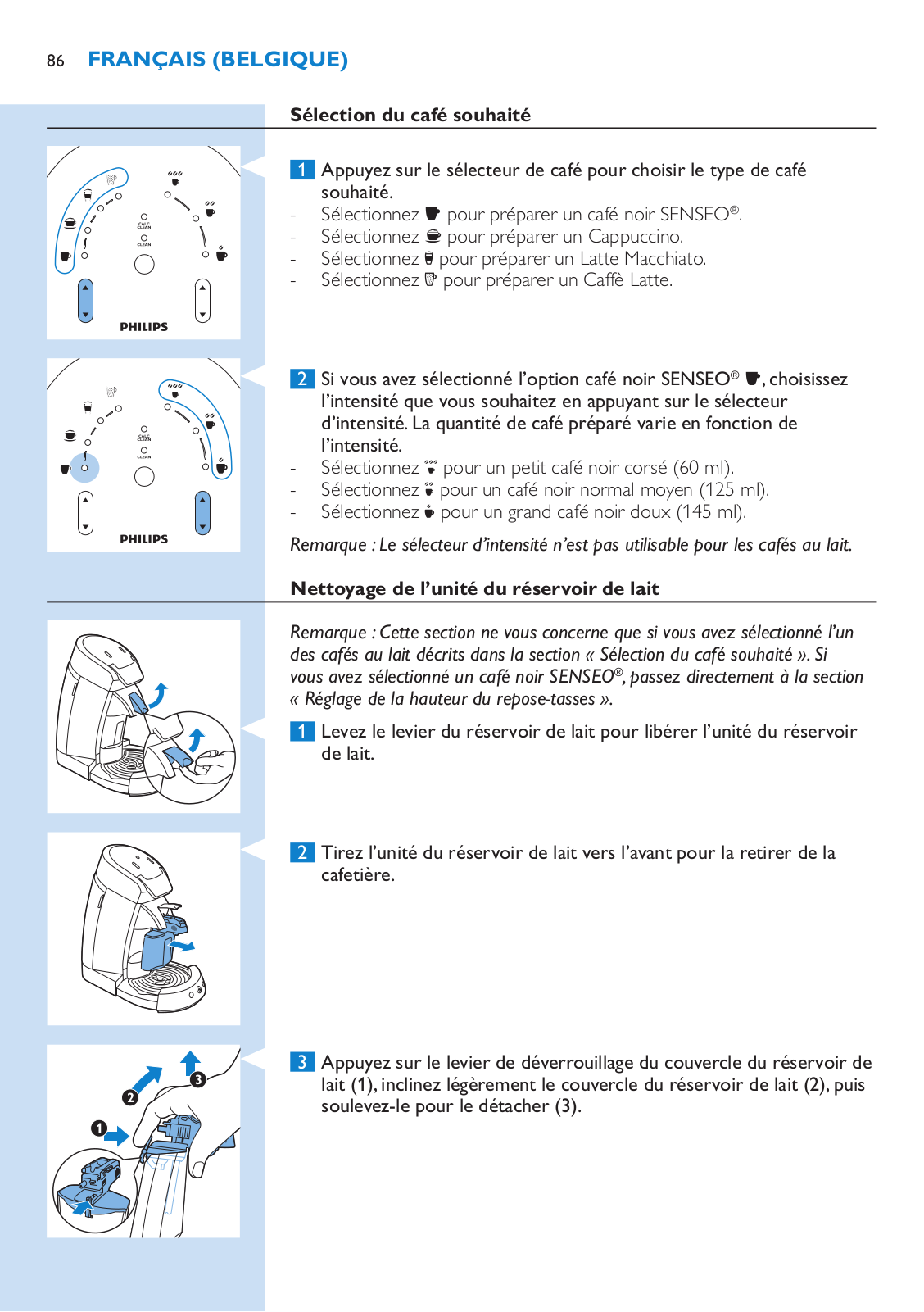

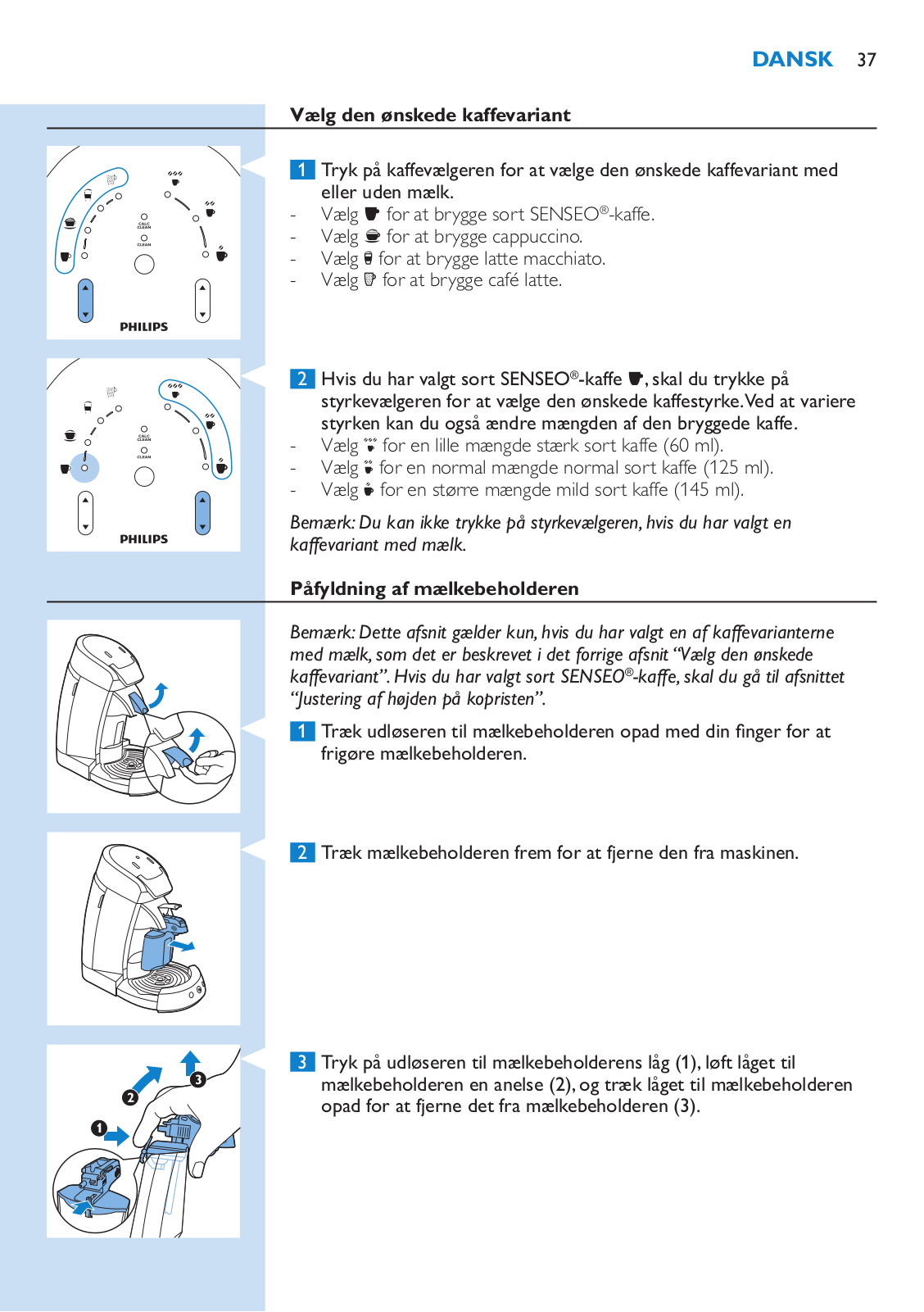

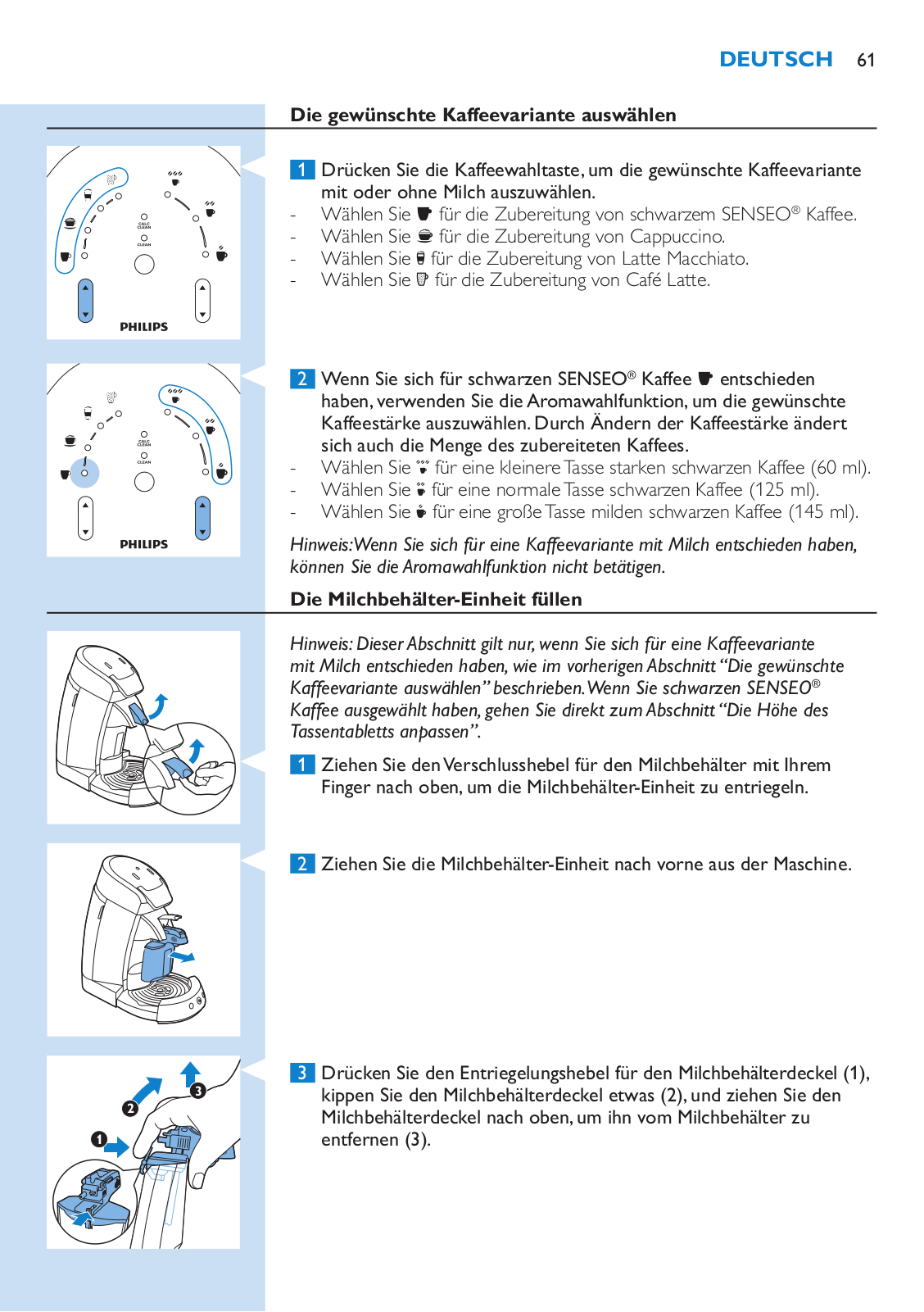

Selecting the desired coffee variety
1Press the coffee selector to select the desired coffee variety with or without milk.
-- Select À to brew SENSEO® black coffee. -- Select f to brew cappuccino.
-- Select g to brew latte macchiato. -- Select b to brew caffè latte.
2If you have selected SENSEO® black coffee À, press the strength selector to select the desired coffee strength. By varying the strength, you also change the amount of coffee that is brewed.
-- Select e for a smaller amount of strong black coffee (60ml). -- Select d for a normal amount of normal black coffee (125ml). -- Select c for a larger amount of mild black coffee (145ml).
Note:You cannot press the strength selector when you have selected one of the coffee varieties with milk.
Filling the milk container unit
Note:This section only applies if you have selected one of the coffee varieties with milk as described in the previous section ‘Selecting the desired coffee variety’. If you have selected SENSEO® black coffee, go straight to section ‘Adjusting the cup tray height’.
1Pull the milk container lever upwards with your finger to release the milk container unit.
2Pull the milk container unit forwards to remove it from the machine.
2
3Press the milk container lid release lever (1), tilt the milk container lid slightly (2) and pull the milk container lid upwards to remove it from the milk container (3).
14 English

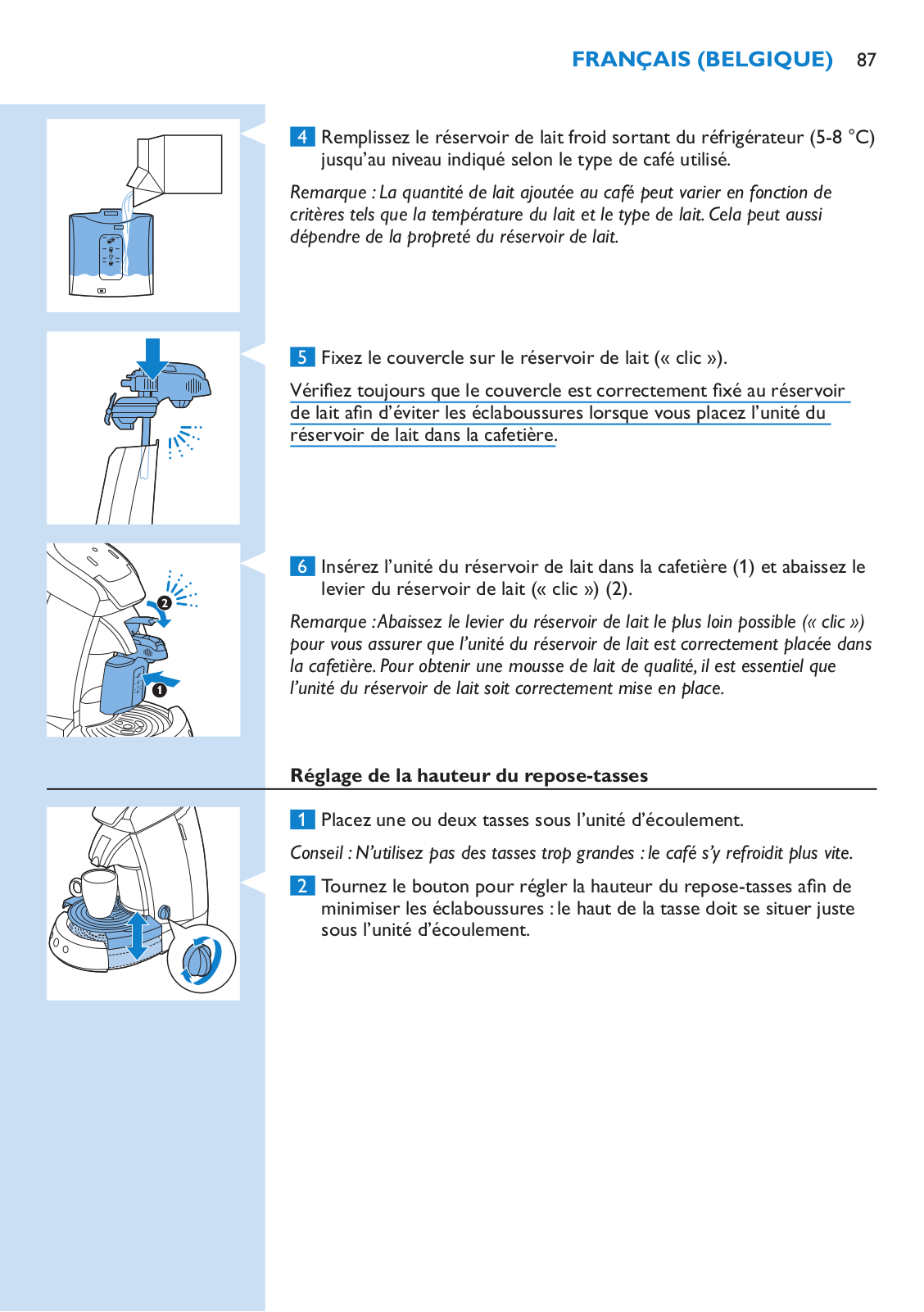

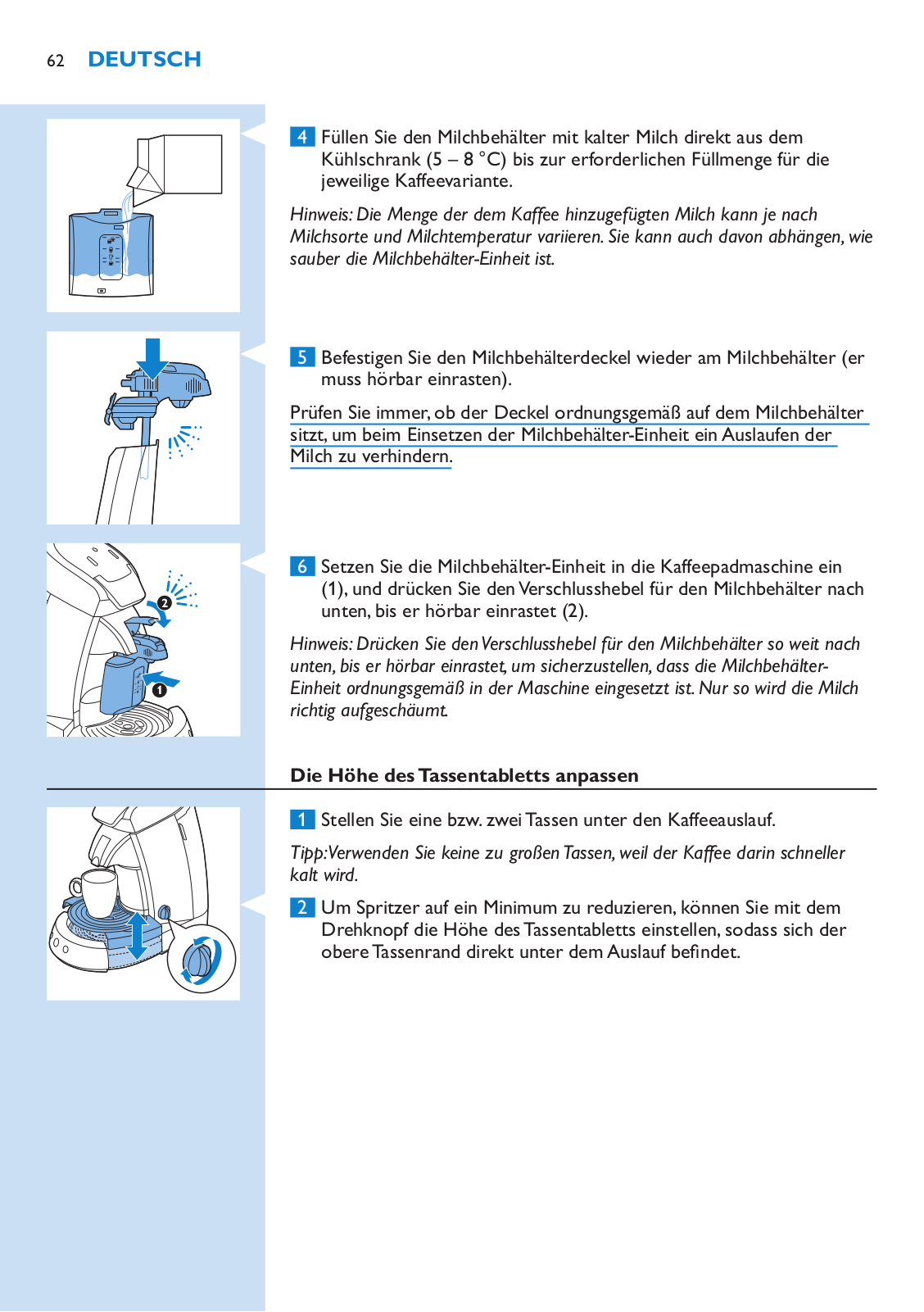

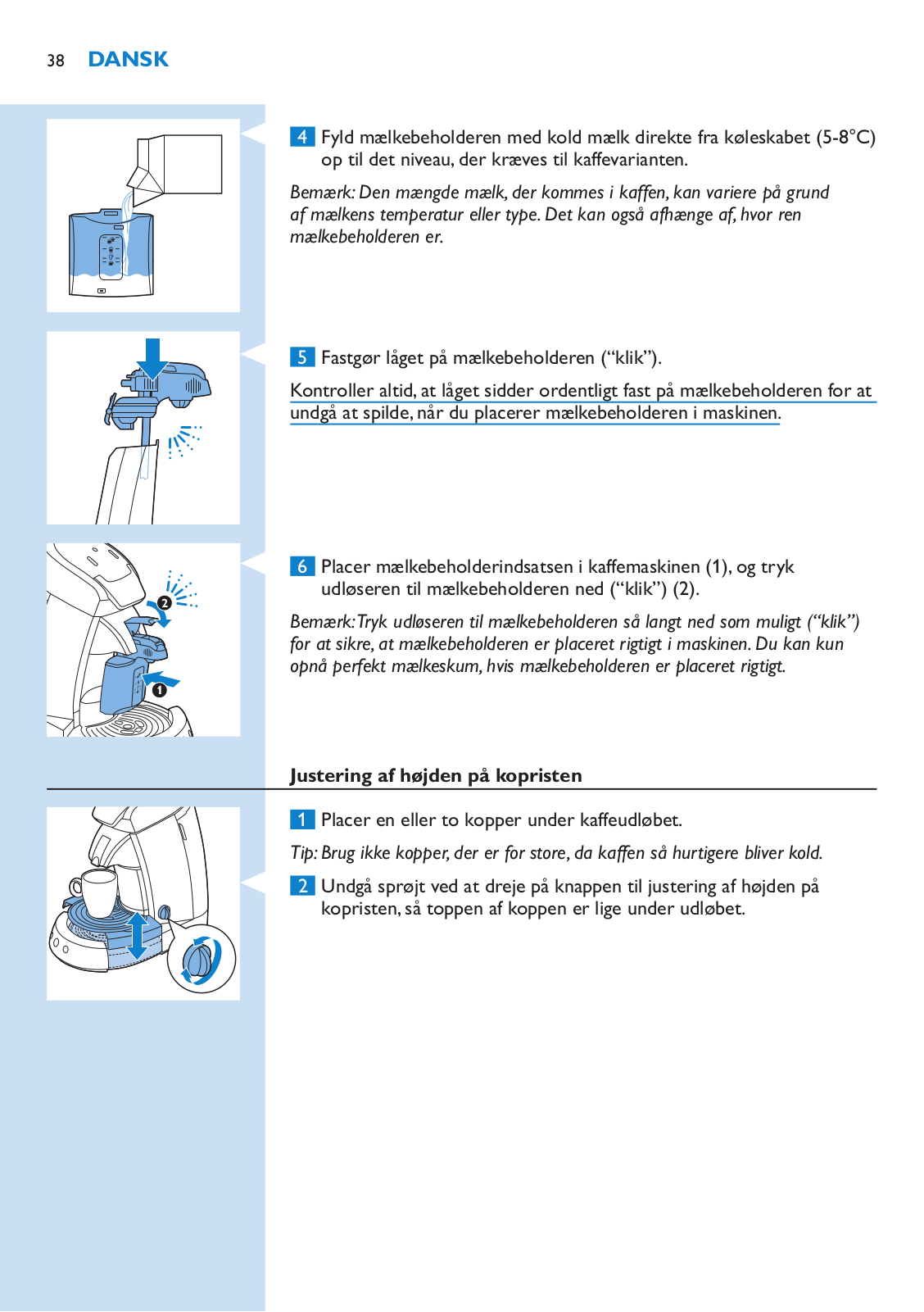

4Fill the milk container with cold milk straight from the refrigerator (5-8°C) up to the level required for the coffee variety.
Note:The amount of milk added to the coffee may vary due to variations in milk temperature or type of milk. It may also depend on how clean the milk container unit is.
5 Fasten the milk container lid onto the milk container (‘click’).
Always check if the lid is fixed properly onto the milk container to prevent spillage when you place the milk container unit in the machine.
6 Slide the milk container unit into the coffee machine (1) and push
down the milk container lever (‘click’) (2).
Note: Push down the milk container lever as far as possible (‘click’) to make sure that the milk container unit is placed properly in the machine.You only obtain properly frothed milk if the milk container unit is placed properly.
1
Adjusting the cup tray height
1 Place one or two cups under the coffee spout.
Tip: Do not use cups that are too large as they cause the coffee to get cold more quickly.
2To minimise splattering, turn the knob to adjust the height of the cup tray so that the top of your cup is just under the spout.
English 15

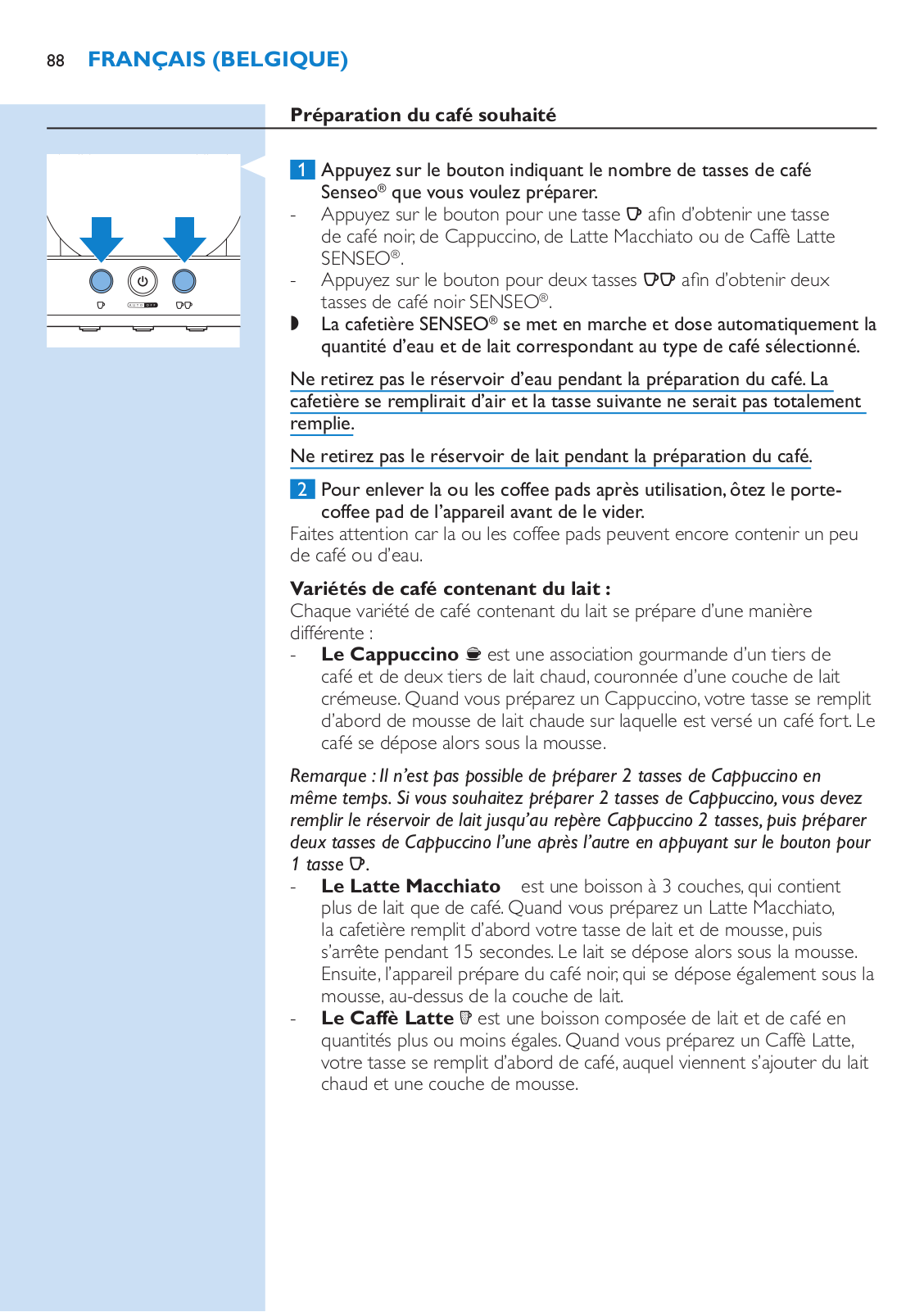

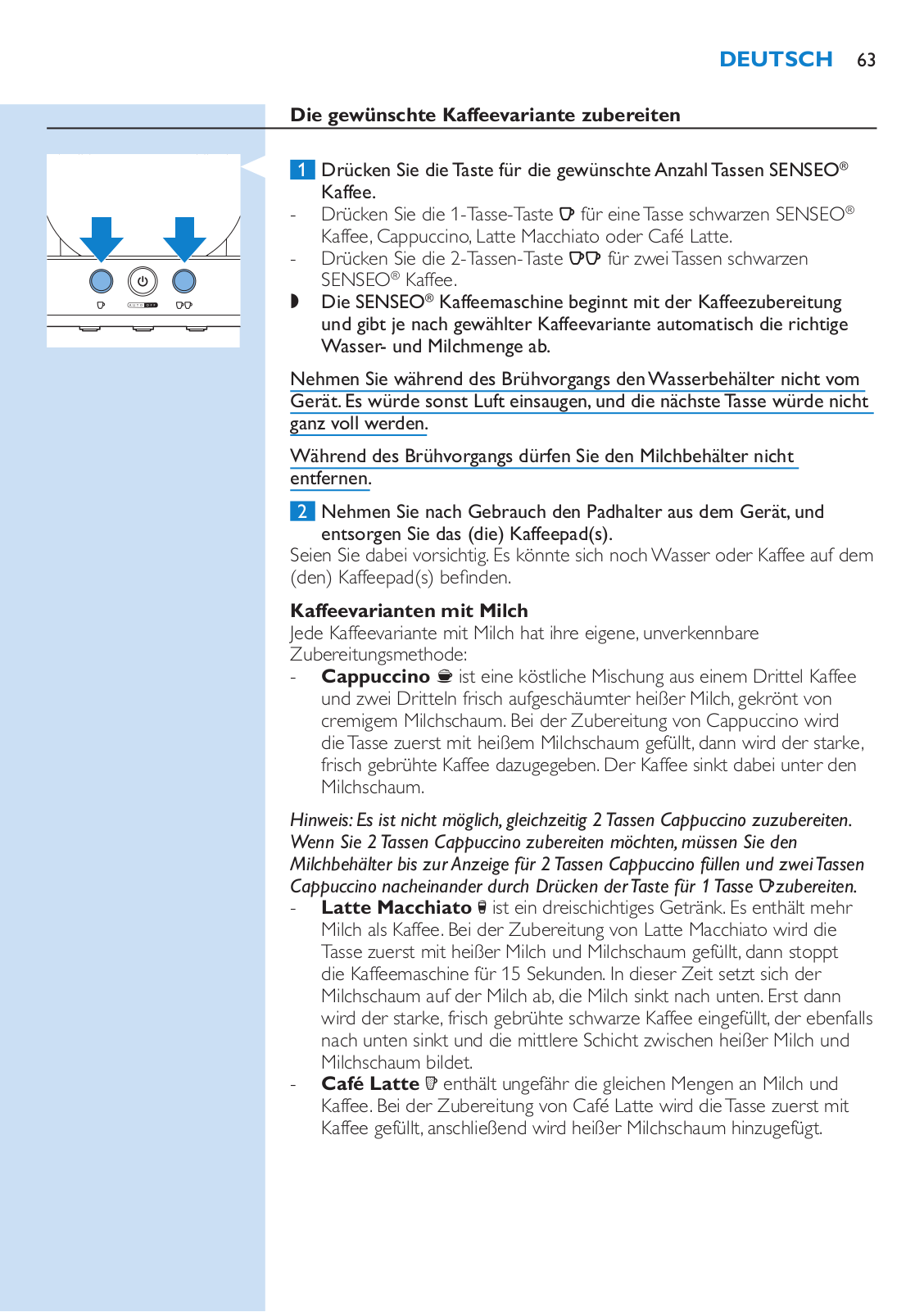

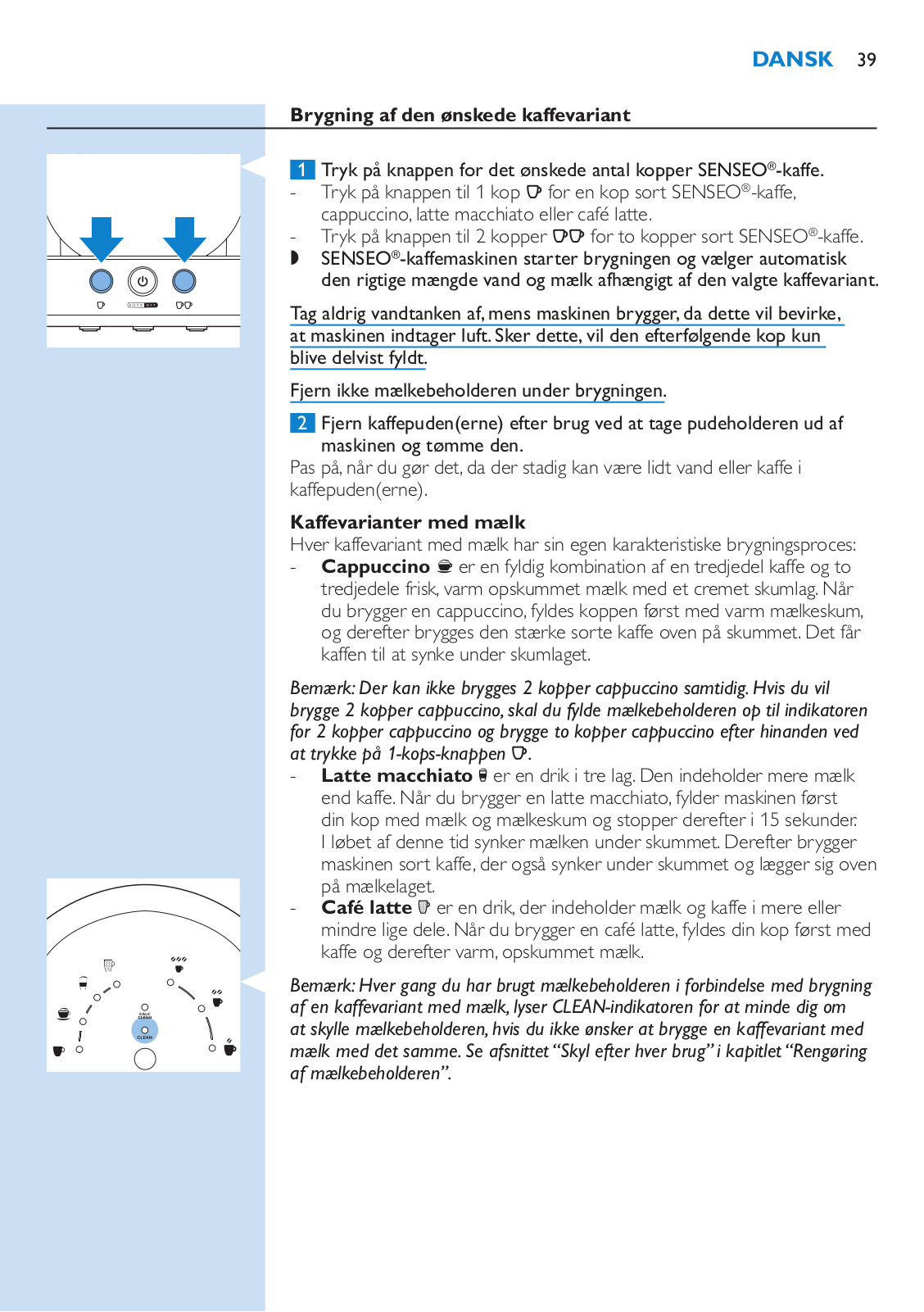

Brewing the desired coffee variety
1Press the button indicating the number of cups of SENSEO® coffee you want to brew.
-- Press the 1-cup button q for one cup of SENSEO® black coffee, cappuccino, latte macchiato or caffè latte.
-- Press the 2-cup button qq for two cups of SENSEO® black coffee.
,, The SENSEO® coffee machine starts brewing and automatically supplies the correct amount of water and milk, depending on the coffee variety you have selected.
Do not remove the water reservoir during a brewing cycle, as this causes the machine to draw in air.When this happens, the next cup is only partly filled.
Do not remove the milk container during a brewing cycle.
2Remove the coffee pod or pods after use by lifting the pod holder out of the machine and emptying it.
Be careful when you do this, as there may still be some water or coffee on the coffee pod or pods.
Coffee varieties with milk
Each coffee variety with milk has its own distinctive brewing process:
-- Cappuccino f is a rich combination of one-third coffee and twothirds of freshly frothed hot milk with a creamy froth layer.When you brew a cappuccino, your cup is first filled with hot milk froth and then strong black coffee is brewed onto the froth.This causes the coffee to sink below the froth layer.
Note: It is not possible to brew 2 cups of cappuccino at the same time. If you want to brew 2 cups of cappuccino,you have to fill the milk container up to the 2-cup cappuccino indication and brew two cups of cappuccino after each other by pressing the 1-cup button n.
-- Latte macchiato g is a 3-layer drink. It contains more milk than coffee.When you brew a latte macchiato, the machine first fills your cup with hot milk and milk froth and then stops for 15 seconds. During this time the milk sinks below the froth.Then the machine brews black coffee, which also sinks below the froth and settles above the layer of hot milk.
-- Caffè latte b is a drink that contains milk and coffee in more or less equal amounts.When you brew a caffè latte, your cup is first filled with coffee and then hot frothed milk is added.
Note: Each time you have used the milk container unit to brew a coffee variety with milk, the CLEAN indicator lights up to remind you to rinse the milk container unit if you no longer intend to brew a coffee variety with milk straightaway. See section ‘Rinsing after every use’ in chapter ‘Cleaning the milk container unit’
16 English

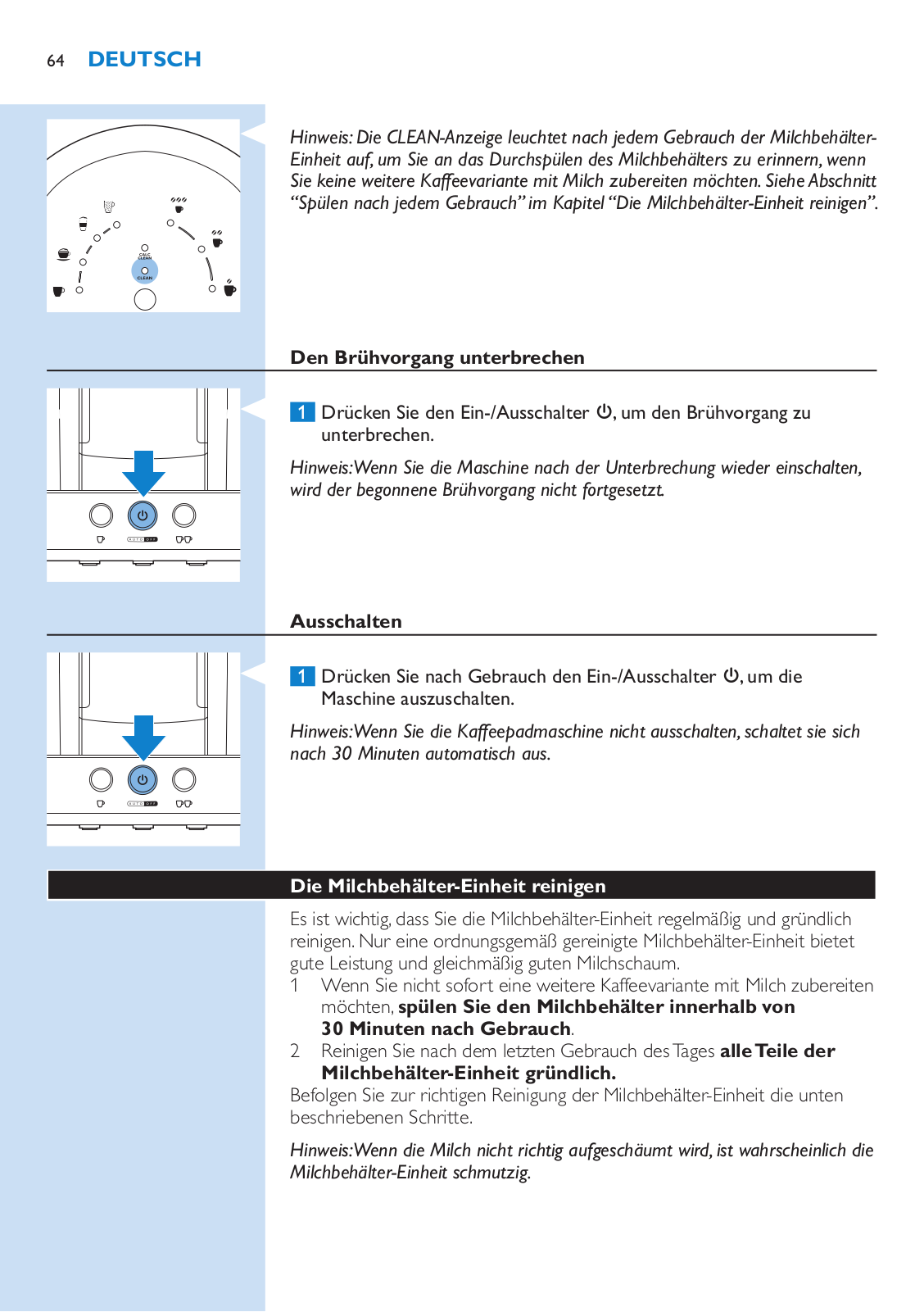

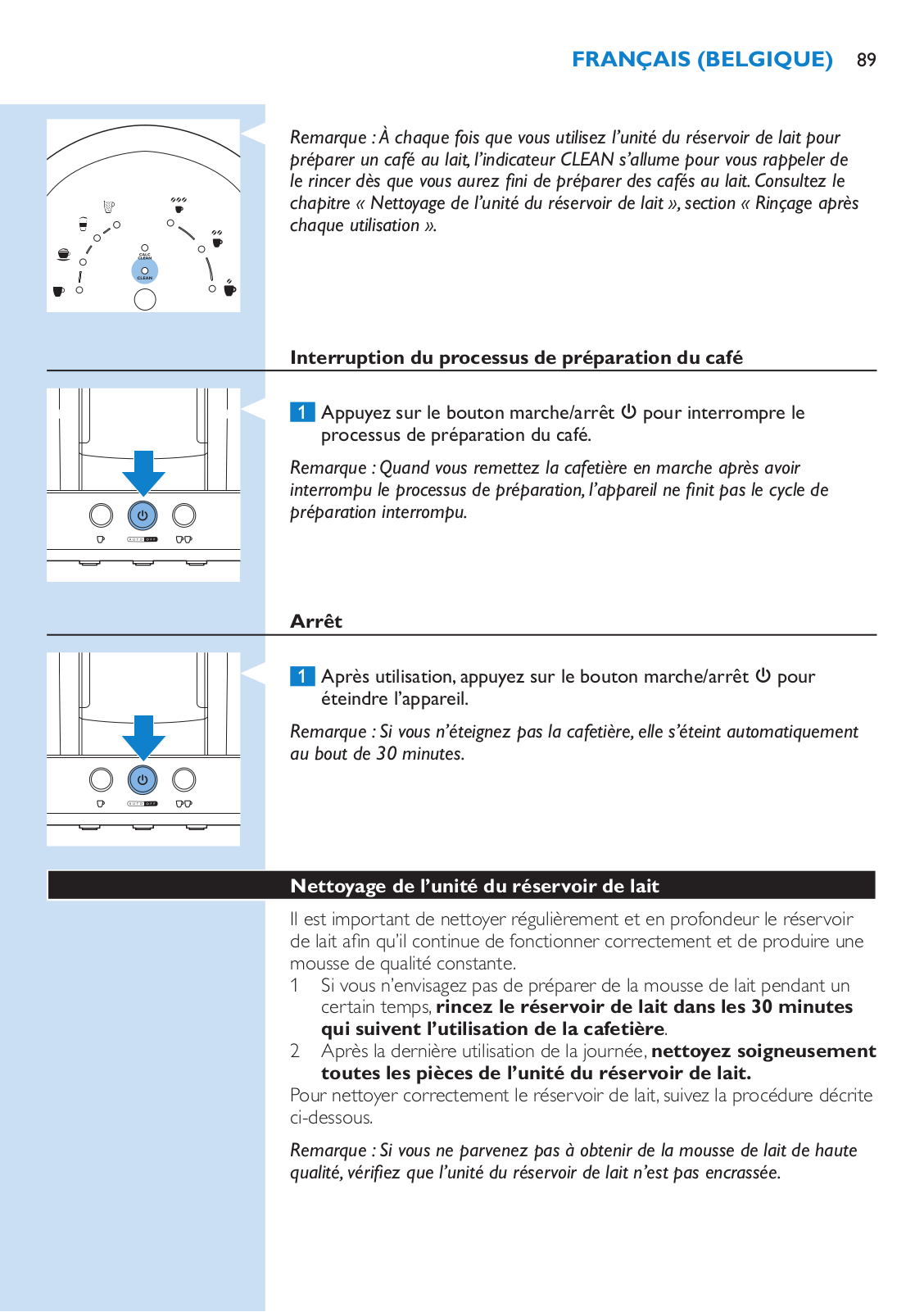

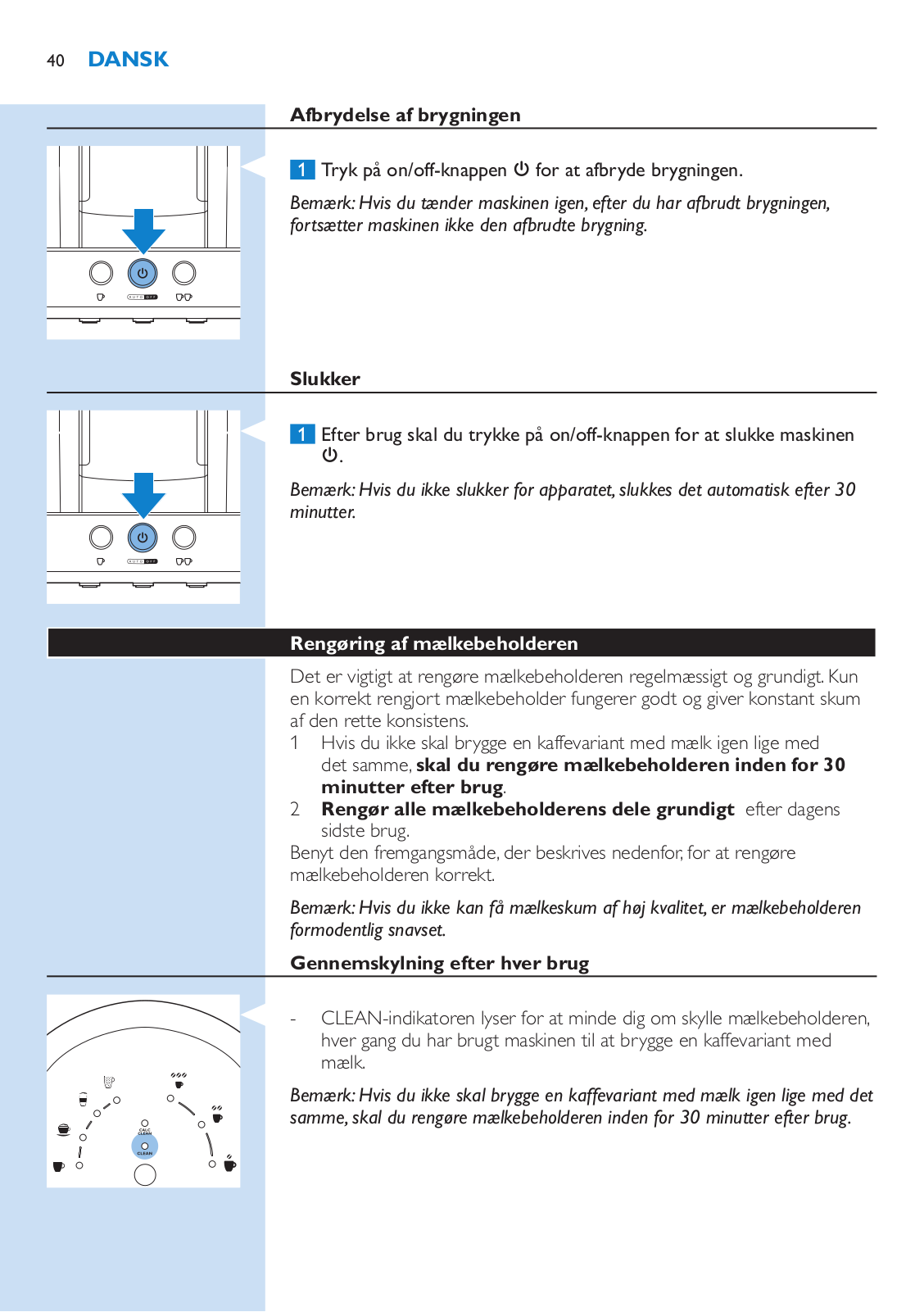

Interrupting the brewing process
1 Press the on/off button 3 to interrupt the brewing process.
Note: If you switch the machine back on after having interrupted the brewing process, the machine does not complete the interrupted brewing cycle.
Switching off
1 After use, press the on/off button 3 to switch off the machine.
Note: If you do not switch off the machine, it switches off automatically after 30 minutes.
Cleaning the milk container unit
It is important that you clean the milk container unit regularly and thoroughly. Only a properly cleaned milk container unit performs well and produces consistently good frothing results.
1If you do not plan to brew a coffee variety with milk again straightaway,
rinse the milk container within 30 minutes after use.
2After the last use of the day, clean all parts of the milk container unit thoroughly.
To clean the milk container unit properly, follow the procedure described below.
Note: If you are unable to obtain high-quality milk froth, the milk container unit is probably dirty.

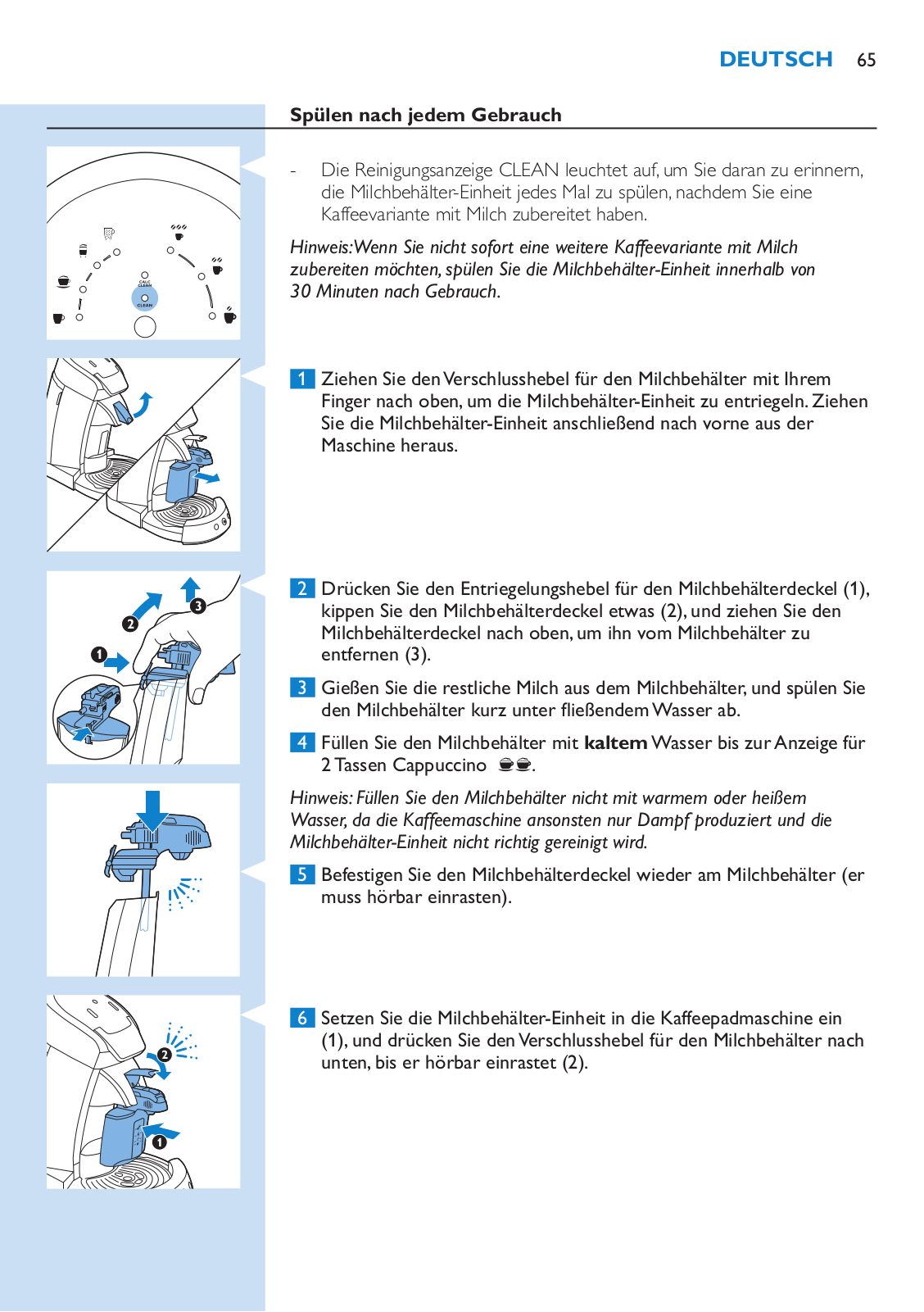

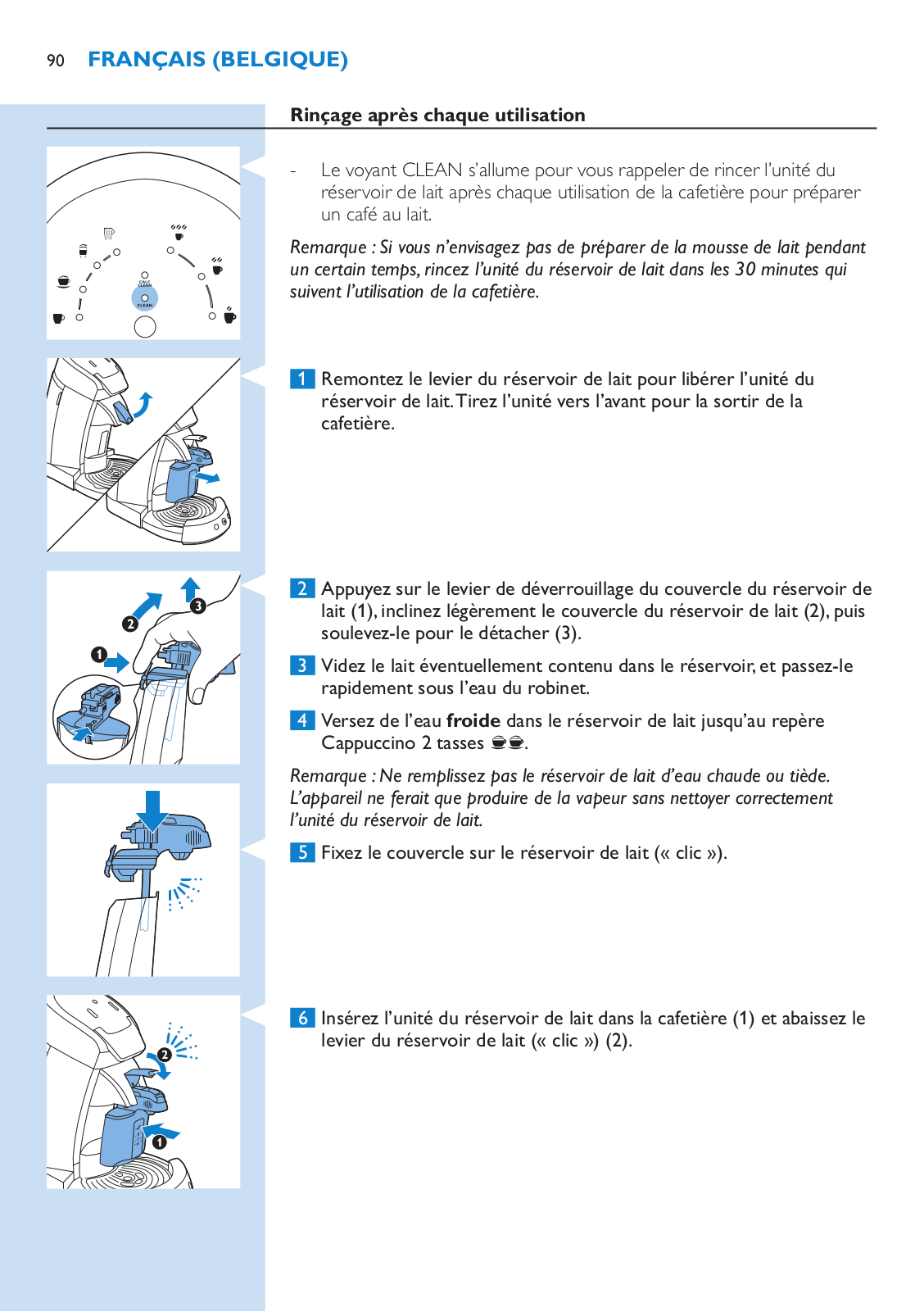

Rinsing after every use
-- The CLEAN indicator lights up to remind you to rinse the milk container unit each time after you have used the machine to brew a coffee variety with milk.
Note: If you do not plan to brew a coffee variety with milk again straightaway, rinse the milk container unit within 30 minutes after use.
2
1
English 17

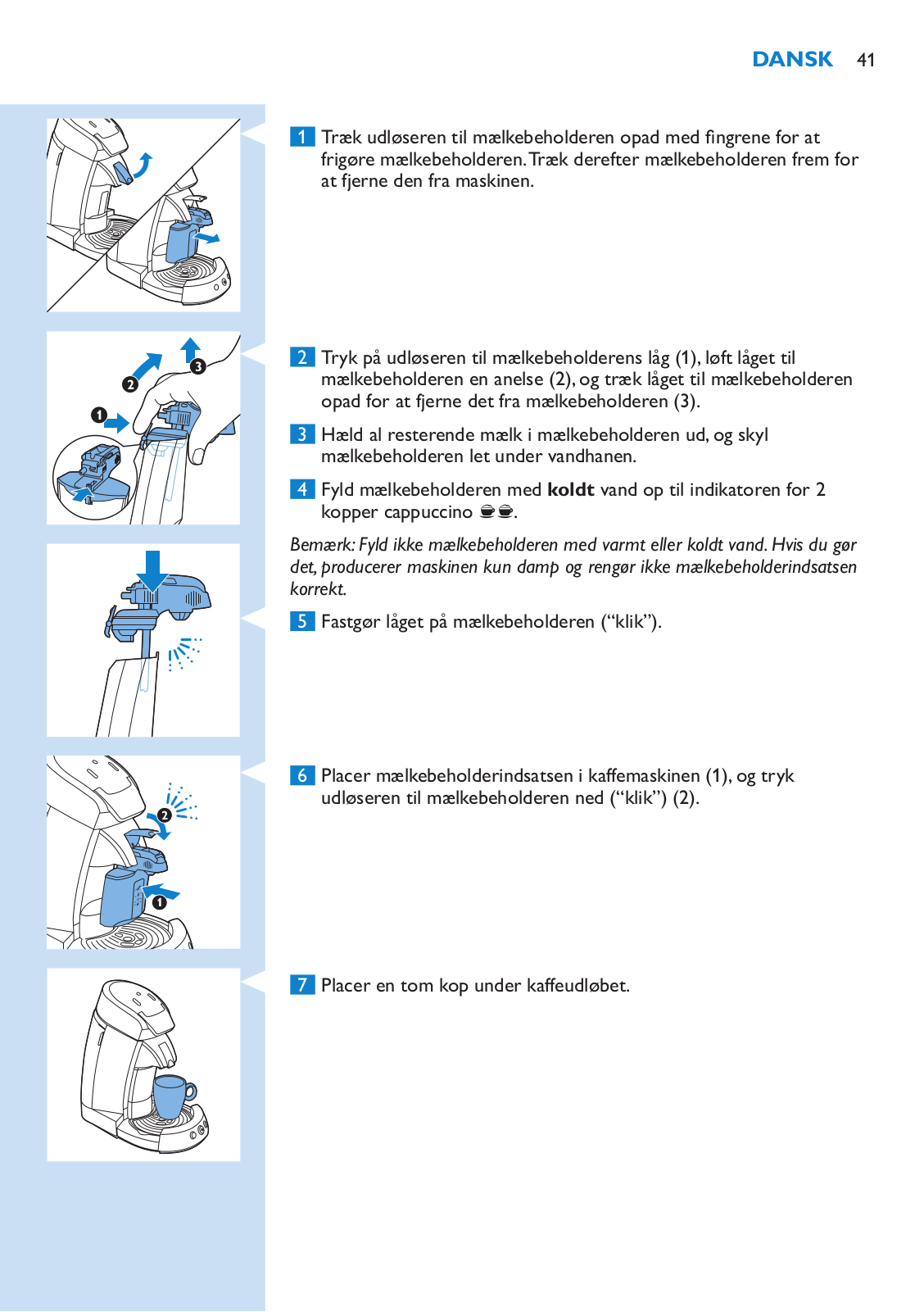

1Pull the milk container lever upwards with your finger to release the milk container unit.Then pull the milk container unit forwards to remove it from the machine.
2Press the milk container lid release lever (1), tilt the milk container lid slightly (2) and pull the milk container lid upwards to remove it from the milk container (3).
3Pour out any milk that is left in the milk container and rinse the milk container briefly under the tap.
4Fill the milk container with cold water up to 2-cup cappuccino ff indication.
Note:Do not fill the milk container with warm or hot water.If you do,the machine only produces steam and does not clean the milk container unit properly.
5Fasten the milk container lid onto the milk container (‘click’).
6Slide the milk container unit into the coffee machine (1) and push down the milk container lever (‘click’) (2).

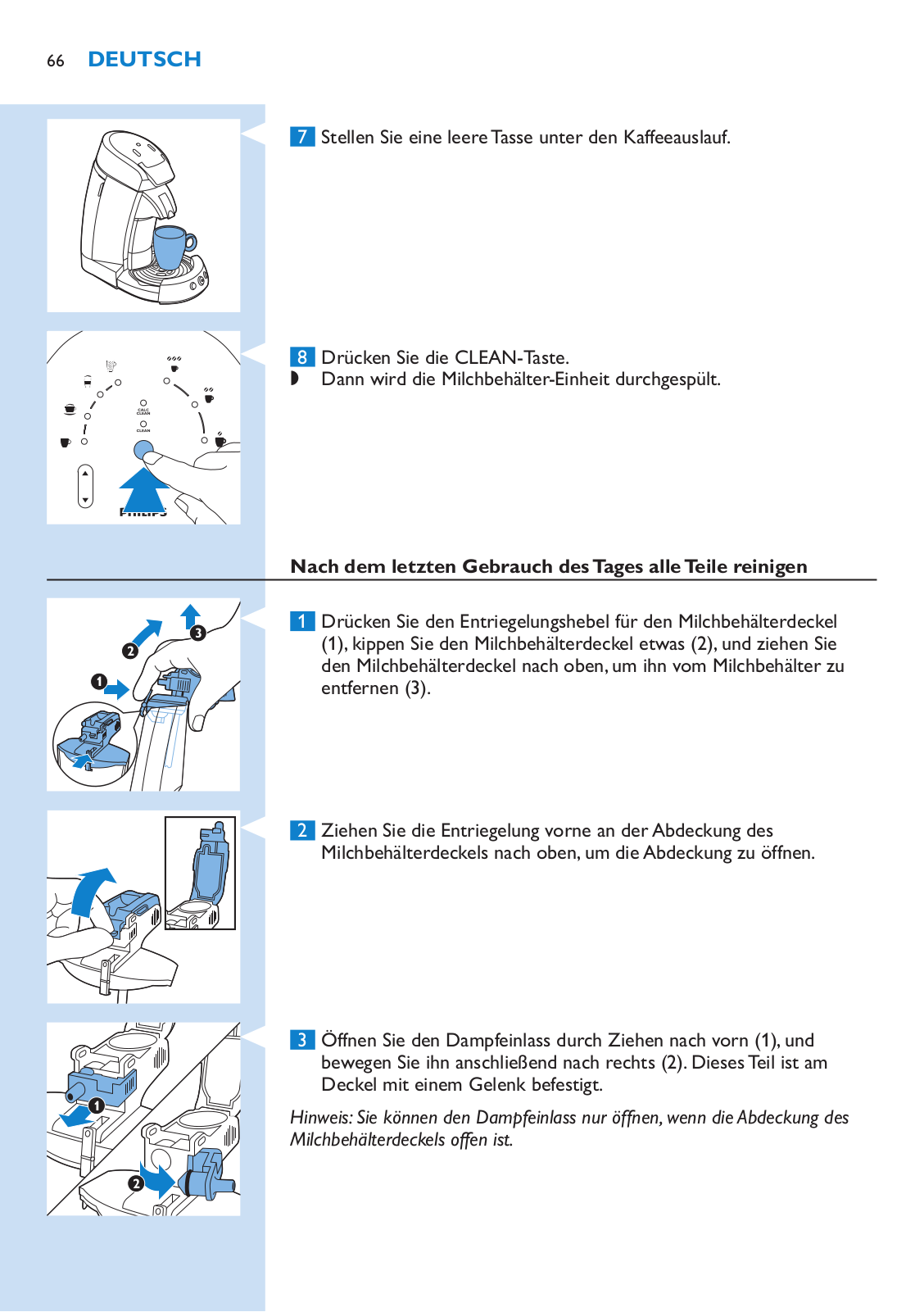

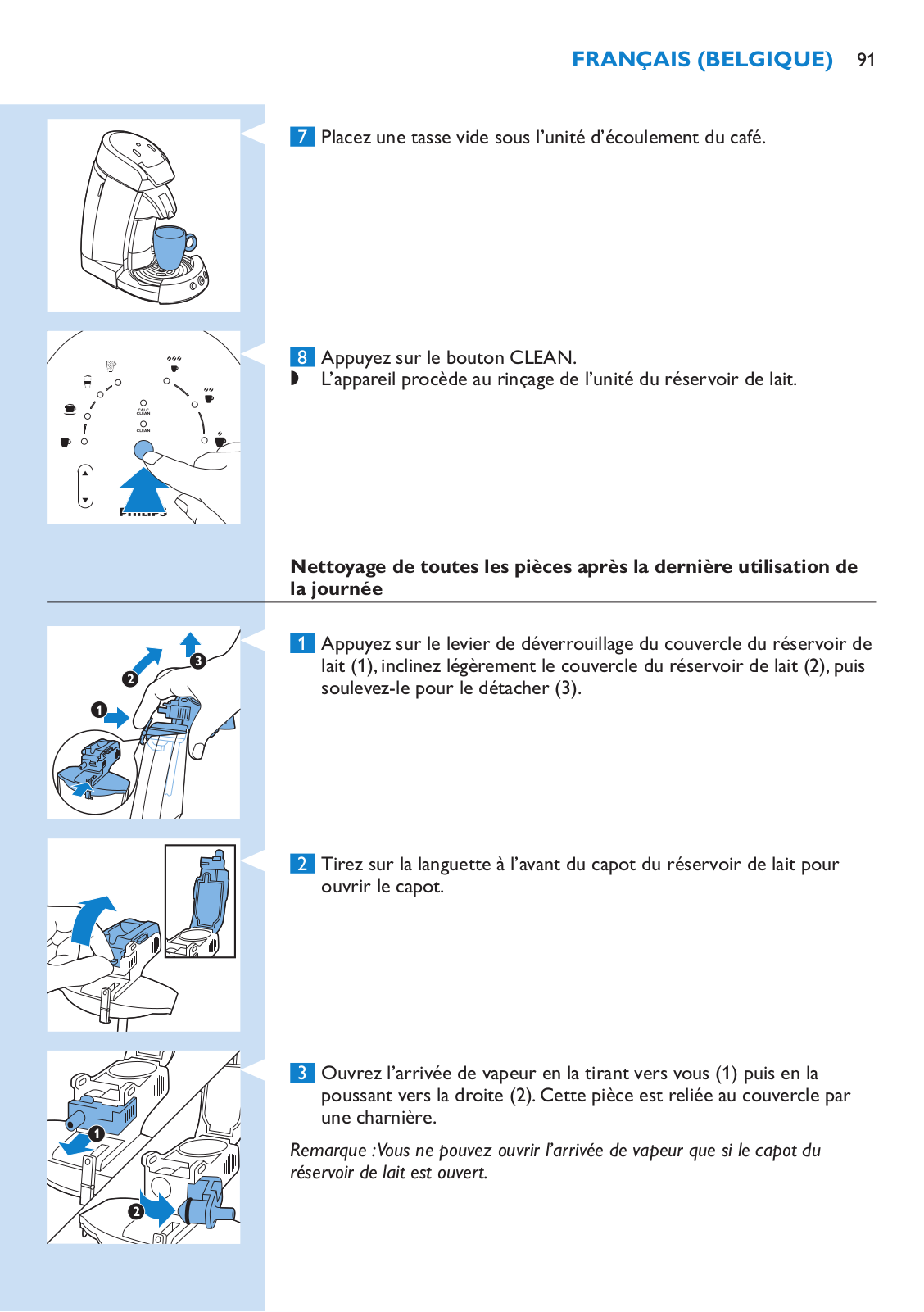

7Place an empty cup under the coffee spout.
18 English
2
2

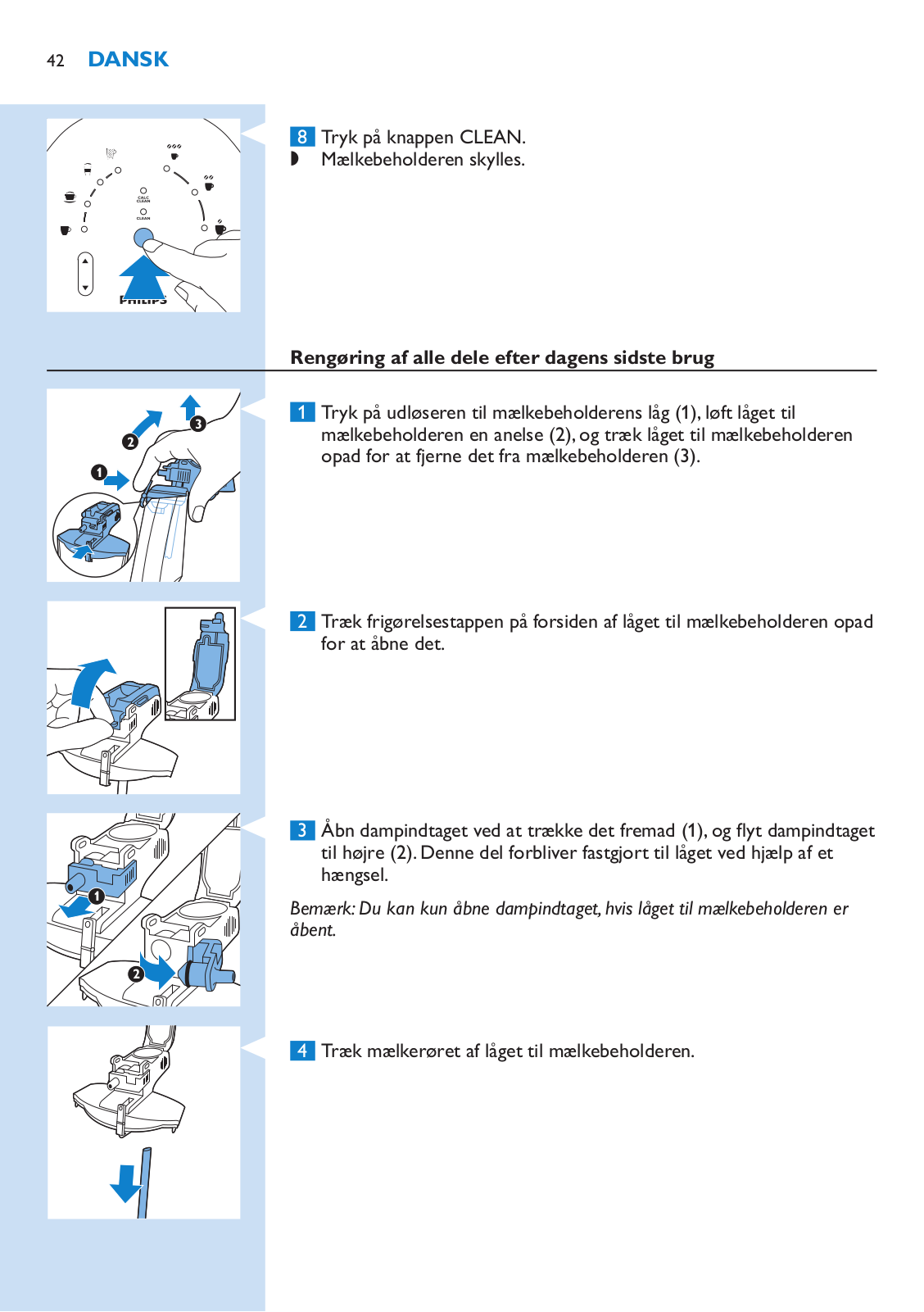

8 Press the CLEAN button.
,, The milk container unit is rinsed.
Cleaning all parts after the last use of the day
1Press the milk container lid release lever (1), tilt the milk container lid slightly (2) and pull the milk container lid upwards to remove it from the milk container (3).
2Pull the release tab at the front of the milk container lid cover upwards to open the cover.
3Open the steam inlet by pulling it forward (1) and then move the steam inlet to the right (2).This part stays attached to the lid by means of a hinge.
Note:You can only open the steam inlet if the milk container lid cover is open.
4 Pull the milk tube off the milk container lid.
English 19
3
2
5Clean the milk container, the milk container lid and the milk tube in the dishwasher or with a washing-up brush in hot water with some washing-up liquid. Rinse the parts with fresh water after cleaning.
Note: Cleaning in the dishwasher is recommended, especially when the milk container unit is very dirty. Before you put the milk container unit In the dishwasher, all parts that can be opened should be opened and all detachable parts should be detached.
6After cleaning, push back the steam inlet (1), connect the milk tube (2) and close the milk container lid cover (3).
Note: Push back the steam inlet before you close the lid, otherwise the steam inlet does not fit anymore.
Note: Make sure that you push the milk tube far enough onto the connector so that the holes in the connector are covered. If you do not push the milk tube far enough onto the connector, you get less milk froth.
7 Fasten the milk container lid onto the milk container (‘click’).
Note: Make sure that all parts of the milk container lid are dry before you reassemble the lid.
8Slide the milk container unit into the coffee machine (1) and push down the milk container lever (‘click’) (2).
1
Cleaning the machine
Danger: Never immerse the machine in water or any other liquid.

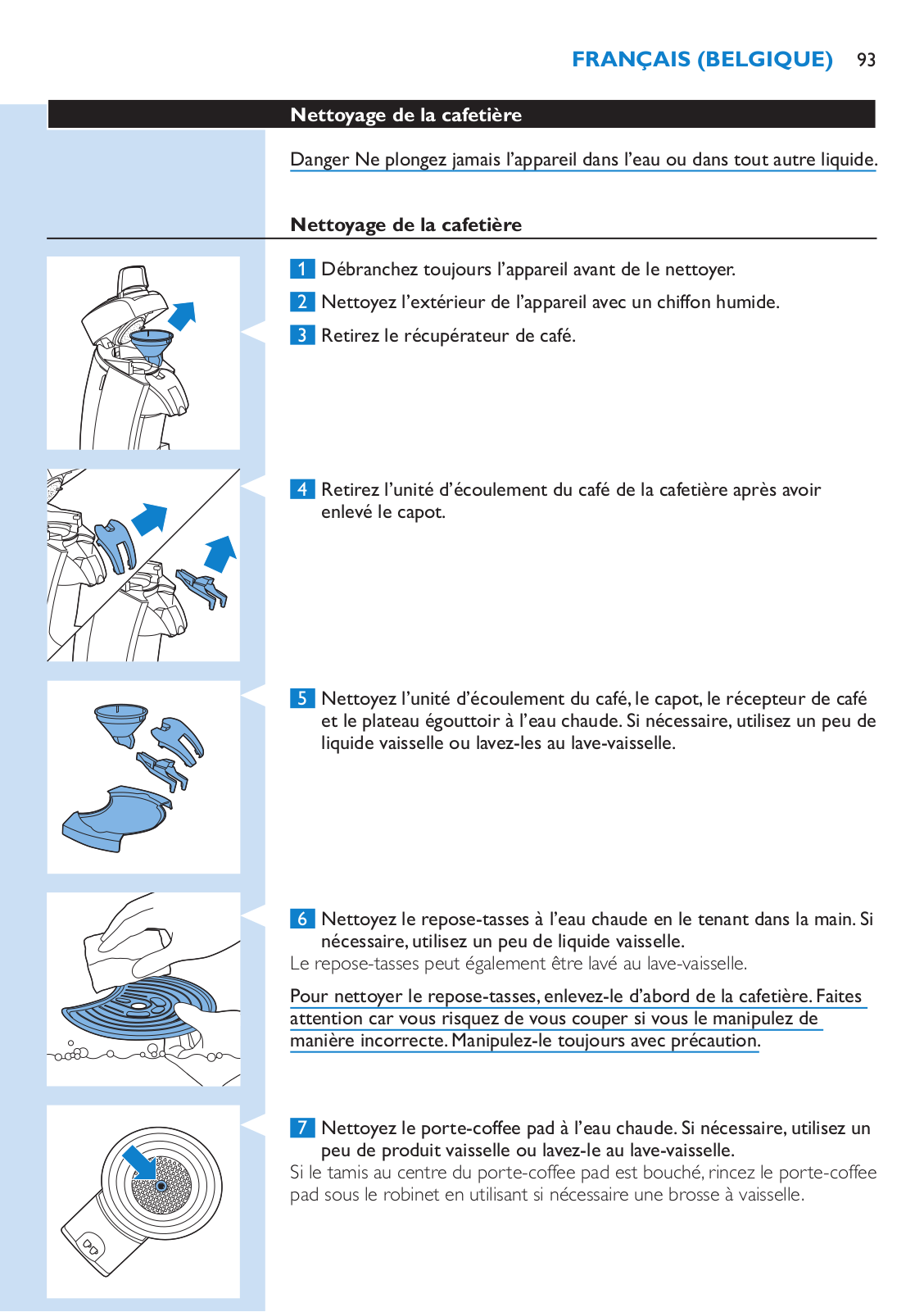

Cleaning the coffee machine
1Always unplug the machine before you clean it.
2Clean the outside of the machine with a damp cloth.
20 English
3
4
5
Remove the coffee collector.
Remove the coffee spout cover and take the coffee spout out of the machine.
Clean the coffee spout cover, the coffee spout, the coffee collector and the drip tray in hot water, if necessary with some washing-up liquid, or in the dishwasher.
6Hold the cup tray in your hand while you clean it with hot water. If necessary, use some washing-up liquid.
The cup tray can also be cleaned in the dishwasher.
To clean the cup tray, always remove it from the machine. It may prove sharp when handled incorrectly.Always handle it carefully.
7Clean the pod holders in hot water, if necessary with some washingup liquid, or in the dishwasher.
If the sieve in the centre of the pod holder is clogged, rinse the pod holder under a running tap. If necessary, use a washing-up brush.
English 21

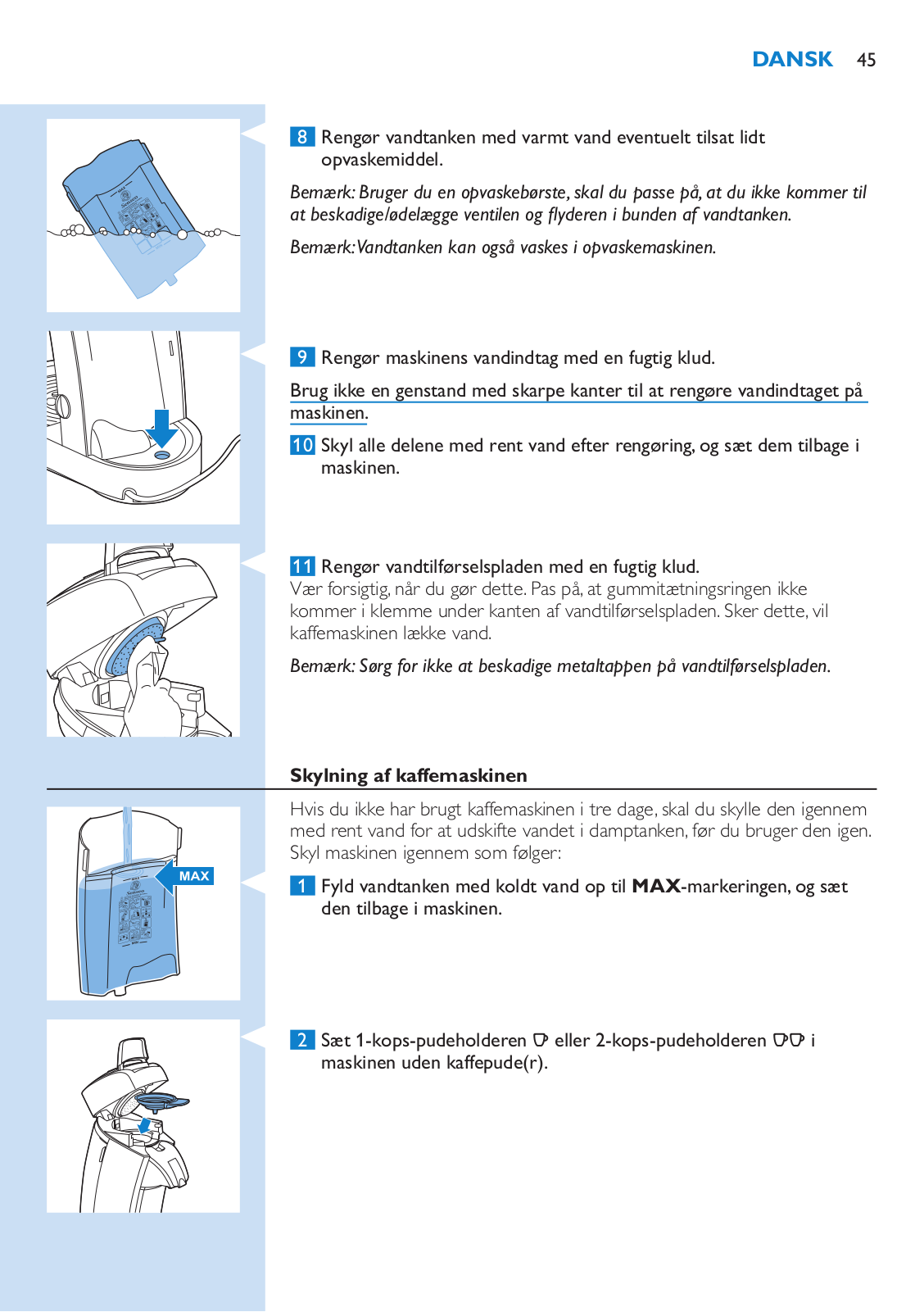

8Clean the water reservoir in hot water, if necessary with some washing-up liquid.
Note: If you use a washing-up brush, be careful not to damage the valve and float in the bottom of the water reservoir.
Note:The water reservoir can also be cleaned in the dishwasher.
9 Clean the water inlet on the machine with a moist cloth. Do not use an object with sharp edges to clean the water inlet.
10Rinse the parts with fresh water after cleaning and put them back into the machine.
11Clean the water distribution disc with a moist cloth.
Be careful when you do this. Make sure that the rubber sealing ring does not get stuck under the edge of the water distribution disc. If it does, the coffee machine starts leaking.
Note: Be careful not to damage the metal tab on the water distribution disc.
Flushing the coffee machine
If you have not used the coffee machine for three days, you have to flush it with fresh water to refresh the water in the boiler before you use it again. Flush the machine in the following way:
1Fill the water reservoir with cold water up to the MAX indication and put it back onto the machine.
2Put the 1-cup pod holder q or the 2-cup pod holder qq in the machine without pod or pods.
22 English
3
4
5
,,
6
,,
Close the lid and lock the lid lever.
Put a bowl (with a capacity of 1.5 litres) under the coffee spout to collect the water.
Press the on/off button 3.
The light rings around the 1-cup button q and the 2-cup button qq light up continuously.
To start flushing,press the 1-cup button q and the 2-cup button qq briefly at the same time.
During the flushing cycle,the water in the water reservoir is flushed through the machine and the boiler is filled with fresh water.The flushing cycle takes some time (approx.90 to 150 seconds).
Never interrupt the flushing cycle halfway.If you do,the boiler does not fill itself properly with fresh water.
Note:During the flushing cycle,the machine produces more noise than during a regular brewing cycle.
,, The machine switches off automatically when the flushing cycle ends.
Now your Philips SENSEO® coffee machine is ready for use again.
English 23
Descaling
When to descale
-- Descale the SENSEO® coffee machine as described below when the CALC CLEAN indicator goes on.The CALC CLEAN indicator goes on after you have brewed approx. 1000 cups of SENSEO® black coffee or 250 cups of SENSEO® coffee varieties with milk.You can also descale the SENSEO® coffee machine more often in the same way.You have to descale the machine at least every 3 months.The descaling procedure takes approx. 40 minutes.
Why to descale
Scale builds up inside the machine during use. It is essential to descale the SENSEO® coffee machine when the CALC CLEAN indicator goes on.Your reasons to descale:
-- It prolongs the life of your SENSEO® coffee machine -- It ensures maximum cup volume
-- It ensures maximum coffee temperature
-- The machine produces less sound during brewing -- It prevents malfunctioning
If the descaling procedure is not performed correctly, scale residues remain behind in the machine.This causes scale to build up more quickly and may cause permanent and irreparable damage to the machine.
Use the correct descaling agent
Only citric acid-based descalers are suitable for descaling the SENSEO® machine.This type of descaler descales the machine without damaging it. For the correct amount, see section‘Descaling procedure’ below. Each
descaling mixture can be used only once.After use, the descaling mixture is no longer active.
Philips SENSEO® has developed a special descaler (HD7012, HD7011,
HD7006) for SENSEO® machines. For more information about this descaler, visit our website www.philips.com.
Never use a descaling agent based on mineral acids such as sulphuric acid, hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar).These descaling agents will certainly damage your SENSEO® coffee machine.
Descaling procedure
The descaling procedure consists of 2 cycles: -- a descaling cycle (approx. 35 minutes)
-- a rinsing cycle (approx. 5 minutes)
You cannot descale the machine if the Calc-Clean tool is not placed in the coffee spout.
Descaling cycle
1Remove the milk container unit from the machine, insert the Calc-Clean tool into the coffee spout and push down the milk container lever.
24 English
2Place the 1-cup pod holder q with a used coffee pod in the coffee machine. Close the lid and make sure that it is locked properly.
Note:Always put a used coffee pod in the pod holder when you descale the machine.This pod serves as a‘filter’to prevent the sieve in the pod holder from getting clogged with scale residues.
3 Mix 50 grams of citric acid with 1 litre of water in a measuring jug. Stir until the powder has completely dissolved.
4 Remove the water reservoir and fill it with the descaling mixture.
Then put the water reservoir back onto the coffee machine.
5 Put a bowl with a capacity of at least 1.5 litres under the spout to collect the descaling mixture.

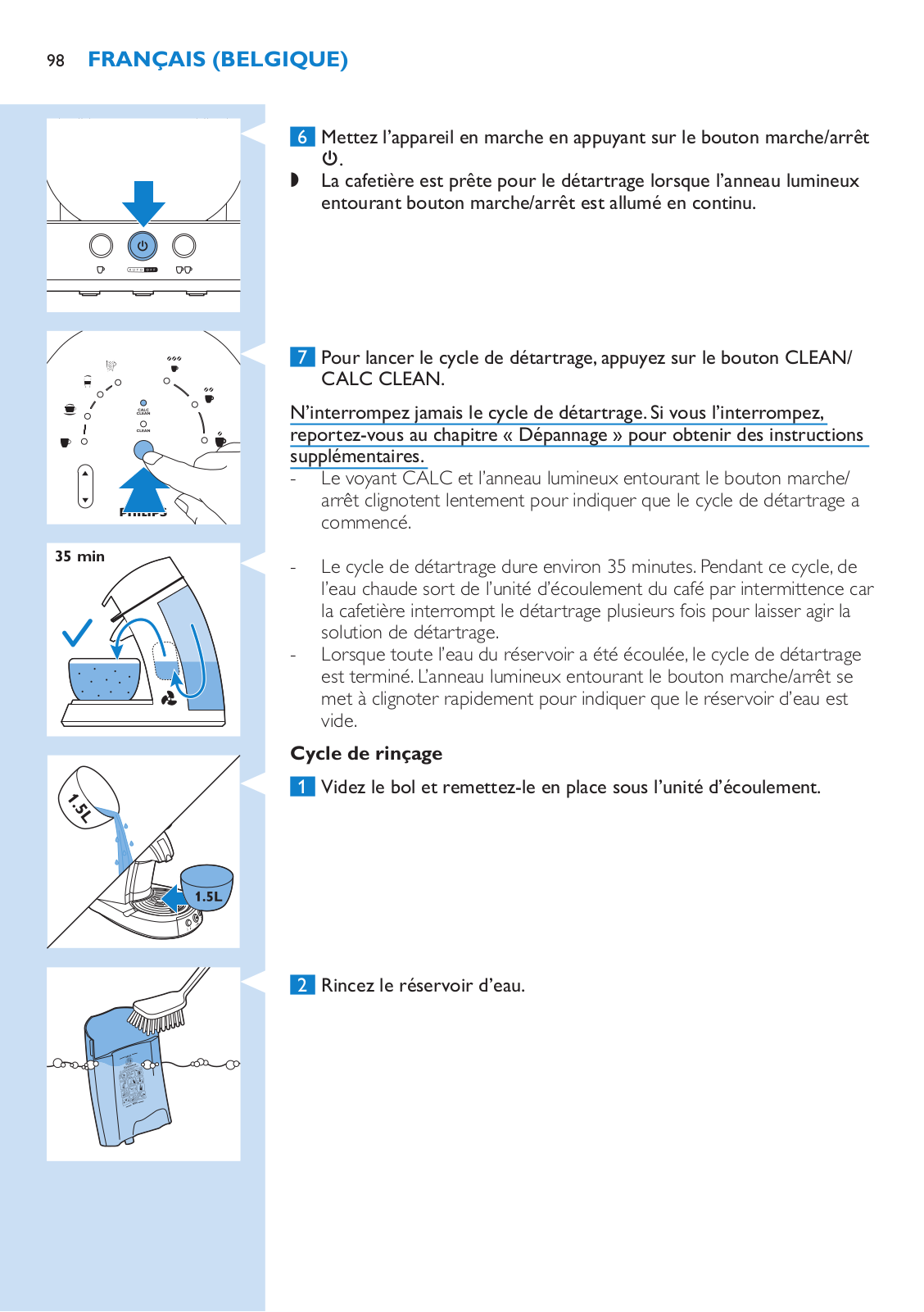

6 Press the on/off button 3 to switch on the machine.
,, The machine is ready for descaling when the light ring around the on/off button lights up continuously.
English 25

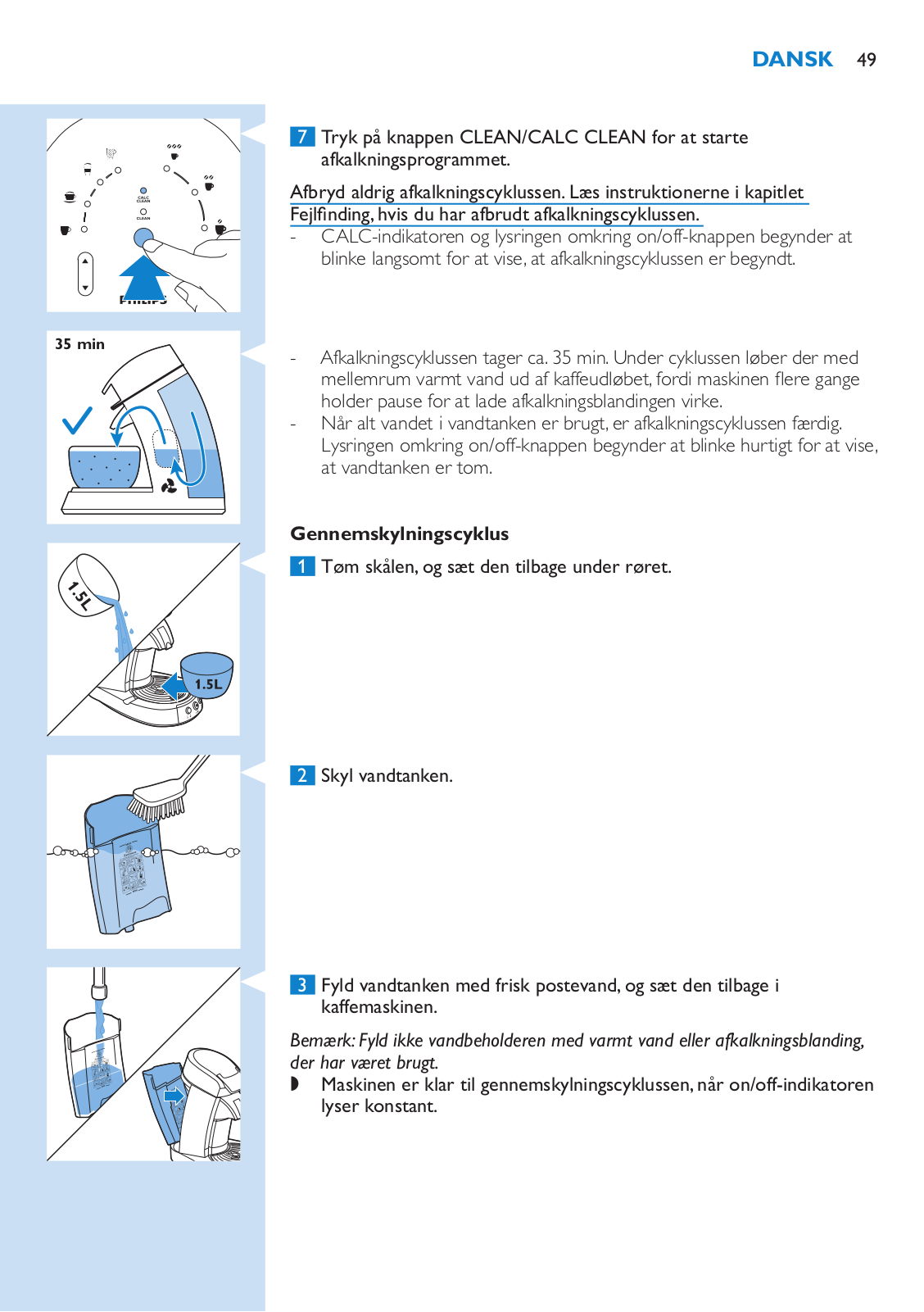

7 Press the CLEAN/CALC CLEAN button to start the descaling cycle.
Never interrupt the descaling cycle.If you interrupt the descaling cycle, see chapter Troubleshooting for further instructions.
-- The CALC light and the light ring around the on/off button start to flash slowly to indicate that the descaling cycle has started.
35 min |
-- The descaling cycle takes approx. 35 min. During this cycle, hot water |
|
|
||
|
|
comes out of the coffee spout at intervals because the machine pauses |
|
|
several times to let the descaler mixture act. |
|
-- |
When all the water in the water reservoir has been used up, the |
|
|
descaling cycle is finished.The light ring around the on/off button starts |
|
|
to flash rapidly to indicate that the water reservoir is empty. |
|
Rinsing cycle |
|
|
1 |
Empty the bowl and place it back under the spout. |

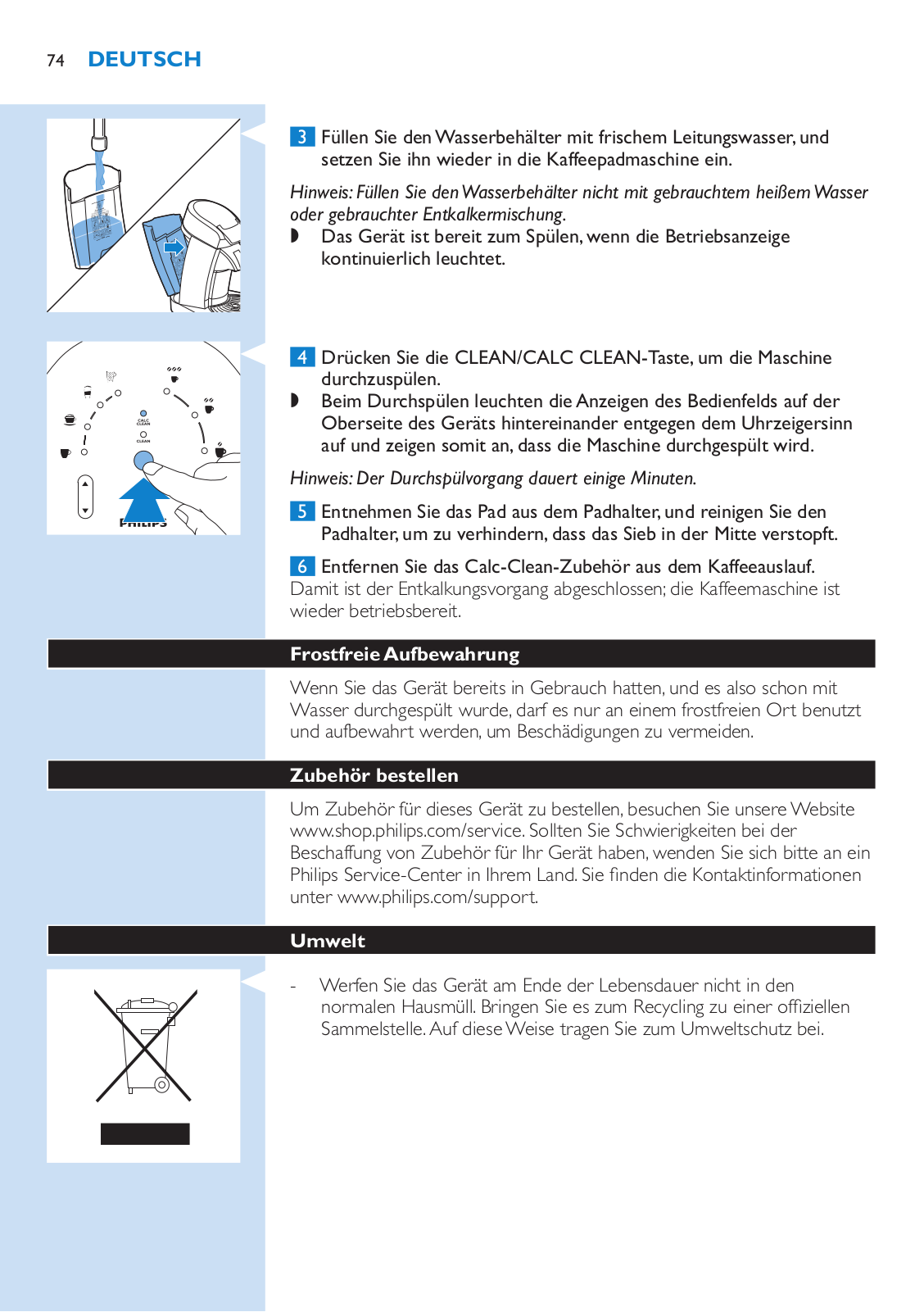

2 Rinse the water reservoir.

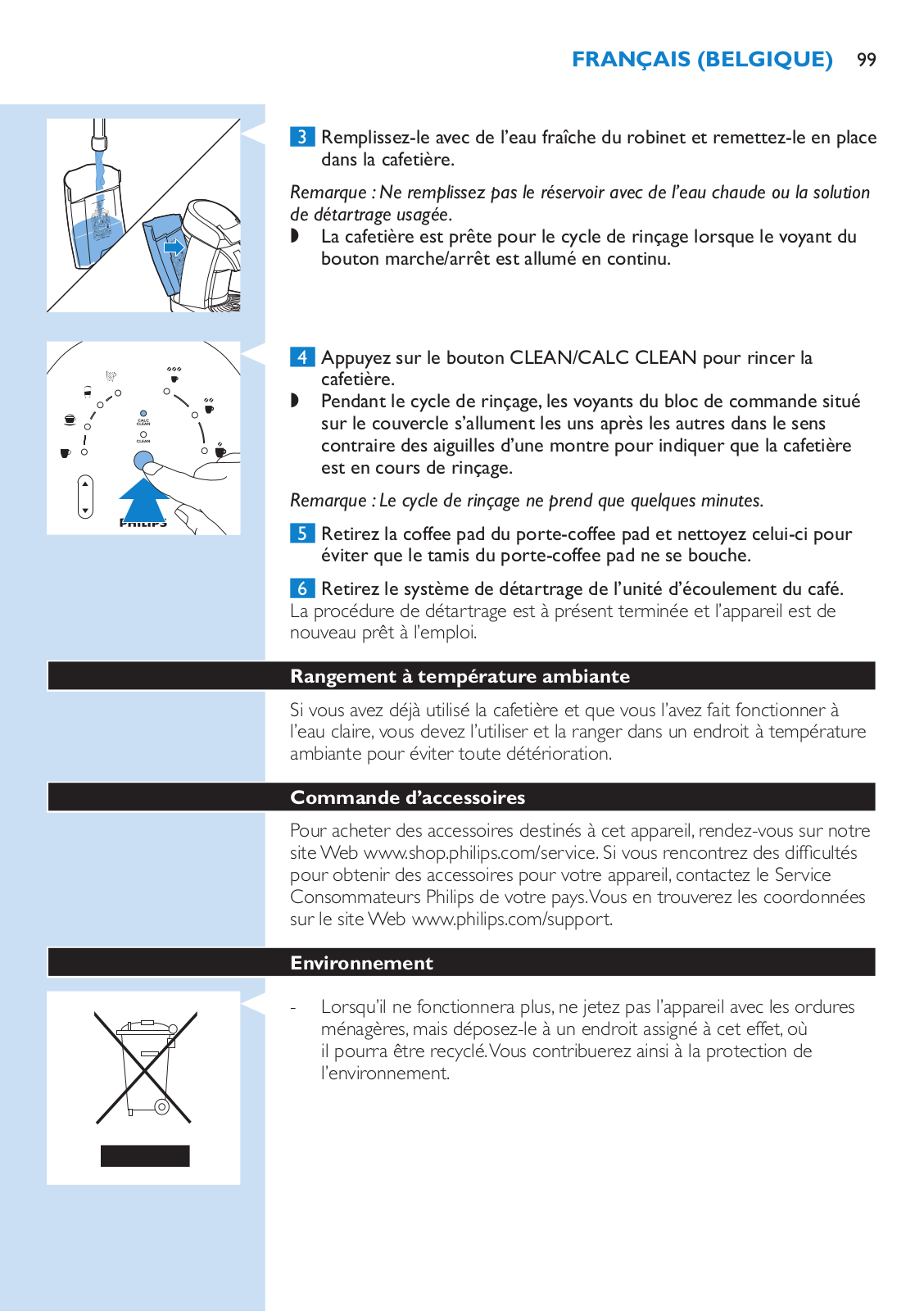

3 Fill the water reservoir with fresh tap water and place it back onto the coffee machine.
Note:Do not refill the water reservoir with used hot water or the used descaling mixture.
,, The machine is ready for the rinsing cycle when the on/off light lights up continuously.
26 English
4 Press the CLEAN/CALC CLEAN button to rinse the machine.
,, During the rinsing cycle, the indicators on the control panel on the lid light up anticlockwise sequentially to indicate that the machine is rinsing.
Note:The rinsing cycle takes a few minutes.
5 Remove the pod from the pod holder and clean the pod holder to prevent the sieve in the centre from getting clogged.
6 Remove the Calc-Clean tool from the coffee spout.
The descaling procedure is now finished and the machine is ready to brew coffee again.
Frost-free storage
If the coffee machine has already been used and therefore has been flushed with water, it may only be used and stored in a frost-free place to prevent it from becoming damaged.
Ordering accessories
To purchase accessories for this appliance, please visit our website www.shop.philips.com/service. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country.You will find the contact details at www.philips.com/support.
Environment
-- Do not throw away the machine with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

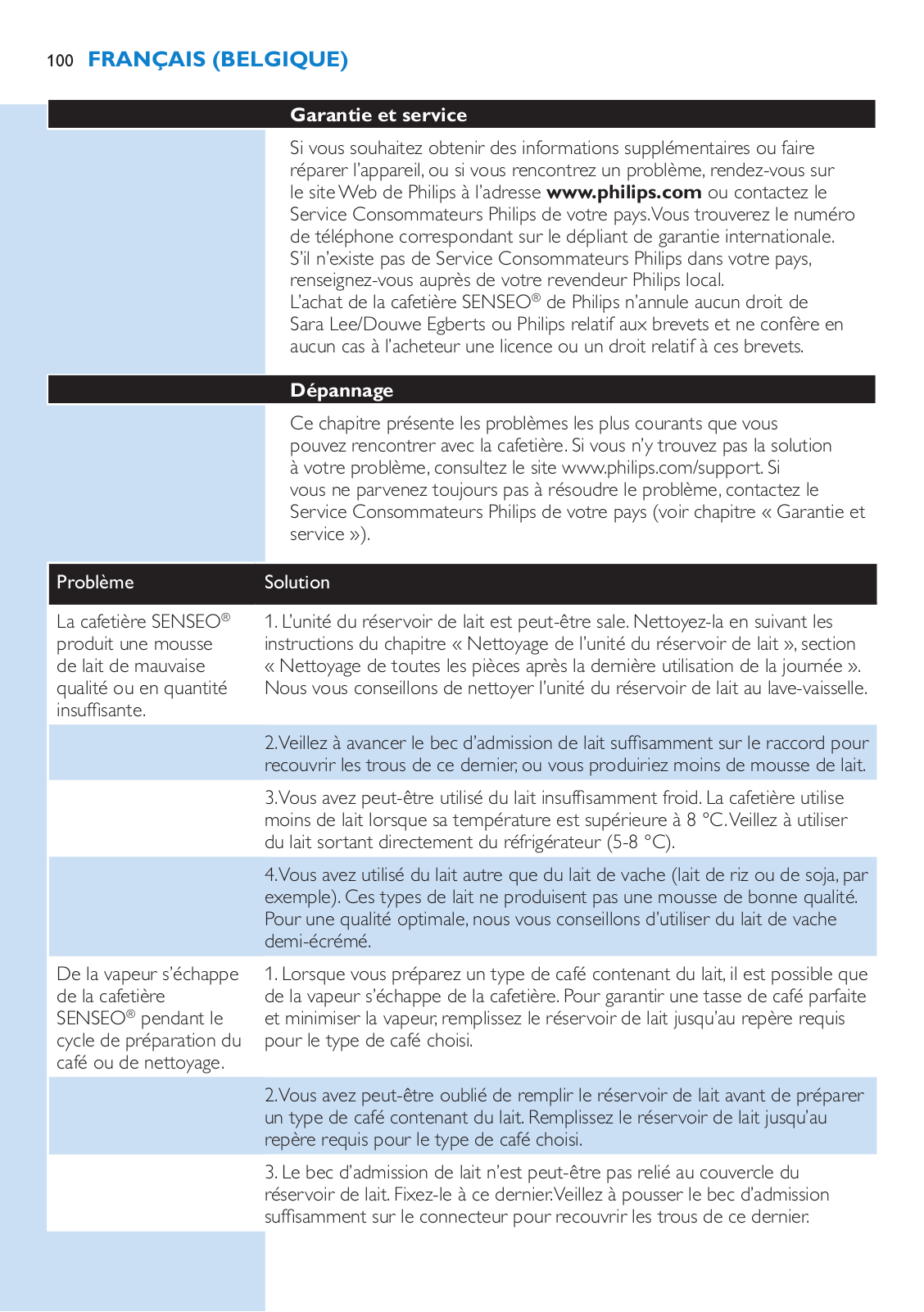

Guarantee and service
If you need service or information or if you have a problem, please visit the
Philips website at www.philips.com or contact the Philips Consumer
Care Centre in your country.You find its phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer.
The purchase of the Philips SENSEO® coffee machine does not exhaust any of the rights of Sara Lee/Douwe Egberts or Philips under any of their patents nor does it confer upon the purchaser a licence under these patents.
English 27
|
|
Troubleshooting |
|
|
This chapter summarises the most common problems you could encounter |
|
|
with the machine. If you cannot find the solution to your problem, you can |
|
|
find more solutions at www.philips.com/support. If you still cannot solve |
|
|
the problem, contact the Consumer Care Centre in your country (see |
|
|
chapter ‘Guarantee and service). |
|

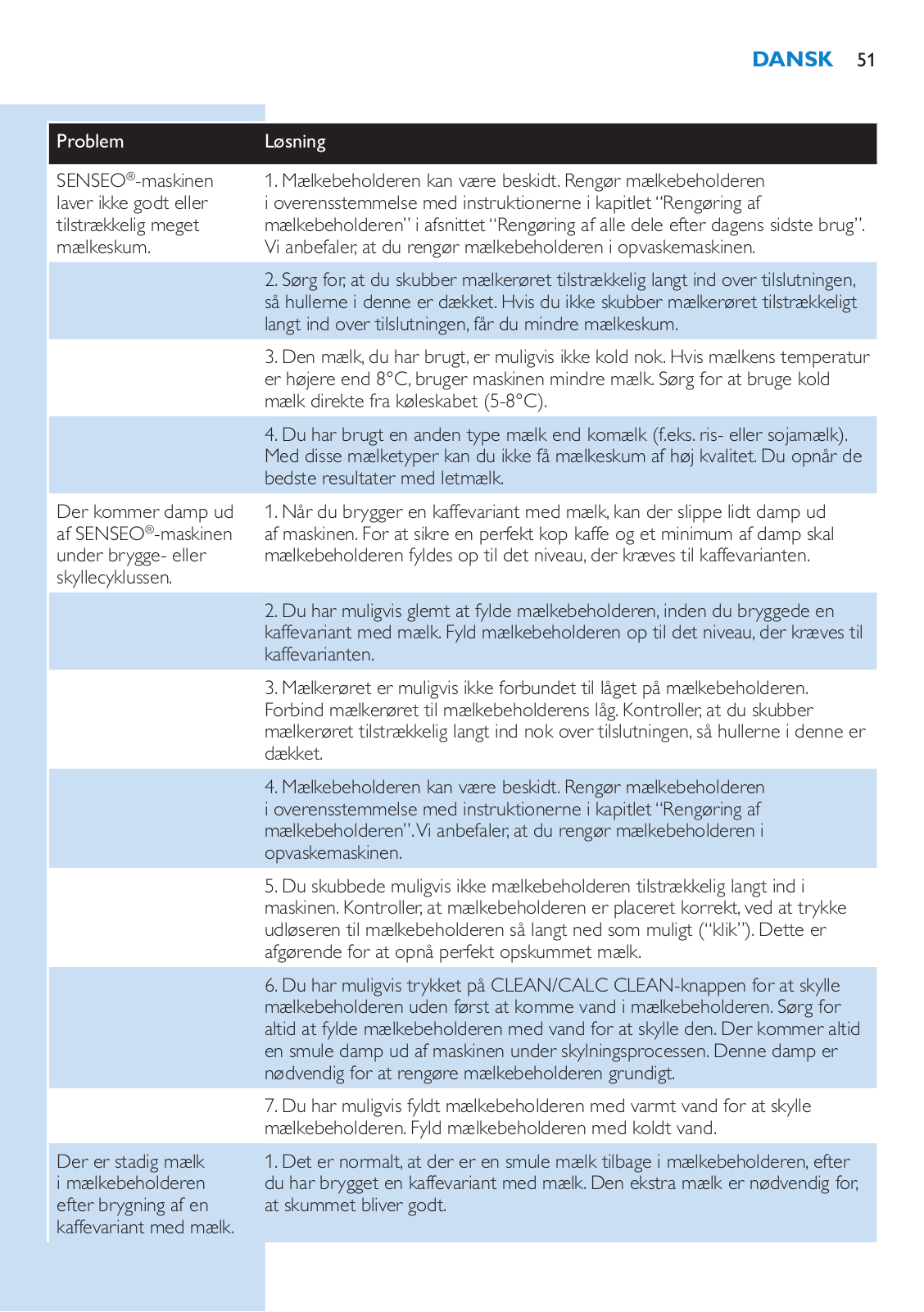

Problem |
Solution |
|
|
|
|
The SENSEO® machine |
1.The milk container unit may be dirty. Clean the milk container unit by |
|
does not produce good |
following the instructions in chapter‘Cleaning the milk container unit’, section |
|
or enough frothed milk. |
‘Cleaning all parts after the last use of the day’.We advise you to clean the |
|
|
milk container unit in the dishwasher. |
|
|
2. Make sure that you push the milk tube far enough onto the connector so |
|
|
that the holes in the connector are covered. If you do not push the milk tube |
|
|
far enough onto the connector, you get less milk froth. |
|
|
3.You may have used milk that is not cold enough. If the milk temperature is |
|
|
above the 8°C, the machine uses less milk. Make sure that you use cold milk |
|
|
straight from the refrigerator (5-8°C). |
|
|
4.You have used another type of milk than cow’s milk (e.g. rice or soy milk). |
|
|
These kinds of milk do not produce high-quality frothed milk.To get the best |
|
|
frothed milk, we advise you to use semi-skimmed cow’s milk. |
|
Steam escapes from |
1.When you brew a coffee variety with milk, some steam may escape from |
|
the SENSEO® machine |
the machine.To ensure a perfect cup of coffee and to minimise steaming, fill |
|
during the brewing or |
the milk container up to the required level for the coffee variety. |
|
cleaning cycle. |
|
|
|
2.You may have forgotten to fill the milk container before brewing a coffee |
|
|
variety with milk. Fill the milk container up to the required level for the coffee |
|
|
variety. |
|
|
3. Perhaps the milk tube is not connected to the milk container lid. Connect |
|
|
the milk tube to the milk container lid. Make sure that you push the milk |
|
|
tube far enough onto the connector so that the holes in the connector are |
|
|
covered. |
|
|

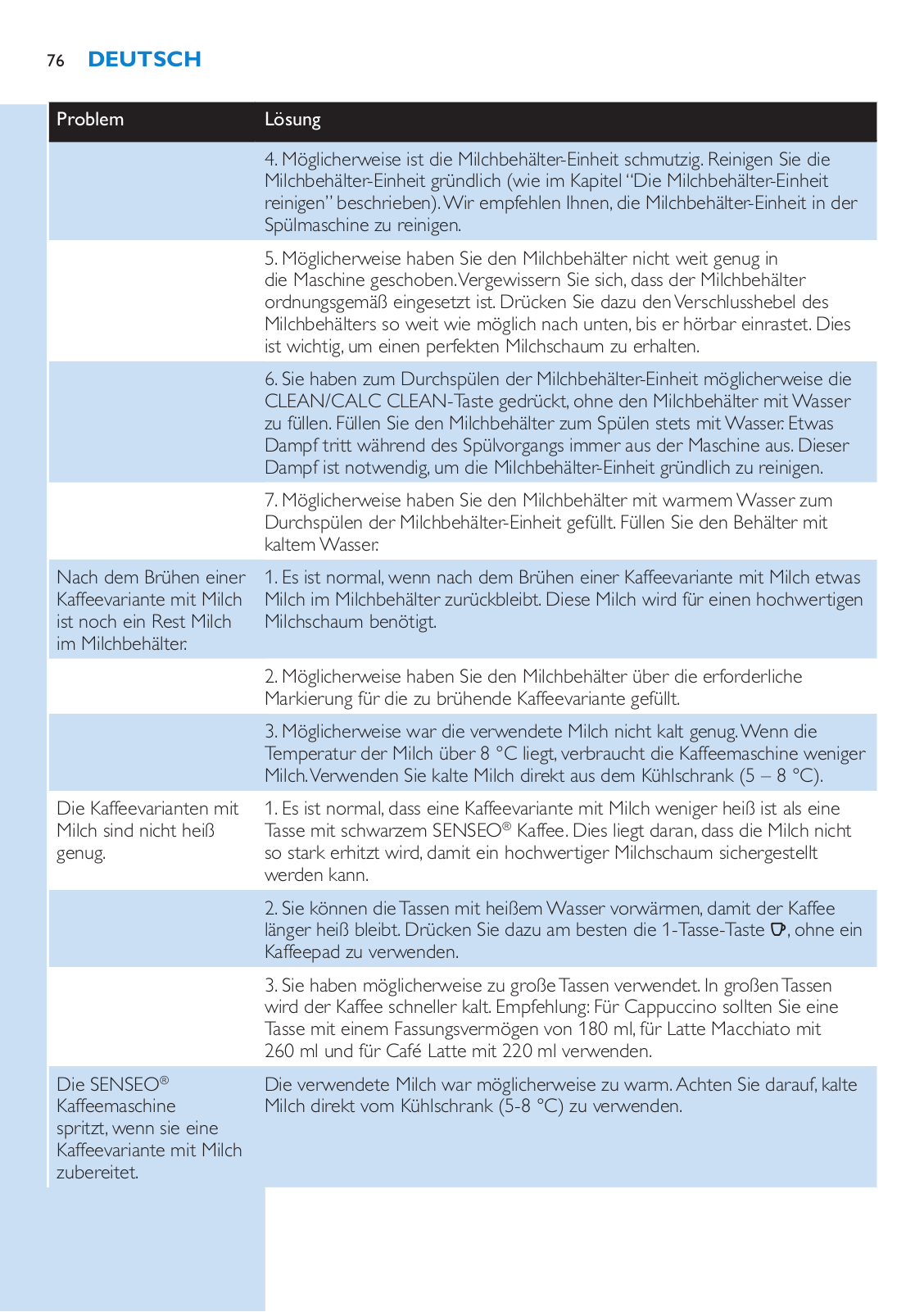

4. Perhaps the milk container unit is dirty. Clean the milk container |
|
|
unit thoroughly as described in chapter ‘Cleaning the milk container unit’.We |
|
|
advise you to clean the milk container unit in the dishwasher. |
|
|
5. Perhaps you did not push the milk container far enough into the machine. |
|
|
Make sure that the milk container is placed properly by pushing down the |
|
|
milk container lever as far as possible (‘click’).This is necessary to ensure |
|
|
proper frothing results. |
|
|
6.You may have pressed the CLEAN/CALC CLEAN button to rinse the milk |
|
|
container unit without putting water in the milk container first. Make sure that |
|
|
you always fill the milk container with water to rinse it. Some steam always |
|
|
escapes from the machine during the rinsing process.This steam is necessary |
|
|
to clean the milk container unit thoroughly. |
|
|
7.You may have filled the milk container with warm water to rinse the milk |
|
|
container unit. Fill the milk reservoir with cold water. |
|
|
|
28 English
|
Problem |
Solution |
|
There is some milk left |
1. It is normal that there is some milk left in the milk container after you have |
|
in the milk container |
brewed a coffee variety with milk.This extra milk is required to ensure high- |
|
after brewing a coffee |
quality frothed milk. |
|
variety with milk. |
|
|
|
2. Perhaps you filled the milk container beyond the level required for the |
|
|
coffee variety you wanted to brew. |
|
|
3. You may have used milk that is not cold enough. If the milk temperature is |
|
|
above the 8°C, the machine uses less milk. Make sure that you use cold milk |
|
|
straight from the refrigerator (5-8°C). |
|

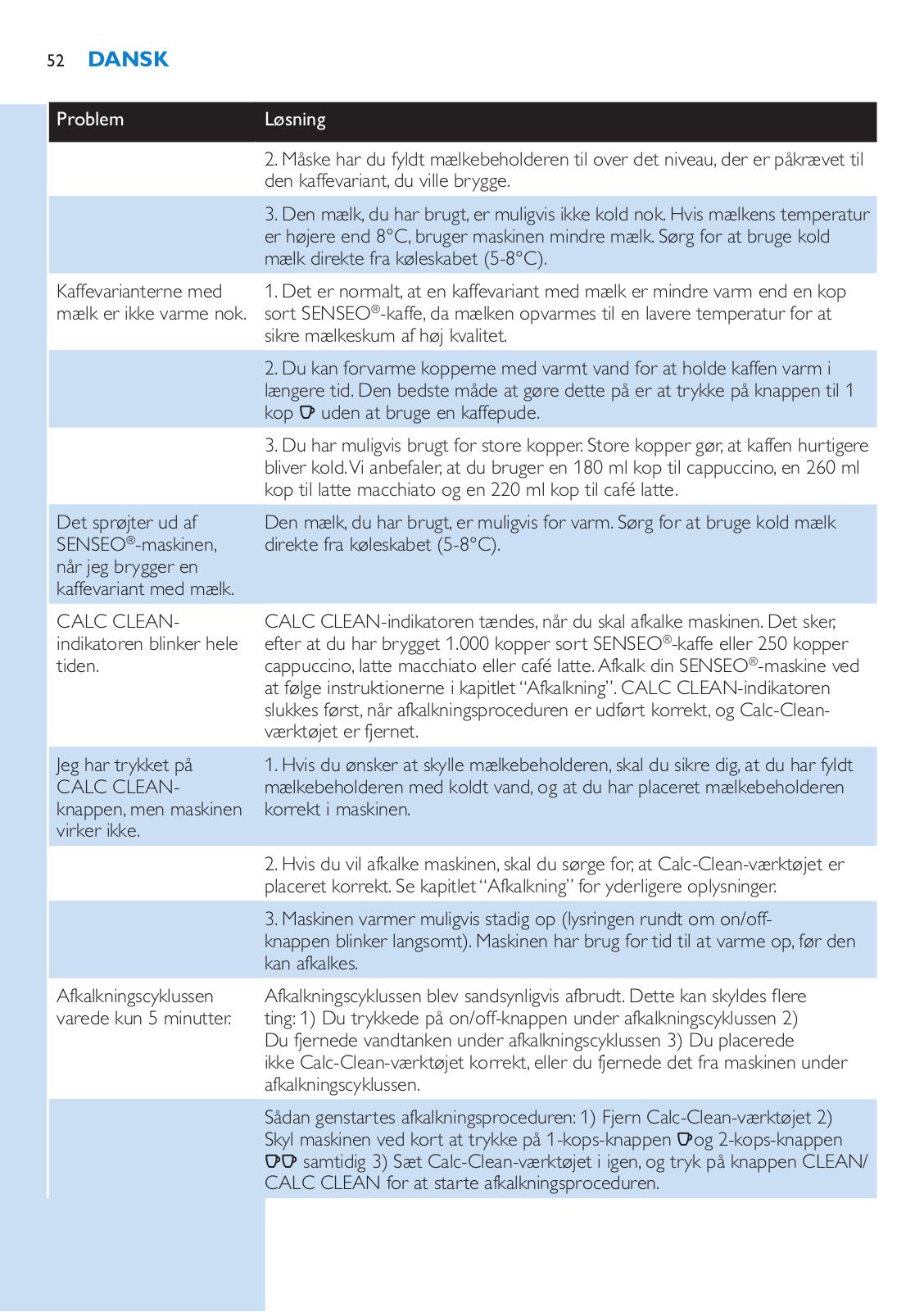

The coffee varieties |
1. It is normal that a coffee variety with milk is less hot than a cup of |
|
with milk are not hot |
SENSEO® black coffee, as the milk is heated to a lower temperature to |
|
enough. |
ensure high-quality frothed milk. |
|
|
2.You can preheat the cups with hot water to keep the coffee hot longer.The |
|
|
best way to do this is by pressing the 1-cup button q without using a coffee |
|
|
pod. |
|
|
3.You may have used cups that are too large. Large cups cause the coffee to |
|
|
get cold more quickly.We advise you to use a 180ml cup for cappuccino, a |
|
|
260ml cup for latte macchiato and a 220ml cup for caffè latte. |
|
The SENSEO® machine |
You may have used milk that is too warm. Make sure that you use cold milk |
|
splatters when it brews |
straight from the refrigerator (5-8°C). |
|
a coffee variety with |
|
|
milk. |
|
|
The CALC CLEAN |
The CALC CLEAN indicator goes on when you need to descale the |
|
indicator lights up |
machine.This happens after 1000 cups of SENSEO® black coffee or 250 cups |
|
continuously. |
of cappuccino, latte macchiato or caffè latte have been brewed.To descale |
|
|
your SENSEO® machine, follow the instructions in chapter‘Descaling’.The |
|
|
CALC CLEAN indicator only goes out after the descaling procedure has |
|
|
been performed correctly and the Calc-Clean tool has been removed. |
|
I pressed the CLEAN/ |
1. If you want to rinse the milk container unit, make sure that you fill the milk |
|
CALC CLEAN button, |
container with cold water and that you insert the milk container unit properly |
|
but the machine does |
into the machine. |
|
not work. |
|
|
|
2. If you want to descale the machine, make sure that the Calc-Clean tool is |
|
|
placed correctly. See chapter ‘Descaling’ for more details. |
|
|
3. Perhaps the machine is still heating up (the light ring around the on/off |
|
|
button flashes slowly).The machine needs some time to heat up before |
|
|
descaling is possible. |
|
The descaling cycle |
The descaling cycle was probably interrupted.This can have several causes: 1) |
|
lasted only 5 minutes. |
You pressed the on/off button during the descaling cycle 2) You removed the |
|
|
water reservoir during the descaling cycle 3) You did not place the Calc-Clean |
|
|
tool correctly or removed it from the machine during the descaling cycle. |
|
|
|
English 29
Problem |
Solution |
The light ring around the on/off button continues to flash rapidly.
The SENSEO® machine produces more sound than usual.
I do not know what types of milk to use.
I do not know how to use the SENSEO® machine to produce frothed milk only.
To restart the descaling procedure: 1) Remove the Calc-Clean tool 2) Flush the machine by pressing the 1-cup button qand the 2-cup button qq briefly at the same time 3) Reinsert the Calc-Clean tool and press the CLEAN/ CALC CLEAN button to start the descaling procedure.
1.When the light ring around the on/off button flashes, there is not enough water in the water reservoir to brew coffee.To brew coffee, the water in the water reservoir must be above the MIN level.
2.You may have selected a coffee variety with milk (cappuccino, caffè latte or latte macchiato) while the milk container unit is not placed in the machine or is not placed in the machine correctly. Place the milk container unit filled with milk in the machine if you want to brew a coffee variety with milk.
3.The water reservoir has not been placed properly. Remove the water reservoir and put it back onto the machine in the correct position.
4.Perhaps the lid is not locked. Check if the lid lever is locked properly.
5.You may be using the SENSEO® machine in a room with a temperature below 10°C.The SENSEO® machine does not work below 10°C. Check if the SENSEO® machine functions normally when you use it in a room with a temperature above 10°C.
1.When the machine froths milk for a coffee variety with milk, it is perfectly normal that it produces more sound than when it brews SENSEO® black coffee.
2.Perhaps the cover of the milk container lid is not closed properly. Always close the cover properly (‘click’) before you slide the milk container unit back into the machine.
To get the best milk froth, we advise you to use semi-skimmed cow’s milk.
Other types of milk (e.g rice milk or soy milk) do not produce high-quality frothed milk.
It is not possible to make frothed milk only.The machine has been designed to produce coffee varieties with fresh frothed milk.
Indholdsfortegnelse
Introduktion 30
Generel beskrivelse 30
Vigtigt 31
Før apparatet tages i brug 32
Brygning af SENSEO®-kaffe 34
Rengøring af mælkebeholderen 40
Rengøring af maskinen 43
Afkalkning 47
Frostfri opbevaring 50
Udskiftning 50
Miljøhensyn 50
Reklamationsret og service 50
Fejlfinding 50
Introduktion
Tillykke med dit køb og velkommen til Philips! For at få fuldt udbytte af den support, Philips tilbyder, skal du registrere dit produkt på www.philips.com/welcome.
Få en hel særlig kaffeoplevelse med SENSEO®. Dette enestående system kombinerer Philips’ brugervenlige SENSEO®-kaffemaskine med
de specialudviklede Merrild SENSEO®-kaffepuder, der giver en fyldig, rund smag med et lækkert skumlag.
SENSEO® Latte Select-kaffemaskinen tilbyder dig lækre kaffespecialiteter lavet med frisk mælkeskum.Vælg mellem cappuccino, latte macchiato, café latte og almindelig sort SENSEO®-kaffe – alt sammen ved blot at trykke på en knap.
Generel beskrivelse (fig. 1)
1Vandtank
2Betjeningspanel A Kaffevælger
B Sort SENSEO®-kaffe-indikator C Cappuccino-indikator
D Latte macchiato-indikator
E Café latte-indikator
F Knappen CLEAN/CALC CLEAN G CALC CLEAN-indikator
HCLEAN-indikator
IIndikator for stærk sort kaffe
JIndikator for normal sort kaffe
KIndikator for mild sort kaffe
LSmagsvælger
3Udløser til låg
4Tætningsring
5Vandtilførselsplade
6Udløser til mælkebeholder
7Højdejusteringsknap til drypbakke
8Koprist
9Drypbakke
10Lysringe
