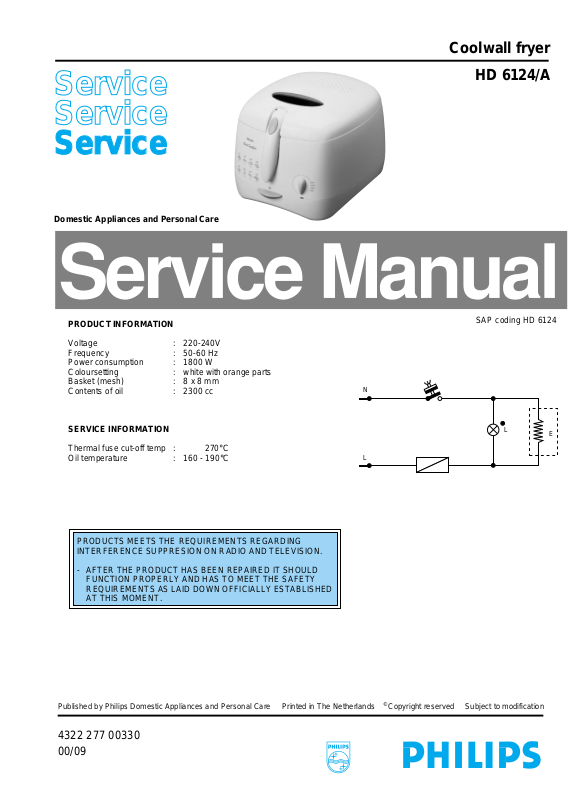

Philips HD 6124-A Service Manual

Service
Service

Service

Domestic Appliances and Personal Care

Coolwall fryer

HD 6124/A

PRODUCT INFORMATION

Voltage
Frequency
Power consumption
Coloursetting
Basket (mesh)
Contents of oil

SERVICE INFORMATION

Thermal fuse cut-off temp
Oil temperature

PRODUCTS MEETS THE REQUIREMENTS REGARDING
INTERFERENCE SUPPRESION ON RADIO AND TELEVISION.

- AFTER THE PRODUCT HAS BEEN REPAIRED IT SHOULD
FUNCTION PROPERLY AND HAS TO MEET THE SAFETY
REQUIREMENTS AS LAID DOWN OFFICIALLY ESTABLISHED
AT THIS MOMENT.

:

220-240V

:

50-60 Hz

:

1800 W

:

white with orange parts

:

8 x 8 mm

:

2300 cc

:

270°C

:

160 - 190°C

SAP coding HD 6124

N

L

L

E

Published by Philips Domestic Appliances and Personal Care Printed in The Netherlands Copyright reserved Subject to modification

©

4322 277 00330
00/09

HD 6124/A

1

20
21
22

10
11

12
13

14
15

16
30

17
18

2

23

24

25
26

3
4
5

27

6

7

28

8

9

31

29

1 9965 000 03673 Basket
2 9965 000 03676 Handle
3 9965 000 03736 Bowl with heater
4 9965 000 03678 Fuse clamp
5 9965 000 03679 Fuse
6 9965 000 03680 Thermostat
7 9965 000 03732 Base metal spacer
8 9965 000 03733 Insulation ring

9 9965 000 03734 Condensation chamber
10 9965 000 03681 Reflector
11 9965 000 03682 Hook
12 9965 000 03683 Lid release lever
13 9965 000 03684 Lid release adaptor
14 9965 000 03685 Lid release button
15 9965 000 03686 Lid release button spring
16 not available Main housing
17 9965 000 03687 Temp. control knob
18 9965 000 03688 Lens
19 9965 000 03735 Base spacer
20 9965 000 03689 Hinge spring
21 9965 000 03690 Hinge spring right
22 9965 000 03691 Hinge shaft
23 9965 000 03692 Hinge
24 9965 000 03693 Lid
25 9965 000 03694 Filter
26 9965 000 03695 Glass
27 9965 000 03696 Lid plate
28 9965 000 03697 Lid seal
29 9965 000 03698 Cord set
30 9965 000 05533 Switch
31 9965 000 06551 Timer assy
