Philips HD5730-10 Operating Instructions

HD5730

A				1

B

C

D

E

F

G

			2
			A
			I
			B
			C
1	2	3	4
			J

D

E

F

G

H

K

8

1

2

3

4

5

6

7

L

M

N

O

P

English 6

Čeština 32 Eesti 60 Hrvatski 85 Magyar 113 Lietuviškai 137 Latviešu 163 Polski 189 Română 216

Русский 242

Slovensky 270 Slovenščina 297

HD5730

English

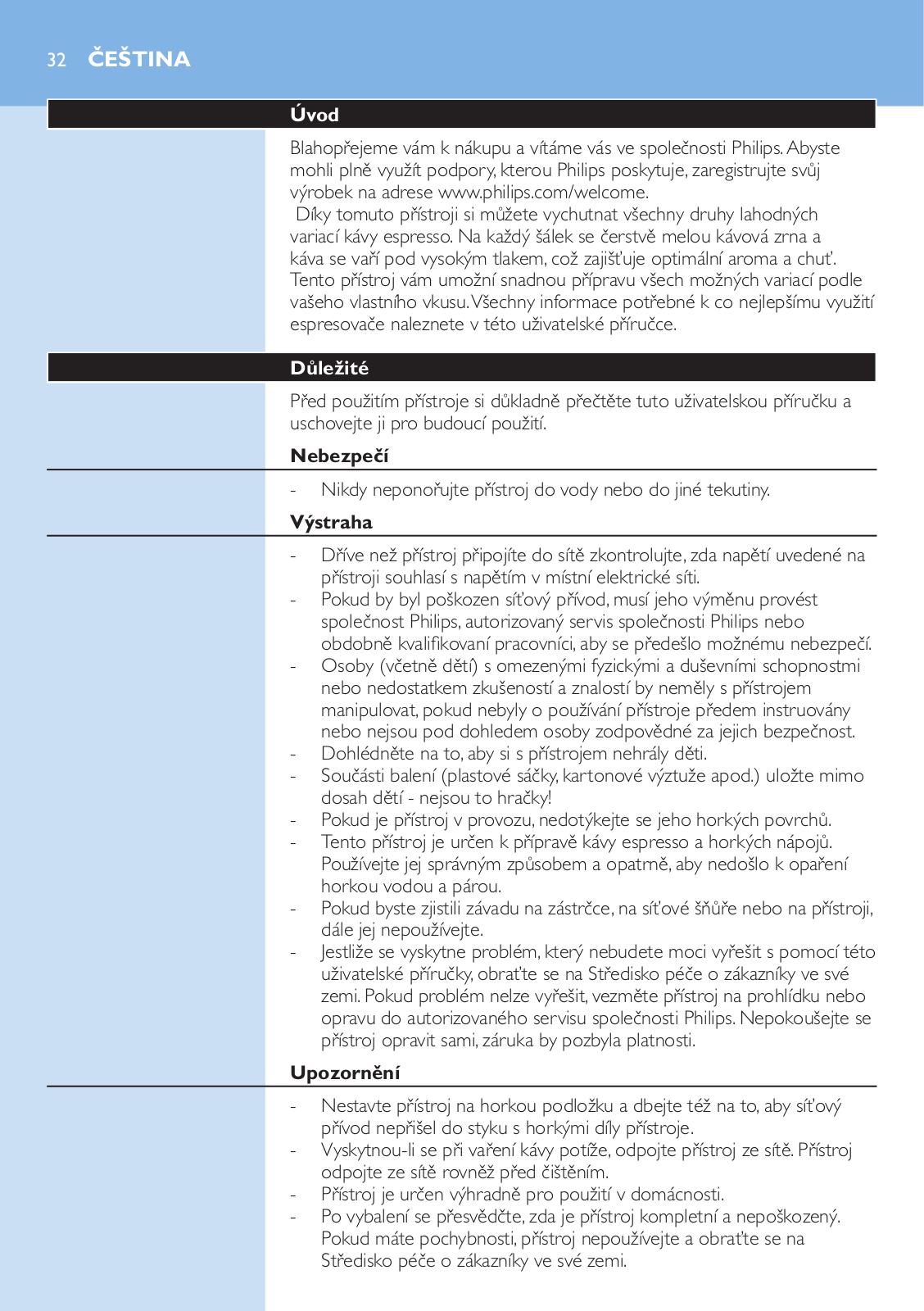

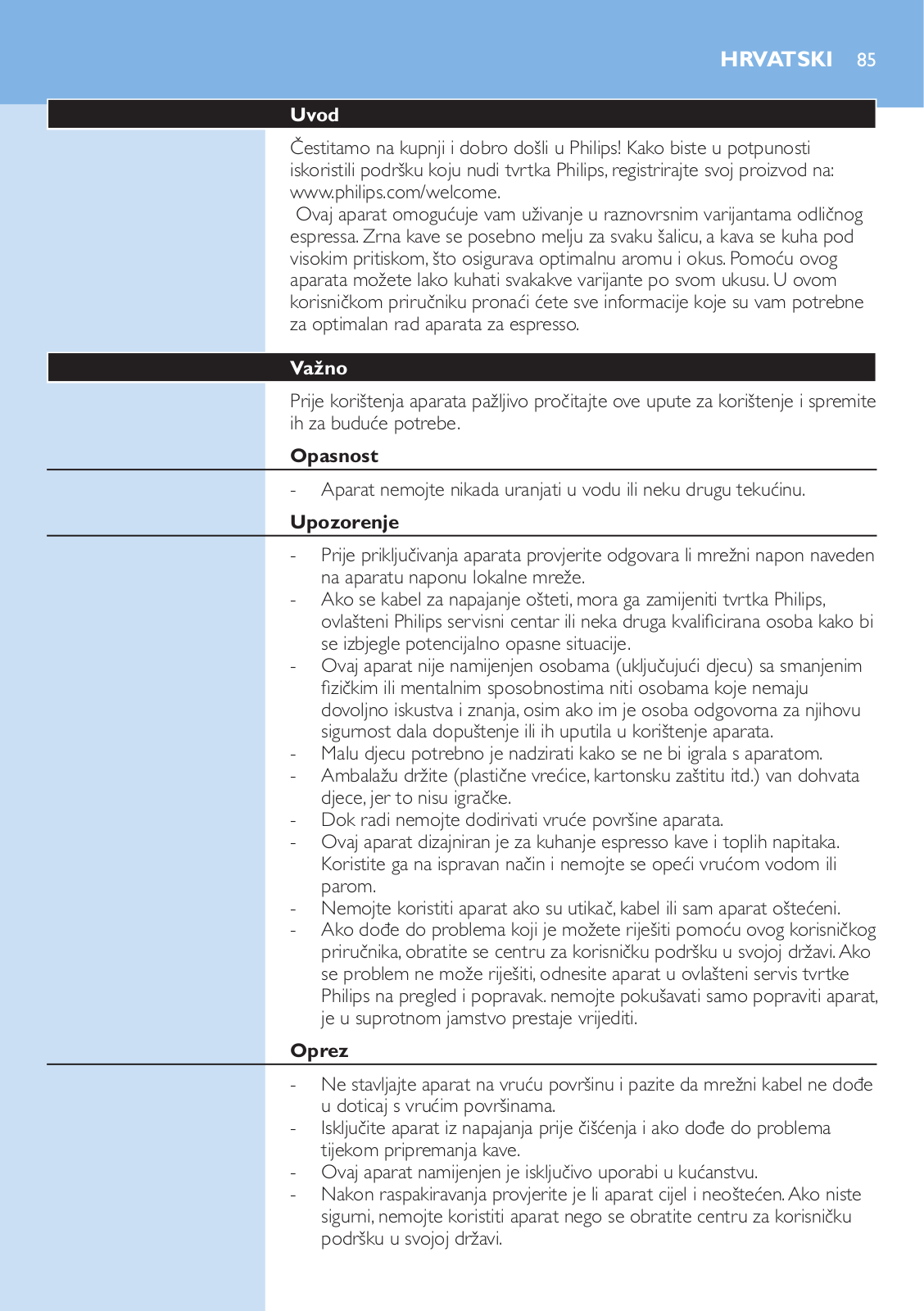

Introduction

Congratulations on your purchase and welcome to Philips!To fully benefit from the support that Philips offers, register your product at www.philips. com/welcome.

With this appliance you can enjoy all kinds of great-tasting espresso variations. For every cup, coffee beans are freshly ground and coffee is brewed at high pressure, which ensures optimal aroma and taste.With this appliance, you can easily make all kinds of variations according to your own preference. In this user manual you find all the information you need to optimally enjoy your espresso maker.

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

-Never immerse the appliance in water or any other liquid.

Warning

-Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.

-If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

-This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

-Children should be supervised to ensure that they do not play with the appliance.

-Keep the packaging elements (plastic bags, cardboard buffers, etc.) out of the reach of children, as they are not a toy.

-Do not touch the hot surfaces of the appliance when it operates.

-This appliance is designed to make espresso coffee and hot drinks. Use it correctly and with care to avoid scalding by hot water and steam.

-Do not use the appliance if the plug, the cord or the appliance itself is damaged.

-If a problem occurs that you cannot solve by means of this user manual, contact the Customer Care Centre in your country. If the problem cannot be solved, take the appliance to a service centre authorised

by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise your guarantee becomes invalid.

Caution

-Do not place the appliance on a hot surface and prevent the mains cord from coming into contact with hot surfaces.

-Unplug the appliance if problems occur during brewing and before you clean it.

-This appliance is intended for household use only.

English

-After unpacking, make sure the appliance is complete and undamaged. If in doubt, do not use the appliance but contact the Customer Care Centre in your country.

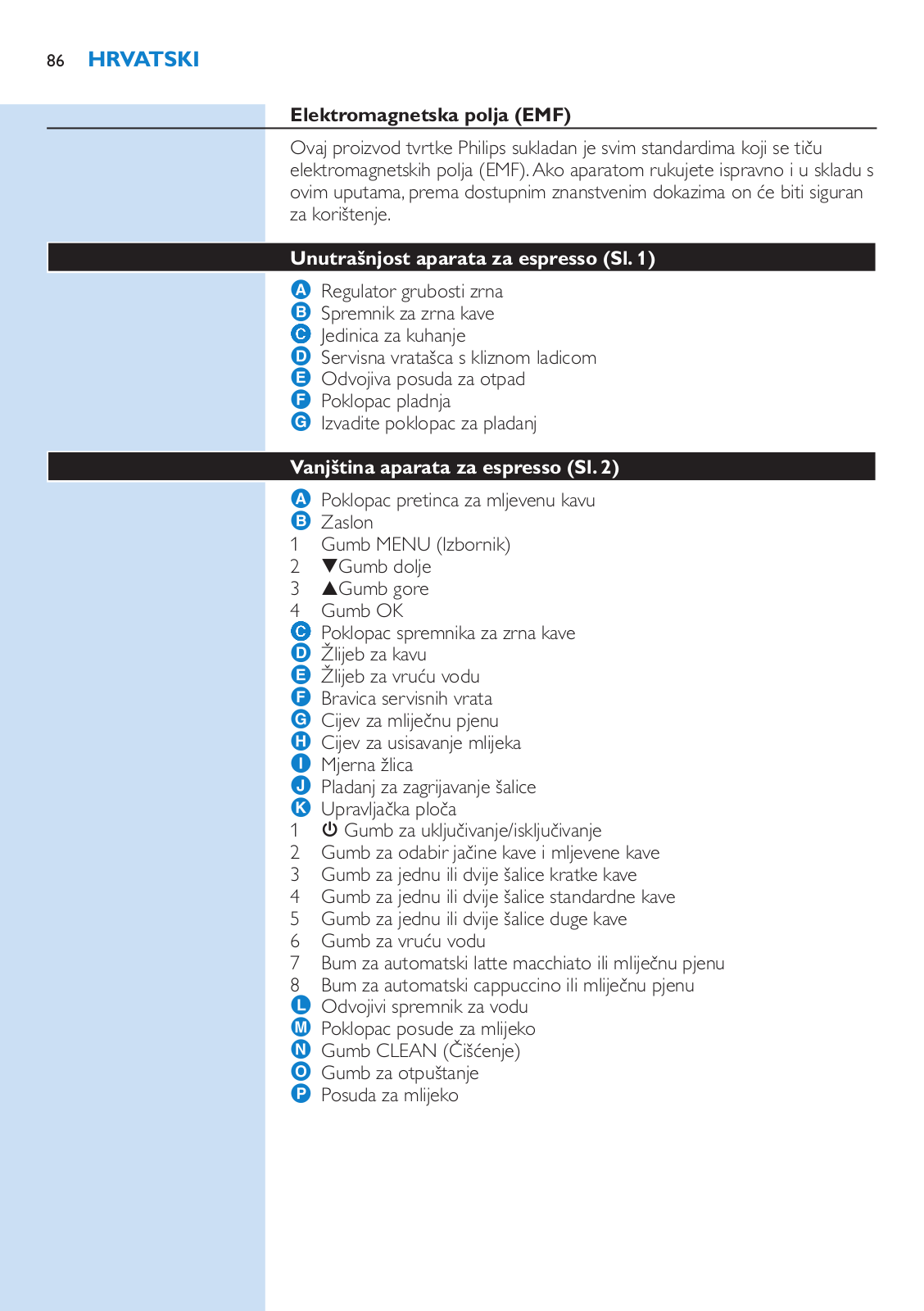

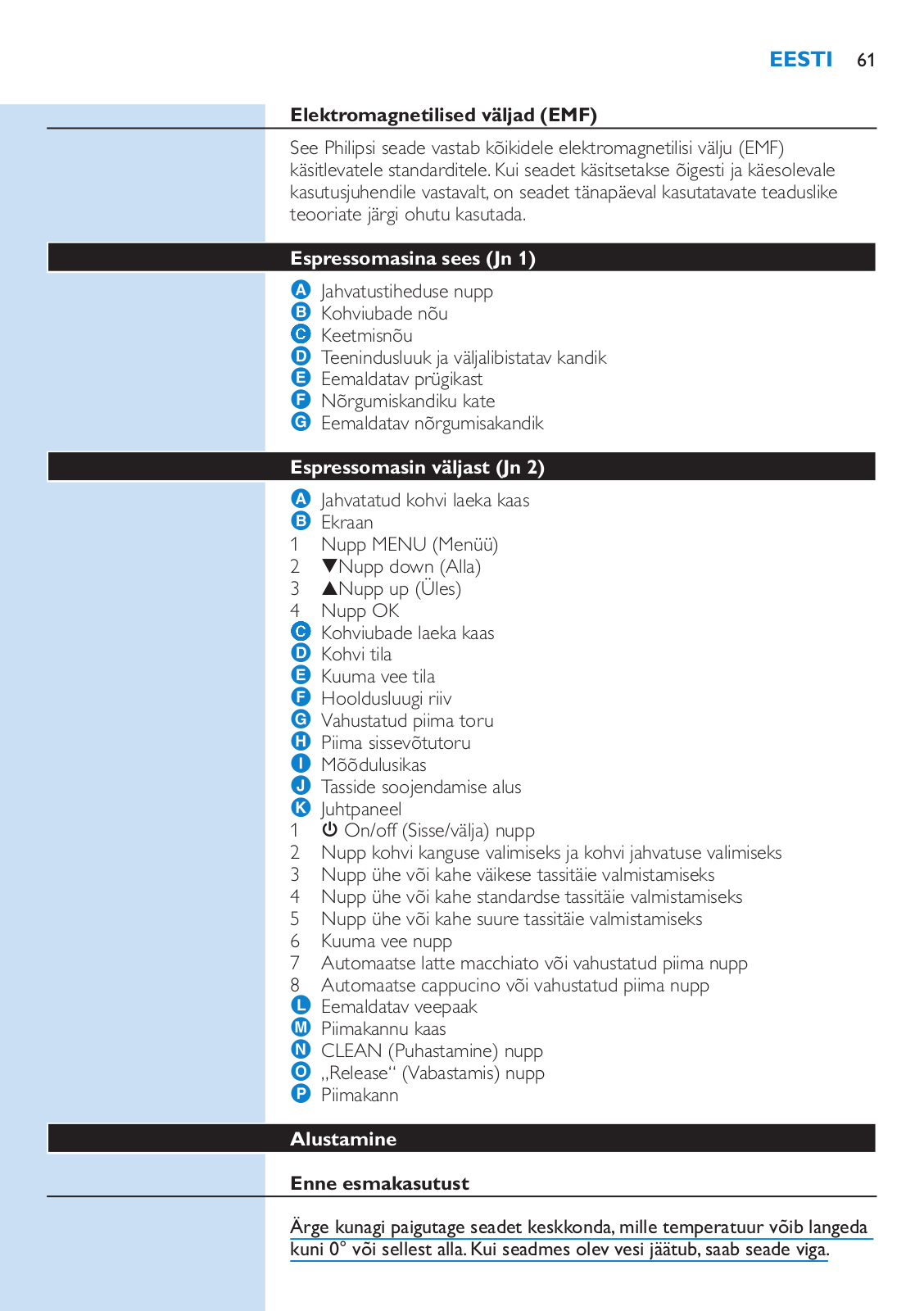

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Inside of espresso maker (Fig.1)

AGrinding coarseness knob

BCoffee bean container

CBrewing unit

DService door with slide-out tray

ERemovable waste bin

FDrip tray cover

GRemovable drip tray

Outside of espresso maker (Fig.2)

ALid of ground coffee compartment

BDisplay

1 MENU button

2^Button down

3%Button up

4OK button

C Lid of coffee bean container D Coffee spout

E Hot water spout F Service door latch

G Milk frothing pipe H Milk intake tube I Measuring spoon

J Cup warmer tray K Control panel

1 3 On/off button

2 Button to select coffee strength and to select ground coffee 3 Button for one or two cups of short coffee

4 Button for one or two cups of standard coffee 5 Button for one or two cups of long coffee

6 Button for hot water

7 Button for automatic latte macchiato or frothed milk

8 Button for automatic cappuccino or frothed milk L Removable water tank

M Milk jug lid N CLEAN button

O Release button

P Milk jug

English

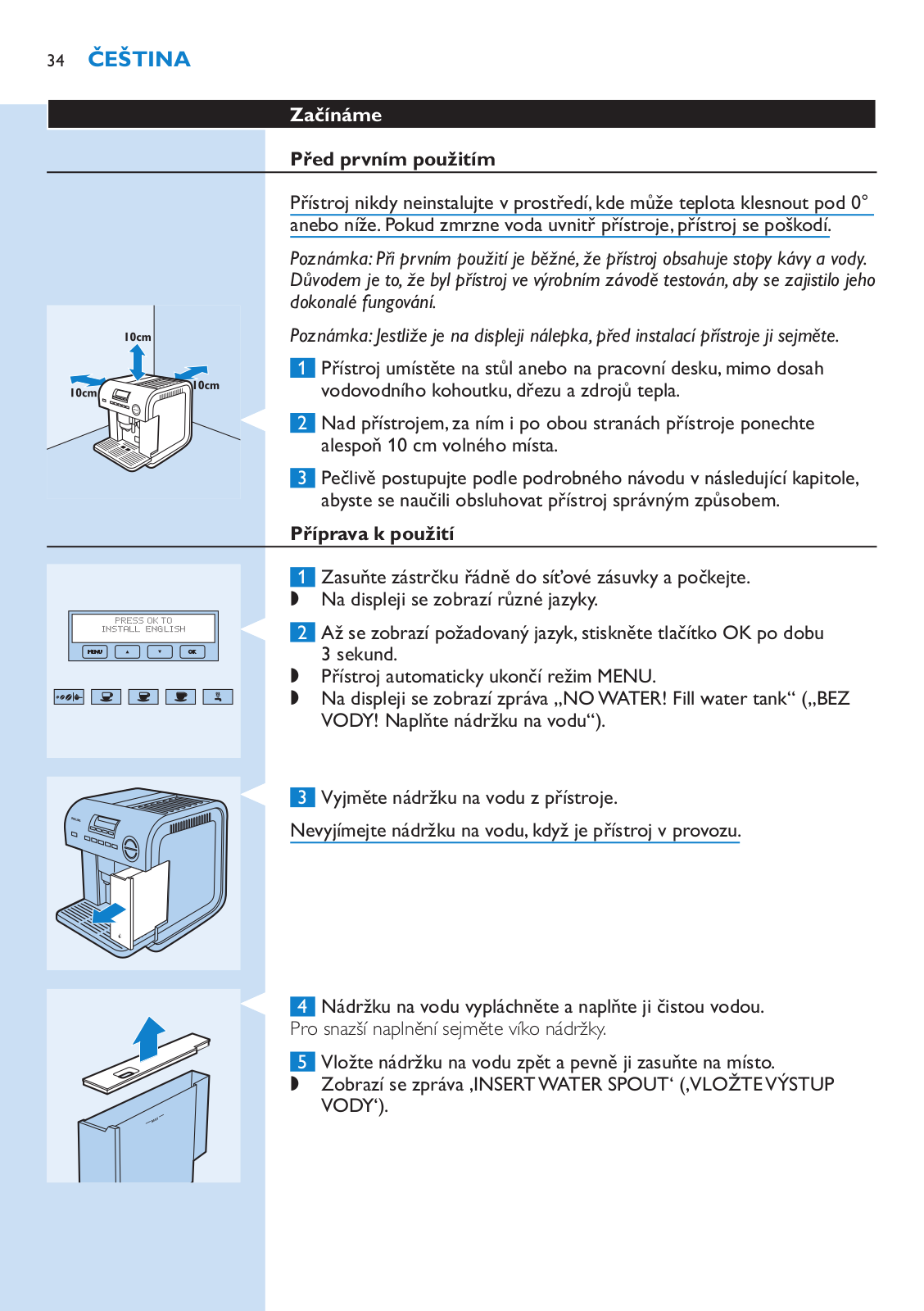

Getting started

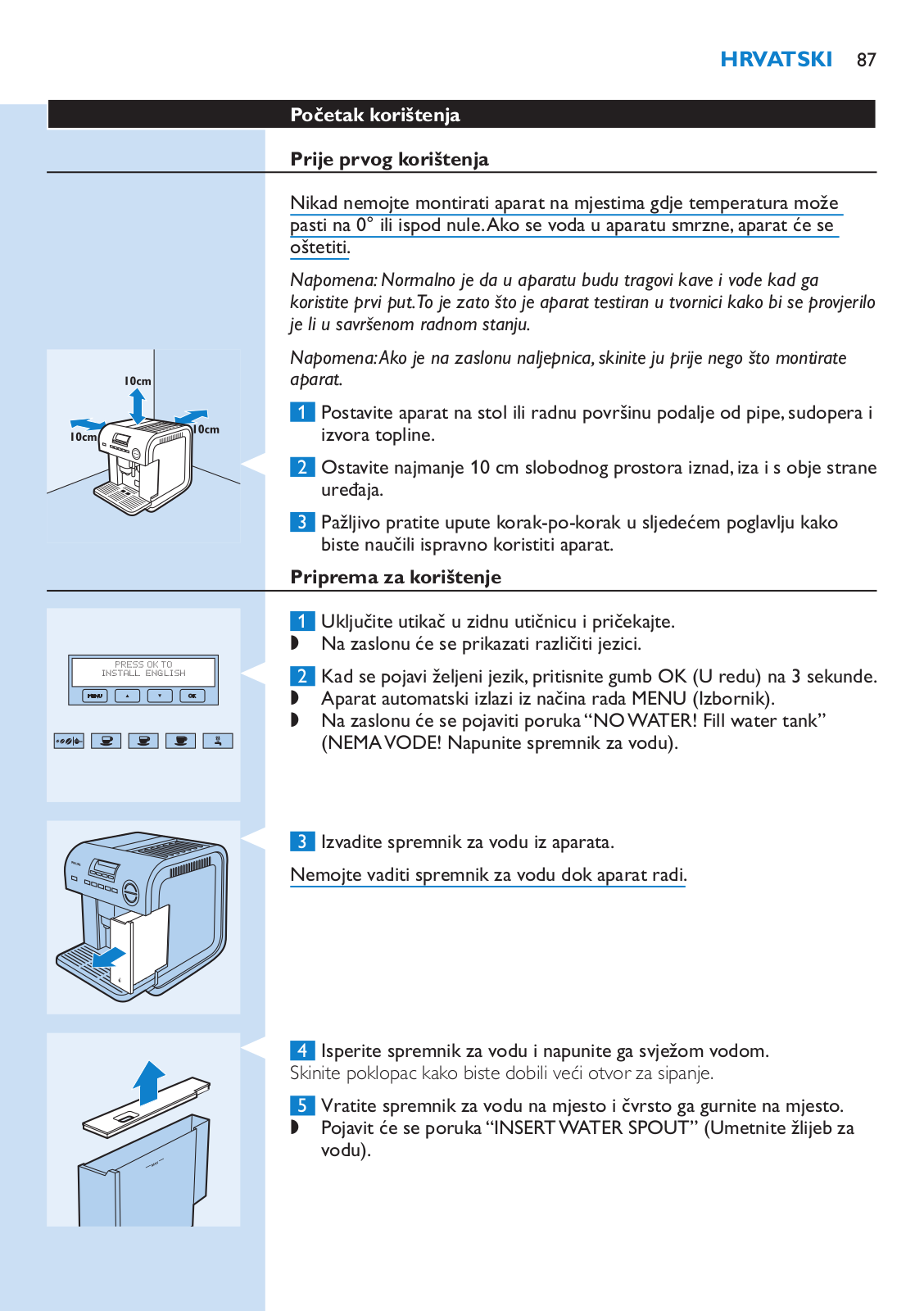

Before first use

Never install the appliance in environments where the temperature may drop to 0° or below. If the water inside the appliance freezes, the appliance will be damaged.

Note: It is normal that there are some traces of coffee and water in the appliance when you use it for the first time.This is because the appliance has been tested in the factory to make sure it is in perfect working order.

Note:If there is a sticker on the display,remove the sticker before you install the appliance.

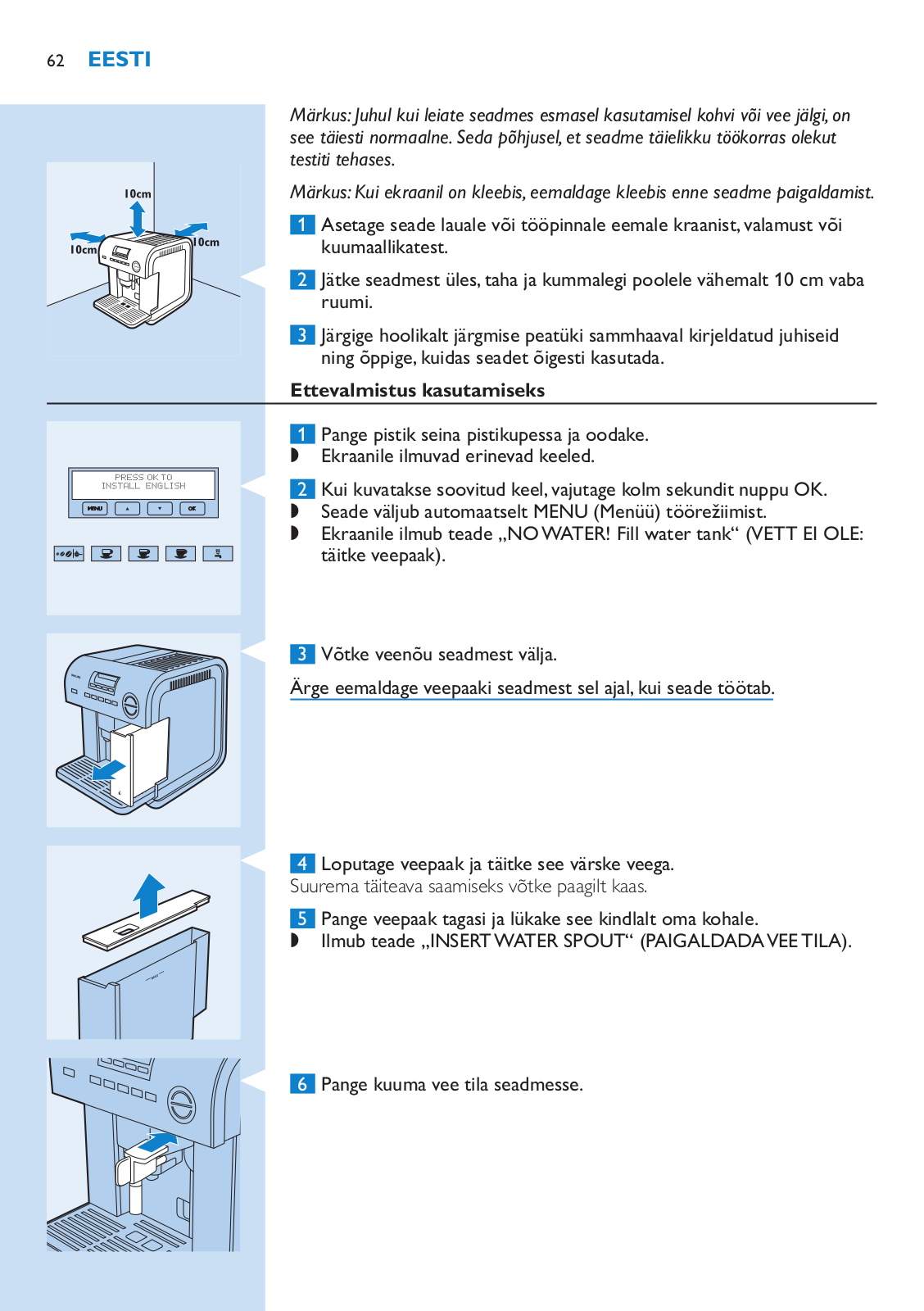

1 Place the appliance on a table or worktop away from the tap, the sink and heat sources.

Leave a free space of at least 10cm above, behind and on both sides of the appliance.

3Carefully follow the step-by-step instructions in the following chapter to learn how to use the appliance correctly.

Preparing for use

1Put the plug in the wall socket and wait.

,Different languages appear on the display.

Press the OK button for 3 seconds when the desired language appears.

,The appliance automatically exits the MENU mode.

, The message ‘NO WATER! Fill water tank’ appears on the display.

Remove the water tank from the appliance.

Do not remove the water tank while the appliance is operating.

Rinse the water tank and fill it with fresh water.

Remove the lid to create a bigger filling opening.

5 Put the water tank back and push it firmly into place.

, The message ‘INSERT WATER SPOUT’ appears.

English

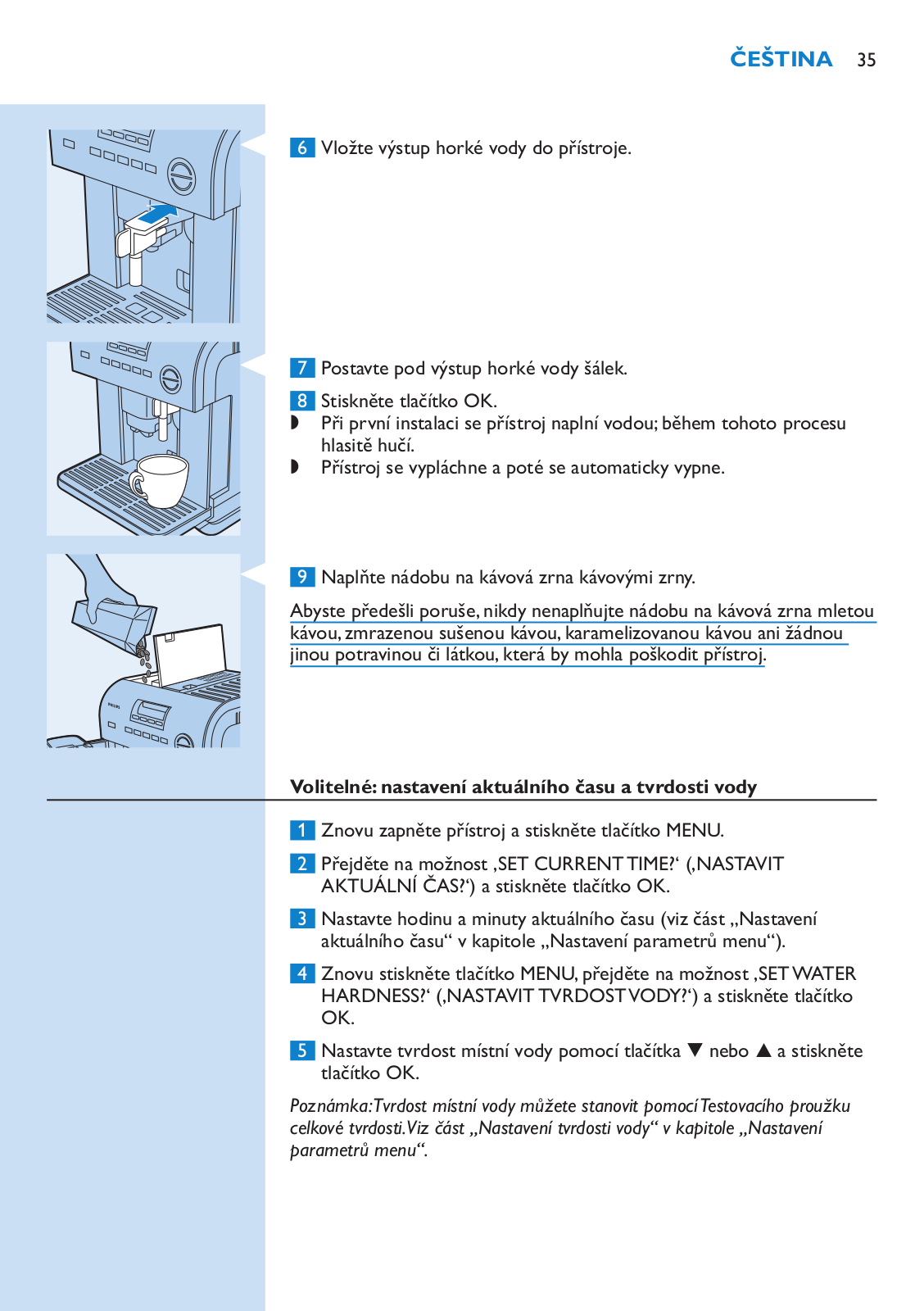

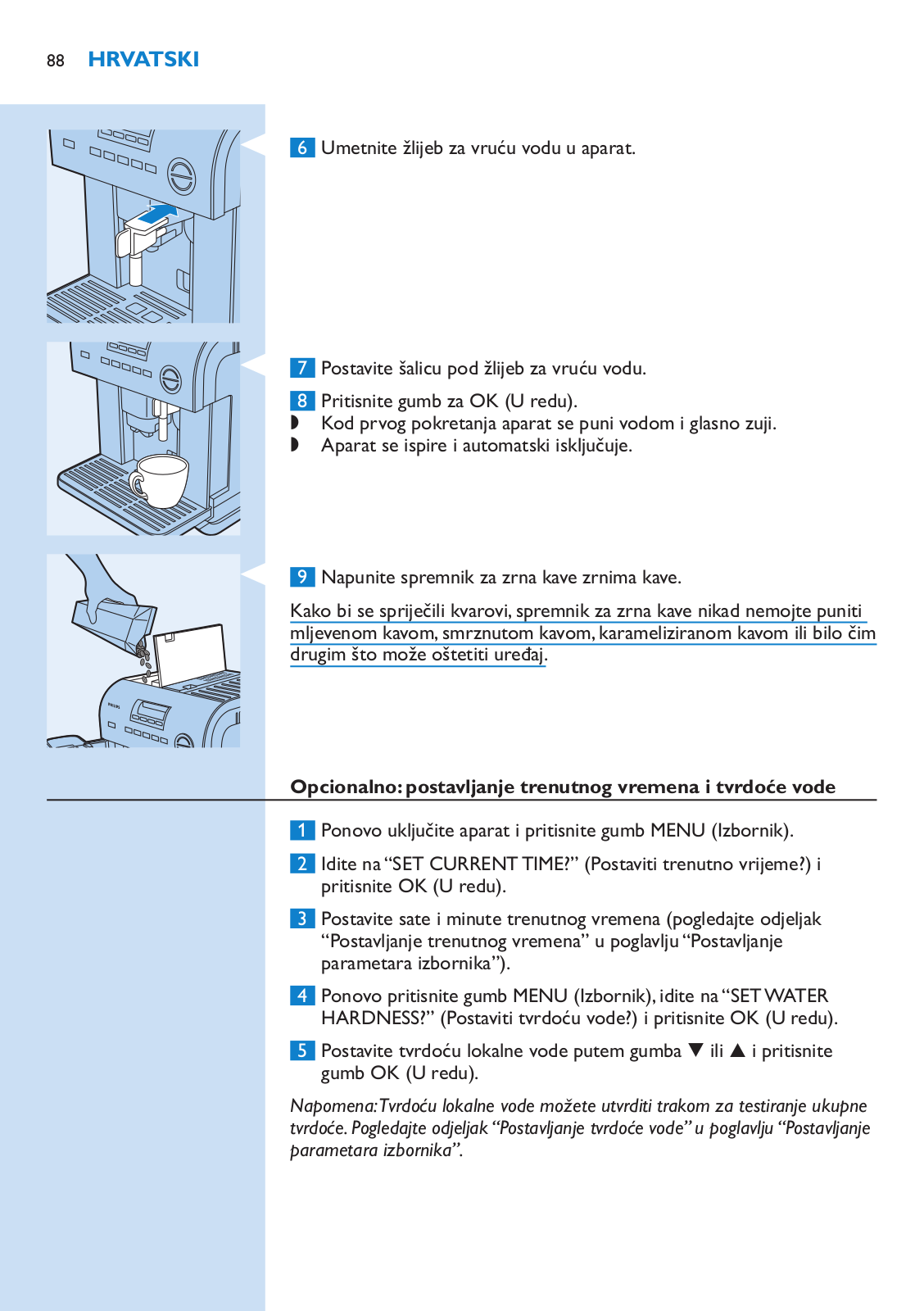

Insert the hot water spout into the appliance.

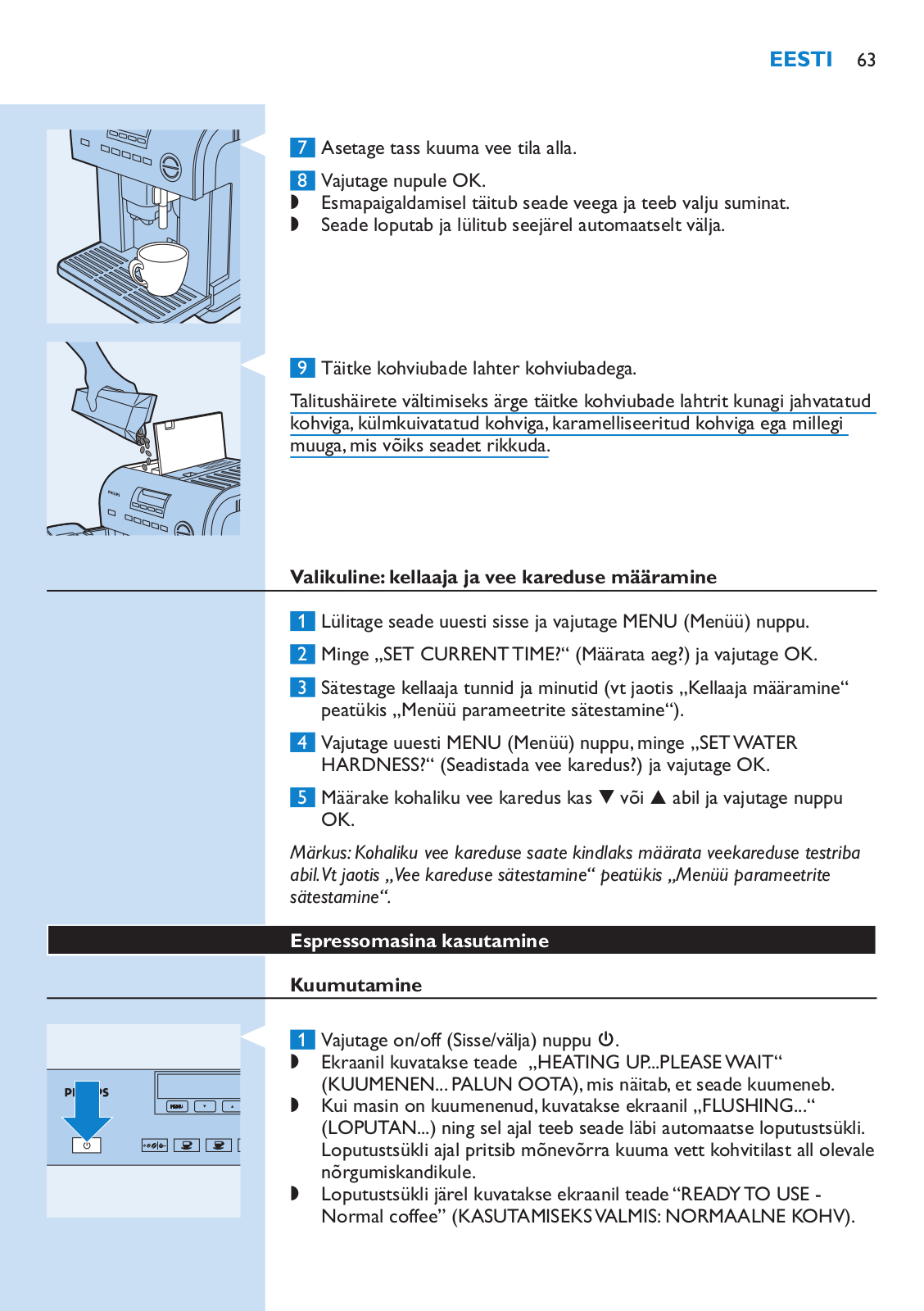

Place a cup under the hot water spout.

8Press the OK button.

,At first installation,the appliance fills with water and hums loudly in the process.

,The appliance flushes and then switches off automatically.

Fill the coffee bean container with coffee beans.

To prevent malfunction,never fill the coffee bean container with ground coffee, freeze-dried coffee, caramelised coffee or anything else that could damage the appliance.

Optional:setting current time and water hardness

1Switch on the appliance again and press the MENU button.

2Go to ‘SET CURRENT TIME?’ and press OK.

3Set the hours and minutes of the current time (see section ‘Setting current time’ in chapter ‘Setting menu parameters’).

4Press the MENU button again, go to ‘SET WATER HARDNESS?’ and press OK.

5Set the local water hardness with the ^ or % and press the OK button.

Note:You can determine the local water hardness with theTotal HardnessTest strip.See section‘Setting water hardness’in chapter‘Setting menu parameters’.

10 English

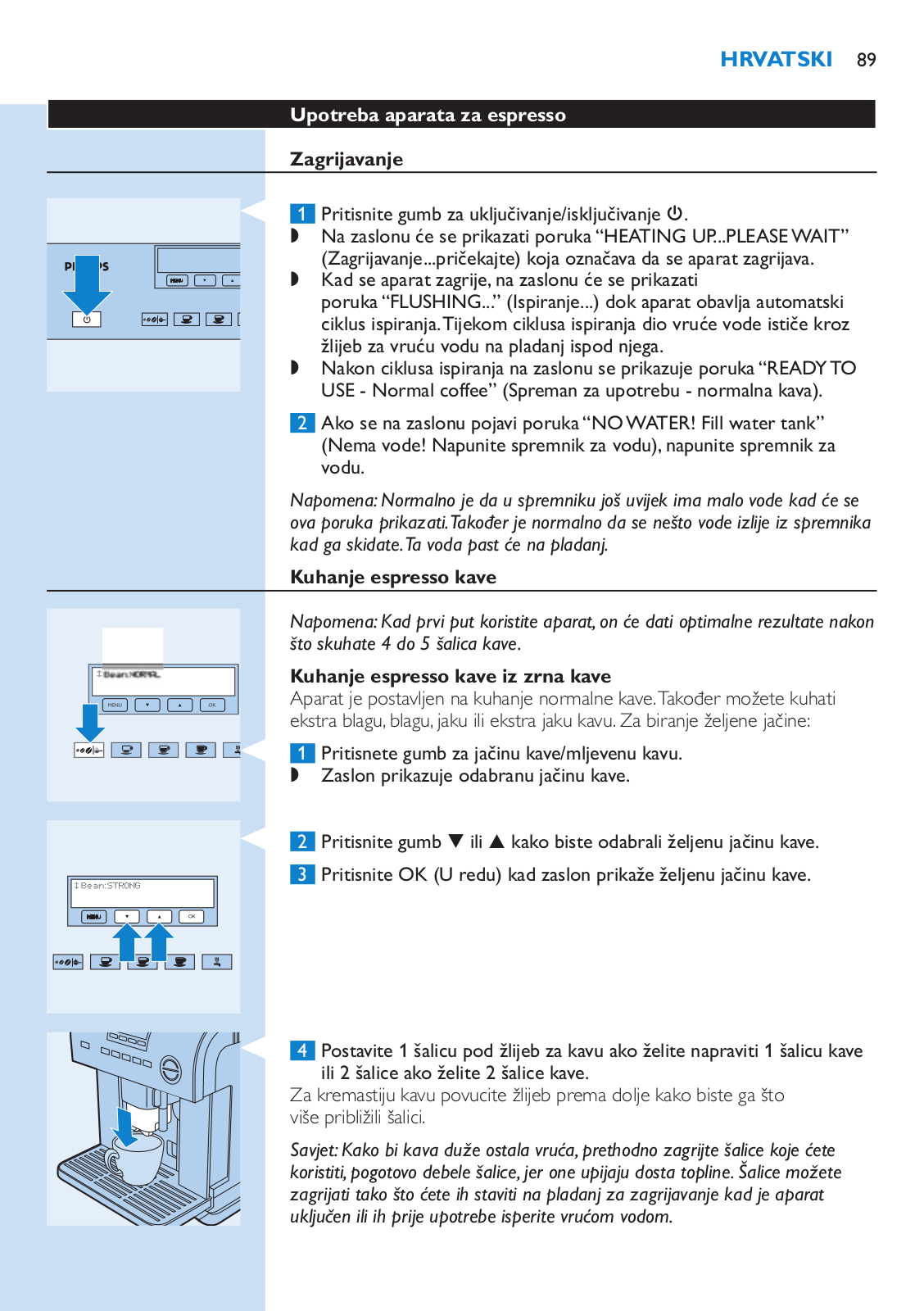

Using the espresso maker

Heating up

Press the on/off button 3.

The display shows the message ‘HEATING UP...PLEASE WAIT’ to indicate that the appliance is heating up.

, When the appliance has heated up, the display shows ‘FLUSHING...’ while the appliance performs an automatic flushing cycle.During the flushing cycle,some hot water flows out of the coffee spout into the drip tray below.

,After the flushing cycle,the display shows the message‘READYTO

USE - Normal coffee’.

2If the message ‘NO WATER! Fill water tank’ appears on the display, fill the water tank.

Note:It is normal that there is still some water in the water tank when this message is displayed.It is also normal that some water spills out of the water tank when you remove the water tank.This water runs into the drip tray.

Brewing espresso

Note:When you use the appliance for the first time,the appliance will yield optimal results after you have brewed 4 to 5 cups of coffee.

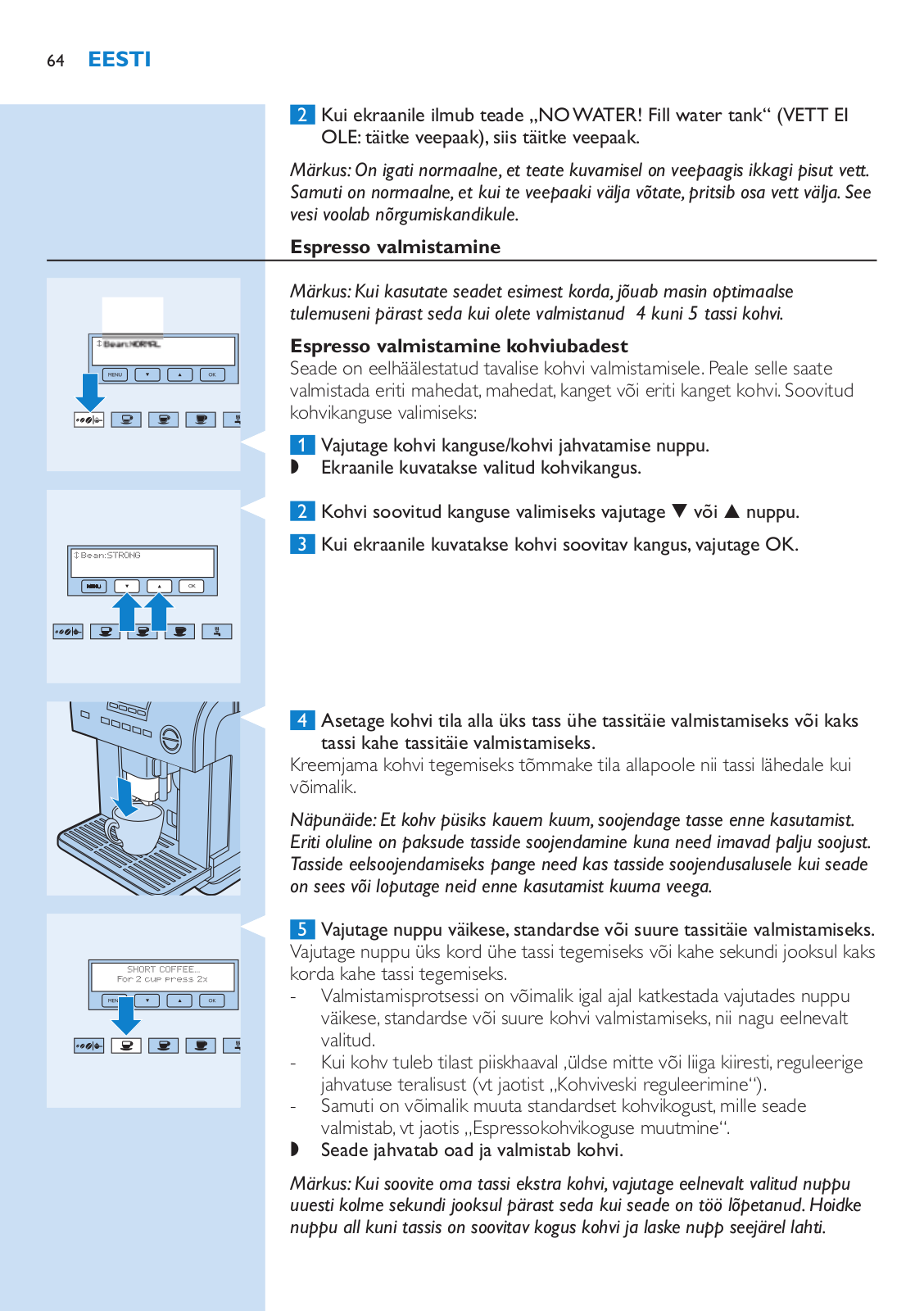

Brewing espresso from coffee beans

The appliance is preset to brew normal coffee.You can also brew extramild, mild, strong or extra-strong coffee.To choose the desired strength:

Press the coffee strength/ground coffee button. The display shows the selected coffee strength.

Press the ^ or % button to select the desired coffee strength. 3 Press OK when the display shows the desired coffee strength.

Place 1 cup under the coffee spout to make 1 cup of coffee or 2 cups to make 2 cups of coffee.

For creamier coffee, pull the spout downwards to bring it as close to the cups as possible.

Tip:To keep the coffee hot longer,preheat the cups you use.Especially heat up thick cups,as they absorb a lot of heat.To preheat the cups,put them on the cup warmer tray when the appliance is switched on or rinse them with hot water before use.

English 11

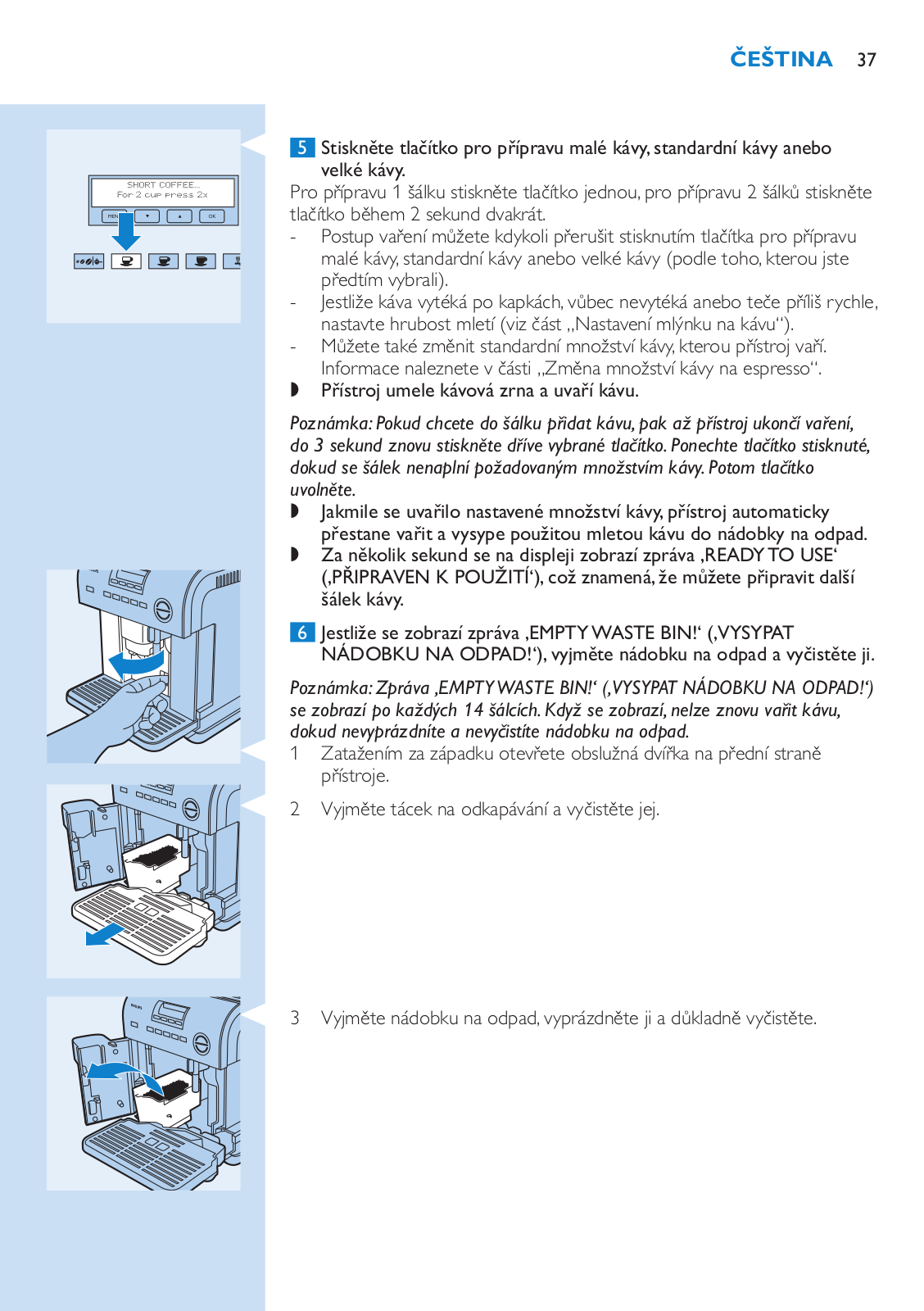

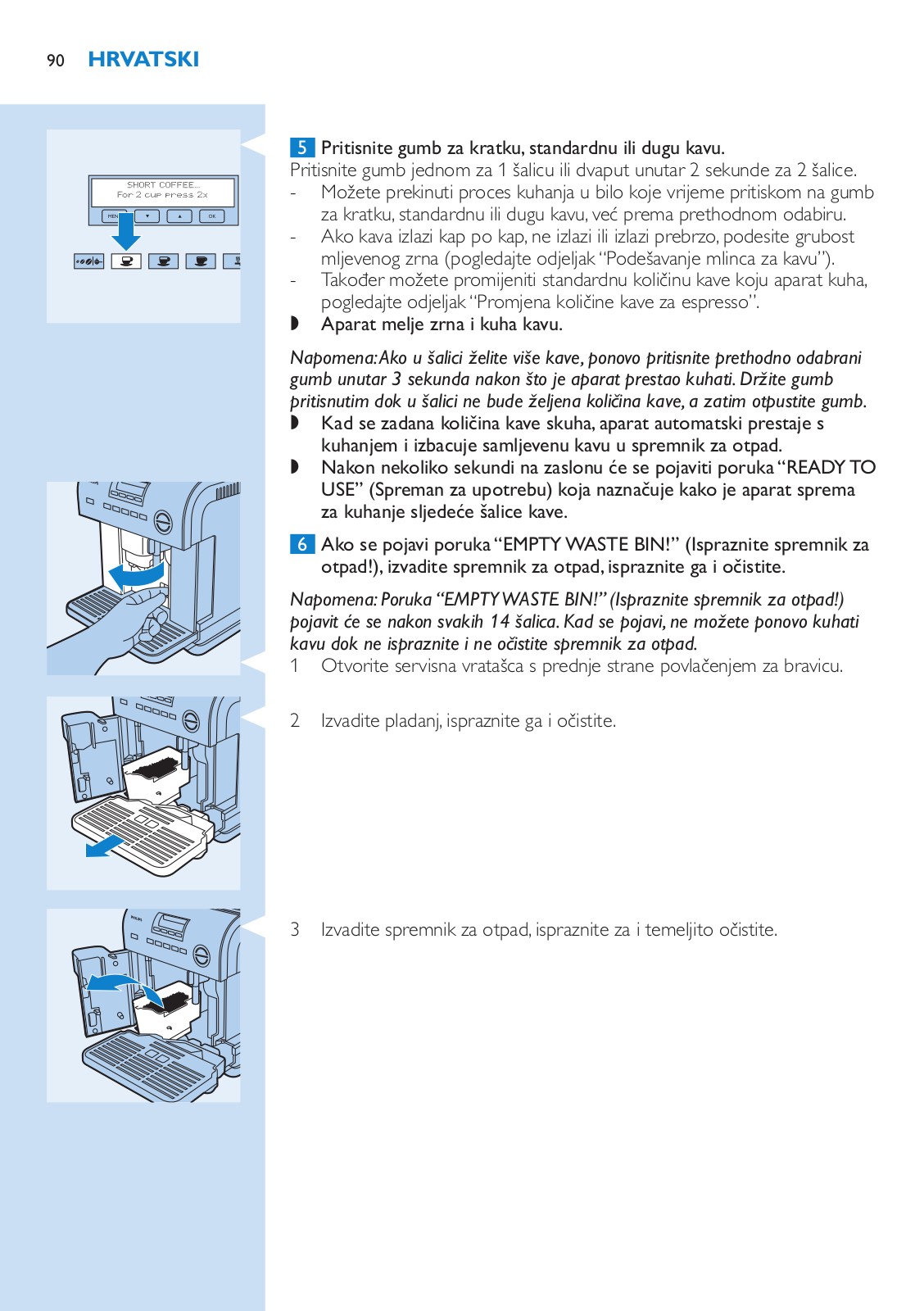

Press the button for short coffee, for standard coffee or for long coffee.

Press the button once for 1 cup or twice within 2 seconds for 2 cups.

-You can interrupt the brewing process at any time by pressing the button for short coffee, for standard coffee or for long coffee, as previously selected.

-If the coffee comes out one drop at a time, not at all or too fast, adjust

the grinding coarseness (see section ‘Adjusting the coffee mill’).

-You can also change the standard amount of coffee the appliance

brews, see section ‘Changing the coffee quantity for espresso’.

,The appliance grinds the beans and brews coffee.

Note:If you want some extra coffee in your cup,press the previously selected button again within 3 seconds after the appliance has stopped

brewing.Keep the button pressed until the cup contains the desired amount of coffee and then release the button.

,Once the set amount of coffee has been brewed, the appliance automatically stops brewing and ejects the coffee grounds into the waste bin.

,After a few seconds,‘READYTO USE’ appears on the display to indicate that you can brew the next cup of coffee.

6If the message‘EMPTYWASTE BIN!’ appears,remove the waste bin and empty and clean it.

Note:The message‘EMPTYWASTE BIN!’appears after every 14 cups.When it appears,you cannot brew coffee again until you empty and clean the waste

.

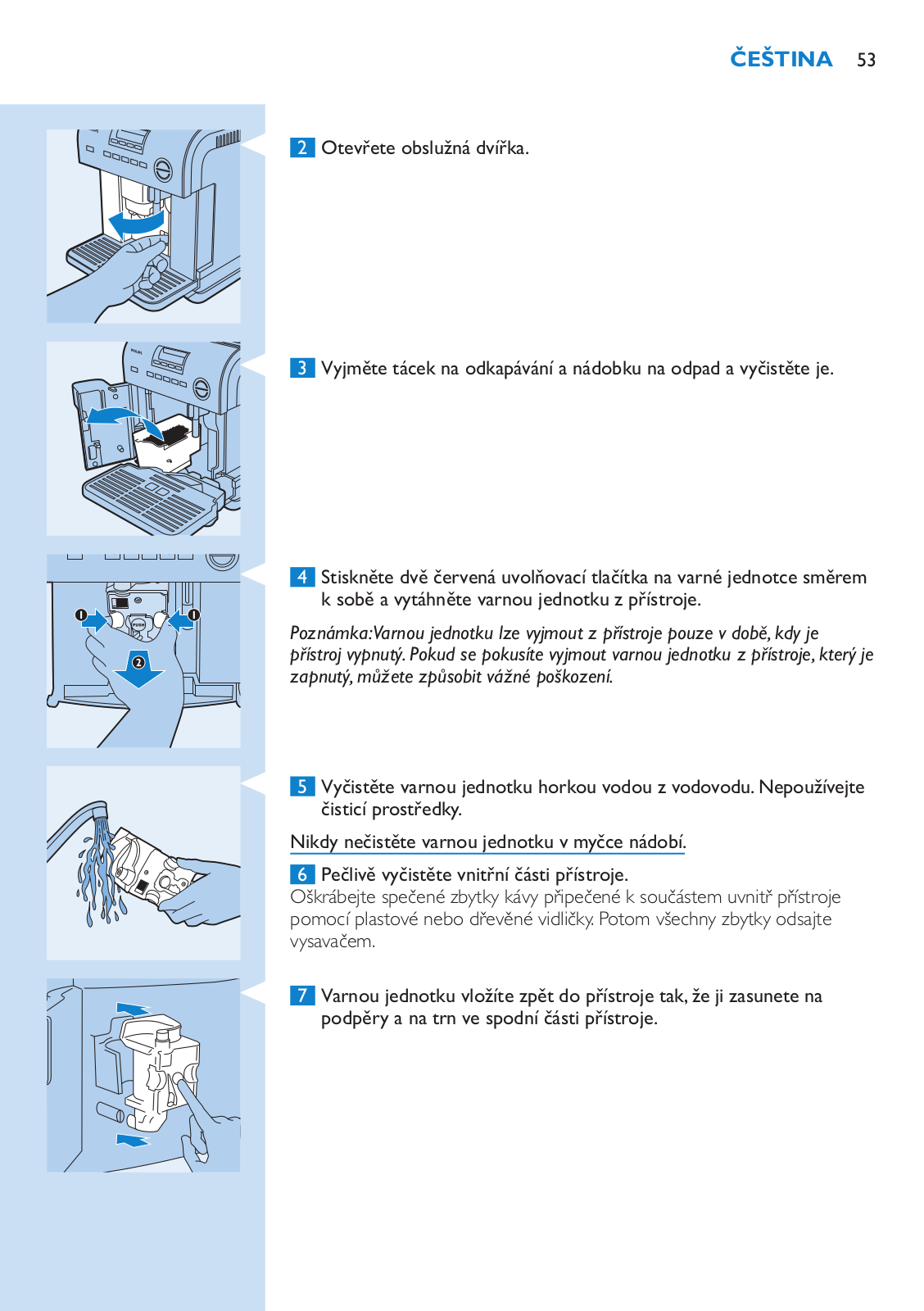

Open the service door at the front by pulling the latch.

Remove the drip tray and empty and clean it.

Remove the waste bin, empty it and clean it thoroughly.

12 English

Reinsert the waste bin, reattach the drip tray and close the service door.

Note:Keep in mind that when you remove the drip tray,you must empty the waste bin,even if it is not completely full.If you don’t do this,the coffee grounds in the waste bin will exceed the maximum level and block the appliance.

Never remove the water tank when the appliance is brewing coffee. If you do, the appliance stops brewing and the following messages appear on the display:‘GROUND TOO FINE! Adjust mill’ and ‘INSERT WATER SPOUT! - Press hot water’.

Take the following steps if you have removed the water tank while the appliance was brewing coffee:

1Reinsert the water tank.

2Remove and insert the hot water spout.

3Press the hot water button and let water run out of the spout for a few seconds.

4If the appliance malfunctions, follow the instructions in chapter ‘Troubleshooting’. If you cannot solve the problem, contact the Customer Care Centre in your country.

Press the on/off button 3 to switch off the appliance.

When you switch off the appliance,it performs an automatic flushing

cycle.

During the flushing cycle, some hot water flows out of the coffee spout into the drip tray below to clean the whole system.

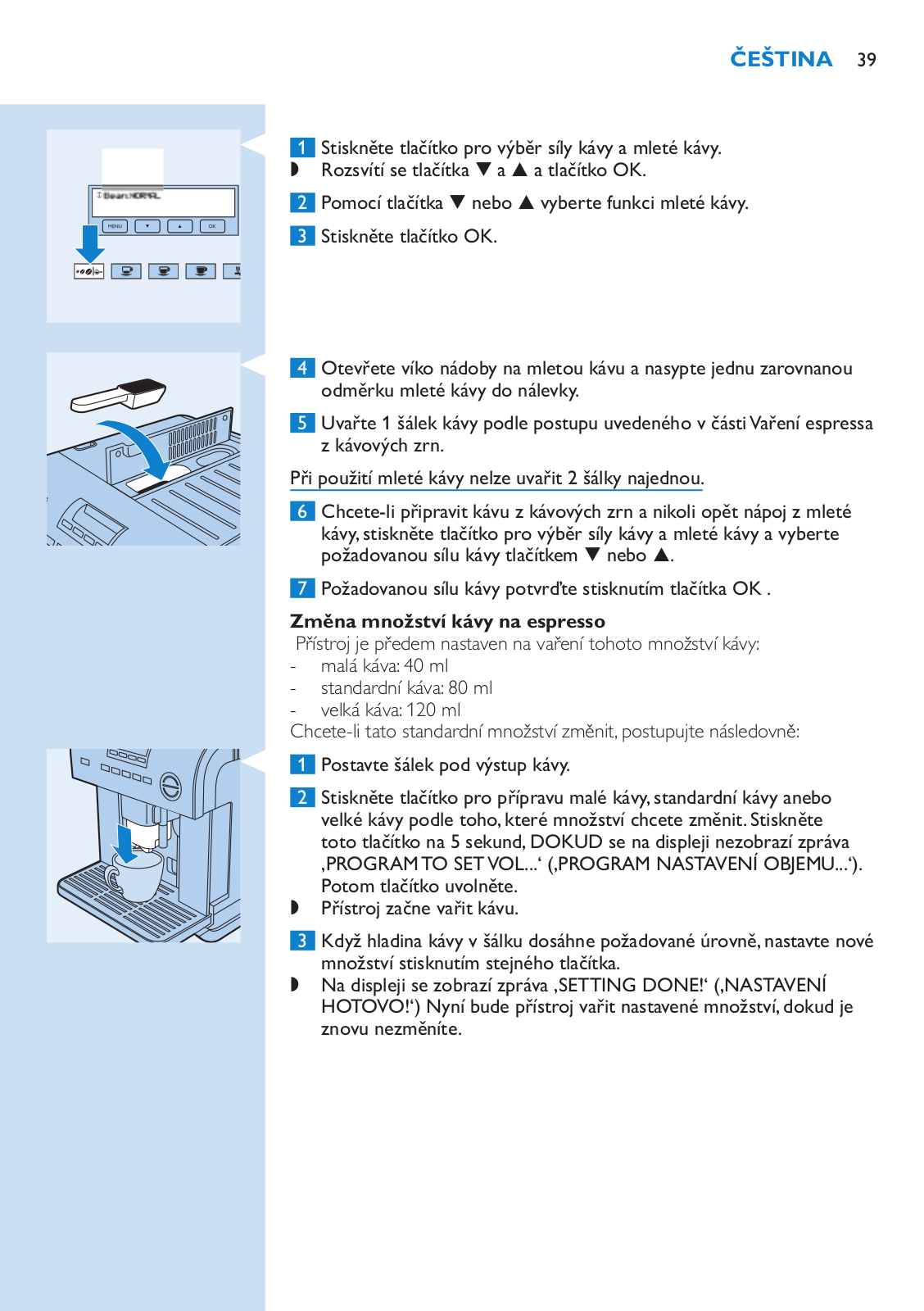

Brewing espresso from ground coffee

Only add ground coffee after you have switched on the appliance. Otherwise the ground coffee will be dispersed inside the appliance.

Only use the measuring spoon supplied to add ground coffee.

-Never add more than 1 level spoonful of ground coffee, otherwise the appliance does not brew coffee or the ground coffee is dispersed inside the appliance, soiling it or causing only drops of coffee to come out of the spouts.

-If you have added more than 1 level spoonful of ground coffee, remove the brewing unit.Then clean the brewing unit and the appliance as described in chapter ‘Cleaning’. After this, use the handle of a spoon to push the ground coffee down the funnel.

Only fill the ground coffee compartment with ground coffee for espresso makers. Do not use unground coffee beans, freeze-dried coffee, caramelised coffee or other substances that could damage the appliance.

Press the coffee strength/ground coffee button.

The ^ and % buttons and the OK button light up.

2Use the ^ or % button to select the ground coffee function.

3Press the OK button.

English 13

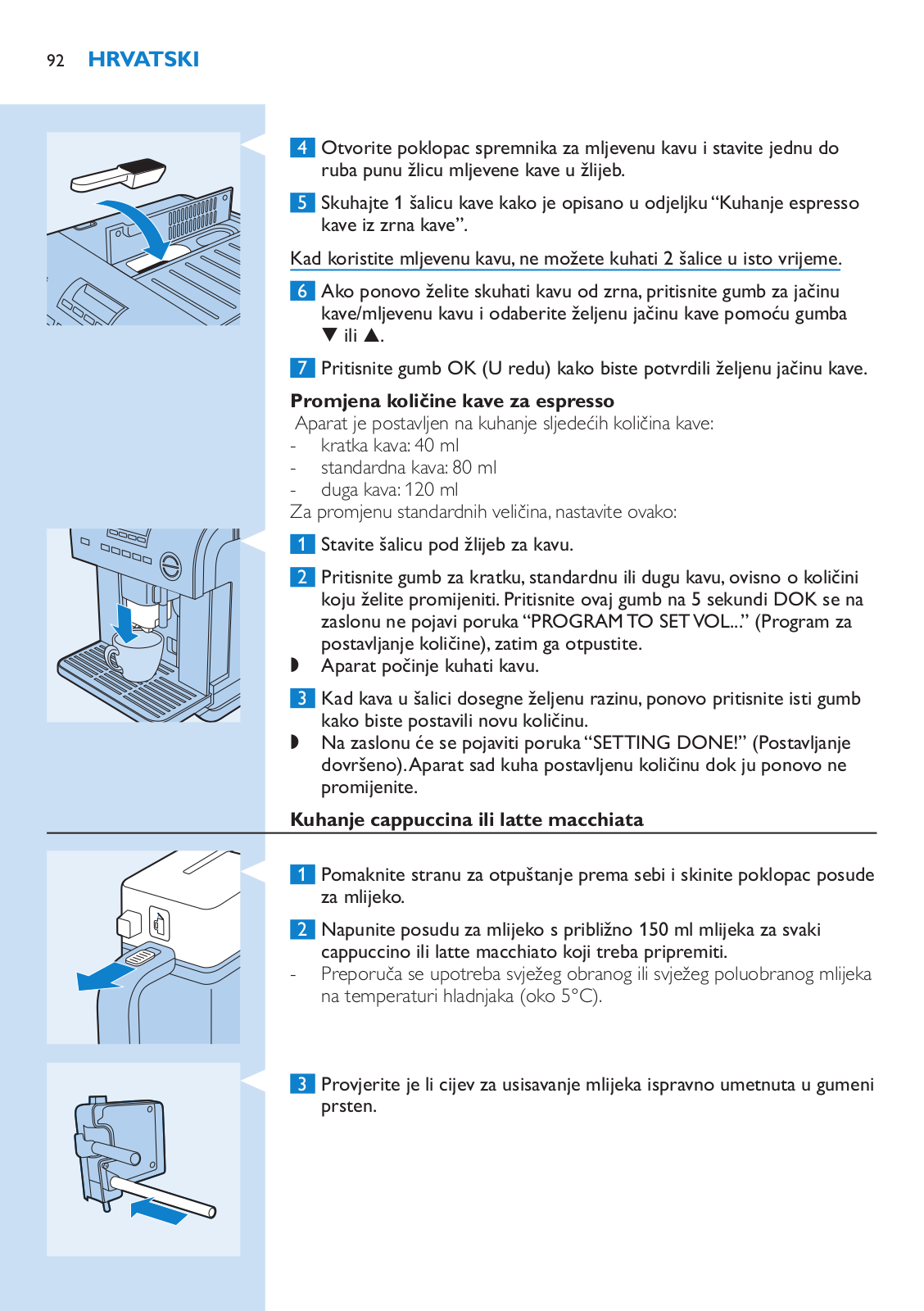

Open the lid of the ground coffee container and put one level measuring spoon of ground coffee in the funnel.

5Brew 1 cup of coffee as described in‘Brewing espresso from coffee beans’.

When you use ground coffee, you cannot brew 2 cups at the same time.

6If you want to make coffee from beans instead of ground coffee again, press the coffee strength/ground coffee button and select the desired coffee strength with the ^ or % button.

7Press the OK button to confirm the desired coffee strength.

Changing the coffee quantity for espresso

The appliance is preset to brew the following coffee quantities:

-short coffee: 40ml

-standard coffee: 80ml

-long coffee: 120ml

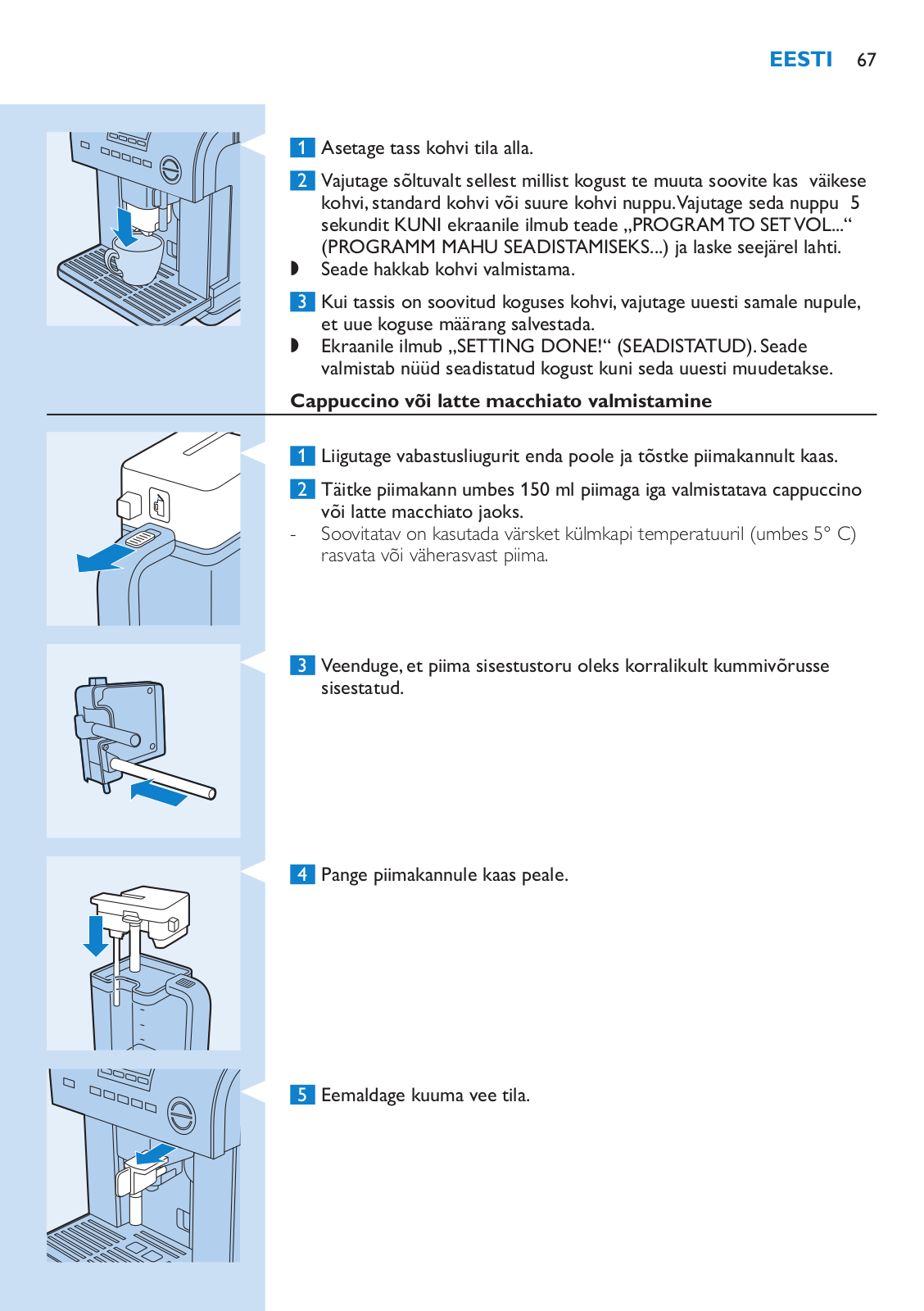

To change the standard quantities, proceed as follows:

Put a cup under the coffee spout.

2Press the button for short coffee, standard coffee or long coffee, depending on which quantity you want to change. Press this

button for 5 seconds UNTIL the message ‘PROGRAM TO SET VOL...’ appears on the display and then release it.

,The appliance starts to brew coffee.

3When the coffee in the cup reaches the required level, press the same button again to set the new quantity.

,’SETTING DONE!’ appears on the display.The appliance now brews the set quantity until you change it again.

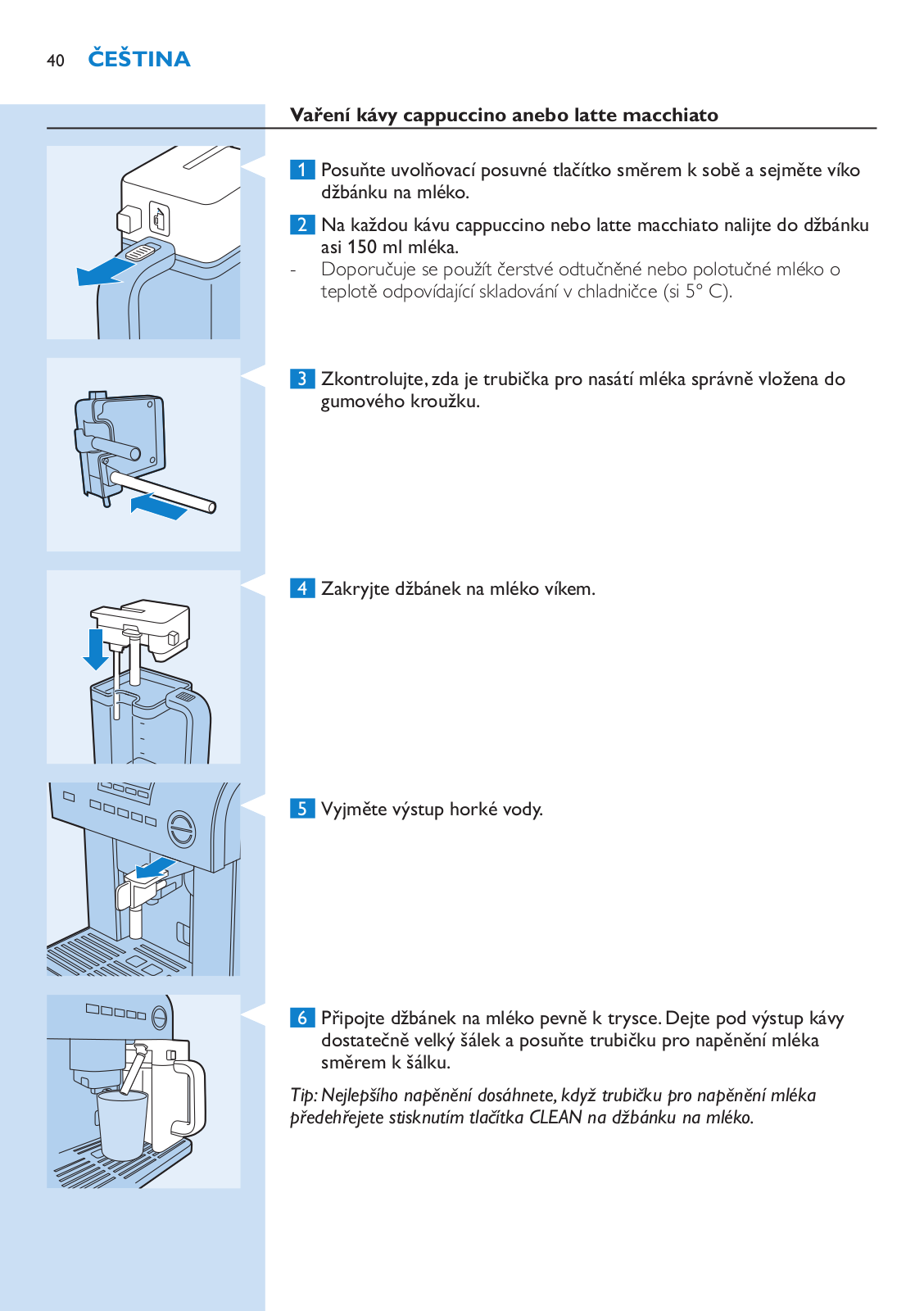

Brewing cappuccino or latte macchiato

Move the release slide towards you and remove the lid of the milk jug.

2Fill the milk jug with approx. 150ml milk for each cappuccino or latte macchiato to be prepared.

-It is advisable to use fresh skimmed or fresh semi-skimmed milk at refrigerator temperature (about 5°C).

Make sure the milk intake tube is properly inserted into the rubber ring.

14 English

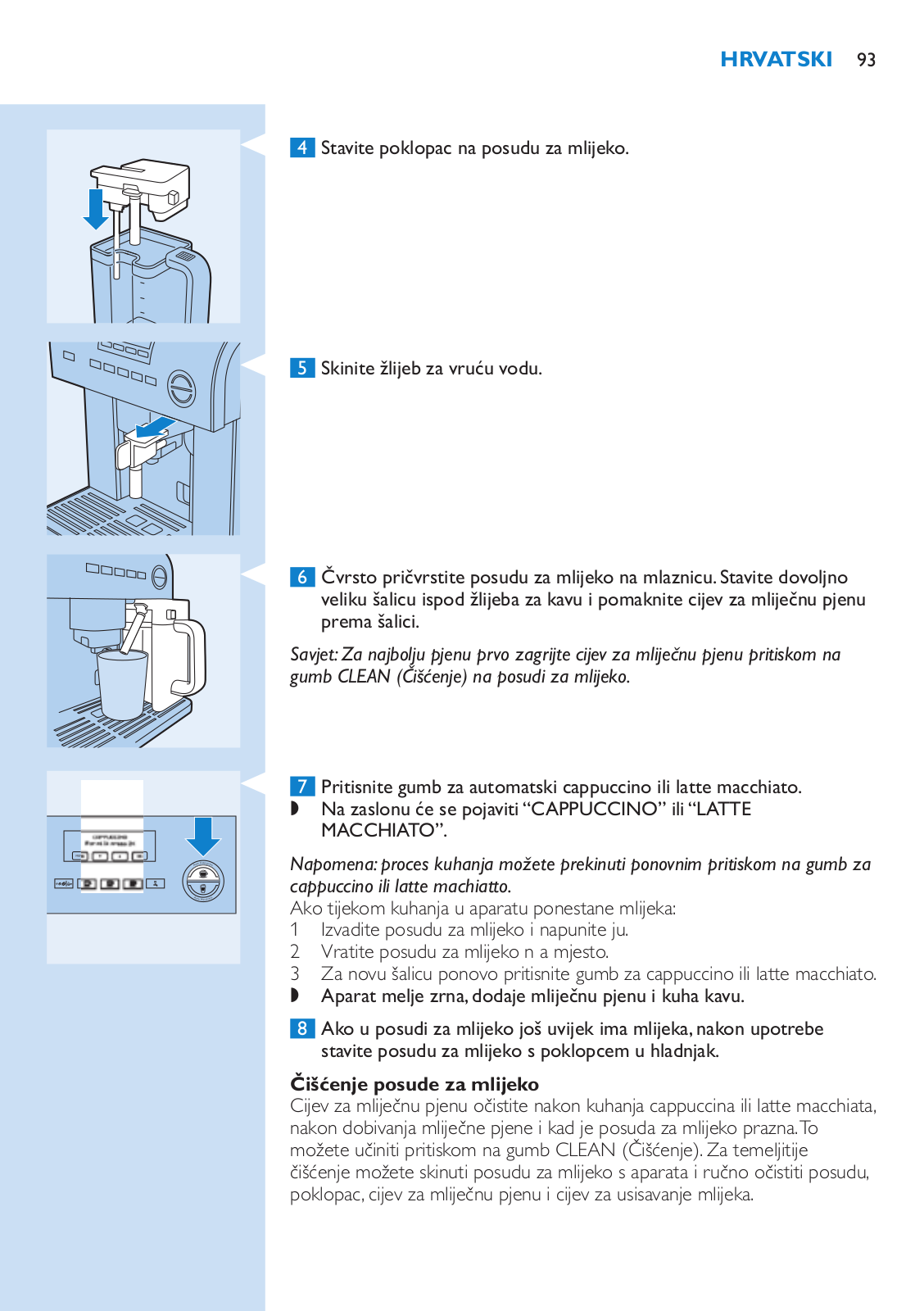

Put the lid on the milk jug.

Remove the hot water spout.

Attach the milk jug firmly to the nozzle.Put a sufficiently large cup under the coffee spout and move the milk frothing pipe towards the cup.

Tip:For the best frothing result,preheat the milk frothing pipe by pressing the CLEAN button on the milk jug.

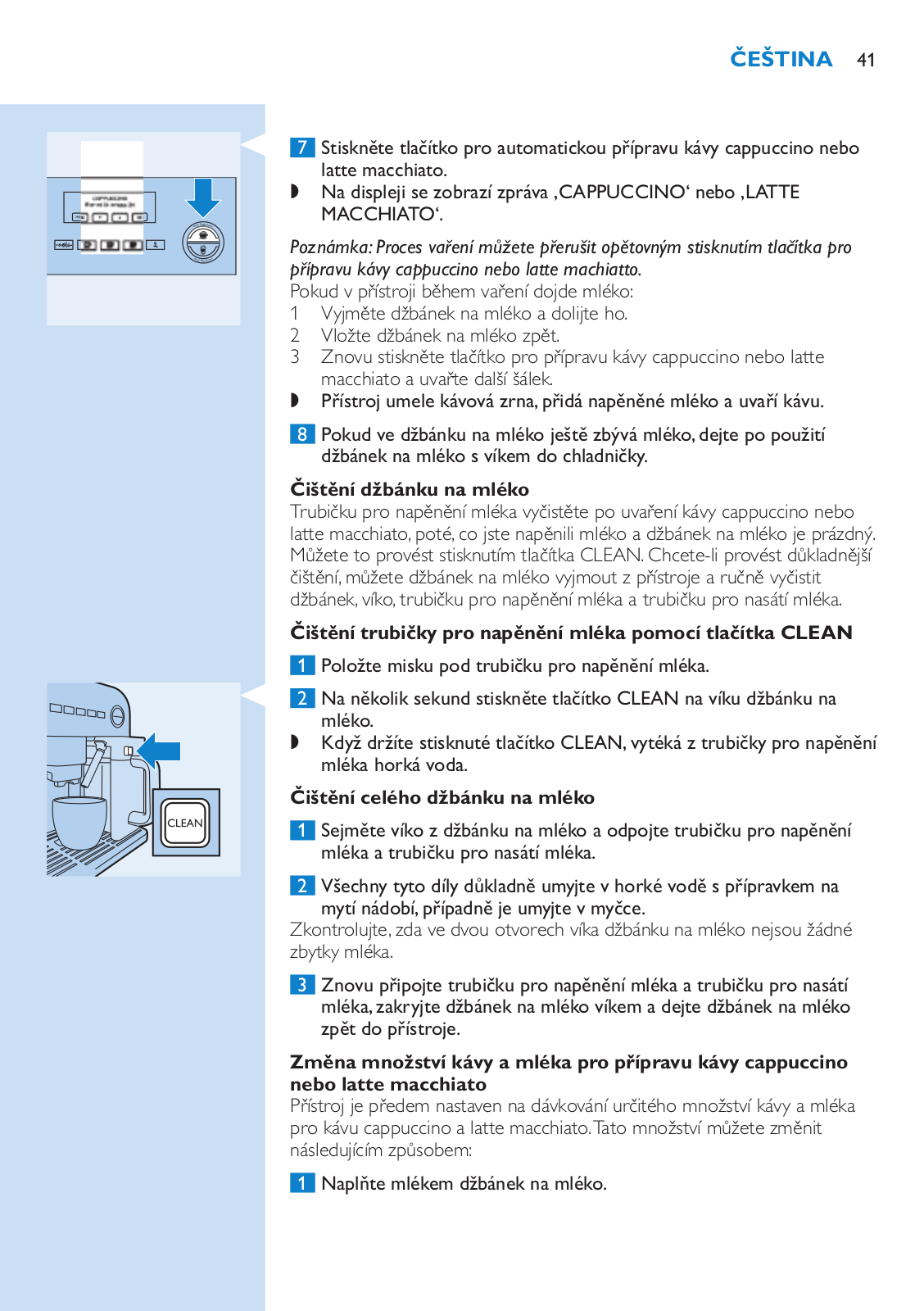

Press the button for automatic cappuccino or latte macchiato. ‘CAPPUCCINO’ or ‘LATTE MACCHIATO’ appears on the display.

Note:You can interrupt the brewing process at any time by pressing the cappuccino button or latte machiatto button again.

If the appliance runs out of milk during brewing:

1 Remove the milk jug and refill it.

2Reinsert the milk jug.

3Press the cappuccino button or latte macchiato button again for a new

cup.

,The appliance grinds the beans, adds the frothed milk and brews the coffee.

8 If there is still milk in the milk jug, put the milk jug with the lid on it in the fridge after use.

Cleaning the milk jug

Clean the milk frothing pipe after brewing cappuccino or latte macchiato, after frothing milk and when the milk jug is empty.You can do this by pressing the CLEAN button. For more thorough cleaning, you can remove the milk jug from the appliance and clean the jug, the lid, the milk frothing pipe and the milk intake tube manually.

English 15

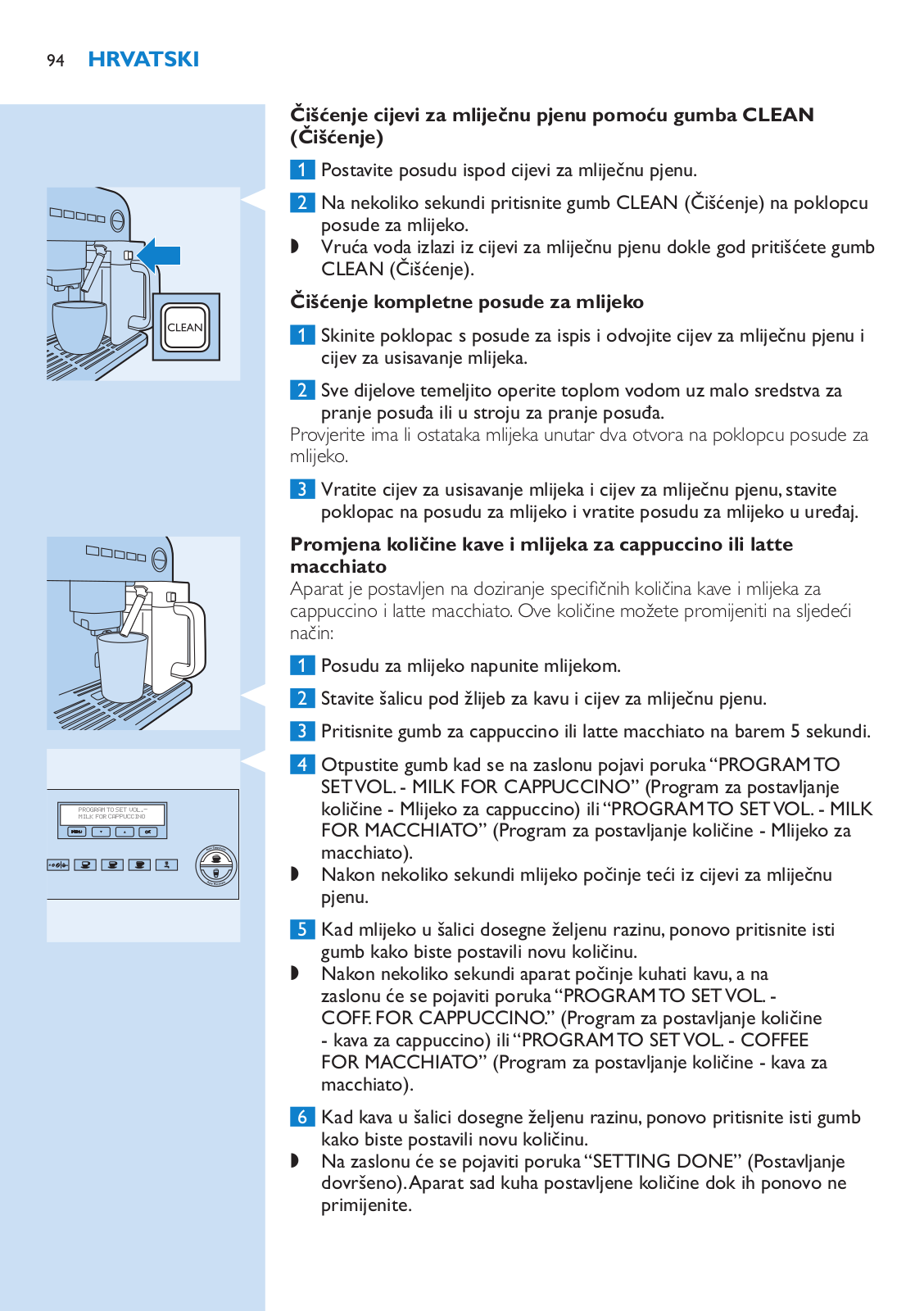

Cleaning the milk frothing pipe with the CLEAN button

1 Place a bowl under the milk frothing pipe.

Press the CLEAN button on the milk jug lid for a few seconds. Hot water comes out of the milk frothing pipe as long as you press the CLEAN button.

Cleaning the complete milk jug

1Remove the lid from the milk jug and detach the milk frothing pipe and the milk intake tube.

2Clean all parts thoroughly with hot water and some washing-up liquid or in a dishwasher.

Make sure there are no milk residues inside the two holes in the lid of the milk jug.

3Reattach the milk intake tube and the milk frothing pipe, put the lid on the milk jug and put the milk jug back into the appliance.

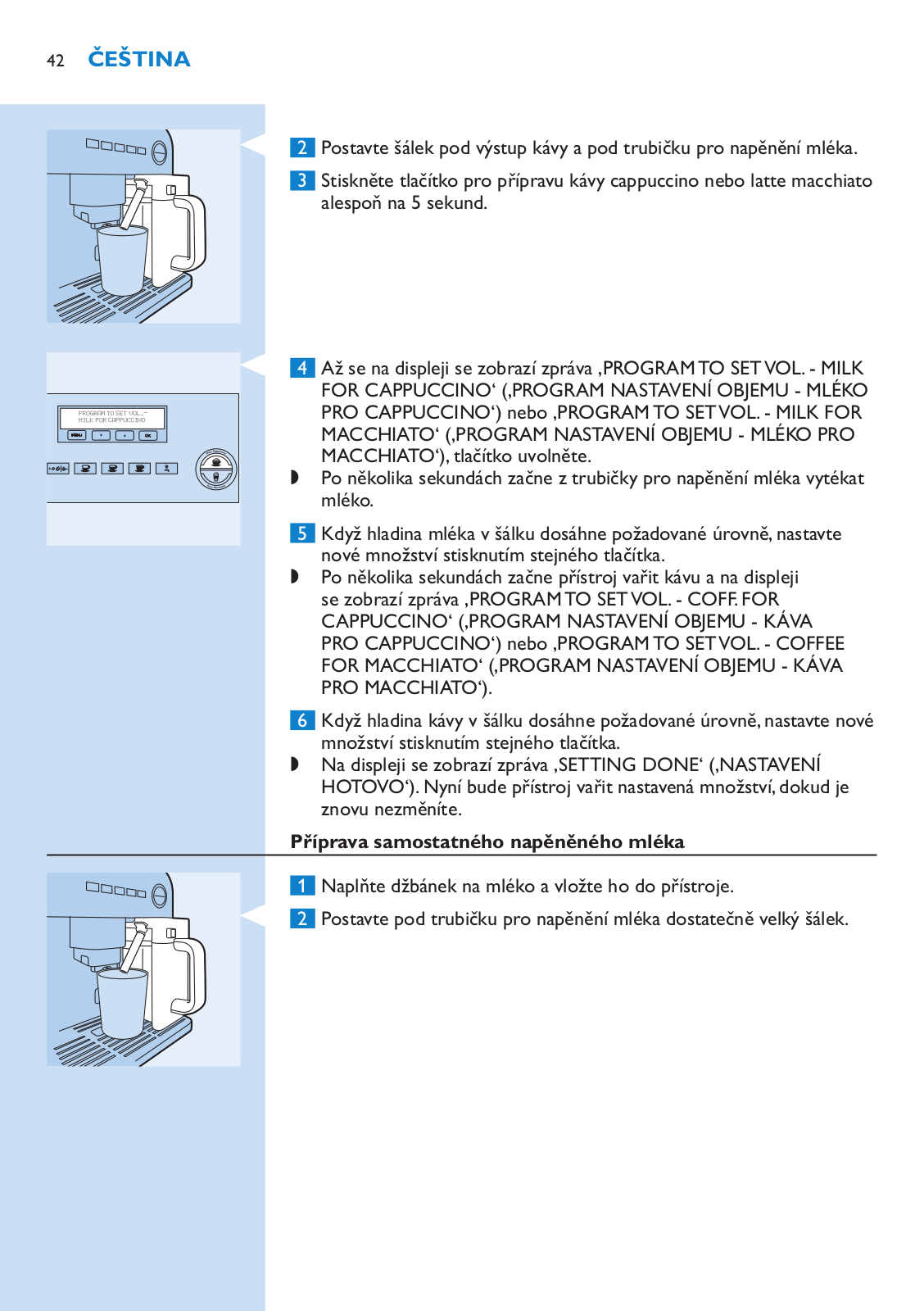

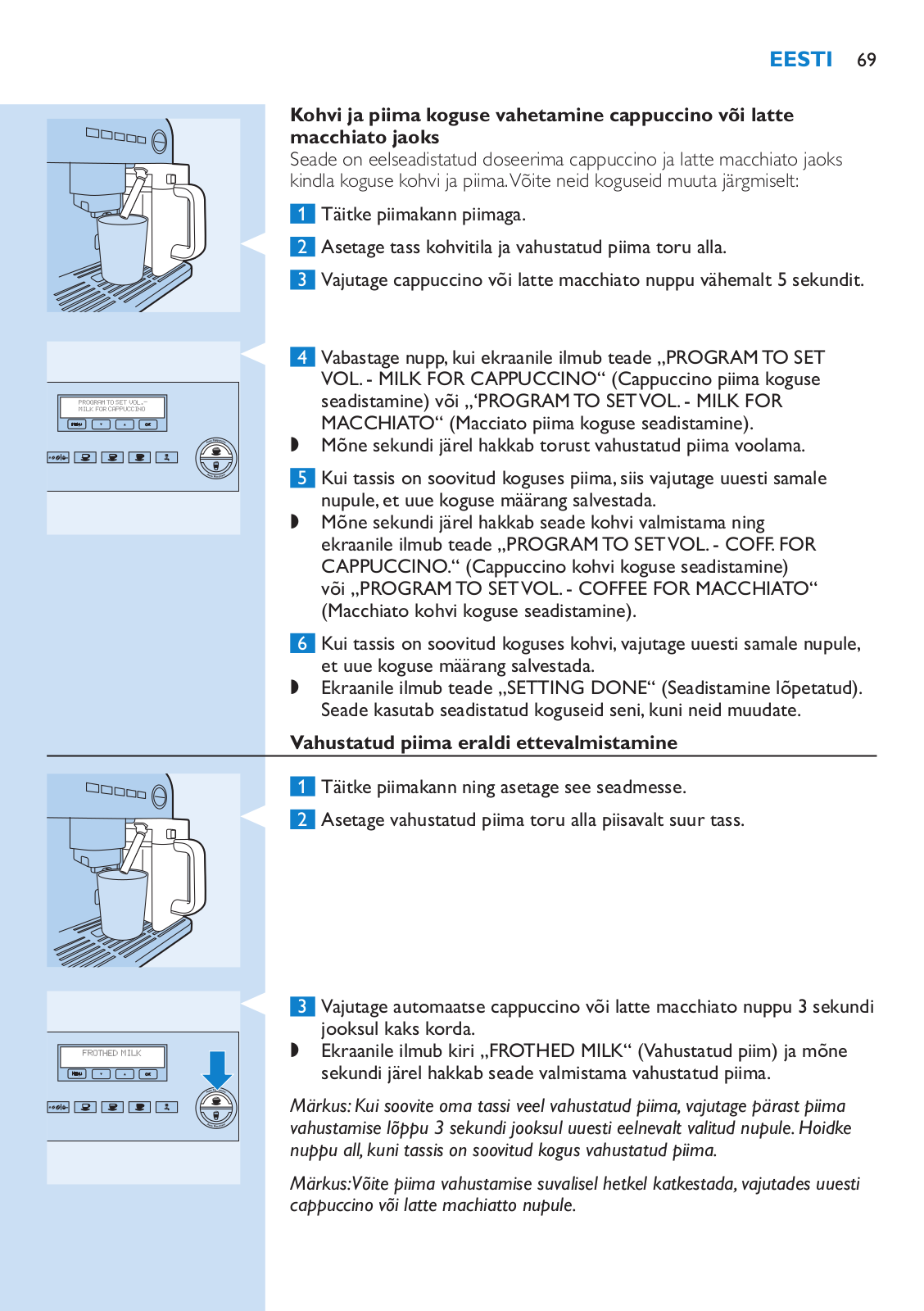

Changing the coffee and milk quantity for cappuccino or latte macchiato

The appliance is preset to dose specific amounts of coffee and milk for cappuccino and latte macchiato.You can change these quantities as follows:

1Fill the milk jug with milk.

Put a cup under the coffee spout and the milk frothing pipe.

3Press the cappuccino button or the latte macchiato button for at least 5 seconds.

Release the button when ‘PROGRAM TO SET VOL. - MILK FOR CAPPUCCINO’ or ‘PROGRAM TO SET VOL. - MILK FOR MACCHIATO’ appears on the display.

,After a few seconds, milk starts to come out the milk frothing pipe.

5When the milk in the cup reaches the required level, press the same button again to set the new quantity.

,After a few seconds, the appliance starts to brew coffee and ‘PROGRAM TO SET VOL. - COFF. FOR CAPPUCCINO.’ or ‘PROGRAM TO SET VOL. - COFFEE FOR MACCHIATO’ appears on the display.

6When the coffee in the cup reaches the required level, press the same button again to set the new quantity.

,’SETTING DONE’ appears on the display.The appliance now produces the set quantities until you change them again.

16 English

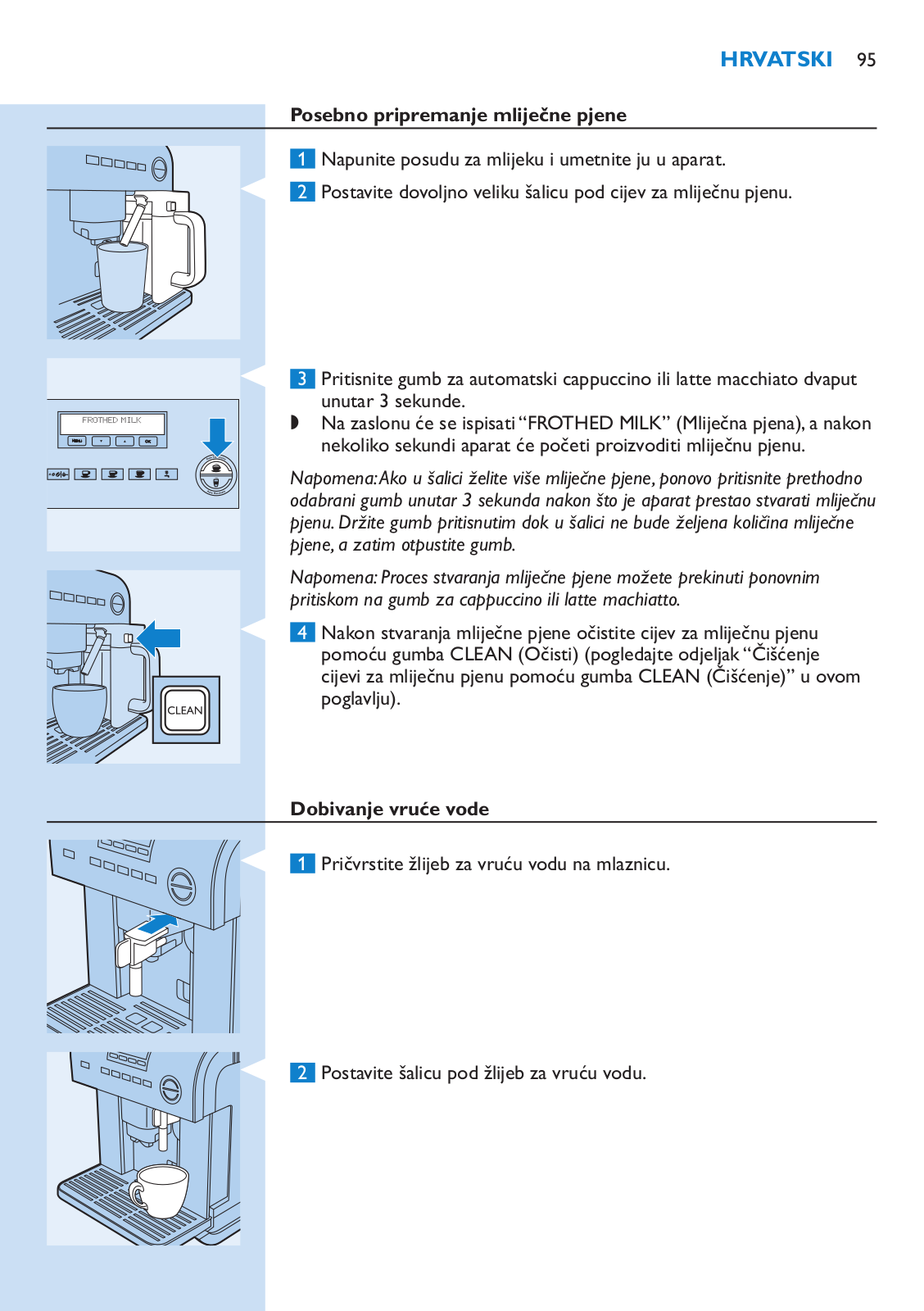

Preparing frothed milk separately

1Fill the milk jug and insert it into the appliance.

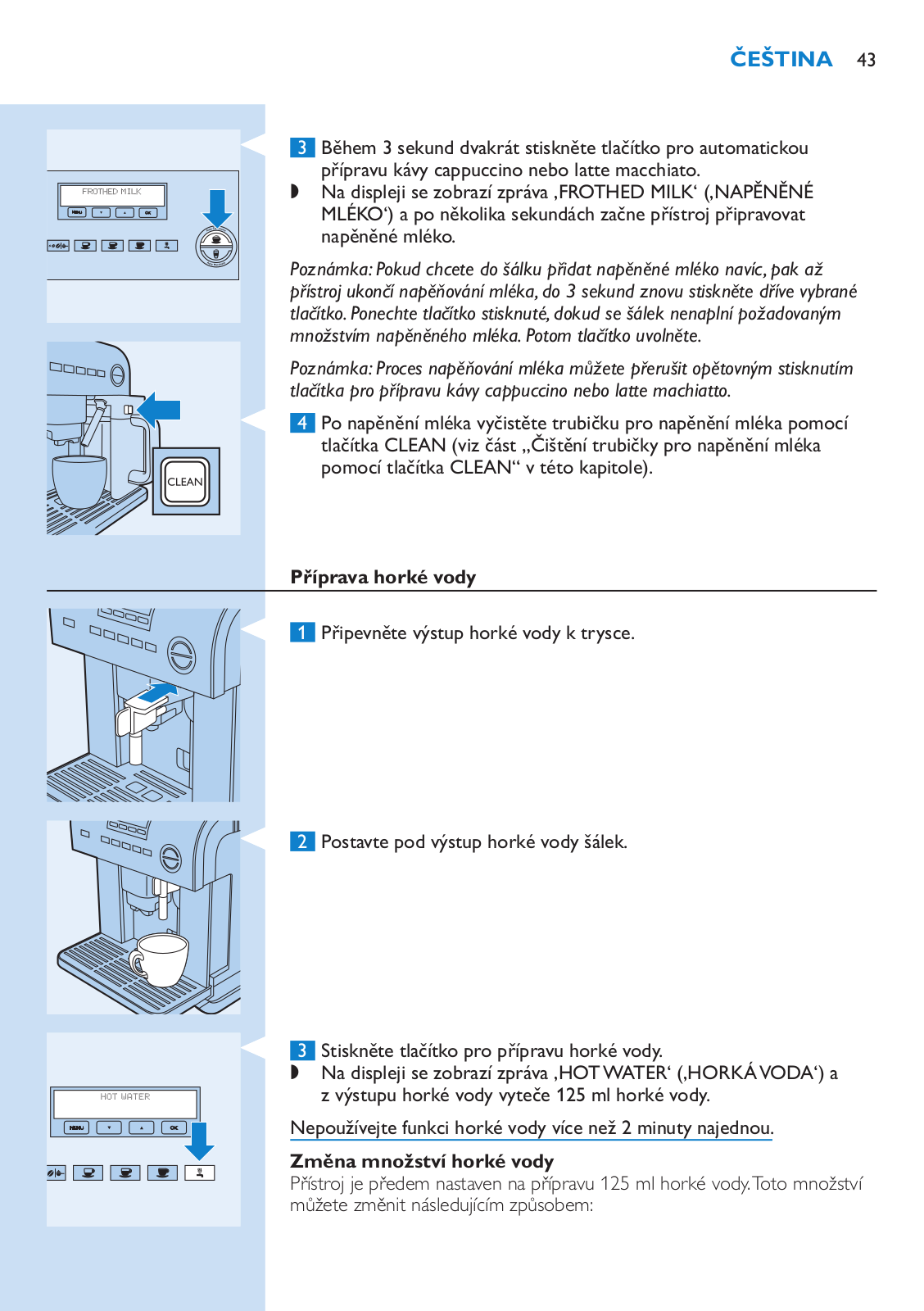

Place a sufficiently large cup under the milk frothing pipe.

Press the automatic cappuccino or latte macchiato button twice within 3 seconds.

, The display reads ‘FROTHED MILK’ and after a few seconds the appliance starts to produce frothed milk.

Note:If you want some extra frothed milk in your cup,press the previously selected button again within 3 seconds after the appliance has stopped frothing milk.Keep the button pressed until the cup contains the desired amount of frothed milk and then release the button.

Note:You can interrupt the milk frothing process at any time by pressing the cappuccino or latte macchiato button again.

After frothing milk, clean the milk frothing pipe with the CLEAN button (see section ‘Cleaning the milk frothing pipe with the CLEAN button’ in this chapter).

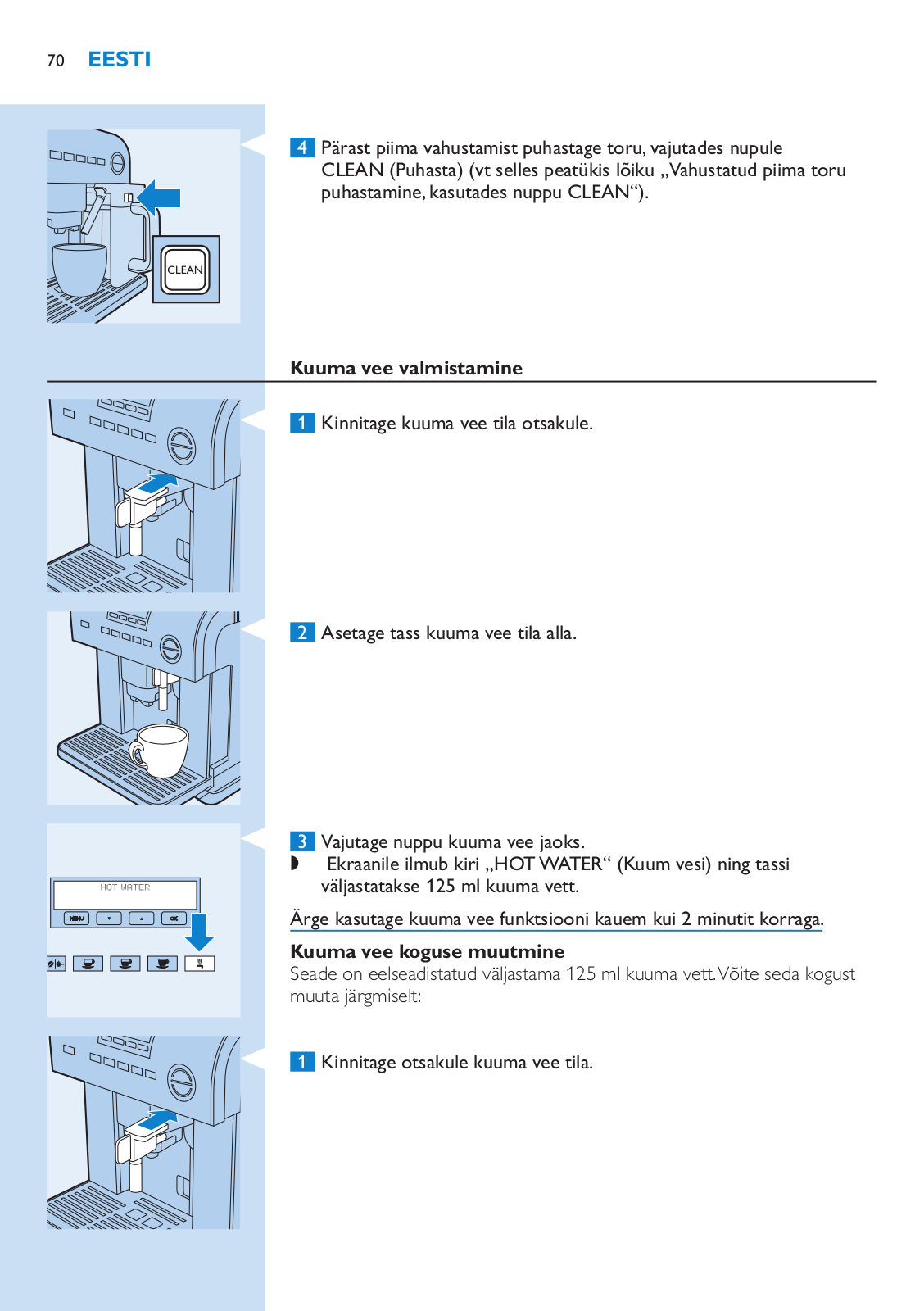

Producing hot water

Attach the hot water spout to the nozzle.

Place a cup under the hot water spout.

English 17

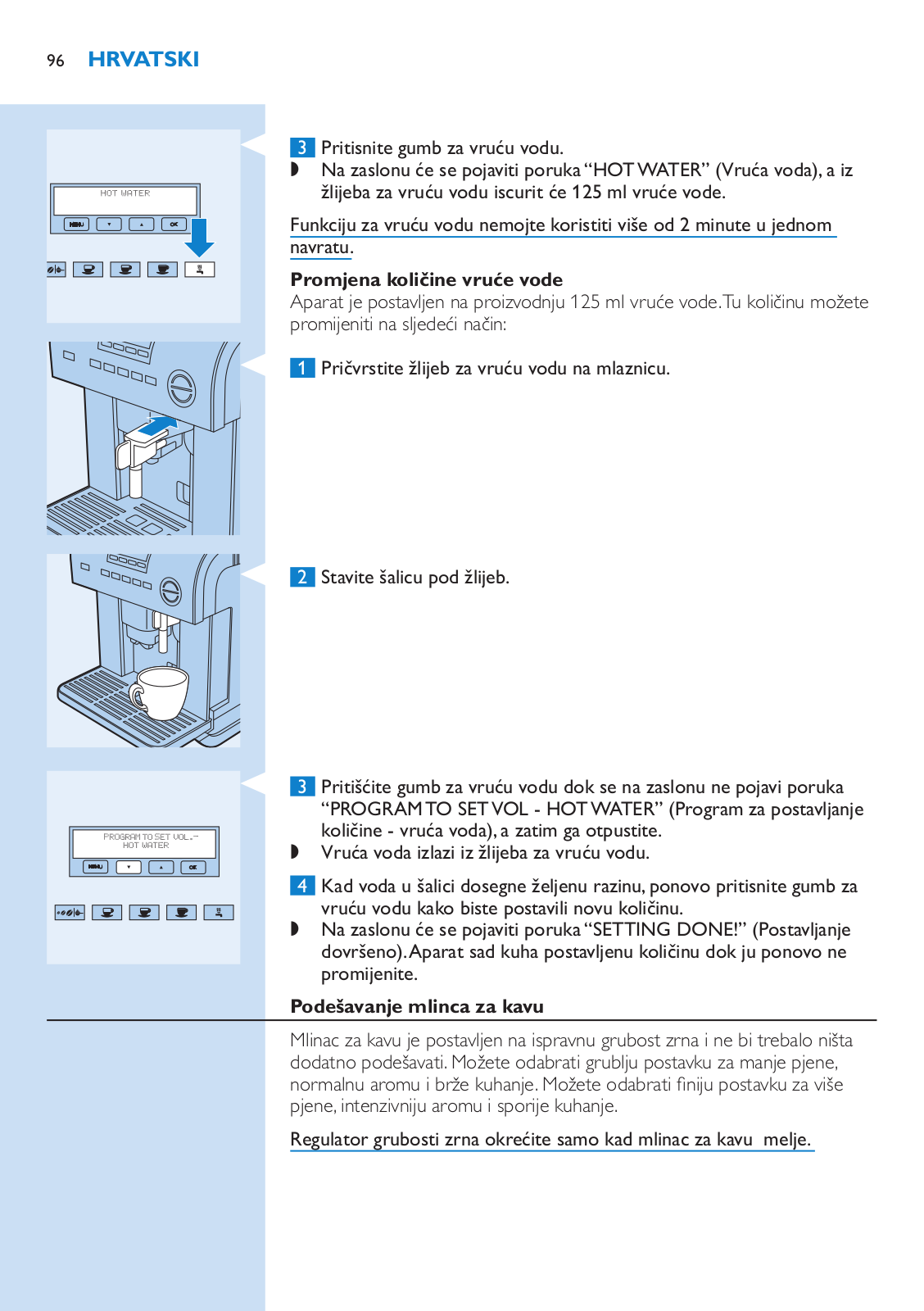

3Press the button for hot water.

,The display reads ‘HOT WATER’ and 125ml of hot water comes out of the hot water spout.

Do not use the hot water function for more than 2 minutes at a time.

Changing the quantity of hot water

The appliance is preset to produce 125ml hot water.You can change this quantity as follows:

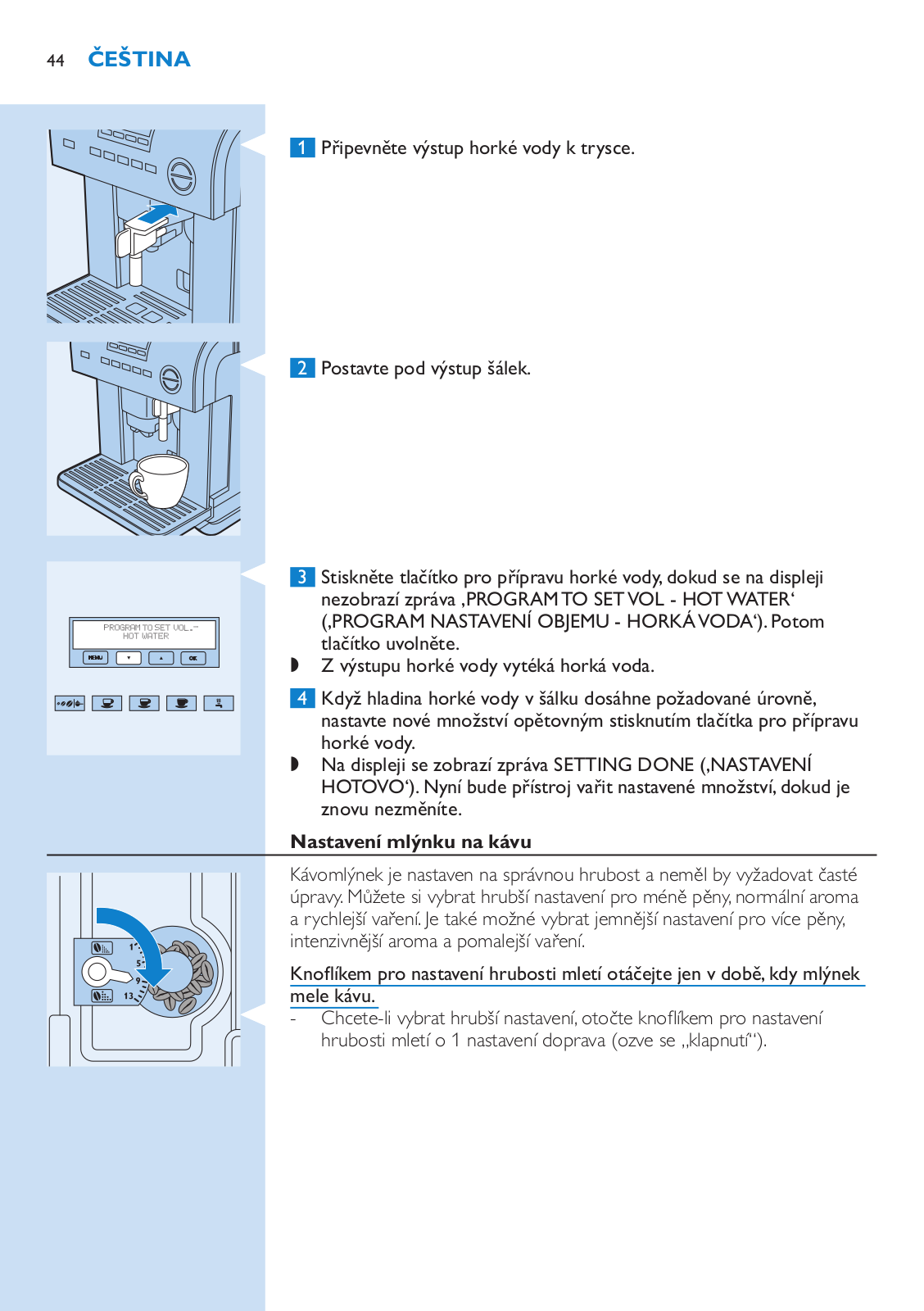

1Attach the hot water spout to the nozzle.

2Place a cup under the spout.

3Press the button for hot water until the message ‘PROGRAM TO

SET VOL - HOT WATER’ appears on the display and then release it.

,Hot water comes out of the hot water spout.

4When the water in the cup reaches the required level, press the button for hot water again to set the new quantity.

,’SETTING DONE’ appears on the display.The appliance now produces the set quantity until you change it again.

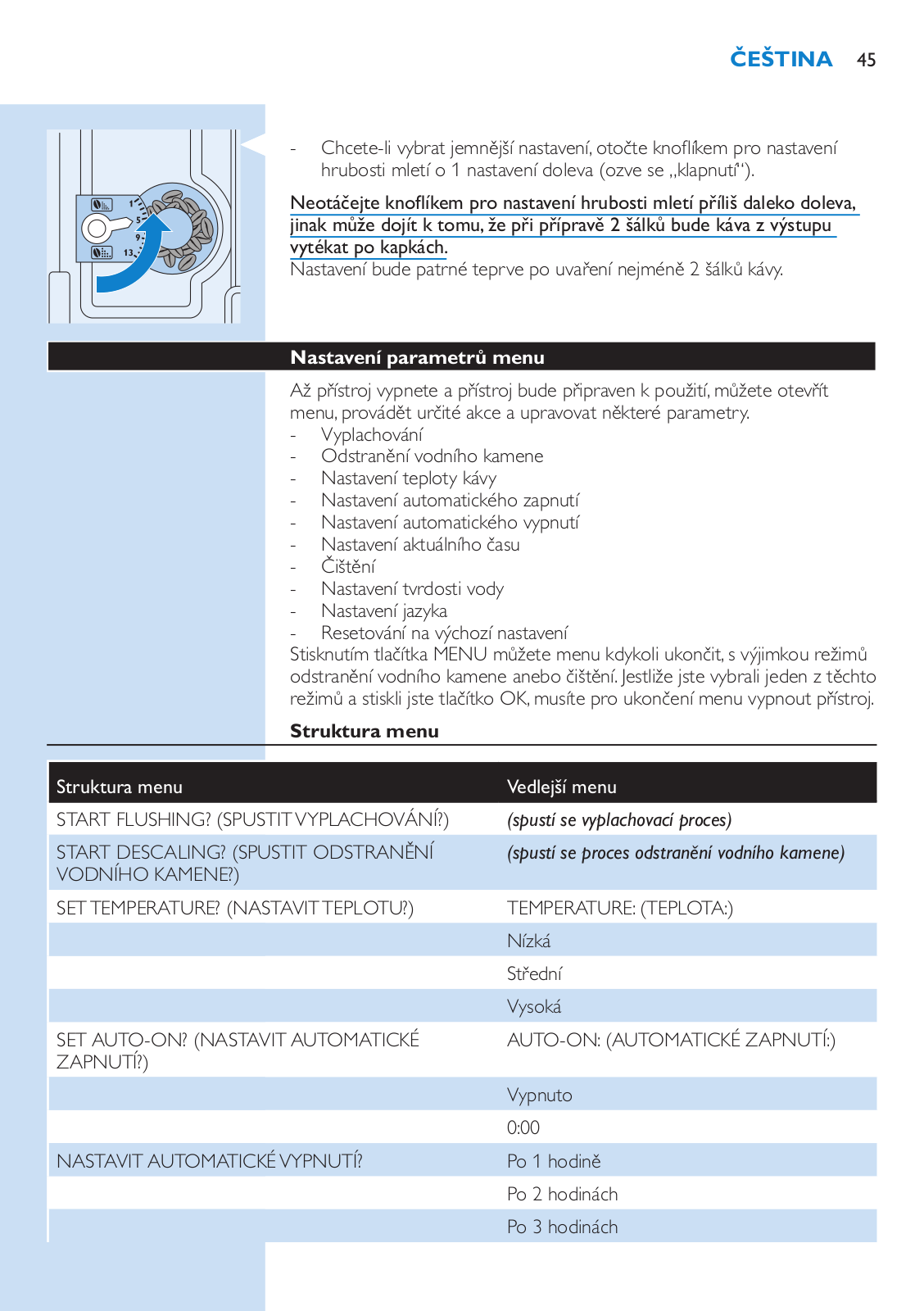

Adjusting the coffee mill

The coffee grinder is preset to the correct coarseness and should not require frequent adjustment.You can select a coarser setting for less foam, a normal aroma and faster brewing.You can select a finer setting for more foam, a more intense aroma and slower brewing.

Only turn the grinding coarseness knob when the coffee mill is grinding.

18 English

-To select a coarser setting, turn the grinding coarseness knob 1 setting clockwise (‘click’).

-To select a finer setting, turn the grinding coarseness knob 1 setting anticlockwise (‘click’).

Do not turn the grinding coarseness knob anticlockwise too far, otherwise the coffee may come out of the spout in drops when you brew 2 cups.

The adjustment only becomes noticeable after you have brewed at least 2 cups of coffee.

Setting menu parameters

When you have switched on the appliance and the appliance is ready for use, you can access the menu to perform certain actions and modify certain parameters.

-Flushing

-Descaling

-Setting coffee temperature

-Setting auto-on time

-Setting auto-off time

-Setting current time

-Cleaning

-Setting water hardness

-Setting language

-Resetting to default settings

You can press the MENU button at any time to exit the menu, except in the descaling or cleaning modes. If you have selected one of these modes and pressed OK, you have to switch off the appliance if you want to exit the menu.

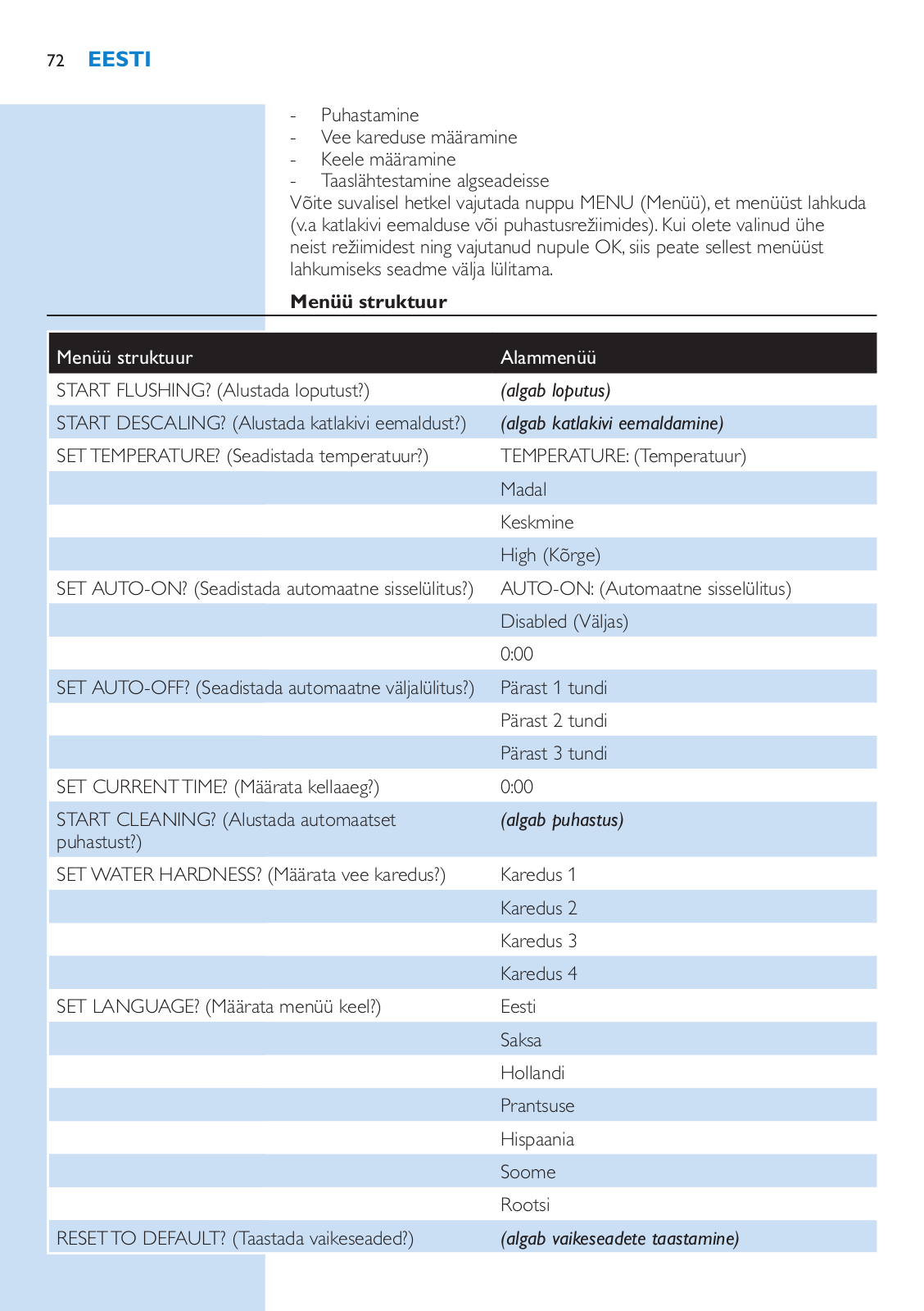

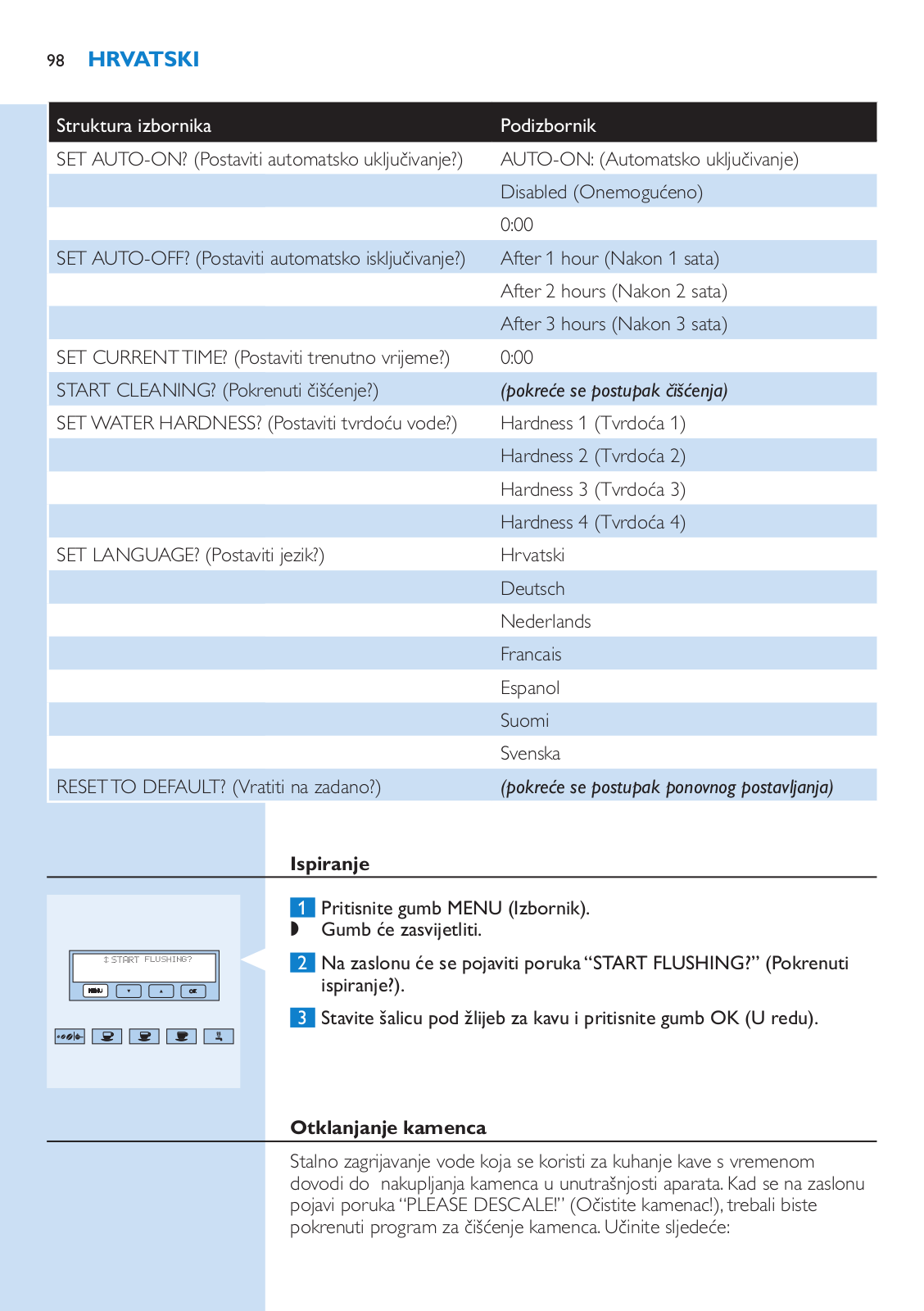

		Menu structure
	Menu structure	Submenu
	START FLUSHING?	(flushing procedure starts)
	START DESCALING?	(descaling procedure starts)
	SETTEMPERATURE?	TEMPERATURE:
		Low
		Medium
		High

English 19

Menu structure	Submenu
SET AUTO-ON?	AUTO-ON:
	Disabled
	0:00
SET AUTO-OFF?	After 1 hour
	After 2 hours
	After 3 hours

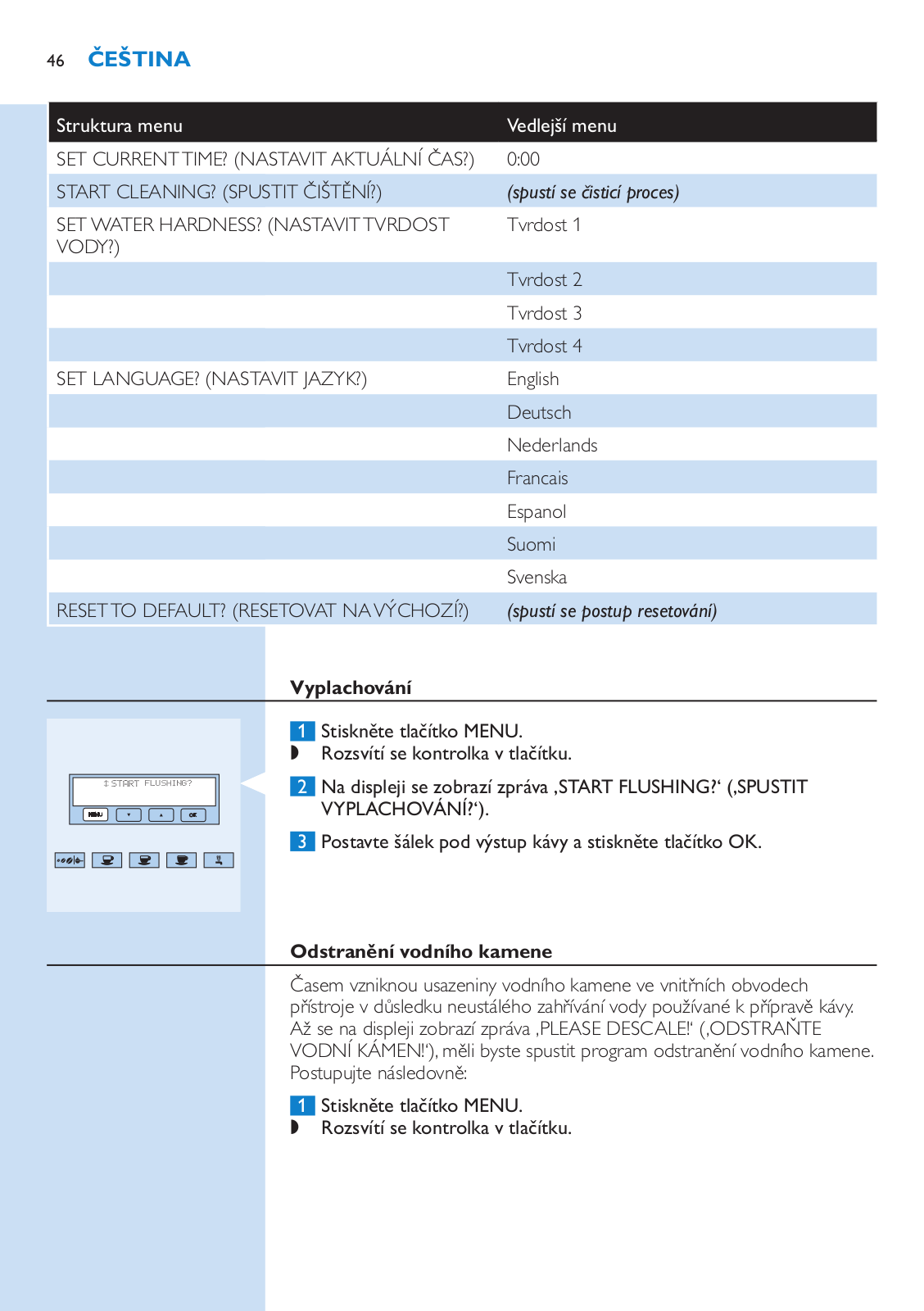

SET CURRENTTIME?	0:00
START CLEANING?	(cleaning procedure starts)
SET WATER HARDNESS?	Hardness 1
	Hardness 2
	Hardness 3
	Hardness 4
SET LANGUAGE?	English
	Deutsch
	Nederlands
	Francais
	Espanol
	Suomi
	Svenska
RESETTO DEFAULT?	(resetting procedure starts)

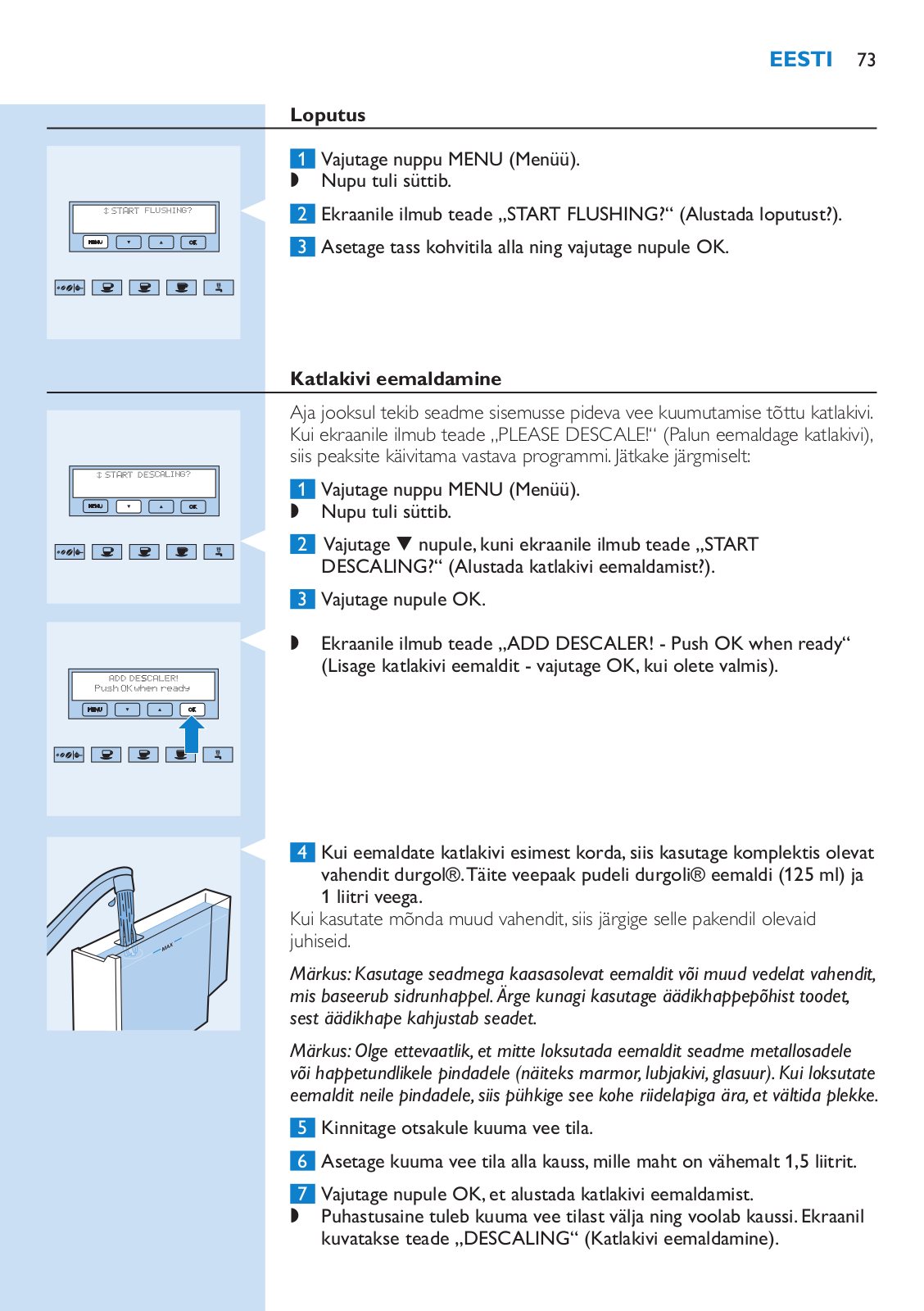

Flushing

1Press the MENU button.

,The button lights up.

2 The message ‘START FLUSHING?’ appears on the display.

3 Place a cup under the coffee spout and press the OK button.

Descaling

Over time, the continuous heating up of the water that is used to make the coffee leads to scale build-up in the inner circuits of the appliance.

When the message ‘PLEASE DESCALE!’ appears on the display, you should run the descaling program. Proceed as follows:

20 English

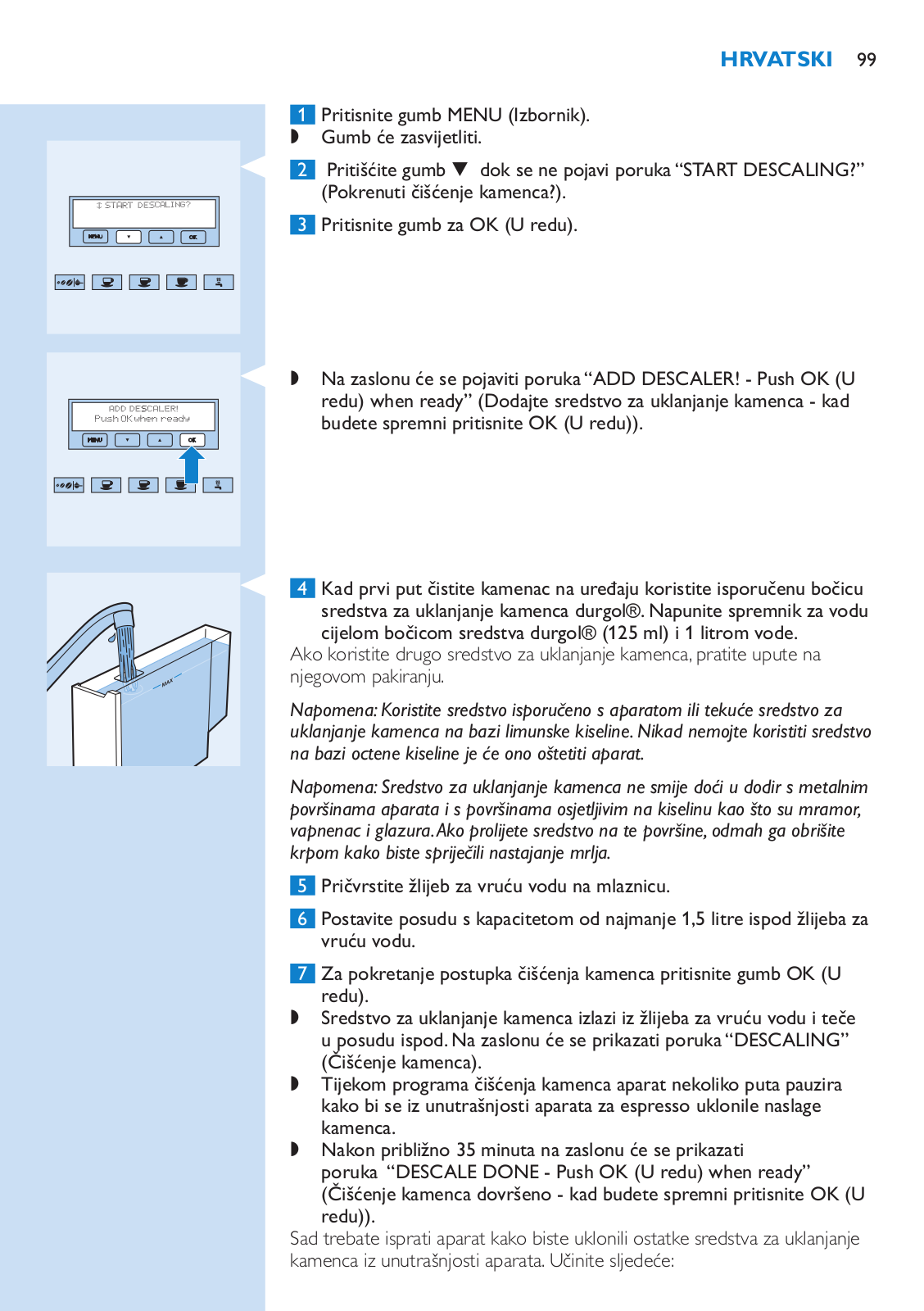

1Press the MENU button.

,The button lights up.

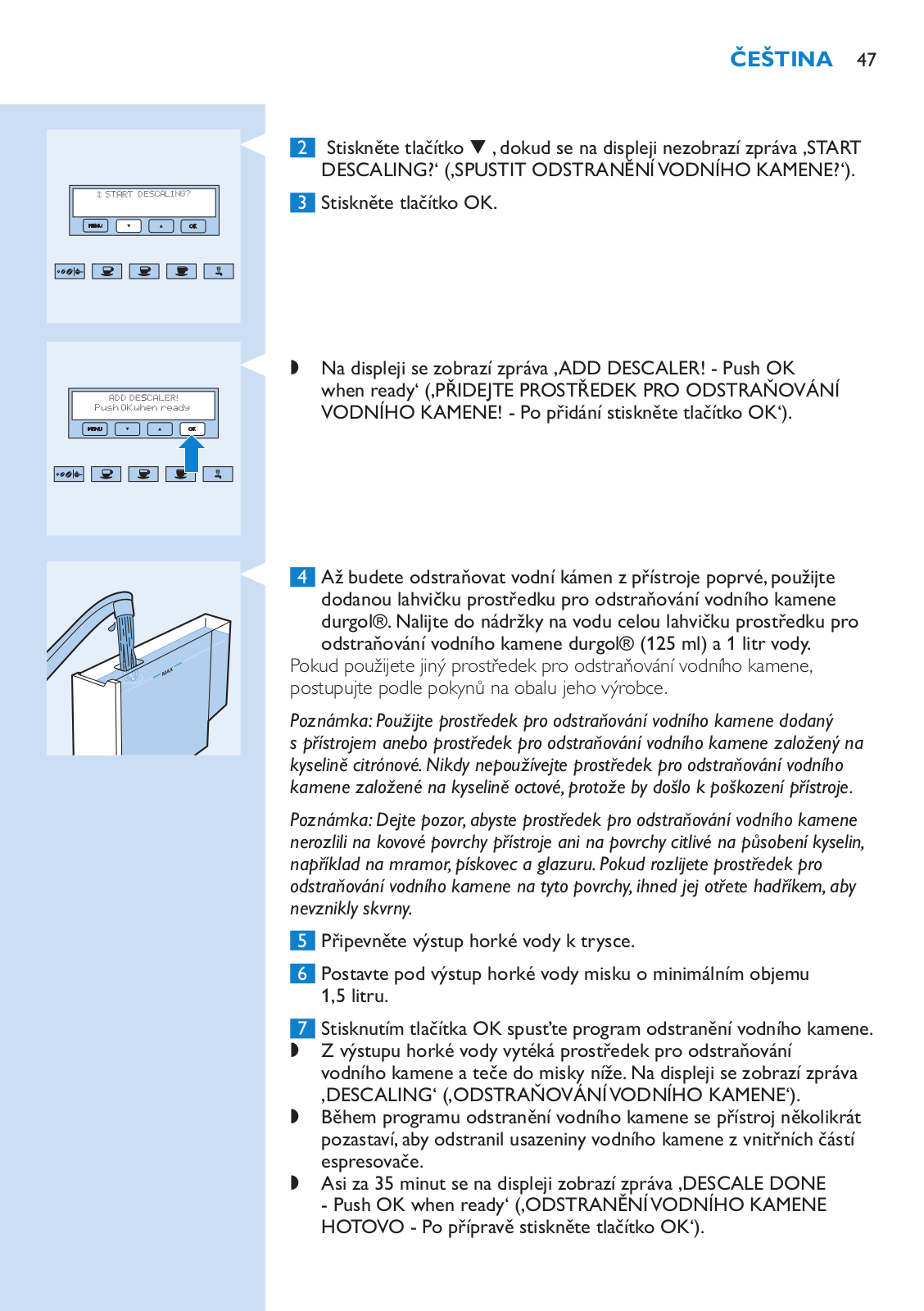

Press the ^ button until the message ‘START DESCALING?’ appears on the display.

3 Press the OK button.

The message ‘ADD DESCALER! - Push OK when ready’ appears on the display.

When you descale the appliance for the first time,use the bottle of durgol® descaler supplied. Fill the water tank with the entire bottle of durgol® descaler (125ml) and 1 litre of water.

If you use a different descaler, follow the instructions on the package of the descaler.

Note:Use the descaler supplied with the appliance or a liquid descaler based on citric acid.Never use a descaler with acetic acid,as this will damage the appliance.

Note:Be careful not to spill descaler on the metal surfaces of the machine and on surfaces sensitive to acid such as marble,limestone and glaze.If you spill descaler on these surfaces,immediately wipe it off with a cloth to prevent stains.

5Attach the hot water spout to the nozzle.

6Place a bowl with a minimum capacity of 1.5 litres under the hot water spout.

7Press the OK button to start the descaling program.

,Descaler comes out of the hot water spout and flows into the bowl below.The message ‘DESCALING’ is shown on the display.

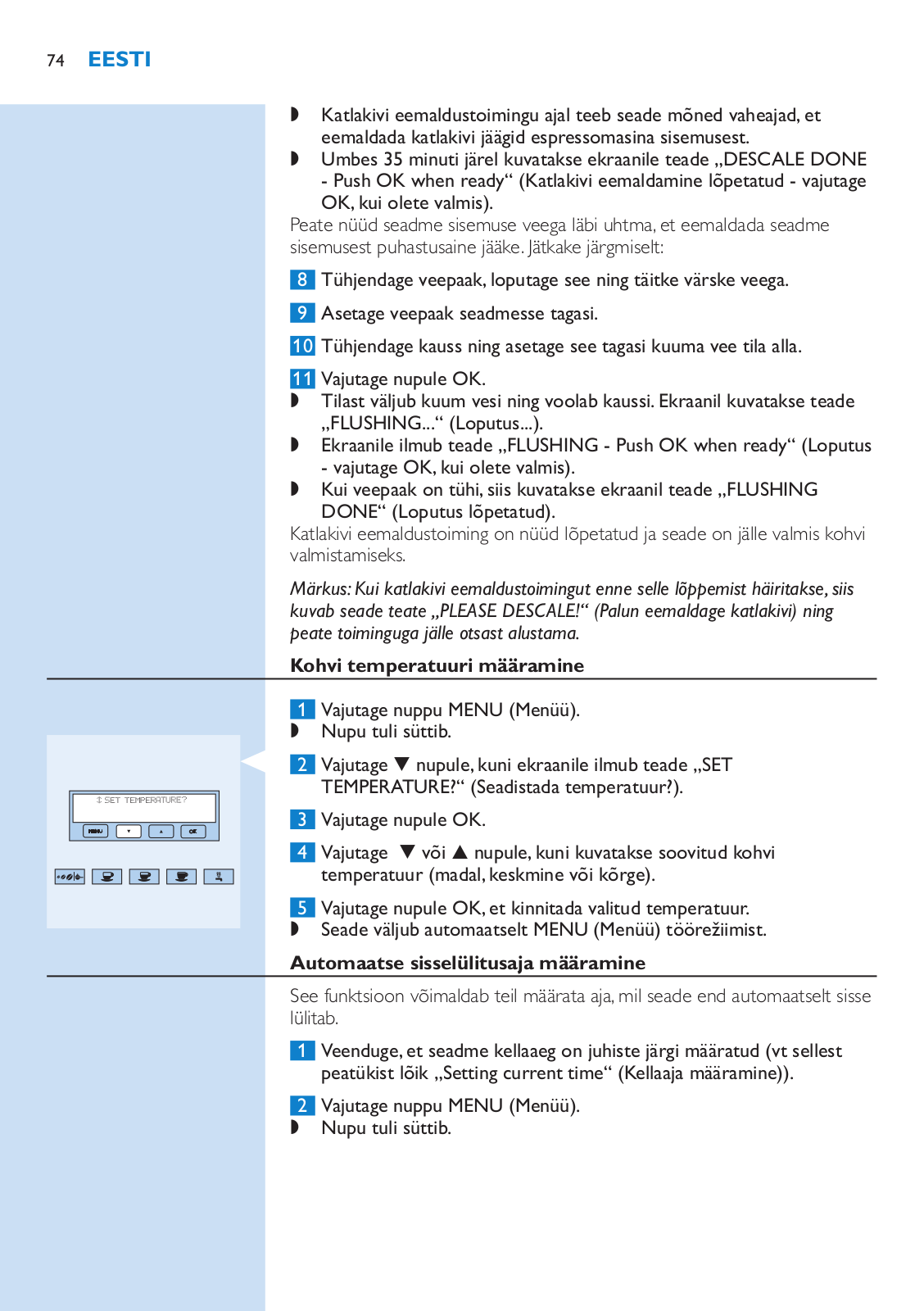

,During the descaling program, the appliance pauses a few times to remove scale deposits from the inside of the espresso maker.

,After about 35 minutes, the message ‘DESCALE DONE - Push OK

when ready’ appears on the display.

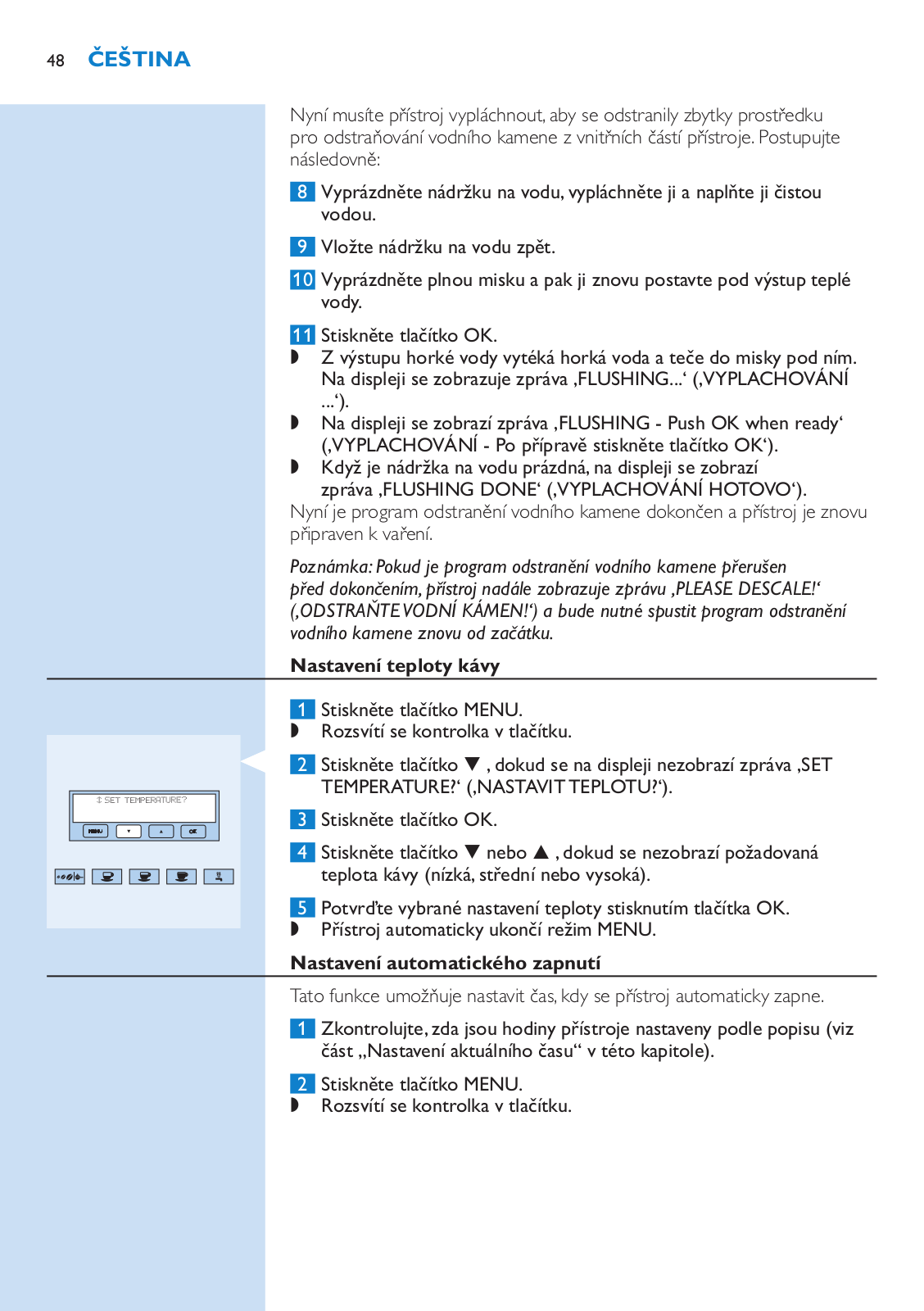

You now have to flush the appliance to remove descaler residues from the inside of the appliance. Proceed as follows:

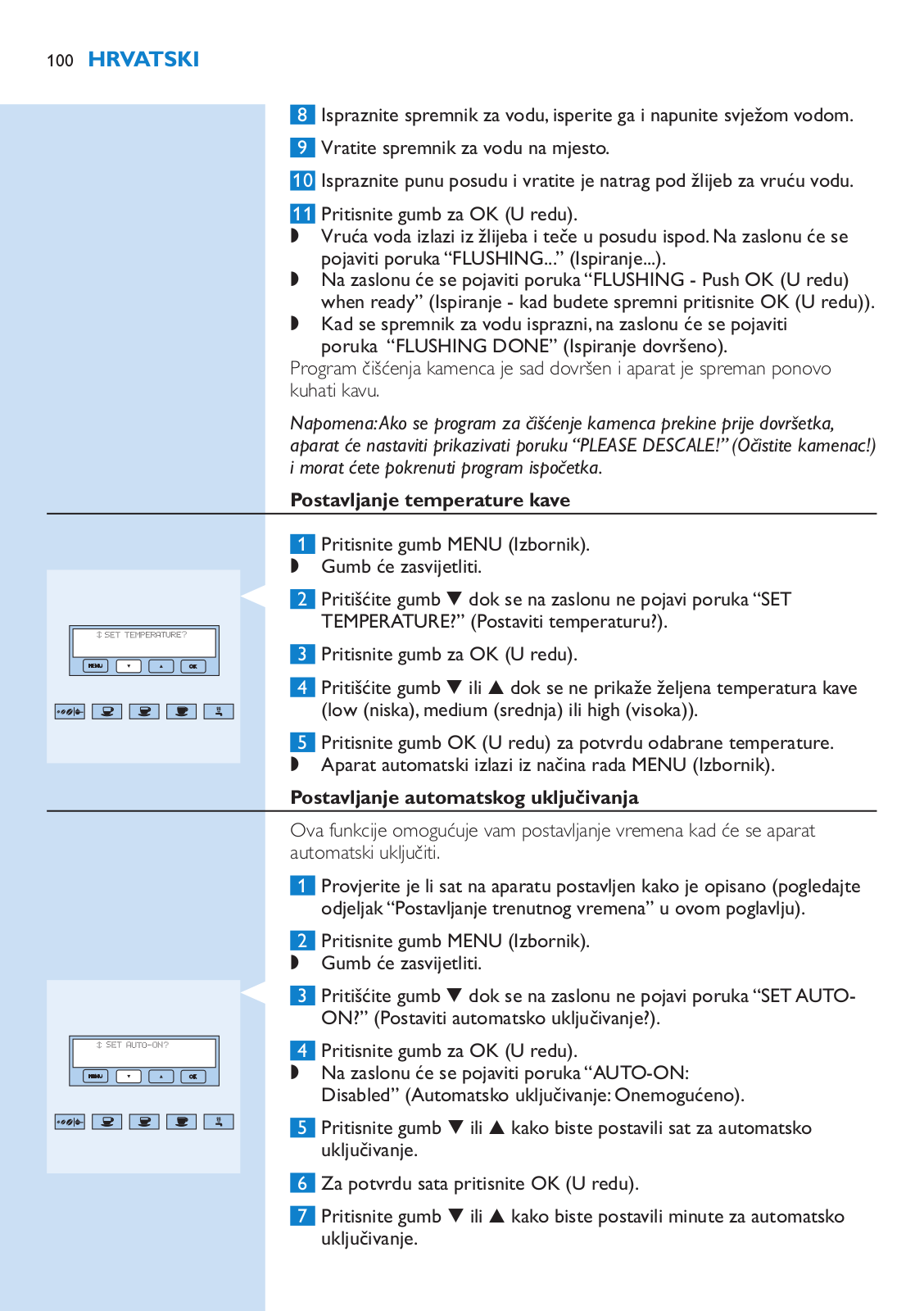

8Empty the water tank,rinse it and fill it with fresh water.

9Reinsert the water tank.

10 Empty the full bowl and then put it back under the hot water spout.

English 21

11Press the OK button.

,Hot water comes out of the spout and flows into the bowl below.

The message ‘FLUSHING...’ is shown on the display.

,The message ‘FLUSHING - Push OK when ready’ appears on the display.

,When the water tank is empty, the message ‘FLUSHING DONE’

appears on the display.

The descaling program is now finished and the appliance is ready to brew coffee again.

Note:If the descaling program is interrupted before completion,the appliance continues to display the message‘PLEASE DESCALE!’and you have to start the program from the beginning again.

Setting coffee temperature

1Press the MENU button.

,The button lights up.

Press the ^ button until the message ‘SET TEMPERATURE?’ appears on the display.

3Press the OK button.

4Press the ^ or % button until the desired coffee temperature is displayed (low, medium or high).

5Press the OK button to confirm the temperature selected.

,The appliance automatically exits the MENU mode.

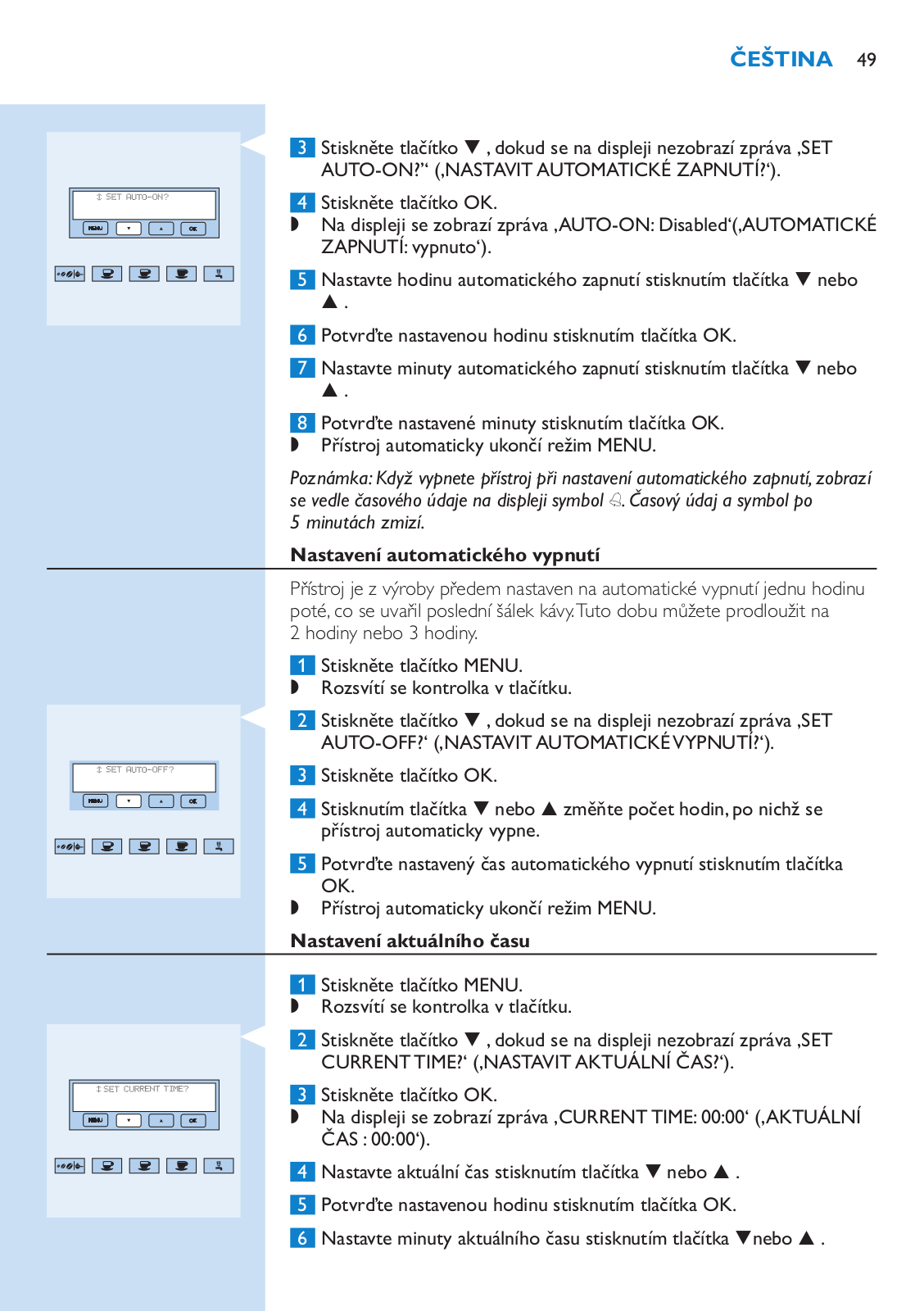

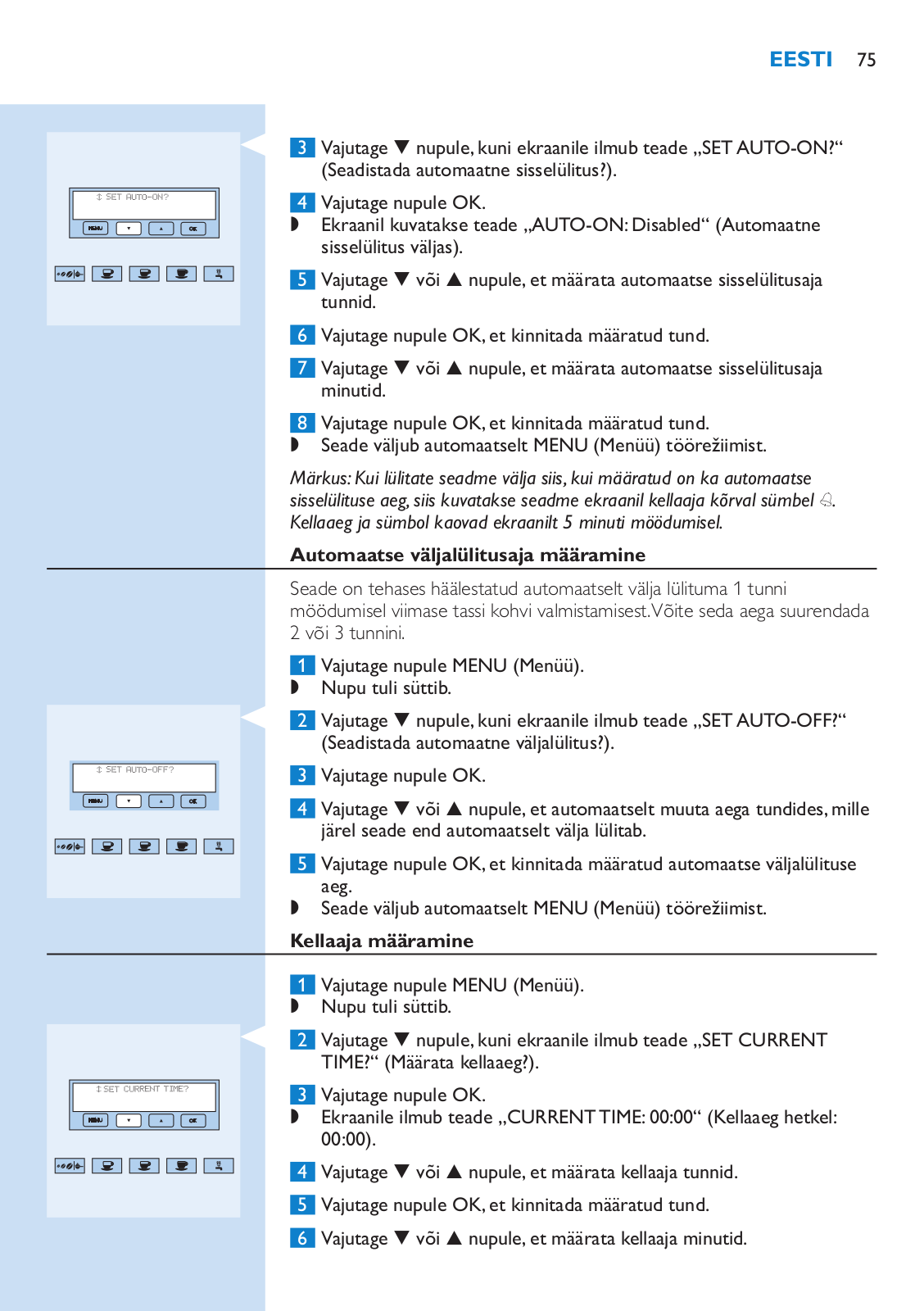

Setting auto-on time

This function allows you to set a time at which the appliance automatically switches on.

1Make sure the clock on the appliance is set as described (see section ‘Setting current time’ in this chapter).

2Press the MENU button.

,The button lights up.

Press the ^ button until the message ‘SET AUTO-ON?’ appears on the display.

4Press the OK button.

,The message ‘AUTO-ON: Disabled’ appears on the display.

5Press the ^ or % or button to set the hour of the auto-on time.

6Press the OK button to confirm the hour set.

7Press the ^ or % button to set the minutes of the auto-on time.

8Press the OK button to confirm the minutes set.

,The appliance automatically exits the MENU mode.

Note:When you switch off the appliance while an auto-on time is set,the > symbol appears next to the time on the unlit display.The clock and the symbol disappear after 5 minutes.

22 English

Setting auto-off time

The appliance is factory preset to switch off automatically one hour after the last cup of coffee is brewed.You can increase this time to 2 hours or 3 hours.

1Press the MENU button.

,The button lights up.

Press the ^ button until the message ‘SET AUTO-OFF?’ appears on the display.

3 Press the OK button.

4 Press the ^ or % button to change the number of hours after which the appliance switches off automatically.

5Press the OK button to confirm the set auto-off time.

,The appliance automatically exits the MENU mode.

Setting current time

1Press the MENU button.

,The button lights up.

Press the ^ button until the message ‘SET CURRENT TIME?’ appears on the display.

3Press the OK button.

, The message ‘CURRENT TIME: 00:00’ appears on the display. 4 Press the ^ or % button to set the hour of the current time 5 Press the OK button to confirm the hour set.

6Press the ^ or % button to set the minutes of the current time.

7Press the OK button to confirm the minutes set.

,The appliance automatically exits the MENU mode.

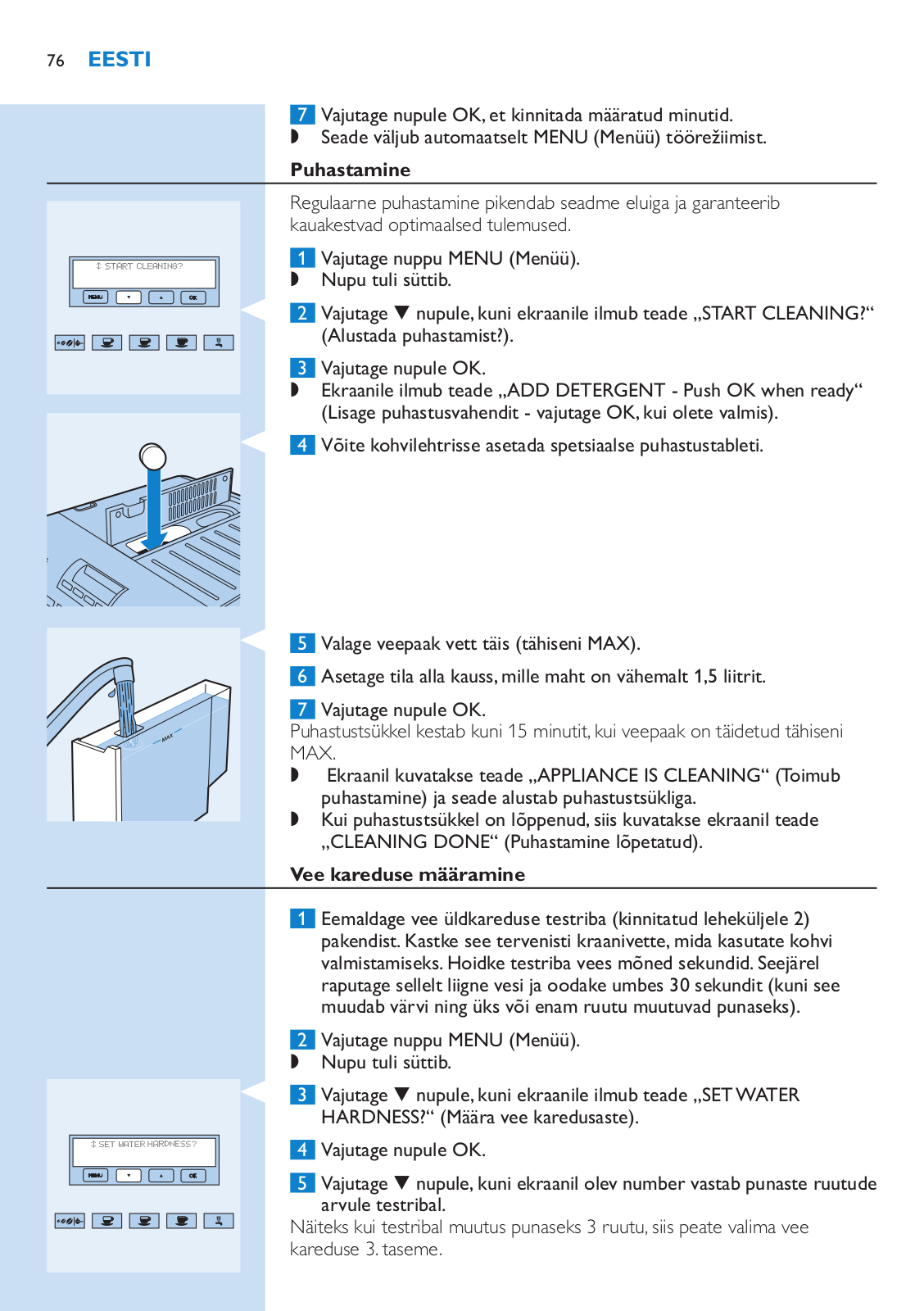

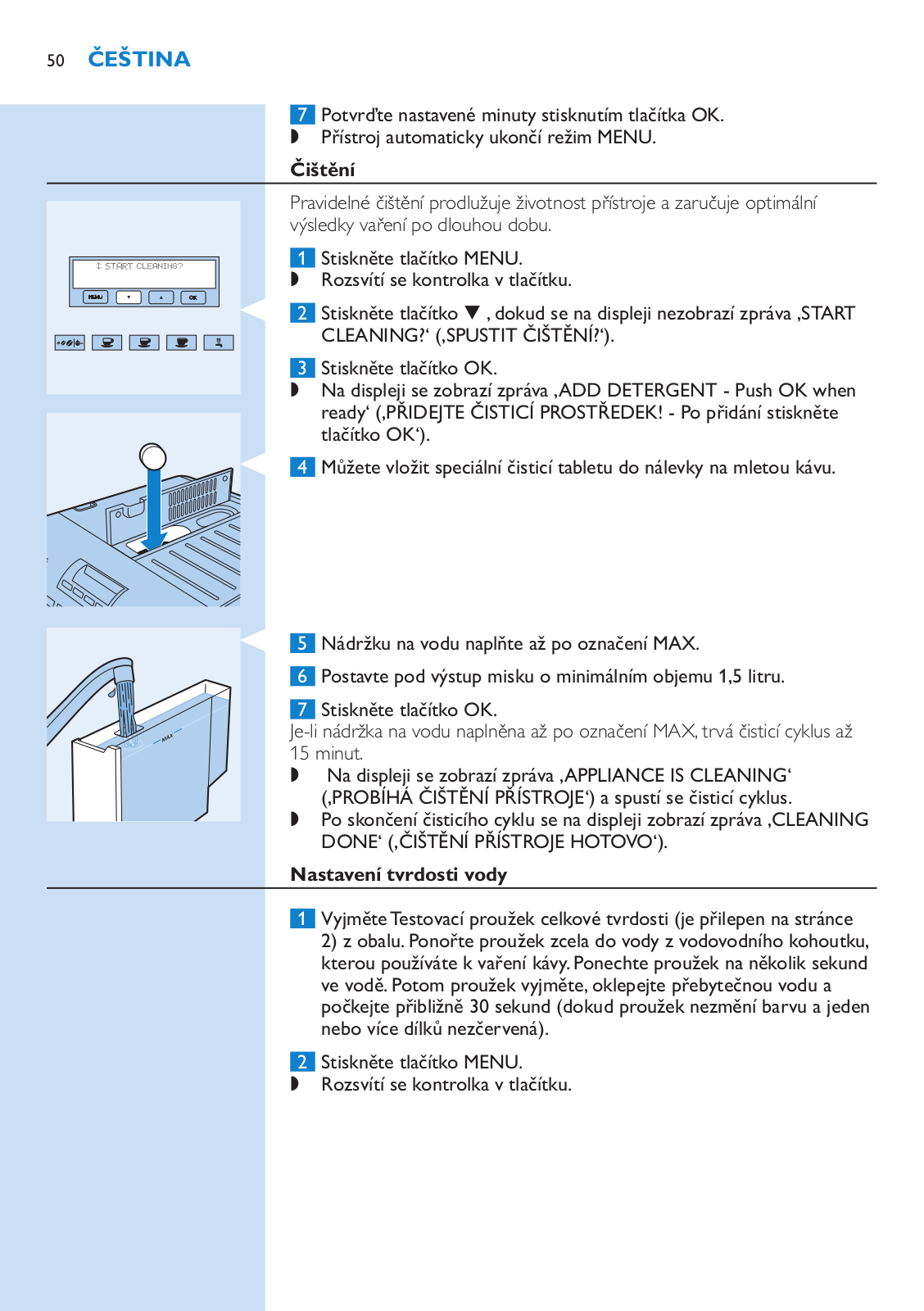

Cleaning

Regular cleaning prolongs the life of the appliance and guarantees optimal brewing results for a long time.

1Press the MENU button.

,The button lights up.

Press the ^ button until the message ‘START CLEANING?’ appears on the display.

3 Press the OK button.

,The message ‘ADD DETERGENT - Push OK when ready’ appears on the display.

English 23

You can put a special cleaning tablet into the ground coffee funnel.

Fill the water tank to the MAX level.

6Put a bowl with a minimum capacity of 1.5 litres under the spout.

7Press the OK button.

The cleaning cycle takes up to 15 minutes if the water tank is filled to the MAX level.

,The message ‘APPLIANCE IS CLEANING’ appears on the display and the cleaning cycle starts

,When the cleaning cycle is finished,the message‘CLEANING

DONE’ appears on the display.

Setting water hardness

1Remove the Total Hardness Test strip (attached to page 2) from its wrap. Dip the strip fully into the tap water you use to brew coffee. Keep the strip in the water for a few seconds.Then remove the strip, shake off excess water and wait approx. 30 seconds (until it changes colour and one or more squares turn red).

2Press the MENU button.

,The button lights up.

Press the ^ button until the message ‘SET WATER HARDNESS?’ appears on the display.

4Press the OK button.

5Press the ^ button until the number on the display coincides with the number of red squares on the test strip.

For example, if 3 squares on the test strip have turned red, you have to set water hardness 3.

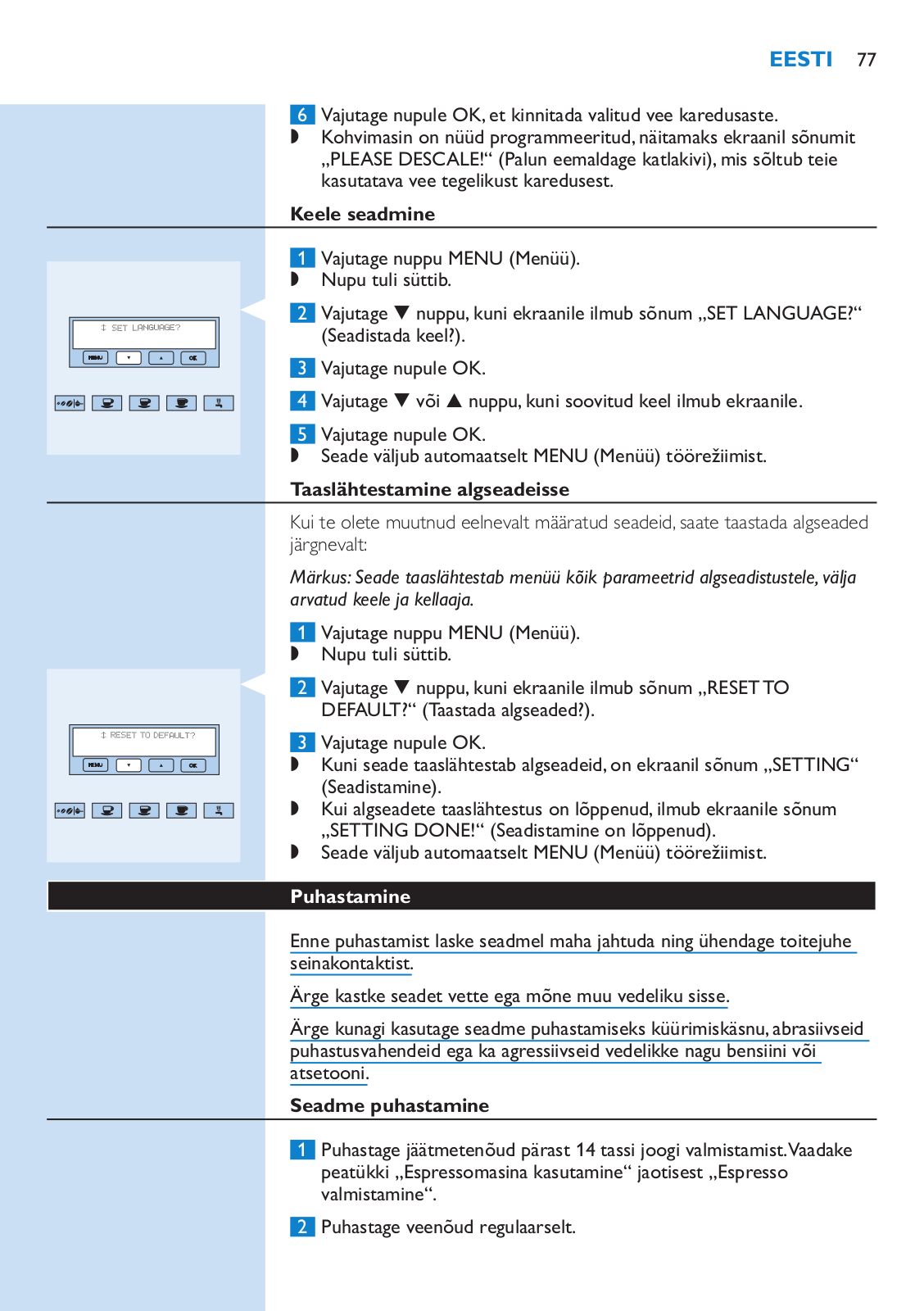

6Press the OK button to confirm the set water hardness.

,The coffee maker is now programmed to display the ‘PLEASE DESCALE!’ message based on the actual hardness of the water you use.

Setting language

1Press the MENU button.

,The button lights up.

24 English

Press the ^ button until the message ‘SET LANGUAGE?’ appears on the display.

3 Press the OK button.

4 Press the ^ or % button until the desired language appears on the display.

5Press the OK button.

,The appliance automatically exits the MENU mode.

Resetting to default settings

If you have changed the preset settings, you can reset the appliance to the default settings as follows:

Note:The appliance resets all menu parameters except the language and the clock.

1Press the MENU button.

,The button lights up.

Press the ^ button until the message ‘RESET TO DEFAULT?’ appears on the display

3Press the OK button.

, While the appliance is resetting, the message ‘SETTING’ is shown on the display.

, When the reset is complete, the message ‘SETTING DONE!’ is shown on the display.

,The appliance automatically exits the MENU mode.

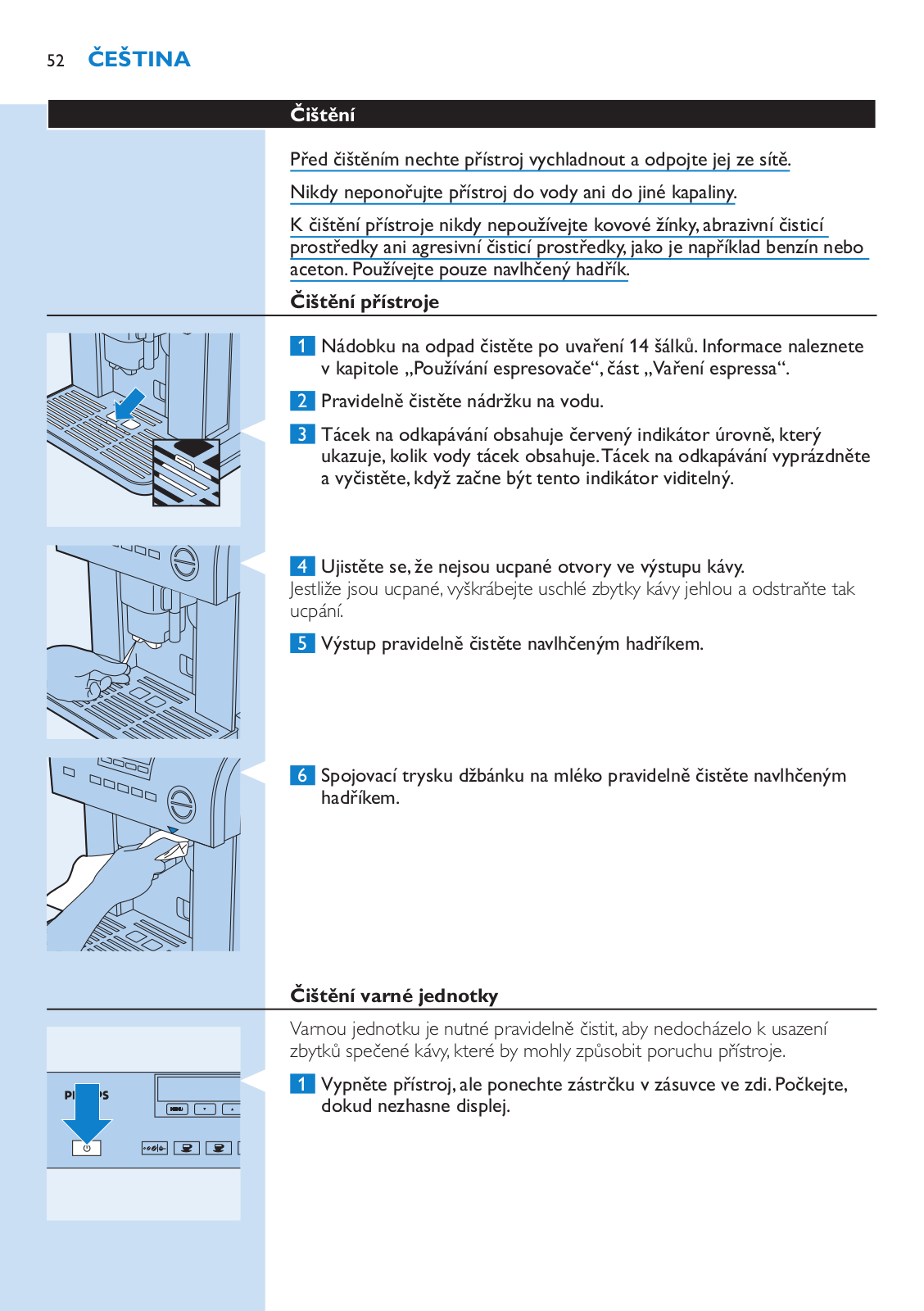

Cleaning

Let the appliance cool down and unplug it before you clean it.

Never immerse the appliance in water or any other liquid.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. Only use a damp cloth.

Cleaning the appliance

1Clean the waste bin after brewing 14 cups. See chapter ‘Using the espresso maker’,section‘Brewing espresso’.

2 Clean the water tank regularly.

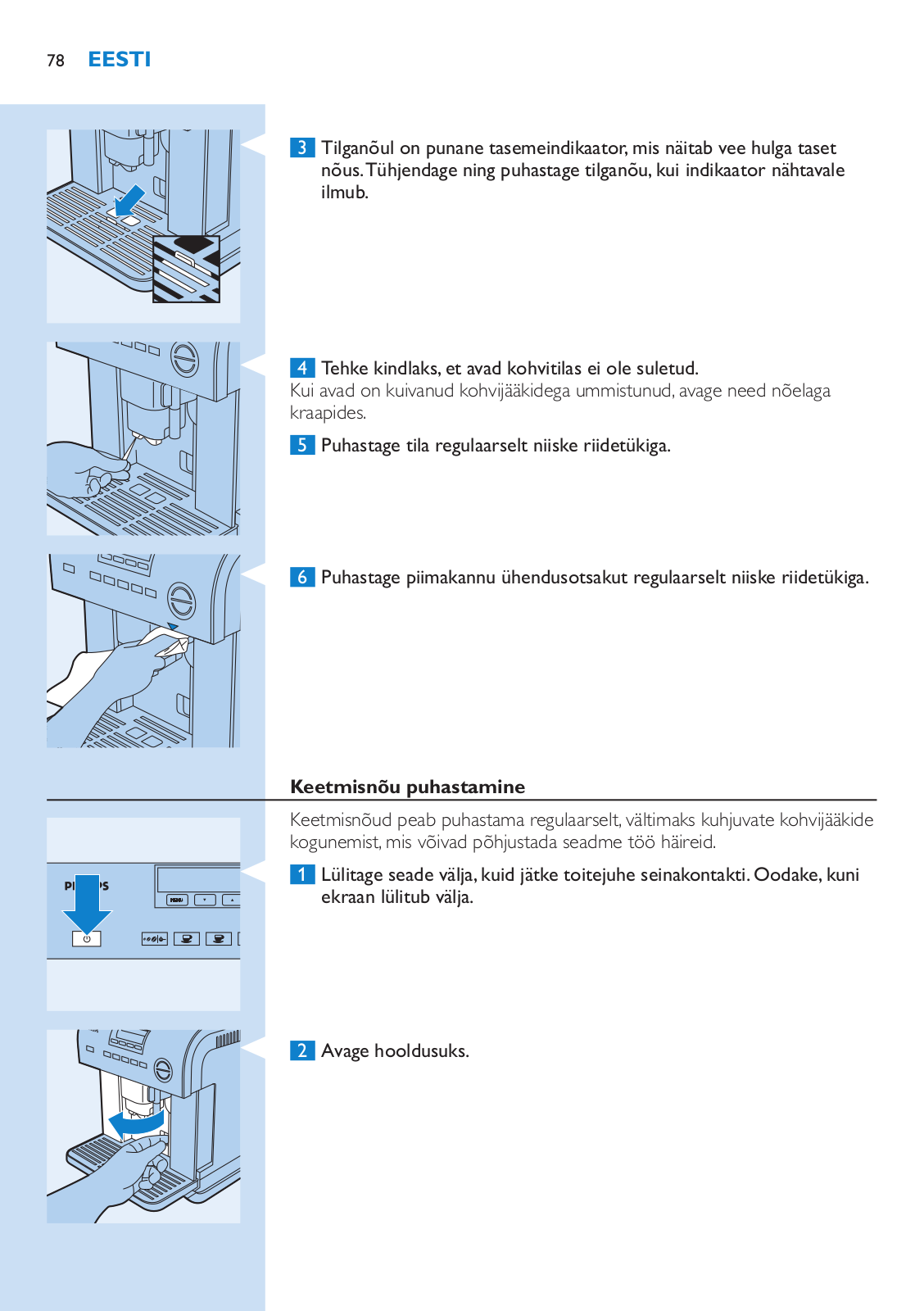

The drip tray has a red level indicator that shows how much water it contains. Empty and clean the drip tray when the indicator becomes visible.

English 25

Make sure that the holes in the coffee spout are not blocked. they are blocked, unblock them by scraping dried coffee residues away

with a needle.

5Clean the spout regularly with a damp cloth.

Clean the connection nozzle for the milk jug regularly with a damp cloth.

Cleaning the brewing unit

The brewing unit must be cleaned regularly to avoid the build-up of caked coffee residues, which could cause the appliance to malfunction.

Switch off the appliance but leave the plug in the wall socket.Wait until the display goes out.

Open the service door.

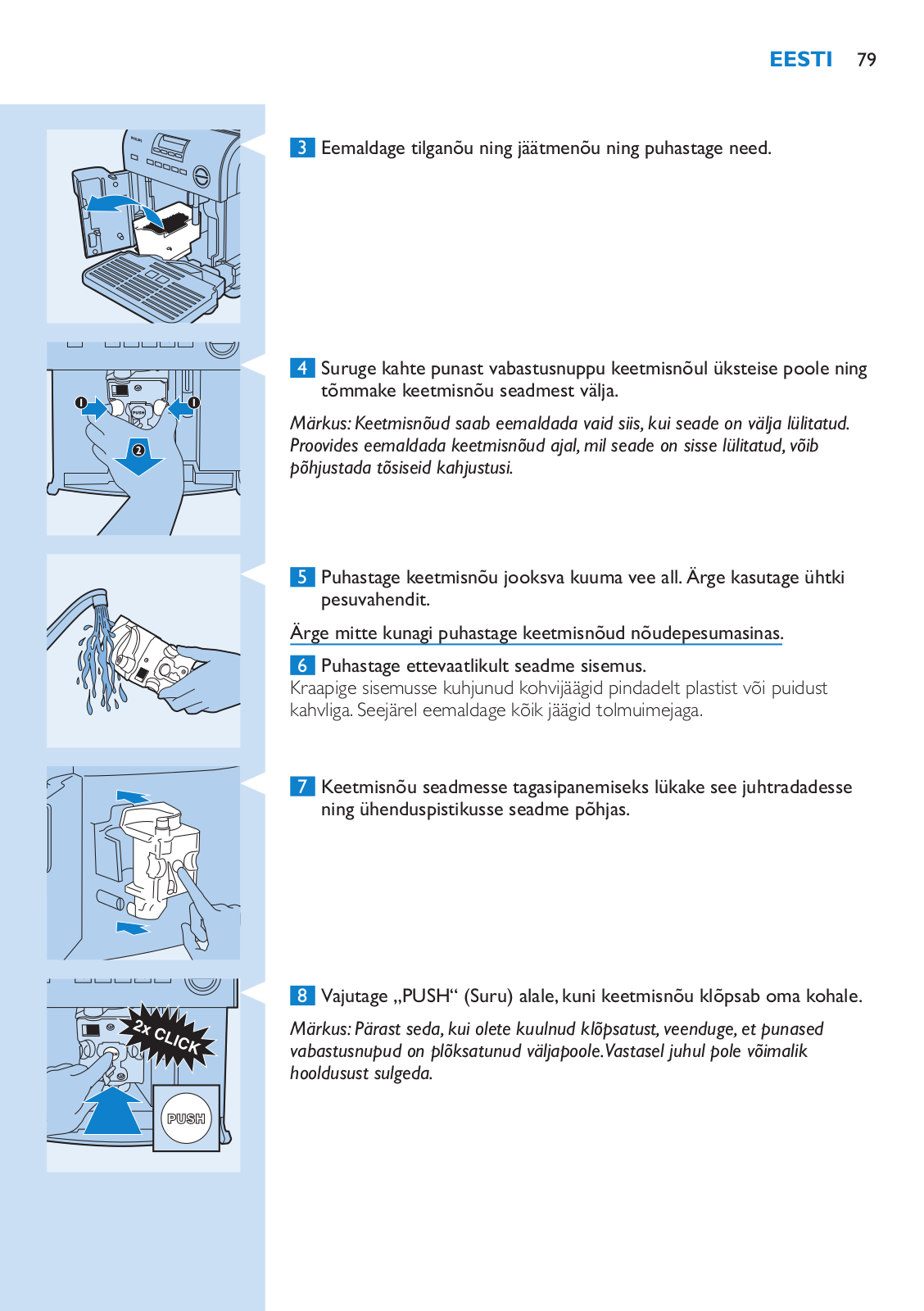

Remove the drip tray and the waste bin and clean them.

26 English

Press the two red release buttons on the brewing unit towards each other and pull the brewing unit out of the appliance.

Note:The brewing unit can only be removed if the appliance is switched off. Attempting to remove the brewing unit while the appliance is switched on may cause serious damage.

Clean the brewing unit under a hot tap. Do not use any cleaning agents.

Never clean the brewing unit in the dishwasher.

6 Carefully clean the inside of the appliance.

Scrape away coffee residues caked to parts inside the appliance with a plastic or wooden fork.Then suck up all the residues with a vacuum cleaner.

To put the brewing unit back into the appliance, slide it onto the supports and the pin at the bottom.

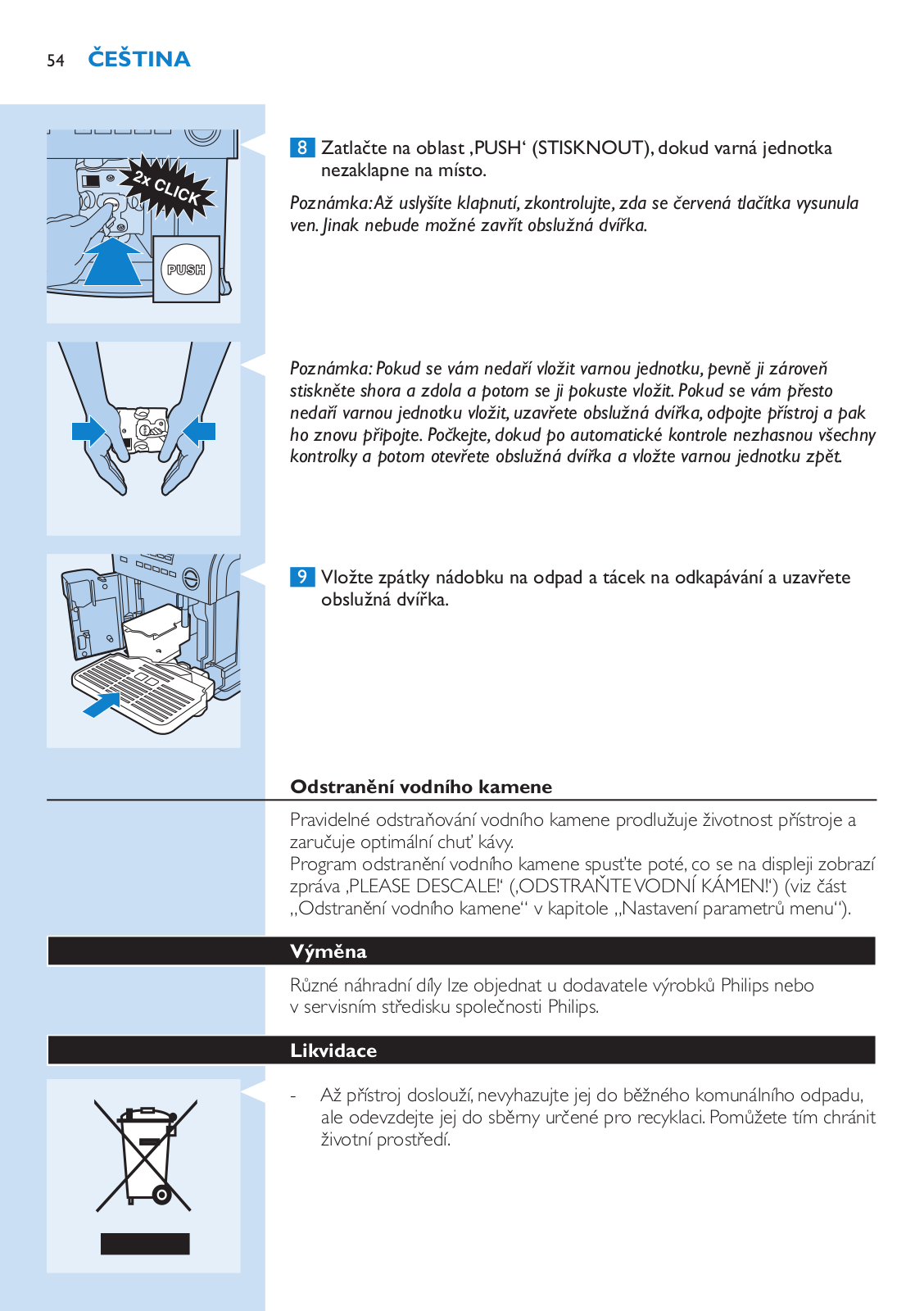

Press on the ‘PUSH’ area until the brewing unit snaps into place.

Note:After you hear the clicks,make sure the red buttons have snapped outwards.Otherwise the service door cannot be closed.

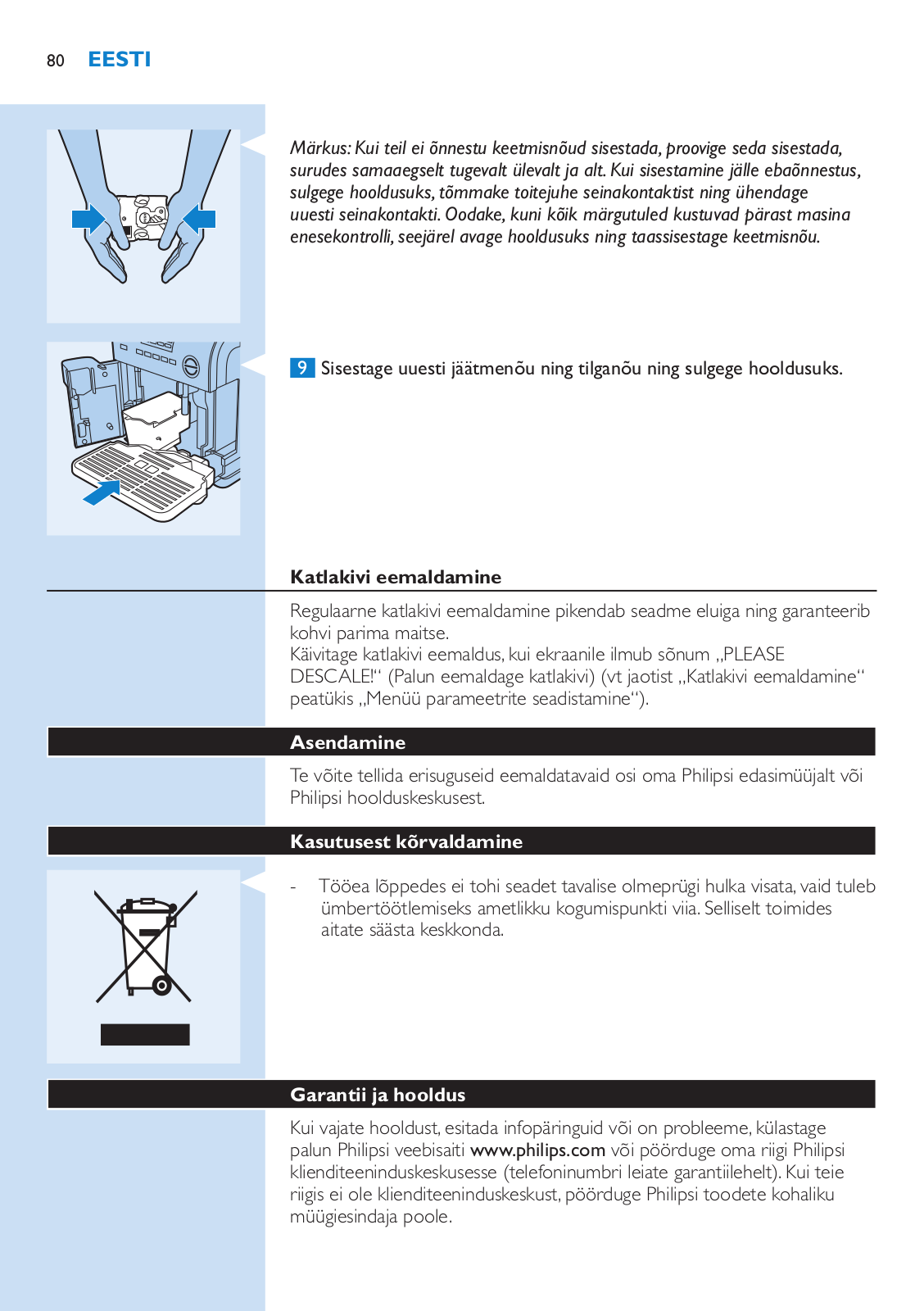

Note:If you cannot insert the brewing unit,press the unit firmly from above below at the same time and then try to insert it.If you still cannot insert the brewing unit,close the service door,unplug the appliance and then plug it in again.Wait for all the lights to go off after the self-check,then open the

service door and reinsert brewing unit.

English 27

9 Reinsert the waste bin and the drip tray and close the service door.

Descaling

Regular descaling prolongs the life of the appliance and guarantees an optimal coffee flavour.

Run the descaling program when the message ‘PLEASE DESCALE!’ appears on the display (see section ‘Descaling’ in chapter ‘Setting menu parameters’).

Replacement

You can order various removable parts from your Philips dealer or a Philips service centre.

Disposal

-Do not throw away the appliance with the normal household waste

at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

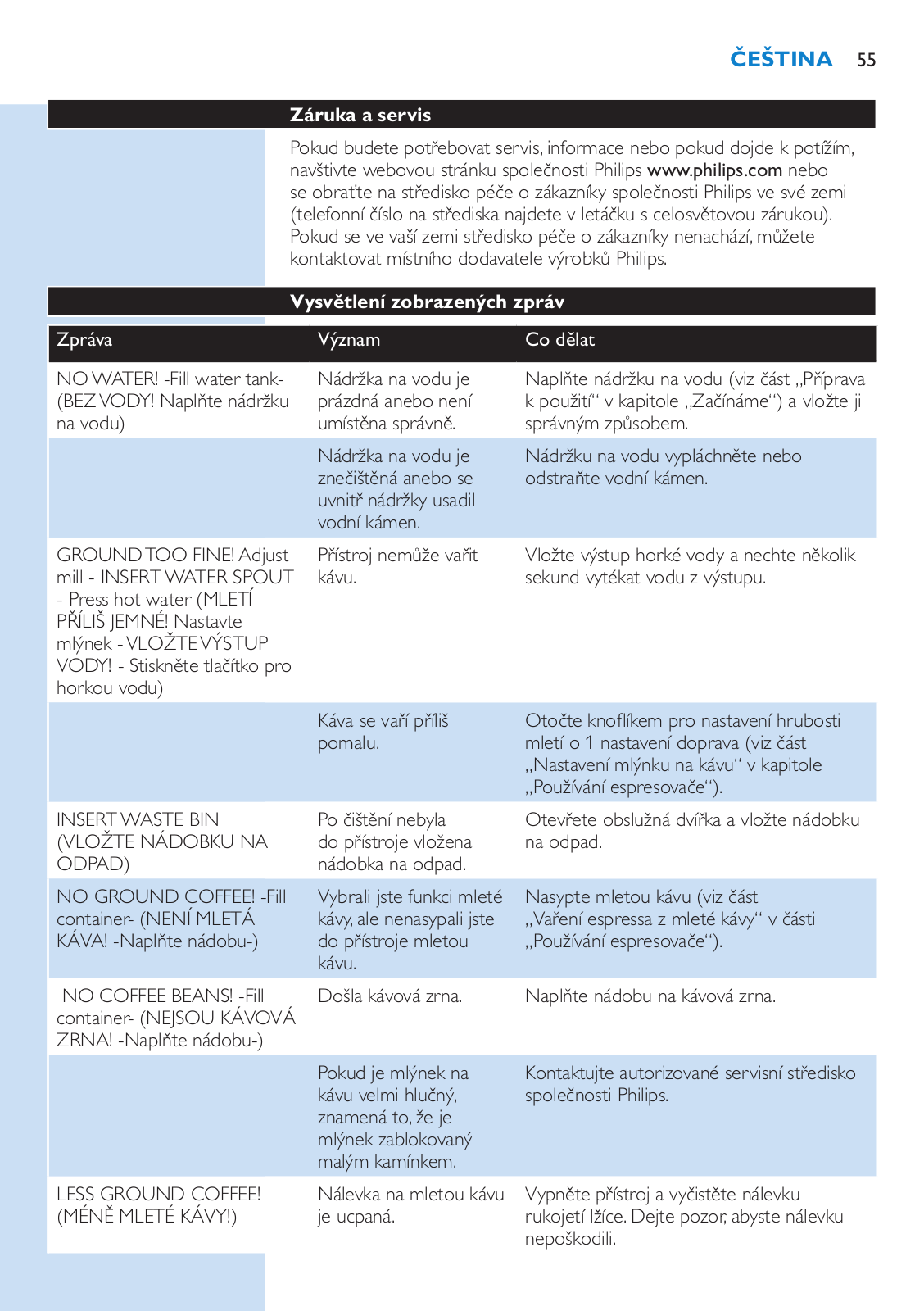

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer

Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

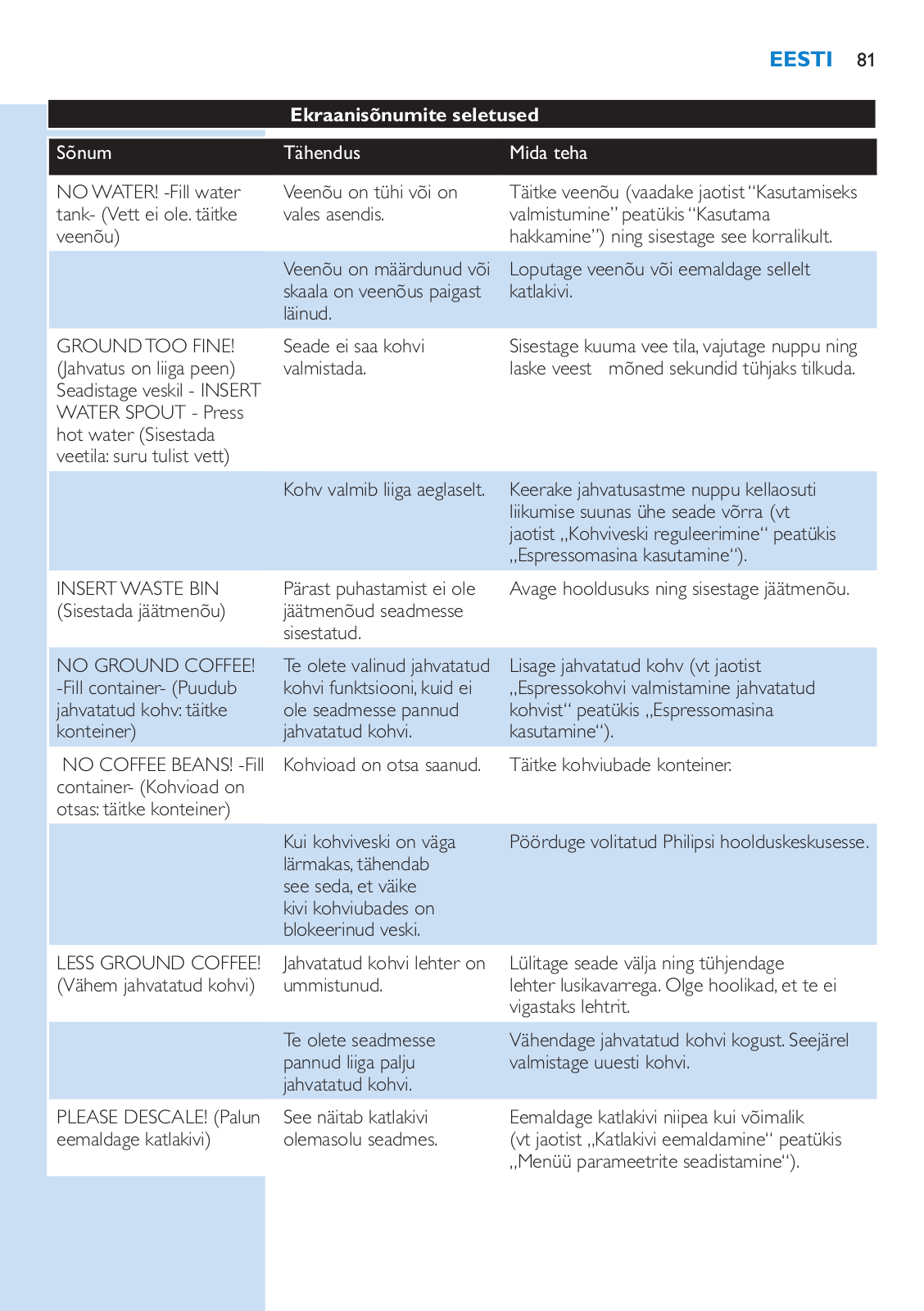

Message	Meaning	What to do
NO WATER! -Fill	The water tank is empty or is	Fill the water tank (see section ‘Preparing for
water tank-	positioned incorrectly.	use’ in chapter ‘Getting started’) and insert it
		properly.

The water tank is dirty or scale has deposited in the water tank.

Rinse or descale the water tank.

28 English

Message	Meaning	What to do
GROUND TOO	The appliance cannot brew	Insert the hot water spout, press the button and
FINE! Adjust mill	coffee.	let water run out of the spout for a few seconds.
- INSERT WATER
SPOUT - Press
hot water

The coffee is brewed too slowly.

Turn the grinding coarseness knob clockwise one setting (see section ‘Regulating the coffee mill’ in chapter ‘Using the espresso maker’).

INSERT WASTE	After cleaning, the waste bin
BIN	has not been reinserted into
	the appliance.
NO GROUND	You have selected the ground
COFFEE! -Fill	coffee function but you have
container-	not put ground coffee in the
	appliance.

Open the service door and insert the waste bin.

Add ground coffee (see section ‘Brewing espresso from ground coffee’ in chapter ‘Using the espresso maker’).

NO COFFEE	The coffee beans have run out.	Fill the coffee bean container.
BEANS! -Fill
container-
	If the coffee grinder is very	Contact an authorised Philips service centre.
	noisy, this means a small stone
	in the coffee beans has blocked
	the mill.

LESS GROUND The ground coffee funnel is COFFEE! clogged.

Switch off the appliance and empty the funnel with the handle of a spoon. Be careful not to damage the funnel.

	You have put too much ground	Reduce the quantity of ground coffee.Then brew
	coffee in the appliance.	coffee again.
PLEASE	This indicates the presence	Perform the descaling procedure as soon as
DESCALE!	of scale in the appliance.	possible (see section ‘Descaling’ in chapter
		‘Setting menu parameters’).

CLOSE DOOR!	The service door is open.
INSERT	You have probably not
BREWING UNIT!	reinserted the brewing unit
	after you cleaned it.
GENERIC ALARM!	The inside of the appliance is
	very dirty.

Close the service door. If the service door cannot be closed, make sure that the brewing unit is inserted correctly (see section ‘Cleaning the brewing unit’ in chapter ‘Cleaning’).

Insert the brewing unit (see section ‘Cleaning the brewing unit’ in chapter ‘Cleaning’).

Switch off the appliance and clean the inside of the appliance thoroughly, as described in chapter ‘Cleaning’. If the message is still displayed after you have cleaned the appliance, contact an authorised Philips service centre.

INSERT WATER The hot water spout is not SPOUT! inserted.

Place the hot water spout in the appliance.

		English 29
Message	Meaning	What to do
NO MILK JUG!	The milk jug is not inserted.	Place the milk jug in the appliance.
	Troubleshooting
	If you are unable to solve the problem with the information below, contact
	the Consumer Care Centre in your country (see chapter ‘Guarantee and
	service’).
Problem	Possible cause	Solution
The display does not	You have not removed the	Remove the sticker from the display.
work.	sticker from the display.
The text on the	You have set the wrong	If you set the wrong language during the initial
display is in the	language.	installation procedure, you first have to complete
wrong language.		the installation procedure before the language
		can be changed. Consult the Quick Start Guide

guide or the user manual on how to complete the installation procedure.The installation is complete when the appliance switches off automatically.To select another language: (1) Press the on/off button to switch on the appliance. (2)

Press the MENU button. (3) Press the % button twice. (4) Press the OK button. (4) Select the preferred language with the % and ^ buttons.

(5) Press the OK button.

The coffee is not	The cups have not been
hot enough.	preheated.

To preheat the cups, rinse them with hot water or leave them on the cup warmer tray on top of the switched-on appliance for at least 20 minutes.

The coffee temperature is	Increase the coffee temperature in the menu
set too low in the menu.	(see chapter ‘Setting menu parameters).

The coffee is not creamy enough.

The coffee flows out of the spout too slowly.

The coffee flows out of the spout too quickly.

The coffee only comes out of one of the two spout holes.

The coffee is ground too coarsely.

You have used a wrong type of coffee.

The coffee is ground too finely.

The coffee is ground too coarsely.

One of the spout holes is blocked.

Turn the grinding adjustment knob one setting anticlockwise.

Use a type of coffee suitable for espresso coffee makers.

Turn the grinding adjustment knob one setting clockwise.

Turn the grinding adjustment knob one setting anticlockwise.

Use a needle to scrape dried coffee residues out of the blocked spout hole.

30 English

Problem	Possible cause	Solution
When I press the	The funnel for ground coffee	Switch off the appliance and unblock the funnel
button for short,	is blocked.	with the handle of a spoon.Then clean the
standard or long		brewing unit and the inside of the appliance (see
coffee, water instead		chapter ‘Cleaning’).
of coffee comes out
of the appliance.

The appliance does not come on when I press the on/off button 3.

The appliance is not plugged in.

Make sure that the mains plug is in the wall socket.

I cannot remove the brewing unit to clean it.

I want to brew espresso from ground coffee, but no espresso comes out of the appliance.

The appliance is switched on.You can only remove the brewing unit if the appliance is switched off.

You have put too much ground coffee in the ground coffee compartment.

Switch off the appliance and remove the brewing unit. Never try to remove the brewing unit when the appliance is switched on, as this may cause damage to the appliance.

Switch off the appliance and remove the brewing unit and thoroughly clean the inside of the appliance. Brew espresso from ground

coffee again, but do not put more than one level spoonful of ground coffee in the ground coffee compartment

You have not selected the ground coffee function. As a result, the appliance has become blocked

because it has tried to brew coffee using both the preground coffee and the coffee from its own grinder.

Switch off the appliance and thoroughly clean the inside of the appliance. Brew espresso from ground coffee again, but make sure you select the ground coffee function.

The coffee does not come out of the coffee spout but around the edges of the service door.

You have put ground coffee in the ground coffee compartment while the appliance was switched off.

The spout holes are clogged with dried coffee residues.

Thoroughly clean the inside of the appliance. Brew espresso from ground coffee again, but switch on the appliance before you put the ground coffee in the ground coffee compartment.

Scrape the dried coffee residues out of the spout holes with a needle.

	The slide-out tray inside the
	service door is blocked and
	cannot slide in and out of
	the service door.

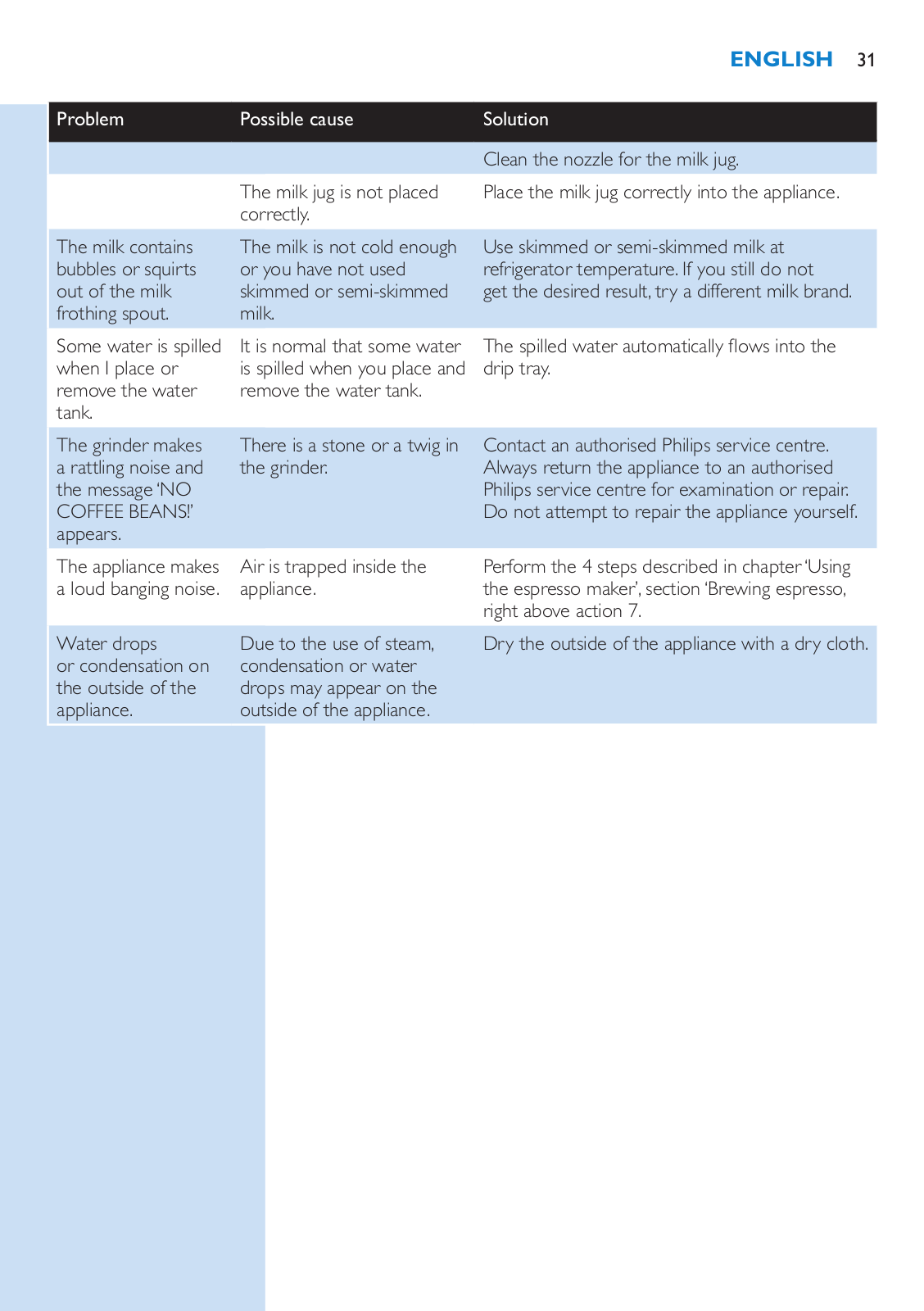

No milk comes out	The milk intake tube is not
of the milk frothing	inserted or not properly
spout.	inserted into the milk jug lid.
The milk is not	The milk jug lid is dirty.
properly frothed.

Thoroughly clean the slide-out tray, particularly near the hinges to ensure that it slides smoothly in and out of the service door.

Insert the milk intake tube in the rubber ring in the milk jug lid.

Clean the milk jug lid.
