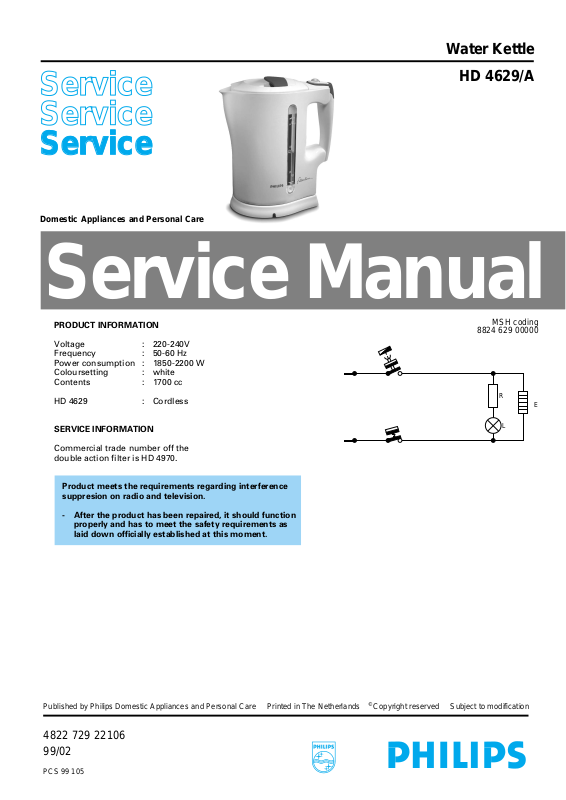

Philips HD 4629-A Service Manual
Water Kettle
HD 4629/A
Service
Service
Service
Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Voltage
Frequency
Power consumption
Coloursetting
Contents
HD 4629
SERVICE INFORMATION
Commercial trade number off the
double action filter is HD 4970.
Product meets the requirements regarding interference
suppresion on radio and television.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
laid down officially established at this moment.
220-240V
:
50-60 Hz
:
1850-2200 W
:
white
:
1700 cc
:
Cordless
:
MSH coding
8824 629 00000
R
E
L
Published by Philips Domestic Appliances and Personal Care Printed in The Netherlands Copyright reserved Subject to modification
4822 729 22106
99/02
PCS 99 105
©
HD 4629/A
1
2
8
9
10
3
3
max
1.7
3.0
pt
l
2.0
1.0
4
1.0
0.5
0.9
min
5
7 6
max
1.7
3.0
pt
l
2.0
1.0
1.0
0.5
0.9
min
12
15 1614
Parlist from the HD 4629
Pos: Description: Service code: Pos: Description: Service code:
4822 410 12406
4822 134 10064
4822 530 10533
4822 259 10326
4822 528 11074
4822 214 13046
4822 736 16853
PCS 99 105
Lid complete
1
Filter
2
Boot upper
3
Lever indicator left
4
Boot lower
5
Contact block
6
Base
7
Switch cover
8
4822 442 01548
4822 480 10267
4822 528 11074
4822 530 10532
4822 530 40521
4822 290 61106
4822 464 10522
4822 442 01806
Switch knob
9
Signal lamp
10
Lever indicator right
12
Element s.s.
14
Sealing ring
15
Control unit
16
D.F.U.
