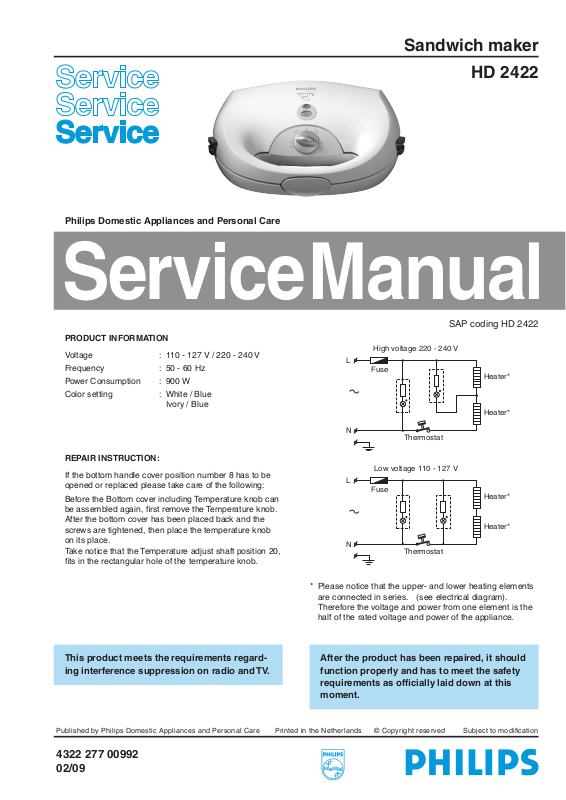

Sandwich maker
HD 2422
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Voltage : 110 - 127 V / 220 - 240 V
Frequency : 50 - 60 Hz
Power Consumption : 900 W
Color setting : White / Blue
Ivory / Blue
REPAIR INSTRUCTION:
If the bottom handle cover position number 8 has to be
opened or replaced please take care of the following:
Before the Bottom cover including Temperature knob can
be assembled again, fi rst remove the Temperature knob.
After the bottom cover has been placed back and the
screws are tightened, then place the temperature knob
on its place.
Take notice that the Temperature adjust shaft position 20,
fi ts in the rectangular hole of the temperature knob.
SAP coding HD 2422
High voltage 220 - 240 V
L
Fuse
N
Low voltage 110 - 127 V
L
Fuse
N
* Please notice that the upper- and lower heating elements
are connected in series. (see electrical diagram).
Therefore the voltage and power from one element is the
half of the rated voltage and power of the appliance.
Thermostat
Thermostat
Heater*
Heater*
Heater*
Heater*
This product meets the requirements regarding interference suppression on radio and TV.
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
After the product has been repaired, it should
function properly and has to meet the safety
requirements as offi cially laid down at this
moment.
4322 277 00992
02/09
![](/html/ac/ac14/ac14b56c7a304c9637fc712437e0caa4ec50b50249c47b9460486931e528ff5a/bg2.png)
HD 2422
1
2
9
3
10
4
5
6
7
12
13
8
10
11
3
Pos Description Service code
1
Handle clip spring
2
Handle clip
3
Releaser retum spring
4
Top plate releaser
5
Top handle cover
6
Control panel
7
Temp knob
8
Bottom Handle cover
9
Button spring
10
Button plate release
11
Bottom plate releaser
12
Top Hinge cover
13
Hinge controller
14
Plate mount
9965 000 15507
9965 000 15508
9965 000 15509
9965 000 15510
9965 000 15511
9965 000 15512
9965 000 15513
9965 000 15514
9965 000 15515
9965 000 15516
9965 000 15517
9965 000 15518
9965 000 15519
9965 000 15520
9
Pos Description Service code
15
Plate left handle
16
Plate right handle
17
Grill plate
18
Nordic waffl e plate
19
Cut & Slice sandwich plate
20
Temp adjust shaft
21
Thermostat assy
22*
Heating element HV (115 V / 450 W)
Heating element LV (60 V / 450 W)
23
Fuse
24
Temp sensitivity
25
Spring
26
Supporter
9965 000 15521
9965 000 15522
9965 000 15523
9965 000 15535
9965 000 15525
9965 000 15526
9965 000 15527
9965 000 15528
9965 000 15529
9965 000 15530
9965 000 15531
9965 000 15532
9965 000 15533
