GC9920

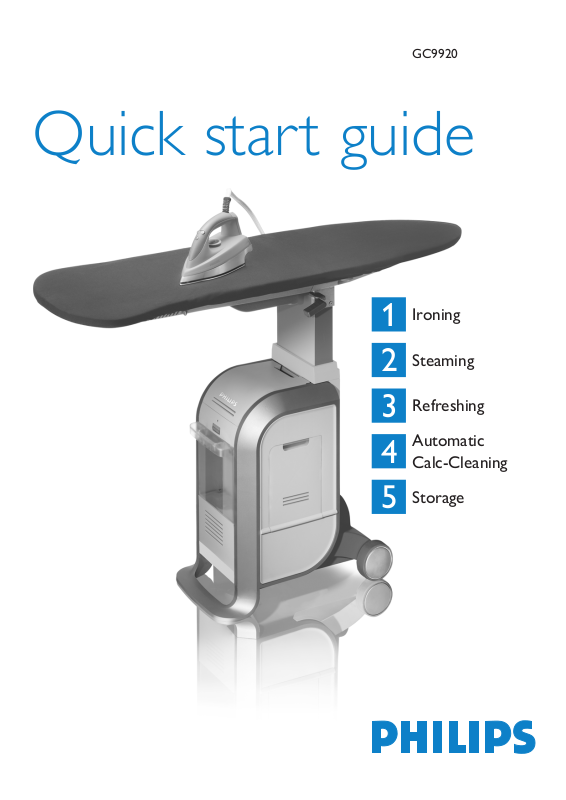

Quick start guide
1
2
3
4
5
Ironing
Steaming
Refreshing
Automatic
Calc-Cleaning
Storage
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
Exploded view
General description
A Hanger hook
B Refreshing button
C Air vents
D Air vent slide
E NeverBurn ironing board cover
F Fan
G Board handle
H Board tilting button
I Height adjustment lever
J Locking strap
K Iron compartment
L Iron
M Mains plug
N Rinse tray
O Water tank
P Water tank release button
Q Power-on light
R Steamer compartment
S Steamera
J
H
I
D
T
M
U
V
1
T Steam activator
U Iron power-on button with light
V Blowing/suction button
D Air vent slide
I Height adjustment lever
H Board tilting button
J Locking strap
M Mains plug
E Ironing tips and tricks
•
•
•
Ironing
To iron shirts, use the wide end of the board to save time
and energy.
To avoid shine and seam imprints, use the blowing mode.
To hold the garment at on the board, use the suction mode.
1
Put the mains plug M in an earthed
wall socket. The power-on light goes
on.
Fill the water tank.
2
Undo the locking strap J and unfold
the ironing board to vertical position.
Set both air vent slides D to the
ironing position.
Push the board tilting button H and
3
tilt the board to horizontal position.
Set the ironing board to the
appropriate height by means of the
height adjustment lever I.
5
If you want to iron with steam, set the
temperature dial of the iron to 2 or
higher and press the steam activator T.
Never direct the steam
at people.
6
If you want to iron in the blowing
mode, press the rounded side of the
blowing/suction button.
If you want to iron in the suction
mode, press the hollow side of the
blowing/suction button.
7
You can safely put down the hot iron
on the board cover during ironing.
Take the iron out of the iron
4
compartment, either from the left or
right side.
Switch the iron on by pressing the iron
power-on button U. The power-on
light goes on.
After approx. 2 minutes the iron
is ready for use.
8
You can store the hot iron in the
heat-resistant storage compartment
immediately after you have switched
the iron off.
