Location of printed circuit boards . . . . . . . . . . . . . . . . . . . 1-2
Technical specification . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Measurement setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
RC-5 codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Brief operating instructions. . . . . . . . . . . . . . . . . . . . . . . . 2-4
Warnings & safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Service Testprogram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Wiring Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

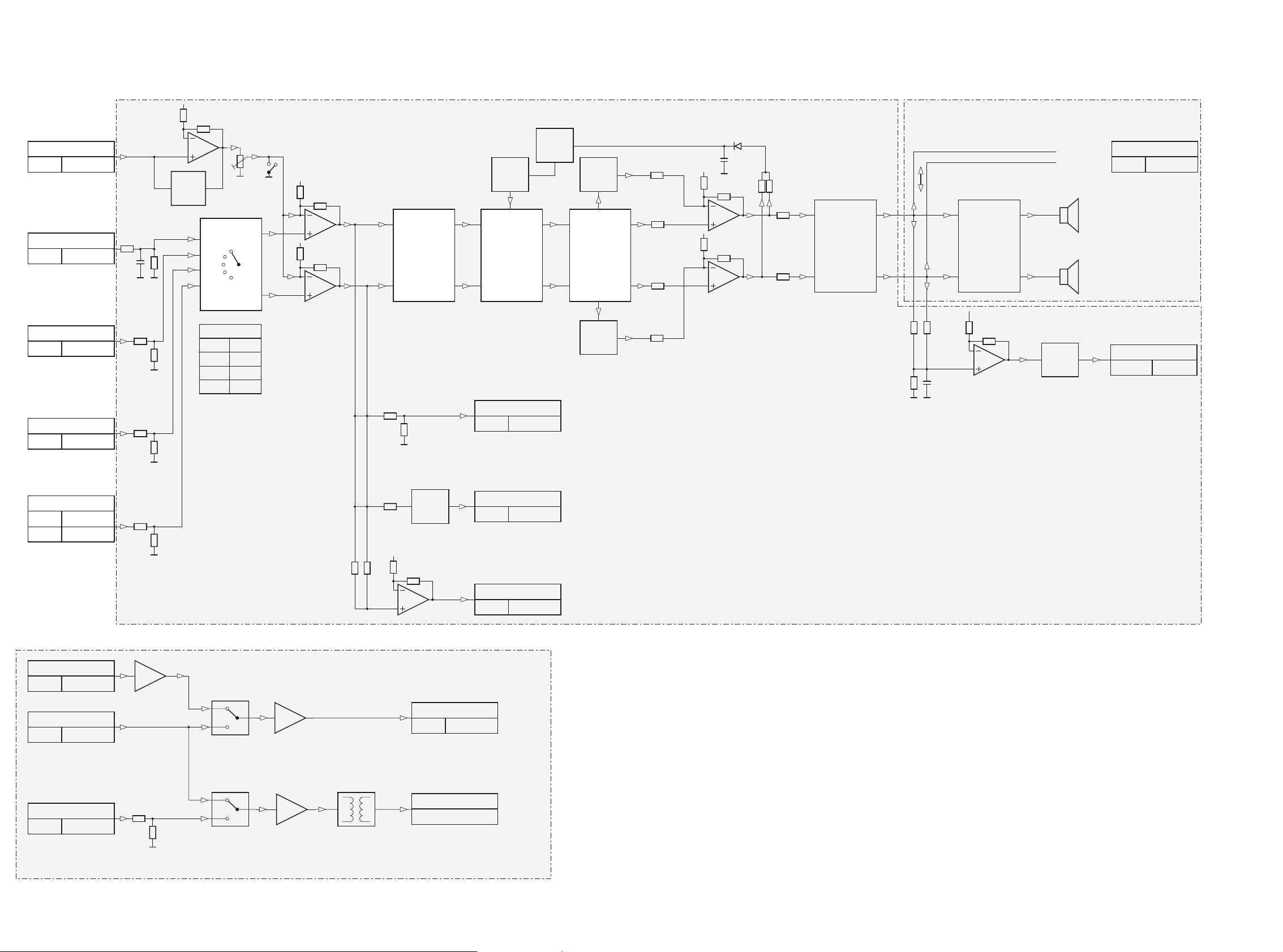

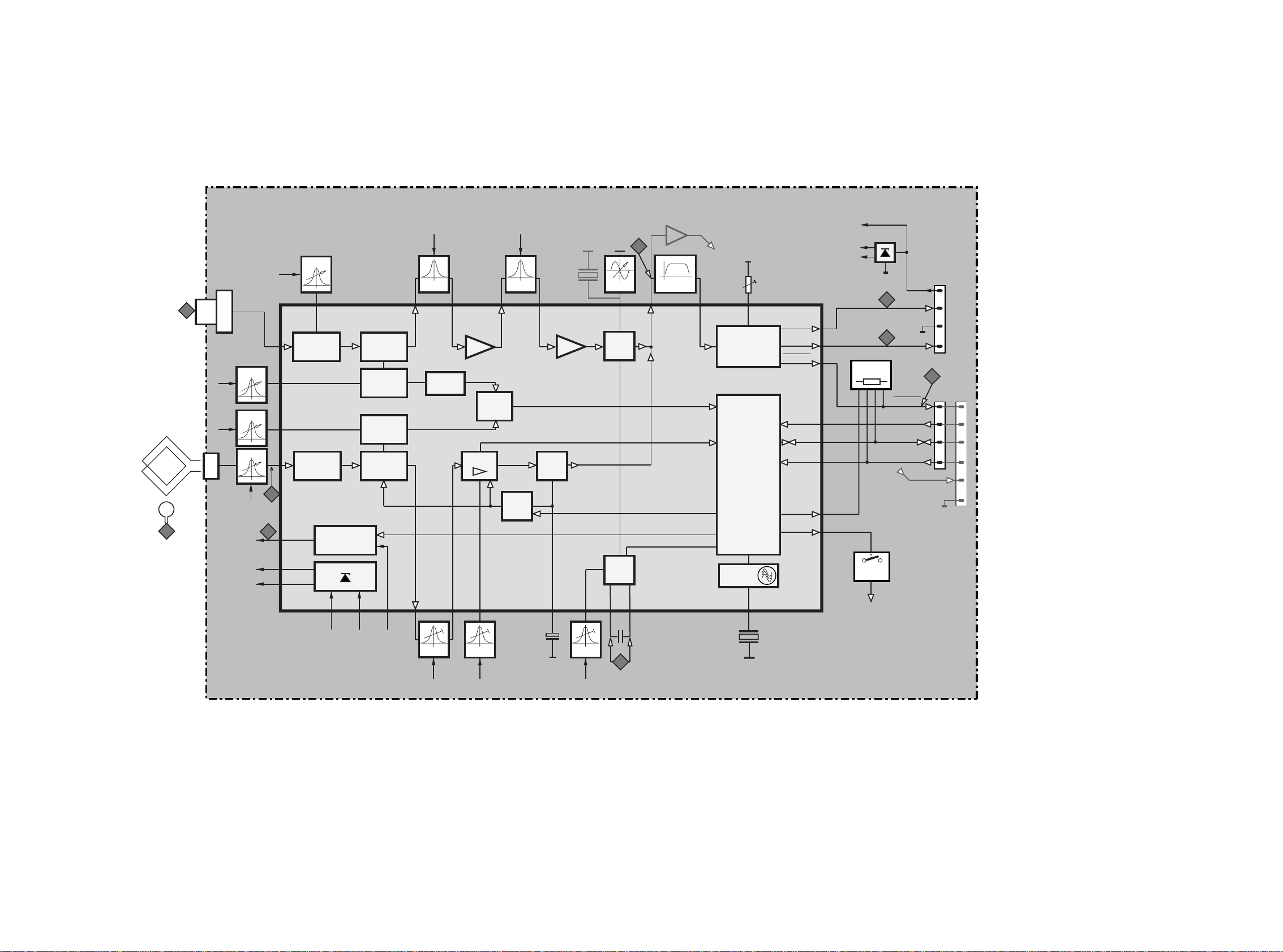

Block/Leveldiagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

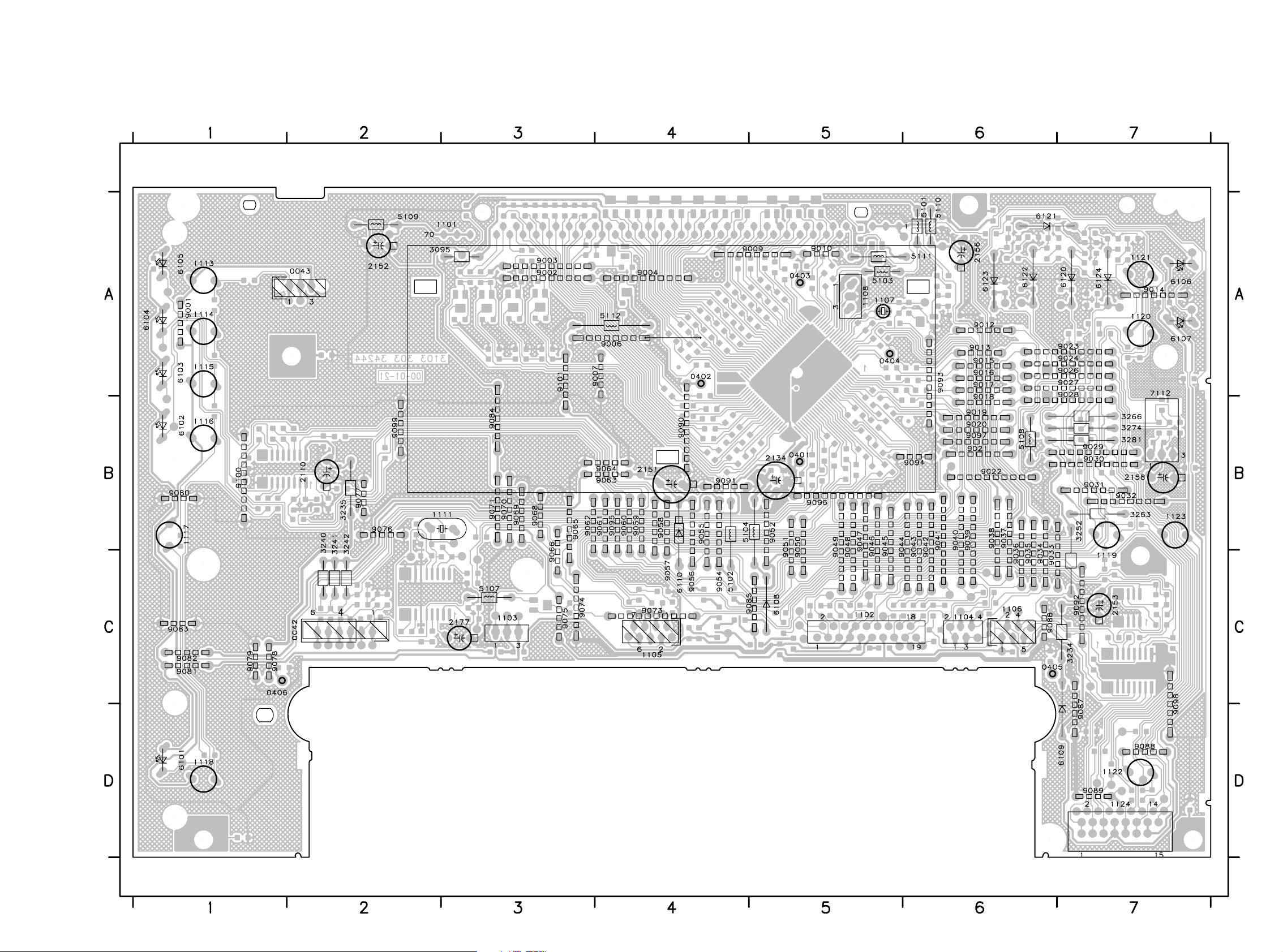

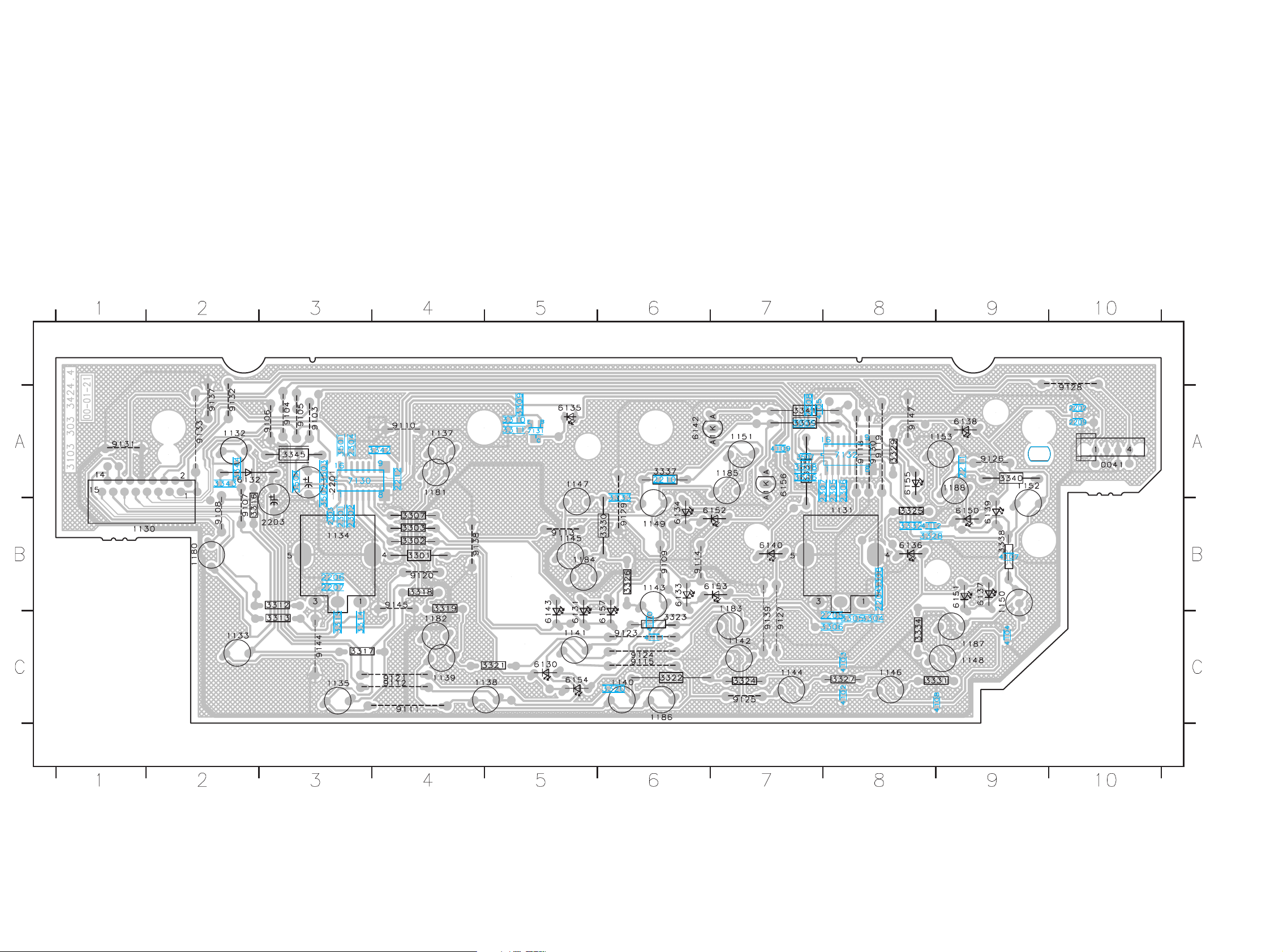

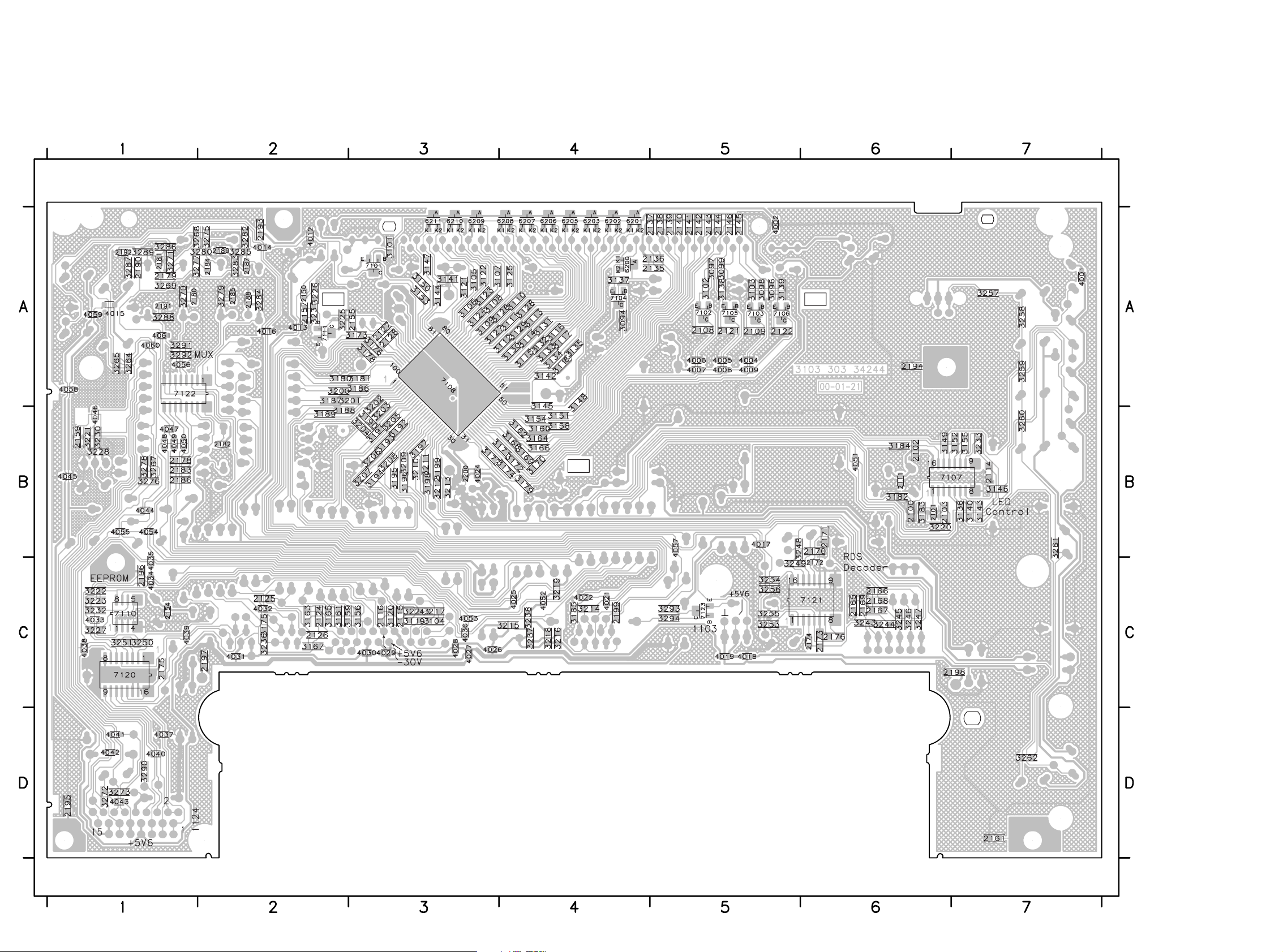

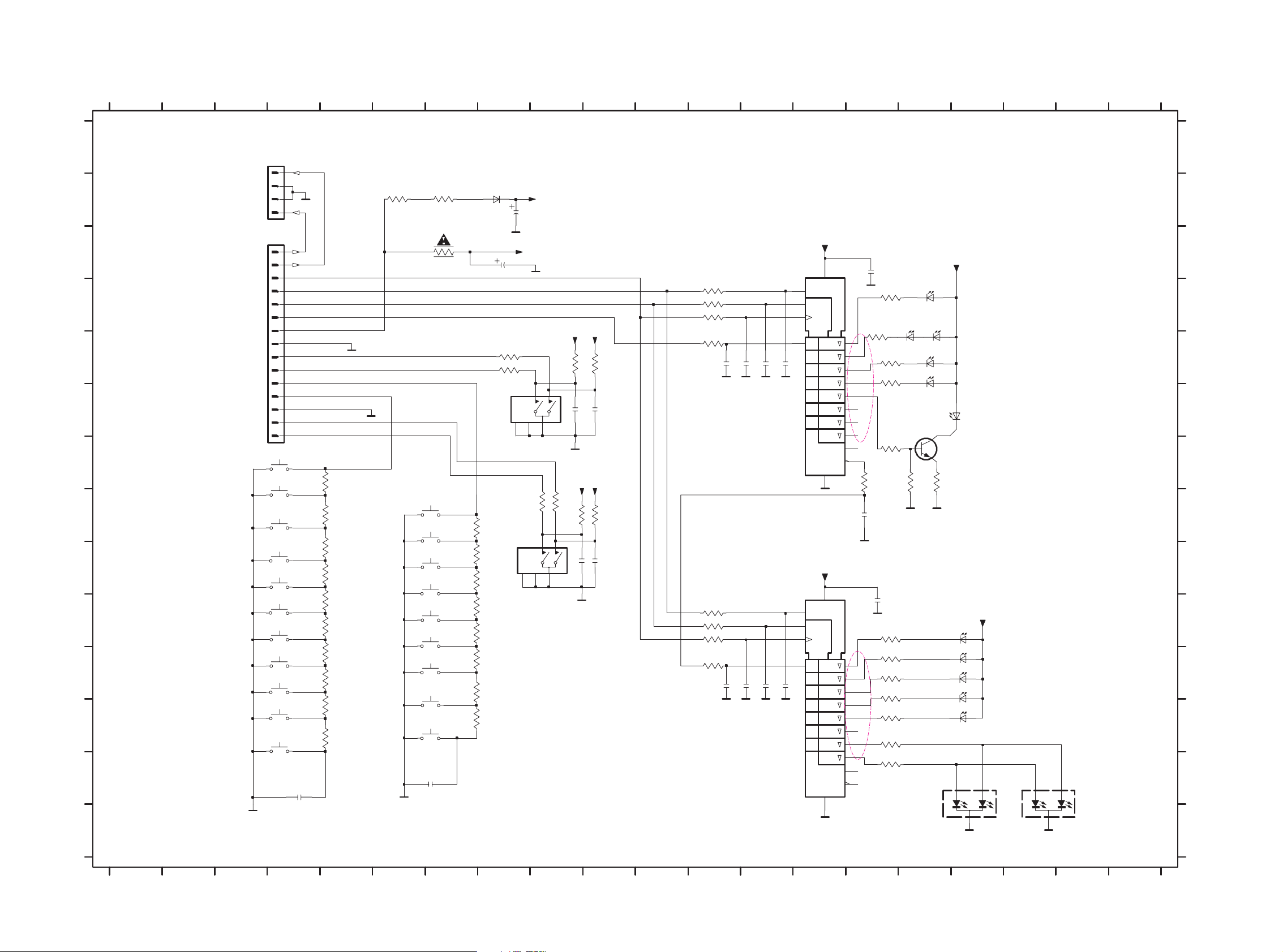

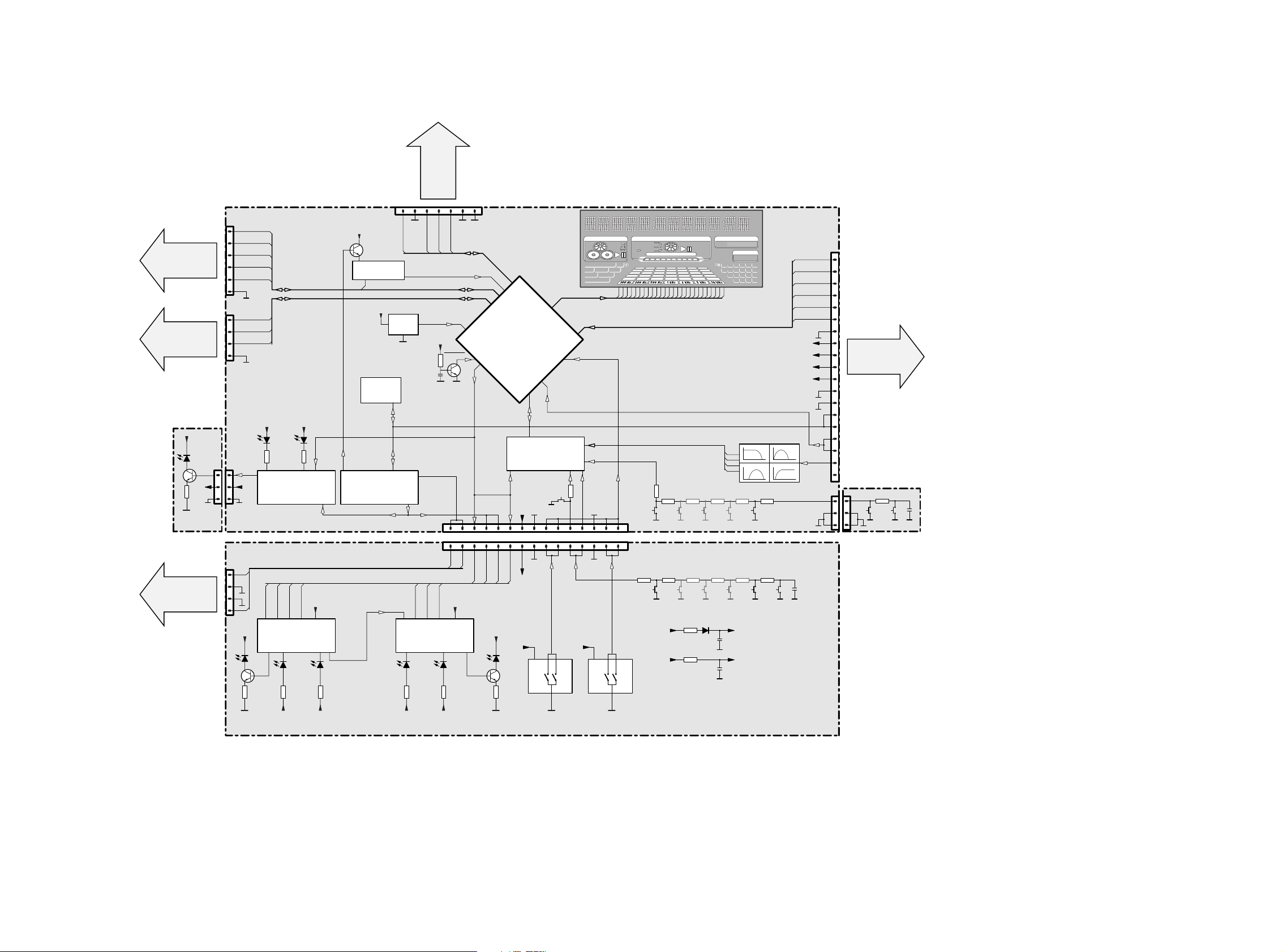

Front Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

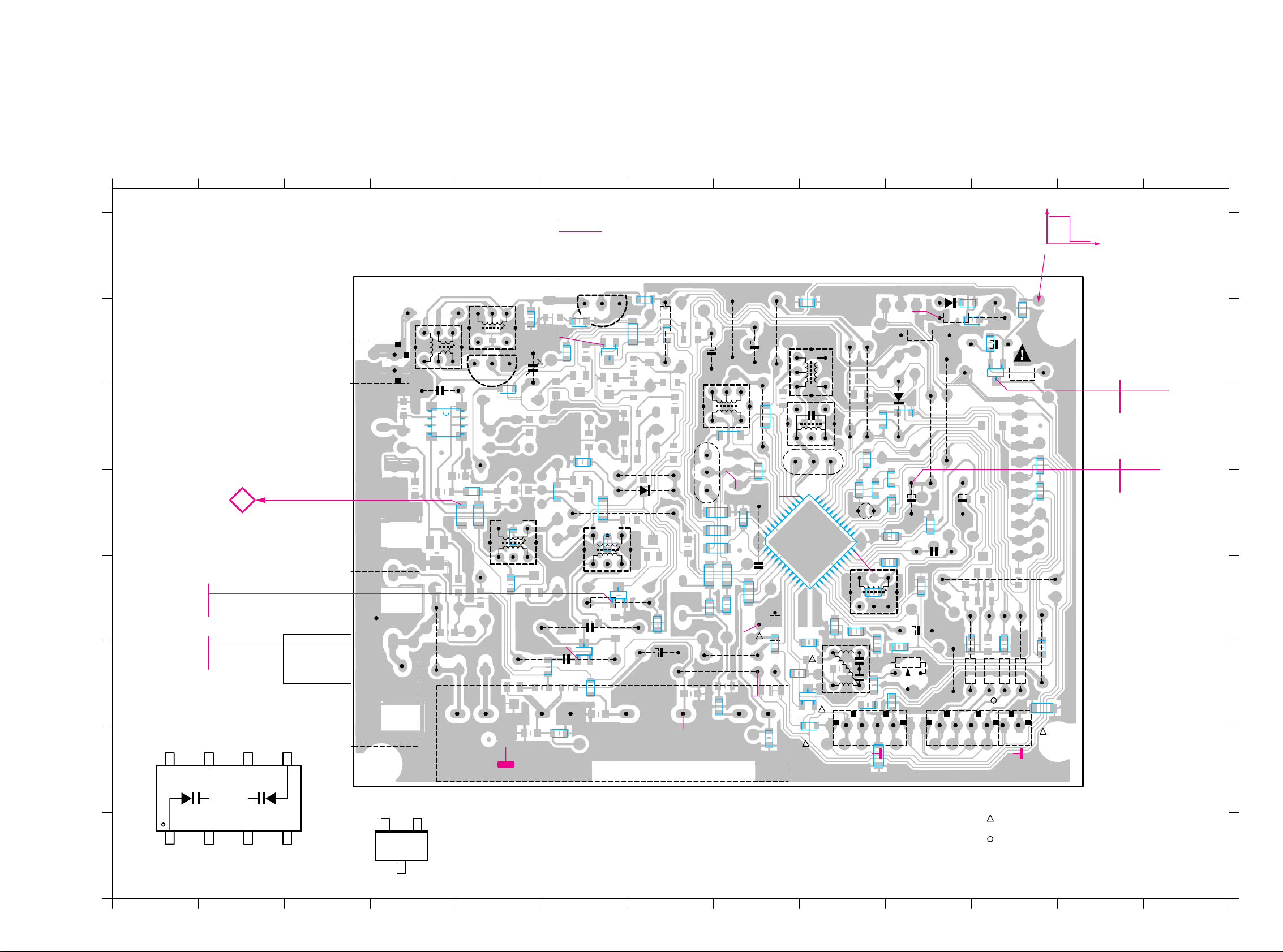

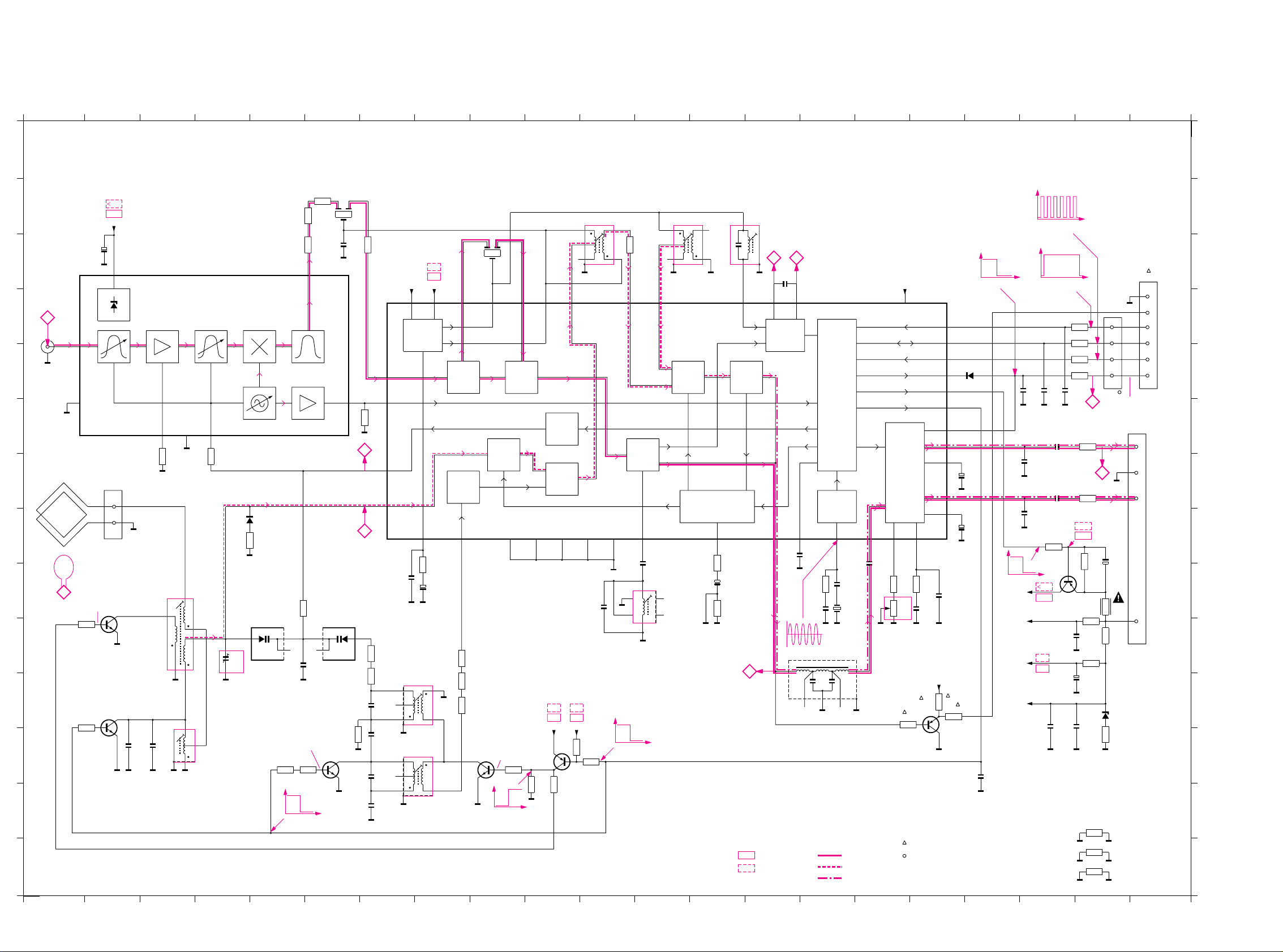

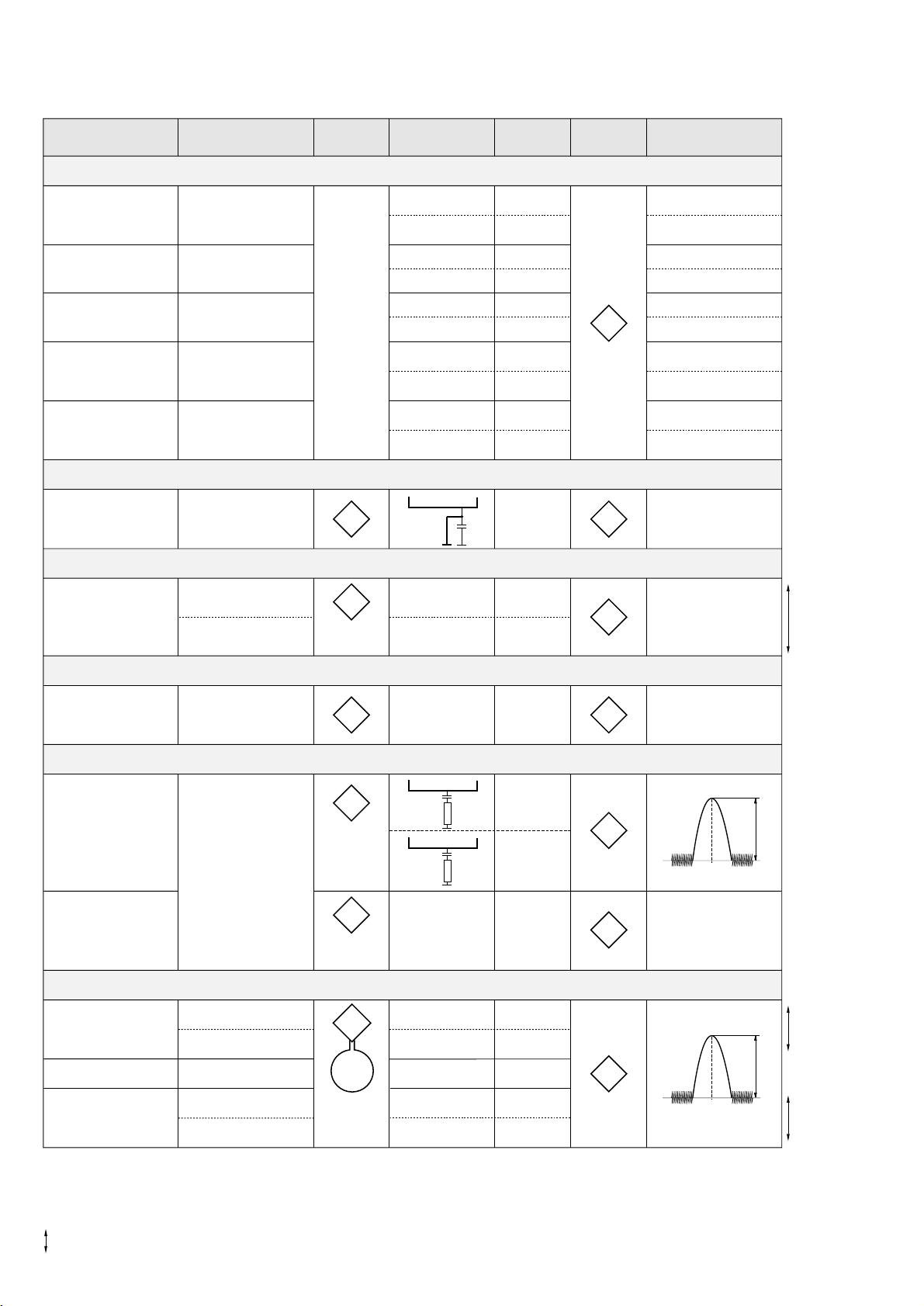

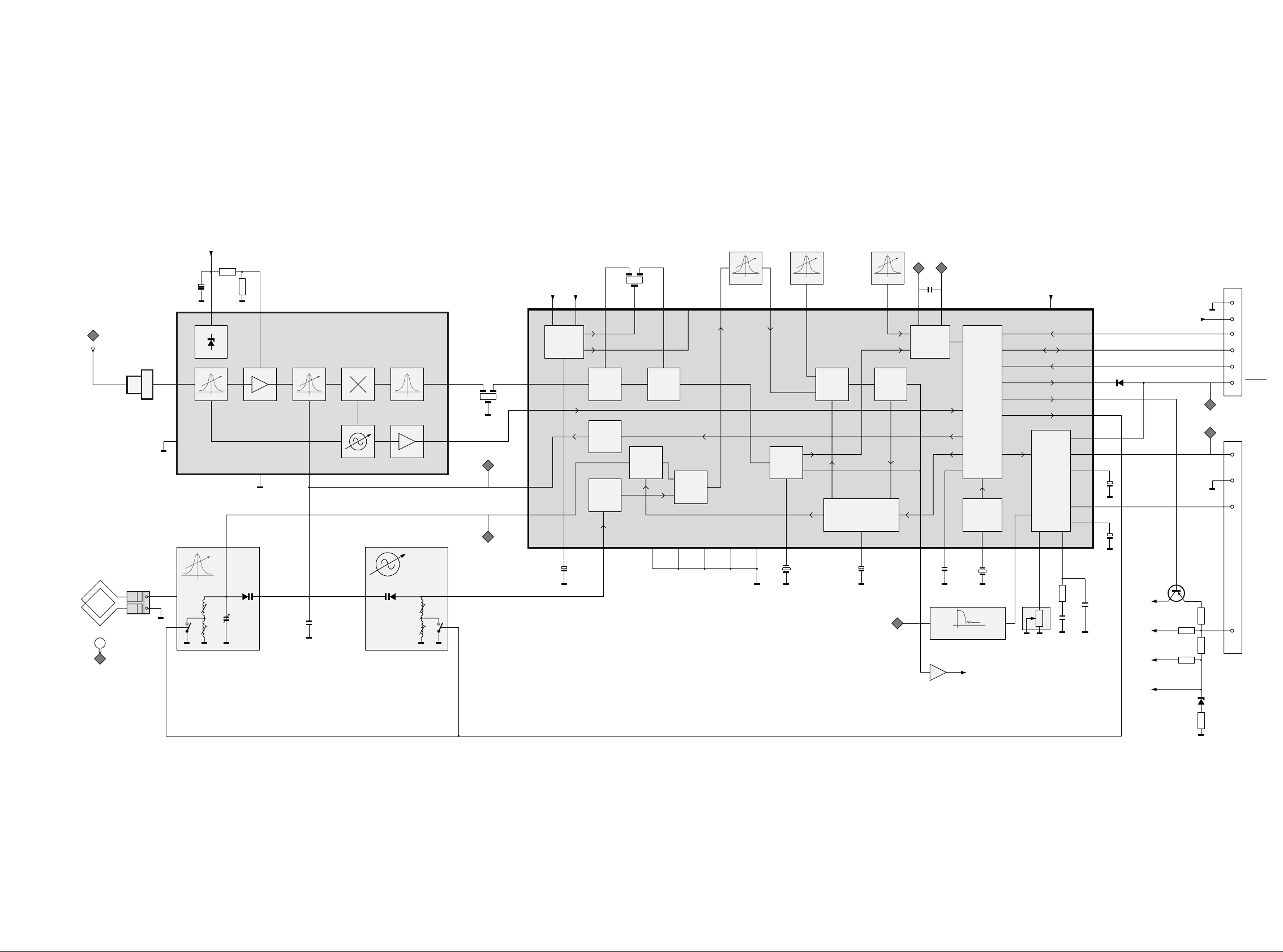

Tuner Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

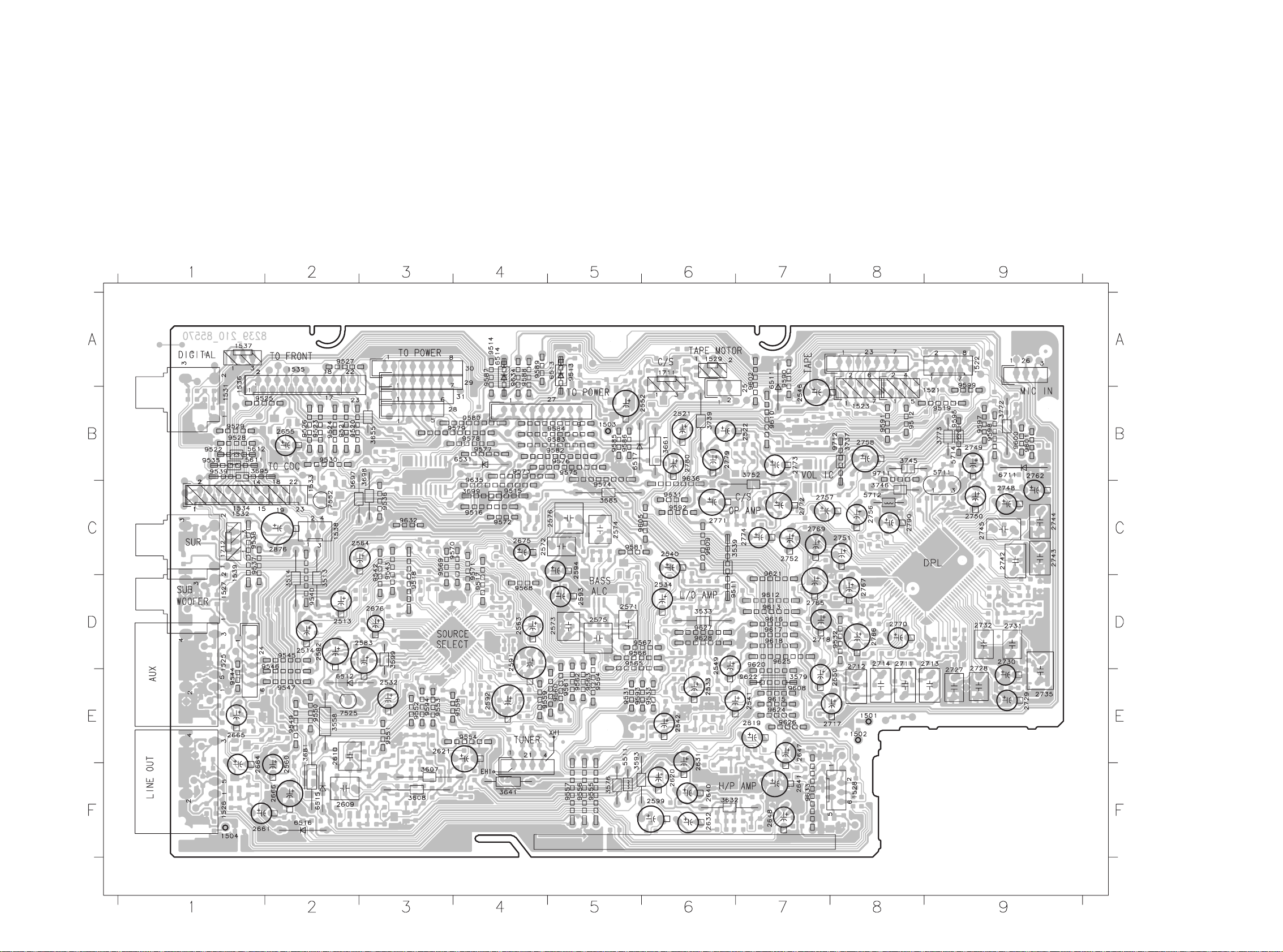

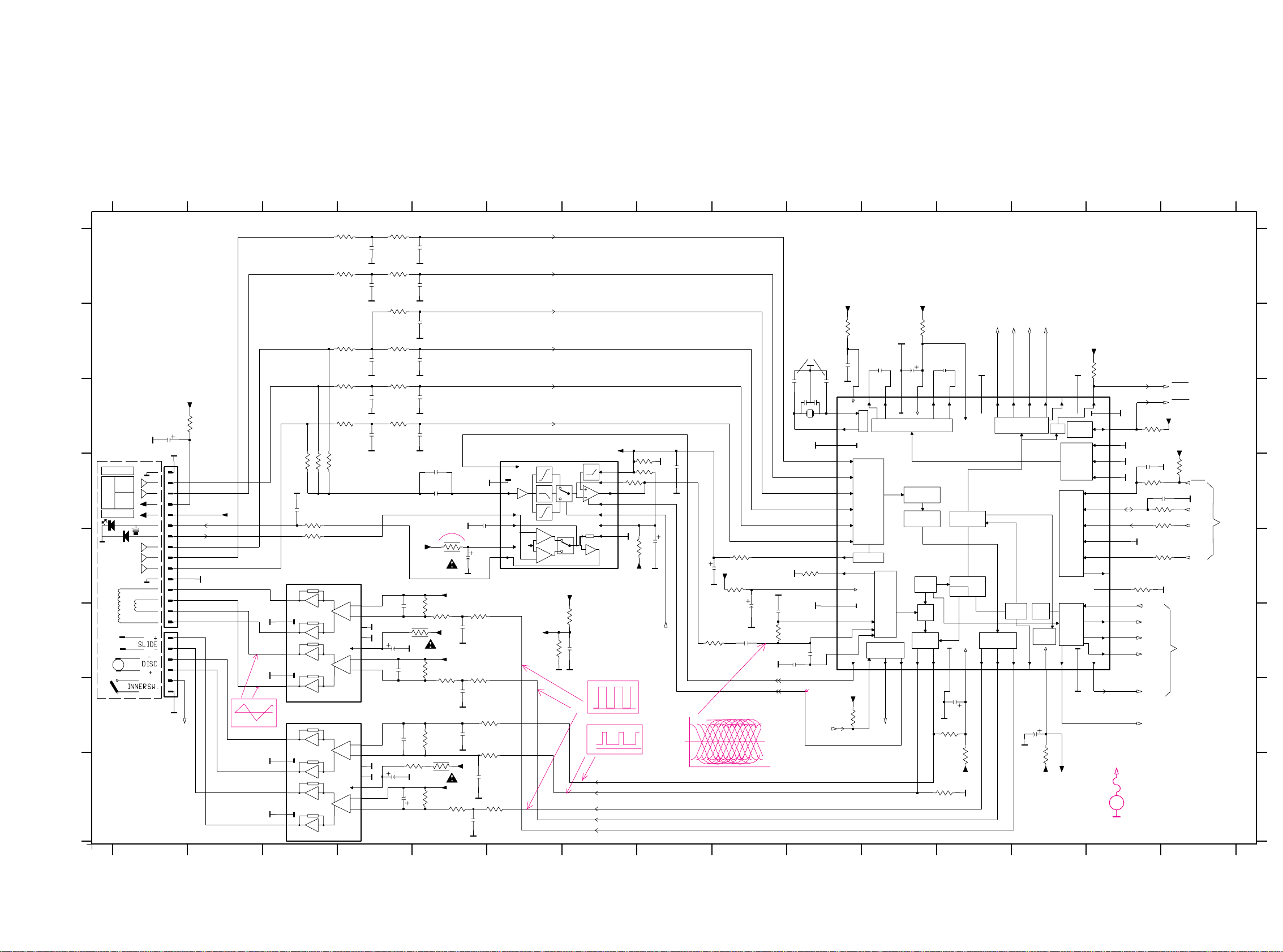

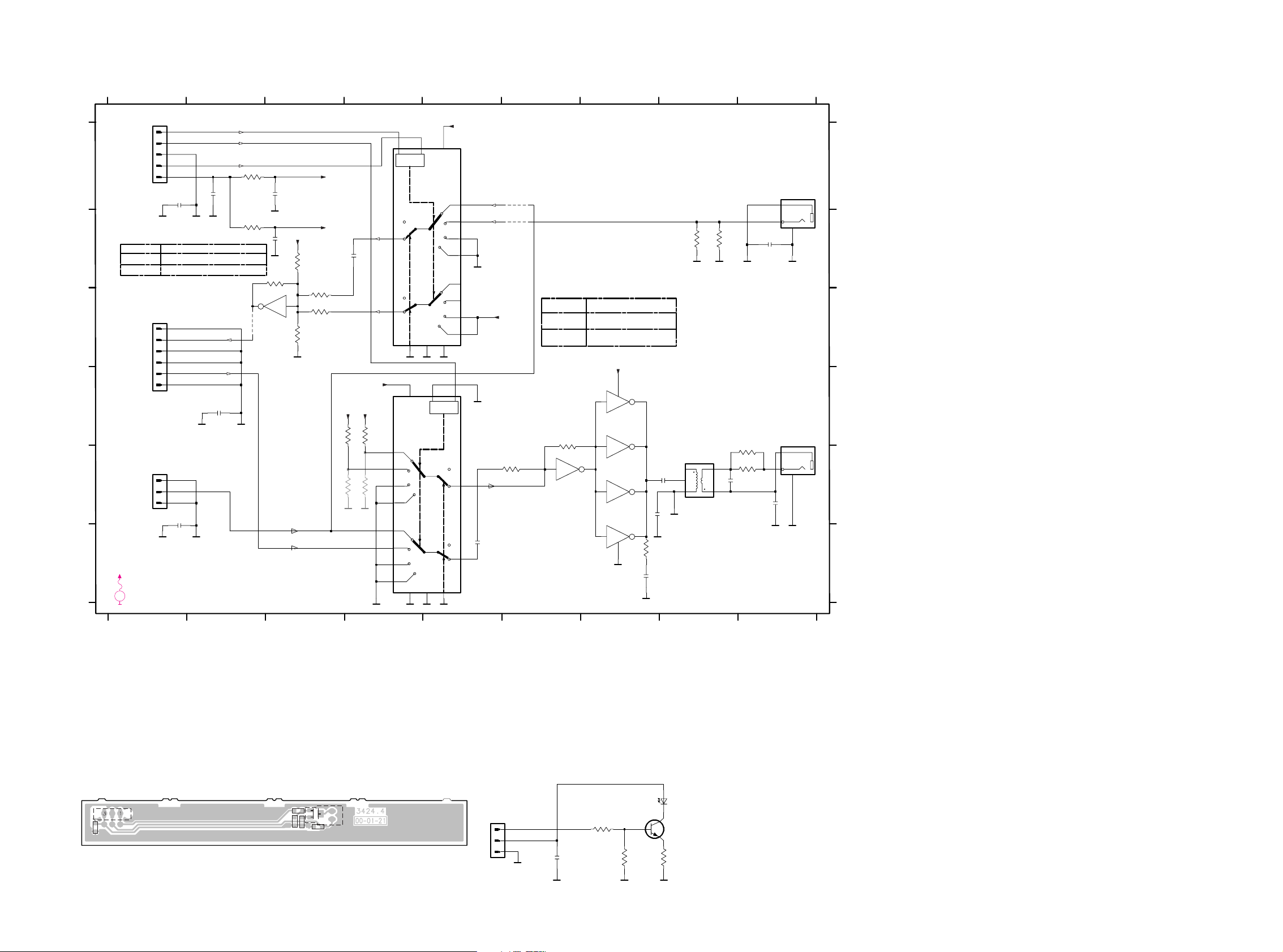

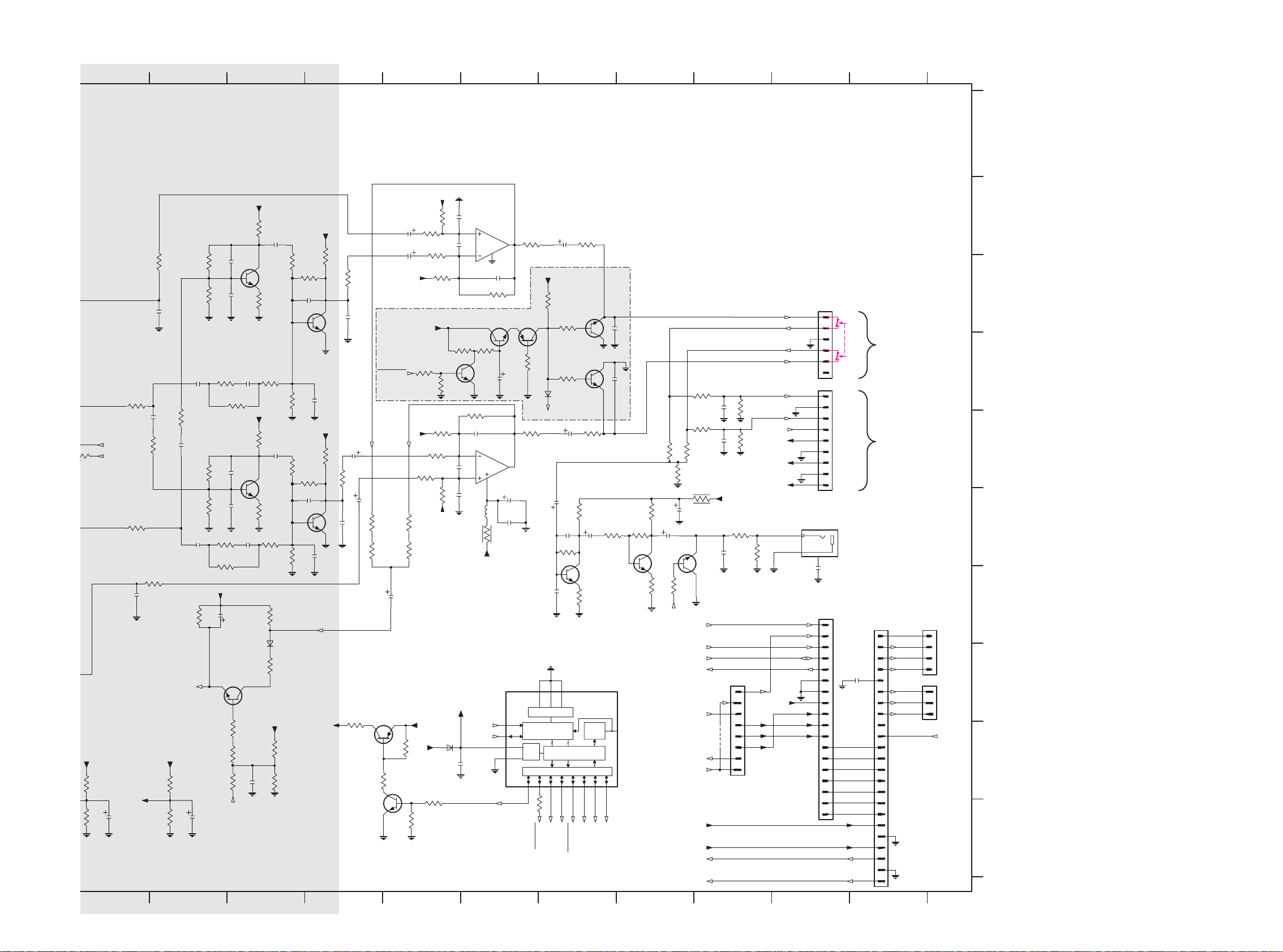

Audio Frequency Board (AF7) . . . . . . . . . . . . . . . . . . . . . 8

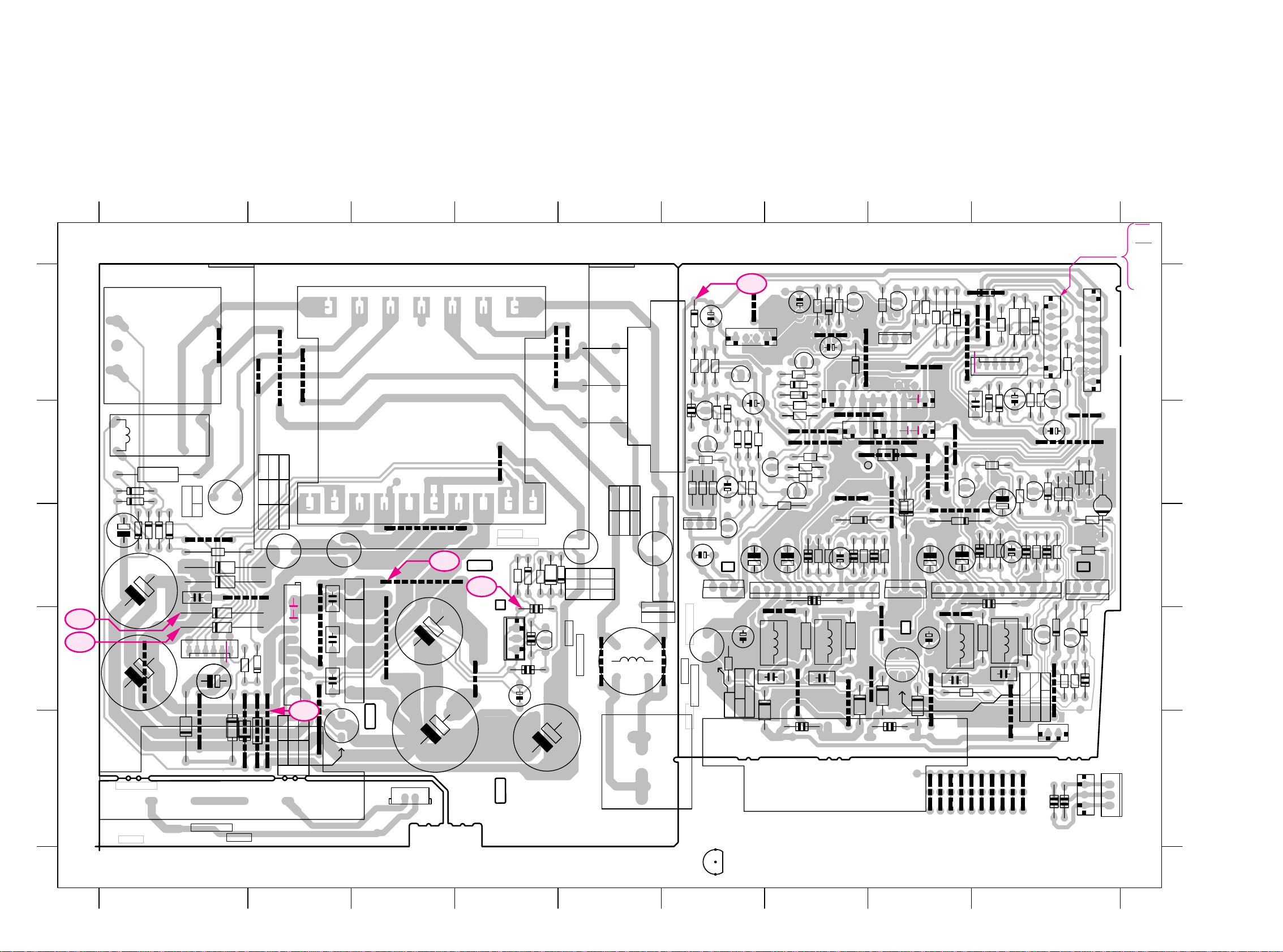

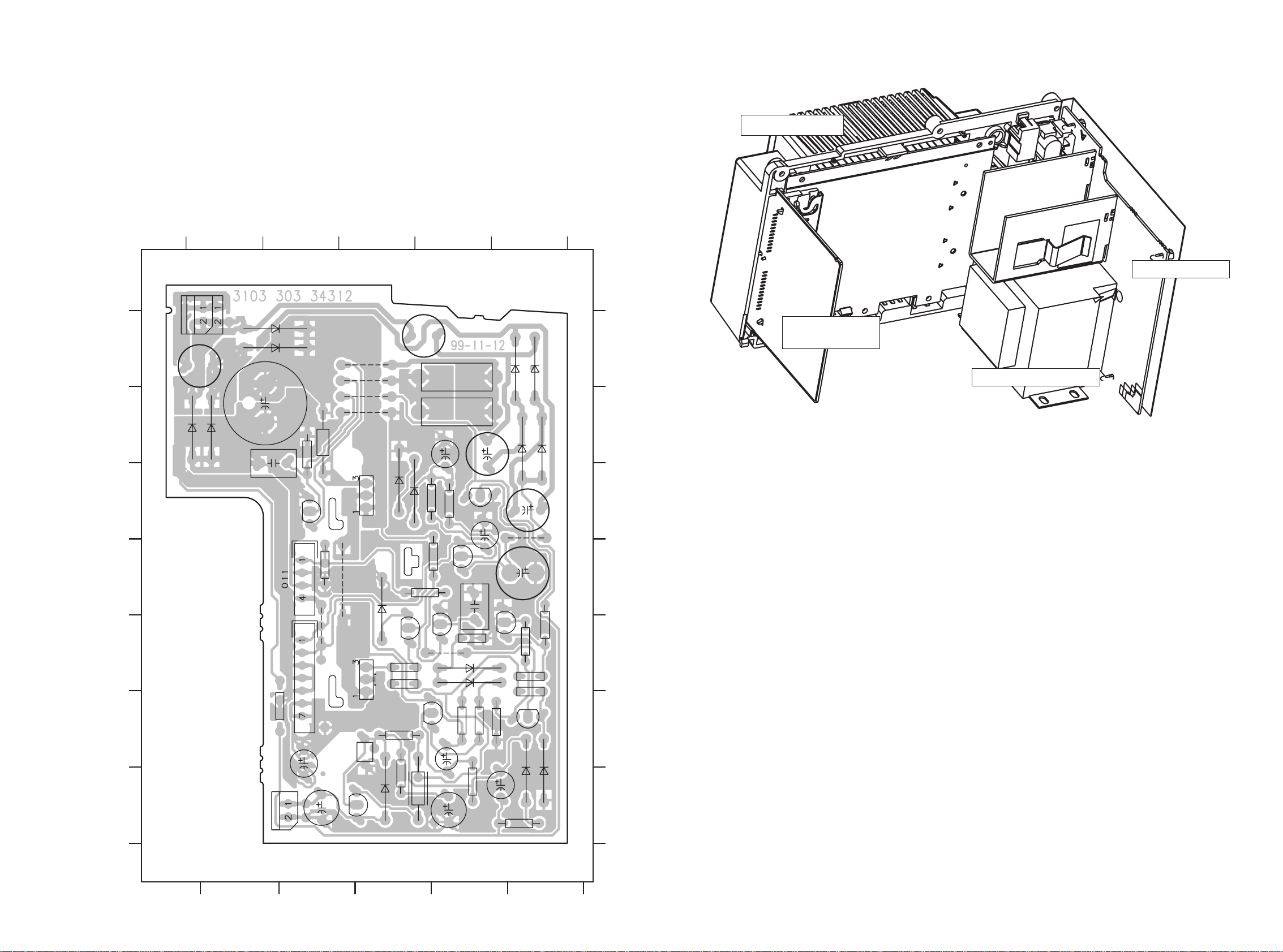

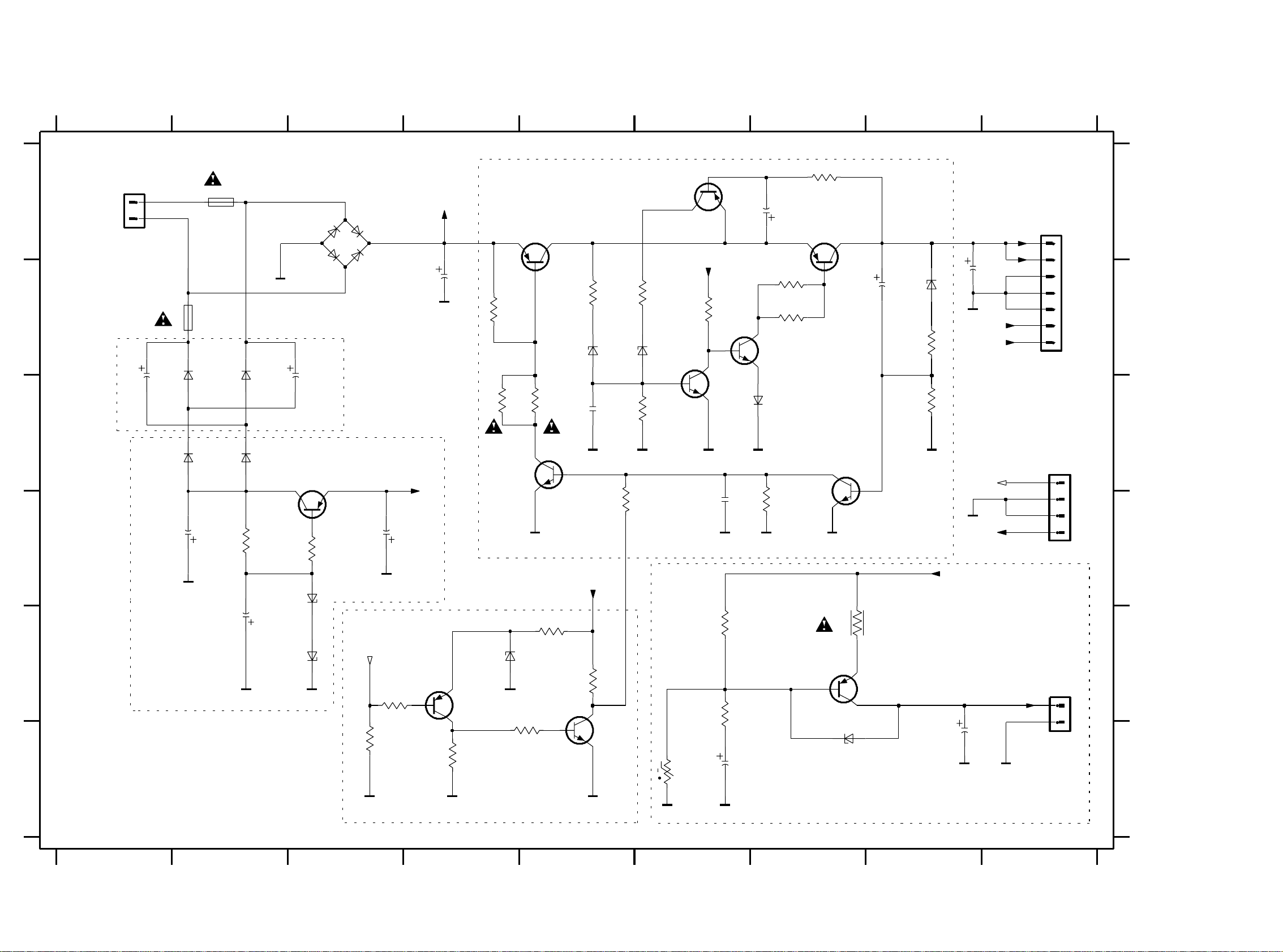

Power Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

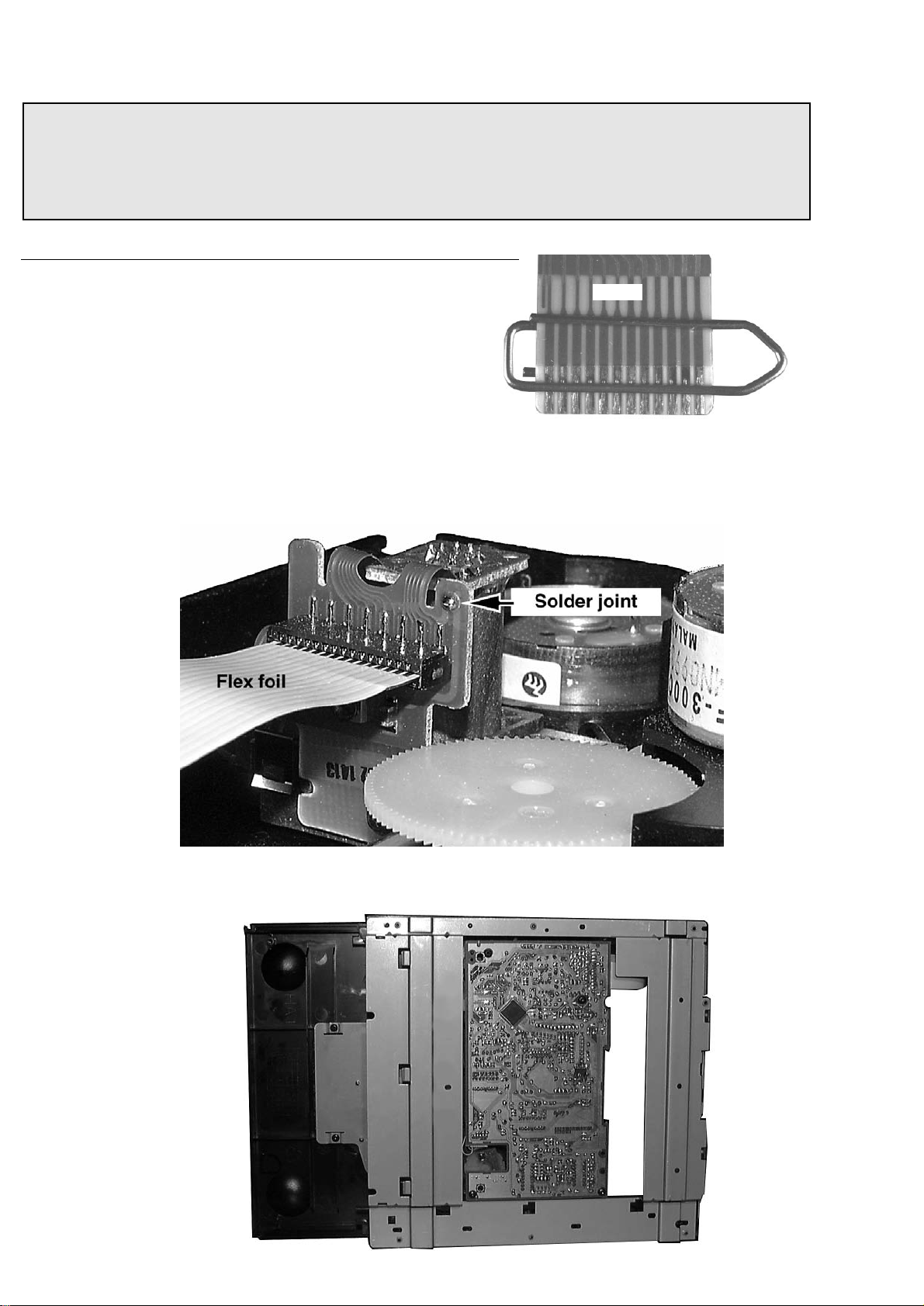

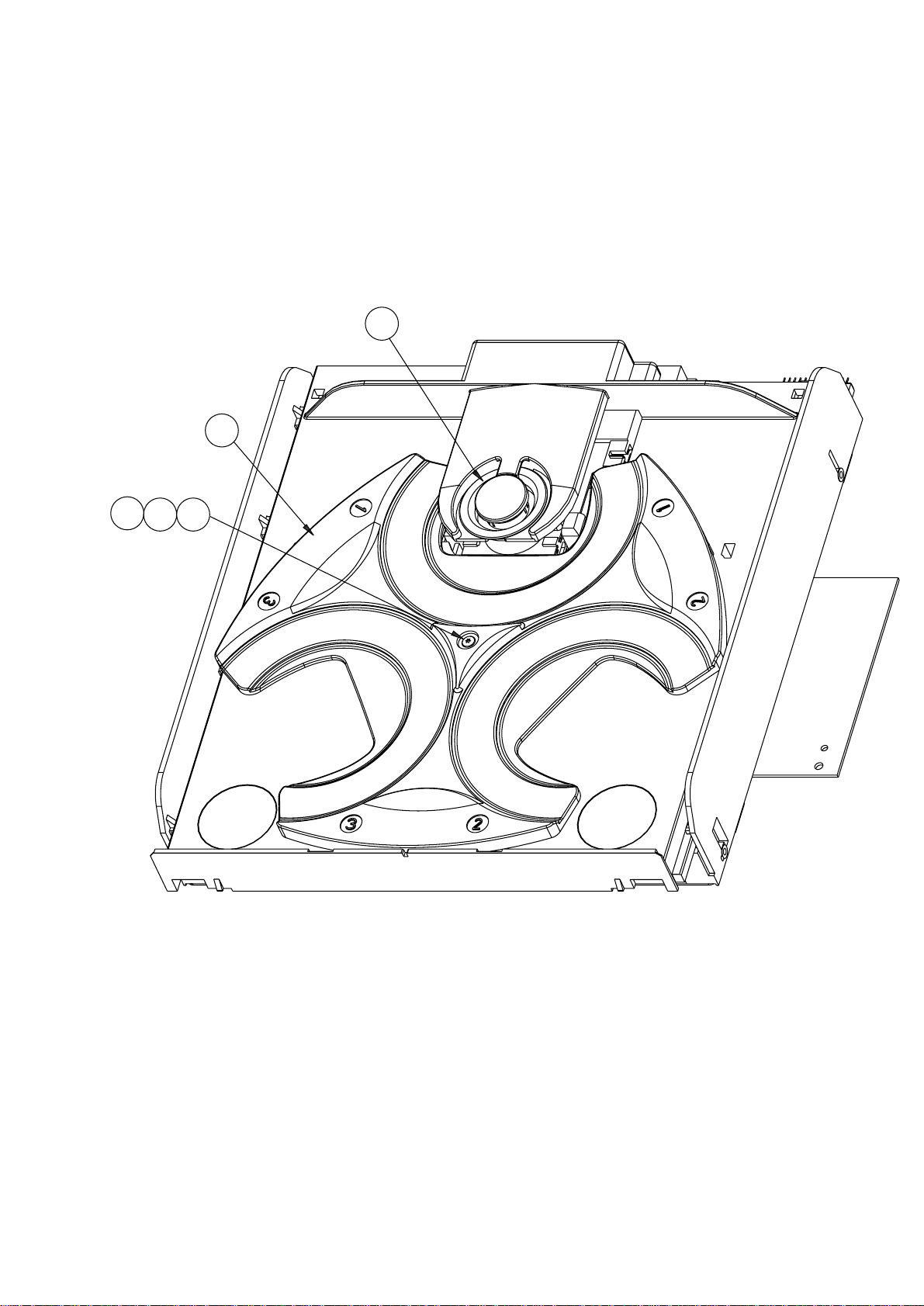

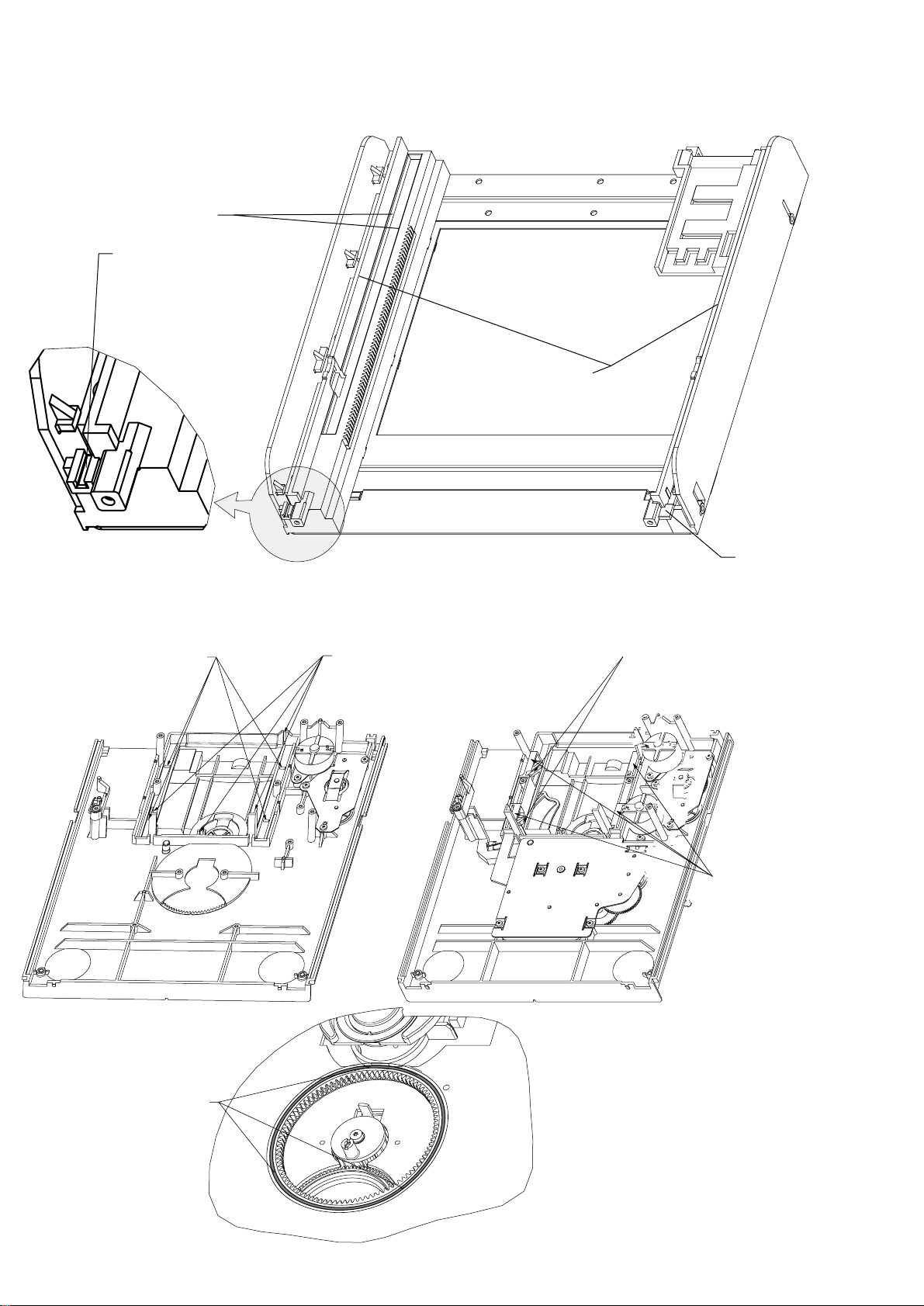

3 Disc Changer Module. . . . . . . . . . . . . . . . . . . . . . . . . . 10

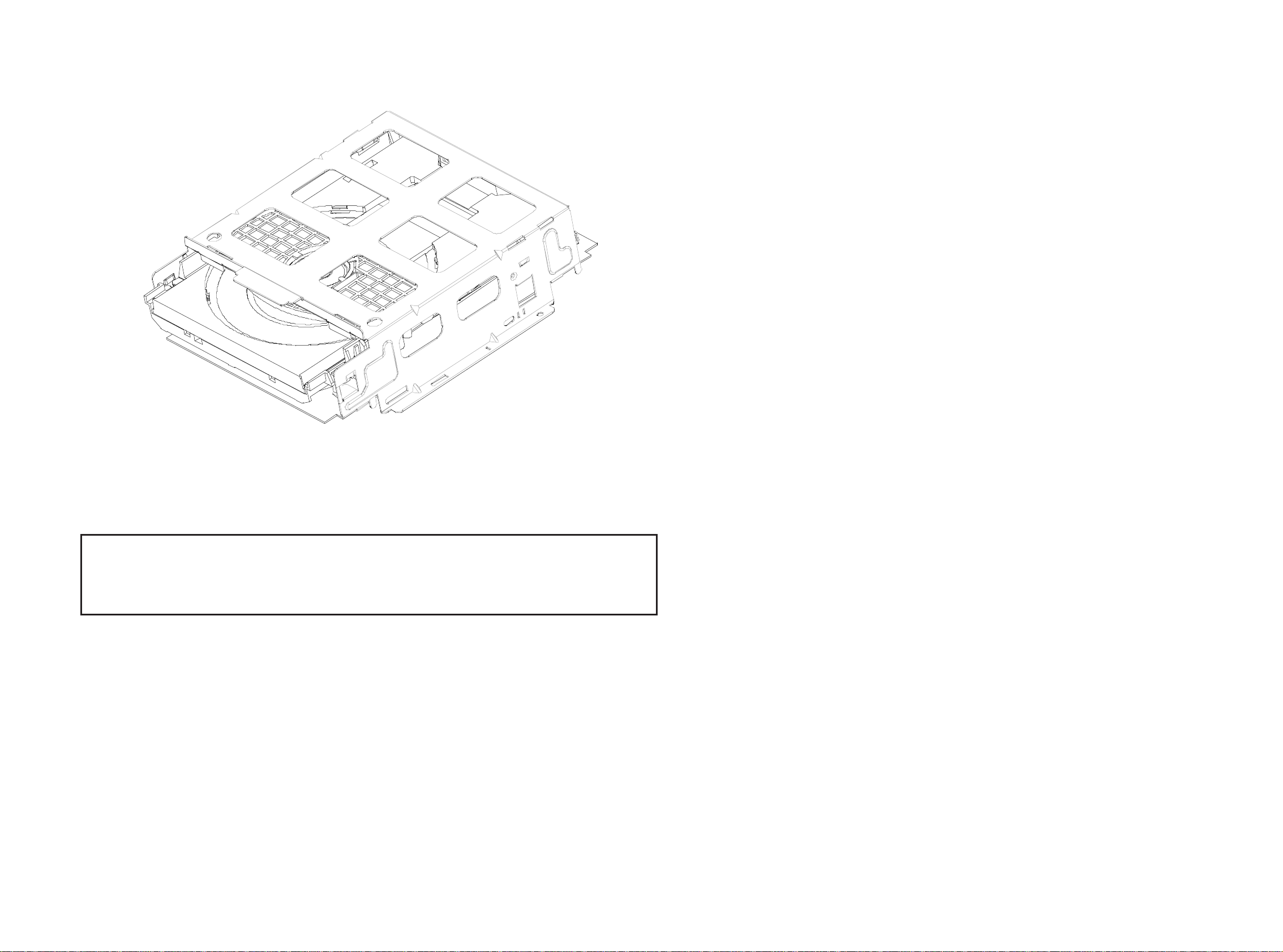

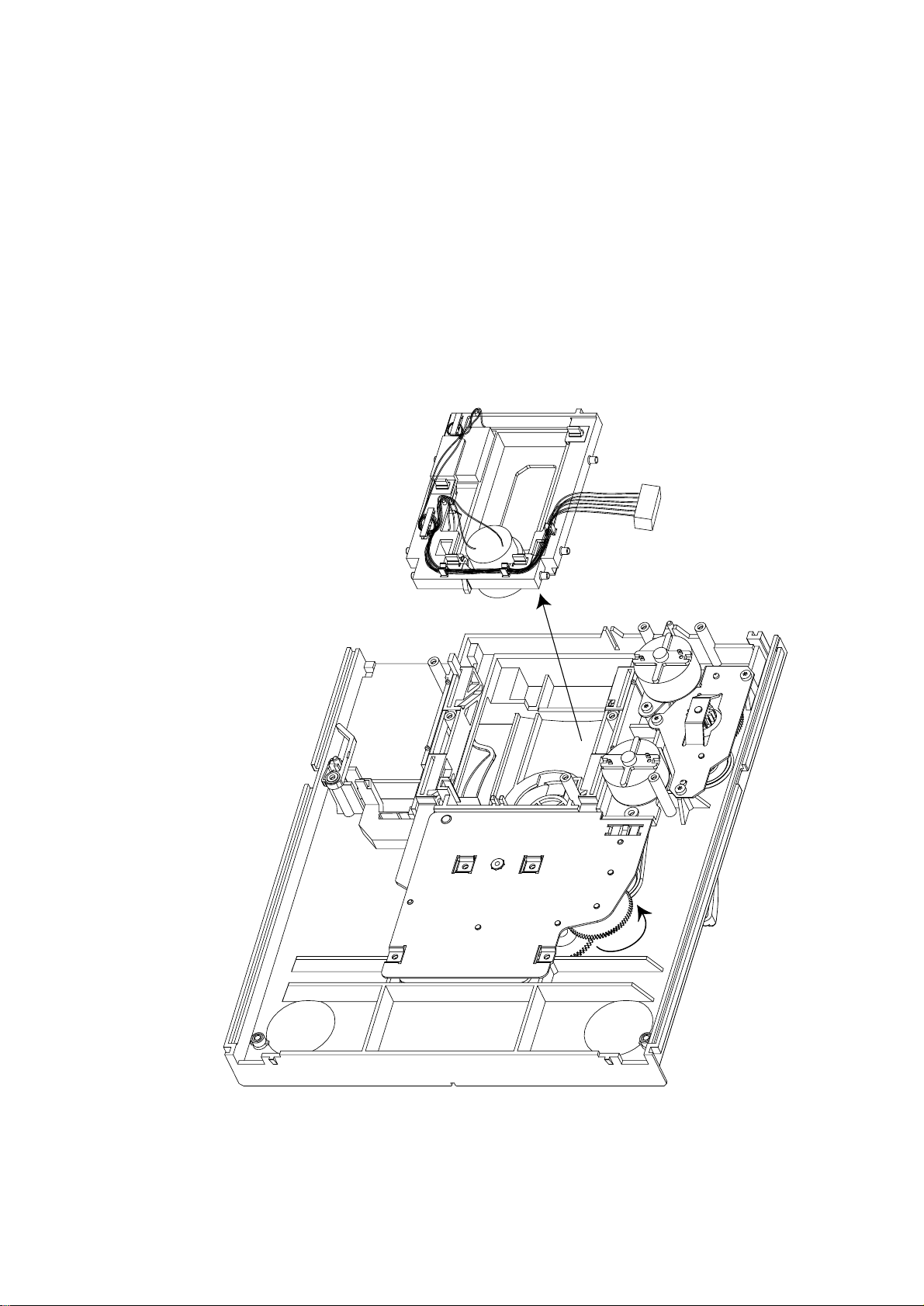

CD R/W Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

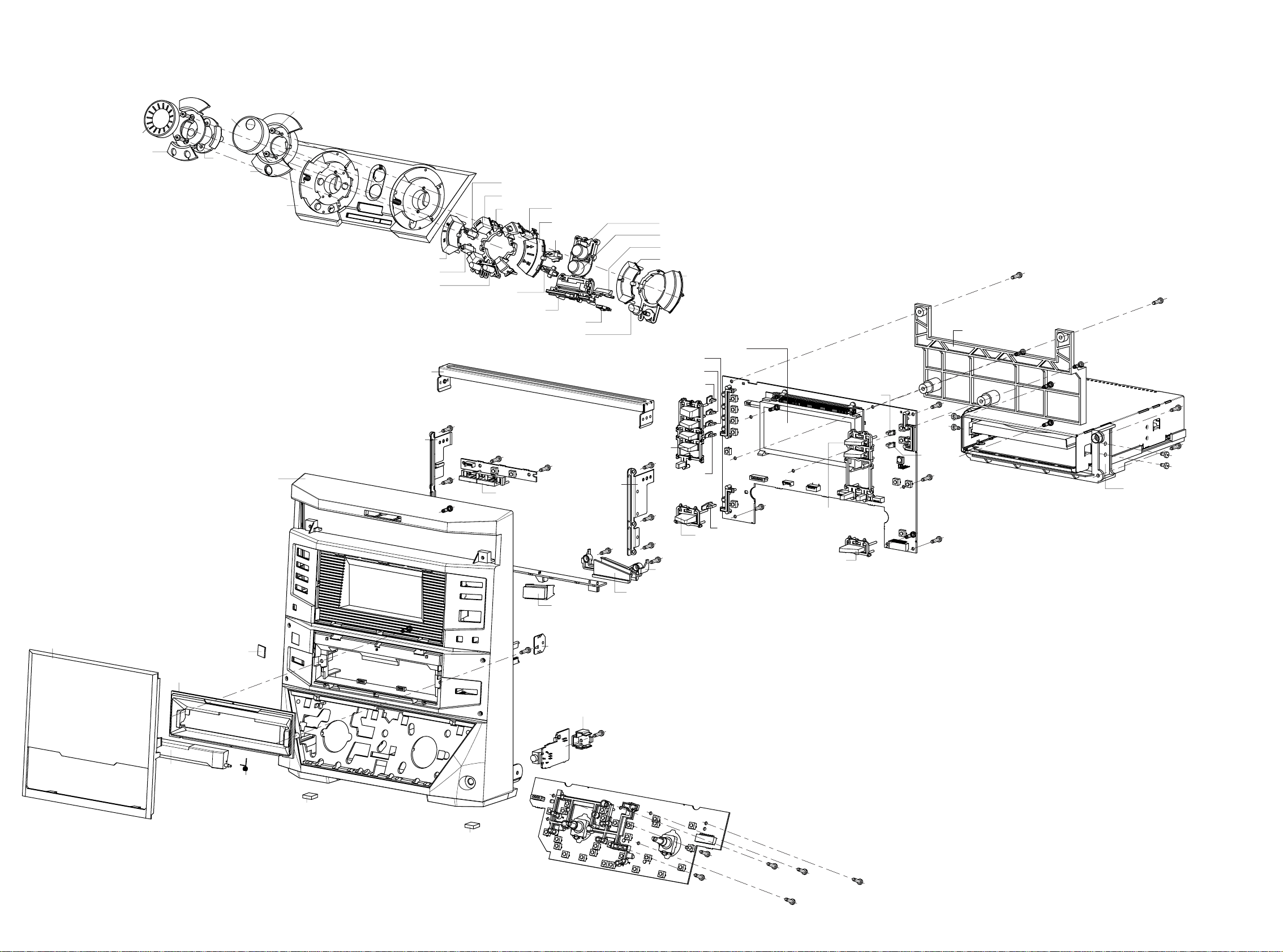

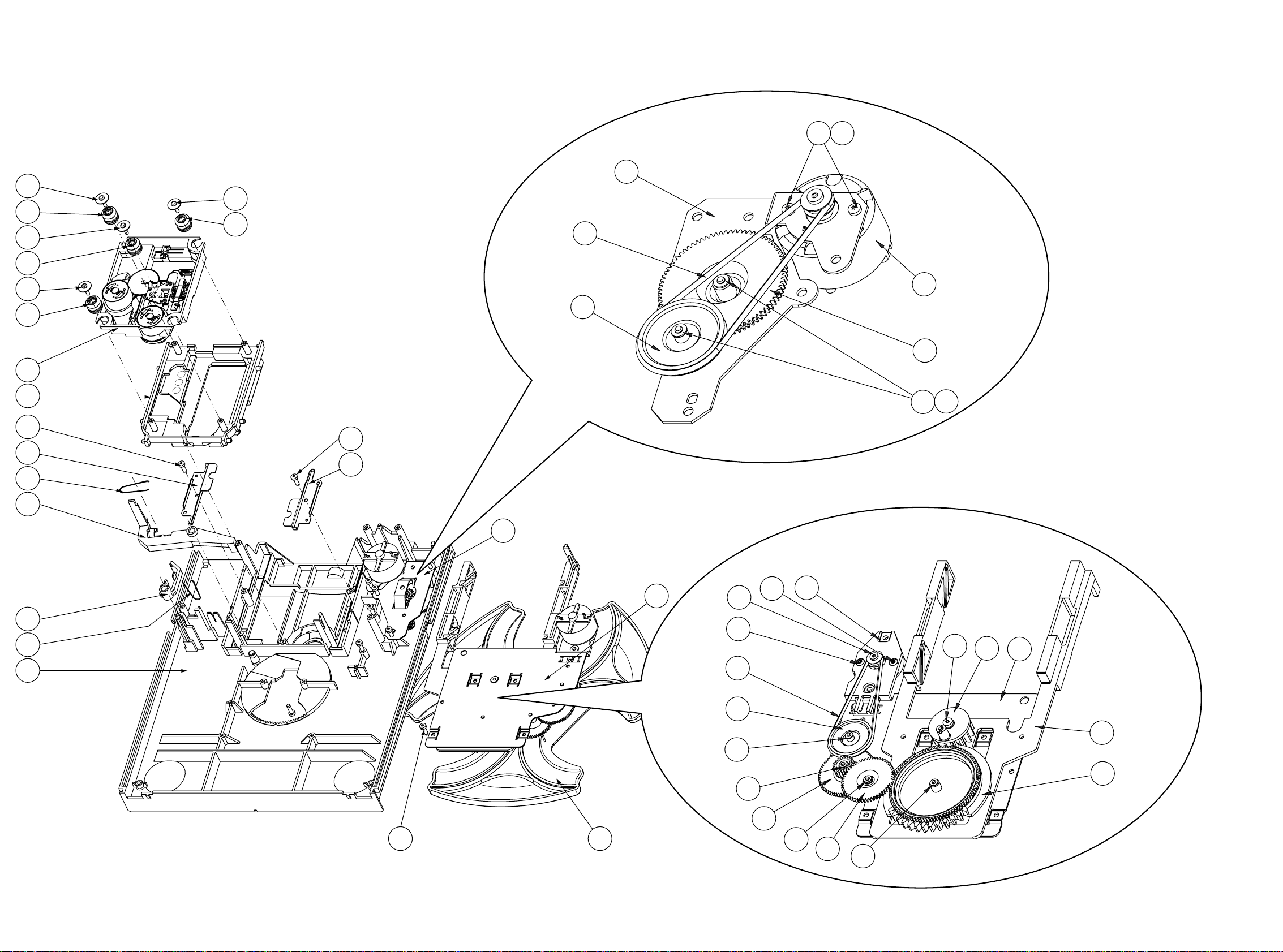

Exploded view of set. . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1
Partslist of set. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-3
FW-R7/17/21/22
Published by HB 0016 Service Audio Printed in The Netherlands Subject to modification
© 3103 785 25050

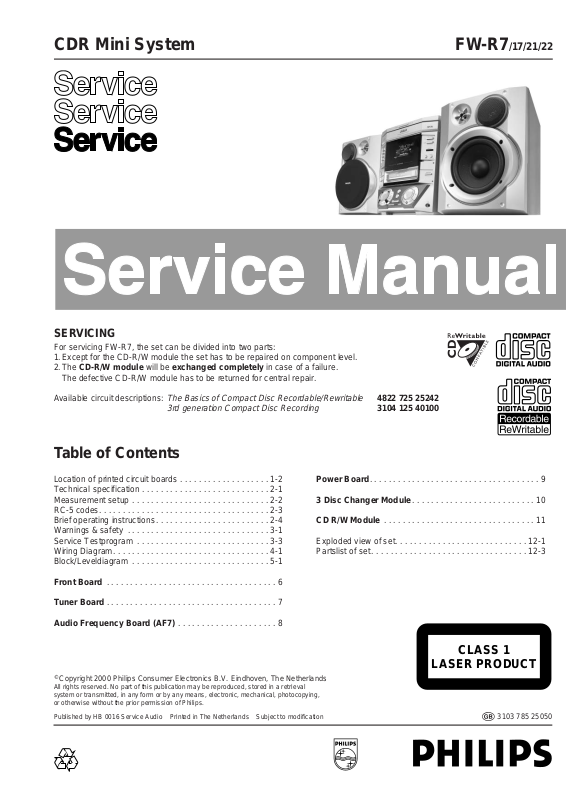

CDR Mini System
CLASS 1
LASER PRODUCT
©
Copyright 2000 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.
SERVICING
For servicing FW-R7, the set can be divided into two parts:
1.Except for the CD-R/W module the set has to be repaired on component level.
2.The CD-R/W module will be exchanged completely in case of a failure.
The defective CD-R/W module has to be returned for central repair.
Available circuit descriptions:
The Basics of Compact Disc Recordable/Rewritable
4822 725 25242
3rd generation Compact Disc Recording
3104 125 40100
Table of Contents
Page 2
1-2

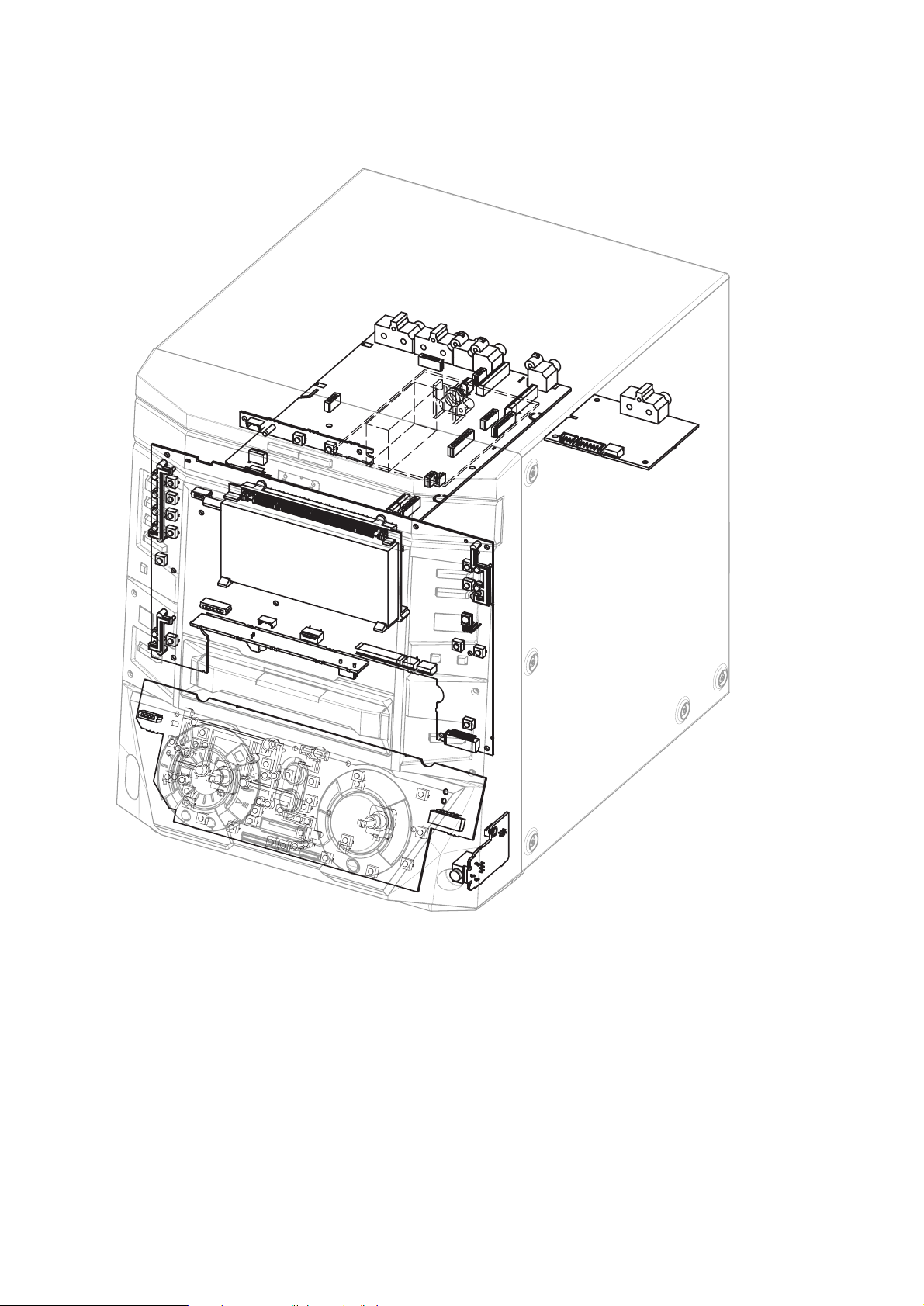

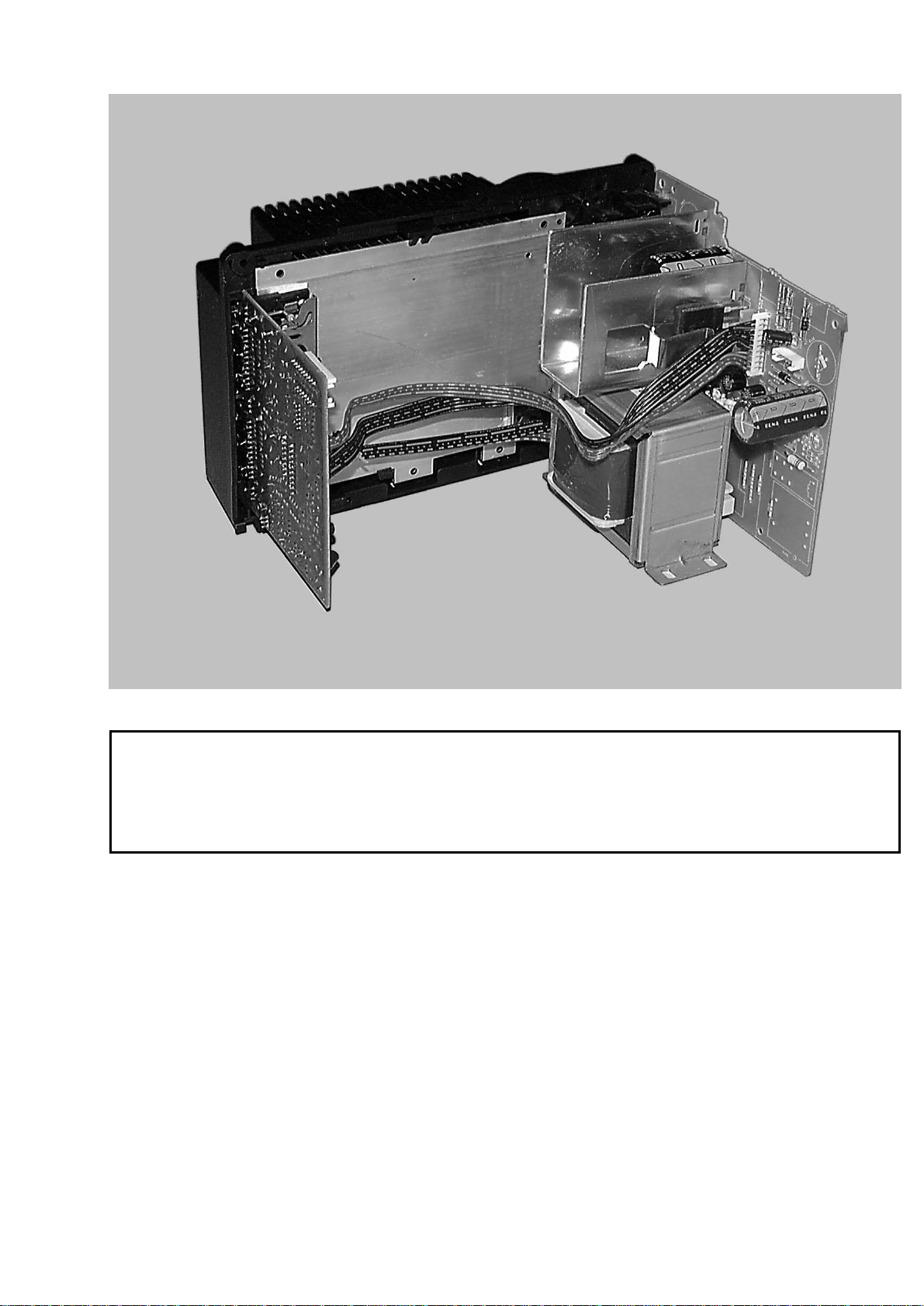

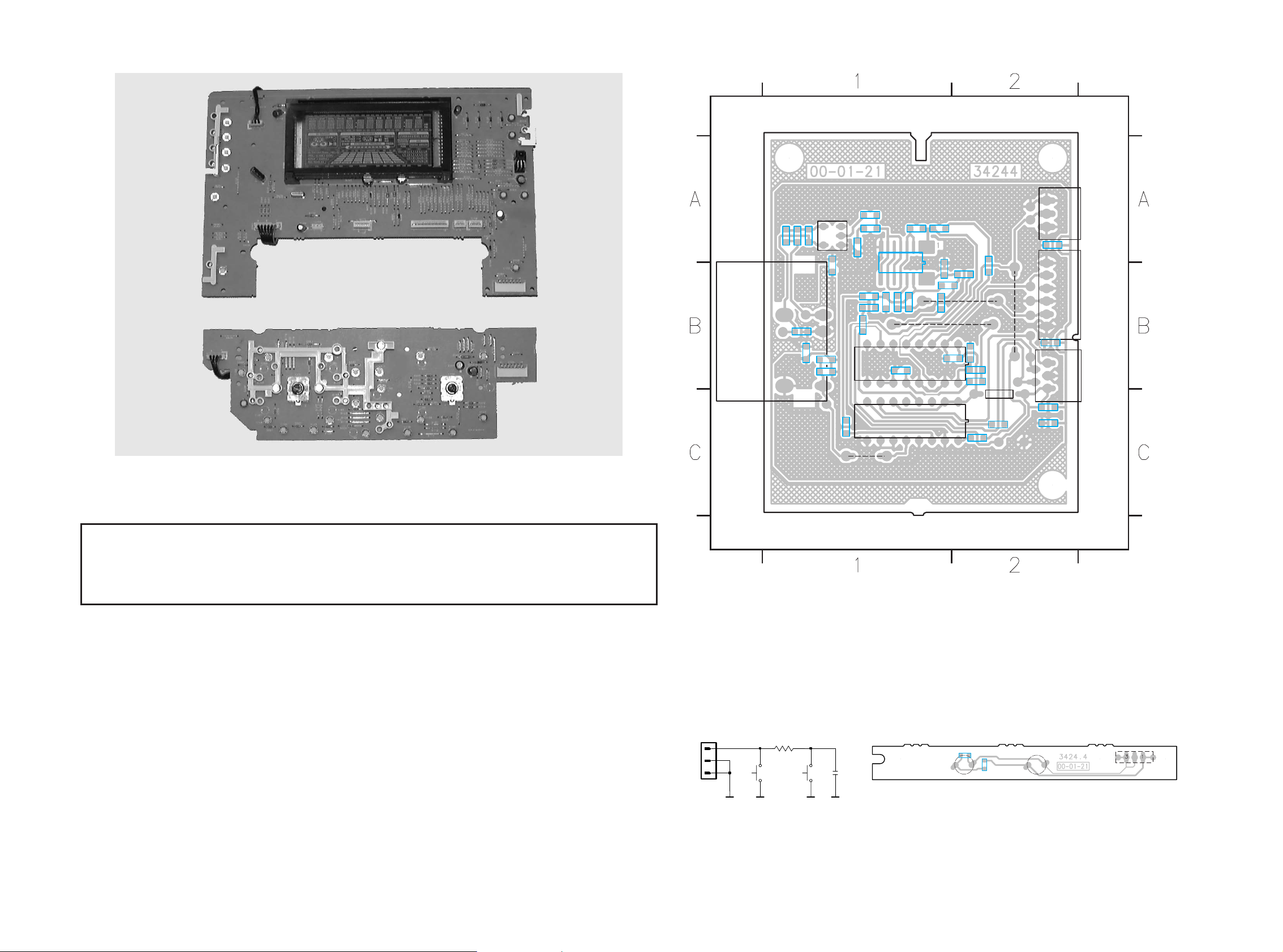

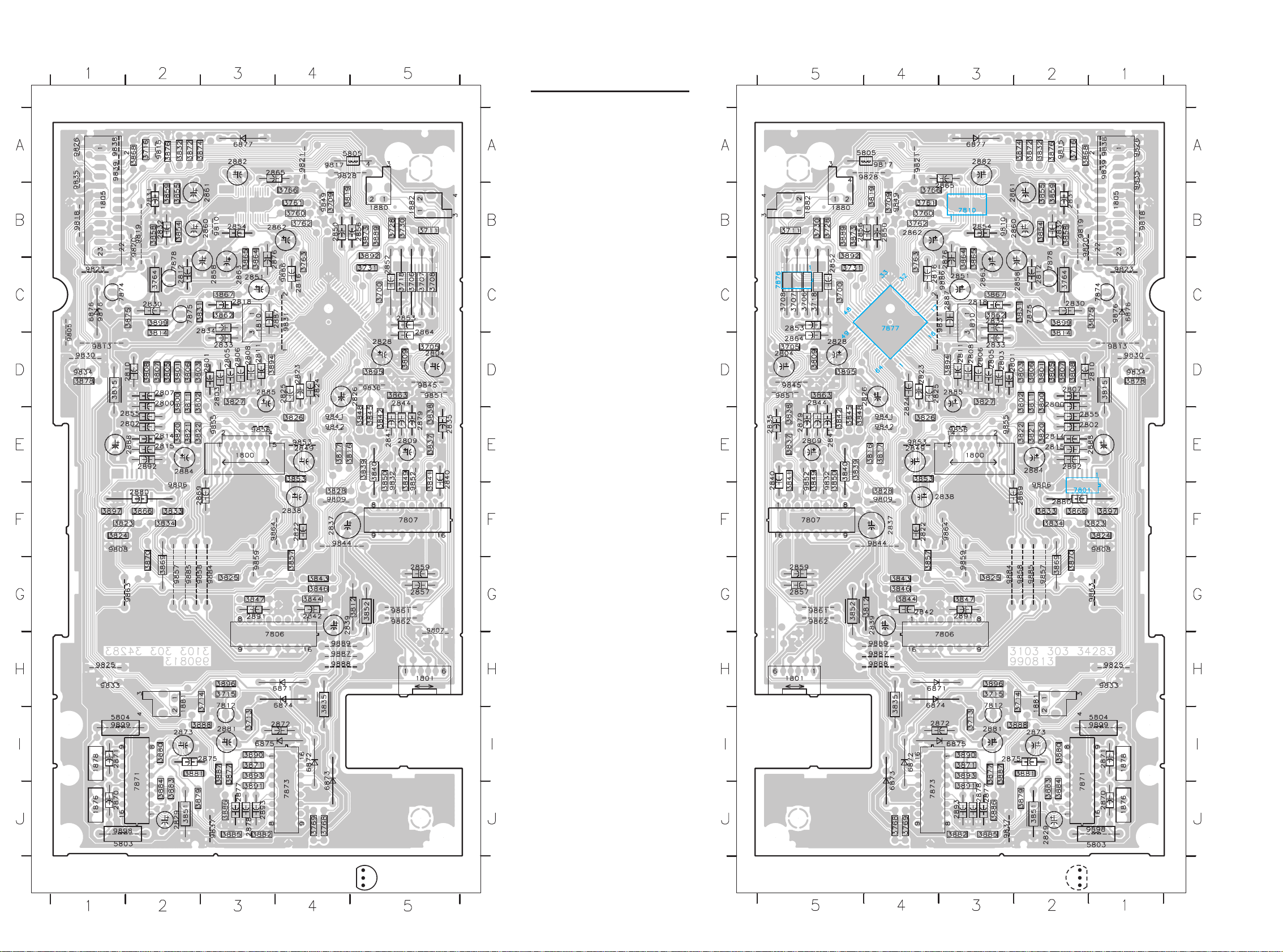

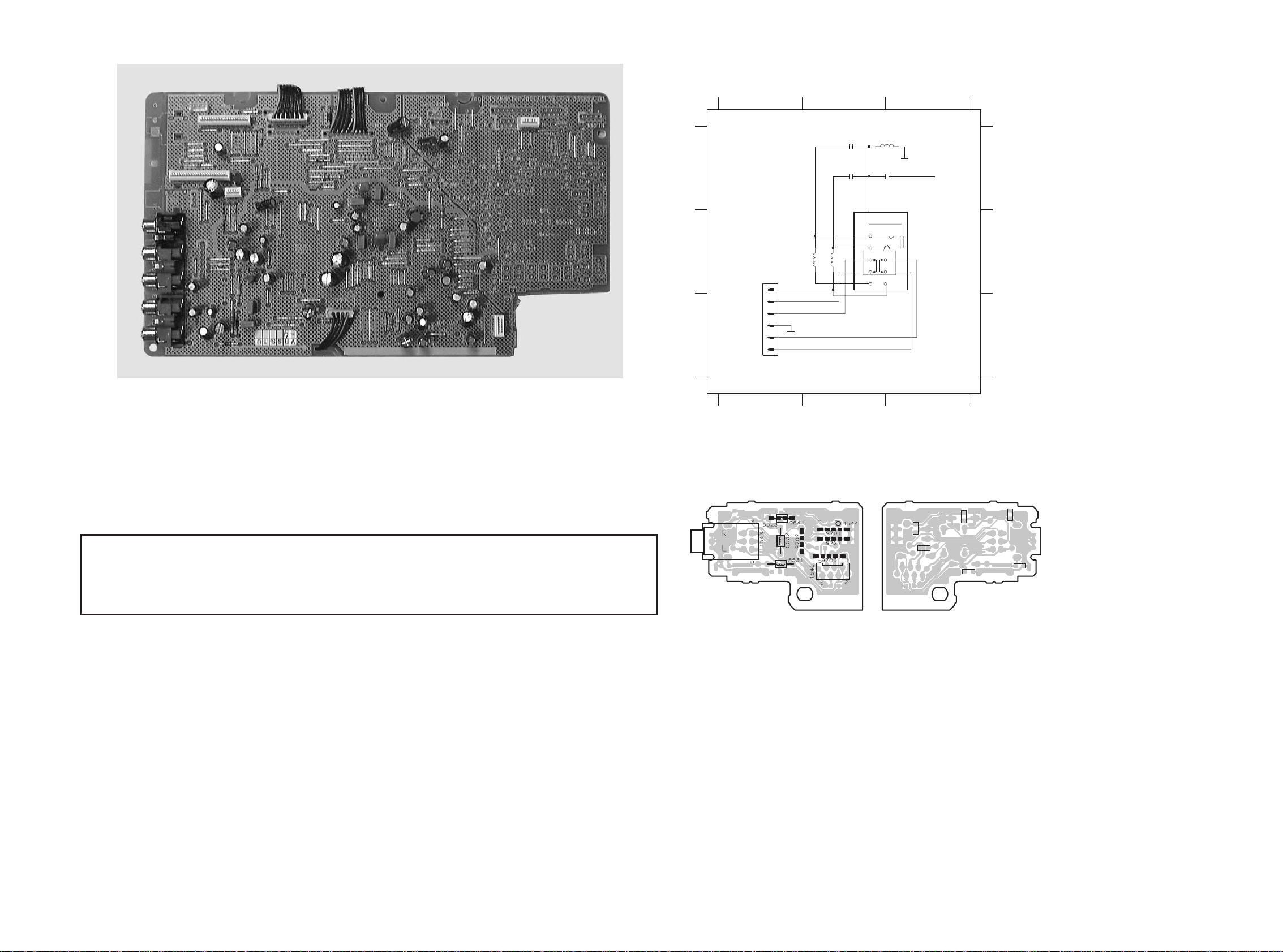

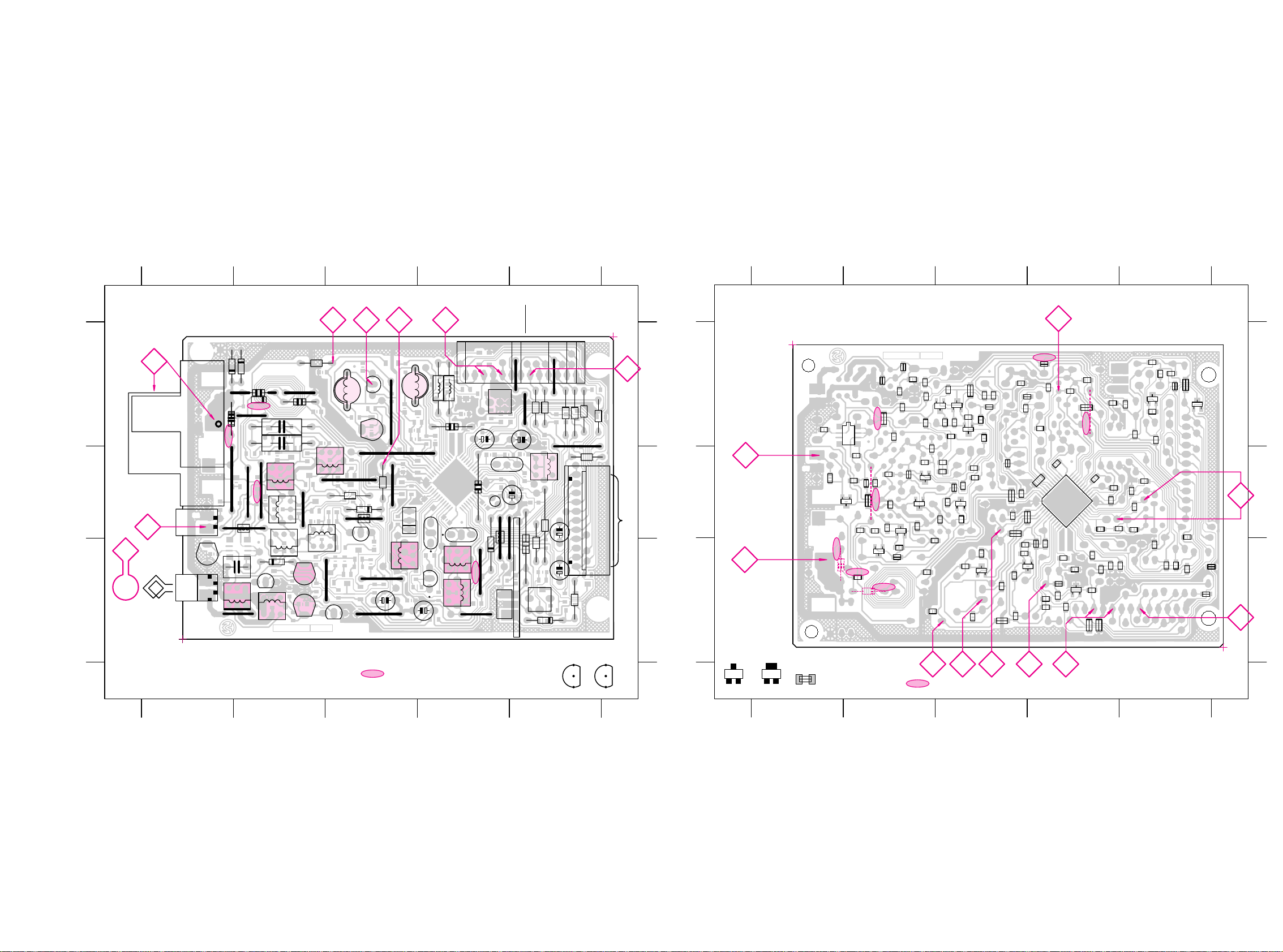

Location of Printed Circuit Boards
DESIGN FRONT BOARD
LED BOARD
DIG. SWITCH
BOARD
FRONT BOARD
CDC KEY BOARD
AF7 BOARD
TUNER
HEADPHONE BOARD
Location of PCB R7 2000 02 14
Page 3
2-1
General:
Mains voltage : 120 / 240V switchable (for /21)
: 230V (for /22)
: 120V (for /37)
Mains frequency : 50 ~ 60Hz
Power consumption : 76W at 1/8 P
RATED
: 175W at max output
: ≤15W at Stand by
: ≤2W at ECO Stand by
Tuner:
FM
Tuning range : 87.5MHz - 108MHz
Grid : 100kHz
IF : 10.7MHz
Aerial input : 75Ω
Sensitivity Mono : < 7µV (26dB S/N)
d (RF=1mV,∆f=75kHz) : 3% - typ. 2%
IF rejection : > 60dB
Image rejection : > 25dB
-3dB Limiting Point : < 23.5dBf
MW
Tuning range : 531kHz - 1062kHz
Grid : 9kHz
IF : 450kHz ±1kHz
Sensitivity at 26dB S/N : < 4.0mV/m
d (RF=50mV,m=80%) : < 5% - typ. 3%
IF rejection : > 45dB
Image rejection : > 28dB
Amplifier:
Output power : 2 x 50W at 6Ω
Headphone : 3.5mm stereo jack
Frequency response : 20Hz - 20kHz (-3dB) Limit
Equalizer : Digital Sound Control
Input sensitivity
Aux/Line : 500mV ±2dB
CDC unit:
Frequency response within : 20Hz - 20kHz at ±3dB
Signal/Noise ratio : > 94dB (A-weighted)
Distortion at 1kHz,0dB : -90dB
Channel unbalance : < 0.3dB
Channel crosstalk at 1kHz : -60dB
De-emphasis : 0 or 15/50 µS
Laser
Output power : ≤500µW
Wave length : 780nm ±20nm
CDR unit:
CD Playback:
Frequency response within : 20Hz - 20kHz at ±3dB
Signal/Noise ratio : > 90dB (A-weighted)
Distortion at 1kHz,0dB : -80dB
Channel unbalance : < 1dB
Channel crosstalk at 1kHz : -60dB
De-emphasis : 0 or 15/50 µS
Analog recording - digital playback:
Frequency response within : 20Hz - 20kHz at ±3dB
Signal/Noise ratio : > 84dB (A-weighted)
Distortion at 1kHz,0dB : -77dB
Channel unbalance : < 1dB
Channel crosstalk at 1kHz : -60dB
De-emphasis : 0 or 15/50 µS
Laser
Output power : ≤1mW during reading
: ≤20mW during writing
Laser class 3B
Wave length : 780nm ±20nm
Technical Specification
Page 4
2-2

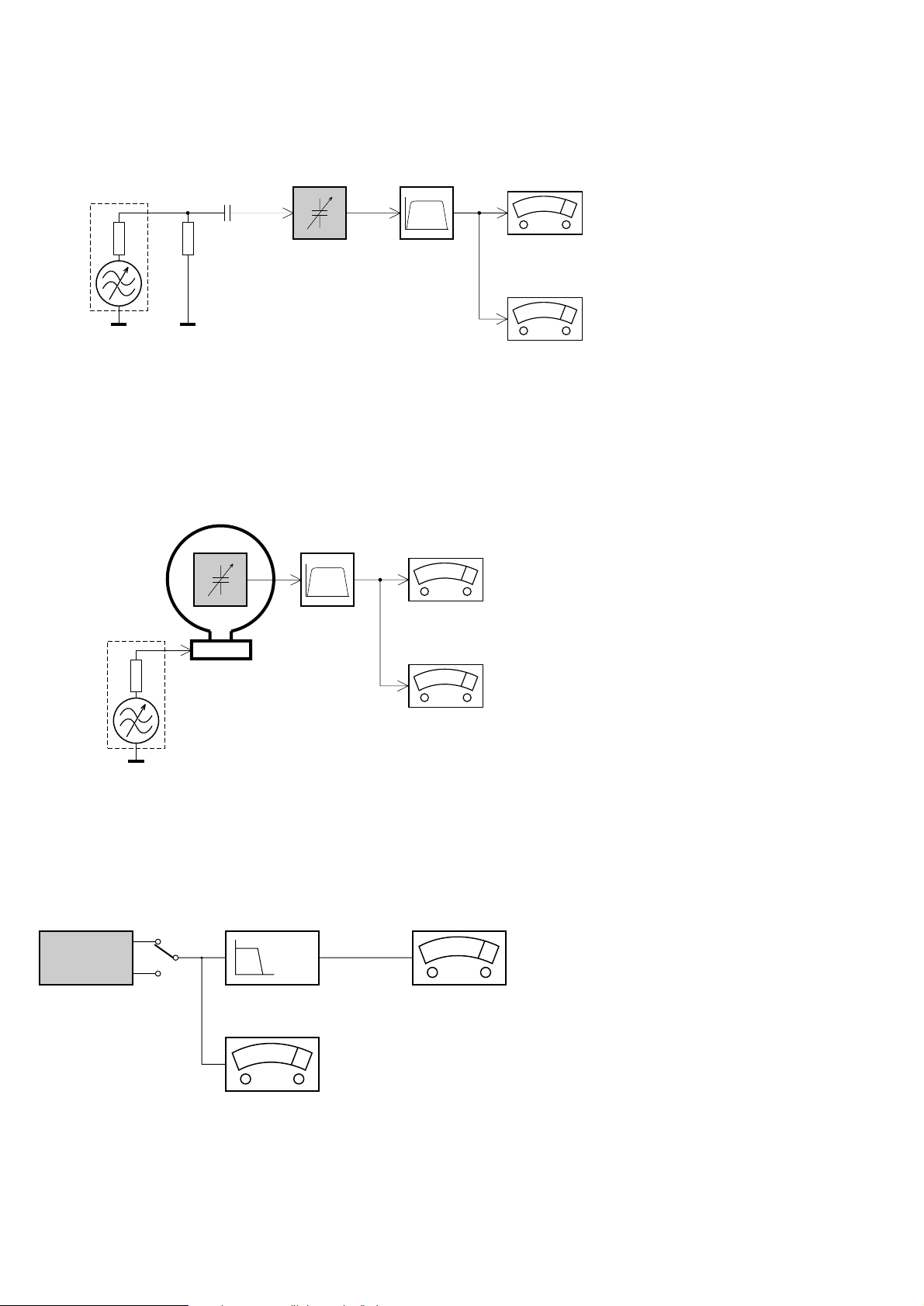

Measurement Setup
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
RF Generator
e.g. PM5326
S/N and distortion meter
e.g. Sound Technology ST1700B
Tuner SW
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).
Ri=50Ω
Aerial replacement
Capacitor
R=50Ω
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
S/N and distortion meter
e.g. Sound Technology ST1700B
Frame aerial
e.g. 7122 707 89001
Tuner AM (MW,LW)
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
RF Generator
e.g. PM5326
Ri=50Ω
Low pass filter 22kHz
L
R
LEVEL METER
e.g. Sennheiser UPM550
S/N and distortion meter
e.g. Sound Technology ST1700B
DUT
CD
Use Audio Signal Disc SBC429 4822 397 30184 (replaces test disc 3)
L.P.F. = 13
th
order filter 4822 395 30204
Page 5
2-3
RC5 Codes
Remote control key
ALARM
SLEEP
BRIGHTNESS
REPEAT
SHUFFLE
TRACK INCREMENT
VOLUME +
VOLUME -
3
8
w
∑
1
CD, CDR MODE
1
AUX, TUNER MODE
¡
CD, CDR MODE
¡
AUX, TUNER MODE
7
INCREDIBLE SURROUND
PURE
LOUDNESS
BALANCE L
BALANCE R
System Code
16
16
16
20, 26
20, 26
26
16
16
20, 26
20, 26
17,20, 21, 26
17,20, 21, 26
20, 26
17, 21
20, 26
17, 21
20, 26
16
16
16
16
16
Command Code
89
38
71
29
28
114
16
17
53
48
33
32
50
31
52
30
54
64
52
50
27
26
Remote control key
Standby
CD1
CD2
CD3
CDR
Tuner
Aux
1(ABC)
2 (DEF)
3 (GHI)
4 (JKL)
5 (MN)
6 (OPQ)
7 (RST)
8 (UVW)
9 (XYZ)
0 (Space)
YES
NO
EDIT (TEXT)
PROGRAM
PROGRAM
TUNER MODE
MUTE
System Code
17,20, 21, 26
20
20
20
26
17
21
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
17,20, 21, 26
20, 26
17
16
Command Code
12
55
56
57
63
63
63
01
02
03
04
05
06
07
08
09
00
87
49
82
36
122
13
