Mini HiFi System
User manual
Manuel d'utilisation
Manual del usuario
Benutzerhandücher
Gebruikershandleidingen
Manuale per l'utente
Användarhandböckerna
Brugermanual
Käyttöoppaita
Manual do usuário
FWM730
Important notes for users in the
U.K.
Mains plug
This apparatus is fitted with an approved 13
Amp plug. To change a fuse in this type of plug
proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 5 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket
outlets, it should be cut off and an appropriate
plug fitted in its place.
If the mains plug contains a fuse, this should
have a value of 5 Amp. If a plug without a fuse
is used, the fuse at the distribution board
should not be greater than 5 Amp.
Note: The severed plug must be disposed of
to avoid a possible shock hazard should it be
inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with
the following code: blue = neutral (N),
brown = live (L).
¶ As these colour s may not correspond with the
colour markings identifying the terminals in
your plug, proceed as follows:
– Connect the blue wire to the terminal
marked N or coloured black.
– Connect the brown wire to the terminal
marked L or coloured red.
– Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
coloured green (or green and yellow).
Before replacing the plug cover, make certain
that the cord grip is clamped over the sheath
of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may
require consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
Italia
DICHIARAZIONE DI CONFORMITA’
Si dichiara che l’apparecchio FWM730, Philips
risponde alle prescrizioni dell’ar t. 2 comma 1 del
D.M. 28 Agosto 1995 n. 548.
Fatto a Eindhoven
Philips Consumer Electronics
Philips, Glaslaan 2
5616 JB Eindhoven, The Netherlands
Norge
Typeskilt finnes på apparatens underside.
Observer: Nettbryteren er sekundert
innkoplet. Den innebygde netdelen er
derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.
For å redusere faren for brann eller elektrisk
støt, skal apparatet ikke utsettes for regn eller
fuktighet.
CAUTION
Use of controls or adjustment or
performance of procedures other than
herein may result in hazardous
radiation exposure or other unsafe
operation.
VAROITUS
Muiden kuin tässä esitettyjen
toimintojen säädön tai asetusten
muutto saattaa altistaa vaaralliselle
säteilylle tai muille vaarallisille
toiminnoille.
4
P1
P2
P3
P4
22
1
3
3
DK
Advarsel: Usynlig laserstråling ved åbning
når sikkerhedsafbrydere er ude af funktion.
Undgå utsættelse for stråling.
Bemærk: Netafbryderen er sekundært
indkoblet og ofbryder ikke strømmen fra
nettet. Den indbyggede netdel er derfor
tilsluttet til lysnettet så længe netstikket
sidder i stikkontakten.
S
Klass 1 laseraparat
Varning! Om apparaten används på annat
sätt än i denna bruksanvisning specificerats,
kan användaren utsättas för osynlig
laserstrålning, som överskrider gränsen för
laserklass 1.
Observera! Stömbrytaren är sekundärt
kopplad och bryter inte strömmen från
nätet. Den inbyggda nätdelen är därför
ansluten till elnätet så länge stickproppen
sitter i vägguttaget.
SF
Luokan 1 laserlaite
Varoitus! Laitteen käyttäminen
muulla kuin tässä käyttöohjeessa mainitulla
tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle
näkymättömälle lasersäteilylle.
Oikeus muutoksiin varataan. Laite ei
saa olla alttiina tippu-ja roiskevedelle.
Huom. Toiminnanvalitsin on kytketty
toisiopuolelle, eikä se kytke laitetta irti
sähköverkosta. Sisäänrakennettu verkkoosa on kytkettynä sähköverkkoon aina
silloin, kun pistoke on pistorasiassa.
Energy Star
As an ENERGY STAR
Partner, Philips has
determined that this product
meets the ENERGY STARR guidelines for
energy efficiency.
4
R
Index
English ------------------------------------------------ 6
Français -------------------------------------------- 28
Español --------------------------------------------- 50
Deutsch --------------------------------------------- 72
Nederlands ---------------------------------------- 94
Italiano -------------------------------------------- 116
Svenska ------------------------------------------- 138
English
Français
EspañolDeutschNederlandsItalianoSvenskaDanskSuomi
Dansk --------------------------------------------- 160
Suomi --------------------------------------------- 182
Português ---------------------------------------- 204
----------------------------------------- 226
Por tuguês
5
Contents
English
General Information
Supplied accessories ............................................ 7
Environmental information ................................ 7
Care and safety information .............................. 7
Functional Overview
Main unit and remote control ....................... 8~9
Control buttons available on the
remote control only ......................................... 9
Connections
Step 1: Connecting FM/MW antennas .......... 11
Step 2: Connecting the speakers .................... 11
Step 3: Connecting to the game console ...... 11
Step 4: Connecting the AC power cord ........ 11
Step 5: Inserting batteries into the remote
control .................................................................. 12
Using the remote control to operate
the system ........................................................ 12
Tuner Operations
Tuning to radio stations .................................... 19
Presetting radio stations ................................... 19
Using the plug and play .................................. 19
Automatic presetting ..................................... 19
Manual presetting ............................................ 19
Selecting a preset radio station ....................... 20
Deleting a preset radio station .................... 20
RDS ....................................................................... 20
Scrolling through RDS information ............. 20
Setting the RDS clock .................................... 20
NEWS ................................................................... 21
Switching on NEWS function ....................... 21
Ta pe Operation/Recording
Ta pe playback ...................................................... 22
General information on recording ................. 22
Preparation for recording ................................ 23
Disc synchro recording..................................... 23
Dubbing tapes ..................................................... 23
Gameport Operations
About Gameport ............................................... 13
Preparation before use ..................................... 13
Starting operation .............................................. 13
Basic Operations
Switching on/off ................................................. 14
Switching to active mode .............................. 14
Switching to standby mode (view clock) ... 14
Demonstration mode ........................................ 14
Setting the clock ................................................. 14
Dimming system’s display screen .................... 15
Volume control ................................................... 15
Sound control ..................................................... 15
wOOx ............................................................... 15
Digital sound control ..................................... 15
Virtual ambience control ............................... 15
Incredible Surround ........................................ 15
Disc Operations
Playable discs ....................................................... 16
Loading discs ....................................................... 16
Basic playback controls ..................................... 16
Playing an MP3 disc ............................................ 17
Repeat and shuffle .............................................. 17
Repeat play ....................................................... 17
Random play ..................................................... 17
Programming the disc tracks ........................... 18
Checking the programme ............................. 18
Clearing the programme ............................... 18
Timer Operations
Setting the timer ................................................. 24
Activating/Deactivating the timer ............... 24
Setting the sleep timer ...................................... 25
Other Connection

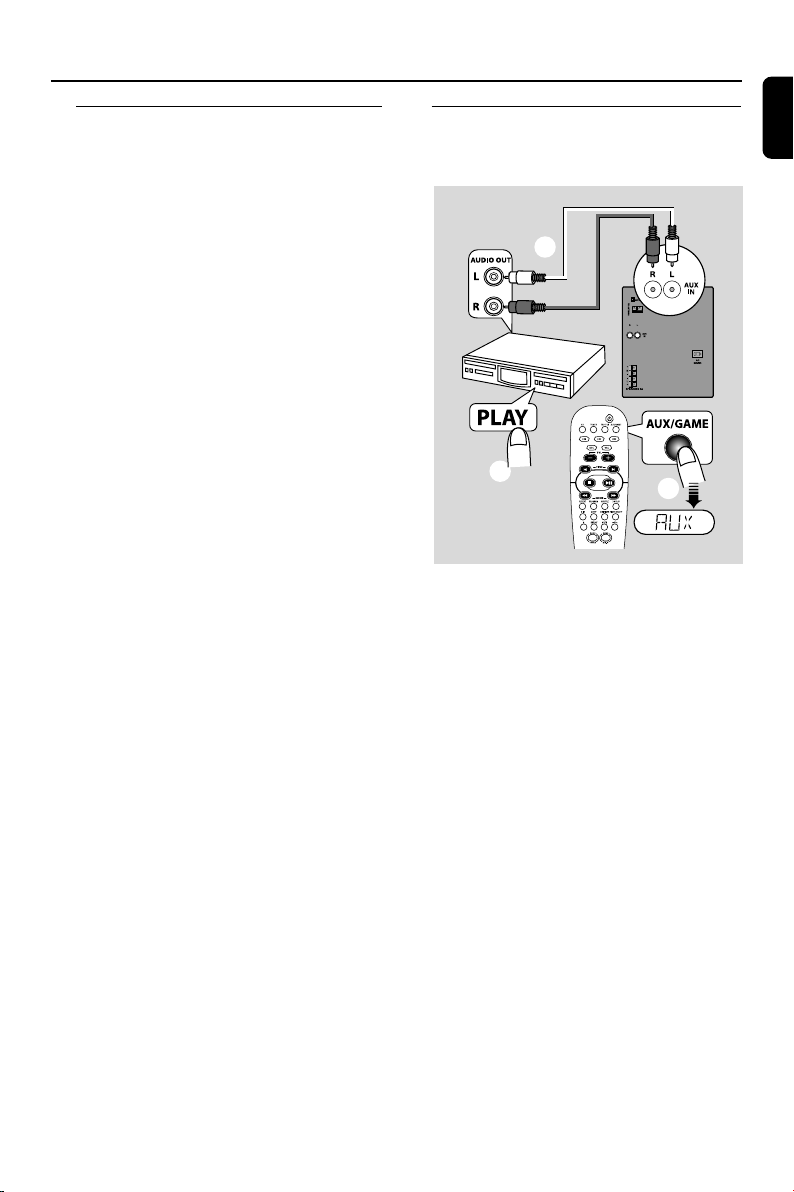

Listening to an external source ...................... 25
Specifications ........................................... 26
Troubleshooting .................................... 27
6
General Information
This product complies with the radio
interference requirements of the
European Community.
Refer to the type plate on the rear of the
system for identification and supply
ratings.
For users in the U.K.: please follow the
instructions on page 2.
Supplied accessories (page 3 – P1)
– Remote control and two AA batteries.
– MW loop antenna
– FM wire antenna
– Video cinch cable (yellow)
–AC power cord
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Care and safety information
(page 3 – P2)
Avoid high temperature, moisture, water
and dust
– Do not expose the system, batteries or discs
to humidity, rain, sand or excessive heat (caused
by heating equipment or direct sunlight). Always
keep the disc tray closed to avoid dust on the
lens.
– No objects filled with liquids, such as vases,
shall be placed on the apparatus.
– No naked flame sources, such as lighted
candles, should be placed on the apparatus.
Avoid condensation problem
– The lens may cloud over when the system is
suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the system in the warm environment until
the moisture evaporates.
Do not block the vents
– In a cabinet, allows about 10cm (4 inches) of
free space all around the system for adequate
ventilation.
Care of discs
–To clean a CD, wipe it in a straight line from
the centre towards the edge using a soft, lint-free
cloth. A cleaning agent may damage the disc!
–Write only on the printed side of a CDR(W)
and only with a soft felt-tipped pen.
– Handle the disc by its edge, do not touch the
surface.
Care of the cabinet
– Use soft cloth slightly moistened with a mild
detergent solution. Do not use a solution
containing alcohol, spirits, ammonia or abrasives.
Finding a suitable location
– Place the system on a flat, hard, and stable
surface.
Built-in safety circuit
– Under extreme conditions, this system may
switch to the standby mode automatically. If this
happens, let the system cool down before
reusing it.
Power saving
– This system is designed to use less than 1W
of electricity when switched to the standby
mode. Disconnect the AC power cord from the
power outlet when not in use.
English
7
Functional Overview
ª
•
¤
0
8
‹
&
§
6
4
£
≥
9
⁄
º
&
&
3
(
7
5
!
&
English
∞
1
2
3
4
5
6
7
8
9
0
!
#
Main unit and remote control
1 STANDBY ON B / ECO POWER
– Switches to the Eco Power standby mode or
turns on the system.
– *Switches to the standby mode.
2 Display screen
3 CD / TUNER / TAPE(TAPE1/2) /
AUX•GAME
– Selects the relevant active mode.
– CD: toggles between DISC 1~3.
– TUNER: toggles between FM and MW band.
– AUX•GAME: toggles between AUX and
GAMEPORT mode.
– TAPE: toggles between Tape Deck 1 and Tape
Deck 2.
4 PRESET (–) (í)
PRESET (+) (ë)
– CD: selects a track or selects a title from MP3
disc.
– TUNER: selects a preset radio station.
– CLOCK: sets the minutes.
5 SEARCH•TUNING•ALBUM 4 / ¢
(1 / ¡)
* = Press and hold the button for more than two seconds.
8
≤
£
™
¡
)
(
*
&
^
%
$
@
#
– CD: *searches backward/forward.
– MP3-CD: select an album
– TUNER: tunes the radio frequency up /down.
– CLOCK: sets the hours.
– TAPE: searches backward/forward.
6 PLAY•PAUSE ÉÅ
– CD: starts/pauses playback.
– TAPE: starts playback.
(only on the main unit)
– TUNER: *enters Plug & Play mode and/or star ts
preset radio station installation.
7 STOP 9
– Exits an operation.
– CD: stops playback or clears a programme.
– TUNER: *erases a preset radio station.
(only on the main unit)
–*Tur ns on/off the demonstration mode.
8 wOOx
– Selects the enhanced or normal wOOx sound
effect.
9 PROGRAM
– CD: starts or confirms tracks programming.
– TUNER: starts *automatic/manual preset
Functional Overview
0 CLOCK•TIMER (CLK/TIMER)
– *Enters clock or timer setting mode.
! AUTO REPLAY•RDS
– Selects continuous playback in either AUTO
PLAY or ONCE mode only.
– Selects RDS information in the TUNER mode.
@ OPEN 3
– Opens the tape deck
# TAPE1 / TAPE2
–Tape deck 1 and tape deck 2.
$ DUBBING•NEWS
– Dubs a tape
–*Tur ns on/off news.
% RECORD●
– Starts recording on tape deck 2
^ VIDEO
– Use a video cable to connect to your game
console’s video output.
AUDIO L. / AUDIO R.
– Use an audio cable to connect to your game
console’s left/right audio output.
& INCREDIBLE SURROUND
– Creates a super-enhanced stereo effect.
DSC
– Selects different type of preset sound equaliser
settings (NEW AGE, ELECTRIC, DIGITAL, POP,
CLASSIC or ROCK.).
VAC
– Selects different type of ambience-based
equaliser settings (CINEMA, ARCADE,
CONCERT, DISCO, CYBER or HALL).
MIX IT (GAME MIX IT)
– Mixes the game sound with your favourite music
from one of these music sources (CD, TUNER or
AUX).
GAME SOUND
– Adjusts the game’s output volume level.
– Selects different type of equaliser setting for
Gameport (SPEED, PUNCH or BLAST).
* n
– Plugs in the headphones jack. The speakers
output will be cancelled.
( MASTER VOLUME (VOL + –)
– Adjusts the volume level.
) iR SENSOR
–Points the remote control towards this sensor.
¡ VU meters
– Indicates signal strength of left/right channel.
™ DISC TRAY
£ OPEN•CLOSE 0 (DISC 1~3)
– Opens/closes the respective disc tray.
≤ DISC 1, 2 and 3
– Selects a disc tray to playback
∞ DISC CHANGE
– Changes discs
Control buttons available on the remote
control only
§ B
– Switches to the Eco Power standby mode.
– *Switches to the standby mode.
≥ REPEAT
– Repeats a track/disc/all programmed tracks.
• SHUFFLE
–Turns on/off the random play mode.
ª DISPLAY
– Displays the album and title name for MP3 disc.
º DIM
–Turns on/off the dim mode.
⁄ SLEEP
– Sets the sleep timer function.
¤ TIMER ON/OFF
–Turns on/off the timer function.
‹ MUTE
– Mutes or restores the volume
English
* = Press and hold the button for more than two seconds.
9
Connections
English
MW
Speaker
3b
3a
Speaker
Rear panel
OUT
OUT
10
Front panel
Game console
Connections
Warning!
– Use only the supplied speakers. The
combination of the main unit and
speakers provides the best sound. Using
other speakers can damage the unit and
sound quality will be negatively affected.
–Never make or change connections
with the power switched on.
– Connect the AC power cord to the
power outlet only after you have finished
hooking up everything.
–To avoid overheating of the system, a
safety circuit has been built in. Therefore,
your system may switch to Standby
mode automatically under extreme
conditions. If this happens, let the system
cool down before reusing it (not available for
all versions).
Step 1: Connecting FM/MW
antennas
– Place the MW loop antenna on a shelf or
attach it to a stand or wall.
– Extend the FM antenna and fix its ends to the
wall.
– Adjust the position of the antennas for
optimal reception.
–Position the antennas as far as possible from a
TV, VCR or other radiation source to prevent
unwanted noise.
– For better FM stereo reception, connect the
external FM antenna.
Refer to page 10.
Step 3: Connecting to the game
console
IMPORTANT!
Gameport inputs are for the game
console only.
a. Use the game console’s video cable (not
supplied) to connect its video output to the
GAMEPORT-VIDEO terminal.
b. Use the game console’s audio cables (not
supplied) to connect its audio outputs to the
GAMEPORT-AUDIO L. / AUDIO R.
terminals.
c. Use the video cable (yellow) to connect the
VIDEO OUT terminal to the video input on
the TV for viewing.
Notes:
– On the TV, the Video Input jack is usually yellow
and might be labeled A/V In, CVBS, Composite or
Baseband.
–To avoid magnetic interference, do not position
the front speakers too close to your TV.
Step 4: Connecting the AC
power cord
“AUTO INSTALL - PRESS PLAY” may appear
on the display panel when the AC power cord is
plugged into the power outlet for the first time.
Press ÉÅ on the main unit to store all available
radio stations (page 3 - P3) or press Ç to exit
(refer to “Tuner Operations”).
English
Step 2: Connecting the speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to “R” and left speaker to
“L”, coloured (marked) wire to “+” and black
(unmarked) wire to “-”. Fully inser t the
stripped portion of the speaker wire into the
terminal as shown on page 10.
Notes:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
11
Connections
English
Step 5: Inserting batteries into
the remote control
3
1
2
1 Open the batter y compartment cover.
2 Inser t two batteries type R06 or AA, following
the indications (+/-) inside the compartment.
3 Close the cover.
Using the remote control to operate the
system
1 Aim the remote control directly at the remote
sensor (iR) on the main unit.
2 Select the source you wish to control by
pressing one of the source select keys on the
remote control (for example CD, TUNER).
3 Then select the desired function (for example
ÉÅ, í, ë).
CAUTION!
– Remove batteries if they are
exhausted or will not be used for a long
time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances,
so they should be disposed of properly.
12
Gameport Operations
About Gameport
Gameport allows you to connect your game
console to this audio system which enables you
to enjoy a total game immersion experience
through powerful sound output.
Preparation before use
Rear panel
2
8
Front panel
3
OUT
OUT
Game console
1 Connect your game console’s video and audio
output to the GAMEPORT video and audio
inputs respectively (refer to “Connections -
Connecting to game console).
2 Connect your TV’s video input to the VIDEO
OUT (CVBS) on the rear panel.
3 Connect all the AC power cord to the power
outlet.
5 Press AUX•GAME until “GAMEPORT” is
display.
6 Press GAME to select the type of sound setting
that best suit the game : SPEED, PUNCH, BLAST
or OFF.
7 If you like to mix your game sound to your
favourite music, press MIX-IT to select the
desired music source : CD, TUNER, AUX, TAPE
or OFF.
CD ™ “MIX-CD"
TUNER ™ “MIX-TU"
AUX ™ “MIX-AUX"
TAPE ™ “ MIX-TA1" / “MIX-TA2"
OFF ™ “ MIX-OFF"
Note:
–To change the disc tray, you have to press CD,
then press CD 1~3 to select the desired disc tray.
8 If necessar y, star t playback of your chosen mixer
source.
9 Star t playing your favourite game.
To adjust the game console’s volume
level
● Adjust GAME VOLUME.
Notes:
–You can only activate GAME VOLUME and MIXIT while in the game source mode.
– If your game console is switched on, the video
image will always appear on the TV even though
you are not in the gameport mode.
English
Starting operation
4 Tu rn on the TV and set to the correct video-in
channel.
The TV’s video input channel may be called
AUX(iliary) IN, AUDIO/VIDEO (A/V) IN, EXT 1,
etc. These channels are often near channel 00
on your TV. Or, your TV remote control may
have a button or switch that chooses different
video modes. See your TV manual for details.
13
Basic Operations
English
Switching on/off
Switching to active mode
● Press CD, TUNER, TAPE or AUX/GAME.
Switching to Eco Power standby mode
● Press B.
➜ ECO POWER button lights up.
➜ The display screen will go blank.
Switching to standby mode (view clock)
● Press and hold B.
➜ The clock is displayed.
➜ While in the standby mode, pressing
CLOCK•TIMER button will switch the system
to the Eco Power standby mode.
Note:
– Before switching the system to the Eco Power
standby or standby mode, make sure the
demonstration mode has been deactivated.
Demonstration mode
If the demonstration mode is active, whenever
you switch the system to the standby mode, it
will begin showing various features offered by
the system.
To activate the demonstration
In the standby mode, press and hold Ç on the
main unit until “DEMO ON" is displayed.
To deactivate the demonstration
● Press and hold Ç on the main unit until
"DEMO OFF" is displayed.
Setting the clock
4
2
3
1
25
1 Press and hold CLK/TIMER (or
CLOCK•TIMER on main unit) until “SELECT
CLOCK OR TIMER” is displayed.
2 Press + (or ë on the remote control) to
change the display to “CLOCK” and press CLK/
TIMER (CLOCK•TIMER) again to confirm.
3 Press 4 or ¢ (or 1 / ¡ on the
remote control) repeatedly to set the hour.
4 Press – or + (or í/ë on the remote control)
repeatedly to set the minute.
5 Press CLK/TIMER (CLOCK•TIMER) to
store the setting.
➜ The clock will start working.
To view the clock time in any active
mode
● Press CLK/TIMER (CLOCK•TIMER) once.
➜ The clock is displayed for a few seconds.
Notes:
– The clock setting will be erased when the
system is disconnected from the power supply.
– The system will exit clock setting mode if no
button is pressed within 90 seconds.
–To set the clock automatically through the time
information in the RDS signal, refer to “Tuner
Operations - Setting the RDS clock”.
14
Basic Operations
Dimming the system’s display
You can select the desired brightness for the
display panel.
● In any active mode, press DIM on the remote
control repeatedly to turn on /off dim mode.
➜ DIM is shown, except for DIM OFF mode.
Volume control
● Adjust MASTER VOLUME (or press
VOL +/- on the remote) to increase or
decrease the sound level.
➜ “VOL MIN” is the minimum volume level and
”VOL MAX” is the maximum volume level.
To switch off the volume temporarily
● Press MUTE on the remote.
➜ Playback will continue without sound and
“MUTE” is displayed.
➜ To restore the volume, press MUTE again or
increase the volume level.
Sound control
The wOOx sound, DSC and VAC sound features
cannot be activated at the same time.
While in the game mode, all the sound control
features are not available for selection, except
Game Sound control.
Digital sound control
DSC provides a different type of preset sound
equaliser setting.
● Press DSC repeatedly to select : NEW AGE,
ELECTRIC, DIGITAL, POP, CLASSIC or ROCK.
Virtual ambience control
VAC provides a different type of environmentbased equaliser setting.
● Press VA C repeatedly to select : CINEMA,
ARCADE, CONCERT, DISCO, CYBER or
HALL.
Incredible Surround
The Incredible Surround magnifies the virtual
distance between the front speakers for an
incredibly wide, enveloping, stereo effect.
● Press IS on the remote control) repeatedly.
➜ If activated, IS ON is shown and
“INCREDIBLE SURROUND” is displayed.
➜ If deactivated, “IS OFF” is displayed.
English
wOOx sound
There are three wOOx settings to enhance the
bass response.
● Press wOOx ON-OFF to switch ON
(enhanced) or OFF (normal) the wOOx sound
effect.
➜ When wOOx is switched on, wOOx level will
appear on the display: wOOx1, wOOx2,
wOOx3, wOOx OFF.
➜ When wOOx is switched off, “WOOX OFF” i s
displayed and wOOx icon will disappear from
the display.
Note:
– Some discs or tapes might be recorded in high
modulation, which causes a distortion at high
volume. If this occurs, deactivate wOOx or reduce
the volume.
15
Disc Operations
English
IMPORTANT!
– This system is designed for regular
discs. Therefore, do not use any
accessories such as disc stabiliser rings or
disc treatment sheets, etc., as offered on
the market, because they may jam the
changer mechanism.
– Do not load more than one disc onto
each tray.
Playable discs
This system is able to play:
– All pre-recorded audio CDs
– All finalised audio CDR and audio CDRW
discs
– MP3-CDs (CD-ROMs with MP3 tracks)
Basic playback controls
Load discs (page 3 - P4)
To play all discs on the disc trays
● Press ÉÅ.
OR
In the stop mode, press CD to select a disc tray
to begin, then press ÉÅ.
➜ All the available discs will play once, then stop.
To play the selected disc only
● Press one of the CD 1~3 buttons on remote
control.
➜ The selected disc will play once, then stop.
To select a desired track
● Press – or + (or í/ë on the remote control)
repeatedly until the desired track is displayed.
➜ During random play (shuffle), pressing – (or
í on the remote control) will not affect the
current playback.
Loading discs (page 3 - P4)
1 Press OPEN•CLOSE 0 on the main unit to
open the disc trays.
2 Load a disc with the label side facing up.
3 Press OPEN•CLOSE 0 again to close the disc
tray.
➜ “READING“ is displayed. The selected disc
tray, total number of tracks and the playing time
will appear on the display.
Note:
–To ensure good system performance, wait until
the disc trays completely read the disc(s) before
proceeding.
To search for a particular passage during
playback
● Press and hold 4 or ¢ (or 1 / ¡ on
the remote control) and release it when the
desired passage is located.
➜ During searching, the volume will be reduced.
For a MP3 disc, the volume will be muted.
To change discs without interrupting
playback
● Press DISC CHANGE.
For example, if currently disc tray 1 is playing,
you can change the discs on disc trays 2 and 3.
To interrupt playback
● Press ÉÅ.
➜ To resume normal playback, repeat the
above.
To stop playback
● Press Ç.
➜ If the system remains in the stop mode for 30
minutes, it will switch to the standby mode.
16
Disc Operations
Playing an MP3 disc
TITLE
1
A02 T008
3
4
2
ALB
A02 T001
1 Load an MP3 disc.
➜ The disc reading time may exceed 10
seconds due to the large number of songs
compiled into one disc.
➜ “AXX TYYY” is displayed. XX is the current
album number and YYY is the current title
number.
2 Press 4 or ¢ (or 1 / ¡ on the
remote control) to select a desired album.
3 Press – or + (or í/ë on the remote control)
to select a desired title.
4 Press ÉÅ to star t playback.
● During playback, press DISPLAY to show the
album and title name.
Repeat and shuffle
You can select and change various play modes
before or during playback.
Repeat play
1 Press REPEAT on the remote control
repeatedly to select :
– to repeat playback of the current track.
– to repeat playback of the current disc.
2 To resume normal playback, press REPEAT
until “OFF” is displayed.
Random play
● Press SHUFFLE on the remote control to turn
on/off the shuffle mode.
➜ If activated, SHUFFLE is shown and the
repeat mode (if any) will be cancelled.
➜ Random play will start from the current disc
tray. Only after all the tracks in the active disc
tray have been shuffled, then it will change to the
next available disc tray.
➜ If programme mode is active, only the
programmed tracks will be played in random
order.
Note:
–Pressing the OPEN•CLOSE button will cancel all
repeat and shuffle modes.
English
Supported MP3 disc formats:
– ISO9660, Joliet, UDF 1.5
– Maximum title number : 999 (depending on
filename length)
– Maximum album number : 99
– Supported sampling frequencies : 32 kHz,
44.1 kHz, 48 kHz
– Supported Bit-rates : 32~256 (kbps), variable
bitrates
– ID3 tags : V1.1, V2.2, V2.3, V2.4
17
Disc Operations
English
Programming the disc tracks
Programming tracks is possible when playback is
stopped. Up to 99 tracks can be stored in the
memory in any order.
IMPORTANT!
It is only possible to programme from
the current selected disc tray.
Checking the programme
1 Stop playback and press – or + (or í/ë on
the remote control) repeatedly.
2 Press Ç to exit.
OR
Press ÉÅ to start playback from the current
programmed track
1
2
4
6
7
53
1 Load the desired discs into the disc trays (refer
to “Loading discs”).
2 Press CD or one of the CD 1~3 buttons to
select a disc.
3 Press PROGRAM to star t programming.
➜ PROG starts flashing.
4 Press – or + (or í/ë on the remote control)
repeatedly to select the desired track.
● For MP3 discs, press 4 or ¢ (or 1 / ¡
on the remote control) and – or + (or í/ë
on the remote control) to select the desired
album and title for programming.
5 Press PROGRAM to store.
● Repeat steps 4–5 to select other tracks.
➜ If you attempt to programme more than 99
tracks, “PROGRAM FULL” is displayed.
6 To star t programme play, press ÉÅ.
7 To stop playback or to end the programming,
press Ç once.
➜ PROG stays and the programme mode
remains active.
Clearing the programme
● Stop playback, then press Ç to clear the
program.
➜ PROG disappears and “PROGRAM CLEARED”
is displayed.
Note:
– The programme will be erased if the system is
disconnected from the power supply or you switch
to another source mode.
Notes:
– If the total playing time has reached 100
minutes or one of the programmed tracks has a
number greater than 30, “—:—” is displayed
instead of the total playing time.
– The system will exit programming mode if no
button is pressed within 20 seconds.
18
Tuner Operations
IMPORTANT!
Make sure the FM and MW antennas are
connected.
Tuning to radio stations
1 Press TUNER to enter tuner mode. To select
another waveband (FM or MW), press TUNER
again.
2 Press and hold 4 or ¢ (or 1 / ¡ on
the remote control) until the frequency
indication starts to change, then release.
➜ The system automatically tunes to the next
strong signal radio reception.
➜ RDS lights up for RDS station (in FM band
only).
For tuning to a weak signal station,
● Press 4 or ¢ (or 1 / ¡ on the
remote control) briefly and repeatedly until an
optimal reception is found.
Presetting radio stations
You can store up to 40 preset radio stations in
the memory, starting from FM and followed by
MW bands.
Notes:
– The system will exit presetting mode if no
button is pressed within 20 seconds.
– If no stereo frequency is detected during Plug
and Play, “CHECK ANTENNA” is displayed.
Using the Plug and Play (page 3 - P3)
Plug and Play allows you to store all available
radio stations automatically.
1 Connect the system to the power supply,
“AUTO INSTALL - PRESS PLAY” is
displayed.
OR
In the Standby mode,
Press and hold ÉÅ on the main unit until
“AUTO INSTALL - PRESS PLAY” is
displayed.
2 Press ÉÅ on the main unit to star t installation.
➜ “INSTALL TUNER” is displayed.
➜ All previously stored radio stations will be
replaced.
➜ Once completed, the last tuned radio station
will be played.
➜ Once completed, the last tuned radio station
(or the first available RDS station) will be played.
3 If the first preset is a RDS station, it will
proceed to set the RDS clock.
➜ “INSTALL” is displayed, followed by “TIME”
and “SEARCH RDS TIME”.
➜ When RDS time is read, “RDS TIME” is
displayed and the current time will be stored.
➜ If RDS station does not transmit RDS time
within 90 seconds, “NO RDS TIME” is displayed
and the programme will exit automatically.
Automatic presetting
You can start the automatic presetting from a
selected preset number.
1 In tuner mode, press – or + (or í/ë on the
remote control) to select a preset number.
2 Press and hold PROGRAM until “AUTO” i s
displayed.
➜ If a radio station has been stored in one of
the presets, it will not be stored again under
another preset number.
➜ If no preset number is selected, automatic
preset will begin from preset (1) and all your
former presets will be overridden.
Manual presetting
You can choose to store only the favourite radio
stations.
1 Tune to your desired radio station (refer to
“Tuning to radio stations”).
2 Press PROGRAM.
➜ The preset number starts flashing. If you want
to store the radio station in another preset
number, press – or + (or í/ë on the remote
control).
3 Press PROGRAM again to store.
● Repeat steps 1–3 to store other radio stations.
English
19
Tuner Operations
English
Selecting a preset radio station
● In tuner mode, press – or + (or í/ë on the
remote control).
➜ The preset number, radio frequency, and
waveband are displayed.
RDS
RDS (Radio Data System) is a service that
allows FM stations to show additional
information. If you are receiving a RDS station,
RDS and the station name are displayed.
Deleting a preset radio station
● Press and hold Ç until “PRESET DELETED” is
displayed.
➜ The current preset radio station will be
deleted.
➜ All other preset radio stations with higher
numbers are decreased by one.
Scrolling through RDS information
● Tuned to a RDS radio station from FM band,
then press AUTO REPLAY•RDS repeatedly
to select the following information (if available):
– Station name
– Programme type (for example: News, Affairs,
Sport, etc.)
– Radio text messages
– Frequency
Setting the RDS clock
Some RDS radio station may be transmitting a
real clock time at an interval of ever y minute. It
is possible to set the clock by using a time signal
which is broadcast together with the RDS signal.
1 Tune to a RDS station from FM band (refer to
“Tuning to radio stations”).
2 Press and hold CLK/TIMER (or
CLOCK•TIMER on main unit) until “SELECT
CLOCK OR TIMER” is displayed.
3 Press ë/+ to change the display to “CLOCK”
and press CLK/TIMER (CLOCK•TIMER)
again to confirm.
4 Press AUTO REPLAY•RDS.
➜ “SEARCH RDS TIME” is displayed.
➜ When RDS time is read, the current time will
be stored.
➜ If the RDS station does not transmit RDS
time within 90 seconds, “NO RDS TIME” is
displayed.
20
Note:
– Some RDS radio stations may be transmitting a
real time clock at a minute interval. The accuracy
of the transmitted time depends on the
transmitting RDS radio station.
NEWS
You may set up the tuner in such a way that
listening to CD or external source is interrupted
by the NEWS of a RDS station. This only works
if the RDS station broadcasts a NEWS signal
while sending the news.
IMPORTANT!
You can activate NEWS function from
any source mode except TUNER.
Switching on NEWS function
1 In any active mode, press and hold
DUBBING•NEWS until “NEWS” is displayed.
➜ NEWS is shown.
➜ The system will scan the radio stations stored
in the first five (5) presets and wait for the News
Programme Type data to be available in any of
these RDS stations.
➜ While searching NEWS, the current active
mode remains uninterrupted.
2 When NEWS transmission is detected, the
system will switch to Tuner mode.
➜ NEWS starts flashing.
● If no RDS station is detected in the first five
presets, the system will exit NEWS function.
➜ “NO RDS NEWS” is displayed.
Tuner Operations
English
Notes:
–You have to exit Tuner mode before selecting
NEWS function.
– Before you activate the NEWS feature, ensure
that RDS stations are included in the first five
presets.
– The NEWS works only once for each activation.
To cancel NEWS function
● Press and hold DUBBING•NEWS again or
switch the system to tuner mode.
OR
During news bulletin, press any other available
source keys to execute the relevant source
mode.
21
Ta pe Operation/Recording
English
IMPORTANT!
– Before playing a tape, check and
tighten slack tape with a pencil. Slack
tape may get jammed or may burst in
the mechanism.
– Store tapes at room temperature and
do not put them too close to a magnetic
field (for example, a transformer, TV set
or speaker).
Ta pe playback
1 Press 5 to open the tape deck door.
2 Inser t a recorded tape and close the tape door.
● Load the tape with the open side down and the
full spool to the left.
3 Press TAPE or TAPE1/2 on the remote control
repeatedly to select tape deck 1 or tape deck 2.
➜ The selected tape deck number is displayed.
4 Press 38 to star t playback.
Stopping playback
● Press 7.
Changing the playback mode
● Press AUTO REPLAY•RDS repeatedly to
select: ONCE, AUTO REPLAY. The default
setting is ONCE.
AUTO REPLAY ... the tape will rewind
automatically at the end of
playback and replay. It will
replay up to max. 10 times
or until you press 9.
ONCE ........................... the selected side will be
played once.
Rewinding or forwarding fast when
playback is stopped
1 Press and hold 4 or ¢ on the front panel
(or press 1 or ¡ on the remote control).
2 Press 7 when you reach the desired passage.
General information on
recording
● If you don’t intend to record via the
microphone, unplug it to avoid unwanted
recording source.
● For recording, only use tape of IEC type I(normal
tape).
● The recording level is set automatically,
regardless of the position of the Volume, Vocal,
Key control and so forth.
● The type is secured at both ends with leader
tape. At the beginning and end of the tape,
nothing will be recorded for seven seconds.
● To prevent accidental recording, break out the
tab on the left shoulder of the tape side you
want to protect.
● Press REC in Tuner, Disc or AUX mode, press
REC, and “CHECK TAPE” will scroll on the
display if there is no recordable tape in tape
deck 2.
22
Ta pe Operation/Recording
IMPORTANT!
– Recording is permissible if copyright
or other rights of third parties are not
infringed upon.
– Recording is possible only in tape
deck.
Preparation for recording
1 Press TAPE (TAPE 1•2) to select TAPE 2.
2 Load a recordable tape into tape deck 2 with
the full spool to the left.
3 Prepare the source to the recorded.
DISC – load the disc(s)
TUNER – tune to the desired radio station.
TAPE – load the prerecorded tape into tape
deck 1 with the full spool to the left.
AUX•GAME – connect external equipment.
When recording is in progress
1 Press DISC, TUNER or AUX•GAME to
select the source.
2 Star t to play the selected source.
3 Press REC to star t recording.
To stop recording
● Press 9 on the system.
Disc synchro recording
1 Press DISC to select the disc.
● Press –/+ (í/ë) to select a desired track to
record.
● You can record programmed tracks in the order
you want.
2 Press REC to star t recording.
➜ “REC” will flash, but the first 7 seconds of the
start passage will not be recorded.
Selecting another track during recording
1 Press 2; to interr upt recording.
2 Press –/+ (í/ë) to select another track.
3 Press 2; to resume recording.
To stop recording
● Press 9.
➜ Recording and disc playback will stop
simultaneously.
Dubbing tapes
1 Load the prerecorded tape into tape deck 1.
● You can set the tape to the desired passage
where recording will start.
2 Press DUBBING•NEWS.
➜ Playing and recording will start simultaneously.
● Dubbing of tapes is possible on one side of the
tape only. To continue recording on the reverse
side, at the end of side A for example, flip the
tape to side B and repeat the procedure.
To stop dubbing
● Press 9.
English
23
Timer Operations
English
Setting the timer
The system can switch on to CD, TUNER or
TAPE mode automatically at a preset time,
serving as an alarm to wake you up.
IMPORTANT!
– Before setting the timer, ensure that
the clock is set correctly.
– The volume of the timer will increase
gradually to the last tuned volume level.
If the last tuned volume level is too low,
the set will then increase to a
predetermined minimum audible level.
3
(CD / TUNER / TAPE1/2)
● At the preset time, the selected sound
source will be played for 30 minutes
before it switches to standby mode (if no
button is pressed within the time frame).
➜ CD – playing the first track of the disc. If the
disc tray is empty, it will switch to Tuner mode.
➜ TUNER – playing the last tuned radio station.
➜ TAPE – playing the tape.
Activating/deactivating the timer
● Press TIMER ON/OFF on the remote control
to turn off the timer or turn on to the last
setting again.
➜ If activated, the timer information will display
for a few seconds, then the system resumes to
the last active source or stays in standby mode.
➜ If deactivated, “CANCEL” is displayed.
4
2
4
52
1
1 Press and hold CLK/TIMER (or
CLOCK•TIMER on main unit) until “SELECT
CLOCK OR TIMER” is displayed.
2 Press + (or ë on the remote control) to
change the display to “TIMER” and press CLK/
TIMER again to confirm.
3 Press CD, TUNER or TAPE1/2 to select the
wake-up source.
CD ™ “CD XX:XX”
TUNER ™ “ TU XX:XX”
TAPE ™ “ TA XX:XX”
4 Press 4 or ¢ (or 1 / ¡ on the
remote control) (for hours) and – or + (or í/
ë on the remote control) (for minutes)
repeatedly to set the wake-up time.
5 Press CLK/TIMER to store the setting.
➜ The timer will always be switched on once it
has been set.
➜ icon remains on the display. It indicates the
timer is activated.
Note:
– The system will exit timer setting mode if no
button is pressed within 90 seconds.
24
Timer Operations Other Connection
3
1
2
Setting the sleep timer
The sleep timer enables the system to switch to
standby mode automatically at a preset time.
1 Press SLEEP repeatedly until it reaches the
desired preset turn-off time.
➜ Following options are available (time in
minutes):
15 ™ 30 ™ 45 ™ 60 ™ 90 ™ 120 ™
OFF ™ 15 …
➜ SLEEP is shown, except for “OFF” mode.
➜ To view or change the setting, repeat the
above.
2 Before the system switches to standby mode, a
countdown of 10 seconds is displayed.
“SLEEP 10” ™ “SLEEP 9”.... ™ “SLEEP
1” ™ “SLEEP”
Cancelling the sleep timer function
● Press SLEEP repeatedly until “OFF” is
displayed, or press the STANDBY ON B
button.
Listening to an external source
You can listen to the sound of the connected
external device through your system’s speakers.
1 Use the red/white audio cables to connect the
system’s AUX IN (R/L) terminals to the
AUDIO OUT terminals on the other
audio/visual device (such as a TV, VCR, Laser Disc
player, DVD player or CD recorder)
➜ If the connected device has only a single
audio out terminal, connect it to the AUX IN left
terminal. Alternatively, you can use a “single to
double” cinch cable, but the output sounds still
remain mono.
2 Press AUX/GAME until “AUX” is displayed.
3 Press PLAY on the connected device to start
playback.
English
Notes:
– All the sound control features (DSC, VAC for
example) are available for selection.
– Always refer to the owner’s manual of other
equipment for complete connection and use
details.
25
Specifications
English
AMPLIFIER
Output power .................................. 2 x 300 W MPO
.................................................................. 2 x 150 W RMS*
Signal-to-noise ratio .......................... ≥ 62 dBA (IEC)
Frequency response ........... 63 – 16000 Hz, –3 dB
Input sensitivity
AUX In ................................................................................... 640 m V
Gameport .............................................................................. 310 mV
Output
Speakers ..................................................................................... ≥ 4 Ω
Headphones ........................................................ 32 Ω – 1000 Ω
* (4 Ω, 1 kHz, 10% THD)
DISC PLAYER
Programmable tracks .................................................... 99
Frequency response ........... 50 – 18000 Hz, –3 dB
Signal-to-noise ratio ........................................ ≥ 62 dBA
Channel separation .......................... ≥ 35 dB (1 kHz)
MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO
MP3-CD bit rate ....................................... 32-256 kbps
.................................................................... (128 kbps advised)
Sampling frequencies ....................... 32, 44.1, 48 kHz
TUNER
FM wave range ...................................87.5 – 108 MHz
MW wave range ................................ 531 – 1602 kHz
Number of presets ........................................................ 40
Antenna
FM ......................................................................................... 75 Ω wire
MW .............................................................................. Loop antenna
SPEAKERS
System ...................................................3 way, Bass reflex
Impedance ......................................................................... 4 Ω
Woofer ...................................................................... 1 x 6.5"
Tw eeter................................. 1 x 2" Ferro fluid cooled
Dimensions (w x h x d) . 240 x 358 x 230 (mm)
Weight............................................................. 4.35 kg each
GENERAL
Material/finish ................................... Polystyrene/Metal
AC Power ..................................... 220 – 230 V / 50 Hz
Power Consumption
Active .......................................................................................... 75 W
Standby .................................................................................. < 25 W
Eco Power Standby ............................................................. < 1 W
Dimensions (w x h x d) . 265 x 322 x 390 (mm)
Weight (without speakers).............................. 7.75 kg
Specifications and external appearance are
subject to change without notice.
26
Tr oubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
English
Problem
Radio reception is poor.
“NO DISC” is displayed or the disc cannot
be played.
The system does not react when buttons are
pressed.
Sound cannot be heard or is of poor quality.
The remote control does not function
properly.
The timer is not working.
The system displays features automatically and
buttons start flashing.
Solution
✔ If the signal is too weak, adjust the antenna or connect
an external antenna for better reception.
✔ Increase the distance between the system and your TV
or VCR.
✔ Insert a disc.
✔ Load in the disc with the labeled side facing up.
✔ Replace or clean the disc, see “Care and safety
information”.
✔ Use a finalised CD-R(W) or a correct format disc.
✔ Remove and reconnect the AC power cord and switch
on the system again.
✔ Adjust the volume.
✔ Disconnect the headphones.
✔ Check that the speakers are connected correctly.
✔ Check that the AC power cord is connected properly.
✔ Select the source (CD or TUNER, for example) before
pressing the function button (ÉÅ, S ,
✔ Reduce the distance between the remote control and
the system.
✔ Replace the battery.
✔ Point the remote control directly toward the IR sensor.
✔ Set the clock correctly.
✔ Press TIMER ON/OFF to switch on the timer.
✔ Press and hold DEMO STOP on the main unit to switch
off the demonstration mode.
T).
Refer to the FAQ (Frequently Asked Questions) on the supplied CD-ROM or visit our website
“www.audio.philips.com” for latest update on FAQ.
