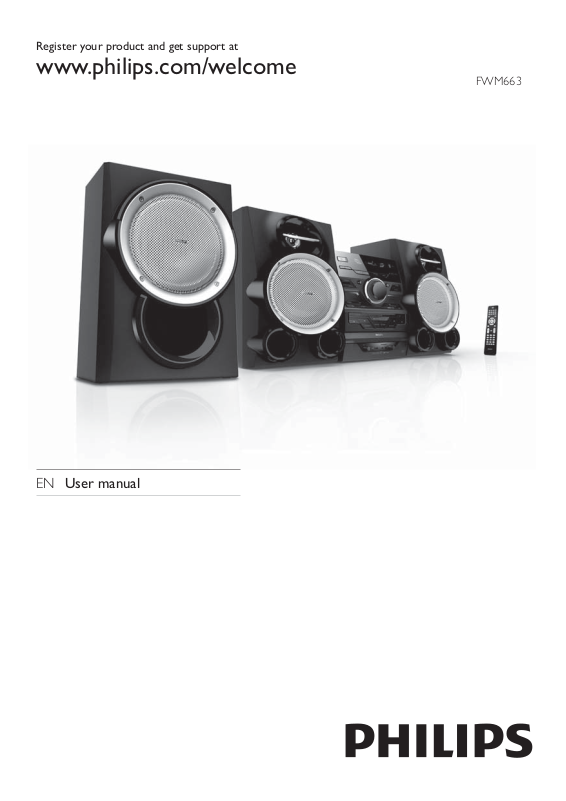

Register your product and get support at
www.philips.com/welcome
FWM663
EN User manual
Content
1 Important 36
Safety 36
Notice 37
2 Your Mini Hi-Fi System 38
Introduction 38
What’s in the box 38
Overview of the main unit 39
Overview of the remote control 41
3 Connect 42
Connect FM antenna 42
Connect AM antenna 42
Connect speakers 43
Connect power 43
4 Get started 44
Prepare the remote control 44
Auto install radio stations 44
Set clock 44
Turn on 45
5 Play 45
Play disc 45
Play from a USB device 46
Play from an SD card 46
Play from an external device 47
6 Play options 47
Repeat and random play 47
Program tracks 47
Display play information 47
Virtual surround 48
Customize sound for room acoustics 49
8 Listen to radio 49
Tune to a radio station 49
Program radio stations automatically 49
Program radio stations manually 50
Select a preset radio station 50
9 USB/SD record 50
Record to a USB/SD device 50
Record CDDA contents to USB/SD
device with high speed 51
Record CDDA contents to a
USB/SD device at any playback time 51
Schedule radio-to-USB/SD record 51
10 Other features 52
Set the alarm timer 52
Set the sleep timer 53
Listen to an external device 53
Delete from a USB/SD device 53
Copy files between SD and USB device 53
Karaoke 54
11 Product information 54
Specifications 54
USB playability information 55
Supported MP3 disc formats 56
Maintenance 56
English
7 Adjust volume level and sound
effect 48
Adjust volume level 48
Mute sound 48
Boost loudness 48
Select a preset sound effect 48
Enhance bass 48
35EN
1 Important
Safety
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
h Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
j Only use attachments/accessories
specified by the manufacturer.
k Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination
to avoid injury from tip-over.
l Unplug this apparatus during lightning
storms or when unused for long periods
of time.
m Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped.
n Battery usage CAUTION – To prevent
battery leakage which may result in
bodily injury, property damage, or
damage to the unit:
Install all batteries correctly, + and - •
as marked on the unit.
Do not mix batteries (old and new •
or carbon and alkaline, etc.).
Remove batteries when the unit is •
not used for a long time.
o Apparatus shall not be exposed to
dripping or splashing.
p Do not place any sources of danger on
the apparatus (e.g. liquid filled objects,
lighted candles).
q This product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
r Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain
readily operable.
36
EN
Warning
Never remove the casing of this apparatus. •
Never lubricate any par t of this apparatus. •
Never place this apparatus on other electrical •
equipment.
Keep this apparatus away from direct sunlight,
•
naked flames or heat.
Never look into the laser beam inside this
•
apparatus.
Ensure that you always have easy access to the
•
power cord, plug or adaptor to disconnect this
appar atus from the power.
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
packaging materials, exhausted batteries and
old equipment.
English
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
This apparatus includes this label:
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
EN
37
2 Your Mini Hi-Fi
What’s in the box
System
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.Philips.com/welcome.
Introduction
With this unit, you can enjoy audio from discs,
USB devices, iPod players, external devices, or
radio stations.
For your convenience, you can load up to three
discs at once.
To enrich sound, this unit offers you these
sound effects:
MAX sound for instant power boost•
Digital Sound Control (DSC)•
Dynamic Bass Boost (DBB)•
Incredible surround (IS)•
Virtual Ambience-based Control (VAC)•
The unit supports the following media formats:
Check and identify the contents of your
package:
Main unit x 1•
AC power cable x 1•
Front speakers x 2•
Subwoofer x 1•
Remote control with 2 AAA batteries•
FM wire antenna x 1•
AM loop antenna x 1•
MP3 link cable x 1•
Quick star t guide x 1•
User manual x 1•
38
EN
Overview of the main unit
n
{
a
b
c
d
e
f
g
h
i
j
k
l
m
o
p
q
€
~
}
|
z
y
x
w
k
v
m
u
t
s
p
q
r
English
a
Turn on the unit or switch to •
standby mode.
b DISPLAY
Select display information.•
c MODE
Select repeat play or random play.•
d Source selection keys
Select a source.•
e USB RECORD
Record to a USB device.•
f USB to SD
Copy audio files from a USB device •
to an SD card.
39
EN
g USB DELETE
Delete audio files stored on a USB •
device.
h VOLUME
Adjust volume.•
i DSC
Select a preset sound equalizer •
setting.
j DISC 1/2/3
Select a disc.•
k
/
Skip to the previous/next track.•
Search within a track/disc/USB/SD •
device/DOCK.
Tune to a radio station.•
Adjust time.•
l
Stop play or erase a program.•
m ALBUM/PRESET+/-
Skip to the previous/next album.•
Select a preset radio station.•
Adjust time.•
Select 12 hour or 24 hour format.•
n OPEN/CLOSE
Open or close the disc •
compartment.
o Disc compartment door
p MIC VOL
Adjust microphone volume.•
q Microphone port
Jack for a microphone.•
r
Jack for a USB mass storage device. •
s MP3 LINK
Audio input jack (3.5mm) for an •
external audio device.
t SD card slot
u DISC CHANGE
Change a disc.•
v
Star t or pause play.•
w MAX SOUND
Turn on or off instant power boost •
for sound.
x VAC
Select an ambiance-based equalizer •
setting.
y IS
Turn on or off incredible surround.•
z DBB
Turn on or off dynamic bass •
enhancement.
{ SD DELETE
Delete audio files stored on an SD •
device.
| SD RECORD
Record to an SD card.•
} SD to USB
Copy audio files from an SD card to •
a USB device.
~ PROG
Program tracks.•
Program radio stations.•
CLOCK
Set the clock/View the clock.•
€ LIGHT
Turn on or off the lighting effect.•
Display panel
Show status.•
40
EN
Overview of the remote
control
{
z
y
x
w
v
v
u
a
Turn on the unit or switch to •
standby mode.
b Source selection keys
Select a source.•
c SLEEP
Set the sleep timer.•
d MODE
Select repeat play or random play.•
e USB DELETE
Delete audio files stored on a USB •
device.
f MUTE
Mute volume.•
g USB RECORD
Record to a USB device.•
h
Star t or pause play.•
i
/
Skip to the previous/next track.•
j USB to SD
Copy audio files from a USB device •
to an SD card.
k ALBUM/PRESET+/-
Skip to the previous/next album.•
Select a preset radio station.•
Adjust time.•
Select 12 hour or 24 hour format.•
l Numeric keypad
Select a track from a disc directly.•
m PROG
Program tracks.•
Program radio stations.•
n MAX SOUND
Turn on or off instant power boost •
for sound.
o DSC
Select a preset sound equalizer •
setting.
English
EN
41
p DBB
Turn on or off dynamic bass •
enhancement.
q VAC/IS
Select an ambiance-based equalizer •
setting.
Turn on or off incredible surround.•
r DISPLAY
Select display information.•
s VOL +/-
Adjust volume.•
t
Stop play or erase a program.•
u SD to USB
Copy audio files from an SD card to •
a USB device.
v
/
Skip to the previous/next track.•
Search within a track/disc/USB/SD •
device/DOCK.
Tune to a radio station.•
Adjust time.•
w SD RECORD
Record to an SD card.•
x CLOCK
Set the clock/View the clock.•
y SD DELETE
Delete audio files stored on an SD •
device.
z LIGHT
Turn on or off the lighting effect.•
{ TIMER
Set the alarm timer.•
3 Connect
Connect FM antenna
Connect the supplied FM antenna to the
1
FM jack on the back of the main unit.
Connect AM antenna
Assemble the AM loop antenna.
1
2 Connect the AM loop antenna to the AM
jack on the back of the main unit.
AM
42
EN
Connect speakers
Connect power
Note
For optimal sound, use the supplied speakers •
only.
Connect only speakers with impedance that is
•
the same or higher than the supplied speakers.
Refer to the Specifications section of this
manual.
B
AA
A: Speakers; B: Subwoofer
Connect the speakers
1 Find “SPEAKERS” sockets on the main
unit.
2 Inser t the black connector of the right
speaker wire to “R”, and the black
connector of the left speaker wire to “L”.
Caution
Risk of product damage! Ensure that the •
power supply voltage corresponds to the
voltage set on the voltage selec tor on the back
of the unit.
Ensure that the power supply socket used can
•
support at least 10A current loading.
Before connecting the AC power cord, ensure
•
that you have completed all other connections.
Note
English
Connect the subwoofer
3 Inser t the blue connector of the
subwoofer wire to “SUB WOOFER”
socket.
The type plate is located on the back of the •
main unit.
1 Connect the AC power cable to:
the main unit.•
the wall socket.•
EN
43
4 Get started
Caution
Use of controls or adjustments or •
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Note
If you are not going to use the remote control •
for a long time, remove the bat teries.
Do not use old and new or different types of
•
batteries in combination.
Batteries contain chemical substances, so they
•
should be disposed of properly.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
back of the apparatus. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Prepare the remote control
Note
Risk of explosion! Keep bat ter ies away from •
heat, sunshine or fire. Never discard batteries
in fire.
To replace the remote control battery:
1 Open the battery compartment.
2 Inser t two AAA batteries with correct
polarity (+/-) as indicated.
3 Close the battery compartment.
3
1
2
Auto install radio stations
When you connect power and no radio
stations are stored, the unit automatically begins
to store radio stations.
1 Connect the unit to the power supply.
[AUTO INSTALL - PRESS PLAY] (auto »
install - press the PLAY button) is
displayed.
2 Press on the main unit to start
installation.
[AUTO] (auto) is displayed. »
The unit automatically stores radio »
stations with sufficient signal strength.
When all the available radio stations »
are stored, the first preset radio station
is broadcast automatically.
Set clock
In the standby mode, press CLOCK to
1
activate the clock setting mode.
The 12 hour or 24 hour format is »
displayed.
2 Press ALBUM/PRESET+/- repeatedly to
select 12 hour or 24 hour format.
3 Press CLOCK to confirm.
The clock digits are displayed and »
begin to blink.
4 PressALBUM/PRESET+/- to set the hour.
5 Press / to set the minute.
6 Press CLOCK to confirm.
44
EN
Tip
To view the clock during play, press • CLOCK.
Turn on
Press .
1
The unit switches to the last selected »
source.
Switch to standby
1 Press to switch the unit to standby
mode.
The backlight on the display panel »
turns off.
The clock (if set) appears on the »
display panel.
5 Play
Play disc
Press CD 1/2/3 to select the disc source.
1
2 Press OPEN/CLOSE on the main unit to
open the disc compartment.
3 Load up to two discs on the disc trays,
with the printed side facing up.
To load the third disc, press • DISC
CHANGE on the main unit to rotate
to the disc tray.
English
2
2
1
1
4 Press OPEN/CLOSE on the main unit to
close the disc compartment.
Play starts automatically. »
To select a disc, press • DISC 1/2/3.
To pause/resume play, press •
To stop play, press •
To select another track, press •
or press a numeric button.
To select an album, press • ALBUM/
PRESET+/-.
To search within a track, press and •
hold
/ , and then release to
resume normal play.
.
.
/
EN
45
Play from a USB device
Play from an SD card
Note
• Ensure that the USB device contains playable
audio contents for suppor ted formats. (see
‘USB playability information’ on page 29)
1 Inser t the USB plug of the device into the
socket.
2 Press USB/SD to select the USB source.
3 Press ALBUM/PRESET+/- to select a
folder.
4 Press / to select an audio file.
5 Press to start play.
To pause/resume play, press •
To stop play, press•
To search within an audio file, press •
and hold
resume normal play.
•
.
/ , then release to
.
Note
• Ensure that the SD card contains playable
audio contents for suppor ted formats. (see
‘USB playability information’ on page 29)
1 Inser t the SD card into the SD card slot.
2 Press USB/SD to select the SD source.
3 Press ALBUM/PRESET+/- to select a
folder.
4 Press / to select an audio file.
5 Press to start play.
To pause/resume play, press •
To stop play, press •
To search within an audio file, press •
and hold
resume normal play.
/ , then release to
.
.
46
EN
Play from an external device
6 Play options
You can also listen to an external audio device
through this unit.
1 Press MP3-LINK to select the MP3 link
source.
2 Connect the supplied MP3 link cable to:
the • MP3 LINK jack (3.5mm) on the
unit.
the headphone jack on an external •
device.
3 Star t to play the device (see the device
user manual).
Repeat and random play
Press MODE repeatedly to select:
1
•
: the current track is played repeatedly.
•
•
•
: all tracks are played repeatedly.
: all tracks are played
randomly and repeatedly.
: all tracks are played randomly.
2 To return to normal play, press MODE
repeatedly until play mode is no longer
displayed.
Tip
Shuffle play cannot be selected when you play •
programmed tracks.
Program tracks
You can program a maximum of 40 tracks.
1 At CD/USB mode, in the stop position,
press PROG to activate the program mode.
[PROG] (program) is displayed. »
2 For MP3/WMA tracks, press ALBUM/
PRESET+/- to select an album.
3 Press / to select a track number, and
then press PROG to confirm.
4 Repeat steps 2 and 3 to select and store
all tracks to program.
5 Press to play the programmed tracks.
During play, [PROG] (program) is »
displayed.
To erase the program, in the stop •
position, press
.
English
Display play information
During play, press DISPLAY repeatedly to
1
select different play information.
EN
47
7 Adjust volume
Select a preset sound effect
level and sound
effect
Note
MAX sound and DSC (Digital Sound Control) •
cannot be activated at the same time.
Adjust volume level
Caution
For your hearing health and being •
consideration of other people, it is not
recommended to listen at high volume levels
for a long time.
1 During play, press VOL +/- to increase/
decrease the volume level.
Mute sound
The DSC (Digital Sound Control) enables you
to enjoy special sound effects.
1 During play, press DSC repeatedly to
select:
[JAZZ] (jazz)•
[POP] (pop)•
[TECHNO] (techno)•
[OPTIMAL] (optimal)•
Enhance bass
The best DBB (Dynamic Bass Enhancement)
setting is generated automatically for each
DSC selection. You can manually select the
DBB setting that best suits your listening
environment.
1 During play, press DBB repeatedly to
select:
DBB 1•
DBB 2•
DBB 3•
DBB off •
If DBB is activated, » DBB is displayed.
During play, press MUTE to mute/unmute
1
sound.
Boost loudness
MAX gives an instant boost to the sound
power .
1 Press MAX to turn on or off the instant
power boost.
If MAX sound is activated, » MAX is
displayed.
48
EN
Virtual surround
You can enhance audio with a virtual surround
sound effect.
1 Press and hold VAC/IS to turn on or off
the incredible surround.
On the main unit, press • IS.
If the incredible surround is activated, »
[INC SURR] (incredible surround) is
displayed.
Customize sound for room
acoustics
8 Listen to radio
During play, press VAC/IS repeatedly to
1
select a type of listening environment:
[HALL] (hall)•
[CONCERT] (concer t)•
[CINEMA] (cinema)•
Tune to a radio station
Press TUNER repeatedly to select FM or
1
AM.
2 Press and hold / for more than 2
seconds.
[SEARCH] (search) is displayed. »
The radio tunes to a station with »
strong reception automatically.
3 Repeat step 2 to tune to more stations.
To tune to a weak station, press •
/ repeatedly until you find optimal
reception.
Program radio stations
automatically
You can program a maximum of 40 preset
radio stations.
1 In the tuner mode, press and hold PROG
for more than 2 seconds to activate
automatic program mode.
[AUTO] (auto) is displayed. »
All available stations are programmed »
in the order of waveband reception
strength.
The first programmed radio station is »
broadcast automatically.
English
EN
49
Program radio stations
manually
9 USB/SD record
You can program a maximum of 40 preset
radio stations.
1 Tune to a radio station.
2 Press PROG to activate program mode.
[PROG] (program) blinks on the »
display.
3 Press ALBUM/PRESET+/- to allocate a
number to this radio station, and then
press PROG to confirm.
The preset number and the frequency »
of the preset station are displayed.
4 Repeat the previous steps to program
other stations.
Tip
To overwrite a programmed station, store •
another station in its place.
Select a preset radio station
In tuner mode, press ALBUM/PRESET+/-
1
to select a preset number.
Tip
Position the antenna as far as possible from •
TV, VCR, or other radiation source.
For optimal reception, fully ex tend and adjust
•
the position of the antenna.
Audio CD tracks, MP3 files, radio, and audio from
external devices are recorded in .mp3 format, and
WMA files are recorded in .wma format.
The first time you record to a USB/SD device,
a folder called ‘PHILIPS’ is automatically created
in the USB/SD device. Each time you record to
a USB/SD device, the recorded files are stored
in a subfolder in the ‘PHILIPS’ folder. Files and
subfolders are named numerically in the order
in which they are created.
Record to a USB/SD device
Connect a USB/SD device.
1
2 Prepare the source to record from.
Disc - Select the disc source and load •
a disc. You can select a track from
which a recording star ts.
Radio - Tune to a radio station.•
MP3 LINK/AUX - Select the MP3 •
link/AUX source, and then connect
and star t to play an external device.
Karaoke - Singing during karaoke. •
3 Press USB RECORD or SD RECORD to
start recording.
For discs, press • USB RECORD or
SD RECORD repeatedly to select:
A [REC ONE] (record one): the first/
current track is recorded.
B [REC ALL] (record all): all tracks/the
remaining tracks are recorded.
Disc play starts automatically from the »
beginning of the disc/the selected track,
and the recording starts.
To stop recording, press•
.
Tip
If the USB/SD device does not have enough •
memory to store the audio files, a message
about a full memor y is displayed.
EN
50
Record CDDA contents to
USB/SD device with high speed
To record the CDDA content into a USB/SD
storage device with high speed,
1 Connect a USB/SD device.
2 Press DISC to select the disc source.
3 Load a CDDA disk.
4 Press to stop play.
5 Press and hold USB RECORD or
SD RECORD until [HIGH SPEED
RECORDING] is displayed.
Press • USB RECORD or SD
RECORD repeatedly to select:
A [REC ONE] (record one): the first/
current track is recorded.
B [REC ALL] (record all): all tracks/the
remaining tracks are recorded.
The recording starts. »
To stop recording, press •
.
2 Press to stop recording.
Tip
If the USB/SD storage device does not •
have enough memory to store the audio
files, a message about a full memory is
displayed.
Anytime recording is not available for CD -MP3 •
and CD-WMA discs.
Anytime recording is not available for •
High speed recording.
Schedule radio-to-USB/SD
record
Schedule radio recordings in advance and you
can listen to your favorite programs at your
convenience.
Note
English
Tip
If the USB/SD device does not have enough •
memory to store the audio files, a message
about a full memor y is displayed.
During high speed recording, speaker will be
•
no sound output.
Record CDDA contents to a
USB/SD device at any playback
time
Note
Make sure that the USB/SD storage device is •
connected to the main unit.
To record the CDDA content into a USB/SD
storage device at any playback time:
1 Press USB RECORD or SD RECORD
during CDDA playback.
The recording starts. »
A recording is activated only in the standby •
mode.
The maximum leng th of a recording is 12
•
hours.
1 Ensure that you set the clock correctly.
2 Plug a USB/SD device.
3 Tune to a radio station.
4 Press to switch to standby mode.
5 Press and hold TIMER for more than 2
seconds.
A prompt to select the source is »
displayed.
6 Press TUNER repeatedly to select FM or
AM.
7 Press USB RECORD or SD RECORD.
The start timer digits are displayed and »
begin to blink.
8 Press ALBUM/PRESET+/- to set the hour.
9 Press / to set the minute.
10 Press TIMER to confirm.
EN
51
The end timer digits are displayed and »
begin to blink.
11 Press ALBUM/PRESET+/- to set the hour.
12 Press / to set the minute.
13 Press TIMER to confirm.
»
is displayed.
At the scheduled times, the recording »
begins and ends automatically.
When the recording ends, the unit »
switches to standby mode.
To deactivate or reactivate a record timer
1 In the standby mode, press TIMER
repeatedly.
If the timer is activated, »
If the timer is deactivated, »
disappears.
is displayed.
10 Other features
Set the alarm timer
This unit can be used as an alarm clock. A disc,
radio, or USB/SD device is activated to play at a
preset time.
Note
If you have set a record timer and an alar m •
timer, only the latest timer is activated.
1 Ensure that you have set the clock
correctly.
2 Press to switch to standby mode.
3 Press and hold TIMER for more than 2
seconds.
A prompt to select the source is »
displayed.
4 Press CD 1/2/3, or TUNER or USB/SD
to select a source.
5 Press TIMER to confirm.
The clock digits are displayed and »
begin to blink.
6 Press ALBUM/PRESET+/- to set the hour.
7 Press / to set the minute.
8 Press TIMER to confirm.
The timer is set and activated. »
To deactivate or reactivate an alarm timer
1 In the standby mode, press TIMER
repeatedly.
If the timer is activated, »
If the timer is deactivated, »
disappears.
is displayed.
Tip
In MP3 link or AUX mode, the alarm timer •
cannot be set.
If a disc or USB/SD source is selected but no
•
audio file can be played, radio is activated
automatically.
52
EN
Set the sleep timer
This unit can switch to standby automatically
after a set period.
1 When the unit is turned on, press SLEEP
repeatedly to select a set period (in
minutes).
When sleep timer is activated, »
displayed.
To deactivate sleep timer
is
1 Press SLEEP repeatedly until [OFF] (off)
is displayed.
When sleep timer is deactivated, »
disappears on the display.
Listen to an external device
You can listen to an external audio device
through this unit.
For audio players with headphone sockets
1 Press MP3 LINK/AUX repeatedly to
select the MP3 link source.
2 Connect the supplied MP3 link cable to:
the • MP3 LINK jack (3.5mm) on the
unit.
the headphone jack on an external •
device.
3 Star t to play the device (refer to the
device’s user manual).
For audio players with red/white audio output
sockets
1 Press MP3 LINK/AUX repeatedly to
select the AUX source.
2 Connect the audio cables (white/red
jacks, not supplied) to:
the • AUX IN jacks on the back of the
unit.
the AUDIO OUT jacks on an •
external device.
3 Star t to play the device (refer to the
device’s user manual).
Delete from a USB/SD device
During play from a USB/SD device, press
1
/ to select an audio file.
To delete an audio folder, in the stop •
position, press ALBUM/PRESET+/-
to select an audio folder.
2 Press USB DELETE or SD DELETE.
A confirmation message is displayed. »
3 While the message is displayed, press
USB DELETE or SD DELETE again to
confirm.
To cancel, press•
.
Copy files between SD and
USB device
You can copy MP3 / WMA file between USB
and SD device.
1 Connect both USB and SD devices.
2 Press USB/SD to select the USB/SD
source.
3 Select an audio file.
4 Press USB to SD or SD to USB to star t
copy.
You can press • USB to SD or SD to
USB repeatedly to select:
A [COPY ONE] (copy one): the first/
current file is copied.
B [COPY ALL] (copy all): all files/the
remaining files are copied.
The track number and the percentage »
of copy progress are displayed.
Press •
to stop copy.
English
EN
53
Karaoke
11 Product
You can connect a microphone and sing along
with a music source.
1 Turn MIC VOL to the minimum level.
2 Connect a microphone to the
microphone port on the unit.
3 Press CD 1/2/3, or TUNER, or USB, or
MP3 LINK/AUX to select the source, and
start play.
4 Sing through the microphone.
To adjust the volume of the source, •
press VOL +/-.
To adjust the volume of the •
microphone, turn MIC VOL.
information
Note
Product information is subject to change •
without prior notice.
Specifications
Amplifier
Total output power 800W RMS
Frequency response 60 - 16kHz
Signal-to-noise ratio >67dB A (IEC)
Aux input 1500mV/2000mV
Disc
Laser type Semiconductor
Disc diameter 12cm/8cm
Support disc CD-DA, CD-R,
CD-RW, MP3-CD,
WMA-CD
Audio DAC 24Bits / 44.1kHz
Total harmonic
distortion
Frequency response 60Hz -16kHz (44.1kHz)
S/N ratio >75dBA
<1.5%
54
EN
Tuner
Tuning range FM: 87.5 - 108MHz;
AM: 531 - 1602kHz
(9KHz); 530 - 1700KHz
(10KHz)
Tuning grid 50KHz (FM);
9KHz/10KHz (AM)
Number of presets 40
FM 75ohm wire
AM loop antenna
Speakers
Speaker Impedance 3ohm
Woofer 2 x 8”
Tweeter 2 x 2”
Dimensions
(W x H x D)
Weight 7.151kg each
263 x 447 x 360 mm
Subwoofer
Speaker impedance 8ohm
Speaker driver 10”
Output power 300W
Dimensions
(W x H x D)
Weight 9.81 kg
337 x 491 x 360 mm
General information
AC power 110 - 127/220 - 240V,
50/60Hz
Operation power
consumption
Standby power
consumption
USB direct Version 2.0/1.1
Dimensions
Main Unit
(W x H x D)
Weight
(without speakers)
120W
<10W
265 x 359 x 353 mm
6.5 kg
USB playability information
Compatible USB devices:
USB flash memory (USB 2.0 or USB •
1.1)
USB flash players (USB 2.0 or USB •
1.1)
memory cards (requires an additional •
card reader to work with this unit)
Supported formats:
USB or memory file format FAT12, •
FAT16, FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps •
and variable bit rate
WMA v9 or earlier•
Director y nesting up to a maximum •
of 8 levels
Number of albums/ folders: •
maximum 99
Number of tracks/titles: maximum •
999
ID3 tag v2.0 or later•
File name in Unicode UTF8 •
(maximum length: 128 bytes)
Unsupported formats:
Empty albums: an empty album is an •
album that does not contain MP3/
WMA files, and is not be shown in
the display.
English
EN
55
Unsupported file formats are •
skipped. For example, Word
documents (.doc) or MP3 files with
extension .dlf are ignored and not
played.
AAC, WAV, PCM audio files•
DRM protected WMA files (.wav, •
.m4a, .m4p, .mp4, .aac)
WMA files in Lossless format•
Supported MP3 disc formats
ISO9660, Joliet•
Maximum title number: 999 (depending •
on file name length)
Maximum album number: 99•
Supported sampling frequencies: 32 kHz, •
44.1kHz, 48 kHz
Supported Bit-rates: 32-320 (kbps), •
variable bit rates
ID3 tag v2.0 or later•
Director y nesting up to a maximum of 8 •
levels
Do not use solvents such as benzene, •
thinner, commercially available cleaners,
or antistatic spray intended for analogue
records.
Clean the disc lens
After prolonged use, dir t or dust may •
accumulate at the disc lens. To ensure
good play quality, clean the disc lens
with Philips CD lens cleaner or any
commercially available cleaner. Follow the
instructions supplied with cleaner.
Maintenance
Clean the cabinet
Use a soft cloth slightly moistened with •
a mild detergent solution. Do not use
a solution containing alcohol, spirits,
ammonia or abrasives.
Clean discs
When a disc becomes dir ty, clean it with •
a cleaning cloth. Wipe the disc from the
centre out.
56
EN
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
FWM663_78_UM_V1.1
Loading...
