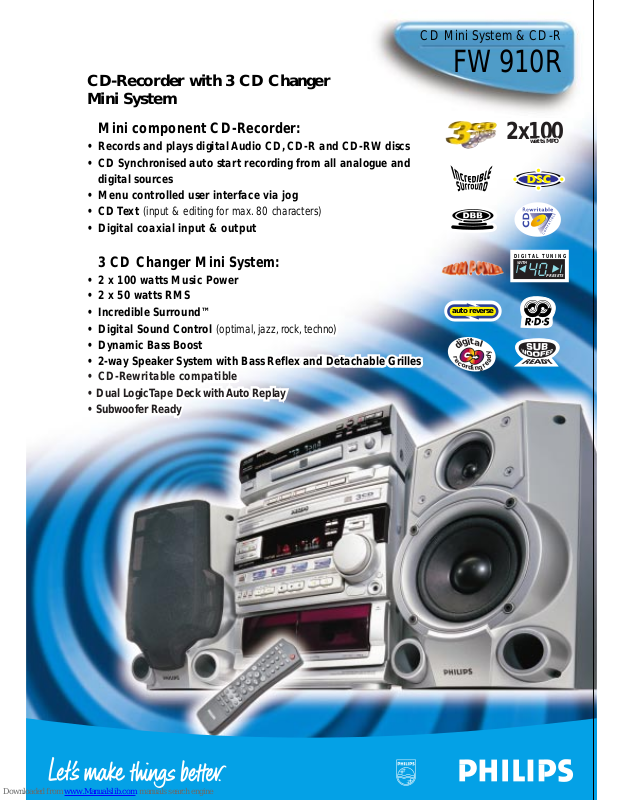

Page 1
CD-Recorder with 3 CD Changer
CD-Recorder with 3 CD Changer
Mini System
Mini System
Mini component CD-Recorder:
Mini component CD-Recorder:
• Records and plays digital Audio CD, CD-R and CD-RW discs
• Records and plays digital Audio CD, CD-R and CD-RW discs
• CD Synchronised auto start recording from all analogue and
• CD Synchronised auto start recording from all analogue and
digital sources
digital sources
• Menu controlled user interface via jog
• Menu controlled user interface via jog
• CD T ext (input & editing for max. 80 characters)
• CD Text (input & editing for max. 80 characters)
• Digital coaxial input & output
• Digital coaxial input & output
3 CD Changer Mini System:
3 CD Changer Mini System:
• 2 x 100 watts Music Power
• 2 x 100 watts Music Power
• 2 x 50 watts RMS
• 2 x 50 watts RMS
• Incredible Surround™
• Incredible Surround™
• Digital Sound Control (optimal, jazz, rock, techno)
• Digital Sound Control (optimal, jazz, rock, techno)
• Dynamic Bass Boost
• Dynamic Bass Boost
• 2-way Speaker System with Bass Reflex and Detachable Grilles
• 2-way Speaker System with Bass Reflex and Detachable Grilles
• CD-Rewritable compatible
• CD-Rewritable compatible
• Dual Logic Tape Deck with Auto Replay
• Dual Logic Tape Deck with Auto Replay
• Subwoofer Ready
• Subwoofer Ready
CD Mini System & CD-R
FW910R
2x 100
wattswatts
MPOMPO
DIGITAL TUNING
WITH
40
PRESETS
auto reverse
t
i
a
g
l
i
d
r
e
c
y
d
a
o
e
r
r
d
g
i
n
Page 2
CD-Recorder with 3 CD Changer Mini System
standard product information
CD Mini System & CD-R
FW910R
CD-Recorder CDR930
audio
• frequency response : 2 Hz - 22,05 kHz
• playback S/N : 100 dB
• playback dynamic range : 95 dB
• playback total harmonic distortion : 85 dB (0,0056%)
• recording S/N (analogue) : 90 dB
• recording S/N (digital) : recording quality equal
to source
• recording dynamic range : 92 dB
• recording total harmonic distortion : 85 dB
(0,0056%)
recording values for line input/output
• digital coaxial input : 11-96 kHz / 0.5Vrms/ 75Ω
• digital optical input : 11-96 kHz
• direct line recording (bypass SRC) for 44.1
: +/-1000ppm
• analogue input (level adjustment)
: 500mVrms/50kΩ = 0dB
• line output voltage : 2 Vrms +/- 2 dB / 0.2 kΩ
• digital coaxial output : 0.5Vpp / 75Ω
recording functions
• recording on CD-R & CD-RW discs
• auto start recording per disc, track
• multi track erase (CD-RW disc)
• erase disc (CD-RW disc)
• unfinalise disc (CD-RW disc)
• manual/auto track increment
• remaining recording time display
• finalise (make disc compatible to CD-player)
• SCMC (Serial Copy management system)
• RID code (Recorder Unique Identifier)
playback functions
• Play - Introscan - Pause - Stop
• direct track selection
• track selection with easy jog
• search forward/reverse
• repeat (all/per track)
• program play (99 tracks)
• time display switching
Mini System FW930
amplifier
• 2 x 100 watts Music Power
• 2 x 50 watts RMS, ±10% THD, 6 Ohm, 1 kHz
• Incredible Surround™
• Digital Sound Control
(optimal, jazz, rock, techno)
• Dynamic Bass Boost
compact disc player
• motorized front loading 3 CD changer
• CD-Rewritable compatible
• digital servo technology
• bit-check D/A converter
• 40-track CD random program
• play modes (repeat/shuffle/program)
• repeat track/disc/all
• change 2 discs while playing 1
tuner
• RDS - station name, program type, RDS text,
clock set (/22)
• RDS - ‘NEWS’ & Traffic Announcement (/22)
• FM/MW/LW Digital Tuner with 40 presets
• easy set/auto store for radio (and clock /22)
tape deck
• Dual Logic Tape Deck
• Auto Reverse (tape 2)
• high speed dubbing
• CD synchro recording
• automatic recording level control
• automatic tape type selection
• electronic speed control and full auto stop
loudspeaker boxes
• 3-way Bass Reflex
• 5.25" woofer
• 2.5" Ferro Fluid Tweeter
• 2 x 1" polydome tweeter
• detachable grilles
connections
• stereo headphones : 3.5mm stereo jack
• video/aux : cinch type sockets
• subwoofer output : cinch type socket
general
• multicolor FTD display
• demo mode
• clock/timer
• wake-up with CD, tuner or tape
/21M /21 /22 /30 /34
Asia Pacific
Australia/NZ
Middle East/S Africa
Latam
Europe
E Europe
Mexico
tuner
FM65.81-74MHz
FM87.5-108MHz
MW522-1602kHz •
LW153-279kHz •
FM75 Ohm clickfit •
mains supply
120/230V 50~60Hz
230V/50Hz
general
made in sticker
FW930 EAN:
CD-R 930 EAN: 87 10101 61006 1 (/00)
Product Dimensions:
265mm W x 310mm H x 363mm D (center unit)
240mm W x 310mm H x 310mm D (speakers)
264mm W x 86mm H x 305mm D (CD-Recorder)
Package Dimensions:
624mm W x 606mm H x 474mm D (mini)
346mm W x 188mm H x 386mm D (CD-R)
Product weight: 18 kg (mini system)
Carton contains: CD Mini System, Multi-Function Remote Control
(for mini system and CD-Recorder), Batteries (2 x AA), Operating
instructions, Warranty information, FM antenna, AM antenna, CDRecorder, Audio Cable (x 2), Digital Coaxial Cable (x 1)
Printed in Singapore
Date printed : Apr 1999
Specifications subject to change without notice.
© 1998 Koninklijke Philips Electronics N.V.
All rights reserved.
Incredible Surround™ is a Trademark of Philips Consumer Electronics
Company
http: //www.philips.com
: 4.5 kg (CD-Recorder)
•
•
•
•
