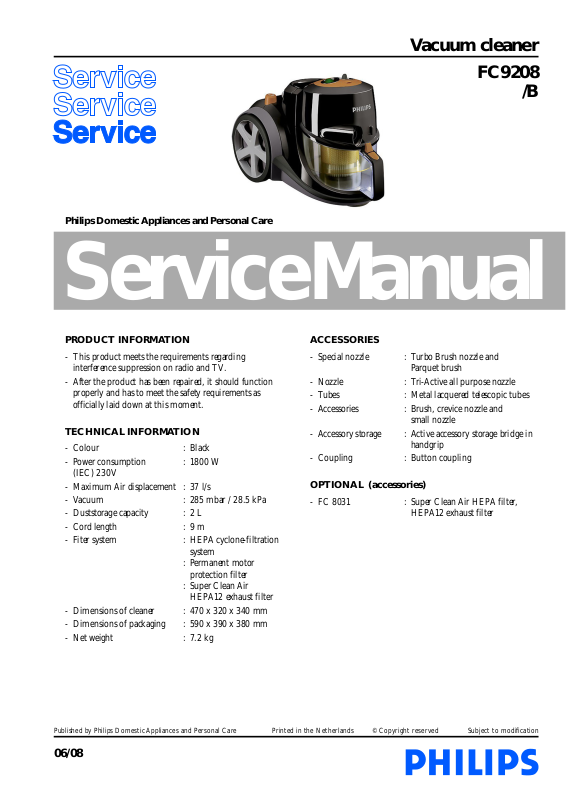

Vacuum cleaner
FC9208
/B
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as
officially laid down at this moment.
TECHNICAL INFORMATION
- Colour : Black
- Power consumption : 1800 W
(IEC) 230V
- Maximum Air displacement : 37 l/s
- Vacuum : 285 mbar / 28.5 kPa
- Duststorage capacity : 2 L
- Cord length : 9 m
- Fiter system : HEPA cyclone-filtration
system
: Permanent motor
protection filter
: Super Clean Air
HEPA12 exhaust filter
- Dimensions of cleaner : 470 x 320 x 340 mm
- Dimensions of packaging : 590 x 390 x 380 mm
- Net weight : 7.2 kg
ACCESSORIES
- Special nozzle : Turbo Brush nozzle and
Parquet brush
- Nozzle : Tri-Active all purpose nozzle
- Tubes : Metal lacquered telescopic tubes
- Accessories : Brush, crevice nozzle and
small nozzle
- Accessory storage : Active accessory storage bridge in
handgrip
- Coupling : Button coupling
OPTIONAL (accessories)
- FC 8031 : Super Clean Air HEPA filter,
HEPA12 exhaust filter
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
06/08
Page 2
DISASSEMBL Y- AND RE-ASSEMBL Y AD VISE
Triac
FC9208 /B
- To open the appliance first remove the filter cover (item 31)
and then remove the 5 screws from the appliance.
- To remove the hinge,
first remove the end caps
(item 16) this can be done
with a screwdriver,
see picture.
- When the end caps are
removed, the hinging pin
can be removed.
- When this is done the hinge can be taken off the appliance.
- Remove the can with the filters.
- To remove the housing (7 screws) you will require for some
screws a screwdriver with a 14.5 cm long shrank for this.
Screwdriver 4322 009 08490 for T15 can be used.
- When the repair is finished, check whether all functions of
the appliance work properly.
- To disassemble the cord winder, use TORX screwdriver no.
T10, which is one of a set consisting of T20; T15; T10; T9;
T8; T7 and T6 (code number 4822 395 505145)
Further disassembly advise for the hinge:
- The chromium ornamental
plate can be removed with
a screwdriver (see picture)
after that the min/max
button and the On/Off
button can be removed
from the plate.
- Remove the screw (B) underneath the ring with a T15
screwdriver; the orange user panel (item 4) can be removed.
- Choke assy can be taken out.
- PCB can be removed.
- To remove the sealing disk and the detector with the spring
you have to remove the 2 screws (C) next to the sealing
disk.
REPAIR INSTRUCTION
- If the reel half spring unit is replaced, shaft L must be
lubricated with silicone grease. Do not apply any silicone
grease to or spill any grease on terminals (item 46) or
conductors (item 47).
- The cord winder spring must be tensioned to the maximum
level and the be rewound approx 1.5 turn.
- Item 5, air valve, opens to cool the motor if the air
displacement is too low or if the airflow is blocked.
- If the function of the electronic control unit is not required,
the Triac must be short-circuited in the manner shown in
the circuit diagram.

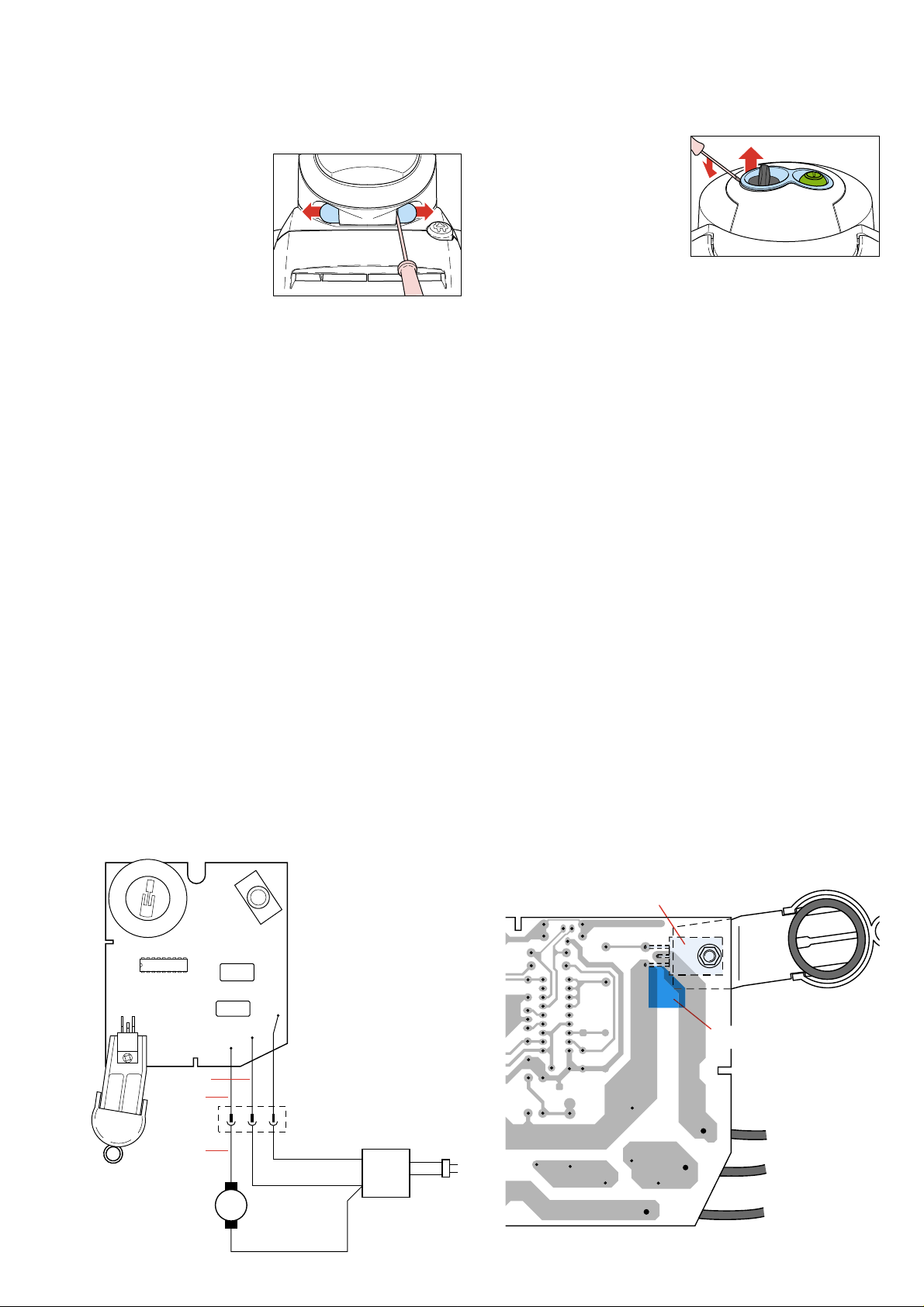

ELECTRICAL DIAGRAM
MOTOR
POWER
MODULE
Brown
Black
Black
M
Blue
Blue
Brown
Black
Short-circuit
CORD WINDER
2-8
Page 3
PARTS LIST
FC9208 /B
Pos Service code Description
1
4322 005 18630
2
4322 003 25670
3
4322 005 17720
3a
4322 003 25230
4
4322 005 17930
5
4322 005 17500
6
4322 006 23270
7
4322 005 19440
8
4322 001 73370
9
4322 004 20130
10
4322 003 26010
11
4322 005 17610
12
4322 005 17520
13
4322 003 25130
14
4322 005 18640
15
4322 006 23280
16
4322 003 25310
17
4322 005 19450
18
4322 000 38800
19
4322 003 23250
20
4322 003 25030
21
4322 000 09750
22
4322 001 73430
23
4322 003 27210
24
4322 003 25010
25
4322 003 25000
26
4322 003 25040
27
4322 003 25050
28
4322 003 24950
29
4322 005 17510
30
4322 003 25080
Handle assy black
Hinge back black
Ornamental plate chronium
Turn Knob soft touch
User panel pr. Animal Care
Choke valve assy
PCB assy 220/240 V 50/60 Hz
Hinge front pr. black
Bucket sealing
Filter brush
Brush holder black
Detector assy
Permanent fi lter
Tower bltr. apricot
Bucket assy black
Wire beam assy
End caps s. grey
Upper black pr.
Motor inlet fi lter
Inletsealing airchanel
Air chanel grey
Pedal spring
Rubber bump
Backpanel odyssey grey
Cord outlet grey
Bumper grey
Bucket hook left grey
Bucket hook right grey
Lowerhousing grey
Caster assy
Filter cover lock l. grey
Pos Service code Description
31
4322 003 25630
32
4322 004 92920
33
4322 001 73460
34
4322 000 38790
35
4322 003 25460
36
4322 000 38670
37
4322 000 38770
38
4322 003 25390
39
4322 003 25360
40
4322 001 73440
41
4322 006 97940
42
4322 000 38820
43
4322 001 73520
44
4322 003 25370
45
4322 005 18670
46
4322 005 17430
47
4322 005 17910
48
4322 006 01720
49
4322 006 01410
50
4322 003 25510
51
4322 005 17570
51a
4322 004 20090
52
4322 007 31640
53
4322 004 22510
54
4322 001 99120
55
4322 007 45550
56
4341 004 20510
57
4322 003 25560
58
4322 005 17590
59
4341 004 20490
60
4322 004 23200
61
4322 004 23290
62
4322 004 22960
63
4322 003 26030
Filter cover black
Hepa fi lter phoenix
Exhaust sealing
Silencer 4 wall backpanel
S-Class h. sealing
Silencer 1 wall
Silencer 2 bottom
Inlet sealing 1
Motor housing top grey
Motor buffer front
Motor Domel 1761 220 - 240 V
Silencer 3 compas
Motor buffer back green
Motor housing bottom
Reel half spring unit
Reelh. cordside assy
Contact plate assy
U.K. / H.K. L = 9.3 m
Euro 4.8 mm pins L = 9.3 m
Curve bend a1
Curve bend a1/conical hose
Conical hose assy
Leaf spring assy
Telescopic tube silver
Coupling bush
Coupling spring
Plumeau assy
Crevicle nozzle 140 mm
Accessory bridge assy
Small nozzle
Tri-active nozzle
Parquet brush nozzle
Turbo brush nozzle
Motor bracket
3-8
Page 4

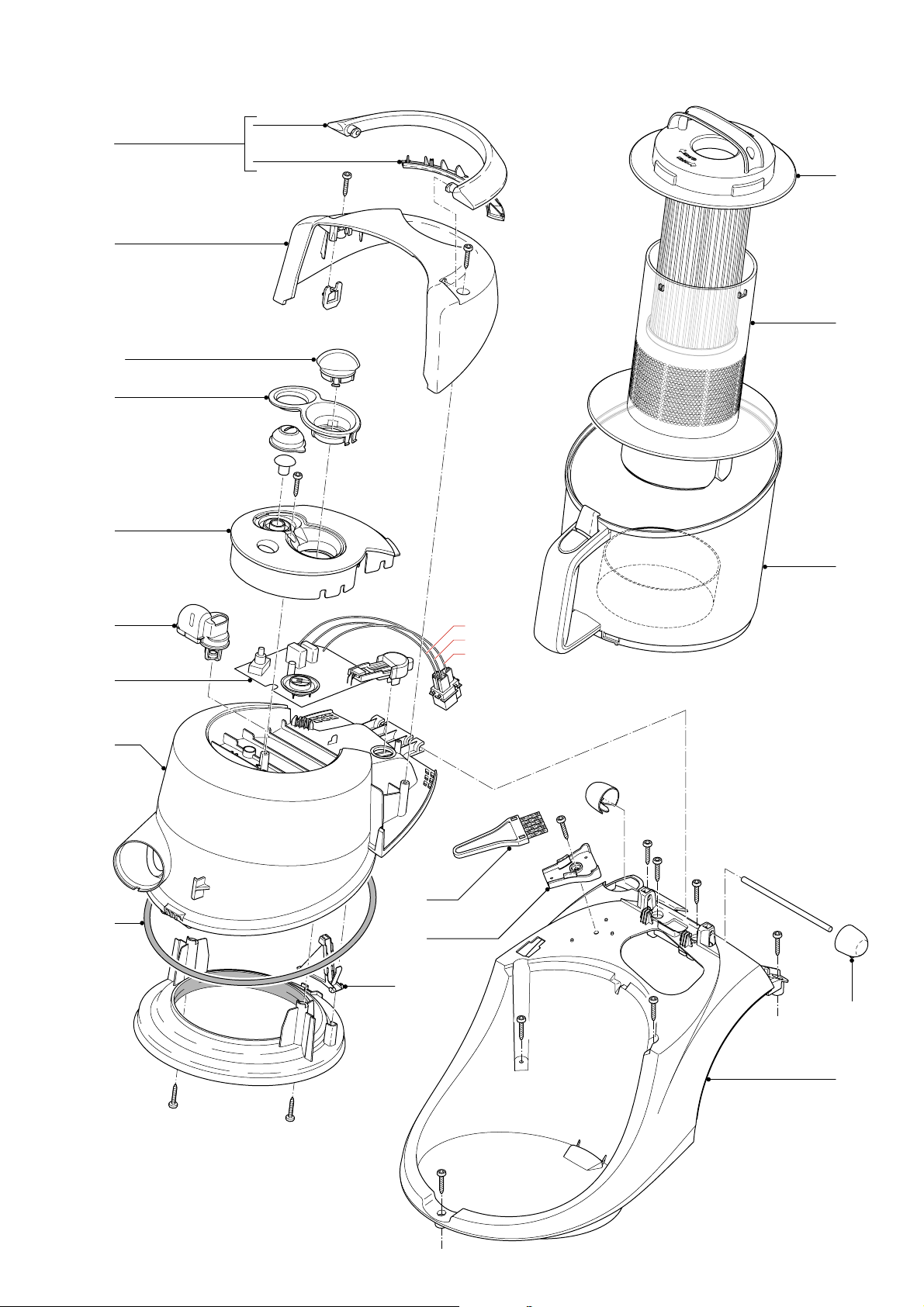

EXPLODED VIEW
1
FC9208 /B
2
3a
3
4
5
A
12
A
13
B
14
Brown
Blue
Black
6
7
D
E
E
9
E
8
10
E
11
E
16
E
17
C
C
E
4-8
Page 5

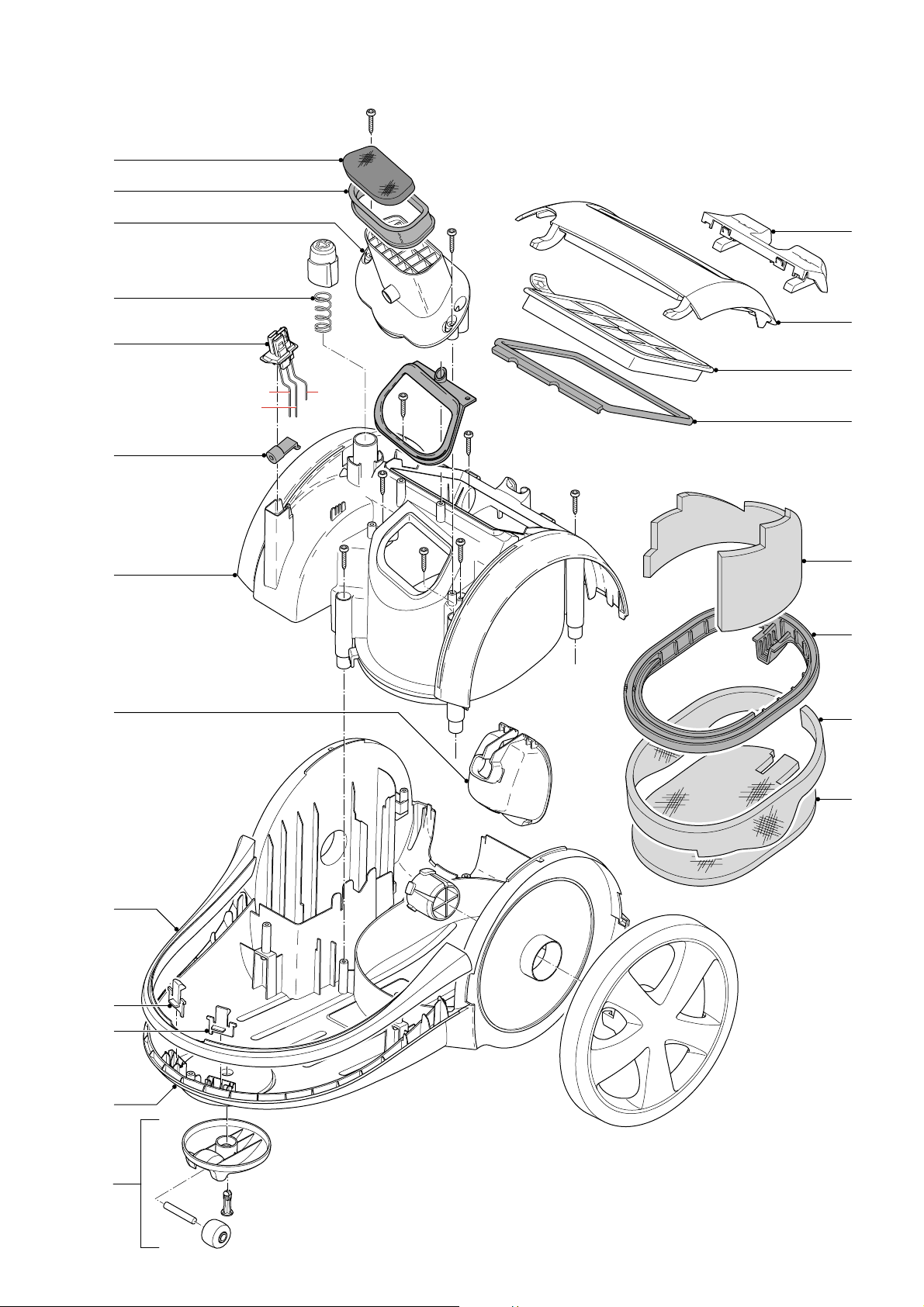

EXPLODED VIEW
18
19
FC9208 /B
F
20
21
15
22
23
Brown Black
Blue
X
Z
G
G
G
G
F
30
31
32
33
G
G
G
34
35
24
25
26
27
28
36
37
29
5-8
Page 6

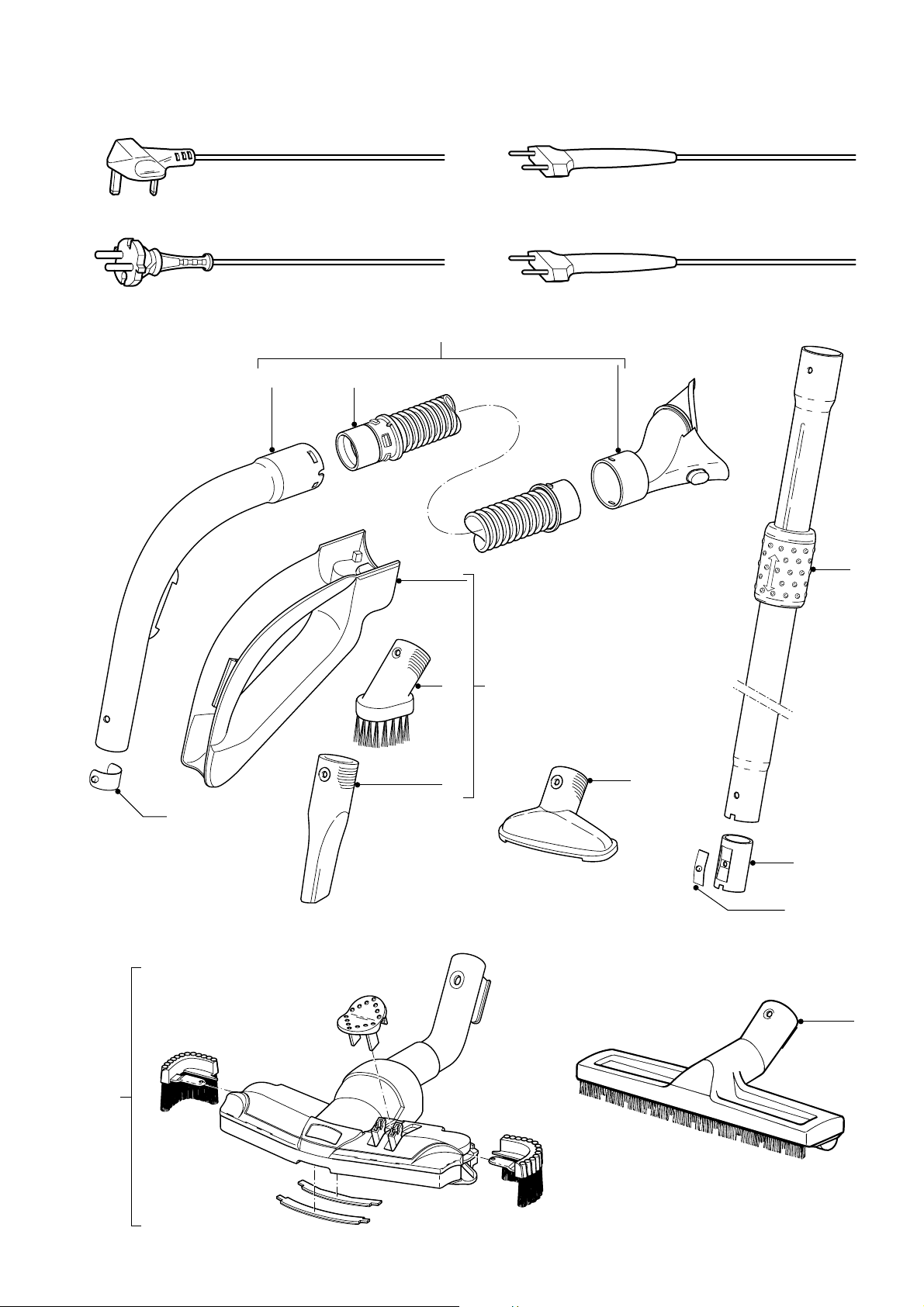

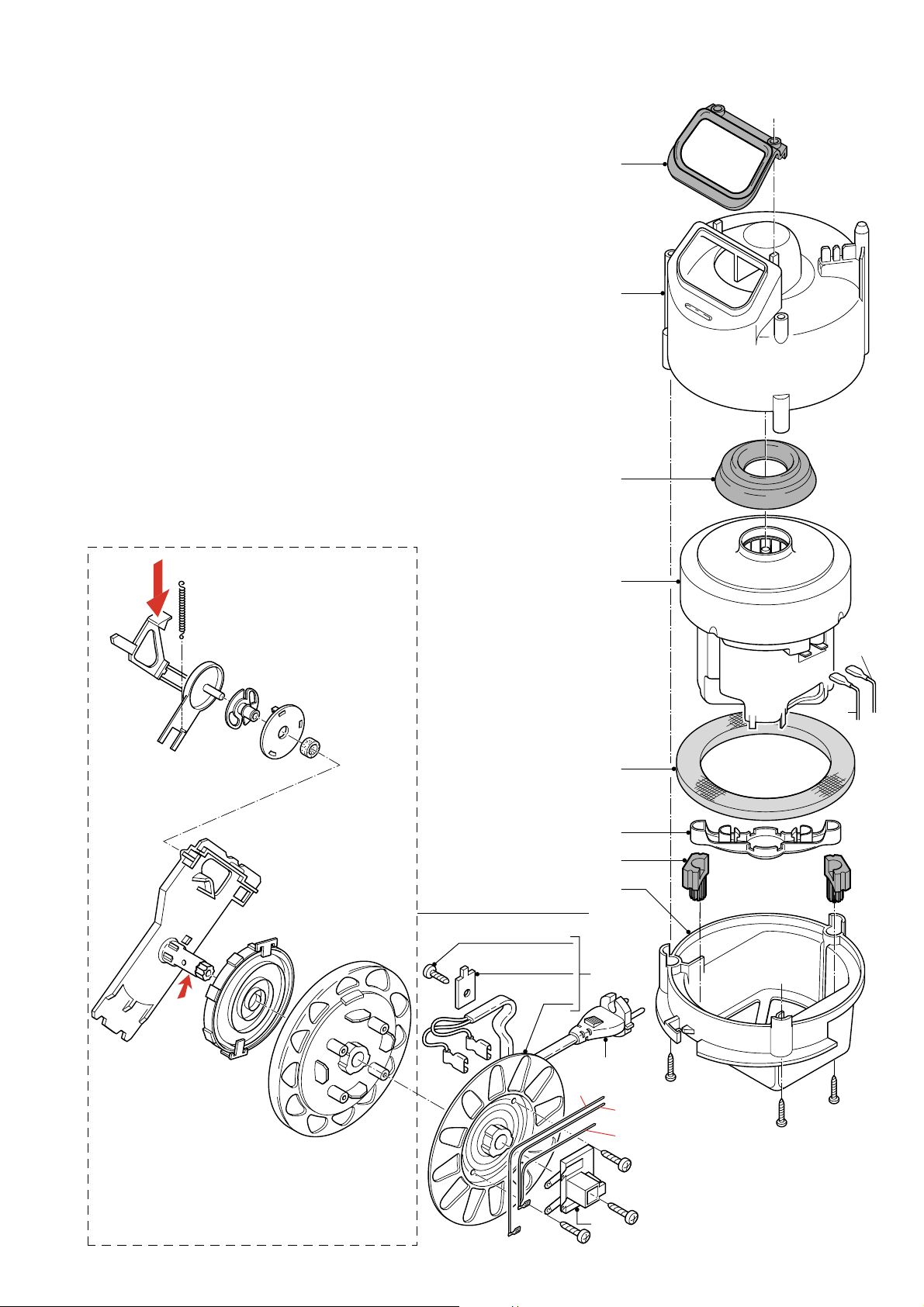

EXPLODED VIEW
FC9208 /B
38
39
40
41
Black
Black
Y
X
42
63
43
44
45
46
J
L
K
Blue
+
48 49
Z
Brown
Y
Black
K
K
47
H
H
H
6-8
Page 7
EXPLODED VIEW
FC9208 /B
48U.K. / H.K.
Europe Ø 4.8mm 49
50
51a
Swiss
Italy
51
53
60
52
57
5856
59
54
55
61
7-8
Page 8

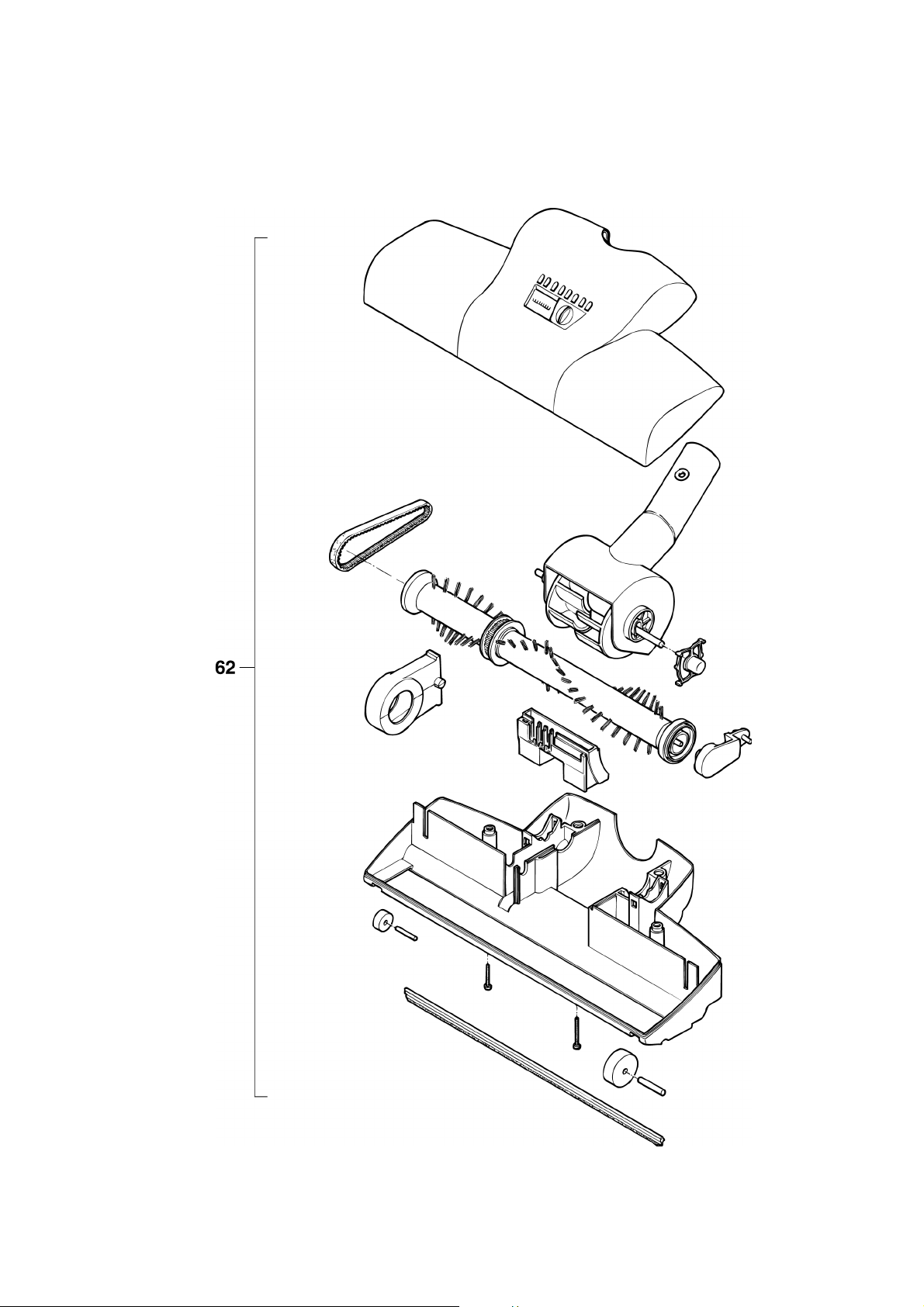

EXPLODED VIEW
FC9208 /B
8-8
