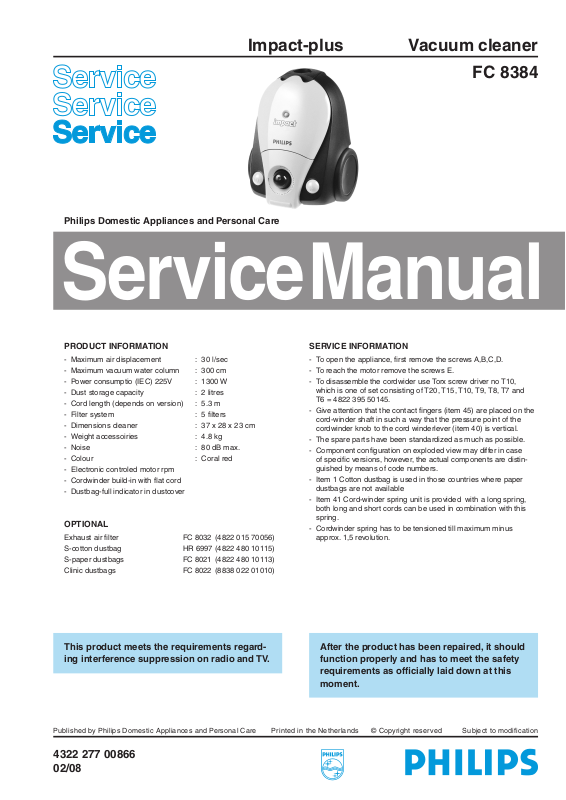

Impact-plus |
Vacuum cleaner |
FC 8384
Philips Domestic Appliances and Personal Care
ServiceManual
PRODUCT INFORMATION
- |
Maximum air displacement |
: |
30 l/sec |
- Maximum vacuum water column |
: |
300 cm |
|
- Power consumptio (IEC) 225V |
: |
1300 W |
|
- |
Dust storage capacity |
: |
2 litres |
- |
Cord length (depends on version) |
: |
5.3 m |
- |
Filter system |
: |
5 filters |
- Dimensions cleaner |
: |
37 x 28 x 23 cm |
|
- |
Weight accessoiries |
: |
4.8 kg |
- Noise |
: |
80 dB max. |
|
- |
Colour |
: |
Coral red |
-Electronic controled motor rpm
-Cordwinder build-in with flat cord
-Dustbag-full indicator in dustcover
OPTIONAL
Exhaust air filter |
FC 8032 |
(4822 015 70056) |
S-cotton dustbag |
HR 6997 (4822 480 10115) |
|
S-paper dustbags |
FC 8021 |
(4822 480 10113) |
Clinic dustbags |
FC 8022 |
(8838 022 01010) |
SERVICE INFORMATION
-To open the appliance, first remove the screws A,B,C,D.
-To reach the motor remove the screws E.
-To disassemble the cordwider use Torx screw driver no T10, which is one of set consisting of T20, T15, T10, T9, T8, T7 and T6 = 4822 395 50145.
-Give attention that the contact fingers (item 45) are placed on the cord-winder shaft in such a way that the pressure point of the cordwinder knob to the cord winderlever (item 40) is vertical.
-The spare parts have been standardized as much as possible.
-Component configuration on exploded view may differ in case of specific versions, however, the actual components are distinguished by means of code numbers.
-Item 1 Cotton dustbag is used in those countries where paper dustbags are not available
-Item 41 Cord-winder spring unit is provided with a long spring, both long and short cords can be used in combination with this spring.
-Cordwinder spring has to be tensioned till maximum minus approx. 1,5 revolution.
This product meets the requirements regarding interference suppression on radio and TV.
After the product has been repaired, it should function properly and has to meet the safety requirements as officially laid down at this moment.
Published by Philips Domestic Appliances and Personal Care |
Printed in the Netherlands |
© Copyright reserved |
Subject to modification |
4322 277 00866 02/08
Pos. |
12 nc |
description |
|
|
Pos. |
12 nc |
description |
|
|
1 |
4822 480 10115 |
S-cotton dustbag |
HR 6997 |
(opt.) |
40 |
4322 003 06620 |
push rod |
|
|
|
8838 022 01010 |
Clinic dustbags |
FC 8022 |
(opt.) |
41 |
4322 009 07610 |
reelhalf springside |
|
|
|
4822 480 10113 |
S-paper dustbags |
FC 8021 |
|
42 |
4322 001 72360 |
brake tyre |
|
|
2 |
4322 009 07670 |
dustbag holder |
|
(grey) |
43 |
4322 009 07640 |
base plate |
|
|
3 |
4322 009 08520 |
upperhousing (el.) |
|
|
44 |
4322 009 07620 |
reelhalf contactside |
|
|
4 |
4322 001 73150 |
inletrubber |
|
|
45 |
4322 009 07630 |
contact plate |
|
|
5 |
4322 003 17250 |
nose piece |
|
|
46 |
4322 006 01880 |
Argentina |
L = 6.3 m |
|
6 |
4322 001 99290 |
wheel (24) |
|
|
|
4322 006 01380 |
Australia |
L = 6.3 m |
|
7 |
4322 002 22260 |
spindle |
|
|
47 |
4322 006 01770 |
Japan / Taiwan L = 5.3 m |
|
|
8 |
4322 009 08510 |
lower housing |
|
|
48 |
4322 006 01370 |
H.K. / U.K. |
L = 6.3 m |
|
9 |
4322 003 21130 |
handle el. |
(coral red) |
49 |
4322 006 01400 |
Euro 4.8 mm |
L = 6.3 m |
|
|
10 |
4322 009 08580 |
vario knob |
|
|
50 |
4322 006 01480 |
Swiss |
L = 6.3 m |
|
11 |
4322 009 08550 |
dust cover |
(coral red) |
51 |
4322 006 01430 |
Italy |
L = 6.3 m |
|
|
12 |
4322 001 72900 |
motor buffer |
|
|
54 |
4341 004 20100 |
small nozzle |
|
|
13 |
4322 001 73160 |
sealing m.c. |
|
|
55 |
4341 003 00240 |
tube clip |
|
|
14 |
4322 000 35360 |
duo filter |
|
|
56 |
4322 002 22610 |
steel tube con. 55 cm. |
|
|
14A |
4322 009 08460 |
duo filter and holder |
|
57 |
4341 004 20420 |
bend + hose |
|
|
|
15 |
4322 003 17740 |
hinge |
|
(grey) |
58 |
4341 005 01240 |
bend handle |
|
|
16 |
4322 009 07730 |
cord outlet |
|
|
59 |
4341 004 20170 |
crevice nozzle |
|
|
17 |
4322 003 17320 |
backgrille |
|
(grey) |
60 |
4322 004 21180 |
nozzle D272 |
|
|
18 |
4822 015 70056 |
exhaust filter |
|
|
61 |
4822 479 20039 |
nozzle brush |
|
|
19 |
4322 009 08500 |
rear wheel |
|
|
62 |
4822 479 20038 |
nozzle strip |
|
|
20 |
4322 003 21180 |
knobs |
(coral red) |
63 |
4322 003 10020 |
clip telescopic tube |
(opt.) |
||
21 |
4322 000 09750 |
pedal spring |
|
|
64 |
4322 004 21050 |
telescopic tube |
|
(opt.) |
22 |
4322 006 20080 |
Low Volt PCB |
|
|
|
|
|
|
|
|
4322 006 22210 |
High Volt PCB |
|
|
|
|
|
|
|
22A |
4322 006 50600 |
switch (soldered version) |
|
|
|
|
|
|
|
23 |
4322 001 73230 |
cooling connection |
|
|
|
|
|
|
|
24 |
4322 003 21030 |
motor cap |
|
(grey) |
|
|
|
|
|
25 |
4322 001 72780 |
buffer ring front |
|
|
|
|
|
|
|
26 |
4322 006 97400 |
motor 110 V - 60 Hz / ans |
|
|
|
|
|
|
|
|
4322 009 06430 |
motor 220 - 240 V / ans |
|
|
|
|
|
|
|
28 |
4322 009 07520 |
motor foam/disc/ans |
|
|
|
|
|
|
|
M
SPEED
CONTROL UNIT
C
CORD WINDER
