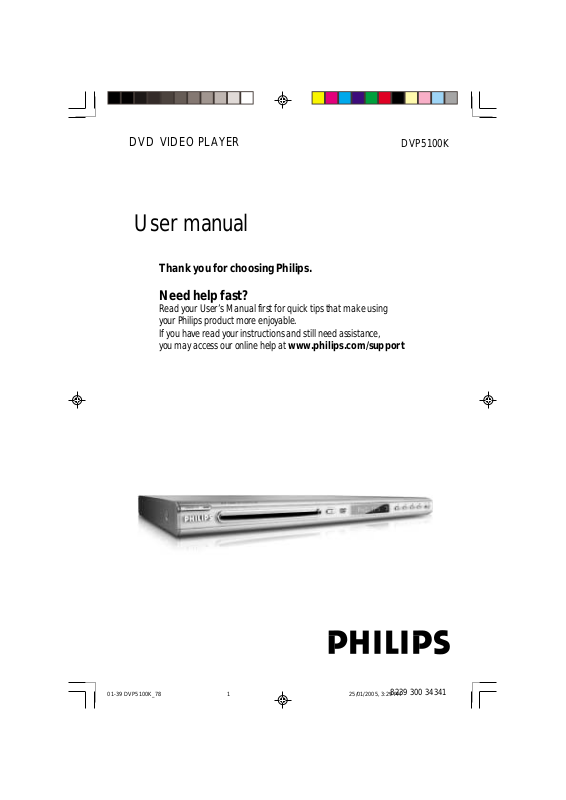

Philips DVP5100K User Manual

DVD VIDEO PLAYER

User manual

Thank you for choosing Philips.

Need help fast?

Read your User’s Manual first for quick tips that make using
your Philips product more enjoyable.
If you have read your instructions and still need assistance,
you may access our online help at www.philips.com/support

DVP5100K

01-39 DVP5100K_78 25/01/2005, 3:29 PM1

8239 300 34341

México

Es necesario que lea cuidadosamente su instructivo de manejo.

PRECAUCIÓN - ADVERTENCIA

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

Descripción:

Modelo:
Alimentación: 120 - 230V; ~50–60 Hz
Consumo:
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Av. La Palma No.6,

Localidad y Tel.: Tel. [phone]
Exportador:

País de Origen:
Nº de Serie: ________________________

ATENCIÓN

sea el requerido para su aparato

Col. San Fernando, La Herradura
Huixquilucan, Edo de Mexico
C.P. 52784, Mexico

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

AVISO IMPORTANTE

Philips Mexicana,S.A.de C.V.no se hace

responsable por daños o desperfectos causados por:

– Maltrato,descuido o mal uso,presencia de

insectos o roedores (cucarachas,ratones etc.).

– Cuando el aparato no haya sido operarado

de acuerdo con el instructivo del uso,fuera
de los valores nominales y tolerancias de las
tensiones (voltaje),frecuencia (ciclaje) de
alimentación eléctrica y las características
que deben reunir las instalaciones auxiliares.

– Por fenómenos naturales tales como:

temblores,inundaciones, incendios, descargas
eléctricas, rayos etc. o delitos causados por
terceros (choques asaltos,riñas, etc.).

01-39 DVP5100K_78 25/01/2005, 3:29 PM2

8239 300 34341

The apparatus shall not be exposed to dripping
or splashing and no objects filled with liquids,
such as vases, shall be placed on apparatus.

Due to the inconsistency of disc formats
provided by various disc manufacturers, your
DVD system may require a playability
enhancement or upgrade. As DVD technology
advances, these enhancements will become
common and will be easy to complete.

Go to www.philips.com/support for
software upgrade.

‘CONSUMERS SHOULD NOTE THAT NOT
ALL HIGH DEFINITION TELEVISION SETS
ARE FULLY COMPATIBLE WITH THIS
PRODUCT AND MAY CAUSE ARTIFACTS
TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN
PICTURE PROBLEMS, IT IS RECOMMENDED
THAT THE USER SWITCH THE
CONNECTION TO THE ‘ST ANDARD
DEFINITION’ OUTPUT. IF THERE ARE
QUESTIONS REGARDING OUR TV SET
COMPATIBILITY WITH THIS MODEL 525p
AND 625p DVD PLAYER, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.’

01-39 DVP5100K_78 25/01/2005, 3:29 PM3

8239 300 34341

General Information

Environmental Information

All unnecessary packaging has been
omitted. The packaging has been made
easy to separate into two materials:
cardboard (box, buffer) and polyethylene
(bags, protective foam sheet).

Your DVD player consists of materials
which can be recycled and reused if
disassembled by a specialised company.
Please observe the local regulations
regarding the disposal of packaging
materials, exhausted batteries and old
equipment.

DivX, DivX Certified, and
associated logos are
trademarks of
DivXNetworks, Inc and
are used under license.

Microsoft, Windows
Media, and the Windows
logo are trademarks, or
registered trademarks of
Microsoft Corporation in
the United States and/or
other countries

Laser safety

This unit employs a laser. Due to possible
eye injury, only a qualified service person
should remove the cover or attempt to
service this device.

NOTE:
PICTURES SHOWN MAYBE
DIFFERENT BETWEEN
COUNTRIES.

CAUTION
(WARNING LOCATION: ON THE
BACKPLATE OF THE SET)

NEVER MAKE OR CHANGE
CONNECTIONS WITH THE
POWER SWITCHED ON.

Important Note:
Due to the numerous versions of new
CD-Audio copy protection or
enhanced CD-Audio protection
recently available on certain discs,
Philips is unable to guarantee that
this DVD Player is fully compatible
with such new discs. Should you have
difficulty playing any such CD-Audio
discs, kindly refer them to your CD­Audio disc retailer.

For Customer Use:
Read carefully the information located at

the rear of your DVD VIDEO player and
enter below the Serial No. Retain this
information for future reference.

Model No. DVP 5100K
Serial No. _______________

01-39 DVP5100K_78 25/01/2005, 3:29 PM4

LASER

Type Semiconductor laser

GaAlAs

Wave length 650 nm (DVD)

780 nm (VCD/CD)

Output Power 7 mW (DVD)

10 mW (VCD/CD)

Beam divergence 60 degree

8239 300 34341

Index

English --------------------------------------- 6

Español ------------------------------------ 40

Português --------------------------------- 78

English

Español

Português

This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents and
other intellectual property rights owned by
Macrovision Corporation and other rights
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation, and is intended
for home and other limited viewing uses
only unless otherwise authorized by
Macrovision Corporation. Reverse
engineering or disassembly is prohibited.

01-39 DVP5100K_78 25/01/2005, 3:29 PM5

Manufactured under license from Dolby
Laboratories. “Dolb y”, “Pr o-Logic” and the
double-D symbol are trademarks of
Dolby Laboratories.

Manufactured under license from Digital
Theater Systems, Inc. U.S. Pat. Nois .
5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,226,616; 6,487,535 and
other U.S. and world-wide patents issued
and pending. "DTS" and "DTS Digital
Surround" are registered trademarks
of Digital Theater Systems , Inc.
All Right Reserved.

8239 300 34341

5

Contents

English

Introduction

Supplied accessories ....................................... 8

Care and safety information..........................8

Connections

Connecting TV............................................ 9-10

Using Composite Video jacks (CVBS)........ 9

Using Component Video jacks (Pr Pb Y)... 9

Using an accessory RF modulator ............ 10

Connecting the power cord........................ 10

Optional : Connecting to an Audio System .

...........................................................................11

Stereo system has Dolby Pro Logic or Right

/ Left Audio In jack ....................................... 11

Optional: Connecting Digital AV Receiver...

...........................................................................11

Receiver has a PCM, Dolby Digital, or

MPEG2 decoder............................................11

Functional Overview

Front and Rear Panels .................................. 12

Remote Control ............................................ 13

Getting Started

Step 1: Inserting batteries into the

Remote Control ............................................ 14

Using the Remote Control to operate the

Player............................................................... 14

Step 2: Setting up the TV........................14-16

Setting up Progressive Scan feature (for

Progressive Scan TV only)........................... 15

To deactivate Progressive manually ..........16

Selecting the colour system that

corresponds to your TV.............................. 16

Step 3: Setting language preference ...........17

Setting the OSD Language..........................17

Setting the Audio, Subtitle and Disc menu

language ..........................................................17

Disc Operations

Playable Discs .................................................18

Region Codes .................................................18

Playing discs.....................................................18

Basic playback controls................................. 19

Selecting various repeat/shuffle functions 19

Repeat play mode......................................... 19

Repeating a section within a chapter/track .

.........................................................................

19

Operations for video playback ...................20

Using the Disc Menu....................................20

Zooming in..................................................... 20

Resuming playback from the last stopped

point ................................................................ 20

Slow motion...................................................20

Using the OSD menu ..................................20

Special DVD features ....................................21

Playing a Title ................................................. 21

Camera Angle ................................................ 21

Changing the Audio Language.................... 21

Subtitles .......................................................... 21

Special VCD & SVCD Features............. 21-22

Playback Control (PBC).............................. 21

Preview ........................................................... 22

Playing DivX disc ........................................... 22

Playing MP3/WMA/MPEG-4/JPEG/Kodak

Picture CD ......................................................23

General Operation....................................... 23

Selecting a folder and track/file ................. 23

Special picture disc features........................24

Preview Function.......................................... 24

Zoom picture ................................................ 24

Playback with multi-angles.......................... 24

Scan Effect ...................................................... 24

Playing MP3/WMA music and JPEG picture

simultaneously ............................................... 24

Karaoke Operations

Playing Karaoke discs....................................25

General Operation....................................... 25

Key setting......................................................25

Vocal ................................................................ 25

Mode ............................................................... 25

6

01-39 DVP5100K_78 25/01/2005, 3:29 PM6

8239 300 34341

DVD Menu Options

General Setup menu ...............................26-27

Locking/Unlocking the disc for viewing... 26

Dimming system’s display screen ..............26

Programming disc tracks.......................26-27

OSD Language............................................... 27

Screen Saver - turning on/off..................... 27

Sleep ................................................................ 27

DivX VOD registration code ..................... 27

Audio Setup Menu...................................28-29

Analogue output ........................................... 28

Digital Audio Setup....................................... 28

Sound Mode................................................... 29

CD Upsampling............................................. 29

Night Mode - turning on/off.......................29

Video Setup Menu ...................................30-32

TV T ype ........................................................... 30

Setting the TV Display ................................. 30

Progressive - turning on/off........................31

Picture Setting ........................................ 31-32

Preference Page........................................ 33-35

Audio, Subtitle, Disc Menu.......................... 33

Restricting playback by Parental Control.....

......................................................................... 33

PBC.................................................................. 34

Changing the Password............................... 34

Setting the DivX Subtitle ............................ 35

Restoring to original settings..................... 35

Contents

English

Troubleshooting ......................... 36–37

Specifications ......................................38

Glossary ......................................................................39

Language Code............................................ 108

01-39 DVP5100K_78 25/01/2005, 3:29 PM7

7

8239 300 34341

Introduction

10 cm

(4 inches)

10 cm

(4 inches)

10 cm

(4 inches)

PHILIPS

PREVIEW

MUTE

SOUND

SURROUND

SLEEP

DIM

English

Supplied accessories

Composite video
cable (yellow)

Audio cable
(white, red)

Remote Control
and
two AA batteries

Care and safety information

● Power consumption

– When the system is switched to
Standby mode, it is still consuming power.
To disconnect the system from the power
supply completely, remove the AC power
plug from the wall jack.

● Avoid high temperatures, moisture,

water and dust

– Do not expose the player, batteries or
discs to humidity, rain, sand or excessive
heat (caused by heating equipment or
direct sunlight.)

● Avoid condensation problem

– The lens may cloud over when the
player is suddenly moved from cold to
warm surroundings, making it impossible
to play a disc. Leave the player in the
warm environment until the moisture
evaporates.

● Do not block the vents

– Do not operate the DVD Player in an
enclosed cabinet, allow about 10 cm (4
inch) of free space all around the player
for adequate ventilation.

● Care of the cabinet

– Use a soft cloth slightly moistened with
a mild detergent solution. Do not use a
solution containing alcohol, spirits,
ammonia or abrasives.

● Finding a suitable location

– Place the player on a flat, hard, and
stable surface.

● Disc handling

PREVIEW

MUTE

SOUND

SURROUND

SLEEP

DIM

– To clean a CD, wipe it in a
straight line from the center
towards the edge using a soft,
lint-free cloth. A cleaning
agent may damage the disc!
– Write only on the printed
side of a CDR(W) and only with a soft felt­tipped pen.
– Handle the disc by its edge, do not
touch the surface.

8

01-39 DVP5100K_78 25/01/2005, 3:29 PM8

8239 300 34341

Connecting TV

AUDIO

IN

V (Pr/Cr)

U (Pb/Cb)

Y

S-VIDEO

IN

VIDEO IN

COMPONENT

VIDEO IN

AUDIO
IN

V (Pr/Cr)

U (Pb/Cb)

Y

S-VIDEO
IN

VIDEO IN

COMPONENT
VIDEO IN

2

1

S-VIDEO

IN

COMPONENT

VIDEO IN
S-VIDEO
IN

V (Pr/Cr)

AUDIO
OUT

U (Pb/Cb)

VIDEO IN

Y

VIDEO IN

COMPONENT

VIDEO IN

V (Pr/Cr)

U (Pb/Cb)

Y

Connections

English

AUDIO

IN

1

2

IMPORTANT!
– You only need to make

one video
connection from the following
options, depending on the
capabilities of your TV system.
– Connect the DVD system directly
to the TV.

Using Composite Video jacks
(CVBS)

1 Use the composite video cable (yellow) to

connect the DVD Player’s CVBS (VIDEO)
jack to the video input jack (or labeled as
A/V In, Video In, Composite or Baseband)
on the TV (cable supplied).

2 To hear the sound of this DVD Player

through your TV, use the audio cables
(white/red) to connect AUDIO OUT (L/
R) jacks of the DVD Player to the
corresponding AUDIO IN jacks on the TV
(cable supplied).

IMPORTANT!
– The progressive scan video
quality is only possible when using Y
Pb Pr and a progressive scan TV is
required.

Using Component Video jacks
(Y Pb Pr)

1 Use the component video cables (red/

blue/green) to connect the DVD system’s
Y Pb Pr jacks to the corresponding
Component video input jacks (or labeled
as Y Pb Pr) on the TV (cable not supplied).

2 To hear the sound of this DVD Player

through your TV, use the audio cables
(white/red) to connect AUDIO OUT (L/
R) jacks of the DVD Player to the
corresponding AUDIO IN jacks on the TV
(cable supplied).

3 Proceed to page 15 for detailed

Progressive Scan set up.

9

01-39 DVP5100K_78 25/01/2005, 3:30 PM9

8239 300 34341

Connections

~ AC MAINS

AUDIO
OUT

V (Pr/Cr)

U (Pb/Cb)

Y

S-VIDEO

IN

VIDEO IN

COMPONENT
VIDEO IN

EJECT

English

RF coaxial cable to TV

2

Back of RF Modulator

(example only)

AUDIO IN

TO TVINT IN

VIDEO

IN

R L

CH3 CH4

Antenna or

Cable TV signal

1

IMPORTANT!
– If your TV only has a single
Antenna In jack (or labeled as 75
ohm or RF In,) you will need an RF
modulator in order to view the DVD
playback on the TV. See your
electronics retailer or contact
Philips for details on RF modulator
availability and operations.

Using an accessory RF modulator

1 Use the composite video cable (yellow) to

connect the DVD Player’s CVBS jack to
the video input jack on the RF modulator.

2 Use the RF coaxial cable (not supplied) to

connect the RF modulator to your TV’s
RF jack.

Connecting the power cord

After everything is connected
properly, plug in the AC power cord
to the power outlet.

Never make or change any connections
with the power switched on.

When no disc is loaded, press

STANDBY ON on the DVD Player
front panel,
“NO DISC” may appear on the
display panel.

NO DISC

10

01-39 DVP5100K_78 25/01/2005, 3:30 PM10

8239 300 34341

Connections

AUDIO

IN

DIGITAL

AV Receiver

Optional: Connecting to an
Audio System

STEREO

AUDIO

IN

DIGITAL

Stereo system has Dolby Pro Logic
or Right / Left Audio In jack

1 Select one of the video connections

(CVBS VIDEO IN, SCAR T or
COMPONENT VIDEO IN) depending on
the options available on your TV.

2 Use the audio cables (white/red) to

connect AUDIO OUT (L/R) jacks of
the DVD Player to the corresponding
AUDIO IN jacks on the stereo system
(cable supplied).

Optional: Connecting Digital AV
Receiver

English

Receiver has a PCM, Dolby Digital,
or MPEG2 decoder

1 Select one of the video connections

(CVBS VIDEO IN, SCAR T or
COMPONENT VIDEO IN) depending on
the options available on your TV.

2 Connect the COAXIAL jack of the DVD

Player to the corresponding Digital Audio
In jack on your Receiver (cable not
supplied).

3 Set the DVD Player’s Digital Output to

PCM-ONLY or ALL depending on the
capabilities of your Receiver (see page 28

“Digital Output”).

01-39 DVP5100K_78 25/01/2005, 3:30 PM11

Helpful Hint:
– If the audio format of the Digital Output
does not match the capabilities of your
receiver, the receiver will produce a strong,
distorted sound or no sound at all.

11

8239 300 34341

Functional Overview

English

Front and Rear Panels

STANDBY-ON B

– To switch the DVD Player to Standby

mode or ON

Disc slot

– Insert disc here

EJECT /

– To eject the disc

Display

– Shows the current status of the D VD

Player

– To search or select next chapter or track

T NEXT

PREV S

– To search or select previous chapter or

track

9 STOP

– To stop playback

2; PLA Y

– To start or interrupt playback

IR Sensor

– Point the remote control towar ds this

sensor

EJECT

MIC

– For connecting microphone

LEVEL

– Microphone volume control

Mains (AC Power Cord)

– Connect to a standard AC outlet

– Connect to AUDIO inputs of an amplifier,

Audio Out (Left/Right)

CVBS (VIDEO Out)

– Connect to CVBS Video input of a TV

YPbPr (Component Video Out)

– Connect to YPbPr input of a TV

COAXIAL (Digital audio out)

– Connect to coaxial AUDIO input of a

Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.

12

01-39 DVP5100K_78 25/01/2005, 3:30 PM12

receiver or stereo system

digital audio equipment

8239 300 34341
