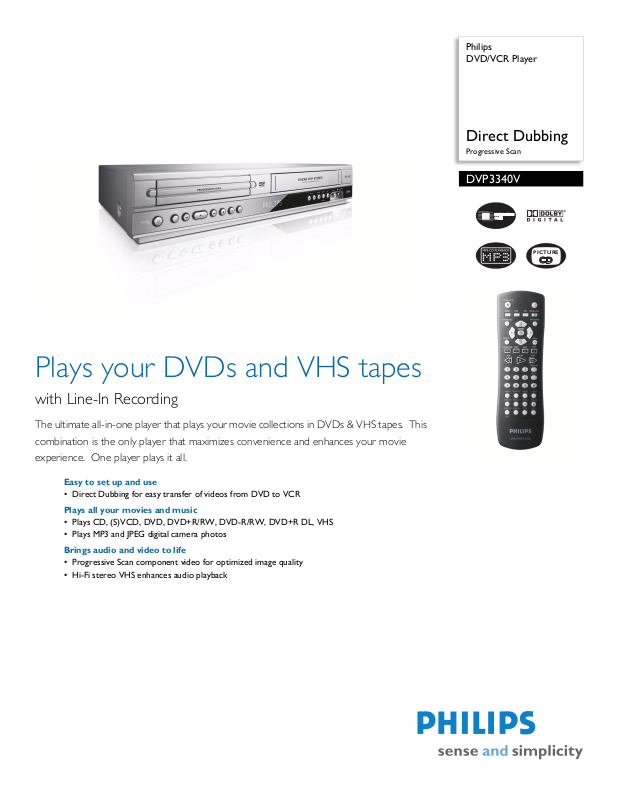

Philips DVP3340V/17, DVP3340V Specifications
Philips
DVD/VCR Player
Direct Dubbing
Progressive Scan
DVP3340V
Plays your DVDs and VHS tapes
with Line-In Recording
The ultimate all-in-one player that plays your movie collections in DVDs & VHS tapes. This
combination is the only player that maximizes convenience and enhances your movie
experience. One player plays it all.
Easy to set up and use
• Direct Dubbing for easy transfer of videos from DVD to VCR
Plays all your movies and music
• Plays CD, (S)VCD, DVD, DVD+R/RW, DVD-R/RW, DVD+R DL, VHS
• Plays MP3 and JPEG digital camera photos
Brings audio and video to life
• Progressive Scan component video for optimized image quality
• Hi-Fi stereo VHS enhances audio playback
DVD/VCR Player
Direct Dubbing Progressive Scan
DVP3340V/17
Specifications Product highlights
Picture/Display
• D/A converter: 14 bit / 27MHz
• Picture enhancement: Progressive Scan
Sound
• D/A converter: 24 bit, 96 kHz
• Dynamic Range (1kHz): 95 dB
• Frequency response: 8 - 20 000 Hz
• Signal to noise ratio: 90
• THD: <0.02%
Video Playback
• Compression formats: MPEG1
• Playback Media: CD-R/CD-RW, DVD+R/+RW,
DVD-R/-RW, DVD-Video, Video CD/SVCD, VHS
Tapes
• Video disc playback system: NTSC, PAL
• Number of Video Heads: 4
• Video tape playback system: NTSC
Audio Playback
• Compression format: MP3, PCM, WMA, Dolby
Digital
• Number of Audio Heads: 2 Hi-Fi
• Playback Media: Audio CD, CD-R/RW, DVD+R/
+RW, DVD-R/-RW
Still Picture Playback
• Playback Media: CD-R/RW
• Picture compression format: JPEG
• Picture enhancement: Rotate, Zoom, Slideshow
Connectivity
• Front / Side connections: Audio L/R in, CVBS in
• Rear Connections: Analog audio Left/Right out,
Component Video output, Digital coaxial out, SVideo out, Analog audio Left/Right in, Composite
video (CVBS) input, Composite video (CVBS)
output
Convenience
• Programming/Timer Enhancements: Daily/Weekly
Repeat Program, One Touch Recording
Power
• Power consumption: 16 W
• Power supply: 120V, 60Hz
• Standby power consumption: 0.8 W
Accessories
• Included Accessories: Warranty Leaflet, Remote
Control, Quick start guide, User Manual, Audio/
Video cable, 2 x AAA Batteries
Dimensions
• Set dimensions (W x H x D): 430 x 78.5 x 265 mm
• Packaging dimensions (W x H x D):
513
x 166 x 372 mm
• Set weight: 4.2 kg
• Weight incl. Packaging: 5.94 kg
Container Loading
• Container 20 feet: 960
• Container 40 feet: 1980
• Container 40 feet (HC): 2260
•
Direct Dubbing
Ha ving a Direct Dubbing b utton allows f or the user to start
recording from the DVD disc without complicated menu
system selection or input/output selection for separates.
Progressive Scan
Progressive Scan doubles the vertical resolution of the
image resulting in a noticeably sharper picture. Instead of
sending a field comprising the odd lines to the screen first,
followed by the field with the even lines, both fields are
written at one time. A full image is created instantaneously,
using the maximum resolution. At such a speed, your eye
perceives a sharper picture with no line structure.
Issue date 2008-02-04
Version: 1.0.12
12 NC: 8670 000 28432
UPC: 6 09585 12893 4
© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
