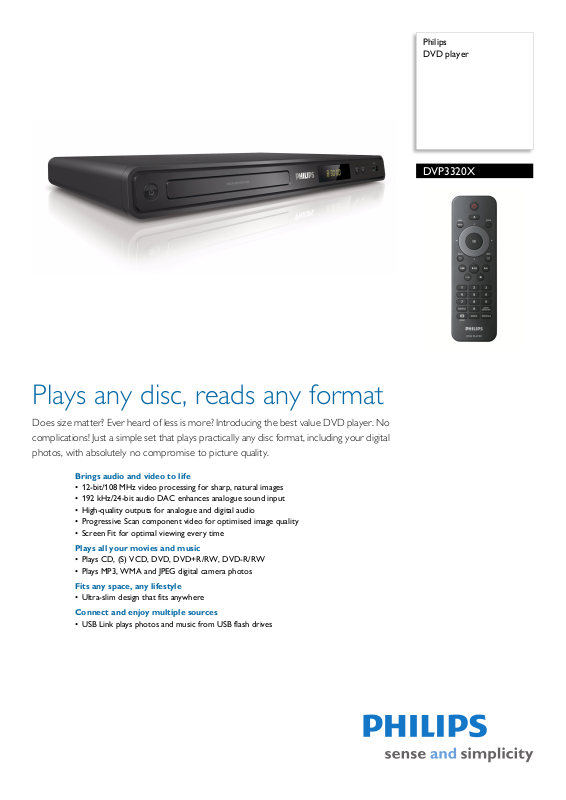

Philips DVP3320X BROCHURE

Philips

DVD player

DVP3320X

Plays any disc, reads any format

Does size matter? Ever heard of less is more? Introducing the best value DVD player. No complications! Just a simple set that plays practically any disc format, including your digital photos, with absolutely no compromise to picture quality.

Brings audio and video to life

•12-bit/108 MHz video processing for sharp, natural images

•192 kHz/24-bit audio DAC enhances analogue sound input

•High-quality outputs for analogue and digital audio

•Progressive Scan component video for optimised image quality

•Screen Fit for optimal viewing every time

Plays all your movies and music

•Plays CD, (S) VCD, DVD, DVD+R/RW, DVD-R/RW

•Plays MP3, WMA and JPEG digital camera photos

Fits any space, any lifestyle

• Ultra-slim design that fits anywhere

Connect and enjoy multiple sources

• USB Link plays photos and music from USB flash drives

DVD player	DVP3320X/78
Highlights	Specifications

192 kHz/24-bit audio DAC

192 kHz sampling enables you to have an accurate representation of the original sound curves. Together with a 24-bit resolution, more information is captured from the original analogue sound wave form, giving a much richer audio reproduction.

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, it writes both fields at the same time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Plays it all

Play MP3s, WMA and JPEGs, and experience the convenience of sharing media files on your TV or

home theatre system - in the comfort of your living room.

Screen Fit

Whatever you're watching, on whatever TV, Screen Fit ensures that the picture fills the whole screen. Annoying black bars on the top and bottom are eliminated, without any tedious manual adjustments to make. Simply press the Screen Fit button, choose the format and enjoy your movie in full screen

USB Link

The Universal Serial Bus or USB is a protocol standard that is conveniently used to link PCs, peripherals and consumer electronic equipment. With USB Link, all you have to do is plug in your USB device, select the photo or music, and play away.

Picture/Display

•D/A converter: 12-bit, 108 MHz

•Picture enhancement: Progressive scan, Video upsampling

Sound

•D/A converter: 24-bit, 192 kHz

•Frequency response: 30-20,000 Hz

•Signal to noise ratio: 90

•Distortion and Noise (1 kHz): 65 dB

•Crosstalk (1 kHz): 70 dB

•Dynamic Range (1 kHz): 80 dB

•Sound System: Dolby Digital

Video Playback

•Playback Media: CD, CD-R/CD-RW, Video CD/ SVCD, DVD, DVD-R/-RW, DVD+R/+RW, DVDVideo

•Compression formats: MPEG1, MPEG2

•Video disc playback system: NTSC, PAL

Audio Playback

•Playback Media: CD, MP3-CD, MP3-DVD, WMACD, CD-R/RW, Audio CD

•MP3 bit rates: 32 - 320 kbps

•Compression format: Dolby Digital, MP3, WMA, PCM

Still Picture Playback

•Playback Media: DVD-R/-RW, DVD+R/+RW, CD- R/RW, Picture CD, Kodak Picture CD

•Picture Compression Format: JPEG

•Picture Enhancement: Flip photos, Rotate, Slideshow, Zoom, Slideshow with MP3 playback

Multimedia Applications

•Multimedia connections: USB memory class device

•Playback Formats: MP3

Connectivity

•Front/Side connections: USB

•Rear Connections: Analogue audio Left/Right out, Composite video (CVBS) output, Digital coaxial out, ComponentVideo out Progressive

					Convenience
	PICTURE				• Child Protection: Parental Control, Child Lock
					• On-Screen Display languages: English, Brazilian
					Portuguese, Mexican Spanish

Issue date 2010-03-11	© 2010 Koninklijke Philips Electronics N.V.
	All Rights reserved.
Version: 2.0.5	Specifications are subject to change without notice.
	Trademarks are the property of Koninklijke Philips
	Electronics N.V. or their respective owners.
12 NC: 8670 000 51097	www.philips.com
EAN: 87 12581 47423 2

Power

•Power consumption: < 10 W

•Power supply: 50/60 Hz, 110-240V

•Standby power consumption: < 1 W

Accessories

•Included accessories: 2 x AAA Batteries, Audio/ Video cable, Remote Control, World Wide Warranty leaflet, User Manual

Dimensions

•Set dimensions (W x H x D): 360 x 37 x 209 mm

•Packaging dimensions (W x H x D): 415 x 82 x 282 mm

•Set weight: 1.3 kg

•Weight incl. Packaging: 2 kg
