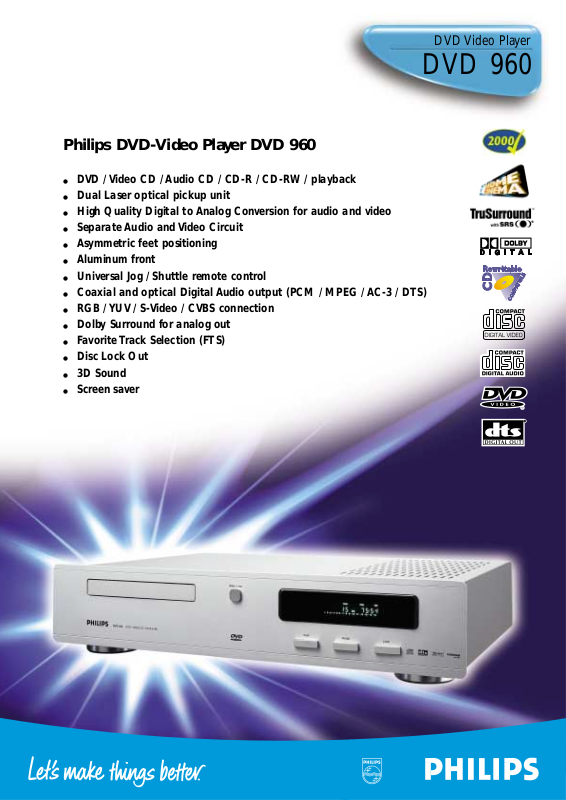

Philips DVD-Video Player DVD 960
● DVD / Video CD / Audio CD / CD-R / CD-RW / playback
● Dual Laser optical pickup unit
● High Quality Digital to Analog Conversion for audio and video
● Separate Audio and Video Circuit
● Asymmetric feet positioning
● Aluminum front
● Universal Jog / Shuttle remote control
● Coaxial and optical Digital Audio output (PCM / MPEG / AC-3 / DTS)
● RGB / YUV / S-Video / CVBS connection
● Dolby Surround for analog out
● Favorite Track Selection (FTS)
● Disc Lock Out
● 3D Sound
● Screen saver
DVD Video Player
DVD 960
Dolby,AC-3,Pro Logic and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.The products and services described here will not necessarily become available in the market.This document contains preliminary information.Due to continuous improvements this specification is subject to change without notice.Printed in the Netherlands 33-99 3122 321 83022
Technical Specifications DVD 960
Playback System
● DVD Video
● Video CD
● CD (CD-R and CD-RW)
Optical Read-out System
● Laser type Semiconductor
● Numerical Aperture 0.6 DVD
0.45 VCD/CD
● Wavelength 650 nm DVD
780 nm VCD/CD
DVD Disc Format
● Medium Optical disc
● Diameter 12 cm (8 cm)
● Playing time (12 cm)
one layer 2.15h
1
dual layer 4h
1
two side,single layer 4.30h
1
two side,two layer 8h
1
TV Standard
PAL/50 Hz NTSC/60 Hz
● Number of lines 625 525
● Playback Multistandard
Video Format
● DA Converter 10 bits
● Signal handling Components
● Digital Compression MPEG2 for DVD
MPEG1 for VCD
DVD 50 Hz 60 Hz
● Hor. Resolution 720 pixels
2
720 pixels
2
● Vert. Resolution 576 lines 480 lines
VCD 50 Hz 60 Hz
● Hor. Resolution 352 pixels
2
352 pixels
2
● Vert. Resolution 288 lines 240 lines
Video Performance
● Video output 1 V
pp
into 75 Ohm
● S-Video output Y:1 V
pp
into 75 Ohm
C:0.300 Vppinto 75 Ohm
● RGB output 0.7 V
pp
into 75 Ohm
● YUV output Y:1 V
pp
into 75 Ohm
U:0.7 Vppinto 75 Ohm
V:0.7 Vppinto 75 Ohm
● Video Shift Left/Right
Audio Format
● Digital MPEG 2,AC-3, Compressed Digital
DTS
PCM 16,20,24 bit
fs,48,96 kHz
● Analog sound Stereo
● Dolby Pro Logic™ downmix from multi
channel sound
● 3D Sound for virtual 5.1 channel sound on
2 speakers
Audio Performance
● DA Converter 24 bits,96 kHz
● DVD f
s
96 kHz 4 Hz-44 kHz
fs48 kHz 4 Hz-22 kHz
● Video CD f
s
48 kHz 4 Hz-22 kHz
● CD f
s
44.1 kHz 4 Hz-20 kHz
Signal-Noise (1 kHz) 113 dB
Dynamic Range (1 kHz) 113 dB
Crosstalk (1kHz) 120 dB
Distortion and Noise (1 kHz) -97 dB
Connections
Scart Euroconnecter
YUV (YcrCb) Cinch
CVBS Cinch
S-Video Mini DIN,4 pins
Audio L+R output Cinch
Digital Output 1 coaxial,1 optical
IEC958 for CDDA / LPCM
IEC1937 for MPEG1/2, AC-3
DTS
Power Supply
Power Inlet 220 V,50 Hz
Power usage 20 Watt
Power usage standby less than 5 Watt
Cabinet
Dimensions 430 x 95 x 275 mm
(W x H x D)
Package Contents
DVD-Video Player
Remote Control with batteries
Power cable
User Manual
SCART cable
Audio cable
Video cable
General Functionality
Stop / Play / Pause
Fast Forward/Backward (3-speed)
Step Forward
Slow (3-speed)
Title / Track Select
Skip Next / Skip Previous
Repeat (Chapter / Title / All) or (Track / All)
A-B Repeat
Shuffle
Scan
3D Sound on/off
DVD Functionality
Multi-angle Selection
Audio Selection (1 out of max. 8 languages)
Subtitles Selection (1 out of max. 32 languages)
Aspect Ratio conversion
(16:9,4:3 Letterbox,4:3 Pan Scan)
Disc Menu support (Title Menu and Root Menu)
Resume (5 discs) after stop / standby
Screen Saver (Dim 75% after 15 min.)
Disc lockout
Video CD Functionality
Playback Control for VCD 2.0 discs
Resume (5 discs) after stop / standby
Screen Saver (Dim 75% after 15 min.)
Disc lockout
Audio CD Functionality
Time Display (Total / Track / Remaining
T rack Time)
Full audio functionality with remote control
Favorite Track Selection (FTS)
1 typical playing time for movie with 2 spoken
languages and 3 subtitle languages.
2 Equivalent to 500 lines on your TV
Philips Disc Systems
P.O. Box 80002
5600 JB Eindhoven
The Netherlands
http://www .sv.philips.com
