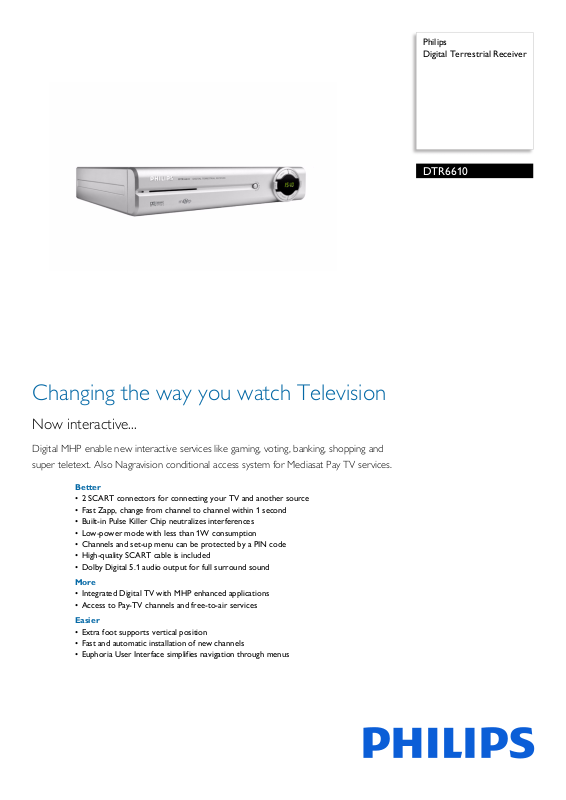

Philips
Digital Terrestrial Receiver
DTR6610
Changing the way you watch Television
Now interactive...
Digital MHP enable new interactive services like gaming, voting, banking, shopping and
super teletext. Also Nagravision conditional access system for Mediasat Pay TV services.
Better
• 2 SCART connectors for connecting your TV and another source
• Fast Zapp, change from channel to channel within 1 second
• Built-in Pulse Killer Chip neutralizes interferences
• Low-power mode with less than 1W consumption
• Channels and set-up menu can be protected by a PIN code
• High-quality SCART cable is included
• Dolby Digital 5.1 audio output for full surround sound
More
• Integrated Digital TV with MHP enhanced applications
• Access to Pay-TV channels and free-to-air services
Easier
• Extra foot supports vertical position
• Fast and automatic installation of new channels
• Euphoria User Interface simplifies navigation through menus
Digital Terrestrial Receiver
7
DAYS
EPG
DTR6610/08
Highlights
2 SCART connectors
2 SCART sockets allow you to connect to 2 devices
simultaneously. One connection for the TV and the
other, either to a DVD recorder or VCR for
recording TV content, or to a video playback device,
such as a DVD or Blu-ray player. Simply connect the
SCART sockets on the product to the desired device
by a SCART cable, to enable transmission of the
video signals.
Fast Zapp
Time it takes to go one channel up/down
Pulse Killer Chip
Electrical interferences are neutralised by a built in
chip called PKC
Low power mode
Low-power mode with less than 1W consumption
Parental lock
Do you want to limit access to certain programs or
channels to protect your children from
objectionable content? This receiver allows you to
automatically block access to specified channels or
programs either according to maturity ratings or
your own preferences. This content can only be
viewed after entering the PIN code.
Free SCART cable
high quality SCART cable
enables you to get the best of both worlds by
enabling access to certain pay-TV broadcasts in
addition to the standard free-to-air channels. Simply
insert the operator's smart card into the receiver's
dedicated pay-TV slot, and it will descramble the
encrypted signals that are being broadcasted by the
Pay-TV operators.
Stands horizontal or vertical
Extra foot supports vertical position
Automatic install & update
With the launch of digital terrestrial TV, additional
broadcast channels are made available. Also, the
channel numbering can often be temorarily
reshuffled during digital switchover. To ensure that
you always have the access to all available channels,
it is important that the product is able to scan and
install new channels automatically. A very sensitive
tuner in this product scans through the broadcasting
network for new channels whenever the product is
switched off. Whenever a new service is detected, it
will be automatically updated and saved onto the
channel list.
Euphoria User Interface
Easy navigation through the menu structure.
Multibrand remote control
Use your Remote Control for TV, DVD, STB and
amplifier/tuner
Specifications
Connectivity
• Audio Output - Analog: Audio L/R (cinch)
• Audio Output - Digital: Co
(cinch)
• Plug & Play
• Terrestrial antenna interface: RF in, IEC 169-2, RF
ut, (bypass) IEC 169-2
o
• TV scart out: Audio L/R, Contro
CVBS, RGB
• VCR scart in: Audio L/R, CVBS, RGB
• Serial interface: RS232
Convenience
• Ease of Installation: Autoinstall
• Parental control: Lock with PIN code, Child timer
• Programmable Events: 8
• Recording: Record header message, Record failure
alarm
• User Interface: 7 day Electronic program Guide,
omatic program list update, Multiple subtitles
Aut
supported, Now & Next ESG, On Screen Display
on TV, Ready for MHP services, Software upgrade
over the air, TV and Radio mode
• Signal strength indication
• Display Type: Turnable display, 4 digit display
Power
• Standby power consumption: 6
• Power consumption: 10 W
• Mains power: 230V
• Low power mode (ECO): <1
axial (cinch), PCM
lled audio L/R,
Dolby Digital 5.1 surround
Because Dolby Digital, the world's leading digital
multi-channel audio standards, make use of the way
the human ear naturally processes sound, you
experience superb quality surround sound audio
with realistic spatial cues.
MHP Enhanced
Additional content brought by broadcasters,
governments and other providers of consumer
applications on a standard platform
Access to Pay TV services
There is more and more choice for top quality TV
content these days, but the only way to access the
premium channels is to subscribe to the services
from the local Pay-TV operators. This digital receiver
7-Day Electronic Program Guide
Woul d you l ike to kno w wh at the TV s chedu le i s for
today and even for the whole week? This way, you
can be sure to not miss any of your favorite shows
by planning your evenings or making pre-scheduled
recordings. The EPG information is part of the
broadcast data and, when available, this receiver
compiles the programming details for the upcoming
7 days and lists it in an easy-to-read format for your
reference. The EPG can be accessed via the menu, or
by simply pressing the EPG button on the remote
control.
Numeric display
4 digit numeric display indicating channel number
and/or the time when the STB is in stand-by mode
Video Decoding
• Reception-Demodulation: COFDM 2K/8K,
Network: MFN/SFN
• Frequency range: VHF III & UHF IV/V, Video bit
e upto 15 Mbit/s
rat
• De-scrambling: Smart Card reader
• Return path: V90, RJ-11
• Conditional access system: Nagravision (card not
upplied
s
System Specifications
• CPU speed: 180 MHz
• Flash memory size: 8 MB
• Video decoding: MPEG-2 DVB up to MP@ML,
bit rate up to 15 Mbit/s, Video format 4:3
Video
and 16:9, resolution up to 720x576 pix
Audio Decoding
• Compression format: MPEG layer I/II
Accessories
• Included accessories: Multibrand remote control
Dimensions
• Carton dimensions (WxDxH) inch: 26.5x36x8.6
• Product dimensions (W x H x D):
mm x 5.6mm x 21.7mm mm
26
• Weight: 1.45 kg
• Weight incl. Packaging: 2.5 kg
Technical specifications
• Operating temperature range: 5 - 45 °C
• Storage temperature range: -20 .. +60 °C
Issue date 2014-02-10
Version: 2.0.3
12 NC: 8622 512 00552
EAN: 87 10895 89541 5
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
Green Specifications
• Banned Substance Declaration: Manufacturer,
Packaging
• Lead-free soldered product
•
