Philips DTR2000 User Manual
WELCOME TO DIGITAL TELEVISION
Congratulations on choosing the Philips DTR 2000 digital terrestrial receiver.
English
The DTR 2000 will allow you:
- To access to a wider variety of digital terrestrial television and radio channels,including Pay-TV(*).
- To benefit from digital video and audio quality.
- To easily access television channels via your aerial.
(*) To watch Pay-TV channels,you need to take out a subscription.
2
QUICK INSTALLATION
QUICK START UP
You already have an aerial.
Your aerial is correctly pointed at the terrestrial transmitter
corresponding to your area.

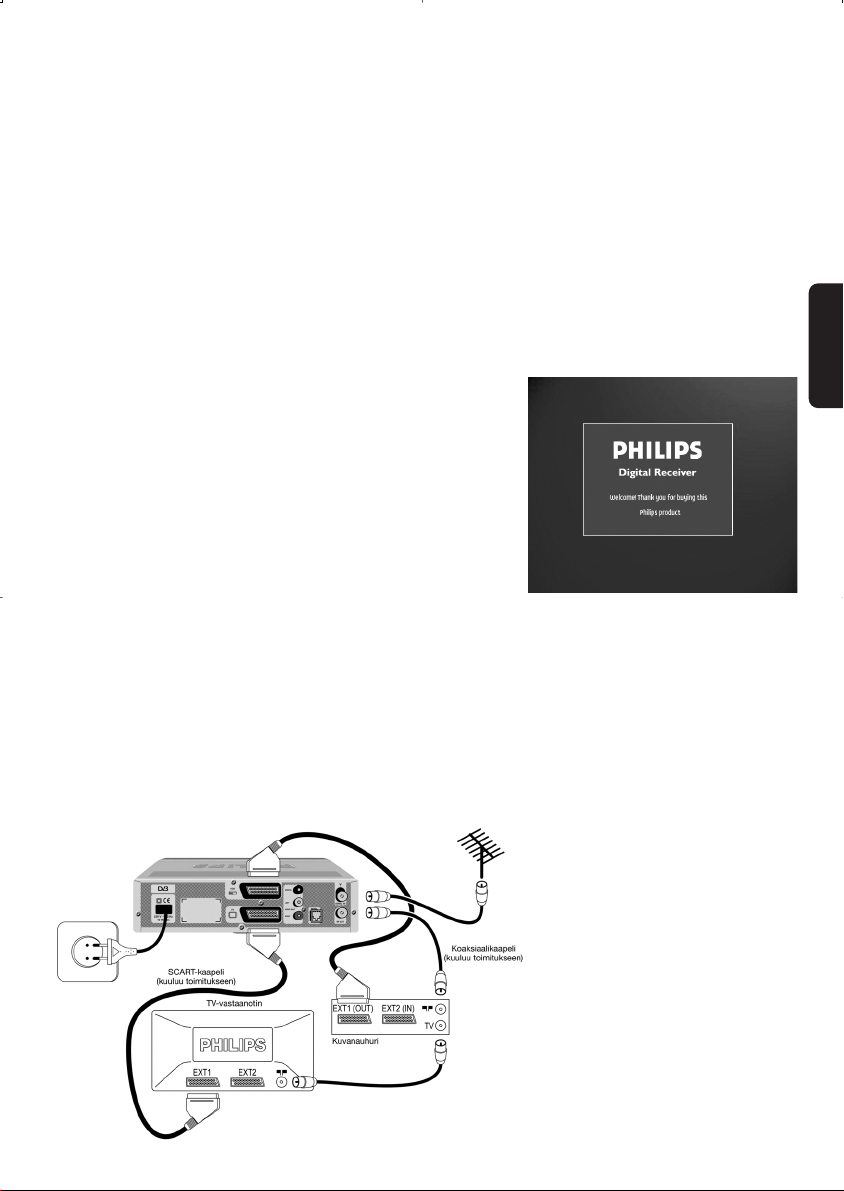

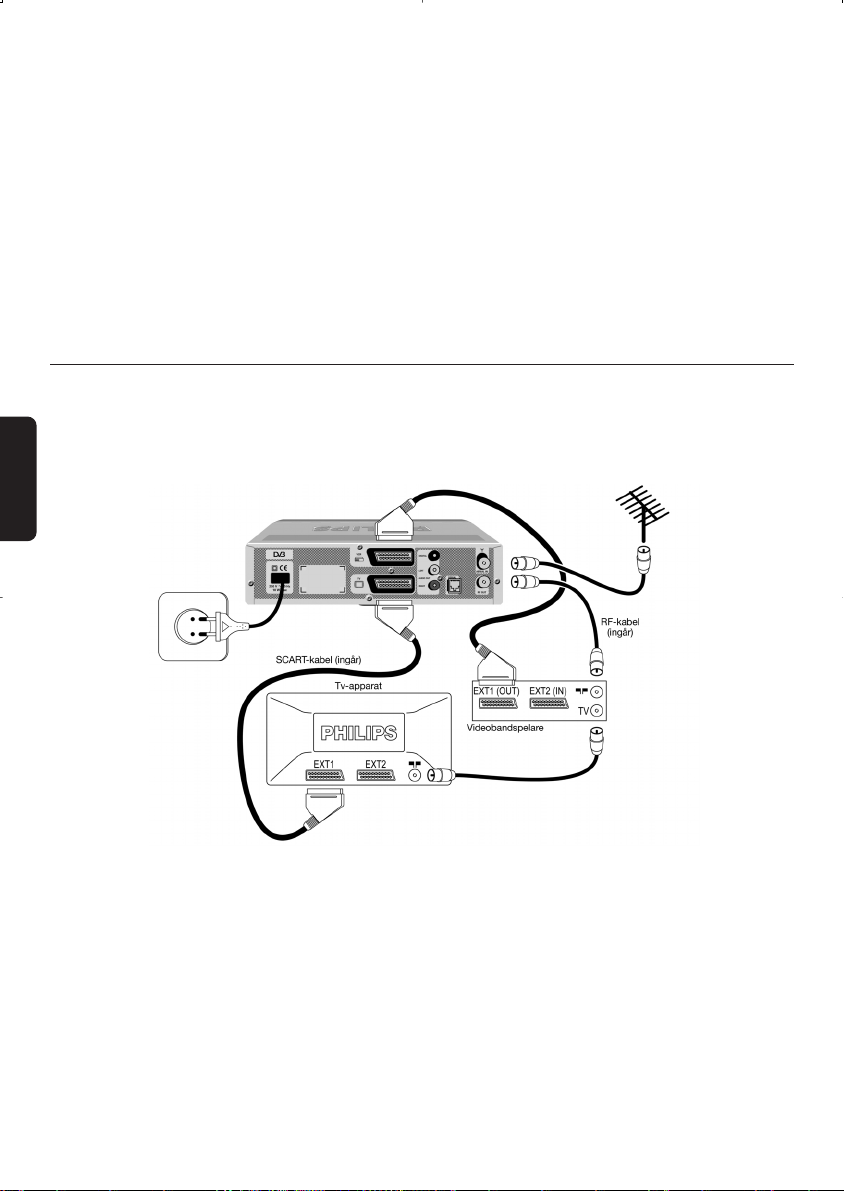

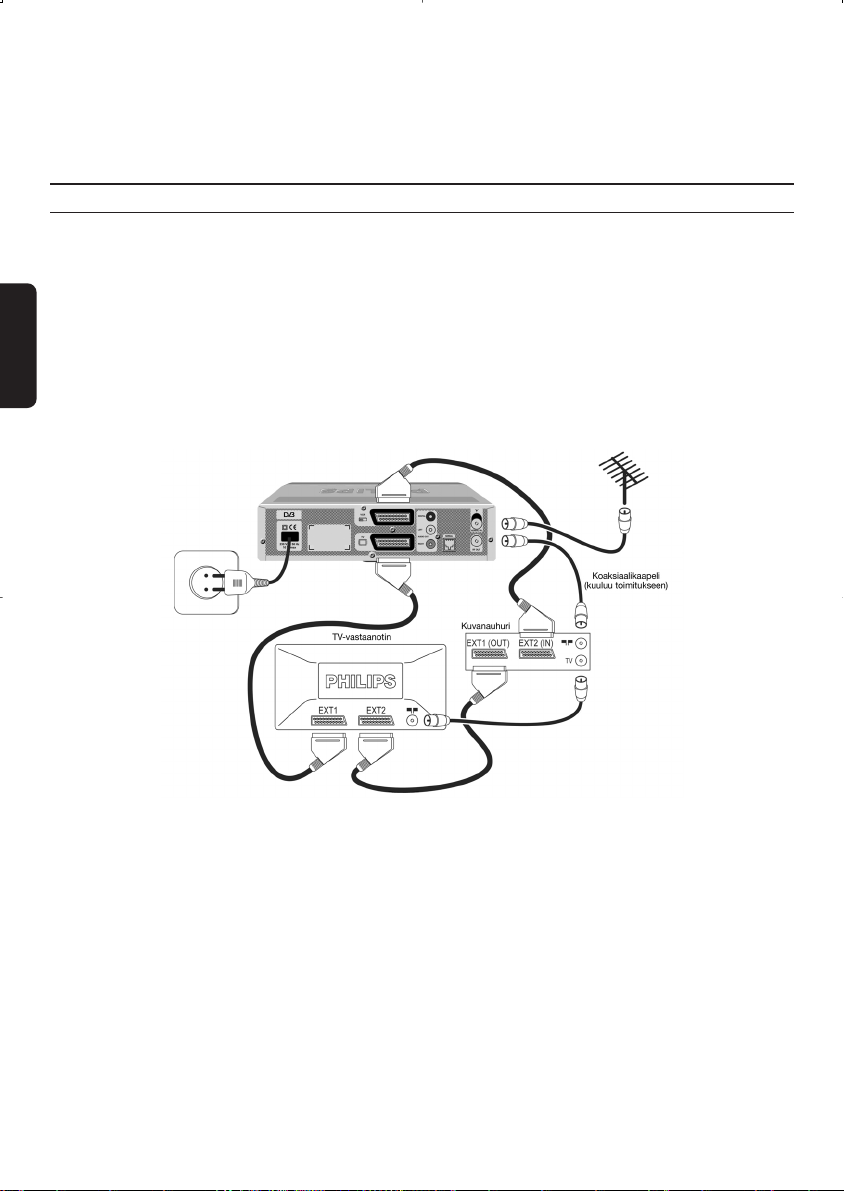

Your digital receiver connection is according to the diagram
depicted in chapter 5.1 or 5.2.

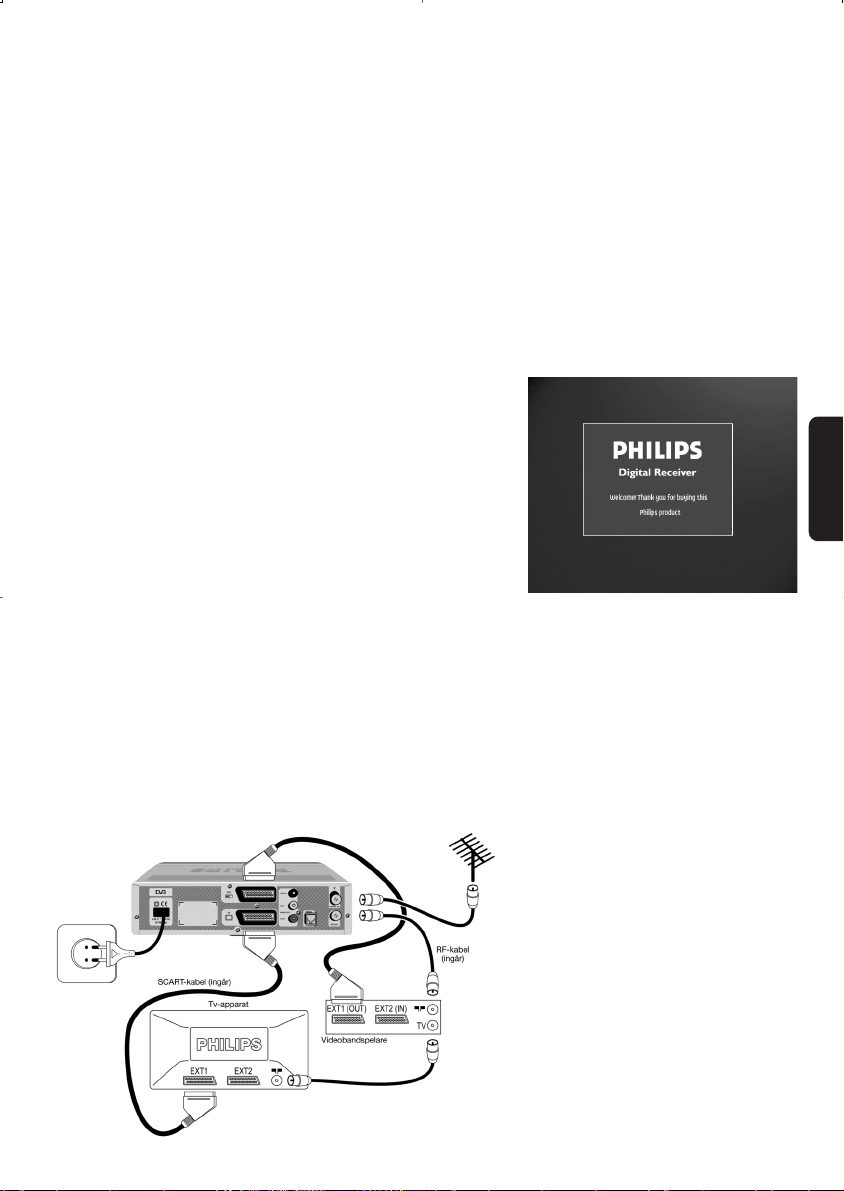

Your digital receiver is ON and the “WELCOME” screen is
displayed for a short time.Then the “First Installation” screen
is displayed.The selection is on “Language”.
- Select the desired language using the
- Press the
- Select the desired country and press “OK”.
The next screen allows you to select the TV format.
- Press the
format and press “OK”.
The receiver starts scanning for channels and reports
scanning progress and number of channels found.When
scanning is completed:
- Either scanning was performed successfully and the
number of channels found is displayed.You can start
watching TV .
- Or scanning failed and the “Channel installation failed”
screen is displayed.If so proceed to chapter 6.2.
y button to move to “Country”.
u or i button to select the appropriate TV
u or i button.
English
Note: If the first installation has already been performed
successfully but you want to set another country, use the
Reinstallation feature, available from the Setup menu.
QUICK INSTALLATION 3
SCANNING FAILURE
Scanning failed.Before starting a new scanning,check:
English
- the aerial cable,
- the aerial cable connection to your digital receiver. Refer
to the connection diagrams in chapter 5.1 or 5.2.
- channel(s) availability in the region corresponding to your
area.
To exit the “Channel installation” failure screen:

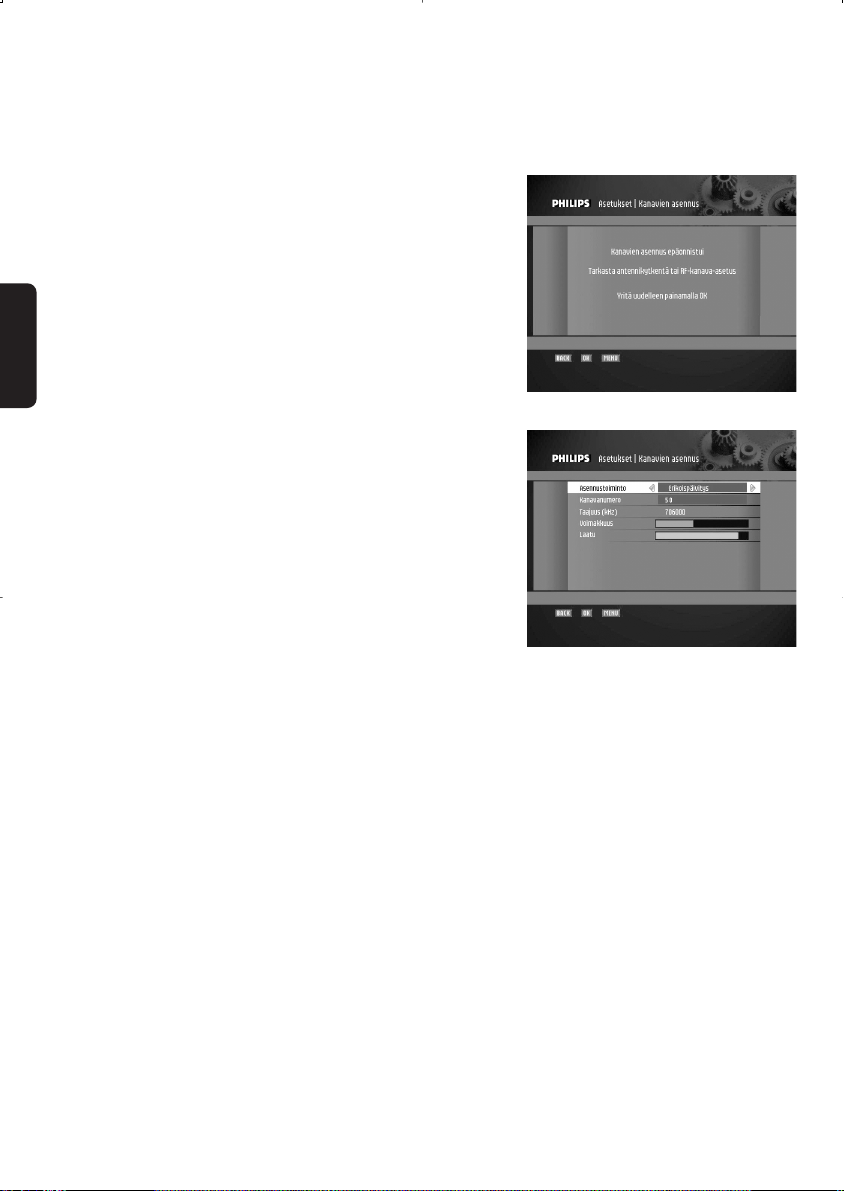

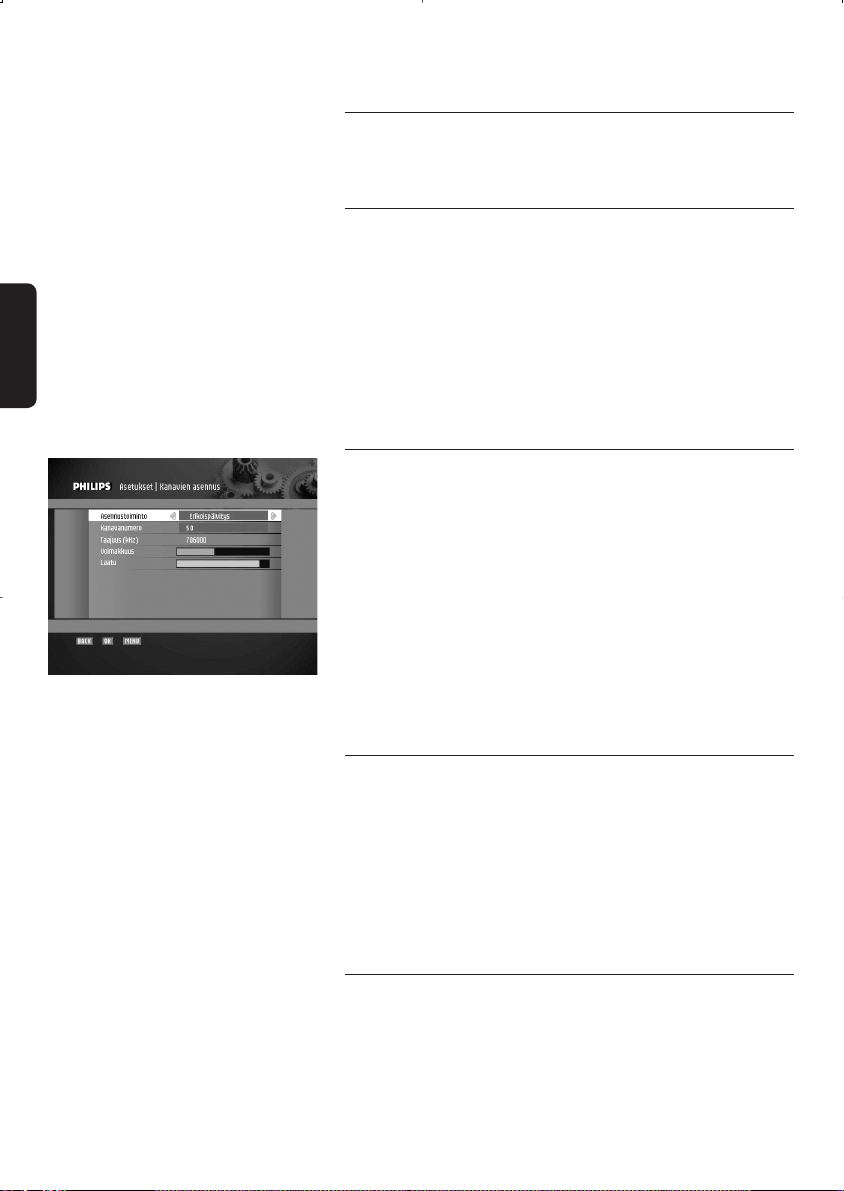

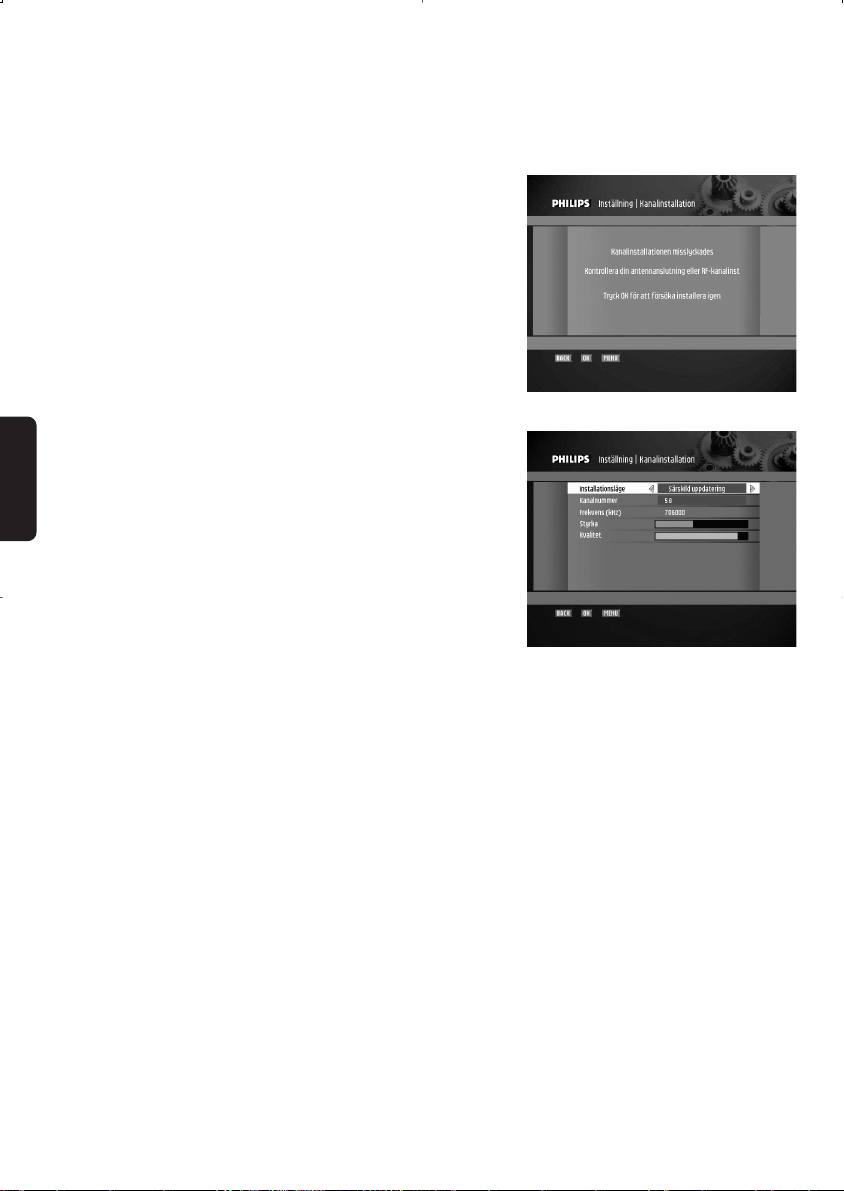

- Press “OK”.The “Signal quality testing” screen is displayed,
with bargraphs indicating the signal strength and quality.
- Select a channel number using the remote control
numerical keys and press “OK”.
If the signal is good enough (indicated by green bar meters),
press OK to launch a new scanning.When scanning ends
successfully,the channels found are displayed and the digital
receiver tunes the first channel in the list.If so proceed to
chapter 7.
Note: If you could still not install the channels after checking the
quality of the signal delivered by your aerial, either your aerial is
not pointing properly at the digital TV transmitter, or your aerial
installation needs to be upgraded, or you are not in the coverage
area to correctly receive digital television.
For a proper diagnosis, call your electrical retailer.
4 SCANNING FAILURE
TABLE OF CONTENTS
1 Safety instructions 7
2 Unpacking / installing the receiver
in your existing setup 8
2.1 Unpacking 8
2.2 Installing the receiver in your existing
setup 8
3 Product description 9
3.1 Front view 9
3.2 Rear view 10
4 Preparing your remote control 11
4.1 Inserting batteries 11
4.2 Using the remote control 12
5 Connecting your digital receiver 13
5.1 Connecting to a TV using one SC ART
socket. 13
5.2 Connecting to a TV and VCR both
fitted with SCART sockets 14
5.3 Connecting to your HiFi / Audio receiver
equipment.(Analogue / Digital) 15
5.4 Connecting of a Video projector to
your receiver to watch Digital TV
programmes on a video projector 15
6 Day to day operation 16
6.1 Switch your receiver on/off (low
power, standby) 16
6.2 Select TV or Radio ser vice in running
mode 16
6.3 Change channels 16
6.3.1 Using number buttons 16
6.3.2 Using “P+”/“P-” buttons 16
6.3.3 Using the “BACK” button
(last channel recall) 16
6.3.4 Using channel lists
(Service selector) 17
6.4 Banner 17
6.5 Volume control - Vol+ / Vol- / Mute 18
6.6 Temporarily change the Subtitles
selection 18
6.7 Temporarily change the Audio
language selection 18
6.8 Guide (Event selector) 19
6.9 Recording timers 19
6.10 Using the TV/STB button 20
6.11 Watching locked channels 20
6.12 How do I reset my receiver 20
7 Changing the settings of your
receiver 21
7.1 Menus and settings 21
7.2 “Setup” menu 21
7.2.1 Channels installation 22
7.2.1.1 Update 22
7.2.1.2 Custom update 22
7.2.1.3 Full reinstallation 22
7.2.1.4 Installation success/failure 22
7.2.2 TV/VCR configuration 23
7.2.2.1 TV Format 23
7.2.2.2 TV output signal 23
English
TABLE OF CONTENTS 5
7.2.2.3 TV audio signal 23
7.2.2.4 VCR output signal 23
English
7.2.2.5 VCR recording control 24
7.2.3 Time Setting 24
7.2.4 Remote Control Setting 24
7.2.5 Reinstallation 25
7.3 Favourites lists 25
7.3.1 Create a Favourites list 25
7.3.2 Modify a Favourites list 25
7.3.2.1 Add/Skip a channel
(green button) 25
7.3.2.2 Lock/unlock a channel
(red button) 26
7.3.2.3 Sort/move a channel
(yellow button) 26
7.3.2.4 Skip/Add all channel
(blue button)
7.3.2.5 Saving confirmation popup 26
7.3.3 Delete a Favourites list 27
7.4 Timers 27
7.4.1 Add timer 27
7.4.2 Modify timer 28
7.4.3 Delete timer 28
7.4.4 Sleep Timer 28
7.5 New channels 28
7.6 Subscription Settings 29
7.7 User preferences 29
7.7.1 Languages 29
7.7.2 Parental Control 29
7.7.3 Pin code change 30
7.8 System Information 27
8 Menu tree 31
9 More about recording
(VCR or DVD control) 32
9.1 Connection for Easy recording 32
9.2 Digital receiver and VCR or
DVD settings 33
9.3 Recording with the VCR control
feature 33
10 Troubleshooting guide
(references to be updated!!!) 34
11 Technical specifications 36
26
6 TABLE OF CONTENTS
1 Safety instructions
All the safety and operating Instructions should
be read and understood before using the
receiver.
For best results,position your receiver away
from radiators or other heat sources.Leave a
space of at least 3 cm around the receiver for
ventilation making sure that the ventilation
holes are not obstructed.
This receiver is intended for use in a domestic
environment only and should never be
operated or stored in excessively hot,humid
or damp conditions.
Make sure no objects or fluids enter the
housing through the ventilation slots.Should
this happen,disconnect your receiver from the
mains and consult your retailer.
To clean the receiver,use a damp chamois
leather.Never use an abrasive cloth,sponge or
cleaner.
When connecting or disconnecting cables to
the receiver always ensure the receiver is
disconnected from the mains.
Please wait before connecting your receiver read on.
Do not disassemble the equipment. There are
no user serviceable parts.
Mains connection
Before connecting the receiver to the mains,
check that the mains supply voltage
corresponds to the voltage printed on the rear
of the receiver. If the mains voltage is different,
consult your dealer.
Please wait before connecting your
receiver - read on.
English
SAFETY INSTRUCTIONS 7
2 Unpacking / Installing the receiver in your
English
existing set-up
2.1 Unpacking
Start by unpacking your receiver. You will find
the following cables and accessories:
- The digital terrestrial receiver
- The remote control and batteries
(2 x LR6 AA 1,5 V)
- One SCART lead
- One RF coaxial lead
- A mains cord
- A user manual
- A Guarantee card
- A stand for using the receiver in the upright
position.
Note: As advised in chapter 5, use the SCART lead
provided. It has been selected to get the best
picture quality and performance out of your digital
receiver.
Plastic bags can be dangerous.To avoid
suffocation keep the bag away from babies and
children.
The symbol on the packaging means that
material is recyclable.
If the receiver will not be used for a long time,
unplug the mains cord from the wall socket.
2.2 Installing the receiver in
your existing set-up
Your receiver can be integrated in different
ways within your existing Audio-Video set up.

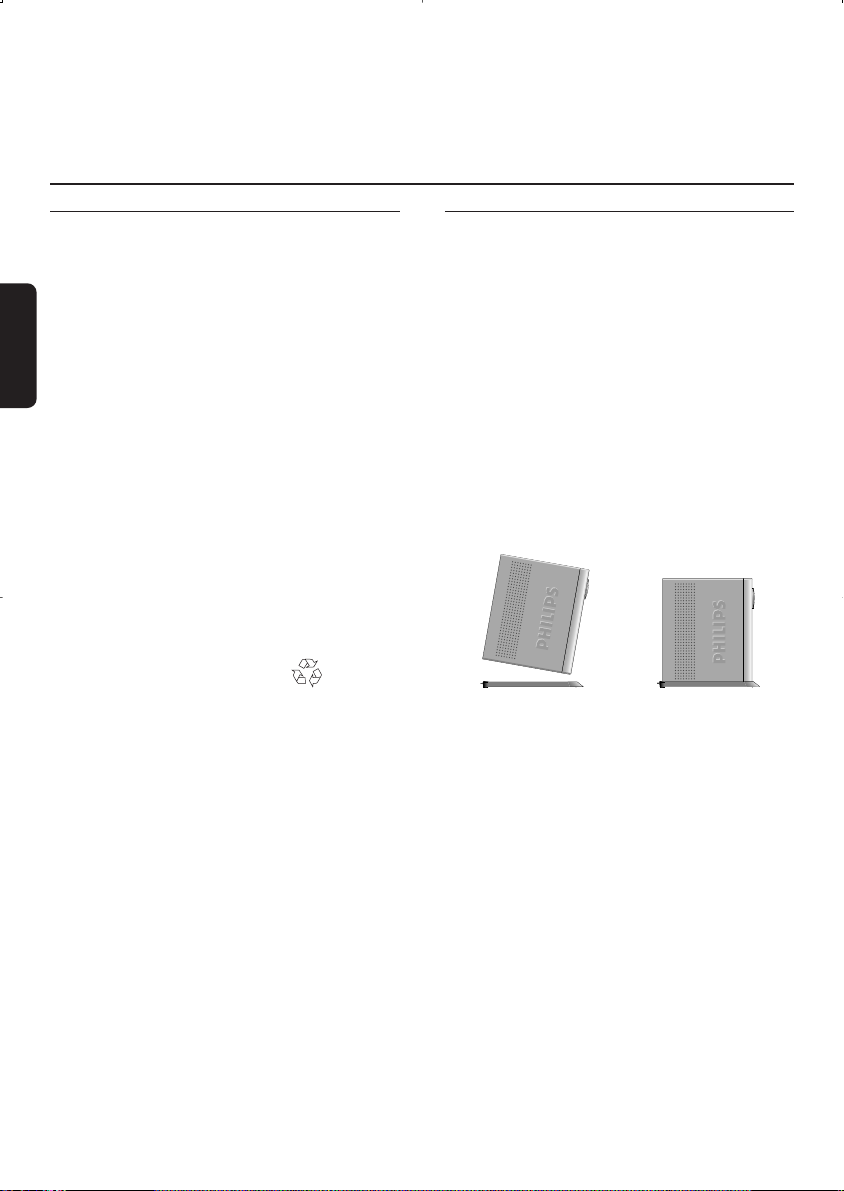

The receiver can be used in the horizontal or
vertical position.If you decide to use your
receiver in the upright position,follow the
instructions below:

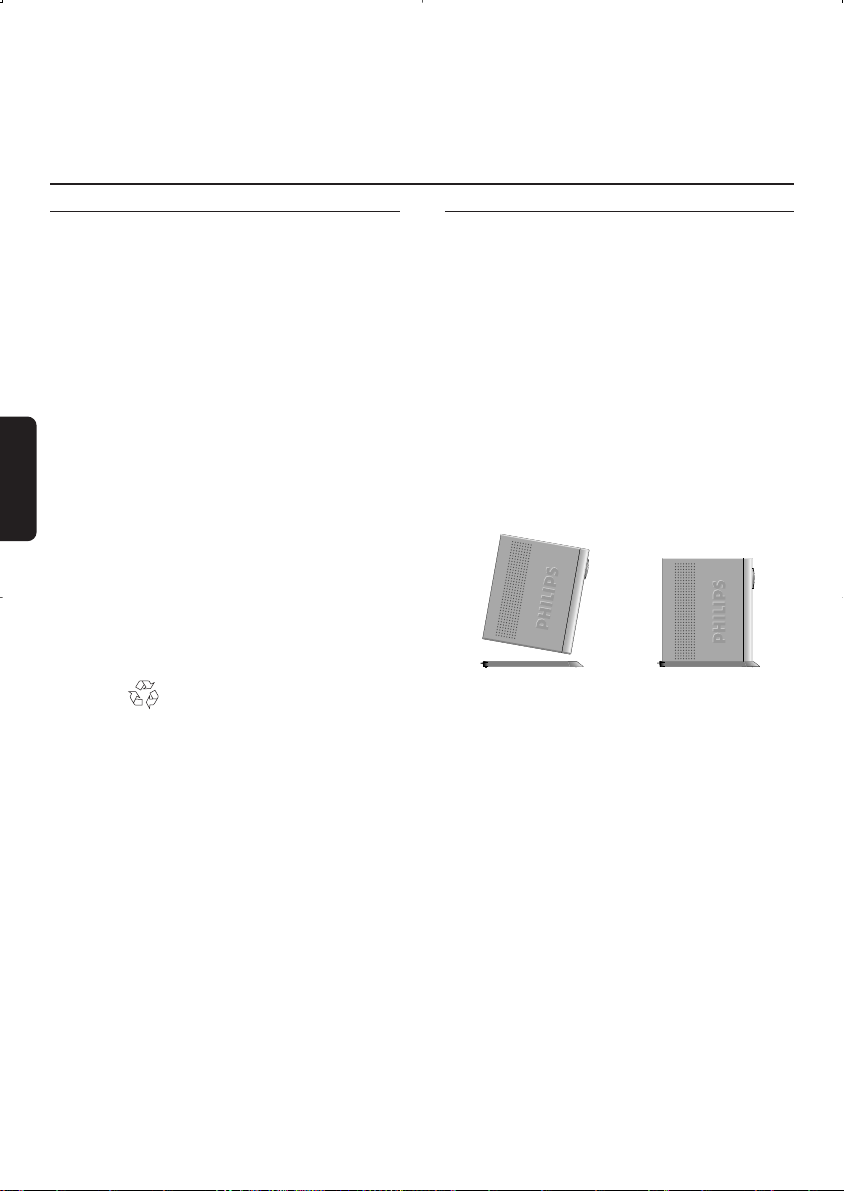

- Unpack the stand,place it on a horizontal
surface with click fit side on the left and lug
side on the right.
- Position the receiver as shown below (rear
panel on the left side / coaxial connectors
on the bottom side).
- Insert the stand lug in the slot located on
the front of the receiver, close to the Philips
badge.
- Rock the receiver to insert the stand lug fully
in the slot until it is locked by the click fit.
From now on,your receiver can be used in the
upright position.
8 UNPACKING
Note:To remove the stand, unlock the click fit at
the rear side of the stand, rocking and pulling back
the receiver to extract it from the stand lug.
3 Product description

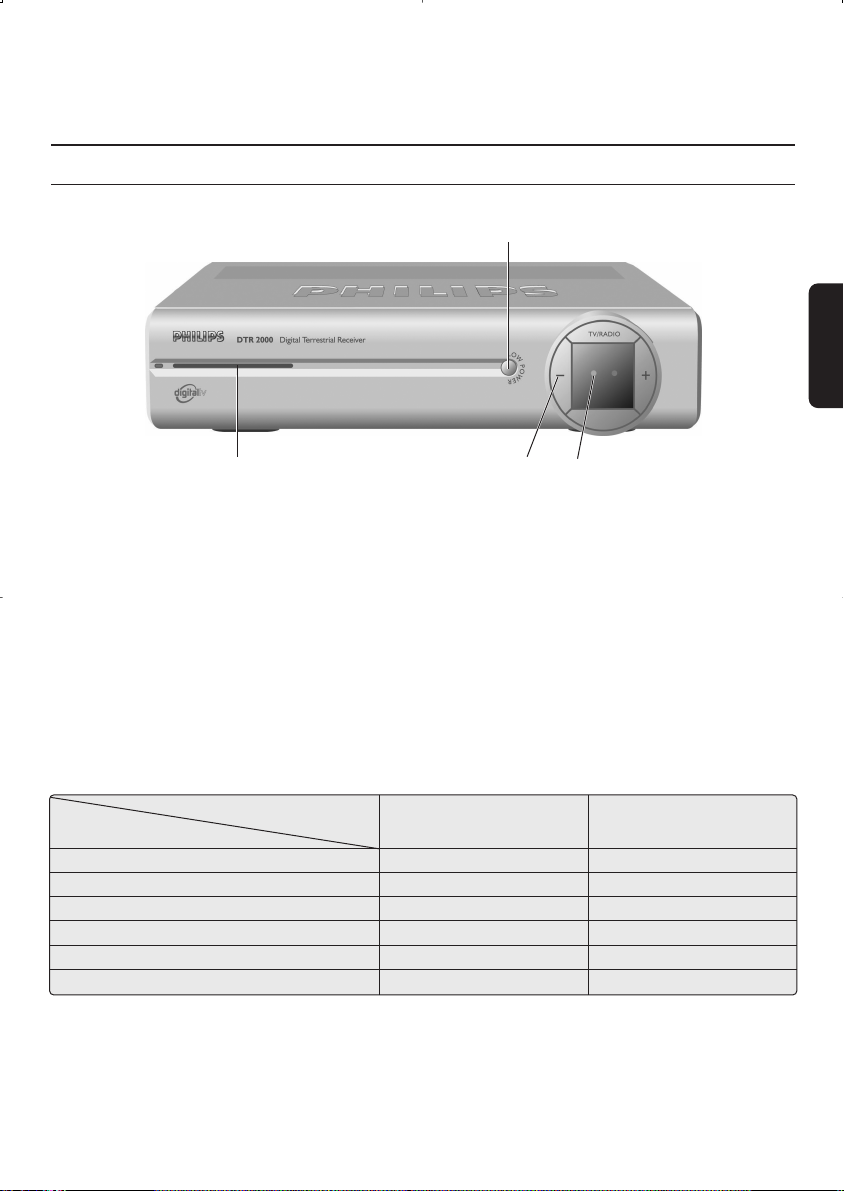

3.1 Front view

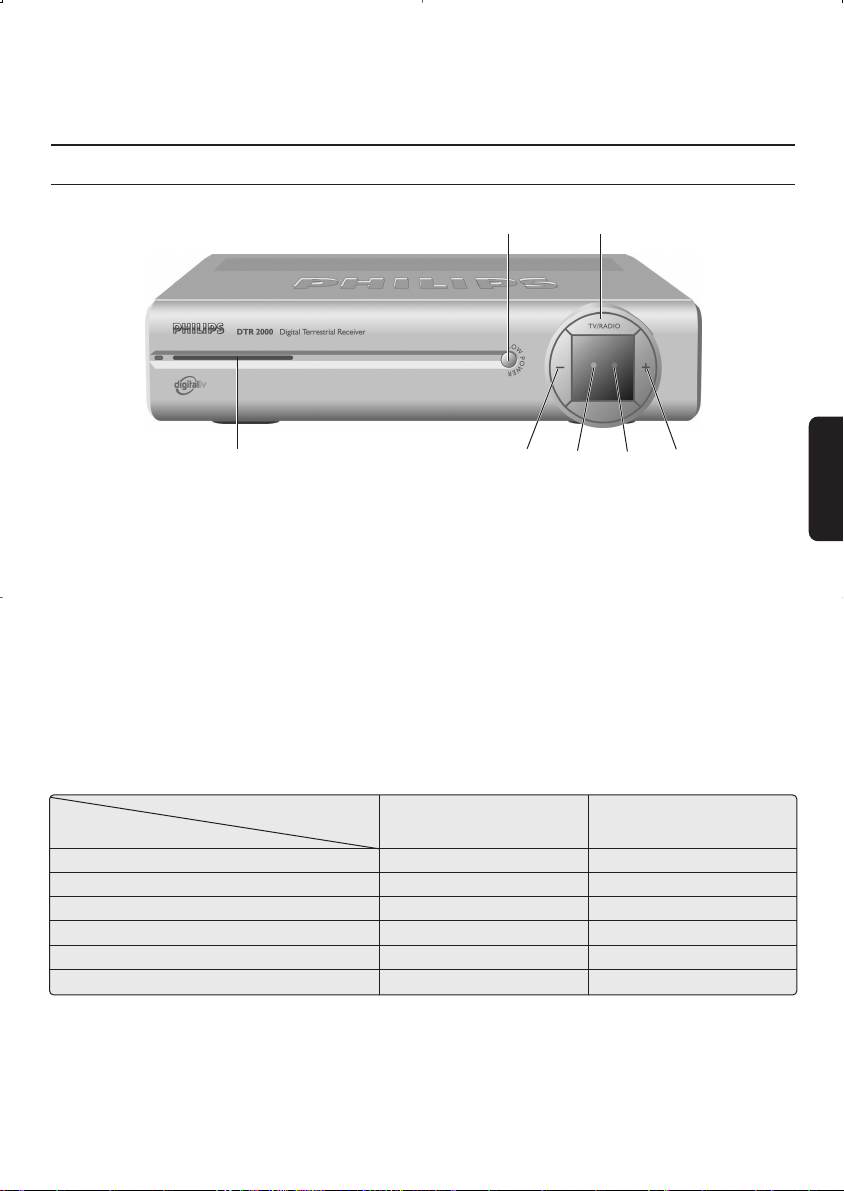

QW
ERTYU
1 LOW POWER button: . . . . . . . . . . Switch receiver ON or to “low power” mode.
Reset the receiver after a 5 second key press.
2 TV/RADIO button . . . . . . . . . . . . . . . Toggle between TV and Radio mode.
3 “-” button . . . . . . . . . . . . . . . . . . . . . . . . Channel down.
4 Multicolour LED indicator . . . . . . Display receiver status (see status indicator table).
5 Red LED indicator . . . . . . . . . . . . . . . Display receiver status (see status indicator table).
Blink at remote control command reception.
6 “+” button . . . . . . . . . . . . . . . . . . . . . . . . Channel up.
7 Smart Card slot . . . . . . . . . . . . . . . . . . Insert the smart card with the chip facing up.
English
Status indicator table
LED Right-hand LED Left-hand LED
Mode (Green/Orange) (Red)
Receiver off mains
Low power mode Red
Standby mode Orange
TV/Radio mode Green
Timer mode from running mode Green Red
Timer mode from standby mode Orange Red
Note: If you have put your receiver in “standby” or “low power” mode and the red, right-hand LED is blinking, it
indicates that a free over-the-air upgrade of your receiver is taking place. Do not interrupt this operation.Wait
until the LED stops blinking and the left-hand LED is either orange or red (signalling either “standby” or “low
power” mode).You can then continue as normal.
PRODUCT DESCRIPTION 9

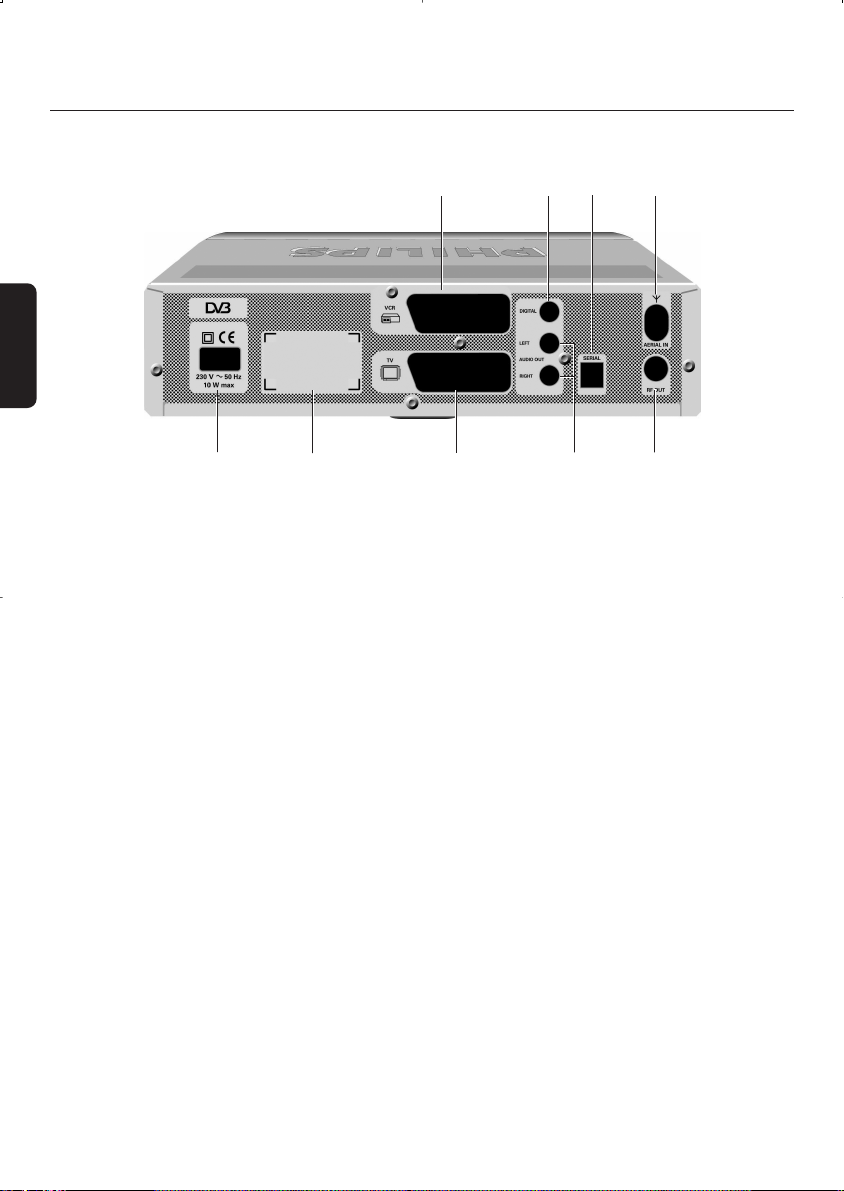

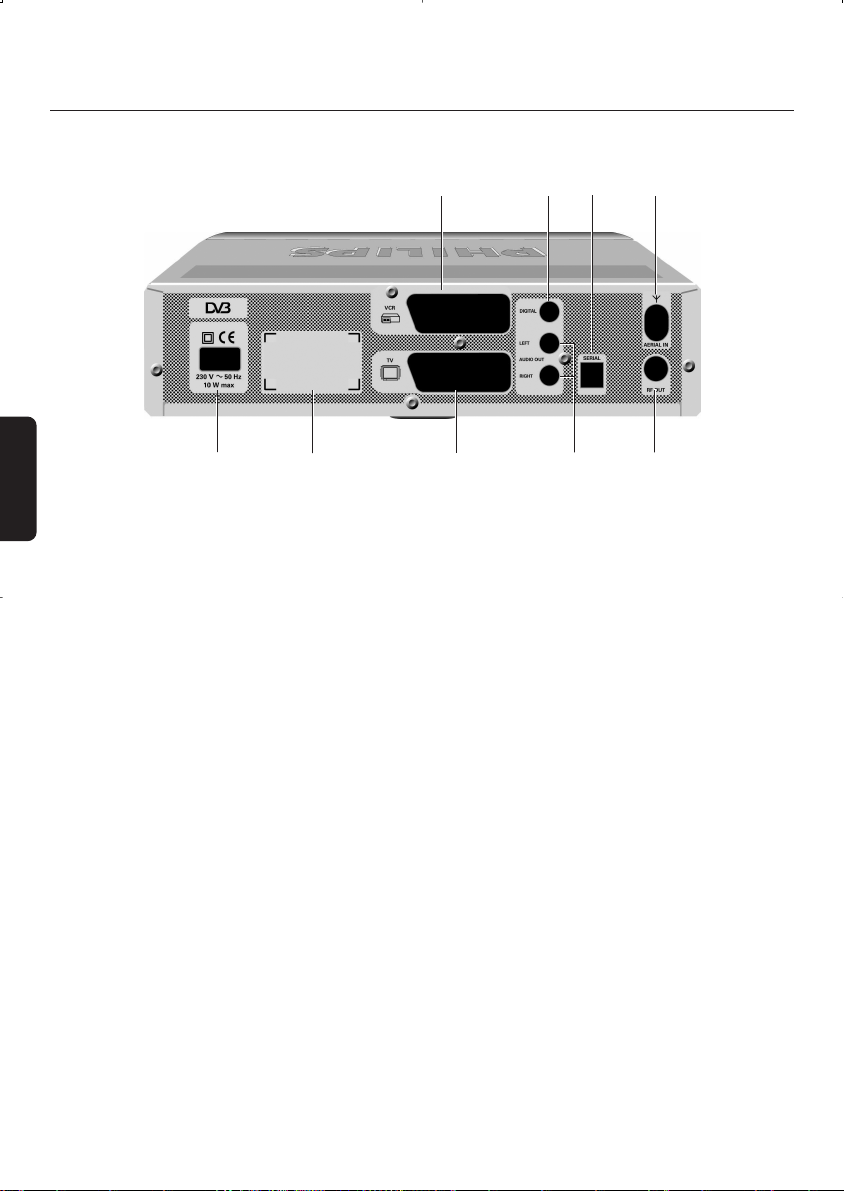

3.2 Rear view
English
TY IO
QWER
U
1 VCR (*) . . . . . . . . . . . . . . . . . . . . . . . . . . SCART (1) socket to connect your video recorder
or DVD player/recorder
2 Digital audio output (*)
. . . . . . . . Coaxial Digital audio output to connect your HIFI /
Audio receiver system
3 Serial (*)
4 AERIAL IN (*)
5 230V~50Hz 10W max (**)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Label showing the type and serial number of the receiver
6
7 TV (*)
. . . . . . . . . . . . . . . . . . . . . . . . . RJ 9 socket for serial data transfer during servicing
. . . . . . . . . . . . . . . . . . . Input to connect your UHF aerial
. . . Socket to connect the Mains cord
. . . . . . . . . . . . . . . . . . . . . . . . . . . . SCART (1) socket to connect to your TV set or a video
projector (2)
8 L/R Audio out (*)
. . . . . . . . . . . . . . . Left/Right audio outputs to connect your HIFI /
Audio receiver system
9 RF out (*)
. . . . . . . . . . . . . . . . . . . . . . . . RF output to be connected to the aerial input of your video
recorder or TV set. Refer to chapter 5 for recommended
connection diagrams.
(1) SCART is also called Euroconnector or Peritel.
(2) To connect a video projector to the TV SCART socket, refer to chapter 5.4.
* Safety Extra Low Voltage (SELV)
** Hazardous Voltage (HV)
10 PRODUCT DESCRIPTION
4 Preparing your remote control
4.1 Inserting batteries

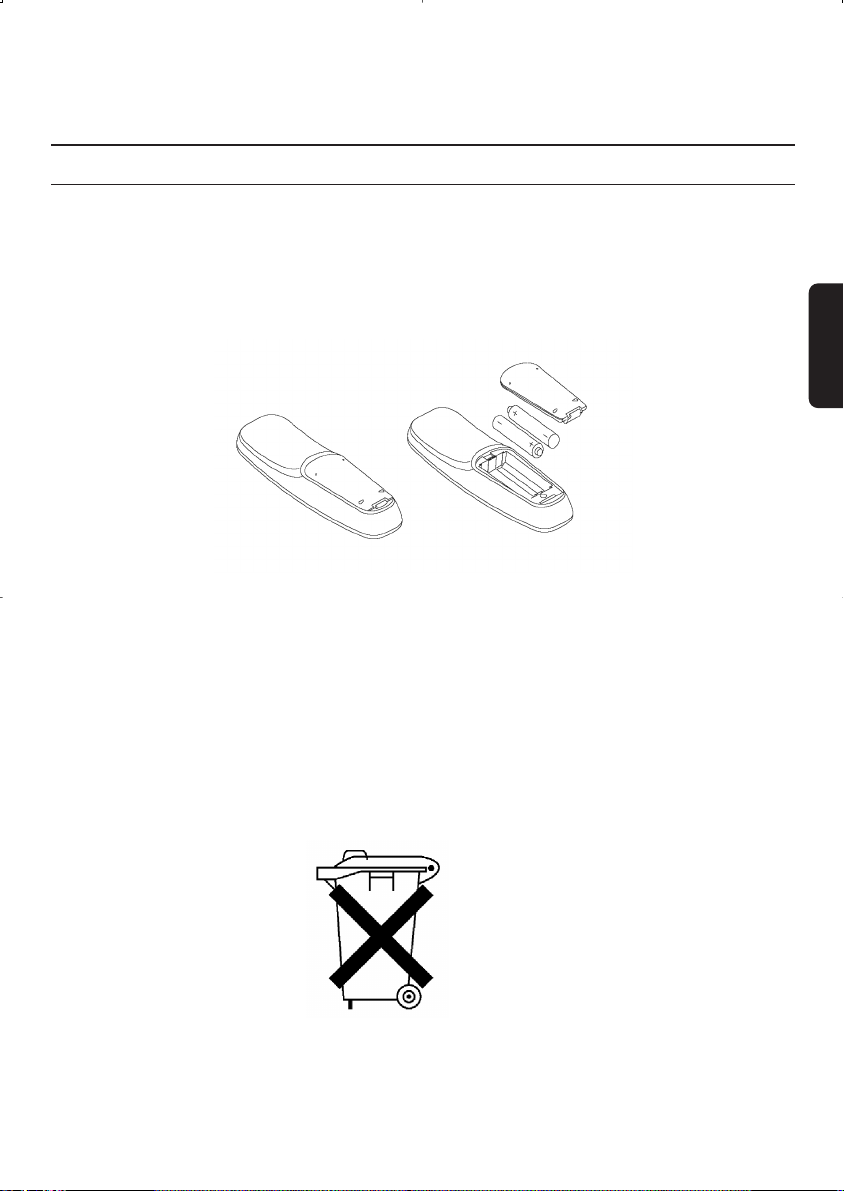

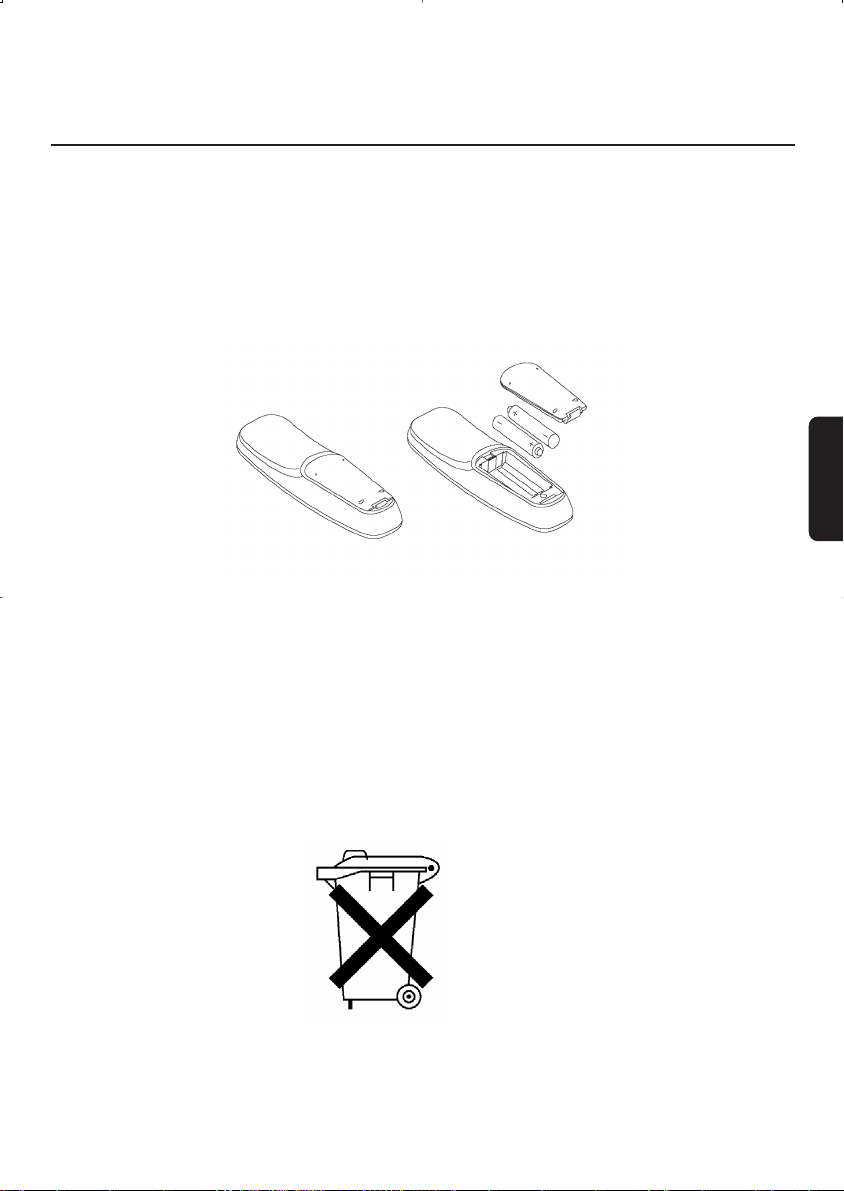

- Remove the back cover.
- Insert the two batteries (type LR6/AA - 1.5 V) supplied.
- Place them in the remote control battery compartment as shown in the diagram.
- Replace the cover.
Your remote is now ready to control your digital terrestrial receiver.
The Philips batteries supplied with your receiver's remote do not contain heavy metals such as
Mercury or Lead Cadmium.Nevertheless,in many countries,exhausted batteries may not be
disposed of with your household waste.
Please enquire about the local regulations regarding the disposal of used batteries.
English
Do not dispose of the batteries
with your household waste.
PREPARING YOUR REMOTE CONTROL 11

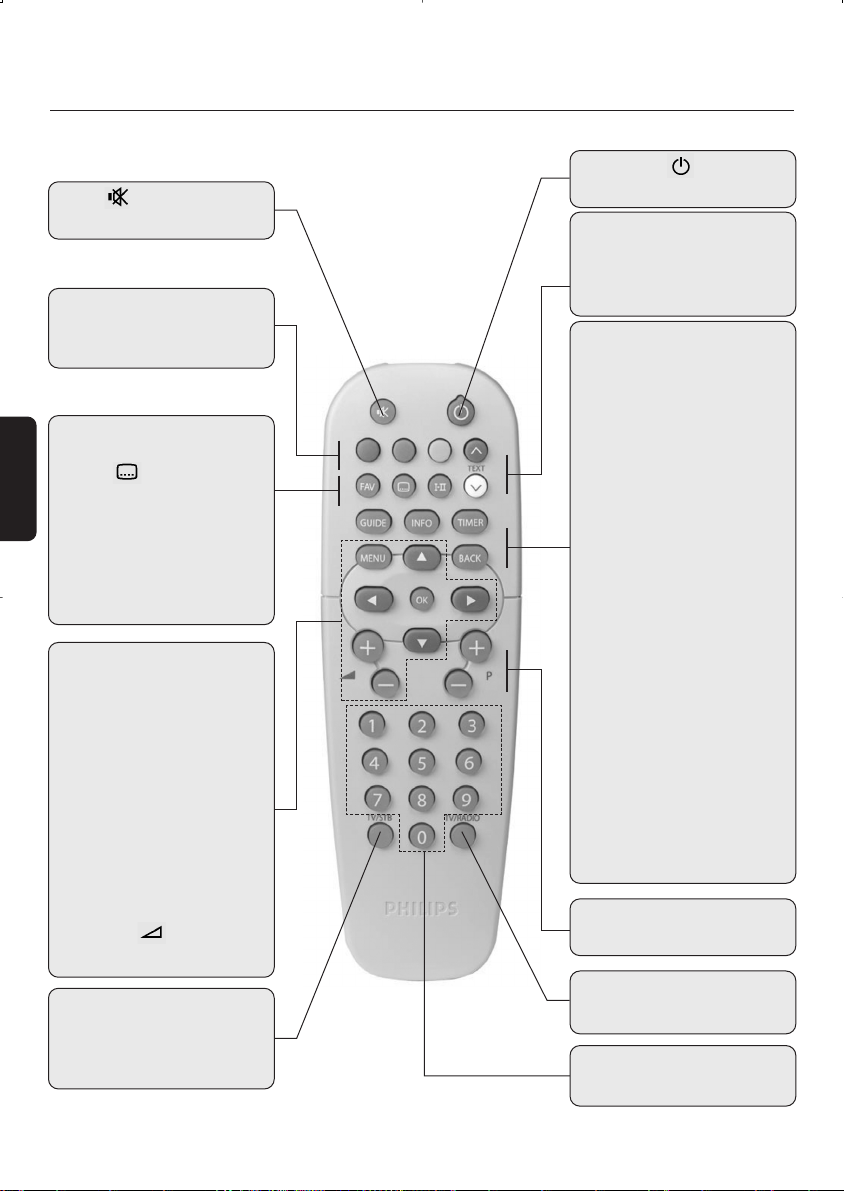

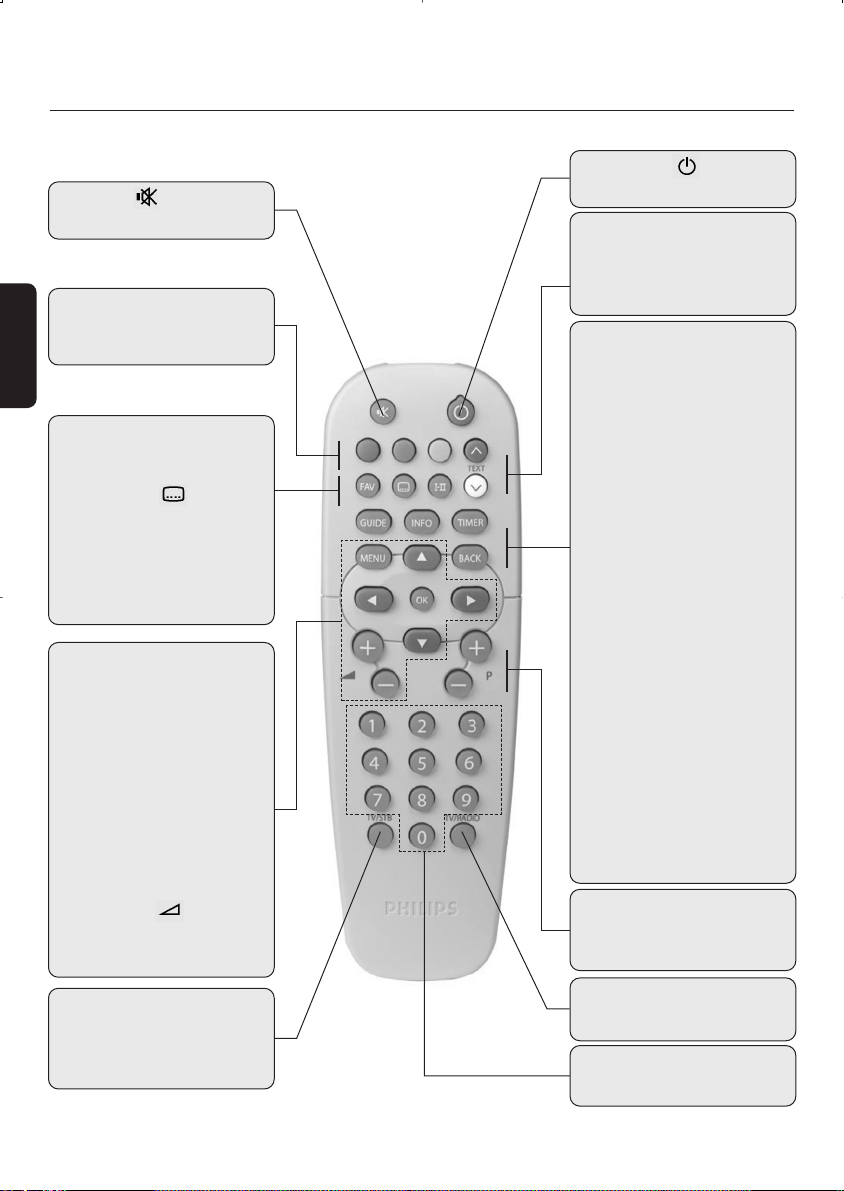

4.2 Using the remote control
English
Mute
- Audio mute
RED,GREEN,YELLOW,
BLUE
- Active in Favourites list only
FAV
- Toggle between favourite lists
SUBTITLE
- Temporarily starts/stops or
change Audio Subtitling
I-II
- Temporary update of audio
language and selection of
audio mode
Standby
- Standby / ON
V
(blue) resp.V (white)
- Scrolls one Page Up or one
Page Down in guide or
favourite lists
GUIDE
- Open Now & Next Guide
INFO
- Open info banner
- Show extended programme
information
- Close banner
TIMER
- Set a recording timer when
watching Digital TV or from
the GUIDE feature.
“TIMER, 0” sequence
The
keystroke deletes the current
running timer
MENU
- Open/Close menu (in digital
TV mode)
CURSOR keys
- The t and y cursor keys
are used to move within the
menus and lists
- The
u and i cursor keys
are used to select a value in a
menu item
OK
- Select / call up channel lists /
zap
VOLUME +/ -
- Volume up / down.
TV / STB
- Toggle between Digital and
Analogue TV/VCR/DVD .
12 PREPARING YOUR REMOTE CONTROL
BACK
- Selects the previously
watched digital TV channel
- In menu mode
Either exit the menu
Or bring selection one level
back
Or bring selection back one
level and cancel the changes
you have made.
P+ / P-
- Selection of next / previous
channel
TV / RADIO
- Toggle TV / Radio mode
0-9
- Channel selection in digital
TV mode
5 Connecting your digital receiver
There are several ways you can connect and integrate your digital receiver into your existing audio /
video equipment setup.
Warning!
Before starting:
- Unplug all equipment (TV set as well as VCR and/or DVD if required) from the mains.Do not
connect your digital receiver to mains supply now.
- Check your current wiring because you might keep existing connections of your current
Audio/Video setup.
- Choose the relevant connecting method for incorporating your digital receiver into your existing
Audio/Video setup.Please see chapters 5.1 and 5.2.
Note: If your TV set is fitted with several SCART sockets, to get the best picture quality, select the one that is
RGB-capable to connect the supplied SCART lead coming from your digital receiver TV SCART socket. If
necessary, refer to your TV set User manual.

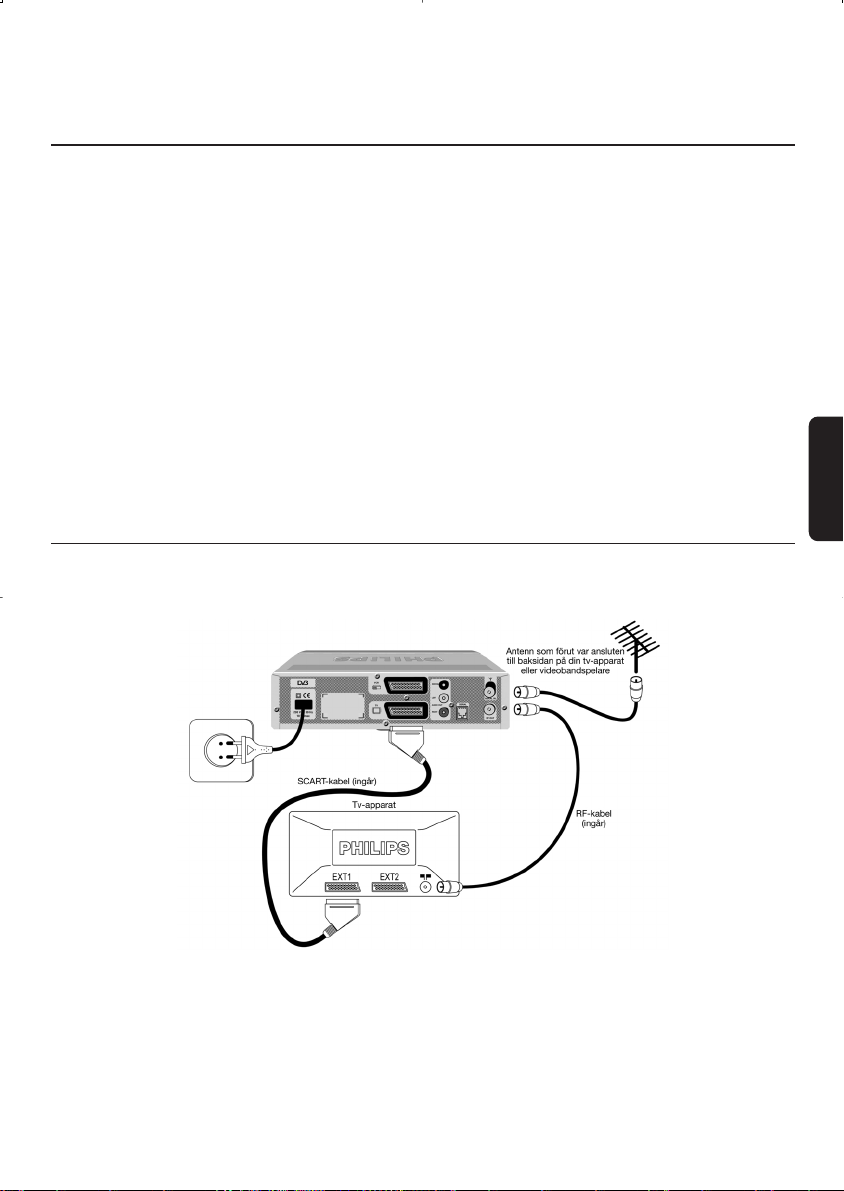

5.1 Connecting to a TV using one SCART socket
Integrate your receiver in your existing installation as shown below.
English

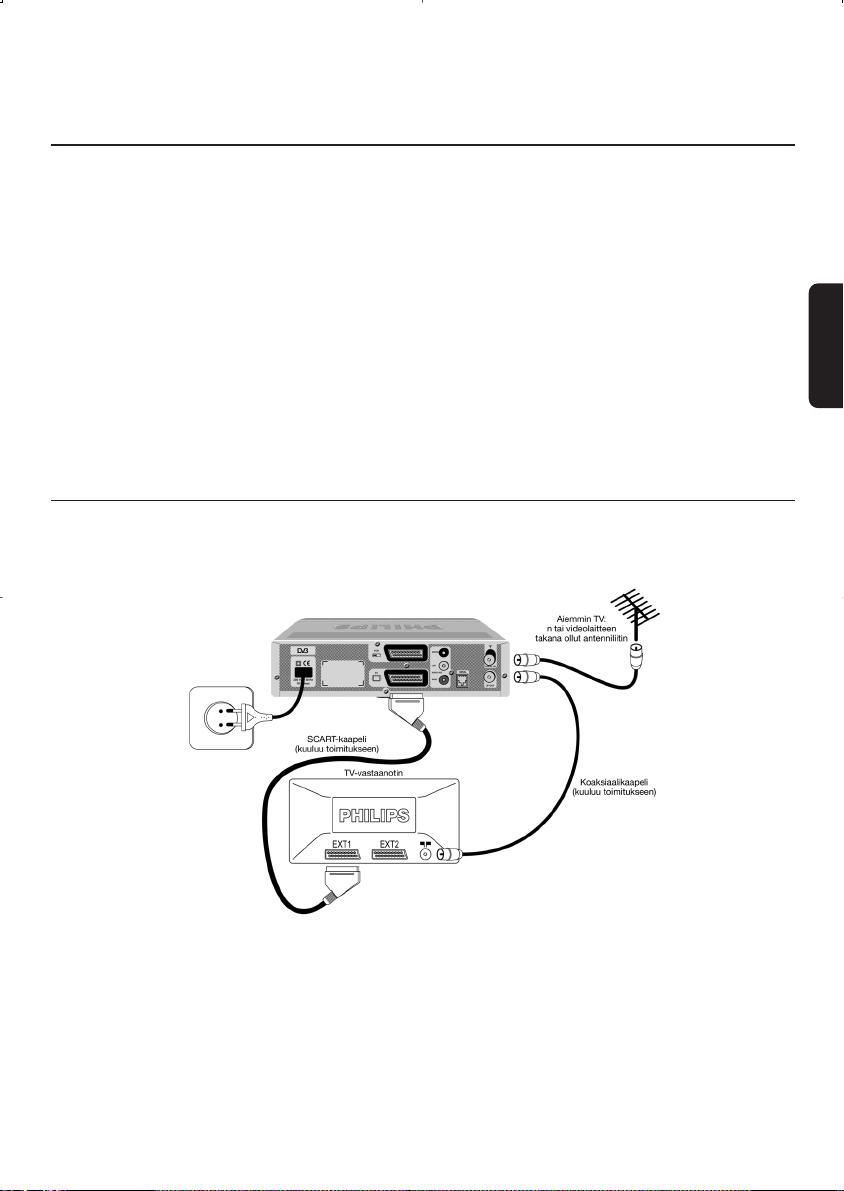

- Plug your aerial lead plug into the “AERIAL IN” socket of your digital receiver.
- Connect the “RF OUT” socket of your digital receiver to the “Aerial input” socket of your TV by
means of the RF coaxial lead supplied with your digital receiver.
- Connect the “TV” SCART socket of your digital receiver to the RGB-capable “EXT1” SCART
socket of your TV set by means of the SCART lead supplied with your digital receiver.
CONNECTING YOUR DIGITAL RECEIVER 13
- Plug all your equipment,excluding your digital receiver,into the mains.
- Switch on your TV and select a channel.
- Plug your digital receiver into the mains.Your digital receiver will display the “WELCOME” screen
English
(the left-hand LED will be illuminated green).
- Go to Quick installation to proceed with the channel scan of your digital receiver.
If the “WELCOME” screen is not displayed,press the TV/STB button two times to get the screen
displayed.
Note:With this connection set up you can:
- Watch digital terrestrial TV through your digital receiver.
- Continue watching analogue TV as normal.

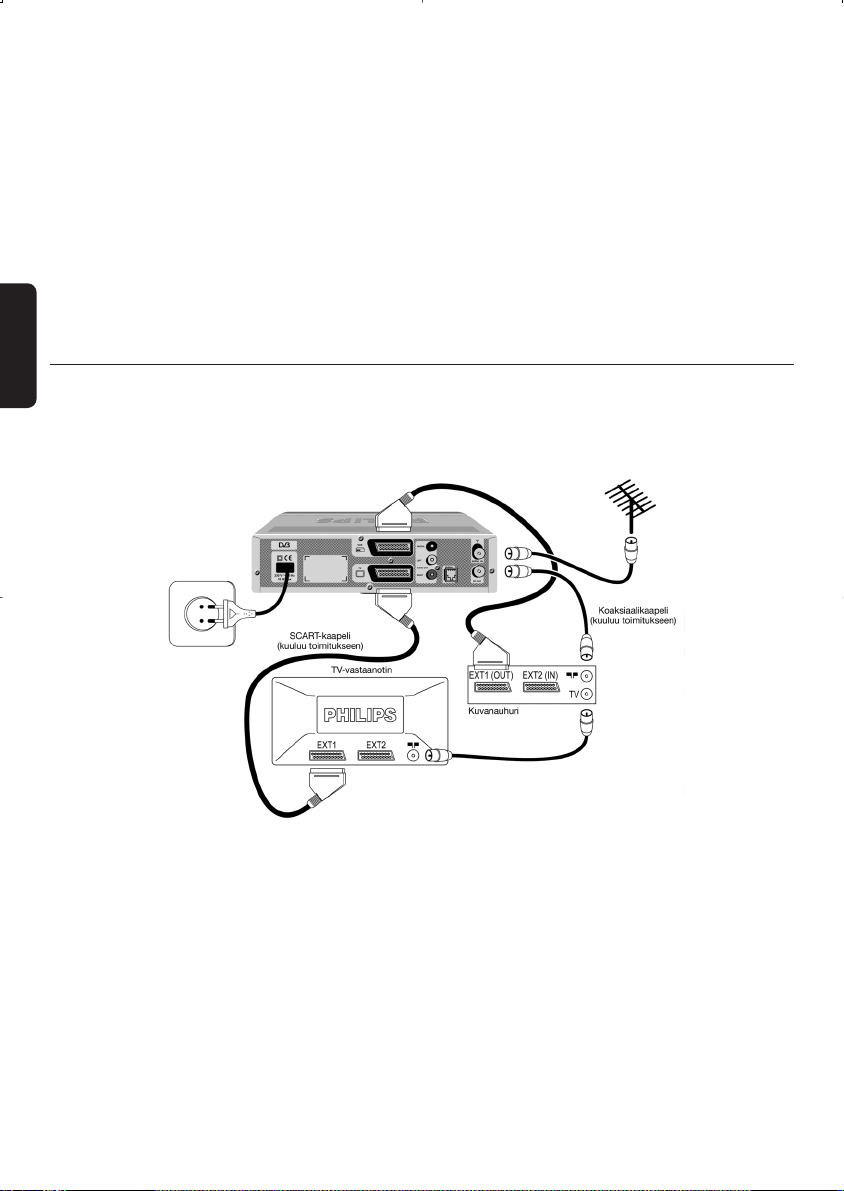

5.2 Connecting to a TV and VCR both fitted with SCART sockets
Incorporate your receiver in your existing installation as shown below.
- Plug your aerial lead plug into the “AERIAL IN” socket of your digital receiver.
- Connect the “RF OUT” socket of your digital receiver to the “Aerial input” socket of your VCR
using the RF coaxial lead supplied with your digital receiver.
- Connect the “RF OUT” socket of your VCR to the “Aerial input” socket of your TV using a RF
coaxial lead.

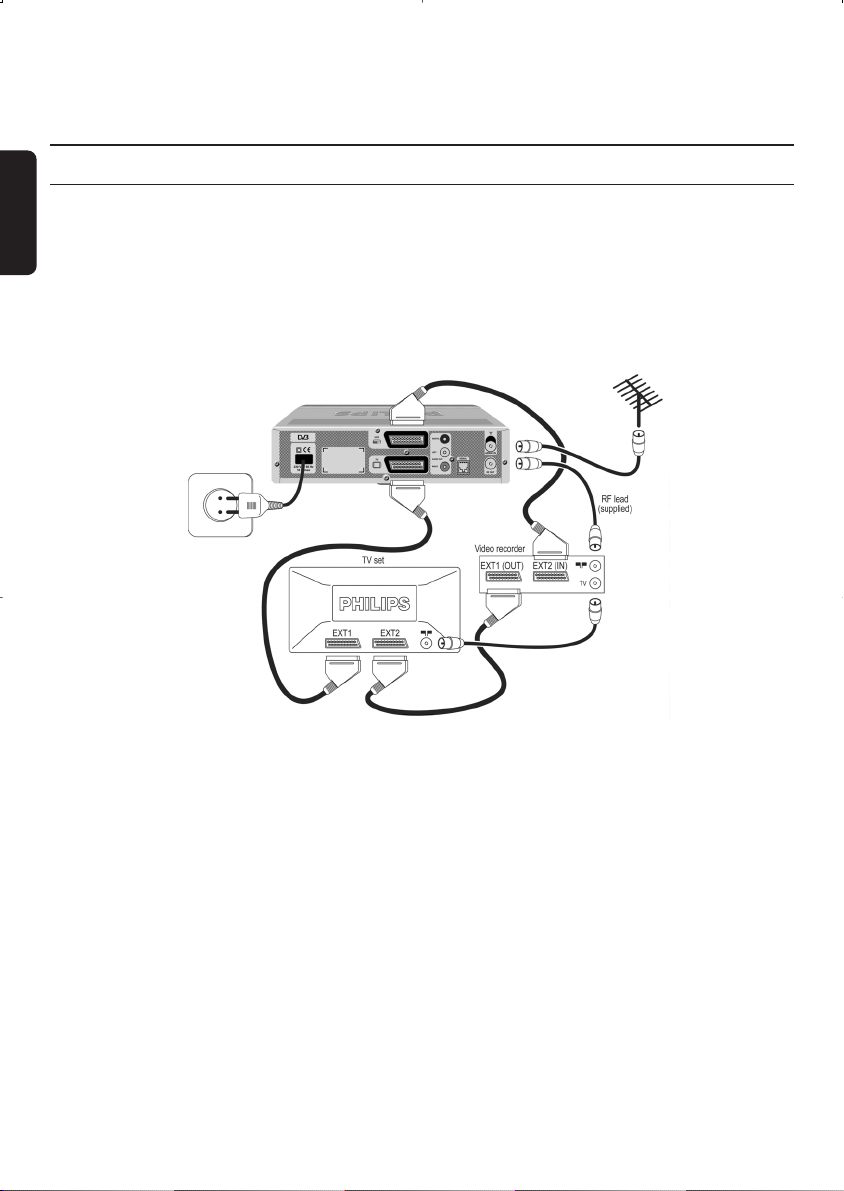

- Connect the “TV” SCART socket of your digital receiver to the “EXT1” SCART socket of your TV
using the SCART lead supplied with your digital receiver.
- Connect the “VCR” SCART socket of your digital receiver to the RGB-capable “EXT1” SCART
socket of your VCR using a SCART lead.
- Plug all your equipment,excluding your digital receiver,into the mains.
- Switch on your TV and select a channel.
14
CONNECTING YOUR DIGITAL RECEIVER
- Plug your digital receiver into the mains.Turn it on using any remote control number button.Your
digital receiver will display the “WELCOME” screen (the left-hand LED will be illuminated green).
- Go to Quick installation to proceed with the channel scan.
Note:
1- This connection also applies if your VCR has two SCART sockets.
2- If you have a S-Video VCR, refer to chapter 7.2.2 for further settings and consult the User manual of your VCR.
3- With this connection set up, you can:
- Watch digital TV while you record analogue TV. - Watch Play Back from your VCR.
- Watch analogue TV while you record digital TV. - Continue to record analogue TV.
- Record the digital TV channel you are watching.
5.3 Connecting to your HiFi / Audio receiver equipment
(Analogue / Digital)
Depending on your HiFi / Audio receiver equipment, you might have several options to connect your
digital receiver.
Analogue connection
Connect the L/R audio output sockets to the relevant L/R audio input sockets of your audio
equipment using a double CINCH cable (not supplied).Consult the user manual of your HiFi/Audio
receiver equipment to choose the proper analogue audio inputs.
Note:With this connection set up you can control the audio volume up/down and mute using your digital
receiver or Hi-fi remote control.
Digital connection
Connect the audio "DIGITAL" output socket to the relevant digital audio input socket of your audio
equipment using a single CINCH cable (not supplied).Consult the user manual of your HiFi/Audio
receiver equipment to choose the proper digital audio input.
English
Note:With this connection set up you can only control the audio volume up/down and mute with your
HiFi/Audio receiver remote control, refer to the relevant User manual.
5.4 Connecting of a Video projector to your receiver to watch Digital
TV programmes on a video projector
Connect the "TV" SCART socket of your digital receiver, to your video projector.
Video projectors are often fed with S-Video format video signals.If this is the case with your
projector, follow the instructions below for connection and installation:
- Connect a SCART to the S-Video adapter between the TV SC ART of your digital receiver and the
S-VIDEO input of your video projector.
- Installation:refer to chapter 7.2.2 to change the "TV/VCR output" setting of your digital receiver
to S-VIDEO/PAL-CVBS.
CONNECTING YOUR DIGITAL RECEIVER 15
6 Day to day operation
English
6.1 Switch your receiver
ON/OFF (low power,
standby)
The rigth-hand led is lit in red
Your receiver is in "Low power" mode.
- Press the "LOW POWER" button on the
front of your receiver to restore the
previous mode,i.e. either standby or running
mode. This will take a few seconds.
Note:Your remote does not control the receiver
when it is in "Low power" mode.
6.2 Select TV or Radio service
in running mode
To switch your receiver from TV to RADIO
and RADIO to TV:
- Press the remote control or the front panel
"TV/RADIO" button.
Note:The front panel and remote control
"TV/Radio" buttons have the same function.
6.3 Change channels
The left-hand led is lit in orange
Your receiver is in standby mode.
To switch to running mode:
- Either press the following remote buttons:
"P+","P-","BACK","TV/RADIO",or any
number button.
- Or press the "TV/RADIO" button on the
front panel.
To put your receiver in "Low power" mode
(<1W consumption):
- Press the "LOW POWER" button on the
front of your receiver.
The left-hand led is lit in green
You are in running mode.
To put your receiver in standby:
- Press the remote standby button.
To put your receiver in "Low power" mode
(<1W consumption):
- Press the front panel "LOW POWER"
button.
6.3.1 Using number buttons
While watching digital TV or listening to digital
radio:
- Dial a number using the remote number
buttons to select the corresponding channel.
- Press the "OK" button to confirm or just
wait for the selection to take effect.
6.3.2 Using "P+"/"P-" buttons
While watching digital TV or listening to digital
radio:
- Press "P+" to select the next channel in the
current channel list.
- Press "P-" to select the previous channel in
the current channel list.
Note:The "-" and "+" buttons on the front panel
have the same function as the "P-" and "P+"
buttons on the remote control.
6.3.3 Using the "BACK" button (last
channel recall)
While watching digital TV or listening to digital
radio:
- Press the "BACK" button to select the
previous TV/radio channel.
16
DAY TO DAY OPERATION

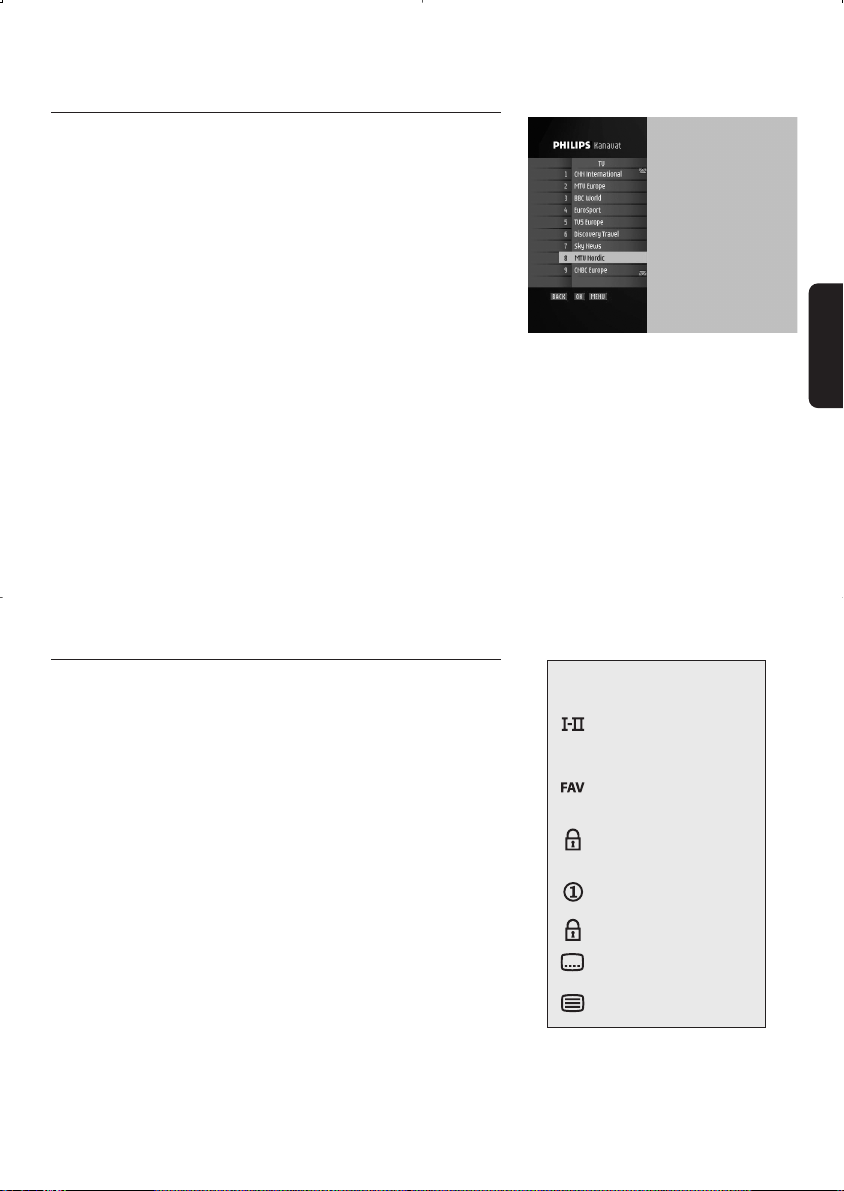

6.3.4 Using channel lists
(Service selector)
This feature is used to select channels from a list.
To access the current channel list while watching digital TV
or listening to digital radio:
- Press the "OK" button to display the current channel list
(either the list of available channels or favourite list
previously selected).
- Press the
t or y button to select a channel. Scroll from
one page to another using the white or blue remote
control button.You can preview the selected channel in
the right-hand side of the screen.
- Press "OK" again to view/listen to the selected channel in
full screen.
Note: If the list includes several pages, keep pressing the t or y
button to access the previous or next pages.
To access any channels list, including favourites lists:
- Press the "OK" button once to display the current channel
list.
- Successively press "FAV" to display the other lists.Then
proceed as indicated above to select a channel.
Note: Empty favourite lists cannot be opened.
English

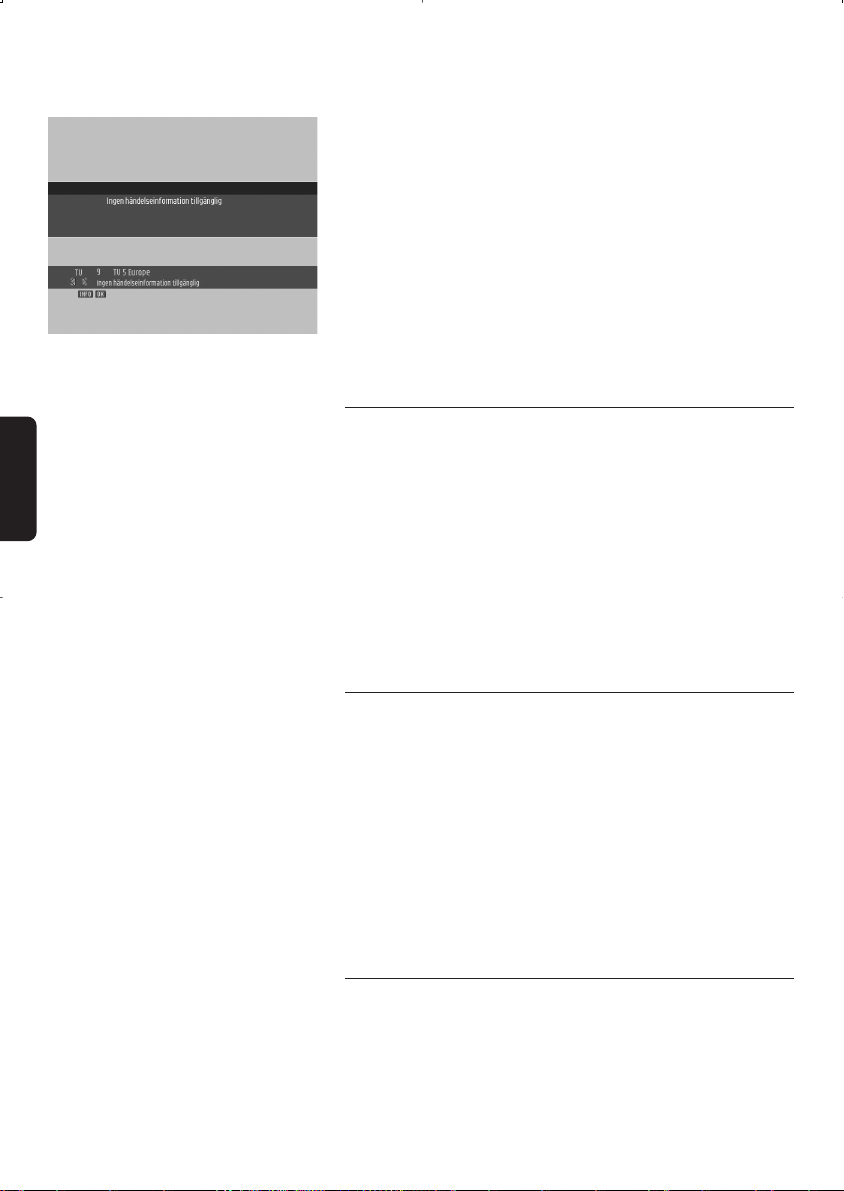

6.4 Banner
A banner is used to display information about the current
channel and programme.
Each time you select a new channel,a banner appears at the
bottom of the screen displaying:
- the channel name and number in the current channel list,
- the current programme and next programme names,
- icons indicating the channel properties,e.g. channel lock
status (locked or temporarily unlocked),
- a bargraph indicating:
o the start time of the current programme,
o the start time of the next programme,
o the current progress.
icon description
alternate audio
language/format
current favourite list
maturity rating locked
scrambled channel
locked channel
subtitles presence
teletext presence
DAY TO DAY OPERATION 17
English
To display the banner:
- Press the "INFO" button.
For more info while the banner is on:
- Press the "INFO" button a second time to get more info
about the current programme.
To close the banner :
- Press the "OK" button.
Note: Press the" INFO" button once to access the banner and
twice to get more information about the current and next
programmes. Press the "INFO" button a third time to return to
digital TV.
6.5 Volume control - Vol+ / Vol- / Mute
While watching digital TV or listening to digital radio:
- Press "Vol-" to decrease the volume.
- Press "Vol+" to increase the volume.
- Press "MUTE" to mute the sound.
- Press "MUTE" again to de-mute.
Note: Change of volume is signalled on-screen using a bargraph,
while audio mute is signalled with an icon in the top right corner
of the screen.
DAY TO DAY OPERATION
18
6.6 Temporarily change the Subtitles
selection
- Press the subtitles button to access the "Subtitles
Language" screen.
- Either enable the subtitles by selecting one of the available
languages using the
- Or switch subtitles off by selecting "no subtitle".
- Press OK to confirm and exit the screen.
Note: By default, subtitles are disabled.
u or i button.
6.7 Temporarily change the Audio
language selection
- Press the I/II button to access the "Audio Languages" screen.
- Select from the audio languages available using the
u or i button.
- Press y to move to Audio mode and select from the
audio modes available using the
- Press OK to confirm and exit the screen.
u or i button.

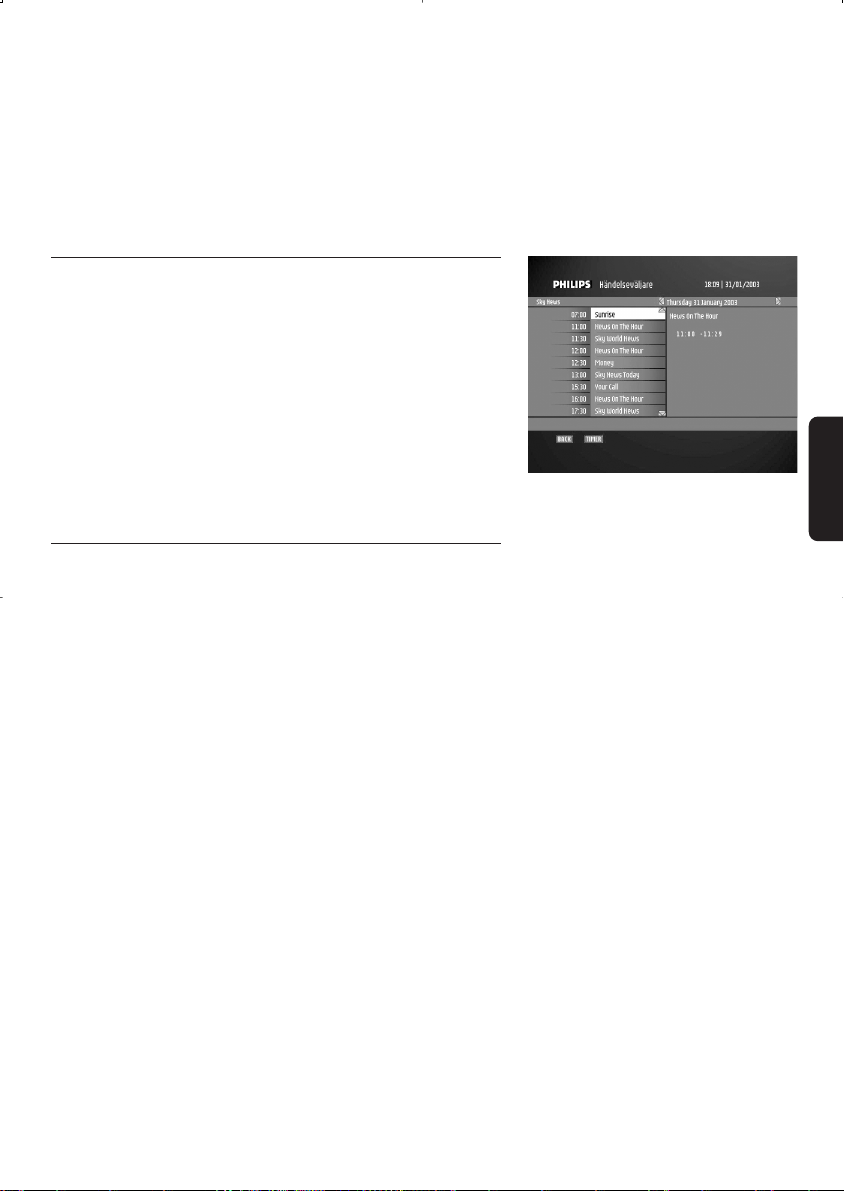

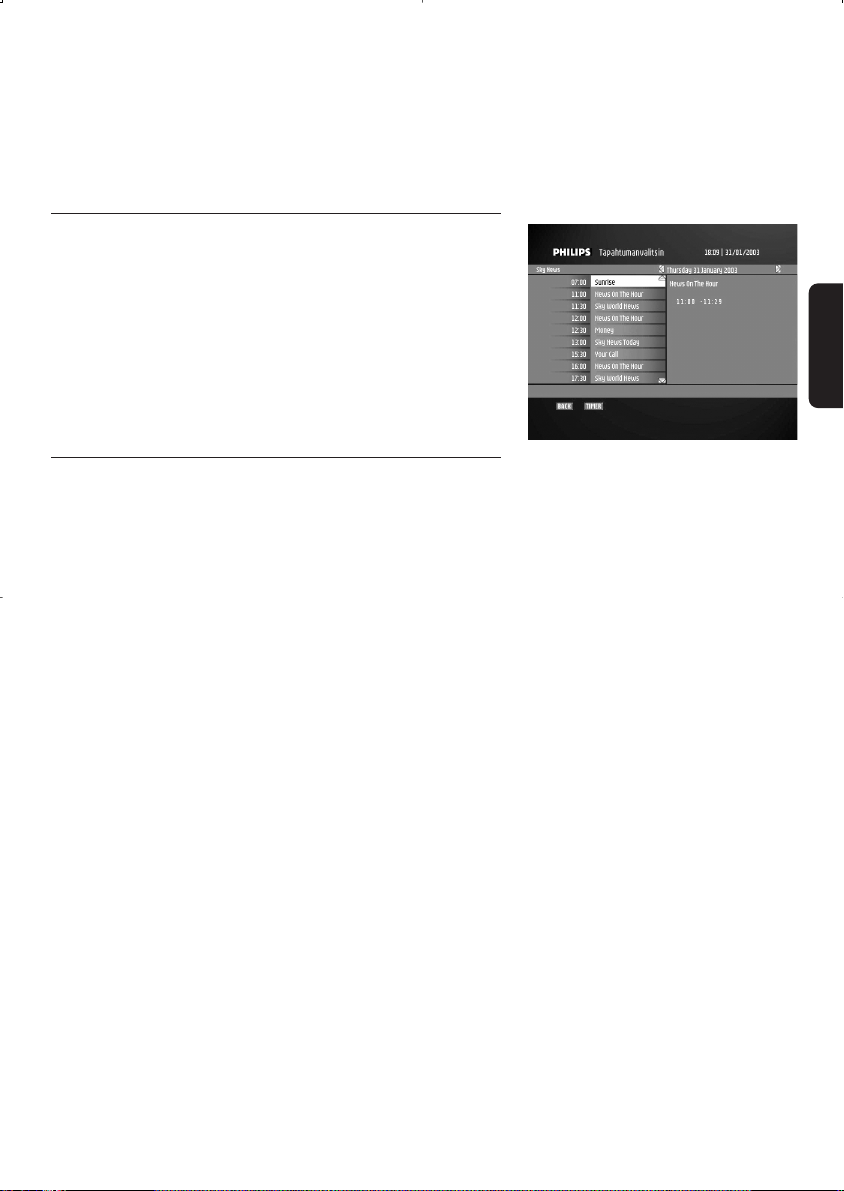

6.8 Guide (Event selector)
While watching digital TV or listening to digital radio:
- Press the "GUIDE" button to open the event selector.

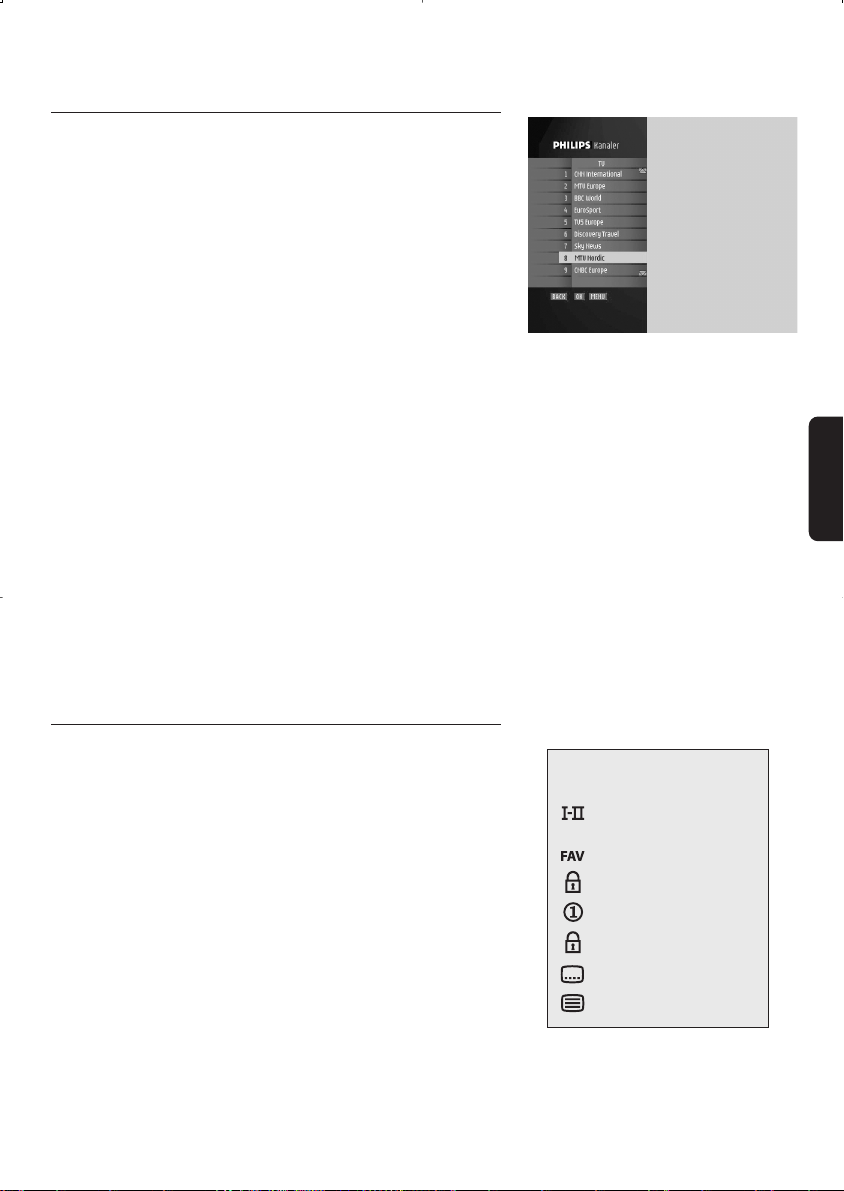

Current view is current channel list called.
- Press the
- Press the
- Press the "OK" button to watch / listen to the selected
channel.
i button to view the next program list.
y or t to select a programme.
6.9 Recording timers
Recording timers are used to perform VCR or DVD
recordings.
Set a timer while watching digital TV or listening to
digital radio
- Press the "TIMER" button to set a recording timer on the
current programme on the current channel.A
confirmation message is displayed.
- Press "OK" to confirm recording or "BACK" to cancel.
Set a timer from the guide
- Press the "TIMER" button to set a recording timer on the
selected programme.
- Enter your PIN code and press OK to confirm.
The "Timers" screen is displayed.
- Press "OK" to access the "Add Timer". You can then set
the recording parameters.
English
Delete a running timer while watching digital TV or
listening to digital radio
A timer is running and you are watching the programme you
are recording.Recording is signalled by two front LEDs,the
right-hand one lit in red and the left-hand one lit in green.To
delete the running timer:
- Press the key sequence "TIMER,0".The red light then
switches off and you can change channels.
DAY TO DAY OPERATION 19
English
Delete a running timer while the receiver is in
standby
A timer is running and your receiver is in standby. Recording
is signalled by two front LEDs,the right-hand one is red and
the left hand one is orange.
- Switch the receiver to running mode.
- Press the key sequence "TIMER,0" to delete the running
timer.The red light then switches off and you can change
channels.
6.10 Using the TV/STB button
This button is used to switch between watching digital
channels through your digital receiver and standard analogue
channels.
While watching digital TV:
- Press the TV/STB button to switch to analogue
TV/VCR/DVD.
- Press again to revert to digital TV.
6.11 Watching locked channels
If you select a locked channel,you are prompted to enter
your PIN code:
- Enter your 4-digit PIN code (default 0000) and press "OK"
to unlock the selected channel and watch it.
20 DAY TO DAY OPERATION
6.12 How do I reset my receiver
- Press the "LOW POWER" button on the receiver front
panel for at least 5 seconds.Your Preferences settings will
not be lost.
- Release the button and wait for a stable front display
indication (i.e. the left LED is either orange for standby
mode or green for TV mode). You can then continue with
normal operation.
7 Changing the settings of your receiver
You can change the receiver settings to adapt the receiver to
your aerial conditions,Audio/Video setup or other preferences.

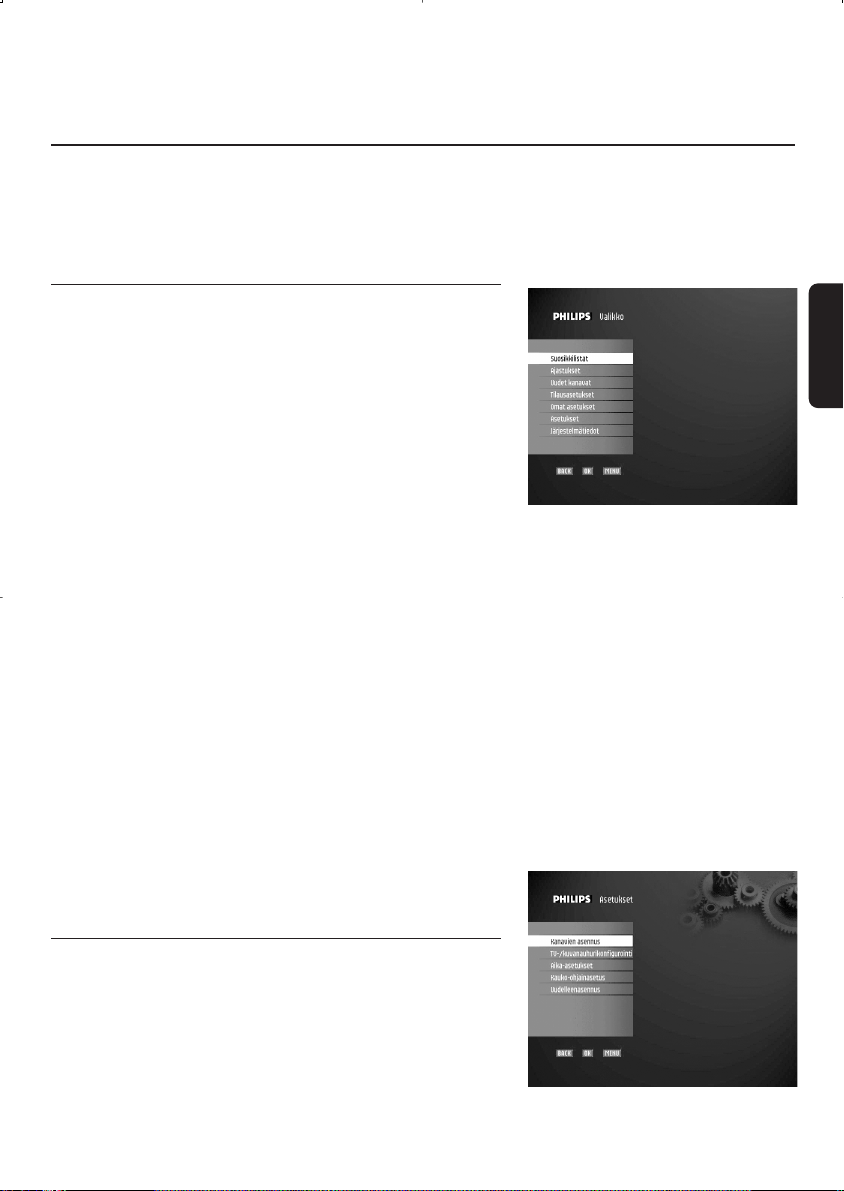

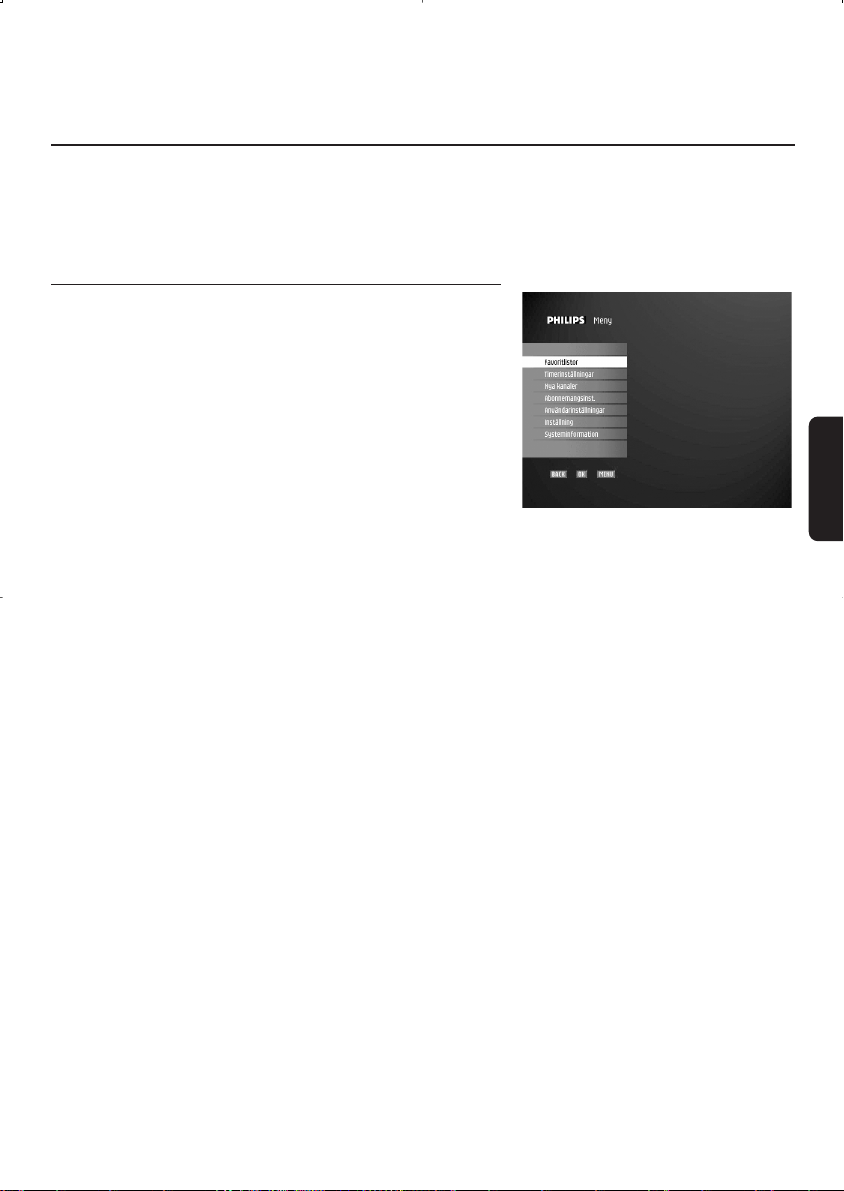

7.1 Menus and settings
Basics about menu navigation
While watching digital TV or listening to the radio:
- Press the "MENU" button to display the "Main menu"
screen.
- Press the
the desired menu item.
- Press "OK" to display the corresponding sub-items.
- Press the
Note: Press the "MENU" button to go back to the main menu or
"BACK" button to go back one step.
Change settings
Once you highlighted the appropriate sub-item:
- Press "OK" to display the corresponding screen.
You can then access the values and make changes using
the
buttons to enter numerical values.
t or y button to scroll up or down and select
t or y button to move to the desired sub-item.
u or i button to select an option and numerical
English
Cancel/Store changes
- Either press the "BACK" button to exit the screen
without storing changes.
- Or press the "OK" button to validate changes and exit the
screen.
In both cases,the selection moves one level up in the menu.
Note:To open a locked menu item (indicated by a lock icon),
you will need to enter your PIN code.
7.2 "Setup" menu
This menu is used to configure your receiver.
Note: If the parental control is enabled (see chapter 7.7.2),
you need to enter your PIN code to access this menu.
CHANGING THE SETTINGS OF YOUR RECEIVER 21
English

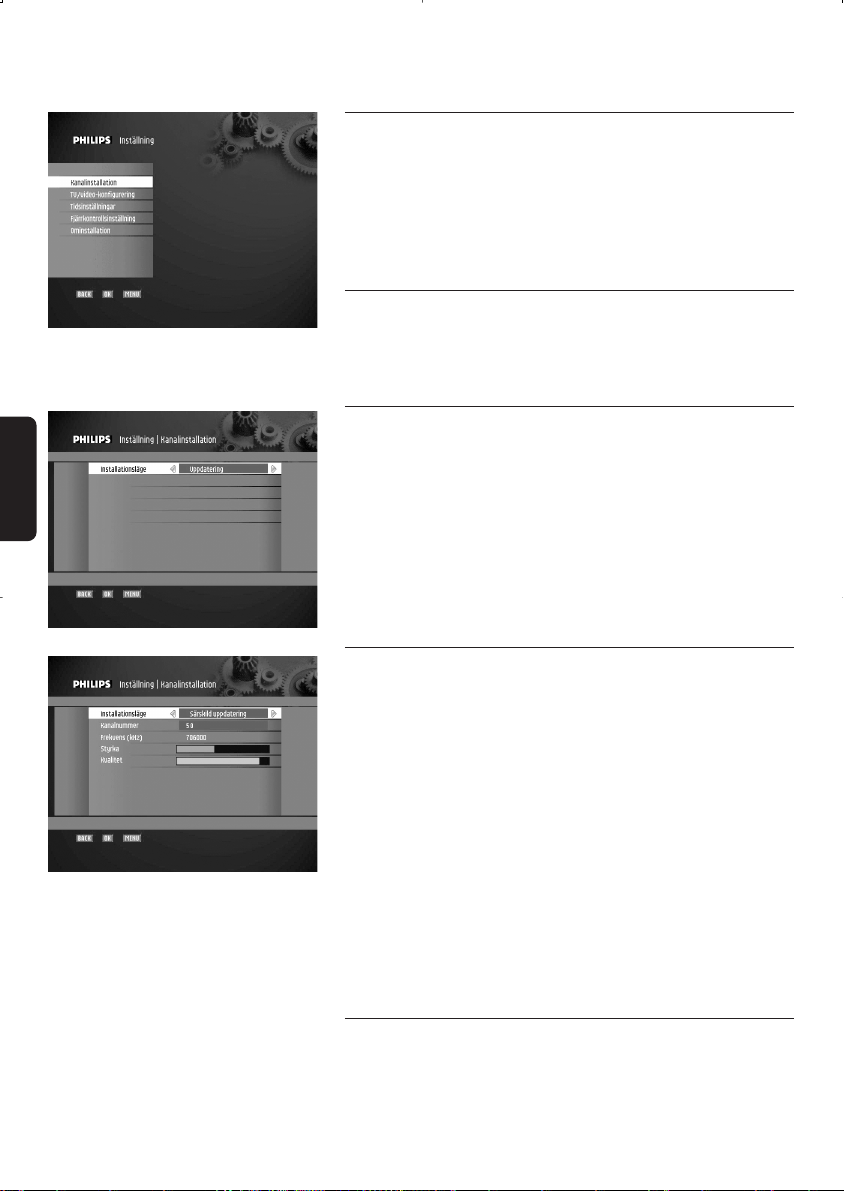

7.2.1 Channels installation
This feature is used to select the type of installation from
the following options:
7.2.1.1 Update
This option is used to automatically scan for new channels
and add these to the channels already installed.
To launch an update:
- Select "Update" using the
u or i button.
- Press the "OK" button to launch the update.
The "Update in progress" screen is displayed,indicating the
scanning progress and number of channels found.Press
"BACK" to cancel the operation.
7.2.1.2 Custom update
This option is used to manually scan for new channels and
add these to the channels already installed.
To perform a custom update:
- Select "Custom Update" using the
- Move to "Channel Number" using the
u or i button.
y button.
- Select a channel number using the remote control number
buttons.
- Press the "OK" button to tune to the channel number.
- Press "OK" again to launch installation.
The "Manual update in progress" screen is displayed,
indicating the scanning progress and number of channels
found.
7.2.1.3 Full reinstallation
This option is used to fully reinstall all available channels.
To perform full reinstallation:
- Select "Full reinstallation" using the
- Press the "OK" button to launch the reinstallation.
The "Full reinstallation progress" screen is displayed,
indicating the scanning progress and number of channels
found.
7.2.1.4 Installation success/failure
Depending on the installation results,a screen is displayed:
- Either indicating the number of channels found.
- Or indicating that installation failed.
In both cases,press the OK button to go back to the main
menu.
22 CHANGING THE SETTINGS OF YOUR RECEIVER
u or i button.

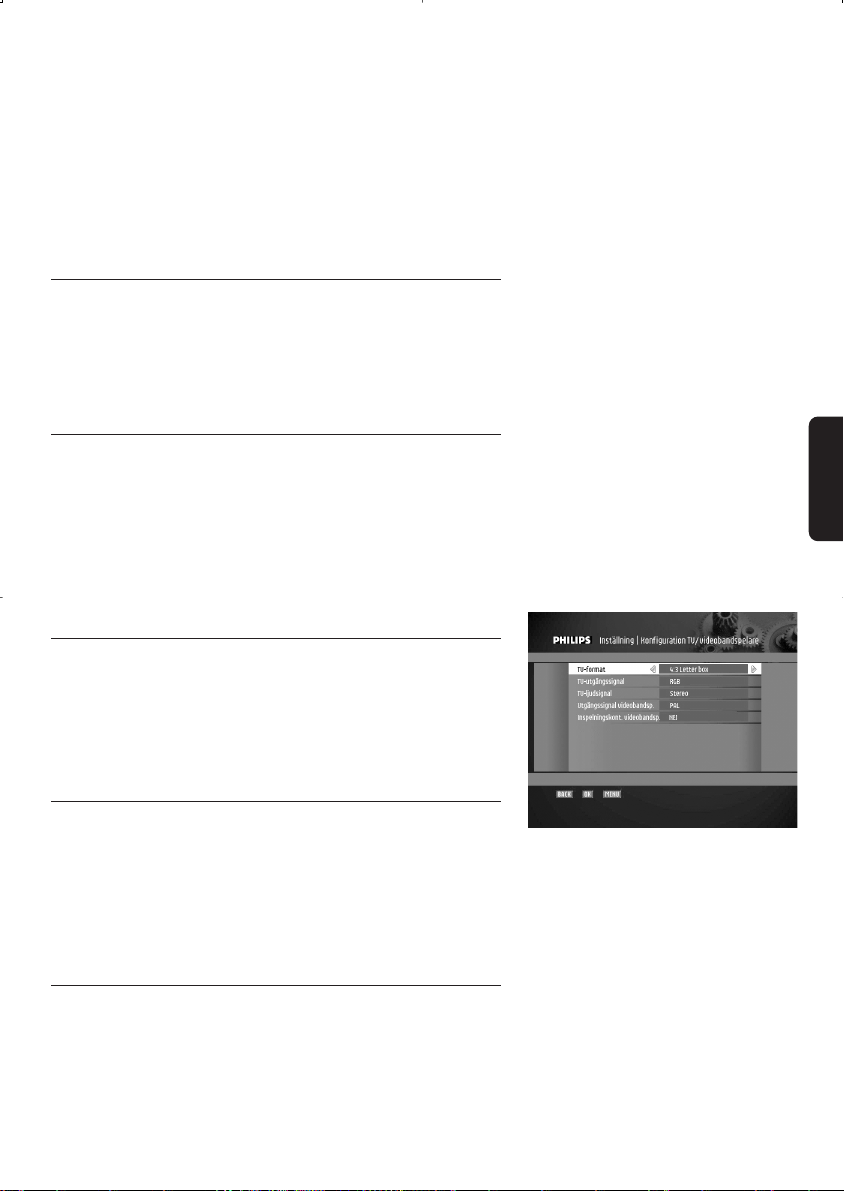

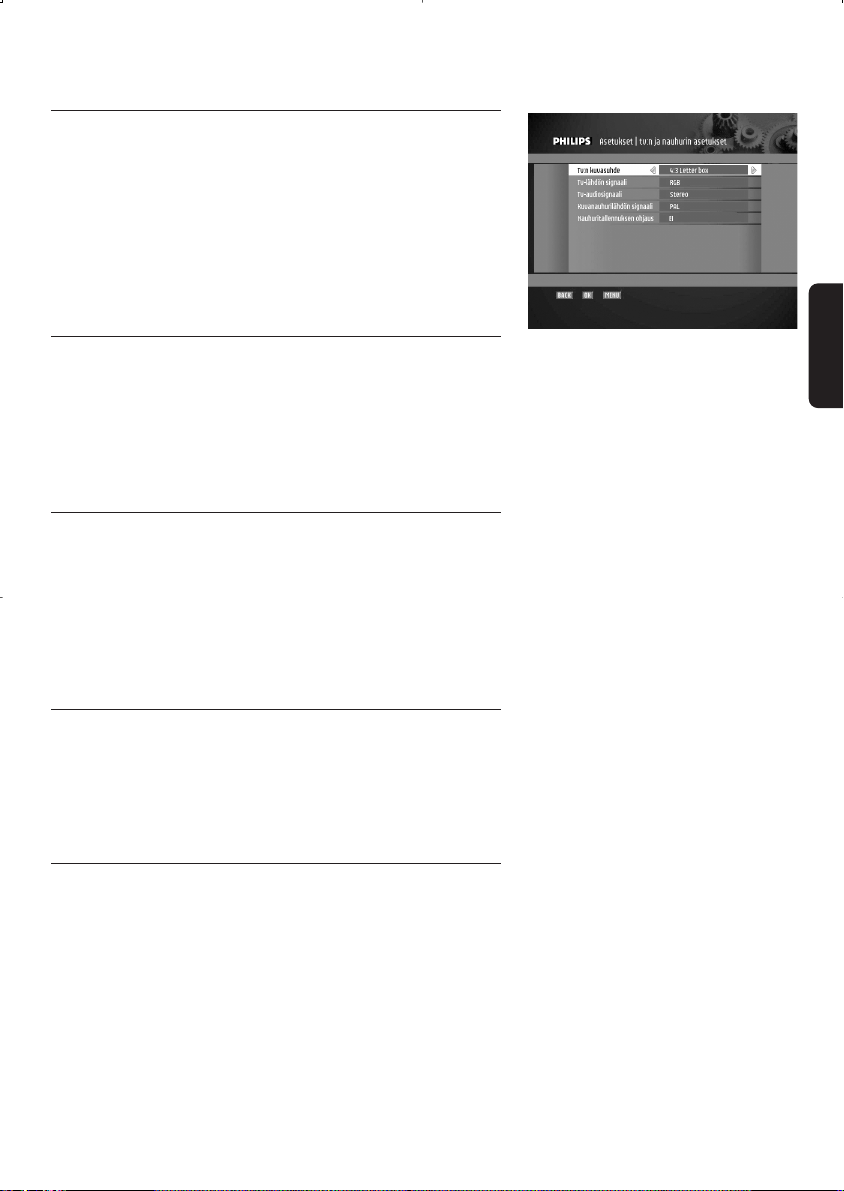

7.2.2 TV/VCR configuration
This feature is used to configure your STB outputs.
Use the
Select a value for each using the
t or y button to move from one item to another.
u or i button, then press
"OK" to confirm or "BACK" to cancel.
Note:These settings have been preset for your country.
7.2.2.1 TV Format
This feature is used to select the viewing format that best
suits your TV.
o 16/9
o 4:3 Letterbox
o 4:3 Pan&Scan
7.2.2.2 TV output signal
This feature is used to match your TV and VCR output
signals.
o RGB
o PAL
o SECAM
o S-VIDEO
7.2.2.3 TV audio signal
Depending on the capability of your TV,select one of the
following options:
English
o Stereo
o Mono
7.2.2.4 VCR output signal
Note:This value is automatically set by the system according to
the "TV output signal" option you selected.
o PAL
o SECAM
o S-VHS
CHANGING THE SETTINGS OF YOUR RECEIVER 23
English
7.2.2.5 VCR recording control
This feature is used to select the control method that best
suits your VCR:
o NO
o PREPARE RECORD
o RECORD LINK
For more details,see chapter 10.
Note:This setting is also applicable for Philips DVD recorders or
other brand equipment that support one the two control systems.

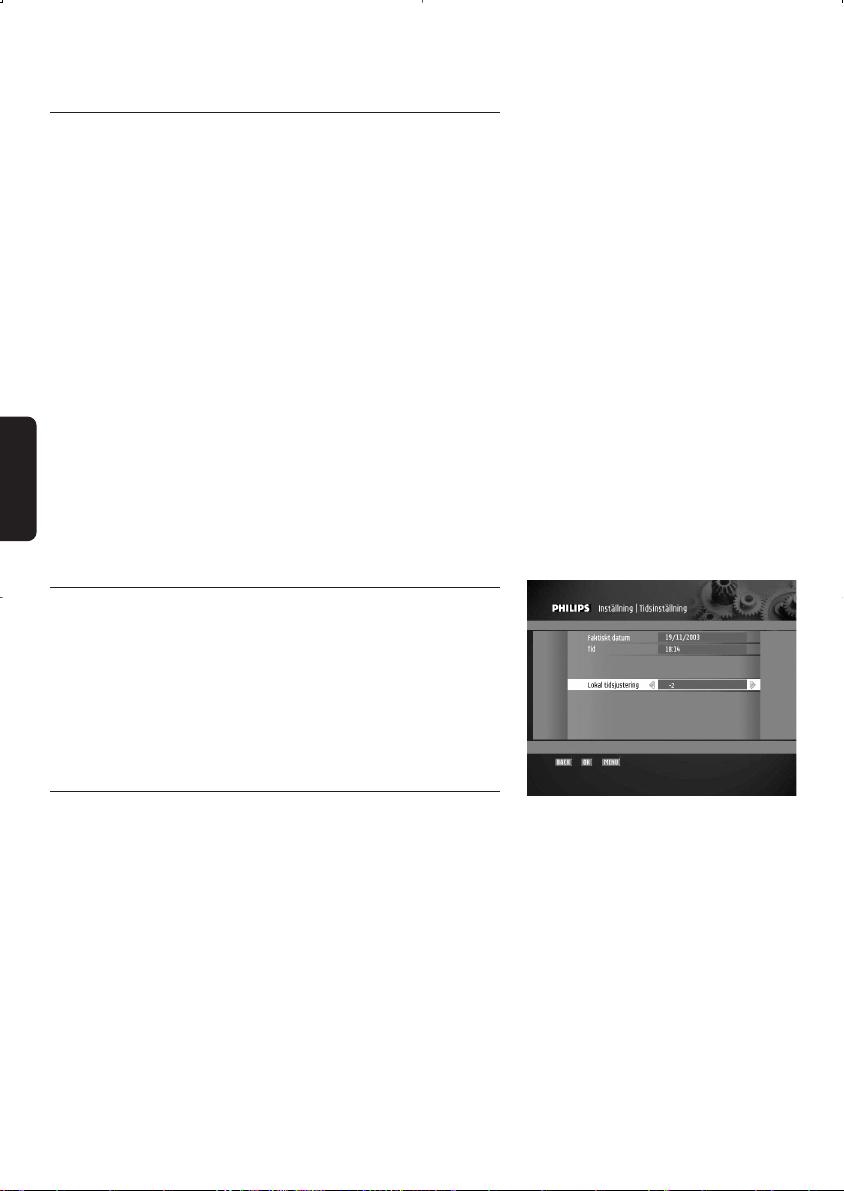

7.2.3 Time Setting
This screen is used to set the local time offset with respect
to actual local time obtained from the network.
- Scroll up or down to select the appropriate offset value
(from -12 to +12).
- Press "OK" to store the selected value and go back to the
previous screen or BACK" to cancel and go back to the
previous screen.
7.2.4 Remote Control Setting
If you have other equipment in your home and the remote
control of the Philips receiver causes interferences,you can
change the setting of the remote control using this feature.
To change the remote control setting:
- Press number buttons 1 and 3 simultaneously for
3 seconds.
- Release the two buttons simultaneously.
- Enter the new setting:
o Either press number button 4 (corresponding to the
new setting);
o Or press number button 3 to come back to the default
setting.
Notes:You have 120 seconds to perform changes. At the end of
this time period, the "Remote control change" screen is displayed,
indicating whether you changed the remote control setting or not.
At first power up of the remote control (or battery change while
pressing a button) the default setting (value 3) is restored.
24 CHANGING THE SETTINGS OF YOUR RECEIVER
7.2.5 Reinstallation
This feature is used to reset the receiver,i.e.erase all
services and user preferences.
- Either press the "OK" button to erase all data and go to
the "WELCOME" screen.
- Or press the BACK button to go back to the previous screen.
7.3 Favourites lists
This menu is used to create,modify and delete favourites
lists.

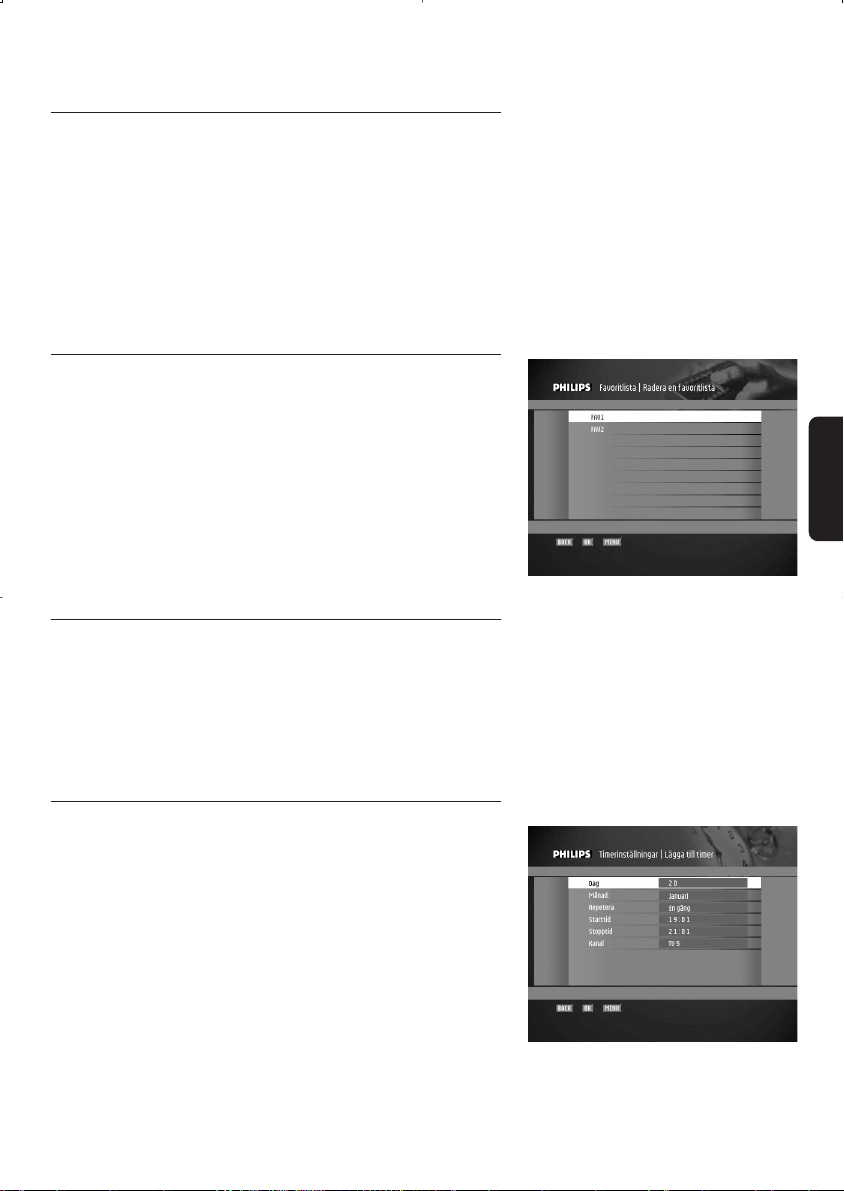

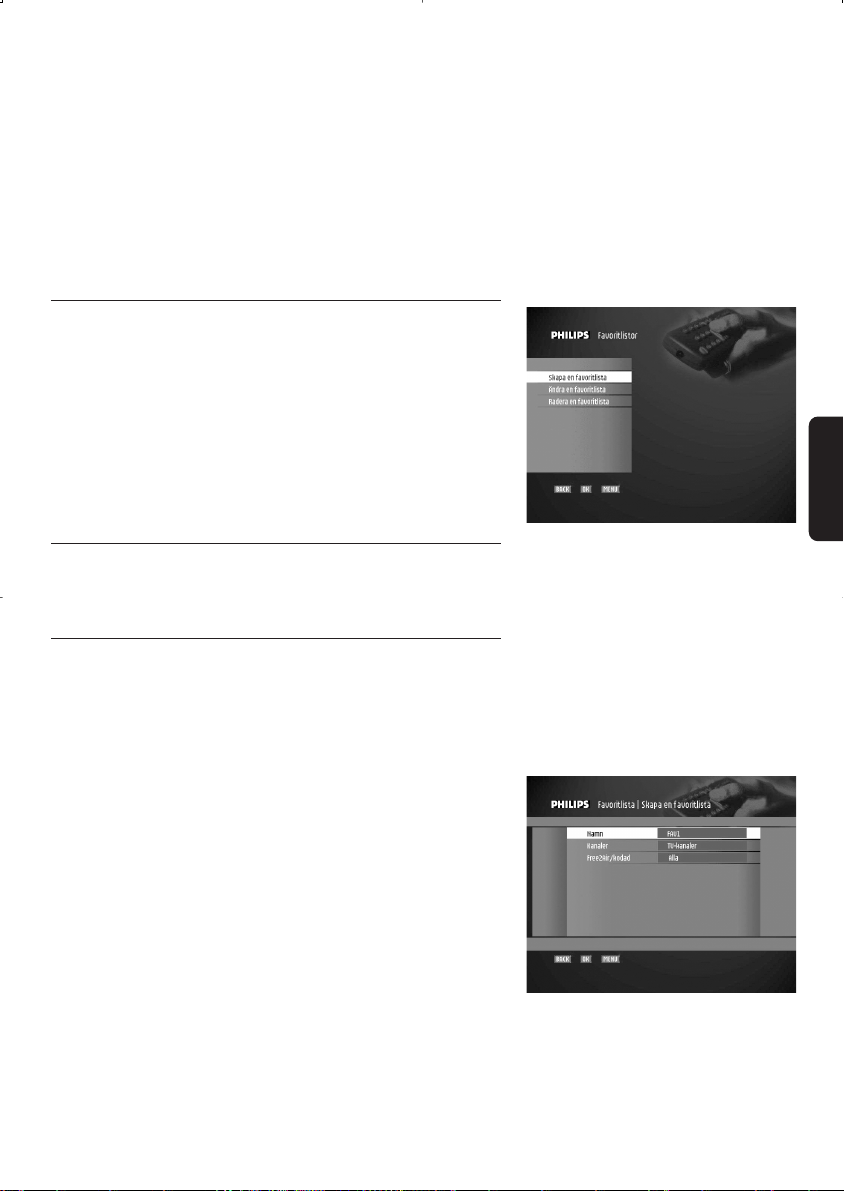

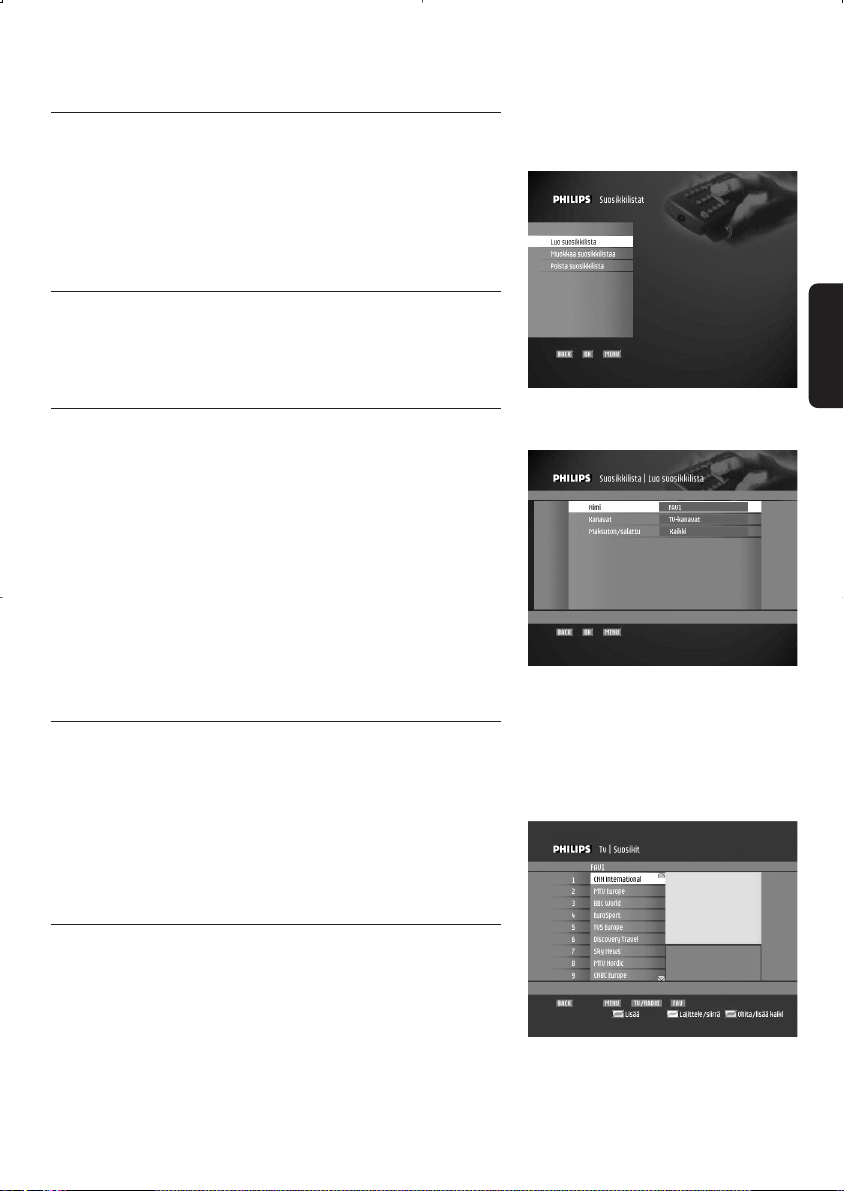

7.3.1 Create a Favourites list
This feature is used to define criteria for a new favourites
list. The list default name is displayed at the top of the
screen.
- Move to "Channels" using the
- Select the service type, i.e. either "TV channels" or "Radio
channels".
- Move to "Free2air/scrambled" using the
- Select the encoding type, i.e. "Free2air" for free channels
only,"scrambled" for scrambled channels only or "All" to
select all available channels.
- Press "OK" to create the list with the selected criteria.
The "favourites lists" screen is displayed.
- Press "BACK" or "MENU" to go back to the main menu.
y button.
y button.
English

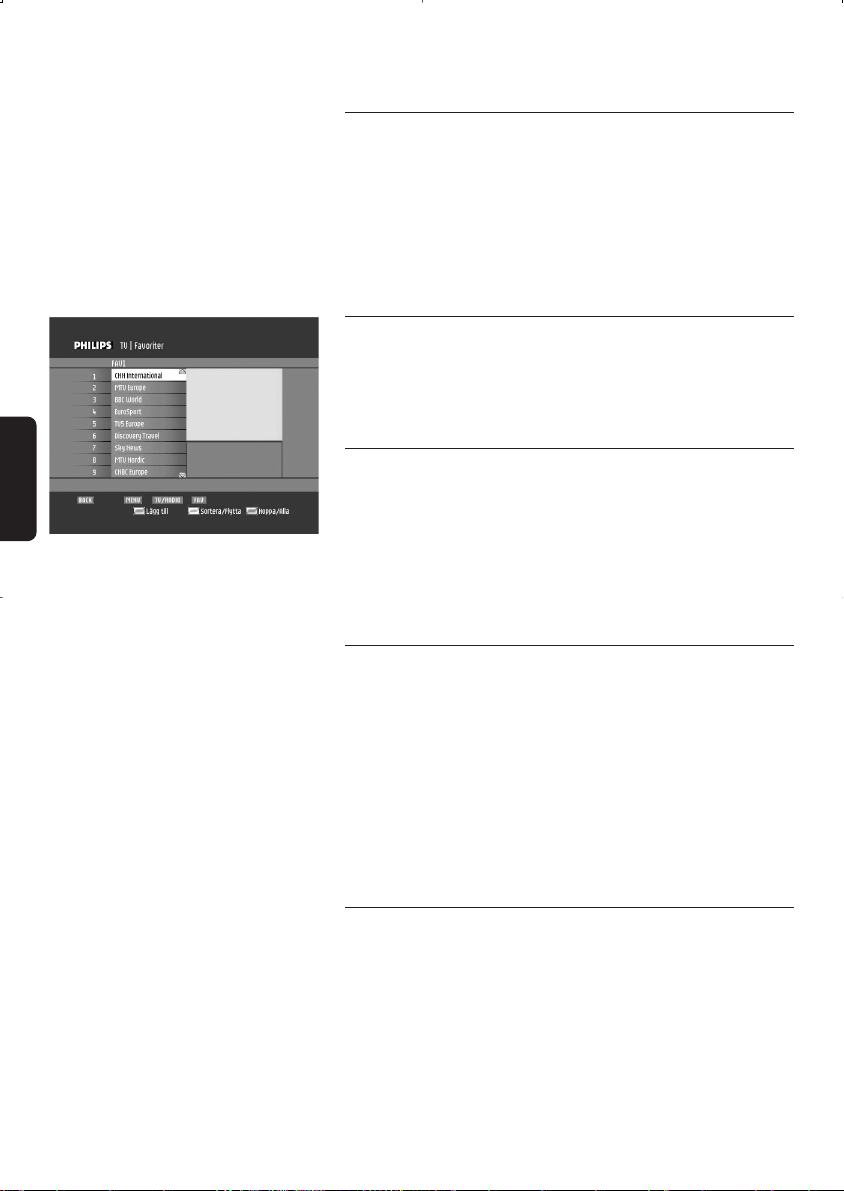

7.3.2 Modify a Favourites list
This screen is used to modify a favourite list.
The current list name is displayed above the list.Use the
"FAV" button to access other lists. In the case of a new list,
all the channels matching the criteria selected at the creation
are listed.To select a modification option,press the button of
the corresponding colour.
7.3.2.1 Add/Skip a channel (green button)
- Select a channel from the list.
- Press the green button to add the selected channel to the
current list or skip it.
The channels belonging to the current list are signalled with
markers.
CHANGING THE SETTINGS OF YOUR RECEIVER 25
English
7.3.2.2 Lock/unlock a channel (red button)
- Select a channel belonging to the current list.
- Press the red button to lock or unlock the selected
channel.
Locked channels are signalled with a lock icon.
Note:The channel is not only locked or unlocked in the current list,
but also in any list it belongs to.
7.3.2.3 Sort/move a channel (yellow button)
This option is used to sort the channels of the current list in
alphabetical order or manually.
To sort the channels of the current list in alphabetical order:
- Press the red button;the channels are sorted automatically.
To move the channels of the current list manually:
- Press the green button.
- Highlight the channel to be moved and press "OK".
- Select the new channel position and press "OK".
The channel moves to this position in the list.
7.3.2.4 Skip/Add all channel (blue button)
To skip/add all available services to the current list:
- Press the blue button.
To skip all the available services from the current list:
- Press the red button.
To add all the available services to the current list:
- Press the green button.
The channels belonging to the current list are signalled with
a white marker.
7.3.2.5 Saving confirmation popup
If you made any modification using the above screens,a
confirmation popup is displayed,prompting for confirmation
that you want to save the modification(s).
To save the modification(s):
- Select Yes using the
- Press the "OK" button.
To go back to the "Modify a programme list" screen:
- Press the "BACK" button.
CHANGING THE SETTINGS OF YOUR RECEIVER
26
u or i button.

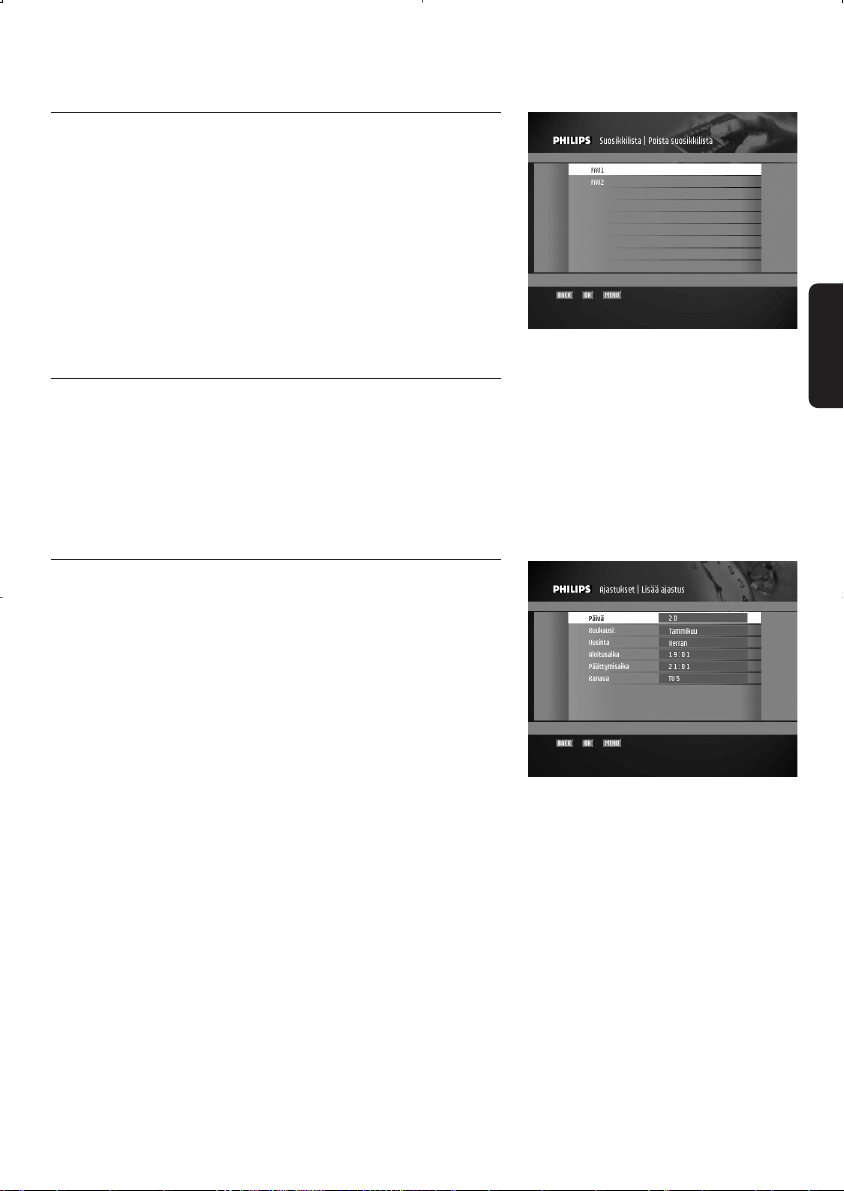

7.3.3 Delete a Favourites list
To delete a favourite list:
- Select the favourites list you want to delete the
button.
- Press "OK". A popup screen is displayed,prompting for
confirmation that you want to delete the list.
- Press the "OK" button. A confirmation message is
displayed.
From the confirmation message screen,you can go back to
the "Favourites list" screen by pressing the "OK" button or
"Delete a favourites list" by pressing the "BACK" button.
t or y
7.4 Timers
Timers are used to perform VCR or DVD recordings,or
turn the receiver to standby mode (sleep timer).
Note: If the parental control is enabled, you need to enter your
PIN code to access this menu.
7.4.1 Add timer
This feature is used to set new timers.By default the current
day, time and channel are preset.
- Modify these values as necessary,using the
to select the month,repeat mode and channel,and
numerical buttons to enter numerical values:
o Day
o Month
o Repeat
o Start time
o Stop time
o Channel
- Press "OK" to store the values and move to the "Service
selector" screen.
u or i button
English
Note: If some of the selected values are incorrect, or in case of a
timer conflict, an error message is displayed. Modify the
appropriate value(s) and press "OK" again.
To modify existing timers, use the "Modify timer" feature.
CHANGING THE SETTINGS OF YOUR RECEIVER 27
English
7.4.2 Modify timer
When selecting the "Modify timer" item,the first screen

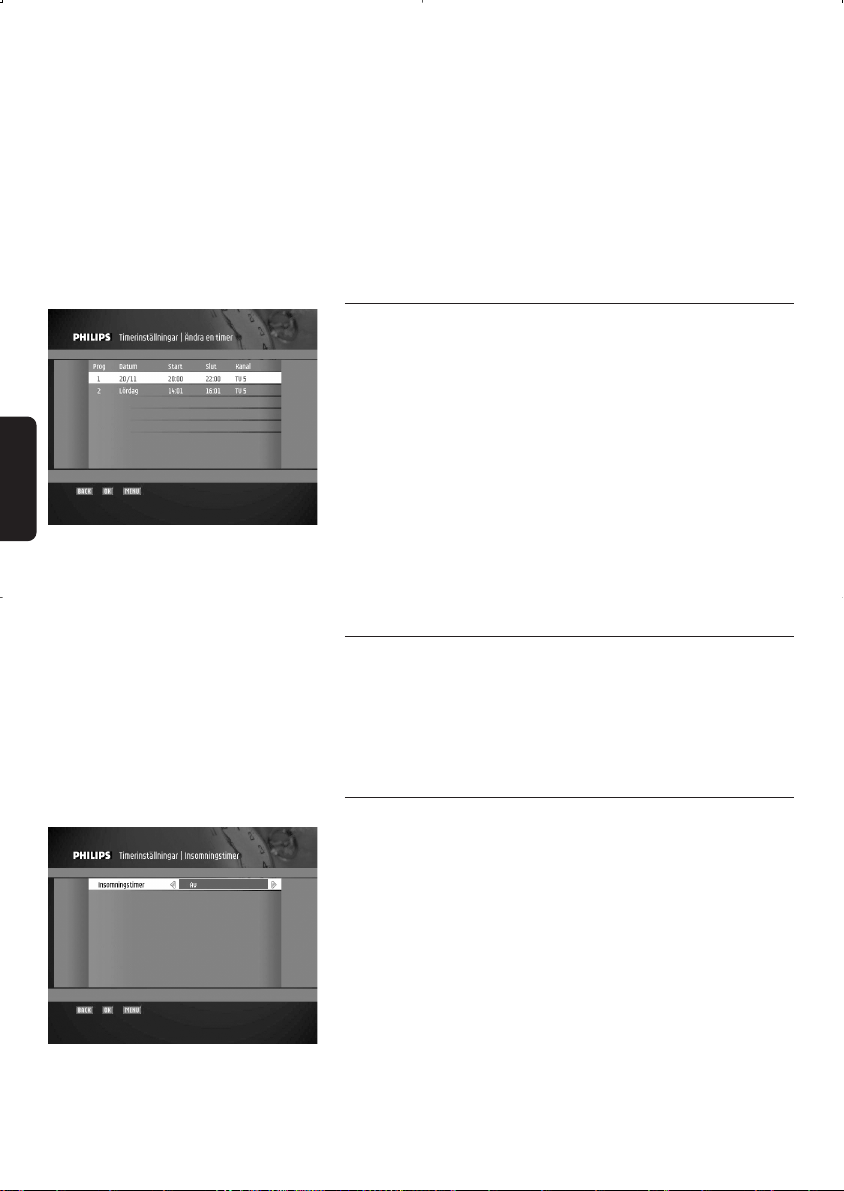

displayed is the "Timer list" screen:
- Select the existing timer you want to modify.
- Press the "OK" button to confirm your choice.The
"Modify timer" screen is displayed. This screen is identical
to the "Add timer" screen described above.
- Modify the appropriate value(s).
- Press the "OK" button to store the values and move to
the "Service selector" screen.
Note: If some of the selected values are incorrect, or in case of a
timer conflict, an error message is displayed. Modify the
appropriate value(s) and press "OK" again.
7.4.3 Delete timer
This menu is used to delete existing timers.
When selecting the "Delete timer" item,the first screen
displayed is the "Timer list" screen:
- Select the existing event you want to delete.
- Press the OK button to confirm deletion.

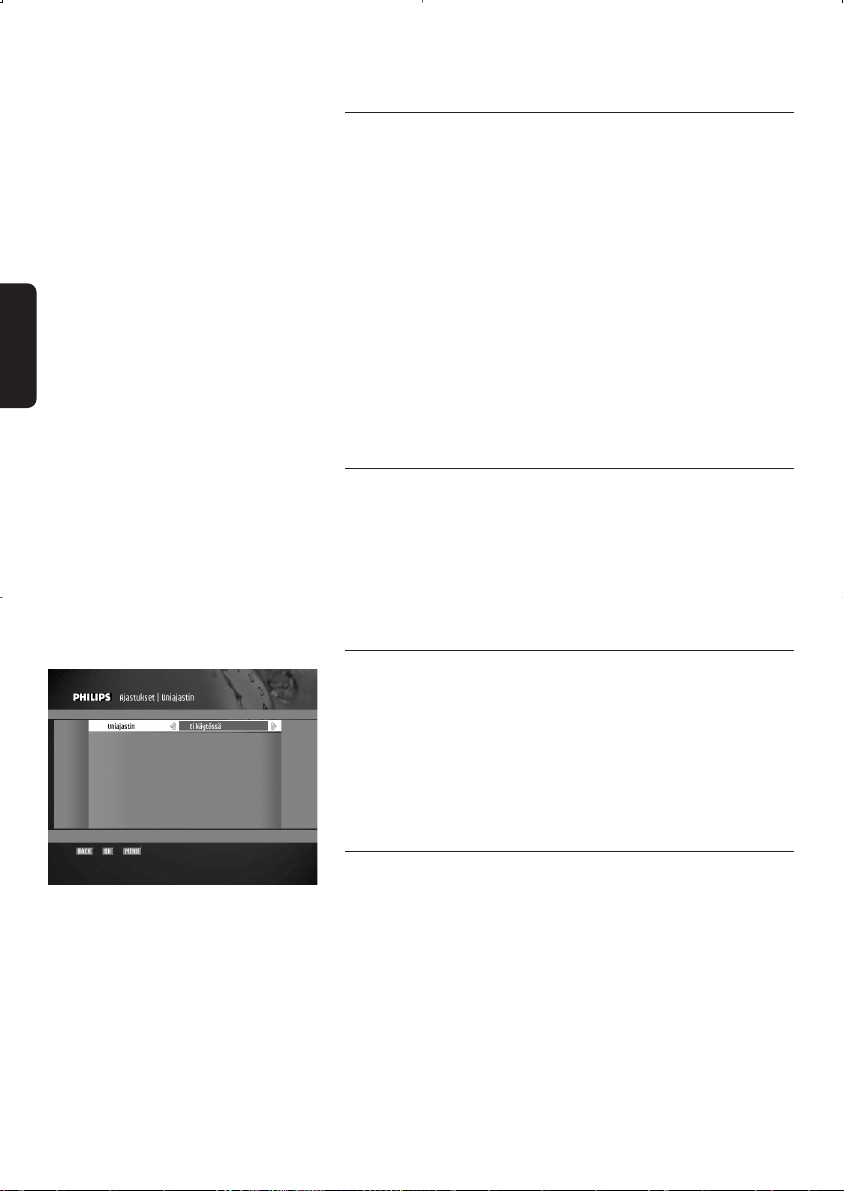

7.4.4 Sleep Timer
This screen is used to set sleep timers.Sleep timers are used
to automatically turn off the receiver after a set time.
To set a sleep timer :
- Select the sleep timer duration using the
- Press the OK button to validate the selected value and go
back to the "Timers" screen.
u or i button.
7.5 New channels
This feature is used to view the list of new channels installed
following an update.
CHANGING THE SETTINGS OF YOUR RECEIVER
28
7.6 Subscription Settings
The information that can de accessed through this menu
depend on the operator supplying the smart card.
7.7 User preferences
This menu is used to customize your receiver.
Note: Access to this menu can be protected by PIN code.
7.7.1 Languages

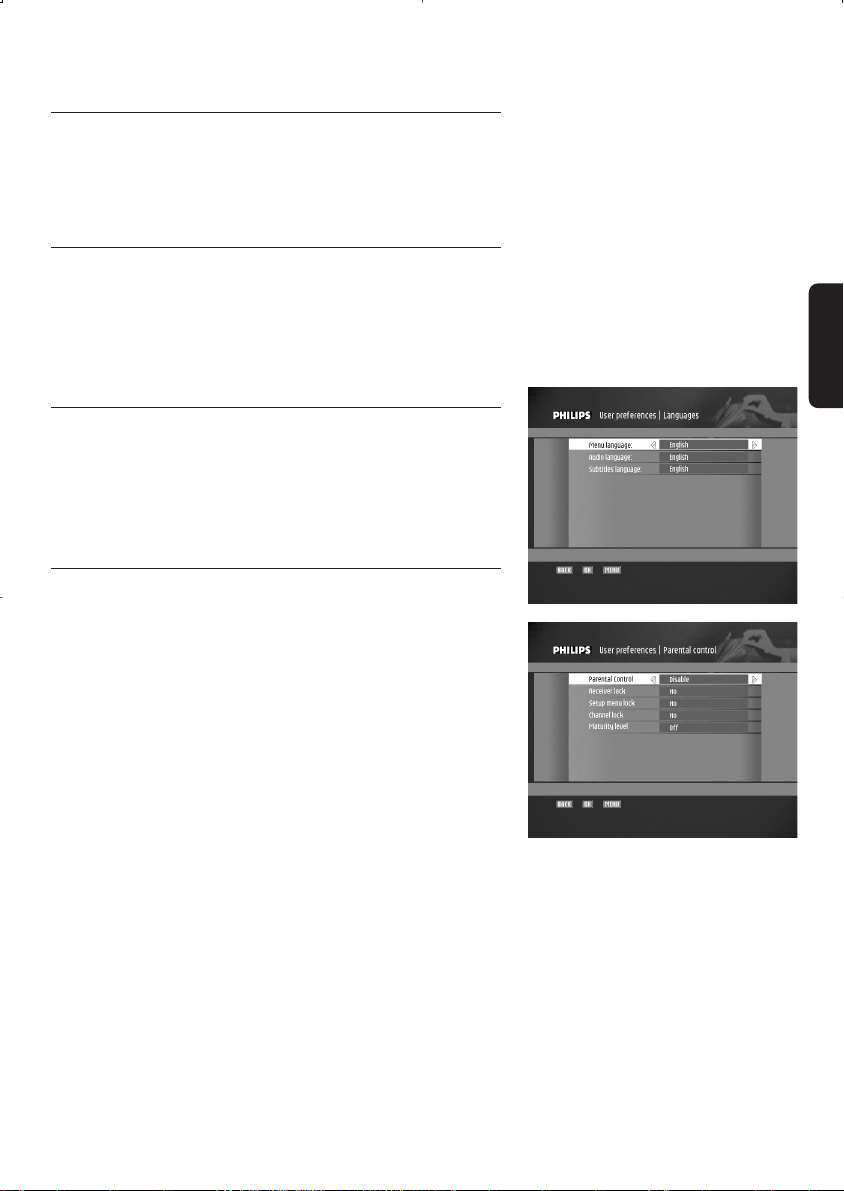

This screen is used to select a language for the menu items,
the default audio language, and the subtitles language:
- Select a language for each item.
- Press the OK button to store the languages selected and
go back to the previous screen.
7.7.2 Parental Control
Note: Once the Parental Control has been enabled, you need to
enter your PIN code to access this menu.
This menu is used to manage locking options.
- Select values for the following options:
o Parental Control (to enable parental control or not).
Enable parental control to access the subsequent
locking options
o Receiver lock (to be prompted to enter the PIN code
at turn-on)
o Setup menu lock (to lock access to the "Setup menu"
screen)
o Service lock (to enable locking of the channels set as
"locked" in the favourites lists)
o Maturity level (to specify an age limit and prevent
access to all programmes which are not in the age
limits as defined by local authorities).
- Press the "OK" button to validate all parameters and go
back to the previous screen.
English
CHANGING THE SETTINGS OF YOUR RECEIVER 29
English
7.7.3 Pin code change
This screen is used to modify the 4-digit code you are
prompted to enter to access locked channels or menus.
When selecting the "PIN code change" item,the first screen
displayed is the "PIN code" screen.
Note:This screen is displayed each time you try to access a locked
menu or channel.
To change your PIN code:
- Enter your PIN code as prompted.
- Press the OK button.You are then prompted to enter
your new PIN code.
- Enter a new 4-digit code.
- Press the OK button. A new field is displayed to confirm
the new PIN code.
- Enter the new PIN code in the lower field.
- Press OK to validate your new PIN code and go back to
the previous screen.
Note: If you have forgotten your PIN code, you can reset it to the
default PIN code ("0000") using the following key sequence:
blue/yellow/red/green/white/yellow. Keep this code secret to
prevent others from using it.This feature is available only when the
"PIN code access" screen is displayed.

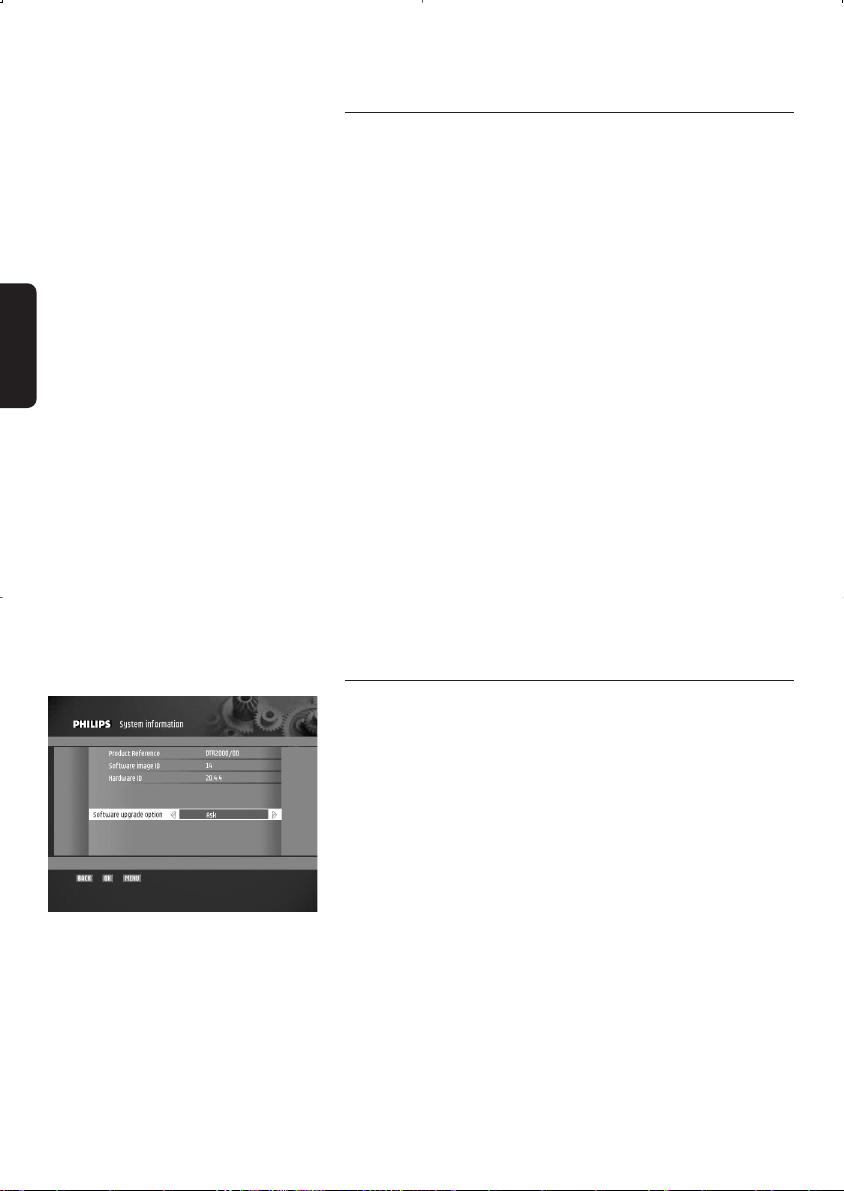

7.8 System Information
This screen is used to view information about the receiver,
including the receiver reference, software version and
hardware type.
It is also used to set the receiver software update mode.To
select the update mode:
- Select the software update option from the followings:
o Ask (to be prompted to download or not software
updates)
o Always (to automatically download software updates)
o Never (not to download any software updates).
- Press the OK button to confirm.
Note: Software updates will upgrade your receiver and ensure
smooth operation.We advise you to accept the downloads offered.
If you choose to be prompted to download ("Ask" option), an
alarm will be displayed when new software is detected.
30 CHANGING THE SETTINGS OF YOUR RECEIVER
Loading...
