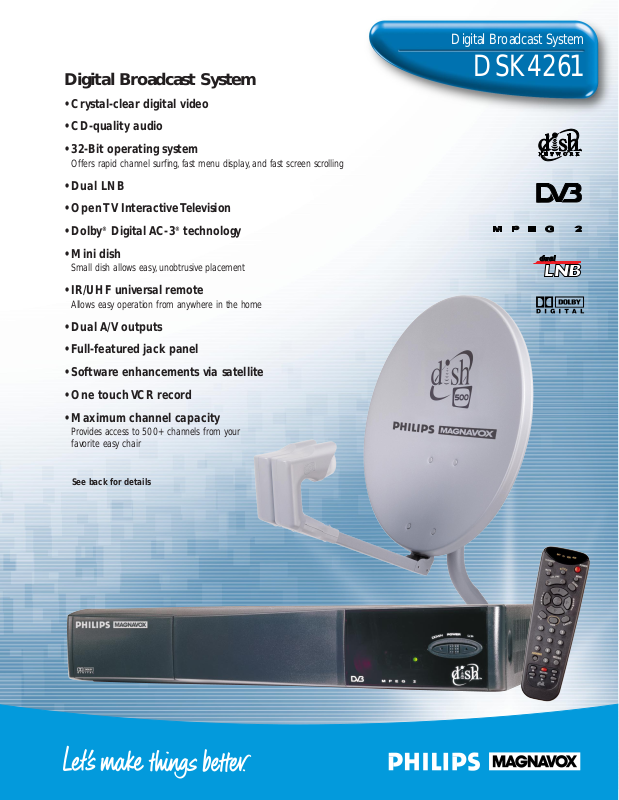

Philips DSK4261D User Manual

Digital Broadcast System

• Crystal-clear digital video

• CD-quality audio

• 32-Bit operating system

Offers rapid channel surfing,fast menu display,and fast screen scrolling

• Dual LNB

• Open TV Interactive T elevision

• Dolby

Digital AC-3®technology

• Mini dish

Small dish allows easy,unobtrusive placement

• IR/UHF universal remote

Allows easy operation from anywhere in the home

• Dual A/V outputs

• Full-featured jack panel

• Software enhancements via satellite

• One touch VCR record

• Maximum channel capacity

Provides access to 500+ channels from your favorite easy chair

See back for details

Digital Broadcast System

DSK4261

Technical Features

• 32-Bit operating system

• Dolby® Digital/AC-3® Technology

• 16-Color onscreen graphics

• DVB compliant

• MPEG 2 Video

• Software enhancements via satellite

Hardware Features

• Maximum channel capacity

• Mini dish

• IR/UHF universal remote control

• Dual LNB

• Parental control with password protection and V-chip technology for ratings and content

• Full-featured jack panel

• Easy access SmartCard with protective front cover

• Antenna tracking tones for easy installation

• Channel 3/4 RF modulator

• S-VHS output

• Dual audio/video output

• Phone jack with 2400 baud modem

• IR output for VCR control

• Preprogrammed codes for TV, VCR, cable, and amplifiers

• Four remote control LEDs

Software Features

• Interactive information “Soft Keys” in the menu explain the feature functions

• CD-music song-titling

• One touch record

• Onscreen program guide with page-at-a-time scrolling

• External antenna/cable input

• Theme search and display listings

• Four favorite channel profiles with 30 favorite channels per profile

• Last channel recall

• Info button for detailed program information

• Page key for quick paging

• Quick channel entry

• Ten programmable event times

• Alternate language support

• Pay-Per-View onscreen purchase summary

Specifications subject to change without notice.

Digital Broadcast System

DSK4261

UPC:037849881125 Product Dimensions: 14.75"W x 2.75"H x 9.75"D Carton Dimensions: 26.5"W x 15"H x 23.5"D Net Weight:22 lbs. 3 oz. Gross W eight:23 lbs. Master Pack:1

Carton Contains: Digital Broadcast Satellite Receiver, IR/UHF Universal Remote Control,18" Dish Antenna with Dual LNB, Interconnecting Cables,Operating Instructions,Warranty Information

Manufactured under license from Dolby Laboratories.“Dolby” and the double-D are trademarks of Dolby Laboratories.

A Division of Philips Electronics North America Corp. KID Design 99275, Philips Consumer Electronics Co.

Designed with “Open TV” technology,this

Philips receiver runs present and future

multimedia applications such as regional

weather foecasts and interactive

onscreen programming information.
