Introduction
Congratulations on your purchase of the new digital camera.
Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera.
System Requirements
In order to get the most out of your camera, your computer must meet the following system requirements:
For Windows:
• Windows 2000/XP/Vista/Win7
• Processor: Pentium II 450MHz or above
• Memory: 512MB or above
• HDD space: 200MB or above
• 16bit color display monitor
• Microsoft DirectX 9.0C
• USB port and CD-ROM drive
For Macintosh:
• Power Mac G3 or later
• Mac OS 10.3.X (X=0~9) ~ 10.6.6 or later
• Memory: 512MB or above
• Q.Time player ver. 6.0.3 or above
• USB port and CD-ROM drive
Main Features
• 14 mega pixels resolution
• Up to 5x optical zoom and 5x digital zoom
• 2.7 inch color LCD monitor
• 32 MB internal flash memory with optional external SD/SDHC/SDXC card
• Supports up to 4GB of SD card, and up to 32GB of SDHC card and to 64GB of SDXC card
• Easy-to-use button interface
• DCF, DPOF, PictBridge compatibility
• Slideshow to review still images
• A/V output to view your images, videos and audio on your TV
• USB port to transfer images, videos and audio to your PC
5
Package Contents
Please check the contents of your camera package. It should contain:
Digital camera Rechargeable battery x 1 pcs Battery charger (optional)
Wrist strap USB adapter USB cable
AV cable (optional) CD-Rom Quick Start Guide/
User Manual (optional)
Camera pouch
(optional)
6
Camera Views
Front View
1. Flash
2. Self-timer LED
3. Lens
4. Microphone
Back View
Top View
5. LCD monitor
6. LED indicator
7. Menu button
8. Function/Delete
button
9. OK button/4-way
navigation control
10. Mode Switch
Photo mode
Movie mode
Playback mode
11. Power button
12. Zoom dial
13. Shutter button
Bottom View
7
14. Battery/Memory card
compartment
15. Tripod screw hole
16. Speaker
Left/Right View
Camera Buttons
Your camera is equipped with different buttons for ease of use.
Button Description
17. USB/TV Out
18. Strap ring
Power Press the Power button to turn the power on/off.
Shutter Press to capture an image or start/stop recording video or audio clip.
In photo and movie mode, spin the zoom dial to left to zoom out, right to zoom in.
Zoom dial
Menu Press to enter or exit menu/submenu.
Function/Delete
In Playback mode, spin to zoom in to magnify image or zoom out enter 9-image/calendar
thumbnails.
In Photo and Movie mode, press to enter function menu.
In Playback mode, press to delete an image, video or audio clip.
8
Navigation Control

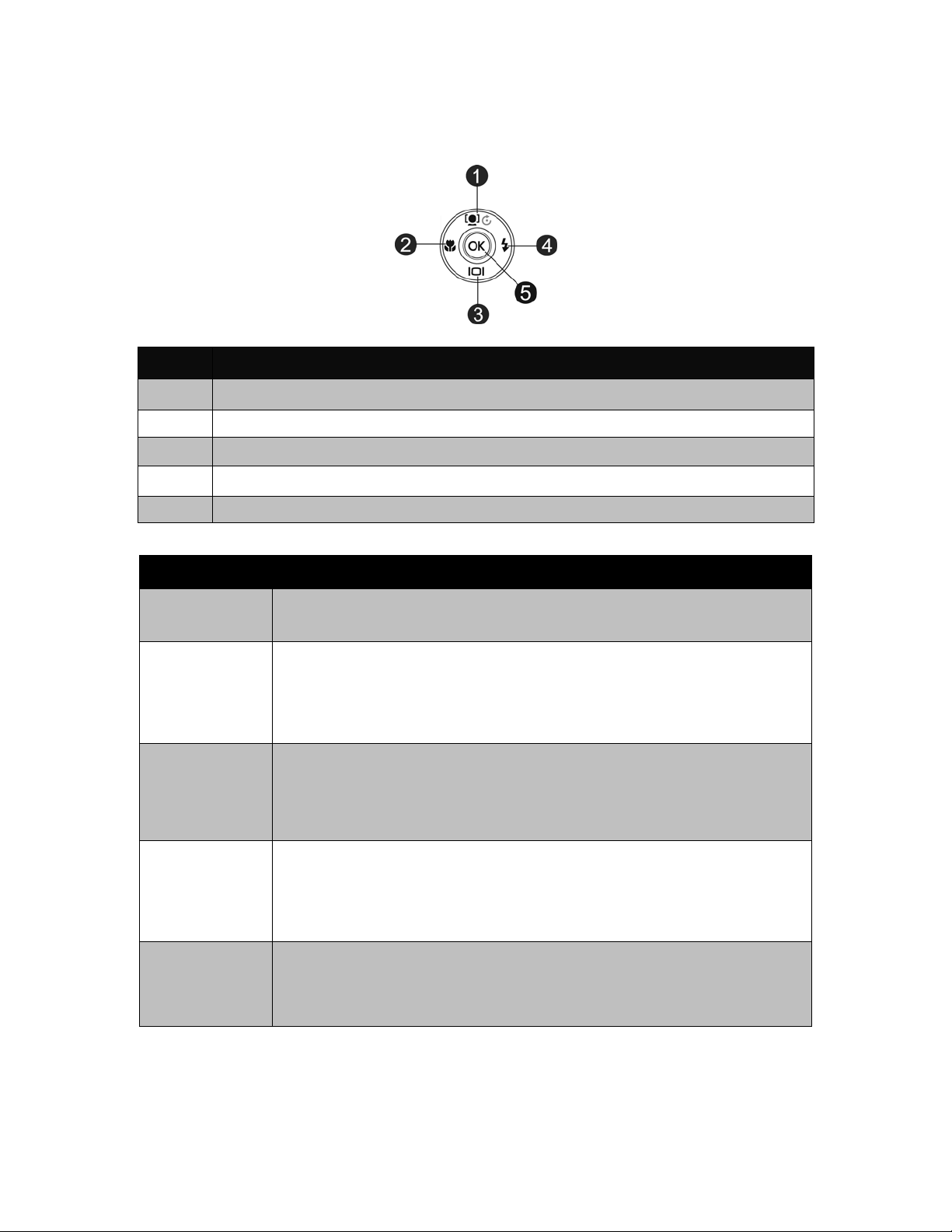

The 4-way Navigation Control and the OK button allow you to access the various menus available from
the On Screen Display (OSD). You can configure a wide range of settings to ensure maximum results from
your images and videos. Further functions of these buttons are as follows:
No. Description
1 Face Tracking/Rotate Button
2 Macro Button
3 Display Button
4 Flash Button
5 OK Button
Button Description
OK
Flash/Right
Macro/Left
Up/Face Tracking/
Rotate
Display/Down
1. Confirm a selection when using the OSD menus.
2. In Playback Movie/Audio mode, press to Start video or audio playback.
1. In Photo Mode, press to scroll through the flash mode options.
(Auto, Red-eye Reduction, Forced On, Slow Sync and Forced Off)
2. In Playback mode, press to view the next image, video or audio clip.
3. In playback Movie mode, press to Forward video playback.
4. In Menu, press to enter the submenu or to navigate through the menu
selections.
1. In Photo Mode, press to scroll through Macro options. (Super Macro, Pan Focus,
Infinity and normal)
2. In Playback mode, press to view the previous image, video or audio clip.
3. In Playback movie mode, press to Rewind video playback.
4. In Menu, press to exit a submenu or to navigate through the menu selections.
1. In Photo Mode, press to turn the face tracking function on and off.
2. Playing Video/Audio file, press to Pause/Start video or audio playback.
3. In Playback photo mode, press to rotate the image clockwise 90 degrees by each
press of the button. This feature is applicable for still images only.
4. In Menu, press to navigate through the menu and submenu selections.
1. The LCD monitor can be changed into 5 different types such as Basic, Full, None,
Guideline and Help screen.
2. Playing Video/Audio file, press to stop video/audio playback.
3. In Menu, press to navigate through the menu and submenu selections.
9
Camera Memory
Internal memory
Your camera is equipped with 32MB of internal memory. Users can store files up to 13MB. If there is no
memory card inserted in the memory card slot, all images, videos and audio clips recorded are
automatically stored in the internal memory.
External storage
Your camera supports SD cards of up to 4GB in size. It also supports SDHC cards with a maximum capacity
of 32GB. Then also supports SDXC cards with a maximum capacity of 64GB. If there is a storage card
inserted in the memory slot, the camera automatically saves all images, videos and audio clips in the
external storage card. The icon
indicates the camera is using SD card.
Not all cards may be compatible with your camera. When purchasing a card, please
check the card's specifications and take the camera with you.
Getting Started
Attach the Camera Strap
Inserting the Battery
Follow these instructions to insert the rechargeable battery into the battery/memory card compartment.
Please read "Battery Information" on page 4 before inserting/removing batteries.
1. Make sure the power is off before inserting the battery.
2. Unlock and open the battery/memory card compartment
at the bottom of the camera.
3. Insert the battery into the compartment with the terminal
facing inside the camera with correct orientation as
shown.
10
4. Close and lock the battery/memory card compartment.
Inserting an SD/SDHC/SDXC Memory Card
Expand your camera’s storage by using SD, SDHC or SDXC
memory cards.
1. Unlock and open the Battery/memory card compartment at
the bottom of the camera.
2. Insert the SD/SDHC/SDXC card into the memory card slot
with the metallic part facing the back side of the camera.
3. Push the SD/SDHC/SDXC card into the memory slot until it
clicks into place.
4. Close and lock the Battery/memory card compartment.
To remove the SD/SDHC/SDXC card
1. Unlock and open the battery/memory card compartment.
2. Gently push the card until it pops out.
3. Pull out the card carefully.
Windows 2000/XP are not support SDXC card (exFAT format). But in Windows XP
(Service Pack 2 or 3), you can download exFAT patch update to support SDXC card.
Charging the Battery by USB
In other way charging the battery, you can use the USB cable to connect the camera with PC or USB
adapter.
1. Connect the camera with the USB cable as shown.
2. Connect the other end with the USB adapter and plug it
into a power outlet or with the USB port of PC directly for
charging.
• When the battery is charging, the LED indicator lights
up.
• When the battery is
fully charged, the LED indicator
goes off.
• When the battery is unusual charged, the LED
indicator flashes rapidly.
• When the camera charges without the battery inside,
the LED indicator goes off.
It's recommended not operating the camera when charging.
11
Turning the Power On and Off
There are two ways to turn on the camera:
• The startup image displays briefly and the startup sound plays if enabled. The zoom lens extends and
the camera is turned on in Record mode.
• The camera is turned on in Playback mode. The zoom lens is not extended.
To turn off the camera, press the Power button.
See "Modes" on page 12 to know more about Record and Playback mode.
Initial Settings
When you turn on your camera for the first time, you will be asked to do the initial settings of your camera.
First is the setup of language menu. Specify in which language menus and messages are to be displayed on
the LCD monitor.
Setting the Language
1. Press , , or to move through the selection.
2. Select a language, and then press OK to apply.
Setting the Date & Time
1. Press or to move through the selection.
2. Press
3. Press OK to apply.
or keys to change the value for the date and time.
4. If necessary, press
Now, you are ready to start taking images and videos.
Holding down
to close the menu.
or keys to change the values continuously.
Modes
Your camera has three modes:
Photo Mode
• Slide the mode switch to [ ] to capture images.
You can record audio clips by selecting Voice REC from scene mode in this mode.
Movie Mode
• Slide the mode switch to [
] to record videos.
Playback Mode
• Slide the mode switch to [ ] to view and edit captured images or playback videos and audio clips.
The recording of voice memo attached to images is available in this mode.
12
Using the LCD monitor
The LCD monitor shows all important information regarding camera settings as well as the visual image of
your image or video. The display on the LCD monitor is called the On Screen Display or OSD.
LCD Monitor Layout
Photo Mode Screen Layout
No. Item Description
1 Record Mode Indicates the current mode.
2 Flash Indicates flash settings.
3 Self-timer/Burst Indicates drive mode settings.
4 Zoom indicator Displays zoom.
5 Shots remaining Indicates the remaining shots available.
6 Battery Indicates battery level.
7 Storage media Indicates current storage media in use.
8 Date stamp Indicates date stamp is enabled.
9 AEB Indicates AEB function is enabled
10 Stabilizer Indicates stabilizer function is enabled.
11 Saturation Displays saturation settings.
12 Contrast Displays contrast settings.
13 Histogram Graphic display of Brightness.
14 ISO Displays ISO settings.
15 Focus area Indicates focus area.
16 Shutter speed Displays shutter speed settings.
17 Aperture value Displays aperture settings.
18 Shake warning Indicates that the camera is shaking.
19 Focus Indicates focus is enabled.
20 Exposure Displays exposure settings.
21 Face tracking Indicates face tracking is enabled.
22 White balance Displays white balance settings.
23 Metering Displays metering settings.
24 Sharpness Displays sharpness settings.
25 Quality Displays quality settings.
26 Photo size Displays photo size settings.
13
Movie Mode Screen Layout
Standby layout
Recording Layout
No. Item Description
1 Record Mode Indicates the current mode.
2 Zoom indicator Displays zoom.
3 Time remaining Indicates the remaining time of video available.
4 Battery Indicates battery level.
5 Storage media Indicates current storage media in use.
6 Focus area Indicates focus area.
7 Focus Indicates focus is enabled.
8 White balance Displays white balance settings.
9 Metering Displays metering settings.
10 Movie size Displays movie size settings.
11 Key indicator Displays the commands on 4-way Navigation Control button
12 Recorded time Displays recorded time.
13 Recording status Indicates recording status.
14
Pre-record
Indicates pre-record is enable
The Pre-Record icon appears on the screen in red color as the same position as z oom
indicator.
14
Playback Mode Screen Layout
The Playback mode display varies depending on the type of image being viewed.
Playback mode display of still images:
No. Item Description
1 Playback mode Indicates playback mode.
2 Protect Indicates file is protected.
3 Voice memo Indicates voice memo is attached.
4 Button intro Indicates the button to press on the camera to play a video or audio file.
5 File no./Total no. Indicates the file number over the total number of files in the storage card.
6 Battery Indicates battery level.
7 Storage media Indicates used storage memory.
Recording
8
information
Displays recording information of the file.
9 DPOF Indicates the file is marked for printing.
10 Image Size Displays the image size settings.
15
Playback mode of videos:
No. Item Description
1 Playback mode Indicates playback mode.
2 Protect Indicates file is protected.
3 Video clip Indicates the file is a video.
4 Button intro
5 File no./Total no.
6 Battery Indicates battery level.
Indicates the button to press on the camera to play a video or audio
file.
Indicates the file number over the total number of files in the storage
card.
7 Storage media Indicates used storage memory.
8 Recording date & time Displays the date and time of the video clip.
9 Video size Indicates the size of the video clip.
10 Volume Indicates the volume while playing.
11 Video length Display the total length of the video clip.
12 Played time Indicates the played time of the video.
13 Playing status Displays playing status.
14 Capture image Capture the screenshot and save.
16
Playback mode of audio clips:
No. Item Description
1 Playback mode Indicates playback mode.
2 Protect Indicates file is protected.
3 Button intro Indicates the button to press on the camera to play a video or audio file.
4 File no./Total no. Indicates the file number over the total number of files in the storage card.
5 Battery Indicates battery level.
6 Storage media Indicates used storage memory.
Recording
7
information
8 Volume Indicates volume settings.
9 Audio length Display the total length of the audio clip.
10 Played time Indicates played time.
11 Playing status Displays playing status.
Displays recording information of the file.
17
Changing the LCD Monitor Display
The type of information displayed on the LCD monitor can be changed using the button. Press the
button repeatedly to change the LCD display from one type to another. In Photo/Movie Mode, the LCD
display can be changed into any of the following:
• Basic
• Full
• None
• Guideline
• Help screen
• The OSD information may vary depending on the record mode type.
• The following icons, if enabled, are still displayed on th e LCD even when OSD off or
Guide lines on: AEB, Face tracking, Drive mode, and Focus.
• Use the "Guide lines" to properly set image for capture.
In Playback mode, the LCD display can be changed into any of the following:
• Basic
• Full
• None
• Help screen
LCD display cannot be changed in the following situations:
• Adjusting Aperture value/Shutter speed under Manual exposure mode.
• Adjusting Aperture value under Aperture Priority mode.
• Adjusting Shutter speed under Shutter Priority mode.
• Recording video or audio clips
• Playing video or audio clips
• Playing slideshow
Recording Images, Videos and Voices
Taking Images
Now that you are familiar with your camera, you are now ready to take your images. Taking images with
your camera is very simple.
1. Turn on the camera by pressing the Power button.
2. Slide the Mode switch to Photo mode
3. Frame the shot using the focus bracket on the LCD monitor.
See illustration on the right.
4. Pressing the Shutter button down halfway automatically
focuses and adjusts the exposure, and pressing the Shutter
button down fully captures the images.
When the shake warning icon
steadily, with your arms at your side or use a tripod to stabilize
the camera to prevent blurred images.
appears, hold the camera
.
18
Setting the Zoom Control
Using a combination of 5 times optical zoom and 5 times digital zoom permits zoom photography at up to
25 times magnification. While the digital zoom can be a useful feature, the more an image is enlarged
(zoomed), the more pixelated (grainier) the image will appear. Please refer to "Setting the Digital Zoom"
on page 39 on how to setup digital zoom.
To adjusts the optical zoom:
1. Spin the Zoo m dial to zoom i n or zoom out an image.
2. The zoom indicator appears on the LCD monitor.
Zoom dial
1. Spin the dial clockwise (right) to zoom in.
2. Spin the dial counterclockwise (left) to zoom out.
To adjusts the digital zoom:
1. Activate digital zoom. See "Setting the Digital Zoom" on page 39.
2. Spin the Zoom dial clockwise/counterclockwise optically zooms in/out to the maximum until it
stops.
3. Release the Zoom dial.
Optical zoom 1X to 5X Digital zoom 1X to 5X
Digital zoom is not activated in recording videos
19
Loading...
