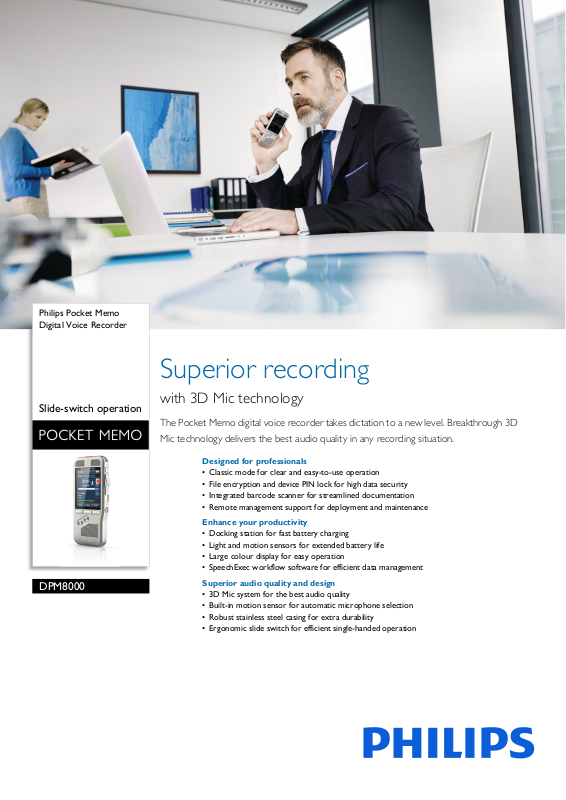

Page 1
Philips Pocket Memo
Digital Voice Recorder
Superior recording
Slide-switch operation
DPM8000
with 3D Mic technology
The Pocket Memo digital voice recorder takes dictation to a new level. Breakthrough 3D
Mic technology delivers the best audio quality in any recording situation.
Designed for professionals
• Classic mode for clear and easy-to-use operation
• File encryption and device PIN lock for high data security
• Integrated barcode scanner for streamlined documentation
• Remote management support for deployment and maintenance
Enhance your productivity
• Docking station for fast battery charging
• Light and motion sensors for extended battery life
• Large colour display for easy operation
• SpeechExec workflow software for efficient data management
Superior audio quality and design
• 3D Mic system for the best audio quality
• Built-in motion sensor for automatic microphone selection
• Robust stainless steel casing for extra durability
• Ergonomic slide switch for efficient single-handed operation
Page 2
DPM8000/00
Digital Voice Recorder
Slide-switch operation
Highlights
3D Mic system
The breakthrough 3D Mic technology uses the
built-in microphones to always deliver the best
recording results: an omnidirectional
microphone offering 360-degree sound pickup, ideal for the recording of multiple sound
sources in situations such as meetings, and a
unidirectional microphone optimised for voice
recording and accurate speech recognition
results.
Classic mode
Many users still love their analogue devices for
their simplicity and user-friendliness. The
optional classic mode gives the user the look
and feel of working with an analogue device
while retaining the advantages of digital
technology and keeping focused on the
essentials.
Docking station
The stable and superior docking station
provides speedy charging and automatic
transfer of your recording to your computer.
With an optional foot control connected, the
docking station enables hands-free recording
and transcription, even without a computer.
the device is idle, ensuring that your recorder
will always be ready to work when you are.
High data security
Recordings can be encrypted in real time using
the Advanced Encryption Standard (AES or
Rijndael Algorithm) with a key length of
256
bits. AES provides a very high degree of
security and has been approved in the USA for
the most highly classified government
information. The device itself can be assigned a
PIN code to protect against unauthorised use
or file playback.
Integrated barcode scanner
The integrated barcode scanner enables you to
link client or patient data to a recording by
simply scanning over a barcode, even from a
display. This ensures reliable assignment of
client or patient IDs and speeds up your
workflow.
Large colour display
The large full-colour display offers sharp
images, making it easier to see everything at
first glance. The clear user interface is
optimised for easy, intuitive operation.
picked up again, it's ready to record within
seconds.
Configuration and maintenance
The Philips SpeechExec Remote Device
Manager software allows IT administrators to
centrally manage, configure and update
dictation hardware from Philips, saving valuable
time and resources. Managing device settings
for individuals, groups and teams or the whole
organisation is easily done remotely.
Robust and ergonomic design
The asymmetrical and ergonomic shape fits
perfectly into your hand. Its slim and
lightweight design maximises comfort, even
when you are working over longer periods of
time. The brushed stainless steel creates a
robust and highly durable protective shell
around the device.
SpeechExec workflow software
The SpeechExec Pro software organises the
workflow of dictation files and resulting
documents between author and
transcriptionist and allows you to monitor the
status of your work.
Extended battery runtime
The high-capacity Li-ion battery can be charged
easily using a standard micro USB jack. The
integrated light and motion sensors guarantee
extended battery life. The smart technology
adjusts the brightness of the display and
switches automatically to standby mode when
Motion sensor
The built-in motion sensor senses when the
device is placed on the desk or held in the hand
and selects the microphone accordingly to suit
the recording situation. The motion sensor
switches automatically to standby mode when
the device is idle. When the Pocket Memo is
Wear-free slide switch
The quick-response and ergonomic slide
switch is designed for single-handed operation
of all recording and playback functions,
allowing easy and quick file editing (insert,
overwrite, append). It operates with a light
sensor signal, making it wear-free and durable.
Page 3
DPM8000/00
Digital Voice Recorder
Slide-switch operation
Specifications
Connectivity
• Headphones: 3.5 mm
• Docking connector
•Memory card slot
• Microphone: 3.5 mm
• USB: micro USB 2.0
Picture/Display
• Diagonal screen size: 2.4 inches/6.1 cm
• Resolution: 320 × 240 pixels
Storage Media
• Mass storage class compliant
• Data transfer speed: 6.75 MB/s read, 5.0 MB/s
write
• Exchangeable memory card
•Memory Card Types: Micro
(SD), Secure Digital (SDHC)
SD, Secure Digital
Audio Recording
• Bit rate: 13.7 kbit/s - 705 kbit/s
• Recording Time: up to 700 hours (SP)
• Built-in microphones: One directional, one 360°
• Edit modes: insert, overwrite, append
• Recording format: DSS/DSS Pro, MP3, PCM
• Recording modes: DSS QP, DSS SP, MP3, PCM
• Sample rate (kHz): 44.1 (MP3) - 12 (DSS SP)
Speaker
• Speaker Type: built-in dynamic speaker
Power
• Battery lifetime: up to 23 hours of recording
• Battery Capacity: 1000mAh
• Battery type: Philips rechargea
• Charging time: 3 hr
• Standby time: more than 200 days
ble Li-ion
System Requirements
• Operating System: Windows 8/7/Vista, Mac OS
• Processor: Intel Pentium 4, 1.0 GHz
•RAM memory: 1 GB (2 GB recommended)
• Hard disk space: 100 MB for SpeechExec
•DVD-ROM drive
• USB: Free USB port
• Video card: DirectX-compliant
Dimensions
• Product dimensions (WxDxH): 53 x 123 x 15 mm
• Product weight (g): 117 g (including battery)
Available accessories
• Foot pedal: LFH2210
• Meeting microphone: LFH9172
• Rechargeable Li-ion battery: ACC8100
•SDHC memory card: LFH9004
• SDK for dictation hardware: LFH7475
• SpeechExec RDM: LFH7470
• Telephone pickup microphone: LFH9162
• WLAN adapter: ACC8160
Barcode scanner (DPM8500)
• Compatible bar codes: UPC–A, UPC–E, EAN–8,
etc
• Scan engine: CCD-based, single line
Display
• Type: Colour TFT
Green specifications
• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product
Operating conditions
• Temperature: 5° – 45° C/41° – 113° F
Package contents
•Docking station
• DVD containing software
•Memory card
• Pocket memo
• Rechargeable battery
•USB cable
•User manual
Security
• Device lock with pincode
• Encryption standard: Advanced Encryption
ndard
Sta
• Number of supported user IDs: 40
• Real time file encryption
Sound
• Acoustic frequency response: 300 – 7500 Hz
• Speaker diameter: 28 mm
• Speaker output power: 200 mW
• Speaker type: Built-in dynamic speaker
•
Issue date 2021-02-05
Version: 2.1.1
12 NC: 8670 001 13924
UPC: 6 09585 24259 3
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
