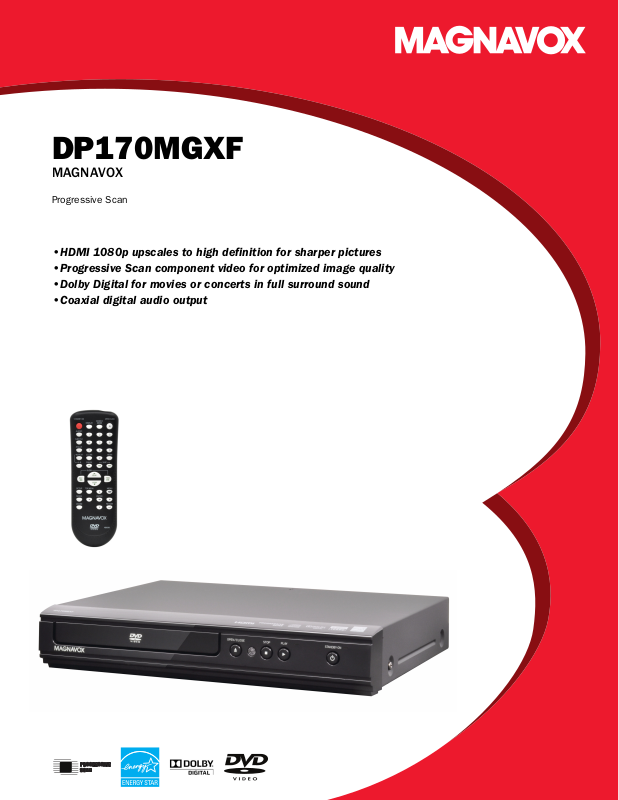

Page 1
DP170MGXF
MAGNAVOX
Progressive Scan
•HDMI 1080p upscales to high definition for sharper pictures
•Progressive Scan component video for optimized image quality
•Dolby Digital for movies or concerts in full surround sound
•Coaxial digital audio output
Page 2
DP170MGXF/F7
MAGNAVOX
Product specifications
Picture/Display
• Picture enhancement: Progressive scan, Video
upscaling
Video Playback
• Playback Media: CD-R/CD-RW, DVD-R/-RW, CD,
DVD
• Video disc playback system: NTSC
• Video Enhancement: Progressive Scan, Video
Upscaling
Audio Playback
• Playback Media: Audio CD, CD-R/RW, DVD-R/-RW,
CD
• Compression format: Dolby Digital
Still Picture Playback
• Playback Media: CD-R/RW, DVD-R/-RW
Connectivity
• Rear Connections: Component Video output, Digital
coaxial out, HDMI output, S-Video out
Convenience
• Child Protection: Parental Control
Accessories
• Included accessories: 2 x AA Batteries, Quick start
guide, User Manual
• User Manual: English, Mexican Spanish
Dimensions
• Set dimensions (W x H x D): 280 x 51 x 210 mm
Progressive Scan
Progressive Scan doubles the vertical resolution of
the image resulting in a noticeably sharper picture.
Instead of sending a field comprising the odd lines to
the screen first, followed by the field with the even
lines, both fields are written at one time. A full image
is created instantaneously, using the maximum
resolution. At such a speed, your eye perceives a
sharper picture with no line structure.
Coaxial digital audio output
Dolby Digital
Dolby Digital, the world's leading digital multi-channel
audio standard, makes use of the way the human ear
naturally processes sound. With Dolby Digital you
experience superb quality surround sound audio with
realistic spatial cues.
Date of issue 2013-02-24
Version: 1.0.3
12 NC: 8670 000 60089
UPC: 6 09585 18492 3
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips Electronics N.V. or their
respective owners.
© 2013 Magnavox.
All Rights reserved.
