Philips Optical Storage

DATA SHEET

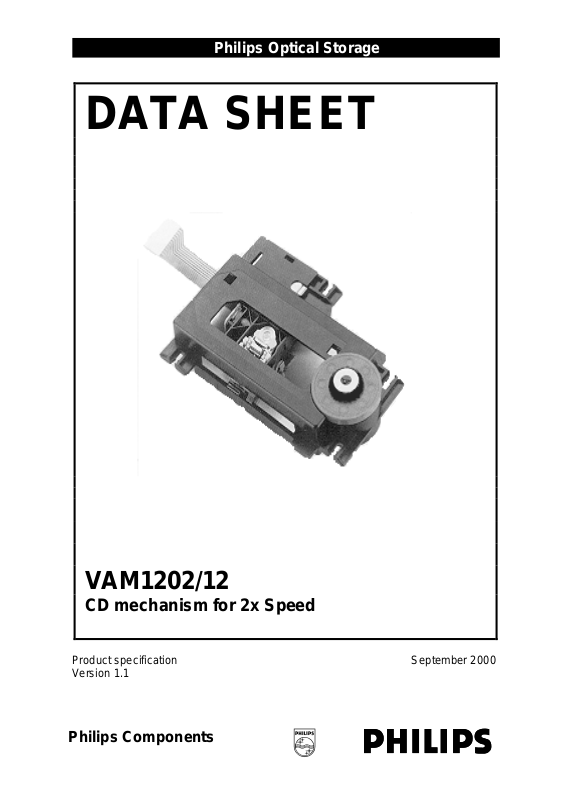

VAM1202/12

CD mechanism for 2x Speed

Product specification September 2000 Version 1.1

Philips Components

Page 2

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

SCOPE OF THIS DOCUMENT

 This document describes the Commercial specification of the CD mechanisms.  The provisions of this document may be altered upon agreement between both parties  If any disagreement should arises, this two parties shall meet in good faith to resolve the matter  Within the range of these specifications, parts are subjected to change without prior notice for

technical improvement.

 Please ensure to observe strictly the following, otherwise. PHILIPS may not be able to assume

the responsibility for things to happen :

* Always use the CD mechanism(s) within the conditions given in the specification * No additional process be given to the CD mechanism(s) * Ensure the set contains PHILIPS CD mechanism(s) is in compliance with the rules and

regulations for spurious radiation * Measure the leakage of laser output from a set containing the CD mechanism(s) and

ensure that the set is in compliance with applicable requirements * Always adhere to the handling instructions

All Rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent or other industrial or intellectual property rights.

Page 3

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Type Number :- VAM1202/12 Code Number (12NC) :- 9305 022 20212

Revision History Version Nr. Page Date Remarks

1.0 - All - First Release

1.1 5 14 1 Sep 2000 Changes in Lightpen and Turntable material list

3.1 11 Delete Full Spec and replace Functional to

Operational Temp Typo error, Operational Temp: -10 to +55°C

Page 4

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

TABLE OF CONTENTS

1. GENERAL INFORMATION ..............................................................................................5

2. SPECIFICATION.................................................................................................................6

2.1 T

2.2 S

EST CONDITIONS

PECIFIED VALUES

................................................................................................................6

2.2.1 General........................................................................................................................6

2.2.2 Opto-electrical ............................................................................................................7

2.3 S

2.4 M

2.5 E

IGNALS

ECHANICAL

LECTRO-MECHANICAL

...............................................................................................................................8

.......................................................................................................................9

......................................................................................................10

3. APPLICATION INFORMATION....................................................................................11

3.1 A

3.2 R

3.3 P

PPLICATION CONDITIONS EFERENCE APPLICATION CIRCUIT

LAYABILITY SPECIFICATION

..................................................................................................11

......................................................................................11

..............................................................................................12

4. RELIABILITY....................................................................................................................13

4.1 G

4.2 S

4.3 S

ENERAL HOCK SENSITIVITY FOR TRANSPORT HOCK SENSITIVITY IN PACKING

............................................................................................................................13

..................................................................................13

.........................................................................................13

5. STANDARDS ......................................................................................................................14

6. HANDLING INSTRUCTIONS .........................................................................................15

7. OPTIONAL ACCESSORIES............................................................................................ 15

Page 5

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

TABLE OF FIGURES

FIG. 1A: R FIG. 1B: R FIG. 2: R FIG. 3A: R FIG. 3B: R FIG. 4: R FIG. 5A: R FIG. 5B: R FIG. 6: E

LECTRICAL DATA

FIG. 7: M FIG. 8: L FIG. 9: F

IGHTPATH

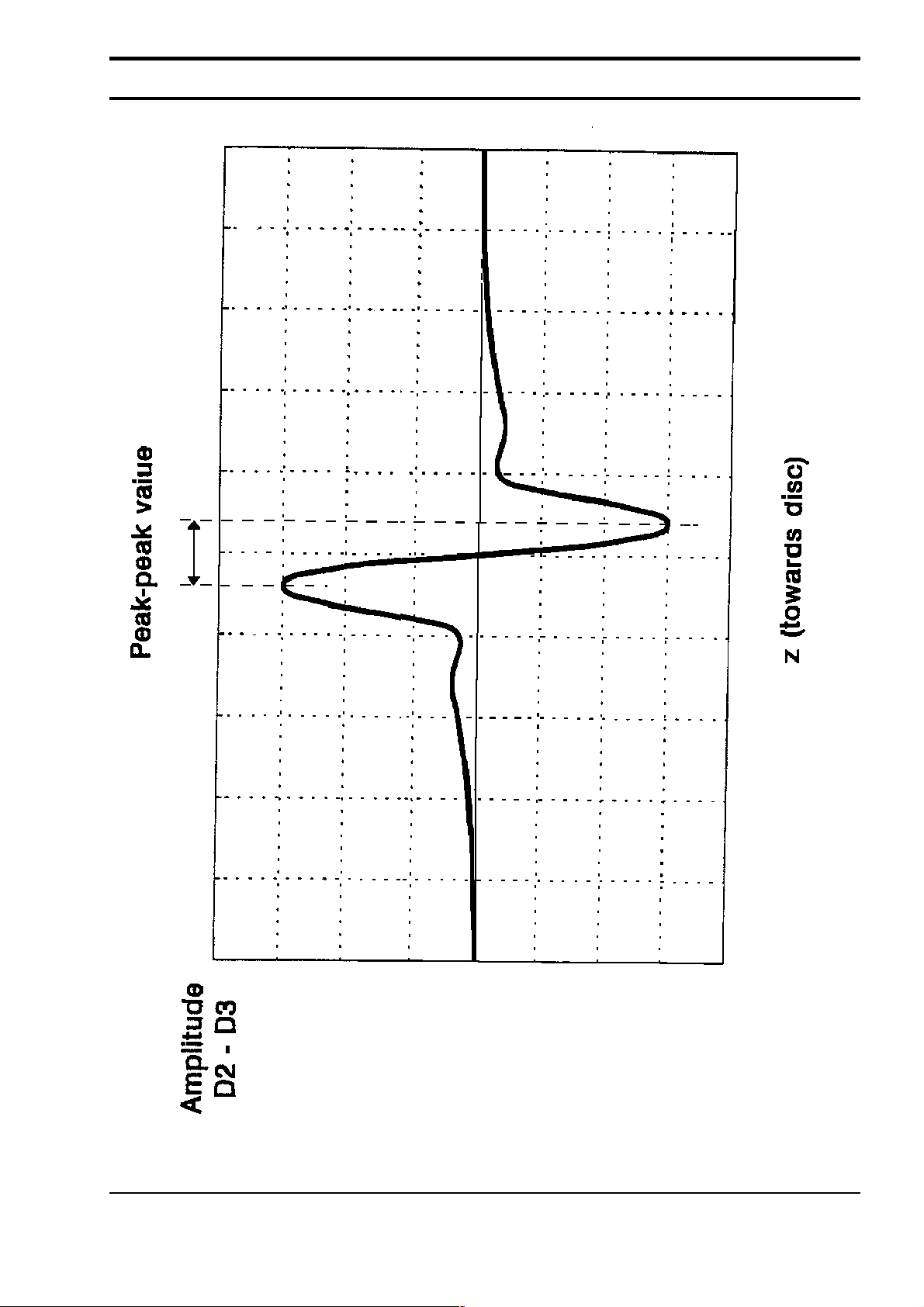

OCUS S-CURVE

ECOMMENDED MEASURING CIRCUIT DIAGRAM (PART

ECOMMENDED WIRING DIAGRAM

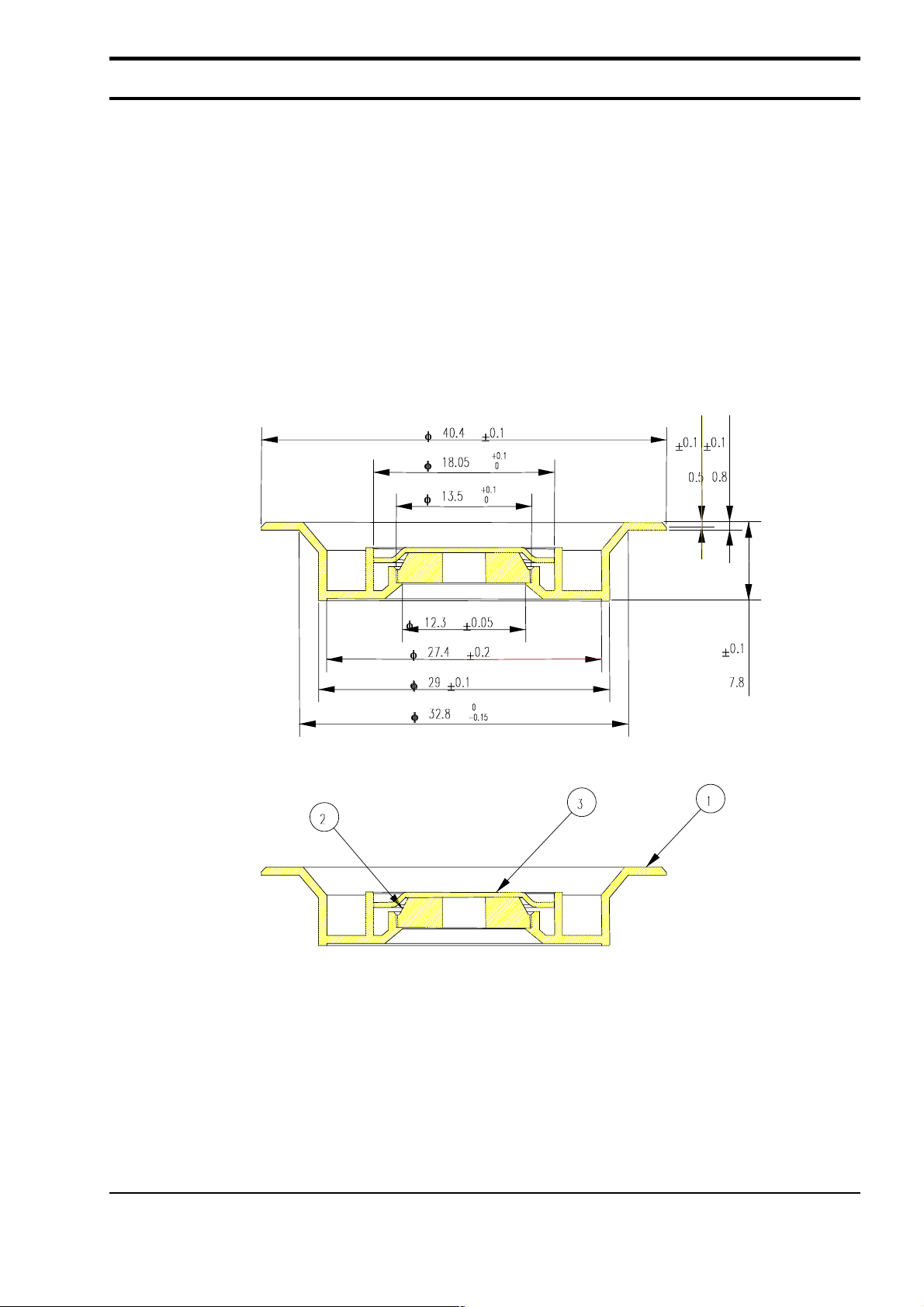

ECOMMENDED CLAMPER

ECOMMENDED CLAMPER (FREE SPACE

ECOMMENDED CLAMPER

ECOMMENDED SUSPENSION

ECOMMENDED SUSPENSION (BUILT-IN INFO

................................................................................................19

..................................................................................................21

.....................................................................................18

)........................................................................ 20

............................................................................................22

).................................................................23

..............................................................................................................24

ECHANICAL DRAWING

......................................................................................................25

..........................................................................................................................26

...................................................................................................................27

1).............................................. 16

2)..............................................17

FIG. 10: R FIG. 11: T FIG. 12: F FIG. 13: R FIG. 14: T FIG. 15: R FIG. 16: M FIG. 17: F FIG. 18: ESD FIG. 19: C

ADIAL CURVE

EMPERATURE FACTOR

OCUS CHARACTERISTICS

ADIAL CHARACTERISTICS

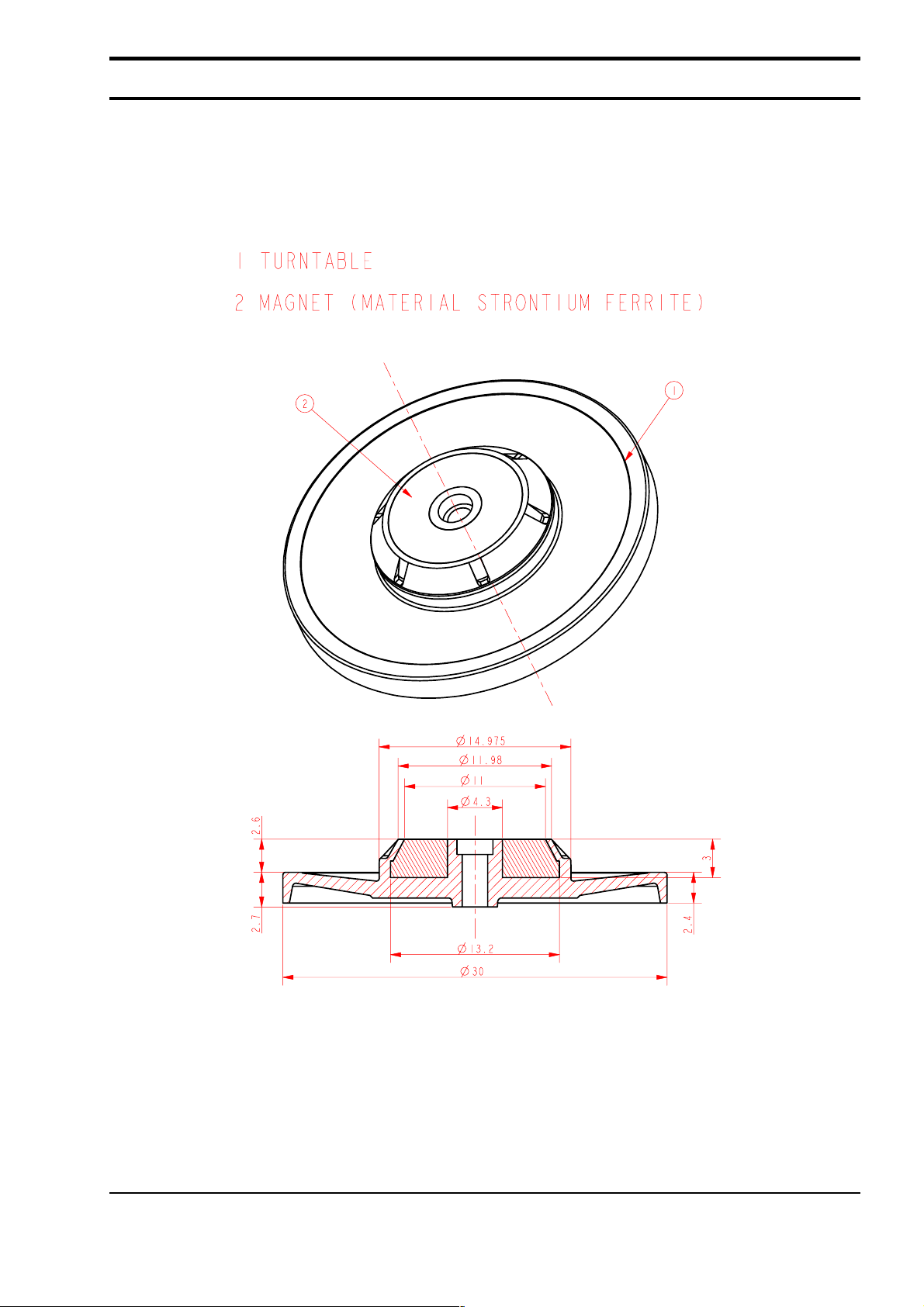

URNTABLE

ECOMMENDED ORNAMENTAL PLATE

ECHANICAL DATA FOIL

LEXIBLE FOIL APPLICATION INFO

PROTECTION AND HANDLING INSTRUCTIONS

ONTENTS AND PLACEMENT OF LABEL

APPENDIX 1: M APPENDIX 2: M

..................................................................................................................28

....................................................................................................29

.................................................................................................30

...............................................................................................31

.......................................................................................................................32

.............................................................................33

..................................................................................................34

...................................................................................35

...........................................................36

............................................................................37

ABUCHI

FF-030PK-08250 M RF-300CH-11400 M

OTOR DATA

.........................................................38

........................................................39

Page 6

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

1. GENERAL INFORMATION

The VAM1202/12 is a modular CD-mechanism, using a 2-stage, 3-spot system. It contains the following modules:

 a light pen with holographic lightpath  the actuator  the disc motor : a DC motor with a turntable prepared for magnetic clamping  the frame with the sledge drive and switch  the foil with the laser supply

The CD mechanism is suitable for a wide variety of Video-CD applications for portable, systems and stand alone use.

To cope with this broad application range, the VAM1202/12 needs to be flexible:

 suitable for 12 and 8 cm. discs according to the RED BOOK standard  small size  applicable in horizontal and vertical position  accessories available, e.g. loading device, suspension, clamping device, wire connector  wide operating temperature range  prepared for a variety of approbation/safety standards

The CD-mechanism is designed to be incorporated with the following :

Product Type Number Code Number (12NC)

Tray Loaders L1210/65 9305 023 20265

L1210/68 9305 023 20268

Changer C1203/28 9305 024 20228

Page 7

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

2. SPECIFICATION

2.1 Test conditions

Parameter Min. Typ. Max. Unit

Ambient temperature 25 ± 5 ° C Relative humidity 45 75 % Air pressure 86 106 kPa Setting angle horizontal turn table up 0 ± 5 ° Setting angle vertical 0 ± 5 °

Note : - Measuring circuit : see fig.1

- AC-equipment : minimum bandwidth 2 MHz.

Test disc Code number (12NC)

SBC444A 7104 099 24990 Burn-in 7104 087 04860

2.2 Specified values

2.2.1 General

Parameter Min. Typ. Max. Unit Notes

Connections See fig. 6 : pinning / See fig.16 : mech. data Current consumption 300 mA In play condition : horizontal Dimensions See fig. 7 Min. read-out diameter 44 ± 0.3 mm Max. read-out diameter 117.9 ± 0.5 mm

Page 8

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

2.2.2 Opto-electrical

Parameter Min. Typ. Max. Unit Notes

LDGU Sharp GH6C005B3BA Optical lightpath See fig. 8 Focus error detection Single Foucault Tracking error detection 3-beam method Numerical aperture 0.45 Working distance 1.8 mm bottom side disc to top side lens Power intensity out of

objective lens Laser : wavelength (T=30C) Supply voltage Supply current Photodiodes See fig. 6 Dark reverse current 10 nA Terminal capacitance < 3 pF (D2, D3, D4)

Response time 5%-95% < 120 ns (D2, D3, D4)

760 780 800 nm

46V

46 90 mA

0.43 mW According IEC825-1 (1993-11)

< 5 pF (D1, D5)

< 200 ns (D1, D5)

Page 9

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

2.3 Signals

Parameter Min. Typ. Max. Unit Notes

Measuring discs

Photodiodes layout See fig. 6

sum

(D1+D2+D3+D4+D5) 8.0 9 .0 10.0 µA On test disc Sub 8 Tr 8

Test disc Sub 8

(Philips internal test disc)

Straylight 15 % of I Focus S-curve amplitude pp

34 % of I Slope of S-curve Slope of S-curve for z1m [VFE=(D2-D3)/(D2+D3)]

Allowed change of slope within temp range from 5C to

amb

55C with respect to T

-20 +20 %

25C Peak-peak value S-curve

12 S-curve polarity

Radial offset

[=(D1-D5)

/(D1+D5)dc]

Radial error signal

PP ]

[=(D1-D5)

10 % of I

11 %

Allowed change of radial error signal within temp range from 5C to 55C with respect

-30 +30 %

to Tamb = 25C Change of radial error

PP from track 1

(D1-D5) RF signal amplitude

- 24

5.7

15 %

Note:

sum

= Substrate current crosstracks in f ocu s, in cl s traylight

I Straylight = Substrate current without disc.

sum

Monotonic



)/ z : 20 - 28 %/m



See fig. 9

sum



Page 10

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

2.4 Mechanical

Parameter Min. Typ. Max. Unit Notes

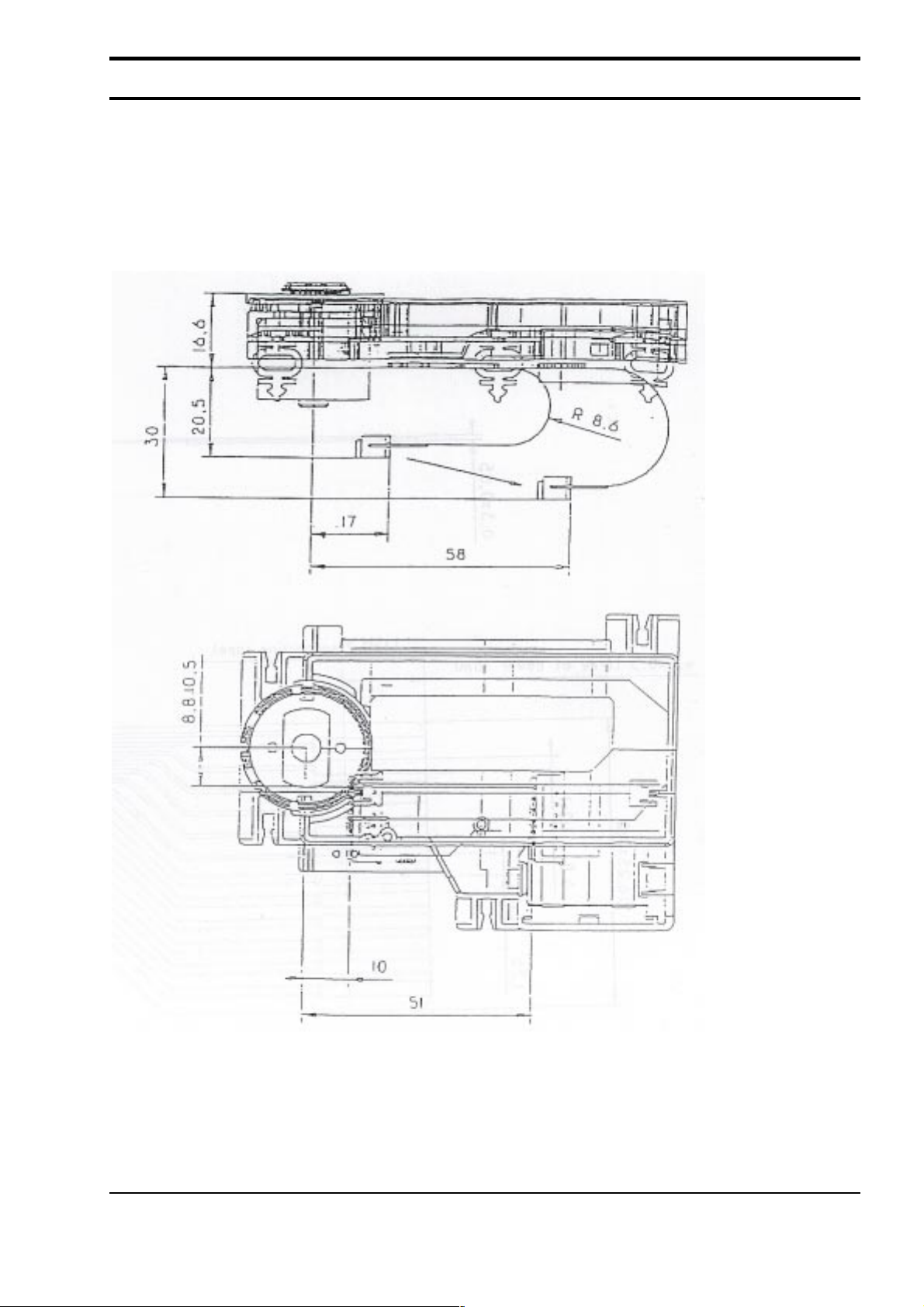

Dimensions 98 x 72 x 18.2 mm See fig. 7 Read-out diameter (min) Read-out diameter (max) Position switch point (PSP)

Condition of switch : Actuator outside PSP Open Actuator inside PSP Closed Access time 4 sec (with TDA 1301 T)

Weight 89 gr

44  0.3

117.9  0.5

24.1  1.0

mm mm mm Centre nominal position lens to

centre turntable

From 1

to last track on burn-in

test disc

Disc drive motor

Parameter Min. Typ. Max. Unit Notes

Motor Mabuchi RF300 CH11400

For detail information see appendix 2

Turntable

Parameter Min. Typ. Max. Unit Notes

Fixed cone 40 Clamping force (Fcl)

Skew of turntable 1.7 mrad Weight on turntable 7 kg

1.35N



With clamper (3104 147 12080)

Max excentricity

measured with a burn-in disc

Sledge drive motor

Parameter Min. Typ. Max. Unit Notes

Motor Mabuchi FF030PK-08250 /

Matsushita PPN7KB09B

Transmission ratio I = 30, 000 rad/m

For detail information see appendix 1

Page 11

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

2.5 Electro-mechanical

Characterisation of actuator, focus and radial movement Ambient temperature: 20C  1C for measurements

General

Parameter Notes

Temp factor See fig. 11 Temp factor for AC values

Moving mass 0,60 gr Q-factor coils 8 – 12 Voltage 3 VDc

-0,4 %/

C

Focus movement

Parameter Min. Typ. Max. Unit Notes

Resonant frequency AC sensitivity at 200 Hz Sensitivity DC 0.70 mm/V Resistance Stroke Max voltage on coils 3 V Dc Maximum deviation from ideal actuator characteristic See fig. 12

Note: Graphs valid at 20  1

C

30  4



20%

0.27

18  15%



0.8

N/A



Tracking movement

Parameter Min. Typ. Max. Unit Notes

Resonant frequency AC sensitivity at 200 Hz Sensitivity DC 0.27 mm/V Resistance Stroke Maximum deviation from ideal actuator characteristic See fig. 13

Note: Graphs valid at 20  1

C

49  7

0.28  20%

18  15%



0.6

N/A



Page 12

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

3. APPLICATION INFORMATION

Note: Environment conditions acc. to IEC68-2 and with discs according to the RED Book specifications, unless otherwise specified.

3.1 Application conditions For operation

Temperature range in set Operational Temp

-10 C - +55 C

Humidity range 5 % - 90 % RHD

Note: “Functional” = discs acc to Red Book specifications

For storage

Temperature range Long term Exposure (recovery time 4h) Short term

-25 C - +55 C 48 hr/70 C

Humidity range 5 % - 95 % RHD

Note: After being subjected to the above operational conditions, given a recovery time of 4 hours in 25C and no condensation present on the lens, the CD mechanism will comply to the specification.

Position for usage and storage

Horizontal Recommended Vertical Allowed Side A or B below and all positions in between (see fig. 7)

Recommended Side A below

3.2 Reference application circuit

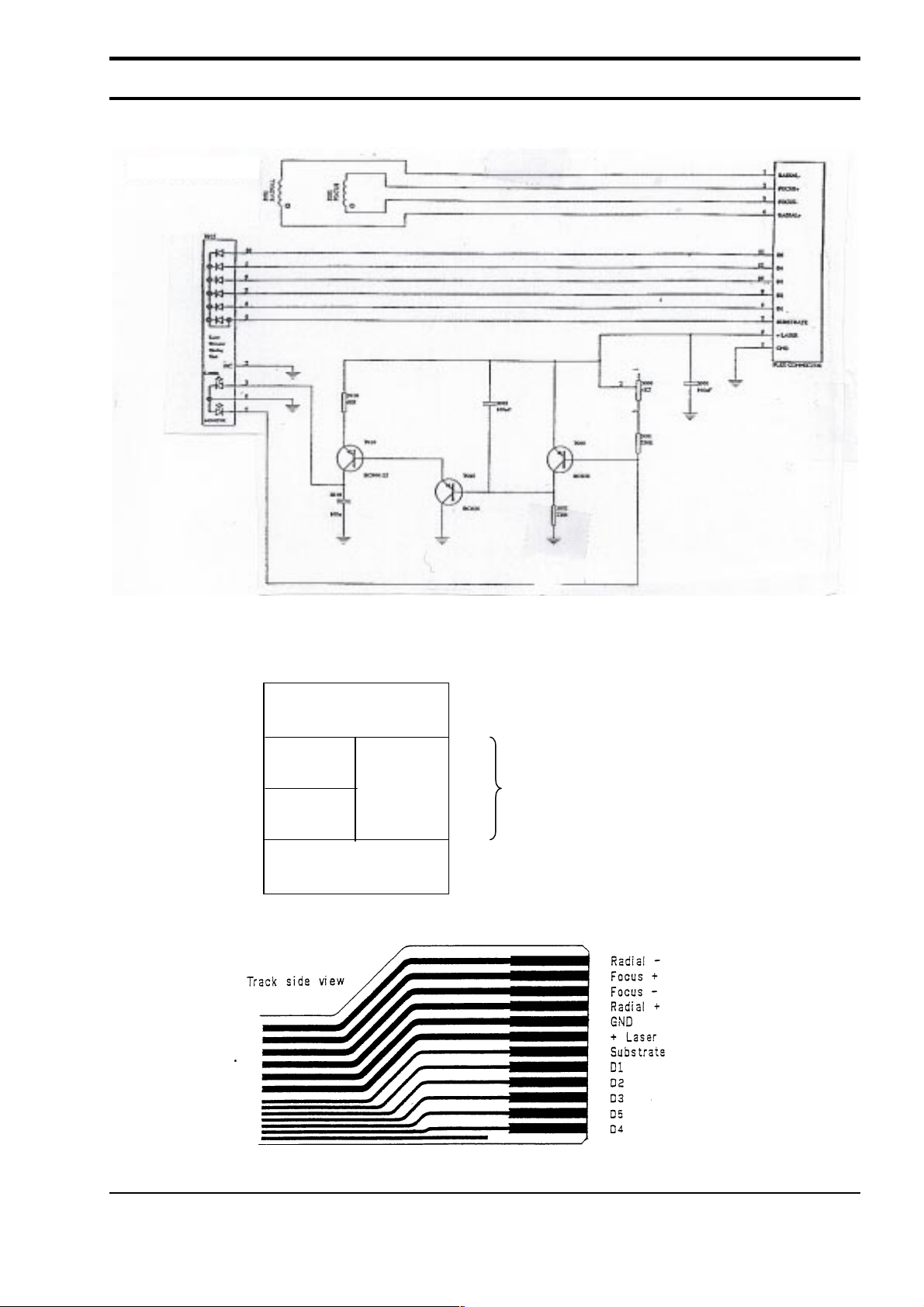

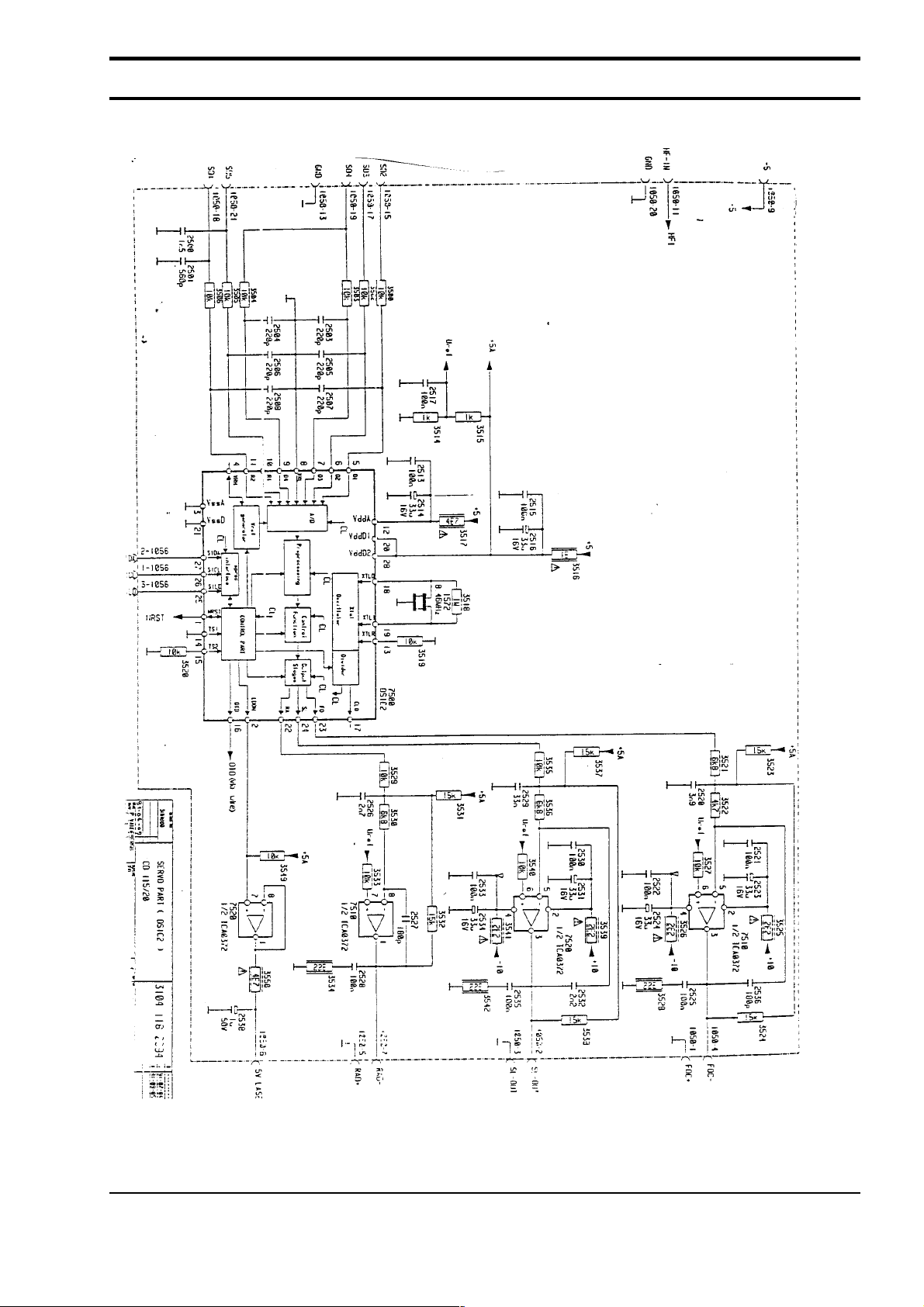

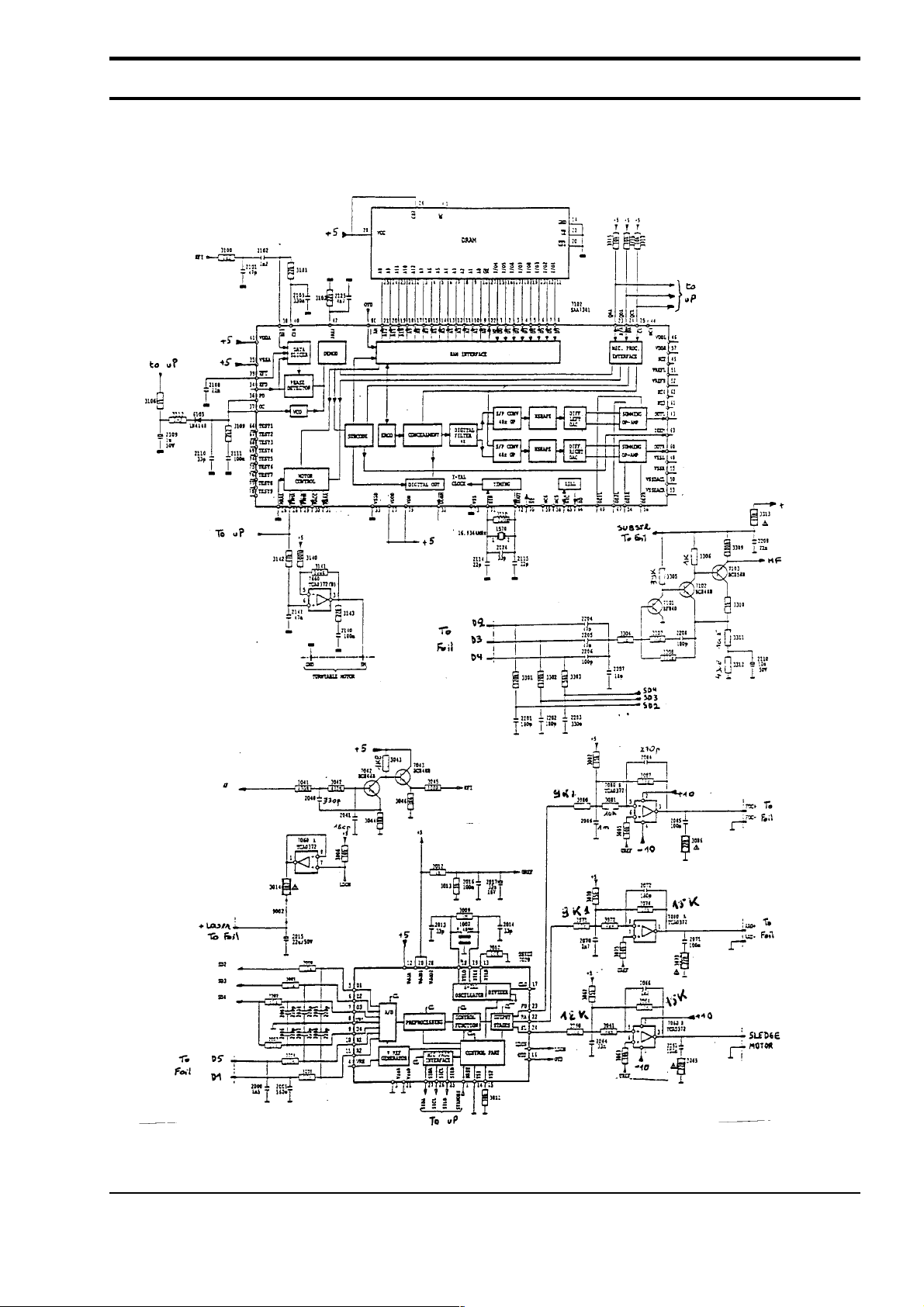

Diagram with digital servo DSIC2 (TDA 1301T) and decoder SAA 7341 (CD4+) or (CD6). See fig 1b.

Page 13

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

3.3 Playability specification

General criteria: No track loss and no audible defects.

Test disc

Wedge SBC 444A Black dot SBC 444A Eccentricity Skew Optical (8cm)

Mechanical (12cm)

700 m 700 m 150 m

0.6

0.4

Fingerprint SBC 444A No audible mute

Test disc : Burn in Disc motor control : 3 to 20 Hz Position of microphone : 10 cm above turntable Vam1201 must be measured in free field (anechoic room). Hard noise reflecting materials in direct environment are not permitted.

Page 14

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

4. RELIABILITY

4.1 General Typical Mode Notes Performance at end

of test

Lifetime 500 h B1 Play / Repeat Burn-in disc

5.000 h B10 Fully Functional

MTBF 30.000 h 100% duty cycle Climates Acc to IEC-68

4.2 Shock sensitivity for transport

Shock acc IEC 68-2-27-E Max 100g during 6msec 3 times 6 directions Bumps acc IEC 68-2-29-Fb Max 40g during 6msec 500 times 3 directions Vibrations acc IEC 68-2-Fc 10-58 Hz 0.15mm pp

58-150 Hz 2g 3 sides 10 cycles

4.3 Shock sensitivity in packing

In packing 10 Hz, 2g, 20 min/side, 3 sides

Page 15

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

STANDARDS

VAM1202/12 has been designed to comply with safety standards of various countries. However, since its approval depends on the application, this unit is not approved as a unit.

The CD mechanism is prepared for the following standards:

UL 1492 UL 1950

UL 1270 UL 1409 CSA-C22.2 No. 1-M90

The CD mechanism is UL recognised (RMNQ2): 99ET13724 UL file number: E143838 type number: VAM1202/12

The CD mechanism is evaluated by UL for material flammability requirements only, in accordance with the standard for information technology equipment, UL 1950.

Part name Material

manufacturer

Laser (LDGU) Sharp E143838 GH6C005B3BA Mounting plate Bayer AG E41613 94V1 PC Makrolon 8035 PC-GF30 Turntable Bayer China E178485 94V2 PC Makrolon 2405 PC

UE Plastics E161723 94V2 PC Lexan 221R PC Light pen Dupont E123598 94V0 LCP Zenite 6130 L LCP-GF30 Guide block LNP E45195 94V1 PC DFL 4044 PC-GF20-

UL-file Grade Generic

name

Type No. ID-mark

SD20

Page 16

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

6. HANDLING INSTRUCTIONS

 Usage and storage in dusty, hig h temperature and high humidity environments should be avoided.  To avoid damage to the LDGU by electrostatic discharges, measuring equipment and operators

must be grounded during handling (see fig. 18). The user of this unit must take all necessary precautions to avoid ESD (Electro-Static Discharge) failures duri ng handling and assembly of this unit into the end product.

 Contamination of the objective lens will influence the performance. Avoid fingerprints on the lens,

handle the mechanism in a clean environment.

 The actuator with lightpath has been adjusted carefully during manufacturing. High forces on this

part may damage the unit and have to be avoided.

Avoid touching this part!! Do not disasse m ble or r e adjust !!

 Safety: The (invisible) laser beam may damage the human eye. Avoid that people can look

directly or indirectly into the objective lens when the power is switched on.

 Fast heating up (e.g. by bringing the mechanism from a cold place into a warm and hum id room)

can result in moisture condensing on the lens, thus influencing the playability for a certain time. Before checking the performance the mechanism should stabilise for at least 4 hours. See also the recovery times mentioned in UAN-D 1590.

 Please keep the short circuit clip on the flex foil mounted as long as possible. Remove just before

installing the CD mechanism in the final application to avoid the risk of damage by electrostatic discharges.

7. OPTIONAL A CCESSORIES

12NC Description Top Loader Single Tray Loader 3 Disc Changer

3104 147 12080 Clamper assembly 3104 147 12210 Clamper assembly 3139 194 00431 Suspension 3104 141 22340 Ornamental plate 3104 148 00100 Wiring C DM (280mm)











Page 17

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 1a: Recommended measuring circuit diagram (part 1)

Page 18

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 1b: Recommended measuring circuit diagram (part 2)

ALL RESISTORS 1 %

Page 19

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

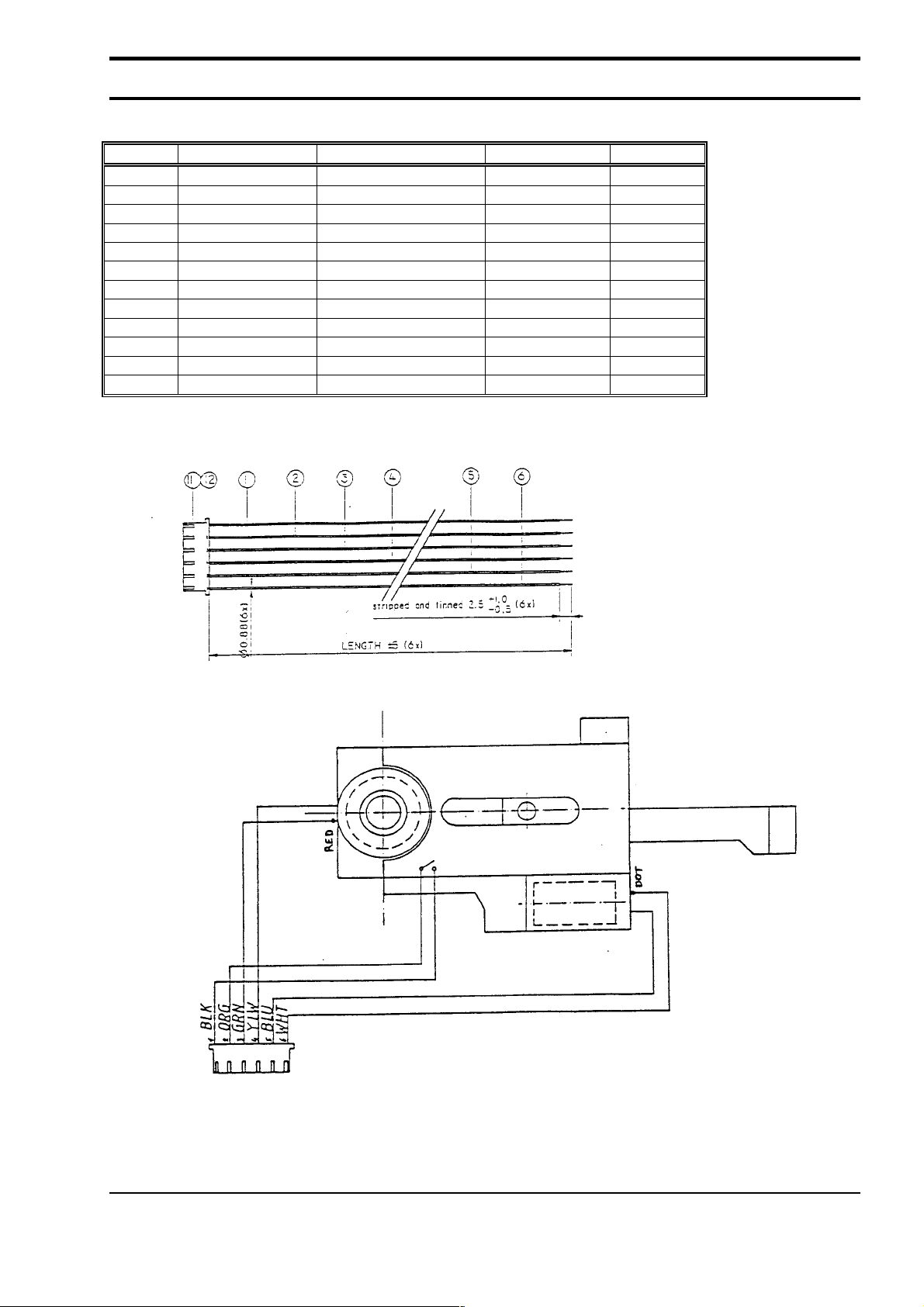

Fig. 2: Recommended wiring diagram

Nr. Off Description

1 Lead BLK. AWG 28 7 x 0.127 245 1 1 Lead ORG. AWG 28 7 x 0.127 240 2 1 Lead GRN. AWG 28 7 x 0.127 250 3 1 Lead YLW. AWG 28 7 x 0.127 270 4 1 Lead BLU. AWG 28 7 x 0.127 262 5 1 Lead WHT. AWG 28 7 x 0.127 262 6

1 Housing JST XHP-6 11 6 Contact JST SXH-002T-P0.6 12

Code Number Length

12NC : 3104 148 00100

Item Nr.

7 8 9

Page 20

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 3a: Recommended clamper

FOR INFORMATION ONL Y Note: Measurements are in mm.

12NC : 3104 147 12080 1 : Pressure ring 2 : Magnet Ø13.2 x 3 material SrFe O 19 (STRONIUM FERRI TE) 3 : Metal ring Ø18 x 0.5 material St 37

Page 21

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

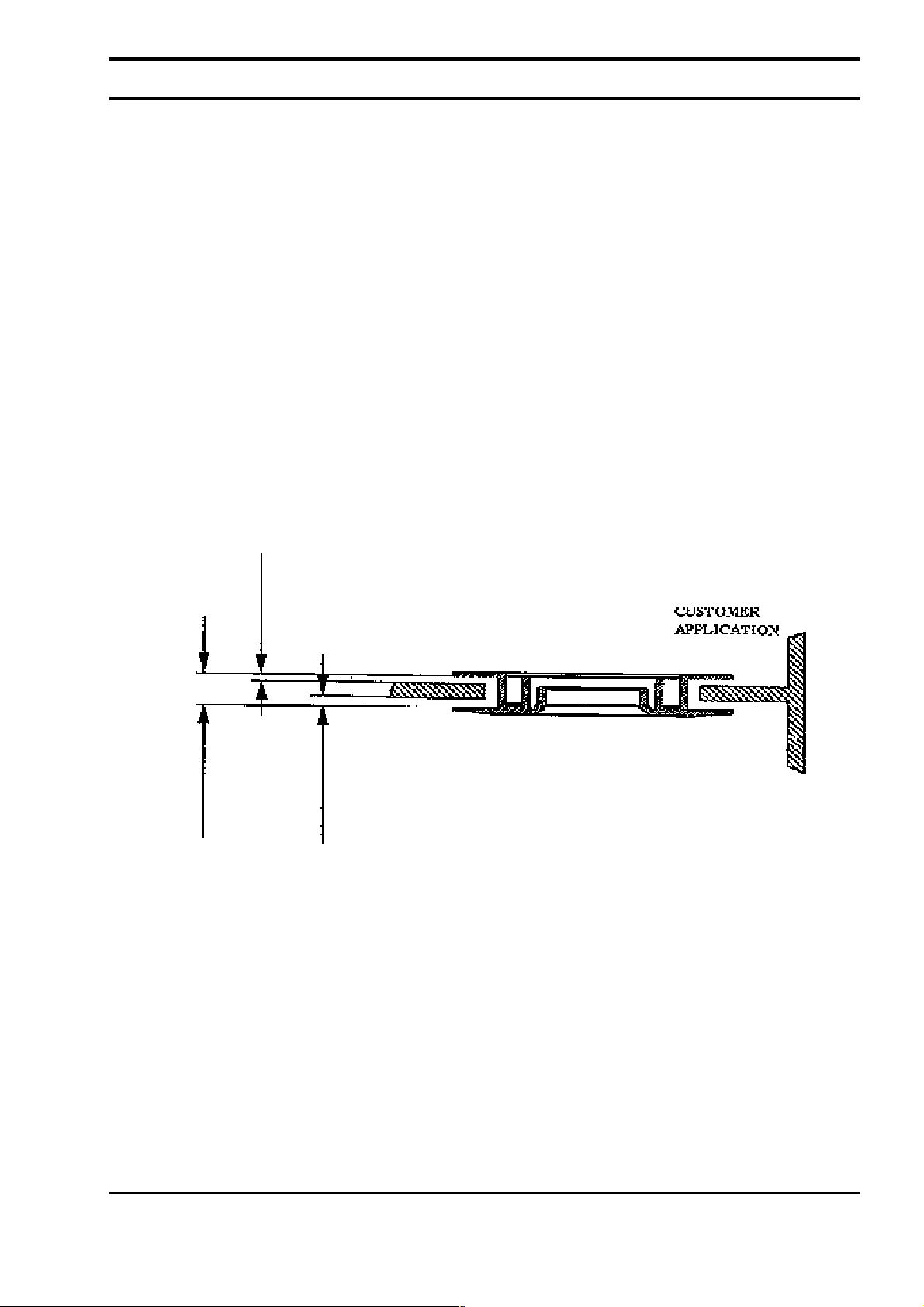

Fig. 3b: Recommended clamper (free space)

FOR INFORMATION ONL Y Note: Measurements are in mm.

Min. free space around disc and CD mechanism:

X,Y 2 mm. Z 1 mm.

Min. free space around turntable and clamper:

X,Y 2 mm. Z see drawing

4.8±0.5mm

Z1 = 1mm

Z2 = Z1 + 0.5mm

Page 22

Philips Optical Storage Product Specification



CD Mechanism for 2x VAM1202/12

Fig. 4: Recommended clamper

FOR INFORMATION ONL Y Note: Measurements are in mm.

12NC : 3104 147 12210 1 : Pressure ring 2 : Magnet 3 : Closing Plate











Page 23

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

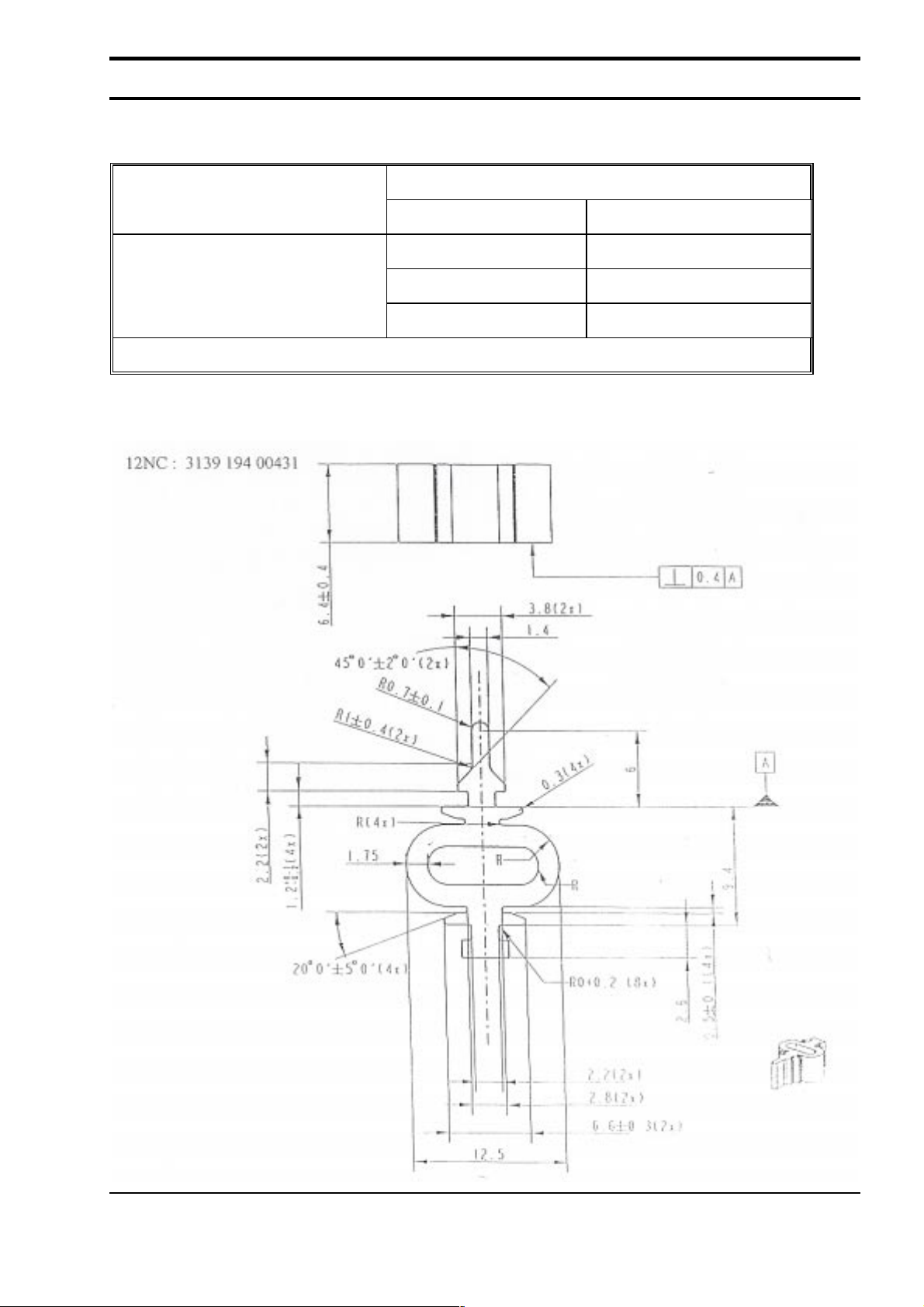

Fig. 5a: Recommended suspension

Material Typical suspension characteristics

Orientation Frequency

Silicone rubber type : SIL-233-C X 26 Hz Colour : Black Y 30 Hz Hardness : 82 I.R.H.D. Z 35 Hz Note : Free space around should be minimum 2 mm.

FOR INFORMATION ONL Y Note: Measurements are in mm.

Page 24

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 5b: Recommended suspension (built-in info)

FOR INFORMATION ONL Y Note: Measurements are in mm.

CUT OUT FOR CDM

Page 25

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 6: Electrical data

Electrical circuit:

Photodiodes layout:

Flexfoil connections:

Satellite spot

Central aperture

Satellite spot

Page 26

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

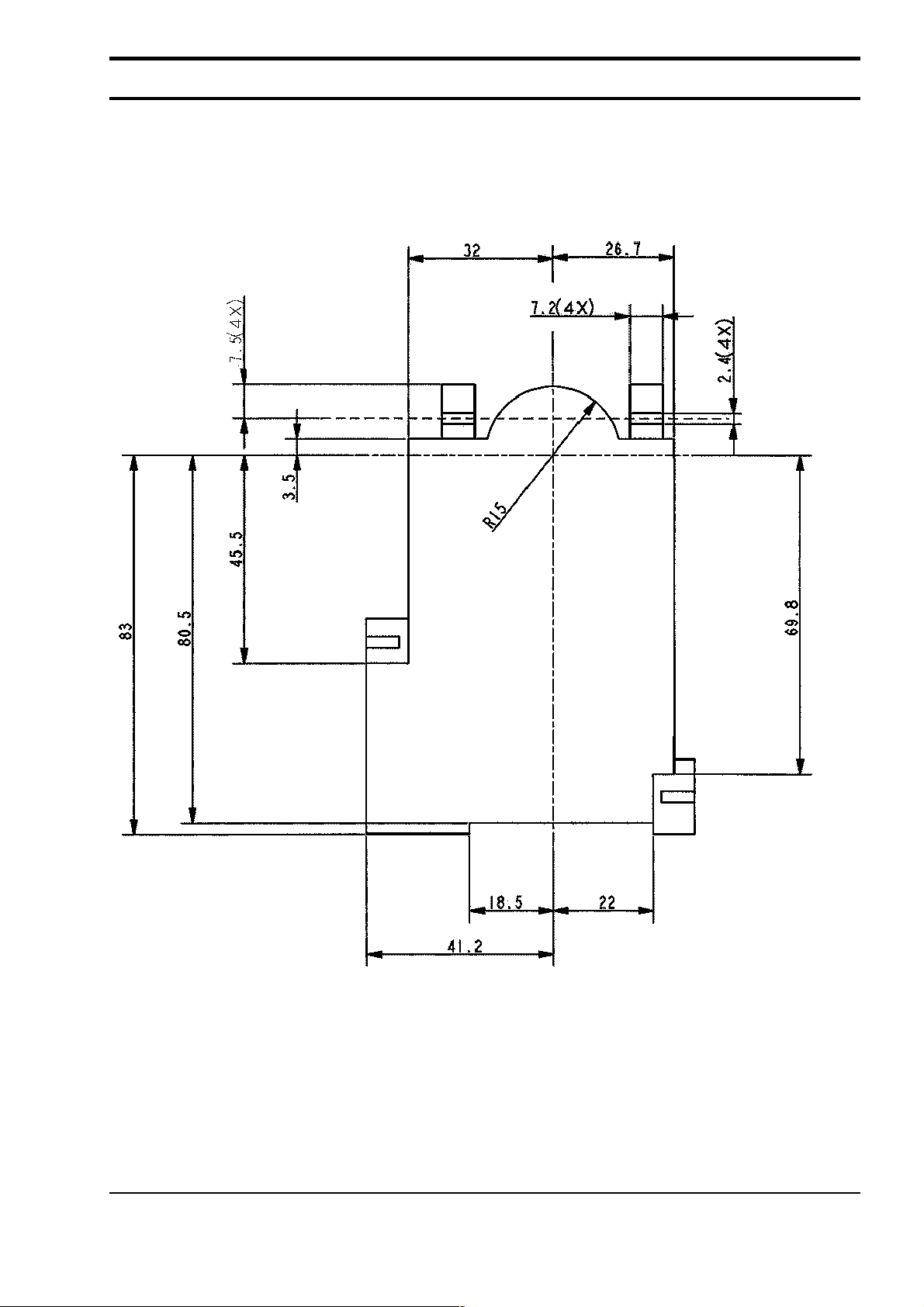

Fig. 7: Mechanical drawing

Centre of gravity: X = + 24.5 (actuator position R=45) Y = + 6 H1 = 19.95 H2 = 20 H3 = 20 H4 = 19.9 Tolerance: +0.4/-0.5 with recommended suspension

FOR INFORMATION ONL Y Note: Measurements are in mm.

Page 27

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 8: Lightpath

Page 28

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 9: Focus S-curve

Page 29

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

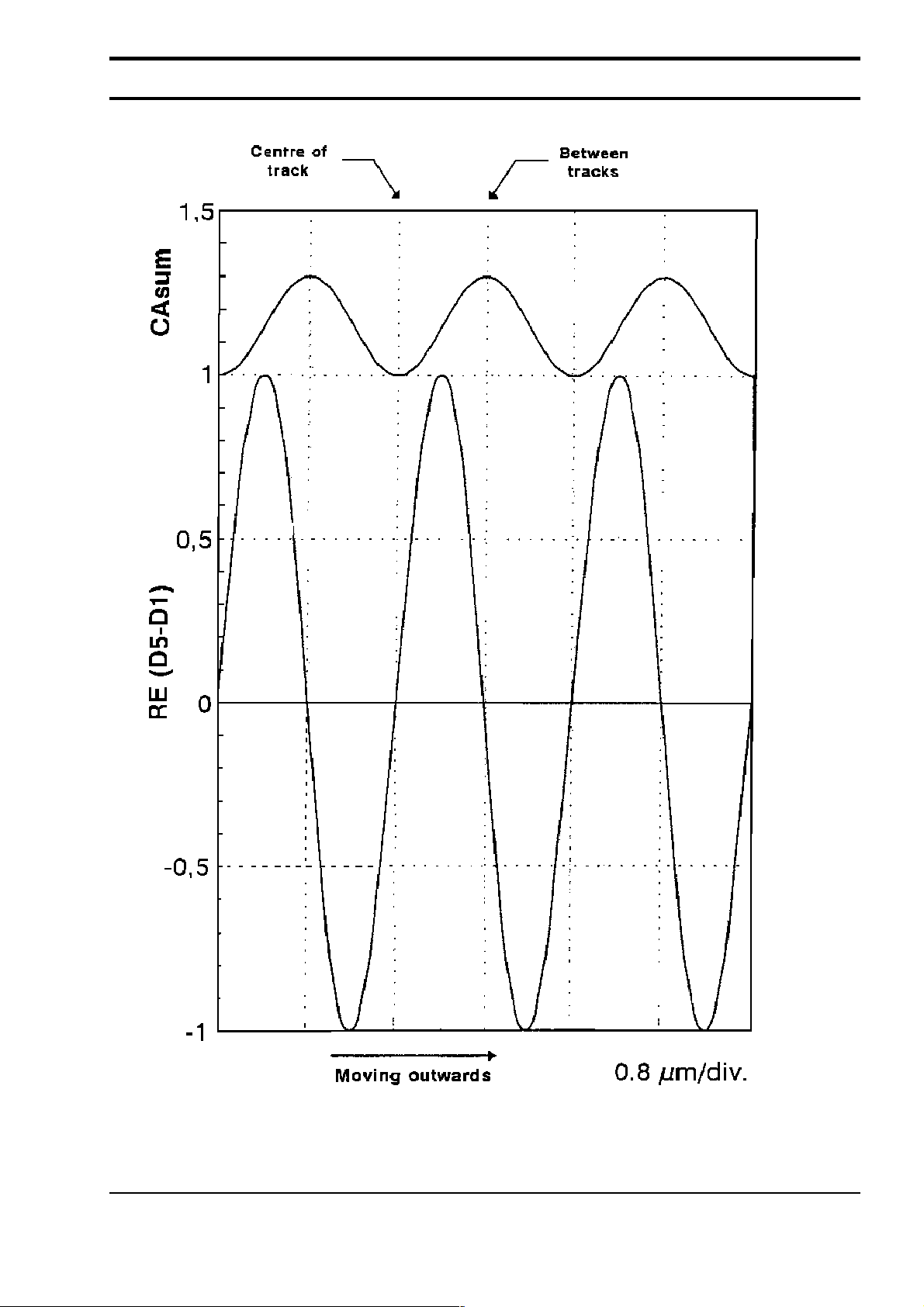

Fig. 10: Radial curve

Page 30

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

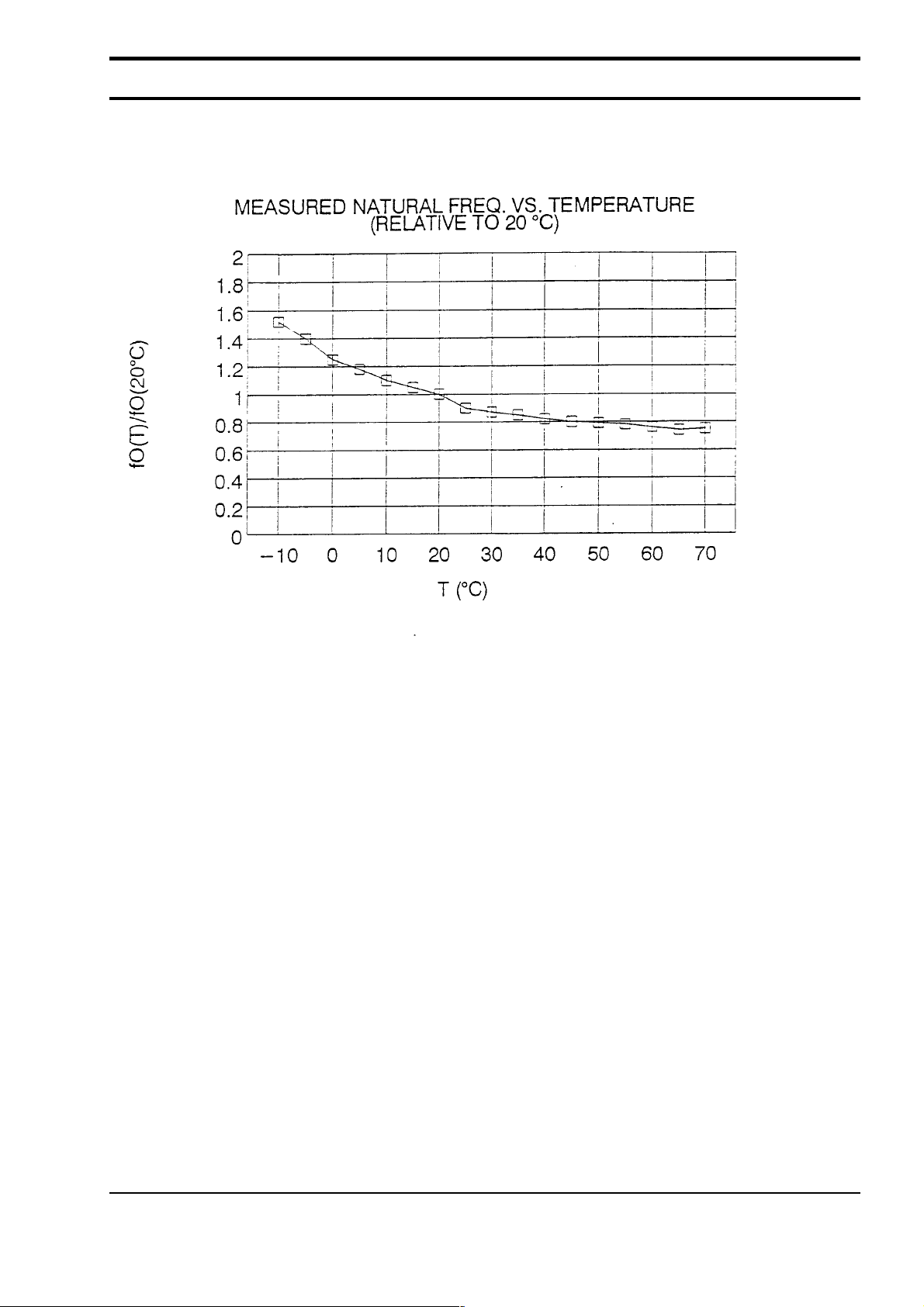

Fig. 11: Temperature factor

Page 31

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

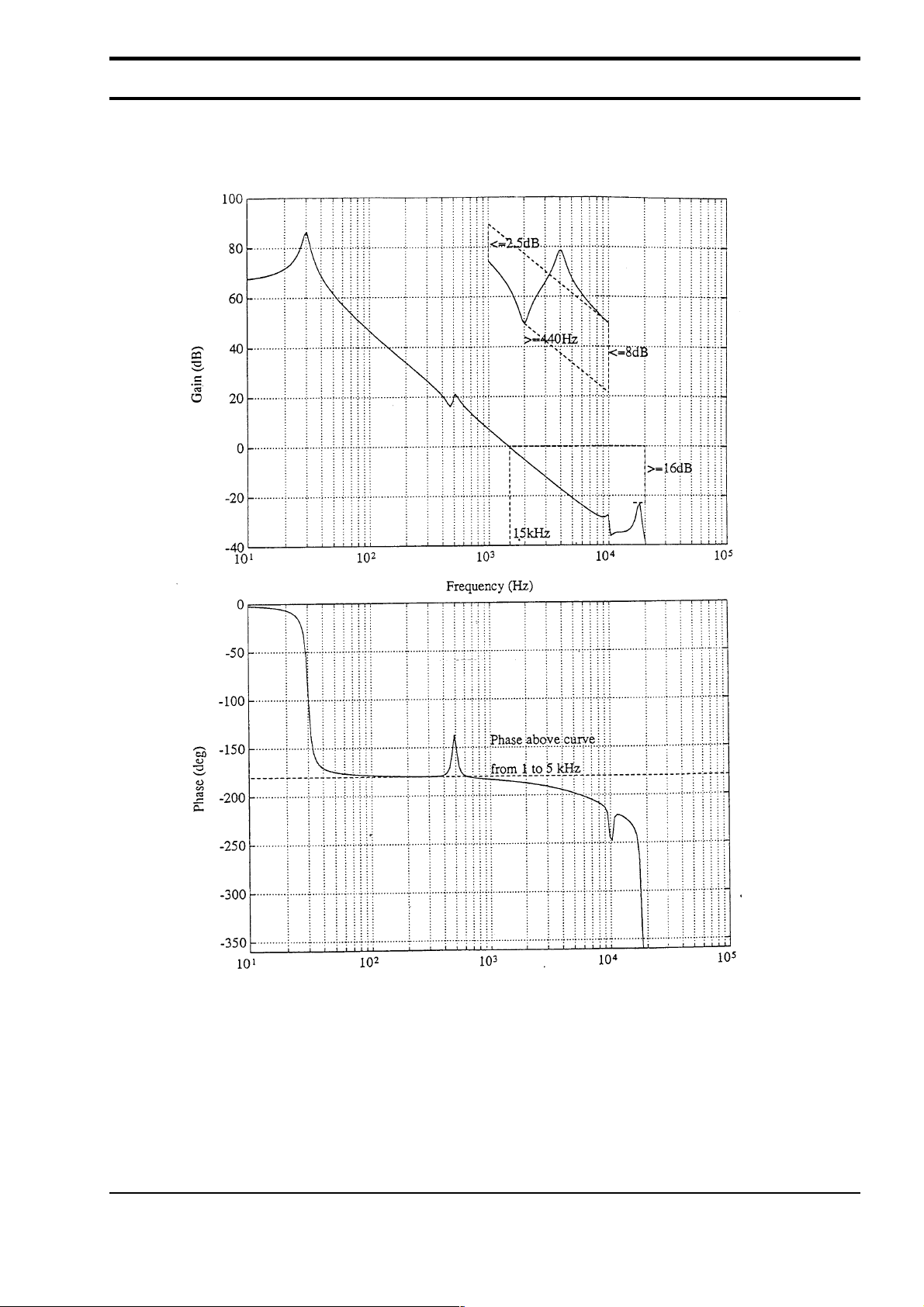

Fig. 12: Focus characteristics

Focus

Page 32

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

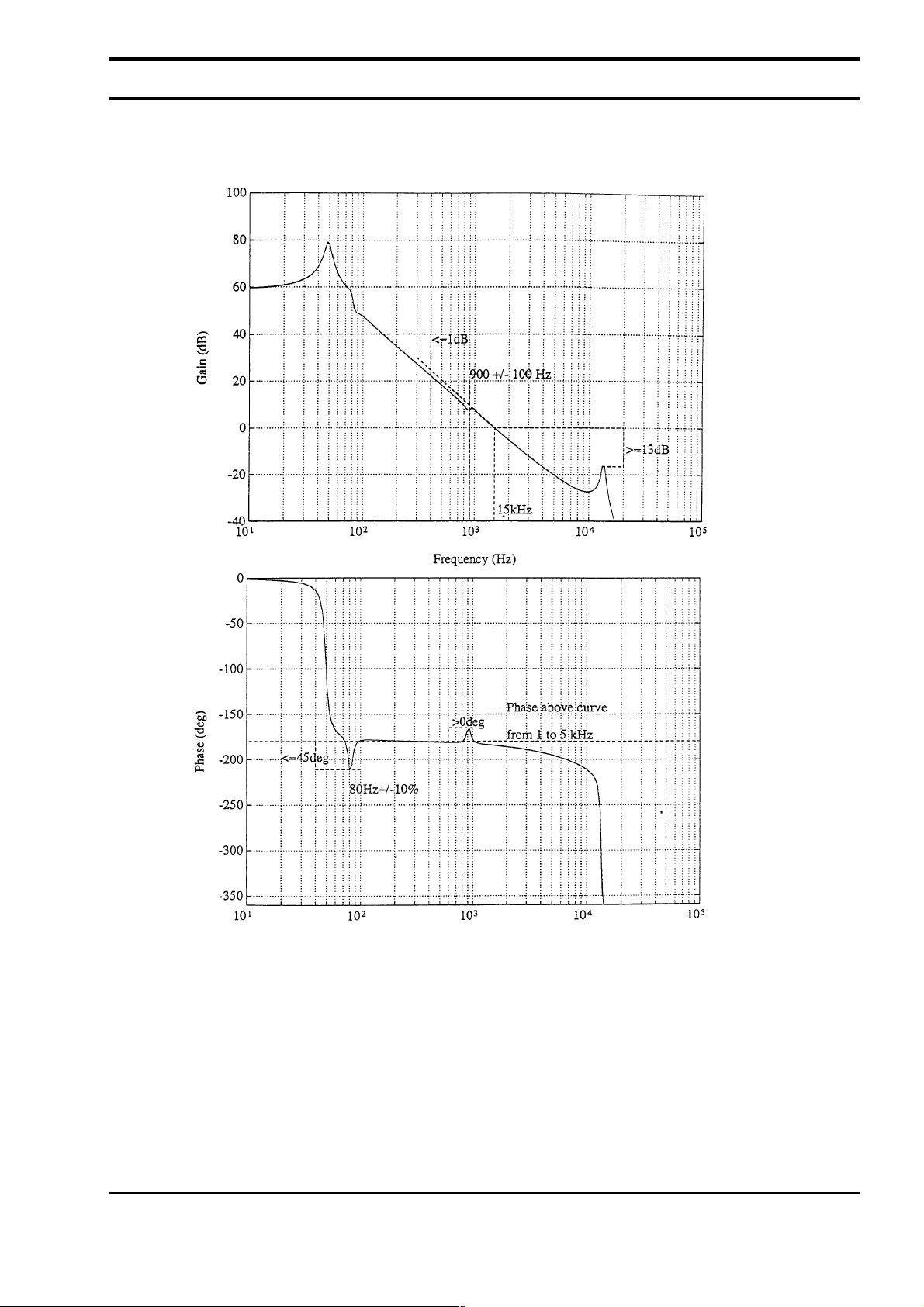

Fig. 13: Radial characteristics

Page 33

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 14: Turntable

FOR INFORMATION ONL Y Note: Measurements are in mm.

Page 34

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

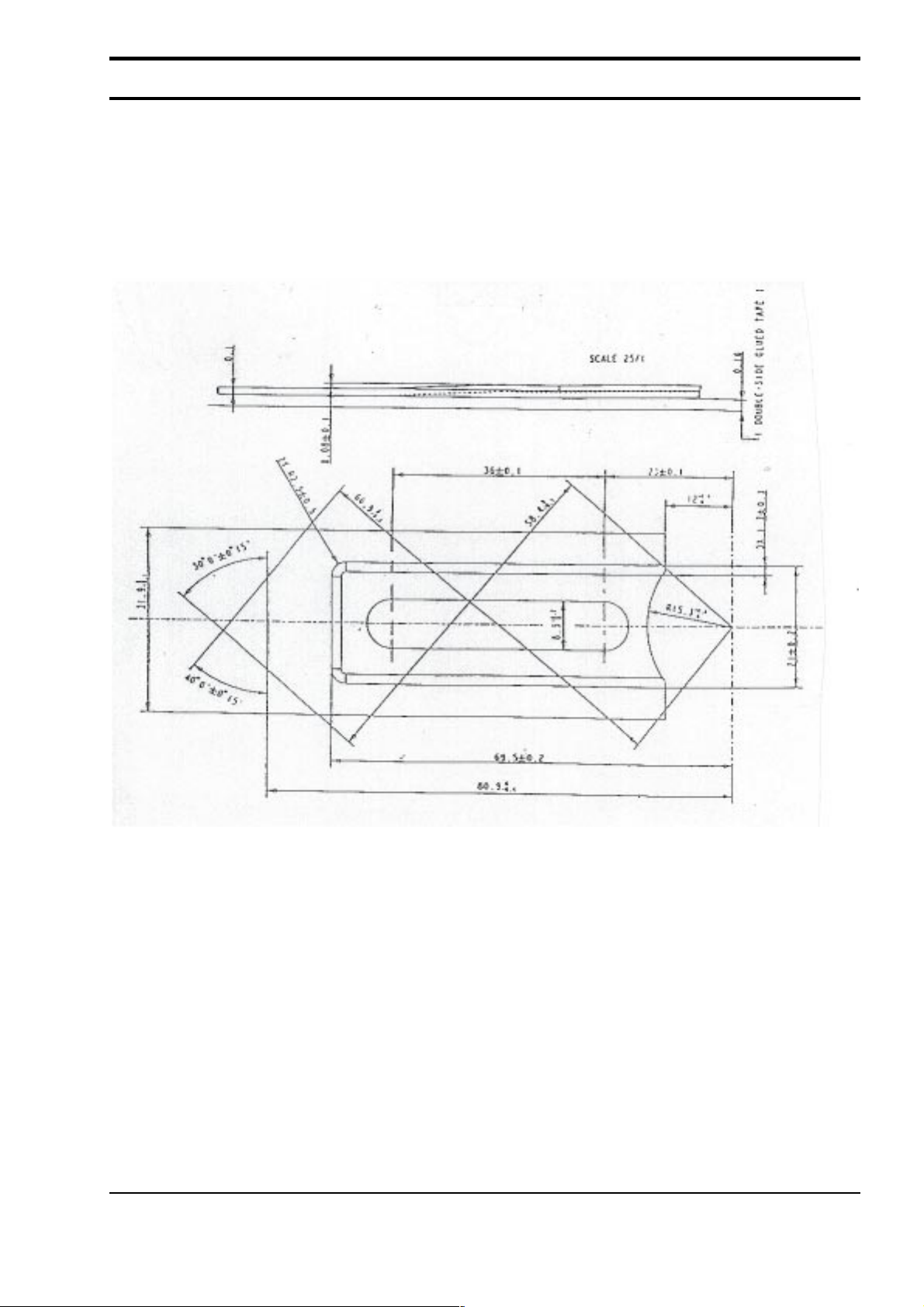

Fig. 15: Recommended ornamental plate

FOR INFORMATION ONL Y Note: Measurements are in mm.

12NC : 3104 144 21210

Page 35

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

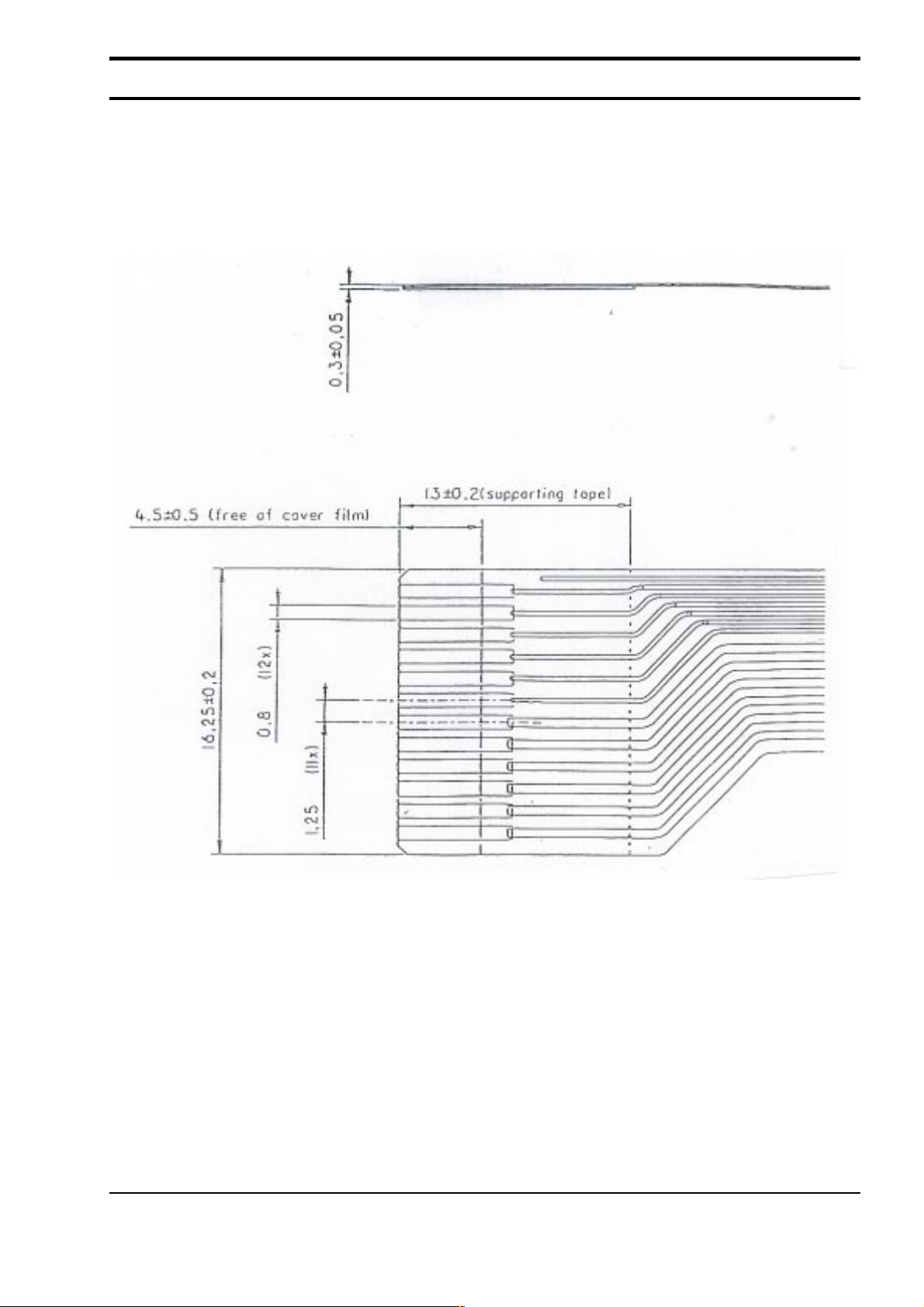

Fig. 16: Mechanical data foil

FOR INFORMATION ONL Y Note: Measurements are in mm.

Page 36

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

Fig. 17: Flexible foil application info

FOR INFORMATION ONL Y Note: Measurements are in mm.

EXTREME LIMIT WHERE THE FLEX

CONNECTOR MAY BE POSITIONED

Page 37

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

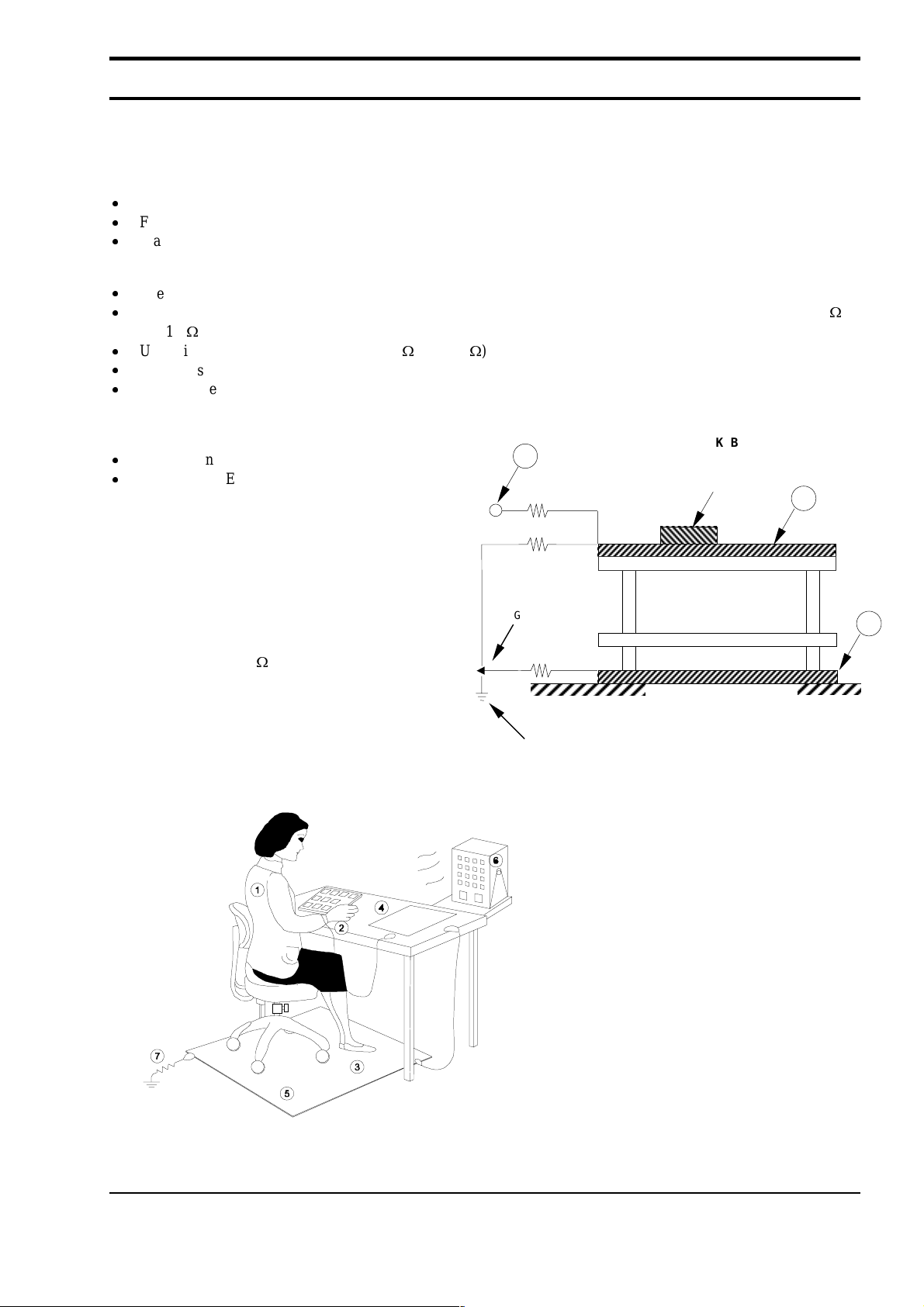

Fig. 18: ESD protection and handling instructions

Unpacking, testing and assembling A. Avoid surge current or electrostatic discharge



The mechanism may be damaged if a excessive current is applied to it, even if only a short pulse.



For safe handling of the mechanism, grounding the human body and the measuring equipment is a must



Make sure that there is no surge current in the driving circuit

B. Basic ESD countermeasures



Use humidifiers when the relative humidity in the working environment is below 50%



Use electroconductive mats over workbenches where the mechanism can be laid down. Resistance between 10



Use wrist straps (resistance between 200 k and 1 M)



When it is difficult to discharge static electricity from the equipment and contacting dielectrics, use Ionizers



All equipment and electric tools which are used, have to be connected to ground via a central grounding point on

and 10



/cm

the table.

C. Introduce on regularly basis audits



Static potentials must be < 150 V in all cases



Audit “ALL” ESD countermeasures on regularly basis

GROUNDED WORK BENCH

ELECTROCONDUCTIVE

D. Using ESD countermeasures

1. Charge-resistant apparel

2. Wrist strap

3. Charge-resistant shoes or ground strap

4. Electroconductive table mat

5. Electroconductive floor mat

6. Ionizer air bl ower (must not generate ozone for

COMMON GROUND

POINT

health reasons)

7. Ground wire ( 1 M )



ORK ROOM FLOOR

Page 38

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

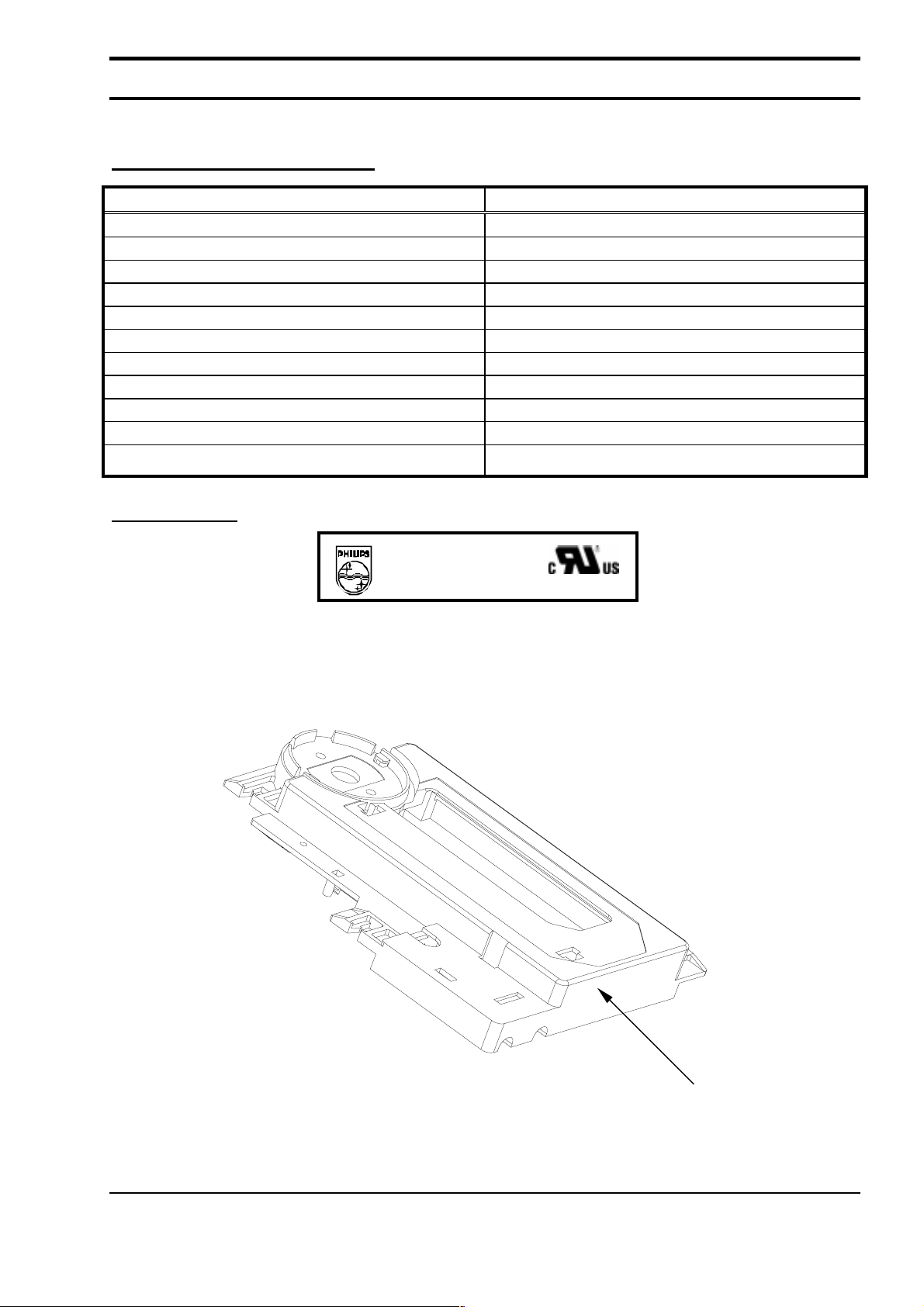

Fig. 19: Contents and placement of label

Lay out of label for VAM1202/12 DESCRIPTION DATA

PHILIPS LOGO VAM1202/12 Model name 9305 022 20212 Code number (12 NC) E143838 UL-file number (Fabricant name) 1VO Production allocation 00 Change code 9717 Year and week code 00 Production group/line 05511 Serial number cUL/UL (symbols) UL recognised marks for USA and Canada

DANGER: INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.

USA-laser warning

Sample Label :-

VAM1202/12

9305 022 20212 1VO00 9717 00 05511 E143838

place of label

Page 39

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

APPENDIX 1: Mabuchi FF-030PK-08250 Motor Data

Note: FOR INFORMATION ONLY

STANDARD OPERATION CONDITION

Parameter Min. Typ. Max. Unit Notes

Rated voltage 6 Vdc Working voltage range 3.7 7 Vdc Rated load 5 g-cm Rotation direction CW

INITIAL CHARACTERISTIC SPECIFICATION

Parameter Min. Typ. Max. Unit Notes

No load speed at rated voltage 9200 10500 11800 rpm Rated load speed at rated voltage 6650 7650 8650 rpm Rated load current at rated voltage 200 mA No load current at rated voltage 80 mA No load starting voltage 0.9 V Starting current at rated voltage 510 mA Starting torque at rated voltage 12 g-cm Insulation resistance 1 M Rotor resistance 12.42 13.8 15.18 Electro-motive force 1.40 1.56 1.72 V 20 °C, 3000 rpm

20 °C, 65 % R.H.

20 °C

Page 40

Philips Optical Storage Product Specification

CD Mechanism for 2x VAM1202/12

APPENDIX 2: Mabuchi RF-300CH-11400 Motor Data

Note: FOR INFORMATION ONLY

STANDARD OPERATION CONDITION

Parameter Min. Typ. Max. Unit Notes

Rated voltage 3.9 Vdc Working voltage range 2.8 6 Vdc Rated load 9 g-cm Rotation direction CW/CCW

INITIAL CHARACTERISTIC SPECIFICATION

Parameter Min. Typ. Max. Unit Notes

No load speed at rated voltage 4370 4850 5330 rpm Rated load speed at rated voltage 2700 3000 3300 rpm Rated load current at rated voltage 195 mA No load current at rated voltage 35 mA No load starting voltage 0.8 V Starting current at rated voltage 335 375 415 mA Starting torque at rated voltage 17 g-cm Insulation resistance 10 M Rotor resistance 9.45 10.27 11.09 Electro-motive force 2.08 2.26 2.44 V 20 °C, 3000 rpm

20 °C, 65 % R.H.

20 °C
