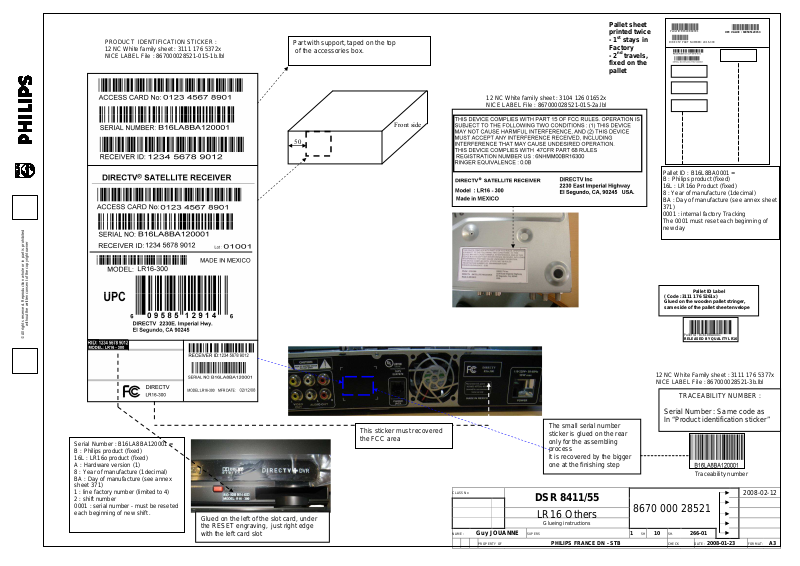

Philips DECO 867000028521 Diagram

PRODUCT IDENTIFICATION STICKER : 12 NC White family sheet : 3111 176 5372x NICE LABEL File : 867000028521-015-1b.lbl

Part with support, taped on the top of the accessories box.

Front side

12 NC White family sheet : 3104 126 01652x NICE LABEL File : 867000028521-015-2a.lbl

Pallet sheet printed twice

- 1st stays in Factory

- 2nd travels, fixed on the pallet

Pallet ID:B16L8BA0001

DIRECTV PART NUMBER: LR16-300

UPC VALUE : 609585129153

Pallet ID : B16L8BA0001 = B : Philips product (fixed) 16L : LR16o Product (fixed) 8 : Year of manufacture (1decimal) BA : Day of manufacture (see annex sheet

371) 0001 : internal factory Tracking The 0001 must reset each beginning of new day

( Code :3111 176 5261x) Glued on the wooden pallet stringer, same side of the pallet sheet envelope

without the written consent of the copyright owner

Pallet ID Label

Pallet ID: B16L8BA0001

RELEASED BY QUALITY LR16

12 NC White Family sheet : 3111 176 5377x NICE LABEL File : 867000028521-3b.lbl

TRACEABILITY NUMBER :

Serial Number : Same code as In “Product identification sticker”

This sticker must recovered

Serial Number : B16LA8BA120001 = B : Philips product (fixed) 16L : LR16o product (fixed) A : Hardware version (1) 8 : Year of manufacture (1decimal) BA : Day of manufacture (see annex sheet 371) 1 : line factory number (limited to 4) 2 : shift number 0001 : serial number - must be reseted each beginning of new shift .

Glued on the left of the slot card, under the RESET engraving, just right edge with the left card slot

the FCC area

CLASS No

NAME :

PROPERTY OF

Guy JOUANNE

SUPERS

The small serial number sticker is glued on the rear only for the assembling process It is recovered by the bigger one at the finishing step

DSR 8411/55

Glueing instructions

PHILIPS FRANCE DN - STB

8670 000 28521

SH.

CHECK DATE :

Traceability number

266-01

2008-01-23

2008-02-12

FORMAT:
