Philips DC320-98 User Manual

1

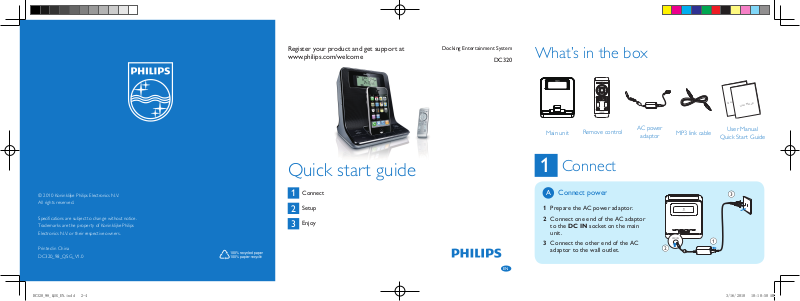

Quick start guide

EN

What’s in the box

2

Connect

Setup

Enjoy

3

© 2010 Koninklijke Philips Electronics N.V.

All rights reserved.

Specications are subject to change without notice.

Trademarks are the property of Koninklijke Philips

Electronics N.V. or their respective owners.

Printed in China

DC320_98_QSG_V1.0

Quick Start Guide

User Manual

User Manual

Quick Start Guide

Register your product and get support at
www.philips.com/welcome

DC320

Docking Entertainment System

AC power

adaptor

Remove control

1

Connect

Connect power

A

1 Prepare the AC power adaptor.

2 Connect one end of the AC adaptor

to the DC IN socket on the main
unit.

3 Connect the other end of the AC

adaptor to the wall outlet.

a

b

c

MP3 link cableMain unit

Setup

2

1 In standby mode, press and hold SET

TIME/PROG for 2 seconds.

[12 HR] begins to blink. »

2 Press

/

to select 12/24 hour

format.

3 Press S ET TIM E/PROG to conrm.

The hour digits begin to blink. »

4 Press

/

to set the hour.

5 Press SET TIME/PROG to conrm.

The minute digits begin to blink. »

6 Repeat steps 4-5 to set the minute,

year, month, and day.

Set time and date

A

1 In the tuner mode, press and

hold SET TIME/PROG for
more than 2 seconds to activate
automatic program mode.

» All available stations are

programmed in the order of
waveband reception strength.

The rst programmed radio »
station is broadcast automati­cally.

2 Press PRESET +/- to select a

preset number.

E

Tip

Detailed functions and features are •
described in the user manual.

Program and listen to
radio stations

A

Play from iPod/iPhone

B

Setup

2

Set the alarm timer

B

Activate and deactivate the alarm timer

1 Press ALM 1 or ALM 2 repeatedly

to activate or deactivate the timer.

If the timer is activated, [ »

AL 1]

or [

AL2] is displayed.

If the timer is deactivated, »
[

AL1] or [ AL2] disappears.

Repeat alarm

1 When the alarm rings, press

BRIGHTNESS/REP ALM.

The alarm repeats ringing »
minutes later.

E

Tip

You can press •

/

to adjust the

interval to repeat alarm.

Stop alarm ring

1 When the alarm rings, press the

corresponding ALM 1 or ALM 2.

The alarm stops but the alarm »
settings remain.

1 Place the iPod/iPhone in the dock.

2 Press SOURCE repeatedly to

select iPod/iPhone source.

The connected iPod/iPhone »
plays automatically.

To pause• /resume play, press

.
To skip to a track, press •
/ .

Enjoy

2

3

You can set two alarms which go off at
different time.

1 Ensure that you have set the clock

correctly.

2 Press and hold ALM 1 or ALM

2 for 2 seconds.

[AL 1] or [AL 2] begin to »
blink.

3 Press SOURCE to select an alarm

sound source: iPod/iPhone, iPod/
iPhone playlist, FM tuner, or
buz zer.

4 Press ALM 1 or ALM 2.

Hour digits begin to blink. »

5 Press

/ repeatedly to set

the hour.

6 Press ALM 1 or ALM 2 to con-

rm.

Minute digits begin to blink. »

7 Repeat steps 5-6 to set the minute.

8 Repeat steps 5-6 to select wheth-

er to ring alarm the whole week,
on weekdays, or at weekend.

9 Repeat steps 5-6 to set the alarm

volume.

Enjoy

2

3

To search during play, press •
and hold

/ , then release
to resume normal play.
To go back to previous iPod/•
iPhone menu, press MENU.
To scroll through the menu,
press PRESET +/-. To

conrm a selection, press

OK/

.
If no key is pressed for »
more than 10 seconds,

OK/

acts back as the

play/pause key.
