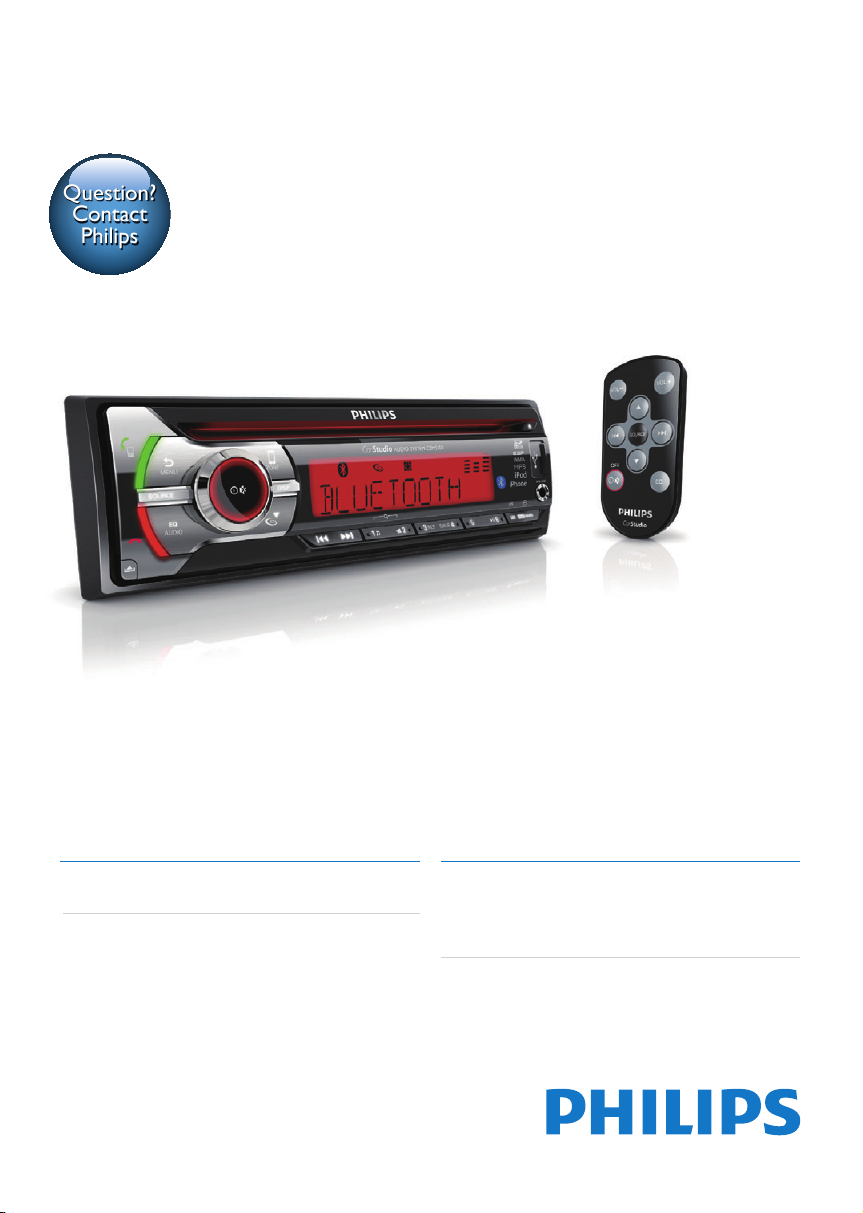

Page 1

Always there to help you

Question?

Contact

Philips

CEM5100

User manual 1

Руководство

пользователя 29

Page 2

Contents

1 Important 2

Safety 2 Notice 2

2 Your car audio system 4

Introduction 4 What's in the box 4 Overview of the main unit 5 Overview of the remote control 6

3 Get started 7

Install the car audio 7 Install remote control battery 10 Turn on 10 Select country/region 11 Set clock 11

7 Adjust sound 20

Adjust volume 20 Mute 20 Turn Dynamic Bass Boost (DBB) on/off 20 Turn MAX sound on/off 20 Select preset equalizer 20 Switch music listening zone 20 Turn on/off full sound 20 Other sound settings 21

8 Adjust system settings 22

Turn beep sound on/off 22 Select blackout setting 22 Turn demo mode on/off 22 Dimmer 22 Dance 22 LCD Color 22 Audiobook 23 Reset 23

English

4 Listen to radio 12

Tune to a radio station 12 Store radio stations in memory 12 Tune to a preset station 12 Play with RDS 12

5 Use bluetooth devices 15

Pairing bluetooth devices 15 Make a call 15 Call transfer 15 Receive call 16 Terminate call 16

Play audio les from bluetooth devices 16

6 Playaudioles 17

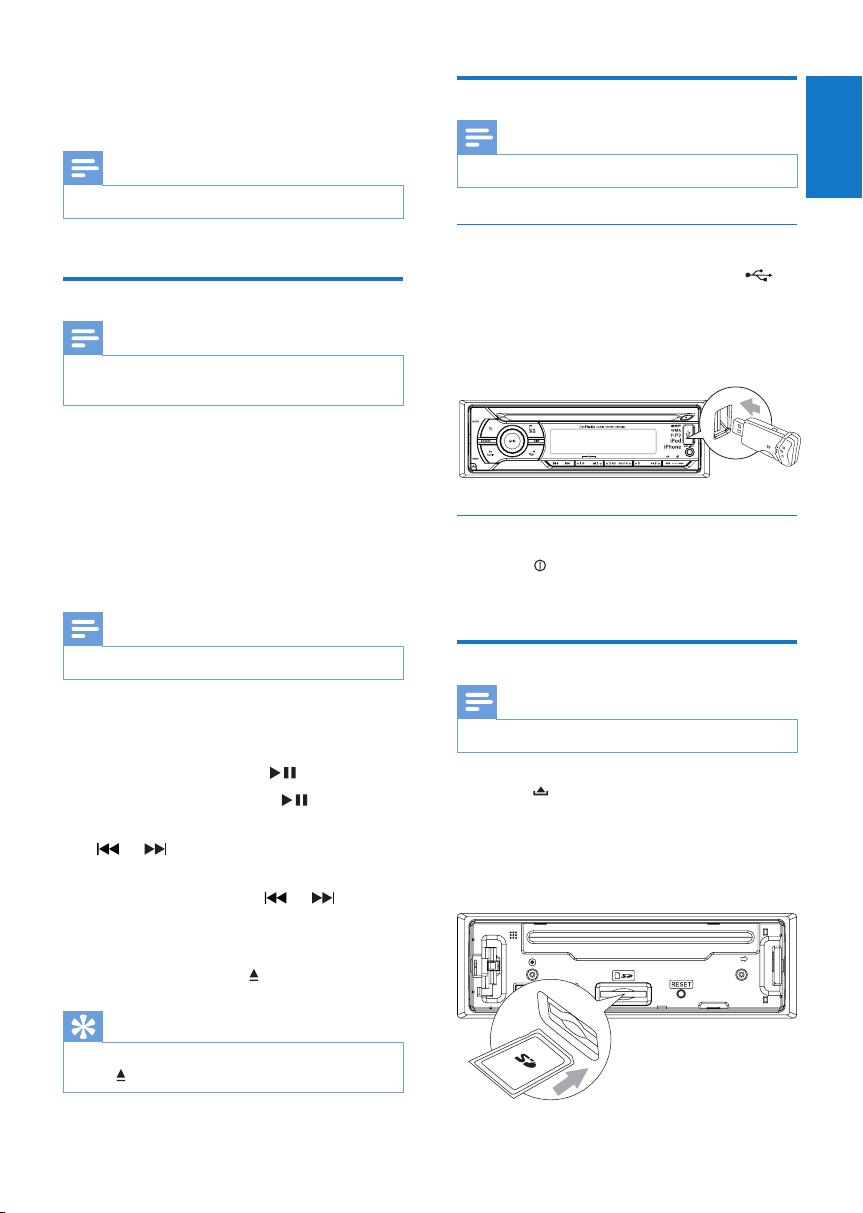

Play a disc 17 Play from USB 17 Insert a card 17 Play from iPod/iPhone 18 Play options 19 Connect external sound source 19

9 Additional information 24

Detach the front panel 24 Replace fuse 24 Remove the unit 24

10 Product information 25

11 Troubleshooting 26

About Bluetooth device 26

Page 3

1 Important

Safety

• Read and understand all instructions before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply.

• This apparatus is designed for negative ground (earth) 12 V DC operation only.

• To ensure safe driving, adjust the volume to a safe and comfortable level.

• Improper fuses can cause damage or re. When you need to change the fuse,

consult a professional.

• Use only the supplied mounting hardware for a safe and secure installation.

• To avoid short circuit, do not expose the apparatus, remote control or remote control batteries to rain or water.

• Never insert objects into the ventilation slots or other openings on the apparatus.

• Clean the apparatus and frame with a soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus.

• Never place any objects other than discs into the apparatus.

• Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.

• Visible and invisible laser radiation when open. Avoid exposure to beam.

• Risk of damage to the apparatus screen! Never touch, push, rub or strike the screen with any object.

Caution

Use of controls or adjustments or performance of

•

procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

• The apparatus shall not be exposed to dripping or splashing.

• Do not place any sources of danger on the apparatus (e.g. liquid lled objects, lighted

candles).

Notice

Any changes or modications made to this

device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment.

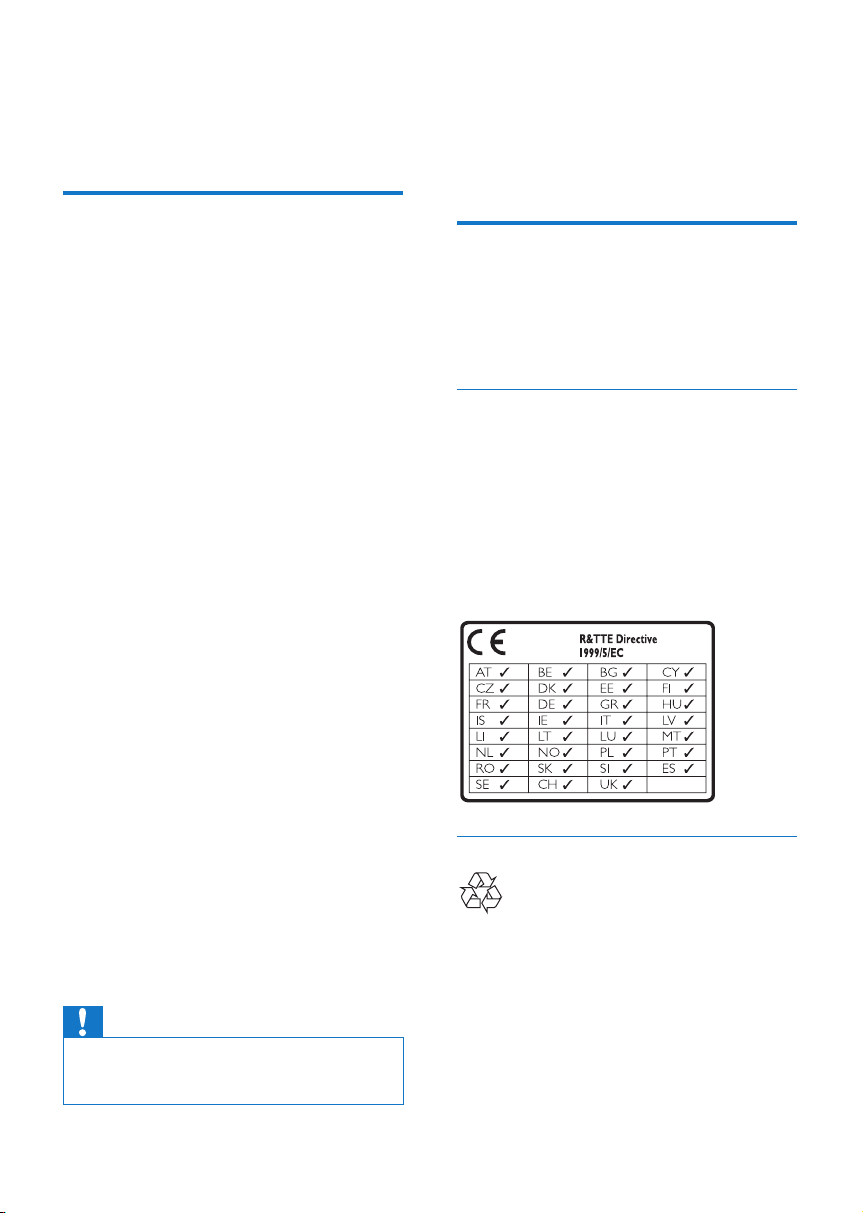

Declaration of conformity

This product complies with the radio interference requirements of the European Community.

This product has been designed, tested and manufactured according the European R&TTE directive 1999/5/EC. Following this directive, this product can be brought into service in the following countries:

1177

Recycling

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:

2 EN

Page 4

Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste.

Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please obser ve the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

The making of unauthorized copies of copyprotected material, including computer

programs, les, broadcasts and sound

recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been

designed to connect specically to iPod, or iPhone respectively, and has been certied by

the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, or iPhone may affect wireless performance.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

This apparatus includes this label:

Specications are subject to change without

notice. Trademarks are the proper ty of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

English

Page 5

2 Your car audio

system

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the in-car audio system, you can enjoy your drive while you listen to:

• FM or AM (MW) radio

• Audio from CD or MP3 disc

• Audio from your mobile phone

• Audio from a USB drive

• Audio from a SD/SDHC card

• Audio from external devices

Besides, you can make a call, answer and hang up a call on the audio system.

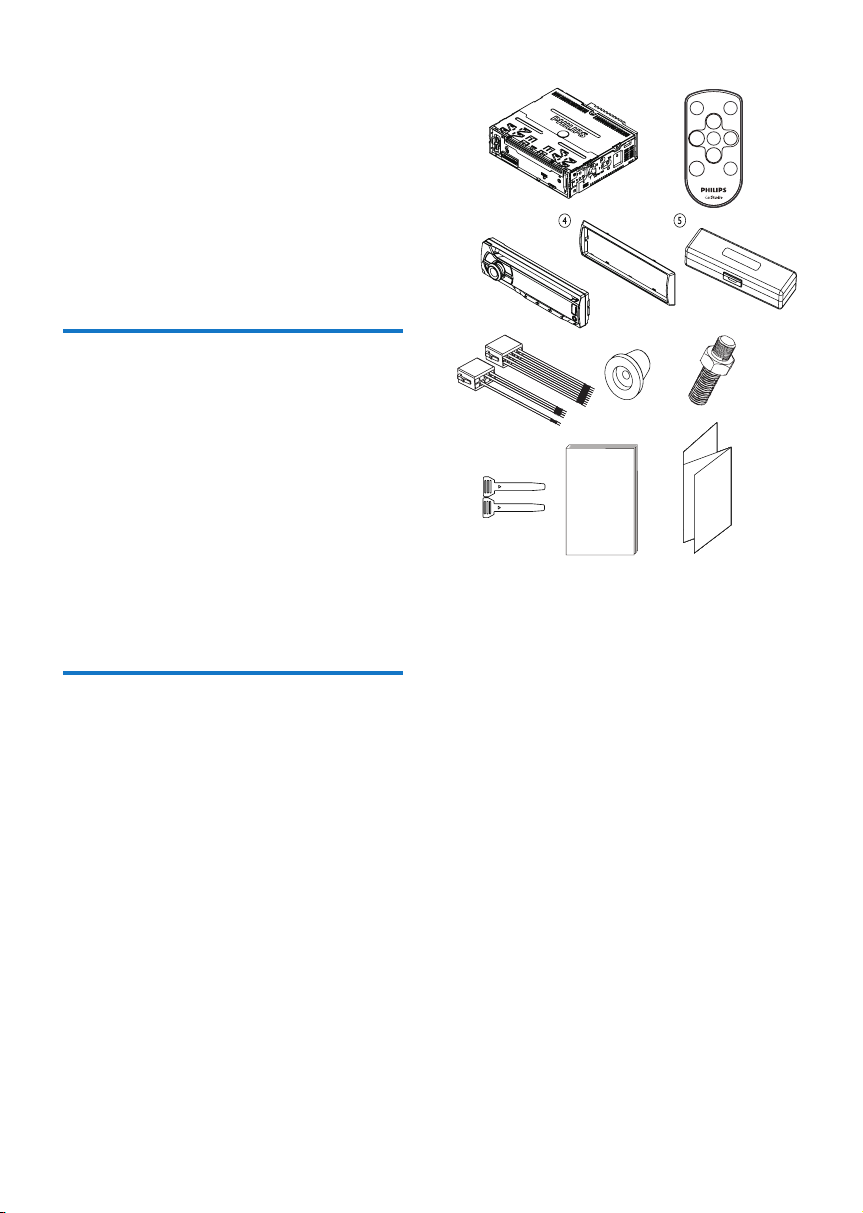

What's in the box

Check and identify the contents of your package:

a Main unit (with a sleeve) b Remote control c Front panel d Trim plate e Carrying case for front panel f ISO male connector g Rubber cushion h Screw x 1 pc i Disassembly tools x 2 pcs j User manual k Quick start guide

ccccc

kji

4 EN

Page 6

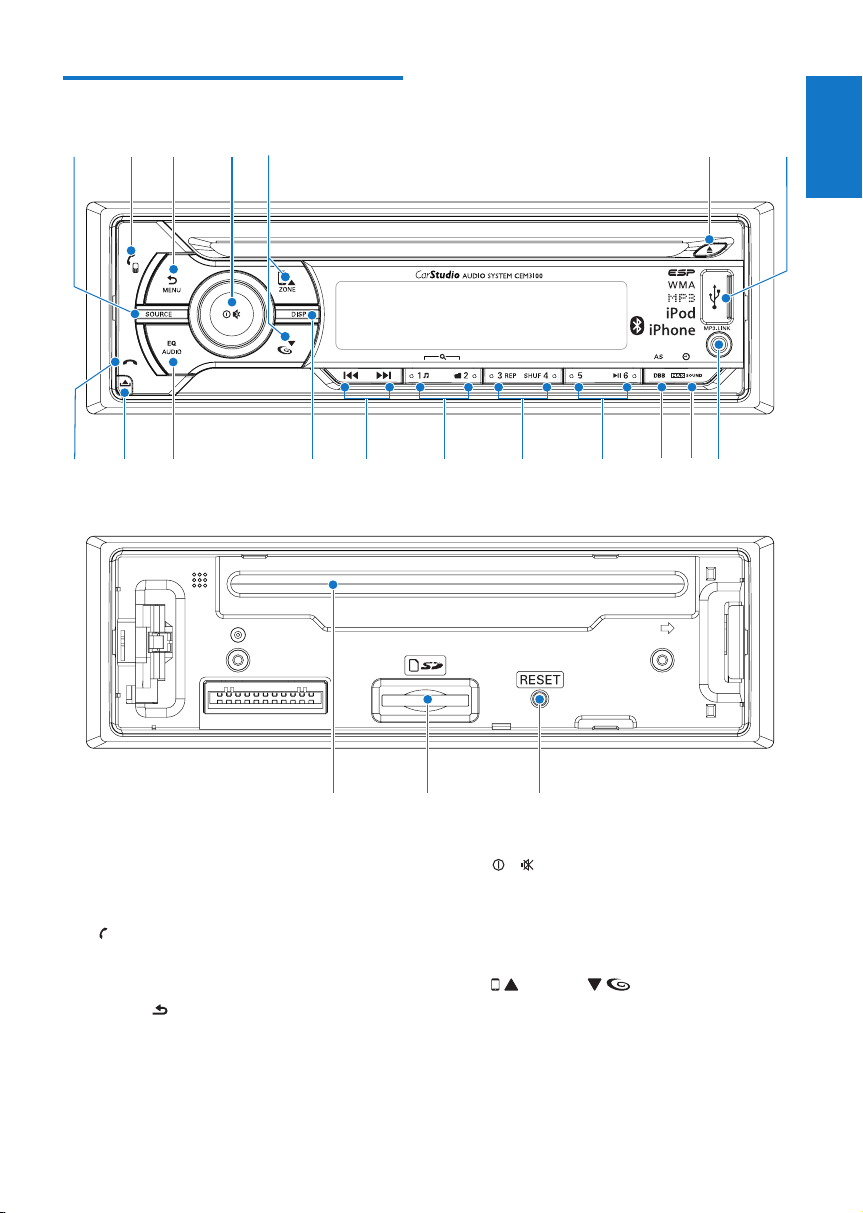

Overview of the main unit

a dc

f g

no hr q

English

a SOURCE

• Select audio source.

• Display LCD color.

• Press to answer or redial a call.

• Press and hold to transfer call.

c MENU

• Press and hold to access system menu.

• Return to previous menu.

• Access music search in iPod/iPhone

mode.

d /

• Turn the unit on or off.

• Conrm selection.

• Mute or unmute sound.

• Rotate to adjust volume.

ZONE /

• Select tuner band.

• Select MP3/WMA folder.

• Switch music listening zone.

• Turn on or off full sound.

• Enter iPod/iPhone control mode.

Page 7

• Eject disc.

• USB socket.

h MP3 LINK

• Connect external audio device.

 6281'

• Turn maximizing volume on or off.

• View clock.

j DBB

• Turn Dynamic Bass Boost (DBB) sound on or off.

• Access to tuner auto store.

• Select preset radio station No.6.

• Start play.

• Pause or resume play.

l REP / SHUF

• Repeat play.

• Shufe play.

• Select preset radio station No.3/4.

• Select preset radio station No.1/2.

• Search for track/folder.

• Tune for radio station.

• Skip/search for track.

• Fast backward/forward playback.

o DISP

• Display current status.

• Select the dimmer high or low.

p EQ / AUDIO

• Select equalizer (EQ) setting.

• Access audio setting menu.

• Unlock the panel.

• Press to terminate call.

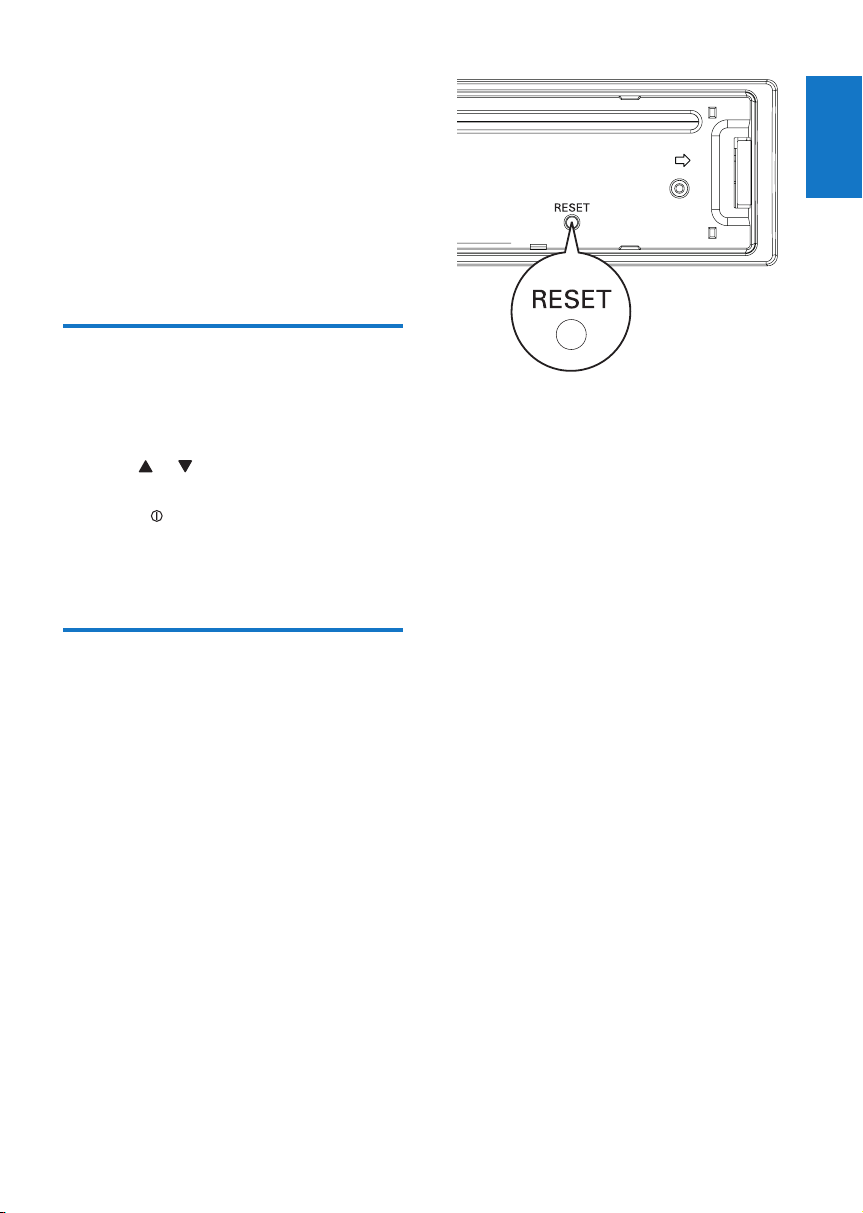

s RESET

• Restore default settings.

20 SD card slot

u Disc slot

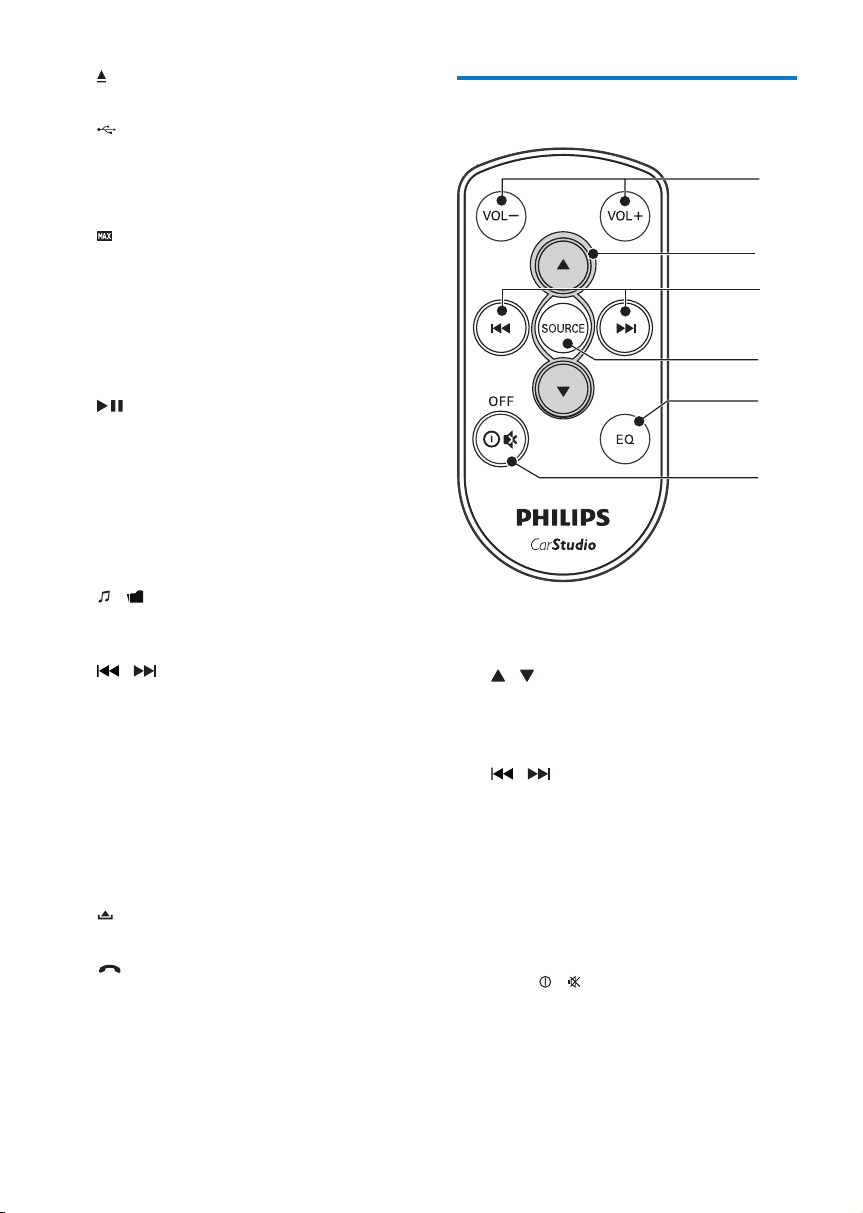

Overview of the remote control

a VOL +/-

• Adjust volume.

• Select tuner band.

• Scroll up/down menu.

• Select MP3/WMA folder.

• Tune to a radio station

• Skip track.

• Fast backward/forward playback

d SOURCE

• Select audio source.

e EQ

• Select equalizer (EQ) settings.

f OFF /

• Turn the unit on or off.

• Mute or restore volume.

b c

d e

6 EN

Page 8

3 Get started

Caution

Use the controls only as stated in this user manual.

•

Always follow the instructions in this chapter in sequence.

If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here:

Model No. __________________________

Serial No. ___________________________

Note on the power supply lead (yellow)

• When you connect other devices to this apparatus, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

Notes on speaker connection

• Never connect speaker wires to the metal body or chassis of the car.

• Never connect speaker wires with stripes to one another.

Connection: for cars with ISO connectors

Caution

Ensure that all loose leads are insulated with electrical

•

tape.

English

Install the car audio

These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your Philips car audio dealer.

Caution

This unit is designed for negative ground (earth) 12 V

•

DC operation only.

• Always install this unit in the car dashboard. Other

locations can be dangerous as the rear of the unit heats up during use.

• To avoid short-circuit: before you connect, ensure that

the ignition is off.

• Ensure that you connect the yellow and red power

supply leads after all other leads are connected.

• Ensure that all loose leads are insulated with electrical

tape.

• Ensure that the leads do not get caught under screws

orin parts that will move (e.g. seat rail).

• Ensure that all ground (earth) leads are run to a

common ground (earth) point.

• Use only the supplied mounting hardware for a safe

and secure installation.

• Improper fuses can cause damage or re. When you

need to change the fuse, consult a professional.

Note

Consult a professional to connect CEM5100 as

•

instructed below.

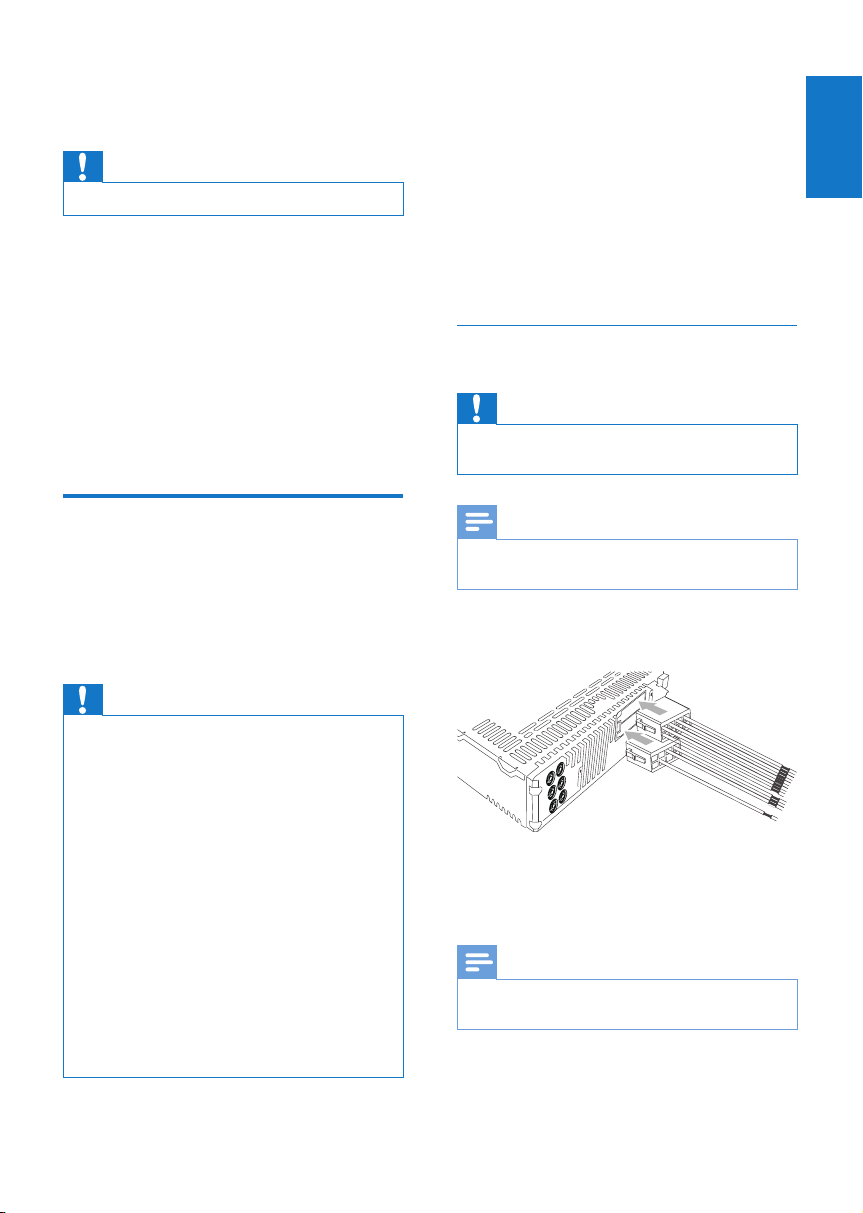

1 Connect the supplied male connector to

the unit.

2 Check the car's wiring carefully and

connect them to the the supplied male connector.

Note

Risk of danger! Please consult a professional to perform

•

the steps below!

Page 9

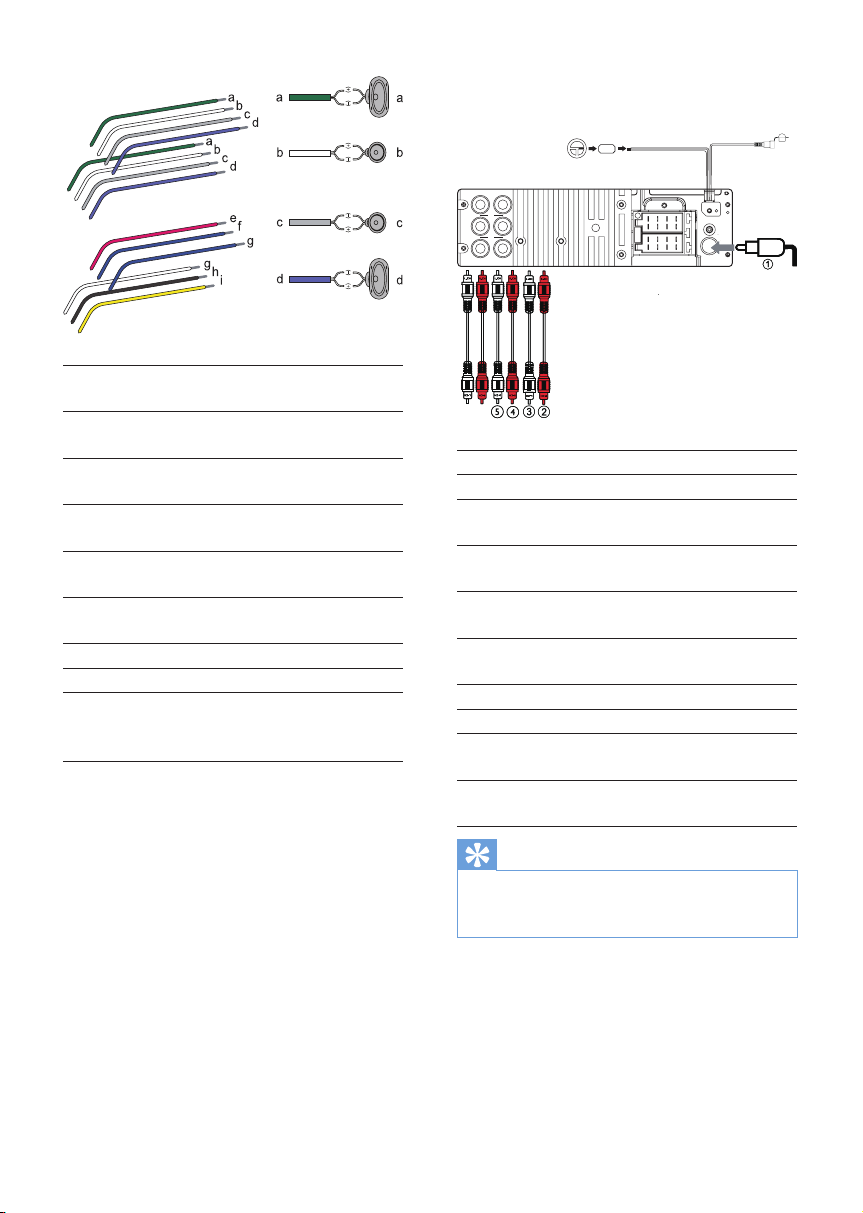

3 Connect the antenna and amplier as

illustrated, if applicable.

REAR AUX

FRONT

REAR

1 Green/black

strip

2 White/black

strip

3 Gray/black

strip

4 Purple/black

strip

e Red Ignition key +12V DC when

f Blue Motor/electric antenna relay

g Blue/white Amplier relay control lead h Black Ground i Yellow To the +12V car batter y

Left speaker (Rear)

Left speaker (Front)

Right speaker (Front)

Right speaker (Rear)

ON/ACC

control lead

which is energized at all times

Connector Connect to

1 ANTENNA Antenna 2 FRONT LINE OUT R

(Socket)

3 FRONT LINE OUT L

(Socket)

4 REAR LINE OUT R

(Socket)

5 REAR LINE OUT L

(Socket) 6 OE REMOTE (Purple) OE Remote 7 SUBWOOFER (Blue) Subwoofer 8 REAR AUX LINE OUT RRear Aux right

9 REAR AUX LINE

OUT L

Tip

The pin arrangement for the ISO connectors depends

•

on the type of vehicle you drive. Be sure to make proper connections to prevent damage to the unit.

Front right speaker

Front left speaker

Rear right speaker

Rear left speaker

Rear Aux left

8 EN

Page 10

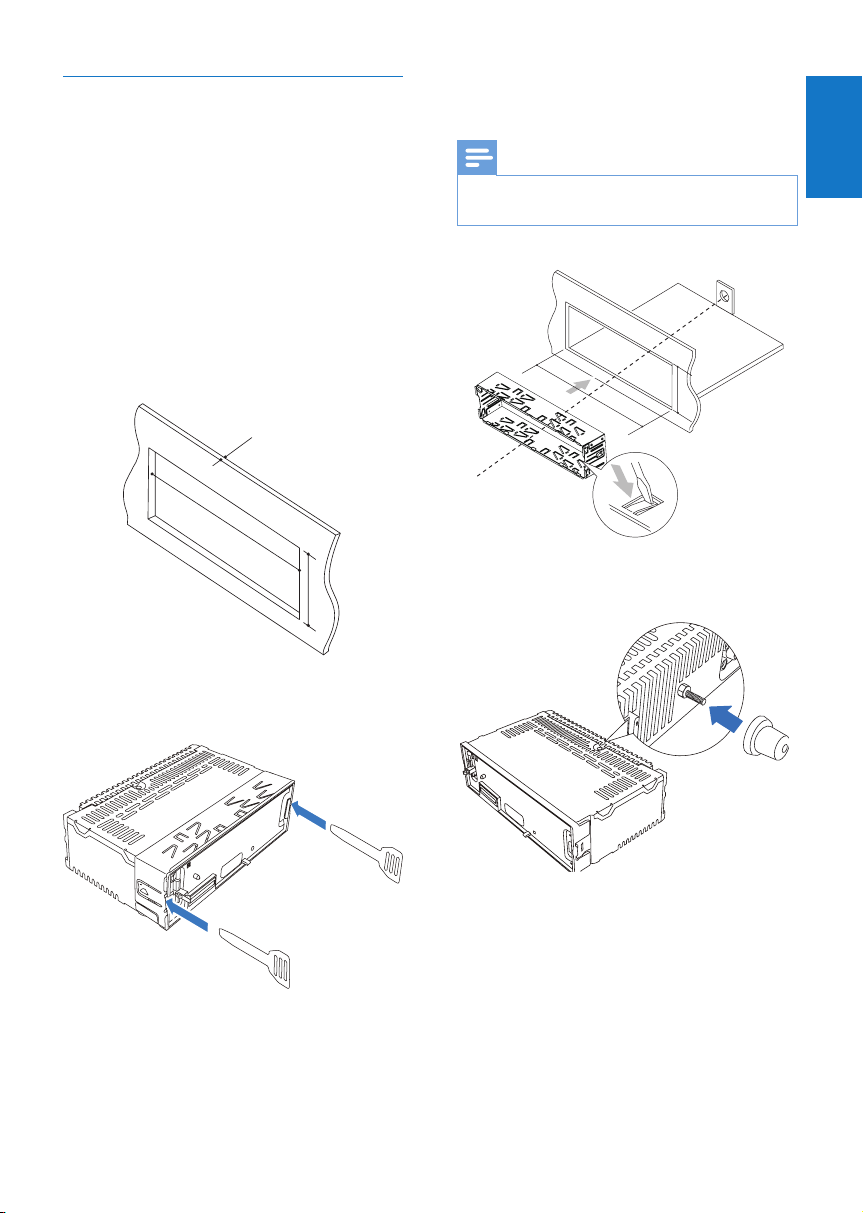

Mount into the dashboard

1 If the car does not have an on-board drive

or navigation computer, disconnect the negative terminal of the car battery.

• If you disconnect the car battery in a car that has an on-board drive or navigation computer, the computer may lose its memory.

• If the car battery is not disconnected, to avoid short-circuit, ensure that the bare wires do not touch each other.

2 Ensure that car dashboard opening is

within these measurements:

5mm

4 Install the sleeve into the dashboard and

bend the tabs outward to x the sleeve.

Note

If the unit is not xed by sleeve but by the supplied

•

screws, skip this step.

53.5 mm

183 mm

English

183 mm

53mm

3 Remove the mounting sleeve with the

supplied disassembly tools.

5 Place the supplied rubber cushion over the

end of the mounting bolt.

Page 11

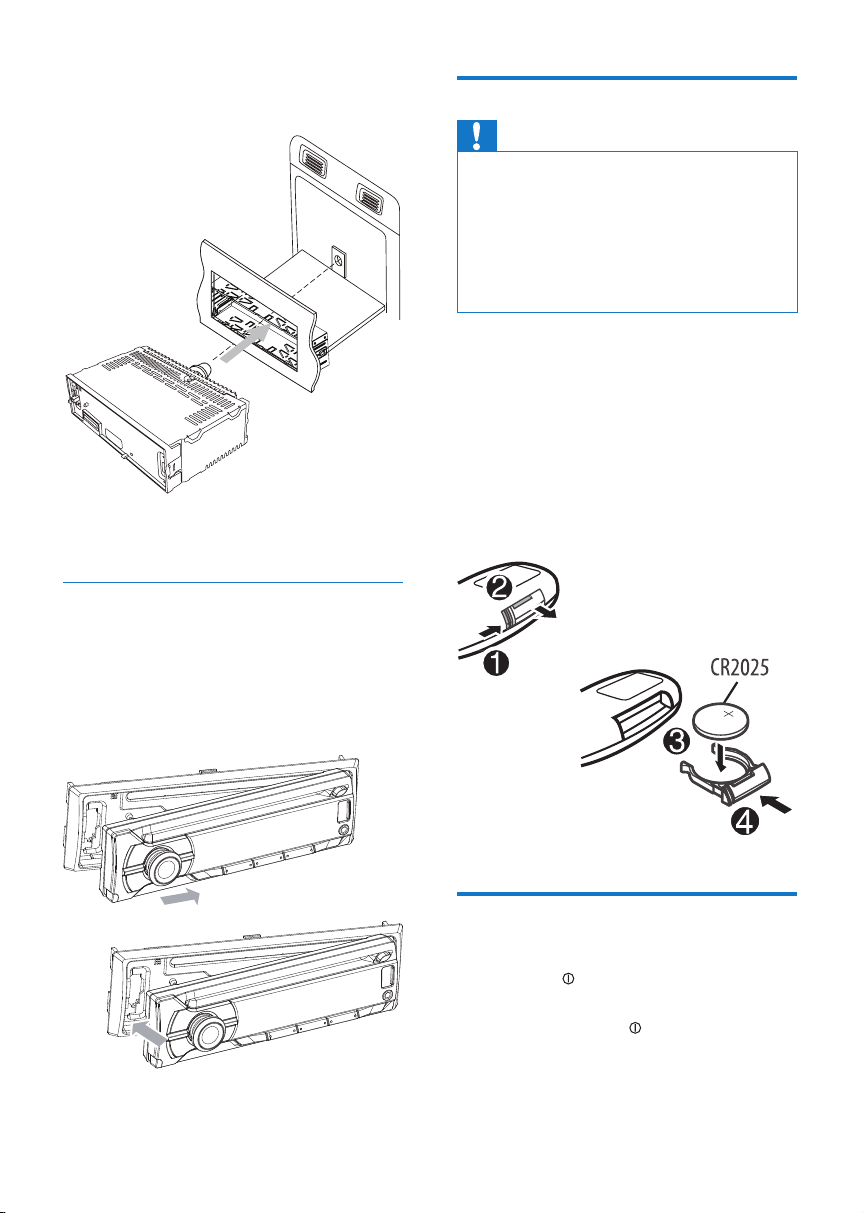

6 Slide the unit into the dashboard until you

hear a click.

7 Reconnect the negative terminal of the car

battery.

Attach the front panel

1 Attach the trim plate. 2 Inser t the right side of the panel in the

chassis until it is correctly engaged.

3 Press the left side of the panel until the

mechanism locks it into place.

Install remote control battery

Caution

Risk of explosion! Keep batteries away from heat,

•

sunshine or re. Never discard batteries in re.

• Risk of decreased battery life! Never mix different

brands or types of batteries.

• Risk of product damage! When the remote control is

not used for long periods, remove the batteries.

• Perchlorate Material - special handling may apply. See

www.dtsc.ca.gov/hazardouswaste/perchlorate.

Forrst-timeuse:

Remove the protective tab to activate the remote control battery.

To replace the remote control battery:

1 Open the batter y compartment. 2 Inser t one CR2025 battery with correct

polarity (+/-) as indicated.

3 Close the batter y compartment.

10 EN

Turn on

To turn the unit on,

• press .

To turn the unit off,

• press and hold turned off.

until the unit is

Page 12

Select country/region

Note

Select correct country/region for this unit, otherwise

•

the unit can not work properly.

1 Press to turn the unit on.

» [SELECT OPERATING REGION] is

displayed.

2 Rotate to select an option:

• [USA] (United States)

• [LATIN] (Latin America)

• [EUROPE] (Western Europe)

• [RUS] (Russia)

• [M-EAST] (Middle East)

• [ASIA] (Asia Pacic)

• [JAP] (Japan)

• [AUST] (Australia)

3 Press to conrm.

Set clock

1 Press and hold MENU. 2 Press or repeatedly until [--:--] is

displayed.

3 Rotate to set hour. 4 Press to conrm. 5 Rotate to set minute. 6 Press to conrm.

View clock

In any mode, press and hold MAX SOUND until the clock is displayed.

• Press any key to cancel the clock display.

English

Set clock format

1 Press and MENU. 2 Press or repeatedly until [CLOCK

FORMAT] is displayed.

3 Rotate to select a setting:

• [CLOCK 12H]

• [CLOCK 24H]

Page 13

4 Listen to radio

Tune to a radio station

1 Press SOURCE repeatedly to select radio

mode.

2 Press / repeatedly to select band:

[FM1], [FM2], [FM3], [AM1], or [AM2] .

3 Press and hold or until the

frequency digit is ashed.

4 Press or to tune to a radio station

manually.

» The radio station is broadcast.

• To search for a radio station automatically, press

Select tuner region

You can select suitable country/region of the radio.

1 Press SOURCE to select radio mode. 2 Press and hold MENU. 3 Press or repeatedly until [AREA] is

displayed.

4 Rotate to select:

• [USA] (United States)

• [LATIN] (Latin America)

• [EUROPE] (Western Europe)

• [RUS] (Russia)

• [M-EAST] (Middle East)

• [ASIA] (Asia Pacic)

• [JAP] (Japan)

• [AUST] (Australia)

5 Press to conrm.

or .

2 Press or repeatedly until [LOCAL] is

displayed.

3 Rotate to select a setting:

• [LOCAL ON] (local on): Only stations with strong signal can be broadcast.

• [LOCAL OFF] (local off): Stations with strong and weak signals can be broadcast.

Store radio stations in memory

You can store up to six stations in each band.

Store stations automatically

1 In radio mode, press and hold DBB until

[STORE - - -] is displayed.

2 Press to conrm.

» The six strongest stations of the

selected band are saved in the preset channel automatically.

Store stations manually

1 Tune to a station that you want to store.

(see 'Tune to a radio station' on page 12)

2 Press a numeric button for three seconds.

» The station is saved in the selected

channel.

Tune to a preset station

1 In radio mode, press / to select band. 2 Press a numeric key to select a preset

station.

Select tuner sensitivity

To receive more radio stations or only stations with strong signal, you can adjust the tuner sensitivity.

1 Press and hold MENU.

12 EN

Play with RDS

The RDS (Radio Data System) function operates only in areas with FM stations

Page 14

broadcasting RDS signals. If you tune to an RDS station, the station name are displayed.

Turn on RDS

Note

The default setting for RDS is on.

•

1 Press and hold MENU. 2 Press or repeatedly until [RDS] is

displayed.

3 Rotate to select [RDS ON].

» The RDS function is turned on.

Select program type

Before tuning to RDS stations, you can select program type and let the unit search only for programs of the selected category.

1 Press and hold MENU. 2 Press or repeatedly until [PTY] is

displayed.

3 Press to conrm. 4 Rotate to select a type, then press to

conrm.

Item Program

type

1 NEWS News ser vices 2 AFFAIRS Politics and current

3 INFO Special information

4 SPORT Sports 5 EDUCATE Education and advanced

6 DRAMA Radio plays and

7 CULTURE Culture, religion and

8 SCIENCE Science 9 VARIED Entertainment programs 10 POP M Pop music

Description

affairs

programs

training

literature

society

11 ROCK M Rock music 12 EASY M Light music 13 LIGHT M Light classical music 14 CLASSICS Classical music 15 OTHER M Special music programs 16 WEATHER Weather 17 FINANCE Finance 18 CHILDREN Children’s programs 19 SOCIAL Social Affairs 20 RELIGION Religion 21 PHONE IN Phone In 22 TRAVEL Tr avel 23 LEISURE Leisure 24 JAZZ Jazz Music 25 COUNTRY Country Music 26 NATION M National Music 27 OLDIES Oldies Music 28 FOLK M Folk Music 29 DOCUMENT Documentary 30 TEST Alarm Test 31 ALARM Alarm

Select alternate frequencies

If the radio signal is poor, turn on AF (Alternate Frequency) to search for another station with stronger signal.

1 Press and hold MENU. 2 Press or repeatedly until [AF] is

displayed.

3 Rotate to select a setting:

• [AF ON]: turn AF mode on.

• [AF OFF]: turn AF mode off.

Set region for AF tuning

You can dene AF tuning region:

[REG ON]

[REG OFF]

Only stations in current region can be tuned to automatically.

All stations can be tuned to automatically.

1 Press and hold MENU.

English

Page 15

2 Press or repeatedly until [REG] is

displayed.

3 Rotate to select a setting.

Receivetrafcannouncement

If you do not want to miss trafc

announcement when enjoying music, turn on

the TA (Trafc Announcement) function.

1 Press and hold MENU. 2 Press or repeatedly until [TA] is

displayed.

3 Rotate to select a setting:

• [TA ON]: when there is trafc

announcement, the unit switches to the tuner mode (regardless of the current mode) and begins to broadcast

the trafc conditions. When the trafc

announcement is over, it returns to the previous mode.

• [TA OFF]: trafc announcement does

not cut in.

Note

If the current received TA signal remains weak for

•

over 120 seconds, the unit will activate TA Seek mode automatically. The TA Seek will seek for other station with good condition of TA signal.

• [CT ON]: turn on the RDS clock. Time shown on the unit synchronizes with that on the RDS station.

• [CT OFF]: turn off the RDS clock.

Tip

The accuracy of the transmitted time depends on the

•

RDS station that transmits the time signal.

Tip

When a trafc announcement cuts in, user can short

•

press

to terminate the trafc announcement, and

the unit will resume to previous playback mode.

Set RDS clock

You can use time signal that is broadcast together with the RDS signal to set the clock of the unit automatically.

1 Press and hold MENU. 2 Press or repeatedly until [CT] is

displayed.

3 Rotate to select a setting:

14 EN

Page 16

5 Use bluetooth

devices

With this car audio system, you can listen

to audio les from a player or make a call

if bluetooth connection is available on your phone or player.

Pairing bluetooth devices

You can pair your bluetooth device with the unit as follows:

Note

For pairing operation, make sure to switch on the [BT

•

MODE] on the unit.

1 Turn on bluetooth function on your device. 2 Search for other bluetooth devices that

can pair with your device.

3 Select "Philips" in the pairing list. 4 Enter default password "0000".

» [PAIR OK] is displayed on the panel if

pairing is successful.

» The paired device connect to the car

audio system automatically.

• To disconnect the bluetooth

1 Press and hold MENU.

» [BT DISCONN] is displayed.

2 Press / .

» [DISCONN OK] is displaysedif

disconnection is successful.

• To connect the bluetooth

1 Press and hold MENU.

» [BT CONNECT] is displayed.

2 Press / .

» [WAITING] is displayed. » [CONNECTED] is displayed if

connection is successful.

» [FAILED] is displayed if connection is

failed.

Make a call

Note

To make an outgoing call on this unit, the bluetooth

•

connection between the unit and the phone must be active.

You can dial number through the mobile phone.

To make call through the mobile phone.

1 Use the Mobile Phone to dial and make an

outgoing call.

2 Once completed the dialing, [CALLING]

is displayed.

• To redial number.

1 Press .

» [REDIAL] is displayed.

2 Press / again.

» [CALLING] is displayed and the unit

starts dialing the number dialed last time.

Call transfer

You can transfer voice from loudspeaker to mobile phones during call.

Press and hold displayed.

» Voice transfers from loudspeaker to

until [TRANSFER] is

mobile phone.

English

Page 17

Receive call

1 If there is incoming call, the phone number

is displayed.

• if the incoming call has no phone number, [PHONE IN] is displayed.

2 Press to answer/accept the call.

Terminate call

Press to terminate call.

Playaudiolesfrom

bluetooth devices

You can listen to audio from a bluetooth device and control playback with the unit.

Press SOURCErepeatedly to select [BT AUDIO].

• To star t play, press

Note

Some mobile phone supports auto playback, no need

•

to start play manually.

• Some mobile phone needs to open the Media Players

for audio les wireless playback.

• To pause, press again.

• To track up/down, press

16 EN

/ .

Page 18

6 Play audio files

Play from USB

Note

Ensure that the disc or device contains playable les.

•

Play a disc

Note

You cannot play CDs encoded with copyright

•

protection technologies.

You can play commercially available audio CDs and these discs:

• CD-Recordables (CD-R)

• CD-Re-writables (CD-RW)

• MP3 CDs

• WMA CDs

Note

Ensure that the disc contains playable content.

•

Insert a CD with the printed side facing up.

» Play starts automatically.

• To pause CD play, press

• To resume CD play, press

• To skip to the previous/next track, press

or .

• To search backward/forward rapidly within the current track, press seconds.

Remove the CD

To take out the CD, press

again.

or for 3

on the front panel.

Note

Ensure that the USB device contains playable music.

•

Insert the USB device

1 Slide the USB socket cover marked to

the left.

2 Inser t the USB device into the USB socket.

» The unit starts playing from the USB

device automatically.

Remove the USB device

1 Press to turn the unit off. 2 Remove the USB device.

Insert a card

Note

This unit supports SD and SDHC cards.

•

1 Press to release the panel. 2 Inser t the card into the card slot. 3 Close the front panel.

» The unit starts playing from the card

automatically.

English

Tip

If the disc is blocked in the disc compartment, press and

•

hold

until the disc comes out.

Page 19

Remove the card

1 Press to turn the unit off. 2 Press the card until you hear a click.

» The card is now disengaged.

3 Remove the card.

Play from iPod/iPhone

You can enjoy audio from iPod/iPhone through this unit.

Compatible iPod/iPhone

Apple iPod and iPhone models with a 30-pin dock connector:

Made for:

• iPod nano (2nd generation)

• iPod nano (3rd generation 4GB)

• iPod nano (3rd generation 8GB)

• iPod nano (4th generation)

• iPod nano (5th generation)

• iPod nano (6th generation)

• iPod classic (1st generation)

• iPod classic (2nd generation)

• iPod touch (1st generation)

• iPod touch (2nd generation)

• iPod touch (3rd generation)

• iPod video (30GB & 80GB)

Works with:

• iPhone

• iPhone 3G

• iPhone 3GS

• iPhone 4

• iPhone 4S

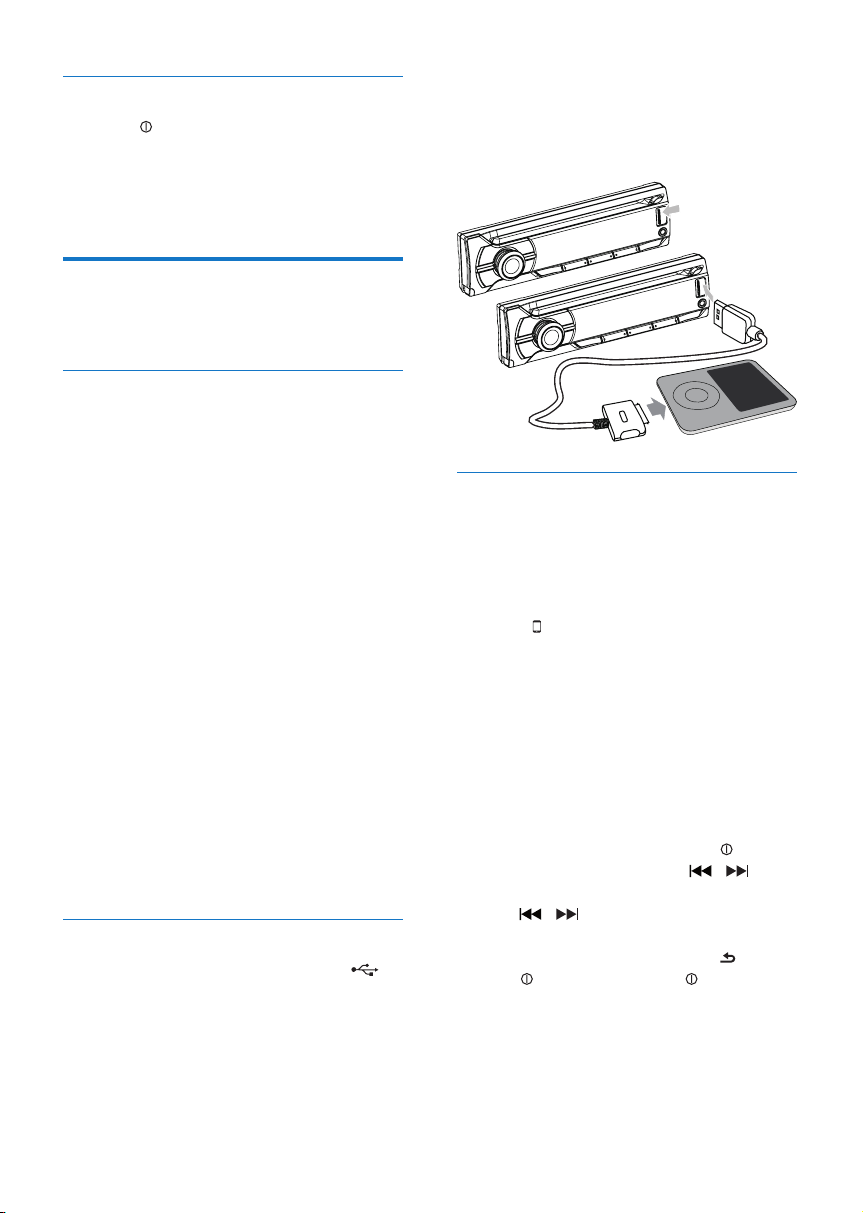

Connect iPod/iPhone

1 Slide the USB socket cover marked to

the left.

2 Inser t USB adaptor on one end of iPod/

iPhone cable to the USB socket on the main unit.

3 Inser t the other end of the iPod/iPhone

cable to the iPod/iPhone socket.

» The unit starts playing from the USB

device automatically.

Control music playback on iPod/ iPhone

1 Ensure that the iPod/iPhone is connected

correctly.

2 Press SOURCE to select iPod USB mode. 3 Press repeatedly to toggle between the

two control modes:

• iPod control mode: Use the buttons/ touch screen on iPod/iPhone to control the music.

• Audio control mode: Use the control buttons on car audio to control the music.

To control playback under audio control mode:

• To pause/resume play, press

• To skip to a track, press / .

• To search during play, press and hold

/ , then release to resume

normal play.

• To navigate the menu, press , rotate

to select, then press to conrm.

18 EN

Page 20

Search for a track

1 Press SOURCE repeatedly to select iPod

mode.

2 Press to browse iPod/iPhone menu. 3 Rotate to select the Artist search mode,

and press

to conrm.

4 Press DISP to search alphabetically. 5 Rotate to select desired ar tist, then

press

to conrm.

6 Rotate to select desired song in current

album.

7 Press to star t play.

Note

User cannot control the music via iPod/iPhone under

•

audio control mode.

View play information

During playing, press DISP repeatedly to view:

• Track number and elapsed play time

• Folder

• File

• Album

• Artist

• Title

Repeat play

1 During play, press REP.

» [REPEAT] is displayed.

2 Rotate to select a setting.

• [REPEAT TRK] (repeat one track): play current track repeatedly.

• [REPEAT FLD] (repeat a folder): play all tracks in the current folder repeatedly.

• [REPEAT ALL] (repeat all tracks): play all tracks repeatedly.

English

Play options

Search for an MP3/WMA track

Search within the current folder

1 Press .

» The name of the current track is

displayed.

2 Rotate to select anther track in current

folder.

3 Press to conrm.

Search in other folder

1 Press .

» The name of the current folder is

displayed.

2 Rotate to navigate through all folders. 3 Press to access the selected folder.

» The unit starts playing the rst song

from the selected folder automatically.

Tip

To go back to upper level of a folder, press .

•

Shufeplay

You can play the tracks in random order:

1 During play, press SHUF.

» [SHUFFLE] is displayed.

2 Rotate to select a setting:

• [SHUFFLE FLD]: start random play for

all tracks in the current folder.

• [SHUFFLE ALL]: start random play for

all tracks.

• [SHUFFLE OFF] : cancel shufe play.

Connect external sound source

1 Connect the external sound source to

MP3 LINK socket with a 3.5 mm cable.

2 Press SOURCE repeatedly until [MP3

LINK] is displayed.

3 Operate the external component (refer to

the instructions supplied with the external component).

Page 21

7 Adjust sound

Adjust volume

Turn clockwise/counterclockwise to increase/ decrease volume.

Mute

You can turn off the sound of your audio.

During play, press

• To resume sound, press

again.

Select preset equalizer

1 Press EQ / AUDIO.

» Current Equalizer setting is displayed.

2 Press EQ / AUDIO again to select a preset

EQ setting:

• [OPTIMAL] (optimal)

• [FLAT] (at)

• [POP] (pop)

• [USER] (user)

• [TECHNO] (techno)

• [ROCK] (rock)

• [CLASSIC] (classic)

• [JAZZ] (jazz)

Switch music listening zone

Turn Dynamic Bass Boost (DBB) on/off

1 Press DBB and the current setting is

displayed:

» [DBB ON] : the Dynamic Bass Boost

(DBB) function is on.

» [DBB OFF] : the DBB function is off.

2 Press DBB again to change the DBB

setting.

Turn MAX sound on/off

1 Press

2 Press

 6281'

» The current setting displays

• [MAX ON]: the maximum sound (MAX sound) function is on.

• [MAX OFF]: the maximum sound function is off.

 6281'

again to select an option.

Philips’ innovative Zone technology enables driver or passengers to enjoy music with the best speaker balance and experience more vivid spacial effects as the artist is intended to create. You can switch the music listening zone from driver to passengers for the best speaker sound settings in car.

1 Press and hold ZONE.

» The current setting is displayed.

2 Press / to select a setting:

• [ALL]

• [FRONT LEFT] (Front left)

• [FRONT RIGHT] (Front right)

• [FRONT]

Turn on/off full sound

1 Press and hold .

» The current setting displays:

• [FULL ON] : the full sound function is on.

• [FULL OFF] : the full sound function is off.

2 Press again to select an option.

20 EN

Page 22

Other sound settings

You can also adjust the preset EQ / AUDIO settings.

1 Press EQ / AUDIO for 3 seconds. 2 Press or repeatedly to select the item

to be adjusted:

• [SUBWOOFER ON/OFF] : Rotate to turn on or off the subwoofer.

• [SUBWOOFER] range: 0 to 12.

• [SUBWOOFER LPF] (Subwoofer low pass lter) range: 80, 120, 160.

• [BALANCE] range: 12L to 12R. (L=left

speaker, R=right speaker)

• [FADER] range: 12R to 12F. (R=rear speaker, F=front speaker)

• [BASS] range: -7 to +7.

• [BASS CFQ] (bass center frequency)

range: 60, 80, 100, 200.

• [MIDDLE] range: -7 to +7.

• [MIDDLE CFQ] (middle center

frequency) range: 0.5k, 1.0k, 1.5k, 2.5k.

• [TREBLE] range: -7 to +7.

• [TREBLE CFQ] (treble center

frequency) range: 10.0k, 12.5k, 15.0k,

17.5k.

• [RESUME] : Resume the preset EQ value to factory default value.

3 Rotate to select a value.

English

Page 23

8 Adjust system

settings

Turn beep sound on/off

Each time you press a button, the unit beeps. You can turn the beep sound on/off.

1 Press and hold MENU. 2 Press or repeatedly until [BEEP] is

displayed.

3 Rotate to select a setting:

• [BEEP ON]: turn on the beep sound.

• [BEEP OFF]: turn off the beep sound.

Select blackout setting

You can set the screen to turn off automatically, after the unit is idle for 10 or 20 seconds.

1 Press and hold MENU. 2 Press or repeatedly until [BLACK

OUT] is displayed.

3 Rotate to select a setting:

• [BLK OUT 10 S] : turn off the screen automatically 10 seconds after last operation.

• [BLK OUT 20 S] : turn off the screen automatically 20 seconds after last operation.

• [BLK OUT OFF] : never turn off the screen.

Turn demo mode on/off

1 Press and hold MENU. 2 Press or repeatedly until [DEMO] is

displayed.

» The screen shows current demo mode

setting.

3 Rotate to select a setting:

• [DEMO ON] : turn on the demo mode. When the unit is idle for more than 120 seconds, all functions are displayed.

• [DEMO OFF] : turn off the demo mode.

Dimmer

1 Press and hold MENU. 2 Press or repeatedly until [DIMMER]

is displayed.

3 Rotate to select a setting:

• [DIMM HIGH] (dimmer high)

• [DIMM LOW] (dimmer low)

Dance

You can turn on or off the spectrum on the LCD display.

1 Press and hold MENU. 2 Press or repeatedly until [DANCE] is

displayed.

3 Rotate to select a setting:

• [DANCE ON] : turn the spectrum on.

• [DANCE OFF] : turn the spectrum off.

LCD Color

You can select your desired LCD color on this car audio.

1 Press and hold MENU. 2 Press or repeatedly until [LCD

COLOR] is displayed.

3 Press . 4 Rotate to select a setting:

• [DEFAULT] (default setting)

• [COLOR SCAN] (color scan)

• [WHITE] (white)

• [GREEN 1] (green 1)

22 EN

Page 24

• [GREEN 2] (green 2)

• [GREEN 3] (green 3)

• [AMBER] (amber)

• [PINK 1] (pink 1)

• [PINK 2] (pink 2)

• [PURPLE 1] (purple 1)

• [PURPLE 2] (purple 2)

• [BLUE 1] (blue 1)

• [BLUE 2] (blue 2)

• [USER COLOR] (user color)

English

Audiobook

In iPod/iPhone mode, you can set the audiobook playback speed on this car audio.

1 Press and hold MENU. 2 Press or repeatedly until

[AUDIOBOOK] is displayed.

3 Rotate to select a setting:

• [FAST]

• [SLOW]

• [NORMAL]

Reset

You can reset the unit to its default setting.

1 Detach the front panel. (see 'Detach the

front panel' on page 24)

2 Press the reset button by using a ball-point

pen or a similar tool.

» Preset adjustments such as preset

channels and sound adjustments are erased.

Page 25

9 Additional

information

Detach the front panel

You can detach the front panel to deter theft.

1 Press to release the panel. 2 Push the left side of the panel rightward.

Note

If the new fuse gets damaged again, there may be an

•

internal malfunction. Consult your Philips dealer.

Remove the unit

3 Pull the panel towards you to disengage it

from the chassis.

4 Store the panel in the supplied carrying

case to protect it from dirt or damage.

Replace fuse

If the fuse is damaged,

1 Check the electric connection. 2 Buy a fuse that matches the voltage of the

damaged fuse.

3 Replace the fuse.

24 EN

You can remove the unit from the dashboard.

1 Detach the front panel. 2 Pull out the unit by using the disassembly

tools.

Page 26

10 Product

information

Frequency band

Range 3 meters(free space) Standard Bluetooth 2.0 specication

2.4000 GHz - 2.4835 GHz ISM Band

English

Note

Product information is subject to change without prior

•

notice.

Power supply 12 V DC (11 V - 16 V),

negative ground Fuse 15 A Suitable speaker

impedance Maximum power

output Continuous power

output Pre-Amp output

voltage Aux-in level 500 mV Dimensions (W x H

x D) Weight 1.32 kg

Radio

Frequency range

- FM

Frequency range AM(MW)

Usable sensitivity

- FM Usable sensitivity

- AM(MW) (S/N =

20 dB)

Bluetooth

Output power

0 dBm (Class 2)

4 - 8

50 W x 4 channels

24 W x 4 RMS (4

10% T.H.D.)

2.5V

181.5 x 52 x 191.4 mm

64.0 - 108.0 MHz (100kHz per step in auto search and 50kHz per step in manual search)

522 - 1620 KHz (9 kHz)

530 - 1710 kHz (10 kHz)

8 µV

30 µV

Compatible USB devices:

• USB ash memory (USB 2.0 or

USB1.1)

• USB ash players (USB 2.0 or USB1.1)

• memory cards (SD / SDHC)

Supported formats:

• USB or memory le format: FAT16,

FAT32

• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate

• WMA V4, V7, V8, V9 (L1, L2)

• ISO9660, Joliet

• Supported sampling frequencies: 2 kHz,

44.1 kHz, 48 kHz

• Supported Bit-rates: 2~256 (kbps), variable bit rates

• Directory nesting up to a maximum of 8 levels

• Number of albums/folders: CD maximum 99, USB or memory maximum 99

• Number of tracks/titles/les: CD

maximum 999 (depending on number of album), USB or memory maximum 999

• ID3 tag v2.0 or later

Unsupported formats:

• Empty albums: an empty album is an album that does not contain MP3/

WMA les, and is not be shown in the

display.

• Unsupported le formats are skipped.

For example, Word documents (.doc)

or MP3 les with extension .dlf are

ignored and not played.

• AAC, WAV, PCM audio les

• DRM protected WMA les (.wav, .m4a,

.m4p, .mp4, .aac)

• WMA les in Lossless format

Page 27

11 Troubleshooting

Caution

Never remove the casing of this apparatus.

•

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/support). When you contact Philips, ensure that your apparatus is nearby and the model number and serial number are available.

No power or no sound.

• Car engine is not on. Turn the car engine on.

• Cable is not correctly connected. Check connections.

• Fuse is burnt. Replace fuse.

• Volume is too low. Adjust volume.

• If the above solutions cannot help, press the RESET button.

• Ensure that the track played is of a compatible format.

Noise in broadcasts.

• Signals are too weak. Select other stations with stronger signals.

• Check the connection of the car antenna.

• Change broadcast from Stereo to mono.

Cannot play disc

• Ensure that the disc label is inserted with the printed side facing up.

• Wipe the disc with bre cleaning cloth from the centre to the edge in a straight line.

• This disc may be defective. Play another disc.

• Ensure that the CD is a nalised CD/ CD-R/CD-RW.

• Ensure that the CD is not encoded with copyright protection technologies.

The CD skips tracks

• Ensure that the CD is not damaged or dirty.

• Ensure that random mode is deactivated.

Disc cannot be ejected

• Press and hold

Preset stations lost.

• Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.

Display show ERR-12

• USB data error. Check the USB device.

About Bluetooth device

Cannot pair the Bluetooth enabled device with the car audio system.

• The device does not support the proles required for the system.

• The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how to enable the function.

The audio quality is poor after connection with a Bluetooth-enabled device.

• The microphone is not correctly positioned. Adjust the position of the microphone. For example, stick the microphone onto the dashboard where close to the driver.

• The Bluetooth reception is poor. Move the device closer to the car audio system or remove any obstacle between the device and the system.

26 EN

Page 28

Music playback is unavailable on the system even after successful Bluetooth connection.

The device cannot be used with the system to play music.

The paired mobile phone connects and disconnects constantly.

• The Bluetooth reception is poor. Move the mobile phone closer to the car audio system or remove any obstacle between the mobile phone and the system.

• Some mobile phones may connect and disconnect constantly when you make or end calls. This does not indicate any malfunction of the system.

• For some mobile phones, the Bluetooth connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of the system.

English

Page 29

12 Glossary

MP3

A le format with a sound data compression

system. MP3 is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer 3. With the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

Secure Digital. A type of memory card with a

ash memory.

SDHC

Secure Digital High Capacity (SDHC) is a type

of ash memory card based on the SDA 2.00 specication. The SDA 2.00 specication enables

SD cards to reach higher capacities from 4GB to 32GB, and growing.

WMA (Windows Media Audio)

An audio format owned by Microsoft, is a part of Microsoft Windows Media technology. Includes Microsoft Digital Rights Management tools, Windows Media Video encoding technology, and Windows Media Audio encoding technology.

28 EN

Page 30

CEM5100_51_UM_V1.0
