Philips CEM210/56 User Manual
Register your product and get support at
www.philips.com/welcome
CEM210
EN User manual
JA
Contents
1 |
Important |
4 |
|
Safety |
4 |
|
Notice |
4 |
|
|
|
2 |
Your car audio system |
6 |
|
Introduction |
6 |
|
What’s in the box |
6 |
|
Overview of the main unit |
7 |
|
Overview of the remote control |
8 |
|
|
|
3 |
Get started |
9 |
|

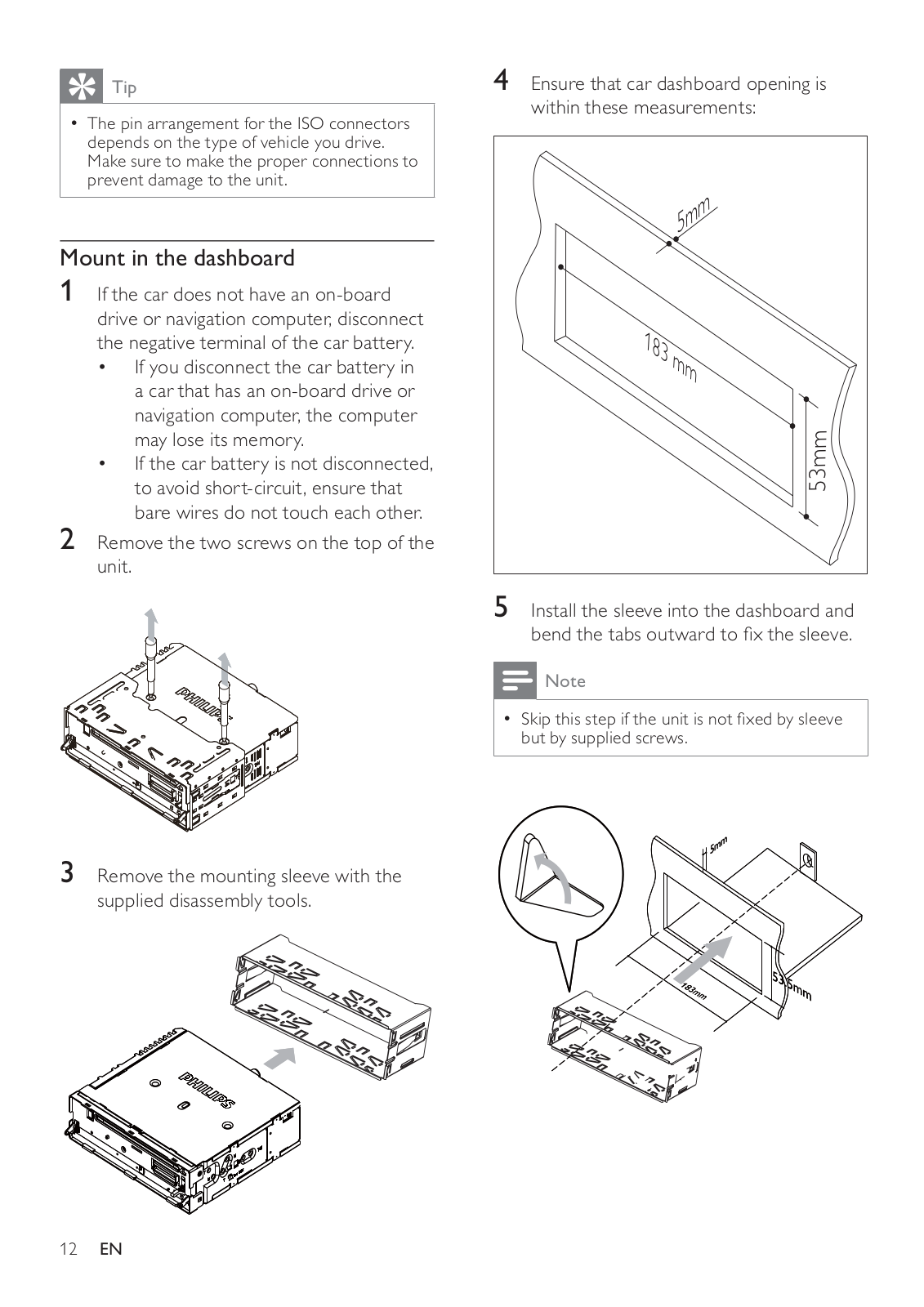

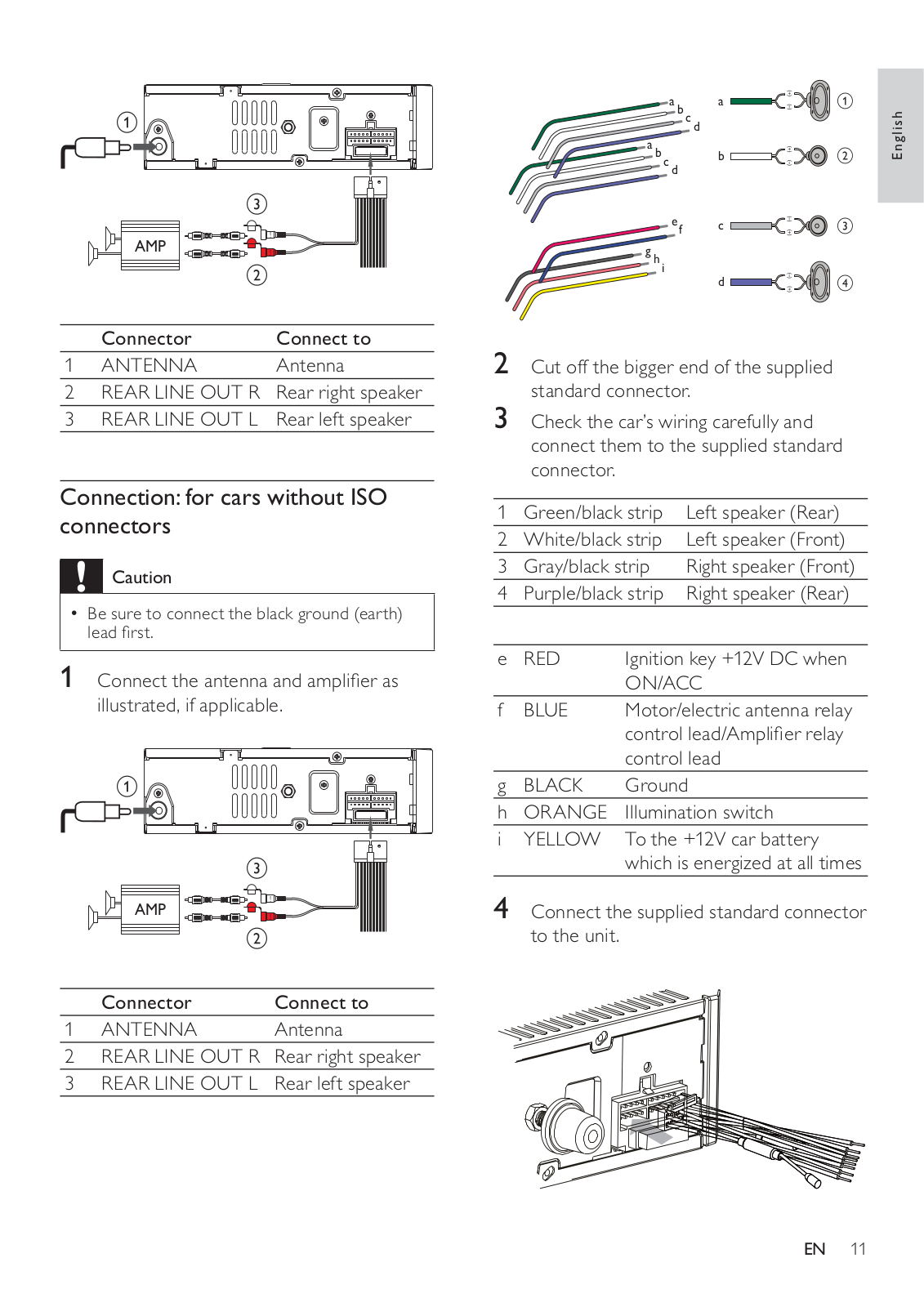

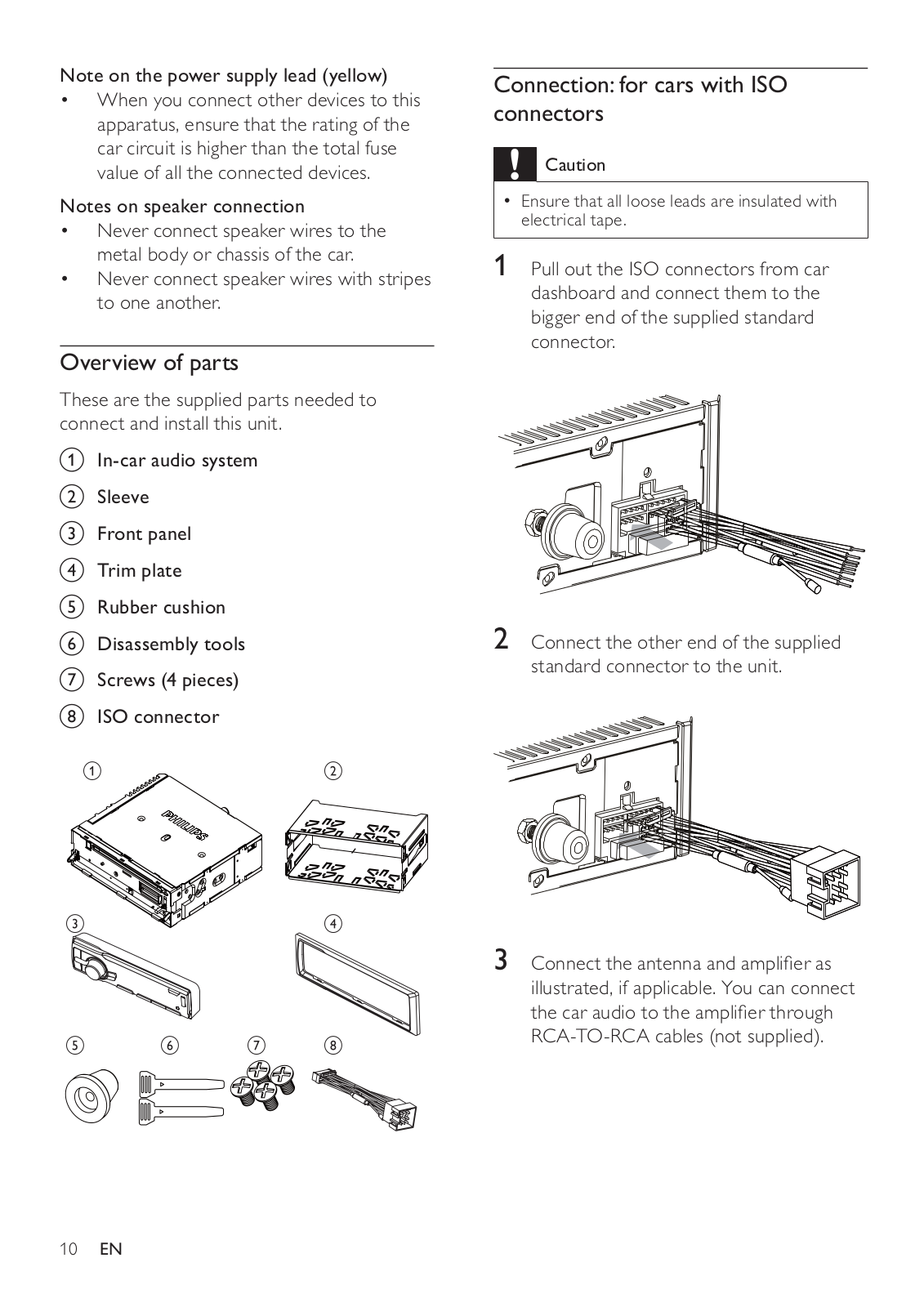

Install the car audio |
9 |
|

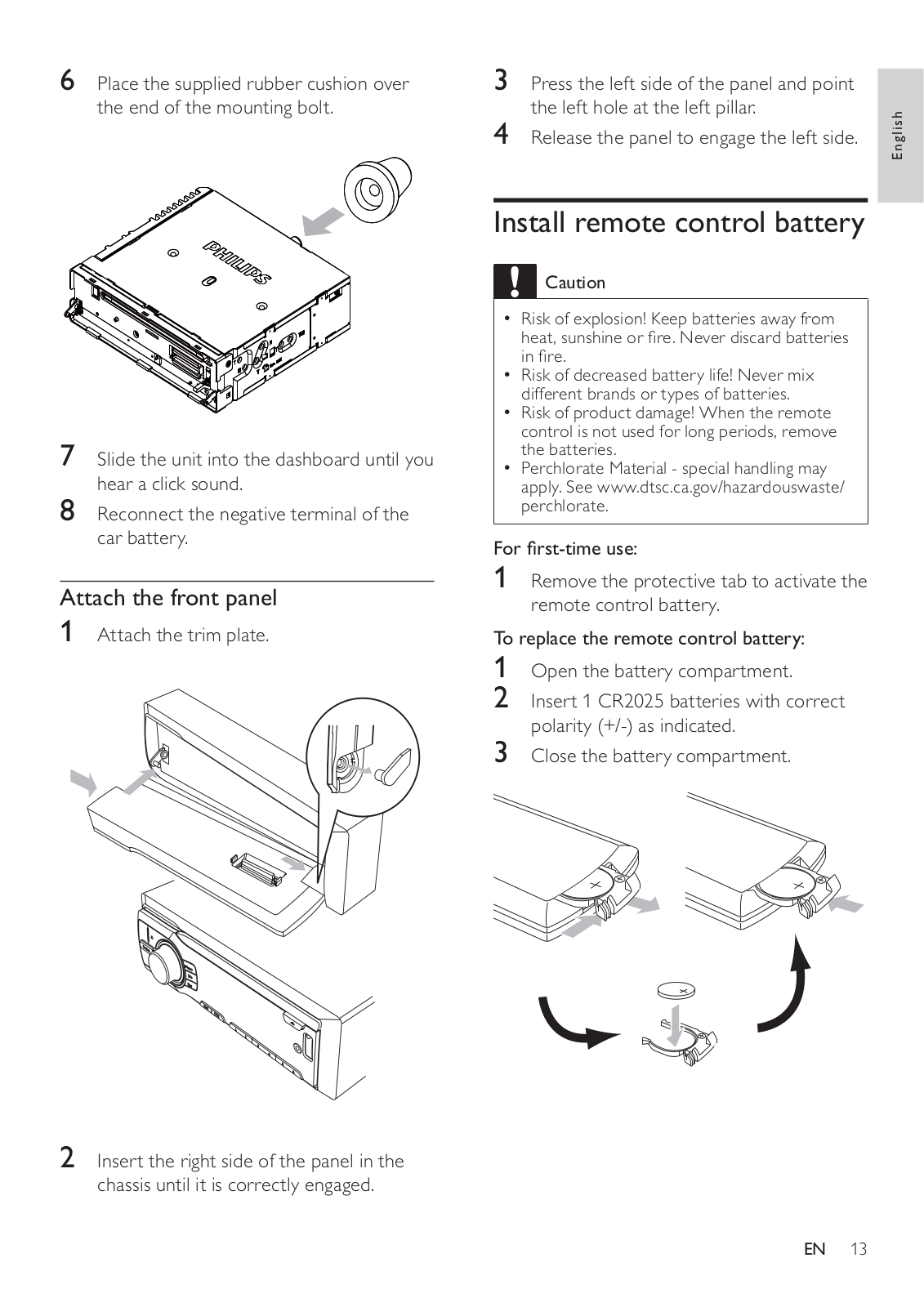

Install remote control battery |
13 |
|
Turn on |
14 |
|
Set clock |
14 |
|
|
|
4 |

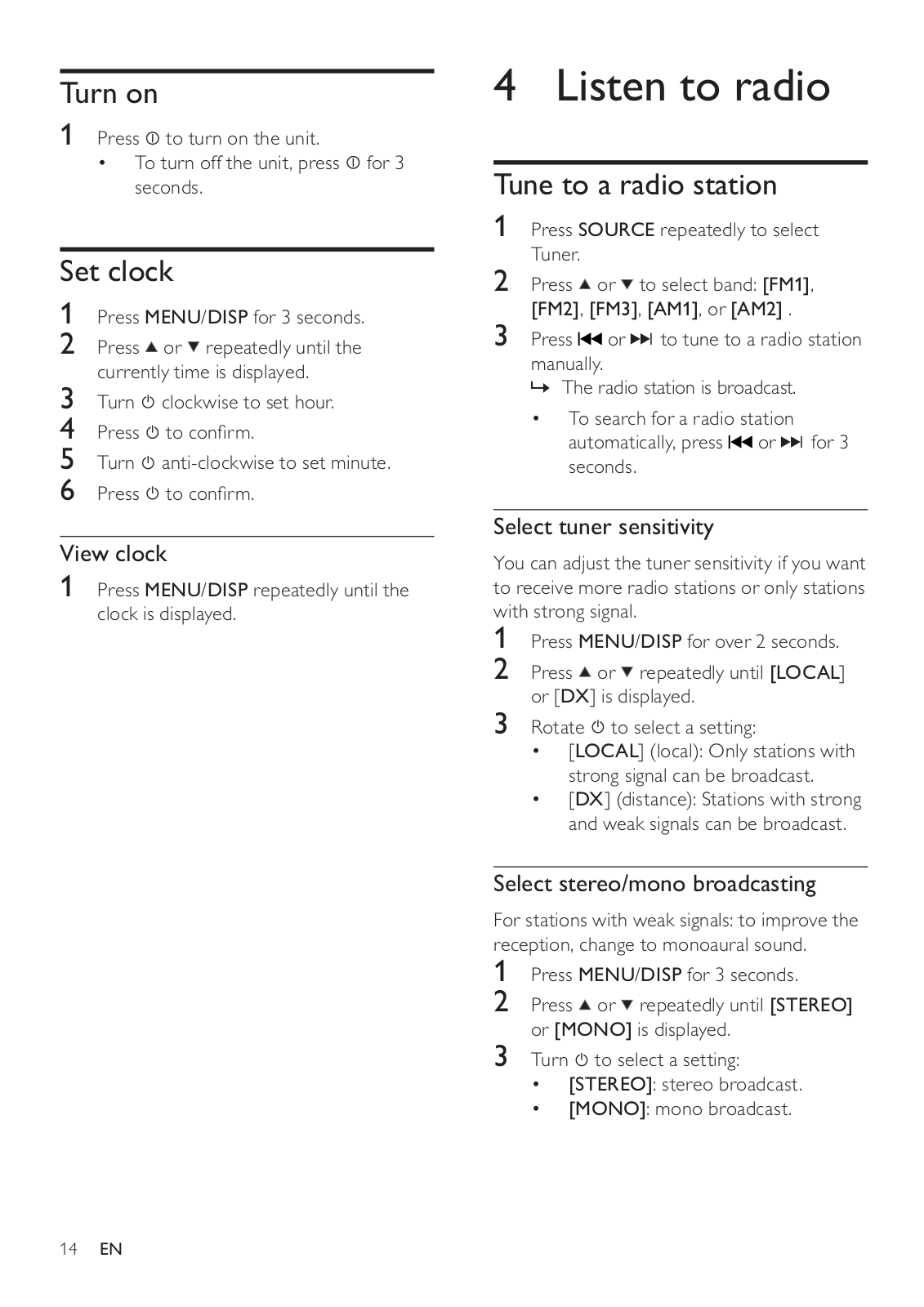

Listen to radio |
14 |
|
Tune to a radio station |
14 |
|

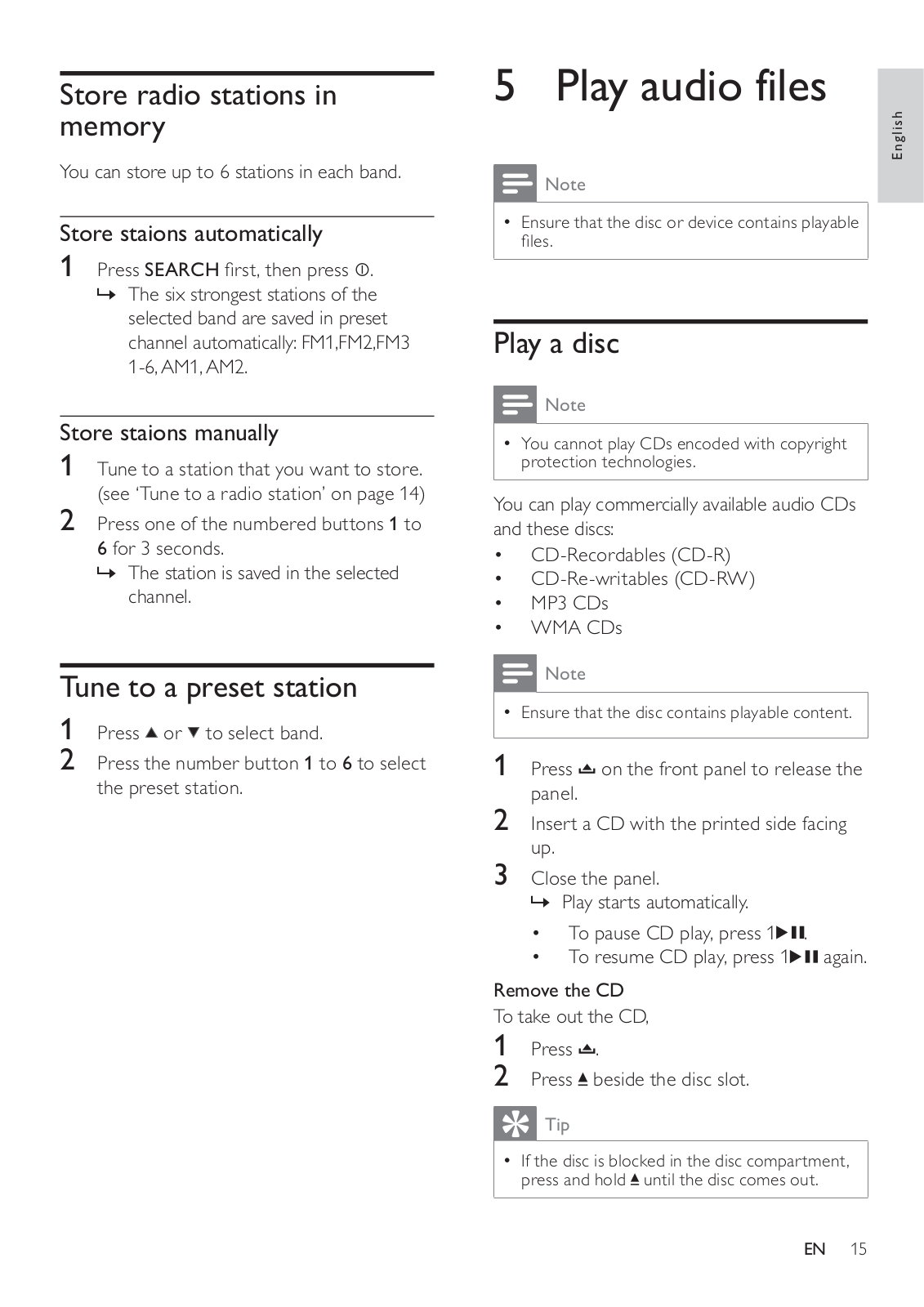

Store radio stations in memory |
15 |
|
Tune to a preset station |
15 |
|
|
|
|
3OD\ DXGLR ÀOHV |
15 |
|
Play a disc |
15 |
|

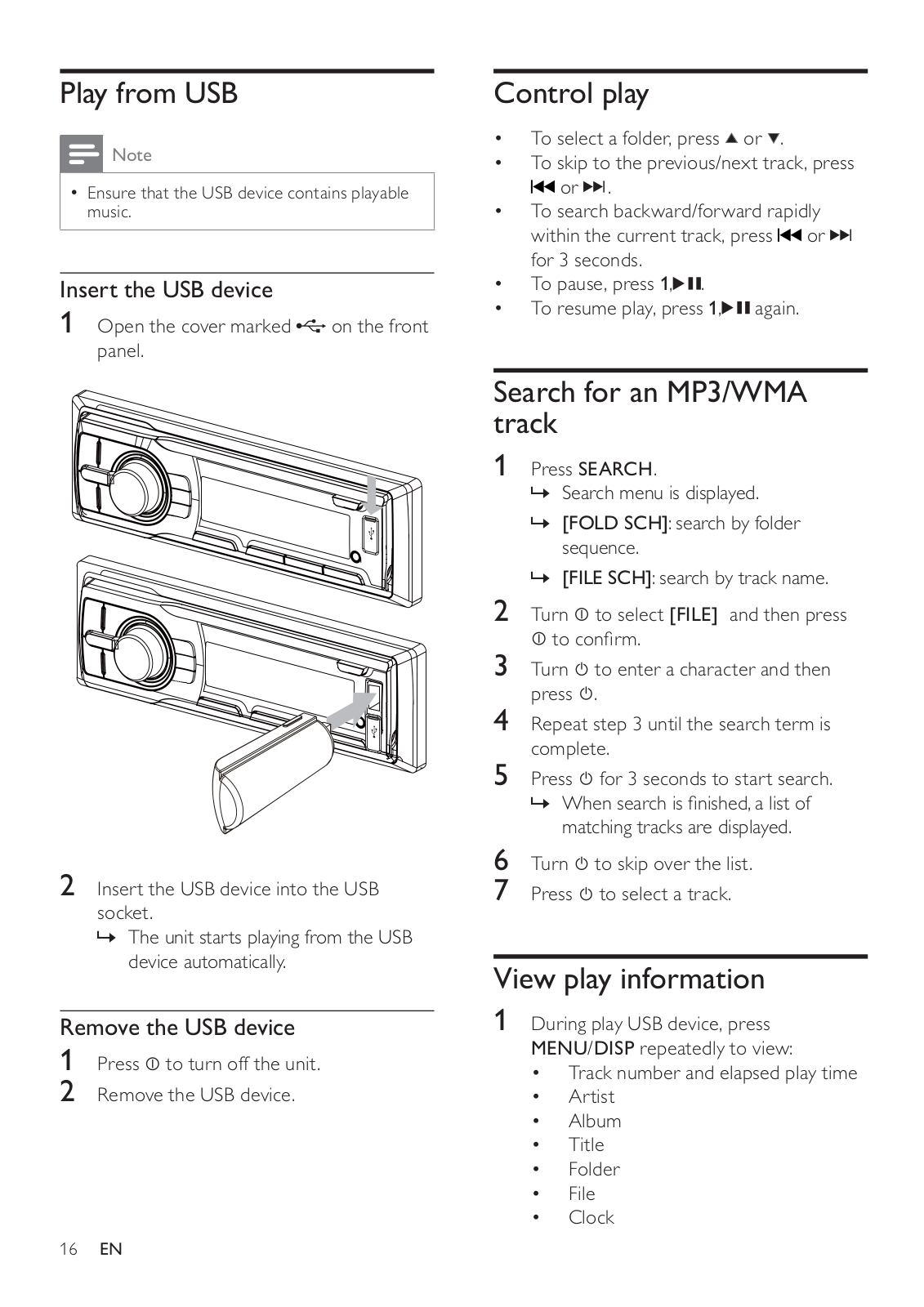

Play from USB |
16 |
|
Control play |
16 |
|
Search for an MP3/WMA track |
16 |
|
View play information |
16 |
|

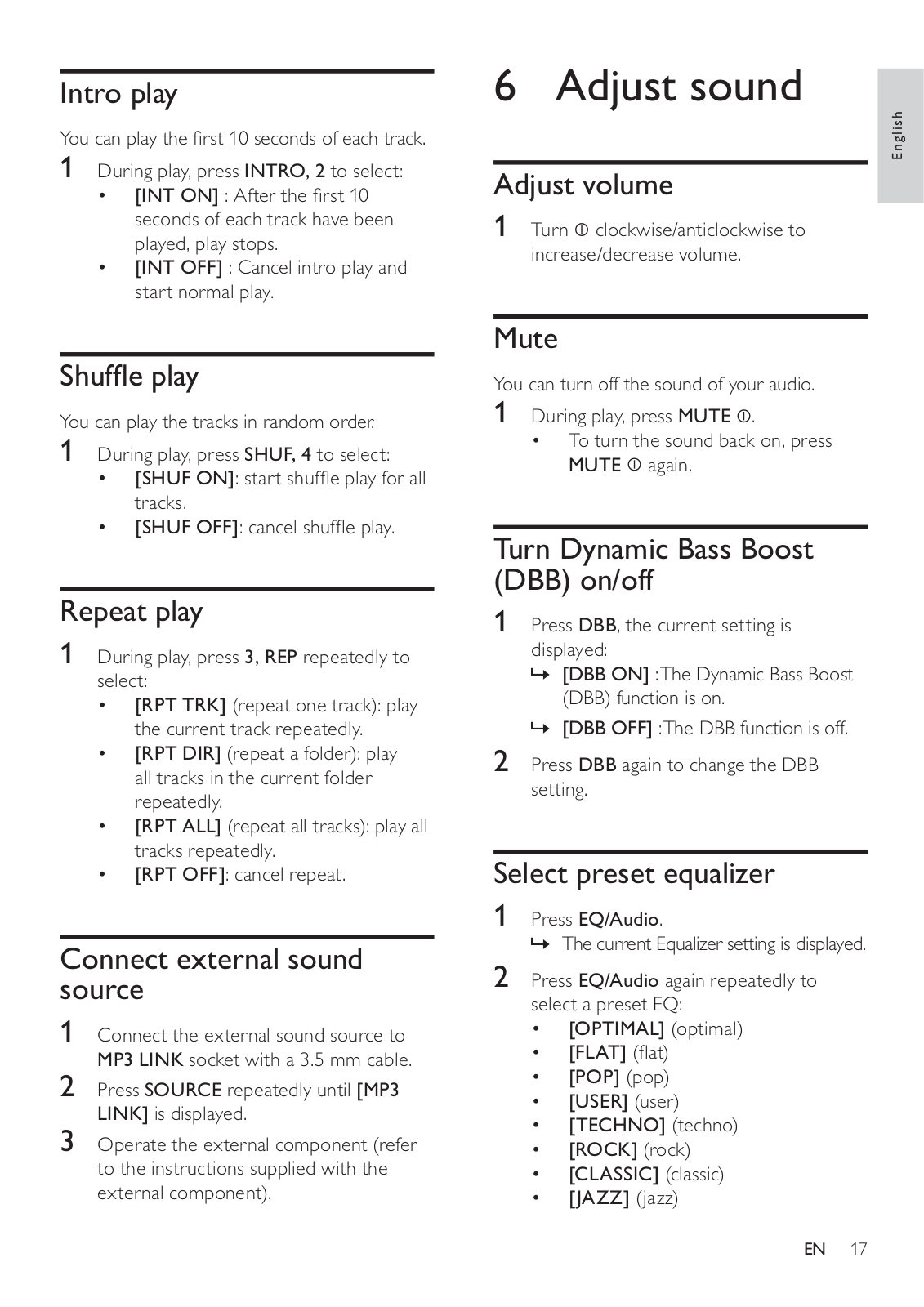

Intro play |
17 |
|
6KXIÁH SOD\ |
17 |
|
Repeat play |
17 |
|
Connect external sound source |
17 |
|
|
|
6 |
Adjust sound |
17 |
|
Adjust volume |
17 |
|
Mute |
17 |
|
Turn Dynamic Bass Boost (DBB) on/off |
17 |
|
Select preset equalizer |
17 |
|

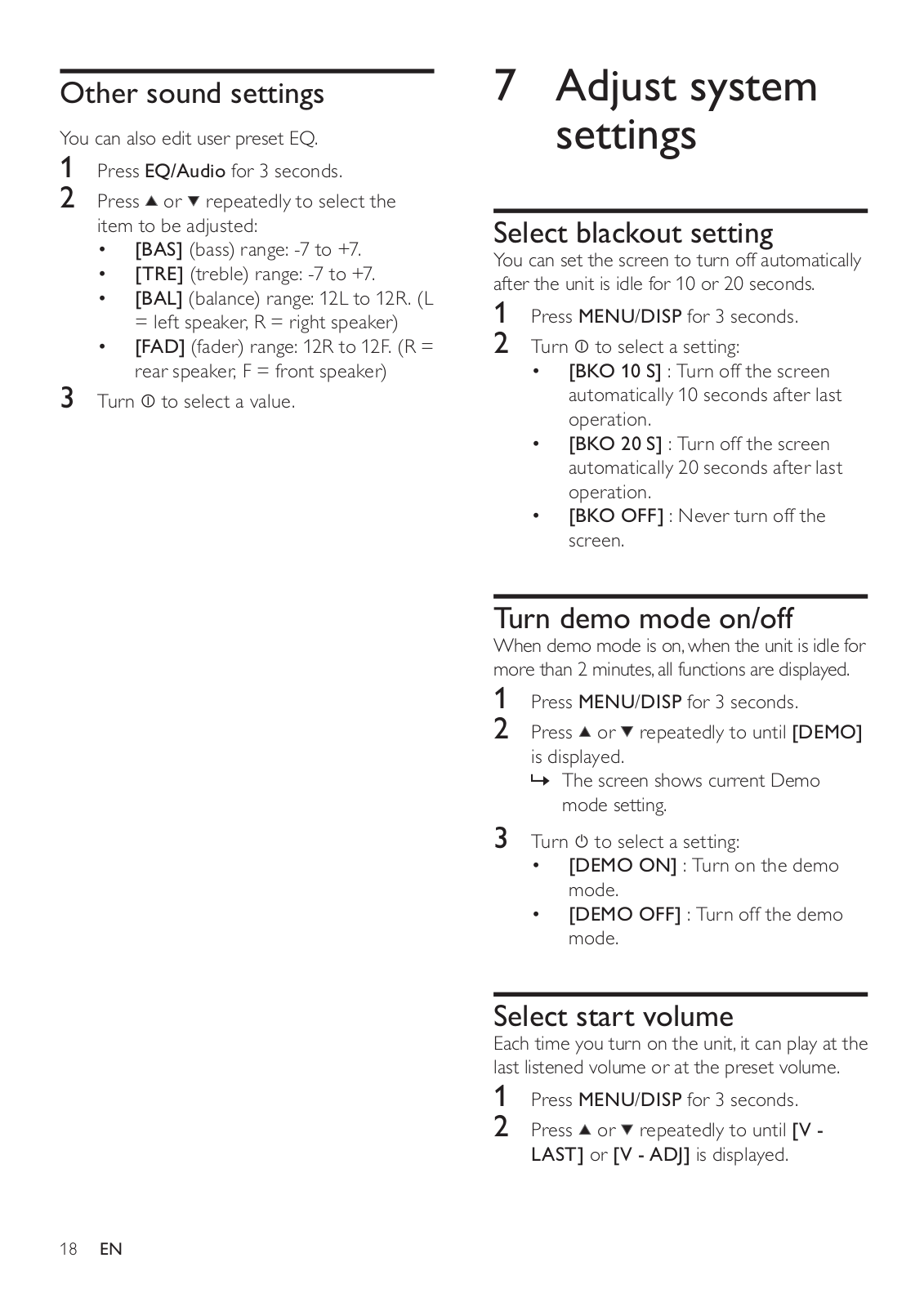

Other sound settings |
18 |
English
7 |
Adjust system settings |
18 |
|
Select blackout setting |
18 |
|
Turn demo mode on/off |
18 |
|
Select start volume |
18 |
|

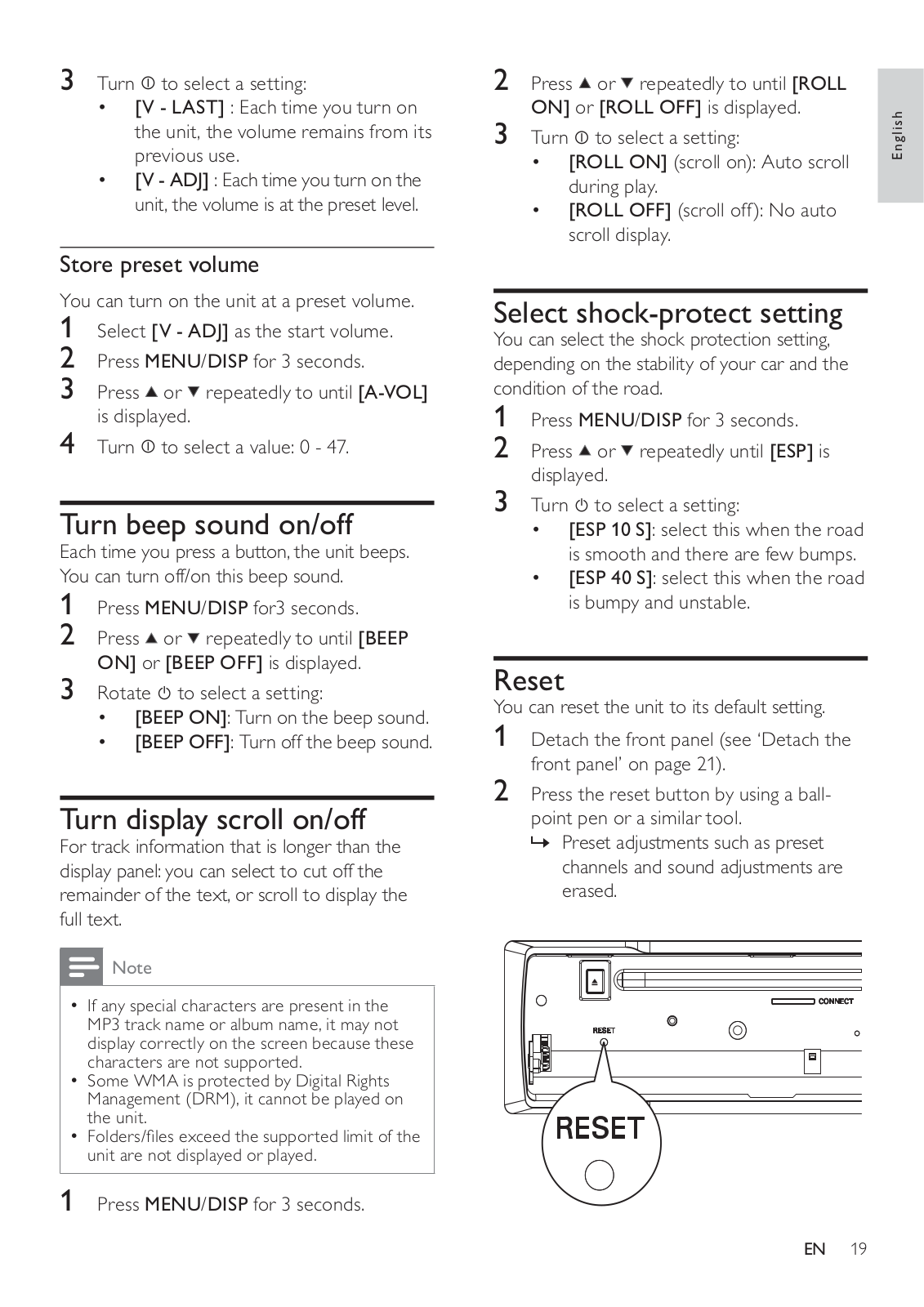

Turn beep sound on/off |
19 |
|
Turn display scroll on/off |
19 |
|
Select shock-protect setting |
19 |
|
Reset |
19 |
|
|
|
8 |
Additional information |
20 |
|
Detach the front panel |
20 |
|
Replace fuse |
20 |
|
Remove the unit |
20 |
|
|
|
9 |

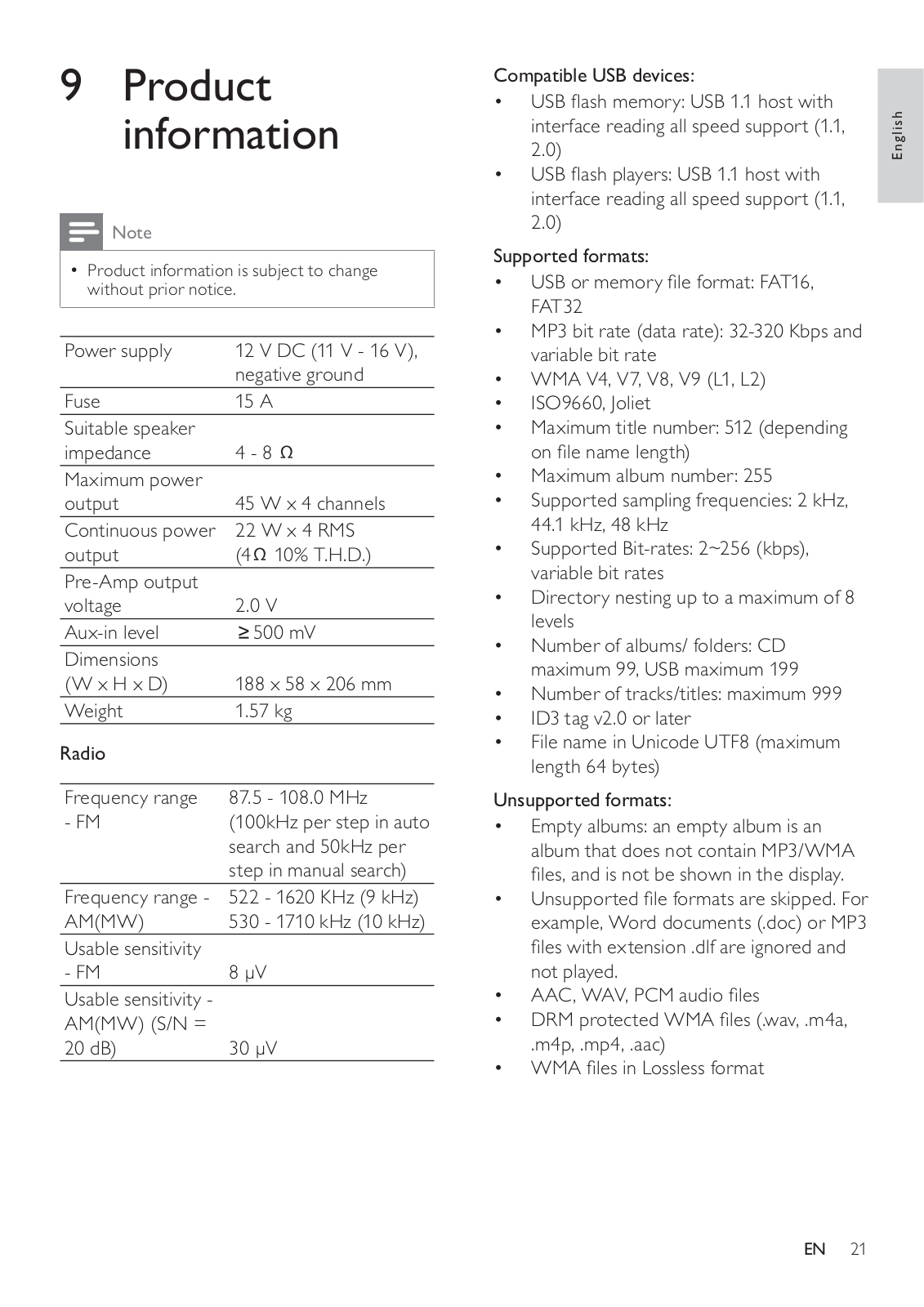

Product information |
21 |
|
|
|
10 |

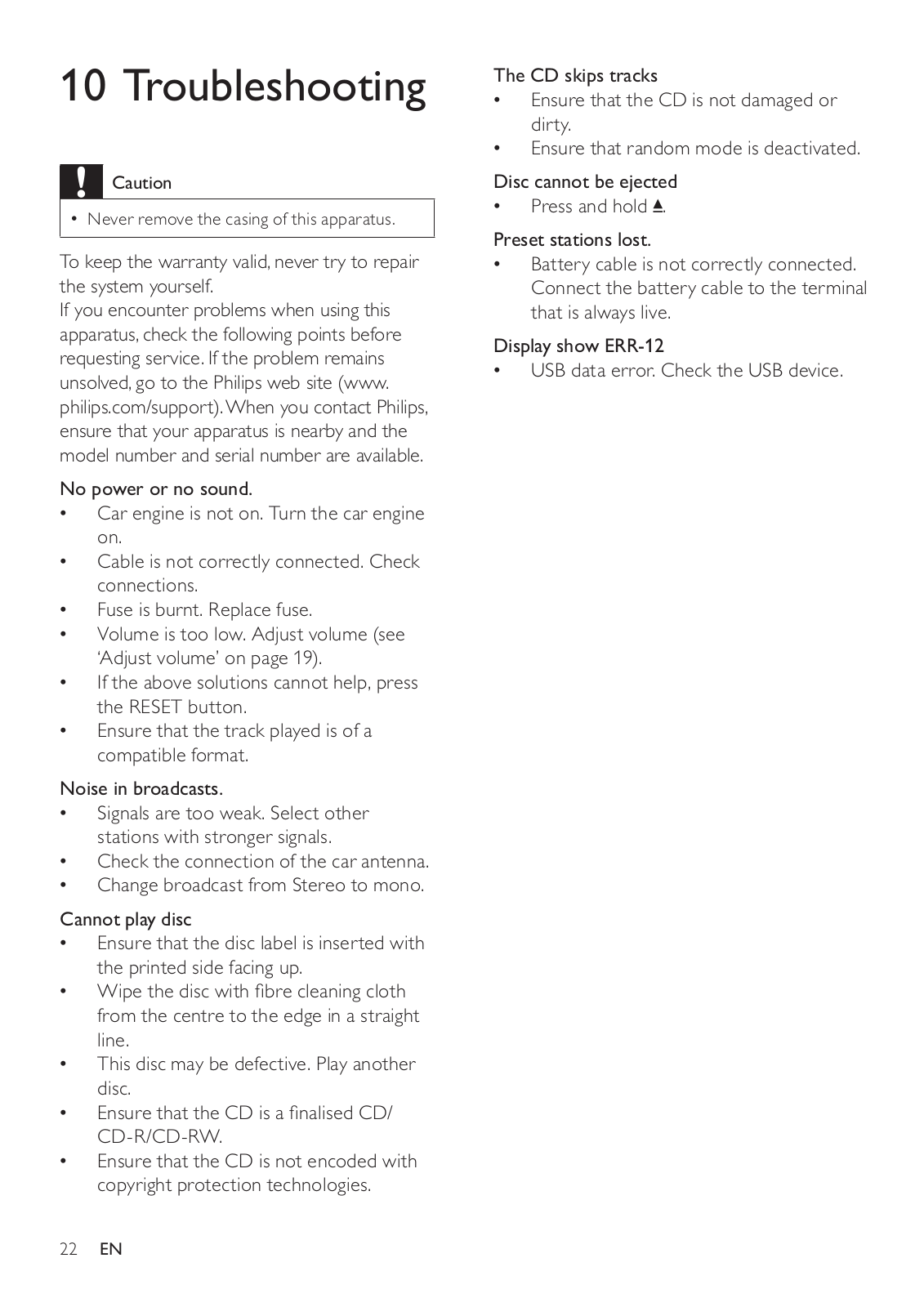

Troubleshooting |
22 |
|
|
|
11 |
Glossary |
23 |
EN 3
1 Important
Safety
Read and understand all instructions before you use your apparatus. If damage is caused by failure to follow instructions, the warranty does not apply.
This apparatus is designed for negative ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume to a safe and comfortable level.
Improper fuses can cause damage or
ÀUH :KHQ \RX QHHG WR FKDQJH WKH IXVH consult a professional.
Use only the supplied mounting hardware for a safe and secure installation.
To avoid short circuit, do not expose the apparatus, remote control or remote control batteries to rain or water.
Never insert objects into the ventilation slots or other openings on the apparatus.
Clean the apparatus and frame with a soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the apparatus.
Never place any objects other than discs into the apparatus.
Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.
Visible and invisible laser radiation when open. Avoid exposure to beam.
Risk of damage to the apparatus screen! Never touch, push, rub or strike the screen with any object.
Caution
Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
Notice
The making of unauthorized copies of copy-protected material, including computer
SURJUDPV ÀOHV EURDGFDVWV DQG VRXQG recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a double insulation system.
4EN
Recycling
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to a product, it means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products. The correct disposal of your old product helps prevent potentially negative consequences on the environment and human health.
Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.
This product complies with the radio interference requirements of the European Community.
This product complies with the requirements of the following directives and guidelines: 2004/108/EC + 2006/95/EC.
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. $Q\ FKDQJHV RU PRGLÀFDWLRQV PDGH WR WKLV device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s authority to operate the equipment.
2009 © Koninklijke Philips Electronics N.V. All rights reserved.
6SHFLÀFDWLRQV DUH VXEMHFW WR FKDQJH ZLWKRXW notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.
English
EN 5
2Your car audio system
Congratulations on your purchase, and
ZHOFRPH WR 3KLOLSV 7R IXOO\ EHQHÀW IURP WKH support that Philips offers, register your product at www.philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy your drive while you listen to:
FM or AM (MW) radio
Audio from CD or MP3 discAudio from a USB drive
Audio from external devices
What’s in the box
Check and identify the contents of your package:
a In-car audio system
b Remote control
c Rubber cushion
d Screw (4 pieces)
e Disassembly tool ( 2 pieces)
f Front panel
g Trim plate
h Carrying case for front panel
i User manual
j Quick start guide
k Standard connector
ab
c d e
f g h
i |
j |
k |
6EN
Overview of the main unit
English
a
Select tuner band.
Select MP3/WMA folder.Scroll up or down menu.
bDBB
Turn on or off Dynamic Bass Boost (DBB) sound.
cSOURCE
Select audio source.
d
/MUTE
Turn the unit on or off.Adjust volume.
&RQÀUP VHOHFWLRQ
Enter characters for search.Mute or restore volume.
eMENU / DISP
Display radio frequency, clock and radio program type (if available).
Display track, elapsed time, artist,
DOEXP WLWOH IROGHU ÀOH DQG FORFNAccess system menu.
f
Return to previous menu.Stop search.
Disable screen blackout.
g Display panel
h
Unlock the panel
i USB socket
EN 7
j External device socket
k6
Select preset station no. 6
Overview of the remote control
l 5 |
|
|
|
|
Select preset station no. 5 |
q |
|
||
|
|
|
||
m SHUF, 4 |
p |
a |
||
|
$FWLYDWH RU GHDFWLYDWH VKXIÁH PRGH |
|
|
|
Select preset station no. 4 |
o |
|
||
n 3, REP |
|
|||
|
b |
|||
|
Set repeat play mode. |
n |
|
|
Select preset station no. 3 |
|
c |
||
|
|
m |
||
o INTRO, 2 |
d |
|||
|
||||
|
Turn intro play on or off. |
l |
e |
|
Select preset station no. 2 |
k |
f |
||
|
|
|||
p 1, |
|
|
|
|
|
Start play |
j |
g |
|
Pause or resume play. |
|
|
||
Select preset station no. 1 |
|
h |
||
q |
/ |
|
i |
|
Tune to a radio station |
|
|
||
Skip/search for a track. |
|
|
||
rEQ/Audio
Select equalizer (EQ) setting.Access audio setting menu.
sSEARCH
Store radio stations automatically.Search a track or folder.
t Panel power connection
u Disc slot
v
Take disc out.
wRESET
Restore default settings.
aSOURCE
Select audio source.
bVOLUME +/-
Adjust volume.
cEQ
Select EQ setting.
dDBB
Turn on or off Dynamic Bass Boost (DBB) sound.
e3, REP
Select repeat play mode.Select preset station no. 3.
fSEARCH
Store radio stations automatically.Search a track or folder.
8EN
