CED780

User manual

Contents

1 Important 2

Safety 2 Notice 2

2 Your in-car entertainment system 5

Introduction 5 What's in the box 5 Overview of the main unit 6 Overview of the remote control 7

3 Get started 9

Install the car audio 9 Mount into the dashboard 11 Attach the front panel 12 Install remote control battery 13 Turn on 13 Set date and time 13

4 Play audio/video/picture 14

Load discs 14 Connect USB device 15 Insert SD card 15 Play/Pause 15 Browse 15 Select audio track 16 Select subtitle language 16 Adjust position of screen 16 Repeat one/all chapter 16 Random play 17 Select audio mode 17 View photo 17

5 Listen to radio 18

Tune to a radio station 18 Store radio stations in memory 18 Tune to a preset station 18 Play with RDS (Optional) 19

7 Play with Bluetooth device 21

Pair the Bluetooth-enabled devices 21 Make a call 22 Receive call 23 Bluetooth phone book settings 23 Favorite call 24 Adjust Bluetooth settings 24 Listen to music from Bluetooth device 24

8 Play iPod 25

Compatible iPod/iPhone 25 Listen to the iPod/iPhone/iPad 25 Search for a track 25 Charge the iPod/iPhone/iPad 26

9 Adjust sound 26

Adjust volume 26 Mute 26 Select preset equalizer 26 Adjust fader/balance/subwoofer 27 Switch music listening zone 27 Turn FullSound on/off 28 Turn MAX sound on/off 28 Turn DBB on/off 28

10 Adjust settings 29

Display system setup menu 29 Adjust general settings 29 View Info settings 29 Adjust Navigation settings 29 Adjust Bluetooth settings 30

11 Others 31

Adjust brightness 31 Set rear view camera 31 Adjust display design 31 Listen to other devices 31 Detach the front panel 32 Reset 32 Replace fuse 32

6 Use navigation system 20

Insert map card 20 Use map 21

12 Product information 33

USB playability information 34

13 Troubleshooting 35

About the Bluetooth device 36

1EN

1 Important

Safety

• Read and understand all instructions before you use the device. If damage is caused by failure to follow instructions, the warranty does not apply.

• Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

• The device is designed for negative ground (earth) 12 V DC operation only.

• To reduce the risk of trafc accidents, do not watch video when driving.

• To ensure safe driving, adjust the volume to a safe and comfortable level.

• Improper fuses can cause damage or

re. When you need to change the fuse,

consult a professional.

• Use only the supplied mounting hardware for a safe and secure installation.

• To avoid short circuits, do not expose the device, remote control or remote control batteries to rain or water.

• The device shall not be exposed to dripping or splashing.

• Do not place any sources of danger on

the device (e.g. liquid lled objects, lighted

candles).

• Never insert objects into the ventilation slots or other openings on the device.

• Never place any objects other than discs into the disc tray/slot.

• To avoid exposure to laser radiation, do not disassemble the device.

• Risk of damage to the screen! Never touch, push, rub or strike the screen with any object.

• Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.

• Clean the device with soft, damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the device.

Notice

Any changes or modications made to this

device that are not expressly approved by Gibson Innovations may void the user’s authority to operate the equipment.

This product complies with the radio interference requirements of the European Community.

Declaration of conformity

Hereby, Gibson Innovations declares that this product is in compliance with the essential requirements and other relevant provisions

of Directive 1999/5/EC. You can nd the

Declaration of Conformity on www.p4c.philips. com.

The making of unauthorized copies of copyprotected material, including computer

programs, les, broadcasts and sound

recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

The Bluetooth registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Gibson Innovations Limited is under license.

word mark and logos are

2 EN

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been

designed to connect specically to iPod or iPhone respectively, and has been certied by

the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Other trademarks and trade names are those of their respective owners.

This apparatus includes this label:

Disposal of your old product and battery

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary

of Rovi Corporation. This is an ofcial DivX Certied

divx.com for more information and software

tools to convert your les into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This

DivX Certied

in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX are trademarks of Rovi Corporation or its subsidiaries and are used under license.

device that plays DivX video. Visit

device must be registered

, DivX Cer tied® and associated logos

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

This symbol on a product means that the product is covered by European Directive 2012/19/EU.

This symbol means that the product contains a built-in rechargeable battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. We strongly advise you to take your product to

an ofcial collection point or a Philips service

centre to have a professional remove the rechargeable battery.

3EN

Inform yourself about the local separate collection system for electrical and electronic products and rechargeable batteries. Follow local rules and never dispose of the product and rechargeable batteries with normal household waste. Correct disposal of old products and rechargeable batteries helps prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Specications are subject to change without

notice. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V.. Gibson Innovations reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.

4 EN

2 Your in-car

entertainment system

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product at www.philips.com/welcome.

Introduction

With the car entertainment system, you can

• Quickly found routine through the navigation system

And you can also enjoy:

• Audio/video/JPEG pictures from

• DVD, VCD or CD

• USB devices

• SD/SDHC/MMC cards

• iPod/iPhone

• External devices

• FM or AM (MW) radio

• Audio from Bluetooth-enabled devices

Besides, you can make/receive phone calls with Bluetooth-enabled devices.

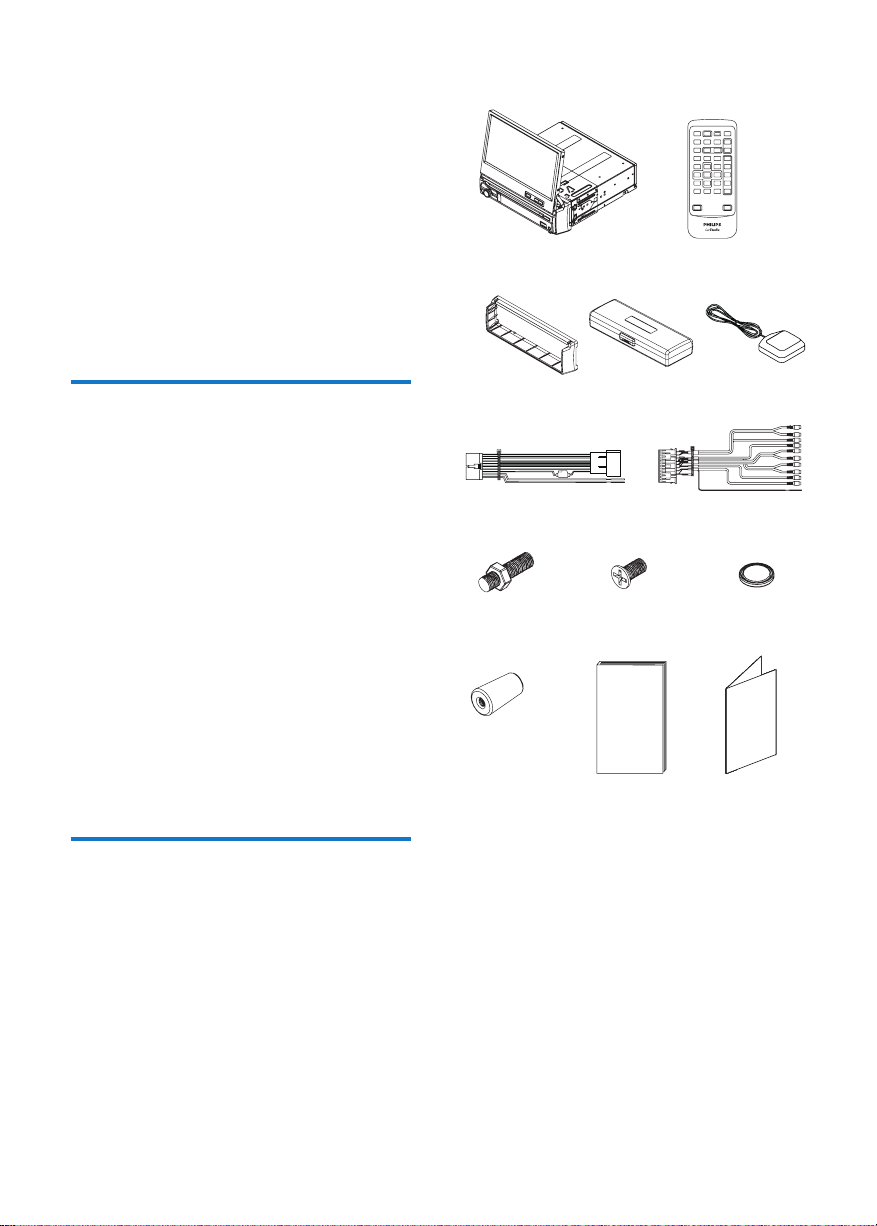

What's in the box

Check and identify the contents of your package:

a Main unit and front panel (with a sleeve) b Remote control c Trim plate d Carrying case for front panel e GPS smart antenna f ISO standard connector g Audio and Video cable h Hexagon head screw i Screws - M4x8mm (x4) j Remote control battery k Rubber cushion l User manual m Quick start guide

5EN

Overview of the main unit

j k

o m

e f

a OPEN

• Open/Close TFT screen.

• Press to answer a call.

• Press and hold to transfer call.

• Turn the unit on or off.

• Conrm selection.

• Mute or unmute sound.

• Rotate to adjust volume.

d BAND

• Select tuner band.

e +/-PRESET

• Select preset radio station.

• Search for track/folder.

f DISP

• Adjust dimmer settings.

• Press and hold to turn off TFT display.

TILT

• Adjust position of the screen.

6 EN

{

}

• Eject disc.

i NAVI

• Enter GPS navigation system.

j AV IN

• External audio/video socket.

• Unlock the panel.

• USB socket.

m SOURCE

• Select source.

• Press to terminate call.

• Tune for radio station.

• Skip/search for track.

• Fast backward/forward playback.

p RESET

• Reset the unit when it hangs up.

q SD/SDHC card slot

Overview of the remote control

a b dc

• Turn the unit on or off.

b NAVI

• Enter GPS navigation system.

c SOURCE

• Select source.

• Mute or unmute sound.

e BAND

• Select tuner band.

7EN

f VOLUME +/-

• Adjust volume.

g SUBTITLE

• Select DVD or DivX subtitle language.

• Turn maximizing sound on or off.

i DVD MENU

• Access DVD main menu.

• Turn full sound on or off.

• Return to previous menu or exit.

l DBB

• Turn Dynamic Bass Boost (DBB) sound

on or off.

m EQ

• Access audio setting menu.

• View the clock.

o ZONE

• Switch music listening zone.

• Select video channel.

• Answer phone.

• Dial or redial number.

• Terminate call.

• Browse photos.

• Switch to music playing mode.

• Skip to previous/next preset station.

• Skip to previous/next folder.

• Search backward/forward for DVD video.

• Move cursor up/down.

• Start play or pause.

w OK

• Conrm selection.

• Skip to previous/next track/chapter.

• Move cursor to left/right.

• Turn TFT on or off.

z DVD AUDIO

• Select audio language or audio channel.

aa TOP MENU

• Return to top menu.

{ TILT +/-

• Adjust position of the screen.

• Unlock the panel.

} DISP

• Adjust dimmer settings.

• Press and hold to turn off TFT display.

8 EN

3 Get started

Caution

Use of controls or adjustments or performance of

•

procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Always follow the instructions in this chapter in sequence.

Notes on speaker connection

• Never connect speaker wires to the metal body or chassis of the car.

• Never connect speaker wires with stripes to one another.

Connect wires

Caution

Ensure that all loose leads are insulated with electrical

•

tape.

Install the car audio

These instructions are for a typical installation. However, if your car has different requirements, make the corresponding adjustment. If you have any questions regarding installation kits, consult your car audio dealer.

Caution

This unit is designed for negative ground (earth) 12 V

•

DC operation only.

• Always install this unit in the car dashboard. Other

locations can be dangerous as the rear of the unit heats up during use.

• To avoid short-circuit: before you connect, ensure that

the ignition is off.

• Ensure that you connect the yellow and red power

supply leads after all other leads are connected.

• Ensure that all loose leads are insulated with electrical

tape.

• Ensure that the leads do not get caught under screws

or in moving parts (e.g. seat rail).

• Ensure that all ground (earth) leads are connected to a

common ground (earth) point.

• Use only the supplied mounting hardware for a safe

and secure installation.

• Improper fuses can cause damage or re. When you

need to change the fuse, consult a professional.

Note on the power supply lead (yellow)

• When you connect other devices to this system, ensure that the rating of the car circuit is higher than the total fuse value of all the connected devices.

1 Check the car's wiring carefully, then

connect them to the supplied ISO wires.

Connector Connect to

1 Yellow

wire

2 Blue/White

wire

3 Black wire A metal surface of the car.

The +12V car battery which is live at all times.

The electric antenna control lead or power supply lead of the antenna booster. If there is no electric antenna or antenna booster, or it is manually operated telescopic antenna, it is unnecessary to connect this lead.

Connect the black ground (earth) lead before connect the yellow and red power supply leads.

9EN

4 Red wire The +12V power terminal

5 Green and

green/black wires

6 White and

white/black wires

7 Gray and

gray/black wires

8 Purple and

purple/ black wires

which is live in the accessory (ACC) position of the ignition switch. If there is no accessory position, connect to the +12V car battery terminal that is always live. Ensure that black ground (earth) lead is connected to a metal surface

of the car rst.

Left speaker (Rear)

Left speaker (Front)

Right speaker (Front)

Right speaker (Rear)

$&§

2 Connect the other end of the supplied

standard connector to the car audio system.

Caution

To avoid any accident, the driver must not watch video

•

while driving. This unit is designed to not allow watching moving video while driving. Park your car in a safe place and engage the parking brake before watching moving video.

Note

The video blocking system under parking brake not

•

engaged only control the display of this unit, and will not affect the video output through the rear RCA video output.

• If watch moving video from disc or AV-IN source but

parking brake is not properly connected, the video signal will be blocked by the system, and the below display will be shown on TFT:

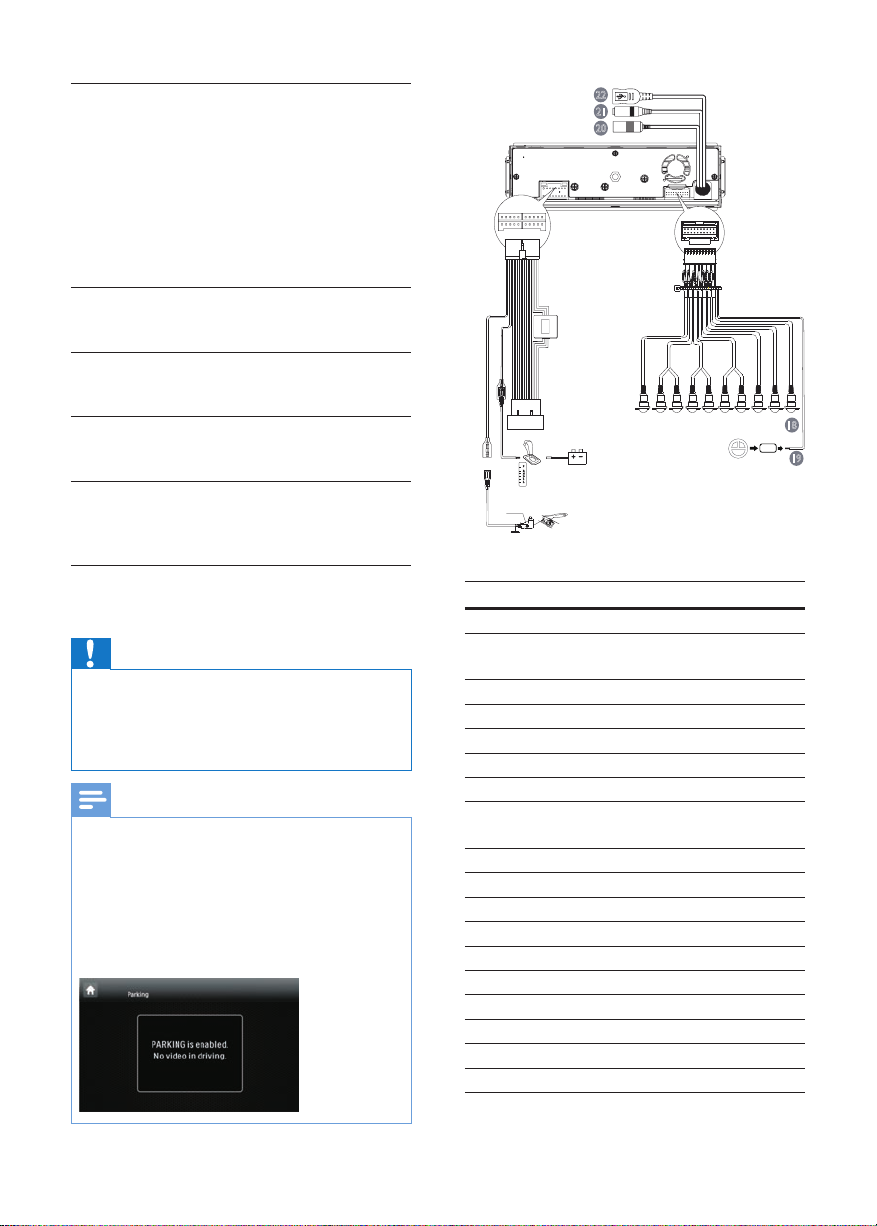

Connector/Object Connect to/with

1 Pink wire Extension wire 2 2.5m extension

wire (not included) 3 Brake switch 4 Ground 5 Purple wire Reverse camera (B+) 6 Gearbox switch 7 Reverse gear signal Black lamp lead + 8 ISO wires Connected in step 1

9 Yellow cable Video out 10 Red cable Rear line out (Right) 11 White cable Rear line out (Left) 12 Red cable Front line out (Right) 13 White cable Front line out (Left) 14 Red cable Audio in (Right) 15 White cable Audio in (Left) 16 Yellow cable Video in 17 Brown cable Camera in 18 Blue cable Subwoofer

Parking brake (-)

above

10 EN

19 White wire OE remote 20 Black wire Radio antenna 21 Black wire External microphone 22 Black wire GPS smart antenna

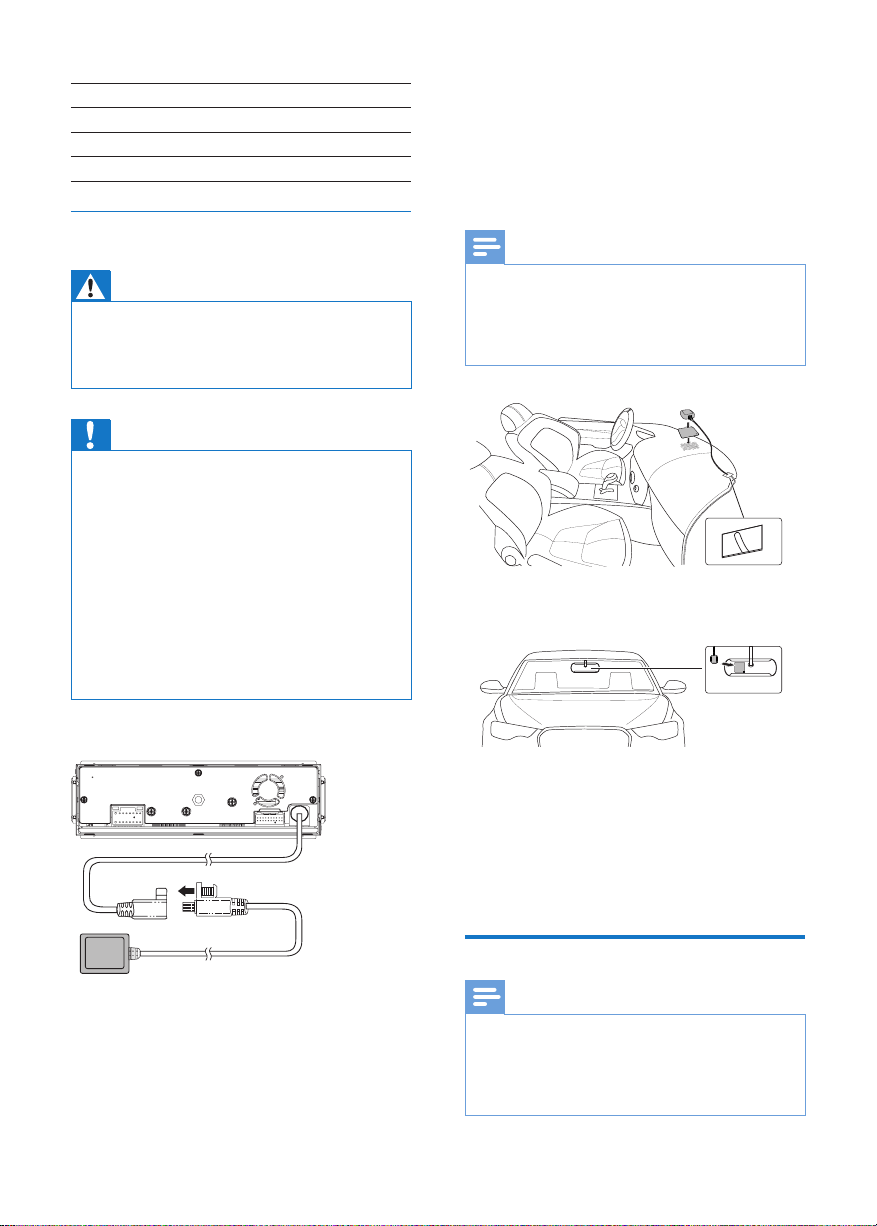

Install the GPS antenna

You can install the signal receptor of GPS antenna:

• On the dashboard cover

• On the back panel of rear-view mirror

About the GPS antenna

Warning

•

Risk of injury: Never install the antenna and its accessories on the airbag cover.

• Risk of swallowing parts: Keep the antenna and

accessories out of the reach of children.

Caution

Risk of electromagnetic interference: Do not install the

•

GPS antenna over any sensors or vents.

• Risk of short circuit, malfunction, or damage to your car

navigation system: Do not alter the GPS antenna cable or dismantle the antenna box.

• Risk of poor reception: Use the supplied metal sheet

only, and never cut or distort it; do not paint the GPS antenna.

• Risk of damage to the GPS antenna cable: Never pull

the antenna cable when you remove the antenna.

• Risk of scratching your car: The GPS antenna box has

a magnet. When you install or remove it, do not drag it on any metal surface.

Connect the GPS antenna

Note

Make sure that the contact surface that contacts with

•

the metal sheet is free of moisture, dust, grime, oil, and any other dirt.

• If you remove the metal sheet, some adhesive may be

left on the contact surface.

1 Remove the protective cover of the metal

sheet, and then afx it.

2 Afx the antenna box onto the metal

sheet.

3 Use clamps to secure the antenna cable.

1 Connect the GPS antenna to your car

navigation system.

2 Use the supplied screw to fasten the

connectors.

Mount into the dashboard

Note

Check wire connection before you mount the unit

•

into a car.

• If preset radio stations are lost when the ignition key is

turned off and then turned on, reconnect the red leads crosswise to the yellow ones.

11EN

1 If the car does not have an on-board drive

or navigation computer, disconnect the negative terminal of the car battery.

• If you disconnect the car battery in a car that has an on-board drive or navigation computer, the computer may lose its memory.

• If the car battery is not disconnected, to avoid short-circuit, ensure that the bare wires do not touch each other.

2 Ensure that car dashboard opening is

within these measurements:

5mm

183 mm

53mm

• Since the unit cannot be used if the slant angle of dashboard opening is above 20 degrees, ensure that the horizontal slant of the dashboard opening is between 0 and 20 degrees.

3 When installing in a shallow space, change

the position of slide brackets.

5 Install the sleeve into the dashboard and

bend the tabs outwards to x the sleeve.

Slide the unit into the dashboard until you hear a click.

Note

If the unit is xed by the supplied screws instead of the

•

sleeve, skip this step.

4 Place the supplied rubber cushion over the

end of the mounting bolt.

12 EN

Attach the front panel

1 Attach the trim plate.

2 Inser t the left side of the panel in the

chassis until it is correctly engaged.

3 Press the right side of the panel until the

mechanism locks it into place.

Install remote control battery

Caution

Risk of explosion! Keep battery away from heat,

•

sunshine or re. Never discard battery in re.

Turn on

Caution

Risk of road accidents! Never watch videos or adjust

•

settings while you drive.

1 Press to turn the unit on.

» The available OSD (On-Screen

Display) languages are displayed.

2 Tap a language with nger tip.

» The OSD language is changed to the

selected language immediately.

3 Tap a radio region with ngertip.

» The radio region is changed to the

selected radio region immediately.

4 Tap [Finish] to conrm.

Note

Remove battery if it is at or if the remote control will

•

not to be used for a long time.

• Battery contain chemical substances. It should be

disposed of properly.

1 Open the batter y compartment.

2 Inser t one CR2025 battery with correct

polarity (+/-) as indicated.

3 Close the batter y compartment.

Set date and time

1 Tap to display main menu.

13EN

2 Tap to display the full menu.

4 Play audio/

video/picture

Load discs

3 Tap .

» The setup menu is displayed.

4 Drag the bar downward with ngertip.

» The date/time setup menu is displayed.

You can play video, audio or images stored on the following discs:

• DVD video, DVD-R, DVD-RW

• VCD

• Audio CD, CD-R, CD-RW

1 Inser t the disc into the disc slot with label

side facing up.

» The disc starts playing automatically.

2 To remove the disc, press the button.

» When the disc is ejected, the unit

switches to the previous source, if connected. Otherwise, the unit switches to [Radio] mode automatically.

5 Tap on [Date], [Clock Mode] or [Time]. 6 Tap or to set date/time. 7 When date/time is set, tap to return to

main menu.

14 EN

Note

Supported region code depends on where you bought

•

the car audio system.

Countries where you bought the unit

Supported DVD region code

Russia

Connect USB device

Note

Ensure that the device contains playable content.

•

1 Push the USB socket cover upside. 2 Inser t the USB device into the USB slot .

» The les play automatically.

Remove SD card

1 Switch to another source. 2 Press the card until you hear a click.

» The card is now disengaged.

3 Remove the SD card.

Play/Pause

3 To remove the USB device, switch the car

audio system to other source rst, then

take off the USB device.

» When USB device is disconnected, it

plays the previous source.

Insert SD card

Note

This device supports Secure Digital High Capacity

•

(SDHC) card.

1 Detach the front panel. (see 'Detach the

front panel' on page 32)

2 Inser t the SD card into SD card slot.

» Play starts automatically.

1 To pause, tap .

• To resume play, tap

2 To skip forward/backward, tap .

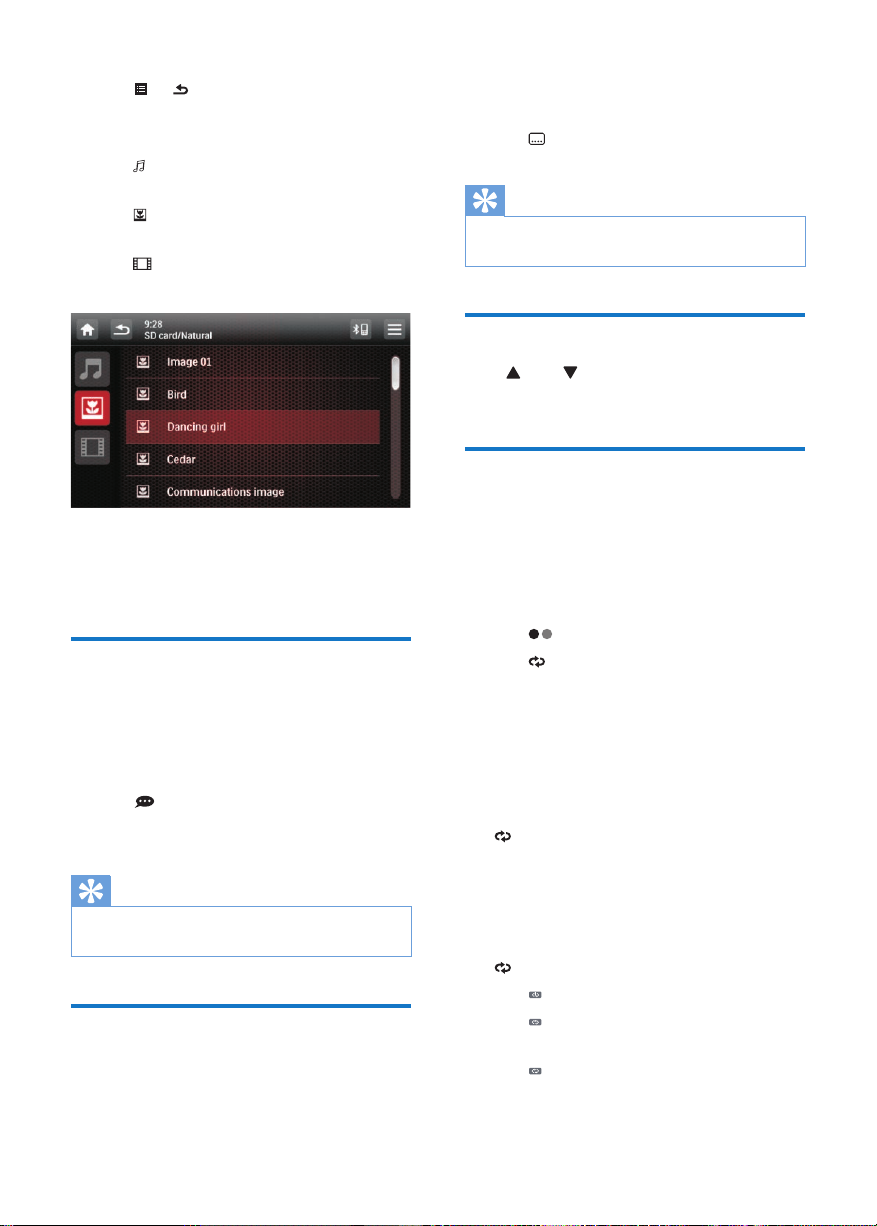

Browse

During play from USB device or SD card, you can browse through the listed audio/video or

picture les to select preferred le for listening

or watching.

again.

15EN

1 Tap or to return to playlist menu. 2 Tap one of the icons below to select

folder/le:

•

: to display all available audio folders/

tracks.

: to display all available picture

•

folders/les.

: to display all available video

•

folders/les.

3 Drag the bar downward with ngertip to

view the list.

4 Tap on the name to star t play.

Select audio track

For video discs that contain two or more audio tracks.

1 During play, tap anywhere except for the

upper left corner to display the control bar.

2 Tap repeatedly to select audio track.

» The audio channel information is

displayed on upper line of the screen.

Tip

You can also press DVD AUDIO on the remote

•

control repeatedly to change audio track.

Select subtitle language

For DVD or DivX discs that contain two or more subtitle languages.

1 During play, tap anywhere except for the

upper left corner to display the control bar.

2 Tap repeatedly to select a language.

» The selected language is displayed.

Tip

You may also press SUBTITLE on the remote control

•

repeatedly to select subtitle language.

Adjust position of screen

Press TILT repeatedly on the front panel.

» The position of the screen is changed.

Repeat one/all chapter

During play, you can select different repeat play modes.

For DVD/VCD movie disc:

1 Tap anywhere except for the upper left

corner to display the control bar.

2 Tap to display the second menu. 3 Tap to select:

• [Rep: chapter]: play the current chapter repeatedly.

• [Rep: title]: play all chapters in the title repeatedly.

• [Rep: disc]: cancel repeat play.

For VCD karaoke:

Tap

to select:

• [Rep: one]: play the current track repeatedly.

• [Rep: disc]: cancel repeat play.

For CD/MP3/WMA audio les:

Tap

on the upper line of the screen to select:

: play the current track repeatedly.

•

: play all tracks in the current folder

• repeatedly.

: cancel repeat play.

•

16 EN

Random play

You can play audio tracks/les in random order.

During play, tap play on or off.

•

repeatedly to turn random

(red): start random play.

(gray): cancel random play.

Select audio mode

When you play VCDs, you can select an audio mode (R/L/Stereo).

1 During play, tap anywhere except for the

upper left corner to display the control bar.

2 Tap repeatedly until the preferred audio

mode is selected.

View photo

1 Tap .

» Thumbnail view of the pictures is

displayed.

2 Drag the bar downward to view all

pictures.

3 Tap on a picture to view it in full screen.

Tip

You can also press on the remote control to view

•

picture list.

Zoom

You can zoom in pictures for a close view.

1 During view pictures, tap anywhere except

for the upper left corner to display the control bar.

2 Tap repeatedly to zoom in/out the

picture.

Rotate pictures

1 During view pictures, tap anywhere except

for the upper left corner to display the control bar.

2 Tap repeatedly to rotate the picture.

17EN

5 Listen to radio

Tune to a radio station

1 Tap to display home menu. 2 Tap .

» Band and frequency information is

displayed.

3 Tap [FM] or [AM] to select band:

• FM band options: FM1, FM2, FM3

• AM band options: AM1, AM2

4 Briey tap or to tune to a radio

station by step.

• Tap

You can also press BAND on the front panel or

•

remote control repeatedly to select the band.

Select radio range

Before you start to search for radio stations, you can select radio range.

1 Tap . 2 Tap [Radio Range] to toggle tuner

sensitivity from normal to high sensitivity.

• [Distance]: only stations with strong

or for over one second to

tune to a radio station automatically.

Tip

signals can be broadcast.

• [Local]: stations with strong and weak signals can be broadcast.

Store radio stations in memory

You can store up to 6 stations in each band.

Store stations manually

1 Select band. 2 Tune to the station by tapping or . 3 Tap and hold one of the channels 1 to 6

over two seconds.

» The station is saved under the selected

channel.

Store stations automatically

You can search for a station with intro search, which broadcasts a 10-second preview of each detected radio station.

1 Select band. 2 Tap . 3 Tap [Auto Store].

» Auto search starts. The six strongest

stations of the selected band are saved in preset channels 1-6 automatically.

Tune to a preset station

1 Select band. 2 Tap one of the preset channels (1 to 6) to

select a preset station.

18 EN

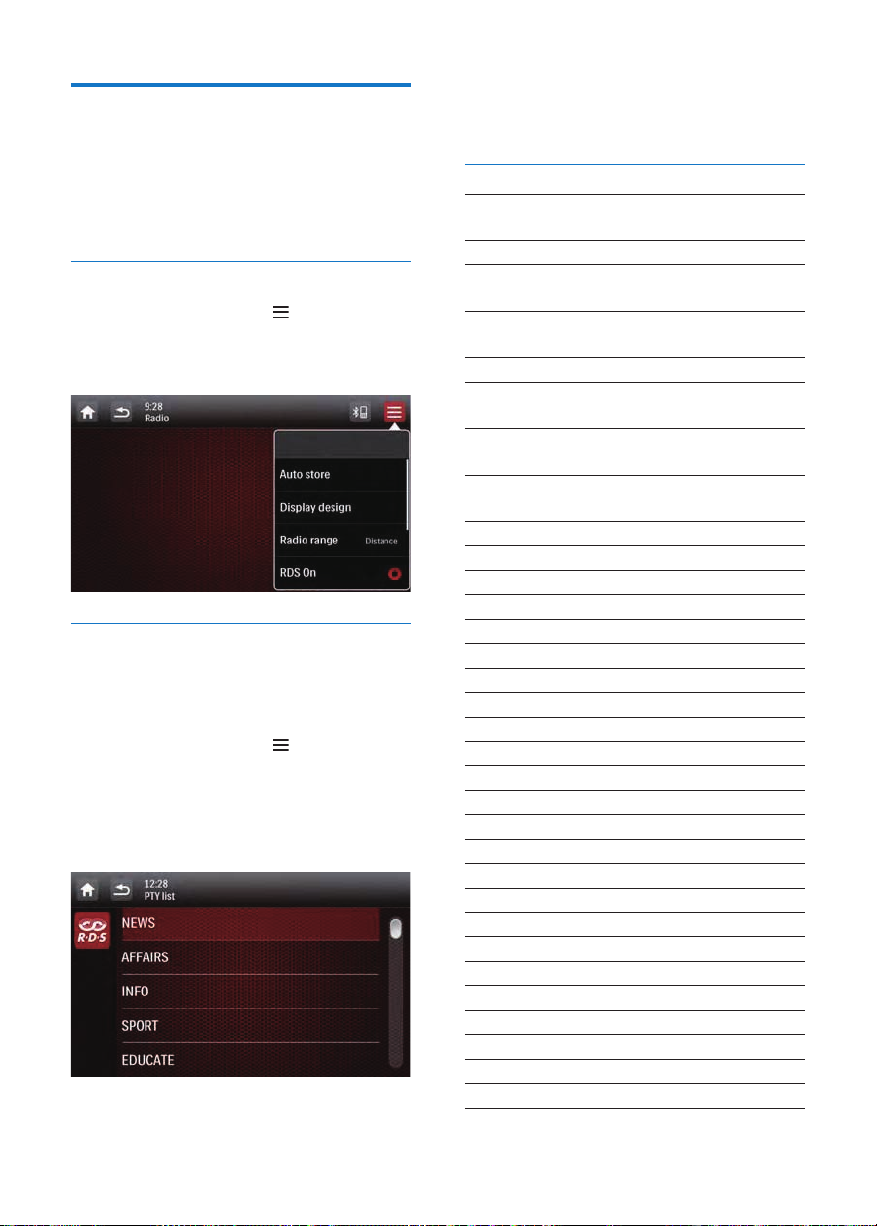

Play with RDS (Optional)

The RDS (Radio Data System) function operates only in areas with FM stations broadcasting RDS signals. If you tune to an RDS station, an RDS icon and information about the presenter, station or program is displayed.

Turn on RDS

1 Under radio mode, tap .

» The radio option menu is displayed.

2 Tap [On] to turn on the RDS function.

Select program type

Before tuning to RDS stations, you can select program type and let the unit search only for programs of the selected category.

1 Under radio mode, tap .

» The radio option menu is displayed.

2 Tap [PTY list].

» The PTY list of available program type

is displayed.

3 Swipe your nger on screen repeatedly to

select an option.

» The setting is changed.

RDS program types

Item Program

type

1 NEWS News services 2 AFFAIRS Politics and current

3 INFO Special information

4 SPORT Sports 5 EDUCATE Education and advanced

6 DRAMA Radio plays and

7 CULTURE Culture, religion and

8 SCIENCE Science 9 VARIED Entertainment programs 10 POP M Pop music 11 ROCK M Rock music 12 MOR M Light music 13 LIGHT M Light classical music 14 CLASSICS Classical music 15 OTHER M Special music programs 16 WEATHER Weather 17 FINANCE Finance 18 CHILDREN Children’s programs 19 SOCIAL Social Affairs 20 RELIGION Religion 21 PHONE IN Phone In 22 TRAVEL Tr avel 23 LEISURE Leisure 24 JAZZ Jazz Music 25 COUNTRY Country Music 26 NATION M National Music 27 OLDIES Oldies Music 28 FOLK M Folk Music 29 DOCUMENT Documentar y 30 TEST Alarm Test 31 ALARM Alarm

Description

affairs

programs

training

literature

society

19EN

Activate AF/TA functions

Tap [AF]/[TA] on upper line of the screen to turn on/off the corresponding function.

6 Use navigation

system

Insert map card

Note

Navigation map card is not included in the packaging of

•

the car entertainment system.

• [AF] (alternate frequency): automatically searches for a different station when the tuner cannot get a good reception.

• [TA] (trafc announcement): allows

you to receive trafc announcements

automatically no matter what source you are listening to.

1 Press OPEN to release the panel. 2 Open the card door under the screen. 3 Inser t the map card into the map card slot.

4 Close the card door. 5 Attach the front panel.

GPS Card

Tip

You can press NAVI to enter/exit the navigation system.

•

20 EN

Use map

7 Play with

Note

You might need to upgrade the navigation map (sold

•

separately) before using it. See "Upgrade the map" section.

1 Tap to display main menu. 2 Tap .

» The navigation menu is displayed in a

few seconds.

3 Refer to the user manual of the navigation

map to operate the navigation tool.

Bluetooth device

You can make or receive phone calls with Bluetooth-enabled phones through the unit. You can also listen to music from a Bluetoothenabled device.

Pair the Bluetooth-enabled devices

To connect your Bluetooth device to the unit, you need to pair the device to the unit. Pairing needs only to be done once.

You can pair up to eight devices.

Note

The operational range between this unit and a

•

Bluetooth device is approximately 10 meters (30 feet).

• Before you connect a Bluetooth device to this unit,

familiarize yourself with the Bluetooth capabilities of the device.

• Compatibility with all Bluetooth devices is not

guaranteed.

• Any obstacle between this unit and a Bluetooth device

can reduce the operational range.

• Keep this unit away from any other electronic device

that may cause interference.

Pairing with unit

1 Tap to display home menu. 2 Tap .

» The setting menu is displayed.

3 Tap to display Bluetooth setting menu. 4 Tap [New Pairing] to search for Bluetooth

device with your device.

5 Select the name of desired device in the

pairing list.

21EN

6 Enter default password "0000" in your

device.

» iI the pairing succeeds. the phone call

record is displayed.

Pairing with mobile phone

1 Open your mobile phone and switch on

Bluetooth.

2 Search for other Bluetooth device with

your device.

3 Select "CED780" in the pairing list. 4 Enter default password "0000".

» If the pairing succeeds, the dial screen

is displayed.

Disconnect Bluetooth devices

1 Under dial screen/Bluetooth audio mode,

tap

2 Tap [Paired Device].

» The Bluetooth/Paired device screen is

displayed.

3 Tap on one device that you want to

reconnect/disconnect.

• Tap

Tip

If the Bluetooth device is paired, under disconnect

•

mode, tap paired device list.

• If there is no Bluetooth device in the paired device list,

tap displayed, you can tap

• If you do not want to reconnect the device to the

unit automatically, under Setting menu, tap Connect], then select [Off]. For details, see "Adjust Bluetooth settings" section.

Make a call

You can make phone call with the unit under any mode.

Note

Ensure that the phone is connected to the unit via

•

Bluetooth.

1 Tap on top of the screen.

(green) to reconnect the

selected device.

(red) to disconnect the selected

device.

on top of the screen into the Bluetooth/

on top of the screen, "Paired list is empty" is

to search the device.

> [Auto

» The dial screen is displayed.

22 EN

2 Tap number icons directly to input phone

number.

• Tap

to clear the last input.

to clear all input.

to go back to previous screen.

3 Tap to start calling.

Switch phone call to mobile phone

If you do not want your passenger to hear your incoming call, you can switch the call the mobile phone.

During talking, tap

» The voice is transferred from the

loudspeaker to the mobile phone.

4 During talking, tap to display the keypad.

Receive call

By default, all incoming calls are received automatically.

Note

You can select to receive calls manually by set [Auto

•

Answer] to [Off] status. For details, refer to "Adjust Bluetooth settings".

1 If there is an incoming call, [Incoming

call…] is displayed on the screen.

Tip

You can also press and hold on front panel to

•

transfer the call.

Bluetooth phone book settings

Note

Mobile phone synchronization possibility depends on

•

particular phone (suppor ted Bluetooth protocols).

The users are allowed to search and dial the number stored in the phone book.

1 Tap on top of the screen.

» The dial screen is displayed.

2 Tap to display the phone book mode.

» Tap [Sync] to synchronize phone book.

2 Tap (green) to answer/accept the call. 3 When conversation ends, tap (red) to

terminate the call.

Tip

You can also press / on front panel to answer/

•

terminate the call.

3 Search the number you want to dial, then

tap

to start calling.

23EN

Tip

You can enter desired name/number on the keypad to

•

search quickly.

Favorite call

You can make a favorite call from the favorite call list.

1 Tap on top of screen.

» The dial screen is displayed.

2 Tap to display the favorite call list.

3 Tap on desired number to start calling.

Listen to music from Bluetooth device

If the connected Bluetooth device supports

Advanced Audio Distribution Prole (A2DP),

you can listen to the music stored on the device through the unit. If the device also suppor ts

Audio Video Remote Control Prole (AVRCP) prole, you can use the control on the unit or

its remote control to play music stored on the device.

1 Pair the phone with the unit. 2 Tap to return to home menu. 3 Tap . 4 The Bluetooth menu is displayed.

• Tap

: switch to music mode.

: switch to dial screen mode.

: switch to phone book.

: switch to favorite list.

Adjust Bluetooth settings

1 In the Bluetooth menu, tap .

» The option menu is displayed.

• [Display Design]: change the background.

• [New Pairing]: pair the new device.

• [Paired Device]: display paired device.

2 Tap an option to change the setting.

24 EN

8 Play iPod

Compatible iPod/iPhone

The car audio system supports below iPod/ iPhone models:

Made for.

• iPod touch (4th generation)

• iPod touch (3rd generation)

• iPod touch (2nd generation)

• iPod touch (1st generation)

• iPod classic

• iPod nano (6th generation)

• iPod nano (5th generation)

• iPod nano (4th generation)

• iPod nano (3rd generation)

• iPod nano (2nd generation)

• iPod nano (1st generation)

Works with.

• iPhone 4

• iPhone 3GS

• iPhone 3G

• iPhone

1 Connect your iPod/iPhone/iPad to the

front USB socket via Apple's own 30pin USB cable.

» Music playback starts.

2 To pause/resume play, tap . 3 To skip a track, tap / . 4 To fast backward/forward, tap and

hold

/ .

5 Tap repeatedly to toggle between two

control modes:

• iPod control mode: use buttons/touch screen on iPod/iPhone/iPad to control the music.

• Unit control mode: tap screen on car audio to control the music.

Listen to the iPod/iPhone/ iPad

Search for a track

During play from iPod/iPhone, you can search

through the music/video les to select preferred le for listening/watching.

1 During playing, tap .

» Search list is displayed.

25EN

2 Tap to select folder/le. 3 Tap on the screen to select desired song. 4 Tap on the selected song to play.

9 Adjust sound

Charge the iPod/iPhone/iPad

When the iPod/iPhone/iPad is connected to the car audio system, the iPod/iPhone/iPad begins to charge.

Tip

For certain iPod models, it may take up to one minute

•

before the charging indication is displayed.

Adjust volume

Rotate clockwise/counterclockwise to increase/decrease the volume.

Mute

You can turn off the sound of your audio.

During play, press

• To resume sound, press panel again.

/ on front panel.

/ on front

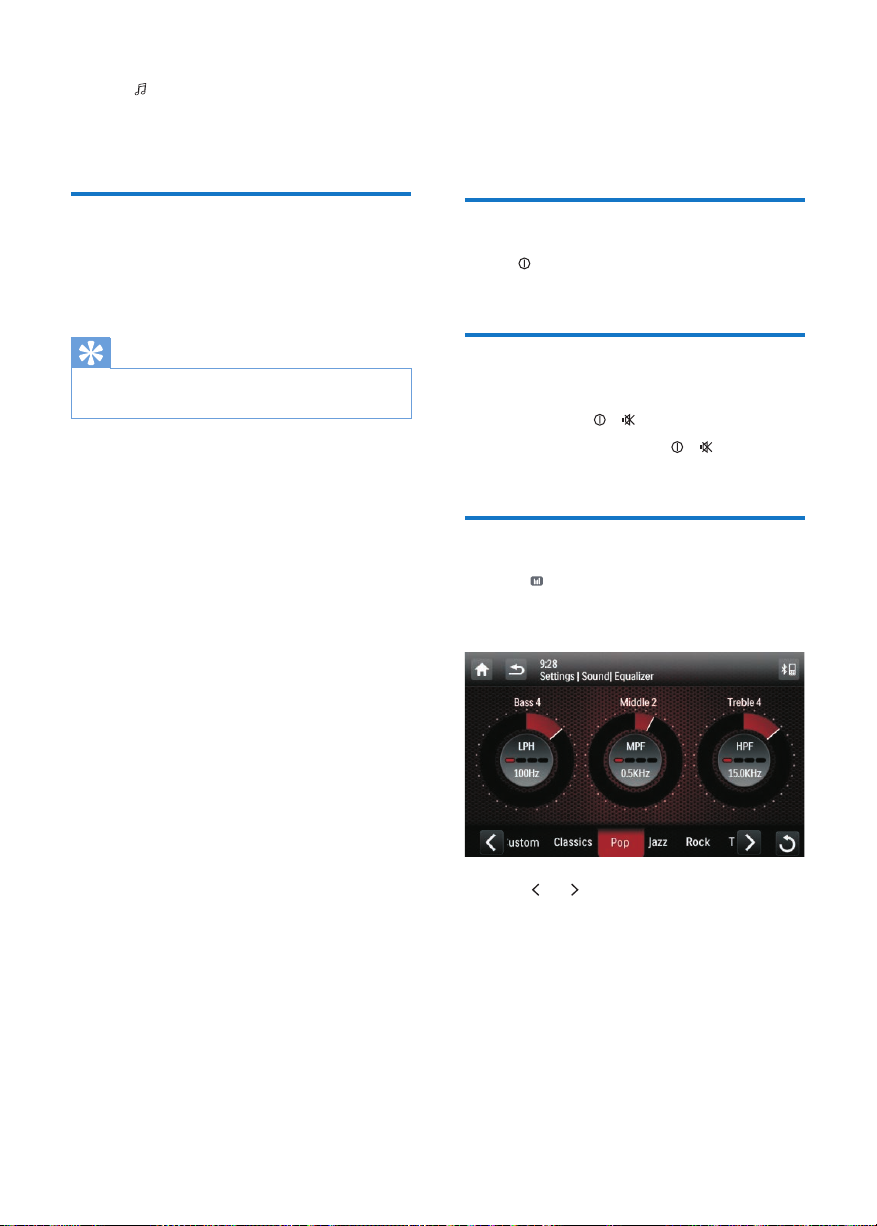

Select preset equalizer

1 Tap .

» The current equalizer setting is

displayed.

26 EN

2 Tap or to select a preset EQ:

• [Custom]

• [Techno]

• [Rock]

• [Classic]

• [Jazz]

• [Optimal]

• [Flat]

• [Pop]

3 Adjust EQ settings by tapping on the

screen.

• [Bass] bass range: -14 to +14.

• [Middle] middle range: -14 to +14.

• [Treble] treble range: -14 to +14.

• [LPF] low pass lter range: 60, 80, 100,

160.

• [MPF] middle pass lter range: 0.5KHz,

1.0KHz, 1.5KHz, 2.5KHz.

• [HPF] high pass lter range: 10.0KHz,

12.5KHz, 15.0KHz, 17.5KHz.

4 If you are not satised with the adjusted

sound settings, tap settings.

5 Tap to exit.

to restore default

• [Subwoofer]: tap [On]/[Off] on screen

to turn the subwoofer on or off.

• Tap

• [LPF]: tap screen to select subwoofer

5 Tap to exit.

or to select subwoofer

volume: 0 to 14.

low pass lter range: 80, 120, 160.

Adjust fader/balance/ subwoofer

You can adjust the sound balance between the front, rear, left, and right speakers and subwoofer.

1 Tap on upper line of the screen to

display setting menu.

2 Tap .

3 Tap or to adjust fader/balance value.

• [Fader] fader range: +16 to -16. (F = front speaker, R = rear speaker)

• [Balance] balance range: -16 to +16. (L = left speaker, R = right speaker)

4 Tap .

» The subwoofer setting is displayed.

Switch music listening zone

Philips’ innovative Zone technology enables driver or passengers to enjoy music with the best speakers balance and experience more vivid spacial effect as the artist is intended to create. You can switch the music listening zone from driver to passengers for the best speaker sound settings in car.

1 Tap on the upper line of the screen to

display setting menu .

2 Tap twice. 3 The music zone setting is displayed.

4 Tap on the screen to adjust music listening

zone setting.

27EN

Turn FullSound on/off

Turn DBB on/off

Philips FullSound restores the audio details that is lost in music compression. It enriches the music signal, so what you hear is the full sound with every nuance of emotion and every detail of musical genius. Philips FullSound can:

• Bring CD listening experience to MP3

• Achieve fuller bass with greater depth and impact

• Restore sense of spaciousness that is lacking in compressed audio

• Enhance sound precision and detail

1 Tap on the upper line of the screen to

display setting menu.

2 Tap . 3 The full sound setting is displayed.

When DBB (Dynamic Bass Boost) is activated, low tones will be enhanced electronically.

Tap

on the upper line of screen to toggle

between the settings.

•

(red): DBB (Dynamic Bass Boost)

function is activated.

(gray): DBB (Dynamic Bass Boost)

• function is deactivated.

4 Tap 1/2/3 on the screen to adjust full

sound setting.

Tip

You can also tap on the upper line of the screen to

•

activate the full sound.

Turn MAX sound on/off

During play, tap on the upper line of screen.

(red): turn maximizing sound (MAX

• sound) on.

(gray): turn maximizing sound

• (MAX sound) off.

28 EN

10 Adjust settings

Display system setup menu

1 Tap > to display the full menu. 2 Tap .

» The settings menu is displayed.

View Info settings

1 Tap .

Adjust general settings

1 Tap . 2 Drag the bar downward to view all settings. 3 Swipe your nger on screen repeatedly to

select an option.

» The setting is changed.

General settings

[Radio Region]

[Beep] [On] Turn the beep sound

[Language] Select OSD (on

[Calibration] Calibrate the touch

[Clock Mode]

[Date] Set date. [Time] Set time. [Parking] [On] Turn parking on.

[Demo] [On] Turn demo mode on.

Options Description

Select one that matches your location.

on. Each time you press a button, the unit beeps.

[Off] Turn off the beep

sound.

screen display) language.

screen.

[12Hr]/ [24Hr]

[Off] Turn parking off.

[Off] Turn demo mode off.

Select time format.

2 Drag the bar downward to view all

detailed information of the system.

Adjust Navigation settings

1 Tap .

2 Swipe your nger on screen repeatedly to

select an option.

» The setting is changed.

Navigation settings

[Navigation Program Path]

[Navigation Voice]

Options Description

Access the Navigation Program Path mode.

[On] Turn the navigation

voice on.

[Off] Turn the navigation

voice off.

4 Tap to exit.

29EN

[Navigation Voice Gain]

3 Tap to exit.

[High] Select the navigation

voice to high.

[Low] Select the navigation

voice to low.

Adjust Bluetooth settings

1 Tap .

2 Tap on a setting repeatedly to change

setting.

[Device Name]

3 Tap to exit.

View the name of paired device.

Bluetooth settings

[New Pairing]

[Auto Connect]

[Auto Answer]

[Pin Code]

30 EN

Options Description

Pair new device.

[On] If the pre-paired device

is within effective range, the system reconnects to pre-paired device automatically.

[Off] Need to reconnect

manually.

[On] Answer paired phone

call automatically.

[Off] Answer phone call

manually. Set code for pairing

the car entertainment system with other Bluetooth devices. The default code is 0000.

11 Others

Adjust brightness

1 Press DISP on front panel repeatedly to

adjust the dimmer settings.

2 Press and hold DISP to turn off the display,

press again or tap on TFT screen to switch on.

Set rear view camera

If you connected a rear view camera, you can see from the screen of the car audio system what the camera takes when the back lamp lights up.

» Picture from rear camera is displayed.

• [Wallpaper]: tap to change wallpaper on screen.

• [Visualizer]: tap to change visualizer on screen.

• [Skin]: tap to change OSD display color.

• [Backlight]: tap to change main unit button illumination color.

3 Tap to exit.

Listen to other devices

You can connect an external audio/video device to the car audio system.

1 Connect the car audio to the device with

the supplied AV cable.

Adjust display design

You can change the background screen on the playback mode.

1 In any mode, tap .

» The option menu is displayed.

2 Tap [Display Design] to set the options.

AV IN

2 Tap to display home menu. 3 Tap [AV-IN1]. 4 Operate the connected the device (see

instruction manual of the device).

31EN

Tip

If you connect the system to other audio devices

•

through the REAR OUT L/R connector (see "Wiring Diagram" section), tap [AV-IN2] to listen to that device.

Detach the front panel

You can detach the front panel to deter theft.

1 Press OPEN to release the panel. 2 Push the right side of the panel leftward.

Tip

When the unit is reset, all the settings remain

•

unchanged.

Replace fuse

If there is no power, the fuse may be damaged and need to be replaced.

1 Take out the unit from dashboard. 2 Check the electric connection. 3 Buy a fuse that matches the voltage of the

damaged fuse (15A).

4 Replace the fuse.

3 Pull the panel towards you to disengage it

from the chassis.

4 Store the panel in the supplied carrying

case to protect it from dirt or damage.

Reset

When the unit hangs up, you can reset it.

Press RESET with a ball-point pen or similar tool.

32 EN

FUSE (15A)

Tip

If the fuse breaks immediately after it has been

•

replaced, there may be an internal malfunction. In this case, consult your dealer.

12 Product

information

Note

Product information is subject to change without prior

•

notice.

General

Power supply 12 V DC (11 V - 16 V),

negative ground Fuse 15 A Suitable speaker

impedance Maximum power

output Continuous power

output Pre-Amp output

voltage Subwoofer output

voltage Aux-in level Dimensions (W x

H x D) Weight (main unit) 3.1 kg

Disc player

System DVD / CD audio

Frequency response 20 Hz - 20k Hz Signal/noise ratio >75dB Total harmonic distortion Less than 1% Channel separation >55dB Video signal format NTSC only Video output 1 +/- 0.2V

Radio

Frequency range - FM 64.0 - 108.0 MHz

4 - 8

50 W x 4 channels

24 W x 4 channels (4

10% T.H.D.)

2.0 V ( CD play mode; 1

kHz, 0 dB, 10 k

2.0 V (CD play mode, 61

Hz, 0 dB, 10 k

500 mV

178 x 50 x 210 mm

/ MP3 system

(50kHz per step)

load)

Frequency range AM(MW)

Usable sensitivity - FM 5 uV Usable sensitivity - AM

(MW)

522 - 1620 KHz (9kHz per step)

25 uV

LCD

Screen size 7.0 inches Display resolution 800 x 480 dots Contrast ratio 500 Brightness 450 cd/m2

Bluetooth

Communication system

Output Bluetooth Standard Power

Maximum communication range

Frequency band 2.4 GHz band (2.4000 GHz

Compatible Bluetooth

proles

Supported codecs

Receive Transmit

Bluetooth Standard version

2.0

Class 2 Line of sight approx. 8m

- 2.4835 GHz)

Hands-Free Prole (HFP)

Handset Prole (HSP)

Advanced Audio Distribution

Prole (A2DP)

Audio Video Remote

Control Prole (AVRCP)

SBC (Sub Band Codec)

GPS antenna

Antenna Build-in ceramic

patch antenna Supplying voltage 5 ± 0.2 V Operating temperature -20 ~ +70°C Cold start 28 s (typical), < 50 s Hot start 1 s (typical), < 3 s Acquisition sensitivity -141 dBm (typical)

33EN

Navigation sensitivity -158 dBm (typical) Tracking sensitivity -158 dBm (typical) Antenna cable length 3.0 m Dimensions of antenna

box (W x H x D)

50 x 40 x 16 mm

USB playability information

Compatible USB devices:

• USB ash memory (USB 2.0 or USB1.1)

• USB ash players (USB 2.0 or USB1.1)

• Memory cards (SD / MMC / SDHC)

Supported USB formats:

• USB or memory le format: FAT16, FAT32

• MP3 bit rate (data rate): 32-320 Kbps and variable bit rate

• WMA v9 or earlier

• Directory nesting up to a maximum of 8 levels

• Number of albums/folders: maximum 99

• Number of tracks/titles: maximum 999

• ID3 tag v2.0 or later

• File name in Unicode UTF8 (maximum length: 128 bytes)

Supported MP3 disc format:

• ISO9660, Joliet

• Maximum title number: 512 (depending on

le name length)

• Maximum album number: 255

• Supported sampling frequencies: 32 kHz,

44.1kHz, 48 kHz

• Supported Bit-rates: 32-320 Kbps and variable bit rate

Supported video formats:

• DVD

• Divx

Note

To ensure a better playback, it is recommended that le

•

image size is no higher than 640 x 480, frame rate is 20 fps, data rate is no higher than 500 kbps.

34 EN

13 Troubleshooting

Warning

•

Never remove the casing of this device.

To keep the warranty valid, never try to repair the system yourself.

If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www. philips.com/welcome). When you contact Philips, ensure that the device is nearby and the model number and serial number are available.

No power

• Car engine has not been star ted. Start the car engine.

• Connections are incorrect.

• Fuse has been damaged. Replace fuse.

No sound

• Volume is too low. Adjust volume.

• Speaker connections are incorrect.

No response to the remote control

• Ensure that the path between the remote control and the unit is clear from obstacles.

• From a close distance, point the remote control directly at the unit.

• Switch F/R to correct position (F for front control and R for rear control).

• The function does not work. See the instruction manual.

• Replace the remote control battery.

Disc does not play

• Disc is upside down. Ensure that the printed side is upwards.

• Disc is dir ty. Clean the disc with a clean, soft, lint-free cloth. Wipe the disc outwards from the center.

• Disc is defective. Try another disc.

• incompatible disc is used. Try another disc.

• Disc rating exceeds the restriction setting. Change the rating settings to lower one.

• Disc region code is not compatible with the unit. Use disc with proper region code.

No image

• Parking wire connection is incorrect. Check the wiring.

Image ashes or distorted

• Video DVD settings do not match with the DVD. Adjust video DVD settings.

• Video connection is improper. Check the connections.

Noise in broadcasts.

• Signals are too weak. Select other stations with stronger signals.

• Check the connection of the car antenna.

• Change broadcast from stereo to mono.

Preset stations lost.

• Battery cable is not correctly connected. Connect the battery cable to the terminal that is always live.

Fuse is broken

• The fuse type is incorrect. Replace it with a 15A fuse.

• Speaker wire or power wire is grounded. Check the connections.

Display show ERR-12

• USB/SD/MMC data error. Check the USB device or SD/MMC card.

35EN

About the Bluetooth device

Music playback is unavailable on the system even after successful Bluetooth connection.

• The device cannot be used with the system to play music.

The audio quality is poor after connection with a Bluetooth-enabled device.

• The Bluetooth reception is poor. Move the device closer to the system or remove any obstacle between the device and the system.

Cannot connect with the system.

• The device does not suppor t the proles required for the system.

• The Bluetooth function of the device is not enabled. Refer to the user manual of

the device to nd out how to enable the

function.

• The system is not in the pairing mode.

• The system is already connected with another Bluetooth-enabled device. Disconnect that device or all other connected devices and then try again.

The paired mobile phone connects and disconnects constantly.

• The Bluetooth reception is poor. Move the mobile phone closer to the system or remove any obstacle between the mobile phone and the system.

• Some mobile phones may connect and disconnect constantly when you make or end calls. This does not indicate any malfunction of the system.

• For some mobile phones, the Bluetooth connection may be deactivated automatically as a power-saving feature. This does not indicate any malfunction of the system.

36 EN

This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V.

CED780_51_UM_Online_V2.0

Philips CED780/51 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
