Philips CDR820BK User Manual
IN
OUT
L
R
CDR/TAPE
AMPLIFIER/
RECEIVER
OUT
DIGITAL
DIGITAL COAXIAL SOURCE
(CD player, DVD, DAT)
IN
L
R
ANALOG
CD RECORDER
OUT
L
R
PHONO
RECORD PLAYER
OUT
L
R
ANALOG
OPTICAL
IN
OUT
DIGITAL
IN
OUT
L
R
ANALOG
IN
L
R
PHONO
IN
OUT
ReWritable
xp QRC CDR 820/17 eng. 01-03-2001 12:06 Pagina 1

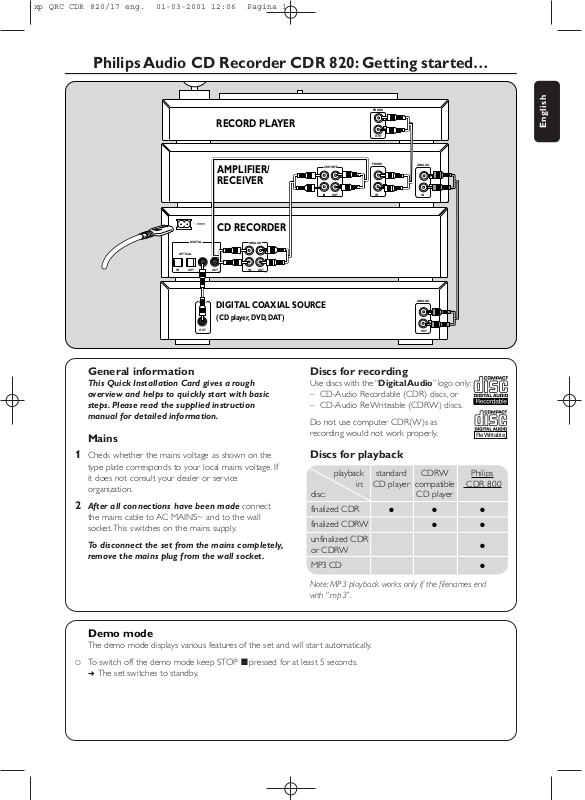

Philips Audio CD Recorder CDR 820: Getting started…
English
General information
This Quick Installation Card gives a rough
overview and helps to quickly start with basic
steps. Please read the supplied instruction
manual for detailed information.
Mains
1 Check whether the mains voltage as shown on the
type plate corresponds to your local mains voltage. If
it does not consult your dealer or service
organization.
2 After all connections have been made connect
the mains cable to AC MAINS~ and to the wall
socket.This switches on the mains supply.
To disconnect the set from the mains completely,
remove the mains plug from the wall socket.
Discs for recording
Use discs with the “Digital Audio” logo only:
– CD-Audio Recordable (CDR) discs, or
– CD-Audio ReWriteable (CDRW) discs.
Do not use computer CDR(W)s as
recording would not work properly.
Discs for playback
playback standard CDRW Philips
disc: CD player
finalized CDR
finalized CDRW ●●
unfinalized CDR
or CDRW
MP3 CD
Note: MP3 playback works only if the filenames end
with “.mp3”.
Demo mode
The demo mode displays various features of the set and will start automatically.
0 To switch off the demo mode keep STOP
➜ The set switches to standby.
9
pressed for at least 5 seconds.
in: CD player compatible CDR 800
●● ●
●
●
CD 3
CD 2
CD 1
OPEN
CLOSE
PLAY/PAUSE
2/ ;
C
D
R
E
C
O
R
D
E
R
COPY CD
CD 3
CD 2
CD 1
OPEN
CLOSE
OPEN
CLOSE
SPEED
YES
ENTER
C
D
R
E
C
O
R
D
E
R
RECORD
OPEN
CLOSE
CD 3
CD 2
CD 1
OPEN
CLOSE
5
6
¡™
0
E
A
S
Y
J
O
G
YES
ENTER
C
D
R
E
C
O
R
D
E
R
FINALIZE CD
OPEN
CLOSE
YES
ENTER
xp QRC CDR 820/17 eng. 01-03-2001 12:06 Pagina 2
Philips Audio CD Recorder CDR 820: Getting started…
Playing a CD in the CD changer
English
1 Press OPEN·CLOSE and insert a CD
into a tray. Close the drawer by pressing
OPEN·CLOSE again.
Recording an entire CD
1 Press OPEN·CLOSE and
insert a blank Audio CDR(W)
into the CD recorder tray.
Recording a single track
2 Select the tray
by pressing CD1,
CD2 or CD3.
2 Insert the CD to be
copied into the
CD changer and
select the CD tray.
3 Press PLAY/PAUSE 2/; to start
playback.
3 Select the
required
recording
speed.
4 Press
COPY CD.
5 Press YES to start
CD recording.
The CD will be
finalized
automatically.
1 Insert an Audio
CDR(W) into the
CD recorder tray.
2 Insert a CD into the
CD changer and
select the CD tray.
3 Select a track by
rotating ¡ EASY
JOG ™.
4 Press
RECORD.
5 Press YES to
start recording.
Finalizing manually
1 Insert the CDR(W)
to be finalized into
the CD recorder.
12NCXXXXX.X Printed in ???? date&origin
2 Press
FINALIZE CD
.
3 Press YES to start
the finalization.
