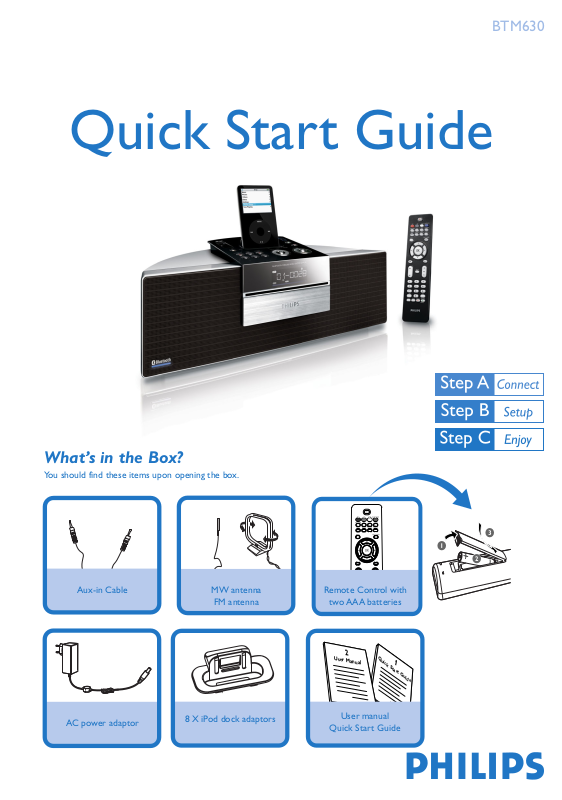

Philips BTM630/05 Quick Start Guide
BTM630
Quick Start Guide
What’s in the Box?
You should find these items upon opening the box.
Aux-in Cable |
MW antenna |
|
FM antenna |
|
|
|
AC power adaptor |
|
|
8 X iPod dock adaptors |
|
|
|
|
|
|
|
|
|
|
3 1
2
Remote Control with two AAA
batteries
User |
2 |
Quick |
|
|
Manual |
1 |
|
||
|
|
|
Start |
Guide |
|
|
|
|
User manual
Quick Start Guide
1
Connect the MW and FM antennas.
2
Connect the AC power adaptor of the system.
FM wire antenna
Tips
–See the User Manual for how to connect other equipment to this system.
–Use the supplied AC power adaptor only! Using any other power connection device may damage your main set!
MW loop antenna
2 |
1 |
|
AC power adaptor
Setting the clock
1
In standby mode, press PROG on the system (or PROG/CLOCK on the remote control).SET CLOCK is displayed briefly.Then, 12HR or 24HR is displayed.
2
Press ALBUM•PRESET +/- on the system (or 3/4 on the remote control) to select clock mode. Press PROG on the system (or PROG/CLOCK on the remote control) to confirm.
The clock digits for the hours continue to flash.
3
Press ALBUM•PRESET +/- on the system (or 3/4 on the remote control) to set the hours.
4
Press PROG on the system (or PROG/CLOCK on the remote control) again.The clock digits for the minutes flash.
5
Press ALBUM•PRESET +/- on the system (or 3/4 on the remote control) to set the minutes.
6
Press PROG on the system (or PROG/CLOCK on the remote control) to confirm the time.
