Philips BDP5650/51 User guide

Always there to help you

Question?

Contact

Philips

Register your product and get support at
www.philips.com/support

BDP5650

User manual

English

Safety and important
notice

Read and understand all instructions before you
use this Blu-ray disc/ DVD player. If damage is
caused by failure to follow the instructions, the
warranty does not apply.

Safety

Risk of electric shock or re!

• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.

• Never place the product and accessories

near naked ames or other heat sources,

including direct sunlight.

• Never insert objects into the ventilation
slots or other openings on the product.

• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.

• Batteries (battery pack or batteries
installed) shall not be exposed to excessive

heat such as sunshine, re or the like.

• Disconnect the product from the power
outlet before lightning storms.

• When you disconnect the power cord,
always pull the plug, never the cable.

Risk of short circuit or re!

• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never

connect the product to the power outlet if
the voltage is different.

Risk of injury or damage to the product!

• Visible and invisible laser radiation when
open. Avoid exposure to beam.

• Do not touch the disc optical lens inside
the disc compartment.

• Never place the product or any objects
on power cords or on other electrical
equipment.

• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.

Risk of overheating!

• Never install this product in a conned
space. Always leave a space of at least four
inches around the product for ventilation.
Make sure that curtains or other objects
never cover the ventilation slots on the
product.

Risk of contamination!

• Do not mix batteries (old and new or
carbon and alkaline, etc.).

• Remove batteries if they are exhausted or
if the remote control is not to be used for
a long time.

• Batteries contain chemical substances, they
should be disposed of properly.

Risk of swallowing batteries!

• The product/remote control may contain a
coin type battery, which can be swallowed.

• Keep the battery out of reach of children
at all times!

Class II equipment symbol:

This symbol indicates that this product has a
double insulation system.

2

CLASS 1

LASER PRODUCT

3D health warning

• If you or your family has a history of
epilepsy or photosensitive seizures, consult
a medical professional before exposing

yourself to ashing light sources, rapid

image sequences or 3D viewing.

• To avoid discomfort such as dizziness,
headache or disorientation, we
recommend not watching 3D for extended
periods of time. If you experience any
discomfort, stop watching 3D and do
not immediately engage in any potentially
hazardous activity (for example driving a
car) until your symptoms have disappeared.
If symptoms persist, do not resume
watching 3D without consulting a medical

professional rst.

• Parents should monitor their children
during 3D viewing and ensure they do not
experience any discomfort as mentioned
above. Watching 3D is not recommended
for children under 6 years of age as their
visual system is not fully developed yet.

Care for your product

• Do not insert any objects other than discs
into the disc compartment.

• Do not insert warped or cracked discs into
the disc compartment.

• Remove discs from the disc compartment
if you are not using the product for an
extended period of time.

• Only use microber cloth to clean the
product.

Care of the environment

Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.

When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.

Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.

Compliance

This product complies with the radio
interference requirements of the European
Community.

3

Hereby, Philips Consumer Lifestyle, declares
that this product is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC. You

can nd the Declaration of Conformity on

www.p4c.philips.com.

Copyright

This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.

Open source software

Philips Electronics Singapore Pte Ltd hereby
offers to deliver, upon request, a copy of the
complete corresponding source code for the
copyrighted open source software packages
used in this product for which such offer is
requested by the respective licenses.
This offer is valid up to three years after
product purchase to anyone in receipt of this
information. To obtain source code, please
contact [email protected]. If you prefer
not to use email or if you do not receive

conrmation receipt within a week after mailing

to this email address, please write to "Open
Source Team, Philips Intellectual Property &
Standards, P.O. Box 220, 5600 AE Eindhoven,
The Netherlands." If you do not receive timely

conrmation of your letter, please email to the

email address above.
This product incorporates proprietar y
technology under license from Verance
Corporation and is protected by U.S. Patent
7,369,677 and other U.S. and worldwide
patents issued and pending as well as
copyright and trade secret protection for
certain aspects of such technology. Cinavia is a
trademark of Verance Corporation. Copyright
2004-2013 Verance Corporation. All rights

reserved by Verance. Reverse engineering or
disassembly is prohibited.

Cinavia notice

This product uses Cinavia technology to
limit the use of unauthorized copies of some

commercially-produced lm and videos and

their soundtracks. When a prohibited use of an
unauthorized copy is detected, a message will
be displayed and playback or copying will be
interrupted.
More information about Cinavia technology
is provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about Cinavia
by mail, send a postcard with your mailing
address to: Cinavia Consumer Information
Center, P.O. Box 86851, San Diego, CA, 92138,
USA.

4

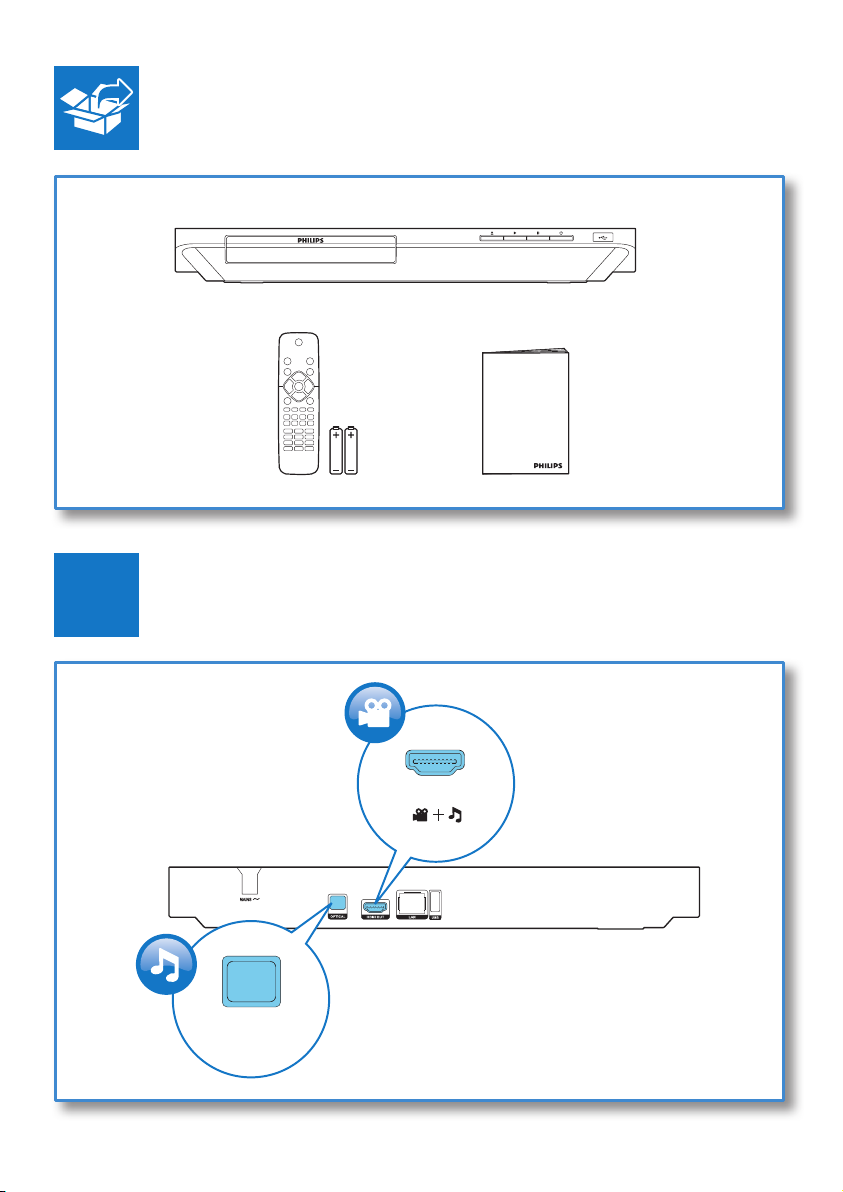

1

User Manual

HDMI OUT

( )

OPTICAL

5

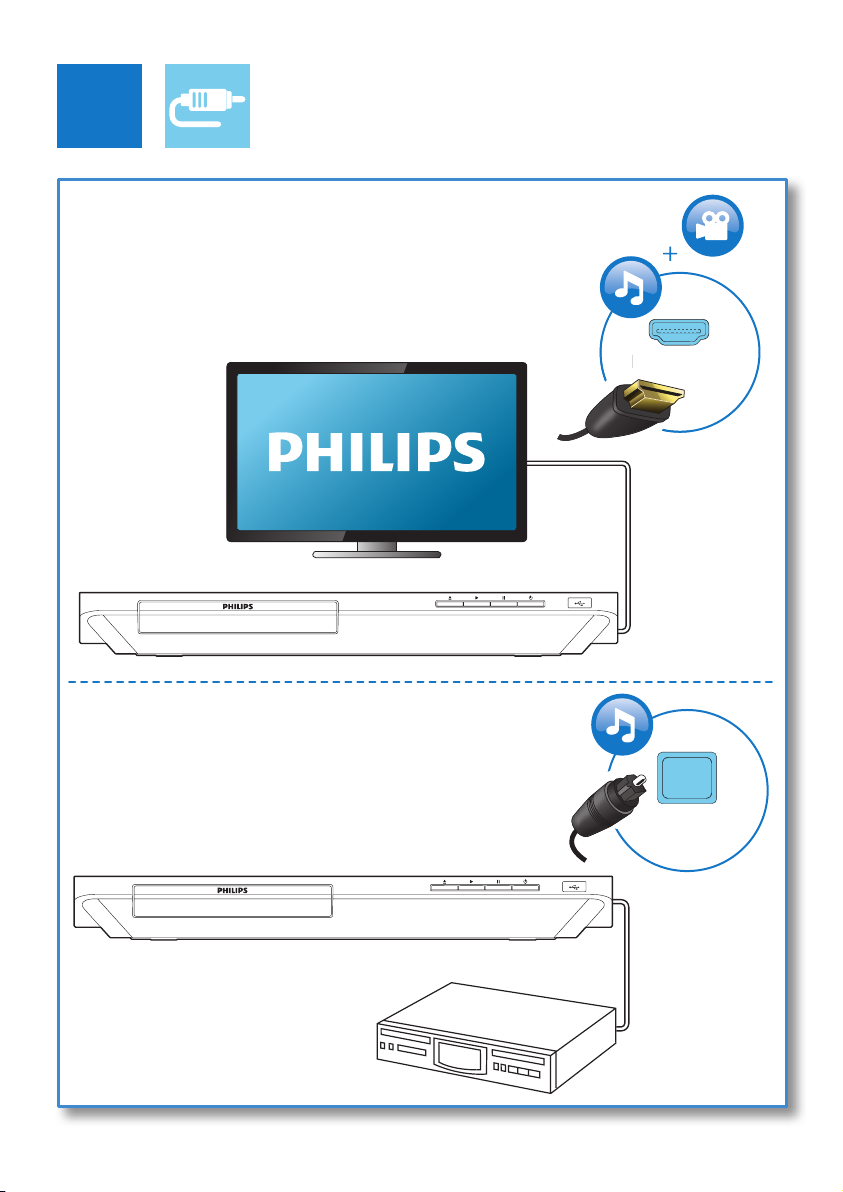

2

O

HDMI OUT

HDMI OUTHDMI

OPTICAL

6

OPTICAL

3

1

4

5

2

SOURCE

TV

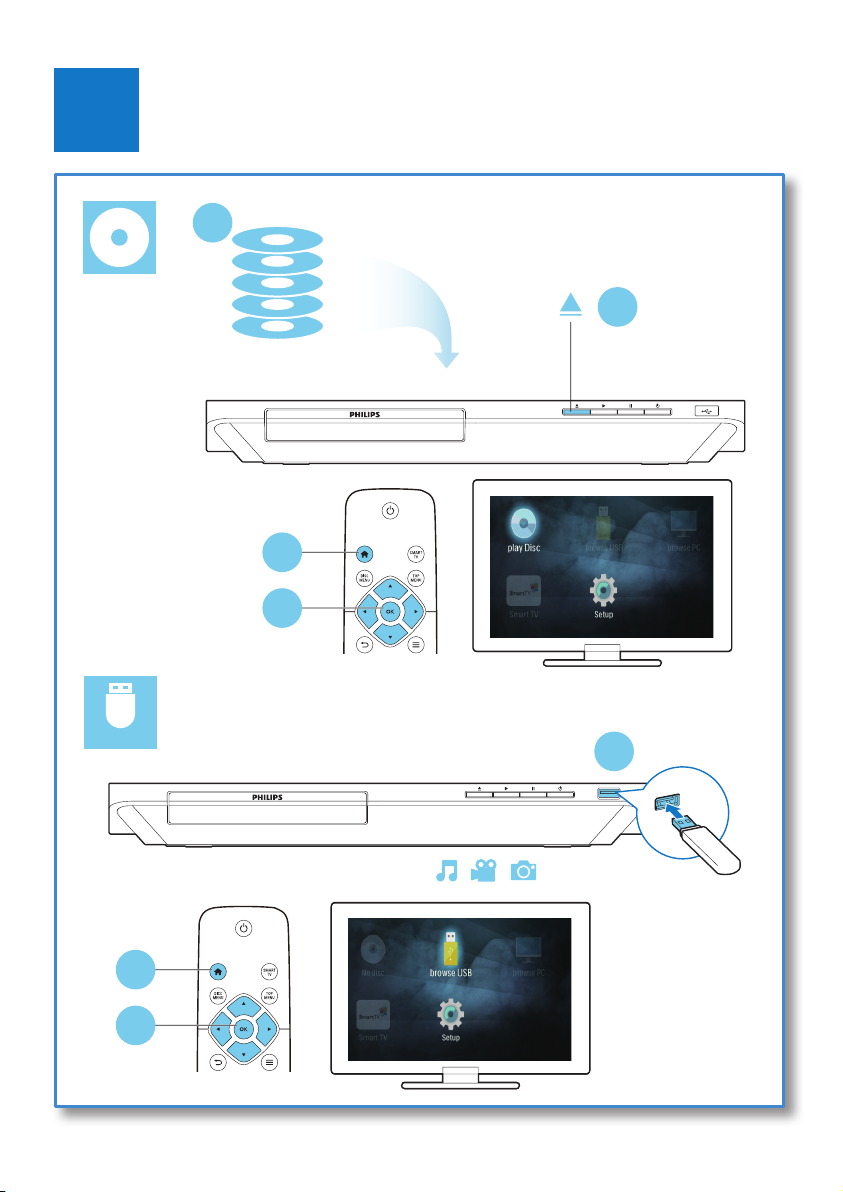

7

6

2

BD
BD 3D
DVD/VCD/CD
DivX Plus HD/MKV
MP3 / JPEG

3

4

1

USB

1

2

3

8

Contents

1 Use your Blu-ray disc/ DVD player 2

Basic play control 2
Video, audio and picture options 3
DivX videos 4
Play a musical slideshow 5
BonusView on Blu-ray 5
BD-Live on Blu-ray 5
Play a Blu-ray 3D video 6
Set up a network 6
Smartphone control 7
Browse PC through DLNA 7
Stream media from an Android device 8
Stream multimedia via Miracast 8
Use Philips EasyLink 8

2 Change settings 9

Picture 9
Sound 9
Network (installation...) 9
Preference (languages, parental control...) 10
Advanced options (clear memory...) 10

3 Update software 11

Update software via the Internet 11
Update software via USB 11

4 Specications 12

5 Troubleshooting 13

1EN

1 Use your Blu-

ray disc/ DVD
player

Congratulations on your purchase, and

welcome to Philips! To fully benet from

the support that Philips offers (e.g. product
software upgrade), register your product at
www.philips.com/welcome.

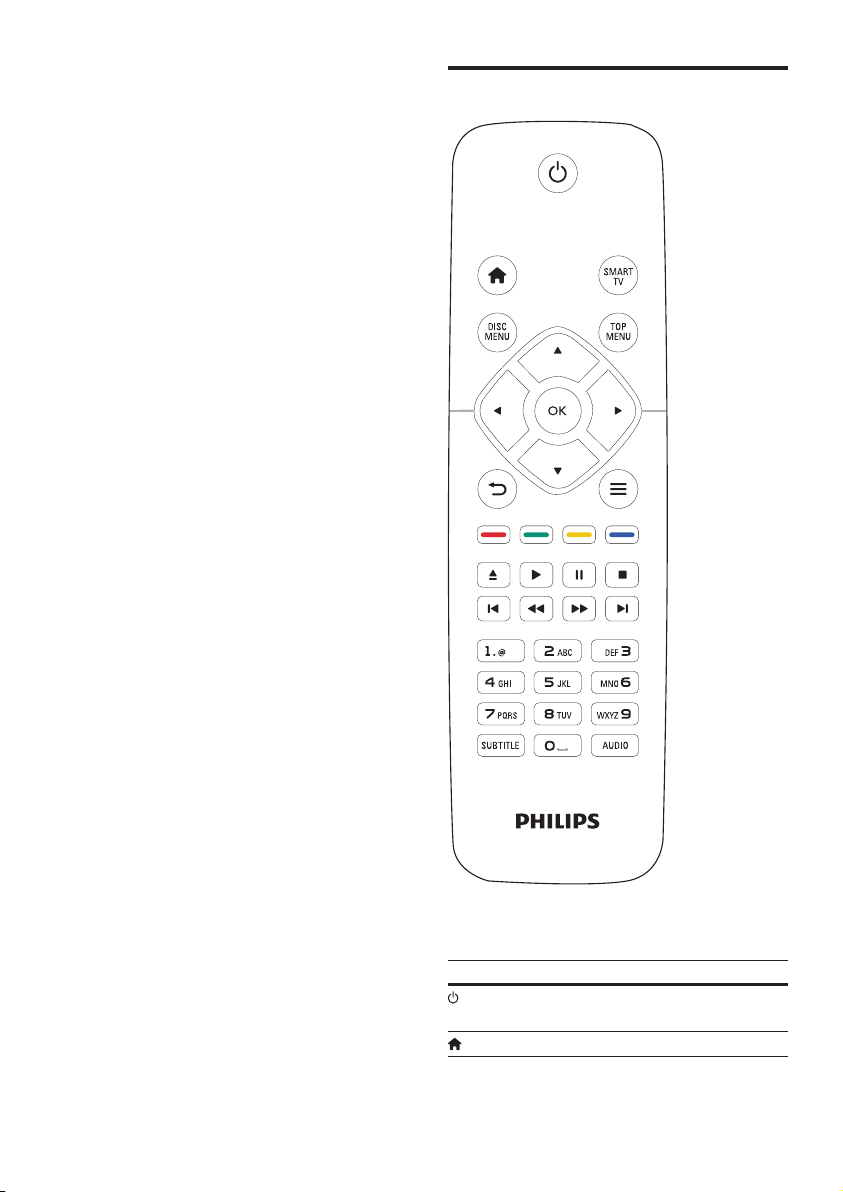

Basic play control

2 EN

During play, press the following buttons to
control.

Button Action

Turn on the player, or switch
to standby.

Access the home menu.

Button Action

SMART TV This feature is not available on

this version.

DISC MENU Access or exit the disc menu

or Pop-up menu.

TOP MENU Access the main menu of a

video disc.

Navigate the menus.

Press

to rotate a picture
clockwise or counter-clockwise
during slideshow.

OK Conrm a selection or entry.

Return to a previous display
menu.

Access more options during
play.

Color
buttons

/ Skip to the previous or next

/ Fast backward or forward.

AUDIO Select an audio language or

SUBTITLE Select a subtitle language.
Alphanumeric

buttons

Select tasks or options for
Blu-ray discs.

Open or close the disc
compartment.

Start or resume play.
Pause play.

Press repeatedly to slow
forward frame by frame.

Stop play.

track, chapter or le.

Press repeatedly to change the
search speed.
Press

once, and then press

to slow forward.

channel.

Select an item to play.
Enter values.
Enter letters via SMS style
entry.

Video, audio and picture options

More options are available for video or picture
play from a disc or USB storage device.

Video options

2

3

1

Access more options during video play.

• [Audio Language]: Select an audio
language.

• [Subtitle Language]: Select a subtitle
language.

• [Subtitle Shift]: Change the subtitle
position on the screen. Press
change the subtitle position.

• [Info]: Display play information.

• [Character Set]: Select a character set that
supports the DivX video subtitle (only for
DivX videos).

• [Time Search]: Skip to a specic time
via the numeric buttons on the remote
control.

• [2nd Audio Language]: Select the second
audio language (only for Blu-ray discs that
support BonusView).

• [2nd Subtitle Language]: Select the second
subtitle language (only for Blu-ray discs that
support BonusView).

• [Titles]: Select a title.

• [Chapters]: Select a chapter.

• [Angle List]: Select a camera angle.

• [Menus]: Display a disc menu.

• [PIP Selection]: Display a picture-in-picture
window (only for Blu-ray discs that support
BonusView).

to

3EN

• [Zoom]: Zoom into a video picture. Press
to select a zoom factor.

• [Repeat]: Repeat a chapter or title.

• [Repeat A-B]: Mark two points within a

chapter for repeat play, or turn off repeat
mode.

• [Picture Settings]: Select a predened

color setting.

Note

Available video options depend on the video source.

•

Picture options

2

3

1

Access more options during slideshow.

• [Rotate +90]: Rotate a picture 90 degrees

clockwise.

• [Rotate -90]: Rotate a picture 90 degrees

counter-clockwise.

• [Zoom]: Zoom into a picture. Press

select a zoom factor.

• [Info]: Display picture information.

• [Duration per slide]: Set a display interval

for a slideshow.

• [Slide Animation]: Select a transition effect

for a slideshow.

• [Picture Settings]: Select a predened

color setting.

• [Repeat]: Repeat a selected folder.

to

Audio options

Press repeatedly to cycle through the
following options.

• Repeat the current track.

• Repeat all the tracks on the disc or folder.

• Play audio tracks in a random loop.

• Turn off a repeat mode.

DivX videos

You can play DivX videos from a disc, a USB
storage device, or an online video store (see
"Rent online videos).

VOD code for DivX

• Before you purchase DivX videos and play
them on this player, register this player on
www.divx.com using the DivX VOD code.

• Display the DivX VOD code: press
select [Setup] > [Advanced] > [DivX

VOD Code].

DivX subtitles

• Press SUBTITLE to select a language.

• If the subtitle is not displayed correctly,
change the character set that supports the
DivX subtitle. Select a character set: press

, and select [Character set].

Character
set

[Standard] English, Albanian, Danish, Dutch,

Languages

Finnish, French, Gaelic, German,
Italian, Kurdish (Latin), Norwegian,
Portuguese, Spanish, Swedish, and
Turkish

, and

®

4 EN

Character
set

[Central
Europe]

[Cyrillic] Bulgarian, Belorussian, English,

[Greek] Greek
[Baltic] Estonian, Latvian and Lithuanian
[Chinese] Simplied Chinese
[Chinese-

Traditional]
[Korean] English and Korean

To use the subtitles, make sure that the subtitle le

•

has the same name as the DivX video le name. For
example, if the DivX video le is named “movie.avi",
save the subtitle le as “movie.srt”, or “movie.sub”.

• This player can play subtitle les in the following

formats: .srt, .sub, .txt, .ssa, and .smi.

Languages

Albanian, Croat, Czech, Dutch,
English, German, Hungarian, Irish,
Polish, Romanian, Slovak, Slovene,
and Serbian

Macedonian, Moldavian, Russian,
Serbian, and Ukrainian

Traditional Chinese

Note

Play a musical slideshow

Play music and pictures simultaneously to create
a musical slideshow.

1 From a disc or connected USB storage

device, play a music le.

2 Press , and go to the picture folder.
3 Select a picture from the same disc or

USB, and press OK to start slideshow.

4 Press to stop slideshow.
5 Press again to stop music play.

BonusView on Blu-ray

View special content (such as commentaries) in
a small screen window.
This feature is only applicable to Blu-ray discs
compatible with BonusView (also known as
picture in picture).

1 During play, press .

» The options menu is displayed.

2 Select [PIP Selection] > [PIP], and press

OK.

» PIP options [1]/[2] depend on the

video contents.

» The secondary video window is

displayed.

3 Select [2nd Audio Language] or [2nd

Subtitle Language], and press OK.

BD-Live on Blu-ray

Access exclusive online services, such as movie
trailers, games, ringtones and other bonus
contents.
This feature is only applicable to Blu-ray discs
that are BD-Live enabled.

1 Prepare the Internet connection and set

up a network (see "Set up a network").

2 Connect a USB storage device to the

(USB) connector on this player.

• A USB storage device is used to store

the downloaded BD-Live content.

• To delete the BD-Live previously

downloaded on the USB storage
device for memory release, press
and select [Setup] > [Advanced] >

[Clear memory].

3 Play a disc that is BD-Live enabled.
4 On the disc menu, select the BD-Live icon,

and press OK.

» BD-Live starts to load. The loading

time depends on the disc and the
Internet connection.

5EN

5 On the BD-Live interface, select an item

to access.

Note

BD-Live services var y from discs and countries.

•

• When you use BD-Live, data on the disc and this player

are accessed by the content provider

• Use a USB storage device with at least 1GB of free

space to store the download.

• If a USB hub is used with this player, do not overload

the USB hub with many USB devices to avoid

insufcient USB power.

Play a Blu-ray 3D video

What you need

• A 3D compliant TV

• This player is connected to the TV through
HDMI

• 3D glasses compatible with the TV

• 3D Blu-ray disc

1 Make sure that 3D output is turned on:

press

, and select [Setup] > [Video]

>[Watch 3D video] > [Auto].

2 Play a Blu-ray 3D video.
3 Put on the 3D glasses for 3D effects.

• To turn off 3D output, press

select [Setup] > [Video] > [Watch 3D
video] > [Off].

, and

1 Connect this player to a computer

network and the Internet, through wired
(Ethernet) or wireless connection.

• For wired connection, connect a
network cable (not supplied) to the
LAN port on the back panel of this
player.

PC (DLNA)

• This player has a built-in Wi-Fi for a
wireless connection.

PC (DLNA)

Set up a network

Connect this player to a computer network and
the Internet to access the services:

• Browse PC (DLNA): play photos, music,

and video les streamed from your

computer.

• Update software: update the software of
this player via the Internet.

• BD-Live: access online bonus features
(applicable to Blu-ray discs that are BD­Live enabled).

6 EN

2 Perform the network installation.

1) Press .

2) Select [Setup], and press OK.

3) Select [Network] > [Network
installation], and press OK.

4) Follow the instructions on the TV screen to

complete the installation.

Caution

• Before you connect to a network, familiarize yourself with

the network router, media server software for DLNA, and
networking principles. If necessary, read documentation
accompanying network components. Philips is not
responsible for lost, damaged, or corrupt data.

Smartphone control

Use a smartphone to browse, control and play

media les from this player.

What you need

• An iPhone (iOS 3.1.3 and above) or
Android based device (Android 2.1 and
above)

• On your smartphone, download Philips
MyRemote application

• For iPhone, search for the application

in App Store

• For Android based device, search for

the application in Android Market

Before you start

• Connect this player to a home network
(see "Set up a network").

• Connect your smartphone to the same
home network (see the user manual of the
smartphone for details).

• Turn on this player

Control your player

Use a smartphone to browse, control and play

media les from this player.

1 Insert a data disc or USB storage device

into this player.

2 On your smartphone, tap the MyRemote

icon from the home screen.

» The name of this player is displayed on

the smartphone.

3 Select this player from the smartphone

screen.

» The smartphone used as a virtual

remote control is enabled.

4 On the smartphone, tap the Media

(Media) tab, and then select the disc or
USB source.

» The folders in the data disc or USB

storage device are displayed.

5 Open a folder, and select a le to play.

• To access the remote control, return
to the previous smartphone screen,
and then tap the Remote (Remote)
tab. Only the relevant control buttons
are enabled.

6 Tap the control buttons on the

smartphone to control play.

• To access more control buttons, swipe
the screen to the left or right.

• To exit the application, press the home
button on the smartphone.

Browse PC through DLNA

Through this player, you can stream and play
video, music and photo from a computer on
your TV.

Before you start

• On your PC, install a DLNA-compliant
media server application (such as Windows
Media Player 11 or higher)

• On your PC, enable media sharing and le
sharing (see the "Help" document in the
media server application)

1 Connect this player and your PC in the

same home network (see "Set up a
network").

• For better video quality, use wired

network connection whenever possible.

2 Press .

» The home menu is displayed on the

TV screen.

3 Select [browse PC], and press OK.

» A content browser is displayed.

4 Select a le, and press OK to play.

• Use the remote control to control play.

7EN

Stream media from an Android device

With Philips SimplyShare, through this player

you can stream media les from an Android

based device on your TV. For details, visit
www.philips.com/support

Stream multimedia via Miracast

Through this player, you can stream audio and

video from a Miracast certied device to your

TV, and the screen of the Miracast device is
viewed on your TV.

What you need

• Smartphones or tablets with Android 4.2/
Windows 8.1 or above, and check those
devices on whether Miracast feature is
available (the name of Miracast feature
may vary on different devices).

• Enable Miracast on your smartphone or
tablet (refer to a related user manual for
details).

• Make sure that Miracast is enabled on
this player (press
[Network] > [Miracast break-in] > [On]).

, and select [Setup] >

1 Press to display the home menu screen

of this player.

2 On the Miracast source device, initiate

the search for this player and select this
player when it is found (refer to the source
device's user manual for details).

• If this is the rst time these 2 devices

are paired, an acknowledgement
message is displayed on your TV.
Accept it to continue the pairing.

• To cancel the pairing, press

remote control.

on the

3 Wait until the media content from the

source device is displayed on your TV, then
choose the media to start play.

» Audio or video is streamed to your TV

through this player.

Note

This player can store up to 10 Miracast devices for

•

pair-up, and can only connect a single Miracast certied

device at a time.

• During Miracast connection, Wi-Fi connection on this

player is temporarily suspended.

• To avoid interference from Bluetooth transmission, turn

off Bluetooth on your Miracast device.

• During Miracast streaming, video stuttering or audio

dropouts may occur, depending on your environment
(video streaming is up to 720p).

Use Philips EasyLink

This player supports Philips EasyLink which
uses the HDMI CEC (Consumer Electronics
Control) protocol. You can use a single remote
control to control EasyLink compliant devices
that are connected through HDMI. Philips does
not guarantee 100% interoperability with all
HDMI CEC devices.

1 Connect the HDMI CEC compliant devices

through HDMI, and turn on the HDMI
CEC operations on the TV and other
connected devices (see the user manual of
the TV or other devices for details).

2 Press .
3 Select [Setup]> [EasyLink].
4 Select [On] under the options: [EasyLink],

[One Touch Play] and [One Touch
Standby].

» EasyLink function is turned on.

One Touch Play

When a video disc is in the disc compartment,
press

to wake up the TV from standby, and

then play a disc.

One Touch Standby

When a connected device (for example TV)
is put to standby with its own remote control,
this player is put to standby automatically.

8 EN

2 Change settings

This section helps you change the settings of
this player.

Note

If you change a setting, make sure that the TV supports

•

the new setting.

1

2

3

Watch 3D video

Note

You cannot change a menu option that is grayed out.

•

• To return to the previous menu, press . To exit the

menu, press


1

Press .

2 Select [Setup] > [Video] to access the

video setup options.

• [TV display]: Select a picture display format

to t the TV screen.

• [HDMI video]: Select an HDMI video
resolution.

• [HDMI Deep Color]: Display colors with
more shades and hues when the video
content is recorded in Deep Color and the
TV supports this feature.

• [Picture settings]: Select a predened
color setting.

• [Watch 3D video]: Set to 3D or 2D
output when playing a Blu-ray 3D disc.
The player must be connected to a 3D TV
through HDMI.

.

Sound

1

Press .

2 Select [Setup] > [Audio] to access the

audio setup options.

• [Night mode]: Select quiet or full dynamic
sound. Night mode decreases the volume
of loud sound and increases the volume of
soft sound (such as speech).

• [HDMI Audio]: Set an HDMI audio format
when this player is connected through
HDMI.

• [Digital Audio]: Select an audio format
for the sound output when this player is
connected through a digital connector
(OPTICAL).

• [PCM Downsampling]: Set the sampling
rate for PCM audio output when this
player is connected through a digital
connector (OPTICAL).

Note

For settings related to HDMI, the TV must be

•

connected through HDMI.

• Night mode is only available for Dolby encoded DVD

and Blu-ray discs.

Network (installation...)

1

Press .

2 Select [Setup] > [Network] to access the

network setup options.

• [Network installation]: Start a wired or
wireless installation to make the network
work.

9EN

• [View network settings]: Display the
current network status.

• [View wireless settings]: Display the
current Wi-Fi status.

• [Clear Smart TV memory]: This feature is
not available on this version.

• [Name your Product:]: Re-name this

player for identication in a home network.

• [Miracast break-in]: Turn on or off
Miracast.

• [Miracast browser]: Scan for Miracast
devices.

• [Miracast role]: Force this player to be
Group Owner or automatically choose a
device to be Group Owner.

• [Auto]: The role of Group owner is

automatically determined between the
source device and this player when
connection is established.

• [Group Owner]: Force this player to

be Group Owner and allow it to select
the channel to use for establishing the
link with the source device.

Preference (languages, parental control...)

1

Press .

2 Select [Setup] > [Preference] to access

the preference setup options.

• [Menu language]: Select an onscreen
display menu language.

• [Keyboard layout]: Select a language for a
connected keyboard.

• [Audio]: Select an audio language for video.

• [Subtitle]: Select a subtitle language for
video.

• [Disc Menu]: Select a menu language for a
video disc.

• [Parental Control]: Restrict access to discs
that are encoded with ratings. Input "0000"
to access the restriction options. To play all
discs irrespective of the rating, select level
"8".

• [Screen Saver]: Enable or disable screen
saver mode. If enabled, the screen enters
idle mode after 10 minutes of inactivity (for
example, in pause or stop mode).

• [Auto Subtitle Shift]: Enable or disable
subtitle shift. If enabled, the subtitle position

is changed automatically to t the TV

screen (this feature works with some
Philips TVs only).

• [Change Password]: Set or change a
password to play a restricted disc. Input
"0000" if you do not have a password or if
you have forgotten your password.

• [Display Panel]: Change the brightness of
the display panel of the player.

• [Auto Standby]: Enable or disable auto
standby. If enabled, the player switches to
standby after 30 minutes of inactivity (for
example, in pause or stop mode).

• [Fast wake up]: Enable or disable the
player to wake up faster from standby. If
fast wakeup is turned off, less power is
consumed during standby.

• [VCD PBC]: Display or skip the content
menu for VCD and SVCD.

• [Auto play disc]: Enable or disable the
automatic disc playback after power on.

• [Auto play after video]: Enable or disable
sequential playback of videos from USB
or PC.

Note

If your preferred language is not available for disc

•

language, audio or subtitle, you can select [Other]
from the menu options and input 4-digit language code
which can be found at the back of this user manual.

• If you select a language which is not available on a disc,

this player uses the default language of the disc.

Advanced options (clear memory...)

1

Press .

10 EN

2 Select [Setup] > [Advanced] to access the

advanced setup options.

• [BD-Live security]: Restrict or allow access
to BD-Live (only for non-commercial, user­created BD-Live discs).

• [Downmix mode]: Control 2-channel
stereo audio output.

• [Software update]: Select to update
software from a network or from USB
storage device.

• [Clear memory]: Delete the previous BD­Live download on the USB storage device.
A "BUDA" folder is automatically created
to store the BD-Live download.

• [DivX

• [Version information]: Display the

• [Restore default settings]: Reset this player

•

• Before you purchase DivX videos and play them on this

®

VOD Code]: Display the DivX®

registration code or the deregistration
code for this player.

software version of this player.

to the default settings made at the factory,
except for password and parental control
level.

Note

You cannot restrict Internet access on commercial
Blu-ray discs.

player, register this player on www.divx.com with the
DivX VOD code.

3 Update software

Before you update the software of this player,
check the current software version:

• Press

Update software via the Internet

1

2 Press , and select [Setup].
3 Select [Advanced] > [Software update]>

4 Follow the instructions on the TV screen

Update software via USB

, and then select [Setup] >

[Advanced] > [Version information], and

press OK.

Connect the player to the Internet (see
"Set up a network").

[Network].

» If an upgrade media is detected, you

are prompted to start the update.

to update the software.

» When the update is complete, this

player automatically turns off and on
again.

1

Check the latest software version on
www.philips.com/support.

• Search for your model and click on
"Software and drivers".

2 Download the software into a USB storage

device.

a Unzip the download, and make sure

that the unzipped folder is named
"UPG".

b Put the "UPG" folder in the root

directory.

3 Connect the USB storage device to the

(USB) connector on this player.

11EN

4 Press , and select [Setup].
5 Select [Advanced] > [Software update]>

[USB].

» If an upgrade media is detected, you

are prompted to start the update.

6 Follow the instructions on the TV screen

to update the software.

» When the update is complete, this

player automatically turns off and on
again.

Caution

Do not turn off the power or remove the USB storage

•

device when the software update is in progress because
you might damage this player.

4 Specifications

Note

Specications are subject to change without notice

•

Region code

This player can play discs with the following
region codes.

DVD Blu-ray Countries

Russia, India

C

Playable media

• BD-Video, BD 3D

• DVD-Video, DVD+R/+RW, DVD-R/-RW,
DVD+R/-R DL (Dual Layer)

• VCD/SVCD

• Audio CD, CD-R/CD-RW, MP3 media,

WMA media, JPEG les

• DivX (Ultra)/DivX Plus HD media, MKV
media

• USB storage device

File format

• Video: .avi, .divx, .mp4, .mkv, .wmv

• Audio: .mp3, .wma, .wav

• Picture: .jpg, .gif, .png

Video

• Signal system: PAL / NTSC

• HDMI output: 480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p/24Hz

Audio

• Digital output: 0.5 Vp-p (75 ohm)

• Optical

• HDMI output

• Sampling frequency:

• MP3: 32 kHz, 44.1 kHz, 48 kHz

• WMA: 44.1 kHz, 48 kHz

• Constant bit rate:

• MP3: 112 kbps - 320 kpbs

• WMA: 48 kpbs - 192 kpbs

12 EN

USB

• Compatibility: Hi-Speed USB (2.0)

• Class support: USB Mass Storage Class

• File system: FAT16, FAT32

• USB port: 5V

• Support HDD (a portable hard disc drive):
an external power source may be needed.

Main unit

• Power supply rating: 220-240V~, 50-60 Hz

• Power consumption: 16 W

• Power consumption in standby mode (fast
wakeup disabled): < 0.5 W

• Dimensions (w x h x d):
360 x 42 x 219 (mm)

• Net Weight: 1.18 kg

Accessories supplied

• Remote control and batteries

• User manual

Laser Specication

• Laser Type (Diode): AlGaInN (BD),
AlGaInP (DVD/CD)

• Wave length:
405+7nm/-7nm (BD), 660+10nm/-10nm
(DVD), 785+10/-10nm (CD)

• Output power: 1mW (BD),

0.26mW (DVD), 0.3mW (CD)

Operating Temperature & Humidity

• 0°C to 45°C, 5% to 90% Humidity for all
climates.

Storage Temperature & Humidity

• -40 °C to 70 °C, 5% to 95%

, 500mA (for each port)

5 Troubleshooting

Note

For identication and supply ratings, see the type plate

•

at the back or bottom of the product.

• Before you make or change any connections, make sure

that all devices are disconnected from the power outlet.

Warning

•

Risk of electric shock. Never remove the casing of the
player.

To keep the warranty valid, never try to repair
the player yourself.
If you have problems using this player, check the
following points before you request service. If
you still have a problem, register your player and
get support at www.philips.com/support.
If you contact Philips, you will be asked for the
model and serial number of this player. The
model number and serial number are on the
back of this player. Write the numbers here:
Model No. __________________________
Serial No. ___________________________

Main unit

The buttons on this player do not work.

• Disconnect this player from the power
supply for a few minutes, and then
reconnect.


No picture.

• Make sure that the TV is switched to the
correct source input for this player.

No picture on HDMI connection.

• Make sure that the HDMI cable is not
faulty. If it is faulty, replace with a new
HDMI cable.

13EN

• On the remote control, press and then

press “731” (numeric buttons) to recover

picture display. Or wait for 10 seconds for
auto recovery.

• If this player is connected to an
unauthorized display device with an HDMI
cable, the audio and video signals may not
be output.

The disc does not play high-denition video.

• Make sure that the disc contains high-

denition video.

• Make sure that the TV suppor ts high-

denition video.

Sound

No audio output from the TV.

• Make sure that the audio cables are
connected to the audio input of the TV.

• Make sure that the TV is switched to the
correct source input for this player.

No audio output from the loudspeakers of
the external audio device (home theater or

amplier).

• Make sure that the audio cables are
connected to the audio input of the audio
device.

• Switch the external audio device to the
correct audio source input.

No sound on HDMI connection.

• You may not hear any sound from the
HDMI output if the connected device
is non-HDCP compliant or only DVI­compatible.

No secondary audio output for Picture-in­Picture feature.

• When [Bitstream] under the [HDMI
Audio] or [Digital Audio] menu is selected,

interactive sound like secondary sound for
Picture-in-Picture feature is muted. De­select [Bitstream].

Play

Cannot play a disc.

• Clean the disc.

• Make sure that the disc is correctly loaded.

• Make sure that this player supports the

disc. See "Specications".

• Make sure that this player supports the
region code of the DVD or BD.

• For DVD±RW or DVD±R, make sure that

the disc is nalized.

Cannot play DivX video les.

• Make sure that the DivX video le is
complete.

• Make sure that the video le name
extension is correct.

DivX subtitles do not display correctly.

• Make sure that the subtitle le has the
same name as the DivX video le.

• Make sure that the subtitle le has an
extension name supported by this player
(.srt, .sub, .txt, .ssa, or .smi).

Cannot read the contents of a connected USB
storage.

• Make sure that the format of the USB
storage device is compatible with this
player.

• Make sure that the le system on the USB
storage device is supported by this player.

• For a USB HDD (a portable hard disc
drive), an external power source may be
needed.

'No entry' or 'x' sign is displayed on the TV.

• The operation is not possible.

EasyLink feature does not work.

• Make sure that this player is connected
to the Philips brand EasyLink TV, and the
EasyLink option is turned on (see "Use
your Blu-ray disc/ DVD player" > "Use
Philips EasyLink").

Cannot access BD-Live features.

• Make sure that this player is connected to
the network (see "Use your Blu-ray disc/
DVD player" > "Set up a network").

14 EN

• Make sure that the network installation is
made (see "Use your Blu-ray disc/ DVD
player" > "Set up a network").

• Make sure that the Blu-ray disc supports
BD-Live features.

• Clear memory storage (see "Change
settings" > "Advanced options (BD-Live
security, clear memory...)").

Cannot download video from an online video
store.

• Make sure that this player is connected to

the network (see “Use your Blu-ray disc/
DVD player” > “Set up a network”).

• Make sure that this player is connected to
the TV through an HDMI cable.

• Make sure that you have paid for the video,
and it is within the rental period.

Network

Wireless network is not found or distorted.

• Make sure that the network is correctly
connected (see "Use your Blu-ray disc/
DVD player" > "Set up a network").

• Make sure that the network installation is
made (see "Use your Blu-ray disc/ DVD
player" > "Set up a network").

• Make sure that the wireless network is
not disturbed by microwave ovens, DECT
phones, or other neighboring Wi-Fi devices.

• If the wireless network does not work
properly, try a wired network installation
(see "Use your Blu-ray disc/ DVD player" >
"Set up a network").

Browse PC works slowly.

• Look in your wireless router’s user manual
for information on indoor range, transfer
rate, and other factors of signal quality.

• You need a high speed Internet connection
for your router.

3D videos

Cannot see 3D effects

• Make sure that 3D output is turned on(see
"Use your Blu-ray disc/ DVD player" >
"Play a Blu-ray 3D video").

• Make sure that the disc title being played is
Blu-ray 3D compliant.

• Make sure that the TV is 3D and HDMI
compliant, and the TV is set to 3D mode
(refer to the TV's user manual).

• Make sure that the 3D glasses are activated
(refer to the TV’s user manual).

Miracast

Cannot play and stream online video through
Miracast.

• Make sure that Miracast is enabled on the
Miracast source device (refer to the source
device's user manual).

• Make sure that Miracast is enabled on this
player (see "Use your Blu-ray disc/ DVD
player" > "Stream multimedia via Miracast").

• If the Miracast connection fails or the
media content does not show up
automatically on your TV, press
select [Setup] > [Network] > [Miracast
role] > [Group owner] > [Auto], then
repeat Miracast connection (see "Use
your Blu-ray disc/ DVD player" > "Stream
multimedia via Miracast").

• Make sure that the Miracast source device
supports playing videos from the internet
while performing Miracast streaming to
external player simultaneously (refer to the
source device's user manual).

and

15EN

Corporation or its subsidiaries and are used
under license.

"Blu-ray 3D
trademarks of Blu-ray Disc Association.

" and "Blu-ray 3D " logo are

HDMI, and HDMI logo and High-Denition

Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC in
the United States and other countries.

The Wi-Fi CERTIFIED Logo is a certication

mark of the Wi-Fi Alliance.

Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.

ABOUT DIVX VIDEO: DivX® is a digital video
format created by DivX, LLC, a subsidiary

of Rovi Corporation. This is an ofcial DivX
Certied

divx.com for more information and software

tools to convert your les into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This

DivX Certied

in order to play purchased DivX Video-on­Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.

DivX Certied

HD (H.264/MKV) video up to 1080p HD
including premium content.
DivX
and associated logos are trademarks of Rovi

®

device that plays DivX video. Visit

®

device must be registered

®

to play DivX® and DivX Plus®

®

, DivX Cer tied®, DivX Plus® HD

For DTS patents,see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the
Symbol together are registered trademarks, and
DTS 2.0+Digital Out is a trademark of DTS, Inc.
© DTS, Inc. ALL Rights Reserved.

BONUSVIEW™

'BD LIVE
trademarks of Blu-ray Disc Association.

' and 'BONUSVIEW ' are

'DVD Video' is a trademark of DVD Format/
Logo Licensing Corporation.

Oracle and Java are registered trademarks of

Oracle and/or its afliates. Other names may be

trademarks of their respective owners.

16

17

Specifications are subject to change without notice
© 2016 Koninklijke Philips N.V. All rights reserved.
Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

BDP5650_51_UM_V4.0
