Philips BDL4645E, BDL4245E, BDL3245E User Manual

BDL3245E
BDL4245E
BDL4645E

www.philips.com/welcome

User Manual (English)

BDL3245E / BDL4245E / BDL4645E

Safety Instructions

Warnings and Precautions

KNOW THESE SAFETY SYMBOLS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

Note to CATV system installer: This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section

54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular, species that the cable ground shall be connected

to the grounding system of the building as close to the point of cable entry as practical.

CAUTION: FCC/CSA regulations state that any unauthorized changes or modications to this equipment may void the user’s authority to operate it.

CAUTION: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug.

IMPORTANT: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain

Canadian programs may also be copyrighted and any unauthorized recording in whole or in part may be in violation of these rights.

TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

The Socket-outlet shall be installed near the apparatus and shall be easily accessible.

Read and follow these instructions when connecting and using your Public Information Display:

• Unplug the display if you are not going to use it for an extensive period of time.

• Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is

off. However, never use alcohol, solvents or ammonia-based liquids.

• Consult a service technician if the display does not operate normally when you have followed the instructions in this manual.

• The casing cover should be opened only by qualied service personnel.

• Keep the display out of direct sunlight and away from stoves or any other heat source.

• Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics.

• Do not block the ventilation holes on the cabinet.

• Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.

• If turning off the display by detaching power cable or DC power cord, wait for 6 seconds before attach the power cable or DC

power cord for normal operation.

• To avoid the risk of shock or permanent damage to the set do not expose the display to rain or excessive moisture.

• When positioning the display, make sure the power plug and outlet are easily accessible.

• IMPORTANT: Always activate a screen saver program during your application. If a still image in high contrast remains on the
screen for an extended period of time, it may leave an ‘after-image’ or ‘ghost image’ on the front of the screen. This is a well-known
phenomenon that is caused by the shortcomings inherent in the LCD technology. In most cases the afterimage will disappear
gradually over a period of time after the power has been switched off. Be aware that the after-image symptom cannot be repaired
and is not covered under warranty.

ii

BDL3245E / BDL4245E / BDL4645E

Regulatory Information

CE Declaration of Conformity

We declare under our responsibility that the product is in conformity with the following standards:

• EN60950-1:2006+A11:2009 (Safety requirement of Information Technology Equipment)

• EN55022:2006+A1:2007 (Radio Disturbance requirement of Information Technology Equipment)

• EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment)

• EN61000-3-2:2006 (Limits for Harmonic Current Emission)

• EN61000-3-3:2008 (Limitation of Voltage Fluctuation and Flicker) following provisions of directives applicable

• 2006/95/EC (Low Voltage Directive)

• 2004/108/EC (EMC Directive)

• 2005/32/EC (EuP, Energy-using Product Directive) EC No. 642/2009 Implementing

• 93/68/EEC (Amendment of EMC and Low Voltage Directive) and is produced by a manufacturing organization on ISO9000 level.

Federal Communications Commission (FCC) Notice (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Par t 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions manual, may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own

expense.

Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.

Use only RF shielded cable that was supplied with the display when connecting this display to a computer device.

To prevent damage which may result in re or shock hazard, do not expose this appliance to rain or excessive moisture.

THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE- CAUSING EQUIPMENT REGULATIONS.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.

iii

BDL3245E / BDL4245E / BDL4645E

Polish Center for Testing and Certication Notice

The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer,

display, printer, and so on) should have the same power supply source.

The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value
no larger than 16 amperes (A).

To completely switch off the equipment, the power supply cable must be removed from the power supply socket, which should be located near the
equipment and easily accessible.

A protection mark “B” conrms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/

E-06251.

Electric, Magnetic and Electronmagnetic Fields (“EMF”)

1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive
electromagnetic signals.

2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal

requirements and to stay well within the EMF standards applicable at the time of producing the products.

3. We are committed to develop, produce and market products that cause no adverse health effects.

4. We conrm that if its products are handled properly for their intended use, they are safe to use according to scientic evidence available today.

5. We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization
for early integration in its products.

iv

Information for U.K. only

(B)

(A)

BDL3245E / BDL4245E / BDL4645E

WARNING - THIS APPLIANCE MUST BE EARTHED.

Important:

This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug
proceed as follows:

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type.

3. Ret the fuse cover.

If the tted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin
plug tted in its place.

If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse
at the distribution board should not be greater than 5A.

NOTE: The severed plug must be destroyed to avoid a possible shock hazard should it be inserted

into a 13A socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured in accordance with the following code:

BLUE - “NEUTRAL” (“N”)
BROWN - “LIVE” (“L”)
GREEN & YELLOW - “EARTH” (“E”)

1. The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with
the letter “E” or by the Earth symbol or coloured GREEN or GREEN & YELLOW.

2. The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured
BLACK.

3. The BROWN wire must be connected to the terminal which marked with the letter “L” or
coloured RED.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead

- not simply over the three wires.

v

BDL3245E / BDL4245E / BDL4645E

China RoHS

中国电子信息产品污染控制标识要求 (中国RoHS法规标示要求) 产品中有毒有害物质或元素
的名称及含量

有毒有害物质或元素

部件名称

外壳 O O O O O O

液晶面板 X X O O O O

电路板组件 X O O O O O

附件

(遥控器，电源线，连接线)

遥控器电池 X O O O O O

O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下.
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求.

铅

(Pb)

X O O O O O

汞

(Hg)

镉

(Cd)

六价铬

(Cr 6+)

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

10

環保使用期限

此標識指期限(十年)，電子信息產品中含有的有毒有害物質或元素在正常使用的條件下不會發生外泄或突變
，電子信息產品用戶使用該電子信息產品不會對環境造成嚴重污染或對其人身、財產造成嚴重損害的期限。

中国能源效率标识

根据中国大陆《能源效率标识管理办法》，本显示器符合以下要求

能源效率 （cd/W) >1.05
能效等级 1 级
能效标准 GB 21520-2008

详细有关信息请查阅中国能效标识网： http://www.energylabel.gov.cn/

vi

BDL3245E / BDL4245E / BDL4645E

North Europe (Nordic Countries) Information

Placering/Ventilation

VARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.

Paikka/Ilmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.

Plassering/Ventilasjon

ADVARSEL:

NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ.

End-of-Life Disposal

Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the
amount of reusable materials and to minimize the amount to be disposed of.

Please nd out about the local regulations on how to dispose of your old display from your local Philips dealer.

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling
contact www.eia.org (Consumer Education Initiative)

Waste Electrical and Electronie Equipment-WEEE

Attention users in European Union private households

This marking on the product or on its packaging illustrates that, under European Directive 2002/96/EG governing used electrical
and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this

equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such
waste electrical and electronic, contact your local government ofce, the waste disposal organization that ser ves your household or the

store at which you purchased the product.

Attention users in United States:

Like all LCD products, this set contains a lamp with Mercury. Please dispose of according to all Local, State and Federal Laws. For the disposal or recycling
information, contact: www.mygreenelectronics.com or www.eiae.org.

End of Life Directives-Recycling

Your new Public Information Display contains several materials that can be recycled for new users.

Like all LCD produces, this set contains a lamp with Mercury. Please dispose of according to all Local, State, and Federal laws.

As an ENERGY STAR Partner, we have determined that this product meets the ENERGY STAR guidelines for energy efciency.

vii

BDL3245E / BDL4245E / BDL4645E

Table Of Contents

1. Unpacking and Installation ..................................... 1

1.1. Unpacking .....................................................................1

1.2. Package Contents .....................................................1

1.3. Installation Notes ......................................................1

1.4. Installing and Removing Table Stands

(optional) .......................................................................2

1.5. Mounting on a Wall ................................................. 3

1.6. Mounting in Portrait Position ............................. 4

1.6.1. How to use the logo guider for

portrait position ........................................ 4

1.6.2. How to remove the logo .....................4

2. Parts and Functions ................................................. 5

2.1. Control Panel ..............................................................5

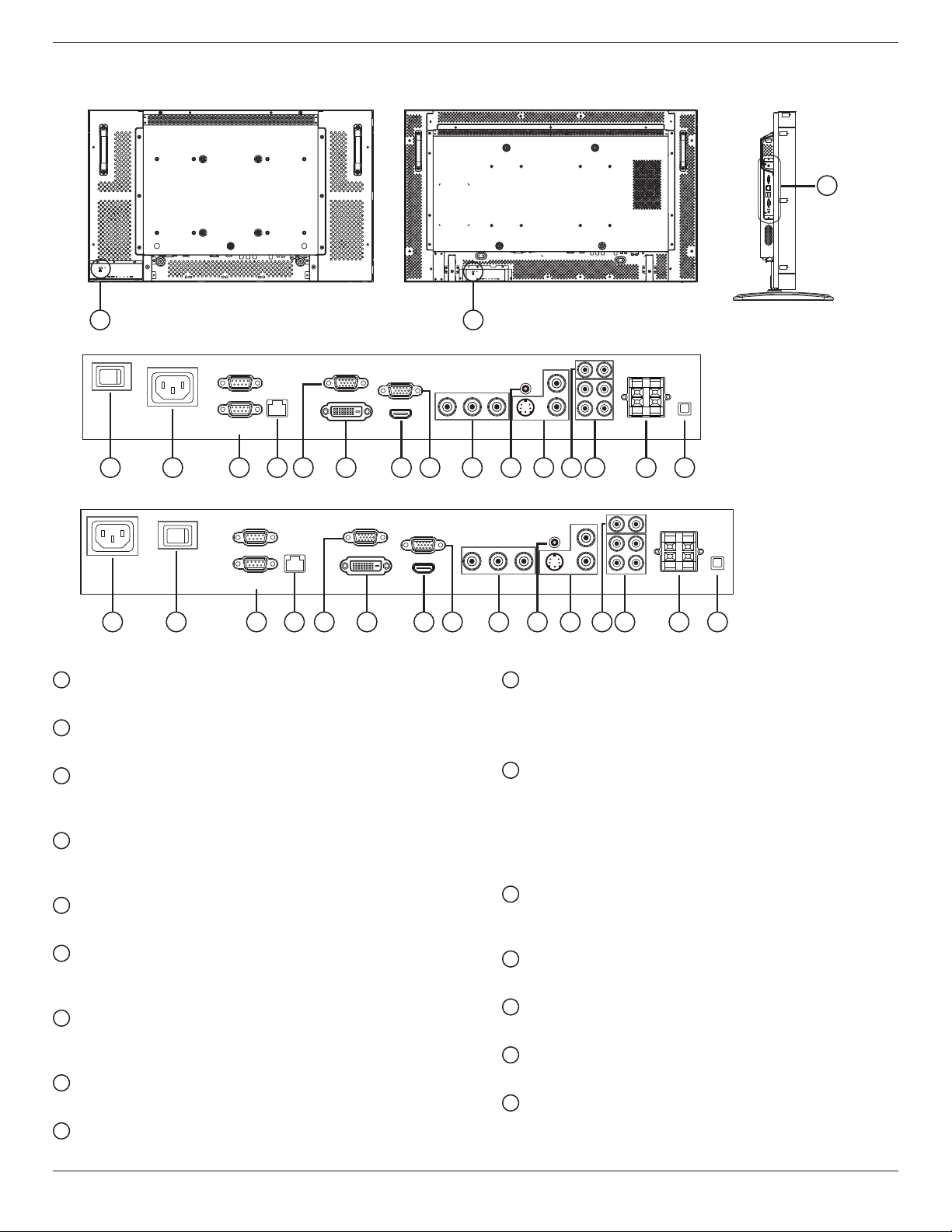

2.2. Input/Output Terminals ......................................... 6

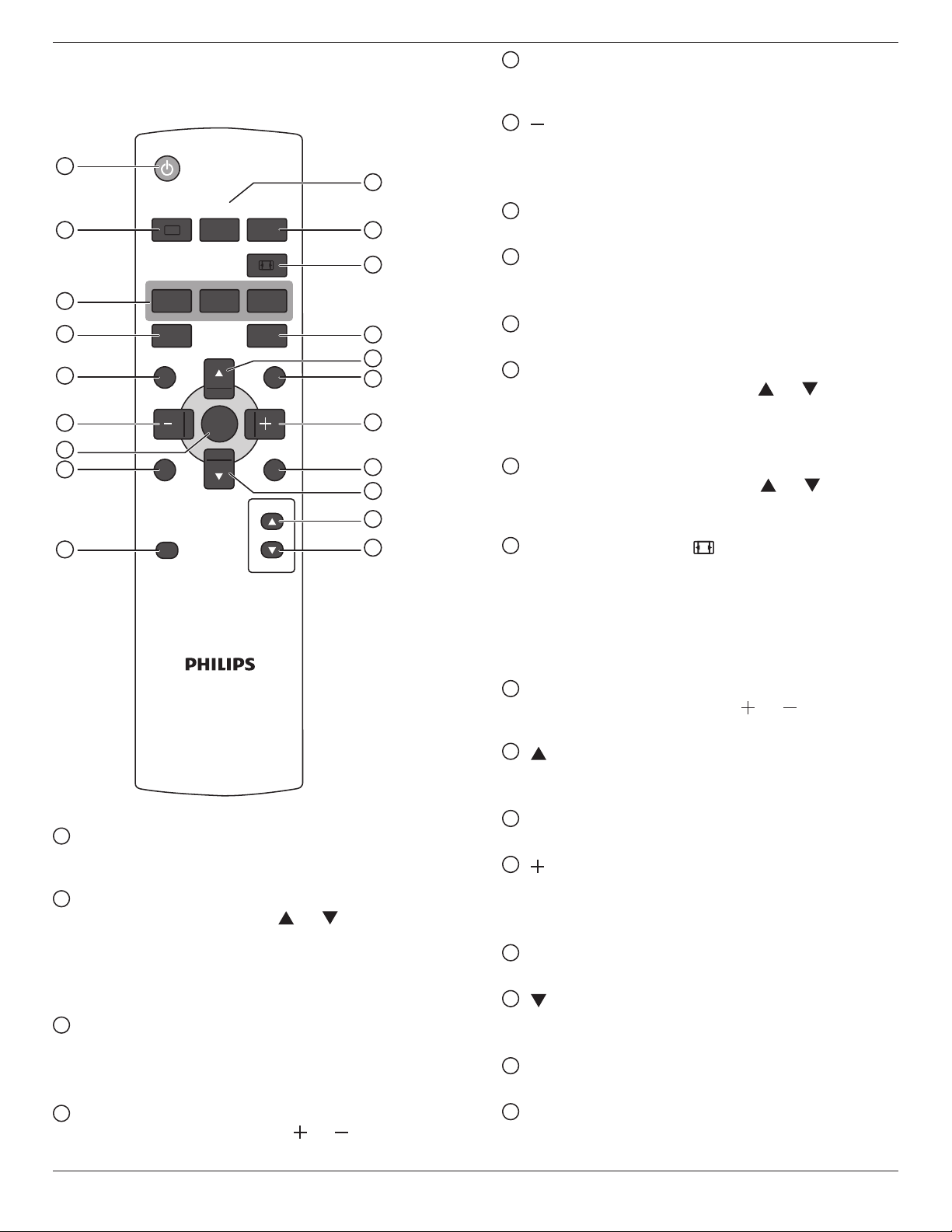

2.3. Remote Control ........................................................7

2.3.1. General functions ..................................... 7

2.3.2. Inserting the batteries in the remote

control.............................................................8

2.3.3. Handling the remote control ............. 8

2.3.4. Operating range of the remote

control.............................................................8

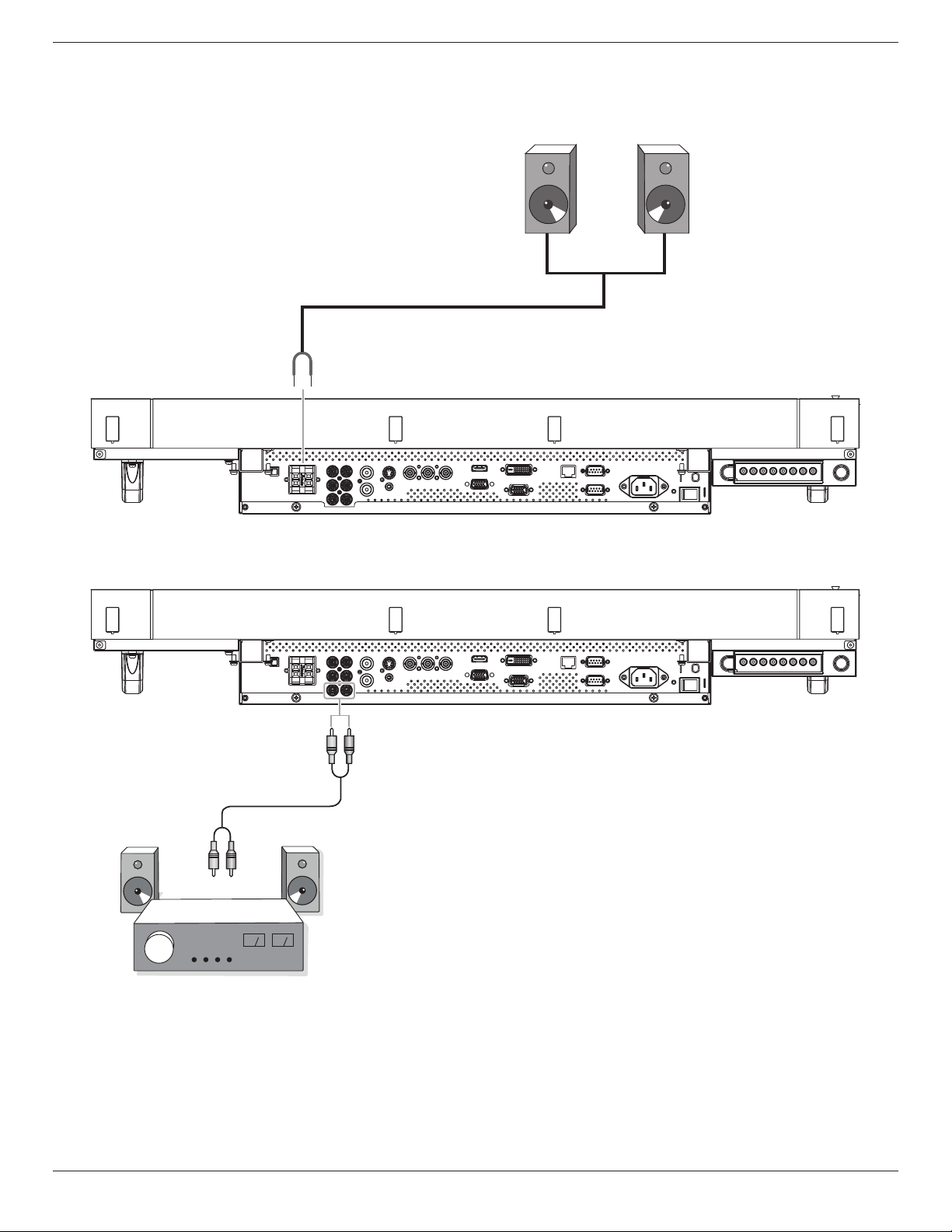

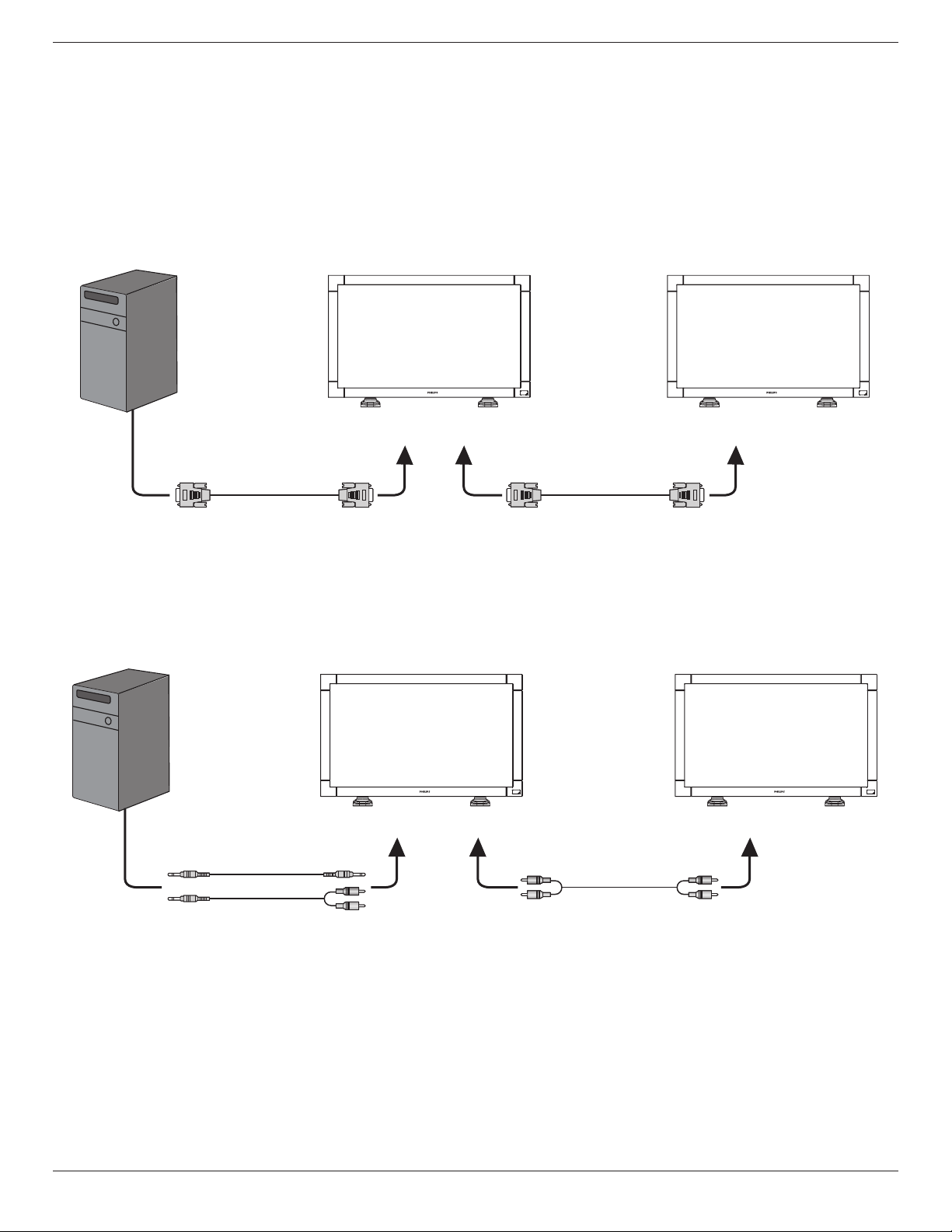

3.5.2. Audio connection ..................................14

4. OSD Menu .............................................................. 15

4.1. Navigating the OSD Menu .............................15

4.1.1. Navigating the OSD menu using the

remote control........................................15

4.1.2. Navigating the OSD menu using the

display’s control buttons .................... 15

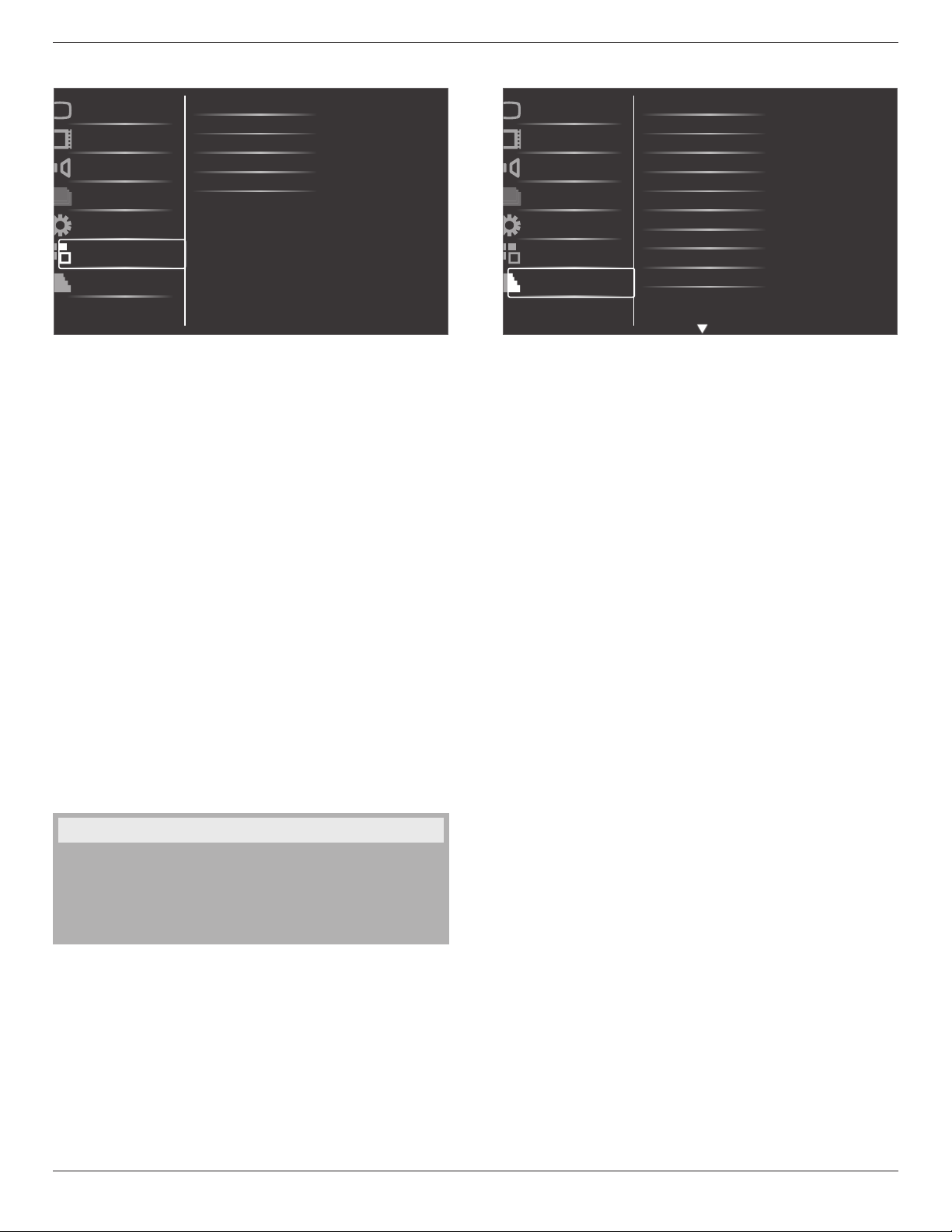

4.2. OSD Menu Overview ........................................ 15

4.2.1. Picture menu ............................................ 15

4.2.2. Screen menu ............................................ 16

4.2.3. Audio menu .............................................. 17

4.2.4. PIP menu ....................................................17

4.2.5. Conguration1 menu ..........................18

4.2.6. Conguration2 menu ..........................19

4.2.7. Advanced option menu ..................... 19

5. Input Mode ..............................................................23

6. Pixel Defect Policy .................................................24

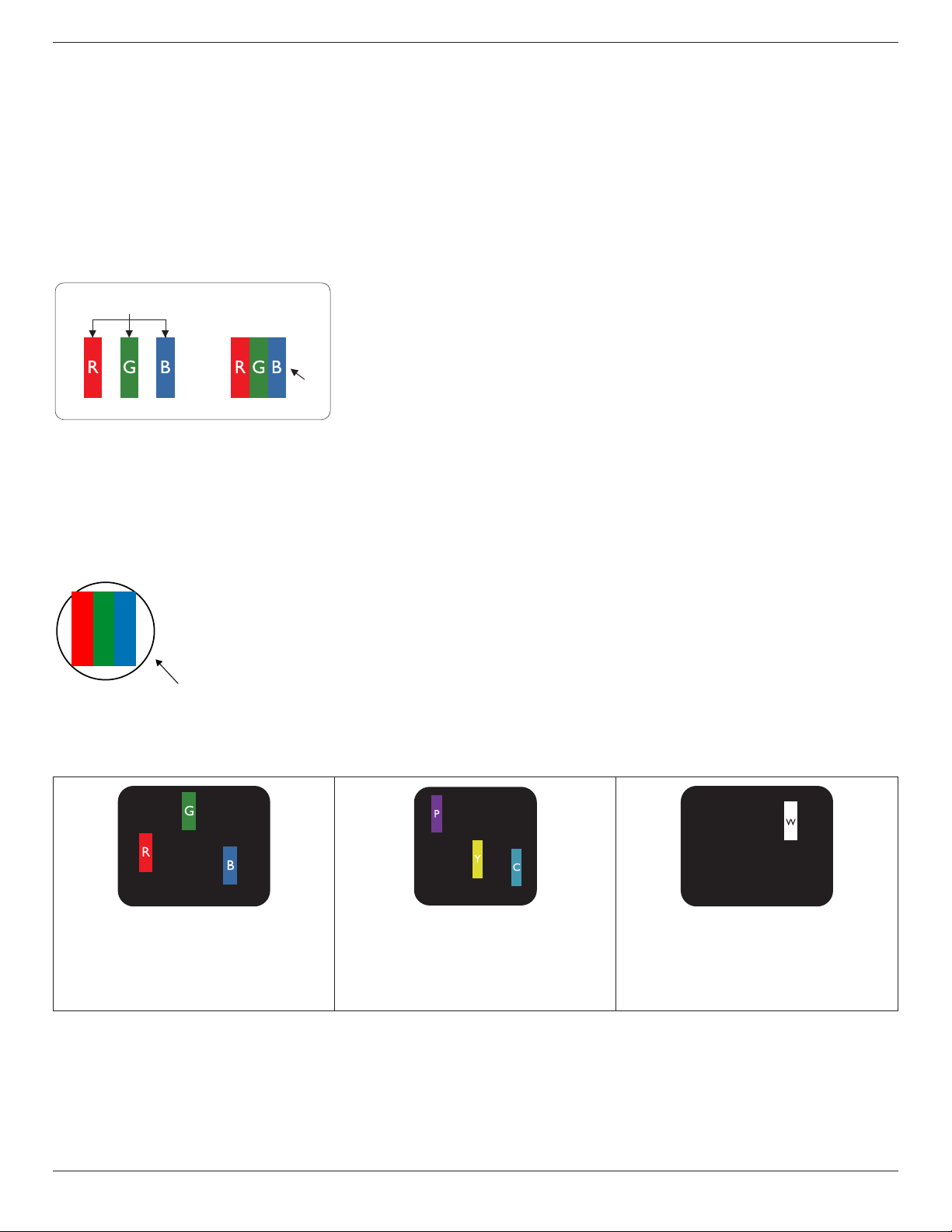

6.1. Pixels and Sub-Pixels ............................................24

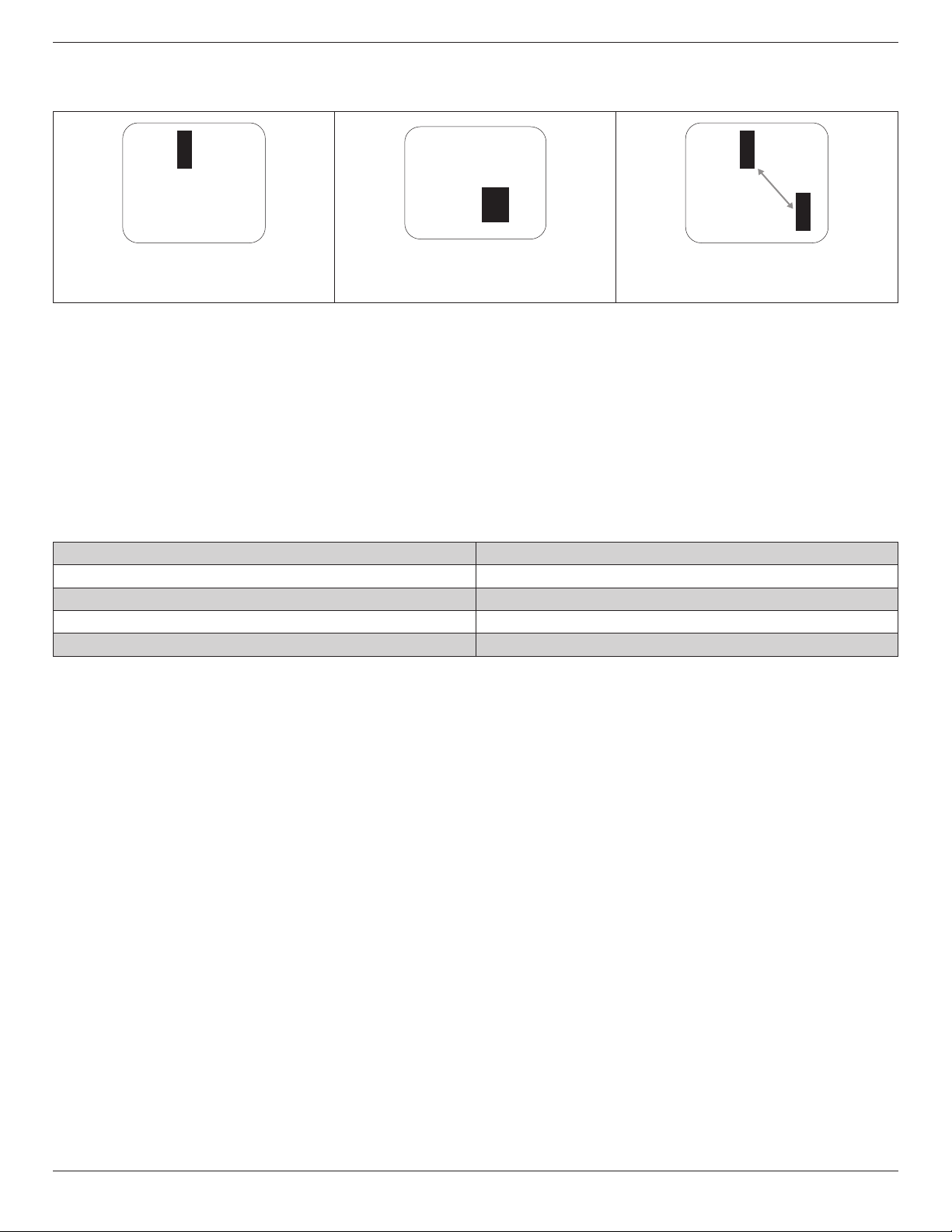

6.2. Types of Pixel Defects + Dot Denition . 24

6.3. Bright Dot Defects ...............................................24

3. Connecting External Equipment .......................... 9

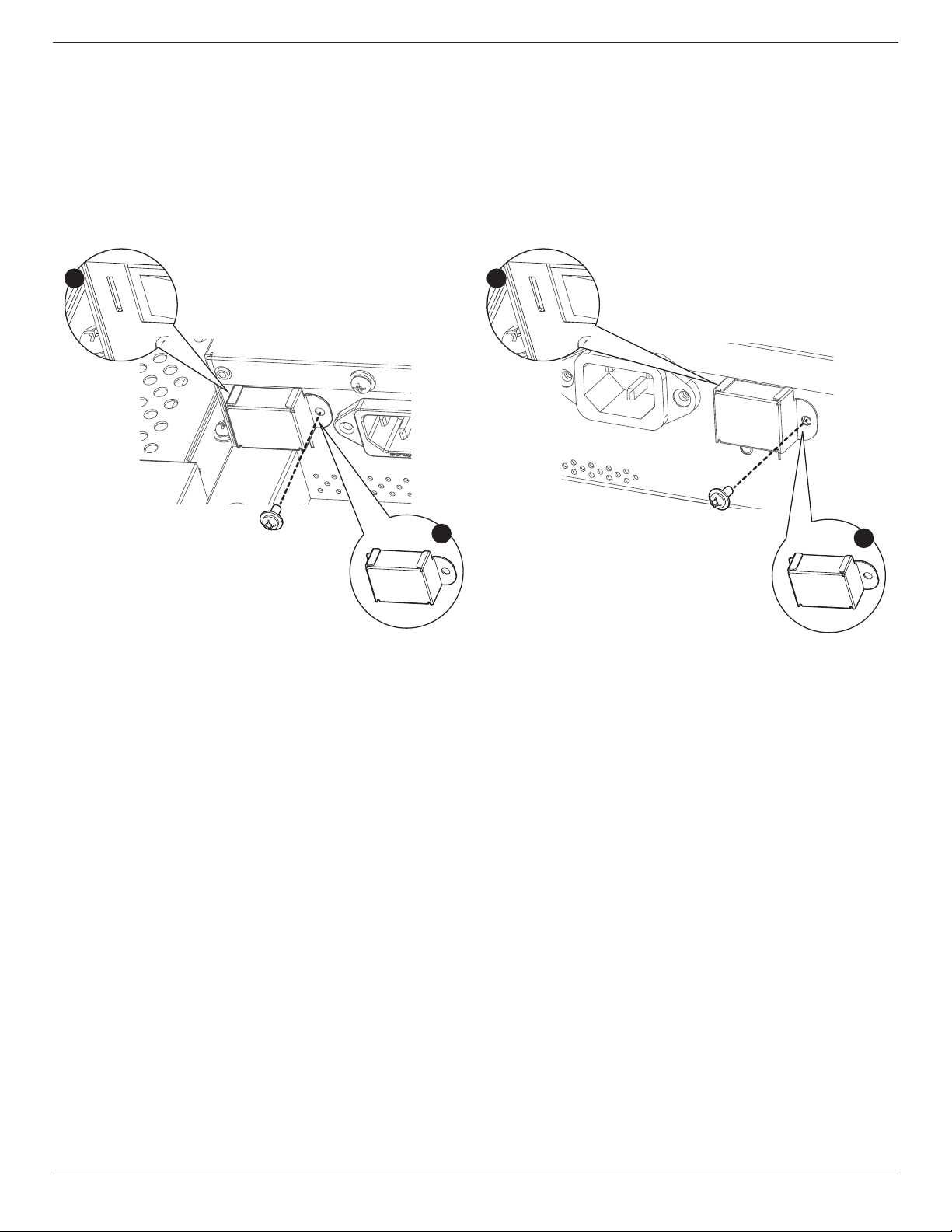

3.1. Using the Switch Cover ........................................9

3.2. Connecting External Equipment (DVD/

VCR/VCD) ................................................................ 10

3.2.1. Using COMPONENT video

input .............................................................. 10

3.2.2. Using HDMI video input ................... 10

3.3. Connecting a PC .................................................... 11

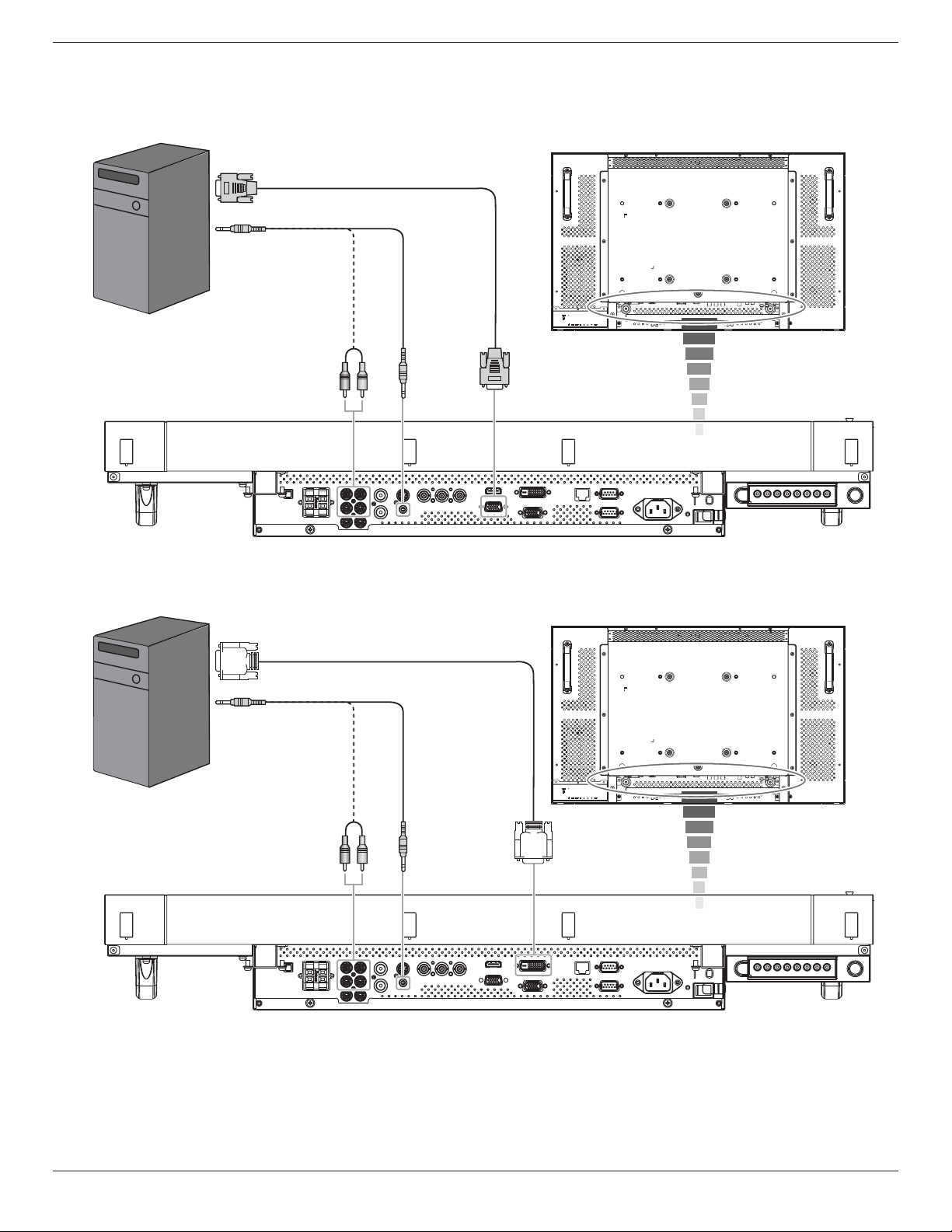

3.3.1. Using VGA input .....................................11

3.3.2. Using DVI input ......................................11

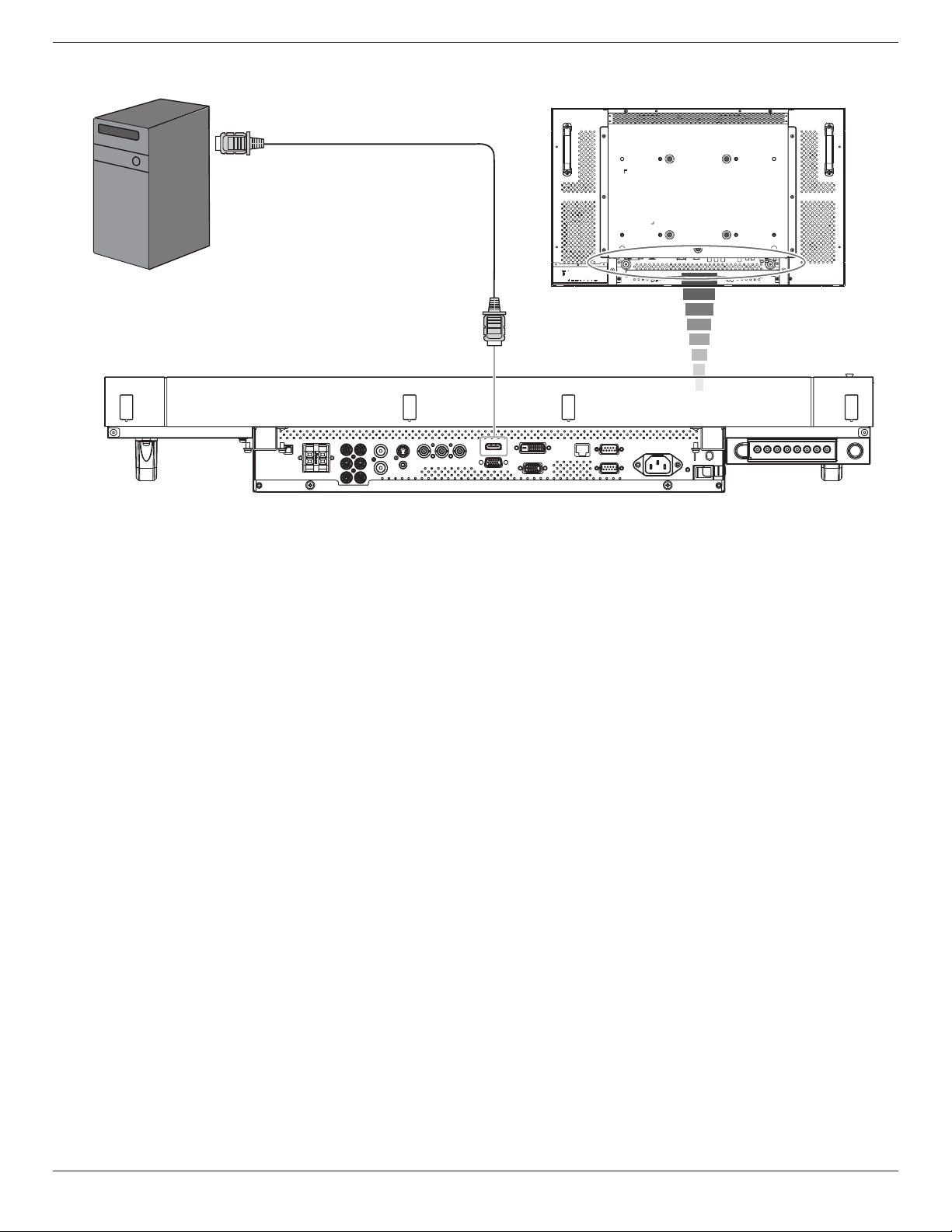

3.3.3. Using HDMI input ................................. 12

3.4. External Audio Connection .............................13

3.4.1. Connecting external speakers........13

3.4.2. Connecting an external audio

device ........................................................... 13

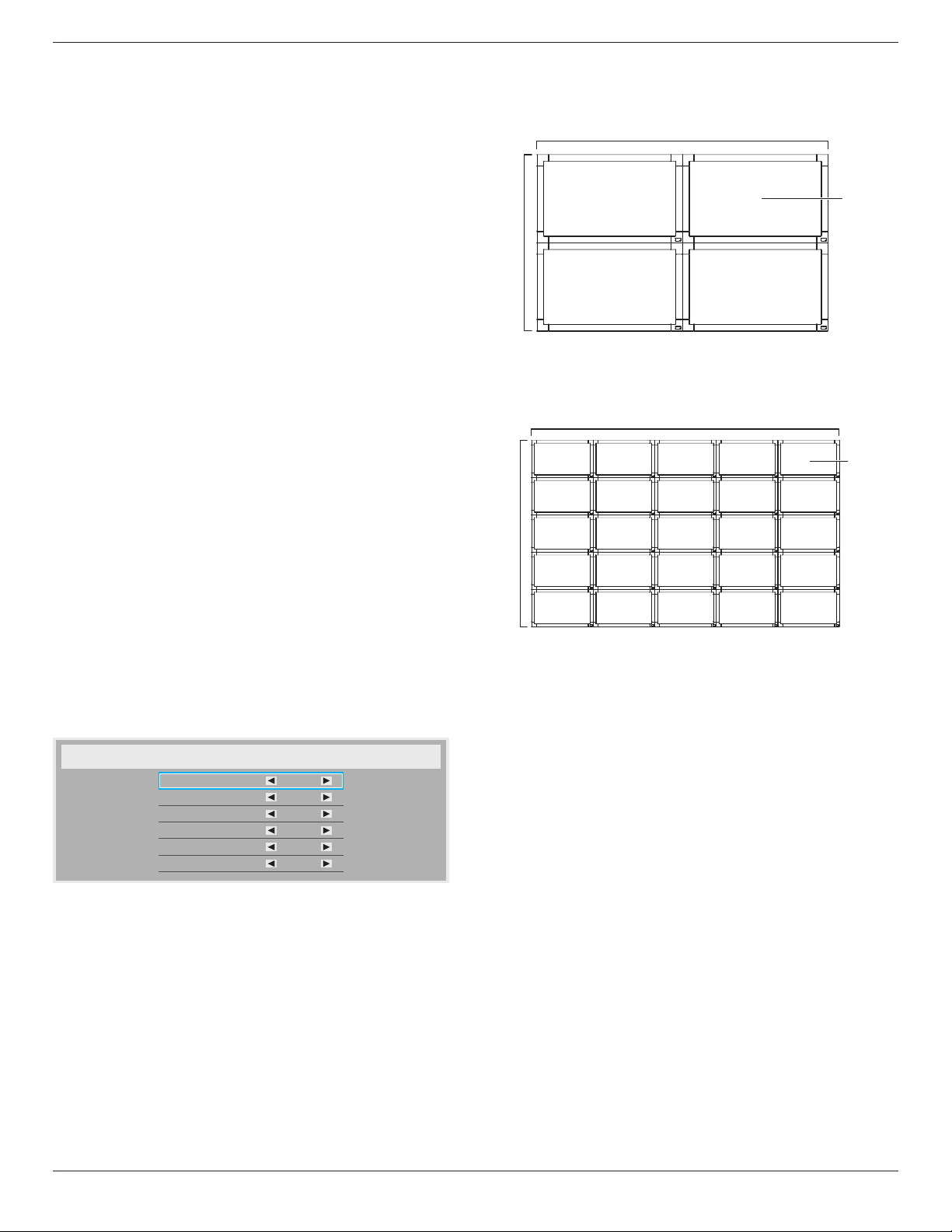

3.5. Connecting Multiple Displays in a Daisy-

chain Conguration .............................................. 14

3.5.1. Video connection .................................. 14

6.4. Dark Dot Defects ................................................. 25

6.5. Proximity of Pixel Defects ................................ 25

6.6. Pixel Defect Tolerances ...................................... 25

6.7. MURA .......................................................................... 25

7. Cleaning and Troubleshooting .............................26

7.1. Cleaning ......................................................................26

7.2. Troubleshooting ...................................................... 27

8. TechnicalSpecications ........................................ 28

viii

1. Unpacking and Installation

1.1. Unpacking

• This product is packed in a carton, together with the standard accessories.

• Any other optional accessories will be packed separately.

• Due to the size and weight of this display it is recommended for two people to move it.

• After opening the carton, ensure that the contents are complete and in good condition.

1.2. Package Contents

Please verify that you received the following items with your package content:

• LCD display

• CD ROM

• Remote control with AAA batteries

• Power cord (1.8 m)

• VGA cable (1.8 m)

• Quick Installation Guide

• Power switch cover

• Screw for Power switch cover (M3x8)

• BNC-to-RCA adapter (x5)

• Logo guider

* The supplied power cord varies depending on destination.

BDL3245E / BDL4245E / BDL4645E

POWER

VIDEO

AUDIO

SMART

SOURCE

SOURCE

PIP

INPUTON/OFF CHANGE

BRIGHTNESSCONTRAST

DISPLAY

MENU

SET

AUTO

EXIT

ADJUST

VOL UP

MUTE

CD ROM

Power switch cover

VOL DOWN

Remote Control

and AAA Batteries

For EU For China

For North America For UK

Screw for Power switch cover

(M3 x 8) x 1

Video Signal Cable

(D-SUB to D-SUB Cable)

BNC-RCA adapter x 5

Logo guider

NOTES:

• Please make sure that for all other regions, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and
complies with the safety regulations of the particular country.

• You might like to save the package box and packing material for shipping the display.

1.3. Installation Notes

• Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is required, please consult your

service agent.

• The product should be installed on a at surface to avoid tipping. The distance between the back of the product and the wall should be maintained

for proper ventilation. Avoid installing the product in the kitchen, bathroom or any other places with high humidity so as not to shorten the service life
of the electronic components.

• The product can normally operate only under 3000m in altitude. In installations at altitudes above 3000m, some abnormalities may be experienced.

1

BDL3245E / BDL4245E / BDL4645E

1.4. Installing and Removing Table Stands (optional)

To install table stands:

1. Power off the display.

2. Spread a protective sheet on a at surface.

3. Grab the carrying handles and place the display face-down on the protective sheet.

4. After inserting the stand in the guide block, tighten the screws on both sides of the display.

NOTE: The longer side of the stand should face the front of the display.

Thumbscrews

Carrying handle

Table stand

To remove table stands:

1. Power off the display.

2. Spread a protective sheet on a at surface.

3. Grab the carrying handles and place the display face-down on the protective sheet.

4. Remove screws using a screwdriver and place them in a safe place for reuse.

2

Longer portions face the front

BDL3245E / BDL4245E / BDL4645E

1.5. Mounting on a Wall

To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface
that complies with TUV-GS and/or UL1678 standard in North America.

200

100

200 100

Protective Sheet

Tabletop standTable

1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the
screen face.

2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc).

3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment
or injury to the user or installer. Product warranty does not cover damage caused by improper installation.

4. For the wall-mounting kit, use M6 mounting screws (having a length 10 mm longer than the thickness of the mounting bracket) and tighten them
securely.

Caution:

To prevent the display from falling:

• For wall or ceiling installation, we recommend installing the display with metal brackets which are commercially available. For detailed installation
instructions, refer to the guide received with the respective bracket.

• To lessen the probability of injury and damage resulting from fall of the display in case of earthquake or other natural disaster, be sure to consult the

bracket manufacturer for installation location.

Ventilation Requirements for enclosure locating

To allow heat to disperse, leave space between surrounding objects as shown
in the diagram below.

100 mm

100 mm 100 mm

100 mm

3

BDL3245E / BDL4245E / BDL4645E

1.6. Mounting in Portrait Position

This display can be installed in portrait position.

1. Remove the table stand, if attached.

2. Rotate 90 degrees clockwise. The “ ” logo should be on the LEFT side when facing the display.

90

1.6.1. How to use the logo guider for portrait position

1. Put the guider on the lower-left corner of the front bezel of the display.
Fold down both of its edges.

2. Peel off the protective lm at the back of the “ ” logo sticker.
Hold and press the guider with your left hand. Put the “ ” logo
sticker with its adhesive side down into the logo hole with your right
hand, and press to make it stick tightly onto the front bezel.

3. Remove the guider.

1.6.2. How to remove the logo

1. Prepare a piece of paper with a cutting area of logo as a protector to
prevent the front bezel from scratching.

2. Using a knife, carefully remove the logo sticker with the paper placing
beneath.

3. Tear off the logo sticker.

90

1 2 3

1

2

3

NOTE: When installing the display on a wall, please consult a professional technician for proper installation. We accept no liability for installations not

performed by a professional technician.

4

2. Parts and Functions

2.1. Control Panel

BDL3245E / BDL4245E / BDL4645E

MUTE INPUT

192 3 4 5 6 7 8

1

POWER button

Use this button to turn the display on or put the display to standby.

2

MUTE button

Switch the audio mute ON/OFF.

3

INPUT button

• Use this button to select the input source.

• When the On Screen Display menu is active, this is also used as

the [SET] button.

4

[ ] button

Increase the adjustment while OSD menu is on, or increase the
audio output level while OSD menu is off.

5

[ ] button

Decrease the adjustment while OSD menu is on, or decrease the
audio output level while OSD menu is off.

MENU

NOTE: “Keyboard Control Lock Mode” This function completely

disables the access to all Keyboard Control functions. To
enable or disable the keyboard control lock, press both [ ]
and [ ] buttons and hold down continuously for more than
3 (three) seconds.

9

Remote control sensor and power status indicator

• Receives command signals from the remote control.

• Indicates the operating status of the display:

- Lights green when the display is turned on

- Lights red when the display is in standby mode

- Lights amber when the display enters DPMS mode

- When {SCHEDULE} is enabled, the light blinks green and red

- If the light blinks red, it indicates that a failure has been
detected

- Off when the main power of the display is turned off

6

[ ] button

Move the highlight bar up to adjust the selected item while OSD
menu is on.

7

[ ] button

Move the highlight bar down to adjust the selected item while OSD
menu is on.

8

MENU button

Return to previous menu while OSD menu is on, or to activate the
OSD menu when OSD menu is off.

5
