Philips BDL4230E User Manual

BDL4230E

www.philips.com/welcome

EN User manual

Cleaning and troubleshooting

User Manual BDL4230E

SAFETY AND TROUBLESHOOTING INFORMATION

Safety precautions and maintenance

WARNING: Use of controls, adjustments or procedures other than those specified in this
documentation may result in exposure to shock, electrical hazards and/or mechanical
hazards.

Read and follow these instructions when connecting and using your monitor:

Operation:

• Keep the monitor out of direct sunlight and away from stoves or any other heat source.

• Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics.

• Do not block the ventilation holes on the cabinet.

• When positioning the monitor, make sure the power plug and outlet are easily accessible.

• If turning off the monitor by detaching the power cor d, wait for 6 seconds bef or e attaching the power cord for normal
operation.

• Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with
your local service center.

• Do not subject the monitor to severe vibration or high impact conditions during operation.

• Do not knock or drop the monitor during operation or transportation.

Maintenance:

• To protect your monitor from possible damage, do not put excessive pressure on the LCD panel. When moving your
monitor, grasp the frame to lift; do not lift the monitor by placing your hand or fingers on the LCD panel.

• Unplug the monitor if you are not going to use it for an extensive period of time.

• Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when
the power is off. How e ver, never use organic solvent, such as, alcohol, or ammonia-based liquids to clean y our monitor.

• To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or
excessive moisture environment.

• If your monitor gets wet, wipe it with dry cloth as soon as possible.

• If foreign substance or water gets in your monitor, please turn the power off immediately and disconnect the power
cord. Then, remove the foreign substance or water, and send it to the maintenance center.

• Do not store or use the monitor in locations exposed to heat, direct sunlight or extr eme cold.

• In order to maintain the best performance of your monitor and use it f or a longer lif etime, please use the monitor in a
location that falls within the following temperature and humidity ranges.

- Temperature: 0 ~ 40 C 32-95 F

- Humidity: 20-80% RH

IMPORTANT: Always activate a moving screen saver program when y ou lea v e y our monitor unattended. Al wa ys activate
a periodic screen refresh application if your monitor will display unchanging static content. Uninterrupted display of still
or static images over an extended period ma y cause “burn in”, also known as “after-imaging” or “ghost imaging”, on your
screen. "Burn-in", "after-imaging", or "ghost imaging" is a wellknown phenomenon in LCD panel technology. In most
cases, the “burned in” or “afterimaging” or “ghost imaging” will disappear gradually ov er a period of time after the power
has been switched off.

WARNING: Severe "burn-in" or "after-image" or "ghost image" symptoms will not disappear and cannot be repaired.
The damage mentioned above is not covered under your warranty.

User Manual BDL4230E

Service:

• The casing cover should be opened only by qualified service personnel.

• If there is any need for any document for repair or integration, please contact with your local service center.

• Do not leave your monitor in a car/trunk under direct sun light.

Consult a service technician if the monitor does not operate normally, or you are not sur e what pr ocedur e
to take when the operating instructions given in this manual have been followed.

Read and follow these instructions when connecting and using your computer monitor:

• Unplug the monitor if you are not going to use it for an extensive period of time.

• Unplug the monitor if you need to clean it with a slightly damp cloth. The screen may be wiped
with a dry cloth when the power is off. Howev er, never use alcohol, solvents or ammonia-based
liquids.

• Consult a service technician if the monitor does not operate normally when you have followed
the instructions in this manual.

• The casing cover should be opened only by qualified service personnel.

• Keep the monitor out of direct sunlight and away from stoves or any other heat source.

• Remove any object that could fall into the vents or prevent proper cooling of the monitor’s
electronics.

• Do not block the ventilation holes on the cabinet.

• Keep the monitor dry. To avoid electric shock, do not expose it to rain or excessive moisture.

• If turning off the monitor by detaching power cable or DC power cord, wait for 6 seconds
before attach the power cable or DC power cord for normal operation.

• To av oid the risk of shock or permanent damage to the set do not expose the monitor to rain or
excessive moistur e.

• When positioning the monitor, make sure the power plug and outlet are easily accessible.

• IMPORTANT: Always activate a screen saver program during your application. If a still image in
high contrast remains on the screen for an extended period of time, it may leave an “after­image” or “ghost image” on the front of the screen. This is a well-known phenomenon that is
caused by the shortcomings inherent in the LCD technology. In most cases the afterimage will
disappear gradually over a period of time after the power has been switched off. Be aware that
the after-image symptom cannot be repaired and is not covered under warranty.

User Manual BDL4230E

REGULATORY INFORMATION

CE DECLARATION OF CONFORMITY

MMD declares under our responsibility that the product is in conformity with the following standards

• EN60950-1:2006+A11:2009 (Safety requirement of Information Technology Equipment)

• EN55022:2006+A1:2007 (Radio Disturbance requirement of Information Technology Equipment)

• EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment)

• EN61000-3-2:2006 (Limits for Harmonic Current Emission)

• EN61000-3-3:1995+A1:2001+A2:2005 (Limitation of Voltage Fluctuation and Flicker)

• EN55013:2001+A1:2003 +A2:2006 (Limits and Methods of Measurement of Radio Disturbance Characteristics of
Broadcast Receivers and Associated Equipment)

• EN55020:2007 (Electromagnetic Immunity of BroadcastReceivers and Associated Equipment)

following provisions of directives applicable

• 2006/95/EC (Low Voltage Directive)

• 2004/108/EC (EMC Directive)

• 93/68/EEC (Amendment of EMC and Low Voltage Directive) and is produced by a manufacturing organization on
ISO9000 level.

FEDERAL COMMUNICATIONS COMMISSION (FCC) NOTICE (U.S. Only)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a r esidential installation. This equipment generates, uses and can radiate radio fr equency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly appr o ved b y the party responsible for complian ce could void the user’s

authority to operate the equipment.
Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To

prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture.
THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE-CAUSING

EQUIPMENT REGULATIONS.

FCC DECLARATION OF CONFORMITY

Trade Name: Philips

Declaration of Conformity for Products Mark e d with FCC Logo , United States Only : This device complies
with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.

User Manual BDL4230E

POLISH CENTER FOR TESTING AND CERTIFICATION NOTICE

The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All
equipment that works together (computer, monitor, printer, and so on) should have the same power supply source.

The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the
form of a fuse with a nominal value no larger than 16 amperes (A).

To completely switch off the equipment, the pow er suppl y cable m ust be removed from the power supply socket, which
should be located near the equipment and easily accessible.

A protection mark “B” confirms that the equipment is in compliance with the protection usage requirements of
standards PN-93/T-42107 and PN-89/E-06251.

ELECTRIC, MAGNETIC AND ELECTRONMAGNETIC FIELDS (“EMF”)

1. MMD manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general

have the ability to emit and receive electromagnetic signals.

2. One of MMD’s leading Business Principles is to take all necessary health and safety measures for our products, to

comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of
producing the products.

3. MMD is committed to develop, produce and market products that cause no adverse health effects.

4. MMD confirms that if its products are handled properly for their intended use, they are safe to use according to

scientific evidence available today.

5. MMD plays an active role in the development of international EMF and safety standards, enabling MMD to anticipate

further developments in standardisation for early integration in its products.

User Manual BDL4230E

INFORMATION FOR UK ONLY

WARNING - THIS APPLIANCE MUST BE EARTHED.
Important:

This apparatus is supplied with an appro ved moulded 13A plug. To change a fuse in this
type of plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type.

3. Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an

appropriate 3-pin plug fitted in its place.
If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse

is used, the fuse at the distribution board should not be greater than 5A.
Note: The severed plug must be destroyed to avoid a possible shock hazard should it

be inserted into a 13A socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured in accordance with the following code:
BLUE - “NEUTRAL” (“N”)
BROWN - “LIVE” (“L” )
GREEN & YELLOW - “EARTH”(‘E”)

1. The GREEN AND YELLOW wire must be connected to the terminal in the plug
which is marked with the letter “E” or by the Earth symbol or coloured GREEN

or GREEN AND YELLOW.

2. The BLUE wire must be connected to the terminal which is marked with the letter
“N” or coloured BLACK.

3. The BR O WN wir e must be connected to the terminal which mark ed with the letter
“L” or coloured RED.

Before replacing the plug cover, make certain that the cord grip is clamped over the
sheath of the lead - not simply over the three wires.

User Manual BDL4230E

Ё೑⬉ᄤֵᙃѻક∵ᶧ᥻ࠊ㸼⼎㽕∖ ( Ё೑ RoHS ⊩㾘󰵼⼎㽕∖ *!ѻકЁ᳝↦᳝ᆇ⠽䋼៪ܗ㋴

ⱘৡ⿄ঞ৿䞣

᳝↦᳝ᆇ⠽䋼៪ܗ㋴

䚼ӊৡ⿄

໪໇

⎆᱊䴶ᵓ

⬉䏃ᵓ㒘ӊ

䰘ӊ

( 䘹᥻఼ˈ⬉⑤㒓ˈ䖲᥹㒓 )

䘹᥻఼⬉∴

O˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼ SJ/T11363-2006 󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
X˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎ SJ/T11363-2006 󰵼ޚ㾘ᅮⱘ䰤䞣㽕∖DŽ

䪙

(Pb)

OOOO O O
XXOO O O
XOOO O O

XOOO O O
XOOO O O

∲

(Hg)

䬝

(Cd)

݁Ӌ䫀

(Cr 6+)

໮⒈㘨㣃

(PBB)

໮⒈Ѡ㣃䝮

(PBDE)

⦃ֱՓ⫼ᳳ䰤

ℸ󰵼䆚ᣛᳳ䰤 ( ᑈ )ˈ⬉ᄤֵᙃѻકЁ৿᳝ⱘ᳝↦᳝ᆇ⠽䋼៪ܗ㋴೼ℷᐌՓ⫼ⱘᴵӊϟϡӮথ⫳໪⊘៪さবˈ

⬉ᄤֵᙃѻક⫼᠋Փ⫼䆹⬉ᄤֵᙃѻકϡӮᇍ⦃๗䗴៤Ϲ䞡∵ᶧ៪ᇍ݊Ҏ䑿ǃ䋶ѻ䗴៤Ϲ䞡ᤳᆇⱘᳳ䰤DŽ

User Manual BDL4230E

NORTH EUROPE (NORDIC COUNTRIES) INFORMATION

Placering/Ventilation

VARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN
UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.
Paikka/Ilmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.
Plassering/Ventilasjon

ADVARSEL:

NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ.

END-OF-LIFE DISPOSAL

Your new TV/Monitor contains materials that can be recycled and reused. Specialized companies can recycle your
product to increase the amount of reusable materials and to minimize the amount to be disposed of.

Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer.

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accor dance to local-state and federal regulations. For
additional information on recycling contact www.eia.org (Consumer Education Initiative)

WASTE ELECTRICAL AND ELECTRONIE EQUIPMENT-WEEE
Attention users in European Union private households

This marking on the product or on its packaging illustrates that, under European Directive 2002/96/EG
governing used electrical and electronic appliances, this product may not be disposed of with normal
household waste. You are responsible for disposal of this equipment through a designated waste electrical
and electronic equipment collection. To determine the locations for dropping off such waste electrical and
electronic, contact your local gov ernment off ice, the waste disposal organization that serves your household
or the store at which you purchased the product.

Attention users in United States:

Like all LCD products, this set contains a lamp with Mercury. Please dispose of according to all Local, State and Federal
Laws. For the disposal or recycling information, contact: www.mygreenelectronics.com or www.eiae.org.

END OF LIFE DIRECTIVES - RECYCLING

Your new TV/Monitor contains several materials that can be recycled for new uses.
Like all LCD products, this set contains a lamp with Mercury, please dispose of according to all local State

and Federal laws.

User Manual BDL4230E

TABLE OF CONTENTS

1. UNPACKING AND INSTALLATION

1.1. UNPACKING

1.2. PACKAGE CONTENTS

1.3. INSTALLATION NOTES

1.4. PORTRAIT MOUNTING

2. PARTS AND FUNCTIONS

2.1. FRONT VIEW

2.2. REAR VIEW

2.3. INPUT/OUTPUT TERMINALS

2.4. REMOTE CONTROL

2.4.1. GENERAL FUNCTIONS

2.4.2. INSERTING THE BATTERIES IN THE REMOTE CONTROL

2.4.3. OPERATING RANGE OF THE REMOTE CONTROL

3. CONNECTIONS TO EXTERNAL EQUIPMENT

3.1. USING THE CABLE RETAINER

3.2. USING THE SWITCH COVER

3.3. CONNECTING EXTERNAL EQUIPMENT (DVD/VCR/VCD)

3.3.1. USING COMPONENT VIDEO INPUT

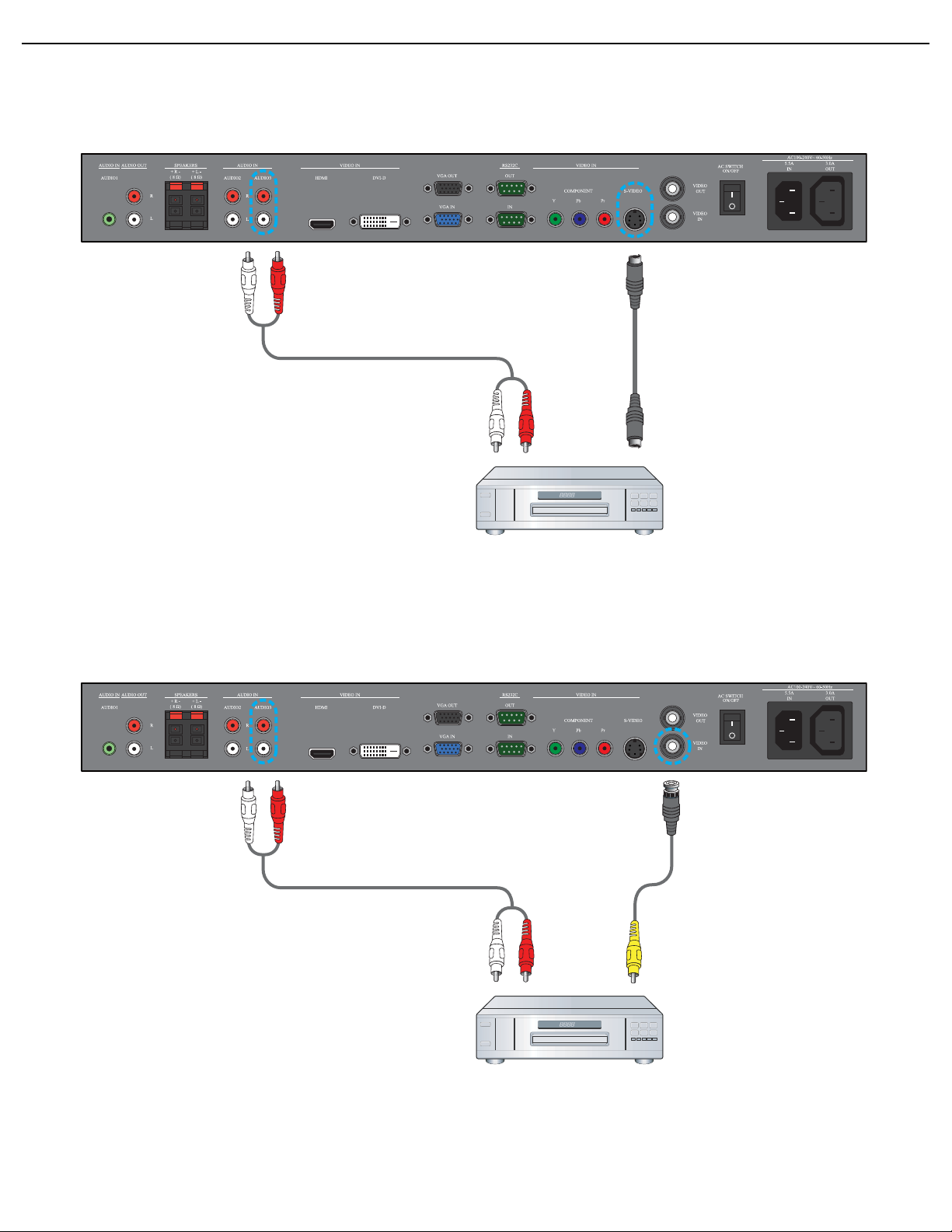

3.3.2. USING S-VIDEO INPUT

3.3.3. USING VIDEO INPUT

3.3.4. USING HDMI INPUT

3.4. CONNECTING A PC

3.4.1. USING VGA INPUT

3.4.2. USING DVI INPUT

3.4.3. USING HDMI INPUT

3.5. EXTERNAL AUDIO CONNECTION

3.5.1. CONNECTING EXTERNAL SPEAKERS

3.5.2. CONNECTING EXTERNAL AUDIO DEVICE

3.6. CONNECTING ANOTHER BDL4230E MONITOR

4. OSD MENU

4.1. NAVIGATING THE OSD MENU

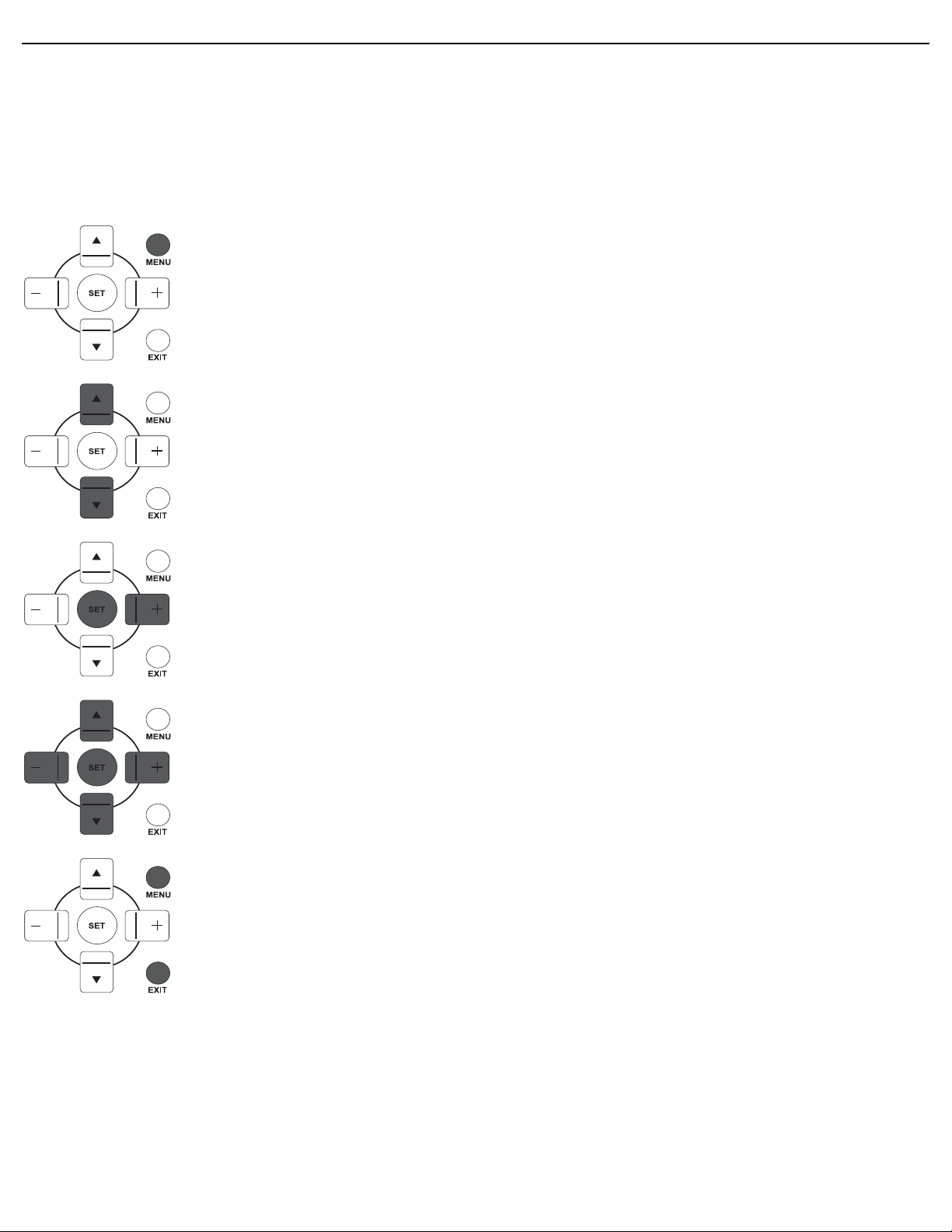

4.1.1. NAVIGATING THE OSD MENU USING THE REMOTE CONTROL

4.1.2. NAVIGATING THE OSD MENU USING THE MONITOR’S CONTROL
BUTTONS

4.2. OSD MENU OVERVIEW

4.2.1. PICTURE MENU

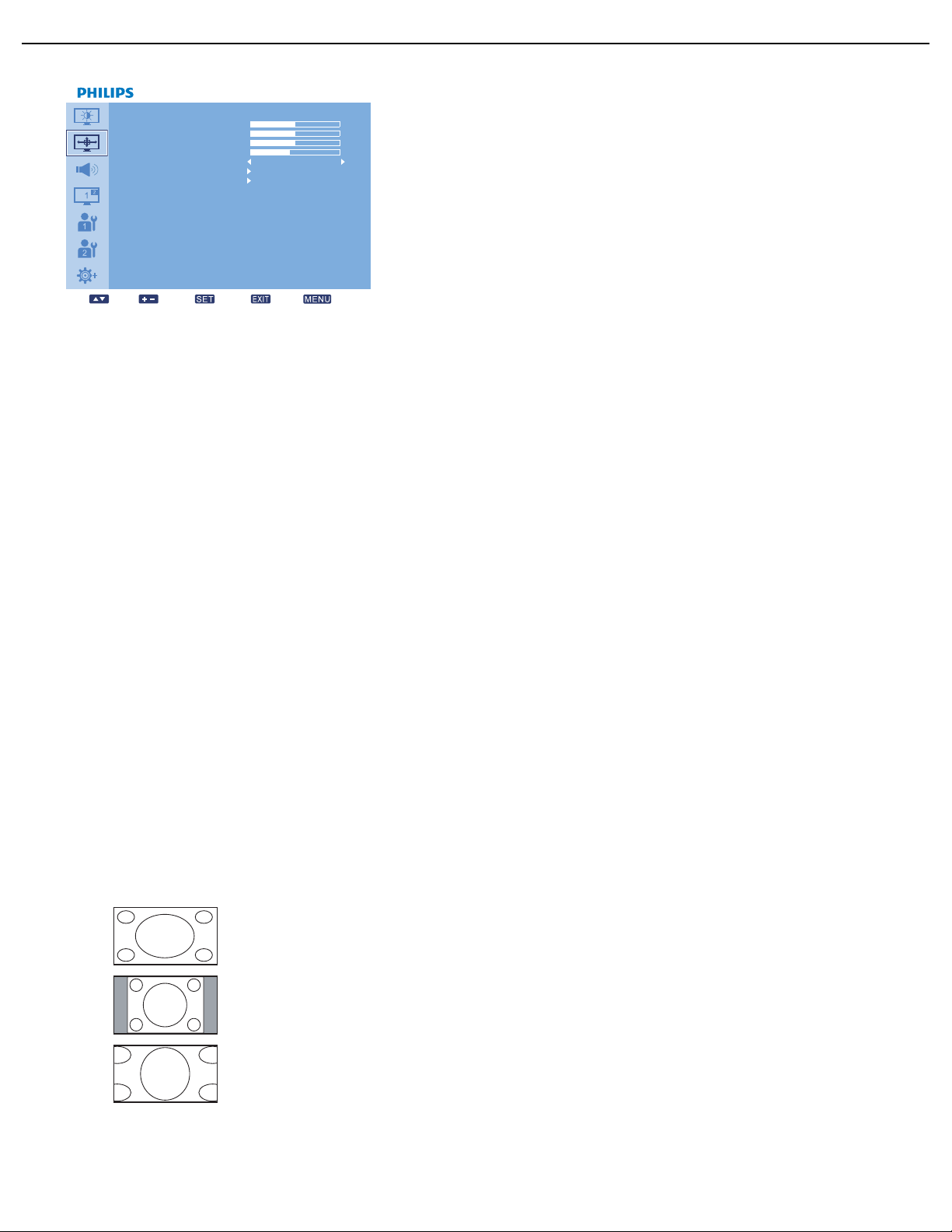

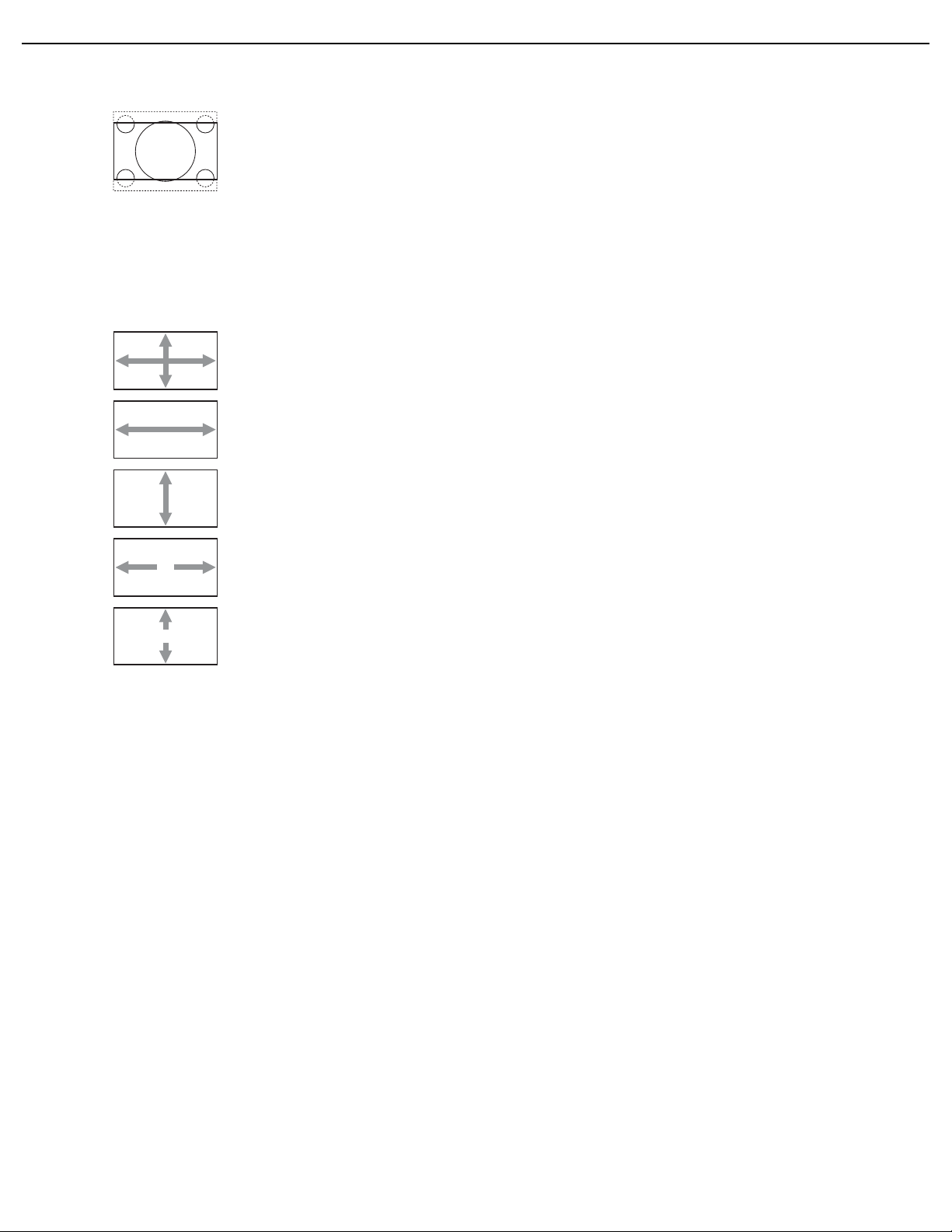

4.2.2. SCREEN MENU

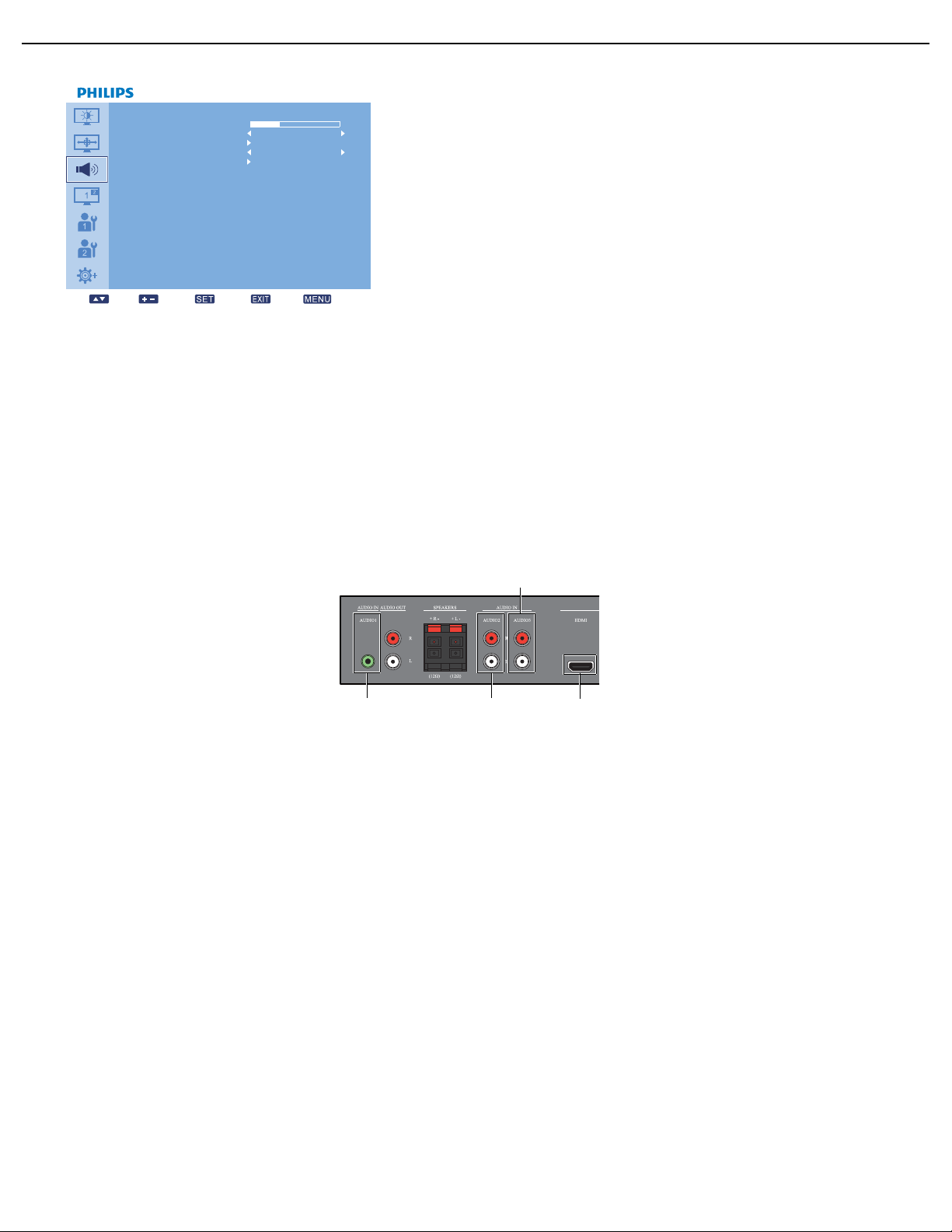

4.2.3. AUDIO MENU

4.2.4. PIP MENU

4.2.5. CONFIGURATION 1 MENU

4.2.6. CONFIGURATION 2 MENU

4.2.7. ADVANCED OPTION MENU

5. INPUT MODE

6. PIXEL DEFECT POLICY

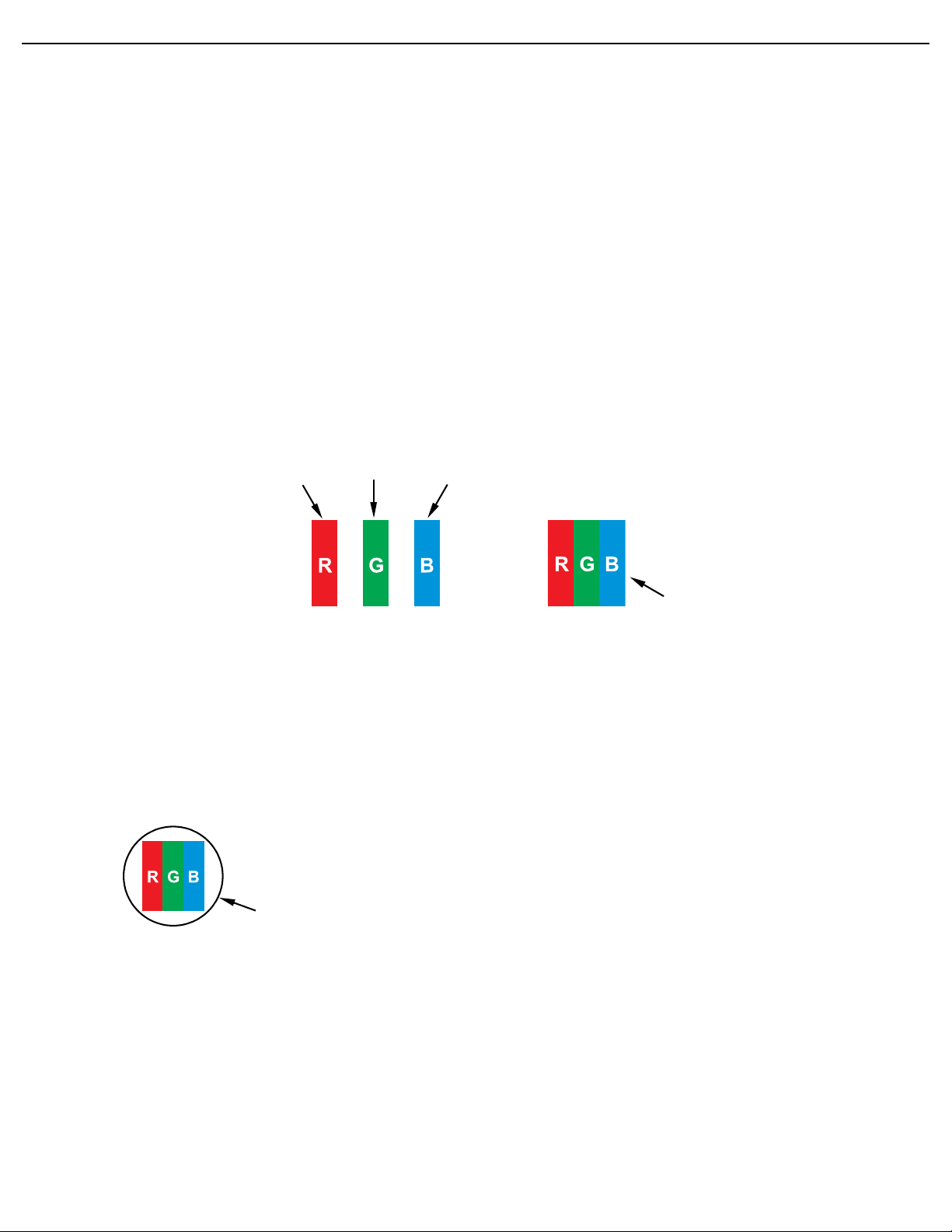

6.1. PIXELS AND SUB-PIXELS

User Manual BDL4230E

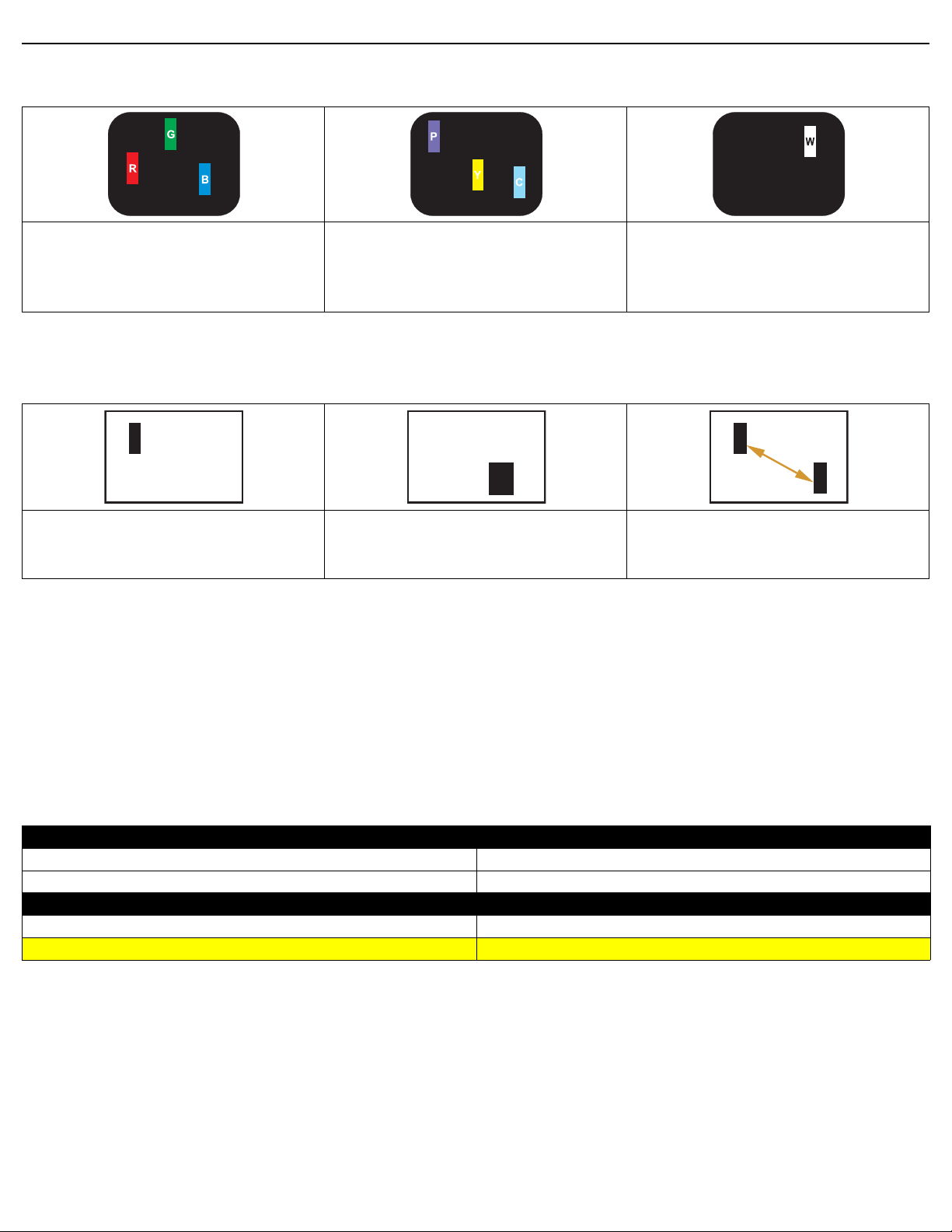

6.2. TYPES OF PIXEL DEFECTS + DOT DEFINITION

6.3. BRIGHT DOT DEFECTS

6.4. DARK DOT DEFECTS

6.5. PROXIMITY OF PIXEL DEFECTS

6.6. PIXEL DEFECT TOLERANCES

7. CLEANING AND TROUBLESHOOTING

7.1. CLEANING

7.2. TROUBLESHOOTING

8. TECHNICAL SPECIFICATIONS

User Manual BDL4230E

1. UNPACKING AND INSTALLATION

1.1. UNPACKING

• This product is packed in a carton, together with the standard accessories.

• Any other optional accessories will be packed separately.

• The weight of the product diff ers - depending on the type. Due to the size and weight it is r ecommended to mov e it b y
2 people.

• The protective glass and the glass substrate are installed on the front of the product. Since both glass can be broken
and scraped easily, the product has to be handled with care. Never place the product with the glass faced do wn unless
it is protected with pads.

• After opening the carton, ensure that the content is in good condition and complete.

1.2. PACKAGE CONTENTS

Please verify that you received the following items with your package content:

1. LCD monitor

2. Remote control with batteries

3. CD-ROM (EDFU and SICP)

4. Quick Start Guide

5. Logo guider

1

9

NAFTA Europe UK China 11

23 56

10

4

7

12

6. PHILIPS logo

8

7. BNC-to-RCA adapter (x 2)

8. RCA-to-BNC adapter (x 3)

9. Cable retainer (x 2)

10. Power cords

11. VGA cable

12. Main switch cover

• Please make sure that for all other regions, apply a power cord that conforms to the AC voltage of the power socket
and has been approved by and complies with the safety regulations of the particular country.

• You might like to save the package box and packing material for shipping the monitor.

• External speakers and table stands are prepared as options.

1.3. INSTALLATION NOTES

• Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is
required, please consult your service agent.

• The product should be installed on a flat surface to a void tipping. The distance betw een the back of the pr oduct and the
wall should be maintained for proper ventilation. Avoid installing the product in the kitchen, bathroom or any other
places with high humidity so as not to shorten the service life of the electronic components.

• The product can normally operate only under 4000m in height. It might abnormally function at a place over 4000m in
height and do not install and operate there.

RETURN TO THE CONTENTS

User Manual BDL4230E

1.4. PORTRAIT MOUNTING

Wall mounting holes

Notes:

• Metric 6 (10mm) screws are needed for wall mounting (not

included).

• The mounting interface should comply with the UL1678

standard in North America. The mounting means should
strong enough to bear the weight of the monitor (approx.

24.5kg without stand).

How to use the logo guider? Allowable tilting angle in Portrait Mode

Note: The remote control sensor should be on the lower side
when rotating your monitor.

How to remove the logo?

1

Note: When installing the monitor on the wall, please consult a professional technician for proper installing. The manufacturer
accepts no liability for installations not performed by a professional technician.

2

RETURN TO THE CONTENTS

3

User Manual BDL4230E

2. PARTS AND FUNCTIONS

2.1. FRONT VIEW

1

1. Remote control sensor, ambient light sensor and power indicator

• Receives command signals from the remote control.

• Detects the ambient lighting condition around the monitor.

• Indicates the operating status of the monitor:

- lights blue when the monitor is turned on

- lights amber when the monitor is in standby mode

- blinks blue when remote control signal is received

- blinks amber when the monitor enters DPMS mode

- off when the main power of the monitor is turned off

RETURN TO THE CONTENTS

User Manual BDL4230E

2.2. REAR VIEW

100 mm

100 mm 100 mm

Dent depth:

6mm

280 mm

8

7

200 mm

35 mm

210.4 mm

1 3 42 596

1. ENTER/VIDEO SOURCE button

• Use this button to select the input source.

• When the On Screen Display menu is active, use this as the SET button.

2. MENU button

• Use this button to engage the On Screen Display menu.

• When the On Screen Display menu is active, use this button to return to the previous menu.

290.4 mm

3. / button

• When the On Screen Display menu is active, use these as the UP/DOWN menu buttons.

• Press and hold the  and  buttons simultaneously for 3 seconds to lock or unlock all buttons.

4. / button

• When the On Screen Display menu is active, use these as the PLUS/MINUS menu buttons.

5. POWER button

Use this button to turn the monitor on or put the monitor to standby.

6. Power indicator

Indicates the operating status of the monitor:

- lights green when the monitor is turned on

- lights red when the monitor is in standby mode

- blinks red when the monitor enters DPMS mode

- off when the main power of the monitor is turned off

7. Mount PC installation holes

Install a mount PC using these holes and M4 screws. (Maximum load: 2kg)

8. Cable retainer installation holes

Install the cable retainer using these holes.

9. Carrying handle

Use these handles when carrying the monitor by hand.

RETURN TO THE CONTENTS

User Manual BDL4230E

2.3. INPUT/OUTPUT TERMINALS

1 2 3 4 5 6 8

1. AUDIO IN (AUDIO1)

Connect to the audio output of a computer.

2. AUDIO OUT R/L

Outputs the audio signal from the AUDIO IN
(AUDIO1/AUDIO2/AUDIO3)orHDMI jack.

3. SPEAKERS R/L

Outputs the audio signal from the AUDIO IN
(AUDIO1/AUDIO2/AUDIO3)orHDMI jack to
external speakers.

4. AUDIO IN (AUDIO2/AUDIO3)

Connect to the audio output of an AV device.

7

9 10 11 13

9. RS232C (OUT/IN)

RS232C network connection input/output for the use of
loop through function.

10. VIDEO IN (COMPONENT)

Component video input (YPbPr) for connecting to the
component output of an AV device.

11. VIDEO IN (S-VIDEO)

S-Video input for connecting to the S-Video output of an
AV device.

12. VIDEO OUT

Outputs the video signal from the VIDEO IN jack.

12

14 15 16

5. VIDEO IN (HDMI)

Connect to the HDMI output of an AV device or
connect to the DVI-D output of a PC. (Using a DVI­HDMI cable)

6. VIDEO IN (DVI-D)

Connect to the DVI-D output of a PC or connect to the
HDMI output of an AV device (Using a D VI-HDMI cable).

7. VGA OUT

Outputs the VGA signal from the VGA IN jack.

8. VGA IN

Connect to the VGA output of a computer.

RETURN TO THE CONTENTS

13. VIDEO IN

Connect to the video output of an A V de vice or another
BDL4230E monitor.

14. Main power switch

Press to switch the main power on/off.

15. AC IN (5.5 A)

Connect the supplied power cord to the wall outlet.

16. AC OUT (3.0 A)

Connect to the AC IN socket of another BDL4230E
monitor or an external media device.

User Manual BDL4230E

2.4. REMOTE CONTROL

2.4.1. GENERAL FUNCTIONS

POWER button

Press to switch on the monitor from standby mode. Press again to turn it off to
standby mode.

SMART button

To select smart picture mode from:

• HIGHBRIGHT: for moving image such as Video

• STANDARD: for images (factory setting)

• sRGB: for text based images

• CINEMA: for movies.

• CUSTOM: use your own picture setting. The mode is automatically selected
after you change the settings in the PICTURE menu.

VIDEO SOURCE button

To activate the video source selection menu. Press it repeatedly to select the
video input source from HDMI, DVI-D, VGA, COMPONENT, S-VIDEO,
and VIDEO.

AUDIO SOURCE button

To activate the audio source selection menu. Press it repeatedly to select the
video input source from HDMI, AUDIO 1, AUDIO 2, and AUD IO 3.

Picture format button

To switch screen aspect ratio between FULL, NORMAL, DYNAMIC,
CUSTOM, REAL, and 21:9.

PIP (Picture In Picture) buttons

• ON/OFF button: To turn PIP mode ON/OFF.

• INPUT button: To select the input signal for the sub-picture.

• CHANGE button: To exchange between the main picture and sub
picture.

Note: The “PIP” mode does not work if the screen size is set to “CUSTOM”, “DYNAMIC”,
“REAL” or “21:9”.

CONTRAST button

Press to open the CONTRAST OSD selection, and then press the PLUS or
MINUS button to adjust the value.

BRIGHTNESS button

Press to open the BRIGHTNESS OSD selection, and then press the PLUS or
MINUS button to adjust the value.

RETURN TO THE CONTENTS

User Manual BDL4230E

DISPLAY button

To turn on/off the setting information displayed on the upper right corner of the
screen.

MENU button

To turn the OSD menu on/off.

UP button

• To move the highlight bar up to adjust the selected item when OSD menu is on.

• To move the sub-picture up in “PIP” mode.

DOWN button

• To move the highlight bar down to adjust the selected item when OSD menu is
on.

• To move the sub-picture down in “PIP” mode.

PLUS button

• To increase the adjustment with OSD menu.

• To move the sub-picture right in “PIP” mode.

MINUS button

• To decrease the adjustment with OSD menu.

• To move the sub-picture left in “PIP” mode.

SET button

To activate the setting with OSD menu.

AUTO ADJUST button

Note: For the VGA input only.

To execute the AUT O ADJUST function.

EXIT button

To turn to the previous OSD menu.

MUTE button

To turn the mute function on/off.

VOL UP button

To increase the audio output level.

VOL DOWN button

To decrease the audio output level.

RETURN TO THE CONTENTS

User Manual BDL4230E

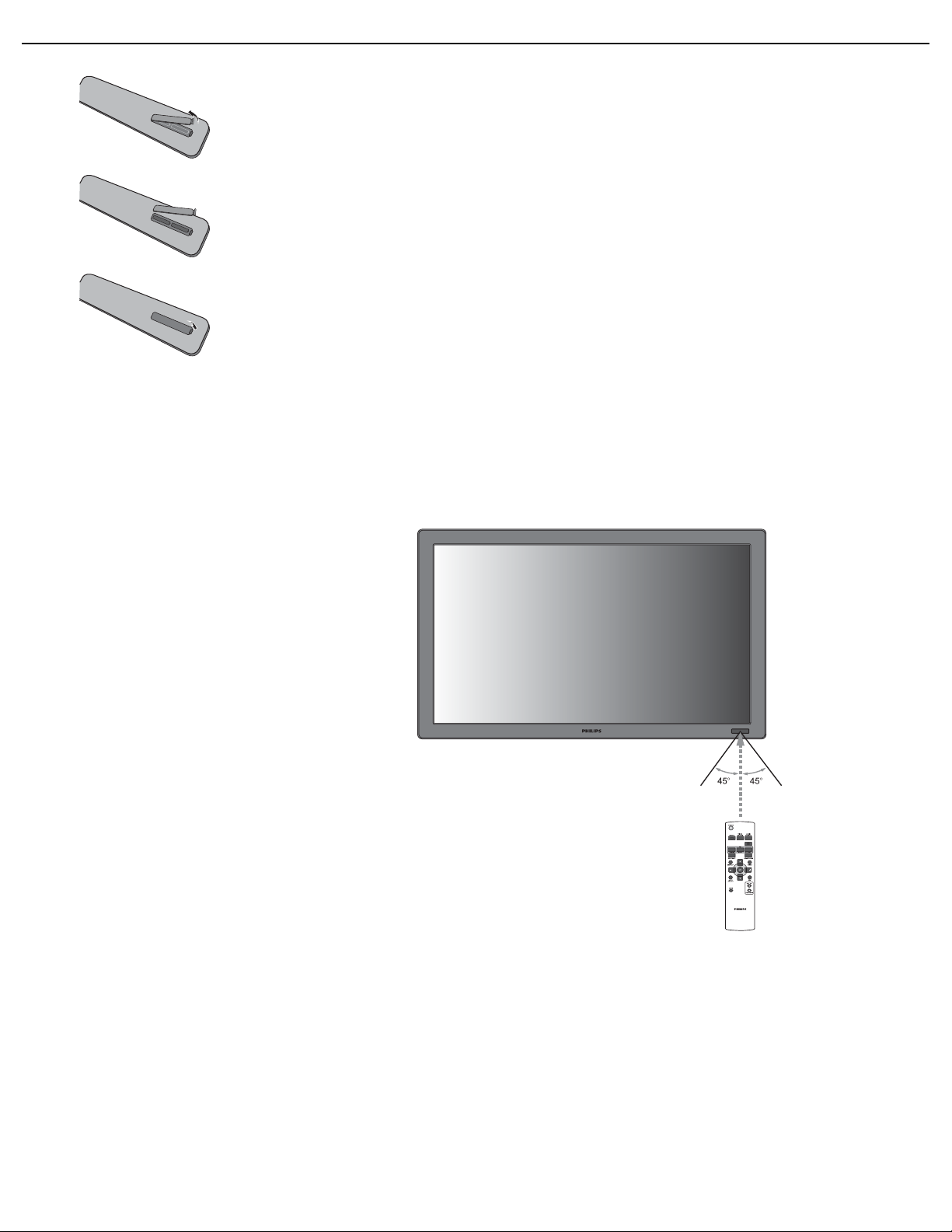

2.4.2. INSERTING THE BATTERIES IN THE REMOTE CONTROL

1. Remove the cover on the rear of the remote control.

2. Insert two AAA size 1.5V batteries ensuring that the “+” and “-” ends of the
batteries are correctly aligned.

3. Replace the cover.

Note: Do not mix battery types, e.g. alkaline and manganese.

2.4.3. OPERATING RANGE OF THE REMOTE CONTROL

Point the top of the remote contr ol towar d the monitor's remote contr ol sensor when
pressing a button.

Use the remote control within a distance of abou t 10m/33ft from the monitor's r emote
control sensor and within a horizontal and vertical angle of 45 degrees.

Note: The remote control may not function properly when the remote control sensor on the
monitor is under direct sunlight or strong illumination, or when there is an obstacle in the path of
signal transmission.

RETURN TO THE CONTENTS

User Manual BDL4230E

3. CONNECTIONS TO EXTERNAL EQUIPMENT

3.1. USING THE CABLE RETAINER

3.2. USING THE SWITCH COVER

You can use the switch cover to prevent the monitor from being turned on or off accidentally.

3.3. CONNECTING EXTERNAL EQUIPMENT (DVD/VCR/VCD)

3.3.1. USING COMPONENT VIDEO INPUT

1. Connect the green-colored (labeled as "Y") jack of the device to the green-colored "Y" jack of the monitor.

2. Connect the blue-colored (labeled as "Pb") jack of the device to the blue-colored "Pb" jack of the monitor.

3. Connect the red-colored (labeled as "Pr") jack of the device to the red-colored "Pr" jack of the monitor.

4. Connect the red (R) and white (L) audio jacks of the device to the AUDIO IN (AUDIO2 or AUDIO3) jacks of the
monitor.

RETURN TO THE CONTENTS

DVD/VCR/VCD

User Manual BDL4230E

3.3.2. USING S-VIDEO INPUT

1. Connect the S-Video connector of the external device to the S-VIDEO input of the monitor.

2. Connect the red (R) and white (L) audio jacks of the device to the AUDIO IN (AUDIO2 or AUDIO3) jacks of the
monitor.

DVD/VCR/VCD

3.3.3. USING VIDEO INPUT

1. Connect the Video connector of the external device to the VIDEO IN input of the monitor. Use the supplied BNC-to-

RCA adapter if necessary.

2. Connect the red (R) and white (L) audio jacks of the device to the AUDIO IN (AUDIO2 or AUDIO3) jacks of the
monitor.

RETURN TO THE CONTENTS

DVD/VCR/VCD

User Manual BDL4230E

3.3.4. USING HDMI INPUT

Connect the HDMI connector of the external device to the HDMI input of the monitor.

DVD/VCR/VCD

3.4. CONNECTING A PC

3.4.1. USING VGA INPUT

1. Connect the 15-pin VGA connector of the PC to the VGA IN connector of the monitor.

2. Connect the audio cable to the AUDIO IN (AUDIO1) input of the monitor.

PC

RETURN TO THE CONTENTS

User Manual BDL4230E

3.4.2. USING DVI INPUT

1. Connect the DVI-D connector of the PC to the DVI-D connector of the monitor.

2. Connect the audio cable to the AUDIO IN (AUDIO1) input of the monitor.

PC

3.4.3. USING HDMI INPUT

1. Connect the DVI-D connector of the PC to the HDMI connector of the monitor using a DVI-HDMI cable.

2. Connect the audio cable to the AUDIO IN (AUDIO1) input of the monitor.

PC

RETURN TO THE CONTENTS

User Manual BDL4230E

3.5. EXTERNAL AUDIO CONNECTION

3.5.1. CONNECTING EXTERNAL SPEAKERS

1. Connect the speaker wires to the external speaker (SPEAKERS) output of the monitor.

2. Turn on the monitor.

Note: Before connecting the speaker wires to the monitor, turn off your monitor.

External speaker

3.5.2. CONNECTING EXTERNAL AUDIO DEVICE

Connect the red (R) and white (L) audio jacks of the external audio device to the A UDIO OUT R/L jacks of the monitor.

External audio device

RETURN TO THE CONTENTS

User Manual BDL4230E

3.6. CONNECTING ANOTHER BDL4230E MONITOR

You can interconnect multiple BDL4230E monitors to create a daisy-chain configuration for applications like a TV wall.

Note: The number of displays that can be used in a daisy-chain configuration will depend on the resolution of the input signal being
used.

• Connect the VGA OUT connector of the monitor to the VGA IN connector of another BDL4230E monitor.

• Connect the RS232C OUT connector of the monitor to the RS232C IN connector of another BDL4230E monitor.

• Connect the VIDEO OUT connector of the monitor to the VIDEO IN connector of another BDL4230E monitor.

• Connect the AC OUT connector of the monitor to the AC IN connector of another BDL4230E monitor.

Another BDL4230E monitor

RETURN TO THE CONTENTS

User Manual BDL4230E

4. OSD MENU

An overall view of the On-Screen Display (OSD) structure is shown below. You can use it as a reference for further
adjusting your monitor.

4.1. NAVIGATING THE OSD MENU

4.1.1. NAVIGATING THE OSD MENU USING THE REMOTE CONTROL

1. Press the MENU button on the remote control to display the OSD menu.

2. Press the UP/DOWN button to choose the item you want to adjust.

3. Press the PLUS/SET button to enter the submenu.

4. In the submenu, press the UP/DOWN button to toggle between items, or press
PLUS/MINUS button to adjust settings. If there is a submenu, press the SET button
to enter the submenu.

5. Press the EXIT button on the remote control to return to the previous menu, or
press the MENU button to exit the OSD menu.

RETURN TO THE CONTENTS

User Manual BDL4230E

4.1.2. NAVIGATING THE OSD MENU USING THE MONITOR’S CONTROL BUTTONS

1. Press the MENU button to display the OSD menu.

2. Press the /button to choose the item you want to adjust.

3. Press the ENTER/VIDEO SOURCE button to enter the
submenu.

4. In the submenu, press the / button to toggle between
items, or press / button to adjust settings. If there is a
submenu, press the ENTER/VIDEO SOURCE button to
enter the submenu.

5. Press the MENU button on the remote control to return to
the previous menu, or pr ess the MENU button sev eral times
to exit the OSD menu.

RETURN TO THE CONTENTS

User Manual BDL4230E

4.2. OSD MENU OVERVIEW

4.2.1. PICTURE MENU

BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
NOISE REDUCTION
TINT
COLOR
COLOR TEMPERATURE
COLOR CONTROL
LIGHT SENSOR
SMART CONTRAST
VIDEO SOURCE
PICTURE RESET

Sel Adjust Enter Back Quit

BRIGHTNESS

Adjust the overall image brightness by changing the intensity of the LCD panel’s backlight.
Use the PLUS/MINUS button to adjust.

CONTRAST

Adjust to sharpen the picture quality. The black portions of the picture become richer in darkness and the
white become brighter.

Use the PLUS/MINUS button to adjust.

OFF

10000K

OFF
OFF

100
50
5
70

50
50

SHARPNESS

Adjust to improve detail.
Use the PLUS/MINUS button to adjust.

BLACK LEVEL

Adjust to change the image brightness.
Use the PLUS/MINUS button to adjust.

NOISE REDUCTION

Note: For VIDEO, S-VIDEO, COMPONENT and HDMI inputs with interlaced video only.

Adjust to remove the noise in the image. You can select a suitable noise reduction level.
Use the PLUS/MINUS button to make selection.

TINT

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI inputs only.

Adjust to change the color tint of the image.
Use the PLUS/MINUS button to adjust. Press the PLUS button and the flesh tone color becomes

greenish. Press the MINUS button and the flesh tone color becomes purplish.

COLOR

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI inputs only.

Adjusts to increase or decrease the intensity of colors in the image.
Press the PLUS button to increase color intensity, or press the MINUS button to decrease color intensity.

COLOR TEMPERATURE

Select a color temperature for the image. The image looks reddish with a lower color temperature, and
looks bluish with a higher color temperature.

Use the PLUS/MINUS button to make selection.

RETURN TO THE CONTENTS

User Manual BDL4230E

COLOR CONTROL

Note: This function is only available when COLOR TEMPERATURE is set to USER.

With this function you can adjust the color tones of the image precisely by changing the R (Red), G (Green)
and B (Blue) settings independently.

Press the SET/PLUS button to open the submenu. Press the UP/DOWN button to select R, G or B, and
press the PLUS/MINUS button to adjust.

LIGHT SENSOR

Choose to enable or disable the ambient light sensor. Once enabled, the image brightness will be adjusted
automatically when ambient lighting condition changes.

Use the PLUS/MINUS button to make selection.

SMART CONTRAST

When turned on, this function helps enhance image contrast when displaying dark scenes.
Use the PLUS/MINUS button to make selection.

VIDEO SOURCE

Select a video input source.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between

• HDMI • DVI-D

• VGA • COMPONENT

• S-VIDEO • VIDEO

PICTURE RESET

Reset all settings in the PICTURE menu.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make

selection. Select YES and press the SET button to r estore settings to factory preset values. Press the EXIT
button to cancel and then return to the previous menu.

RETURN TO THE CONTENTS

User Manual BDL4230E

4.2.2. SCREEN MENU

SCREEN
H POSITION
V POSITION
CLOCK
CLOCK PHASE
ZOOM MODE
CUSTOM ZOOM
SCREEN RESET

Sel Adjust Enter Back Quit

H POSITION

Note: For the VGA input only.

Adjust the horizontal placement of the picture.
Press the PLUS button to move the image to the right, or press the MINUS button to move the image to

the left.

V POSITION

Note: For the VGA input only.

Adjust the vertical placement of the picture.
Press the PLUS button to move the image up, or press the MINUS button to move the image down.

FULL

50
50
16
14

CLOCK

Note: For the VGA input only.

Adjust the width of the image.
Press the PLUS button to expand the width of the image, or press the MINUS button to shrink the width

of the image.

CLOCK PHASE

Note: For the VGA input only.

Adjust to improve the focus, clarity and stability of the image.
Use the PLUS/MINUS button to adjust.

ZOOM MODE

The pictures you receive may be transmitted in 16:9 format (widescreen) or 4:3 format (conventional
screen). 16:9 pictures sometimes have a black band at the top and bottom of the screen (letterbox format).

This function allows you to optimize the picture display on screen. The following zoom modes are available:

• FULL - This mode restores the correct proportions of pictures transmitted in 16:9 using
the full screen display.

• NORMAL - The picture is r eproduced in 4:3 format and a black band is displa y ed on either
side of the picture.

• DYNAMIC - Fill the entire screen by stretching 4:3 pictures non-proportionally.

• CUSTOM - Choose to apply the custom zoom settings in the CUSTOM ZOOM
submenu.

RETURN TO THE CONTENTS

User Manual BDL4230E

CUSTOM ZOOM

Note: This item is only available when the ZOOM MODE setting is set to CUSTOM.

You can use this function to further customize the zoom settings to suit the image you want to display.
Press the SET/PLUS button to open the submenu. Use the UP/DOWN button to toggle between the

following items, and use the PLUS/MINUS button to adjust.

• REAL - This mode displays the image pixel-by-pixel on screen without scaling the original
image size.

• 21:9 - The picture is enlarged to 16:9 format. This mode is recommended when displaying
pictures that have black bands at the top and bottom (letterbox format).

• ZOOM - Expands the horizontal and vertical sizes of the image simultaneously.

• HZOOM - Expands the horizontal size of the image only.

• VZOOM - Expands the vertical size of the image only.

• H POSITION - Moves the horizontal position of the image left or right.

• V POSITION - Moves the vertical position of the image up or down.

SCREEN RESET

Reset all settings in the SCREEN menu.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make

selection. Select YES and press the SET button to r estore settings to factory preset values. Press the EXIT
button to cancel and then return to the previous menu.

RETURN TO THE CONTENTS

User Manual BDL4230E

4.2.3. AUDIO MENU

AUDIO
VOLUME
MUTE
AUDIO SOURCE
SPEAKER
AUDIO RESET

Sel Adjust Enter Back Quit

VOLUME

Adjust to increase or decrease the audio output level.
Use the PLUS/MINUS button to adjust.

MUTE

To turn the mute function on/off.
Use the PLUS/MINUS button to make selection.

OFF

INTERNAL

30

AUDIO SOURCE

To select the audio input source according to the audio signal source connected to the audio input and
HDMI sockets on the monitor.

AUDIO 3

AUDIO 1 AUDIO 2

HDMI

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between

• AUDIO 1 • AUDIO 2

• AUDIO 3 • HDMI

SPEAKER

Set the monitor to play audio using the built-in (internal) speak er, external speakers or external audio devices
(if connected).

Use the PLUS/MINUS button to toggle between

• INTERNAL • EXTERNAL

• LINE-OUT

AUDIO RESET

Reset all settings in the AUDIO menu.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make

selection. Select YES and press the SET button to r estore settings to factory preset values. Press the EXIT
button to cancel and then return to the previous menu.

RETURN TO THE CONTENTS

User Manual BDL4230E

4.2.4. PIP MENU

Note: For COMPONENT, VGA, DVI-D and HDMI inputs only.

PIP
PIP SIZE
PIP AUDIO
PIP RESET

Sel Adjust Enter Back Quit

SMALL

MAIN

PIP SIZE

Select the size of the sub picture in the PIP (Picture-in-Picture) mode.
Use the PLUS/MINUS button to toggle between

• LARGE • MIDDLE

• SMALL

PIP AUDIO

Select the audio source in the PIP (Picture-in-Picture) mode.
Use the PLUS/MINUS button to toggle between

• MAIN - Select audio from the main picture

• PIP - Select audio from the sub picture.

PIP RESET

Reset all settings in the PIP menu.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make

selection. Select YES and press the SET button to r estore settings to factory preset values. Press the EXIT
button to cancel and then return to the previous menu.

Notes:

• The PIP function is only available under certain signal source combinations as shown in the table below.

Main picture signal source

VIDEO S-VIDEO COMPONENT VGA DVI-D HDMI

VIDEO

Sub


signal

source

S-VIDEO

COMPONENT

VGA

DVI-D

HDMI

( : PIP function available, : PIP function unavailable)

• The availability of the PIP function will also depend on the resolution of the input signal being used.

RETURN TO THE CONTENTS

User Manual BDL4230E

4.2.5. CONFIGURATION 1 MENU

CONFIGURATION 1
AUTO ADJUST
POWER SAVE
LANGUAGE
PANEL SAVING
COLOR SYSTEM
CONFIGURATION RESET
FACTORY RESET

Sel Adjust Enter Back Quit

ENGLISH

AUTO

AUTO ADJ UST

Note: For the VGA input only.

Use this function to let the monitor automatically optimize the display of VGA input image.
Press the SET button to adjust.

POWER SAVE

Set the monitor to reduce the power automatically.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle

between

• RGB - Select ON to let the monitor enter DPMS mode when no signal can be detected from the HDMI,
DVI-D, and VGA inputs three times in a row. Use the PLUS/MINUS button to make selection.

• VIDEO - Select ON to let the monitor enter power saving mode when no signal is detected from the
VIDEO, S-VIDEO, and COMPONENT inputs three times in a row. Use the PLUS/MINUS button to
make selection.

LANGUAGE

Select the language for the OSD menu.
Use the PLUS/MINUS button to select a language.

PANEL SAVING
Choose to enable the panel saving functions to reduce the risk of the "image persistence”. Press the SET/
PLUS button to open the submenu, and then press the UP/DOWN button to toggle between

• BRIGHTNESS - Select ON and the brightness of the image will be reduced to an appropriate level, and
the BRIGHTNESS setting in the PICTURE menu will become unavailable. Use the PLUS/MINUS
button to make selection.

• PIXEL SHIFT - Select the time interval for the monitor to slightly expand the image size and shift the
position of pixels in four directions (up, down, left, and right). Use the PLUS/MINUS button to make
selection (OFF-900 seconds from current time).

COLOR SYSTEM

Select the color system depending on the input video format.
Use the PLUS/MINUS button to toggle between

• AUTO • PAL 4.43

• PAL 3.58 • SECAM

• NTSC 4.43 • NTSC 3.58

CONFIGURATION RESET

Reset all settings in the CONFIGURATION 1 menu.

RETURN TO THE CONTENTS

User Manual BDL4230E

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make
selection. Select YES and press the SET button to r estore settings to factory preset values. Press the EXIT
button to cancel and then return to the previous menu.

FACTORY RESET
Reset all settings in the PICTURE, SCREEN, AUDIO, PIP, CONFIGURATION 1,
CONFIGURATION 2, and ADVANCED OPTION menus. Press the SET/PLUS button to open the

submenu, and then press the UP/DOWN button to make selection. Select YES and press the SET button
to restore settings to factory preset values. Press the EXIT button to cancel and then return to the pr evious
menu.

RETURN TO THE CONTENTS

User Manual BDL4230E

4.2.6. CONFIGURATION 2 MENU

CONFIGURATION 2
OSD TURN OFF
OSD MODE
INFORMATION OSD
SLEEP TIMER
OSD H POSITION
OSD V POSITION
MONITOR INFORMATION

Sel Adjust Enter Back Quit

LANDSCAPE

OFF
OFF

50
50

OSD TURN OFF

Set the period of time the OSD menu stays on the screen. (from 5 to 120 seconds)
Use the PLUS/MINUS button to adjust.

OSD MODE

Select the orientation of the OSD according to the orientation the monitor is installed.
Use the PLUS/MINUS button to toggle between

• PORTRAIT • LANDSCAPE

60

INFORMATION OSD

Set the period of time the information OSD stays on the screen. The information OSD will display when
input signal is changed.

Use the PLUS/MINUS button to adjust. The information OSD will not appear when OFF is selected. If 0
is selected, the information OSD will remain on the screen.

SLEEP TIMER

Set the monitor to turn itself off to standby mode within an amount of time you specify. (OFF-24 hours
from current time)

Use the PLUS/MINUS button to adjust.

Note: When the SLEEP TIMER is activated, the SCHEDULE settings will be disabled.

OSD H POSITION

Adjust the horizontal position of the OSD menu.
Use the PLUS/MINUS button to adjust.

OSD V POSITION

Adjust the vertical position of the OSD menu.
Use the PLUS/MINUS button to adjust.

MONITOR INFORMATION

Displays the information about your monitor, including model name, serial number, operating hours and
software version.

Press the SET button to view the information. Press the EXIT button to return to the previous menu.

RETURN TO THE CONTENTS

User Manual BDL4230E

4.2.7. ADVANCED OPTION MENU

ADVANCED OPTION
INPUT RESOLUTION
BLACK LEVEL EXPANSION
GAMMA SELECTION
SCAN MODE
SCAN CONVERSION
FILM MODE
IR CONTROL
KEYBOARD CONTROL
TILING
HE AT STAT U S
DATE AND TIME
SCHEDULE
MONITOR ID
DDC/CI
SMART POWER
AUTO SIGNAL DETECTION
ADVANCED OPTION RESET

Sel Adjust Enter Back Quit

OFF
OFF
OFF
OFF
OFF
OFF

OFF
OFF
OFF

INPUT RESOLUTION

Note: For the VGA input only.

Set the resolution of the VGA input. This is only required when the monitor is unable to detect the VGA
input resolution correctly.

Use the PLUS/MINUS button to toggle between

• AUTO • 1024x768 • 1280x768

• 1360x768 • 1366x768

BLACK LEVEL EXPANSION

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI (video mode) inputs only.

Select a suitable black level expansion setting to reveal more details in the dark parts of an image.
Use the PLUS/MINUS button to toggle between

• OFF • LOW

• MIDDLE • HIGH

GAMMA SELECTION

Select a display gamma value to best suit the image and optimize image brightness and contrast.
Use the PLUS/MINUS button to toggle between

• 2.2 • 2.4

• NATIVE

SCAN MODE

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI (video mode) inputs only.

Change the display ar ea of the image.
Use the PLUS/MINUS button to toggle between

• OVERSCAN - Display about 95% of the original size of the image. The rest of the areas surrounding the
image will be cut off.

• UNDERSCAN - Display the image in its original size.

SCAN CONVERSION

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI (video mode) inputs only.

Choose to enable or disable the IP (Interlace to Progressive) conversion function.
Use the PLUS/MINUS button to toggle between

• PROGRESSIVE - Enable the IP conversion function (recommended). Once enabled, the interlace input
signal will be converted to progr essive format for better display quality.

• INTERLACE: Disable the IP function. This mode is suitable for displaying motion pictures, but it increases
the chance of image retention.

RETURN TO THE CONTENTS

User Manual BDL4230E

FILM MODE

Note: For VIDEO, S-VIDEO, COMPONENT, and HDMI (video mode) inputs only.

Choose to turn on or off the film mode frame conversion function.
Use the PLUS/MINUS button to toggle between

• AUTO - Enable the film mode frame conversion function for movies and motion pictures. The monitor
converts a 24 frames-per-second (24 fps) input signal format to DVD video signal format. Once this
function is enabled, it is recommended that you set the SCAN CONVERSION function to
PROGRESSIVE.

• OFF - Disable the film mode frame conversion function. This mode is suitable for TV broadcasting and
VCR signals.

IR CONTROL

Select the operation mode of the remote control when multiple BDL4230E monitors are connected via the
RS232C connection.

Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between

• NORMAL - All monitors can be operated normally by the remote control.

• PRIMARY - Designate this monitor as the primary monitor for remote control operation. Only this
monitor can be operated by the remote control.

• SECONDARY - Designate this monitor as the secondary monitor. This monitor can not be operated by
the remote control, and will only receive the control signal from the primary monitor via the RS232C
connection.

• LOCK - Lock the remote control function of this monitor. To unlock, press and hold the DISPLAY
button on the remote control for 5 seconds.

KEYBOARD CONTROL

Choose to enable or disable the function of the keyboard (control buttons) on the monitor.
Use the PLUS/MINUS button to toggle between

• LOCK - Disable the keyboard.

• UNLOCK - Enable the keyboard.

TILING

Note: For the VGA input only.

With this function you can create a single large screen matrix (display wall) that consists of up to 25
BDL4230E monitors (5 monitors each on the vertical and horizontal sides). This requires you to connect
each BDL4230E monitor in a daisy-chain configuration.

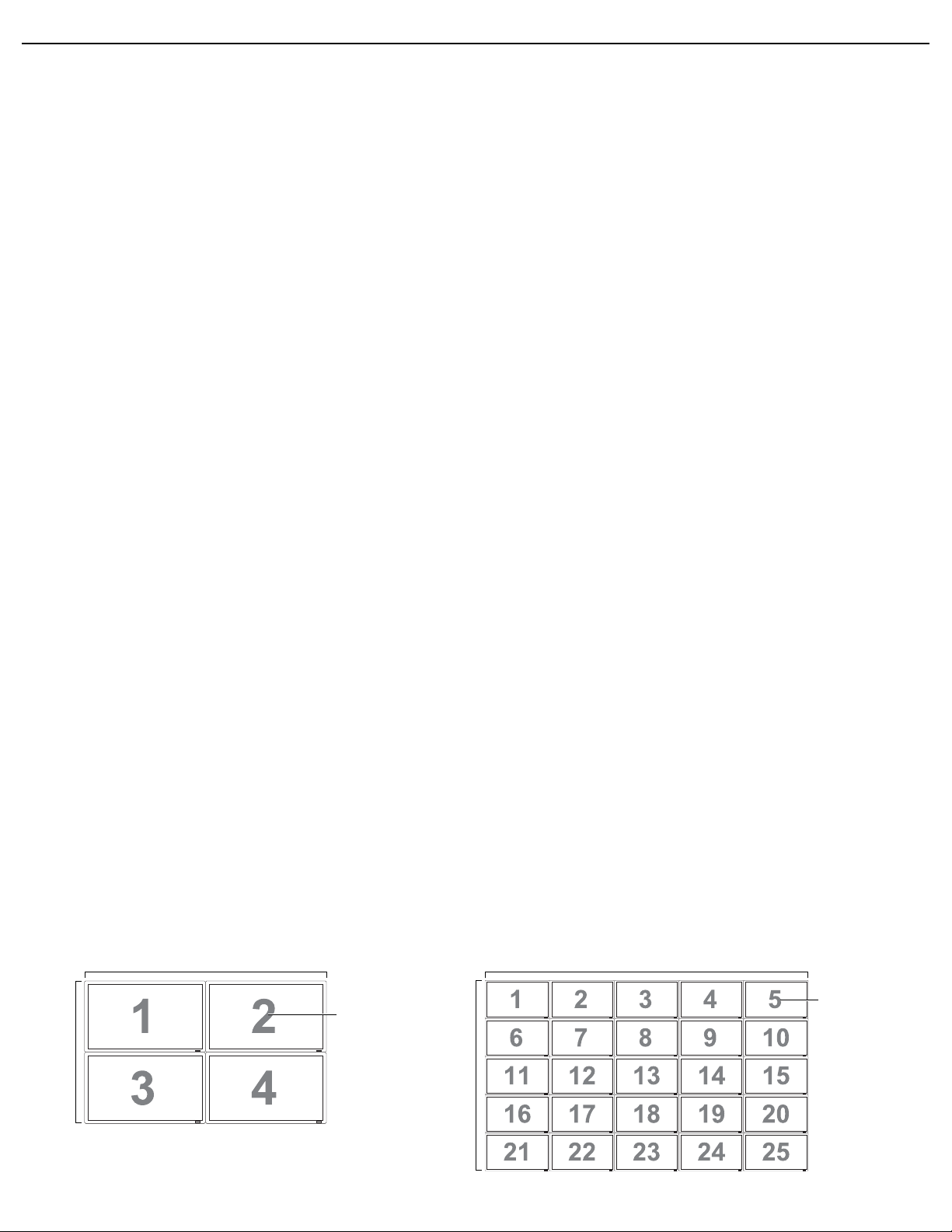

Example:

2 x 2 screen matrix (4 monitors)

H MONITORS = 2

V MONITORS = 2

H MONITORS

POSITION

5 x 5 screen matrix (25 monitors)

H MONITORS = 5

V MONITORS = 5

H MONITORS

POSITION

V MONITORS

V MONITORS

RETURN TO THE CONTENTS

User Manual BDL4230E

• H MONITORS - Select the number of monitors on the horizontal side.

• V MONITORS - Select the number of monitors on the vertical side.

• POSITION - Select the position of this monitor in the screen matrix.

• FRAME COMP - Choose to turn on or off the frame compensation function. If turned on, the monitor
will adjust the image to compensate for the width of the monitor bezels in order to accurately display the
image.

• ENABLE: Choose to enable or disable the TILING function. If enabled, the monitor will apply the
settings in H MONITORS, V MONITORS, POSITION, and FRAME COMP.

Note: The PIP function will be disabled when the TILING function is enabled, and vice versa.

HEAT STATUS

This function allows you to check the thermal status of the monitor at any time. The accuracy of the
temperature indicated is 5 degrees.
Press the SET button to view the heat status. Press the EXIT button to return to the previous menu.

FRAME COMP - OFF FRAME COMP - ON

_

+

DATE AND TIME

Adjust current date and time for the monitor’s internal clock.
Press the PLUS button to open the submenu. Press the UP/DOWN button to toggle between the YEAR,

MONTH, DAY, HOUR, MINUTE, and DAYLIGHT SAVING TIME settings, and then press the
PLUS/MINUS button to adjust.

SCHEDULE

Note: You should set up current date and time in DATE AND TIME before using this function.

This function allows you to program up to seven different scheduled time intervals for the monitor. You can
select the time the monitor turns on and turns off, the days in a week the monitor is activated, and which
input source the monitor will use for each scheduled activation period.

1. Press the SET button to open the submenu.

SCHEDULE

TODAY

1
2
3
4
5
6
7

2001 . 3 . 5 F RI 18 : 52 : 16

ON INPUTOFF

-- : 00 -- : 00 VIDEO

EVERY DAY
MON
FRI
EVERY WEEK

Sel Adjust Enter Back Quit

SAT

WED
SUN

THU TUE

2. Press the UP/DOWN button to select a schedule item (item 1 through item 7), and then press the

PLUS button.

3. With the ON item highlighted, press the SET button and then press the UP/DOWN button to set the

hour when the monitor will be turned on, then press the PLUS button to mo ve to the minute slot to set
the minute. If you do not want to use a power on time, select "--" for the hour slot, and "00" for the
minute slot.

RETURN TO THE CONTENTS

User Manual BDL4230E

4. Press the EXIT button, and then press the PLUS button to highlight the OFF item. Press the SET

button, and then press the UP/DOWN button to set the hour when the monitor will be turned off,
then press the PLUS button to move to the minute slot to set the minute. If you do not want to use a
power off time, select "--" for the hour slot, and "00" for the minute slot.

5. Press the EXIT button, and then press the PLUS button to highlight the INPUT item, and then press

the UP/DOWN button to select an input source. If no input source is selected, the default input source
(VIDEO) will be used.

6. Press the PLUS button to select what da ys in a w eek this schedule item will be take effect, and then press

the SET button.

7. If you want to set up more schedule items, press the EXIT button and then repeat the steps above. A

check mark in the box next to the number of the schedule item indicates that the selected schedule is in
effect.

Notes:

• The selection of EVERY DAY within a schedule item takes priority over other schedules that are set up to operate

weekly.

• When schedule items overlap, scheduled power on time has priority over scheduled power off time.

• If there are two schedule items programmed for the same time, then the highest numbered schedule has priority.

MONITOR ID

Set the ID number for controlling the monitor via the RS232C connection. Each monitor must have an
unique ID number when multiple BDL4230E monitors are connected.

Use the PLUS/MINUS button to select a monitor ID.

DDC/CI

Choose to turn ON or OFF the DDC/CI communication function. Select ON for normal use.
Use the PLUS/MINUS button to make selection.

SMART POWER

Set the monitor to reduce the power consumption automatically.
Use the PLUS/MINUS button to toggle between

• OFF • MEDIUM

• HIGH

AUTO SIGNAL DETECTION

Choose to let the monitor detect and display available signal sources automatically.

• ON - Set the monitor to display the image automatically once a signal is connected.

• OFF - Once a signal is connected, it can only be selected manually.

Use the PLUS/MINUS button to make selection.

ADVANCED OPTION RESET

Reset all settings in the ADVANCED OPTION menu.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make

selection. Select
button to cancel and then return to the previous menu.

YES and press the SET button to restor e settings to factory preset values. Pr ess the EXIT

RETURN TO THE CONTENTS

User Manual BDL4230E

5. INPUT MODE

VGA Resolution

Standard

Resolution

VGA 640 480

WVGA 720 400 70 Hz 33.75 MHz 16:9

SVGA 800 600

XGA 1024 768

WXGA 1280 768 60 Hz 79.5 MHz 5:3 Wide XGA
WXGA 1280 800 60 Hz 79.5 MHz 16:10 Wide XGA

SXGA 1280 960 60 Hz 108 MHz 4:3 Super XGA

SXGA 1280 1024 60 Hz 108 MHz 5:4 Super XGA
WXGA 1360 768 60 Hz 85.5 MHz 16:9 Wide XGA
WXGA 1366 768 60 Hz 85.5 MHz 16:9 Wide XGA

Active Resolution

Refresh Rate Pixel Rate Aspect Ratio Stand for Mode

H Pixels V Lines

60 Hz 25.175 MHz

4:3 Video Graphic Array72 Hz 31.5 MHz

75 Hz 31.5 MHz

Wide Video Graphic

Array

60 Hz 40 MHz

4:3 Super VGA

75 Hz 49.5 MHz
60 Hz 65 MHz

4:3 Extended Graphic Array

75 Hz 78.75 MHz

UXGA 1600 1200 60 Hz 162 MHz 4:3 Ultra XGA

HD1080 1920 1080 60 Hz 148.5 MHz 16:9 HD1080

SDTV Resolution

Standard

Resolution

480i

480p 59.94 Hz 27 MHz

576i

576p 50 Hz 27 MHz

HDTV Resolution

Standard

Resolution

720p 1280 720

1080i 1920 1080

Active Resolution

H Pixels V Lines

720 480

720 480

Active Resolution

H Pixels V Lines

Refresh Rate Pixel Rate Aspect Ratio Stand for Mode

29.97 Hz 13.5 MHz
4:3 Modified NTSC Standard

25 Hz 13.5 MHz

4:3 Modified PAL Standard

Refresh Rate Pixel Rate Aspect Ratio Stand for Mode

50 Hz

74.25 MHz 16:9 Normally DVB Mode

60 Hz
25 Hz

74.25 MHz 16:9 Normally ATSC Mode

30 Hz

1080p 1920 1080

• The PC text quality is optimum in HD 1080 mode (1920 x 1080, 60Hz).

• Your PC display screen might a ppear different depending on the manufactur e (and your particular version of Windows).
Check your PC instruction book for information about connecting your PC to a display.

RETURN TO THE CONTENTS

50 Hz

148.5 MHz 16:9 Normally ATSC Mode

60 Hz

User Manual BDL4230E

• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5KHz (horizontal). In some
cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is
disconnected). If so, press the INPUT button to enter the video mode. Also, make sure that the PC is connected.

• When horizontal synchronous signals seem irr egular in RGB mode, check PC pow er sa ving mode or cable connections.

• The display settings table complies to the IBM/VESA standards, and based on the analog input.

• The DVI support mode is regarded as same to the PC support mode.

• The best timing for the vertical frequency to each mode is 60Hz.

RETURN TO THE CONTENTS

User Manual BDL4230E

6. PIXEL DEFECT POLICY

Philips strives to deliver the highest quality products. We use some of the industry's most advanced manufacturing
processes and practice stringent quality control. However, pixel or sub-pixel defects on the PDP / TFT panels used in
Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from
pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be
repaired during the warranty period in line with your local guarantee conditions.

This notice explains the different types of pixel defects and defines the acceptable defect level for the BDL4230E LCD
screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level which is
given in the reference table. If the LCD screen is within specification a warranty exchange / claim back will be refused.
Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even
higher quality standards for those.

6.1. PIXELS AND SUB-PIXELS

A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and blue. Many pixels
together form an image. When all sub-pixels of a pixel are lit, the three colored sub-pixels together appear as a single
white pixel. When all are dark, the three colored sub-pixels together appear as a single black pixel. Other combinations
of lit and dark sub-pixels appear as single pixels of other colors.

subpixel subpixel

6.2. TYPES OF PIXEL DEFECTS + DOT DEFINITION

Pixel and sub-pix el defects a ppear on the scr een in differ ent ways. There are thr ee categ ories of pix el defects and se v eral
types of sub-pixel defects within each category.

Dot definition = What is a defective "Dot"? :

One or more defective, adjacent sub-pixel are defined as one "dot". The no. of defective sub-pixels are not relevant to
define a defective dot. This means that a defectiv e dot can consist of one, two or thr ee defectiv e sub-pix els which can be
dark or lit.

One dot = One Pixel; consists of three sub-pixels of Red; Green and Blue

subpixel

pixel

RETURN TO THE CONTENTS

User Manual BDL4230E

6.3. BRIGHT DOT DEFECTS

Bright dot defects appear as pixels or sub-pixels that are always lit or "on". These are the examples of bright dot defects:

Two adjacent lit sub-pixels:

One lit red, green or blue sub-pixel

6.4. DARK DOT DEFECTS

Black dot defects appear as pixels or sub-pixels that are always dark or "off". These are the examples of black dot
defects:

- Red + Blue = Purple

- Red + Green = Yellow

- Green + Blue = Cyan (Light Blue)

Three adjacent lit sub-pixels (one
white dot)

One dark dot

6.5. PROXIMITY OF PIXEL DEFECTS

Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also
specifies tolerances for the proximity of pixel defects. In the table below you can find specifications about:

• Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots)

• Minimum distance between dark dots

• Total no. of all defective dots

6.6. PIXEL DEFECT TOLERANCES

In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma /
LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table.

BRIGHT DOT EFFECT ACCEPTABLE LEVEL

MODEL BDL4230E
1 lit sub pixel 1

BLACK DOT EFFECT ACCEPTABLE LEVEL

1 dark sub pixel 8

TOTAL DOT DEFECTS OF ALL TYPES 9

Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect

Two adjacent dark dots = 1 pair of
dark dots

Two dark dots, specifications defines
the minimum distance between dark
dots

RETURN TO THE CONTENTS

User Manual BDL4230E

7. CLEANING AND TROUBLESHOOTING

7.1. CLEANING

Cautions When Using the Display

• Do not bring your hands, face or objects close to the ventilation holes of the
display. Top of display is usually very hot due to the high temperature of exhaust
air being released through the ventilation holes. Burns or personal injuries may
occur if any body parts are brought too close. Placing any object near the top
of the display could also result in heat related damages to the object as well as
the display itself.

• Be sure to disconnect all cables before moving the display. Moving the display
with its cables attached may damage the cables and thus case fire or electric
shock danger.

• Disconnect the power plug from the wall outlet as a safety precaution before
carrying out any type of cleaning or maintenance procedure.

Front Panel Cleaning Instructions

• The front of the display has been specially treated. Wipe the surface gently
using only a cleaning cloth or a soft, lint-free cloth.

• If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent
solution. Wring the cloth to remove excess liquid. Wipe the surface of the
display to remove dirt. Then use a dry cloth of the same type to dry.

• Do not scratch or hit the surface of the panel with fingers or hard objects of
any kind.

• Do not use volatile substances such as insert sprays, solvents and thinners.

Cabinet Cleaning Instructions

• If the cabinet becomes dirty, wipe the cabinet with a soft, dry cloth.

• If the cabinet is extremely dirty, soak a lint-free cloth in a mild detergent
solution. Wring the cloth to remove as much moisture as possible. Wipe the
cabinet. Use another dry cloth to wipe over until the surface is dry.

• Do not allow any water or detergent to come into contact with the surface of
the display. If water or moisture gets inside the unit, operating problems,
electrical and shock hazards may result.

• Do not scratch or hit the cabinet with fingers or hard objects of any kind.

• Do not use volatile substances such as insert sprays, solvents and thinners on
the cabinet.

• Do not place anything made from rubber or PVC near the cabinet for any
extended periods of time.

RETURN TO THE CONTENTS

User Manual BDL4230E

7.2. TROUBLESHOOTING

Symptom Possible Cause Remedy

No picture is displayed 1. The power cord is disconnected.

2. The main power switch on the back of
the monitor is not switched on.

3. The selected input has no connection.

4. The monitor is in standby mode in VGA
mode.

Interference displayed on
the monitor or audible
noise is heard

Color is abnormal The signal cable is not connected properly. Make sure that the signal cable is attached

Picture is distorted with
abnormal patterns

Display image doesn’t fill up
the full size of the screen

Caused by surrounding electrical
appliances, cars/motorcycles or fluor escent
lights.

1. The signal cable is not connected

properly.

2. The input signal is beyond the
capabilities of the monitor.

The zoom mode is not correctly set. Use the ZOOM MODE or CUSTOM

1. Plug in the power cord.

2. Make sure the power switch is switched on.

3. Connect a signal connection to the monitor.

Move the monitor to another location to see
is the interference is reduced.

firmly to the back of the monitor.

1. Make sure that the signal cable is attached
firmly.

2. Check the video signal source to see if it is

beyond the range of the monitor. Please
verify its specifications with this monitor’s
specification section.

ZOOM function in the SCREEN menu to
fine tune display geometry and time frequency
parameter.

Can hear sound, but no

Can see picture but no
sound is heard

Some picture elements do
not light up

After-Images can still be
seen on the monitor after
the monitor is powered off.
(Examples of still pictures
include logos, video games,
computer images, and
images displayed in 4:3
normal mode)

Improperly connected source signal cable. Make sure that both video inputs and sound

inputs are correctly connected.

1. Improperly connected source signal
cable.

2. Volume is turned all the way down.

3. MUTE is turned on.

4. No external speaker connected.

Some pixels of the display may not turn on. This monitor is manufactured using an

A still picture is displayed for an over
extended period of time

1. Make sure that both video inputs and sound
inputs are correctly connected.

2. Use VOL UP/VOL DOWN button to

hear sound.

3. Switch MUTE off by using the MUTE

button.

4. Connect external speakers and adjust the

volume to a suitable level.

extremely high level of precision technology:
however, sometimes some pixels of the
monitor may not display. This is not a
malfunction.

Do not allow a still image to be displayed for
an extended period of time as this can cause a
permanent after-image to remain on the
monitor.

RETURN TO THE CONTENTS

User Manual BDL4230E

8. TECHNICAL SPECIFICATIONS

Display

Item Specifications
Screen Size (Active Area) 42” LCD
Aspect ratio 16:9
Number of pixels 1920 (H) x 1080 (V)
Pixel pitch 0.4845 (H) x 0.4845 (V) [mm]
Displayable colors 1.06B colors
Brightness 500 cd/m
Dynamic contrast ratio 3000:1
Contrast ratio (typical) 1400:1
Viewing angle 178 degrees

In/Out Terminals

Item Specifications

12W (L) + 12W (R) [RMS]/8

Speaker Output Internal Speaker

1 Way 1 Speaker System

82 dB/W/M/160 Hz ~ 13 KHz
Audio Output RCA Jack x 1 0.5V [rms] (Normal)/ 2 Channel (L+R)
Audio Input RCA Jack x 2 0.5V [rms] (Normal)/ 2 Channel (L+R)
RS232C D-Sub Jack x 2 (9 pin) TXD + RXD (1:1)

Digital RGB: TMDS (Video + Audio)
HDMI Input HDMI Jack x 1 (Type A)

MAX: Video - 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)

Audio - 48 KHz/ 2 Channel (L+R)
DVI-D Input DVI-D jack x 1 Digital RGB: TMDS (Video)

Analog RGB: 0.7V [p-p] (75 ), H/CS/V: TTL (2.2k ), SOG: 1V [p-p]
RGB Input

D-Sub Jack x 1 (15 pin)

(75 )

MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)

3.5mm Mini-jack x 1 Audio: 0.5V [rms] (Normal)/2 Channel (L+R)
Analog RGB: 0.7V [p-p] (75 ), H/CS/V: TTL (2.2k ), SOG: 1V [p-p]

RGB Output D-Sub Jack x 1 (15 pin)

(75 )
MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)

Component Input RCA Jack x 1

Y: 1V [p-p] (75 ), Pb: 0.7V [p-p] (75 ), Pr: 0.7V [p-p] (75 )
MAX: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Y: 1V [p-p] (75 ), C: 0.286V [p-p] (75 ) [NTSC]

S-Video Input Mini DIN Jack x 1 (4 pin)

Y: 1V [p-p] (75 ), C: 0.300V [p-p] (75 ) [PAL/SECAM]

Video Input BNC Jack x 1
Video Output BNC Jack x 1

Video: 1V [p-p] (75 ) [NTSC/PAL/SECAM]
Video: 1V [p-p] (75 ) [NTSC/PAL/SECAM]

2

General

Item Specifications
Power Supply AC 100V ~ 240V, 50/60 Hz
Power Consumption (Max) 190W

RETURN TO THE CONTENTS

User Manual BDL4230E

Dimension [W x H x D mm]
With Stand
Without Stand
Weight
With Stand
Without Stand

Environmental Condition

Item Specifications
Temperature

Humidity

Pressure

Internal Speaker

Type 1 Way 1 Speaker
Input 12 W (RMS)
Impedance
Output Sound Pressure 82 dB/W/M
Frequency Response 160 Hz ~ 13 KHz

Operational
Storage
Operational
Storage
Operational
Storage / Shipment

Item Specifications

992 x 585 x 319.2 mm
992 x 585 x 119.6 mm

26.4 Kg

24.5 Kg

0 ~ 40 C

-20 ~ 60 C
20 ~ 80% RH (No condensation)
5 ~ 95% RH (No condensation)
800 ~ 1100 hPa (Altitude: 0 ~ 2,000 m)
700 ~ 1100 hPa (Altitude: 0 ~ 3,000 m)

8

RETURN TO THE CONTENTS
