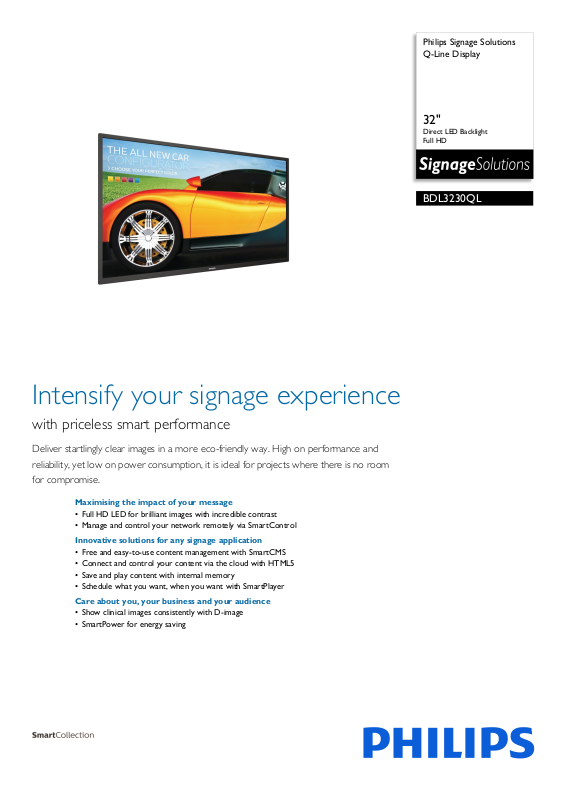

Philips BDL3230QL/00 leaflet

Philips Signage Solutions
Q-Line Display

32"

Direct LED Backlight
Full HD

BDL3230QL

Intensify your signage experience

with priceless smart performance

Deliver startlingly clear images in a more eco-friendly way. High on performance and
reliability, yet low on power consumption, it is ideal for projects where there is no room
for compromise.

Maximising the impact of your message

• Full HD LED for brilliant images with incredible contrast

• Manage and control your network remotely via SmartControl

Innovative solutions for any signage application

• Free and easy-to-use content management with SmartCMS

• Connect and control your content via the cloud with HTML5

• Save and play content with internal memory

• Schedule what you want, when you want with SmartPlayer

Care about you, your business and your audience

• Show clinical images consistently with D-image

• SmartPower for energy saving

BDL3230QL/00

Q-Line Display

32" Direct LED Backlight, Full HD

Highlights

Full HD LED technology

Picture Quality matters. Standard displays
deli

ver quality, but you expect more. Imagine
crisp detail paired with high brightness,
incredible contrast and realistic colours for a
true-to-life picture.

SmartControl

SmartControl lets you remotely control and
manage your network of displays via RJ45 and
RS232C. Easily fine-tune all display settings
including resolution, brightness, contrast and
cloning of your settings over your complete
network.

SmartCMS

SmartBrowser

Connect and control your content via the
cloud with the integrated HTML5 browser.
Design your signage content online and
connect it with a display or with your entire
network. Simply plug in a RJ45 Internet cable
for network connection and connect the
display with the dedicated URL address, and
you are ready to play your cloud-based
content.

Internal Memory

Save and play content with internal memory.
Upl

oad your media into the display and
playback content immediately. Working in
conjunction with the internal browser, it also
serves as a memory cache when streaming
online content. If the network ever fails, the
internal memory keeps content running by
playing a cached version of the content,
ensuring that your media stays up even if the
network goes down.

Clinical D-image

D-image helps you to review and diagnose
clinical images with consistent and accurate
display performance. To achieve reliable
clinical interpretations, our professional
displays are factory calibrated to give
optimised greyscale standard display
performance. D-image helps you to excel in
every aspect of patient care.

SmartPower

The backlight intensity can be controlled and
pre-set by the system to reduce the power
consumption by up to 50%, which saves
substantially on energy costs.

Free and easy-to-use content management
system that works exclusively with Philips
Signage Solutions displays to manage your
digital signage content. With SmartCMS you
can create and schedule your own content
over 24 hours every day. Simply create your
ne

twork, design your content and schedule

your playlist, and you are ready to play!

SmartPlayer

Turn your USB into a true cost-effective digital
s

ignage device. Simply save your content
(video, audio, pictures) on your USB and plug
into your display. Create your playlist and
schedule your content via the on-screen menu,
and enjoy your own playlists anytime,
anywhere.

SmartCollection

SmartCollection offers you customisable
sol

utions to meet your specific
requirements.
Both integrators and solution providers
are

offered the latest innovations, while
the audience can enjoy impactful
solutions. When developing smart
innovations we focus on Caring,
Innovative and Impactful solutions.

BDL3230QL/00

Q-Line Display

32" Direct LED Backlight, Full HD

Specifications

Picture/Display

• Diagonal screen size: 31.5 inch / 80 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 1400:1

• Dynamic contrast ratio: 500,000:1

• Response time (typical): 8 ms

• Aspect ratio: 16:9

• Viewing Angle (H / V): 178 / 178 degree

• Pixel pitch: 0.36375 x 0.36375 mm

• Display colours: 16.7 Million

• DICOM: Clinical D-image

Supported Display Resolution

mputer formats

• Co
Res

olution Refresh rate
640 x 480 60, 67, 72, 75 Hz
800 x 600 56, 60, 72, 75 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1280 x 800 60 Hz
1360 x 768 60 Hz
1366 x 768 60 Hz
1440 x 900 60 Hz
1600 x 1200 60 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz

deo formats

• Vi
olution Refresh rate

Res
480i 60 Hz
480p 60 Hz
576p 50 Hz
576i 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 50, 60 Hz

Connectivity

• Video input: DVI-D, HDMI, Component (RCA),

Composite (RCA), VGA (Analogue D-Sub)

• Audio input: 3.5 mm jack, Audio Left/Right (RCA)

• Audio output: Audio Left/Right (RCA)

• External control: RJ45, RS232C (in/out) 2.5 mm

c

k, IR (in/out) 3.5 mm jack

ja

• Other connections: USB

Convenience

• Memory: Internal memory access, 8 GB eMMC

• Screen-saving functions: Pixel Shift

• Energy-saving functions: Smart Power

• Tiled Matrix: Up to 15 x 15

• Start-up: Switch on delay, Switch on status, Wake
on L

AN

up

• Start-up window: enable/d

• Keyboard control: Lockable, Hidden

• Network controllable: RS232, RJ45, One Wire

(HDMI-CEC)
Signal loop through: RS232, IR Loop through

•

isable Philips logo

Dimensions

•Bezel width: 11.9 (TLR)/17.2 (B) mm

•Set dimensions (W x H x D):

x 425.4 x 63.6 mm

726.5

• Set dimensions in inch (W x H x D):

x 16.75 x 2.5 inch

28.6

• VESA Mount: 100 x 100 mm, 200 x 200 mm, M4

• Product weight: 5.20 kg

• Product weight (lb): 14.74 lb

Operating conditions

• Temperature range (operation): 5 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 %

• MTBF: 50,000 hour(s)

Power

• Mains power: AC 100-240 V, 50-60 Hz

• Standby power consumption: <0.5 W

• Consumption (Typical): 57 W

Sound

• Built-in speakers: 2 x 10 W RMS

Multimedia Applications

• USB Playback Video: 3G2, 3GP, ASF, ASX, AVI,

DAT, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV,
MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS,
VOB, WEBM, WMV, Xvid

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Audio: AAC, AC3, AIF

EC3, M4A, MP3, OGA, OGG, WAV, WMA

,

AIFF, AMR,

Accessories

• Included accessories: AC Power Cord, RS232

cable, VGA cable, Remote Control, Batteries for
remote control, User manual on CD-ROM, Quick
start guide

Miscellaneous

•Warranty: 3 year warranty

• On-Screen Display Languages: English, French,
erman, Italian, Polish, Turkish, Russian, Simplified

G
Chinese, Spanish, Traditional Chinese

• Regulatory approvals: BSMI, CB, CCC, CE, CECP,

ic

k, EPA, GOST, UL/cUL

C-T

•

Issue date 2021-12-13

Version: 4.1.1

12 NC: 8670 001 22318
EAN: 87 12581 73029 1

© 2021 Koninklijke Philips N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.

www.philips.com
