User Manual
TYPE Nr. BDS4241V
BDH4241V
BDH5021V
User Manual BDS4241V/BDH4241V/BDH5021V
TABLE OF CONTENTS
1 IMPORTANT NOTES AND SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.1 Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Warnings and Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2.1 Note to the CATV System Installer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Cleaning & Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 End-Of-Life Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 PARTS AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3.1 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3 Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.1 General functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.2 Teletext function buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.3.3 Inserting the batteries in the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4 CONNECTIONS TO EXTERNAL EQUIPMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4.1 Connecting external equipment (VCR, DVD, camcorder, satellite receiver) . . . . . . . . . . . . . . . . . . . . 13
4.1.1 Using SCART (AV) socket input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1.2 Using S-Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1.3 Using Component Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.1.4 Using Video input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1.5 Using monitor output. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.1.6 Using DVI input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.2 External Audio Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2.1 Connecting External Amplified Speakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Connecting a PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.3.1 Using RGB (VGA) or DVI Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 BASIC FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
5.1 Powering ON / OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2 Selecting Signal Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.3 Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.4 MUTE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.5 Display information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6 ADVANCED FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
6.1 Picture Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.1.1 Adjusting Picture Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.1.2 Reset to the factory defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.2 Sound Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.2.1 Adjusting Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.3 OSD Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.4 Power Save Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.5 Minimize screen sticking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.6 Freezing the current picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.7 On-screen displaY TIMEOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.8 Adjusting the menu transparency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.9 Changing the screen size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1
User Manual BDS4241V/BDH4241V/BDH5021V
6.10 Setting up the pc input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.11 Teletext. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 INPUT MODE (RGB/DVI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
8 TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
9 CLEANING AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
9.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
9.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
10 LIMITED WARRANTY (EUR). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
2
User Manual BDS4241V/BDH4241V/BDH5021V
1. IMPORTANT NOTES AND SAFETY INSTRUCTIONS
1.1 SAFETY INSTRUCTIONS
■ Read and keep these instructions.
■ Heed all warnings.
■ Follow all instructions.
■ Do not use this apparatus near water.
■ Disconnect from the electric outlet before cleaning. Do not use
liquid or aerosol cleaners. Clean only with a slightly damp cloth.
■ Do not block any of the ventilation openings. Install in accordance
with the manufacturers instructions.
■ Do not install in direct sunlight, near any heat sources such as
radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
■ Do not defeat the safety purpose of the polarized or grounding type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or third prong are provided for your safety. When
the provided plug does not fit into your outlet, consult an electrician
for replacement of the obsolete outlet.
■ Do not remove cover, to prevent electric shock. Refer servicing to
qualified service personel only.
■ Unauthorized modification of this equipment or usage of an
unshielded connecting cable may cause excessive interference.
■ Adjust only those controls that are covered by the operating
instructions. Improper adjustment of other controls can result in
damage which often requires extensive work by a qualified technician
to restore the unit to normal operation.
■ Use in well-ventilated area and do not block any of the ventilation
openings. Install in accordance with the manufacturer’s instructions.
■ The unit must be operated from the type of power source indicated
on the label. If the type of available power is unknown, consult your
dealer or local power company.
■ Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact your
electrician. Do not alter the plug; this will defeat the safety feature.
■ Do not overload wall outlets and extension cords as this can result
in a risk of fire or electric shock.
■ If the picture displayed looks abnormal, turn off the unit and
disconnect it from the electric outlet. Verify your signal wire
connections and reconnect the display to the electric outlet.
■ Only use attachments/accessories specified by the manufacturer.
3
User Manual BDS4241V/BDH4241V/BDH5021V
■ Use only with a cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with apparatus. When a cart is used, use
caution when moving the cart/apparatus combination to avoid injury
from tip-over.
■ Unplug this apparatus during lightning storms or when unused for
long periods of time.
■ Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
■ This product may contain mercury. Disposal of this material may be
regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org
■ Damage Requiring Service:
The appliance should be serviced by qualified service personnel
when:
● The power supply cord or the plug has been damaged or frayed.
● Objects have fallen, or liquid has been spilled into the appliance.
● The appliance has been exposed to rain.
● The appliance does not appear to operate normally or exhibits a
marked change in perfomance.
● The appliance has been dropped, or the enclosure damaged.
● Unit does not operate normally when the operating instructions
are followed.
■ Tilt/Stability:
● All displays must comply with recommended international global
safety standards for tilt and stability properties of its cabinet
design.
● Do not compromise these design standards by applying excessive
pull force to the front, or top, of the cabinet which could
ultimately overturn the product.
● Do not endanger yourself, or children, by placing electronic
equipment/toys on the top of the set and cause product damage
and/or personal injury.
● Do not place the unit on an unstable cart, stand or table. Or the
product may fall, causing serious damage.
■ Do not place the unit on a bed, soffa, rug, or similar surfaces.
■ Wall or Ceiling Mounting:
The appliance should be mounted to a wall or ceiling only as
recommended by the manufacturer.
■ Power Lines:
An outdoor antenna should be located away from power lines.
■ Object and Liquid Entry:
Care should be taken so that objects do not fall and liquids are not
spilled into the enclosure through openings.
4
User Manual BDS4241V/BDH4241V/BDH5021V
■ Battery Usage:
CAUTION: To prevent battery leakage that may result in bodily
injury, property damage, or damage to the unit.
● Install all batteries correctly, with + and - aligned as marked on
the unit.
● Do not mix batteries (old and new or carbon and alkaline, etc.).
● Remove batteries when the unit is not used for a long time.
1.2 WARNINGS AND PRECAUTIONS
1.2.1 NOTE TO THE CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention
to Article 820-40 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the cable ground must be
connected to the grounding system of the building, as close to the point
of cable entry as practical.
KNOW THESE SAFETY SYMBOLS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONEL. a
■ This lightning flash with arrow-head within a triangle indicates
uninsulated material within your unit, which can cause an electric
shock. For the safety of everyone in your household, do not remove
product cover.
■ For the safety of everyone in your household, do not remove
product cover. The exclamation point within a triangle calls
attention to features for which you mustread the enclosed literature
closely to prevent operating and maintenance problems.
5
User Manual BDS4241V/BDH4241V/BDH5021V
WARNING
To reduce the risk of fire or electric shock, this appliance must not be
exposed to rain or moisture, and objects filled with liquids, such as
vases, must not be placed upon this apparatus.
CAUTION
To prevent electric shock, match wide plug blade to wide slot, and fully
insert.
ATTENTION
Pour éviter les chocs électriques, introduire la lame la plus large de la
fiche dans la bome correspondante de la prise et pousser jusqu’au fond.
1.3 CLEANING & CARE
■ To avoid possible shock hazard, please be sure that the television is
unplugged from the electrical outlet before cleaning.
■ When cleaning the television screen, take care not to scratch or
damage the screen surface (avoid wearing jewelry or using anything
abrasive).
■ Wipe the front of the screen with a clean cloth dampened with
water. Use even, easy, vertical strokes when cleaning.
■ Gently wipe the cabinet surfaces with a clean cloth or sponge
dampened in a solution of cool clear water. Use a clean dry cloth to
dry the wiped surfaces.
■ Occasionally vacuum the ventilation holes or slots in the cabinet
back.
■ Never use thinners, insecticide sprays, or other chemicals on or near
the cabinet, as they might cause permanent marring of the cabinet
finish.
■ Do not allow a still image to be displayed for an extended period of
time as this can cause a permanent after-image to remain.
1.4 END-OF-LIFE DISPOSAL
■ This Philips product and its packaging contain materials that can be
recycled and re-used. Specialized companies can recycle your
product to increase the amount of reusable materials and minimize
the amounts which need to be properly disposed.
■ This product might also use batteries, which should not be thrown
away when depleted, but should be handed in and disposed of as
small chemical waste.
■ Please find out about the local regulations regarding the disposal of
the television, batteries, and packaging materials whenever you
replace existing equipment.
6
2. UNPACKING AND INSTALLATION
2.1 UNPACKING
■ The monitor is packed in a carton, together with the standard
accessories. Any other optional accessories will be packed
separately.
■ The weight of the monitor differs - depending on the type - from 29
to 43 kg. Due to the size and weight it is recommended to move it
by 2 people.
■ The protective glass and the glass substrate are installed on the front
of the product. Since both glass can be broken and scraped easily the
product has to be handled with care. Never place the monitor with
the glass faced down unless it is protected with pads.
■ After opening the carton ensure that the content is in good
condition and complete.
2.2 PACKAGE CONTENTS
Please verify that you received the following items with your package
content:
1Monitor
2 Remote Control with batteries
3User Manual on CD-ROM
4 Power Cables (UK, Continent)
5VGA, DVI cable
6 Table stand (feet)
User Manual BDS4241V/BDH4241V/BDH5021V
User Manual
7
Remote Control/
AAA Batteries
Power Cord
User Manual BDS4241V/BDH4241V/BDH5021V
2.3 INSTALLATION NOTES
■ Due to the high power consumption, always use the plug exclusively
designed for this product. If an extended line is required, please
consult your service agent.
■ The product should be installed on a flat surface to avoid tipping.The
distance between the back of the product and the wall should be
maintained for proper ventilation. Avoid installing the product in the
kitchen, bathroom or any other places with high humidity so as not
to shorten the service life of the electronic components.
■ Please ensure the product is installed horizontally. Any 90 degrees
clockwise or counter-clockwise installation may induce poor
ventilation and subsequent component damage.
■ To protect the screen and avoid screen damage, do not display a still
picture for a long time.
■ The PDP can normally operate only under 2000m in height. It might
abnormally function at a place over 2000m in height and do not
install and operate there.
8
3. PARTS AND FUNCTIONS
User Manual BDS4241V/BDH4241V/BDH5021V
11111211311411511611
7
3.1 FRONT VIEW
1. Input Button
Use this button to switch between available inputs.
2. Menu Button
Use this button to engage the On Screen Display menu.
3. Volume Adjustment Buttons
Use these buttons to adjust volume up and down. These keys also
serve as navigation and adjustment keys when On Screen Display
menu is engaged.
4. Select Buttons
Use these buttons to navigate through the the On Screen Display
menu. If an optional TV tuner is installed, these buttons also function
as Channel Up/Down.
5. Power (Standby) Button
Turns power on/off from standby mode. There is a wait period
between on/off cycles.
6. Status LED
● Not Illumated = No AC Power detected
If the main power switch (rear of panel) is turned off, this LED
will not illuminate.
● Red = Standby (Power OFF) with AC power detected
The LED will illuminate in red color if the monitor is shut off but
the main power cord is plugged into the back of the unit.
● Solid Green = Power ON
7. Remote Control Signal Receiver
Point the remote control towards this spot on the PDP.
9
11111
User Manual BDS4241V/BDH4241V/BDH5021V
3.2 REAR VIEW
11
7
2
11
3
11
4
11
5
11
6
11
8
11
9
11
10
11
1
1. External speaker output
Connect to external speakers.
2. RS-232 Connector
Connect to a PC to update software.
3. Digital DVI input
Connect to digital video signals from a Set-Top box or Computer
Audio Output.
4. RGB(VGA) input
Connect to RGB (VGA) output of Computer or Set-Top box.
5. Component Video inputs
Auto-detecting component video inputs (Y/Pb/Pr or Y/Cb/Cr) for
connecting to the component output jacks of a DVD player or
Set-Top Box.
6. S-Video input
Connect S-Video signals from external sources such as VCRs or
DVD players.
7. Monitor output
Connect to the video and audio input of a recording VCR or DVD.
Connect to the audio input of an audio system.
8. Video input
Connect to the video and audio output of an external device.
9. SCART (AV) Connector
Connect to external sources such as VCRs or DVD players.
10. Power connection
Connect the supplied power cord to the wall outlet.
10
User Manual BDS4241V/BDH4241V/BDH5021V
3.3 REMOTE CONTROL
3.3.1 GENERAL FUNCTIONS
1. Sound Mute On/Off
2. Standby Power On/Off
11
11
1
11
3
11
4
2
11
5
Push this button to switch on the monitor from Standby mode. Push
it again to turn it off to Standby mode.
3. Menu
Activates the OSD (On Screen Display) menu.
4. Volume +/-
Turns volume up or down.
5. Channel Up/Down
Changes the TV channels sequentially.
10
11
6
11
8
11
9
11
11
6. TEXT
11
7
11
Activates the TELETEXT mode.
7. INPUT
Displays the available input sources.
8. FREEZE
Freeze the display on the screen. The playback system will continue
playing.
9. Number keypad
Use number keypad to select the TV channel you want to watch.
10.RECALL
Display information.
11. SLEEP
Press this button to set timer off.
11
User Manual BDS4241V/BDH4241V/BDH5021V

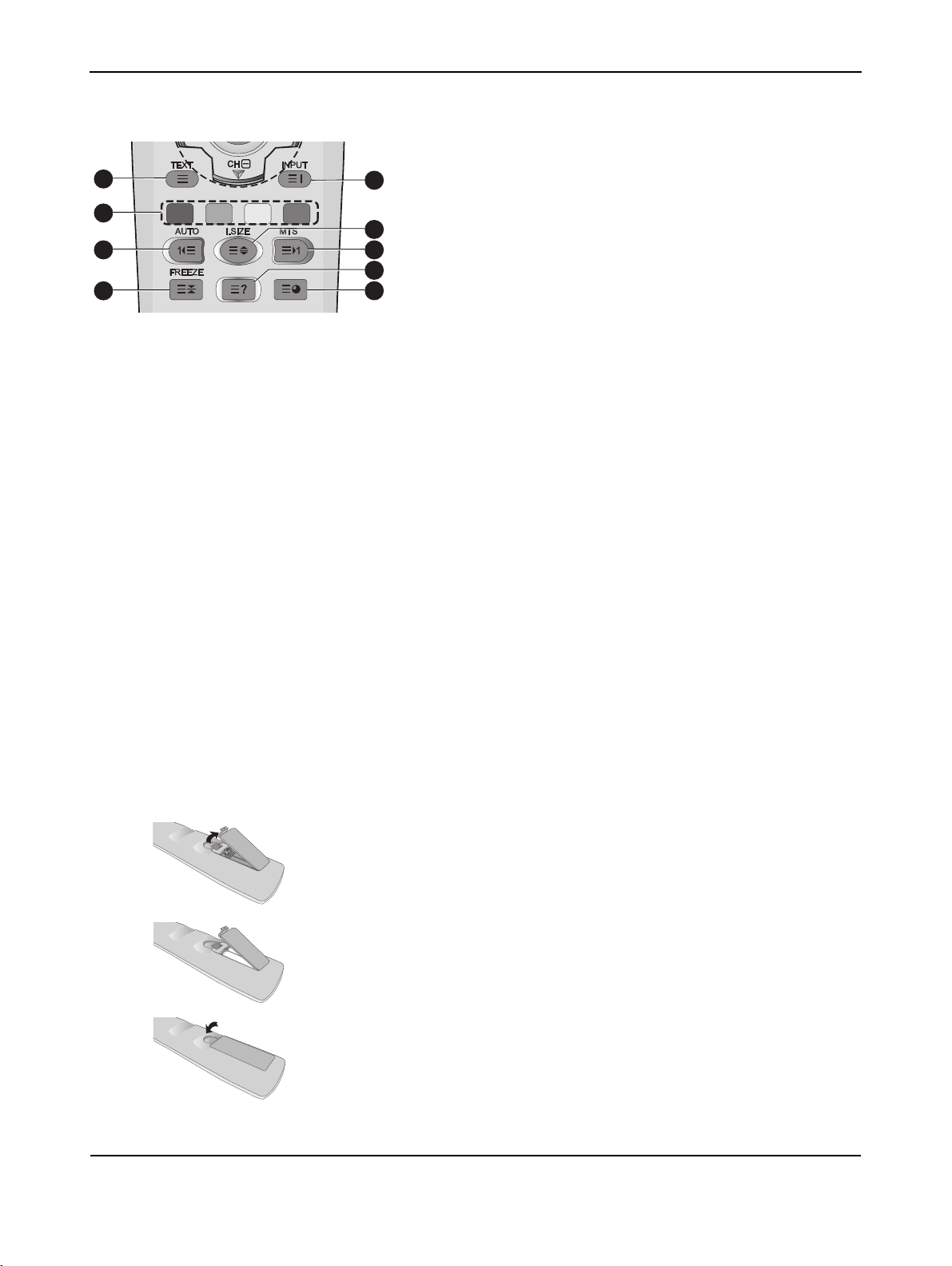

3.3.2 TELETEXT FUNCTION BUTTONS
1. TEXT
11
1
11
3
11
4
11
7
11
2
11
5
11
6
11
8
11
9
Activates the TELETEXT mode.
2. INPUT
Displays the TELETEXT index.
3. Fasttext
With fasttext, you can easily access the topic and relevant pages you
want by pressing the red, green, yellow and blue buttons on the
remote control.
In TELETEXT mode, volume controls remain available, but the
relevant symbols are not shown on the screen.
4. Page Up (AUTO)
Dispays the next TELETEXT page.
5. Zoom (I.SIZE)
Press the I.SIZE key once to zoom in on the top part of the screen.
Press twice to zoom in on the bottom part of the screen and three
times to return to normal display.
6. Page Down (MTS)
Displays the previous TELETEXT page.
7. FREEZE
Freezes the current page, preventing update and subpage display.
● Press the HOLD/POSITION key on the remote control to select
this function.
● Press the HOLD/POSITION key again to cancel.
8. Reveal
Reveals hidden page information. Press the Reveal button to show
the information again.
9. Sub-page
Press to display a secondary page by entering its number.
3.3.3 INSERTING THE BATTERIES IN THE REMOTE CONTROL
1 Remove the cover on the rear of the remote control.
2 Insert two AAA size 1.5V batteries ensuring that the "+" and "-" ends
of the batteries are correctly aligned.
3 Replace the cover.
Note:
Do not mix battery types, e.g. alkaline and managnese.
12
User Manual BDS4241V/BDH4241V/BDH5021V
4. CONNECTIONS TO EXTERNAL EQUIPMENT
4.1 CONNECTING EXTERNAL EQUIPMENT (VCR, DVD, CAMCORDER, SATELLITE RECEIVER)
4.1.1 USING SCART (AV) SOCKET INPUT
1 Connect the SCART socket of the external decvice to the SCART
socket of the monitor.
2 Connect the videorecorder to the antenna wall socket or cable box.
4.1.2 USING S-VIDEO INPUT
1 Connect the S-Video (4-pin DIN) connector of the external decvice
to the "S-VIDEO" input of the monitor.
2 Connect the red (R) and white (L) audio jacks of the device to the
R and L audio-in jacks located next to the S-VIDEO connector.
4.1.3 USING COMPONENT VIDEO INPUT
1 Connect the green-colored (labeled as "Y") jack of the device to the
green-colored "Y1" jack of the monitor.
2 Connect the red-colored (labeled as "Pr") jack of the device to the
red-colored "PR/CR" jack of the monitor.
3 Connect the blue-colored (labeled as "Pb") jack of the device to the
blue-colored "PB/CB" jack of the monitor.
4 Connect the red (R) and white (L) audio jacks of the device to the R
and L audio-in jacks of the monitor.
13
User Manual BDS4241V/BDH4241V/BDH5021V

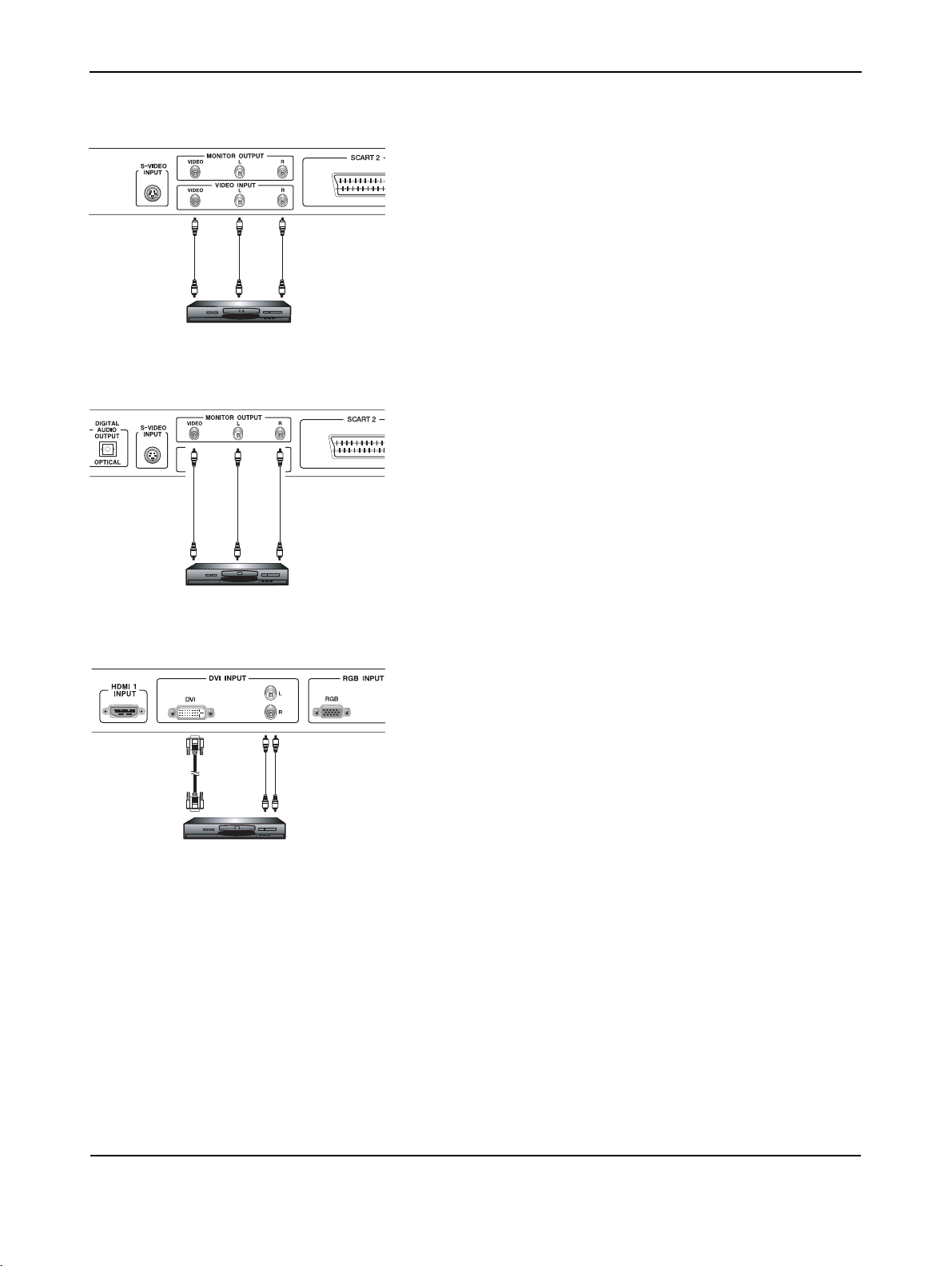

4.1.4 USING VIDEO INPUT
1 Connect the jack of the external device to the VIDEO INPUT of
the monitor.
2 Connect the red (R) and white (L) audio jacks to the R and L audio-
in jacks located next to the VIDEO connector.
4.1.5 USING MONITOR OUTPUT
1 Connect the jack of the DVD or VCR (for recording) or audio
system to the
2 Connect the red (R) and white (L) audio jacks to the R and L audio-
in jacks located next to the VIDEO connector.
MONITOR OUTPUT of the monitor.
4.1.6 USING DVI INPUT
1 Connect the DVI-jack of the DVD, decoder or satellite receiver to
DVI iNPUT.
the
2 Connect the red (R) and white (L) audio jacks to the R and L audio-
in jacks located next to the DVI connector.
14
User Manual BDS4241V/BDH4241V/BDH5021V
4.2 EXTERNAL AUDIO CONNECTION
4.2.1 CONNECTING EXTERNAL AMPLIFIED SPEAKERS
This monitor can be connected to an external set of amplified speakers
using the AUDIO OUT jacks located on the back of the monitor.
1 Connect the red (R) and white (L) AUDIO OUT jacks to the
external amplified speakers.
15
User Manual BDS4241V/BDH4241V/BDH5021V
4.3 CONNECTING A PC
4.3.1 USING RGB (VGA) OR DVI VIDEO INPUT
11
1 Connect the 15-pin D-Sub RGB(VGA) connector of the PC to the
1
RGB-IN connector of the monitor.
If you have a PC that is equipped with a DVI (Digital Visual Interface),
you may connect the PC DVI connector from the PC to the DVI-IN
connector of the monitor.
2 For both RGB (VGA) and DVI, connect the red (R) and white (L)
audio jacks of the PC to the R and L (DVI/RGB) AUDIO IN jacks of
the monitor.
Setting Up Your Display Using Plug and Play
This display adheres to VESA Plug and Play standard to eliminate
complicated and time consuming setup of monitors. This monitor
identifies itself to the computer and automatically sends the PC its
Extended Display Identification Data (EDID) using Display Data Channel
(DDC) protocols.
How to Set up Your PC for Use with Monitor (Windows)
11
2
The display settings for a typical Windows-based computer are shown
below. However, the actual screens on your computer will differ
11
3
depending on the version of Windows and video card equipped with the
computer. Even though the actual screen may look different from
example displayed below, basic set-up routine will apply in most cases.
1 Go to the Window's CONTROL PANEL by clicking START,
SETTINGS, CONTROL PANEL.
> The CONTROL PANEL Window is displayed.
2 Select the DISPLAY icon from this window.
> The DISPLAY PROPERTIES dialog box is displayed.
11
4
3 Select the SETTINGS tab to display your computer's video output
settings.
4 Set the "Screen Resolution" settings to 1024x768 PIXELS. For
11
5
COLOR QUALITY, select 24 BIT COLOR (might also be expressed
as 16 million colors).
5 If a vertical-frequency option is available, set the value to 60 or
60 Hz.
6 Click OK to complete the setting.
Note:
Both screen position and size will vary, depending on the type of PC
graphics card and its resolution selected. See # for an overview of the
supported resolutions.
16
5. BASIC FUNCTIONS
User Manual BDS4241V/BDH4241V/BDH5021V
5.1 POWERING ON / OFF
Make sure the monitor is plugged into the wall outlet with the supplied
power cord.
If the power is plugged in, the STATUS LED on the control panel will
illuminate in red color.
Using Front Panel or Remote Control
1 Press the POWER key on the front panel or the remote control.
=> The monitor will now turn on after a brief pause. The STATUS
LED will now turn green to indicate power on status.
2 Turn off the power by pressing the POWER key on the front panel
or the remote control again.
Main Input
TV
SCART 1
SCART 2
VIDEO
S-VIDEO
COMPONENT
RGB
DVI
HDMI 1
Move [- CH +] Select [- VOL +] Exit [MENU]
HDMI 2
5.2 SELECTING SIGNAL SOURCE
Using Front Panel or Remote Control
1Press the INPUT key on the front panel or the AV key on the
remote control.
2Pressing the
CH+ or CH- key will cycle the monitor through all
available input signal sources in the following order:
SCART1 - SCART2 - VIDEO - S-VIDEO - COMPONENT
- RGB - DVI
3Press the VOL+ or VOL- button to select the source.
17
User Manual BDS4241V/BDH4241V/BDH5021V
5.3 VOLUME ADJUSTMENT
Using Front Panel or Remote Control
Image Screen Setup Audio
V 06 emulo
T 550elber
Audio Preset [-VOL+] to Preset Audio
Move [- CH +] Adjust [- VOL +] Exit [MENU]
Image Screen Setup Audio
V 06 emulo
T 550elber
Audio Preset [-VOL+] to Preset Audio
Move [- CH +] Select [- VOL +] Exit [MENU]
1Press the MENU button on either the front panel or on the remote
control.
2Press the VOL+ or VOL- button to select Audio.
270ssaB
340ecnalaB
FFO NOetuM
3Press the CH- button to enter the selected menu group.
4Press the
VOL+ or VOL- button to adjust the sound volume.
Note:
If the monitor's built-in speakers are turned off, then the volume
controls will not affect volume generated by the built-in speaker.
270ssaB
340ecnalaB
FFO NOetuM
5.4 MUTE
Using Remote Control
1Press the MUTE key on the remote control.
=> The audio is cut off.
2 Press the the
MUTE, VOL+ or VOL- key to turn the audio back
on.
18
User Manual BDS4241V/BDH4241V/BDH5021V
5.5 DISPLAY INFORMATION
Via Remote Control
Press the RECALL button to display the channel information and
setting status. Press again to exit.
Note
The displayed information can differ, depending on the selected source.
001-ABC
TIMER OFF
TV
19
User Manual BDS4241V/BDH4241V/BDH5021V
20
6. ADVANCED FUNCTIONS
Image Screen Setup Audio
T050tni
Image Preset [-VOL+] to Preset Image
Move [- VOL +] Select [- CH +] Exit [MENU]
Image Screen Setup Audio
Adjust [- VOL +] Exit [MENU]
User Manual BDS4241V/BDH4241V/BDH5021V

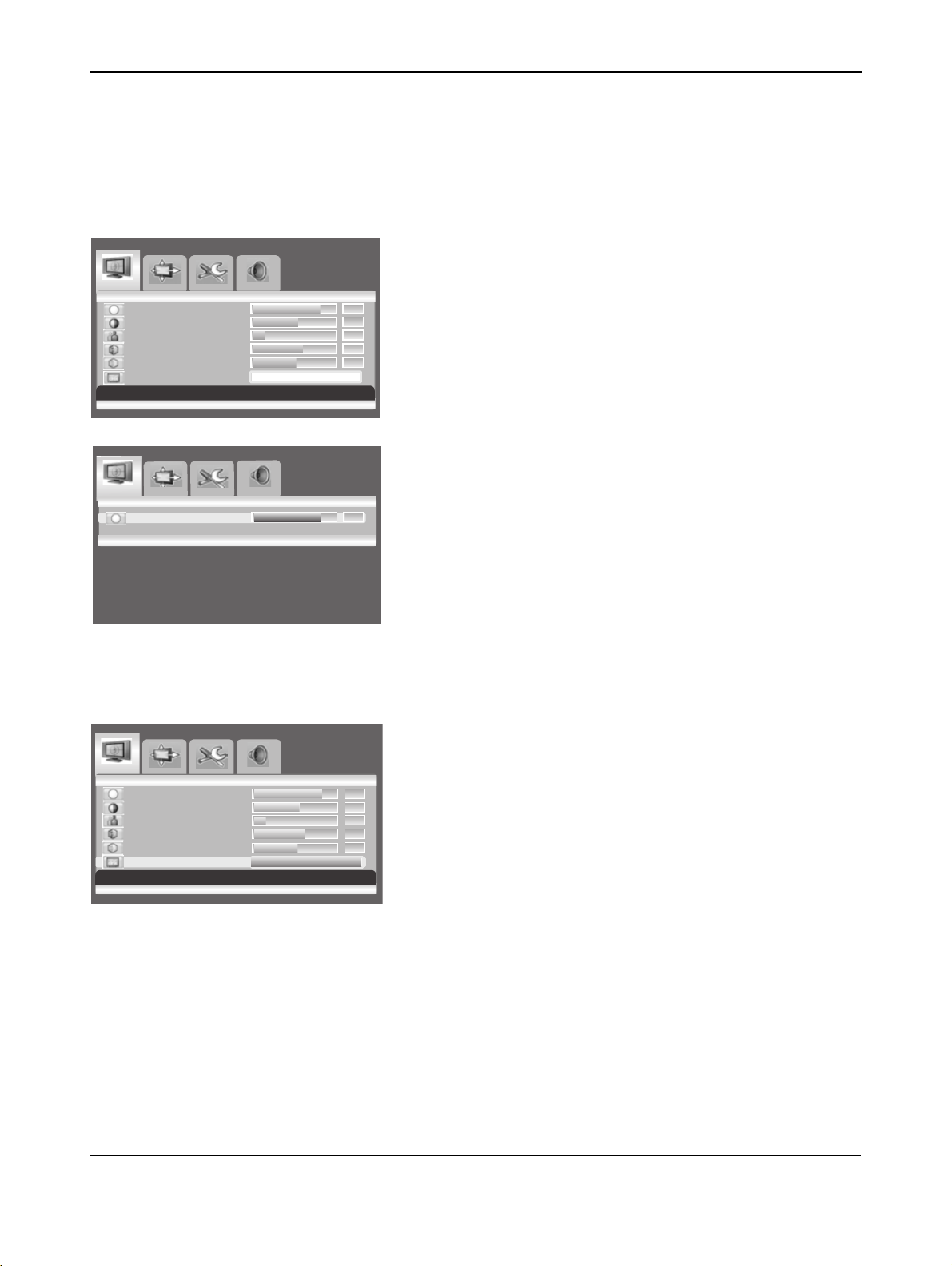

6.1 PICTURE CONTROLS
6.1.1 ADJUSTING PICTURE SETTINGS
Various picture adjustments can be set using the Picture Adjustment
OSD menu.
1Press the MENU button on the monitor panel or remote control.
380 ssenthgirB
250tsartnoC
910ssenprahS
360roloC
380 ssenthgirB
The Image menu is displayed.
2Press the CH+ keykey to enter the selected menu group.
3 Press the CH- or CH+ key to select the option to be adjusted.
Depending on the input source, the following menu’s appear:
● Brightness – Contrast – Sharpness – Color – Tint – Image preset
● Brightness – Contrast – Phase – Frequency – Sharpness (RGB
(PC) mode)
4Press the VOL+ or VOL- key to select the optimal setting.
5Press the MENU button to return to the previous menu.
Image Screen Setup Audio
T050tni
Image Preset Image Preset Complete!
Move [- CH +] Select [- VOL +] Exit [MENU]
6.1.2 RESET TO THE FACTORY DEFAULTS
1Press the CH+ or CH- key to select Image Preset.
2Press the VOL+ or VOL- key to reset the picture settings to the
factory defaults.
380 ssenthgirB
250tsartnoC
910ssenprahS
360roloC
.
21
Image Screen Setup Audio
Vo 06 emul
T 550elber
Audio Preset [-VOL+] to Preset Audio
Move [- CH +] Adjust [- VOL +] Exit [MENU]
Image Screen Setup Audio
V 06 emulo
T 550elber
Audio Preset
Move [- CH +] Select [- VOL +] Exit [MENU]
Audio Preset Complete!
User Manual BDS4241V/BDH4241V/BDH5021V
6.2 SOUND CONTROLS
6.2.1 ADJUSTING SOUND SETTINGS
Various sound adjustments can be set using the Sound Adjustment OSD
menu.
1Press the MENU button on the monitor panel or remote control.
2Press the VOL+ or VOL- key to select Audio.
270ssaB
340ecnalaB
FFO NOetuM
270ssaB
340ecnalaB
FFO NOetuM
3Press the CH- key to enter the selected menu group.
4Press the CH+ or CH- key to select the desired option:
Treble - Bass -Balance
5Press the VOL+ or VOL- key to adjust the settings.
Note:
You can reset the sound settings to the factory defaults:
1Press the CH+ or CH- key to select Audio Preset.
2Press the VOL+ or VOL- key.
22
Image Screen Setup Audio
Language
Sleep T imer 030
OSD Settings
Move [- CH +] Select [- VOL +] Exit [MENU]
Image Screen Setup Audio
OSD Settings
Move [- CH +] Adjust [- VOL +] Exit [MENU]
English
User Manual BDS4241V/BDH4241V/BDH5021V
6.3 OSD MENU LANGUAGE
This monitor has multiple OSD Menu languages built-in including English,
French, Spanish, Italian, German and Dutch.
Setting OSD Menu Language
1Press the MENU button on the monitor panel or remote control.
2Press the VOL+ or VOL- key to select Setup.
3Press the CH- key to enter the selected menu group.
4Press the VOL+ or VOL- key to select the required language.
6.4 POWER SAVE MODE
This monitor is equipped with a Power Save mode under RGB(VGA) or
DVI input modes. When there are no signals detected by the monitor
for a certain time, the monitor will automatically go into sleep mode
hsilgnEegaugnaL
030remiT peelS
until signal is restored. You can select a time period between 10 and 180
minutes.
Setting Power Save Mode
1Press the MENU button on the monitor panel or remote control.
2Press the VOL+ or VOL- key to select Setup.
3Press the CH- key to enter the selected menu group.
4Press the CH+ or CH- key to select Sleep Timer.
5Press the VOL+ or VOL- key to select the required time interval.
Image Screen Setup Audio
Sticking Minimum OFF ON
Move [- CH +] Select [- VOL +] Exit [MENU]
Note:
You can simply select required time interval by repeatedly pressing the
SLEEP button on the remote control.
6.5 MINIMIZE SCREEN STICKING
If the fixed pattern is displayed for a long time, a difference in brightness
is caused around the lighting area and non-lighting area due to
deterioration in the fluorescent substance used in the plasma module. It
OTUAeziS
NO FFO ezeerF
comes to be recognized as image sticking. This feature allows you to
make the occurrence of image sticking as slow as possible.
Minimize screen sticking
1Press the MENU button on the monitor panel or remote control.
2Press the VOL+ or VOL- key to select Screen.
3Press the CH- key to enter the selected menu group.
4Press the CH+ or CH- key to select Sticking Minimum.
5Press the VOL+ or VOL- key to select the required option (OFF
or ON).
23
Image Screen Setup Audio
Sticking Minimum OFF ON
Move [- CH +] Select [- VOL +] Exit [MENU]
Image Screen Setup Audio
OSD Settings
Transparency
Timeout
Move [- CH +] Adjust [- VOL +] Exit [MENU]
User Manual BDS4241V/BDH4241V/BDH5021V
6.6 FREEZING THE CURRENT PICTURE
You can freeze the picture when watching a television program.
11. Press the MENU button.
OTUAeziS
NO FFO ezeerF
hsilgnEegaugnaL
030remiT peelS
070
020
22. Press the VOL+ or VOL- key to select Screen.
3Press the CH- key to enter the selected menu group.
4Press the CH- or CH+ key to select Freeze.
5Press the VOL+ or VOL- key to select required option (OFF or
ON).
Note:
Simply press the FREEZE button on the remote control, then current
picture is stilled. To return to normal viewing, press it again.
6.7 ON-SCREEN DISPLAY TIMEOUT
You can select for how long the OSD will be shown.
11. Press the MENU button.
22. Press the VOL+ or VOL- key to select Setup.
3Press the CH- key to enter the selected menu group.
43. Press the CH- or CH+ key to select OSD Settings.
5Press the VOL+ key to enter the selected menu group.
64. Press the CH- or CH+ key to select Timeout.
7Press the VOL+ or VOL- key until you reach the optimal setting.
Image Screen Setup Audio
OSD Settings
Transparency
T020tuoemi
Move [- CH +] Adjust [- VOL +] Exit [MENU]
6.8 ADJUSTING THE MENU TRANSPARENCY
You can give the transparency OSD background.
1Press the MENU button.
2Press the VOL+ or VOL- key to select Setup.
hsilgnEegaugnaL
030remiT peelS
070
3Press the CH- key to enter the selected menu group.
4Press the CH- or CH+ key to select OSD Settings.
5Press the VOL+ key to enter the selected menu group.
>The Transparency is selected.
6Press the VOL+ or VOL- key until you reach the optimal setting.
24
Image Screen Setup Audio
Sticking Minimum OFF ON
Move [- CH +] Select [- VOL +] Exit [MENU]
Image Screen Setup Audio
Select [- VOL +] Exit [MENU]
User Manual BDS4241V/BDH4241V/BDH5021V

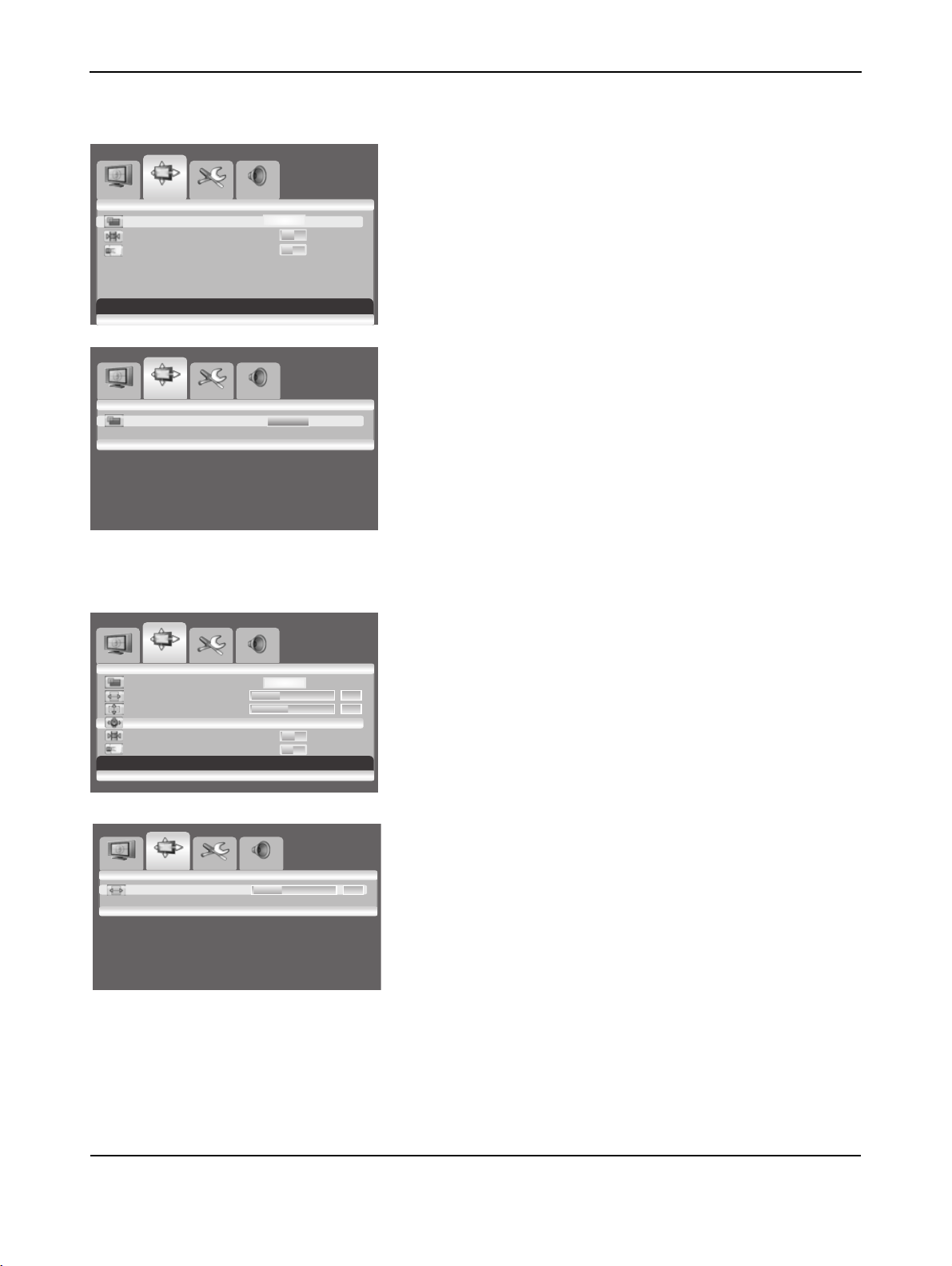

6.9 CHANGING THE SCREEN SIZE
You can select the screen size which best corresponds to your viewing
requirements.
1Press the MENU button.
OTUAeziS
NO FFO ezeerF
OTUAeziS
2Press the VOL+ or VOL- key to select Screen.
3Press the CH- key to enter the selected menu group.
>The Size is selected.
4Press the VOL+ or VOL- key to select required screen size.
ANAMORPHIC – WIDE AUTO – FILL ALL – FILL ASPECT –
ZOOM
Note:
You can simply select required screen size by repeatedly pressing the
I.SIZE (Image SIZE) button on the remote control.
Image Screen Setup Audio
Auto
Sticking Minimum OFF ON
Move [- CH +] Select [- VOL +] Exit [MENU]
Image Screen Setup Audio
Adjust [- VOL +] Exit [MENU]
6.10 SETTING UP THE PC INPUT
■ Preset to the RGB mode by pressing the INPUT button.
1Press the MENU button.
OTUAeziS
530noitisoP H
440noitisoP V
NO FFO ezeerF
2Press the VOL+ or VOL- key to select Screen.
3Press the CH- key to enter the selected menu group.
■ Adjusting the PC screen automatically
1Press the CH- or CH+ key to select Auto.
2Press the VOL+ or VOL- key.
> The screen quality and position are automatically adjusted.
Note:
530noitisoP H
You can adjust the PC screen automatically by simply pressing the
AUTO button on the remote control.
■ Selecting the position of the PC screen if it does not fit the
PDP screen
1Press the CH+ or CH- button to select H Position or
V Position.
2Press the VOL+ or VOL- key to fit the TV screen until you reach
the optimal setting.
25
User Manual BDS4241V/BDH4241V/BDH5021V
6.11 TELETEXT
The Teletext service is available in many countries under a variety of
names (TOP Text, Fastext, FLOF test, Videotext). It is provided as a free
service by some television broadcasters. This service provides a real
wealth of information, available at any time, on weather, sporting results,
news, games, etc. The information is presented in pages or organised in
topics specified in colour on the screen and you can access this
information by simply pressing the buttons of the same colour on the
remote control.
This product doesn’t have a tuner inside, but an external settop box may
still contain channels with teletext information.
Accessing Teletext
1Press the CH+ or CH- key to select the required source.
11
1
11
3
11
4
11
7
11
2
2Press the TEXT button (1) on the remote control.
=> Teletext opens on the index page (100).
11
5
3Press the TEXT button again to exit.
11
6
11
11
Select a specific Teletext page
8
1 Enter the three-digit Teletext page number using the numeric
9
buttons.
=> The current page is displayed. If the selected page is linked to
with several secondary pages, these pages are displayed in sequence.
2Press the FREEZE button (7) to freeze the display on a given page.
3 To resume, press the FREEZE button again.
Display TELETEXT index
1Press the INPUT button (2) to display the TELETEXT index.
Fasttext
1Press the red, green, yellow and blue buttons (3) on the remote
control to easily access the topic and relevant pages you want.
Page Up (AUTO)
1Press the AUTO button (4) to display the next TELETEXT page.
Zoom (I.SIZE)
1Press the I.SIZE button (5) once to zoom in on the top part of the
screen.
2 Press twice to zoom in on the bottom part of the screen and three
times to return to normal display.
Page Down (MTS)
1Press the MTS button (6) to display the previous TELETEXT page.
FREEZE
1Press the FREEZE button (7) on the remote control to freeze the
current page, preventing update and subpage display.
2Press the FREEZE button again to cancel.
26
User Manual BDS4241V/BDH4241V/BDH5021V
Reveal
1 Press the Reveal button to hide page information. Press the button
again to unhide.
Sub-page
1 Press to display a secondary page by entering its number.
Subtitles
Some channels provide subtitles for some of their programmes through
Teletext. The numbers of the relevant pages are specified on the
Teletext index page.
1 Enter the number of the relevant page to display the subtitles.
=> The subtitles appear in the TV picture. The header disappears
after a couple of seconds.
2 Press any button on the remote control (except TEXT or the
volume adjustment buttons) to display the subtitles again.
3 Press TEXT to return to TV mode.
Note:
In Teletext mode, volume controls remain available, but the relevant
symbols are not shown on the screen.
27
User Manual BDS4241V/BDH4241V/BDH5021V
28
User Manual BDS4241V/BDH4241V/BDH5021V
7. INPUT MODE (RGB/DVI)
RGB(PC)_Input Resolution
Standard
resolution
VGA 640 480
WVGA 848 480 60 16:9 Wide Video Graphic Array
SVGA 800 600
XGA 1024 768
SXGA 1280 1024 60 108 MHz 16:9 Super XGA
Active Resolution
H Pixels V Lines
Refresh
Rate
60 25.175 MHz
75 31.5 MHz
60 40 MHz
75 49.5 MHz
60 65 MHz
70 75 MHz
75 78.5 MHz
Pixel Rate
Aspect
ratio
16:9 Video Graphic Array72 31.5 MHz
16:9 Super VGA72 50 MHz
16:9
Stand for Mode
Super VGA Extended Graphic
Array
SDTV Resolution
Standard
resolution
480i
480p 59,94 Hz 27 MHz
576i
576p 50 Hz 27 MHz
Active Resolution
H Pixels V Lines
720 480
720 576
Refresh
Rate
29,97 Hz 13,5 MHz
25 Hz 13.5 MHz
Pixel Rate
Aspect
ratio
4:3 Modified DVB Mode
4:3 Modified PAL Standard
Stand for Mode
HDTV Resolution
Standard
resolution
720p 1280 720
1080i 1920 1080
1080p Not supported
● The PC text quality is optimum in XGA mode (1024 x 768, 60Hz).
● When this PDP is used as a PC display, 24-bit color is supported (over 16 million colors).
● Your PC display screen might appear different depending on the manufacturer (and your particular version of
Windows). Check your PC instruction book for information about connecting your PC to a display.
● If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal). In some
cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is
disconnected). If so, press the INPUT button to enter the video mode. Also, make sure that the PC is connected.
● When connecting a notebook PC to the PDP, make sure that the PC screen is displayed through only the PDP
(Otherwise, random signals might appear).
Active Resolution
H Pixels V Lines
Refresh
Rate
30 Hz
50 Hz
25 Hz
30 Hz
Pixel Rate
74,25 MHz 16:9 Normally DVB Mode
74,25 MHz 16:9 Normally ATSC Mode
Aspect
ratio
Stand for Mode
29
User Manual BDS4241V/BDH4241V/BDH5021V
● When horizontal synchronous signals seem irregular in RGB mode, check PC power saving mode or cable
connections.
● The display settings table complies to the IBM/VESA standards, and based on the analog input.
● The DVI support mode is regarded as same to the PC support mode.
● The best timing for the vertical frequency to each mode is 60Hz.
30
User Manual BDS4241V/BDH4241V/BDH5021V
8. TECHNICAL SPECIFICATIONS
Display
Item 42" SD 42" HD 50" HD
Screen Size (Active Area) 42" (920.1(H) x 518.4(V) ±0.5mm) 50" (1106.5(H) x 622.1(V)
±0.5mm)
Aspect ratio 16:9
Number of pixels 852 (H) x 480 (V) 1024 (H) x 768 (V) 1366 (H) x 768 (V)
Pixel pitch 1.080(H) x 1.080(V) [mm] 0.900(H) x 0.676(V) [mm] 0.810(H) x 0.810(V) [mm]
Displayable Colors 1 billion (Option)
Brightness 1500 cd/m2 1000 cd/m2 1000 cd/m2
Contrast Ratio 10.000:1 5000:1 8000:1
Color Temperature 9500 K
Viewing Angle Over 160 degrees
31
User Manual BDS4241V/BDH4241V/BDH5021V
In / Out Terminals
Item 42" SD; 42" HD; 50" HD
Speaker Output
RS-232C D-Sub Jack x 1 (9 pin) TXD + RXD (1:1)
DVI input
RGB Input
Component Input RCA Jack x 1 Y:1V[p-p](75 Ohm), Pb/Cb:0.7V[p-p](75 Ohm), Pr/
Monitor Output RCA Jack x 1 Video : 1V[p-p] (75 ?) Audio : 0.5V[rms](Normal) / 2
S-Video Input Mini DIN Jack x1 (4 pin) Y : 1V [p-p] (75 ?), C : 0.286V [p-p] (75 ?) [NTSC] Y : 1V
Video Output RCA Jack x 1 Video : 1V [p-p] (75 ?) [NTSC / PAL / SECAM] Audio :
Internal speaker (option) 10W(L) + 10W(R) [RMS] / 8 Ohm 2 Way 2 Speaker
External speaker (option) 10W(L) + 10W(R) [RMS] / 8 Ohm 2 Way 6 Speaker
DVI Jack x 1 (24 pin) Digital RGB : TMDS MAX : 720p, 1080i, 1280 x 1024 / 60
Hz (SXGA)
RCA Jack x 1 Audio : 0.5V[rms](Normal) / 2 Channel (L + R)
D-Sub Jack x 1 (15 pin) Analog RGB : 0.7V[p-p](75?), H/CS/V : TTL (2.2 k?), SOG
: 1V[p-p](75?) MAX : 720p, 1080i, 1280 x 1024 / 60 Hz
(SXGA)
RCA Jack x 1 Audio : 0.5V[rms](Normal) / 2 Channel (L + R)
Cr:0.7V[p-p](75 Ohm) 480i, 576i, 480p, 576p, 720p,
1080i Audio : 0.5V[rms](Normal) / 2 Channel (L + R)
Channel (L + R)
[p-p] (75 ?), C : 0.300V [p-p] (75 ?) [PAL / SECAM]
0.5V [rms] (Normal) / 2 Channel (L + R)
Scart or Video 1,2 Scart Jack x 2 (21 pin) [Full
x 1, Half x 1] or RCA Jack x
1
Video : 1V[p-p] (75 ?) Y : 1V[p-p] (75 ?), C: 0.3V[p-p] (75
?) RGB : 0.7V[p-p] (75 ?) Audio : 0.5V[rms](Normal) / 2
Channel (L + R)
32
User Manual BDS4241V/BDH4241V/BDH5021V
General
Item 42" SD 42" HD 50" HD
Power Supply AC 100 V ~ 240 V, 50/60 Hz
Power Consumption 250 W 300 W 440 W
Dimension (With Stand) [W mm x
H mm x D mm]
Weight (Without Stand) 29 kg 31 kg 43 kg
Environment Condition
Item 42" SD; 42" HD; 50" HD
Temperature
Humidity
Pressure
External Speaker (Option)
Dimensions (W X H X D) 113 mm x 626.6 mm x 82.2 mm 90 mm x 721 mm x 68 mm
Weight 5 kg (L + R) 3 kg (L + R)
Type 2 Way 6 Speaker System
Input 10 W (RMS)
Impedence 8 Ohm
Output Sound Pressure 87 dB/W/M
Frequency Response 45 Hz ~ 20 KHz
1028 x 625 x 89.8 (A) 1028 x 625 x 107.4 (B) 1205 x 721 x 114.3 (D)
Operational 0 ~ 40
Storage -20 ~ 60
Operational 20 ~ 80% RH (No condensation)
Storage 10 ~ 90% RH (No condensation)
Operational 800 ~ 1100 hPa (Altitude: 0 ~2,000 m)
Storage 700 ~ 1100 hPa (Altitude: 0 ~3,000 m)
Specifications
42" 50"
Internal Speaker (Option)
Specifications
Type 2 Way 6 Speaker System
Input 10 W (RMS)
Impedence 8 Ohm
Output Sound Pressure 88 dB/W/M
Frequency Response 140 Hz ~ 10 KHz
33
User Manual BDS4241V/BDH4241V/BDH5021V34User Manual BDS4241V/BDH4241V/BDH5021V
9. CLEANING AND TROUBLESHOOTING
9.1 CLEANING
Cautions When Using the Plasma Display
■ Do not bring your hands, face or objects close to the ventilation
holes of the plasma display. Top of plasma display is usually very hot
due to the high temperature of exhaust air being released through
the ventilation holes. Burns or personal injuries may occur if any
body parts are brought too close. Placing any object near the top of
the display could also result in heat related damages to the object as
well as the display itself.
■ Be sure to disconnect all cables before moving the plasma display.
Moving the display with its cables attached may damage the cables
and thus case fire or electric shock danger.
■ Disconnect the power plug from the wall outlet as a safety
precaution before carrying out any type of cleaning or maintenance
procedure.
Front Panel Cleaning Instructions
■ The front of the display has been specially treated. Wipe the surface
gently using only a cleaning cloth or a soft, lint-free cloth.
■ If the surface is particular dirty, soak a soft, lint-free cloth in a mild
detergent solution. Wring the cloth to remove excess liquid. Wipe
the surface of the display to remove dirt. Then use a dry cloth of the
same type to dry.
■ Do not scratch or hit the surface of the panel with fingers or hard
objects of any kind.
■ Do not use volatile substances such as insect sprays, solvents and
thinners.
Cabinet Cleaning Instructions
■ If the cabinet becomes dirty, wipe the cabinet with a soft, dry cloth.
■ If the cabinet is extremely dirty, soak a lint-free cloth in a mild
detergent solution. Wring the cloth to remove as much moisture as
possible. Wipe the cabinet. Use another dry cloth to wipe over until
the surface is dry.
■ Do not allow any water or detergent to come into contact with the
surface of the display. If water or moisture gets inside the unit,
operating problems, electrical and shock hazards may result.
■ Do not scratch or hit the cabinet with fingers or hard objects of any
kind.
■ Do not use volatile substances such as insect sprays, solvents and
thinners on the cabinet.
■ Do not place anything made from rubber or PVC near the cabinet
for any extended periods of time.
35
User Manual BDS4241V/BDH4241V/BDH5021V
9.2 TROUBLESHOOTING
Symptom Possible Cause Remedy
No picture is displayed 1 The power cord is disconnected.
2 The main power switch on the back of the
monitor is not switched on.
3 The selected input has no connection.
4 The monitor is in standby mode in RGB
mode.
Interference displayed on the
monitor or audible noise is
heard
Color is abnormal The signal cable is not connected properly. Make sure that the signal cable is
Picture is distorted with
abnormal patterns
Display image doesn’t fill up
the full size of the screen
Can hear sound, but no
Caused by surrounding electrical appliances,
cars/motorcycles or fluorescent lights.
1 The signal cable is not connected properly.
2 The input signal is beyond the capabilities of
the monitor.
1 If under RGB mode, the H-Size and V-Size is
incorrectly set.
2 If under AV1, AV2, or Component with 480i
input, the 4:3 WIDE mode is switched on.
Improperly connected source signal cable. Make sure that both video inputs and sound
1 Plug in the power cord.
2 Make sure the power switch is switched on.
3 Connect a signal connection to the monitor.
4 Press any key on your keyboard.
Move the monitor to another location to see if
the interference is reduced.
attached firmly to the back of the
monitor.
1 Make sure that the signal cable is attached
firmly.
2 Check the video signal source to see if it is
beyond the range of the monitor. Please
verify its specifications with this monitor’s
specification section
1 Use H-Size and V-Size to adjust the size of
the video.
2 Use the WIDE key to scroll through various
full screen modes.
inputs are correctly connected.
Can see picture but no sound
is heard
Some picture elements do
not light up
After-Images can still be seen
on the monitor after the
monitor is powered off.
(Examples of still pictures
include logos, video games,
computer images, and images
displayed in 4:3 normal
mode)
1 Improperly connected source signal cable.
2 Volume is turned all the way down.
3 MUTE is turned on.
Some pixels of the plasma display may not turn onThis monitor is manufactured using an
A still picture is displayed for an over extended
period of time.
1 Make sure that both video inputs and sound
inputs are correctly connected.
2 Use VOLUME +/- to hear sound.
3 Switch MUTE off by using the MUTE button.
extremely high level of precision technology;
however, sometimes some pixels of the monitor
may not display.
This is not a malfuction. Please see the enclosed
warranty card for more information.
Do not allow a still image to be displayed for an
extended period of time as this can cause a
permanent after-image to remain on the
monitor.
36
10. LIMITED WARRANTY (EUR)
User Manual BDS4241V/BDH4241V/BDH5021V
Two Year Free Labor
Two Year Free Parts
WHO IS COVERED?
You must have proof of the date purchased to receive warranty service.
A sales receipt or other document showing the date that you purchased
the product is considered proof of purchase.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product. For two years
thereafter, all defective parts will be repaired or replaced and labor is
free. After two years from the day of purchase, you pay for the
replacement or repair of all parts, and for all labor charges. All parts,
including repaired and replaced parts, are covered only for the original
warranty period. When the warranty on the product expires, the
warranty on all replaced and repaired parts also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
■ labor charges for removal, installation or setup of the product,
adjustment of customer controls on the product, and installation or
repair of antenna systems outside of the product.
■ product repair and/or part replacement because of misuse, accident,
unauthorized repair or other cause not within the control of Philips
Consumer Electronics Europe.
■ reception problems caused by signal conditions or cable or antenna
systems outside the unit.
■ a product that requires modification or adaptation to enable it to
operate in any country other than the country for which it was
designed, manufactured, approved and/or authorized, or repair of
products damaged by these modifications.
■ incidental or consequential damages resulting from the product.
(Some states do not allow the exclusion of incidental or
consequential damages, so the above exclusion may not apply to you.
This includes, but is not limited to, prerecorded material, whether
copyrighted or not copyrighted.)
■ modifications or adaptations to enable the product to operate in any
country other than the country for which it was designed,
manufactured, approved and/or authorized, or the repair of products
damaged by these modifications.
■ normal wear and tear (decreased light output of PDP module) over
the product's lifetime.
■ phosphor burn. Do not display static images for prolonged periods,
otherwise phosphor burn might appear on part of the panel.
■ limited quantity of cells (fine pixel elements) that do not produce
light, or that remain lit after they should have turned off.
37
User Manual BDS4241V/BDH4241V/BDH5021V
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the product is
officially distributed by Philips Consumers Electronics Europe. In
countries where Philips Consumers Electronics Europe does not
distribute the product, the local Philips service organization will attempt
to provide service (although there may be a delay if the appropriate
spare parts and technical manual(s) are not readily available).
MAKE SURE YOU KEEP ...
Please keep your sales receipt or other document showing proof of
purchase. Attach it to this owner's manual and keep both nearby. Also
keep the original box and packing material in case you need to return
your product.
BEFORE REQUESTING SERVICE ...
Please check your owner's manual before requesting service.
Adjustments of the controls discussed there may save you a service call.
TO GET WARRANTY SERVICE,
OR IF YOU HAVE QUESTIONS …
Please contact Philips at one of the telephone numbers below:
Austria .................................................................... 0820 901115
Belgium .................................................................... 070 253 010
Denmark .................................................................. 35 25 87 61
Finland ................................................................... 09 2290 1908
France ..................................................................... 08 9165 0006
Germany ........................................................... 0180 5 007 532
Greece ........................................................... 00800 3122 1223
Ireland ........................................................................ 1 601 1161
Italy ........................................................................... 199 404 042
Luxembourg .............................................................. 26 84 3000
Netherlands ....................................................... 0900 0400 063
Norway ................................................................... 22 70 82 50
Portugal .................................................................. 2 1359 1440
Spain ......................................................................... 902 888 785
Sweden .................................................................... 08 632 0016
Switzerland ........................................................... 02 2310 2116
United Kingdom ................................................. 0906 1010 017
Repair must be performed by an authorized service center or a factory
service center. If you do not live near a factory service center, contact
your dealer. If your dealer is an authorized service center, he will
arrange repair.
38
User Manual BDS4241V/BDH4241V/BDH5021V
REMEMBER ...
Please record the model and serial numbers found on the product
below. Also, please fill out and mail your warranty registration card
promptly.
It will be easier for us to notify you if necessary.
MODEL # _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
SERIAL # _ _ _ _ _ _ _ _ _ _ _ _ _ _ _wo_ _ _
39
