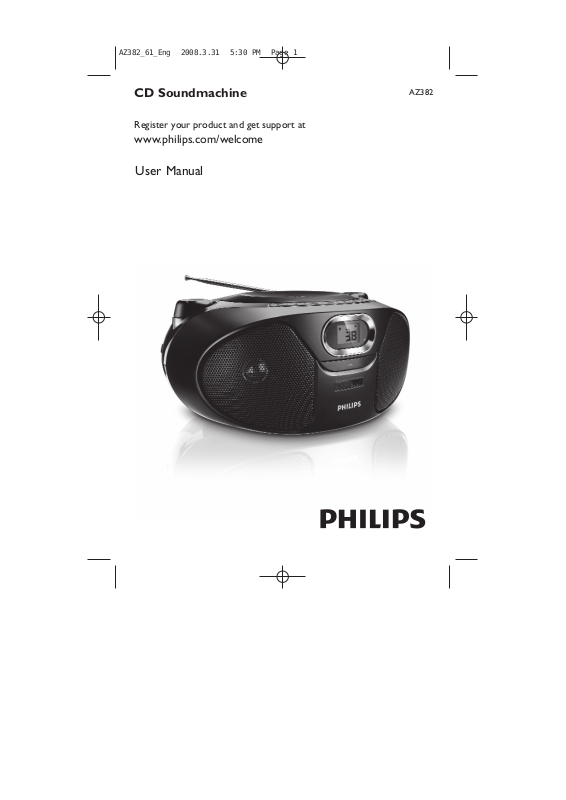

Philips AZ382 User Manual
CD Soundmachine
User Manual
AZ382
Register your product and get support at
www.philips.com/welcome
1
8
$
1
2
DBB
MP3/WMA-USB/CD PLAYBACK
9
0
@
7
6
5
3
4
2
$
#
^
6 x R14 • UM-2 • C-CELLS
FM MW
RADIO USB
-
L
IN
E
IN
!
%
3
4
5
6
7
8
PROG
X
ALL
Congratulations on your purchase and
welcome to Philips!
To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
Supplied Accessories
– AC power cord
Top/front panels
(See 1)
1
VOLUME–adjusts volume level.
2 43
– For MP3-CD/USB only: select albums.
3 MODE
– selects different play modes:
e.g. REPEAT or SHUFFLE (random
order)
.
4
2 ; –starts or pause CD/USB playback
§ ∞
–
selects the next/previous track
– searches forwards/backwards (press
and hold the button) within the current track
9–stops disc/USB playback;
–
erases a program
5 PROG – programs tracks and reviews the
program
6 LIFT TO OPEN – opens/closes the CD
door.
7 TUNING
– tunes to radio stations
8
Display–shows the CD/USB functions
9
DBB– turns the bass enhancement on/off.
0 USB port – connects an external USB mass
storage device
.
Back panel (See 1
and
2)
!
Source selector: CD, USB, RADIO, OFF
–
selects CD, USB or radio source of sound
–
power off switch
@ Telescopic antenna - improves FM recep-
tion.
# AC MAINS~ - inlet for power cord.
$
Band selector– selects wavebands: MW or
FM.
%
LINE-IN
– inlet for external audio source.
Bottom panel
^ Battery door –
Press on the arrow and
push to
insert 6 x 1.5V R-14/ UM-2/ C-
cells.
CAUTION
– Visible and invisible laser radiation. If the cover is open, do not
look at the beam.
– High voltage! Do not open.You
run the risk of getting an electric
shock.The machine does not contain any user-serviceable parts.
– Modification of the product
could result in hazardous radiation of EMC or other unsafe operation.
English Controls
