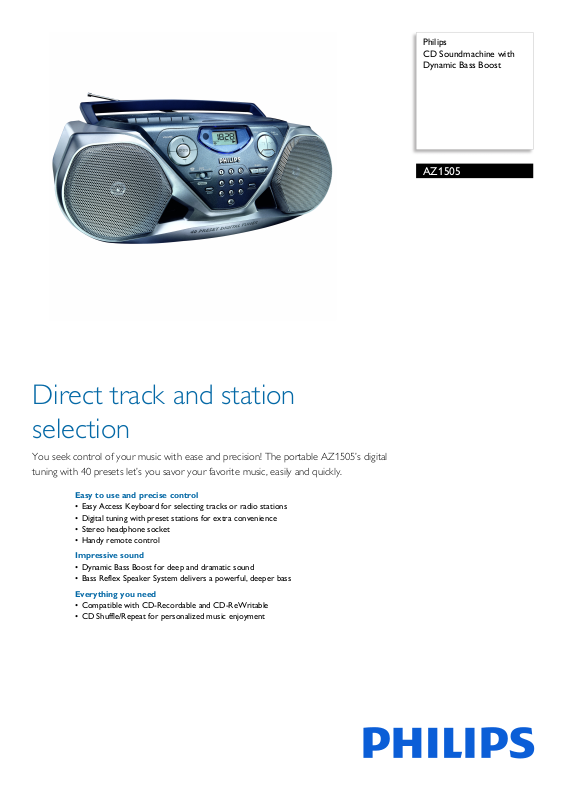

Page 1
Philips
CD Soundmachine with
Dynamic Bass Boost
AZ1505
Direct track and station
selection
You seek control of your music with ease and precision! The portable AZ1505’s digital
tuning with 40 presets let’s you savor your favorite music, easily and quickly.
Easy to use and precise control
• Easy Access Keyboard for selecting tracks or radio stations
• Digital tuning with preset stations for extra convenience
• Stereo headphone socket
• Handy remote control
Impressive sound
• Dynamic Bass Boost for deep and dramatic sound
• Bass Reflex Speaker System delivers a powerful, deeper bass
Everything you need
• Compatible with CD-Recordable and CD-ReWritable
• CD Shuffle/Repeat for personalized music enjoyment
Page 2
CD Soundmachine with Dynamic Bass Boost
AZ1505/13
Highlights
Easy Access Keyboard
The Easy Access Keyboard features a phone-style
numerical keypad that is a simple and handy tool for
selecting CD tracks, radio presets or tuning in to
radio stations. Located conveniently at the front of
the set, the ten numerical keys make selection and
programming a simple one-touch operation. To
select a specific track or choose a tuner preset,
simply key in the track number or preset number
using the keypad. Tune in to your favorite radio
station by simply keying in the frequency. Easy
Access Keyboard helps you select a specific track,
tuner preset or your favorite radio station.
Digital tuning with presets
Simply tune into the station that you want to preset,
press and hold the preset button to memorize the
frequency. With preset radio stations that can be
stored, you can quickly access your favorite radio
station without having to manually tune the
frequencies each time.
Stereo headphone socket
Connect your own headphone for a more personal
listening experience whenever you want it. You can
enjoy your favorite music in great sound without
disturbing others by connecting your headphones to
the player.
Handy remote control
Handy remote control
Dynamic Bass Boost
Dynamic Bass Boost maximizes your music
enjoyment by emphasizing the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimize the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by resonating the air mass in the bass
pipe to vibrate like a conventional woofer.
Combined with the response of the woofer, the
system extends the overall low frequency sounds to
create a whole new dimension of deep bass.
CD-R/RW Compatible
CD-Rewritable Compatible means that your audio
set can play both CD-Recordable (CD-R) and CDRewritable (CD-RW) discs. CD-R discs are
recordable once and can be played on any audio CD
player while CD-RW discs can be recorded and
rewritten multiple times and can only be played back
on compatible audio CD players. The laser pick-up
and CD decoder circuitry of CD-RW compatible
players are specially designed to read the special
audio CD-RW phase-change recording layer,
ensuring you can always play your home-recorded
discs on your audio CD system.
CD Shuffle/Repeat
The "Shuffle/Repeat" function helps you to get rid of
the boredom of hearing your music played in the
same order all the time. After loading your favorite
songs to the player, all you have to do is to s el ect one
of the modes - "Shuffle" or "Repeat" for your tunes
to be played in different modes order. Enjoy the
different and unique music experience every time
you hook up to your player.
Specifications
Sound
• Loudspeaker types: Bass Reflex Speaker System
• Output power (RMS): 2X1W
• Sound System: Stereo
• Speaker diameter: 4"
• Sound Enhancement: Dynamic Bass Boost
• Volume Control: Volume Control up/down
Loudspeakers
• Built-in speakers: 2
• Finishing: Metal
• Loudspeaker types: Loudspeakers
Audio Playback
• Disc Playback Modes: Next/Previous Track Search,
Fast Forward/Backward, Shuffle Play, Repeat Play
• Playback Media: CD, CD-R, CD-RW
•Loader Type: Top
• Programmable Tracks: 20
Tuner/Reception/Transmission
• Antenna: AM Antenna, FM Antenna
• Auto digital tuning
• Tuner Bands: FM, MW
Convenience
• Display Type: LCD
• Display Digits: 4
• Remote control: remote control
Connectivity
• Headphone: 3.5 mm
Accessories
• Included accessories: AC Power Cord, User
Manual, Warranty certificate
• Remote control: 14 keys
Dimensions
• Packaging dimensions (W x H x D):
475 x 211 x 260 mm
• Product dimensions (W x H x D):
5 x 162 x 232 mm
40
•Weight: 3.2 kg
• Weight incl. Packaging: 3.9 kg
Issue date 2014-02-10
Version: 1.0.3
12 NC: 9073 101 00262
EAN: 87 10895 73383 0
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
Power
• Battery voltage: 1.5 V
• Mains power
• Number of batteries: 6
•Battery type: LR14
•
