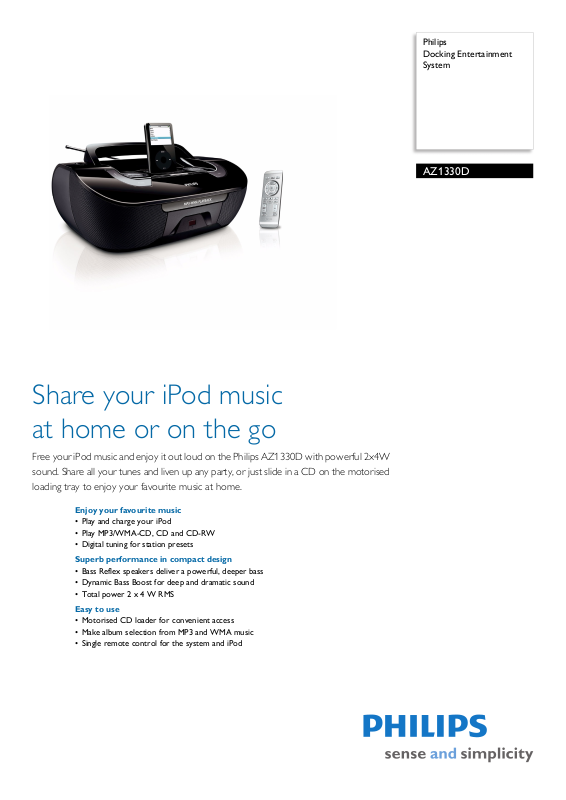

Philips
Docking Entertainment
System
AZ1330D
Share your iPod music
at home or on the go
Free your iPod music and enjoy it out loud on the Philips AZ1330D with powerful 2x4W
sound. Share all your tunes and liven up any party, or just slide in a CD on the motorised
loading tray to enjoy your favourite music at home.
Enjoy your favourite music
• Play and charge your iPod
• Play MP3/WMA-CD, CD and CD-RW
• Digital tuning for station presets
Superb performance in compact design
• Bass Reflex speakers deliver a powerful, deeper bass
• Dynamic Bass Boost for deep and dramatic sound
• Total power 2 x 4 W RMS
Easy to use
• Motorised CD loader for convenient access
• Make album selection from MP3 and WMA music
• Single remote control for the system and iPod
Docking Entertainment System
AZ1330D/05
Specifications
iPod compatibility
• Compatible with: iPod, iPod mini, iPod nano, iPod
with colour display, iPod 5th Generation
Audio Playback
• Cradle playback mode: Charging iPod, Play and
Pause, Next and Previous track, Fast forward and
reverse
• Loader Type: Motorised, Tray
• Playback Media: WMA-CD, MP3-CD, CD, CD-R,
-RW
CD
• Disc Playback Modes: Fast F
Previous Track Search, Repeat Play, Shuffle Play
• Programmable Tracks: 20
Sound
• Output power (RMS): 2 x 4 W
• Sound System: Stereo
• Loudspeaker types: Bass Reflex Speaker System
• Sound Enhancement: Dynamic Bass Boost
• Speaker diameter: 3"
• Volume Control: rotary
Tuner/reception/transmission
• Tuner Bands: FM, MW
• Auto digital tuning
• Antenna: FM Antenna
orward/Reverse, Next/
Connectivity
•Aux in
• Headphones: 3.5 mm
Convenience
• Display Type: LCD
•Backlight
• Remote Control: Multi-functional
Power
• Mains power
•Battery type: LR20
• Battery voltage: 1.5 V
• Number of batteries: 6
Accessories
• Included Accessories: Remote Control, Audio
Cable, AC Power Lead, User manual, Warranty
certificate
Dimensions
• Packaging dimensions (W x H x D):
410 x 187 x 307 mm
• Product dimensions (W x H x D):
8.4 x 140.6 x 260 mm
35
• Weight: 2.22 kg
• Weight incl. Packaging: 3.15 kg
•
Highlights
Play and charge your iPod
Play and charge your iPod
Bass Reflex Speaker System
Bass Reflex Speaker System delivers a deep bass
experience from a compact loudspeaker box system.
It differs from a conventional loudspeaker box
system in the addition of a bass pipe that is
acoustically aligned to the woofer to optimise the
low frequency roll-off of the system. The result is
deeper controlled bass and lower distortion. The
system works by causing the air mass in the bass pipe
to vibrate like a conventional woofer. Combined
with the response of the woofer, the system extends
the overall low frequency sounds to create a
completely new dimension of deep bass.
Dynamic Bass Boost
Dynamic Bass Boost maximises your music
enjoyment by emphasising the bass content of the
music throughout the range of volume settings from low to high – at the touch of a button! Bottomend bass frequencies usually get lost when the
volume is set at a low level. To counteract this,
Dynamic Bass Boost can be switched on to boost
bass levels, so you can enjoy consistent sound even
when you turn down the volume.
Motorised CD loader
Motorised CD loader for convenient access
Issue date 2012-03-26
Version: 2.2.5
12 NC: 8670 000 31636
EAN: 87 12581 34689 8
© 2012 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
