Docking Entertainment System AJ301D
Register your product and get support at
www.philips.com/welcome
User manual
Docking Entertainment System
Meet Philips at the Internet
http://www.philips.com
English
Printed in China PDCC-ZYL-0824
1
2
1
2
3
4
$
%
5
POWER
PRESET VOL
SLEEP
AUX
TUNER
DOCK
6
0
7
MUTE
9
7
5
2
8
!
@
3
8
4
6
3
#
^
1
)
&
*
4
(
English
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
SUPPLIED ACCESSORIES
– 1X certified AC/DC 18V adaptor
(Input: 100-240V ~ 50/60Hz 800mA, Output:18V 1.6A)
– Docking kit
•1X Apple iPod dock (pre-installed with AJ301D);
• dock adaptors (4 adaptors for different iPod types)
– 1X AUX-IN cable
CONTROLS
1
2
3
4
5
6
7
(See 1)
POWER
– switches the system on or to standby mode
– stops active alarm for 24 hours
– deactivates the sleep function
¡1 / 2™
– adjust clock/alarm time
– selects previous/next tracks in the dock mode
– fast searches forward/backward in the dock mode
PRESET 1-5
– stores, recalls and shows radio station
SLEEP
– activates the sleep function
–
deactivates the sleep function
DOCK
– selects dock mode for Apple iPod
TUNER/ AUX
– selects FM radio mode
– selects AUX mode
2;
– starts/pauses playback in the dock mode
– selects 12 hour or 24 hour mode
8
VOL+/-
–
adjusts the sound level
9
MUTE
– switches playback sound off and on.
0
Display
–
shows clock/alarm times and status of the set
!
Dock connector (30 pins)
–
connects iPod player
@
ALM 2
–
activates/confirm ALARM 2 time setting
– displays ALARM 2 time
– switches off ALARM 2 time
#
REPEAT
ALARM /
BRIGHTNESS CONTROL
– switches off the alarm for a 9 minute period
– changes the brightness of the display illumination
$
POWER jack
–
socket for AC/DC 18V adaptor
%
Pigtail – improves FM reception
^
ALM
1
–
activates/confirm ALARM 1 time setting
– displays ALARM 1 time
– switches off ALARM 1 time
&
TIME SET
– activates/confirm clock time/date setting
*
(Wake-up mode) DOCK•BUZZER •TUNER
– selects alarm mode: dock, buzzer or radio
(
AUX IN jack (3.5 mm)
–
connects to external audio source
)
RESET
– clears clock time setting
POWER SUPPLY
Mains adaptor
Connect the mains adaptor to the set's DC 18V socket and to the power sock-
1
et.
Helpful hints: To avoid damage to the set, use only the adaptor supplied!
The type plate is located on the bottom of the set.
Remote control
Important!

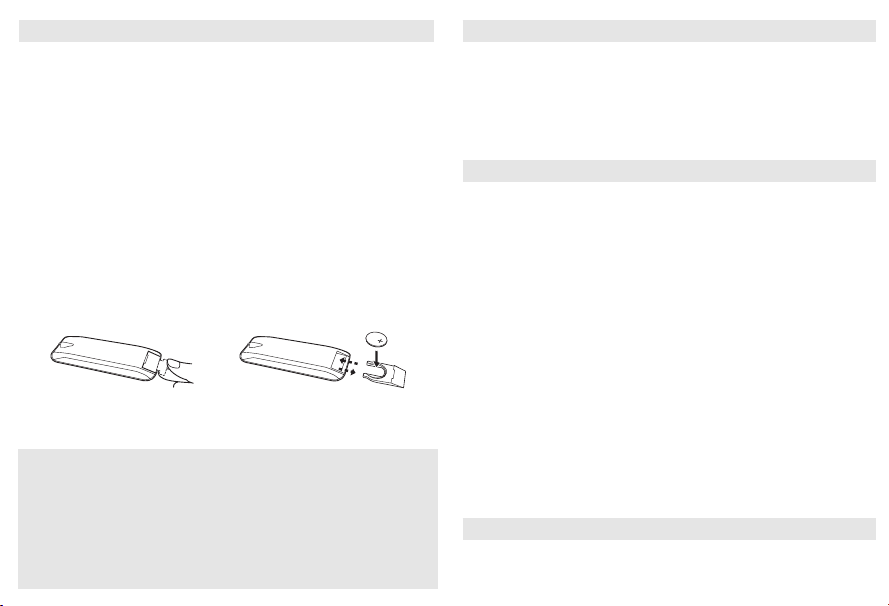

• Before using the remote control, remove the insulation plastic tab as
shown in the figure.
• If the remote control does not function correctly or the operating
range is reduced, replace the battery with a new (CR2025) type
battery.
1.
Pull the battery tray out as shown in the figure below.
2.
Replace a new battery according to polarity indication, and fully insert the
battery tray back to the original position.
2
3
1
Batteries contain chemical substances, so they should be disposed of
properly.
CAUTION
High voltage! Do not open.You run the risk of getting an electric
shock. The machine does not contain any user-serviceable parts.
Modification of the product could result in hazardous radiation of
EMC or other unsafe operation.
This product complies with the radio interference requirements of
the European Community.
SELF-POWERED BACK-UP
The self-powered back-up conveniently allows your preset stations, alarm and
clock time settings to be stored for up to 10 minutes when there is a power interruption e.g. AC power failure. The complete clock radio and backlight illumination
will be switched off.
• If power supply returns after 10 minutes and the display shows:
clock time blinking - indicates you need to re-adjust the clock time.
BASIC OPERATION
Switching on the system
•Press POWER.
The system will switch to the last selected source.
™
•Press TUNER/AUX or DOCK.
The system will switch to the selected source.
™
Switching the system to standby mode
• In any source mode, press POWER.
Switching off the volume temporarily
Press MUTE on the remote control to stop sound play-back instantly.
™
Playback will continue without sound and the display shows MUTE .
•To start sound playback you can:
– press MUTE again;
– adjust the volume controls;
– change source.
Illumination brightness
Press REPEAT
•
The brightness of the display can be adjusted:
Bright
ALARM /
BRIGHTNESS CONTROL once or more.
➟ Low ➟ Off ➟ Bright
.
SETTING THE CLOCK AND DATE
1. In any mode, press and hold TIME SET until clock digits flashes.
Press 2;to select 12 Hours/ 24 Hours mode.
2.
3.
Hold down or press ¡1 / 2™ repeatedly to set and adjust the hours.
4. Press TIME SET
™
The clock digits for the minutes flash.
5.
Repeat the steps 3 - 4 until you complete all the other settings for minutes,
year, month and days.
TUNER
1
Press
™
Display shows the radio frequency of the last selected waveband. Your
preset station is also shown if you are listening to a preset.
Adjust the sound using VOL+/-
2
3 To select preset stations, press the respective PRESET button (1-5).
TUNING TO RADIO STATIONS
1 Press and hold
™Display shows “Scrh” during automatic tuning.
™After the system tunes to a station of sufficient reception, display shows its
frequency.
•To tune to a weak station, press
optimal reception is found.
To improve reception (FM):
Extend and position the pigtail fully to obtain optimum reception.
STORING AND USING PRESET STATIONS
You can store up to 5 FM radio stations in the memory.
1 Tune to your desired station (see TUNING TO RADIO STATIONS).
2 To store a preset, hold down briefly on a PRESET button 1-5 until you hear a
double beep.
Display shows the preset number of your station.
™
3 Repeat steps 1 and 2 to store your other stations.
•You can overwrite a preset station by storing another frequency in its place.
Press a
4
to a preset station.
To display clock time, press 2;on the set.
™
to confirm.
TUNER/AUX
once to switch on the radio (FM only).
(
.
¡1 / 2™
until the frequency in the display starts changing.
¡1 / 2™
PRESET button 1-5 (or PRESET 4 / 3 on the remote control) to listen
briefly and repeatedly until an
See 2
)
USING THE ALARM
GENERAL
Two different alarm times can be set. This can be useful when you need to be
woken up at a different time e.g. during the week and at the weekend, and you
can set different wake-up modes:
• tuner mode.
• buzzer mode. The gentle wake buzzer alarm increases its beep tone frequency within seconds.
• dock mode.
SETTING THE ALARM TIME
1 In any mode, press and hold ALM1 or ALM2 for two seconds.
ALM1 / ALM2
™
alarm mode also flashes.
2
Hold down or press ¡1 / 2™ repeatedly to set and adjust the hours.
3 Press ALM1 or ALM2
™
ALM1 / ALM2
current alarm mode also flashes.
4
Hold down or press ¡1 / 2™ repeatedly to set and adjust the mintues.
5 Press ALM1 or ALM2
SETTING THE ALARM MODE
1 Press POWER to switch to standby mode.
Select your choice of alarm mode: either docked player, buzzer, or radio by
2
using the DOCK
•
At the set alarm time, the docked player or radio or buzzer will switch on
automatically.
Helpful hints:
–
If you have selected TUNER alarm mode, make sure you have properly tuned to a
station before turning off the set.
–
If you have selected DOCK alarm mode, make sure you have docked the compatible
player, or the buzzer mode will be selected automatically.
–
To check the alarm time setting for ALM1 or ALM2, press ALM1 or ALM2.
(See 3)
icon and the hour digits flash. And the icon for the current
to confirm.
icon and the minutes digits flash. And the icon for the
to confirm.
•BUZZER •TUNER slider.
SWITCHING OFF THE ALARM
There are three ways of switching off the alarm. Unless you cancel the alarm
completely, the 24-hour ALARM RESET will be automatically selected after 59
minutes from the time your alarm first goes off.
24 HOUR ALARM RESET
If you want the alarm mode to be stopped immediately but also wish to retain
the same alarm setting for the following day:
•
Press
POWER
.
REPEAT ALARM
This repeats your alarm call at 9 minute intervals.
•
During the alarm call, press REPEAT
™
Display shows
•
Repeat if desired (up to a maximum of 6 times).
CANCELING THE ALARM COMPLETELY
•
Press
ALM
ALM1
or
1 or
ALM
2 button once or more until
ALARM /
ALM2
flashing during a repeat alarm.
BRIGHTNESS CONTROL..
ALM1
or
ALM2
disappears.
DOCK (See 4)
By connecting the iPod to your AJ301D, you can listen to the sound of the docked
player through the powerful speakers of the Hi-Fi system.
COMPATIBLE PORTABLE PLAYER
Apple iPod models with 30-pin dock connector as follows:
•
Nano 1st /2nd/3rd generation, iPod 5th generation (video), iPod touch and
iPod classic.
DOCK ADAPTORS
Before plugging your player in the dock, snap the suitable dock adaptor into the
dock to provide a snug fit for the player to be docked.
Selecting the correct dock adaptor
• 4 iPod dock adaptors are included. Each adaptor has indication to match dif-
ferent iPod types.
PLAYING APPLE iPod USING AJ301D
Snap the compatible iPod into the dock connector.
1
2
Press DOCK to switch on the dock mode.
3
The connected player will play automatically.
Notes:
In dock mode, if no player is docked for 15 minutes, AJ301D will come to standby.
–
–
By using the buttons ( 2;, ¡1, 2™ and VOLUME ) on the AJ301D and its
remote control, the following disc playback features are available: Play/Pause,
selecting next/previous track, fast forwarding/rewinding and changing volume.
–
The buttons ( 2;, ¡1, 2™ and VOLUME ) on the AJ301D and its remote control
can work only with playback of the audio contents stored on the docked player.
CHARGING iPod BATTERY USING THE DOCK
By connecting the iPod to your AJ301D, you can charge the iPod in the standby
mode and power-on mode of AJ301D.
SLEEP
This set has a built-in sleep timer, which enables the radio to be automatically
switched off after a set period of time. There are five sleep time options.
Setting and switching off SLEEP
1 During playback,
timer option appears.
™
Selections are follows (time in minute):
120=90=60=30=15=OFF=120
2
The set will turn off automatically at the selected time.
3
To cancel sleep, press either:
POWER
–
–
SLEEP
set your timer by pressing
once or more until
SLEEP
SLEEP
disappears from the display.
repeatedly until the desired
Reset
Should your set receive external interference e.g. static electricity from carpets, thunderstorms, etc. RESET allows you to clear all previous settings and start up again.
• Use a ballpoint pen to press the RESET hole found on the bottom of the set.
CONNECTING AN EXTERNAL DEVICE
You can listen to the sound of the connected external device through your
AJ301D’s speakers.
1
Press
TUNER/AUX
2
Use the supplied AUX-IN cable to connect AJ301D’s AUX IN jack to an AUDIO
OUT or headphone jack on an external equipment (such as CD player, or VCR).
MAINTENANCE & SAFETY
•
Install the unit near the AC outlet and where the AC power plug can be easily
reached.
•
The apparatus shall not be exposed to dripping or splashing.
•
Do not expose the set to humidity, rain, sand or excessive heat caused by
heating equipment or direct sunlight.
•
To clean your set, use a soft damp cloth or chamois leather. Do not use cleaning
products, which contain benzene, thinner, etc. as these may harm the housing.
•
Where the MAINS plug or an appliance coupler is used as the disconnect
device, the disconnet device shall remain readily operable.
•
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
SPECIFICATIONS
Power Consumption........................................................................................24 W
Output power .....................................................................................2 x 6 W RMS
Dimensions (w x h x d) .........................................................161 x 191 x 164 (mm)
Weight .........................................................................................................1.34 kg
twice to select AUX mode.
TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or
service centre.
WARNING: Under no circumstances should you try to repair the set yourself, as this
No sound
– Volume not adjusted
• Adjust the volume
– The set is muted.
•Press”MUTE” on the remote control to active playback sound.
Display error / no reaction to any controls
– Electrical malfunction
•
Intermittent crackling sound during FM reception
– Weak signal
•
The alarm does not function
–
• See SETTING THE ALARM
– Volume too low for radio
• Increase the volume
Dock operation
–
• The buttons on AJ301D and its remote control can control playback of audio
–
• The buttons ( 2; , ¡1, 2™ and VOLUME) function only.
will invalidate the guarantee. Do not open the set as there is a risk of
electric shock!
Unplug the power cord, then re-plug.
Extend and position the pigtail aerial
Alarm time/ mode not set
The menu navigation or photo playback of the docked player cannot be
carried out through the buttons on AJ301D or its remote control.
contents only. To navigate the menu, use the controls on the docked player.
Some buttons on AJ301D and its remote control have no function.
ENVIROMENTAL INFORMATION
All unnecessary packaging material has been omitted. The packaging can
be easily separated into three materials: cardboard, polystyrene and plastic.
Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging, dead batteries
and old equipment.
Disposal of your old product
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old
products with your normal household waste. The correct disposal of your
old product will help prevent potential negative consequences for the
environment and human health.
Notes
Loading...
