ENGLISH4
IMPORTANT SAFETY
INSTRUCTIONS
When using an electric razor, basic precautions should always be
followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a corded razor that has fallen into water.
Unplug immediately.
2. Use razor only in dry condition. Do not use a razor while
bathing or in a shower.
3. Do not submerge razor in water.
4. Do not place or store a razor while plugged in where it can fall
or be pulled into a tub or sink. Do not place or drop into water
or other liquid while plugged in.
5. Always unplug this razor from the electrical outlet immediately
after use, except when razor is (re)charging.
6. Remove power supply cord from razor before cleaning.
7. When discarding razor, uplug razor and remove rechargeable
batteries. See Battery Removal instructions.
WARNING
To reduce the risk of burns, fire, electric shock, or injury
to persons:
1. Close supervision is necessary when this razor is used by, on,
or near children or invalids.
2. Use this razor for its intended household use as described in
this manual. Do not use attachments not recommended by
Philips Electronics North America Corporation.
3. Never operate this razor if it has a damaged cord or charging
plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water while plugged in. Return the
razor/charging stand to an Authorized Norelco Service
7610_16_17.qxd 6/6/05 12:39 PM Page 4 (Zwart plate)
ENGLISH 5
Location for examination and repair.
4. Keep the razor, cord and charging plug away from heated
surfaces.
5. Never drop or insert any object into any opening.
6. Do not charge or plug in razor outdoors or operate where
aerosol (spray) products are being used or where oxygen is
being administered.
7. Do not use this razor with a damaged or broken comb, as facial
injury may occur.
8. Always attach plug to razor first, then charging plug into outlet.
Be certain that plug is inserted firmly into razor,up to mark
indicated on plug.To disconnect, turn razor off then remove
charging plug from outlet.
9. Never put the razor in direct sunlight or store in a pouch at a
temperature above 140°F.
10. Razor can be rinsed under running tap water. Do not operate
razor until fully dried.
11.To prevent possible damage to the cord, do not wrap cord
around the razor or charging stand.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
IMPORTANT
Your razor contains NICKEL-CADMIUM RECHARGEABLE
BATTERIES. See Battery Removal instruction sheet for
battery disposal information.
7610_16_17.qxd 6/6/05 12:39 PM Page 5 (Zwart plate)
ENGLISH6
60 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Norelco Men’s
Razor, the razor should be used exclusiv
ely for 3 weeks.This allows your hair
and skin enough time to adapt to the Norelco Shaving System. If, after that
period of time, you are not fully satisfied with your Norelco Men’s Razor, send
the product back and we’ll refund you the full purchase price.
The razor must be shipped prepaid by insured mail, insurance prepaid,
and have the sales slip, indicating purchase price and the date of
purchase, enclosed. The razor must be postmarked no later than 60 da
ys
after the date of purchase. Norelco reserves the right to verify the purchase
price of the razor and limit refunds not to exceed suggested retail price.
Send dated sales slip, your complete name and address as indicated
below, and the razor, prepaid to:
Philips Domestic Appliances and Personal Care Company
A Division of Philips Electronics North America Corporation
450 North Medinah Rd, Dock 16
Roselle, IL 60172-2329
Please allow 4-6 weeks for delivery of check. (Please Print)
Name_________________________________________________________
Address________________________________________________________
City___________________________________________________________
State_____Zip__________________________________________________
Daytime Telephone No. (____)______________________________________
E-mail Address__________________________________________________
REASON FOR RETURNING:______________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
Area Code
7610_16_17.qxd 6/6/05 12:39 PM Page 6 (Zwart plate)
ENGLISH 7
Table of Contents
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8-9
LED Charging Indicator
. . . . . . . . . . . . . . . . . . .10
Before First Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-11
Put It To The Test & Shaving Tips . . . . . . . . .12
How To Shave With An
Electric Razor . . . . . . . . . . . . . . . . . . . . . . . . . . .12-13
Trimming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-14
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-18
Replacing the Razor Heads . . . . . . . . . . . . . . .18
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Battery Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Spanish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
7610_16_17.qxd 6/6/05 12:39 PM Page 7 (Zwart plate)
ENGLISH8

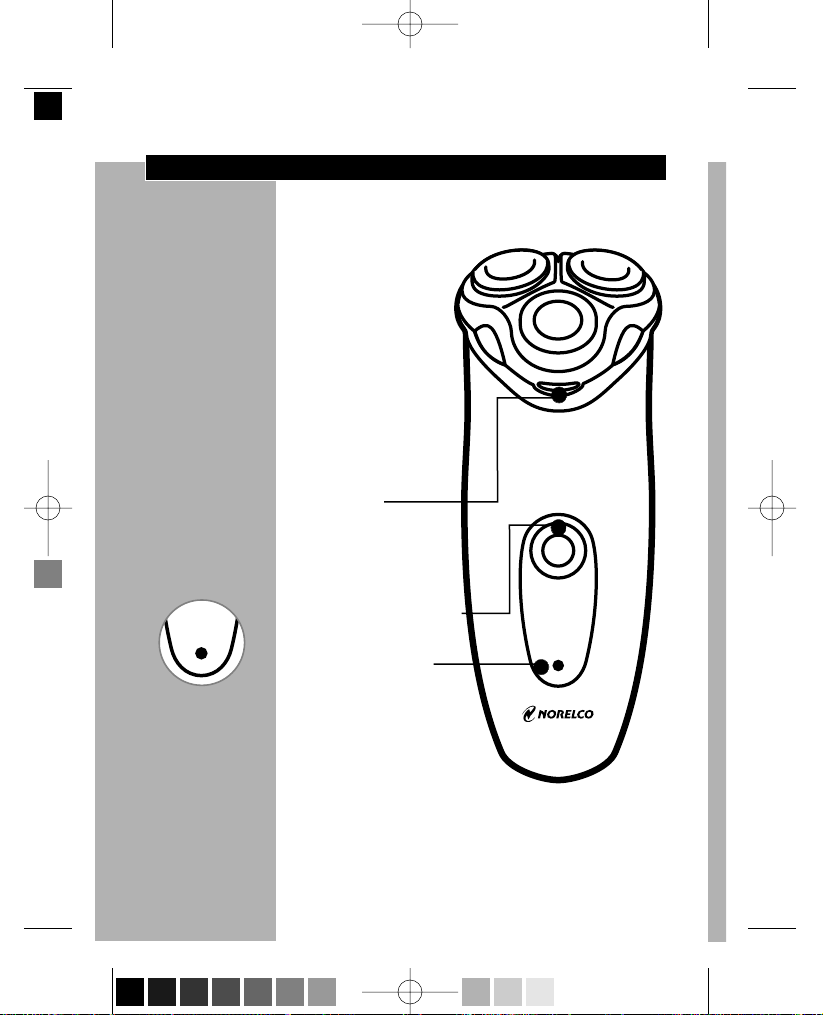

Features
Quadra Shaving System
Razor Head Assembly
Protective Razor
Head Cap
Individually Floating Heads
Razor Head Release
Button
• Hair Chamber
captures
shaven hair
Electronic ON/OFF
Button
LED Charge Indicator
Light
• Indicates razor is
(re)charging
CHARGE
Q
UADRA
CHARGE
7610_16_17.qxd 6/6/05 12:39 PM Page 8 (Zwart plate)
ENGLISH 9
Pop-Up Trimmer
Automatic Worldwide
Voltage100V to 240V AC
Cleaning Brush
Travel/Storage Pouch
Rechargeable Cordless-
Initial12 hour full charge
for up to 45 minutes of
cordless shave time
Full 2-Year Warranty
60-Day Money-Back
Guarantee

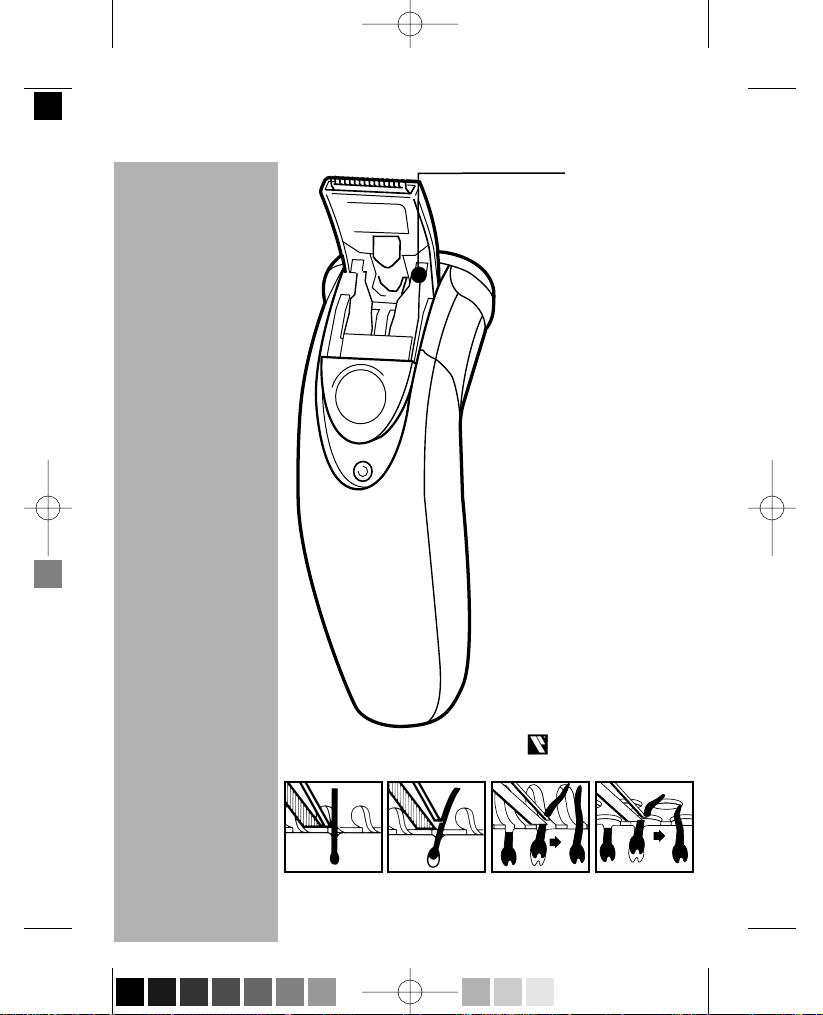

How the Unique Norelco Lift and Cut
®
Shaving System Makes Close Comfortable:
Groove channels beard
closer to cutting system
Lifter raises hair Slots to cut long hairs Holes to cut short hairs
even closer
7610_16_17.qxd 6/6/05 12:39 PM Page 9 (Zwart plate)
ENGLISH10

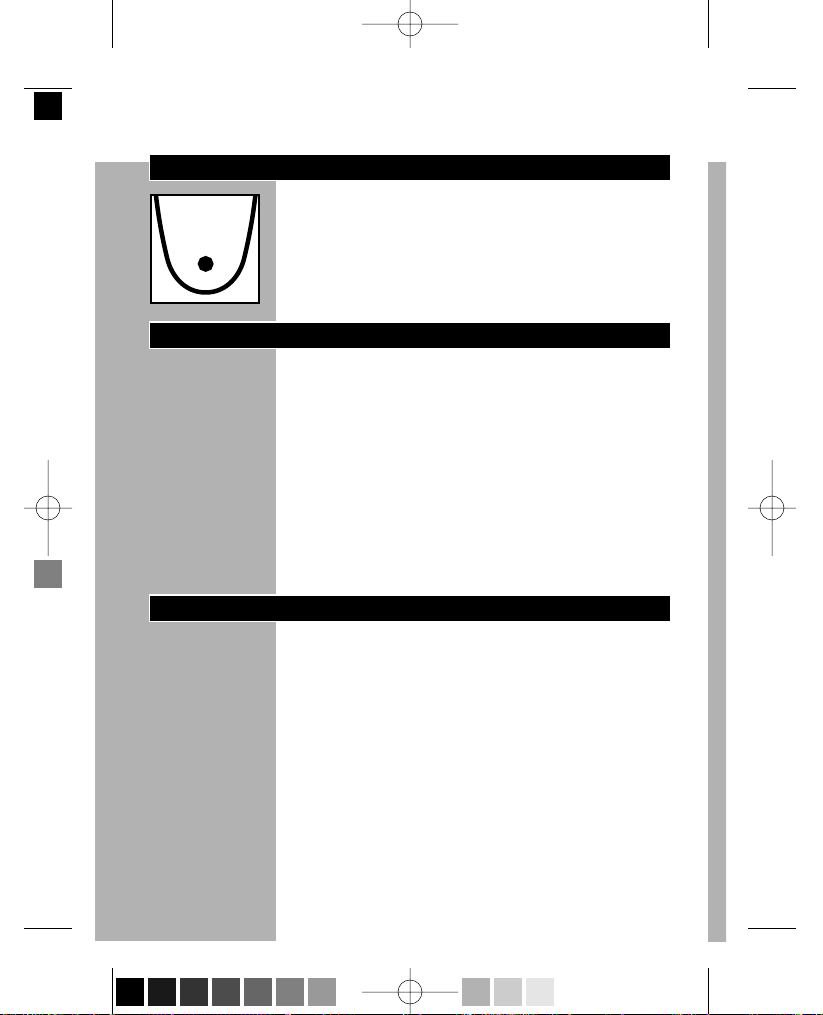

LED Charging Indicator
C ◗ LED Charging Indicator Light
The green Charging Indicator Light will light up
to indicate razor is (re)charging.
Before First Use
◗ Charge the razor before you start using it
(see ‘Charging’). Make sure the razor is
switched off before you start charging it.
Important
◗ Only use the power plug provided to charge
the razor.
◗ The charging plug converts 100 – 240V AC to
less than 24V DC.
Charging
◗ Battery performance is best if you recharge
only when the batteries are (almost)
completely empty.
◗ Charging or recharging at temperatures below
40ºF or higher than 95ºF adversely affects
lifetime of batteries.
◗ Continuously recharging will reduce life of
batteries.
◗ Do not charge/recharge razor until fully dried.
◗ Do not charge razor in a pouch.
7610_16_17.qxd 6/6/05 12:39 PM Page 10 (Zwart plate)
CHARGE
ENGLISH 11

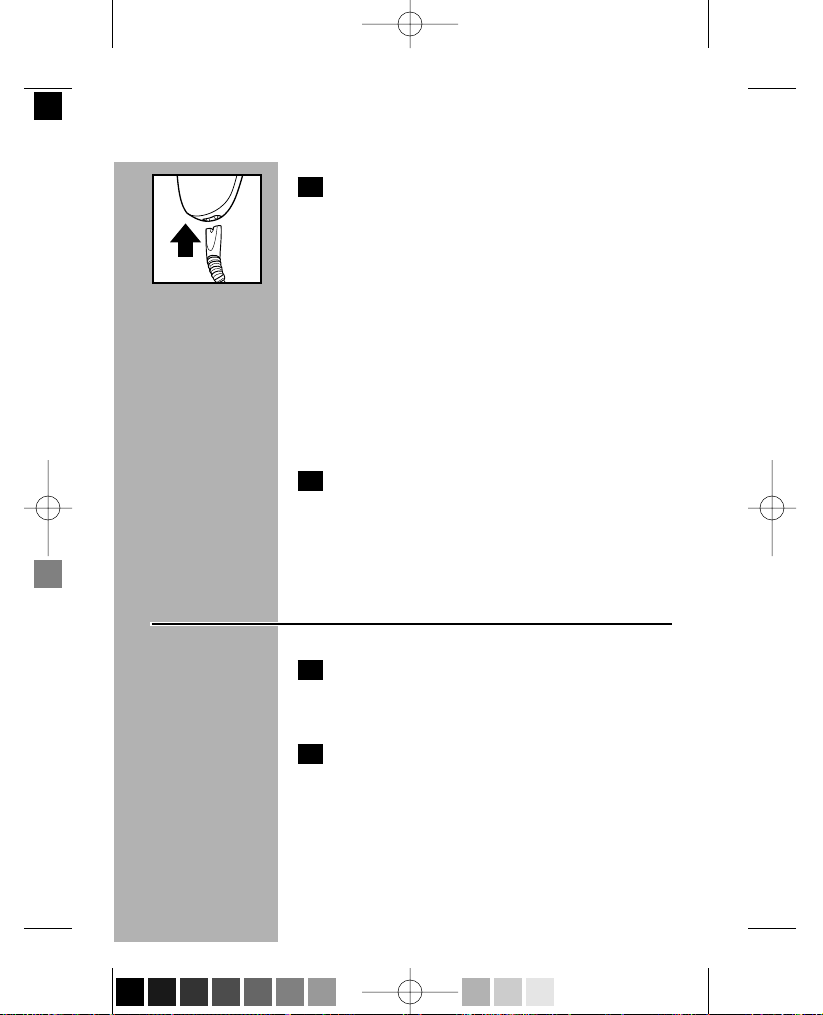

C 1 Connect cord to razor; Plug the charging
plug into any 100V to 240V AC outlet. Use
only the charging plug provided.The green
charging indicator will light up to indicate
razor is (re) charging.
◗ An adaptor plug may be necessary for
charging in some foreign countries. Use an
attachment plug adaptor of the proper
configuration for the power outlet.
Your new razor will automatically convert to work
on 100V to 240V AC systems.
2 First time charging requires 12 hours.
After initial charge, recharging requires
approximately 8 hours. A fully charged
razor has a cordless shaving time of up to
45 minutes.
Recharging
1 First time charging requires 12 hours.
After initial charge, recharging requires
approximately 8 hours.
2 When razor is fully charged, disconnect
the charging plug from outlet.
Do not keep razor permanently plugged into
outlet.
7610_16_17.qxd 6/6/05 12:39 PM Page 11 (Zwart plate)
ENGLISH12
Put It To The Test & Shaving Tips
◗ 21 Day Trial and Conversion Process. It is a
fact that your skin and beard need time to
adjust to a new shaving system.
◗ Use your new razor exclusively for 3 weeks
to fully enjoy the closeness of a Norelco
shave.
◗ At first you may not get as close a shave as
you expect, or your face may even become
slightly irritated.This is normal since your
beard and skin will need time to adjust. Invest
3 weeks and you’ll soon experience the full
joy of your new razor.
◗ Stick with it! If you alternate shaving methods
during the adjustment period, it may make it
more difficult to adapt to the Norelco shaving
system.
◗ If you are still not convinced after 21 days,
Norelco will refund you the full purchase
price, guaranteed.
How To Shave With An Electric Razor
◗ Use this razor for its intended household use
as described in this manual.
◗ Shaving with a clean, dry face gives the best
results.

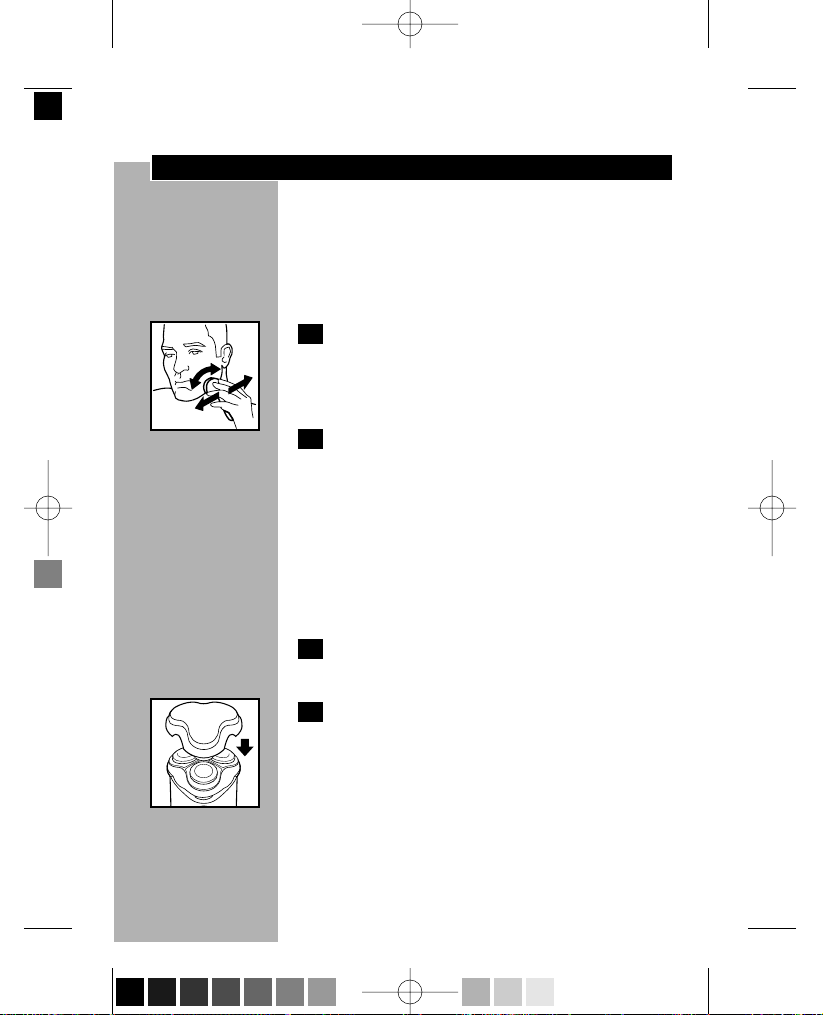

C 1 Turn razor ON by pressing the on/off
button once. Shave against the direction of
beard growth using both straight and
circular movements.
7610_16_17.qxd 6/6/05 12:39 PM Page 12 (Zwart plate)
2 Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press razor to skin so the floating heads
can follow the contours of your face.
DO NOT press too hard.Too much
pressure can pinch the skin into the
combs.
3 Turn razor OFF by pressing the on/off
button once.
C 4 Put the protective razor head cap on the
razor to protect razor heads.
For optimal shaving results, replace razor heads
(model #HQ6) once a year.

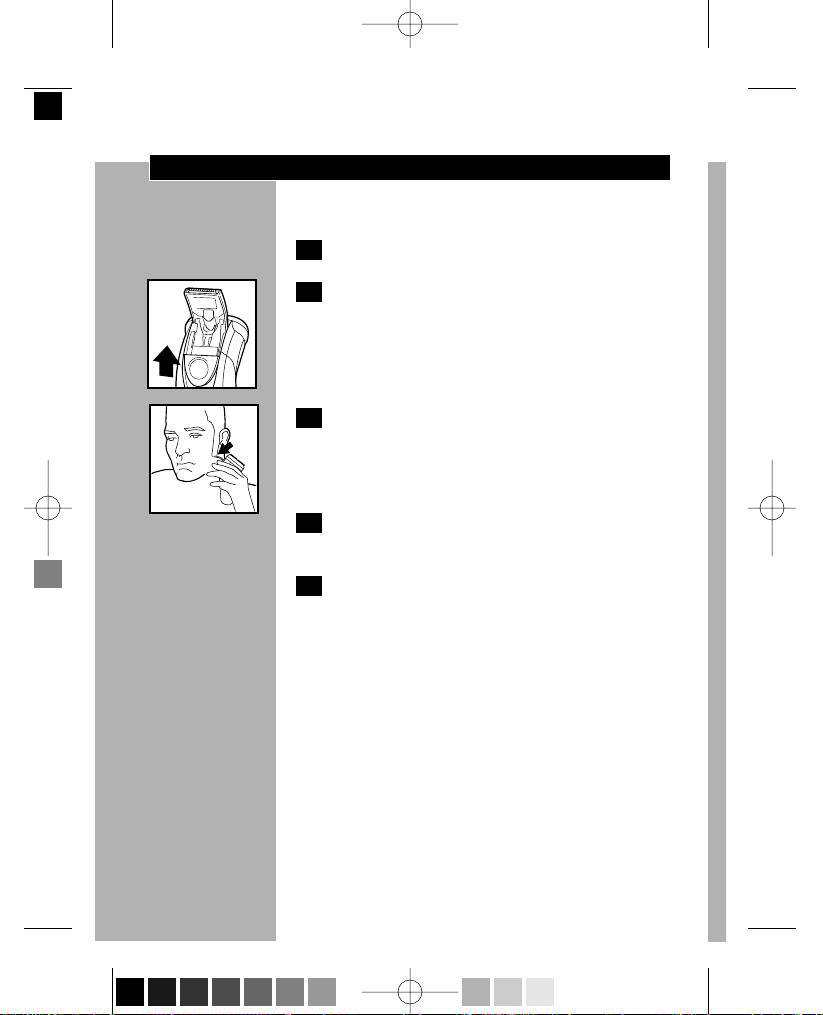

Trimming
To groom sideburns and moustache:
1 Turn razor ON.
C 2 Push up trimmer slide switch.
The trimmer can be activated while the razor is
running.
C 3 Hold trimmer as shown and move in
downward strokes with gentle pressure.
ENGLISH 13
7610_16_17.qxd 6/6/05 12:39 PM Page 13 (Zwart plate)
ENGLISH14
4 Close trimmer by sliding trimmer switch
down.
5 Turn razor OFF.

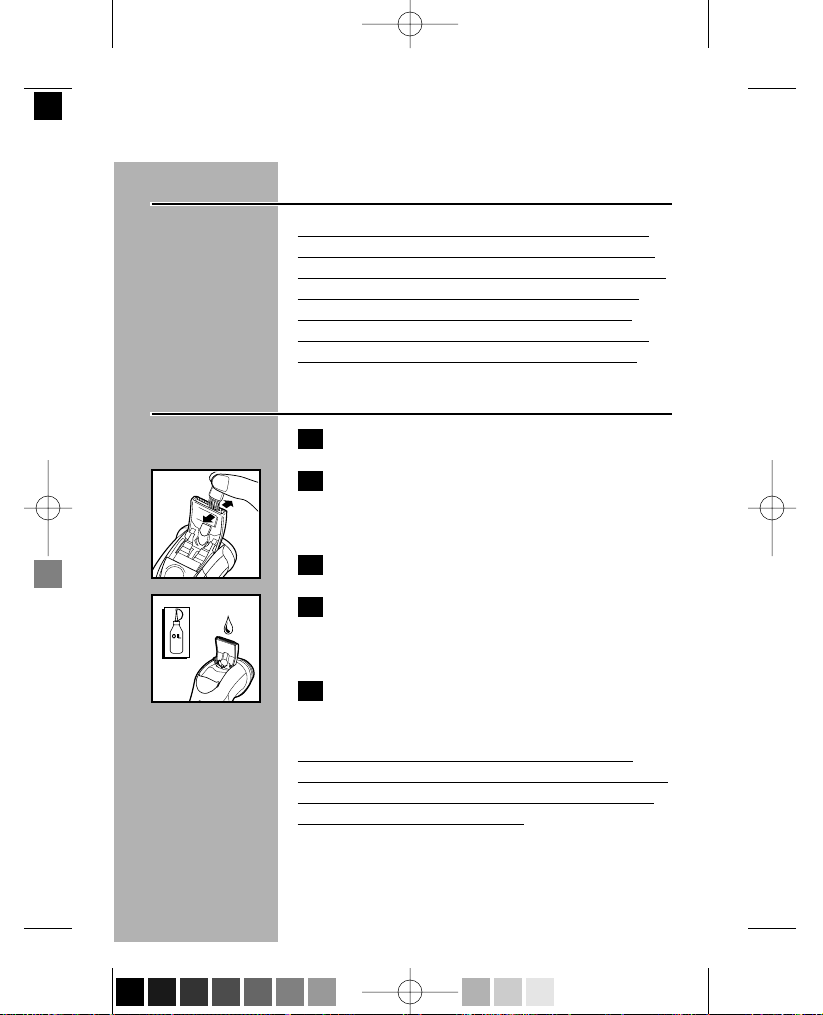

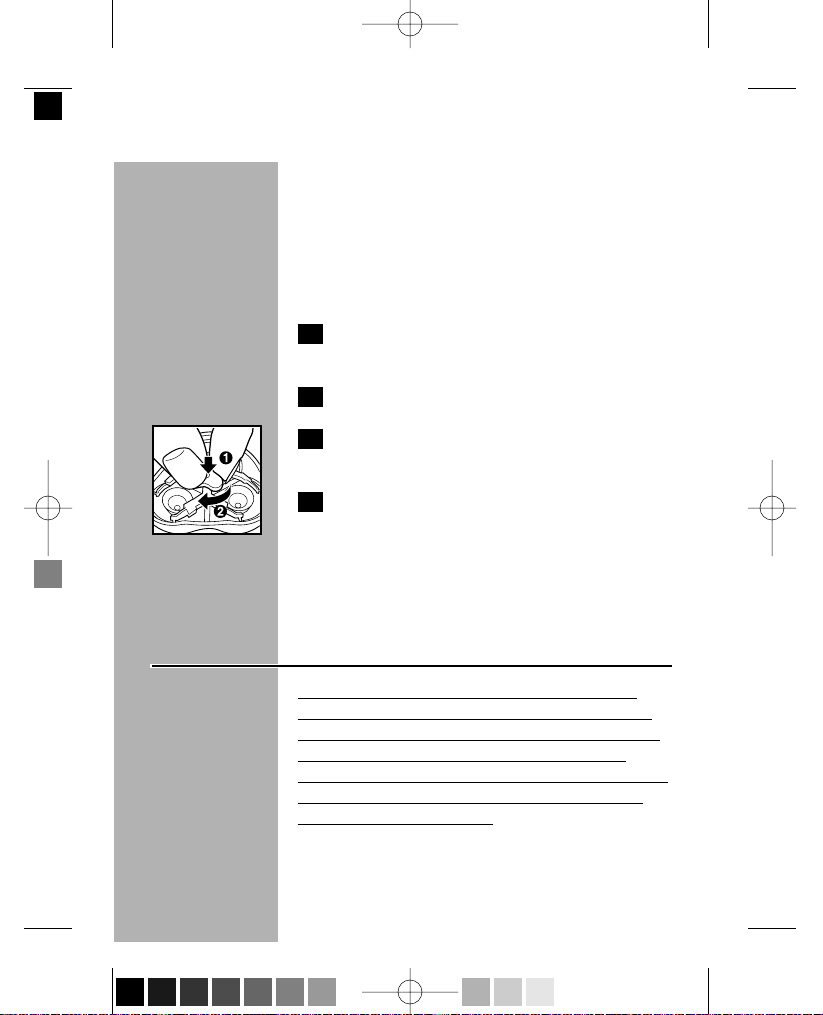

Cleaning

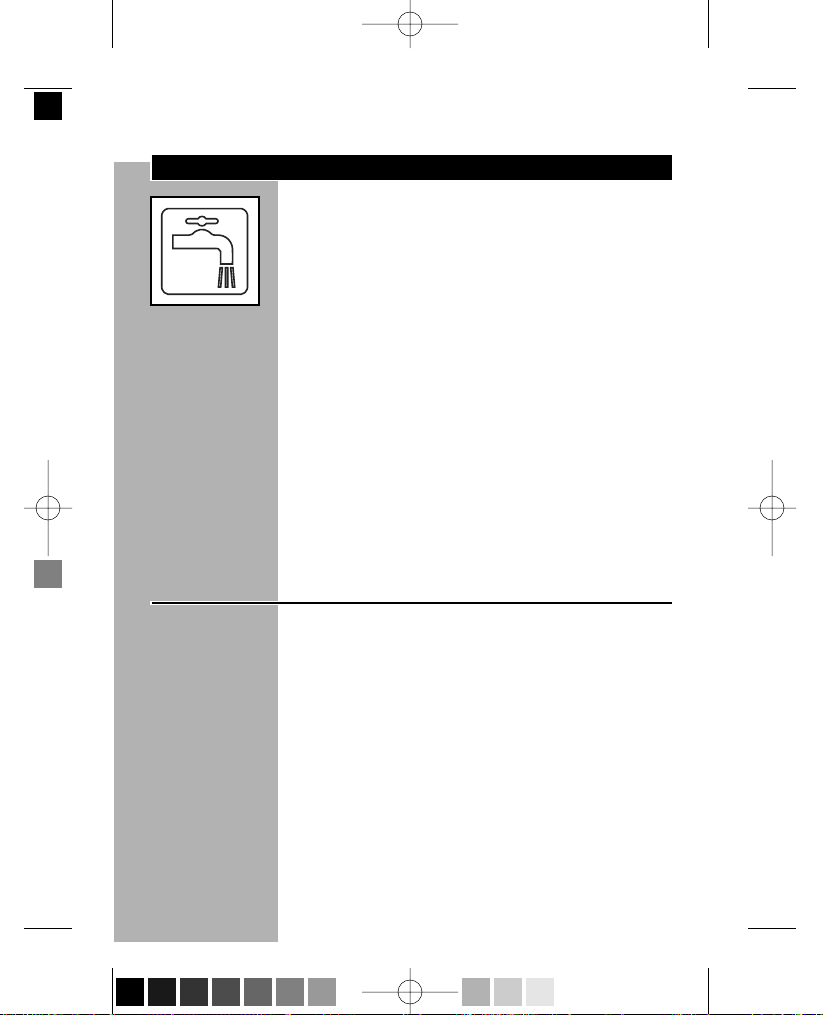

C ◗ The tap symbol on the back of the razor
indicates that the razor can be rinsed under
running tap water.
◗ Regular cleaning guarantees better shaving
results.
◗ Always switch Razor OFF, unplug and remove
power cord before cleaning.
◗ Never clean, remove or replace head
assembly while motor is on.
◗ Do not apply pressure to combs. Do not
touch razor heads with hard objects as this
may dent or damage precision-made slotted
combs.
◗ Do not use razor if combs are damaged or
broken. Facial injury may occur.

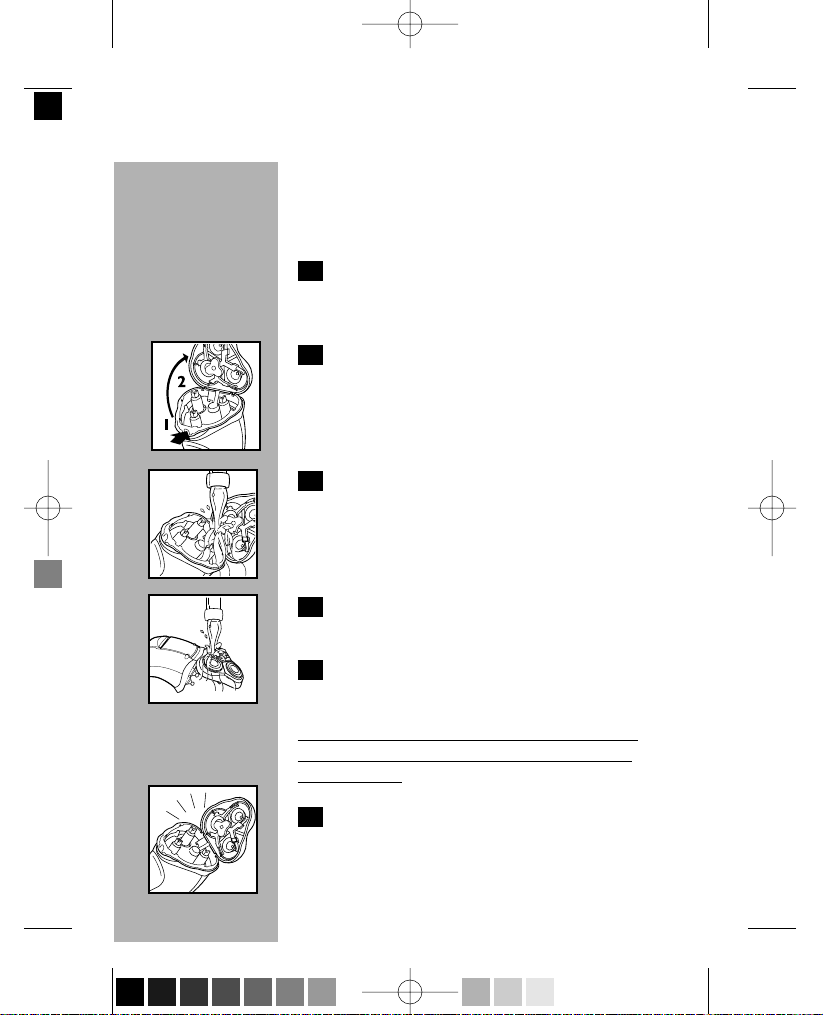

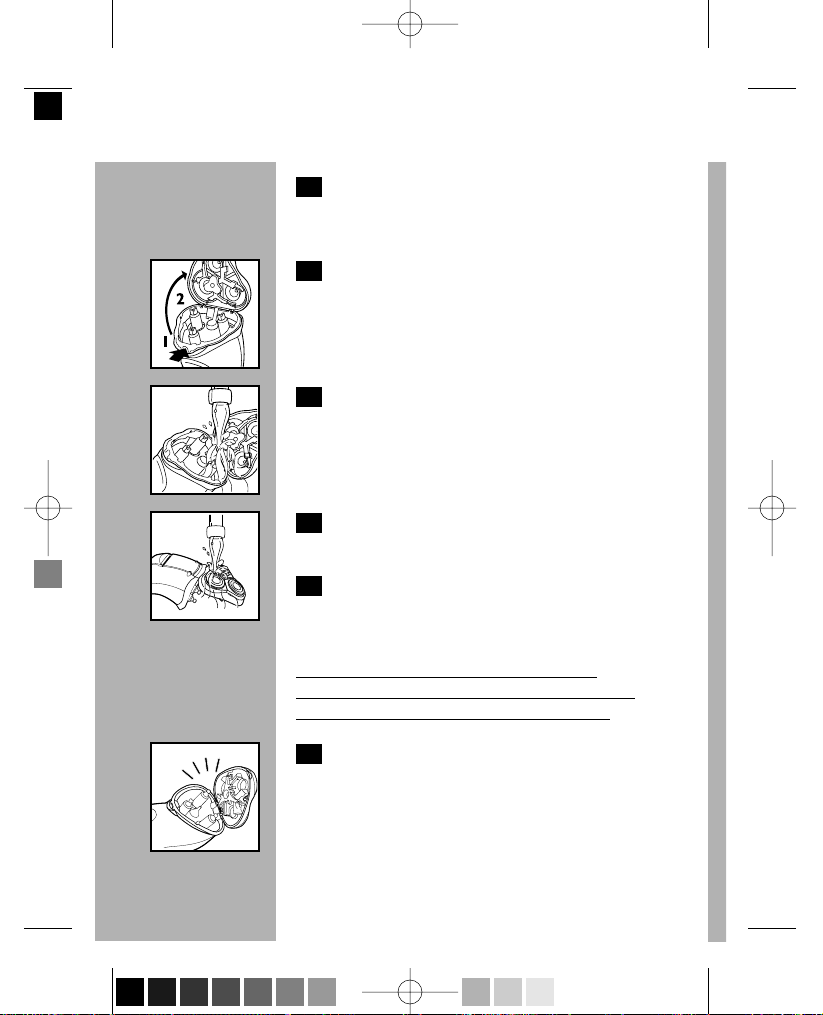

Every Week: Razor Heads
◗ The easiest and most hygienic way to clean
the razor heads and hair chamber is to rinse
them after each use or at least once a week
with hot water: Water from the tap should
be on a hot setting, BUT BE CAREFUL TO
TEST WATER FIRST SO AS NOT TO BURN
OR SCALD HANDS.
7610_16_17.qxd 6/6/05 12:39 PM Page 14 (Zwart plate)
Loading...
