Instructions for use

Digital Projection Television

64PH9905

ATSC CERTIFIED

DIGITAL TELEVISION

Once your PHILIPS purchase is registered, you’re eligible to receive all the privileges of owning a

PHILIPS product. So complete and return the Warranty Registration Card enclosed with your

purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you receive

all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS product owner:

Thank you for your confidence in PHILIPS. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special of fers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS product.

Sincerely ,

Robert Minkhorst President and Chief Executive Officer

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an

electrical shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed

literature closely to prevent operating and maintenance problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la

borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS

product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Hurry!

INTERNET ADDRESS: http://www.philipsusa.com

SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Water and Moisture - The appliance should not be used near water

- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

6B. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying exces-

sive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing elec-

tronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

11. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

13. Power Lines - An outdoor antenna should be located away from power lines.

14. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Fig. below.

15. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

16. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

17. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits

a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18. Servicing - The user should not attempt to service the appliance

beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

(NEC SECTION 810-20)

TABLE OF CONTENTS

Getting Started

Welcome/Product Registration...................2

Safety/Precautions .....................................................3

Table of Contents.......................................................4

Features, Model and Cabinet Information.................5

2 3 4

NTSC Analog On-Screen Menu Features

FIRST TIME SETUP

✧Automatic Programming of local NTSC

Channels and other Control Features ..............6-7

PICTURE MENU

✧Adjusting Color, Brightness, Sharpness,

Tint, and Picture Controls...................................8

✧Using the Clearview Control...............................8

✧Adjusting the DPTV's Convergence Control......9

FEATURES MENU

✧Setting the Smart Picture Controls ..............10-11

✧Setting the DPTV for Closed Captioning..........12

✧Setting the DPTV for Cable/Antenna Signals...13 ✧Adding Channels in Memory (Automatically) .14

✧Adding Channels in Memory (Manually).........15

✧Setting the DPTV Clock....................................16

✧Adjusting the Channel Display Control............17

✧Using the Channel Label Control .....................18

✧Using Parental Control/Content Advisory:

• Code Setup/Blocking Channels...............19-20

• Content Advisory - Movie Ratings .........21-22

• Parental Guidelines.......................................23

• Blocking Options/Review Settings...............24

SOUND MENU

✧Adjusting Bass, Treble, and Balance Sound

Controls.............................................................25

✧Setting the DPTV for Stereo/SAP Programs ...26

✧Using the Volume Display Control...................27

✧Using the Automatic Volume Limiter Control .28

Pronto Remote NTSC Features

✧Analog/NTSC DPTV Features.................29

Audio/Video Connections

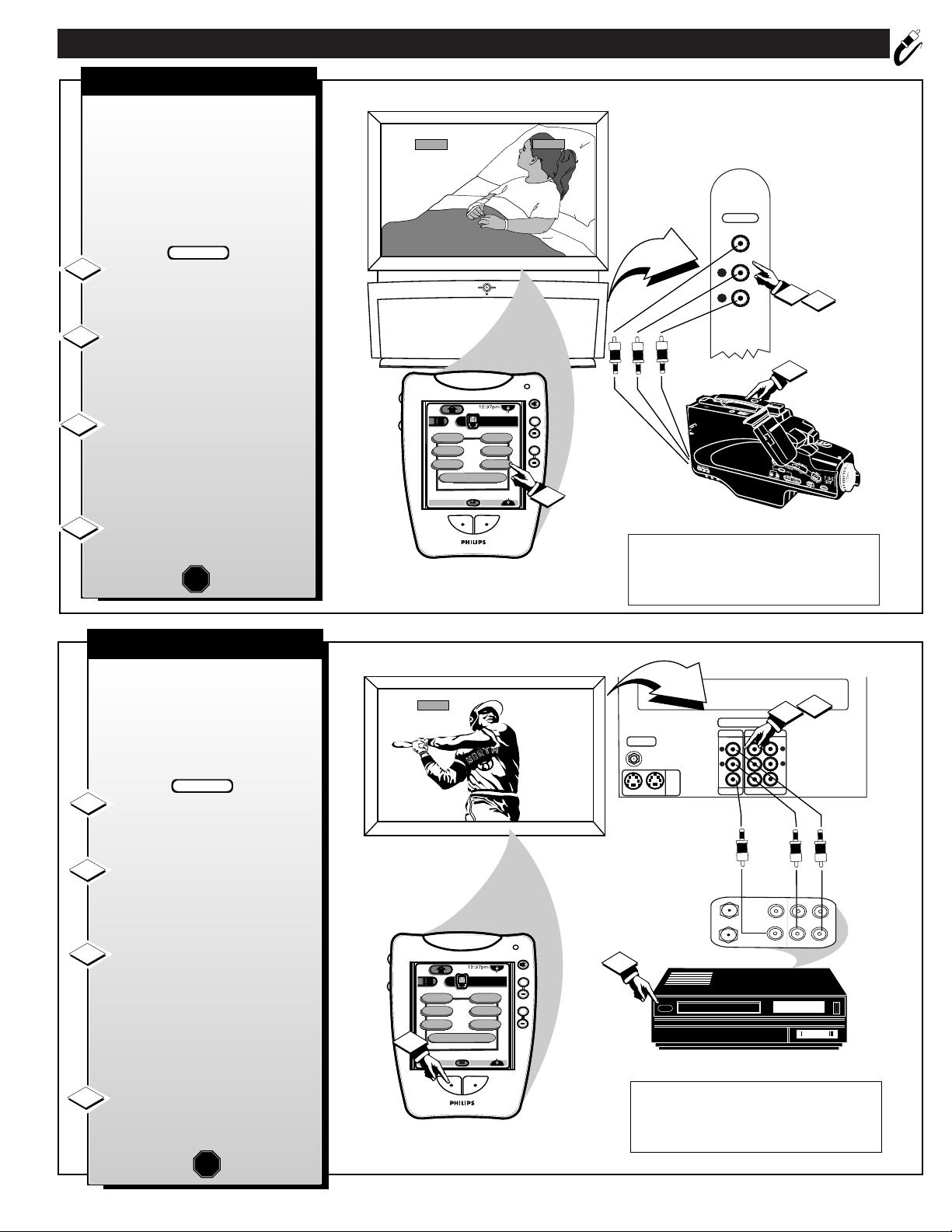

✧Auxiliary 1/2/3 Audio/Video Inputs...30-31

✧Audio/Video Outputs........................................31

✧S-Video Input....................................................32

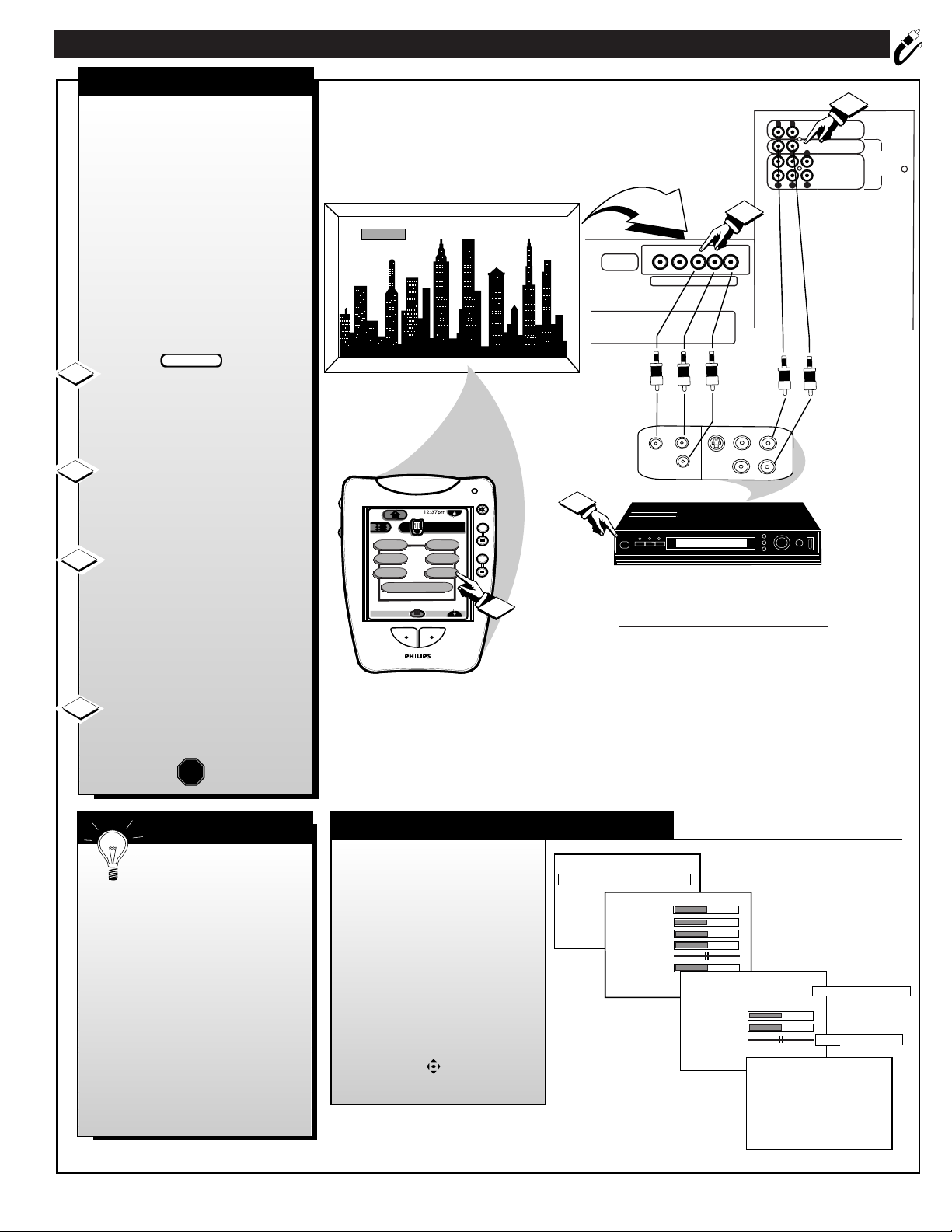

✧DVD (Component Input) Video Connections ..33

✧System Audio Output Connections ..................34

FEATURES

EXIT

MAIN MENU

SOUNDPICTURE

1ST TIME SETUP

ATSC Digital On-Screen Menu Features

DTV SETUP

✧Automatic Programming of Digital Channels

and Tuning Program/Channel Selections..........35

PICTURE MENU

✧Adjusting Color, Brightness, Sharpness,

Tint, and Picture Controls.................................36

✧Adjusting DTV Convergence............................37

SOUND MENU

✧Surround Sound Speaker Connections..............38

✧Selecting the DPTV Surround Mode Control...39 ✧Dolby Digital Internal and External Speaker

System Use and Connections ......................39-40

✧Adjusting Bass and Treble Sound Controls......41

✧Using the Auto Volume Control .......................41

SPEAKERS MENU

✧Adjusting Speaker Menu Controls for

Front/Center/Rear multi-speaker arrangements42

✧Using the Test Tone Audio Signal Control.......43

FEATURES MENU

✧Using the DPTV for ATSC Closed Captioning44

✧Adding Channels in Memory (Manually).........45

✧Using Parental Control/Content Advisory:

• Code Setup/Blocking Channels...............46-47

• Content Advisory - Movie Ratings .........48-49

• Parental Guidelines.......................................50

• Blocking Options/Review Settings...............51

Pronto Remote ATSC Features

✧Digital/ATSC DPTV Features ................52

DTV Main Menu

Picture Sound Speakers

Features

DTV Setup

Exit

MONITOR On-Screen Features

✧Connection of VGA/SVGA/ and High Definition

(HD) Component Video auxiliary equipment ..53

✧Adjusting of DPTV Monitor Display controls

(for VGA/SVGA/EXT HD devices) ................54

General Information

Tips if Something Isn’t Working.............................55

Cleaning and Care....................................................55

Index ........................................................................56

Regulatory Notices ..................................................56

Glossary of DPTV Terms ........................................57

Warranty ..................................................................58

BRIGHTNESS

PICTURE SHARPNESS SVM OFF COLOR TINT VOLUME BARON

FEATURES

DPTV SET-UP AND QUICK USE GUIDE

Use the Set-Up Guide (supplied with your DPTV information packet) for details on:

• Antenna Hook-ups

• First Time Use and Control Descriptions

• Basic DPTV and Pronto Remote Operation

• DTV Program Rollout Information

As you unpack your DPTV please note that the following items have been included with your set:

• Owner's Manual and DPTV Quick Use Guide

- Safety Tip Information

- Factory Service Center Locations

• Warranty Registration Card

• Pronto Remote Control Transmitter

- Product Package contains dedicated Pronto Owner’s Manual information

• Batteries for Remote Control Use Please take a few minutes to complete your

registration card. The serial number for the DPTV is on the back of the product.

Refer to the back of this manual for instructions on the cleaning and care of the DPTV.

ATSC Certified - for full compliance with analog NTSC and all 18 digital ATSC formats as specified by the Federal Communications Commission (FCC).

High Definition Digital - with full 1920 x 1080 interlaced image resolution capability to achieve superior image performance.

64" Widescreen Display - with a super-large 64" Widescreen 16:9 display format which provides for a true home theater or cinematic experience. If a 4:3 aspect ratio picture is the primary source, it will be expanded to fill the screen.

120-Watt Amplifier - to provide up to 20 watts amplification for each of the Left/Right front, Center, Left/Right rear Surround, and Subwoofer channel speakers.

First Time Set Up - for both NTSC and ATSC channel programming to automatically preset the DPTV for available area stations.

Parental Control for “Censoring” - this feature can block out channels to keep children from watching undesirable programming. Parental Guideline and Movie Rating settings can also be used as part of the new Content Advisory Data system available with TV programming.

Pronto Remote Control - universal, learn remote which controls virtually all IR devices, learns new commands as your system expands, and can be customized according to your personal preferences. Featuring a large LCD backlit touchscreen, the Pronto gives you easy access to all key DPTV features.

Dolby®Digital Sound - for multichannel sound reproduction at its best. Fully compatible DPTV audio system will replay a received Dolby Digital 5.1 sound source through internal system amplification, or function within a home theater sound system.

Audio/Video Connections - for external sources and home theater equipment to provide the ultimate in flexibility. In addition to separate NTSC/ATSC antenna inputs, connections include inputs formatted for SVideo; composite video; Left/Right audio; six-channel audio (directly to internal amplifiers); External Center Channel Audio Amplifier Inputs; VGA; and High Definition component (Y PB PR) video - such as used with DVD players.. Output possibilities include Left/Right audio; SPDIF; rear speaker connections; front speaker connections; variable and amplified subwoofer speaker connections.

VGA/SVGA - 15-pin D-sub female connection for impressive multimedia display of computer source material through the DPTV’s Monitor operation mode.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992-1997 Dolby Laboratories, Inc. All rights reserved.

Product End-of-Use disposal

Your new digital projection television and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts which need to be properly disposed.

Your product also uses batteries which should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste.

Please find out about the local regulations on how to dispose of your old products, batteries, and packaging materials whenever you replace existing equipment.

NOTE: Not all features (and drawings) discussed in this owner’s manual will necessarily match those found with your television set. This is normal and does not require you contacting your dealer or requesting service.

Because of continuous product improvements, the information mentioned in the documents accompanying your product are subject to change without notice.

64PH9905 Digital Projection Television

PRODUCTDESIGN

DPTV/NTSC/MONITOR

Projection Television (DPTV) represents an advanced first step concept in integrated digital products. Designed for discrete and cross-over system functionality the 64PH9905 will support traditional NTSC Television standards, receive all certified FCC defined ATSC digital transmission formats,as well as perform PC

TS1007 Pronto Remote Control

INTEGRATED

he Philips 64PH9905 Digital

DIGITAL PROJECTION TELEVISION

TABLEOF CONTENTS - QUICK USE GUIDE

• For details on product safety,registration,

Getting Started

Warning/Precautions . . . . . . . . . . . . . . . . . .1

DPTV Integrated Product Design and Features Basic DPTV and Remote Control Description of Controls and Operations Digital (ATSC) Menu Control Operations Analog (NTSC) Menu Control Operations Monitor Menu Control Operations Digital TV Rollout - Time/Terms/& Technology

Use guide (page 8) for additional information on: ¥scheduled Digital

. . . . . . . . . . . . . . . . .2-3

digital 1nf0rmation

lease refer to the rear section of this Quick-

Broadcast program rollout dates, and what will be available from the various netw orks and program suppliers

. .1

. . . . .4-5

. . . . . .6

. . . . . . . . . . . .7

¥the basics on how HDTV,

Digital, and Analog TV systems differ and how they can be received

¥other ATSC (or Advanced

Television System Committee) news and details on digital broad casting product operations and services

warranty,and service refer to the other literature included with your TV information packet. Please retain all these materials and keep them handy for future reference.

NOTE:Not all features (and drawings) discussed in this owner’s manual will necessarily match those found with your television set. This is normal and does not require you contacting your dealer or requesting service.

WARNING:TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS UNIT TO

DIGITAL TELEVISION

RAIN OR EXCESSIVE MOISTURE.

ATSC CERTIFIED

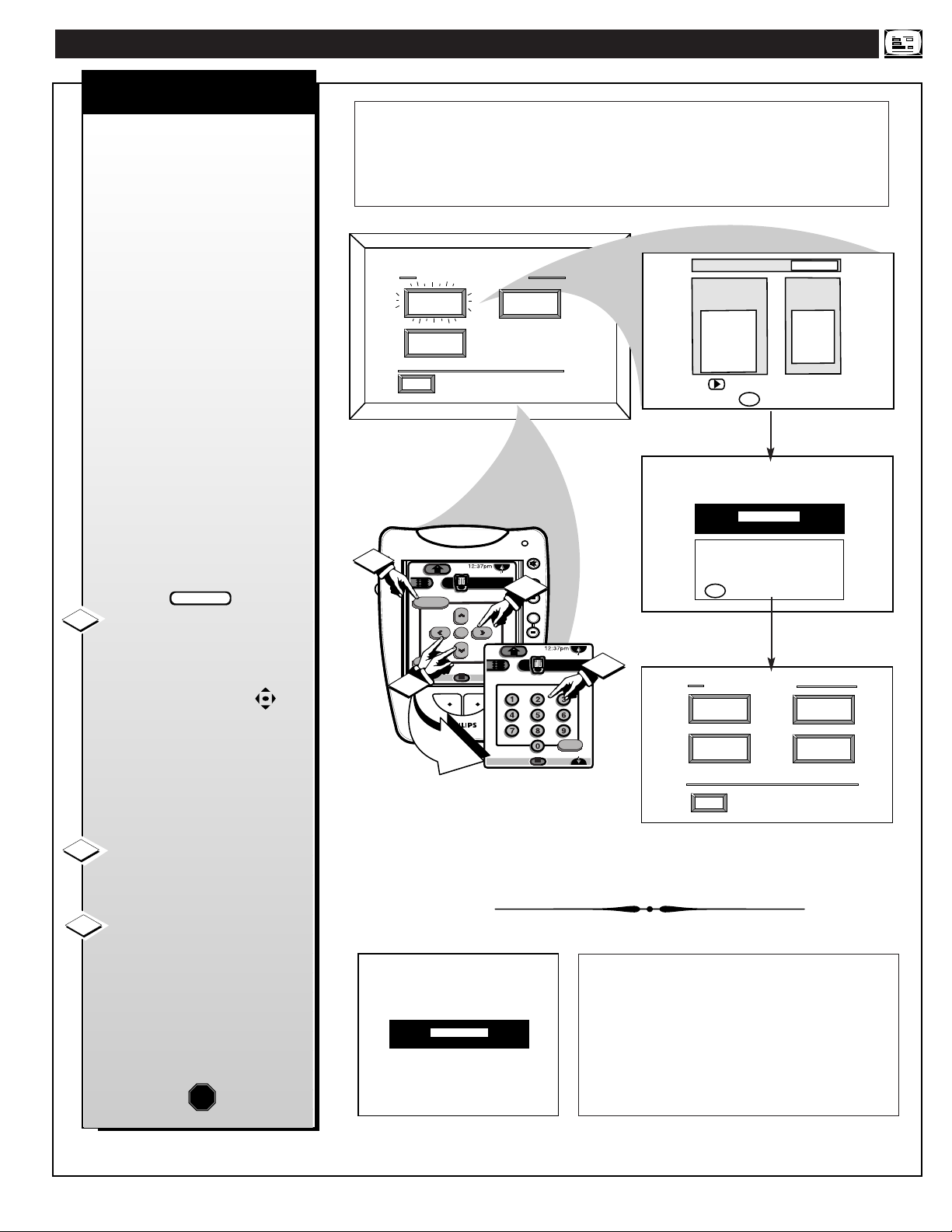

NTSC/ANALOG ON-SCREEN MENU FEATURES

FIRST TIME SETUP

exit

DTV

Analog

DTV3/3

MAIN MENU

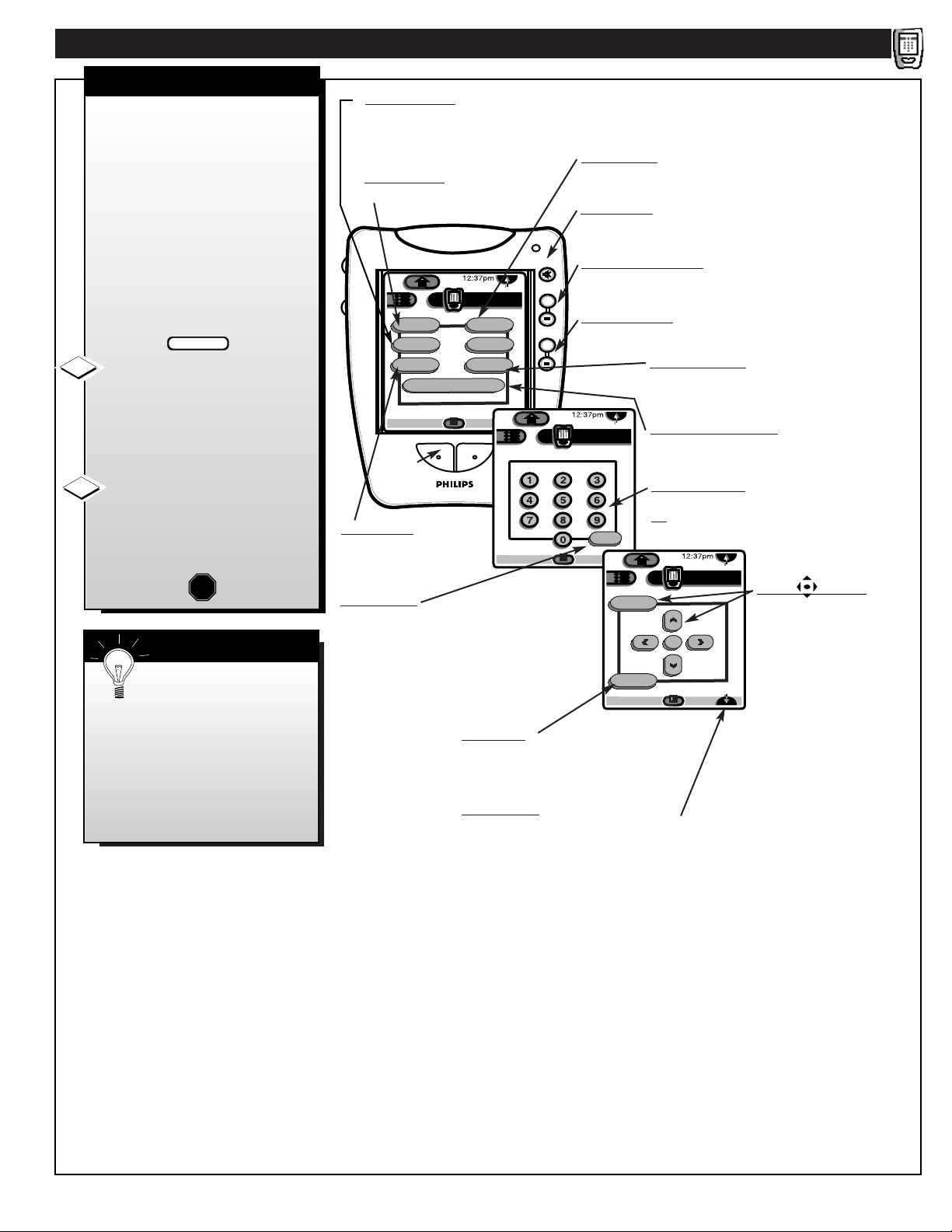

Press the Pronto remote’s “analog format” (or the “Source” button on the DPTV keyboard) to select the NTSC operating mode.

irst Time Setup automatically takes

care of some basic control feature settings for you. Follow the steps in this section to quickly add area channel numbers into the DPTV's scan system memory, and set the DPTV for your connected signal (Antenna or Cable.) You can also set-up your TV Smart Clock feature for the first time as well.

Press the MENU (or ok) button

on the Pronto remote or DPTV. An on-screen list of NTSC features shows on the "MAIN MENU".

Select "1ST TIME SETUP" on

the DPTV's Main Menu. (Selected MENU item is highlighted in RED.)

Press the remote's Menu buttons to move UP/DOWN and

from SIDE-TO-SIDE within the list of on-screen features.

Press CH(annel)▲ ▼ and VOLume (+) (-)

on the DPTV’s local keyboard to move UP/DOWN and from SIDE-TO-SIDE within the list of on-screen features.

Press MENU (or ok) button on

the remote or DPTV to begin SETUP.

Follow the instructions shown on the screen to guide you through the First Time Setup and use of your new DPTV.

BEGIN

STOP

Continued on Next Page

SMART HELP

Note: The Smart Clock

option “SET TIME AUTOMATICALLY” sets the DPTV’s clock according to TV station Data Services Information (where available). With this mode the clock will automatically reset itself after power outages and update itself for Daylight Savings Time changes. The Smart Clock feature will also reset itself every time the TV is turned off. The “SET TIME MANUALLY” option allows you to only enter the current time of day and AM or PM settings.

See following page for details on “Set Time Manually”

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

NTSCNTSC

ANALOG MAIN MENU

FEATURES

1ST TIME SETUP

SOUNDPICTURE

EXIT

UP CH

VOL

SOURCE

EXIT

VOL

–

CH DOWN

The First-Time Setup

provides a simple method

of adjusting the most

important controls for

this television receiver.

Press "M" To Continue

Please check that your

analog TV antenna or cable is

connected to the plug

marked ANT on

the TV rear input panel.

Press STATUS to Quit

Press "M" to Continue

The search for active channels is complete

for the analog TV antenna.

17 channels were found

and saved in memory

Press "M" to Continue

Press "▲ ▼" to select the

time zone that you live in.

Press "M" to Continue

ATLANTIC EASTERN CENTRAL MOUNTAIN PACIFIC ALASKA

HAWAII

Many of the current TV

control settings will be modified by continuing

with First-Time Setup.

Press STATUS to Quit

Press "M" to Continue

for the analog TV antenna.

This TV contains a clock

which can automatically

SMART CLOCK feature.

by certain TV stations.

Press "M" to Continue

* Please Wait *

System is testing for

correct tuning mode

be set through the

The clock will be set

to the time broadcast

Do you observe

Daylight Savings Time?

YES NO

Press "▲ ▼" to Select

Press "M" to Continue

This TV is equipped with

the Smart Clock feature.

This feature is designed

to operate only on the

analog TV antenna.

Press "M" to Continue

* Please Wait *

System is searching for

all active channels

for the analog TV antenna.

Testing channel 2

in cable mode.

Do you want to set the

clock automatically?

SET TIME AUTOMATICALLY SET TIME MANUALLY

Press "▲ ▼" to Select

Press "M" to Continue

The time is broadcast by

certain TV stations

We suggest trying PBS first

Enter the channel

Press "M" to Continue

NTSC/ANALOG ON-SCREEN MENU FEATURES

FIRST TIME SETUP

(

CONTINUED)

SMART HELP

lease remember, SETUP is a

first-use, one-time operation and will not have to be repeated after initial adjustments are made.

Note: Press the “exit” button on the remote or DPTV to stop the

SETUP operation at any time.

Convergence (or lining

up of red and blue light paths on the TV screen) has been preset at the factory for your convenience and should not need any further adjustments. However, Convergence controls are provided (in both the First Time Setup and Picture Menu areas) in case the picture on your DPTV shows color fringing. Color fringing is when colors “bleed” or appear around the edges of on screen images and objects. If your DPTV should ever need to be adjusted for such a condition, please also refer to the DPTV’s Picture Menu Convergence control page section for further details.

Clock Note: When setting the time “manually”, you can use the Pronto remote number buttons (touchscreen 2/3) to enter the current time, or use the arrow

▲▼

buttons on the remote to select the time and the AM/PM settings.

See the “Convergence Control” Smart Help Note given on this page.

System is looking for time on channel X.

Please wait 45 seconds

Please check TV clock and

adjust if necessary.

The time is currently

set to PM

Please enter current time

Press "M" to Continue

PRESS TO ALIGN RED PRESS MENU TO RETURN

CONVERGE RED POINTS

DIGIT 2, 4, 6, 8 TO MOVE CURSOR

PRESS MENU NOW TO CONTINUE

12 : 00

USE TO ADJUST

MENU TO RETURN

Time was found on channel X.

The time is 12:00PM.

Press "M" to Continue

CONVERGENCE MENU ALIGN RED

ALIGN BLUE CONVERGE MULTI POINT BACK

PRESS TO ALIGN BLUE

PRESS MENU TO RETURN

MART CLOCK NOT

Time was not found

on channel X.

ENTER ANOTHER CHANNEL SET TIME MANUALLY

Press "▲ ▼" to Select

Press "M" to Continue

This completes the

First-Time Setup.

Press "M" to Exit Setup

CONVERGENCE MULTI POINT CONVERGE RED POINTS

CONVERGE BLUE POINTS RESTORE FACTORY SETTINGS SAVE ADJUSTMENTS BACK

MAIN MENU

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

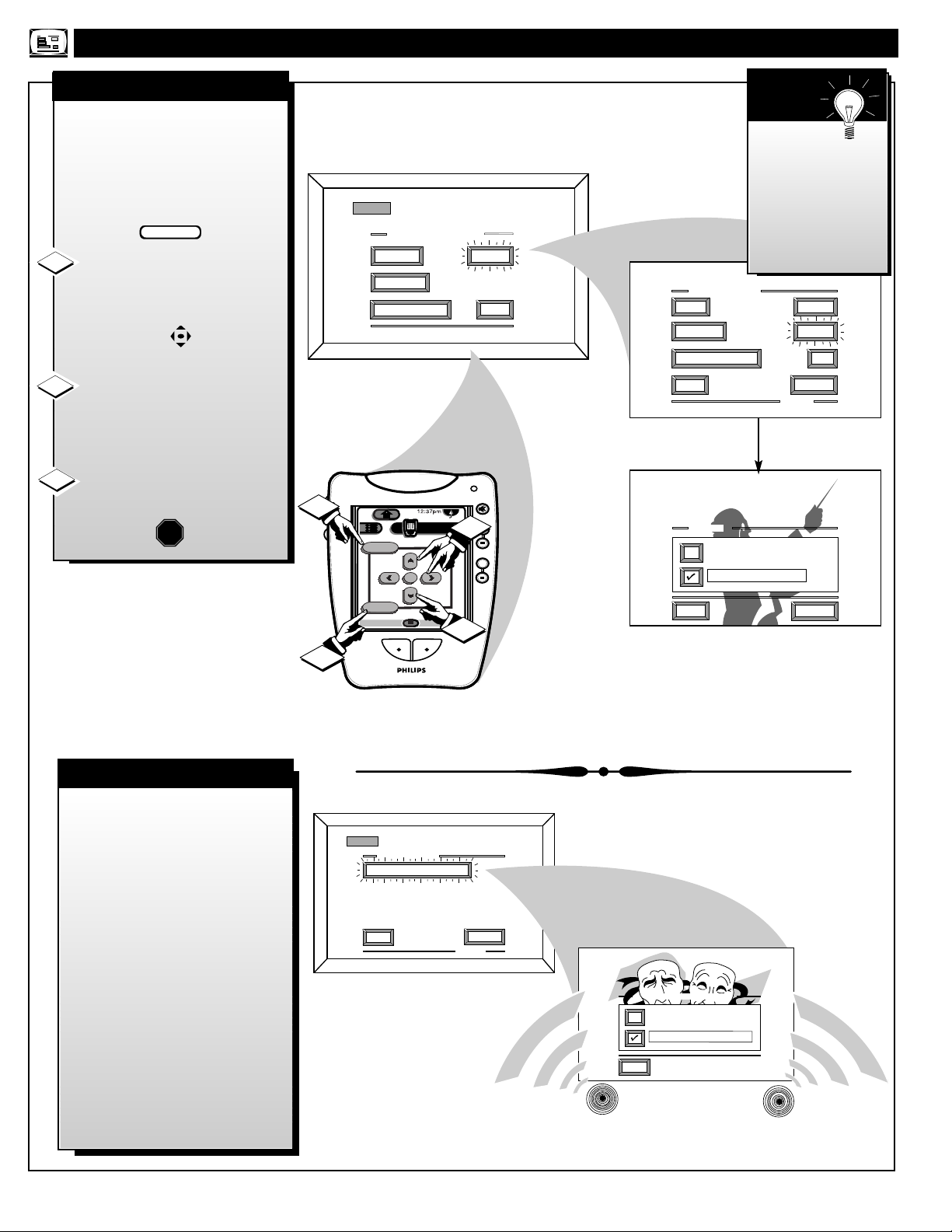

NTSC/ANALOG PICTURE MENU CONTROLS

COLOR, BRIGHTNESS,

SHARPNESS, TINT, PICTURE

MAIN MENU

o adjust your DPTV color and

picture controls, select a TV channel and follow the steps shown below:

Select BRIGHTNESS,

PICTURE, COLOR, TINT, or

SHARPNESS picture control.

With the PICTURE MENU onscreen, move the RED highlight with the MENU buttons. Then

press the MENU (or ok) button.

Press the § or © arrow

buttons to adjust the selected

control.

Press the “exit” button to clear

the screen.

STOP

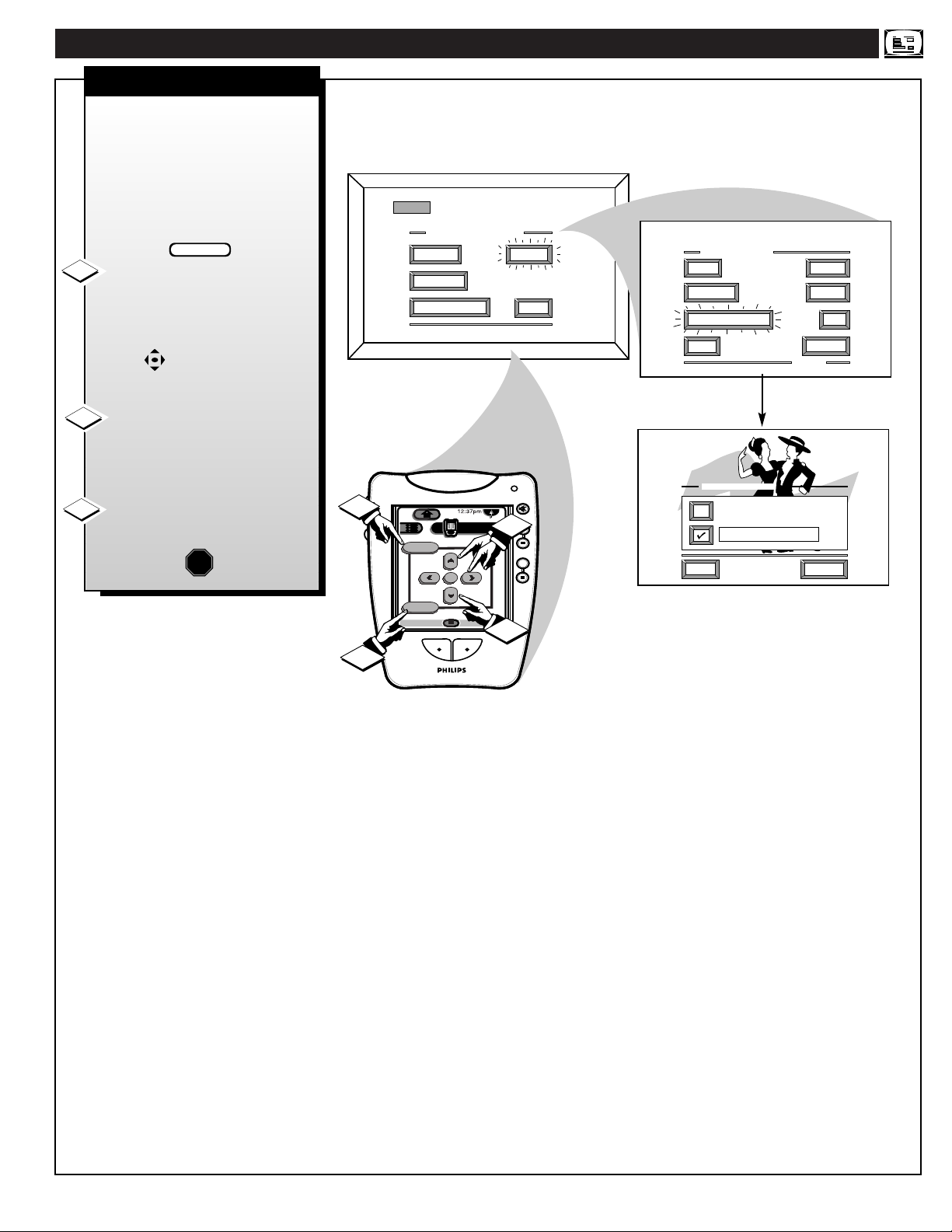

CLEARVIEW

learview is a sharpness feature

which smoothes out background snow (or picture noise) without losing picture image detail or crispness.

Select CLEARVIEW control.

With the PICTURE MENU onscreen, move the RED highlight with the MENU buttons. Then

press the MENU (or ok) button.

Press the MENU ▲▼ buttons

to move the RED highlight. Press the MENU button to select (

U) the

ENHANCED mode.

Press the “exit” button to clear

the screen.

BEGIN

STOP

Remember, control settings are at normal mid-range levels when the bar scale is centered.

COLOR Press (-) or (+) to add or eliminate color. BRIGHTNESS Press (-) or (+) until dark parts of the picture

show good detail.

SHARPNESS* Press (-) or (+) to improve detail in the picture. TINT Press (-) or (+) to obtain natural skin tones. PICTURE Press (-) or (+) until whitest parts of the picture are

as bright as you prefer.

SMART

HELP

Select the NEXT control and then press MENU (or ok) button on the remote to view additional controls grouped under same feature heading (Tint, Brightness, Picture, etc.).

* Note: An additional Picture Menu “VIDEO

ENHANCEMENT” control (similar in function

and use as the Sharpness control) is also available to further improve picture intensity and detail, particularly for the playback of DVD player source material.

MIN

MAX

VIDEO ENHANCEMENT

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

BEGIN

NTSCNTSC

ANALOG MAIN MENU


FEATURES

1ST TIME SETUP

exit

Analog

DTV3/3

DTV

SOUND

mute

channel

volume

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT

COLOR

MIN

EXIT


CLEARVIEW

MORE...

1 OF 2

MAX

NEXT...

NTSCNTSC

ANALOG MAIN MENU


FEATURES

1ST TIME SETUP

exit

Analog

SOUND

EXIT

mute

channel

DTV

volume

DTV4/4

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT

CLEARVIEW

NORMAL

ENHANCED

EXIT


CLEARVIEW

MORE...

1 OF 2

NEXT...

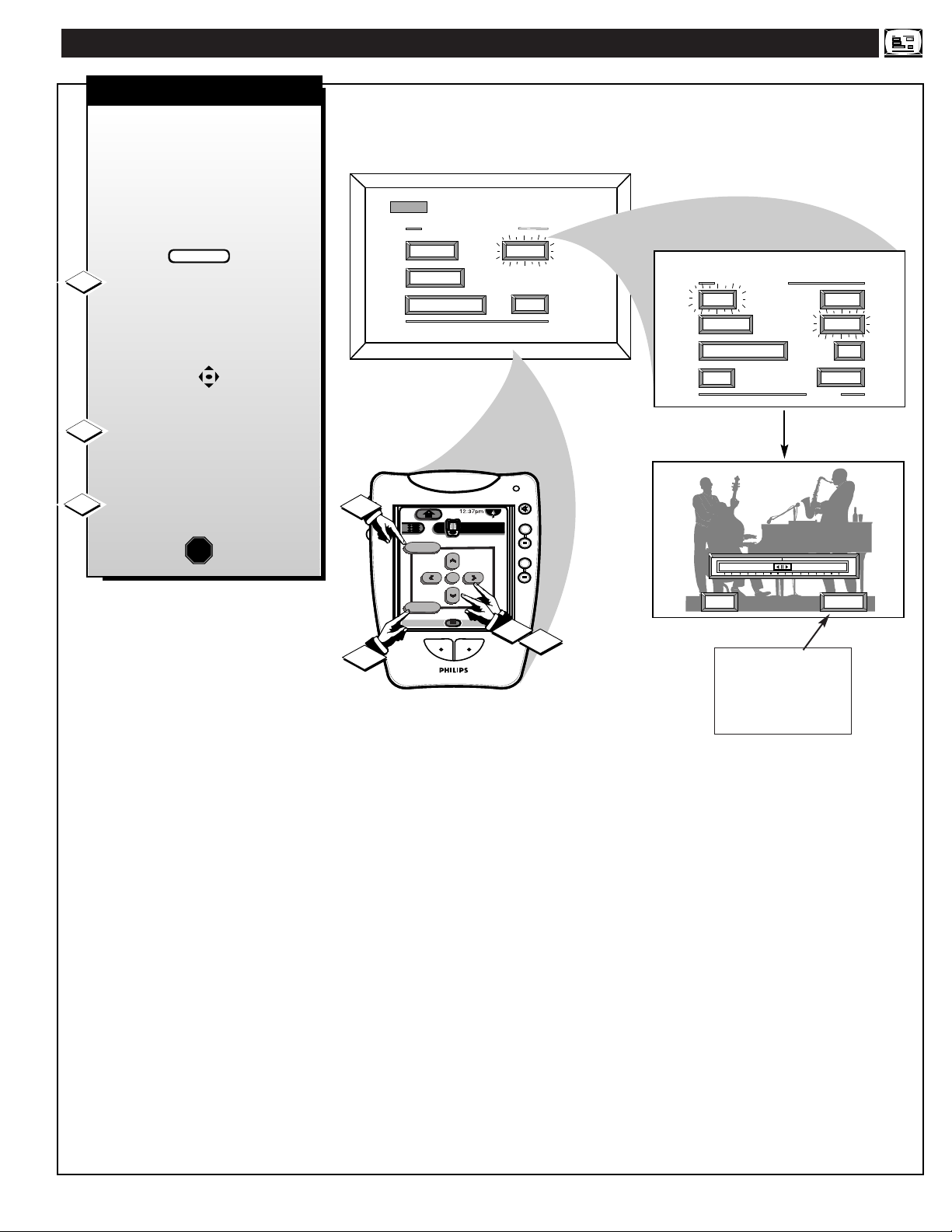

NTSC/ANALOG PICTURE MENU CONTROLS

RED/BLUE CONVERGENCE

SMART HELP

onvergence is the correct

lining up of the red and blue light paths on the DPTV screen. NOTE: If no color fringing (see Smart Help) shows, then no Convergence adjustments are necessary.

Select CONVERGENCE

control.

With PICTURE MENU (2 of 2) on-screen, move the RED highlight with the MENU buttons. Then

press the MENU button.

Press the MENU ▲▼ buttons

to select either the Red or Blue Convergence control, press the MENU button to continue.

Press the MENU buttons

to move the selected red (or blue) convergence cross directly over the white cross on the DPTV screen.

The red (or blue) cross is properly adjusted when it is completely merged with the white cross. (No color appears around the edge of the white cross).

Press the “exit” button to clear

the screen when convergence adjustments are complete.

STOP

Remember, Convergence

has been set at the factory for best viewing, but if one or more of the (red or blue) colors appear around the edges of objects (color fringing) follow the steps given in this section.

NOTE: Adjustments for “Multi-Point” onscreen color fringing can also be made as part of the DPTV’s Convergence control system. Follow the on screen menu directions to select individual screen areas that can be readjusted and set for varying red/blue color fringing conditions. These multi-point settings can then be “Saved” to memory for the specific areas of the DPTV screen (or Factory Settings for convergence can be recalled and put back into place for use).

CONVERGENCE MULTI POINT CONVERGE RED POINTS

CONVERGE BLUE POINTS RESTORE FACTORY SETTINGS SAVE ADJUSTMENTS BACK

CONVERGE RED POINTS

USE TO ADJUST

DIGIT 2, 4, 6, 8 TO MOVE CURSOR

MENU TO RETURN

PRESS MENU NOW TO CONTINUE

MULTI-POINT CONVERGENCE CONTROLS

BEGIN

MAIN MENU

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

NTSCNTSC

ANALOG MAIN MENU


FEATURES

1ST TIME SETUP

exit

Analog

DTV3/3

DTV

SOUND

EXIT

mute

channel

volume

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT

PICTURE MENU

CONVERGENCE

VIDEO ENHANCEMENT

EXIT


CLEARVIEW

MORE...

1 OF 2

MORE...

2 OF 2

CONVERGENCE MENU ALIGN RED

ALIGN BLUE CONVERGE MULTI POINT BACK

PRESS TO ALIGN RED PRESS MENU TO RETURN

NTSC/ANALOG FEATURE MENU CONTROLS

SMART PICTURE

ith Smart Picture you can set a

number of video and audio controls to your own personal preference. Once the individual controls have been adjusted to the levels you desire, use the list of Smart Picture feature category titles to quickly reselect these “personalized” settings contained within the memory of the DPTV. (See the next page for more details on the labeling options and use of Smart Picture.)

Select the SMART PICTURE

control.

With the FEATURES MENU onscreen, move the RED highlight with the MENU buttons. Then

press the MENU button.

Press the MENU ▲▼ buttons to

highlight the category list for Smart Picture. Press the MENU button to select (

U) the desired title.

Press the MENU buttons

to choose any of the individual controls you wish to adjust for the Smart Picture selected title. Then press the Menu (or ok) button to select the highlighted control.

Press the Menu § or © arrow

(or Menu buttons) to adjust the

selected control as needed.

Press the “exit” button on the

remote to clear the screen after you have finished with all of your Smart Picture feature control adjustments.

STOP

SMART HELP

Note: Select the

“FACTORY SETTINGS” category to automatically return the DPTV to the video and audio control levels preset at the factory prior to product shipment.

NTSCNTSC

ANALOG MAIN MENU


FEATURES

1ST TIME SETUP

SOUND

EXIT

FEATURE MENU

SMART PICTURE

CABLE TUNING

BEGIN

CLOSED CAPTION

EXIT

CHANNEL MEMORY

MORE...

1 OF 3

exit

Analog

DTV4/4

DTV

mute

channel

volume

SMART PICTURE

LABEL 1 LABEL 2 LABEL 3 LABEL 4 LABEL 5 FACTORY SETTINGS

M to SELECT

EXIT

SMART PICTURE MENU

CHANGE LABEL

SHARP

BRIGHT

EXIT

SMART PICTURE MENU

CLEARVIEW

BASS

BALANCE

EXIT

COLOR

TINT


MORE...

1 OF 2

SAP

TREBLE

STEREO

MORE...

2 OF 2

SMART PICTURE

CHANGE LABEL

mute

volume

channel

exit

DTV

Analog

DTV4/4

TINT

SMART PICTURE MENU


EXIT

1 OF 2

COLOR

MORE...

BRIGHT

CHANGE LABEL

SHARP

SMART PICTURE LABEL

when FINISHED

to SELECT

M Y O W N

to CHANGE

or or

NTSC/ANALOG FEATURE MENU CONTROLS

ollowing your initial setup

adjustments (see previous page), just select the desired Smart Picture category in order to place the DPTV to the personalized set of audio and video control settings for that title.

Select the SMART PICTURE

control.

With the FEATURES MENU onscreen, move the RED highlight with the MENU buttons. Then press

the MENU button.

Press the MENU ▲▼ buttons

with the list of “SMART PICTURE” categories on the DPTV screen to highlight the desired category. Then press the Menu (or ok) button to select the audio and video control settings for that particular title.

Press the “exit” button on the

remote to clear the screen.

STOP

he "CHANGE LABEL" control

can be used to update the title of a SMART PICTURE setting into a name or label that may be easier for you to remember.

With the "SMART PICTURE

LABEL" control on-screen, press

the MENU ▲▼ buttons to spell out a new label or title for the selected

SMART PICTURE category title.

Press the MENU § © buttons

to move the red highlight to each

letter space.

Press the “exit” button to clear

the screen when the new label is finished.

STOP

BEGIN

MAIN MENU

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

FEATURE MENU

SMART PICTURE

CLOSED CAPTION

EXIT

exit

Analog

CABLE TUNING

CHANNEL MEMORY

MORE...

1 OF 3

mute

channel

DTV

volume

DTV4/4

SMART PICTURE

LABEL 1 LABEL 2 LABEL 3 LABEL 4 LABEL 5 FACTORY SETTINGS

M to SELECT

EXIT

BEGIN

NTSC/ANALOG FEATURE MENU CONTROLS

NOTE: Not all TV programs and product commercials are made for

broadcast with Closed Caption (CC) information included. Neither are all Closed Caption modes (CAPTION 1-4; or TEXT 1-4) necessarily being used by a broadcast station during the transmission of a closed caption program. Usually "CAPTION 1" is the most used mode to view captioned material. Refer to your area's TV program listings for the stations and times of Closed Caption shows.

CAPTION 1 mode

Example Screen Display

FULL SCREEN TEXT

will block DPTV screen from viewing

Closed Caption information will usually appear in black and white (although some broadcasters or networks may occasionally use color to highlight or draw attention to certain areas.)

CLOSED CAPTION

NOTE: The ON DURING MUTE ONLY

control can be used to set the DPTV to turn the Closed Caption mode "ON" whenever the MUTE button on the remote is pressed.

SMART HELP

MAIN MENU

losed Captioning (CC) allows

you to read the voice content of NTSC television programs on the DPTV screen. Designed to help the hearing impaired this feature uses on-screen "text boxes" to show dialogue and conversations while the TV program is in progress.

Select CLOSED CAPTIONING

control.

With the FEATURES MENU onscreen, move the RED highlight with the MENU buttons. Then

press the MENU button.

Press the MENU ▲▼ buttons

to move the RED highlight. Press the MENU button to select (

U) the desired Closed Caption mode - For Example: "ALWAYS ON" and "CAPTION 1".

CAPTION 1, 2, 3, 4:

dialogue (and descriptions) for the action on the captioned TV program shows on-screen. (See Important Note on this page.)

TEXT 1, 2, 3, 4:

often used for channel guide, schedules, or bulletin board information for CC programs.

After making your Caption mode

selection, press the “exit” button to

clear the screen. The selected Closed Caption mode will be active.

To cancel, set the Closed Captioned feature to OFF when finished.

STOP

Remember, broadcast

stations will often use spelling abbreviations, symbols, dropouts and other grammatical shortcuts in order to keep pace with the on-screen action. These type factors vary upon the source of the captioned text material and do not indicate a need for service on the part of the DPTV.

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

BEGIN

NTSCNTSC

ANALOG MAIN MENU


FEATURES

1ST TIME SETUP

exit

Analog

DTV3/3

SOUND

EXIT

mute

channel

DTV

volume

FEATURE MENU

SMART PICTURE

CLOSED CAPTION

EXIT

CLOSED CAPTION

ALWAYS ON ALWAYS OFF ON DURING MUTE ONLY

CAPTION 1 CAPTION 2 CAPTION 3 CAPTION 4

EXIT

CABLE TUNING

CHANNEL MEMORY

MORE...

1 OF 3

TEXT 1 TEXT 2 TEXT 3 TEXT 4

JOHN: Why did they move the meeting up to this week? MARSHA: I don't know, but they are pushing to close the deal.

CLOSE CAPTION PROGRAMS ON WXYZ

ALL ITEMS ARE EASTERN STANDARD TIME (EST)

CHECK LOCAL LISTINGS

FOR TIMES IN YOUR AREA

6:00 TOP OF THE MORNING 10:00 THE BEST LITTLE CALL-IN SHOW EVER 12:00 NOONDAY NEWS

1:30 AS YOUR LIFE TURNS MY WORLD AROUND

6:00 WORLD NEWS FOR TODAY

9:00 PLAYHOUSE MOVIE OF THE WEEK

NTSC/ANALOG FEATURE MENU CONTROLS

CABLE TUNING

ou need to make sure the

DPTV is set to pick up either Cable TV or Antenna signals. In other words, the DPTV needs to know if you connected a Cable TV signal or a normal antenna to its ANTENNA plug.

NOTE: If you went through First Time Setup (see page 6), this task has already been completed for you.

Select CABLE CHANNEL

TUNING control.

With the FEATURES MENU onscreen, move the RED highlight with the MENU buttons. Then

press the MENU button.

Press the MENU ▲▼ buttons

to move the RED highlight. Press the MENU button to select (

U) the desired mode - For Example: CABLE.

CABLE- If you DO have

Cable TV connected

to the DPTV. Channels 1-125 available.

NORMAL- If you have an

Antenna connected

to the DPTV. Channels 2-69 available.

Press the “exit” button to clear

the screen.

STOP

BEGIN

MAIN MENU

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

NTSCNTSC

ANALOG MAIN MENU


FEATURES

1ST TIME SETUP

exit

Analog

SOUND

EXIT

mute

channel

DTV

volume

DTV4/4

FEATURE MENU

SMART


CLOSED

CAPTIONS

EXIT

CABLE TUNING

CABLE

NORMAL

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 3

CHANNEL MEMORY

AUTO-PROGRAMMING

NTSC/ANALOG FEATURE MENU CONTROLS

U Channel Numbers are Saved in Memory

SMART HELP

MAIN MENU

our DPTV can automatically set

itself for local area (or Cable TV) channels. This makes it easy for you to select only the TV stations in your area when the CHANNEL

▲▼

buttons are pressed. NOTE: If you went through First

Time Setup (see page 6), this task has already been completed for you.

Select CHANNEL MEMORY

(START AUTO-PROGRAMMING)

control.

With the FEATURES MENU onscreen, move the RED highlight with the MENU buttons. Then press

the MENU button.

Press the MENU ▲▼ buttons to

select the START AUTOPROGRAMMING option, then press the Menu button to begin.

The TV shows which channel numbers are "SAVED" (

U) as they

are added into memory. "Auto-programming CHANNEL

MEMORY is finished" shows when the DPTV is through adding channels.

Press the “exit” (or Menu)

button to clear the screen.

STOP

Try it out. Press the

CHANNEL▲▼ buttons

and see which channels you can select.

Remember, an Antenna or Cable signal must first be connected to your DPTV so that channels can be saved.

If you want to delete any unwanted channels from the DPTV's memory, see "ADD/DELETE CHANNELS" on the next page.

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

BEGIN

NTSCNTSC

ANALOG MAIN MENU


FEATURES

1ST TIME SETUP

exit

Analog

SOUND

FEATURE MENU

EXIT

mute

channel

DTV

volume

DTV4/4

SMART


CLOSED

CAPTIONS

EXIT

CHANNEL MEMORY

ADD/DELETE CHANNELS

START AUTO-PROGRAMMING

EXIT

AUTO-PROGRAMMING

CHANNEL MEMORY

1 2 3 4 5 6 7 8 9 1O 11 12

13 14 15 16 17 18 19 20 21 22 23 24

Press "M" to

Stop Auto-Program

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 3

NTSC/ANALOG FEATURE MENU CONTROLS

ADD/DELETE CHANNELS

uto-Programming (see

previous page) adds all the channels it can find (on your Antenna or Cable TV system) into the DPTV's memory. Add/Delete Channels makes it easy for you to add other channels, or drop unwanted channels, from the list of channels in the DPTV's memory.

Select CHANNEL MEMORY

(ADD/DELETE CHANNELS)

control. With the FEATURES MENU on-

screen, move the RED highlight with the MENU buttons. Then

press the MENU button.

Press the CHANNEL (+)/(-)

(or number buttons on the Pronto’s 2/3 touchscreen display) to select the channel you want to add or delete.

ADD the channel into the DPTV's memory.

Press the MENU

§ button to

DELETE the channel from memory.

Repeat steps 2 and 3 for each channel you wish to add or delete.

Press the “exit” (or Menu)

button to clear the screen when through.

STOP

BEGIN

MAIN MENU

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

NTSCNTSC

ANALOG MAIN MENU


FEATURES

1ST TIME SETUP

exit

Analog

SOUND

FEATURE MENU

EXIT

mute

channel

DTV

volume

DTV4/4

SMART


CLOSED

CAPTIONS

EXIT

CHANNEL MEMORY

ADD/DELETE CHANNELS

START AUTO-PROGRAMMING

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 3

ADD/DELETE CHANNEL

Channel 19 Added

SELECT CHANNEL to DELETE CHANNEL when FINISHED

NTSC/ANALOG FEATURE MENU CONTROLS

DISPLAY FORMAT

MAIN MENU

our DPTV is able to deliver

the lifelike, widescreen picture (or “home cinema” viewing experience) that is promised with High Definition TV programming. The Display Format control can be used to expand conventional 4:3 aspect ratio (width-to-height) broadcasts in order to fit your DPTV’s widescreen 16:9 format; or to reset the screen to best match the current programming.

Select DISPLAY FORMAT

control. With FEATURES MENU (2 of 3)

on-screen, move the RED highlight with the MENU

buttons. Then press the MENU button.

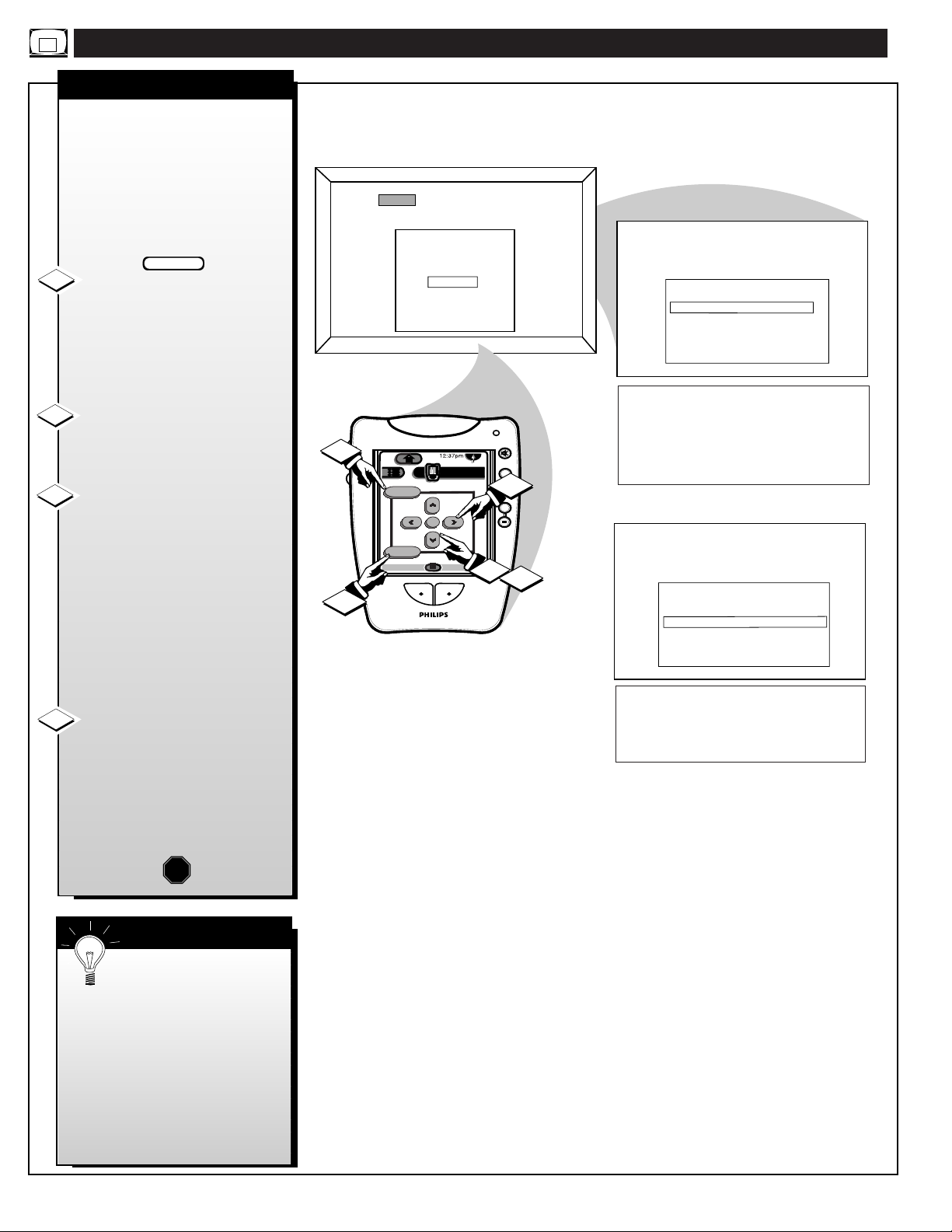

Press the MENU ▲▼ and

MENU (or ok) buttons

highlight and select (

U) the desired screen aspect ratio or screen display control.

Press the “exit” button to clear

the screen.

STOP

Panoramic - Conventional picture is expanded to fill the full 16:9 aspect ratio screen area. Most of the non-linear picture expansion is performed toward the outer edges so that correct proportions are retained in the center of the screen.

4:3 (Standard) - Conventional TV picture format shows on the screen. Black bar areas show on the side margins of the screen.

16:9 (Expand) - Full widescreen mode with linear expansion to view HDTV program broadcasts. Used for material originally produced in 16:9 format.

Theater 1/2 - Expanded zoom modes with picture images increased in magnification. Designed for use with “letterbox” or cropped movie images such as found with Cinemascope or Cinerama type program material. Note: With the Theater modes there can be some loss of information at the edges as the picture expands to fill the screen.

Panoramic

4:3 (Standard)

16:9 (Expand)

Theater 1 or 2

SMART HELP

Note: In the past the

relationship between a TV screen’s width to height, or aspect ratio, has historically been 33% wider than the picture screen height (or a 4:3 aspect ratio). The widescreen format of your DPTV screen is nearly 80% greater than its measure height (which accounts for a 16:9 aspect ratio). The reason for the 16:9 aspect ratio screen is that it allows for the dramatic and lifelike viewing of original version movies and cinemas (similar to the type found in your local theaters). And the 16:9 aspect ratio widescreen is also a good visual match for how our eyes work in a horizontally oriented field of view and action plane.

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

BEGIN

NTSCNTSC

FEATURE MENU

DTV

CHANNEL LABELS

PARENTAL CONTROL

MORE...

2 OF 3

mute

channel

volume

DISPLAY FORMAT

CHANNEL DISPLAY

EXIT

exit

Analog

DTV4/4

Building Trade News

DISPLAY FORMAT

EXIT

Building Trade News

PANORAMIC 4 X 3 16 X 9 THEATER 1 THEATER 2

Building Trade News

NTSC/ANALOG FEATURE MENU CONTROLS

SET CLOCK

our DPTV comes with an on-

screen clock. During normal operation the clock appears on the screen with every channel change (and when the STATUS button is pressed).

Select SET CLOCK control.

With FEATURES MENU (3 of 3) on screen, move the RED highlight with the MENU buttons. Then

press the MENU button.

Press the remote's number

buttons (on the Pronto’s 2/3

touchscreen display) to set the time clock Note: Be sure to press "0" first and then the hour number for single digit hour or minute entries.

Press the “exit” button to set

the clock in operation and clear the screen.

STOP

CHANNEL DISPLAY

ith the Channel Display

control you can change the size and location of the on-screen channel and clock information.

Select CHANNEL DISPLAY

control. With FEATURES MENU (2 of 3)

on-screen, move the RED highlight with the MENU

buttons. Then press the MENU button.

Press the MENU ▲▼ and

MENU (or ok) buttons

highlight and select (

U) the LARGE or SMALL display control.

Press the “exit” button to clear

the screen.

STOP

Channel Display Options

Press the Channel ▲▼ buttons and you should see the Display Size you selected. Note: The SMALL SIZE display shows only the channel number, not the time (or clock).

The remote's MENU buttons can also be used to set the hours, minutes, and AM/PM portions of the clock. DPTV Clock settings may be lost when the unit is unplugged (or AC power to the set is interrupted.)

BEGIN

MAIN MENU

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

NTSCNTSC

FEATURE MENU

DISPLAY FORMAT

CHANNEL DISPLAY

EXIT

CHANNEL LABELS

PARENTAL CONTROL

MORE...

2 OF 3

CHANNEL DISPLAY

LARGE

SMALL - CHANNEL/LABEL

EXIT

PBS

exit

Analog

DTV4/4

DTV

mute

channel

volume

PBS

10:06

BEGIN

NTSCNTSC

FEATURE MENU

SET CLOCK

DTV

Analog

MORE...

3 OF 3

mute

channel

volume

DTV

A/CH

DTV2/3

EXIT

exit

Analog

DTV3/3

SET CLOCK

9 : 19 AM

PLEASE ENTER THE

CURRENT HOUR

SET CLOCK

9 : 19 AM

PLEASE USE or

TO SET AM/PM

NTSC/ANALOG FEATURE MENU CONTROLS

CHANNEL LABELS

MANUAL- To create your own Channel Label:

Press the Channel ▲▼ or Number buttons to select

desired station. A red highlight shows the

active letter space for the channel label.

Press the MENU ▲ ▼

buttons to pick any of the letters or symbols that are given for your use.

buttons to move the red highlight to the other letter spaces and repeat.

Press the Exit button to clear the screen when finished.

PRESETS -To pick a Label from the "LABEL" list:

Press the Channel ▲▼ or Number buttons to select

desired station.

Press the MENU ▲▼

buttons to move up and down the Channel Label list.

Just stop on any label you might want to use.

The selected label automatically appears with channel changes and when the STATUS button is pressed.

Press the Exit button to clear the screen when finished.

MAIN MENU

o you ever have trouble

remembering on which channel a particular station or network is located? The Channel Labels Control is a quick way to view and select channels from a list of Labeled channels.

A Label is a four letter callout you can set to appear with the onscreen channel number. Example Label: WXYZ - for a TV station's call letters.

To create station labels using the Channel Labels Control:

Select CHANNEL LABELS

control.

With the FEATURE MENU (2 of

3) on-screen, move the RED highlight using the MENU buttons. Then press the MENU (or ok) button.

Press the MENU ▲▼ and

MENU (or ok) buttons

highlight and select either: "MANUAL" to create your own

label for a channel. "PRESETS" to choose from a list

of prewritten channel labels. (See instruction details on this

page.)

Press the “exit” button to

clear the screen.

STOP

SOUNDPICTURE

FEATURES

1ST TIME SETUP

EXIT

BEGIN

NTSCNTSC

FEATURE MENU

DTV

CHANNEL LABELS

PARENTAL CONTROL

MORE...

2 OF 3

mute

channel

volume

CHANNEL GUIDE LABEL

C H 1 0 C B S

or or when FINISHED

MANUAL

PRESETS

EXIT

to SELECT to CHANGE

DISPLAY FORMAT

CHANNEL DISPLAY

EXIT

exit

Analog

DTV4/4

CHANNEL LABELS

Create Your Own

Choose From List

BRV

Channel 1 0

CBN CBS CNBC CMT

CHOOSE CHANNEL

to SELECT LABEL to EXIT

+ 40 hidden pages
