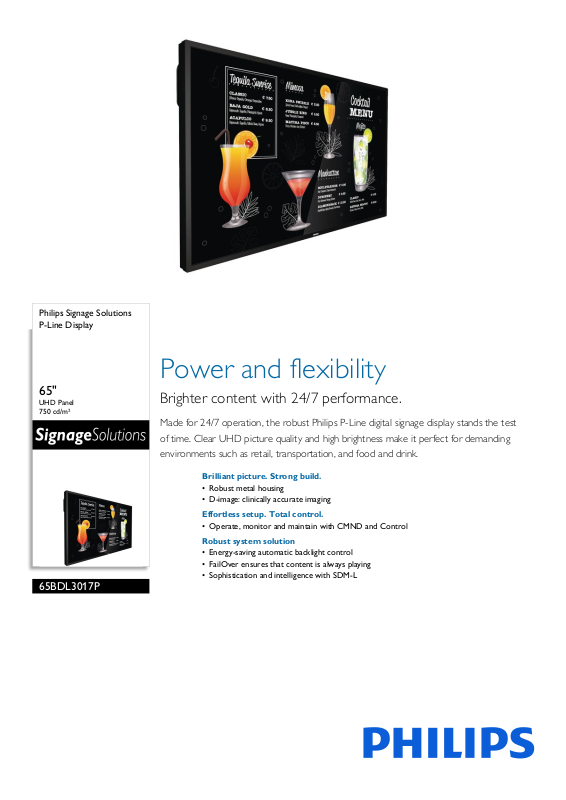

Page 1

Philips Signage Solutions P-Line Display

Power and flexibility

65"

UHD Panel 750 cd/m²

65BDL3017P

Brighter content with 24/7 performance.

Made for 24/7 operation, the robust Philips P-Line digital signage display stands the test of time. Clear UHD picture quality and high brightness make it perfect for demanding environments such as retail, transportation, and food and drink.

Brilliant picture. Strong build.

• Robust metal housing

• D-image: clinically accurate imaging

Effortless setup. Total control.

• Operate, monitor and maintain with CMND and Control

Robust system solution

• Energy-saving automatic backlight control

• FailOver ensures that content is always playing

• Sophistication and intelligence with SDM-L

Page 2

65BDL3017P/00

P-Line Display

65" UHD Panel, 750 cd/m²

Highlights

D-image

This Philips Professional Display is factorycalibrated to meet clinical compliance standards for greyscale performance. The optimal image achieved by the display can be used to review medical images in consultation rooms or lecture theatres.

CMND and Control

Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips

Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

SDM-L ready

An integrated Intel Smart Display Module Large adds scalabl display, enabling quick and cost-effective upgrades when you need to add new features and functionality. Its thin design provides the same level of intelligence and interoperability as OPS, whilst keeping the display as sleek as possible.

e sophistication to your

Page 3

65BDL3017P/00

P-Line Display

65" UHD Panel, 750 cd/m²

Specifications

Picture/Display

• Diagonal screen size: 65 inch / 164 cm

• Panel resolution: 3840 x 2160

• Optimum resolution: 3840 x 2160 @ 60 Hz

• Brightness: 750 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic contrast ratio: 500,000:1

• Aspect ratio: 16:9

• Response time (typical): 8 ms

• Pixel pitch: 0.372 x 0.372 mm

• Display colours: 1.07 billion

• Viewing Angle (H / V): 178 / 178 degree

•Haze: 25%

• Panel technology: IPS

Connectivity

• Video input: Display Port1.2 (x 1), HDMI 2.0 (x 2), DVI-I (x 1), USB 2.0 (x 1)

• Video output: DisplayPort 1.2 (x 1), HDMI 2.0 (x 1)

• Audio input: 3.5 mm jack

• Audio output: 3.5 mm jack

• Other connections: SDM-L, Micro SD (x 1)

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

Supported Display Resolution

mputer formats

• Co Res

olution Refresh rate 1280 x 1024 60 Hz 1920 x 1080 60 Hz 1280 x 800 60 Hz 1600 x 1200 60 Hz 640 x 480 60, 67, 72, 75 Hz 720 x 400 70 Hz 1024 x 768 60, 70, 75 Hz 1152 x 864 75 Hz 1152 x 870 75 Hz 1280 x 720 60 Hz 1440 x 900 60 Hz 1680 x 1050 60 Hz 800 x 600 56, 60, 72, 75 Hz

deo formats

• Vi Res

olution Refresh rate 1080p 50, 60 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 3840 x 2160 30Hz 3840 x 2160 60 Hz

480p 60 Hz 576p 50 Hz

Dimensions

•Set dimensions (W x H x D):

1462.3 x 837.3 x 89.9 mm

• Set dimensions in inch (W x H x D): 1 x 32.96 x 3.54 inch

57.7

•Bezel width: 14.90 mm (Even bezel)

• Product weight (lb): 61.3 lb

• Product weight: 27.8 kg

• VESA Mount: 400 x 400 mm, M6

Convenience

• Placement: Landscape (24/7), Portrait (24/7)

• Tiled Matrix: Up to 15 x 15

• Keyboard control: Hidden, Lockable

• Signal loop through: IR Loop through, DisplayPort,

32, HDMI

RS2

•

Network controllable: RJ45, RS232

• Energy-saving functions: Smart Power

• Screen-saving functions: Pixel Shift, Low Bright

• Ease of installation: Carrying Handles

Smart Insert

Power

• Standby power consumption: <0.5 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (Typical): 155 W

onsumption (Max): 330 W

•C

• Energy Label Class: G

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Altitude: 0 ~ 3000 m

• MTBF: 50,000 hour(s)

• Humidity range (operation)[RH]: 20~80% RH (No

nden

sation)

• Humidity range (storage) [RH]: 5~95% RH (No

sation)

conden

Sound

• Built-in speakers: 2 x 10 W RMS

Accessories

• Included Accessories: Philips logo (x 1), AC Switch

Cover, Edge Alignment Kit (1) - 1 pcs, Edge Alignment Kit (x 1), Power cable (x 3), Quick start guide (x 1),

(2) - 2 pcs, IR sensor cable (1.8 m)

mote control and AAA batteries, RS232 cable (3

Re m) (x 1), RS232 daisy chain cable (x 1), USB Cover (x 1), Wire Clamper (x 3)

Multimedia Applications

• USB Playback Audio: AAC, HEAAC, MPEG

• USB Playback Picture: BMP, JPEG, PNG

• USB Playback Video: H.264, Motion JPEG, MPEG1/ 2, WMV3

Miscellaneous

• On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: CE, CCC, BSMI, CB, VCCI,

EAC,

CECP, Class A

•Warranty: 3 year warranty

•

PSB, EMF, EnergyStar 8.0, ETL, FCC,

Issue date 2022-04-21

Version: 7.0.1

12 NC: 8670 001 73348 EAN: 87 12581 77445 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
