PHILIPS 50MF231DB User Manual

3139 125 37131

50MF231D 50" Plasma HDT

V 50" Plasma TV Haute Définition 50" Plasma TV Alta Definición

  

 





: :

EnglishFrançaiseEspañol

cover.indd 1 2006-03-29 6:31:43 PM

registration.indd 1 2006-03-16 2:52:36 PM

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product may contain lead or mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance:www.eiae.org.

16. Damage Requiring Service - The appliance should be serviced by qualiﬁed service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a

marked change in performance; or E. The appliance has been dropped, or the enclosure damaged.

17. Tilt/Stability - All televisions must comply with recommended international global safety standards for tilt and stability properties of its cabinets design.

• Do not compromise these design standards by applying excessive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also,do not endanger yourself, or children, by placing electronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

18. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

19. Power Lines - An outdoor antenna should be located away from power lines.

20. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Figure below.

21. Objects and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. a) Warning: To reduce the risk of ﬁre or electric shock, this apparatus should not be exposed to rain or moisture and objects ﬁlled with liquids, such as vases should not be placed on this apparatus.

22. Battery Usage CAUTION - To prevent battery leakage that may result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, with + and - alignment as marked on the unit.

• Do not mix batteries (old and new or carbon and alkaline, etc.)

• Remove batteries when the unit is not used for a long time.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

ELECTRIC SERVICE EQUIPMENT

Note to the CATV system installer: this reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, speciﬁes that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

cover.indd 2 2006-03-29 6:31:44 PM

Contents

R End of life directives

Magnavox is paying a lot of attention to produce environmentally-friendly products in green focal areas. Your new TV contains materials which can be recycled and reused. At the end of its life specialized companies can dismantle the discarded TV to concentrate the reusable materials and to minimize the amount of materials to be disposed off. Please ensure you dispose off your old TV according to local regulations.

Care of the screen

See Tips, p. 26.

Recycling

The materials used in your set are either reusable or can be recycled. To minimise environmental waste,specialist companies collect used appliances and dismantle them after retrieving any materials that can be used again (ask your dealer for further details).

A Guide to Digital TV ........................................................................ 2

Preparation ...........................................................................................2

Use of the remote control ................................................................ 5

Control Buttons on the TV .............................................................. 6

My Content ........................................................................................................7

To use the menus ................................................................................ 7

Introduction ..........................................................................................7

How to navigate through the Settings menus ....................................7

Installation ............................................................................................. 8

Select the menu language ....................................................................8

Store TV channels ................................................................................8

Weak channel installation ....................................................................9

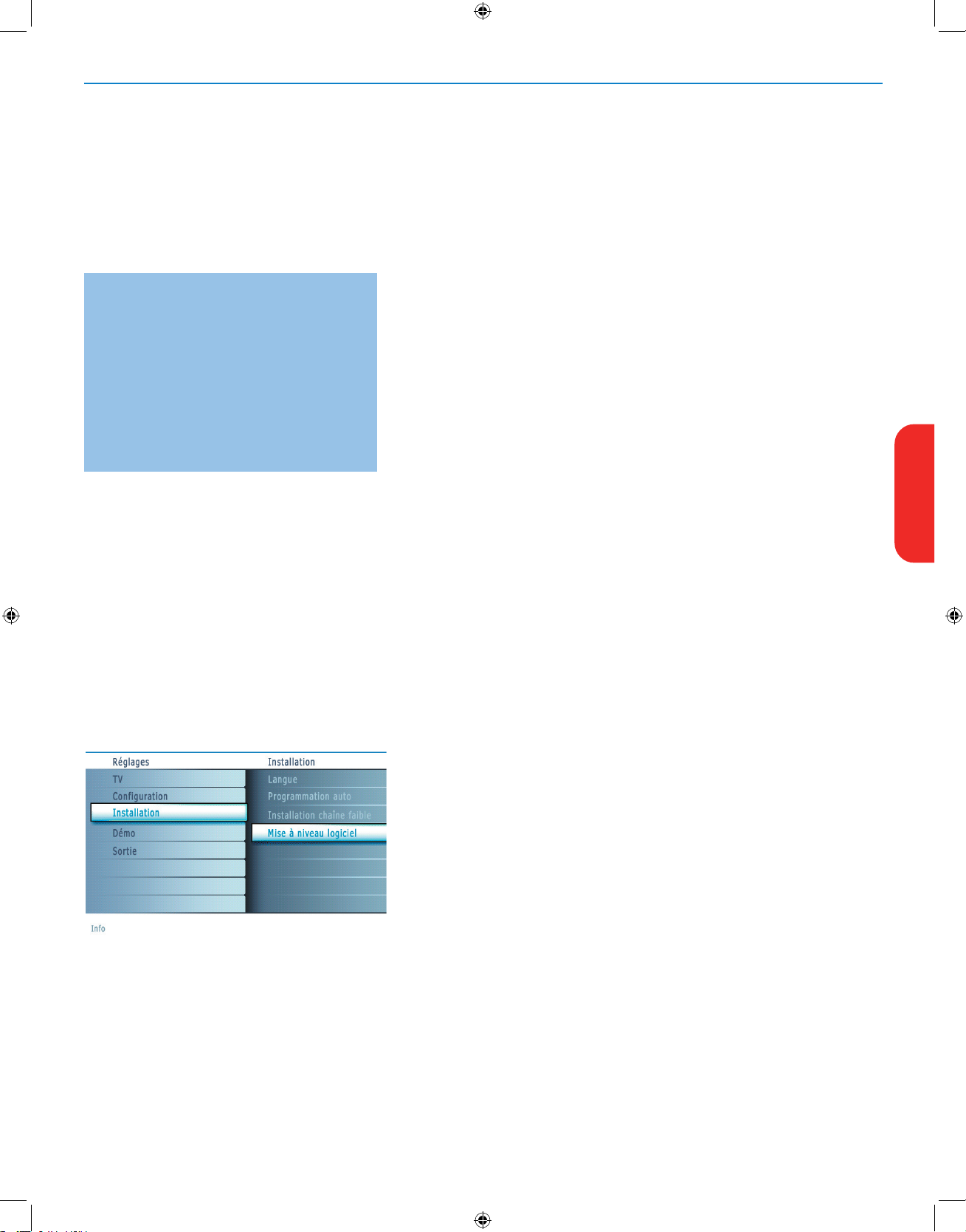

Software upgrade ..................................................................................9

Setup menu .................................................................................................10

Preferences ........................................................................................ 10

- Picture/sound preferences .......................................................... 10

• Auto surround ....................................................................... 10

- Features preferences ................................................................... 10

• Caption service ...................................................................... 10

• Digital caption service ........................................................... 11

• Digital caption options ........................................................... 11

- Menu preferences ........................................................................ 12

• OSD ........................................................................................ 12

• Show emergency alerts (EAS) ............................................... 12

• Set/Change PIN ...................................................................... 12

- Reset AV settings ......................................................................... 12

Source ................................................................................................ 13

Clock .................................................................................................. 13

- Auto clock mode ......................................................................... 13

- Auto clock channel ...................................................................... 13

- Time - Day ................................................................................... 13

- Time zone .................................................................................... 13

- Daylight saving ............................................................................. 13

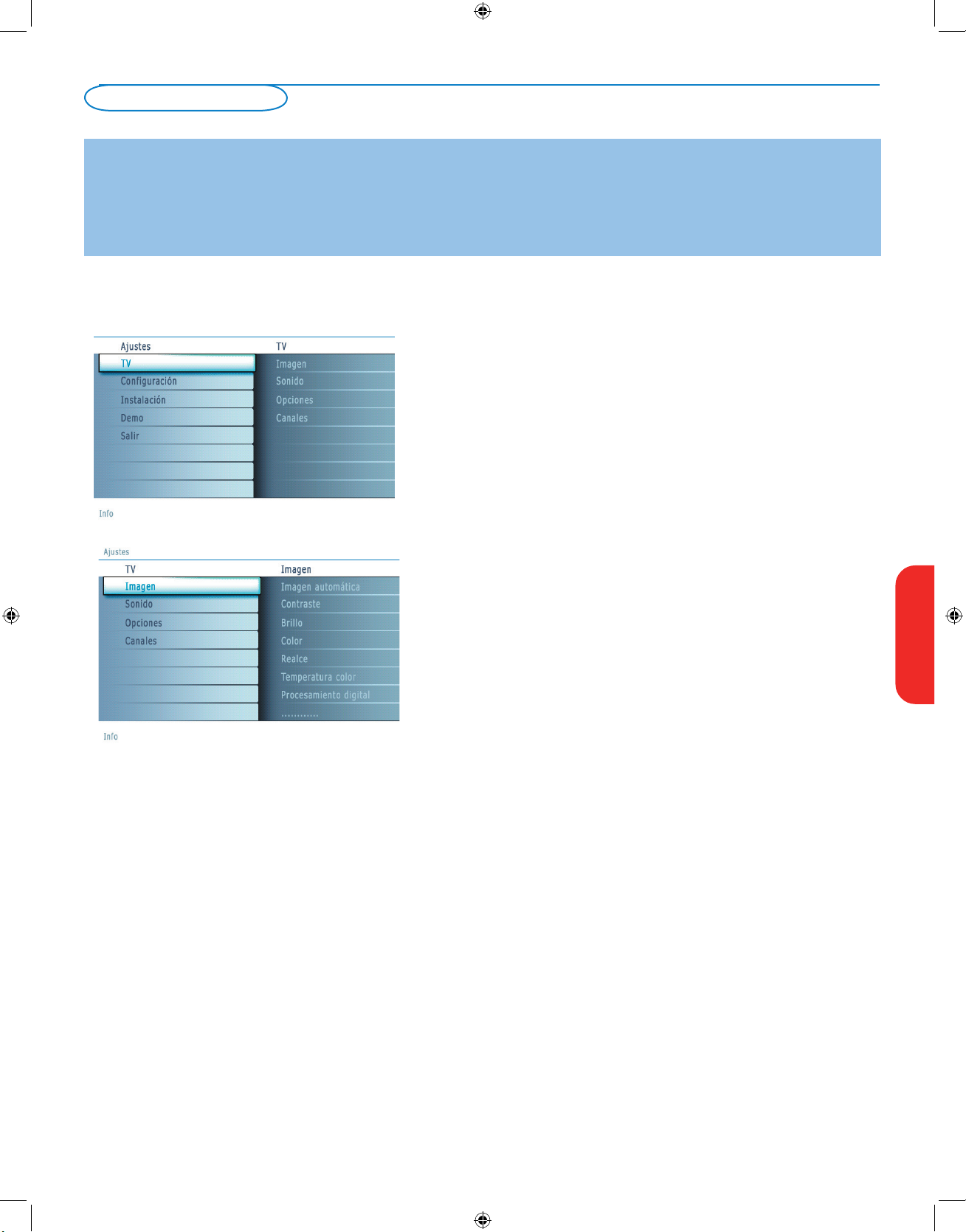

TV menu ..............................................................................................14

Picture menu ...................................................................................... 14

- Auto picture ................................................................................. 14

- Contrast ....................................................................................... 14

- Brightness ..................................................................................... 14

- Color ............................................................................................ 14

- Sharpness .....................................................................................14

- Color temperature ...................................................................... 14

- Tint ............................................................................................... 15

- Picture format .............................................................................. 15

Sound menu ....................................................................................... 15

- Auto sound ................................................................................. 15

- Volume ........................................................................................ 15

- Balance ........................................................................................ 15

- Headphone volume .................................................................... 16

- Sound mode ................................................................................ 16

- Alternate audio ........................................................................... 16

- Digital Audio Language ............................................................... 16

- Mono/Stereo ............................................................................... 16

- AVL (Automatic Volume Leveler) ............................................. 16

- Delta volume ............................................................................... 16

Features menu ................................................................................... 16

- Closed captions .......................................................................... 16

- Sleeptimer ................................................................................... 16

Channels menu .................................................................................. 17

- Lock after .................................................................................... 17

- Channel lock ............................................................................... 17

- TV ratings lock ............................................................................ 17

- Movie Ratings Lock ..................................................................... 18

- Preferred channels ...................................................................... 19

- Region ratings lock ..................................................................... 19

- Clear region ratings .................................................................... 19

Connect Accessory Devices ...........................................................20

Recorder (VCR / DVD+RW) ........................................................... 20

Recorder and other A/V devices ...................................................... 20

Recorder and cable box with RF output .......................................... 21

Satellite Receiver / cable box with AV outputs ............................... 21

Recorder and Satellite Receiver / cable box with AV outputs ....... 21

DVD Player or other accessory digital source devices .................. 22

HDMI (High Definition Multimedia Interface) connectors ............. 23

Digital Surround receiver .................................................................. 23

Side connections ................................................................................24

Record with your recorder .............................................................24

Record a TV program ........................................................................24

To select connected devices ..........................................................24

Troubleshooting Tips .......................................................................25

Tips ........................................................................................................26

Glossary ................................................................................................27

Specifications ......................................................................................28

Annex 1 - Magnavox TV software upgrade with portable memory

................................................................................................29

EnglishFrançaiseEspañol

English_DFU_37131.indd 1 2006-03-29 6:30:45 PM

Do not insert the power plug in a wall socket before all connections are made.

Place the TV on a solid surface or place the TV on the supplied stand.

For the mounting instructions of the stand, see the Connect Guide leaflet supplied.

For ventilation, leave at least 4” to 6” free all around the TV. Do not

place the TV on a carpet. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed in the vicinity. Avoid heat, direct sunlight and exposure to rain or water. The equipment shall not be exposed to dripping or splashing.

Mounting the TV on the wall

This TV is compatible with the VESA wall mounting standard. Please

contact your local electronics retailer for a VESA compliant bracket to wall mount this TV.

Caution: Installing the TV requires special skill that should only be

performed by qualified personnel. You should not attempt to do the work yourself. Magnavox bears no responsibility for improper mounting or mounting that results in accident or injury.

Make sure that the wall mount is being fixed securely enough so that it

meets safety standards.

For more details on mounting, please refer to the "Mounting

Guide".

Preparation

What is Digital Television (DTV)?

Digital Television (DTV) is relatively new type of broadcasting that promises to transform television viewing into a whole new

experience. Digital technology is used to capture images and sound to deliver a better picture quality. DTV technology is also capable of multicasting and interactive capabilities.

There are many levels of digital television quality. The most common are:

Standard Definition TV (SDTV) SDTV is the basic level of quality display and resolution for both analog and digital. Transmission of SDTV can be in the traditional

(4:3) or widescreen (16:9) format.

Enhanced Definition TV (EDTV)

EDTV is better in picture quality than analog television. The formats for EDTV are 480p widescreen (16:9) or traditional (4:3).

EDTV is in the middle range quality between SDTV and HDTV.

High Definition TV (HDTV)

HDTV has the highest quality for digital broadcast formats. Its resolution is widescreen format (16:9). Combined with digitally

enhanced sound technology, HDTV sets new standards for sound and picture quality in television.

DTV is by far a more flexible and efficient technology than the analog broadcast system. Analog broadcasts can only provide one

program at a time. Digital television can broadcast a high definition program or more than one standard definition program at the same time. This is often referred to as "multicasting". Digital television can also give you interactive video and data services through a single digital channel.

A Guide to Digital TV

English

Française Español

English_DFU_37131.indd 2 2006-03-29 6:30:46 PM

Watching Cable TV programs that don’t require the cable box

Since you’ve connected the cable TV signal directly to the TV’s tuner, you can also watch the unscrambled programs by simply tuning to the desired channel. You must first use Autoprogram, however, to store channels in the TV’s memory. See page 8.

Note: This connection will supply stereo sound to the TV if it is being broadcast by the station you are watching.

CABL E

Set-Top Box

OUT

OUTPU

TO TV

CABL E

SIGNAL

SPLITTE

Set-Top Box

OUT IN

CABLE

AV1 :

L + R + VIDEO

& Basic connections to the TV

Your integrated digital TV automatically decodes and displays the four basic DTV

picture resolution standards.

- SDTV (Standard Definition TV) are broadcast as 480i (480-line interlaced) or 480p (480-line progressive scan) video.

- HDTV (High-Definition TV) are broadcast either in the 1080i or 720p formats, always with a widescreen picture.

Note: Progressive scan video (p) is more like that you see in a movie theater. Images are

much more distinct and free of flicker, and motion is smoother.

Next to analog NTSC broadcast reception, your TV has an integrated High

Definition TV tuner which receives, decodes and displays terrestrial ATSC and unscrambled cable (QAM) signals.

HDTV quality is only reproduced when a broadcaster or cable provider broadcasts

HDTV signals.

Note: Ask your broadcaster or cable box provider to transmit/enable HD content to your

home, and possibly upgrade to a CableCard for the decription of HD signals.

There are 2 ways to get HDTV content:

- via cable,

- via antenna. Note: This drawing is used wherever you can connect cable or antenna.

- Cable TV

Connect the cable TV signal to the CABLE/ANTENNA 75 Ω x jack at the bottom

of the TV. See page 8 for details on using Autoprogram to store channels in the TV’s memory.

Note: this connection will supply stereo sound to the TV if it is being broadcast by the

station you are watching.

- Cable box with

RF IN/OUT

• Connect the incoming cable TV signal to the cable

IN jack 1 on the back of

the cable box.

• Connect a coaxial cable (not supplied) from the

TO TV jack on the back of the

cable box to the

CABLE/ANTENNA 75 Ω x jack 2 at the bottom of the TV.

Note: Your cable box may have a different label for the TO TV jack, such as

OUTPUT or OUT.

• Set the

OUTPUT CH switch 3 of the cable box to CH 3 or 4 (whichever is

correct for your cable box), then tune the TV to the corresponding channel. Once tuned, change channels at the cable box, not the TV.

Note: This connection will not supply stereo sound to the TV. The reason is that the RF output on a cable box - labeled

TO TV, OUT or OUTPUT for example - will not send a

stereo signal to the tuner (VHF/UHF) input on a TV.

- Cable box with A/V outputs

• Connect the incoming cable TV signal

1 to a signal splitter (not supplied). The signal splitter enables you to avoid having to use the TO TV jack on the back of the cable box. This jack will not supply stereo sound to the TV.

Note: Your cable box may have a different label for the TO TV jack, such as

OUTPUT or OUT.

• Connect a coaxial cable (not supplied) to a connector on the signal splitter and to the

CABLE/ANTENNA 75 Ω x jack 2 on the TV.

• Connect another coaxial cable (not supplied) to a connector on the signal splitter and to the cable

IN jack 3 on the back of the cable box.

• Connect A/V cables (not supplied) to the

VIDEO and AUDIO L and R outputs

on the back of the cable box and to the

AV2 video (labeled VIDEO) and

AUDIO (labeled L and R) jacks 4 on the back of the TV.

• To view programs from your cable box, first press the

AV+ button on the

remote control.

• Press the cursor down or up buttons until the

AV2 signal source is selected.

• Press the

OK button to confirm your selection. The AV2 input source

becomes current for the viewing of cable TV programs through your cable box.

Note: If your cable box Audio/Video outputs will not supply video and stereo audio to

the TV, you will need to make the connection shown above in the example “Cable box with RF IN/OUT”.

EnglishFrançaiseEspañol

English_DFU_37131.indd 3 2006-03-29 6:30:48 PM

CABL E

First time installation

Note: The first time (and only the first time) you turn on your set you see an installation introduction screen. The Installation procedure consists of a series of screens that guide you through the process.

& After an introduction screen, you are asked to select a language of the TV’s on-screen-menus. (The text of the header and the info on screen

continuously change language.)

é Press the cursor up/down to highlight your language. “ Press the OK button. ‘ Follow the on-screen instructions to proceed.

Note: Once you completed the initial installation procedure you can access the screens from the Settings menu. See p. 7.

- Cable box with S-Video, component video (YPbPr) or HDMI connectors

See Connect Accessory Devices, p. 22-23.

- Antenna

Via antenna you can watch whatever DTV programs being broadcast in your

area for free.

If you’re not sure what HDTV programming is available in your area, contact

your local content provider or your local electronics store retailer.

Broadcasters are in the middle of a transition from analog to digital TV. This

means that a given broadcaster will have two channels on the air, one analog and one digital.

Connect the incoming antenna signal to the

CABLE/ANTENNA 75 Ω

x jack at the bottom of the TV. See page 8 for details on using Autoprogram

to store channels in the TV’s memory.

Note: This connection will supply stereo sound to the TV if it is being broadcast by the

station you are watching.

- Direct Broadcast Satellite (DBS)

Satellite systems offer many of the same premium channels as cable systems, and often at a lower price. To get these channels, you’ll need to install a small dish antenna outside. There are 2 main DBS systems: DirecTV & DishNetwork. These systems require separate, proprietary set top receiver boxes to decode their signals and send them to your digital TV set. These boxes may include a digital TV tuner for offair DTV broadcasts. Satellite broadcasters also provide major local channels, depending on the market in which you live. DBS also provides service in areas not covered by cable because they are in rural areas or other areas not passed by a cable line. DBS also allows you to watch pay-per-view events.

é Before installing your TV or before hanging it on the wall, connect all your

accessory devices. See p. 20.

“ Refer to the bottom of the set for the correct operation voltage. Insert the power

cord in the wall socket. Consult your local dealer if your mains supply is different. To prevent damaging the mains (AC) cord which could cause a fire or electric shock, do not place the TV on the cord.

‘ Remote control:

Insert the 2 batteries supplied (Type R6-1,5V). Be sure the (+) and (-) ends of the

batteries line up correctly (inside of case is marked.)

The batteries supplied do not contain the heavy metals mercury and cadmium. Please

check on how to dispose of exhausted batteries according to local regulations.

( Turn the TV on:

Press the power switch

B at the side of the TV. You may also press +CH/PAGE- or POWER button on the remote control. An indicator on the front of the TV lights up.

English

Française Español

English_DFU_37131.indd 4 2006-03-29 6:30:49 PM

POWER

Press to turn on/off the TV from or to standby mode.

The TV is never powered off completely unless it is physically unplugged.

Note: For most buttons pressing a button once will activate the function. Pressing a second time will de-activate it. When a button enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list. The list will be removed automatically after 6 seconds or press

OK to remove immediately.

Press this button repeatedly to select the source -

AV1, AV2, AV3, HDMI, SIDE or TV

when in TV mode, according to where you connected the accessory devices (p. 20).

Color buttons

When functions attached to the color buttons, the color buttons are shown on screen.

CLOCK on/off

Time display (for max. 10 minutes)

Settings menu on/off, see p. 7.

Exit menu from sub-menu.

VOL Volume

Press + or - to adjust the volume.

MUTE

Interrupt the sound or restore it.

A/CH

Press to alternate between the currently viewed channel and the previously view

channel.

INFO

Display information: Press to display (when

available) information about the selected TV channel and program or accessory device.

- to activate a setting

- to display the list of channels stored (according to the selection made in the Installation mode (Antenna or Cable), p. 8.

- starts playing content in the Home Multimedia Browser application, p. 24.

Cursor buttons

Press the cursor buttons up/down, left/right to navigate through the menus.

CH Channel selection

- To browse through the TV channels or sources stored in the preferred channel list (see p. 19).

- To select between Antenna or Cable TV channels, first make your selection in the Settings menu, see, p. 7. Note: You don’t have to start the installation

again once you have searched for and stored the available TV channels.

Press the dot (.) for digital channels.

Use of the remote control

EnglishFrançaiseEspañol

English_DFU_37131.indd 5 2006-03-29 6:30:49 PM

ENTRY_control_2005.eps

VOLUME

CHANNEL

POWER

VOLUME

CHANNEL

POWER

Should your remote be lost or broken you can still change some of the basic settings with the buttons on your TV. Press the power switch

B to switch the TV on.

Press:

• the

+ VOLUME - button to adjust the volume;

• the

+ CHANNEL - buttons to select the TV channels or sources.

The MENU button can be used to summon the Settings menu without the remote control.

Use:

•

the

+ VOLUME -

buttons to select up/down menu items and the

+ CHANNEL -

buttons to select left/right menu items;

• the

MENU button to confirm your selection.

Note: When activated via the

MENU button on the TV, only Exit lets you dismiss the menu.

Navigate to

Exit and press the MENU button.

Control Buttons on the TV

FORMAT

Press this button to summon a list of available display formats (depending on the receiving signal). This lets you choose the display format of your preference. Press this button repeatedly to select another picture format: Automatic, Super Zoom, 4:3, Movie expand 14:9, Movie expand 16:9, 16:9 subtitle, Wide screen.

Automatic makes the picture fill the screen as much as possible. Super zoom removes the black bars on the sides of 4:3 programs with minimal distortion. When in Movie expand 14:9, Movie expand 16:9 or Super zoom picture format, you can make subtitles visible with the cursor up/down.

Note: With HD sources not all screen formats will be available.

Automatic Super zoom 4:3 Movie expand 14:9

Movie expand 16:9 16:9 subtitle Wide screen

English

Française Español

English_DFU_37131.indd 6 2006-03-29 6:30:50 PM

How to navigate through the Settings menus

The Settings menu allows you to access and change settings and preferences.

• Press the

MENU button on the remote control to summon the Settings

menu.

- On the left panel the highlight can be set on a menu item with the cursor up/down.

The right panel shows the content of the highlighted menu item in the left

panel.

Note: Sometimes not all the menu items are visible on the screen. Use the cursor

down to reveal all items.

- Use the cursor right to enter the right panel.

The content of the right panel is moved to the left panel and the right

panel shows the content of the newly highlighted item in the left panel.

Note: In some cases it is important that the picture can be watched while

adjusting the settings. This means that when the highlight is on the right side panel, the other menu items hide away. When the cursor left is pressed again, the hidden menu items re-appear and the highlight moves to the left panel.

• Press the cursor left to go one menu level up again.

- Press the

OK button on the highlighted item to activate and to dismiss the

menu.

- Press the

MENU button again to exit the Settings menu.

Note: The menu is also dismissed by pressing one of the color buttons (if present)

referring to certain actions which may be executed.

Introduction

A lot of guiding instructions, help texts and messages will be displayed on your TV when using the menus or when trying to execute an action. Please, follow the instructions and read the help text which are being displayed on the specific item highlighted. The color buttons refer to different actions which may be executed depending on the activated device. Press the corresponding color button on the remote control to perform the required action.

To use the menus

EnglishFrançaiseEspañol

English_DFU_37131.indd 7 2006-03-29 6:30:50 PM

Notes:

• When you have locked TV channels while initiating autoprogram, a message appears asking to enter your PIN code in order to complete autoprogramming.

• When interrupted, the updated channel information is retained as well as the not yet updated old channel information.

• Background autoprogramming occurs only when the TV is turned on.

• Channel information of an ATSC channel is updated only for the ATSC channel currently tuned.

• If an NTSC channel is tuned, then in Background Autoprogramming the TV shall scan all the possible ATSC frequencies and update information.

• Weak channel installation : This allows you to manually tune weak ATSC channels in order to adjust the antenna and thus optimize signal quality for that channel. (See Installation menu, Weak channel installation, p. 9.)

• Once you have searched for the available Antenna as well as the Cable TV channels, they are stored in the memory.

& Select Autoprogram in the Installation menu. é Use the cursor right to enter the Autoprogram menu. “ Press the OK button. ‘ Select Cable or Antenna in the Installation mode.

When

Antenna is selected, the TV will detect antenna signals and will

search for antenna TV (NTSC and ATSC) channels available in your local area. When Cable is selected, the TV will detect cable company supplied signals and will search for cable TV (NTSC, ATSC, QAM modulated) channels available in your area.

Make sure that registration with your cable TV provider and connection of

equipment are completed.

( Press the green button “Next” on the remote control.

Note: All channels must be unlocked in order to autoprogram. If requested, enter

your PIN code to unlock all channels. See Menu preferences in the Settings, TV menu, p. 14.

§ Press the green button “Start” to start autoprogramming.

The menu screen disappears and the progress of autoprogramming is displayed. The progress bar indicates the number of analog and digital TV channels found.

When Autoprogramming is complete, a message appears confirming the completion. Press the red button "Finish" and the TV returns to the Installation menu.

& Press the MENU button on the remote control. é Use the cursor down to select Installation in the Settings menu. “ Use the cursor right to enter the Installation menu. ‘ Select Language and enter the list of available languages with the cursor

right.

( Select your language with the cursor up/down and press the OK button to

confirm you selection.

§ Proceed with the Installation menu.

Store TV channels

Select the menu language

Installation

English

Française Español

English_DFU_37131.indd 8 2006-03-29 6:30:51 PM

Note: Digital Channel selection delay

Due to the tuning complexity of subchannel digital programming, the time to select and view a digital channel may take slightly longer than what the viewer is normally accustomed to (as compared to analog channel programs). Digital channel broadcasts contain program and system data information that must be processed before the channel selection can be displayed.

Channel tuning

Available channels:

- Cable (analog NTSC or digital QAM): max. from 1 to 125

- Antenna (analog NTSC or digital ATSC): max. from 2 to 69

If a tuned channel is not yet in the master channel map, the TV will attempt

to tune the channel and it will be added to the map.

If the channel is not acquired, a message will appear that the channel is not

available.

When you tune an audio-only digital subchannel, a display appears with the

message Audio only.

Note: Subchannel selections

- The new standards employed with digital broadcasting make it possible to receive multiple program channels under a single major channel number which can be selected by pressing the digit remote control direct-acces channel number entry.

- The number of channels shown at installation includes paid channels but you may not be able to see all of them unless you sign up with cable TV operators.

Important: After the installation of the TV channels has been done, always make a selection

in the Installation menu between Antenna or Cable whether you want to watch Antenna TV channels or Cable TV channels.

If you make use of a signal splitter do not forget to put the switch in the

corresponding position.

Weak channel installation

This enables you to do a weak ATSC digital channel installation. This is only available for TV channels installed via an antenna connection (see p. 4).

& If a certain channel you expect to see is not tuned or is weak, you can install

it manually. Call your local broadcasting station to know what channel its being transmitted on.

Select that channel in the displayed list of TV channels (in the antenna mode).

“ The signal strength is displayed and updated continuously as you rotate the

antenna.

Software upgrade

This menu allows you to upgrade your TV software using a USB device.

USB upgrade

It is possible to initiate an upgrade procedure from a USB portable memory.

The memory device must be filled with the appropriate upgrade image (and structure) which can be found on the www.magnavox.com/support website. How to upload a new software version on your portable memory device, see Annex 1, p. 32.

EnglishFrançaiseEspañol

English_DFU_37131.indd 9 2006-03-29 6:30:51 PM

This menu is used to control the settings of special TV functions, features and accessory devices.

The Preferences menu allows you to change settings that will typically be accessed only occasionally.

The Source menu allows you to select a source. The Clock menu allows you to use your TV as a clock. This setup is necessary for

the correct working of the Lock after feature.

Preferences

& Press the MENU button. é Select Setup with the cursor down and press the cursor right to select the

Preferences menu.

“ Press the cursor right again to select Picture/sound preferences. ‘ Press the cursor right once more to enter the Picture/sound preferences menu.

Picture/sound preferences

Auto surround Sometimes the broadcaster transmits special signals for Surround sound encoded

programs. The TV automatically switches to the best surround sound mode when Auto surround is switched On.

Features preferences Caption service

This allows you to select the Closed Captions service levels of analog

broadcasting to be displayed.

Closed Captioning allows you to read the voice content of television programs

on the TV screen. Designed to help the hearing impaired, this feature uses onscreen ‘text boxes’ to show dialogue and conversations while the TV program is in progress. Captions will appear on the screen during captioned broadcasts.

Setup menu

English

Française Español

English_DFU_37131.indd 10 2006-03-29 6:30:51 PM

Note: The captions do not always use correct spelling and grammar. Not all TV programs and product commercials are made for broadcast with Closed Caption informations included. Refer to your area’s TV program listings for the TV channels and times of Closed Caption shows. The captioned programs are usually noted in the TV listings with service marks such as ‘CC’.

& Select Captions service. é Press the cursor right. “ Select the desired Caption service:

• CC 1, 2, 3 or 4 Dialogue (and descriptions) for the action on the captioned TV program shows

on screen.

Usually

CC 1 is the most used. CC 2 may be used for alternate languages if they

are being transmitted.

• T 1, 2, 3 or 4

Often used for channel guide, schedules, bulletin board information for Closed

Captions programs, news, weather informations or stock market reports.

Not all Caption services are necessarily being used by a TV channel during the

transmission of a Closed Caption program.

‘ See Closed Caption in the TV, Features menu, see p. 16, to turn the Caption

service On or Off.

Note: This television provides display of television closed captioning conforming with the

EIA-608 standard and in accordance with Sections 15.119 of the FCC rules.

Digital caption service

This allows you to configure the way you choose to view the digital captioning. Select one of the digital service channels made available by the caption provider. There are 6 standard services. Service 1 is designated as the Primary Caption

Service. This service contains the verbatim, or near-verbatim captions for the primary language being spoken in the accompanying program audio.

Service 2 is designated as the Secondary Language Service. This service contains

captions in a secondary language which are translations of the captions in the primary Caption Service. The other service subchannels are not pre-assigned. It is up to the discretion of the individual caption provider to utilize the remaining service channels.

Digital caption options This allows you to modify how digital captions are displayed on your TV. Select from the following options to change the visual characteristics of your

TV’s digital captioning.

• Reset to default

Select this option to reset the digital caption options back to the captions

provider default settings.

Press the

OK button to confirm.

• Size

Select this option to select the size of caption display according to your own

preference.

Select

Default (Automatic), Small, Standard or Large and press the OK

button to confirm.

• Style

Select this option to select the font style of caption display according to your

own preference.

Select

Default, Monospaced serif, Serif, Monospaced sans serif, Sans

serif, Casual, Cursive or Small caps...

• Text

Select this option to select the text color or the opacity of the text box of

caption display according to your own preference.

Select a color and one of the opacity options.

• Background

Select this option to select the character background color or one of

the background opacity options of caption display according to your own preference.

Select a color and one of the opacity options.

EnglishFrançaiseEspañol

English_DFU_37131.indd 11 2006-03-29 6:30:52 PM

Note: Emergency Alert Signalling is not possible:

- when content browsing;

- with analogue video sources.

Notes:

- You always have the possibility to remove the message from the screen.

- The message display will overlap whatever menu element or other message is on the screen.

Important: If you have forgotten your PIN!

& Select Change PIN in the Menu preferences

menu and press the cursor right.

é Press the cursor right to enter the overriding

PIN code

0-7-1-1.

“ Press the cursor again and enter a new personal

4-digit PIN code. The previous code is erased and the new PIN-code is stored.

Menu preferences OSD

& Select OSD. é Press the cursor right to select Normal or Minimum.

Normal to activate the continuous display of the channel number (for max.

10 minutes) and extended display of TV channel and program information on screen. E.g. information on the main or auxiliary program, input signal quality of connected accessory devices, the display format, sound mode, availability of Closed Caption service, the audio language, the rating, sleeptimer setup.

Minimum to activate the display of reduced channel information. Note: When Closed Captions is switched on, continuous display of the channel

number and clock is not possible. Volume indication bar will not be visible.

Show emergency alerts (EAS)

This allows you to select the alert priority level of the information

disseminated by the cable operator. The standard SCTE18 defines an Emergency Alert signalling method for use by cable TV systems to signal emergencies to digital devices such as digital set-top boxes, digital TVs and digital VCRs.

The Emergency alert signalling scheme defined in the standard allows a

cable operator to disseminate emergency alert information related to state and local-level emergencies and warnings in a cost-effective and efficient way, while minimizing disruption of programming.

An Emergency alert message will have one of the following priorities:

Low,

Medium, High or Maximum.

The Emergency alert message with priority

High or Maximum will always

be presented.

Low or Medium will be present or ignored depending on

the selected setting.

Important: When the TV clock is undefined (See Setup menu, Clock, p. 13), the

Emergency Alerts will be ignored.

The Emergency Alert message display will contain following information:

- The Emergency Alert text

- The start time + date

- The end time + date.

& Select Show Emergency Alerts in the Menu preferences menu. é Press the cursor right and select one of the Emergency alerts options:

- Always, when you always want the Emergency alert messages to be displayed when available;

- Skip low priority, when you want the messages with low level to be ignored;

- Skip low/medium priority, when you only want the messages with high priority to be displayed.

Set/Change PIN

& Select Set or Change PIN with the cursor down. é If no PIN-code exists yet, the menu item is set to Set PIN. Follow the

instructions on screen.

If a PIN-code has previously been entered, the menu item is set to

Change

PIN. Follow the instructions on screen.

All number combinations from 0000 to 9999 are valid numbers.

“ The Menu preferences menu reappears with a message confirming that

the PIN has been created.

Reset AV settings

This function allows you to reset most of the picture and sound settings to their predefined factory states.

& Select Reset AV settings with the cursor down. é Press the cursor right. “ Press the OK button to erase settings and reset them to their default

values.

English

Française Español

English_DFU_37131.indd 12 2006-03-29 6:30:52 PM

Source

This menu allows you to name/label the accessory devices you have connected to the external inputs/outputs.

& Select Source in the Setup menu. é Press the cursor right to enter the list of types of devices connected to the selected

input.

“ Select the accessory device with the cursor up/down.

When you select

AV1, AV2, AV3, HDMI, Side or Analog Audio In, a list appears

allowing you to identify which type of accessory device is attached to this input. The TV detects the presence of the connected device and the signal is routed appropriately.

The TV can output Digital audio via the

DIGITAL AUDIO OUT(SPDIF OUT)

connector to an external amplifier or receiver.

If your amplifier or receiver has a matching connector for Digital Audio In, you can

connect it with a single cable to the TV’s

DIGITAL AUDIO OUT(SPDIF OUT).

See Connect Accessory Devices, Digital Surround Receiver, p. 23.

Clock

This allows you to use your TV as a clock.

Note:

- Adjusting the clock is necessary for the correct working of Lock after (See TV settings, Channels, p. 17) features.

- Closed captioning will not be displayed when the clock is being displayed. Press the clock key again to switch off the clock if you want to see closed caption.

Auto clock mode

& Select Clock in the Setup menu. é Press the cursor right to select the Auto clock mode. “ Press the cursor right to instruct the TV to get the time automatically or manually.

Auto clock channel

(only available when Auto clock mode is set to Automatic)

With the cursor buttons, select the channel number where time can be found by the

TV. Typically time can be found on PBS as well as some other channels.

Note: If Manual has been selected in the Auto clock mode, the Auto clock channel menu

item can not be selected.

Time - Day

(only available when Auto clock mode is set to Manual)

With the cursor buttons, select and enter the correct time and day.

If Auto clock mode Manual has been selected, and no clock search has been done, the system will keep the entered time and day.

Time zone

(only available when Auto clock mode is set to Automatic)

This function allows you to select your local time zone. Broadcasted time

information will correct the clock display for your local time.

& Select Time zone with the cursor down. é Press the cursor right to select your local time zone.

Daylight saving

(only available when Auto clock mode is set to Automatic)

Daylight saving time is automatically set by specially broadcasted signals. This menu

item allows you to disable the automatic setting of daylight saving time. This is useful if you live in an area or state where daylight saving is not applied, but you receive channels from other areas where daylight saving signals are broadcasted.

& Select Daylight saving with the cursor down. é Press the cursor right to select Automatic for automatic clock correction for

daylight saving time, based on specially broadcasted signals.

“ Select Off to disable automatic clock correction based on the specially broadcasted

signals.

Most of the TV channels do not transmit clock information. There are a few cable channels who do but they are at the end of the channel ring. There is no clock transmission in antenna channels. In such cases, either clock extraction takes a long time, or there is no clock.

EnglishFrançaiseEspañol

English_DFU_37131.indd 13 2006-03-29 6:30:52 PM

Press the MENU button on the remote control to summon the Settings menu. The TV menu gives you an overview of the menus you can select.

Note: Depending on the input signal, one or more menu items may not be selectable.

Picture menu

Note: Some menu items are not available in case of HD sources.

& Press the cursor right to select Picture. é Press the cursor right again to enter the Picture menu. “ Select the menu items with the cursor up/down. ‘ Adjust the settings with the cursor left/right or enter the list of submenu items

with the cursor right. Select a submenu item with the cursor up/down.

Auto picture

Select

Auto picture to display a list of predefined picture settings, each

corresponding with specific factory settings.

Personal refers to the personal preference settings of picture in the picture

menu.

Note: This Magnavox TV has been set at the factory to look best in bright store

environments which typically use fluorescent lighting. As your home will likely not be as well lit as a store, we recommend that you cycle through the various auto picture modes to find the one that best suits your own viewing conditions. Most consumers will find that

Natural is the correct choice.

Contrast

This will adjust the intensity of bright parts in the picture but keep the dark

parts unchanged.

Brightness

This will adjust the light output of the complete picture, which will mainly affect

the darker areas of the picture.

Color

This will adjust the saturation level of the colors to suit your personal

preference.

Sharpness

This will adjust the sharpness of fine details in the picture.

Color temperature

This will increase or decrease Warm (red) and Cool (blue) colors to suit

personal preferences.

Select

Cool to give the white colors a blue, Normal to give the white colors a

neutral, Warm to give the white colors a red tint.

TV menu

English

Française Español

English_DFU_37131.indd 14 2006-03-29 6:30:53 PM

Tint

Allows you to select the color mix (hue) of the picture.

Picture format

This menu item performs the same as the

FORMAT button on the remote

control. See Use of the remote control, p. 6.

Sound menu

& Select Sound in the TV Settings menu. é Press the cursor right to enter the sound menu. “ Select the menu items with the cursor up/down and adjust the settings with the

cursor left/right. Remember, control settings are at normal mid-range levels when the bar scale is entered.

Auto sound

Select

Auto sound to display a list of predefined sound settings, each

corresponding with specific factory settings of Treble and Bass.

& Press the cursor right to enter the list. é Press the cursor up/down to select a predefined sound setting.

Personal refers to the personal preference settings of sound in the sound menu. Note: The moment you are in a predefined Auto sound setting and you modify a setting

in the Sound menu, all values of the menu will overwrite the previously made personal setting.

Volume

This will adjust the sound output level.

Balance

This will adjust the output of the right and left speakers to obtain the best

stereo reproduction for your listening position.

EnglishFrançaiseEspañol

English_DFU_37131.indd 15 2006-03-29 6:30:53 PM

Manufactured under license from Dolby Laboratories. ‘Dolby’ and the double-D symbol are trademarks of Dolby Laboratories.

Headphone volume

This controls the level of sound through the headphones.

Sound mode

This selects the modes for stereo or surround sound reproduction dependent on

the broadcast signals or signals from external inputs received.

Alternate audio (only selectable with analog broadcast signals) This gives you the possibility to swap between the Main and Second audio

Program (SAP) when it is available.

Digital Audio language

(only selectable with digital broadcast signals)

This allows you to select your language preference in case of multilingual audio

track programs if available with digital broadcast signal.

Note: The default language for the digital channels is the installed menu language.

Mono/Stereo

This selects, per TV channel, Mono or Stereo sound when analog stereo

broadcasts are available.

AVL (Automatic Volume Leveler) (only available with analog broadcast and nonDigital signals)

This automatically reduces the volume differences between channels and

programs, providing a more constant overall level. This will also reduce the dynamics of sound.

Delta volume

This allows you to correct for any permanent volume differences between TV

channels or external sources.

Features menu

& Select Features in the TV Settings menu. é Press the cursor right to enter the features menu. “ Select the menu items with the cursor up/down and adjust the settings with the

cursor left/right.

Closed captions

This displays the transmitted CC- or CS-text on the screen according to your

chosen CC or CS service in the Setup, Features preferences menu, p. 10. This text can either be permanently displayed (assuming that the service is available in the broadcast) or only when mute is active.

& Press the cursor right after having selected Closed captions. é Select On, Off or On during mute.

Sleeptimer

This sets a time period after which the TV automatically turns to standby.

& Select Sleeptimer. é Press the cursor right. “ Select a value with the cursor up/down. The list will have values from 0 to 180

minutes.

When 0 is selected, the sleeptimer is turned off.

You can always turn off your TV earlier or select another time set.

English

Française Español

English_DFU_37131.indd 16 2006-03-29 6:30:54 PM

Channels menu

This menu can control special functions for the TV channels.

& Select Channels in the TV settings menu with the cursor up/down. é Press the cursor right to enter the channels menu. “ Press the cursor up/down to select a channels menu item.

Lock after

Note: Lock after is only selectable if time is known. See Setup, Clock menu, p. 13. This allows you to prevent the viewing of the channels after a selectable time

delay. Locked channels can still be tuned, but the picture is blanked and the audio is muted.

& Press the cursor right and select Timer On or Off.

When set to

On this allows you to set the clock.

When having selected

Timer On, you will be summoned to enter your PIN

(See below). Follow the instructions on screen.

Set/Change PIN

& Select Set or Change PIN with the cursor down. é If no PIN-code exists yet, the menu item is set to Set PIN. Follow the

instructions on screen.

If a PIN-code has previously been entered, the menu item is set to

Change PIN. Follow the instructions on screen.

All number combinations from 0000 to 9999 are valid numbers.

“ The Menu preferences menu reappears with a message confirming that

the PIN has been created.

é Select Time and press the cursor right. This allows you to set the time after

which the lock is set.

“ Select AM or PM to select the correct period of the day. ‘ Enter the time with the digit or the cursor buttons and press OK to confirm.

Channel lock

This allows you to completely lock a certain TV channel or external source. Select the channels or subchannels you want to lock and press

OK to confirm.

TV ratings lock

Your TV is equipped with a V-chip. This allows you to control access to

individual programs based on their movie and TV ratings. All settings apply to all AV inputs, except HDMI. The program content advisory data are sent by the broadcaster or program provider.

& Select TV ratings lock with the cursor down. é Press the cursor right to enter the list. You are asked to enter your code. (See

below). If the code is correct, a list appears, showing the age-based TV ratings and a corresponding content-based ratings list.

Set/Change PIN

& Select Set or Change PIN with the cursor down. é If no PIN-code exists yet, the menu item is set to Set PIN. Follow the

instructions on screen.

If a PIN-code has previously been entered, the menu item is set to

Change PIN. Follow the instructions on screen.

All number combinations from 0000 to 9999 are valid numbers.

“ The Menu preferences menu reappears with a message confirming that

the PIN has been created.

“ Select an age-based TV rating with the cursor up/down, and enter, if present,

the list with content-based ratings with the cursor right, and select one contentbased rating.

‘ Press OK to activate/de-activate the selected rating. ( Select another content-based rating if you like and press OK again.

You need only enter your PIN-code once while the menu is active. You can lock/unlock any number of ratings on the list without re-entering your code.

Each ratings item has a box-graphic in front of it to indicate whether or not programs carrying that rating are currently locked:

• box with a 'X': all items in the contents-based list are locked as well;

• empty box: the item is unselected;

• box with a '/': some content-based ratings are selected/unselected.

EnglishFrançaiseEspañol

English_DFU_37131.indd 17 2006-03-29 6:30:54 PM

TV-Y

appropriate for children of all ages with themes and elements suitable for

children aged 2-6

TV-Y7

programs designed for children age 7 and older

TV-Y7-FV

programs include fantasy violence more intense than other programs in the

TV-Y7 category

TV-G

programs suitable for all ages. These programs contain little or no violence, no

strong language and little or no sexual dialogue or situations

TV-PG

programs contain elements that some parents may find unsuitable for younger children and which may need parental guidance. The program may contain moderate violence, sexual dialogue and/or situations and some strong language.

TV-14

programs contain elements that may not be suitable for children under 14 years of age. These programs include one or more of the following: intense violence, intense sexual situations, suggestive dialogue and strong language.

TV-MA

programs are designed to be viewed by adults and may be unsuitable for children under the age of 17. These programs may contain graphic violence, explicit sexual activity and/or crude or indecent language.

Movie Ratings Lock

This function allows you to control access to individual movies based on their MPAA ratings (Motion Picture Association of America).

& Select Movie ratings lock with the cursor down. é Press the cursor right to enter the list. You are asked to enter your code. (See

below). If the code is correct, a list appears, showing all valid MPAA content ratings.

Set/Change PIN

& Select Set or Change PIN with the cursor down. é If no PIN-code exists yet, the menu item is set to Set PIN. Follow the

instructions on screen.

If a PIN-code has previously been entered, the menu item is set to

Change PIN. Follow the instructions on screen.

All number combinations from 0000 to 9999 are valid numbers.

“ The Menu preferences menu reappears with a message confirming that

the PIN has been created.

“ Select a movie rating with the cursor up/down. ‘ Press OK to activate/de-activate the selected rating.

Each rating item has a box-graphic in front of it to indicate whether or not programs carrying that rating are currently locked:

• box with a 'X': movies with this rating are locked;

• empty box: movies with this rating are unlocked.

When All has been selected, all items on the movie ratings list become selected. (All movies are locked.) If, while

All is selected, any other item is unselected, then All is automatically

unselected. When NR has been selected, no other item is selected.

When any other item has been selected, all ratings below are selected as well, thus all movies with those ratings will be locked.

NR not rated G movies with a mild content, suitable for all ages PG movies for which parental guidance is

recommended. They may contain a few racy or violent scenes or maybe some bad language

PG-13 movies for which parental guidance may be

recommended if under age 13

R restricted. The movies usually contain offensive

sex or bad language and may be unsuitable for children under the age of 17. Parental guidance or permission needed.

NC-17 even with parental permission, forbidden

under age 17. More offensive sex, violence or bad language.

X movies which generally focus on sex,

violence and/or bad language. Also known as pornography.

Age-based Rating Content-based Rating

All none None none TV-Y none TV-Y7 (FV) Fantasy Violence TV-G none TV-PG (D) Dialog (L) Language (S) Sex (V) Violence TV-14 (D) Dialog (L) Language (S) Sex (V) Violence TV-MA (L) Language (S) Sex (V) Violence

When All has been selected, all items in the age-based and in the contents-based lists are locked. If, while

All is selected, any other item, either an age-based or content-based item,

is unselected, then All is automatically unselected.

None is the selection for items that either have no rating information or have a

rating of None. Both will be locked. When an item on the age-based list is selected, all items below that item of the same group are locked as well. When you select a content-based rating, all identical content-based ratings in the younger age-based categories are also selected.

English

Française Español

English_DFU_37131.indd 18 2006-03-29 6:30:54 PM

Region ratings lock

This function allows you to control access to digital programs based on

downloaded Region Ratings.

& Select Region ratings lock with the cursor down. é Press the cursor right to enter the list. You are asked to enter your code. (See

below). If the code is correct, a list appears, showing the Region ratings and a corresponding content-based ratings list.

Set/Change PIN

& Select Set or Change PIN with the cursor down. é If no PIN-code exists yet, the menu item is set to Set PIN. Follow the

instructions on screen.

If a PIN-code has previously been entered, the menu item is set to

Change PIN. Follow the instructions on screen.

All number combinations from 0000 to 9999 are valid numbers.

“ The Menu preferences menu reappears with a message confirming that

the PIN has been created.

“ Select a Region rating with the cursor up/down, and enter, if present, the list

with content-based ratings with the cursor right, and select one content-based rating.

‘ Press OK to activate/de-activate the selected rating. ( Select another content-based rating if you like and press OK again.

You need only enter your PIN-code once while the menu is active. You can lock/unlock any number of ratings on the list without re-entering your code.

Each ratings item has a box-graphic in front of it to indicate whether or not programs carrying that rating are currently locked:

• box with a 'X': all items in the contents-based list are locked as well;

• empty box: the item is unselected;

• box with a '/': some content-based ratings are selected/unselected.

Preferred channels

A channel, when installed, is marked as preferred by default and added to the channel list. This feature provides the ability to remove a channel number from the channel list.

& Select Preferred channels with the cursor down. é Press the cursor right to enter a list with all stored channel numbers. “ Select the channel you want to remove with the cursor down. ‘ Press OK. ( Repeat to remove other channels.

Clear region ratings

This function allows you to clear all the Region Ratings settings.

& Select Clear region ratings with the cursor down. é Press the cursor right to enter the list. You are asked to enter your code. (See

below).

Set/Change PIN

& Select Set or Change PIN with the cursor down. é If no PIN-code exists yet, the menu item is set to Set PIN. Follow the

instructions on screen.

If a PIN-code has previously been entered, the menu item is set to

Change PIN. Follow the instructions on screen.

All number combinations from 0000 to 9999 are valid numbers.

“ The Menu preferences menu reappears with a message confirming that

the PIN has been created.

“ Select Start now. ‘ Press OK to activate.

Note:

- The above 2 features (Region ratings lock and Clear region ratings) will be available only in sets manufactured after the cut-off timeline, specified by the FCC mandate.

EnglishFrançaiseEspañol

English_DFU_37131.indd 19 2006-03-29 6:30:55 PM

There is a wide range of audio and video devices that can be connected to your TV. The following connection diagrams show you how to

connect them to the TV.

AV1 and AV2 can handle YPbPr or VIDEO and L/R Audio, AV3 VIDEO or S-VIDEO and L/R Audio and Digital Audio Out (SPDIF OUT),

Side VIDEO or S-VIDEO and L/R Audio.

Connect Accessory Devices

RECORDER

OUTIN

OUT

AV1 :

L + R + VIDE

CABLE

AUDIO IN

VIDEO IN

Recorder (VCR / DVD+RW)

Note: Do not place your recorder too close to the screen as some recorders may be susceptible for signals from the display. Keep a minimum distance of 20” from the screen.

& Connect the RF Antenna or Cable TV cable (eventually via an optional two-way

signal splitter and/or Cable TV converter box)

1 to the RF IN socket of your

recorder.

é Connect another RF cable 2 from the output OUT of your recorder to the

TV’s CABLE/ANTENNA 75 Ω x jack.

“ Better playback quality can be obtained if you also connect the Video, Audio Left

and Right (only for stereo devices) AV cables

3 to the VIDEO, AUDIO L and

R input jacks of AV1.

If your recorder has an S-VHS video jack:

For improved picture quality, connect an S-video cable to the

S-VIDEO input of

AV3 instead of connecting the recorder to the

VIDEO jack of AV1.

S-Video does not provide audio, so audio cables must still be connected to Audio L and R of AV3 to provide sound.

RECORDER

OUTIN

CABLE

OUTIN

OUT

AV1 :

L + R + VIDEO

AV2 :

L + R + VIDE

AUDIO IN

VIDEO IN

AUDIO IN

VIDEO IN

& Connect the RF antenna cable 1 of the RF IN socket of your other AV device. é Connect the RF output of the AV device to the RF input of the recorder 2. “ Connect another RF cable 4 from the output OUT of your recorder to the

TV’s input

CABLE/ANTENNA 75 Ω x jack.

‘ To obtain better quality, also connect the Video, Audio left and Audio right cables

of both devices to

AV1 (VIDEO and

AUDIO L and R,) 5 and to AV2 (VIDEO and AUDIO L and R) 3.

Notes:

- In case of mono equipment, only the left loudspeaker reproduces sound. Use a mono to stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.

- When using the

S-VIDEO connector do not connect any device to the AV3 VIDEO input.

Recorder and other A/V devices

VIDEO IN

AUDIO IN

VIDEO IN

AUDIO IN

VIDEO IN

SPDIF OUT

English

Française Español

English_DFU_37131.indd 20 2006-03-29 6:30:57 PM

CABLE

Set-Top Box

RECORDER

OUT

SIGNAL

SPLITTER

OUT

AV1 :

L + R + VIDEO

AUDIO IN

VIDEO IN

Recorder and cable box with RF output

& Use an optional signal splitter. é Connect one of the cable TV signal splitter outputs 1 to the cable

box’s IN jack.

“ Connect the other cable TV signal splitter output 2 to the

CABLE/ANTENNA 75 Ω x plug on the bottom of the TV.

‘ Connect the cable box’s OUT jack 3 to the recorders RF IN

socket.

( Connect the Video, Audio Left and Right (only for stereo sound)

recorder AV cables

4 to the VIDEO, audio L and R input AV1

jacks on the TV.

Set-Top Box

CABL E

OUT

AV1 :

L + R + V IDE

AUDIO IN

VIDEO IN

& Connect the satellite antenna cable or the Cable TV cable 1 to

the satellite receiver’s or cable box’s

IN jack.

é Connect the Video, Audio left and right AV cables 2 to the

VIDEO, L and R audio input jacks of AV1.

If your satellite receiver or cable box has an S-Video jack:

For improved picture quality, connect an S-Video cable to the

S-

VIDEO input instead of connecting the satellite receiver or cable

box to the

VIDEO jack.

Connect the audio cables to the device’s

AUDIO L and R jacks and

to the

L and R audio AV3 jacks on the TV.

Satellite Receiver / cable box with AV outputs

RECORDER

OUTIN

OUT

Set-Top Box

OUT

AV1 :

L + R + VIDE

AUDIO IN

VIDEO IN

& Connect the RF Antenna or Cable TV cable as described above. é Connect the AV cables 1 to the satellite receiver’s or cable box’s

AV OUT jacks and to the recorder’s AV IN jacks.

“ Connect the recorder’s AV OUT jacks 2 to the TV’s AV1 jacks

as described above.

‘ Connect another RF cable 3 from the output out of your

recorder to the TV’s input

CABLE/ANTENNA x jack.

Recorder and Satellite Receiver / cable box with AV outputs

EnglishFrançaiseEspañol

English_DFU_37131.indd 21 2006-03-29 6:30:59 PM

VIDEO IN

SPDIF OUT

AV3

AUDIO IN

VIDEO IN

AV2

AUDIO IN

VIDEO IN

DVD / Set-Top Box

SPDIF

OUT

AV2 :

YPbPr + L + R

DVD / Set-Top Box

AV1 :

YPbPr + L +

AUDIO IN

VIDEO IN

DVD / Set-Top Box

AV3 :

L + R

S-VIDEO

VIDEO IN

SPDIF OU

YPbPr

RGB

S-VIDEO

DVD Player or other accessory digital source devices

Devices with Component Video Output Connectors (YPbPr)

This TV is capable of displaying 1080i, 720p and 480p DTV signals when

connected to a DTV tuner Set Top Box. Select the output of the Set Top Box to either 1080i, 720p or 480p. A DTV signal must be available in your area.

& Connect the three separate component video cables 1 to the device

having component video outputs (YPbPr), such as Set Top Boxes, DVDplayers, laser-disc players, videogame players, satellite receivers or other equipment, and to the

Y, Pb and Pr jacks of AV2 on the TV.

é In case of a device with digital audio, connect the audio cable 2 to the

DIGITAL AUDIO IN of the device and to the DIGITAL AUDIO OUT(SPDIF OUT) of the TV.

In case of a device with analog audio, connect the audio cable to the device’s AUDIO L and R 3 jacks and the L and R audio jacks of AV2.

Devices with RGB output

& Connect the device with RGB output to the Pr/R Pb/B Y/G input 1 jacks. é Connect the audio cables to the L and R AUDIO jacks of AV1 1.

Devices with an S-Video connector

& Connect an S-Video cable to the AV3 S-VIDEO input 1.

Note: When using the S-VIDEO connector do not connect any device to the AV

VIDEO input that you are using.

é Connect the audio cables to the device’s AUDIO L and R jacks and to

the L and R audio AV3 jacks 2 on the TV accordingly to where you connected the S-Video cable.

Notes

- If necessary, you can adjust the picture position to the center of the screen with the cursor keys.

- The labels for the component video sockets may differ depending on the DVD player or the device connected. Although the abbreviations may vary, the letters B and R stand for the blue and red component signals, respectively, and Y indicates the luminance signal. Refer to the DVD player’s or devices instructions for use for definitions and connection details.

- This television is designed to accept high definition signal standards 720p and 1080i as specified by the Electronic Industries Association standard EIA770.3.

Digital devices from different manufacturers have the possibility of differing output

standards which may cause difficulties for the television to display properly.

- Due to possible digital image distortion when displaying signals from connected digital equipment, automatically the Auto picture setting

Soft is selected. See Picture

menu, Auto picture, p. 14.

Changing this setting during reviewing will not be stored as

Personal setting after

switch off.

Warning: in case you notice scrolling images, wrong colors or no color, no picture, or

even combinations of these on your screen, check if the connections are done in the correct way or move your digital device further away from your TV.

English

Française Español

English_DFU_37131.indd 22 2006-03-29 6:31:02 PM

HDMI

DVI

AV1 :

L + R

AUDIO IN

VIDEO IN

AV1 :

L + R

AUDIO IN

VIDEO IN

SPDI F OUT

VIDEO IN

SPDIF OUT

AV3

AUDIO IN

VIDEO IN

Connect a Digital MultiChannel Surround receiver to the DIGITAL AUDIO OUT

(SPDIF OUT) connector at the bottom of the TV.

HDMI is the leading new standard for Digital video and audio interconnection. To the

HDMI connector you can connect HDMI devices

such as a Set Top Box or compatible DVD-R or DVD player with HDMI, or DVI-equipped devices like a computer. So you can display high-definition pictures on this TV in the digital form.

Note: If the accessory device has DVI output only, use a DVI to HDMI adapter cable to connect to the

HDMI connector. (Then also connect the audio cable

to L and R AUDIO jacks of AV1.) Go to menu => Setup => Source => Analog Audio In

=> and select HDMI.

& Connect your HDMI device with one of the HDMI connectors. é Select the connected digital device in the Setup, Source menu, p. 13.

The HDMI connectors allow the following TV and monitor display modes:

HD Standard Definition TV (SDTV) 640/720 x 480i

Enhanced Definition TV (EDTV) 640/720 x 480p High Definition TV (HDTV) 1920x1080i

1280x720p

PC VGA 640x480 60 Hz

SVGA 800x600 60 Hz XGA 1280x768 60 Hz

Notes:

- If necessary, you can adjust the picture position to the center of the screen with the cursor keys.

- Due to legal requirements, it is possible that with certain copy protected PCM audio qualities from a device connected to the

HDMI input, the DIGITAL AUDIO

OUTPUT(SPDIF OUT) signal is muted.

- Your TV supports HDCP (High-bandwidth Digital Content Protection). This is a system for protecting DVD content outputted via DVI from being copied. It provides a secure digital link between a video source (DVD, PC, etc.) and your TV. Content is encrypted at the source device to prevent unauthorized copies from being made.

- Proper working is only guaranteed with HDMI compliant consumer products.

- Digital devices from different manufacturers have the possibility of differing output standards which may cause difficulties for the television to display properly.

- In case no signal is detected from your HDMI device, turn off the HDMI device and then on again.

To get an optimal viewing, it is advised to turn your DVD player to one of

the following TV display standards: 1920x1080i, 1280x720p, 720x480i or 720x480p.

Digital Surround receiver

HDMI (High Definition Multimedia Interface) connectors

EnglishFrançaiseEspañol

English_DFU_37131.indd 23 2006-03-29 6:31:03 PM

Camera, Camcorder, Game

& Connect your camera, camcorder or game as shown. é Connect to VIDEO 2 and AUDIO L 3 for mono equipment. For

stereo equipment also connect

AUDIO R 3.

S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cables with the

S-VIDEO input 1 and AUDIO inputs 3.

Do not connect cable 1 and 2 at the same time. This may cause picture

distortion !

Headphone

& Insert the plug into the headphone socket L as shown. é Press the MUTE button on the remote control to switch off the internal

loudspeakers of the TV.

The headphone impedance must be between 8 and 4000 Ohm. The

headphone socket has a 3.5 mm jack.

In the Sound menu select

Headphone volume to adjust the headphone

volume.

Side connections

Record with your recorder

Record a TV program

You can record a TV program using your recorders tuner without affecting your TV.

& Select the channel number on your recorder. é Set your recorder to record.

See the handbook for your recorder. Switching channel numbers on your TV does not disturb recording !

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio or television technician for help.

Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Philips Consumer Electronics may void the user’s authority to operate the equipment.

Cables Connections to this device must be made with shielded cables with metallic RFI/EMI connector hoods to maintain compliance with FCC Rules and Regulations.

Canadian notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Avis Canadien Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

Regulatory Notices - Federal Communications Commission Notice

& Press the AV+ button repeatedly or select Source in the Settings menu

(see p. 13) to select

AV1, AV2, AV3, HDMI, Side or TV, according to

where you connected your devices.

é Press the cursor up/down. “ Press OK.

To select connected devices

English

Française Español

English_DFU_37131.indd 24 2006-03-29 6:31:04 PM

Troubleshooting Tips

Symptoms Possible Causes What you should do

No display on screen

• Faulty power supply • Check whether power cord is properly connected into the mains socket. If there

• TV’s Power not turned is still no power, disconnect plug. Wait for 60 seconds and re-insert plug. Turn on on TV again.

• Press the POWER key on the TV and wait for 10-15sec.

• TV go to standby after • Press the POWER key on the remote control. 10min without video.

• Faulty aerial and cable • Check whether euroconnector cables or aerial sockets are properly connected.

• Wrong source selected. • Check whether the source is correctly selected. Press

AV+ button to enter

Source list and select the correct source.

Poor reception • Faulty antenna connection • Faulty antenna connection (snowish picture and • Weak transmission noise • Wrong TV system • Have you chosen the right TV system? (refer to page 5).

Reddish picture in

•

Wrong setting of DVD

• Set the DVD player to the correct output video format

AV1/2/3 player

No sound

• Zero volume level • Try increasing volume. (You will not see the volume indication if OSD set to minimum)

• Sound muted • Check that the sound is not muted.

• Aim remote control directly at sensor on front of TV.

•

Wrong audio selection

• Go to menu => Setup => Source => Analog Audio In => select AV1

Sound interference • Electrical appliances • Try turning off any electrical appliances, for example, hairdryer, vacuum cleaner

interference that are in use.

Interference lines • Wrong detection of • Check whether power cord is properly connected seen on S-Video

signal • Press the CH/PAGE +/– key on the remote control and do a channel up

followed by a channel down.

• Make sure no composite video are connected on the same AV input.

Intermittent or • * HDCP (see glossary) • Noise is displayed if the connected digital equipment’s (DVD player or set-up flickering picture on authentication failed box) *HDCP authentication failed. Check user manual for the digital equipment in HDMI you are connecting.

• Use a HDMI compliant cable.

• Try unplugging the HDMI cable and replugging it back.

Black bar on top and • PC refresh rate too high • Change PC refresh rate to 60 Hz.

bottom of screen in PC mode

Picture position

•

Slight differences in output

• When displaying a High Definition signal from the YPbPr inputs or HDMI input, if

adjustment

signals from different brands

necessary, you can adjust the picture position to the center of the screen with the

and types of HD sources cursor left/right or up/down buttons on the remote control.

Occasional appearance

• Characteristic of liquid • This symptom is not a problem. The liquid crystal panel is built with very high and

black spots on the crystal panel precision technology giving you the fine picture details. Occasionally, a few screen (LCD TV only)

non-active pixels may appear on the screen as a fixed point of red, blue, green or

black. Note that this does not affect the performance of the set.

PC modes do not • Wrong connections • Check whether connections are correct. work • Wrong source selected. • Check whether the source is correctly selected. Press AV+ button to enter

Source list and select the correct source.

• Wrong display resolution • Check whether you have configured the computer on a compatible display resolution.

TV not responding

• Check if the remote control is in TV mode.

to Remote control • Check if the green led blink when using remote control.

•

Wrong polarity of batteries • Check polarity of the batteries.

• Flat batteries. • Try changing the batteries.

Your TV is equipped with a Kensington Security Slot, to prevent it from getting stolen. An anti-theft Kensington lock has to be purchased separately. The Kensington lock is a plastic-coated steel cable with a lock. One end has to be fixed to the opening of the TV and locked with a special key. The other end is attached to a fixed point.

® Kensington and MicroSaver are registered US trademarks of ACCO World Corporation with issued registrations and pending applications in other countries throughout the world. All other registered and unregistered trademarks are the property of their respective owners.

Kensington Security Slot (if present)

EnglishFrançaiseEspañol

English_DFU_37131.indd 25 2006-03-29 6:31:04 PM

Warning concerning stationary images on the TV screen (only for Plasma Displays)

A characteristic of Plasma Display Panels is that displaying the same image for a long time can cause a permanent after-image to remain on the screen. This is called phosphor burn in. Normal use of the TV should involve the showing of pictures that contain constantly moving and changing images that fill the screen.

Examples of stationary images (this is not an all-inclusive list, you may encounter others in your viewing):

• TV and DVD menus: listings of DVD disk content;

• Black bars: when black bars appear at the left and right side of the screen, it is recommended to change to a picture format so that the picture fills the entire screen;

• TV channel logo: present a problem if they are bright and stationary. Moving or low-contrast graphics are less likely to cause uneven aging of the screen;

• Stock market stickers: presented at the bottom of the TV screen;

• Shopping channel logos and pricing displays: bright and shown constantly or repeatedly in the same location on the TV screen.

Examples of still pictures also include logos, computer images, time display, teletext and images displayed in 4:3 mode, static images or

characters, etc.

Notes:

- reduce contrast and brightness when viewing

- once burn-in occurs it will never disappear completely.

If your problem is not solved

Turn your TV off and then on again once.

Never attempt to repair a defective TV yourself.

Check with your dealer or call a TV technician.

Telephone number Magnavox Customer

Care Center: 1-800-705-2000

Please, have the Model and Product number which you can find at the back of your television set ready, before calling.

Care of the screen

Do not touch, push or rub or strike the screen with anything hard as this may scratch, mar or damage the screen permanently. And please

do not rub with dust clothes with chemical treatment. Do not touch the surface with bare hands or greasy cloth (some cosmetics are detrimental to the screen). Unplug the TV before cleaning the screen. When the surface becomes dusty, please wipe gently with absorbent cotton or other soft materials like chamois soaks. Do not use acetone, toluene and alcohol because they cause chemical damage. Do not use liquid cleaners or aerosol cleaners. Wipe off saliva or water drops as soon as possible. Their long time contact with the screen causes deformations and color fading.

Plasma display characteristics

This Plasma display is designed to be used at altitudes up to 6562 ft above sea level (and/or local air pressure equal or above

800 hPa). Operating this set at higher altitude (lower air pressure) is possible. However, at high altitudes (or local air pressure equal or below 800 hPa) the picture on this display may become unstable and picture performance can deteriorate. In addition, the plasma display may produce a humming sound in these conditions.

These possible adverse effects relate to the altitude and are common of all plasma displays. Once the set is brought below aprox 6562 ft

(and/or local air pressure equal or above 800 hPa) its function will most likely return to normal.

Note: Transportation at high altitudes has no negative effect on the set or picture performance.

How to dispose of batteries?

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless in many areas batteries may not be disposed of

with your household waste. Please ensure you dispose of batteries according to local regulations.

Tips

Symptoms Possible Causes What you should do

Unable to understand

• Wrong language selected • Press the MENU key to exit menu from screen. Press the MENU key to enter

the language on accidently main menu. Use the cursor down to select the third item on the main menu. Use screen to operate set

the cursor right key to enter into the next menu level and the cursor up and

down key to select correct language. Press the

OK key confirm selection.

English

Française Español

English_DFU_37131.indd 26 2006-03-29 6:31:05 PM

Glossary

DVI (Digital Visual : A digital interface standard created by the Digital Display Working Group (DDWG) to convert analog signals into digital

Interface) signals to accommodate both analog and digital monitors.

VGA (Video : a common standard graphics display system for PCs. Graphics Array)

RGB signals : These are the three video signals, Red Green Blue, which make up the picture. Using these signals improves picture

quality.

S-VHS signals : These are 2 separate Y/C video signals from the S-VHS and Hi-8 recording standards. The luminance signals Y (black and

white) and chrominance signals C (colour) are recorded separately on the tape. This provides better picture quality than

with standard video (VHS and 8 mm) where the Y/C signals are combined to provide only one video signal.

NICAM sound : Process by which digital sound can be transmitted.

16:9 : Refers to the ratio between the length and height of the screen. Wide screen televisions have a ratio of 16/9,

conventional screen TV sets have a ratio of 4/3.

HDMI (High- : Provides an uncompressed, all digital audio/video interface between the TV and any HDMI-equipped audio/video Deﬁnition Multi- component, such as set-top box, DVD player and A/V receiver. HDMI supports enhanced or high-deﬁnition video plus media Interface)

two-channeldigital audio.

System : Television pictures are not broadcast in the same way in all countries. There are different standards: BG, DK, I, and LL’.

The System setting (p. 5) is used to select these different standards. This is not to be confused with PAL or SECAM

colour coding. PAL is used in most countries in Europe, Secam in France, Russia and most African countries. The United

States and Japan use a different system called NTSC. The inputs EXT1 and EXT2 are used to read NTSC coded

recordings.

HDCP (High- : A speciﬁcation developed by Intel for protecting digital entertainment that uses the DVI interface. HDCP encrypts bandwidth Digital- content the transmission of digital content between the video source or transmitter such as a computer, DVD player Content Protection) or set-top box and the digital display or receiver such as a monitor, television or projector.

EnglishFrançaiseEspañol

English_DFU_37131.indd 27 2006-03-29 6:31:05 PM

+ 72 hidden pages
